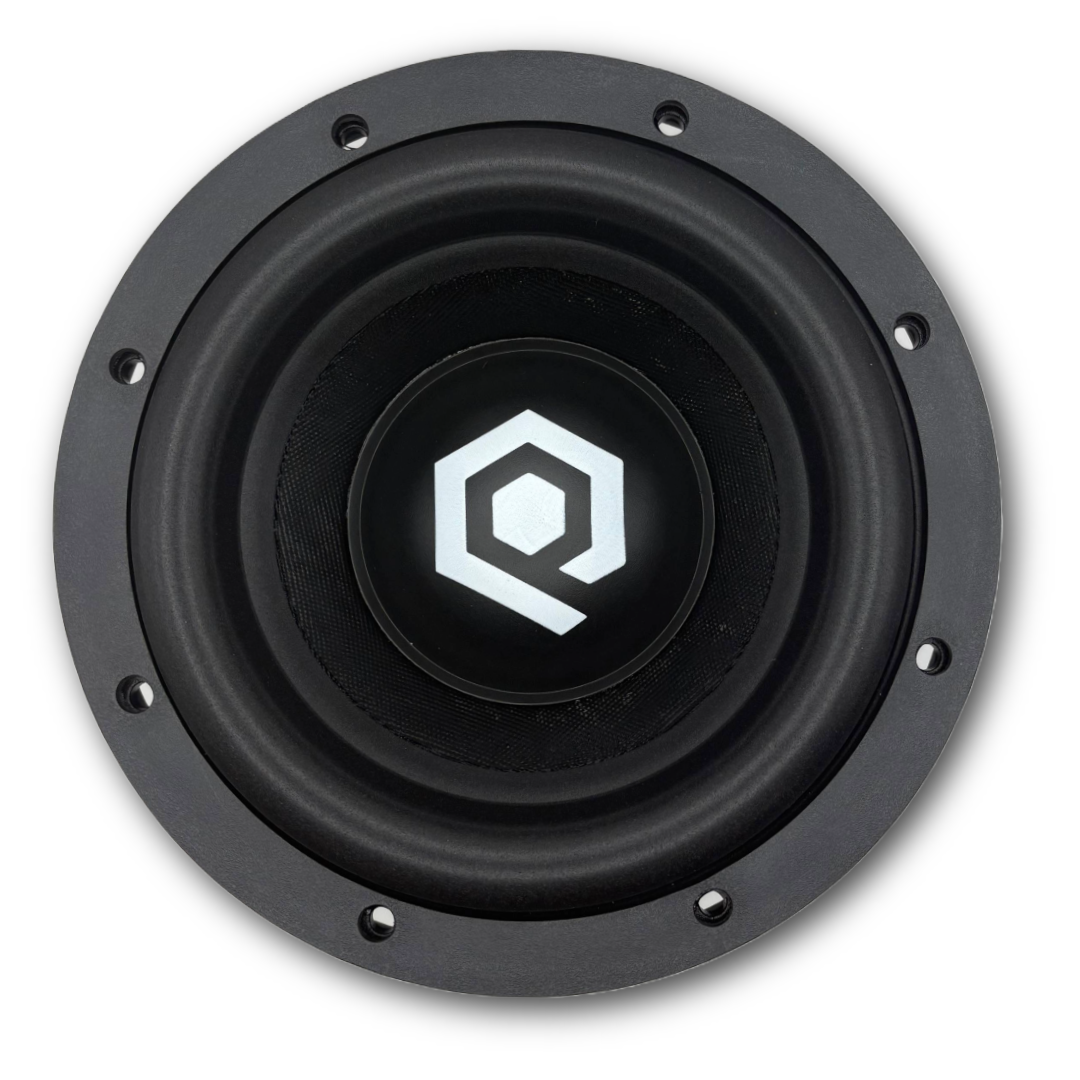

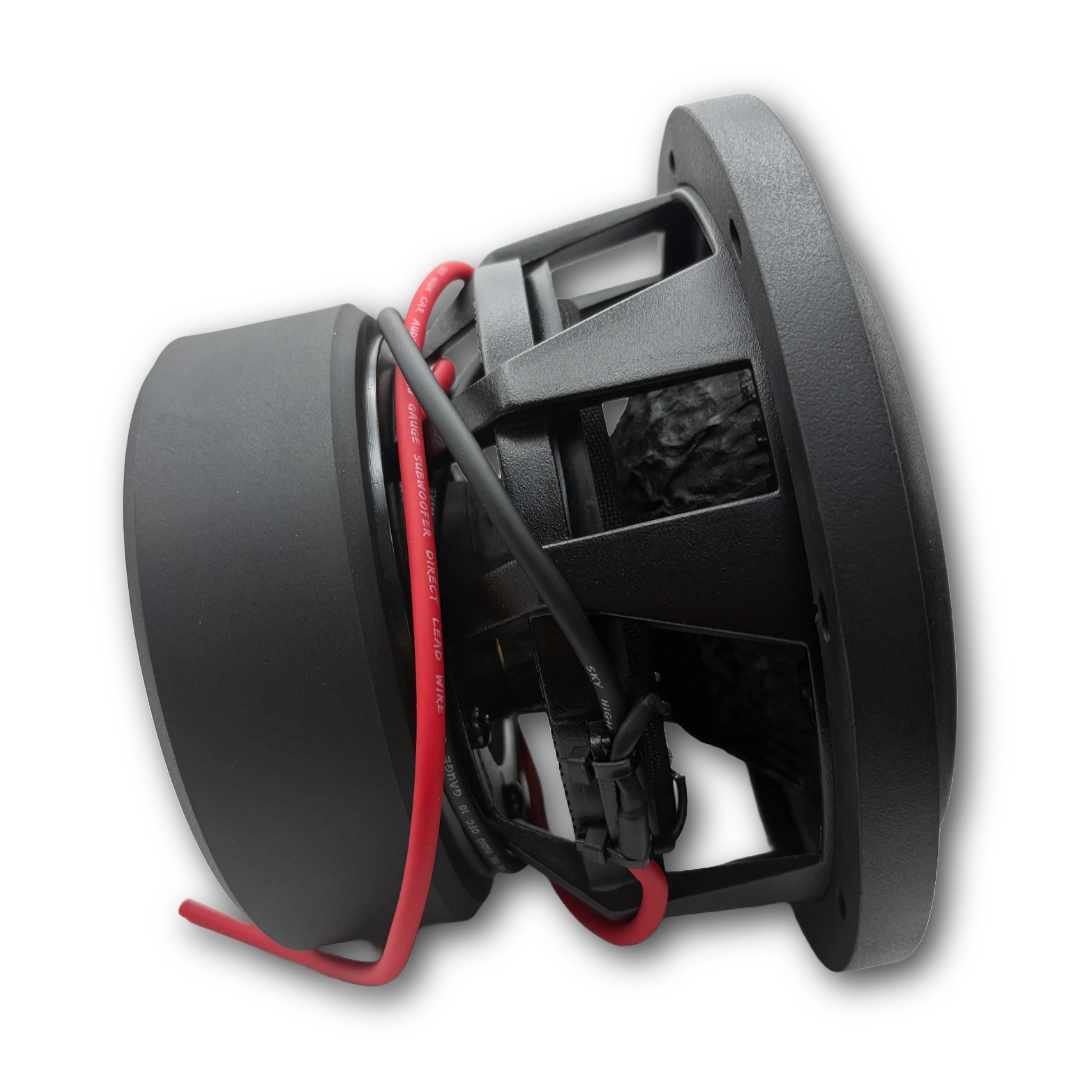

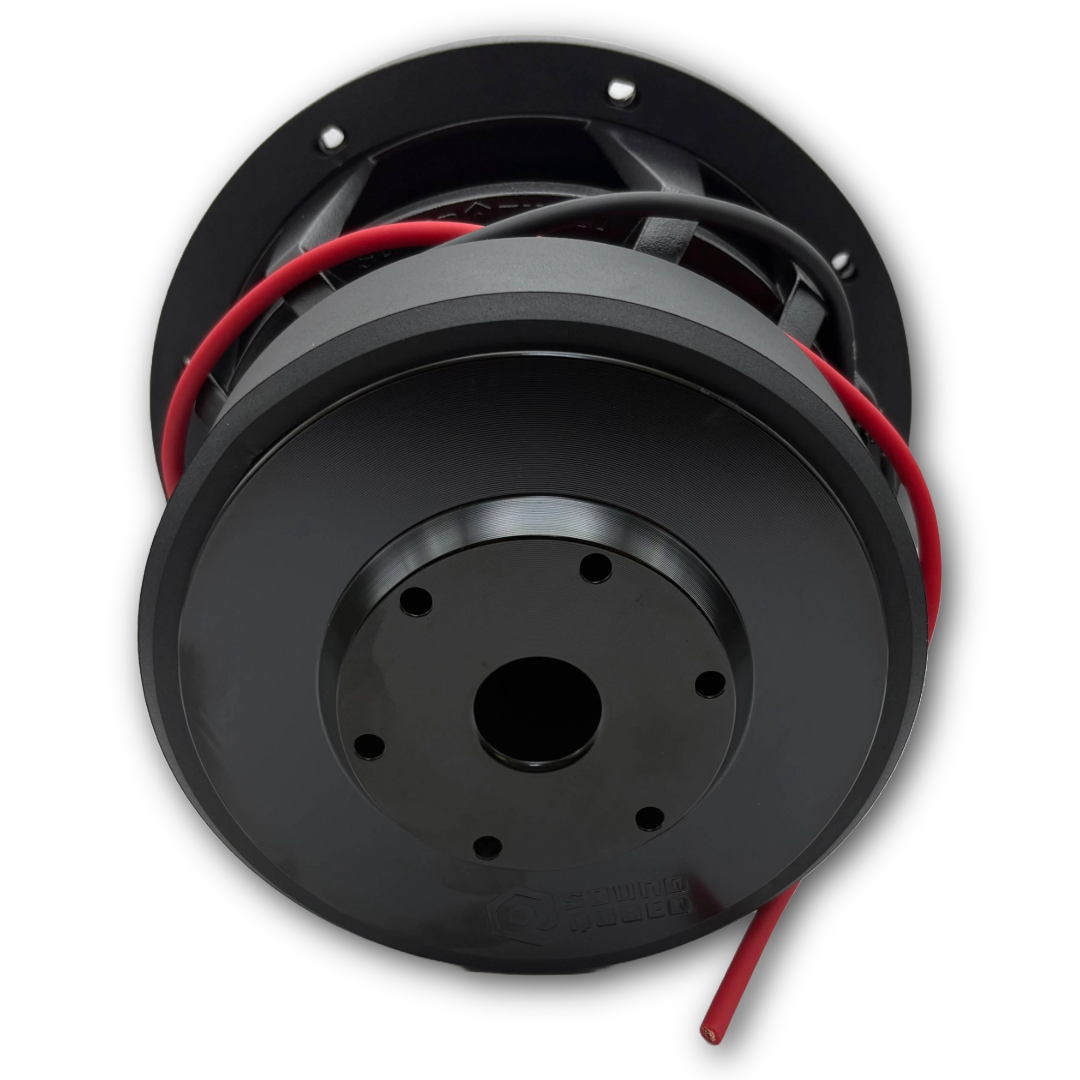

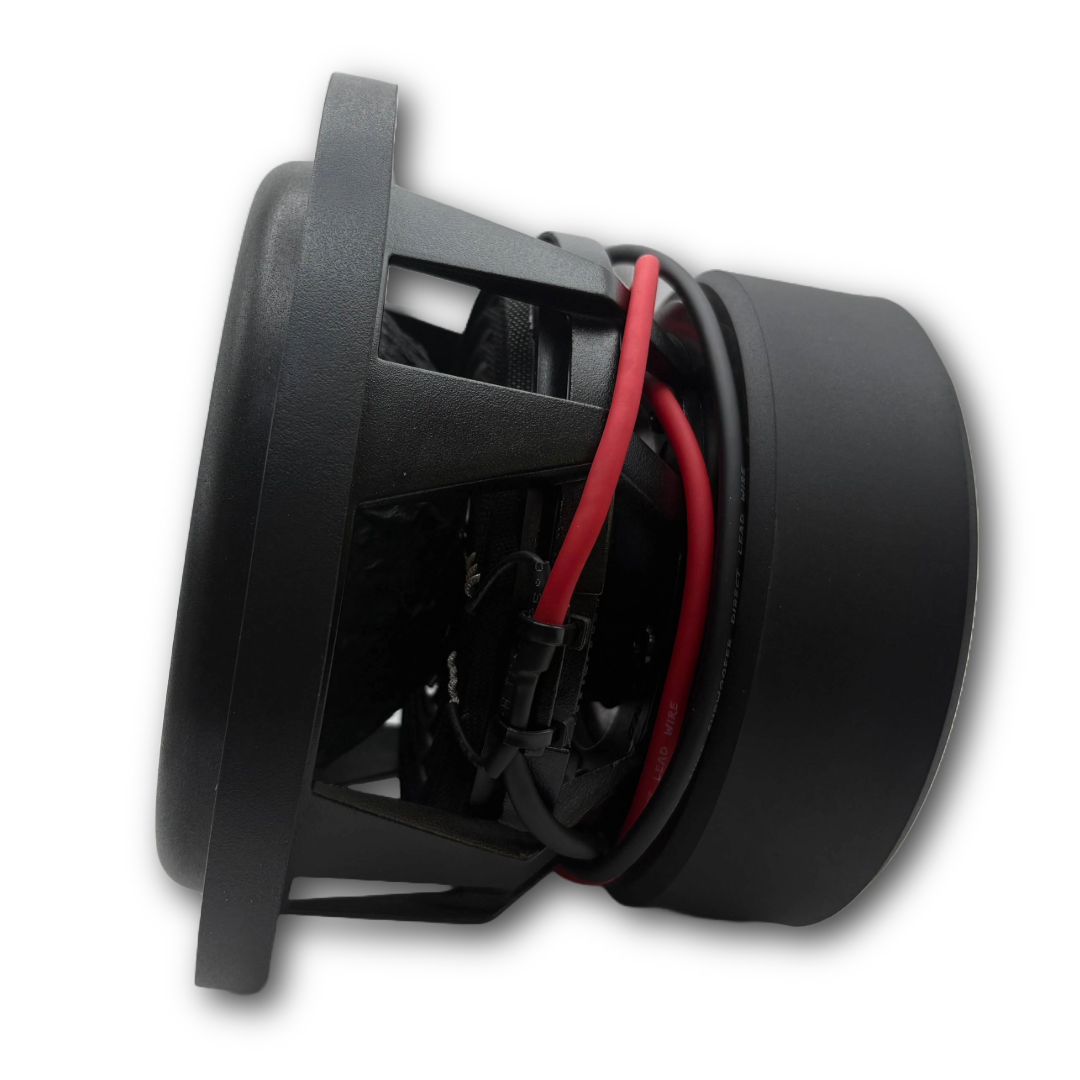

SoundQubed HDS2.3 Series Subwoofer 8 Inch 2.5" DVC 700/1400
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order, and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 within the contiguous US. Freight items may require delivery coordination; any shipping exceptions are shown before checkout. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
Get tight, aggressive low end from a small box with the SoundQubed HDS2.3-8D2 8" Subwoofer — 700 watts RMS on a dual 2 ohm voice coil.
Specifications
| Brand | SoundQubed |
|---|---|
| Model | HDS2.3-8D2 |
| Series | HDS2.3 |
| Size | 8" |
| Voice Coil | 2.5" dual 2 Ohm |
| RMS Power | 700 Watts |
| Peak Power | 1,400 Watts |
| Sensitivity | 80.6 dB |
| Resonant Frequency (Fs) | 41.5 Hz |
| Magnet | 100 oz |
| Xmax | 13 mm |
Product Overview
The HDS2.3-8D2 is built for systems where enclosure space is limited but the bass still needs to hit. It handles 700 watts RMS and 1,400 watts peak on a dual 2 ohm voice coil, which gives you flexible wiring options as you add drivers.
A 100 oz magnet, 2.5" high-temperature voice coil, and 13mm Xmax provide the excursion and thermal headroom to take that power reliably. With 80.6 dB sensitivity and a 41.5 Hz resonant frequency, the response is punchy and well defined rather than loose.
It works in either sealed or ported enclosures, making it a practical choice for a daily system where you want clean, controlled output without surrendering the trunk.
Questions about what this pairs with or how much electrical it needs? Drop JS Ultimate Sounds a line before you buy — we'll point you the right way.
