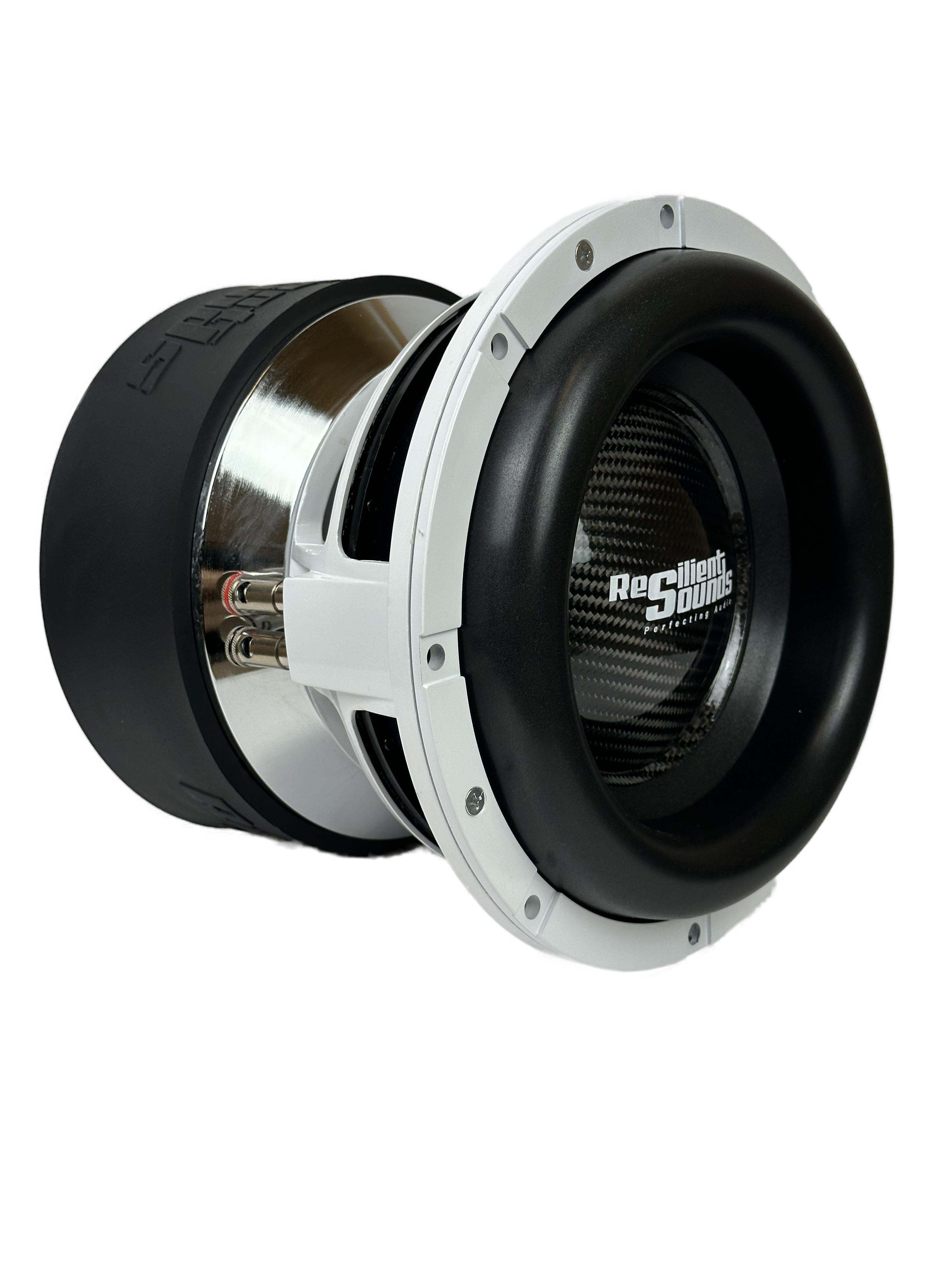

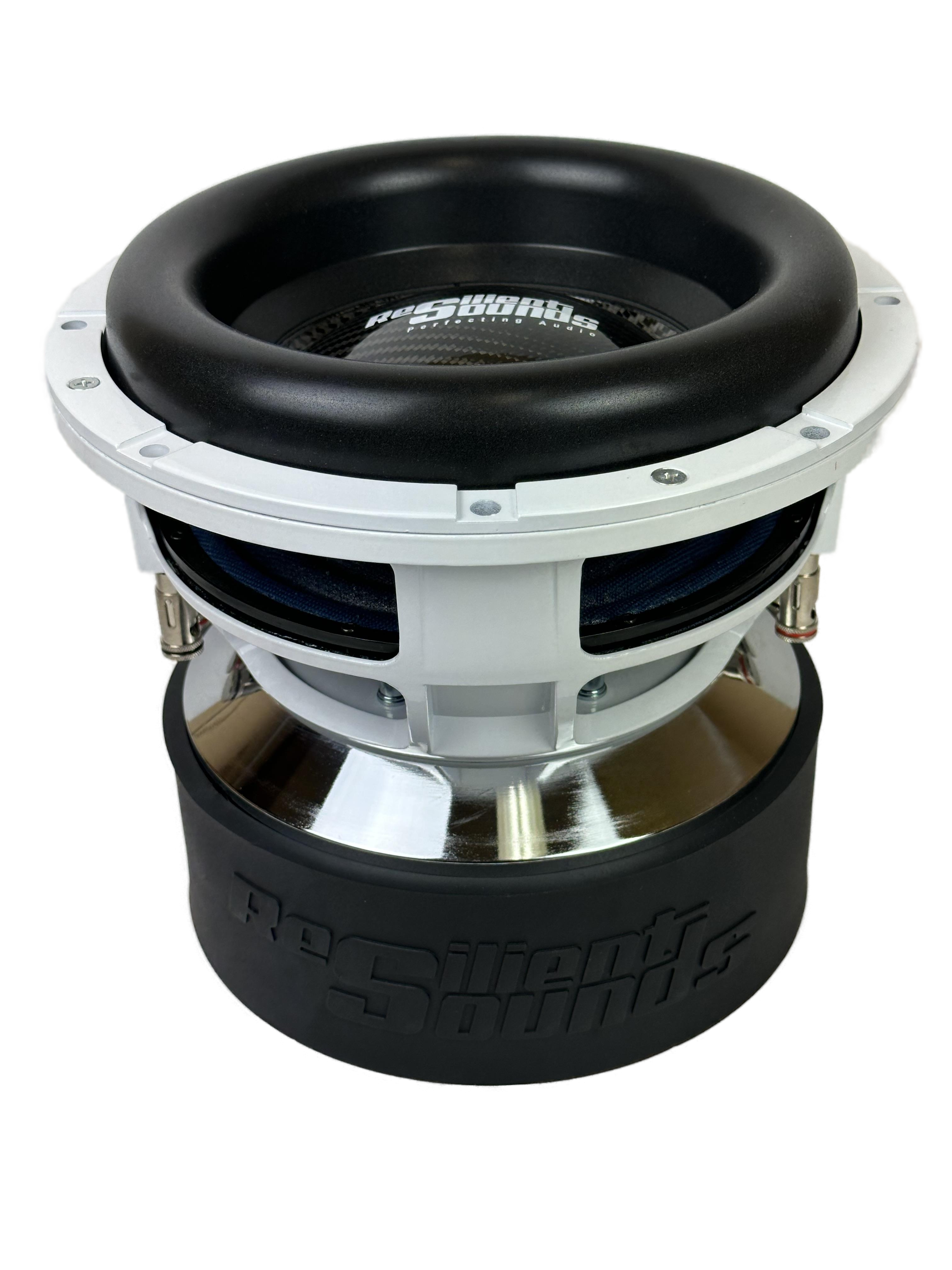

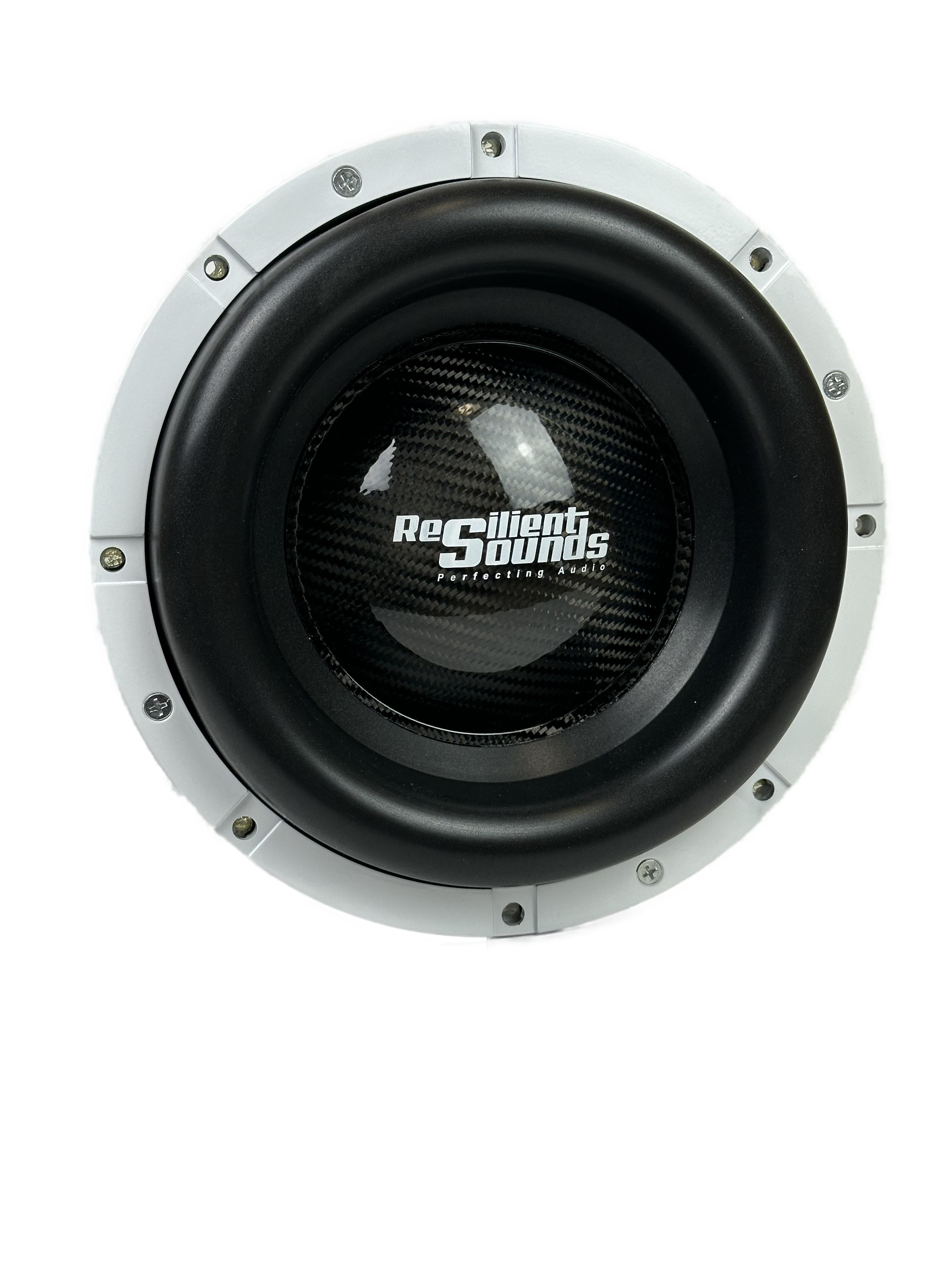

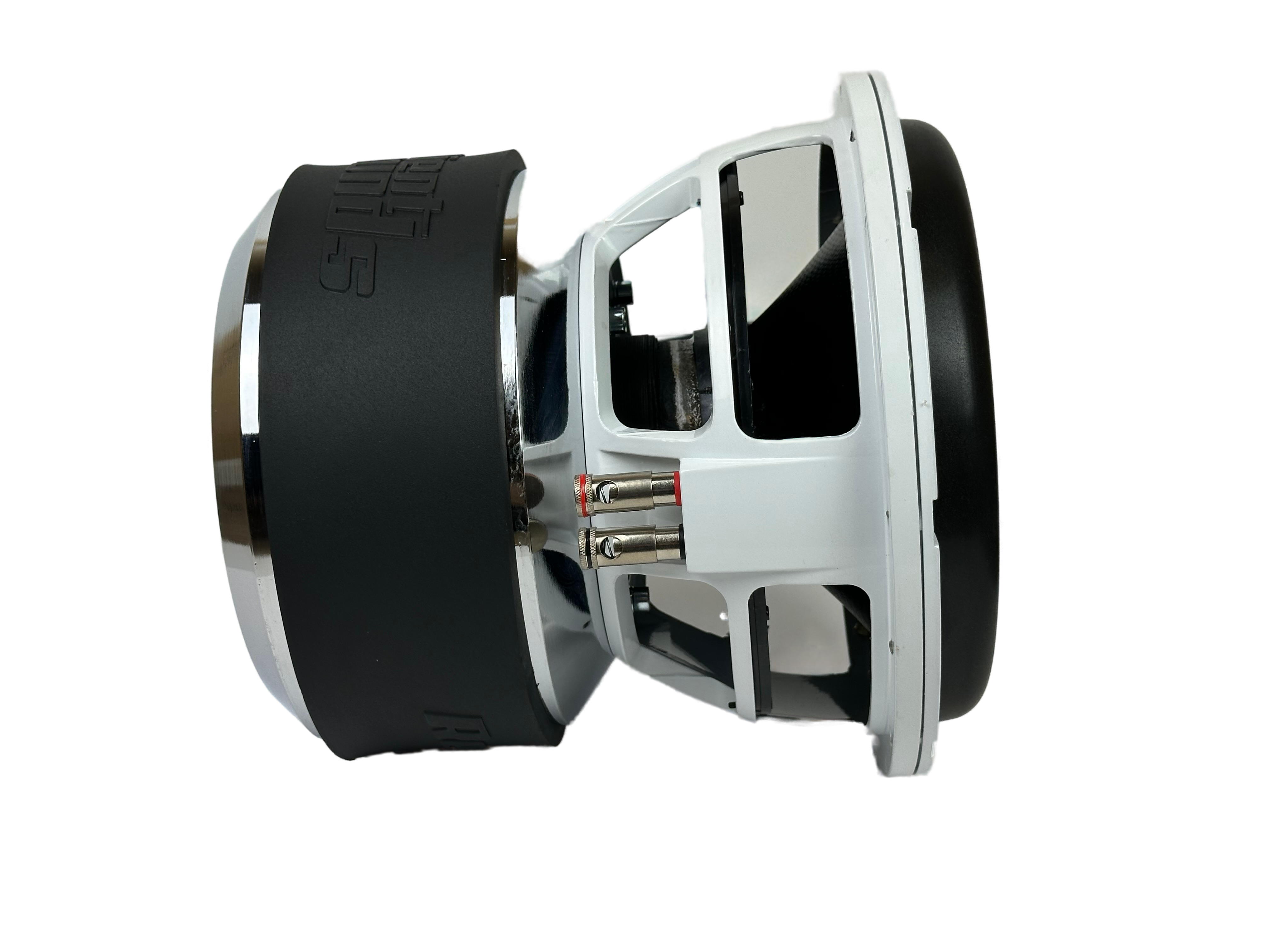

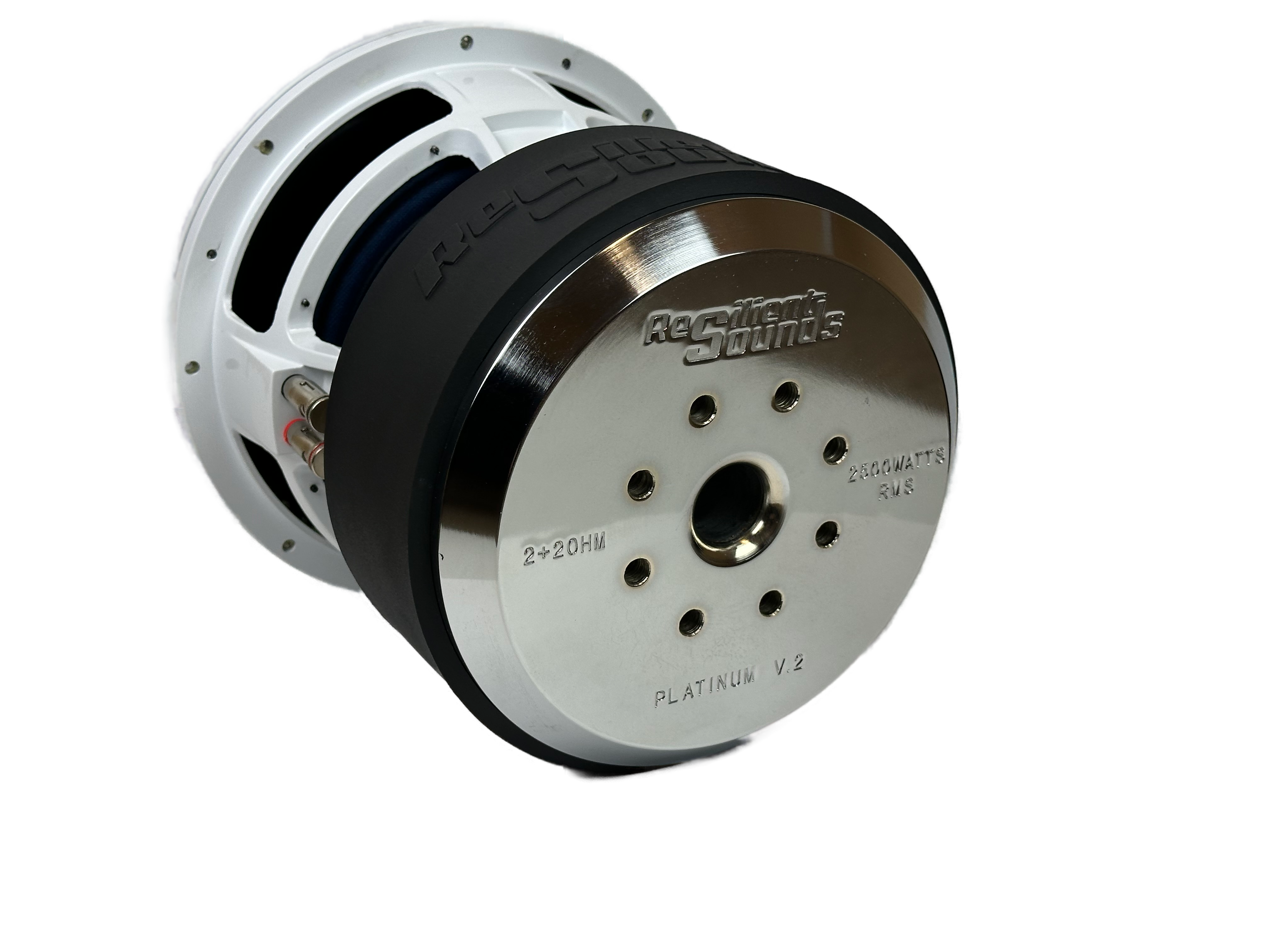

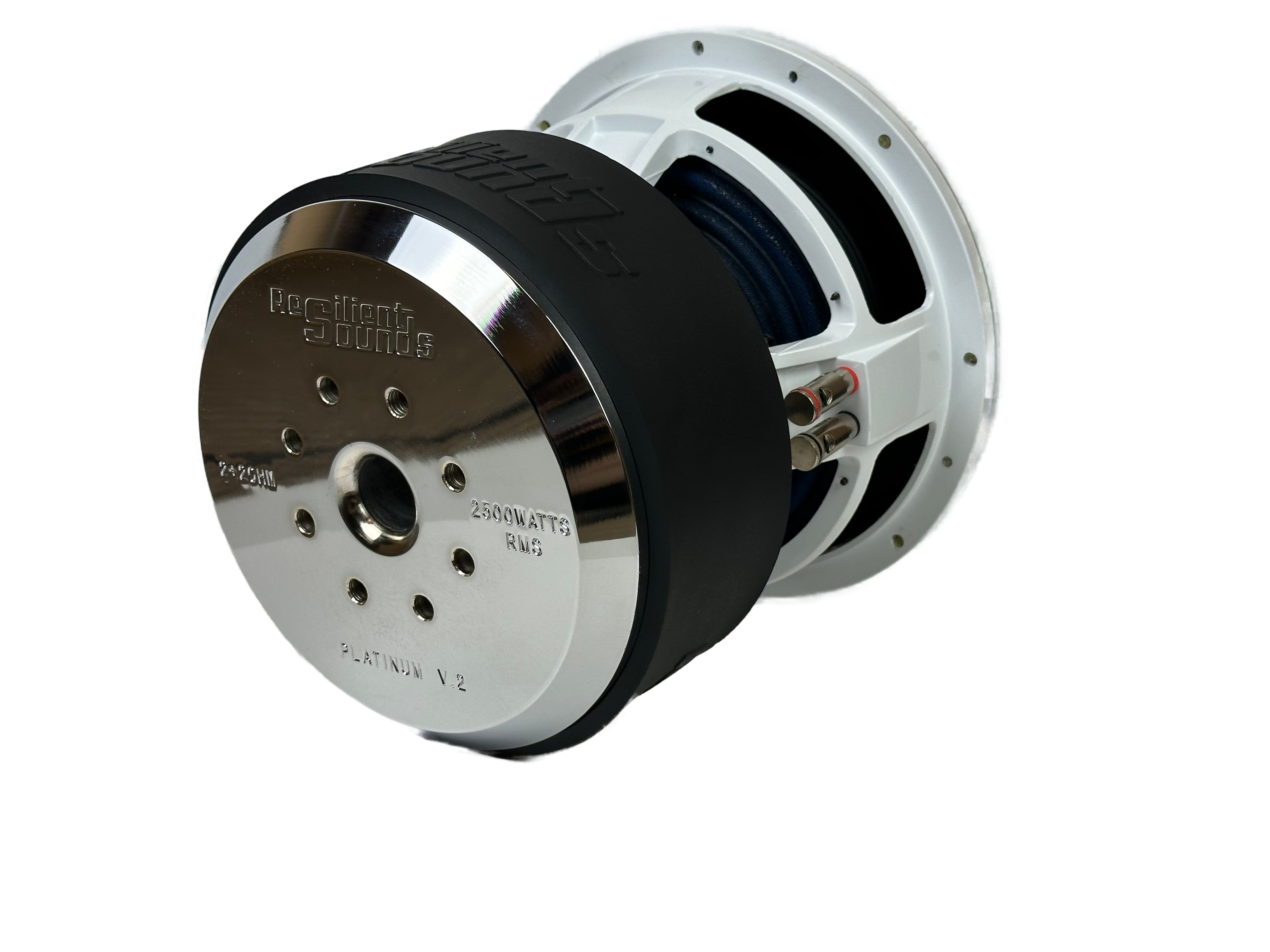

Resilient Sounds Platinum 10 V2 Subwoofer 5,000W Max / 2,500W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- 5,000W Max / 2,500W RMS — 10" high-output car subwoofer
- Triple stacked motor, 3" 8-layer coil — built for excursion and heat
- Carbon fiber cone, Cast aluminum frame
- Recommended enclosure 1.5-2.25 cu ft tuned 28-33 Hz
This Listing Includes: (1) Resilient Sounds Platinum 10 V2 Subwoofer
The Resilient Sounds Platinum 10 V2 is a 10" car subwoofer rated at 5,000W Max / 2,500W RMS. Engineered for deep, hard-hitting bass with a stout motor and high-excursion build for daily drivers and SPL alike. Authorized Resilient Sounds dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Specifications
| Brand | Resilient Sounds |
| Size | 10" |
| RMS Power | 2,500W |
| Max Power | 5,000W |
| Coil | 3" 8-layer |
| Motor | Triple stacked |
| Cone | Carbon fiber |
| Frame | Cast aluminum |
| Mounting Depth | 9.125" |
| Cutout Diameter | 9.25" |
| Displacement | 0.22 cu ft |
| Recommended Enclosure | 1.5-2.25 cu ft |
| Recommended Tuning | 28-33 Hz |
