DC Audio PS1000x1 Monoblock Amplifier 1000W RMS 1 Ohm
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%20DC%20Audio%20PS1000x1%20Monoblock%20Amp...
){kind=link}
- 1,000W x1 RMS @ 1 Ω — Compact monoblock, 1-ohm stable
- 700W x1 @ 2 Ω · 400W x1 @ 4 Ω RMS
- Operating voltage 9–16.5V
- 1 ohm stable
This Listing Includes: (1) DC Audio PS1000x1 Monoblock Amplifier

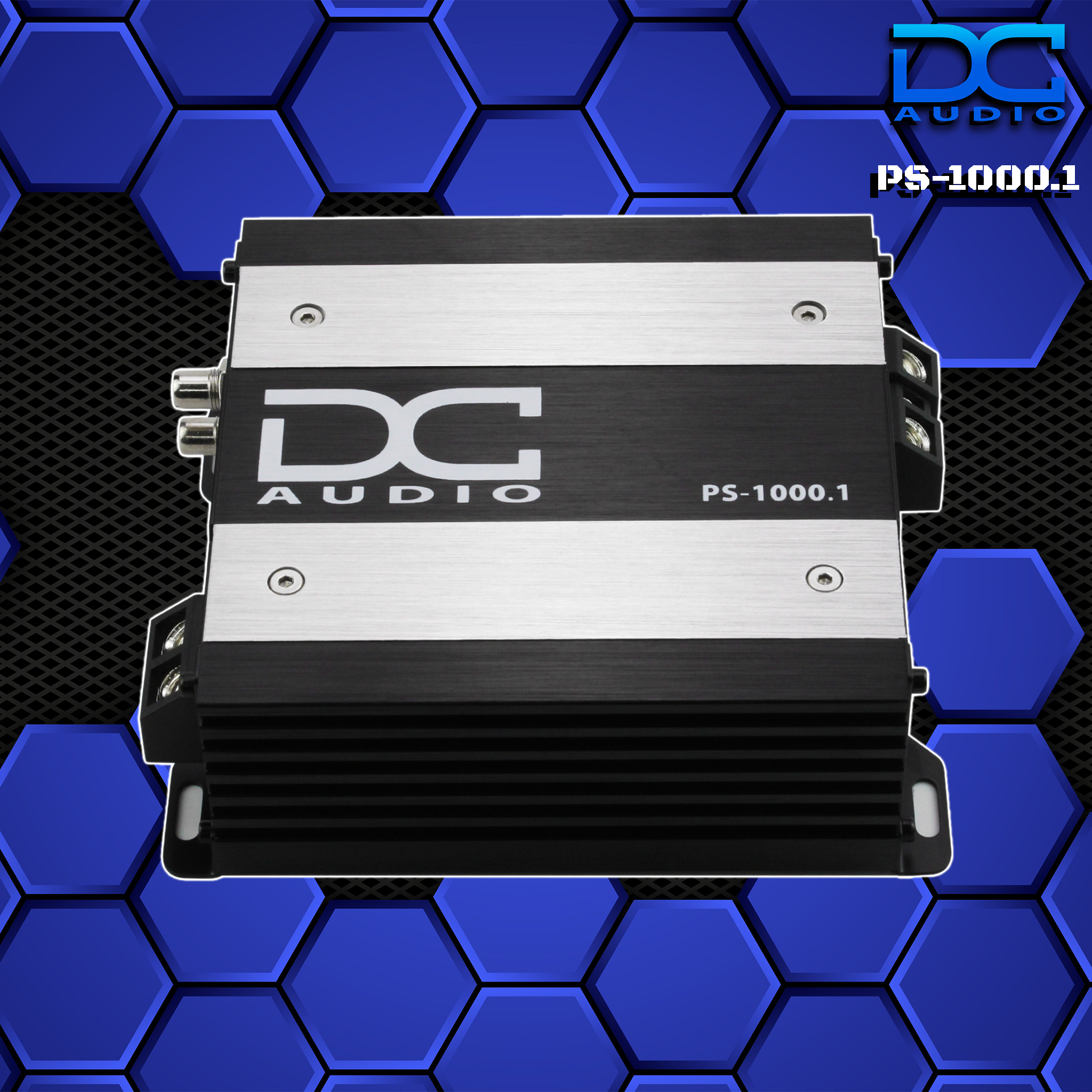

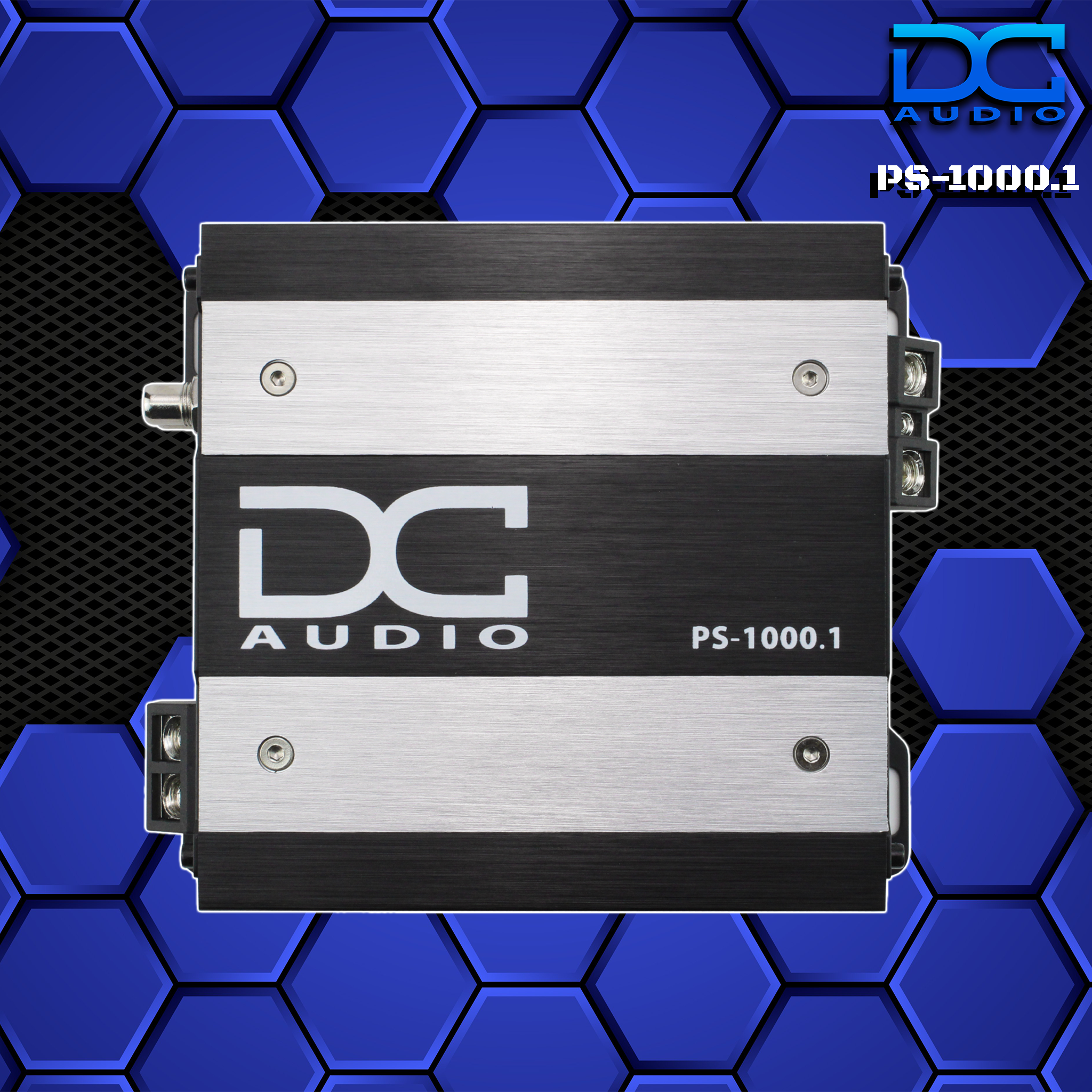

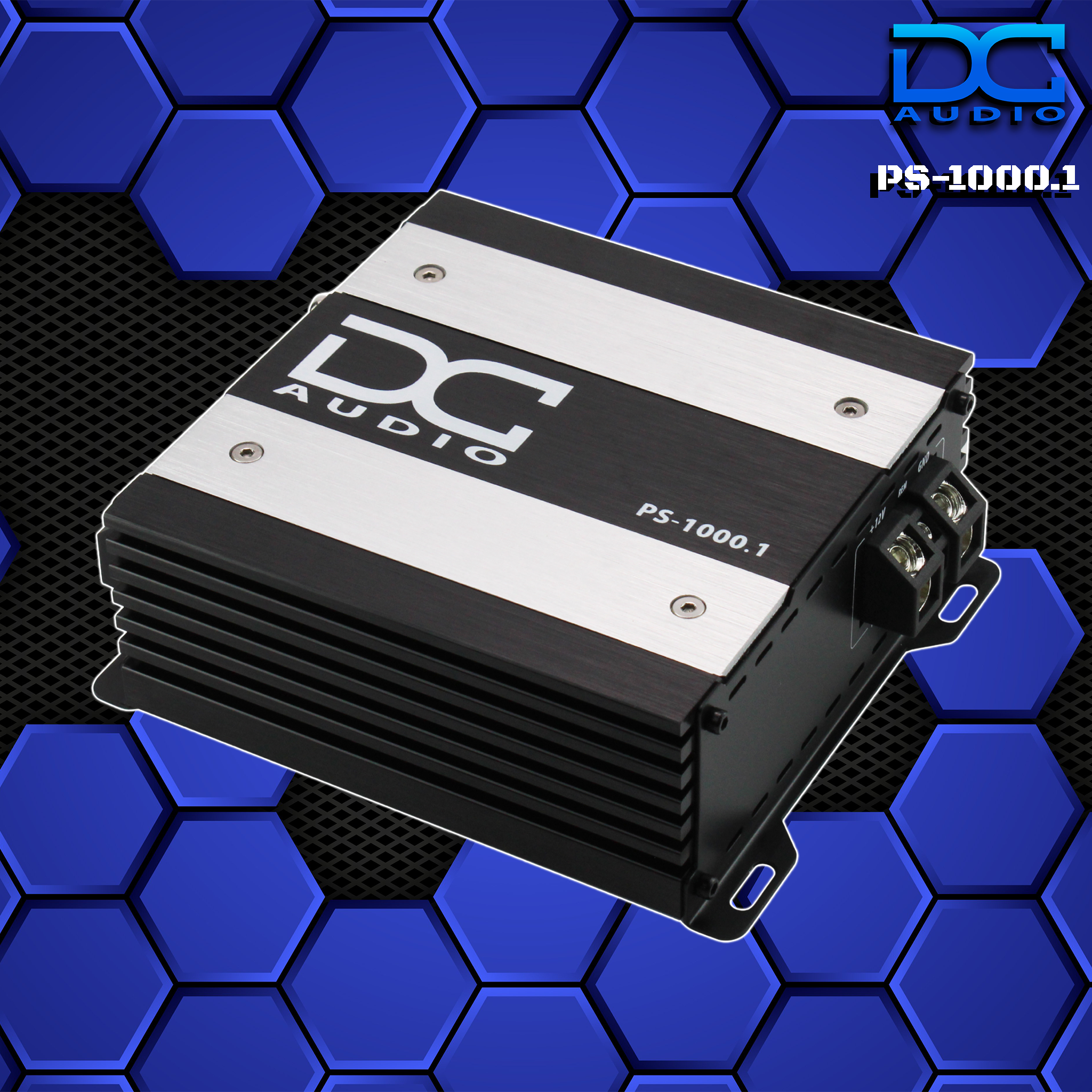

The DC Audio PS1000x1 is a compact-series full-bridge monoblock that makes 1,000 watts RMS at 1 ohm — small enough to tuck almost anywhere, with the control of a full-size amp. Use it as a subwoofer amp or flip the full-range switch to drive stunt walls and doors. It runs 9–16.5 volts, is 1-ohm stable, and ships with a wired bass knob, variable low-pass and subsonic filters, bass boost, and onboard power/protect/clip indicators. Authorized DC Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- 1 ohm stable
- Operating voltage 9–16.5V

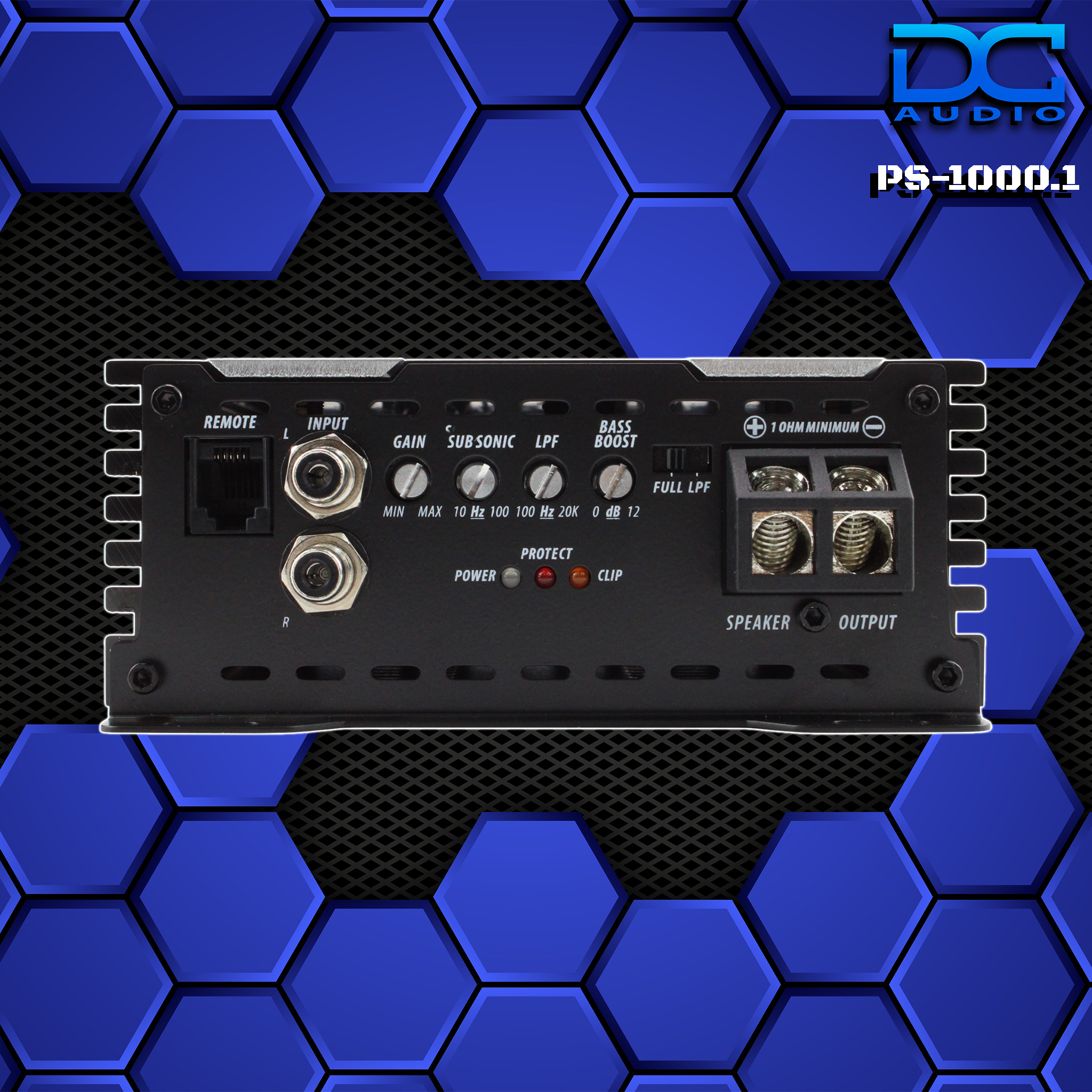

- Variable low-pass + subsonic filters
- Full-range switch with bass boost

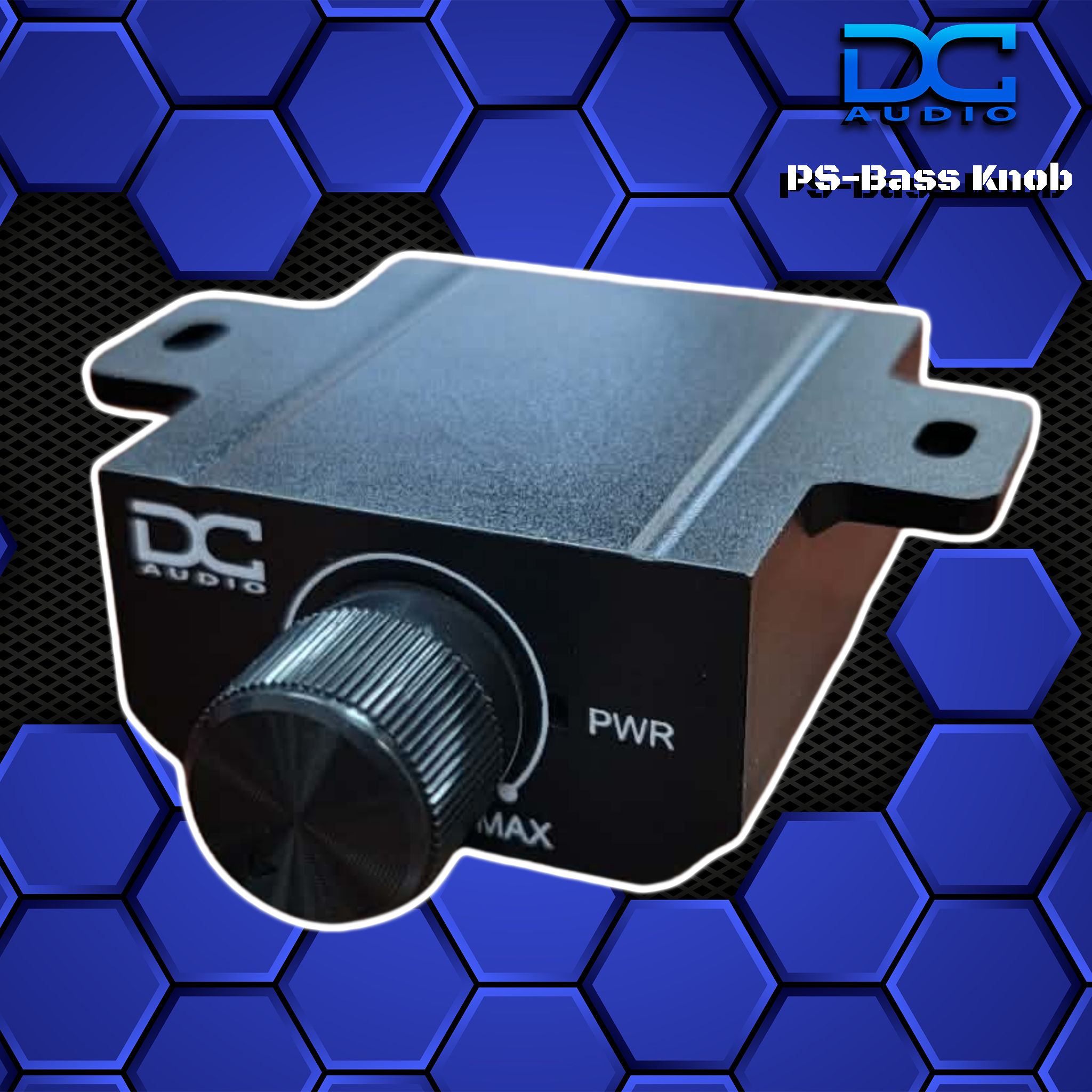

- Wired bass-knob remote, onboard clip light

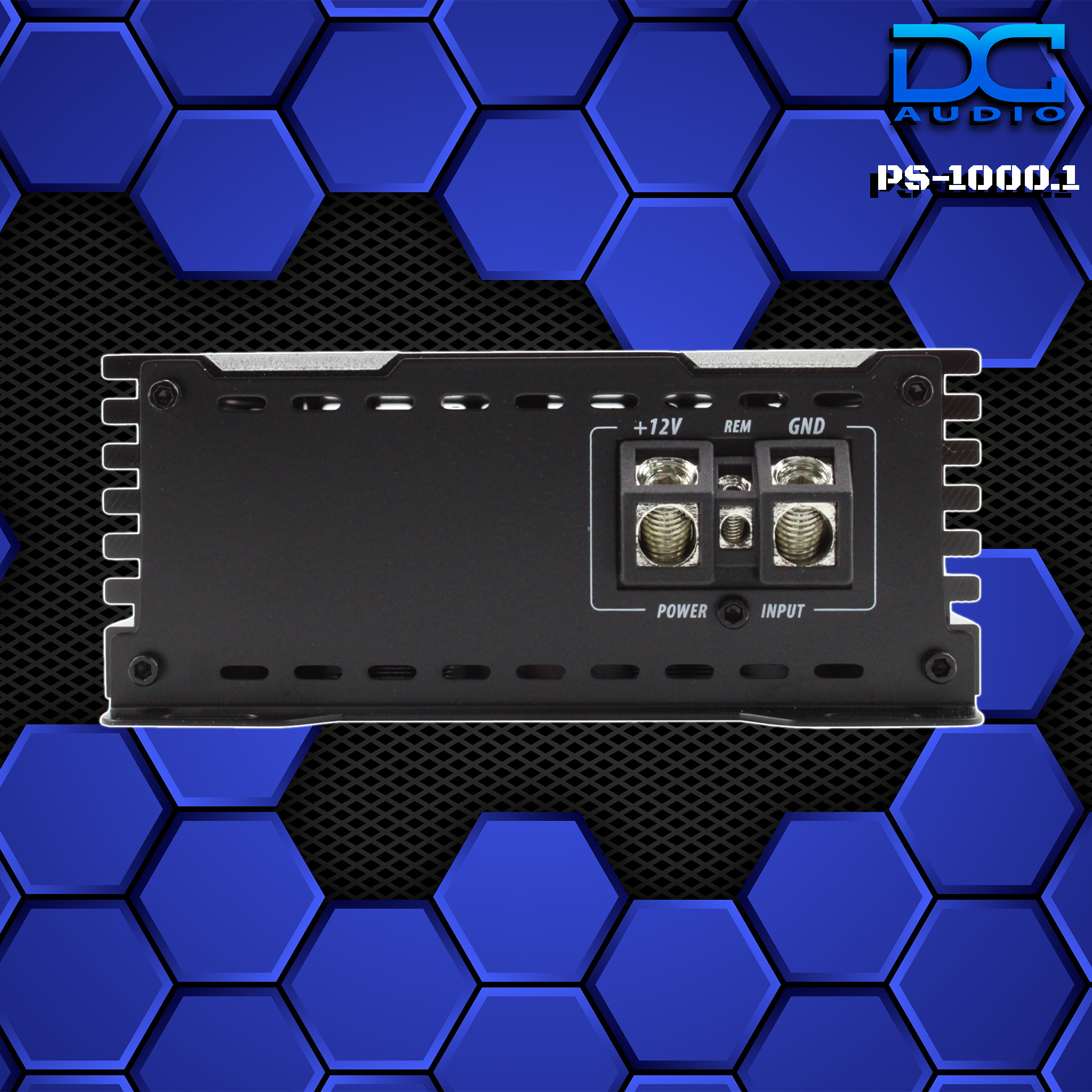

- 4 AWG power inputs, Tiffany-style RCA jacks
Specifications
| RMS Output | 400W x1 @ 4 Ω; 700W x1 @ 2 Ω; 1,000W x1 @ 1 Ω |
| Channels | Monoblock (1) |
| Class | Class D |
