Pride Audio Quattro XL 4-Channel Amplifier 300W RMS x4
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%20Power%20at%204%20Ohm%20%E2%80%94%20600W%0A%20%20%0AFrequency%20Response%20%E2%80%94%2015%E2%80%9330,000%20Hz%0A%20%20%0AClass%20%E2%80%94%204-channel%20Class%20AB%20ampli...
){kind=link}
- RMS Power at 2 Ohm — 300W x 4 channels
- RMS Power at 4 Ohm — 175W x 4 channels
- Bridged (Mono) Power at 4 Ohm — 600W
- Frequency Response — 15–30,000 Hz
- Class — 4-channel Class AB amplifier with developed crossover
This Listing Includes: (1) Quattro XL 4-Channel Amplifier 300W RMS x4

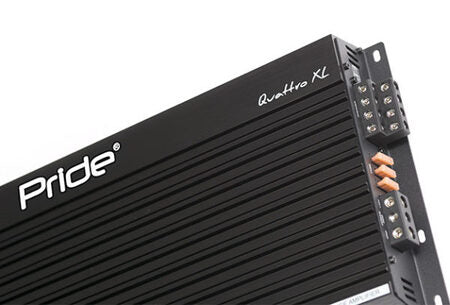

The Pride Quattro XL is a powerful 4-channel Class AB amplifier with a developed crossover. Each channel produces 175W at 4 Ohm or 300W at 2 Ohm at 14.4V with 1% distortion, and it can be bridged for 600W mono into a 4 Ohm load across a 15–30,000 Hz range. It is equipped with three 40A fuses, high- and low-frequency filters with a wide operating range, and a massive aluminum case over 500 mm long for excellent heat dissipation. The updated version adds improved temperature protection, filter multipliers, and secure cable terminals. In stock and shipping free from JS Ultimate Sounds — your authorized Pride Audio dealer.
Features
- 4-channel Class AB design with developed crossover
- 300W x 4 at 2 Ohm, 175W x 4 at 4 Ohm
- 600W mono bridged into 4 Ohm

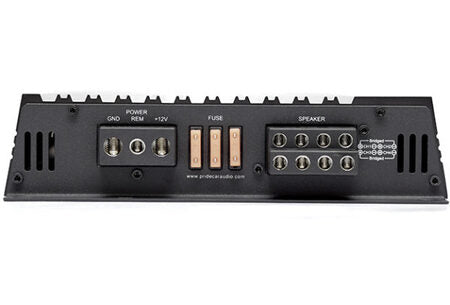

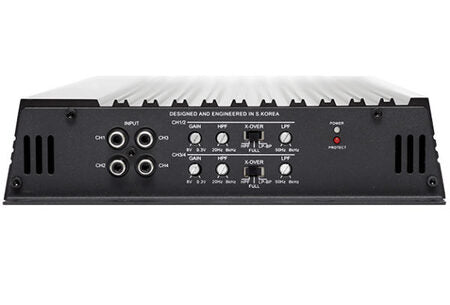

- Three 40A fuses and wide-range HF/LF filters
- Aluminum case over 500 mm long with improved temperature protection
Specifications
| Brand | Pride Audio |
| Model / SKU | Q.150XL |
| Class | AB |
| Channels | 4 |
| RMS Power at 2 Ohm | 300W x 4 |
| RMS Power at 4 Ohm | 175W x 4 |
| Bridged (Mono) Power at 4 Ohm | 600W |
| Frequency Response | 15–30,000 Hz |
| Voltage | 14.4V |
| Distortion | 1% |
| Fuses | 3 x 40A |
| Case Length | Over 500 mm |
