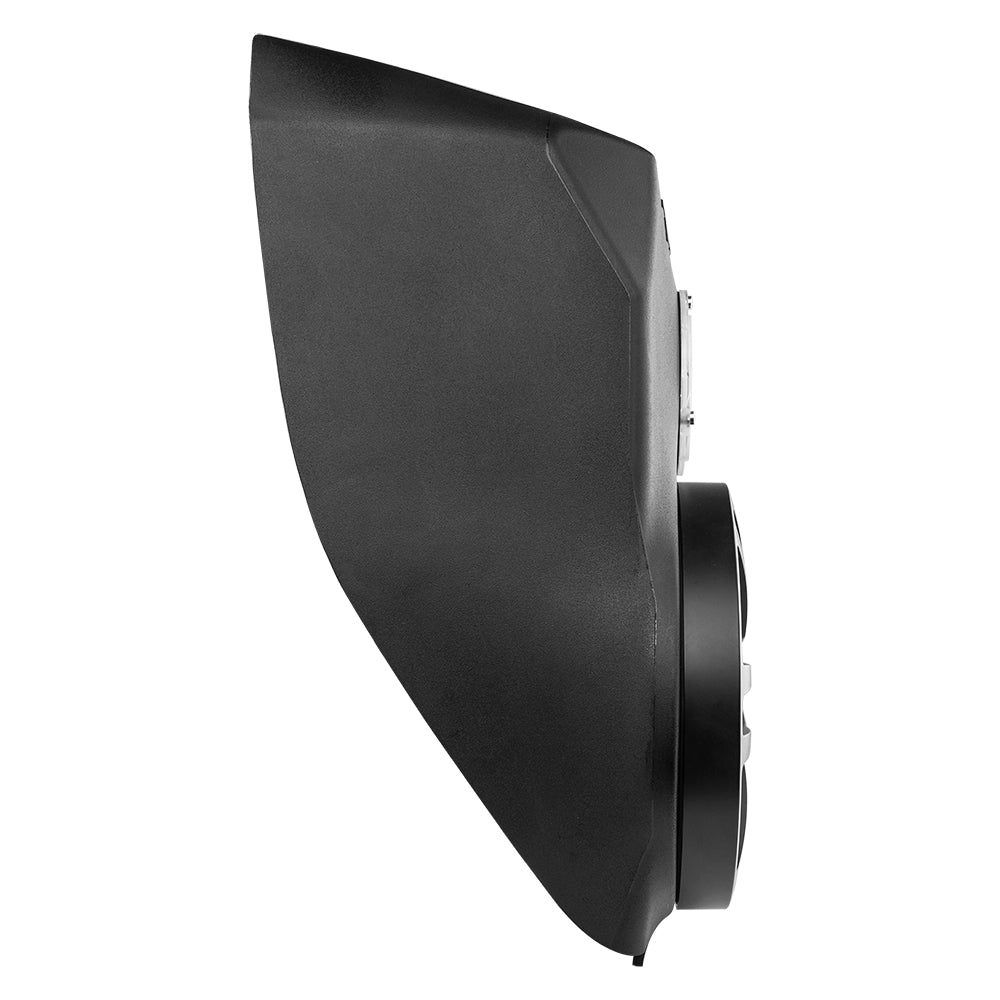

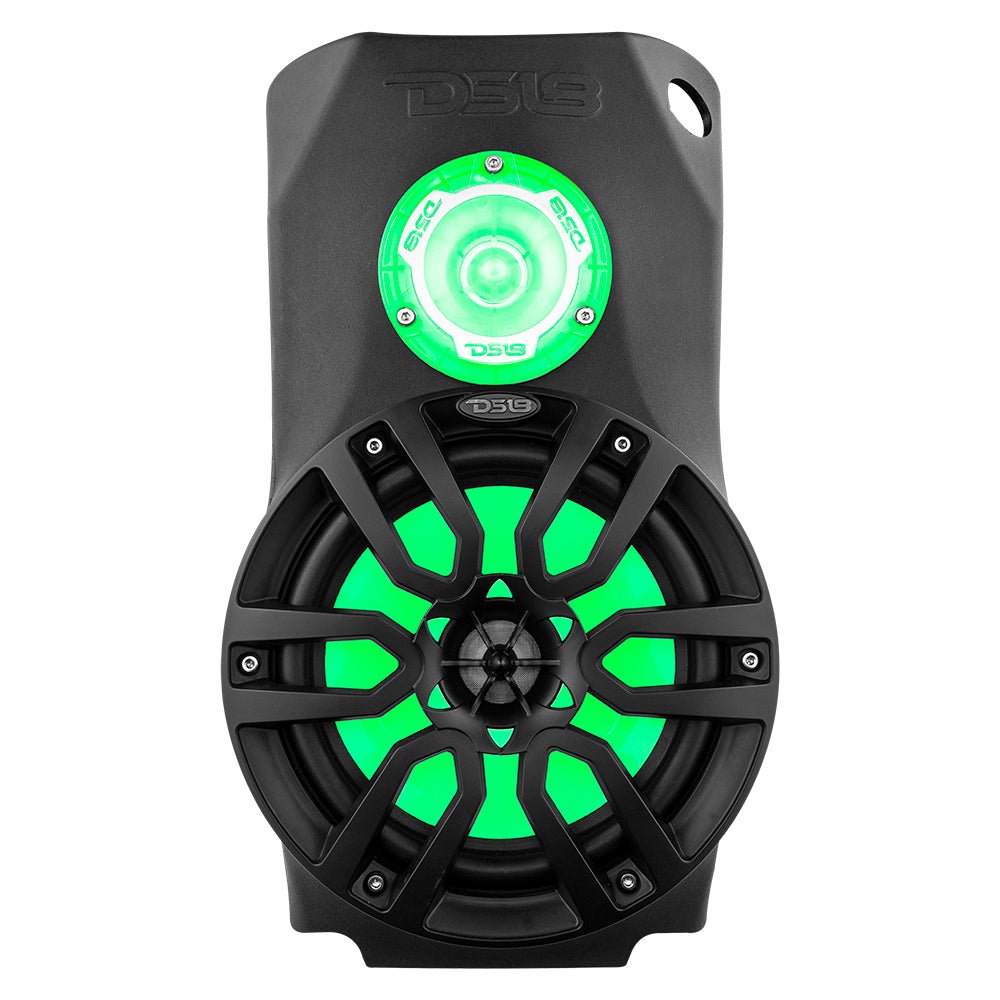

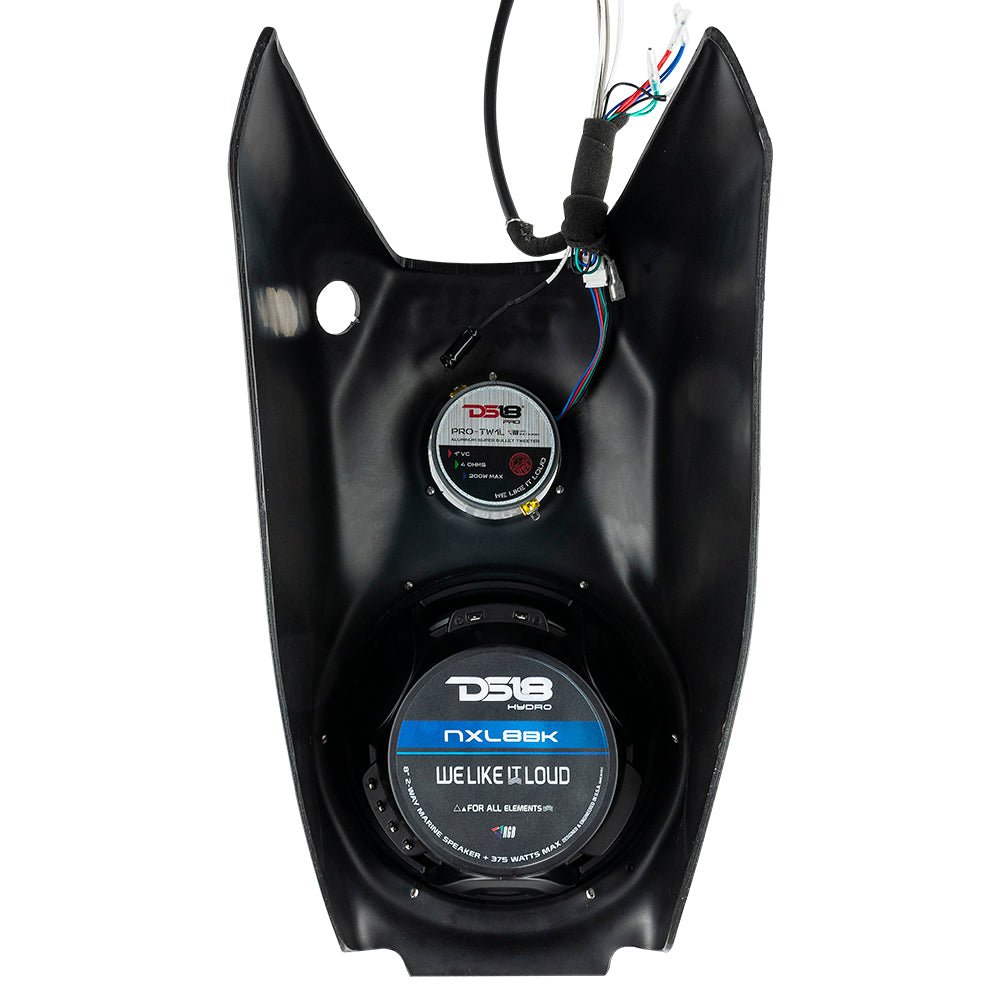

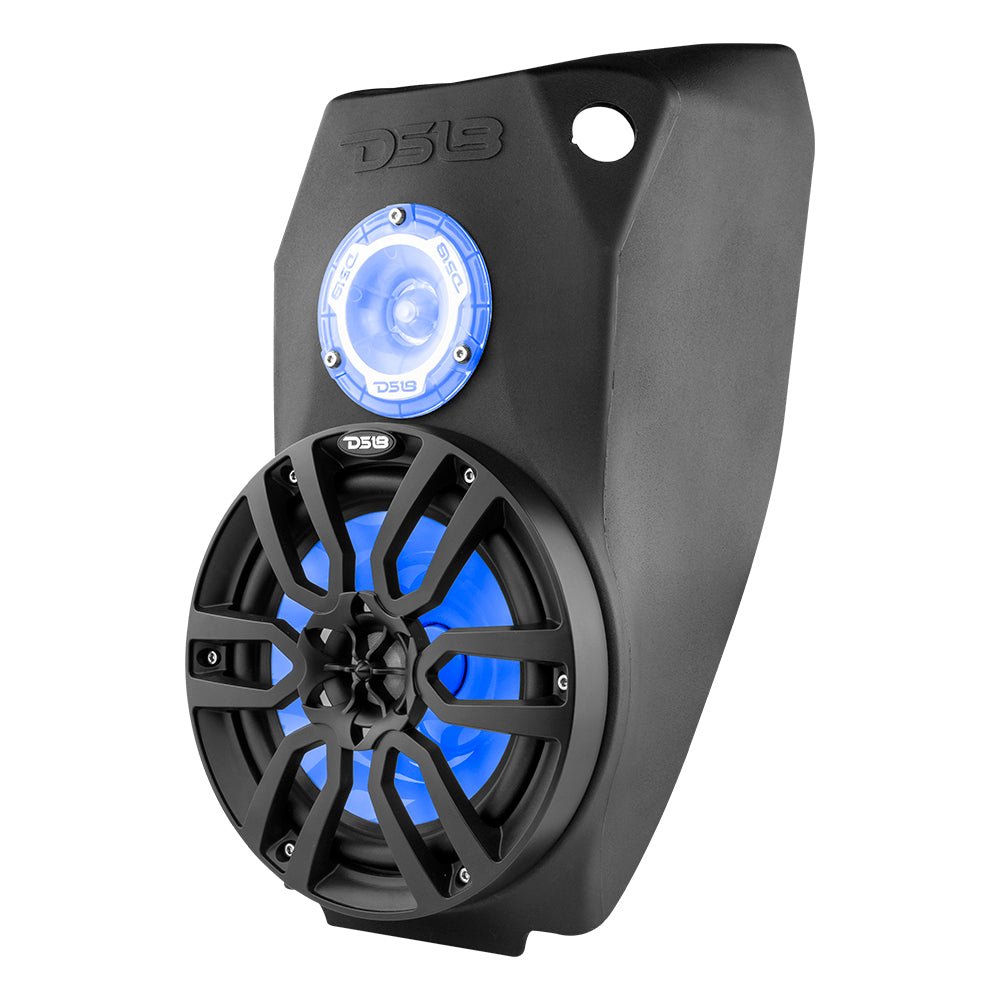

DS18 SLG-WFCC8LD Polaris Slingshot Water Fall Center Console 1 X 8" Enclosure With NXL-8/BK and PRO-TW1L
Maximize the sound in your Polaris Slingshot with DS18’s SLG-WFCC8LD!
The installation of DS18’s LOADED Waterfall Center Console into your Polaris Slingshot’s sound system significantly magnifies the quality of sound reproduced by your system. The SLG-WFCC8LD is also completely protected from damage that could be caused by the Slingshot’s Open Air Design with UV Resistance and Waterproof Materials.
The high powered NXL-8BK delivers intense sound and reproduces the full range of frequencies with insane accuracy and volume!
The PRO-TW1L is an EXTREMELY powerful and versatile Super Bullet Tweeter that delivers huge sound despite it’s size.
LED BTC REQUIRED FOR LIGHTING FEATURES (SOLD SEPARATELY)
AMPLIFIER REQUIRED FOR POWERING THESE COMPONENTS (SOLD SEPARATELY)

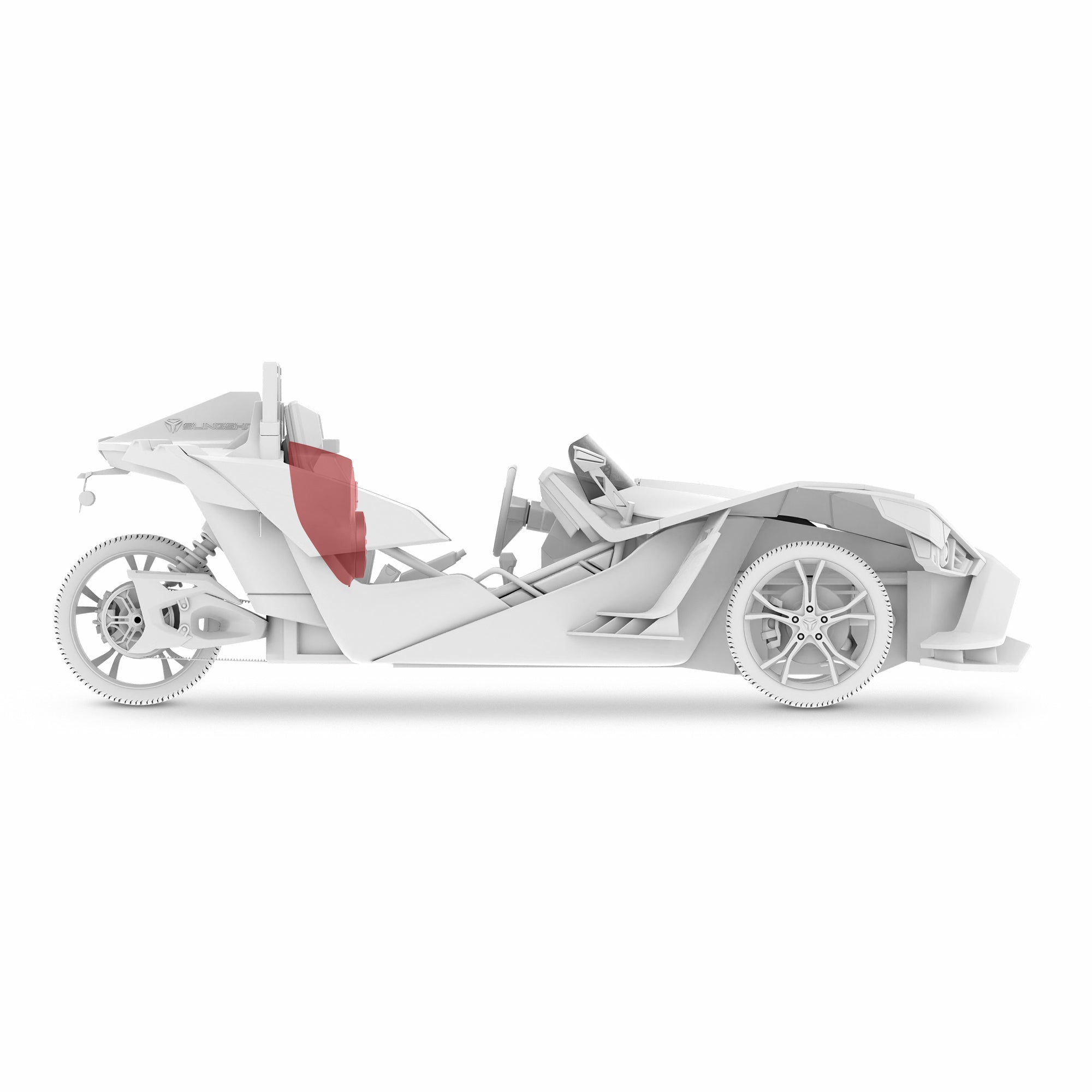

Fitted perfectly for center consoles in 2015 – 2019 Polaris Slingshot models, when combined with all enclosures in our SLG series, the SLG-WFCC8LD centerpieces an impenetrable soundstage designed to cut through the noise of the open road!
Install these pods into your Slingshot’s sound system seamlessly as it comes with all the necessary hardware and wiring included.
Order your SLG-WFCC8LD for extreme sound in your extreme ride today!
Highlights

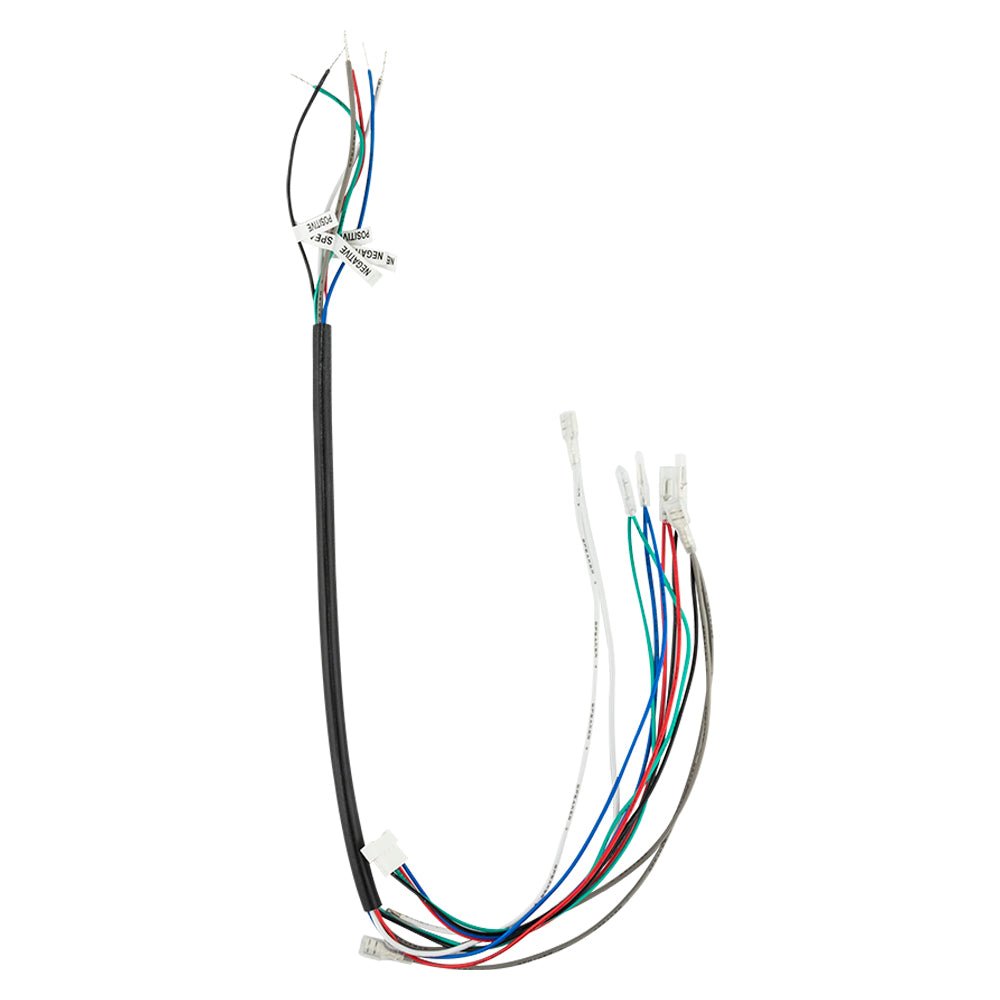

- 6 core 0.6M Input Wires included
- OFC tinned wiring for more power handling and durability
- 8” NXL-8BK Waterproof RGB LED Speaker Included
- 3.8” PRO-TW1L Super Bullet RGB LED Tweeter Included

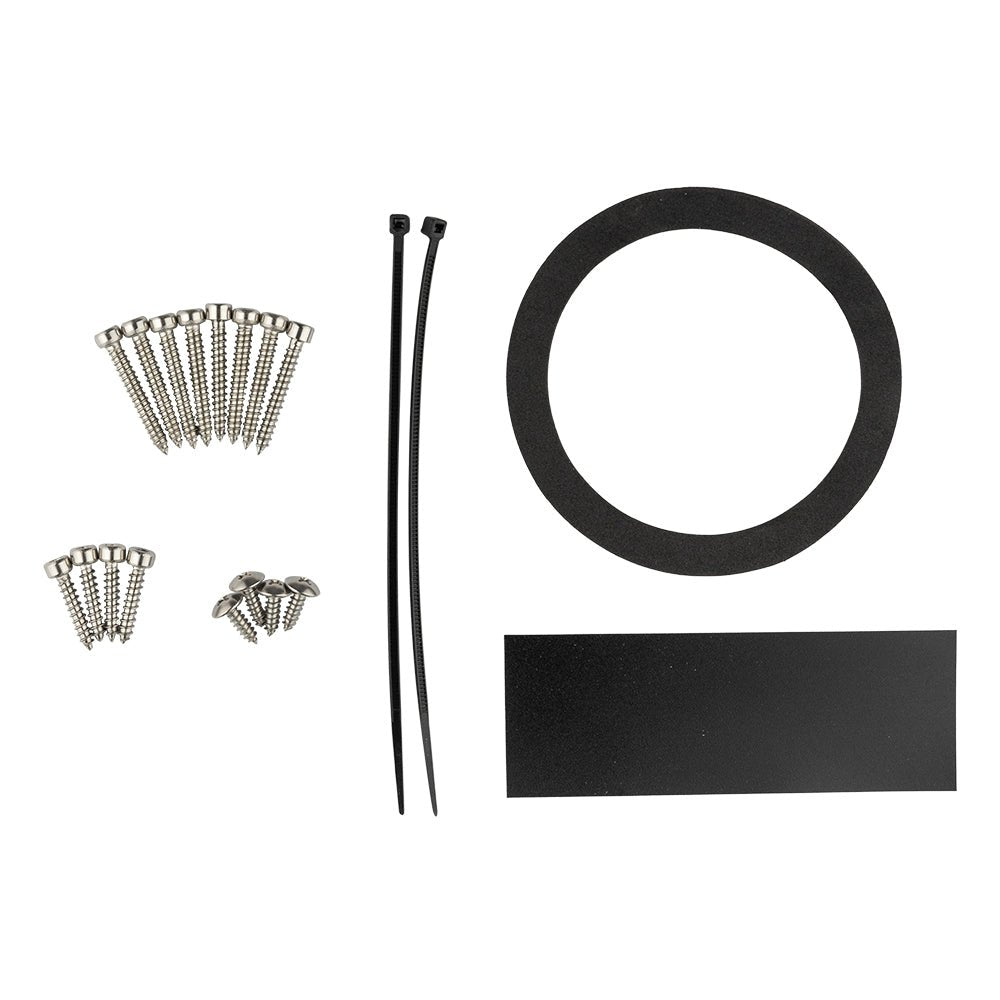

- Easy to install using factory bolts and mounting location (Hardware and Wiring Included)
- Fits Slingshot Models from 2015 – 2019
- Durable waterproof panels with UV Protection
Great For
- Polaris Slingshot 2015 – 2019
Technical Details
| GENERAL | |
| Total Impedance | 4 Ohms |
| Load Configuration | Parallel |
| Input Wire | 6 Core OFC Tinned (2ft / 0.6m) |
| SPEAKER SPECIFICATIONS | |
| Speaker Type / Size | 8" Waterproof Coaxial with RGB LED |
| RMS Power Handling | 125W |
| MAX Power Handling | 375W |
| Sensitivity (1w/1m) | 93dB |
| Frequency Response | 35Hz-23KHz |
| Recommended Hi Pass Crossover | 50 Hz |
| Voice Coil Diameter | 1.2" / 30.5mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Injection Molded Polypropylene + UV Compliant |
| Surround Material | Butyl (Rubber) |
| Basket Material | High Temp Injection Molded Composite with UV Protection coating |
| Magnet Material | Ferrite+Neodymium |
| Magnet Weight | 14oz + 0.32oz |
| TWEETER SPECIFICATIONS | |
| Speaker Type / Size | 3.8" Super Bullet with RGB LED |
| RMS Power Handling | 60W |
| MAX Power Handling | 120W |
| Sensitivity (1w/1m) | 103dB |
| Frequency Response | 3.5KHz-20KHz |
| Recommended Hi Pass Crossover | 4KHz |
| Voice Coil Diameter | 1” / 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCA |
| Diaphragm Material | Aluminum |
| Magnet Material | Ferrite Y30 |
| Magnet Weight | 8 Oz |
| BOX SPECIFICATIONS | |
| Box Type | Front Bafle |
| Box Material | Polyethylene (PE) |
| Finish Material | Black |
| UV Protection | Yes |
| Waterproof Rating | IP65 |
| MEASUREMENT | |
| Overall Height | 17.4" / 442.2mm |
| Overall Width | 9.12" / 231.6mm |
| Overall Depth | 9.44" / 239.8mm |
