DC Audio Pitbull 20K Monoblock Amplifier 20000W RMS 1 Ohm
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%0A%20%201%20ohm%20stable%0A%0AThis%20Listing%20Includes:%20(1)%20DC%20Audio%20P...
){kind=link}
- 20,000W x1 RMS @ 1 Ω — Competition monoblock, 1-ohm stable
- 13,000W x1 @ 2 Ω · 7,500W x1 @ 4 Ω RMS
- 12-volt system (do not exceed 16.0V)
- 1 ohm stable
This Listing Includes: (1) DC Audio Pitbull 20K Monoblock Amplifier

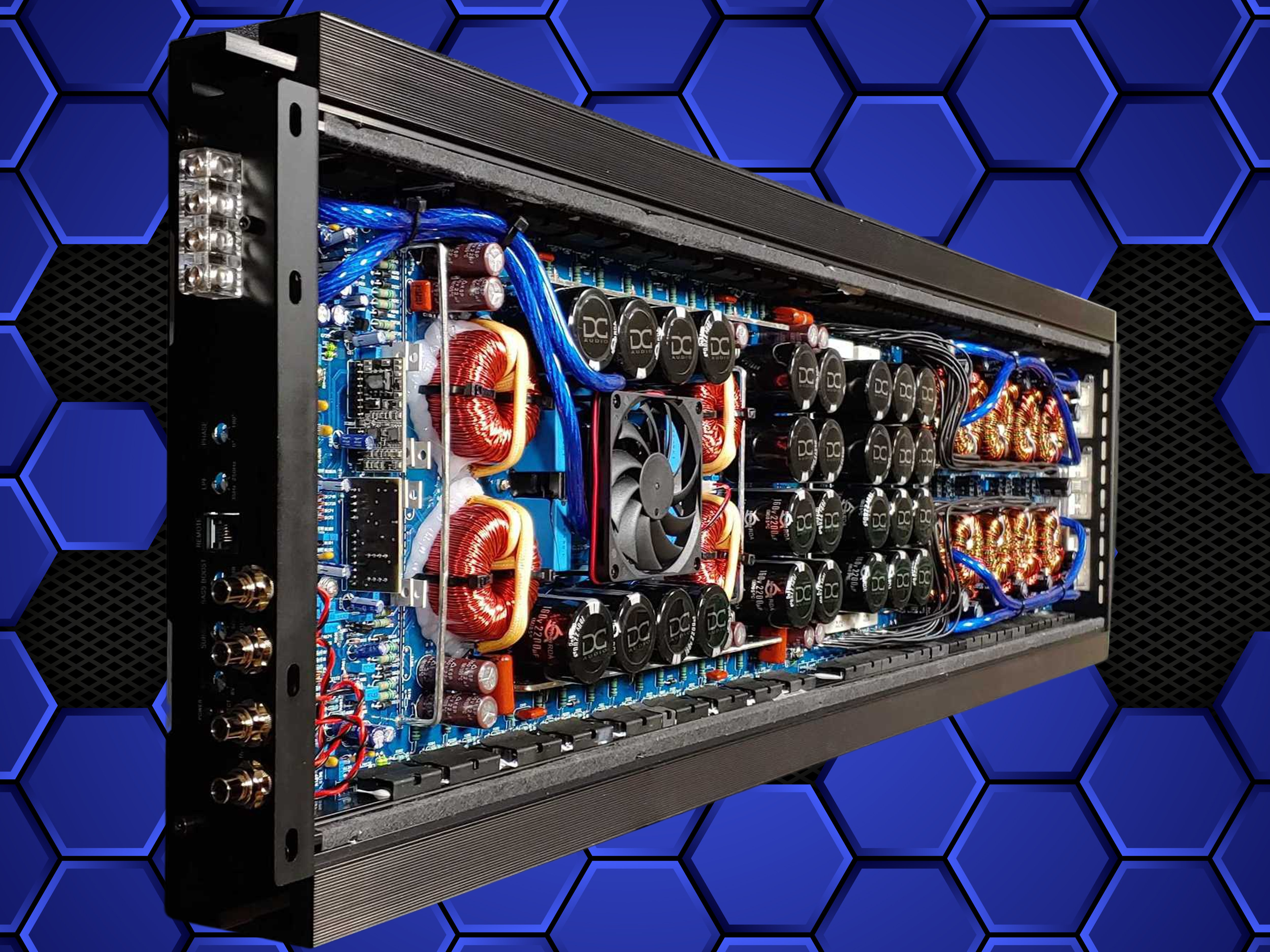

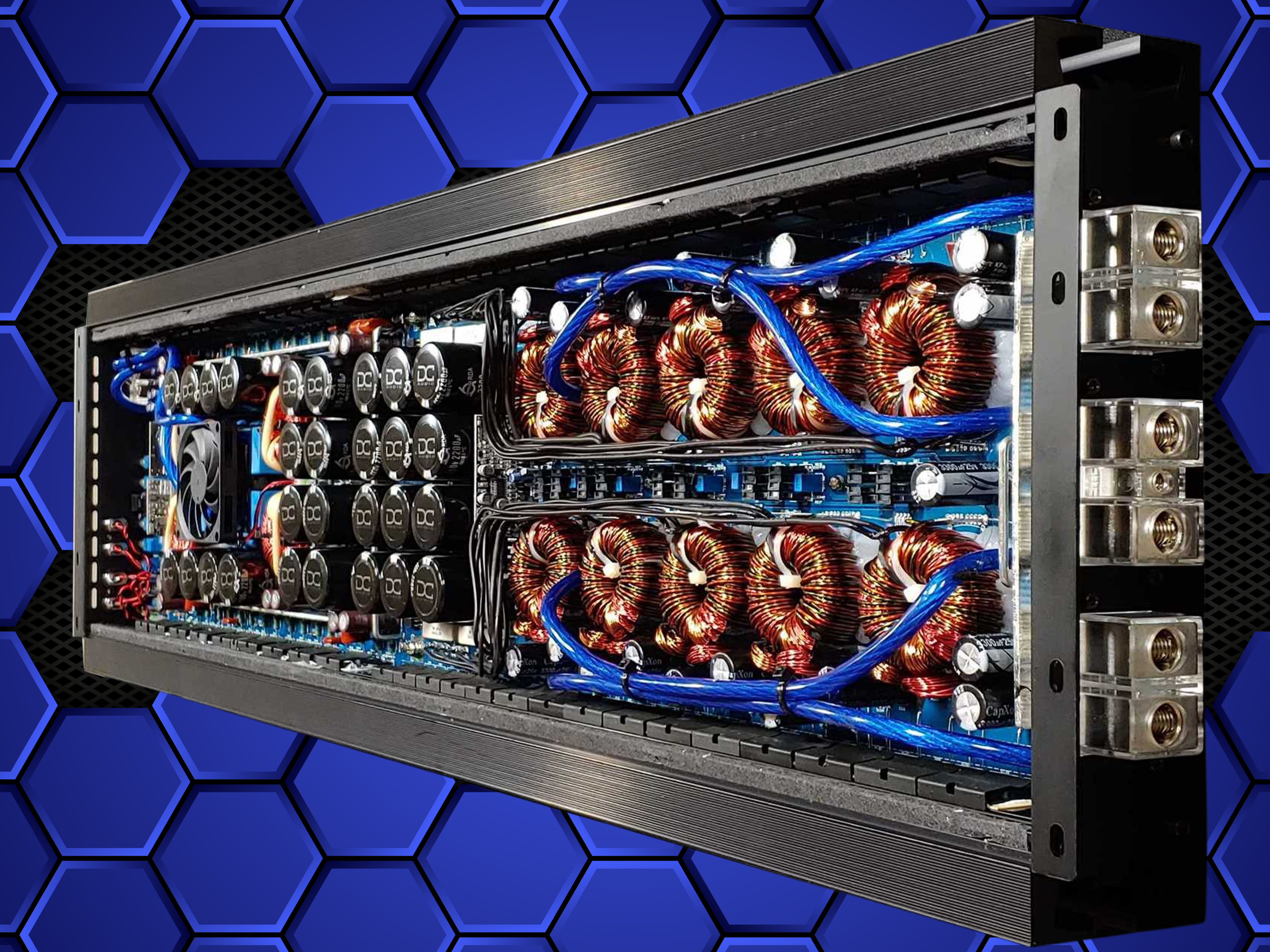

The DC Audio Pitbull 20K is a competition-series monoblock rated 20,000 watts RMS at 1 ohm (13,000 at 2 ohms, 7,500 at 4 ohms). It's built for 12-volt systems with triple 1/0 AWG power and ground inputs and a bass knob with a built-in clipping indicator. Note: it will not function over 16.0 volts, and charging above 16.0V or running below 1 ohm voids the warranty. Authorized DC Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- 1 ohm stable
- 12-volt system (do not exceed 16.0V)

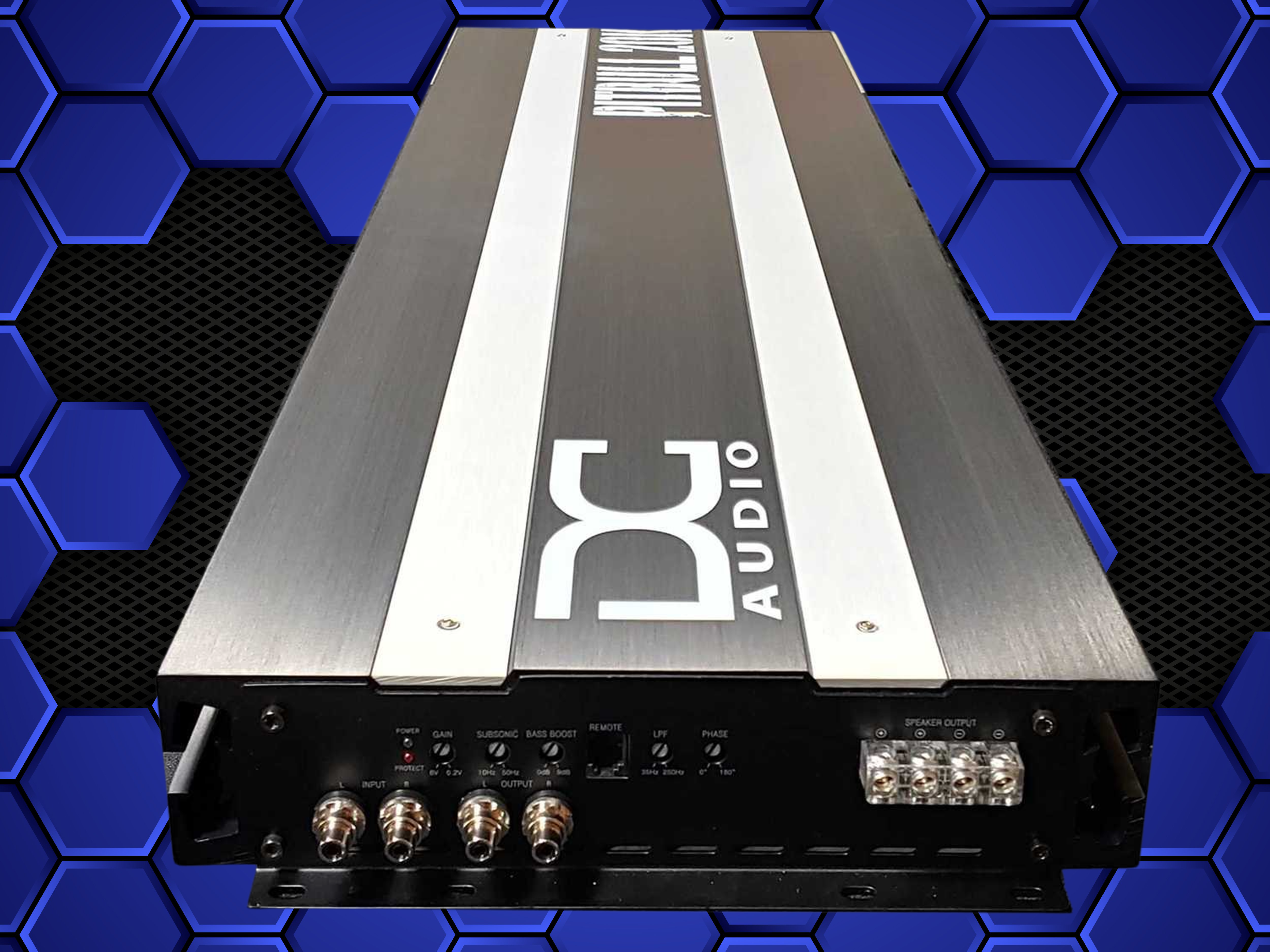

- Variable low-pass + subsonic filters
- Variable bass boost, RCA pass-thru

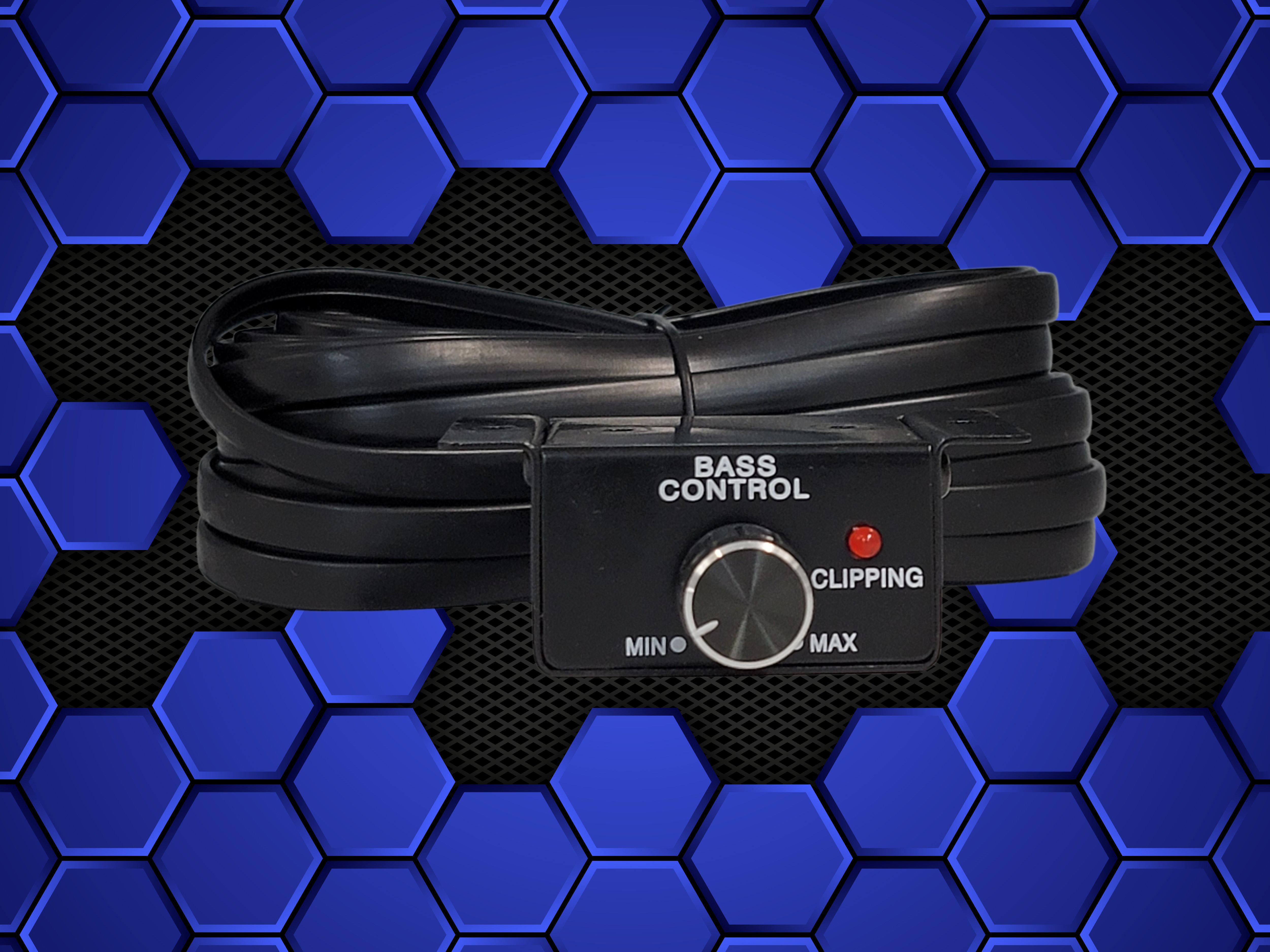

- Bass knob with built-in clipping indicator

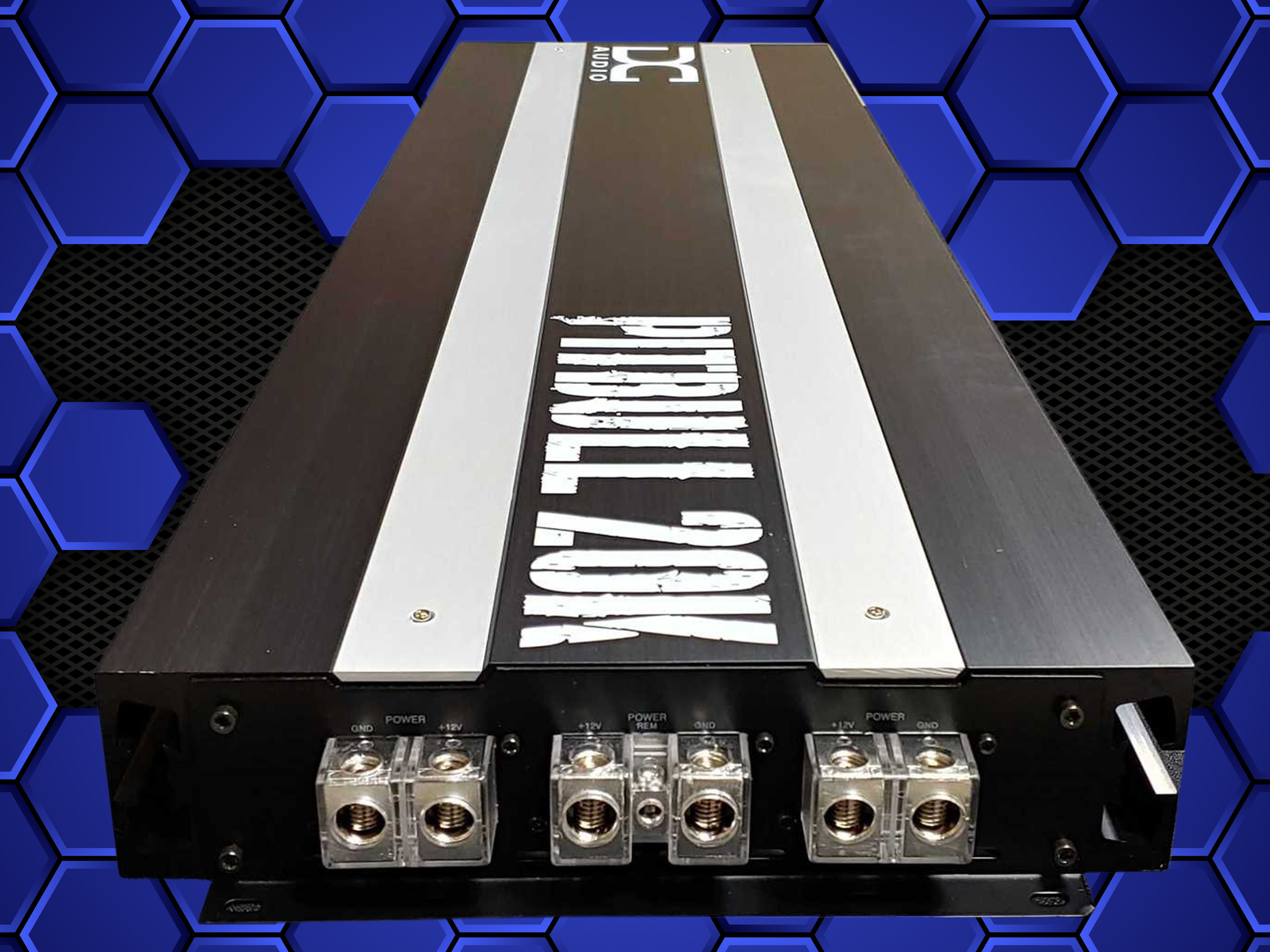

- 8 AWG speaker + triple 1/0 AWG power inputs
Specifications
| RMS Output | 7,500W x1 @ 4 Ω; 13,000W x1 @ 2 Ω; 20,000W x1 @ 1 Ω |
| Channels | Monoblock (1) |
| Class | Class D |
