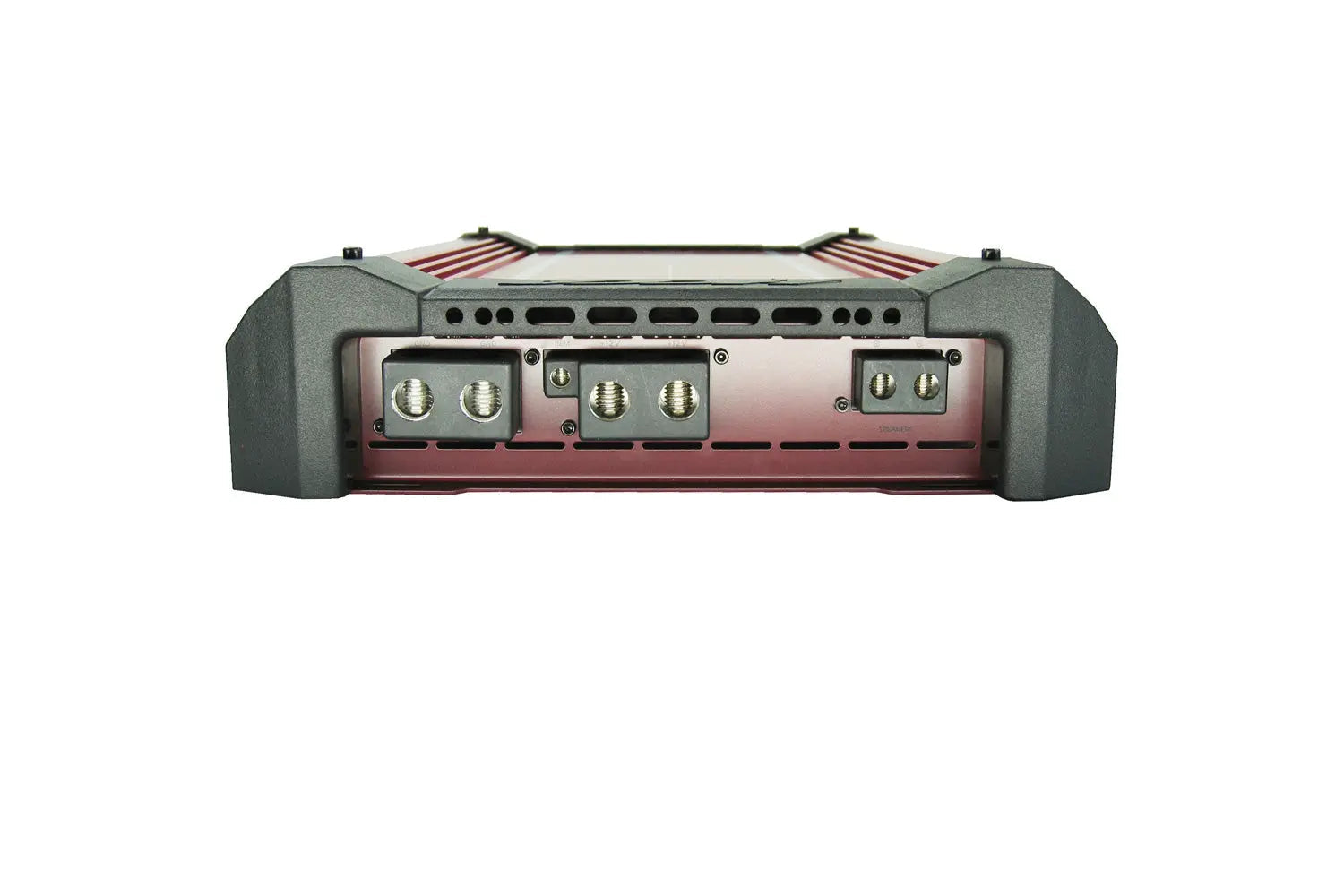

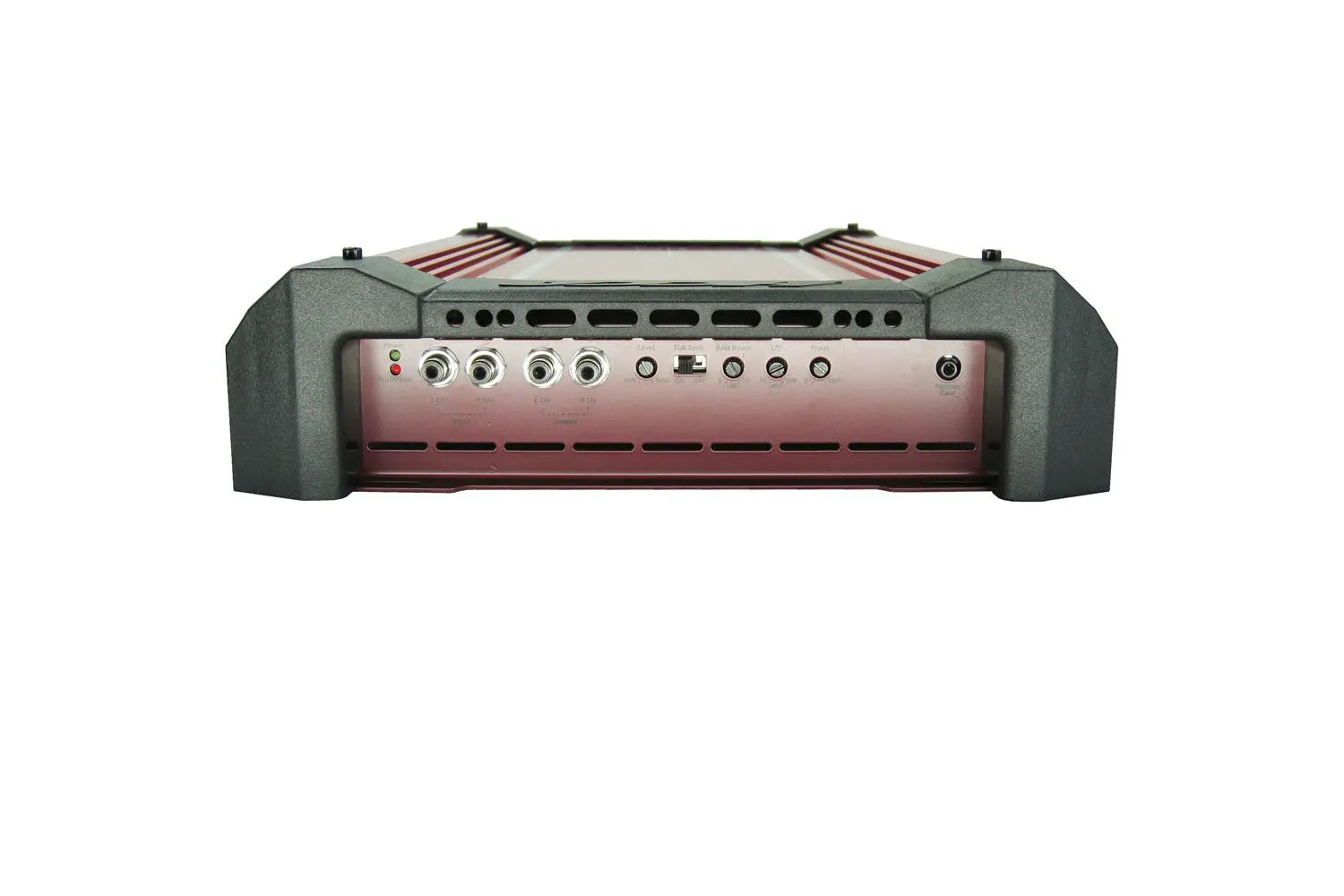

Orion HCCA12500.1DSPLX HCCA Series Monoblock Amplifier 12,500W RMS 1 Ohm Class D
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%0A%20%20%0A1-ohm%20stable%20%E2%80%94%20linkable%20with%20an%20identical%20amp%0A%20%20%0AClass%20D%20efficiency%20%E2%80%94%20built%20for%20...
){kind=link}
- 12,500W RMS @ 1 Ω — HCCA Series Class D competition monoblock
- 7,500W @ 2 Ω · 4,300W @ 4 Ω RMS (0.5% THD+N)
- 1-ohm stable — linkable with an identical amp
- Class D efficiency — built for extreme SPL subwoofer systems
This Listing Includes: (1) Orion HCCA12500.1DSPLX HCCA Series Monoblock Amplifier
The Orion HCCA12500.1DSPLX is an HCCA Series Class D monoblock rated 12,500W RMS at 1 ohm (7,500W at 2 ohms, 4,300W at 4 ohms, 0.5% THD+N). It's 1-ohm stable and linkable with an identical amp for big-build SPL systems. Authorized Orion dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Specifications
| RMS @ 1 Ω | 12,500W |
| RMS @ 2 Ω | 7,500W |
| RMS @ 4 Ω | 4,300W |
| Class | Class D |
| Channels | Monoblock (1) |
| Stability | 1 ohm |
