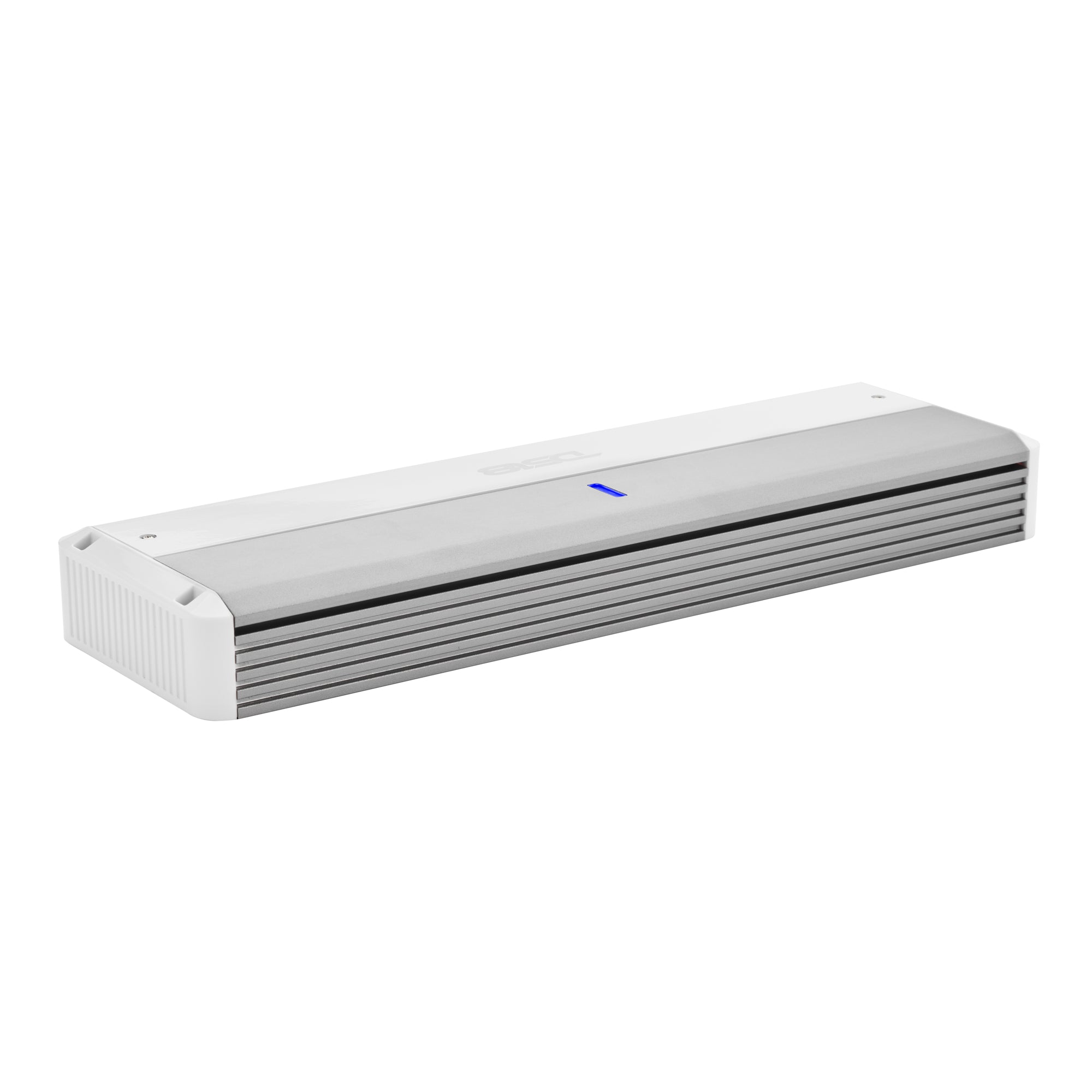

DS18 NXL 6-Channel Marine & Powersports Amplifier Class D | 6 x 150W @ 4-Ohm
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
6-Channel Marine Grade Class D Amplifier
DS18’s NXL-M6 pumps out 150W RMS per channel at 4 ohms, 230W at 2 ohms, and when bridged, it delivers 440W across 3 channels at 4 ohms. It’s a perfect match for multi-speaker setups on boats, ATVs, and more.
Complete Audio Control
Customize your sound with adjustable gain controls (0.2V to 6V), selectable high-pass, low-pass, or full-range crossovers adjustable between 40Hz and 2kHz, and a variable bass boost up to 12dB at 45Hz. This amp fine-tunes AND optimizes your setup’s performance.
Endure the Elements
With an IP55 water-resistant rating, corrosion-resistant hardware, and a coated 4-layer PCB, the NXL-M6 thrives in the harshest marine environments. Thermal, overload, DC output, short circuit, voltage input, and clipping protections keep your system safe and reliable.
Installation Made Simple

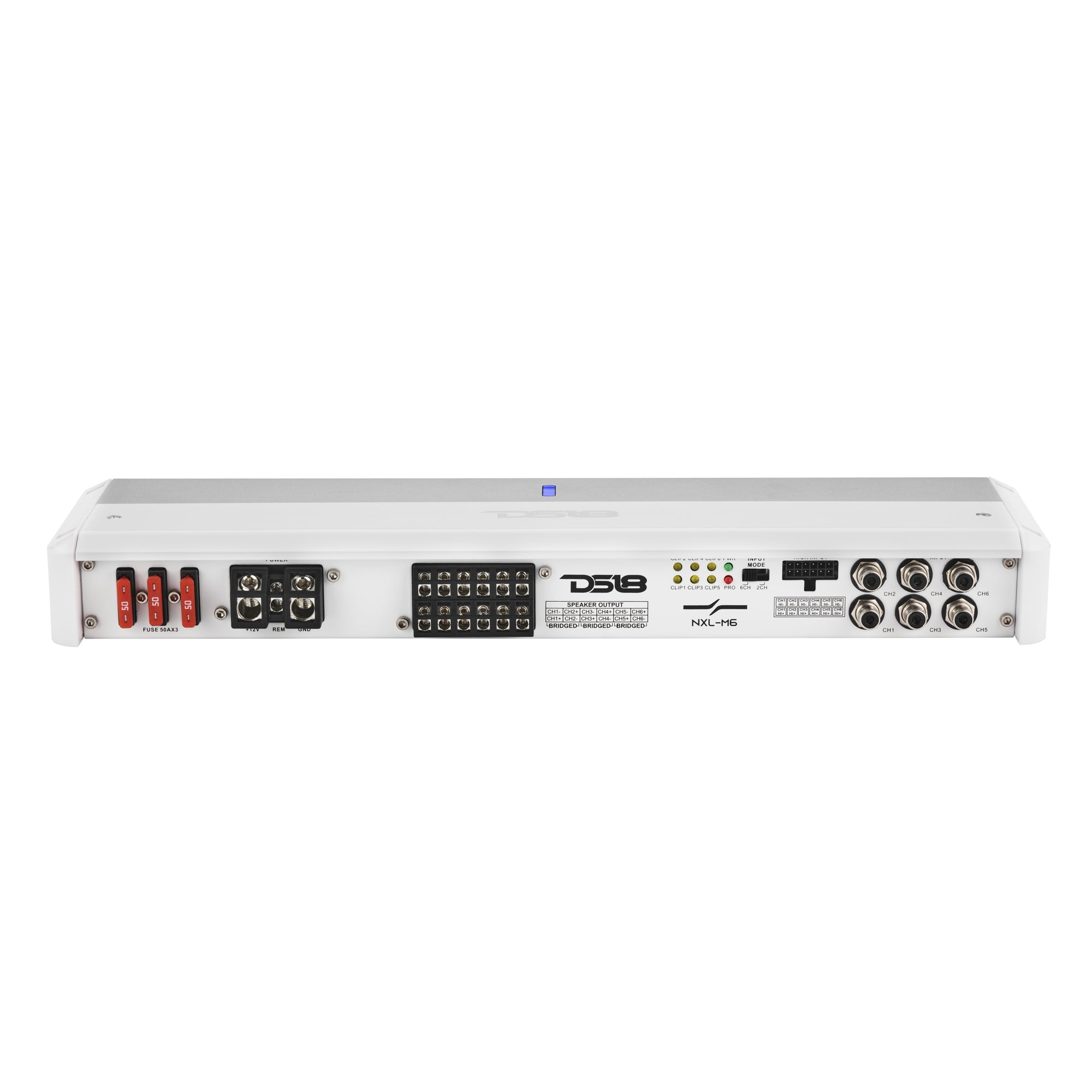

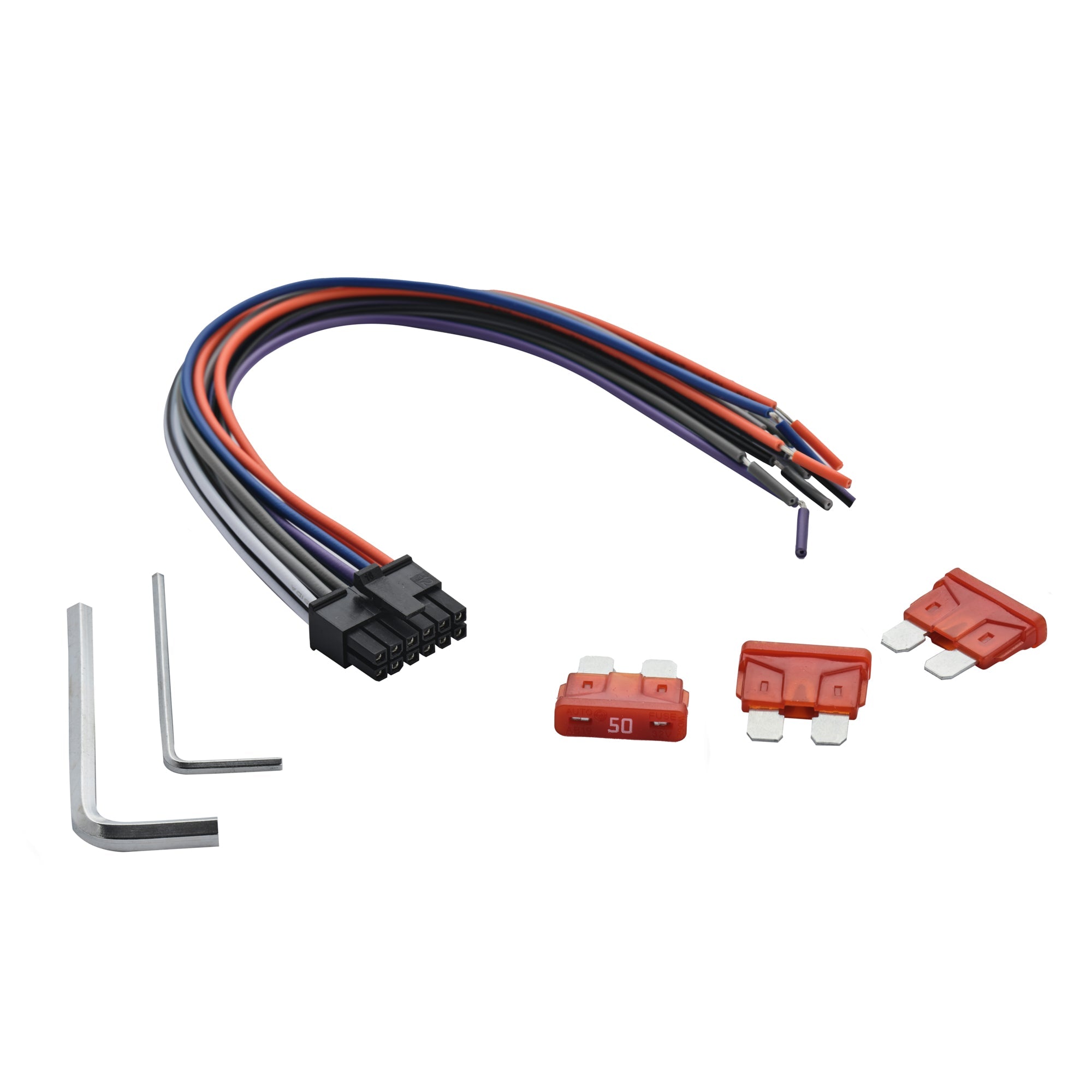

The M6 comes with marine-grade mounting hardware and direct-insert power and speaker terminals for secure, clean connections. With clear LED indicators for power, clip, and protection status, you’ll always know your amp’s performance status.
Upgrade your marine or powersports audio setup today with DS18’s NXL-M6 and experience quality on the water or off-road!
