DS18 NXL 4-Channel Full-Range Class D IP67 Marine and Powersports Flush Mount Amplifier 4 x 100 Watts Rms @ 4-Ohm
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.

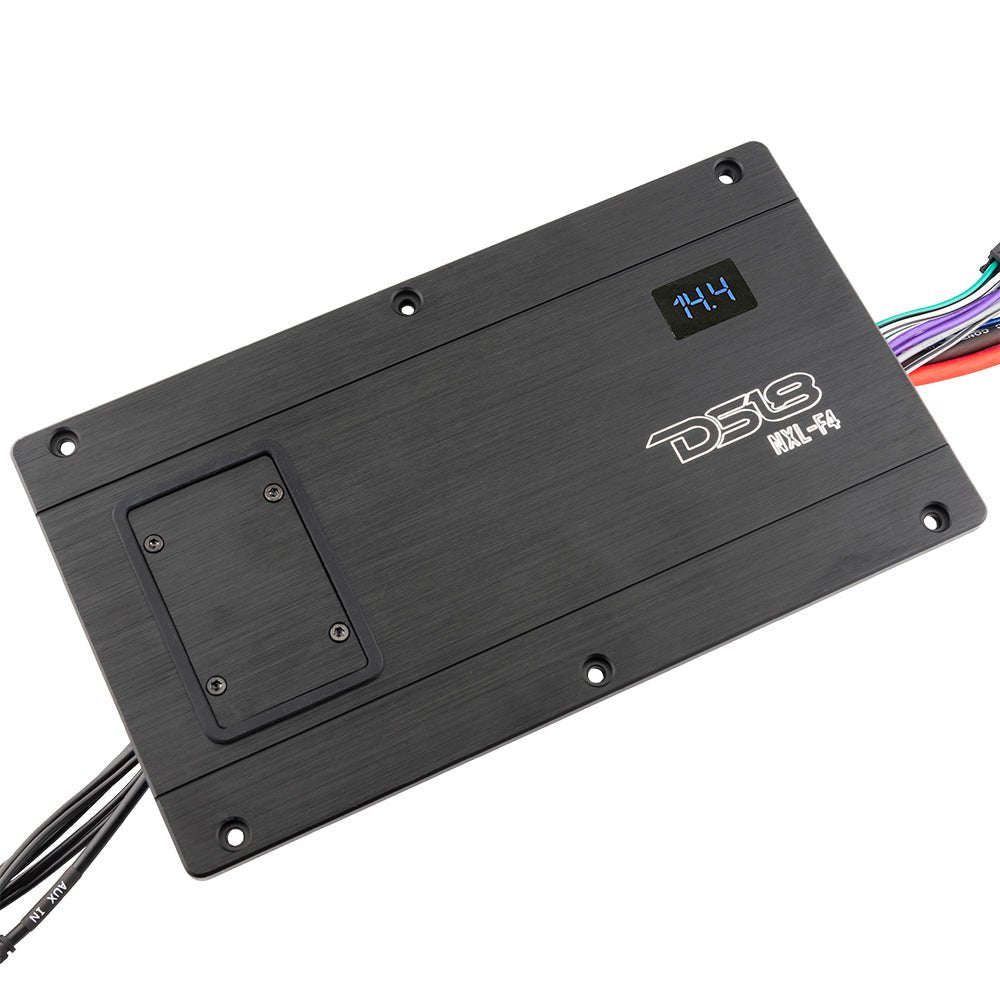

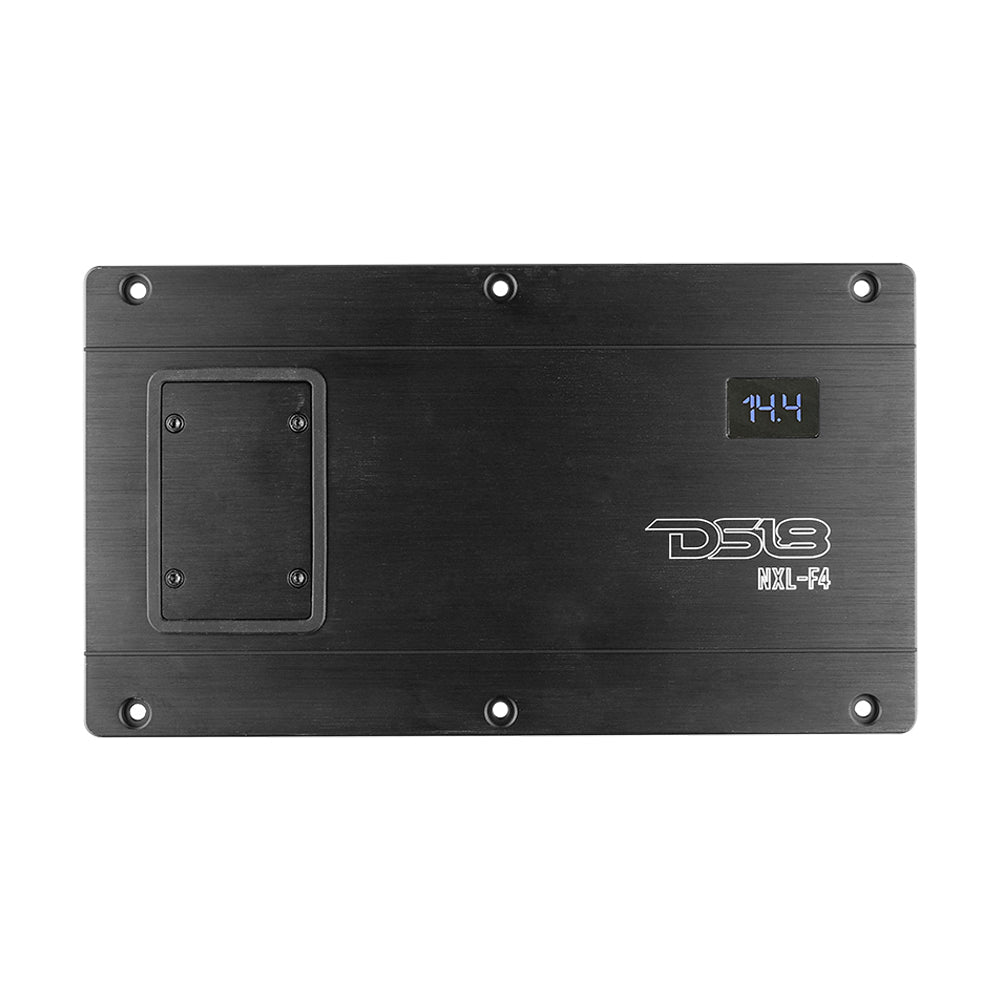

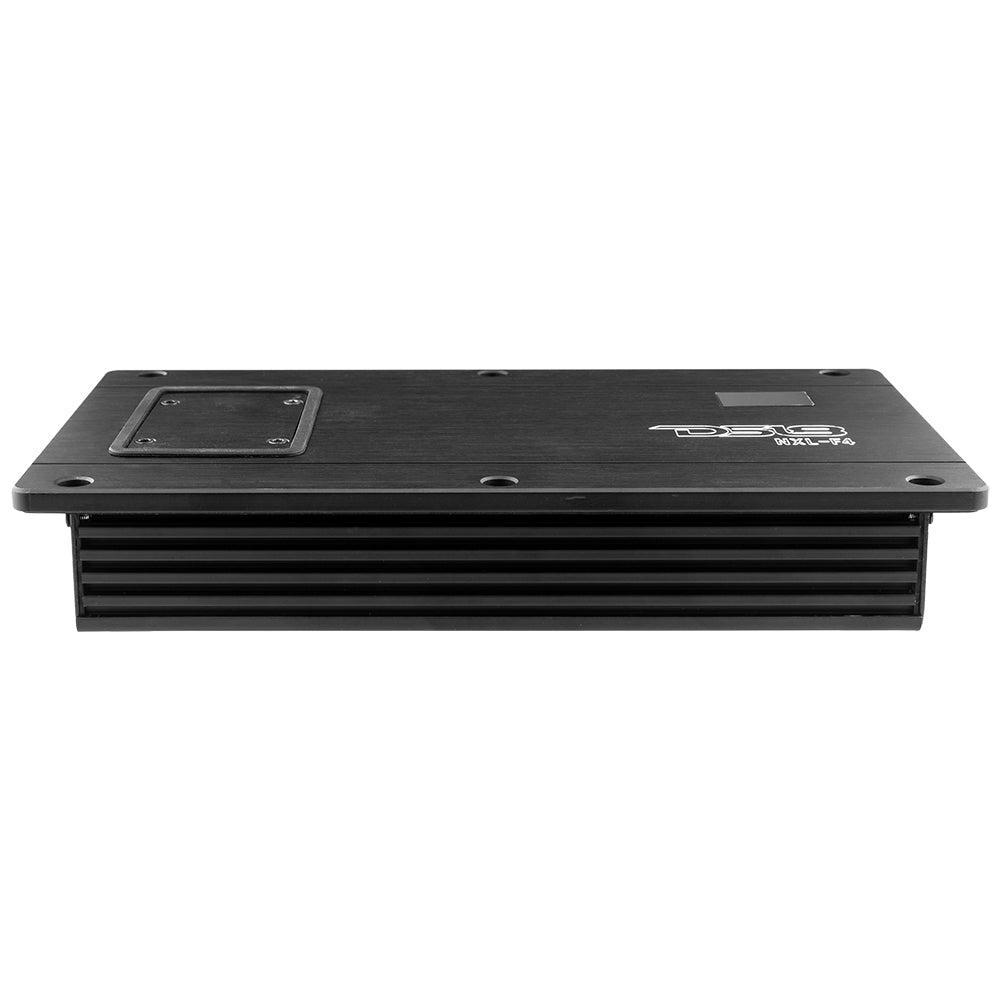

DS18 HYDRO NXL-F4 Flush Mount Class D Full-Range Marine 4-Channel Boat, ATV, UTV Amplifier with Voltmeter 1200 Watts
The F4 is an exact duplicate of the very popular NXL-400.4 but now offered in flat mount configuration so you can keep a flush and clean look to your install. This 4 channel amplifier is the go to source to power all your DS18 marine speakers as all are an amazing fit with this sleek and powerful hydro amp.
- Flush / Flat mount design so you can keep your install looking clean and flush.
- Great to power all DS18 NXL series speakers with great loudness and efficiency.
- Full Range configuration so it can be used for virtually any speaker within its power recommendations.
Technical Details
| Power Output @ 2 ohms | 160Wx4CH |
| Power Output @ 4 ohms | 100Wx4CH |
| Bridge Power Output @ 4 ohms | 320Wx2CH |
| Total Harmonic Distortion | <0.1% |
| S/N Ratio Red 1W @ 4 ohms | 90dB |
| Gain Range | 0.2-6V |
| Crossover Range | 40 - 400Hz |
| Frequency Range | 20Hz - 20KHz |
| Bass Boost | 0-18dB (Rear CHs) |
| Forced Cooling System | N/A |
| Bass Remote Control | N/A |
| Topology Operation | Full Range Digital |
| Dimensions (MM) | 238 x 135 x 41 |
Authorized DS18 dealer at JS Ultimate Sounds. Free shipping on orders $99+.
