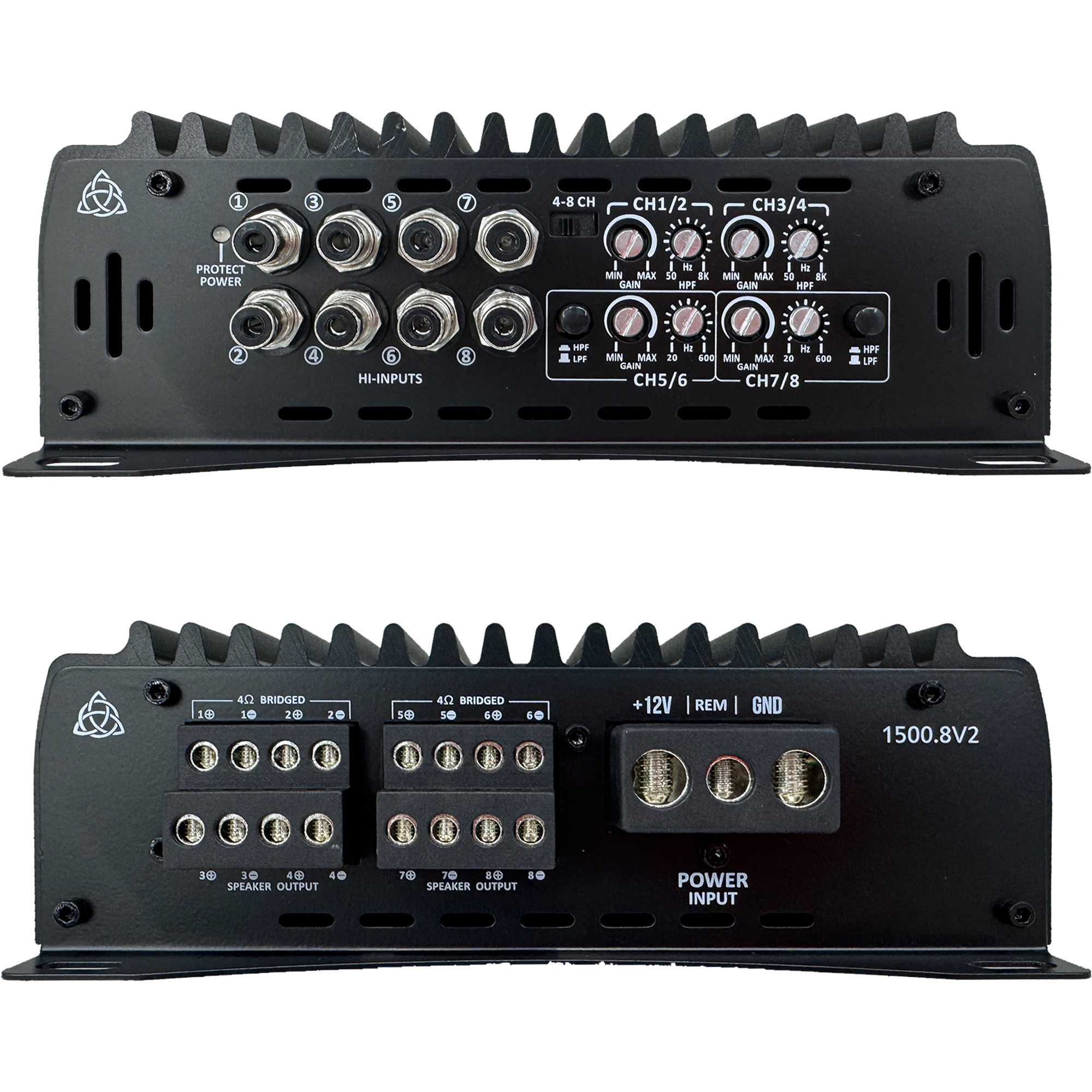

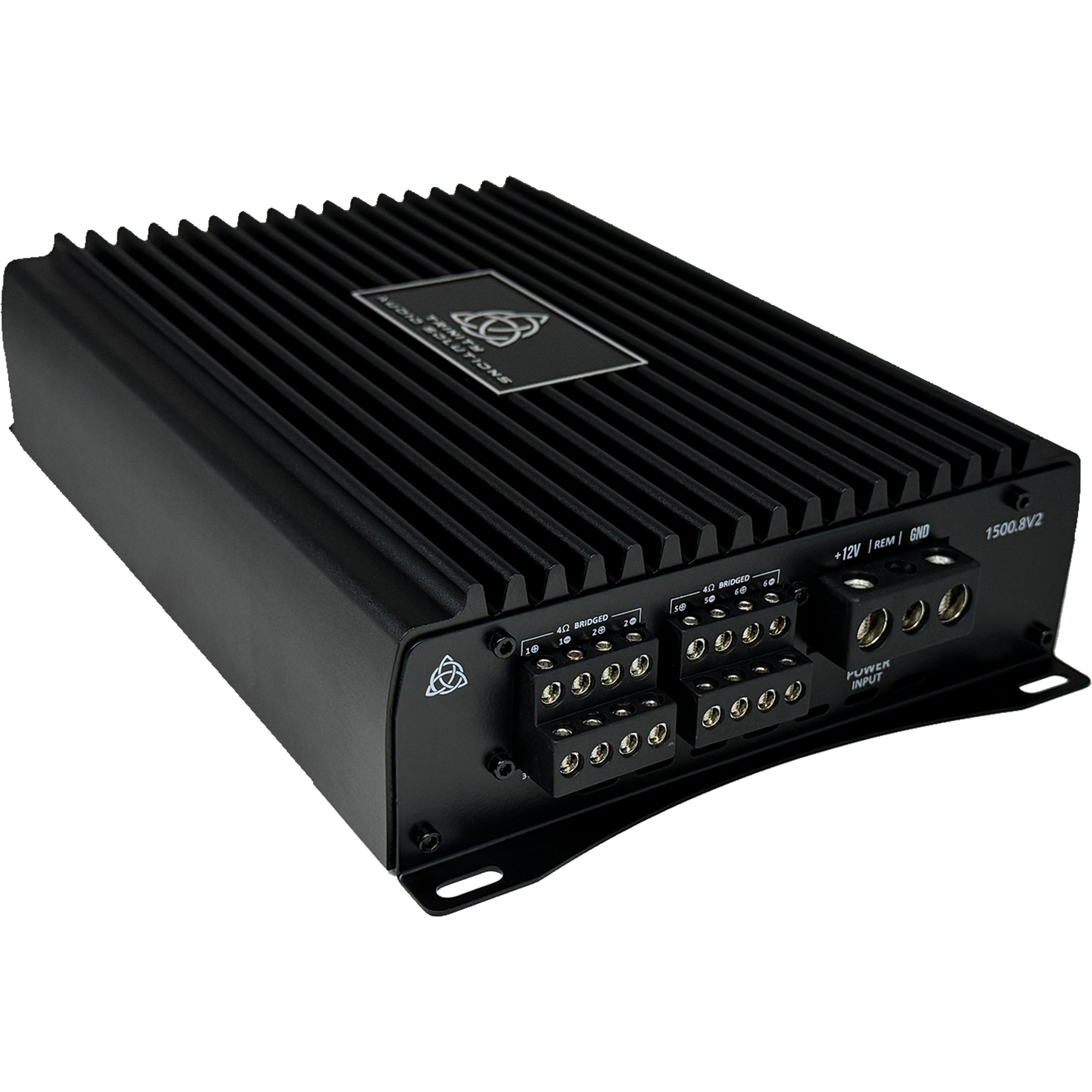

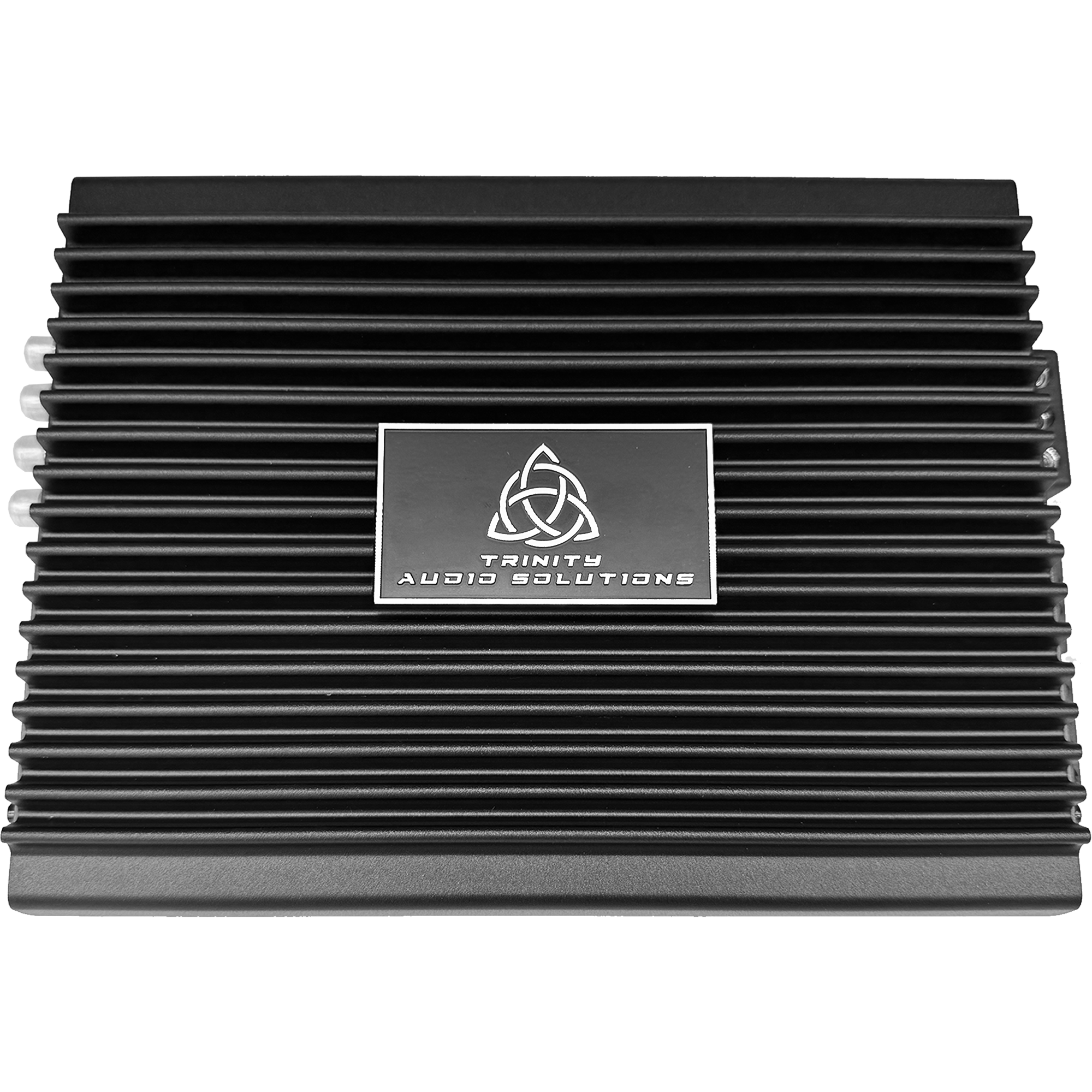

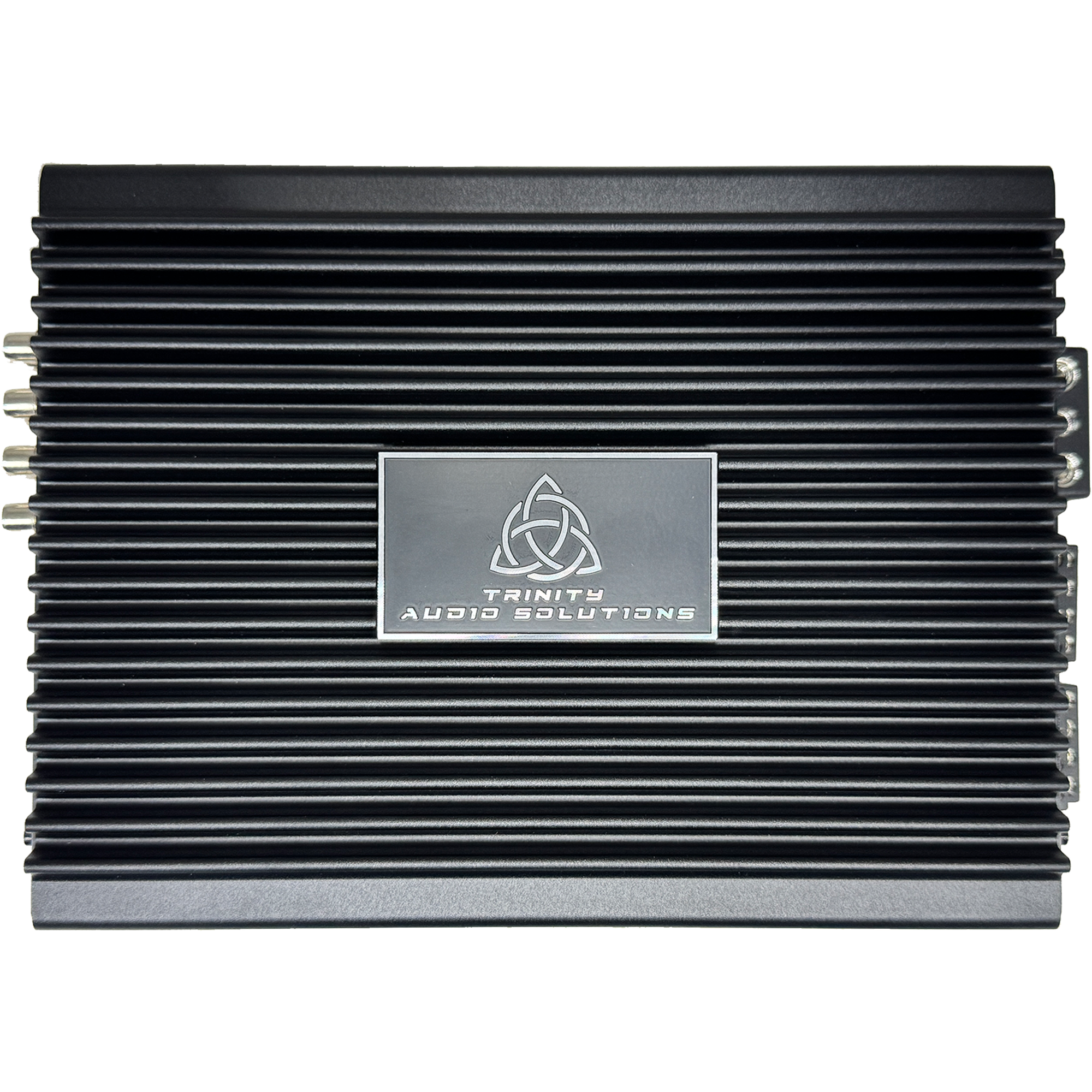

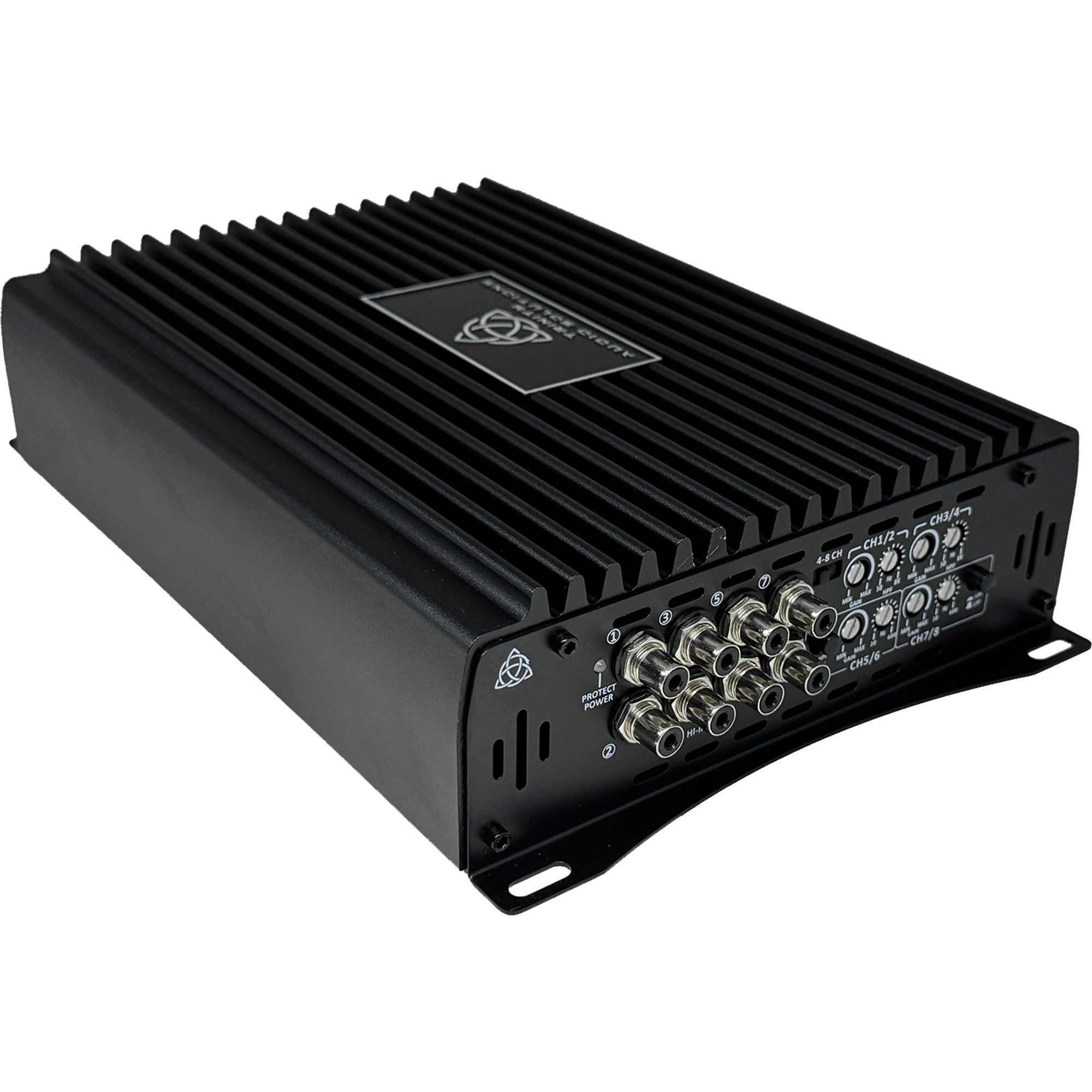

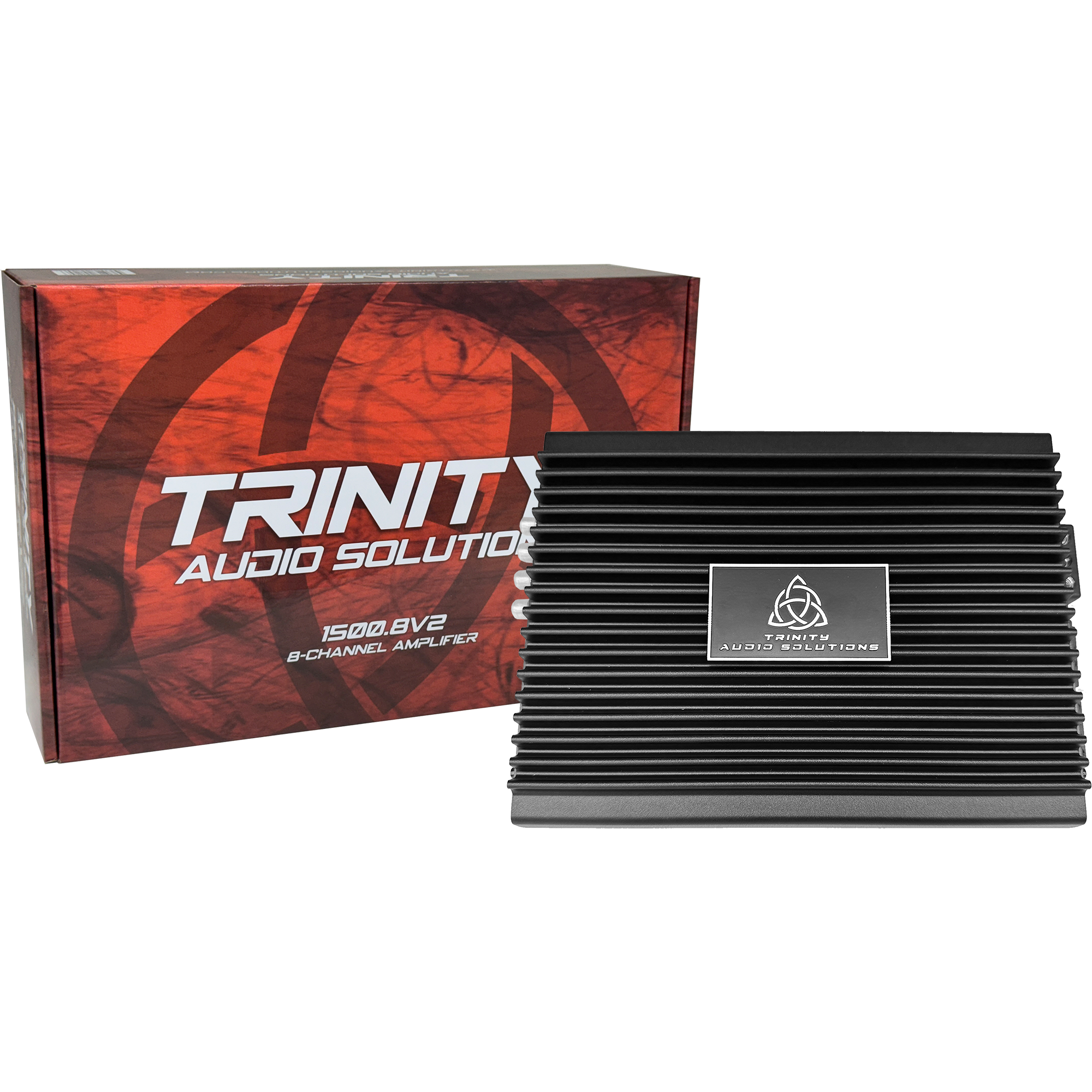

Trinity Audio Solutions 1500.8v2 8-Channel Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
The Trinity Audio Solutions 1500.8v2 8-Channel Amplifier packs serious output into a compact chassis built for the shrinking space of modern vehicles. This 8-channel amp runs a full multi-way system — highs, mids, and subs — from a single compact chassis.
An oversized heatsink — over 50% larger than typical industry standards — fights the heat buildup that kills small-footprint amplifiers, and every unit is tested to hold up under the most demanding conditions bassheads throw at it. Backed by a 1-year manufacturer warranty.
Specifications
| RMS (Ch 1-4) @ 4 Ohms | 80 x 4 |
| RMS (Ch 1-4) @ 2 Ohms | 130 x 4 |
| RMS (Ch 5-8) @ 4 Ohms | 150 x 4 |
| RMS (Ch 5-8) @ 2 Ohms | 250 x 4 |
| RMS Bridged (Ch 1-4) @ 4 Ohms | 270 x 4 |
| RMS Bridged (Ch 5-8) @ 4 Ohms | 500 x 4 |
| Total Harmonic Distortion | <.02% |
| Signal-to-Noise Ratio | 94 dB |
| Frequency Range (Ch 1-4) | 50 Hz - 30,000 Hz |
| Frequency Range (Ch 5-8) | 10 Hz - 30,000 Hz |
| Signal Input Range | .3 - 8.2 VAC |
| DC Voltage Input Range | 9 - 16.5 VDC |
| Dimensions (L x W x H) | 9.75" x 7.5" x 2.5" |
Features
- Small footprint for tight modern installs
- Bass knob with volt meter & clip indicator (mono models)
- Tiffany-styled panel-locking RCA inputs
- All-metal adjustment potentiometers
- Active on-board cooling fan
- Oversized heatsink — over 50% larger than typical industry standards
- 1-year manufacturer warranty
JS Ultimate Sounds is an authorized Trinity Audio Solutions dealer. Every product is 100% genuine and backed by full manufacturer warranty. Questions about fitment, wiring, or building your system? Our car-audio experts are here to help — reach out any time.
