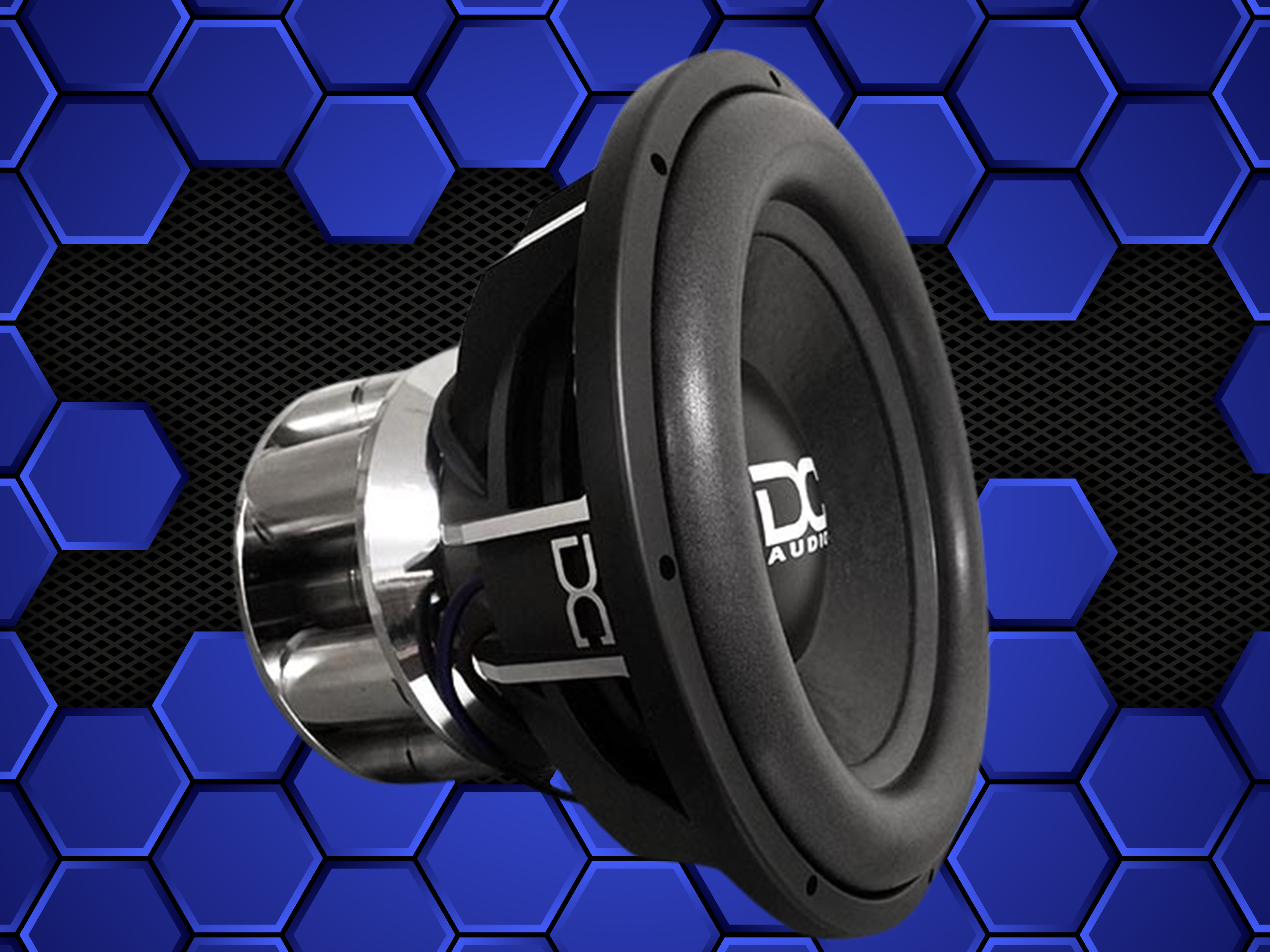

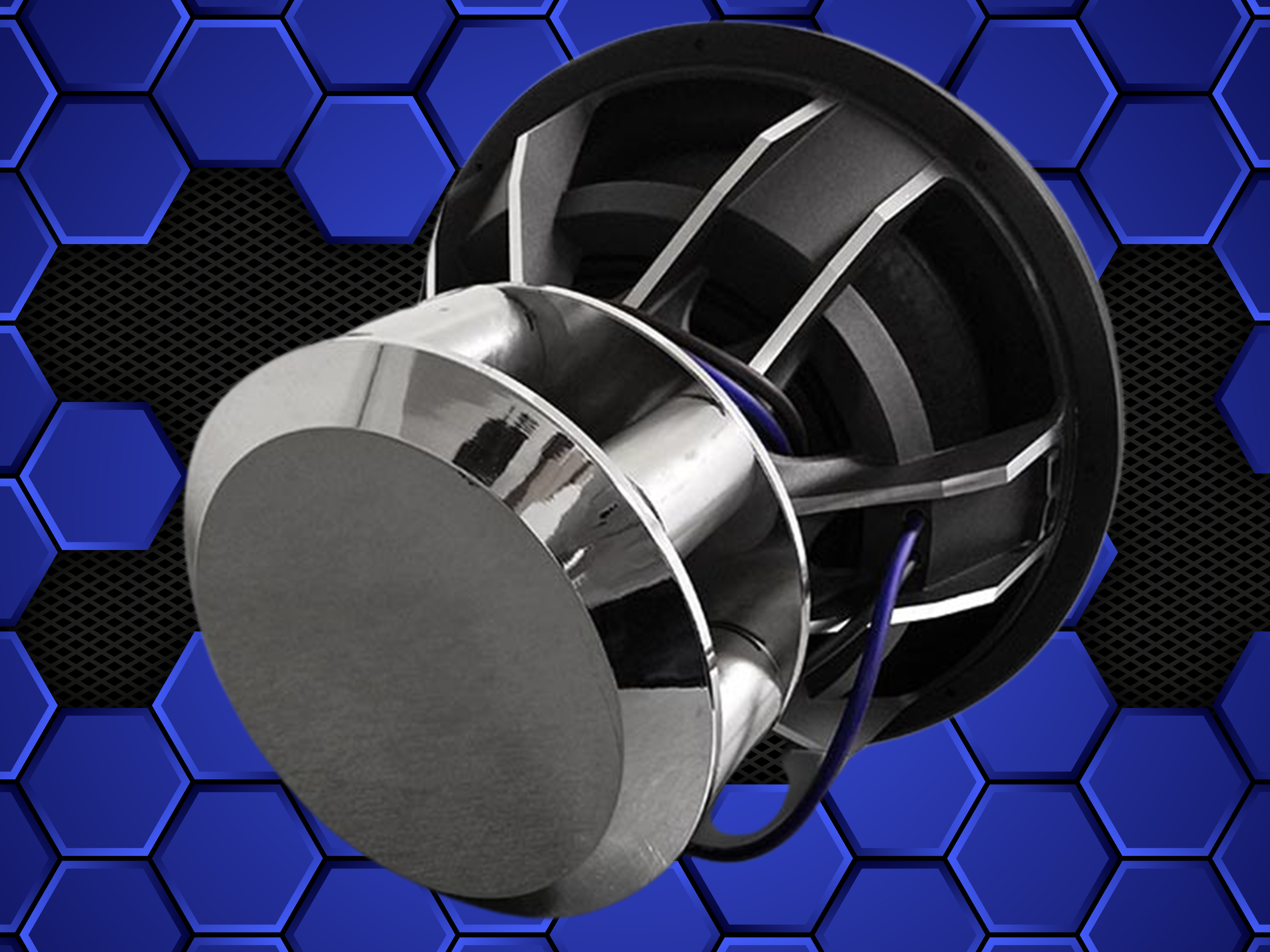

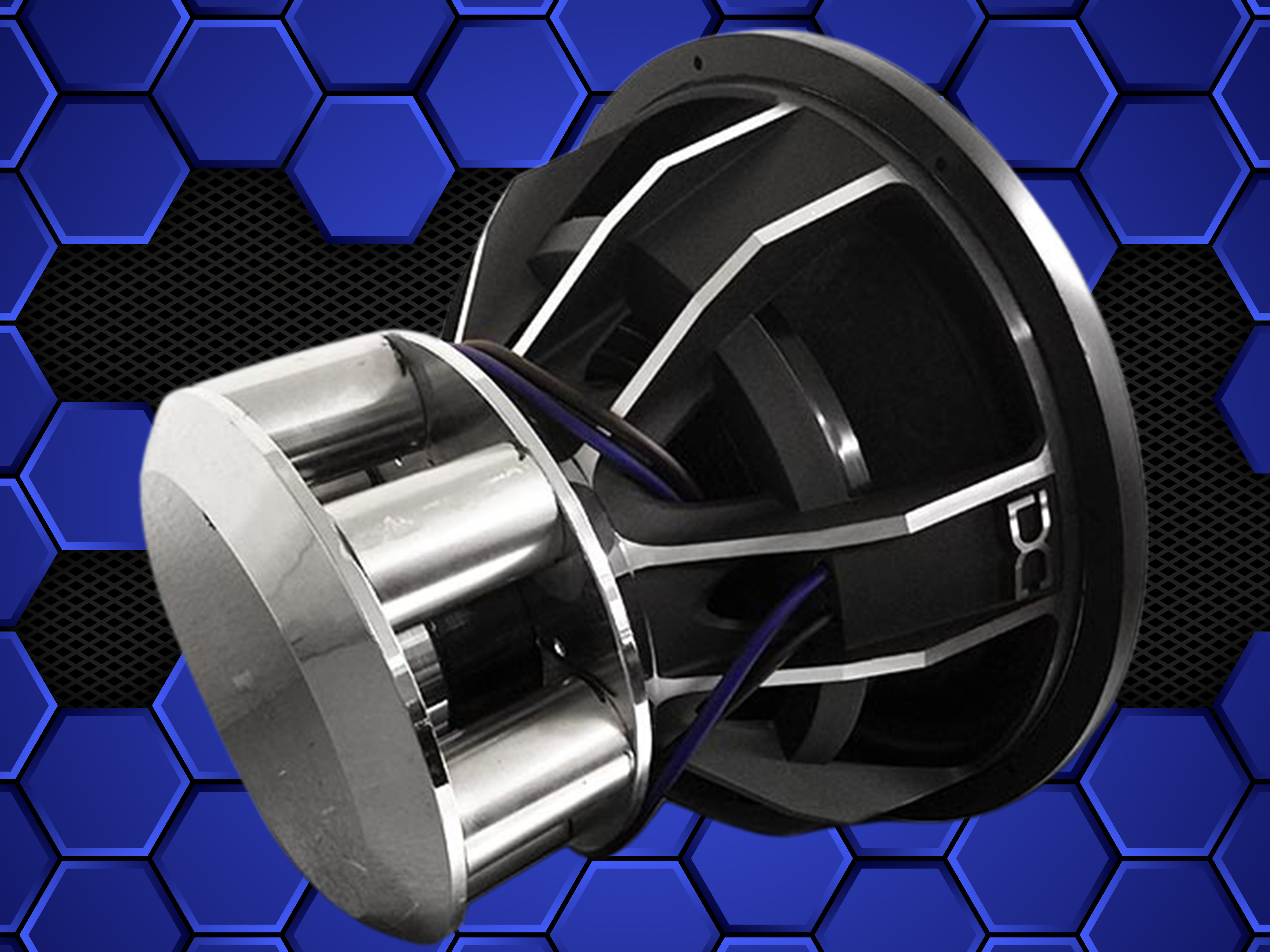

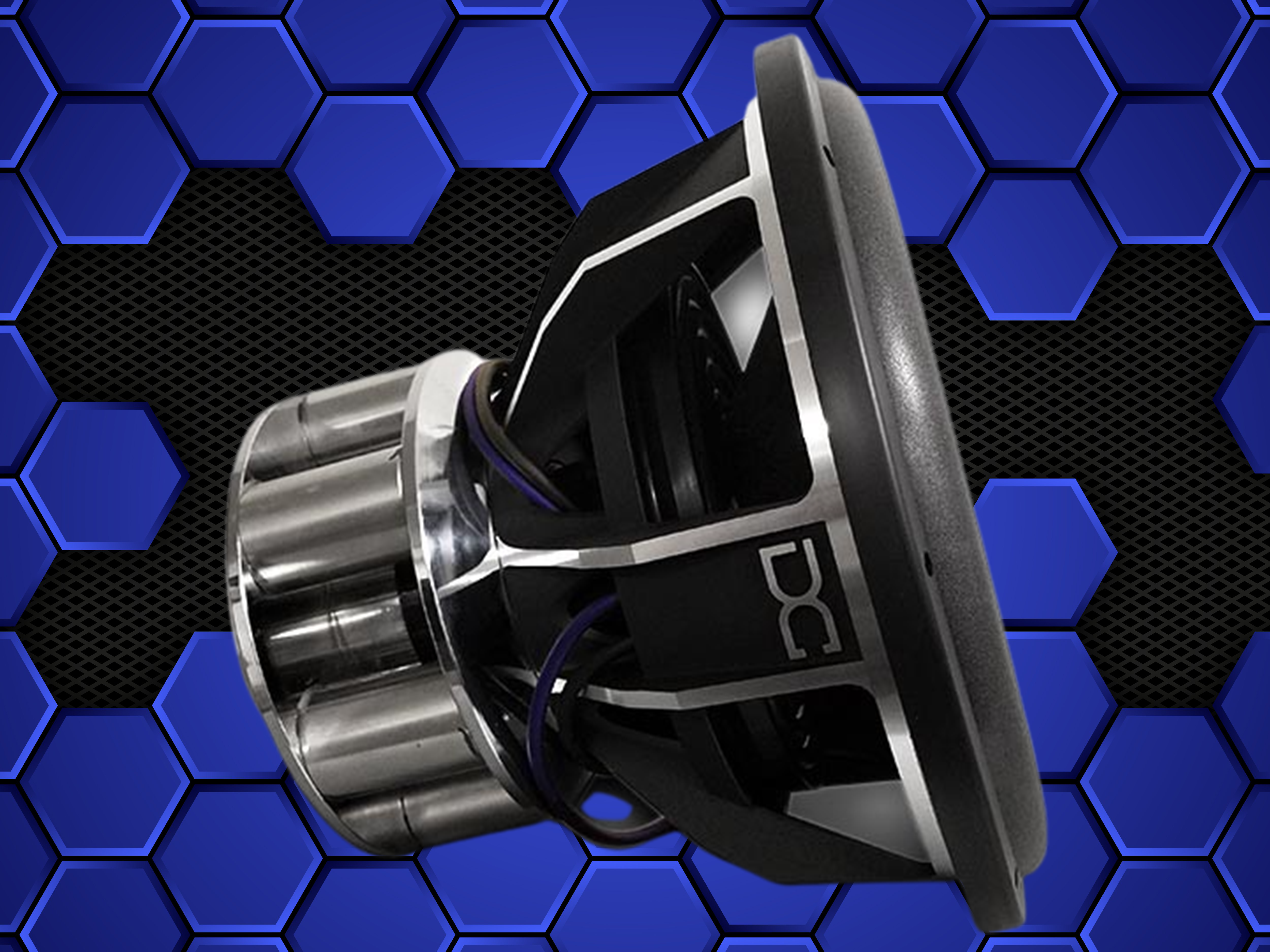

DC Audio NEO Elite 3.5 Subwoofer 3500W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- 3500W RMS / 6000W Peak — DC's 3.5" coil neo-powered subwoofer
- Large flat-wound 3.5" coil + 6 columns of neo — built for high-power ground-pounder duty
- Dual 10" spaced spiders — multi-tensile leads sewn to the top spider
- Kraft-pulp fiber-reinforced cone — wide long-throw surround, 8 AWG OFC direct leads
- Available 12"–18", dual 0.7, 1, 1.4 or 2 ohm — stock LR cone/surround
This Listing Includes: (1) DC Audio NEO Elite 3.5 Subwoofer
The DC Audio NEO Elite 3.5 is DC's 3.5" coil neo-powered subwoofer — happy doing SPL but even better suited to high-power ground-pounder builds, rated 3,500 watts RMS. A large flat-wound 3.5" coil, six columns of neo, dual 10" spaced spiders and a high-performance kraft-pulp cone let it take a lot of power, get loud and crush lows. Hand-built in the USA on the DC frame (7–14 day build). Authorized DC Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- 3.5" 8-layer hi-temp aluminum coil on black-anodized former
- 6 columns of neodymium motor
- Dual 10" OD spaced spiders
- Kraft-pulp fiber-reinforced cone, wide long-throw surround
- 8 AWG OFC direct leads, cast DC-series aluminum frame
Specifications
| RMS Power | 3,500W |
| Peak Power | 6,000W |
| Voice Coil | 3.5" 8-layer aluminum |
| Motor | Neodymium (6 columns) |
| Spiders | Dual 10" spaced |
| Cone | Kraft-pulp fiber-reinforced (LR) |
| Available Sizes | 12", 15", 18" |
| Impedance | Dual 0.7, 1, 1.4 or 2 Ohm |
| Build | Hand-built USA (7–14 days) |
