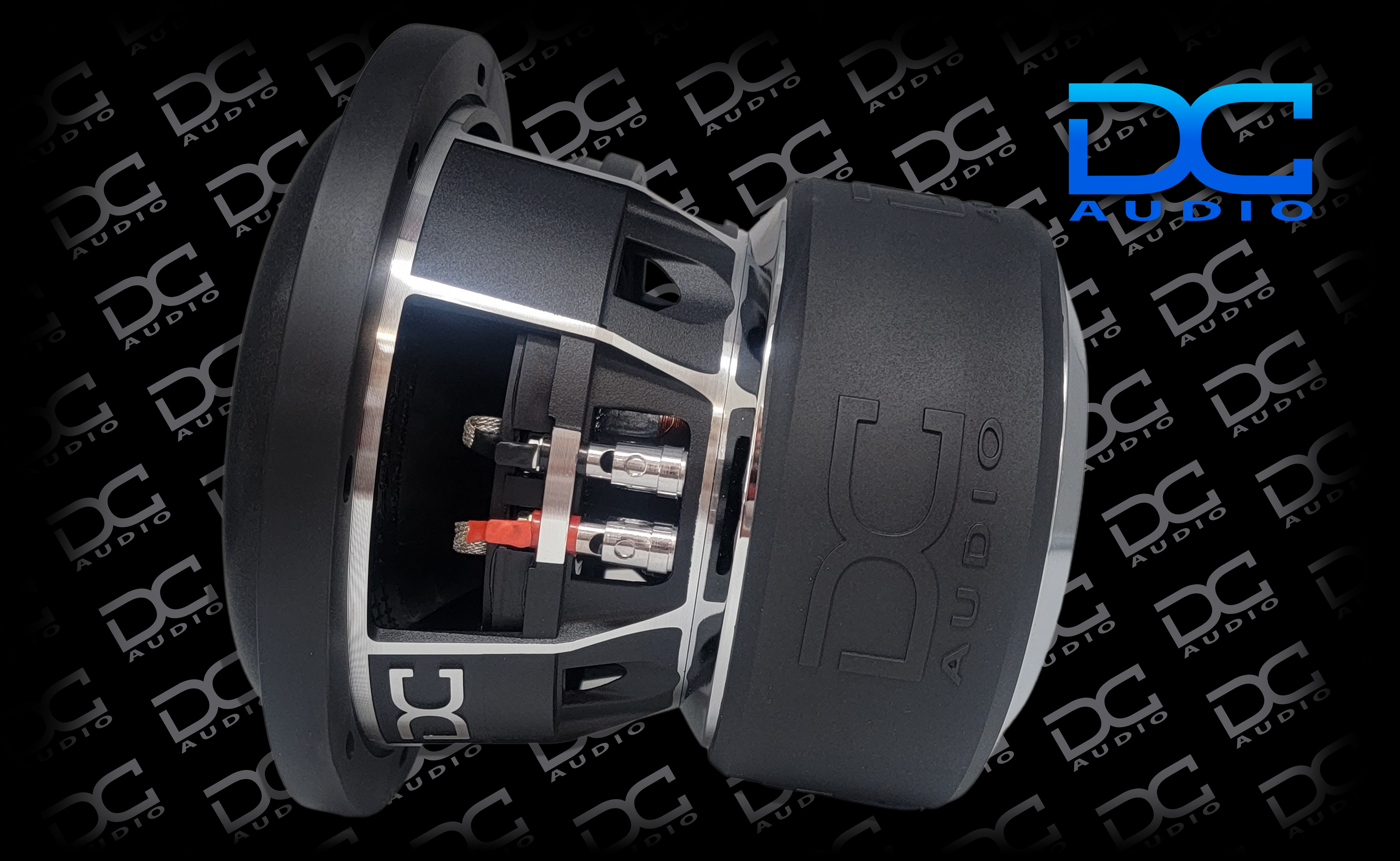

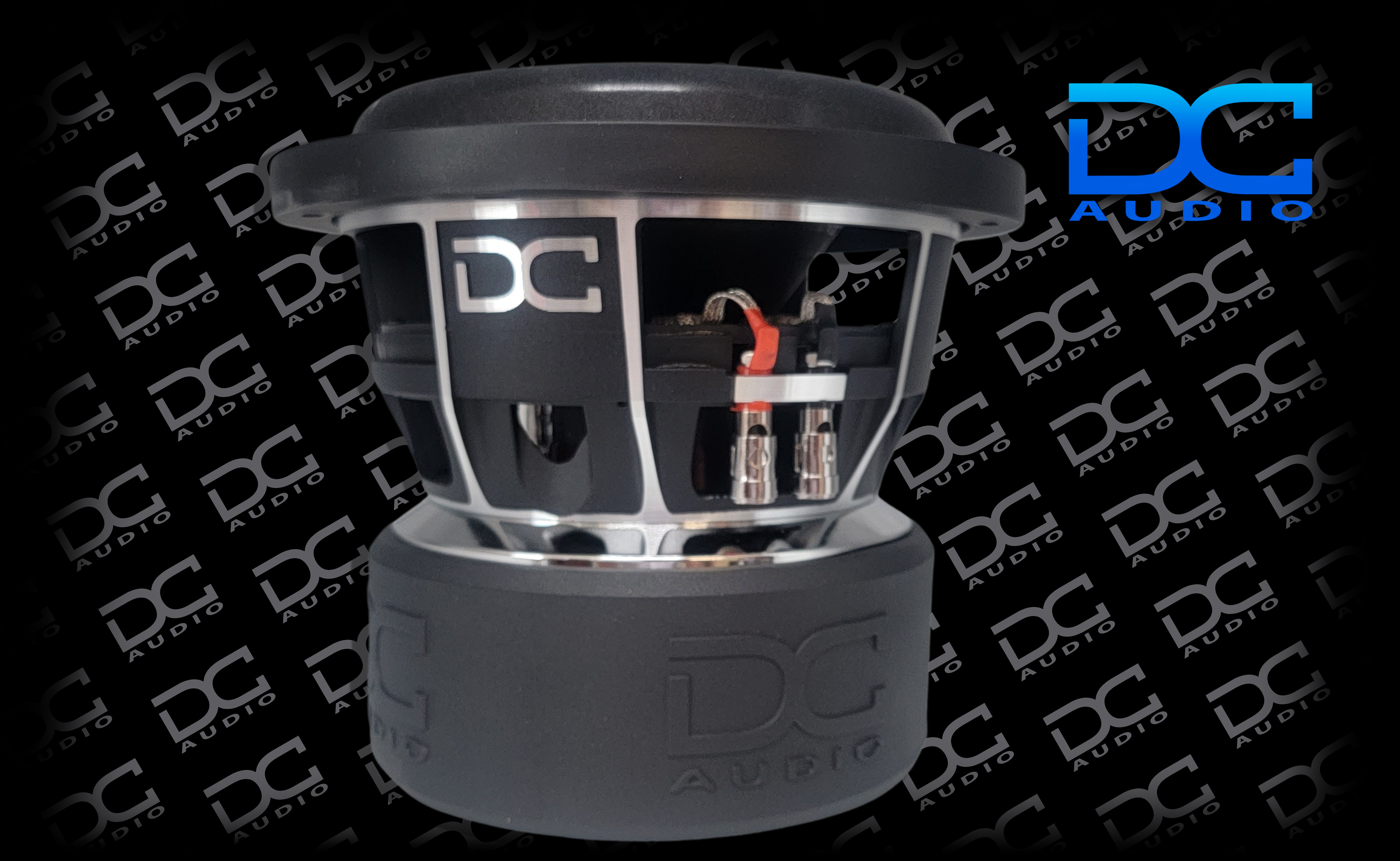

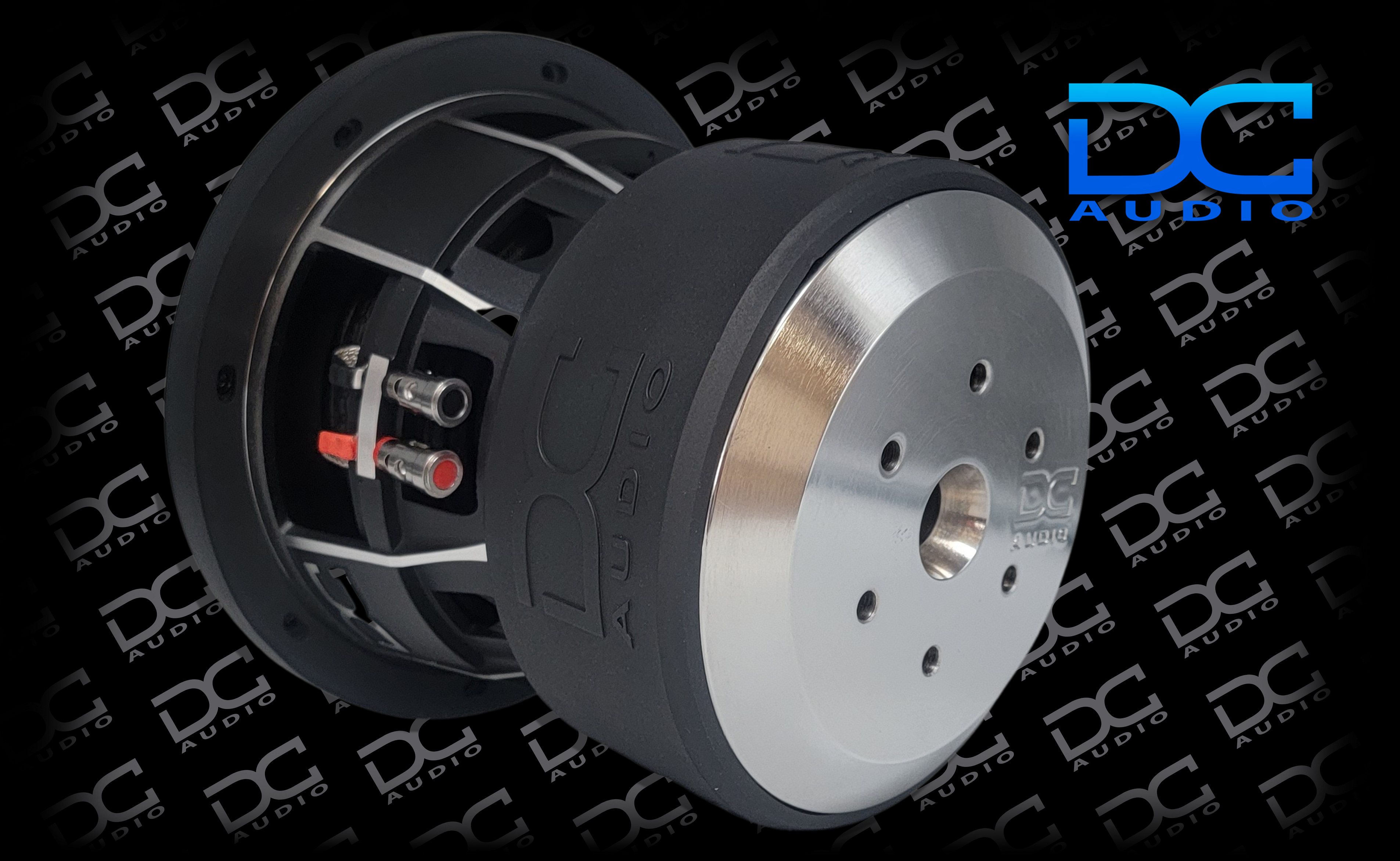

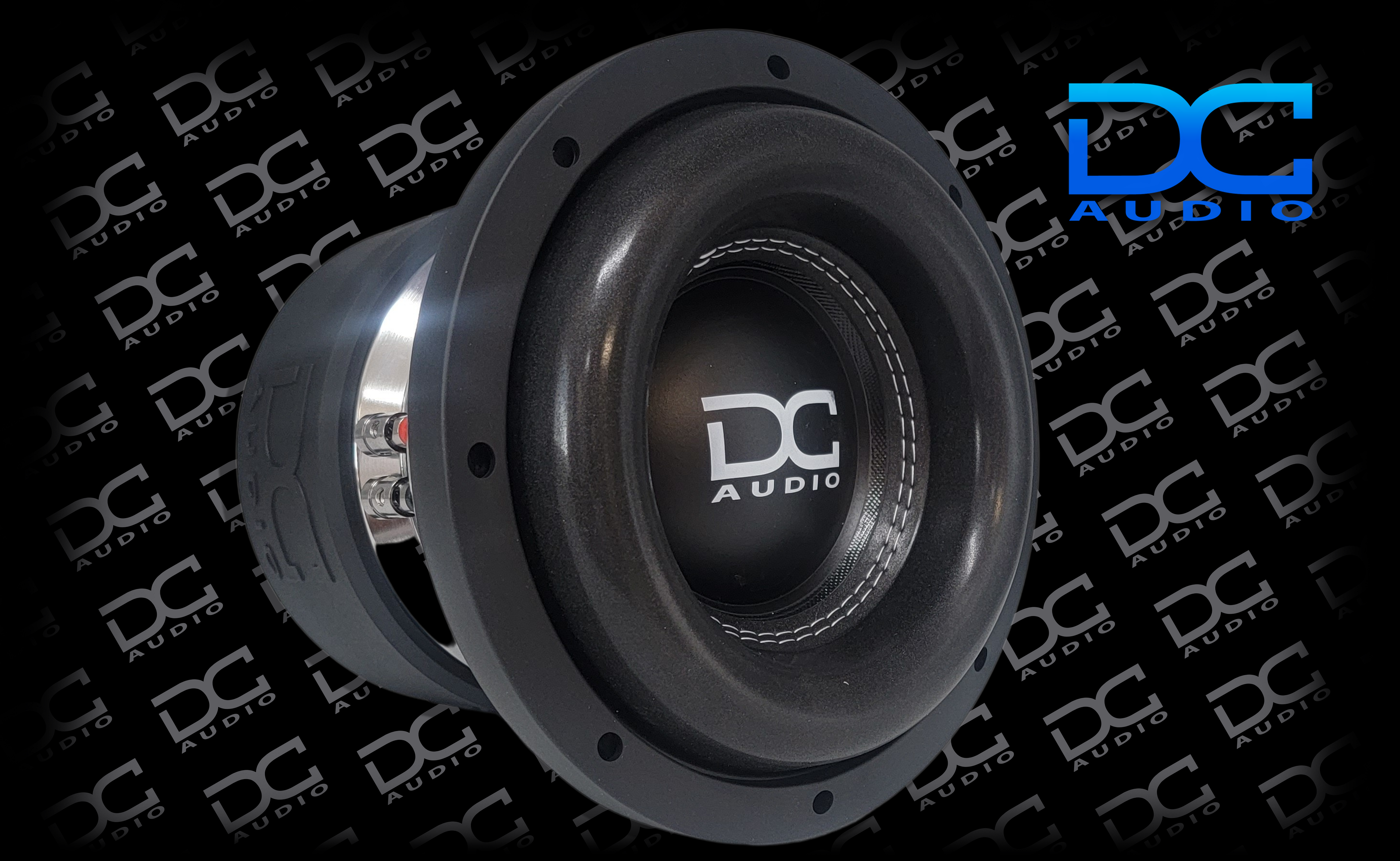

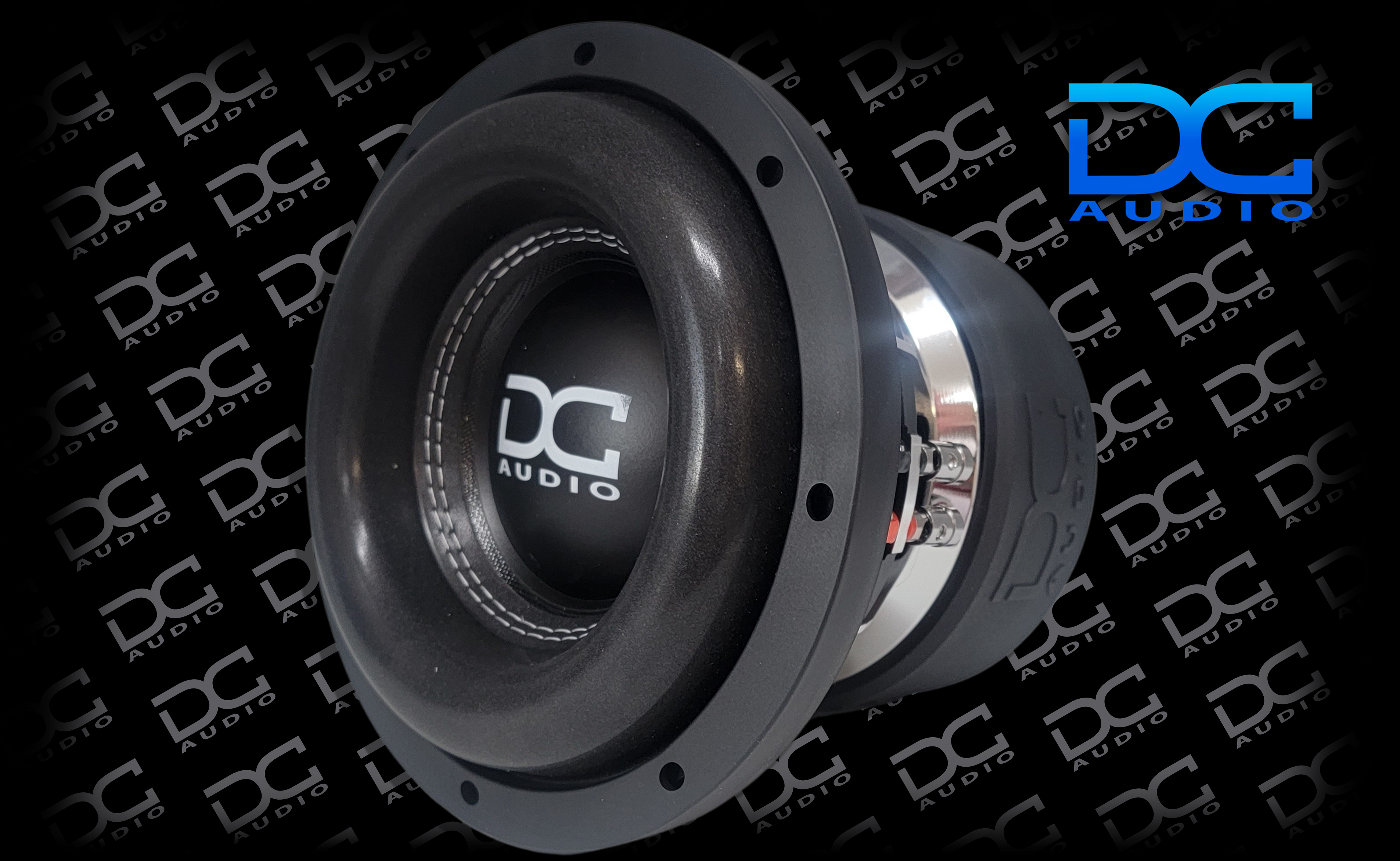

DC Audio M4 8" Subwoofer 800W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- 800W RMS / 1600W Peak — an 8" long-Xmax driver that smashes lows
- DVC 2.5" copper voice coil — gap-cooled design for higher power handling
- Bolted-down spaced spiders — keeps the driver linear under power
- Tall roll-stitched surround + oversized spiders — lower frequency reproduction
- Available in dual 2 or 4 ohm — custom cast aluminum frame
This Listing Includes: (1) DC Audio M4 8" Subwoofer
The DC Audio M4 8" is a long-Xmax 8" subwoofer for those who asked for an eight that smashes lows and takes power — rated 800 watts RMS. A tall roll-stitched surround, oversized bolted-down spaced spiders and a taller cast frame allow lower-frequency reproduction and higher power handling, while a gap-cooled DVC 2.5" copper coil keeps it thermally tough. Available in dual 2 or 4 ohm. Authorized DC Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- DVC 2.5" copper voice coil
- Gap-cooled motor design
- Bolted-down spaced linear-roll spiders
- Tall roll-stitched reinforced foam surround
- Custom cast aluminum frame
Specifications
| RMS Power | 800W |
| Peak Power | 1,600W |
| Voice Coil | 2.5" copper (DVC) |
| Cone | Non-pressed paper |
| Mounting Depth | 7" |
| Frame | Custom cast aluminum |
| Size | 8" |
| Impedance | Dual 2 or 4 Ohm |
