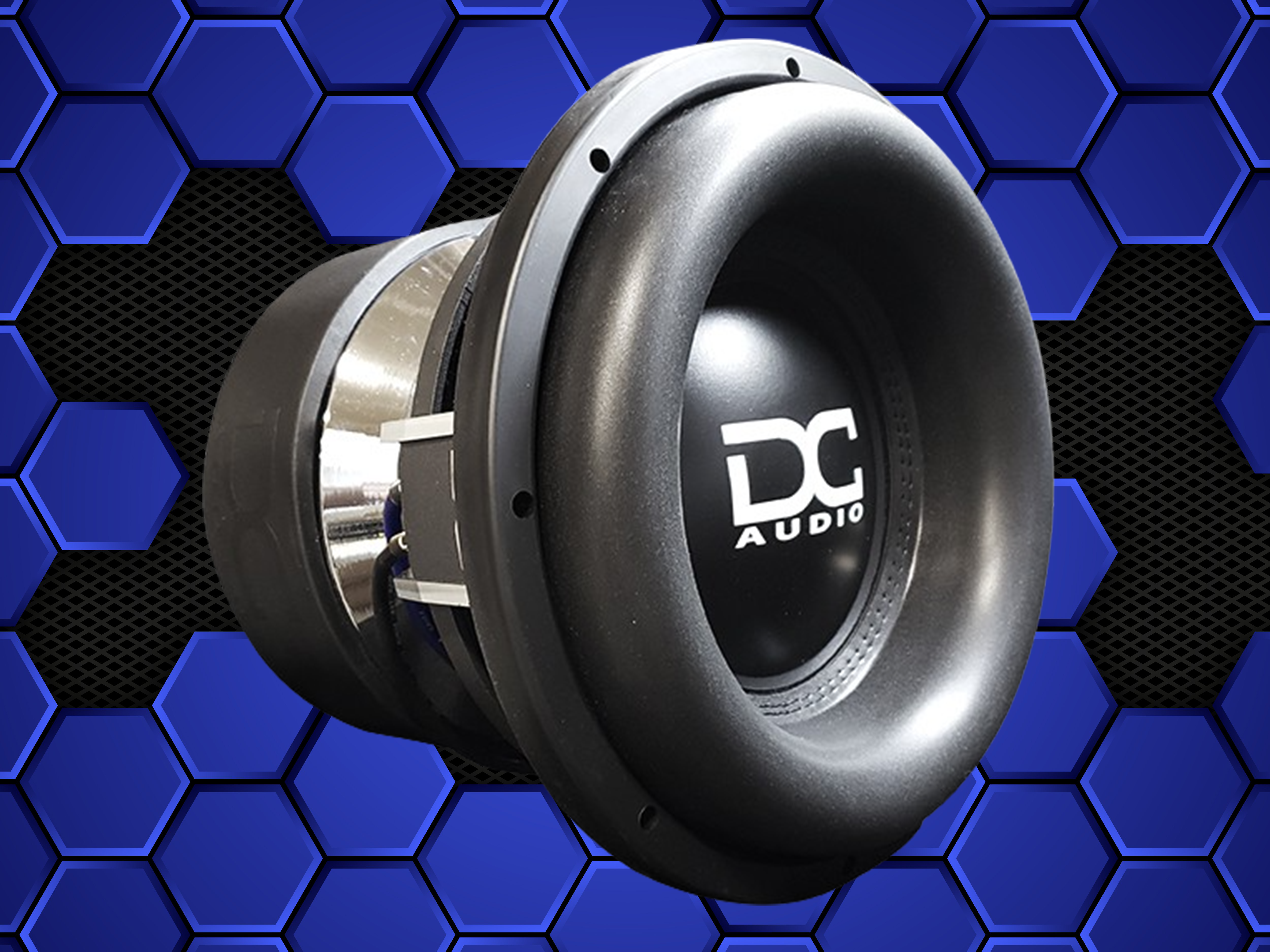

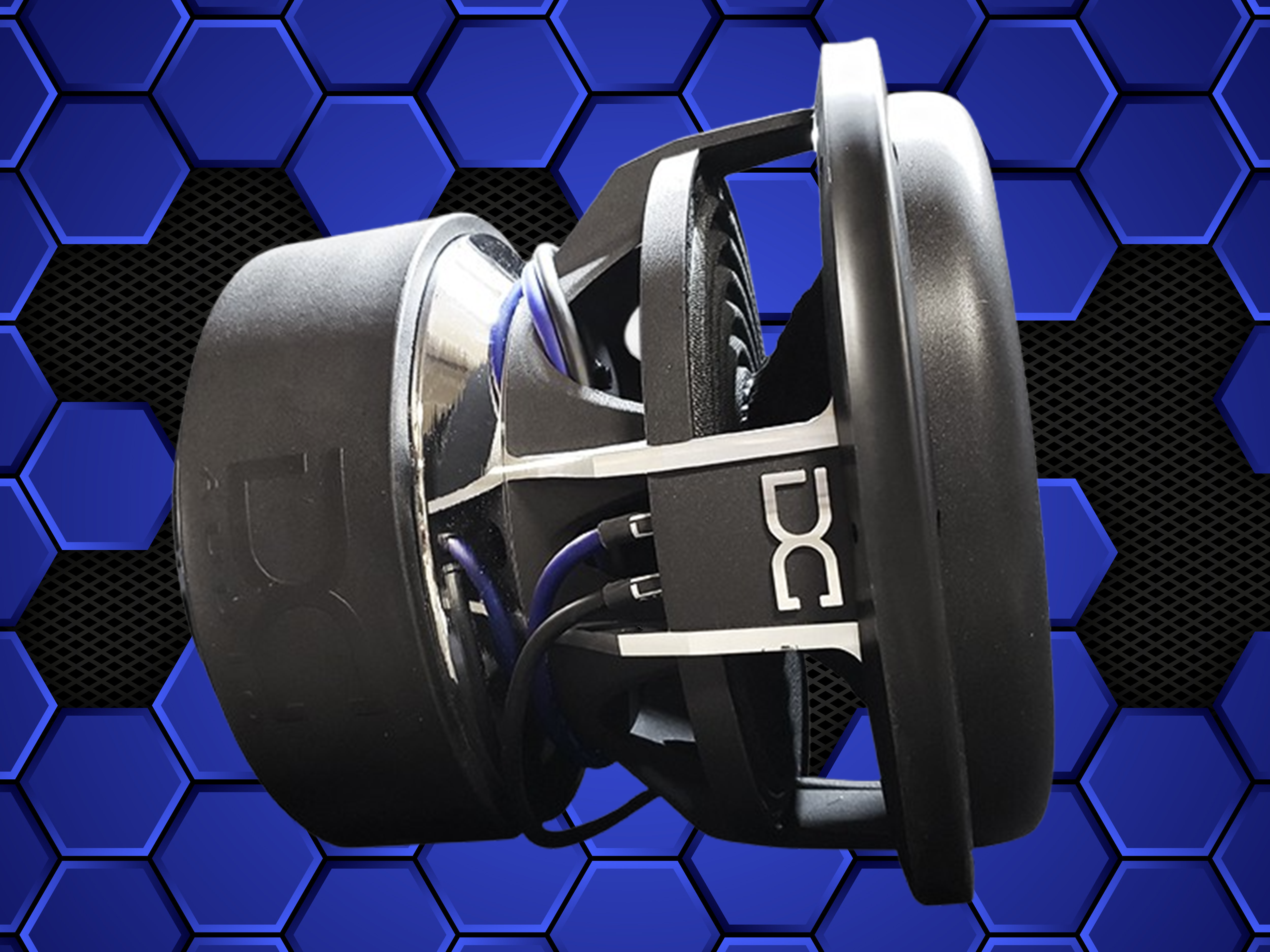

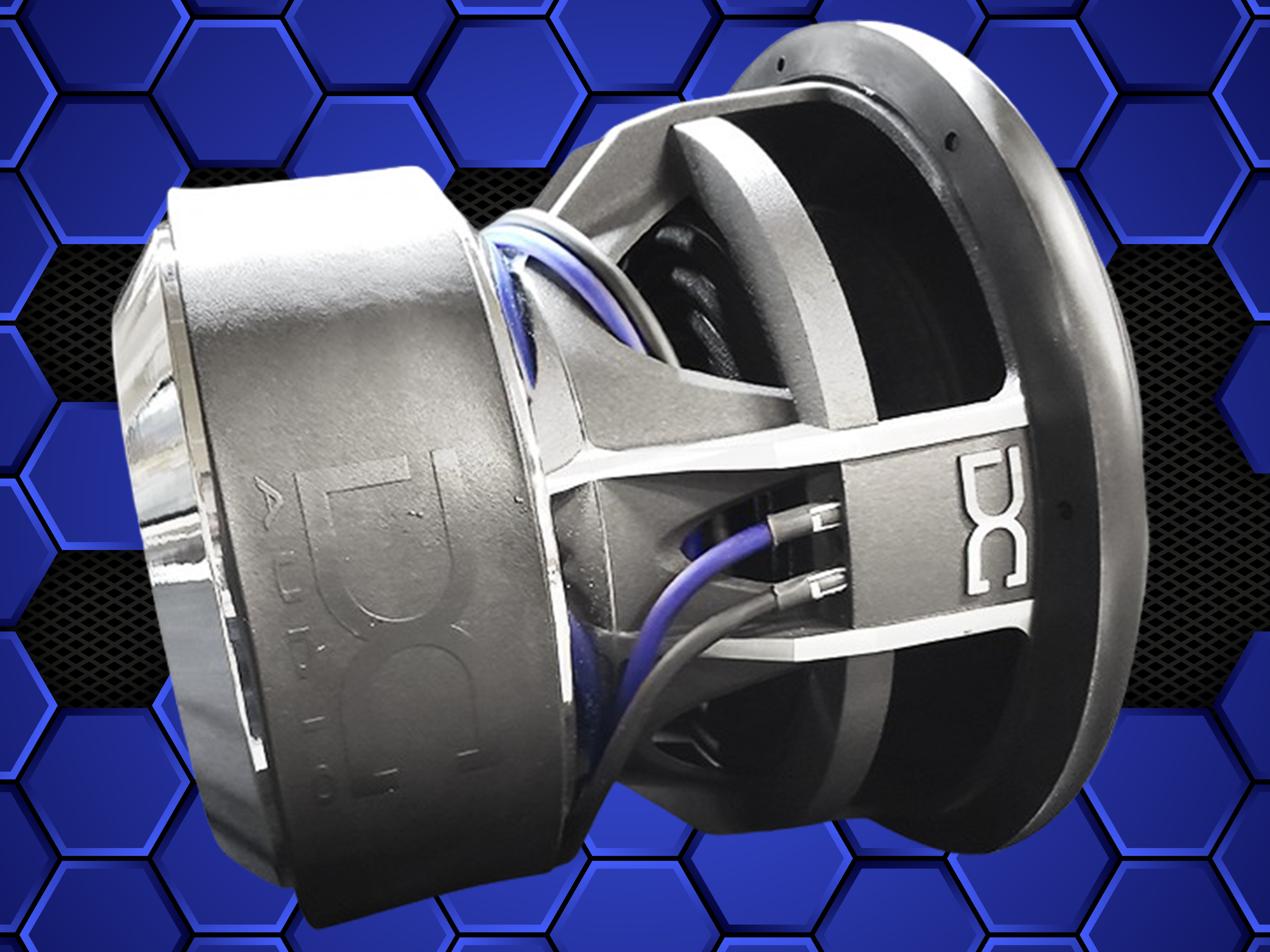

DC Audio Level 5 Elite Subwoofer 3500W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- 3500W RMS / 7000W Peak — competition-grade SPL output, hand-built in the USA
- 3.5" 8-layer hi-temp aluminum coil — on a black-anodized former with high-current input strips

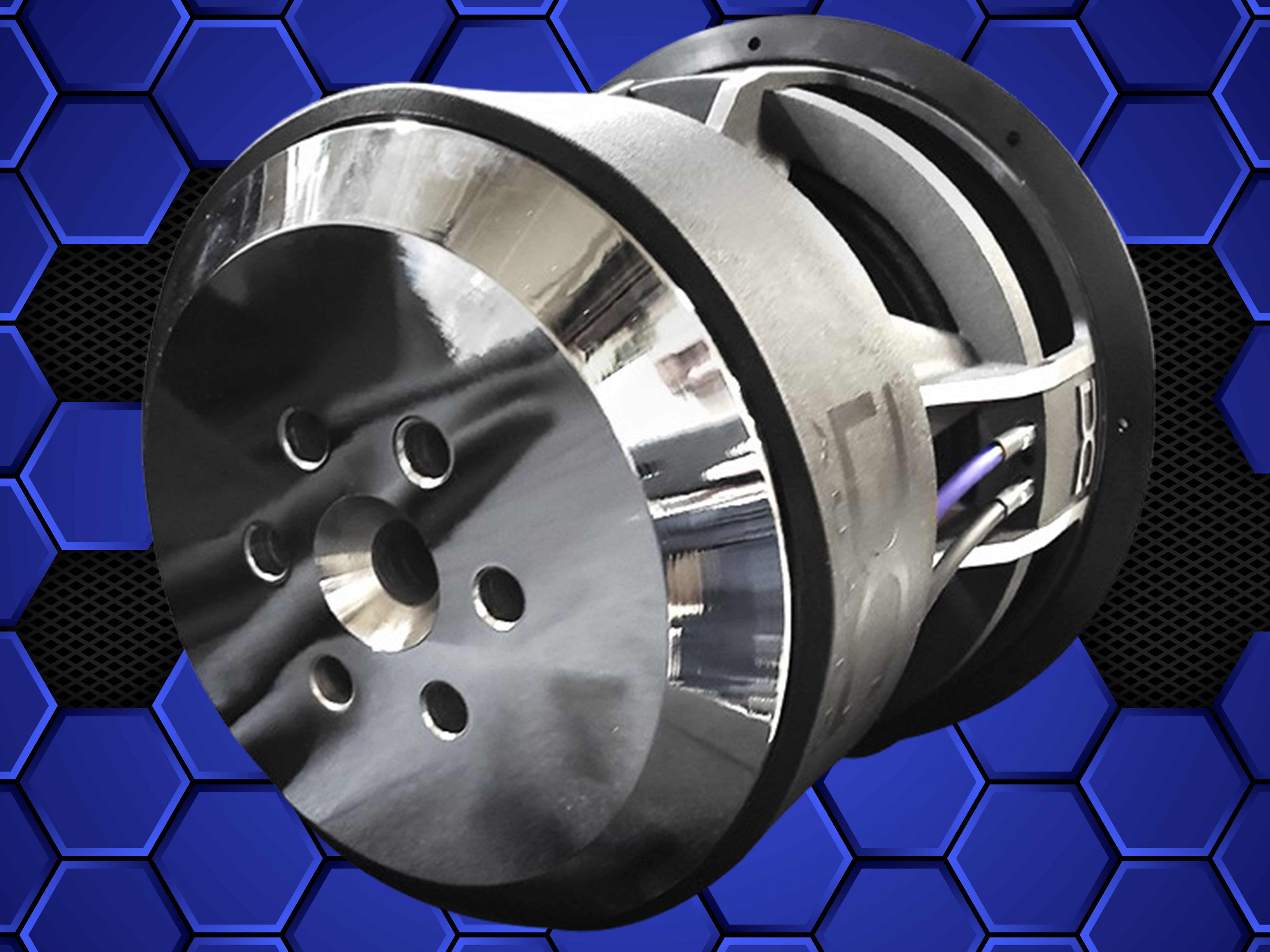

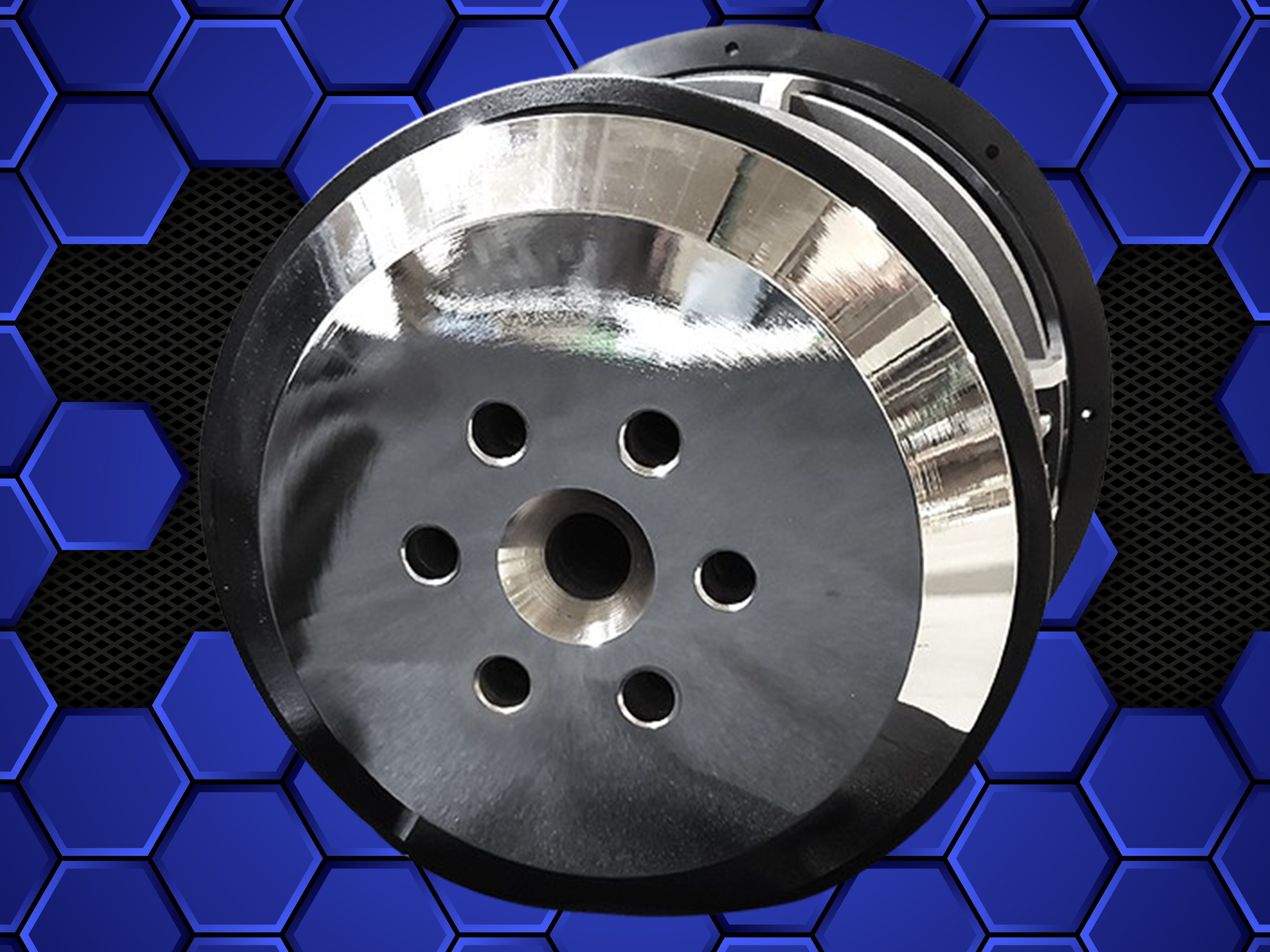

- Solid pole with machined cooling vents + aluminum shorting ring — engineered for cooling and motor force
- Dual 10" spaced spiders — kraft-pulp fiber-reinforced cone with wide long-throw surround
- Available 12"–18", dual 0.7, 1, 1.4 or 2 ohm — stock LR cone/surround
This Listing Includes: (1) DC Audio Level 5 Elite Subwoofer
The DC Audio Level 5 Elite is built for ground-pounding and taking abuse in or out of the competition lanes. DC reworked cooling, motor force and soft parts: a 3.5" eight-layer aluminum coil, solid machined-vented pole, aluminum shorting ring and dual 10" spiders keep it composed through long, loud sessions, while a kraft-pulp reinforced cone and wide long-throw surround move serious air. It performs in the SPL lanes and still pounds out the lows — each one hand-built in the USA (7–14 day build). Authorized DC Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- 3.5" 8-layer hi-temp aluminum coil on black-anodized former
- Kraft-pulp fiber-reinforced cone with LR cone/surround
- Dual 10" OD spaced spiders
- Solid pole with CNC-machined cooling vents + aluminum shorting ring
- 8 AWG OFC direct leads; cast DC-series aluminum frame
Specifications
| RMS Power | 3,500W |
| Peak Power | 7,000W |
| Voice Coil | 3.5" 8-layer aluminum |
| Spiders | Dual 10" spaced |
| Cone | Kraft-pulp fiber-reinforced (LR) |
| Frame | Cast DC-series aluminum |
| Available Sizes | 12", 15", 18" |
| Impedance | Dual 0.7, 1, 1.4 or 2 Ohm |
| Build | Hand-built USA (7–14 days) |
