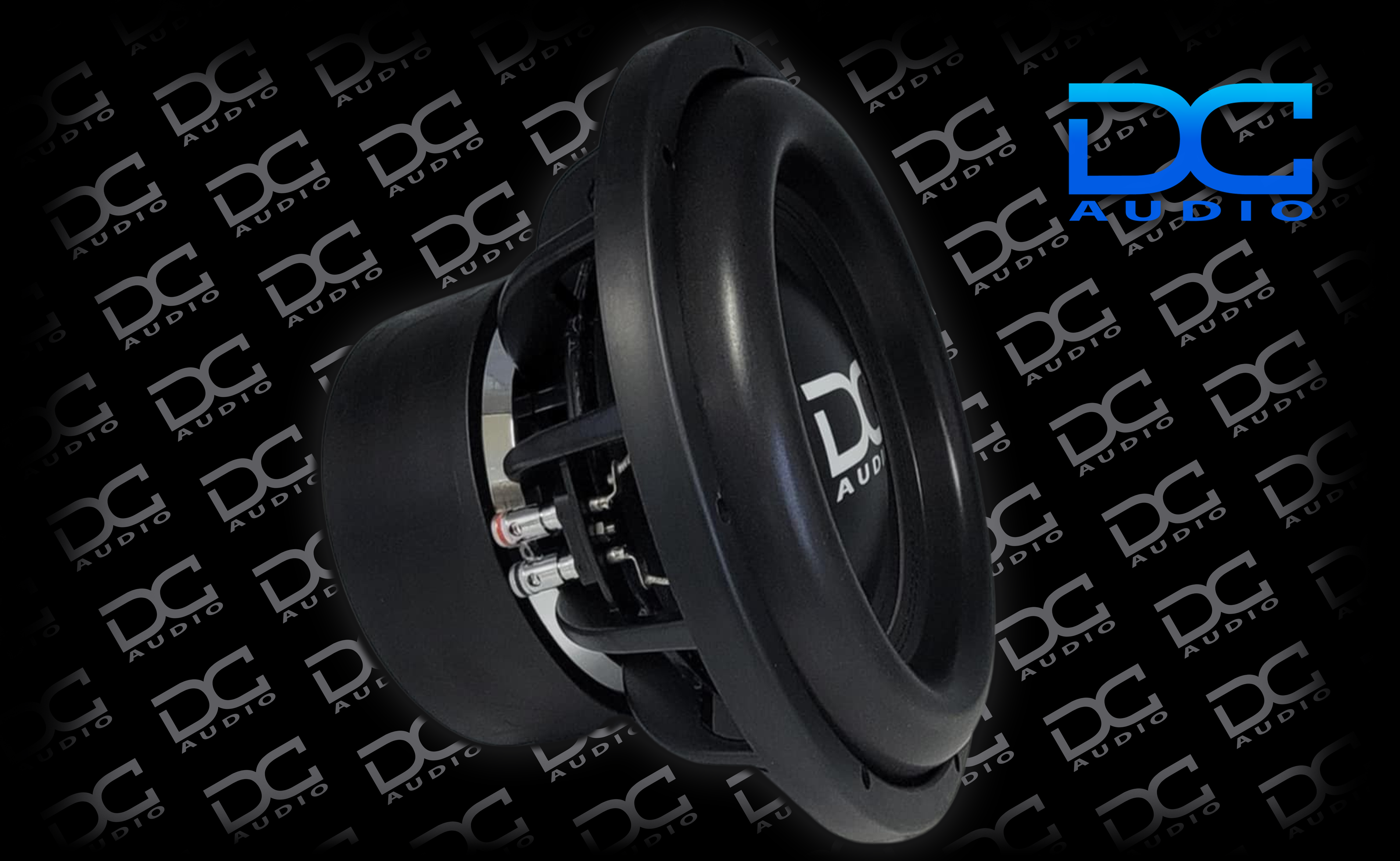

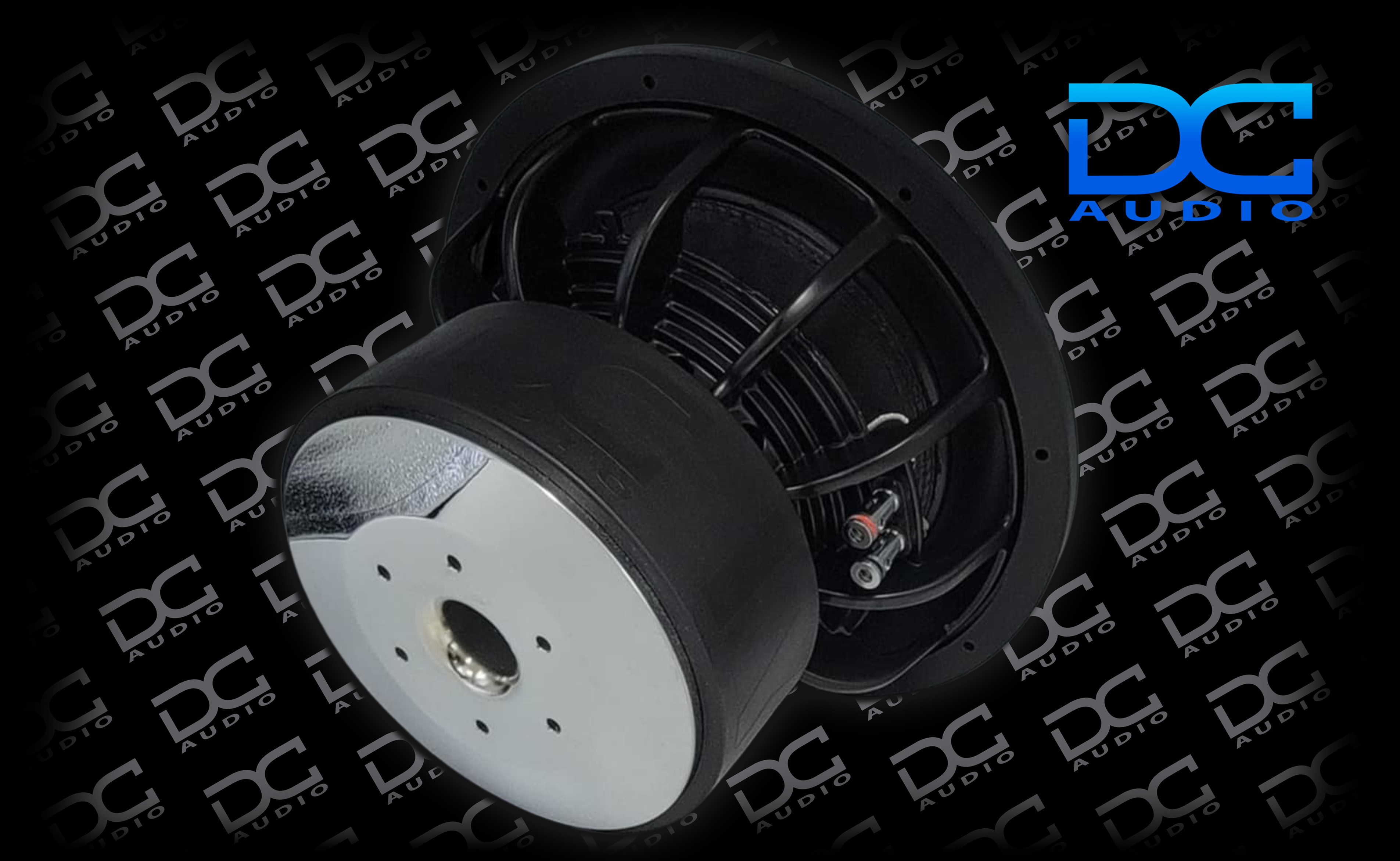

DC Audio Level 4 M4 Subwoofer 1500W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- 1500W RMS / 3000W Peak — a step up in SQ and heat dissipation over the m3
- 3" 8-layer flat-wound aluminum coil — on a black-anodized former for high, sustained power
- 2.5mm aluminum shorting ring + 23.5mm Xmax — reduced inductance and power compression
- Large triple-stacked motor — triple 8" progressive-roll spiders for control
- Available 10"–18", dual 1, 2 or 4 ohm — smashing lows with fantastic power handling
This Listing Includes: (1) DC Audio Level 4 M4 Subwoofer
The DC Audio Level 4 M4 steps forward in sound quality and heat dissipation over the previous m3, rated 1,500 watts RMS. A large triple-stacked motor with a 2.5mm aluminum shorting ring cuts inductance and power compression while acting as an internal heatsink, and direct-to-coil venting keeps a 3" 8-layer flat-wound aluminum coil cool through 23.5mm of Xmax. Triple 8" progressive-roll spiders and a rigid paper cone keep it linear; hand-built in the USA (7–14 day build). Authorized DC Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- 3" 8-layer flat-wound aluminum coil on black-anodized former
- 2.5mm aluminum shorting (demodulation) ring

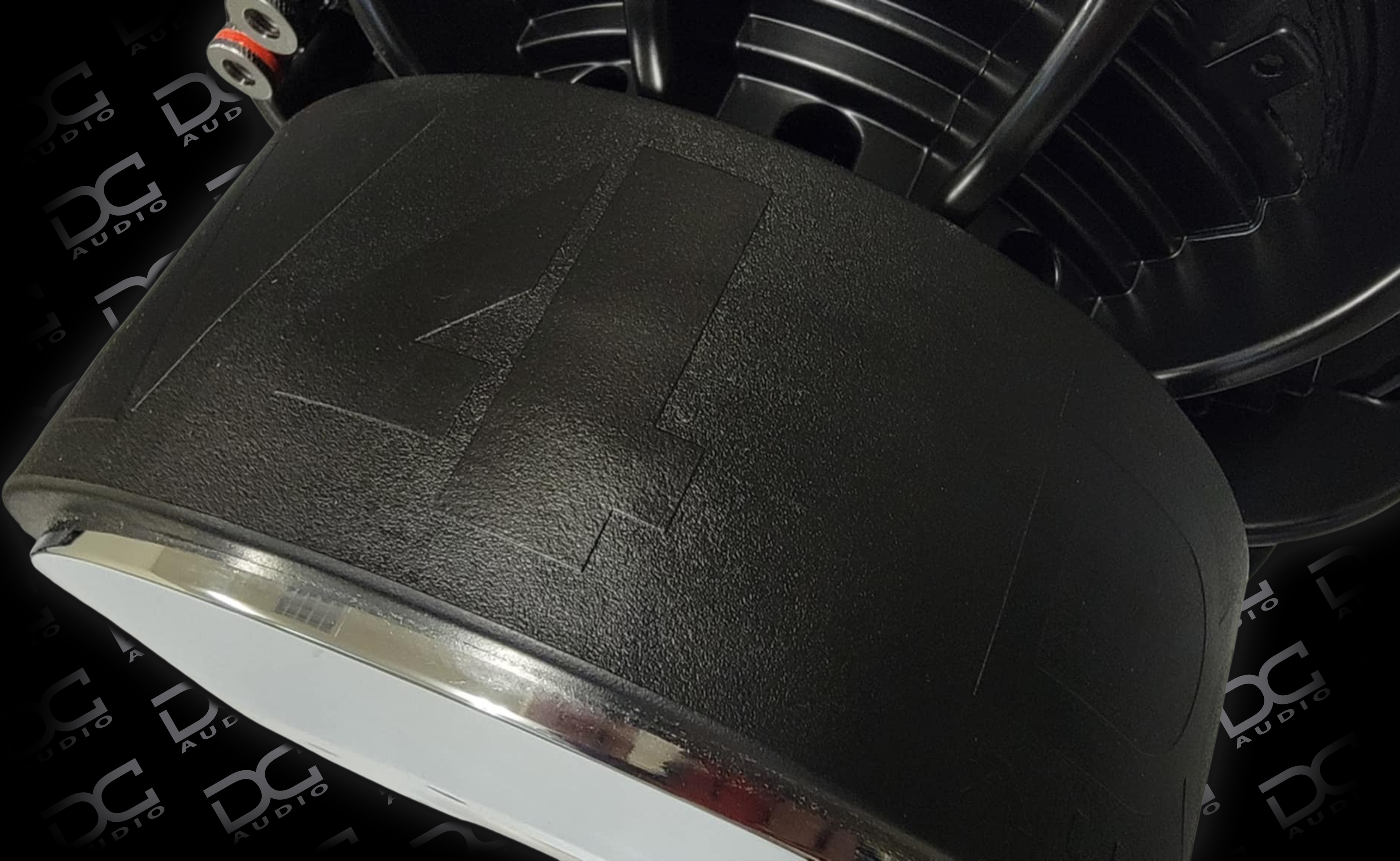

- Large triple-stacked FEA-optimized motor
- Triple 8" OD progressive-roll spiders
- Cast aluminum frame, hand-built in the USA
Specifications
| RMS Power | 1,500W |
| Peak Power | 3,000W |
| Voice Coil | 3" 8-layer flat-wound aluminum |
| Xmax | 23.5mm |
| Cone | Non-pressed paper |
| Frame | Cast aluminum |
| Available Sizes | 10", 12", 15", 18" |
| Impedance | Dual 1, 2 or 4 Ohm |
| Build | Hand-built USA (7–14 days) |
