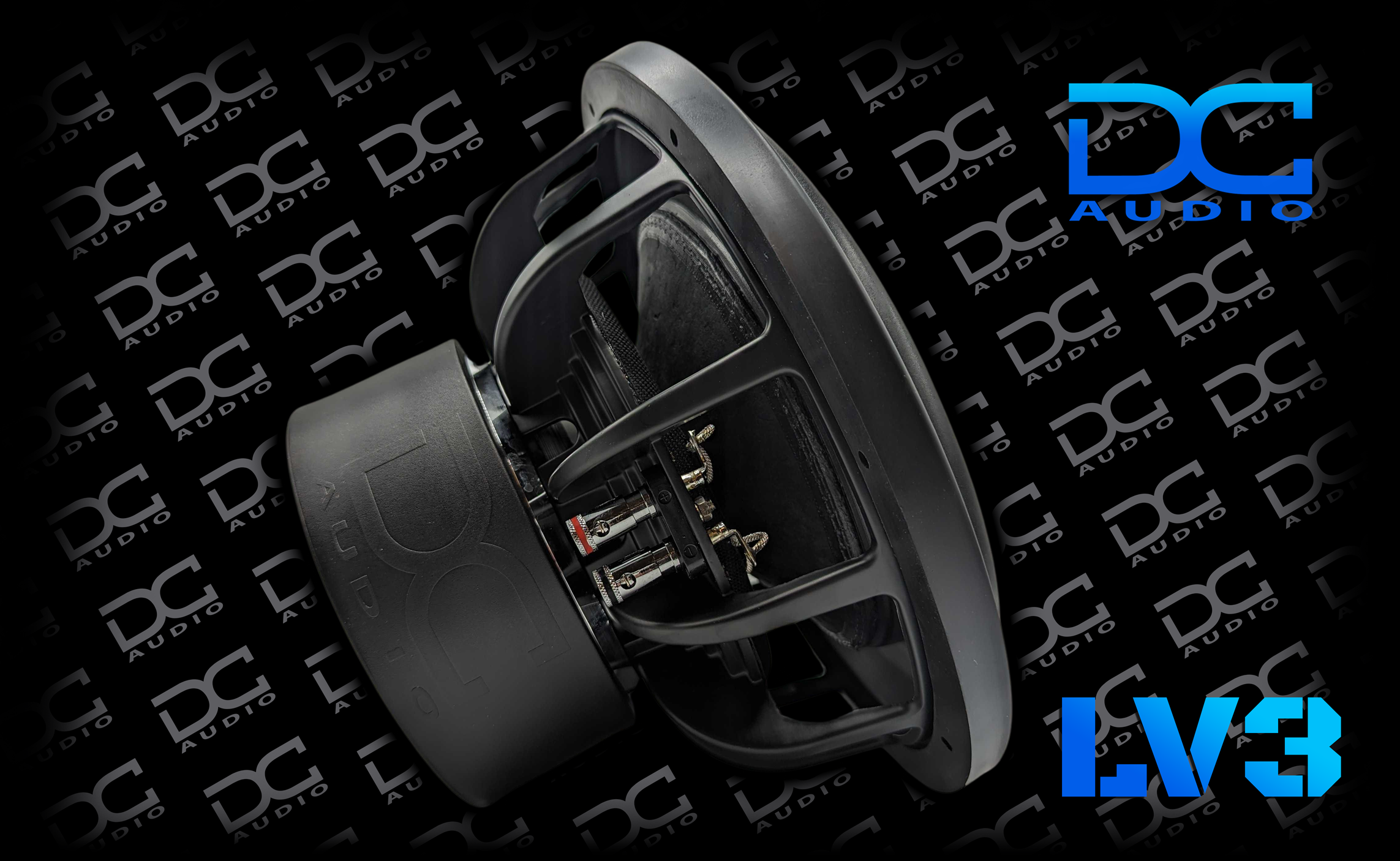

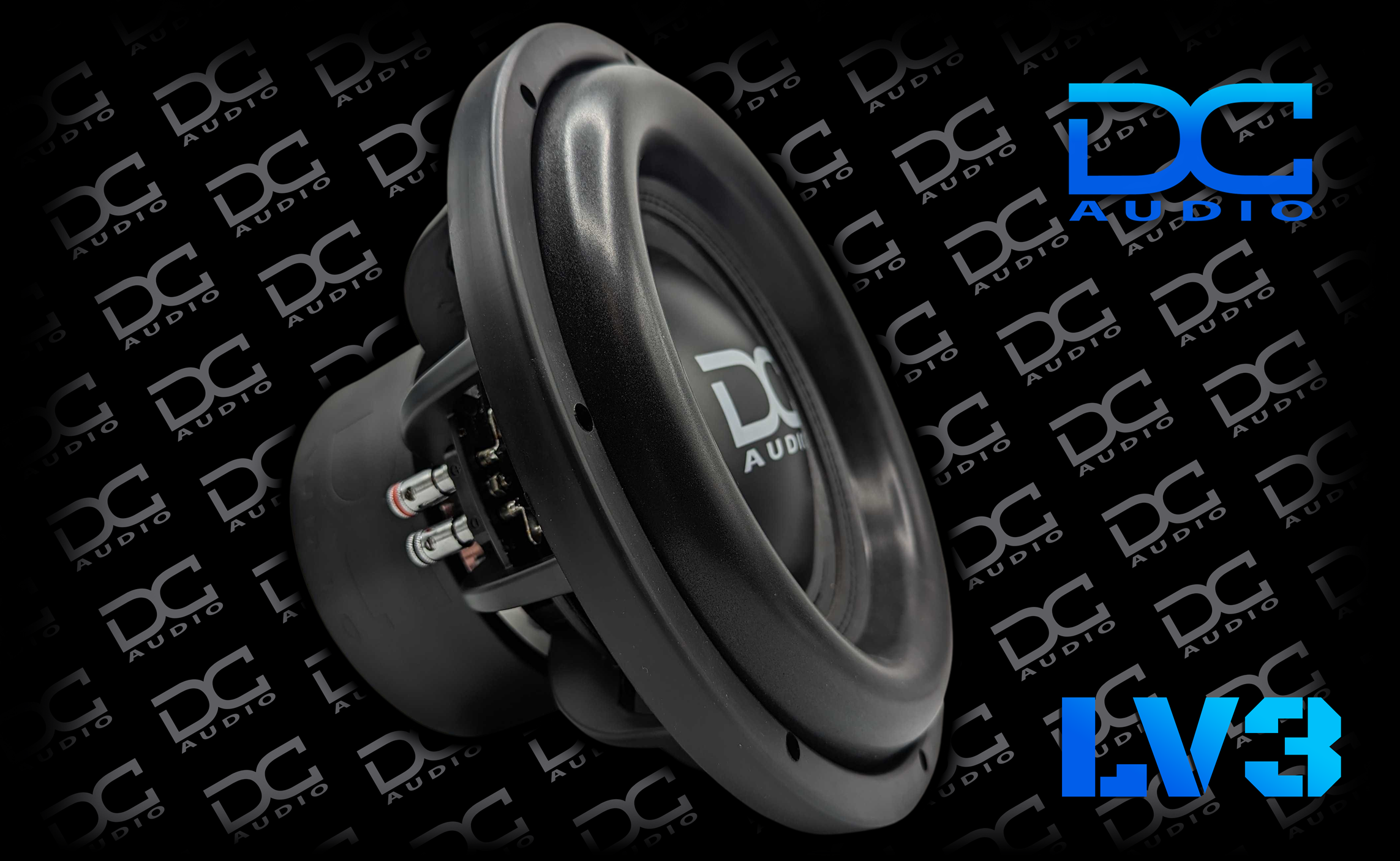

DC Audio Level 3 Subwoofer 1000W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- 1000W RMS / 2000W Peak — the ultimate daily-driver DC sub, hand-built in the USA
- 3" hi-temp aluminum coil on black-anodized former — with a 2.5mm aluminum shorting ring for lower inductance
- Triple-stacked FEA motor + 22.5mm Xmax — direct-to-coil venting keeps it cool under load
- Dual 8" progressive-roll spiders — rigid non-pressed paper cone for clean, deep output
- Available 10"–18", dual 1, 2 or 4 ohm — sealed or ported
This Listing Includes: (1) DC Audio Level 3 Subwoofer
The DC Audio Level 3 is the ultimate daily-driver subwoofer — 1,000 watts RMS of clean, deep output that's happy in sealed or ported boxes. A triple-stacked FEA-optimized motor with a 2.5mm aluminum shorting ring lowers inductance and pulls heat off the windings, while direct-to-coil venting cycles air across a 3" hi-temp aluminum coil for 22.5mm of controlled Xmax. Dual 8" progressive-roll spiders and a rigid paper cone keep it linear, and every one is hand-built in the USA (7–14 day build). Authorized DC Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- 3" hi-temp aluminum coil on black-anodized former
- 2.5mm aluminum shorting (demodulation) ring
- Triple-stacked FEA-optimized motor, fully CNC-machined
- Dual 8" OD semi-cup progressive-roll spiders
- Cast aluminum frame, hand-built in the USA
Specifications
| RMS Power | 1,000W |
| Peak Power | 2,000W |
| Voice Coil | 3" hi-temp aluminum |
| Xmax | 22.5mm |
| Cone | Non-pressed paper |
| Frame | Cast aluminum |
| Available Sizes | 10", 12", 15", 18" |
| Impedance | Dual 1, 2 or 4 Ohm |
| Build | Hand-built USA (7–14 days) |
