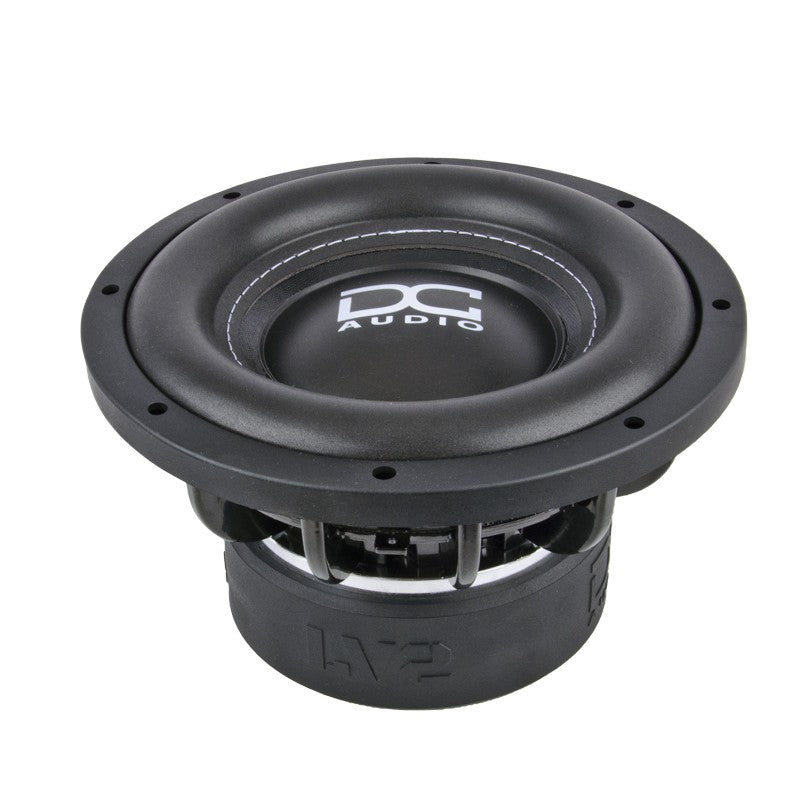

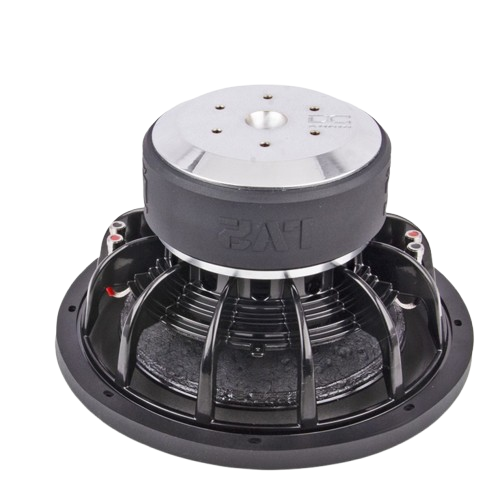

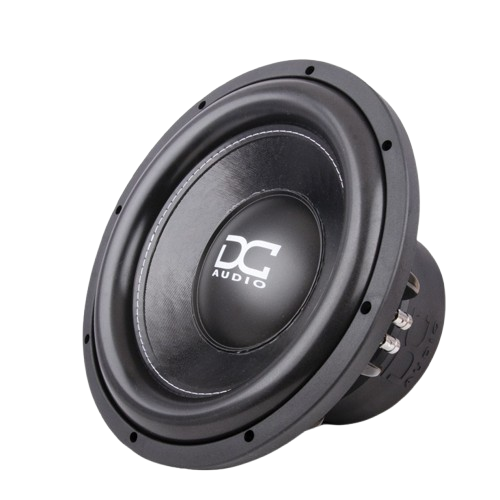

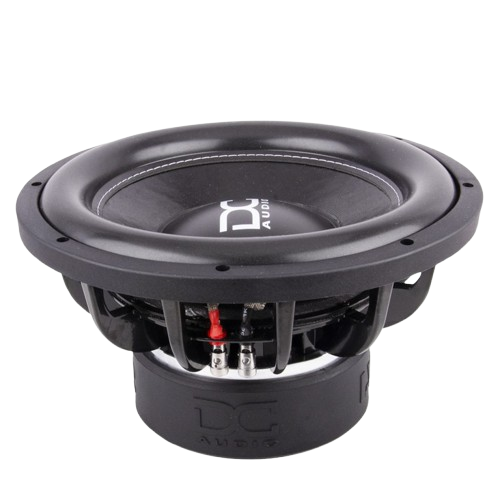

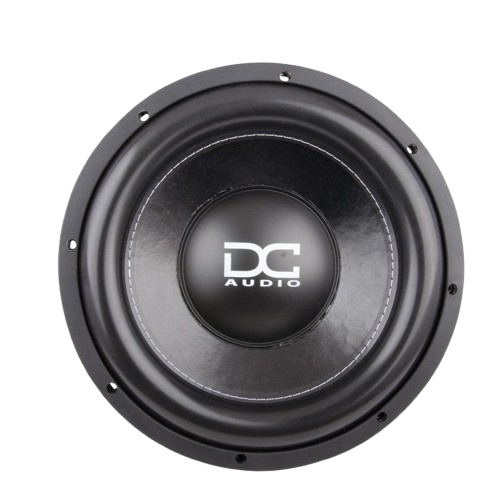

DC Audio Level 2 Subwoofer 750W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order, and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 within the contiguous US. Freight items may require delivery coordination; any shipping exceptions are shown before checkout. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- 750W RMS / 1500W Peak — redesigned for ~33% more output than the previous version
- 2.75" hi-temp copper coil — wound on a black-anodized former for real heat handling
- Double-stacked FEA-optimized motor + 22mm Xmax — progressive spiders keep it linear and loud
- Cast aluminum frame — rigid non-pressed paper cone with wide-roll foam surround
- Available 10" and 12", dual 2 or 4 ohm — strong value for daily and burp builds
This Listing Includes: (1) DC Audio Level 2 Subwoofer
The redesigned DC Audio Level 2 delivers about 33% more output than the model it replaces, rated at 750 watts RMS. A double-stacked FEA-optimized motor, 2.75" hi-temp copper coil on a black-anodized former, and 22mm of Xmax let it move serious air for the money, while 8" progressive-roll spiders and a cast aluminum basket keep it linear under power. Designed in the USA, it works equally well in sealed or ported enclosures.
Features
- 2.75" hi-temp copper voice coil on black-anodized former
- Rigid non-pressed paper cone, wide-roll foam surround
- Double-stacked FEA-optimized motor, fully CNC-machined
- 8" OD progressive-roll high-output spiders
- Cast aluminum frame with chrome push terminals
Specifications
| RMS Power | 750W |
| Peak Power | 1,500W |
| Voice Coil | 2.75" hi-temp copper |
| Xmax | 22mm |
| Cone | Non-pressed paper |
| Frame | Cast aluminum |
| Available Sizes | 10", 12" |
| Impedance | Dual 2 or 4 Ohm |
