DS18 IXS Shallow-Mount 10" Fiber Glass Subwoofer 600 Watts Rms DVC 4-Ohm
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.

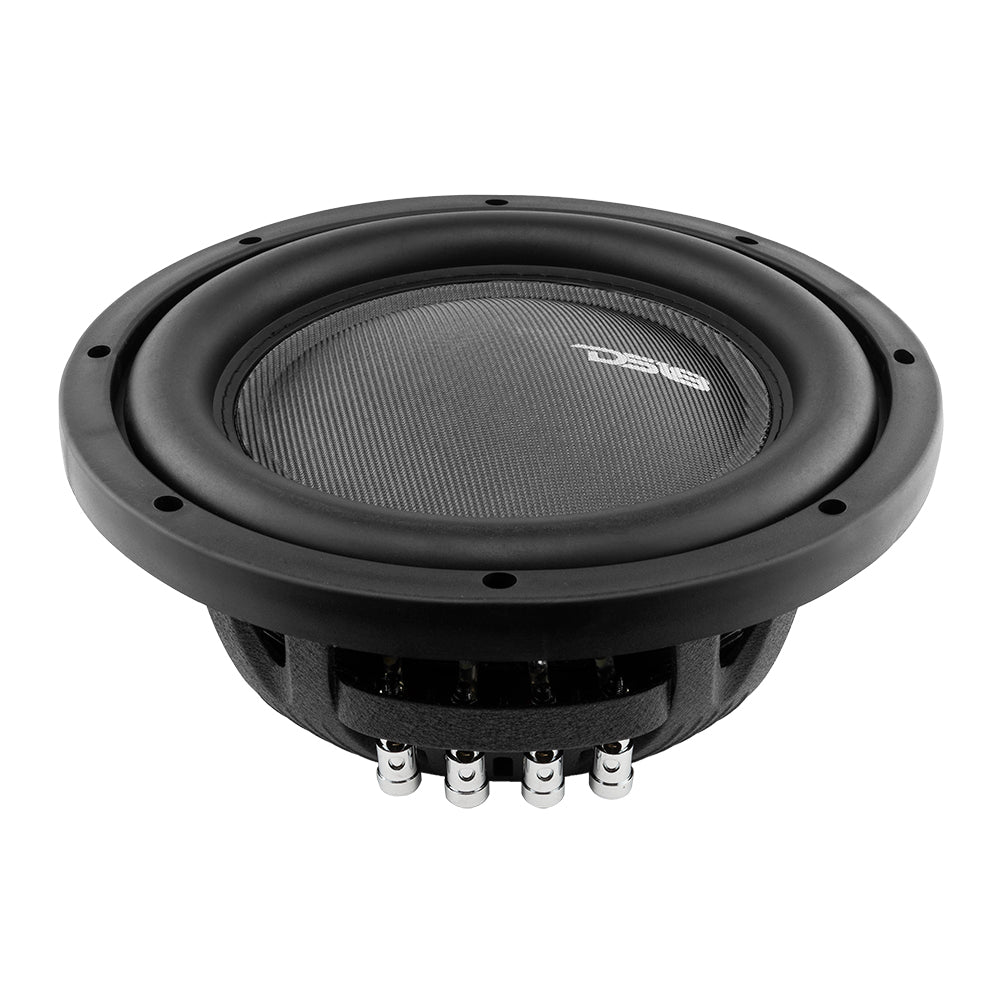

DS18 IXS10.4D 10" Car Subwoofer 1200 Watts 4-Ohm DVC Shallow Mount
Continuing the tradition of our very popular shallow mount subwoofers, we now have the IXS line which is the successor to our best selling SW slim subwoofer line. We took the SW line and made it even beefier for more bass. The IXS comes in both 10 and 12 inch. Also they both have multiple voice coil options to get the most from your amplifier. These subs are perfect for the audiophile that wants a lot of bass but does not have much space for a full sized subwoofer. With these you can get that loud thump without having to sacrifice a lot of room.
Highlights
- IXS series was made to produce more bass than other shallow mount subs of it rating in ported or sealed boxes.
- Large surround with flexible spider packs will help the CCA voice coil maximum Xmax producing full and deep bass with a up to spec box.
- Shallow mount size will let you fit this sub in compact places and requires less box space than other subs its size giving you many options in which to place it.
Technical Details
| Model: | IXS10.4D |
| Type: | Shallow Subwoofer |
| Size: | 10" |
| RMS Power: | 600W |
| MAX Power: | 1200W |
| Impedance: | 4+4 Ohms |
| Sensitivity: | 84dB |
| Voice coil size: | 2.5" |
| Magnet: | Ferrite |
| Magnet weight: | 62oz |
| Frequency Response: | 20Hz - 800 Hz |
| Materials | |
| Frame: | Aluminum |
| Cone: | Paper |
| Dust Cap Material | Fiberglass |
| Surround: | Stitched Rubber |
| Voice Coil Former Material: | Aluminum |

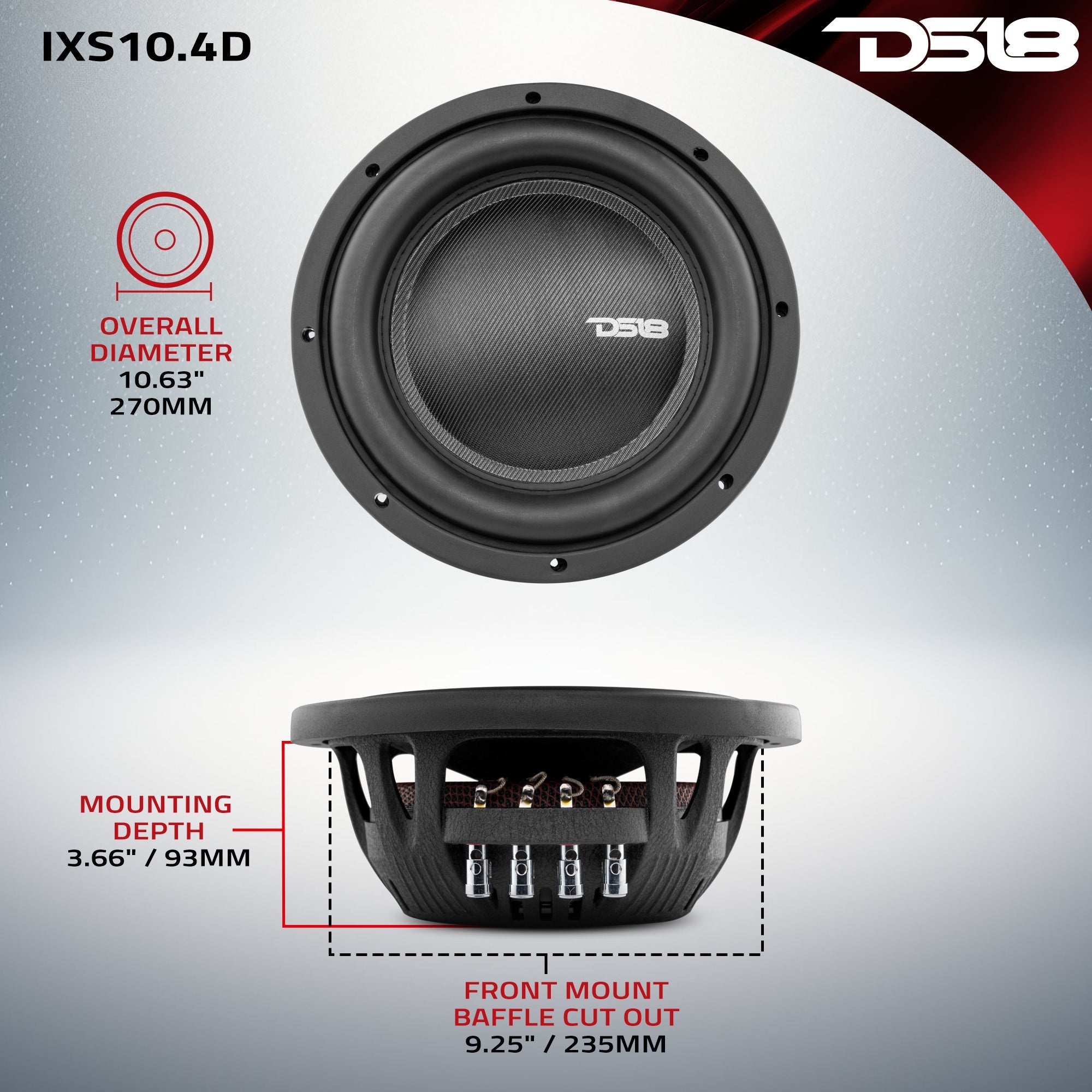

| Measurements | |
| Overall Diameter: | 10.63" |
| Overall Depth | 4.13" |
| Mounting Depth | 3.66" |
| Front Mount Baffle Cutout | 9.25" |
Box Info
