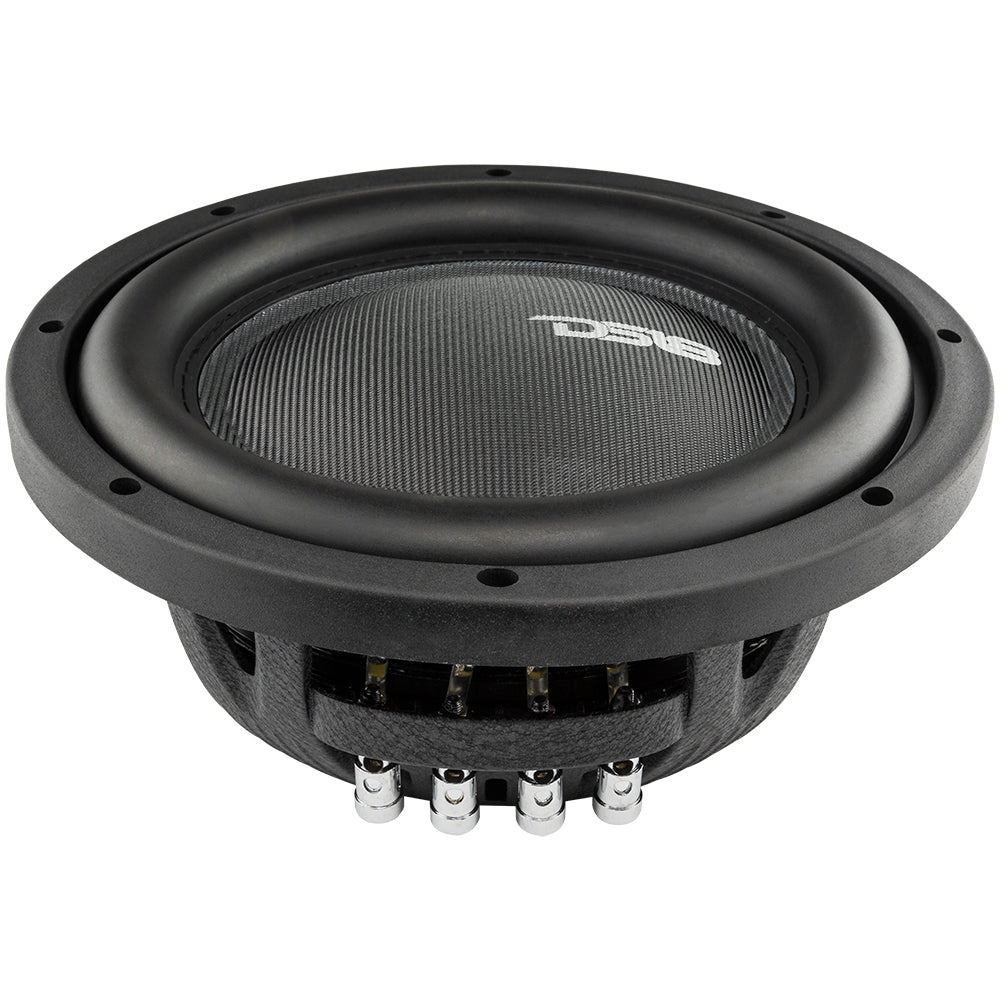

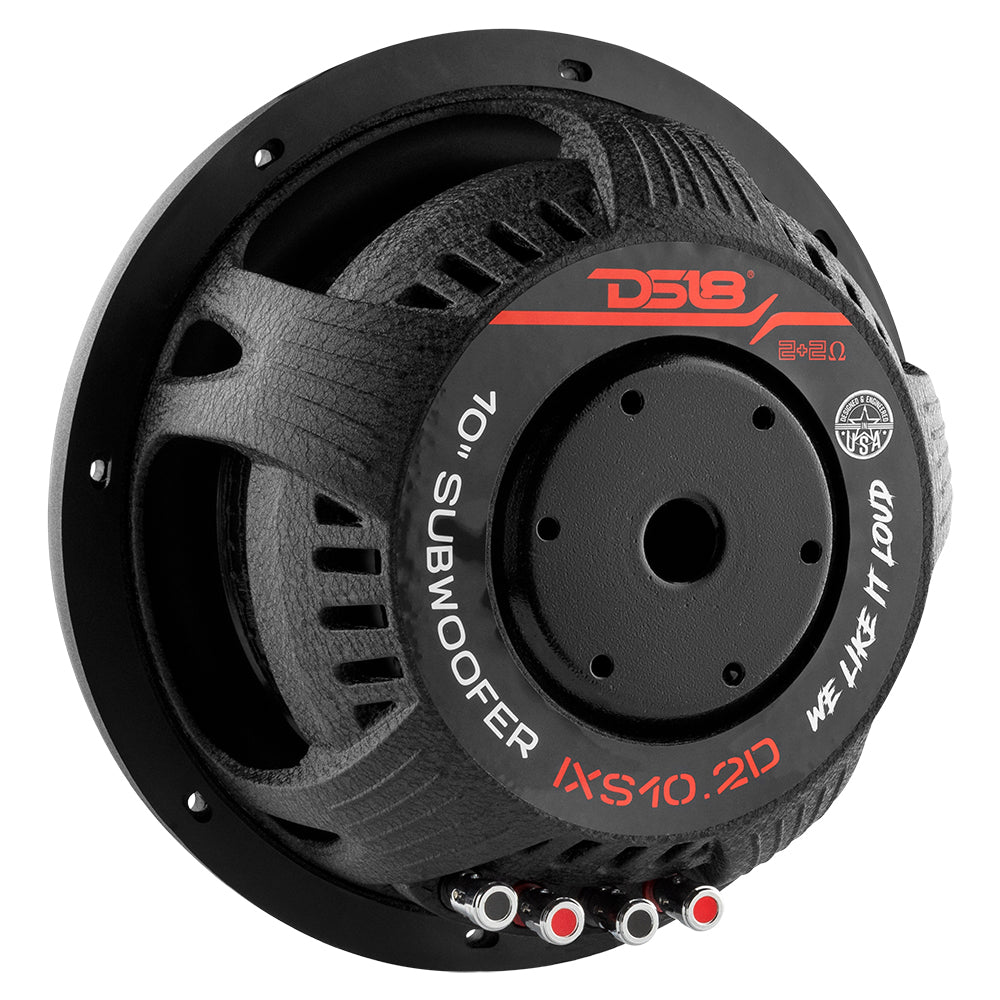

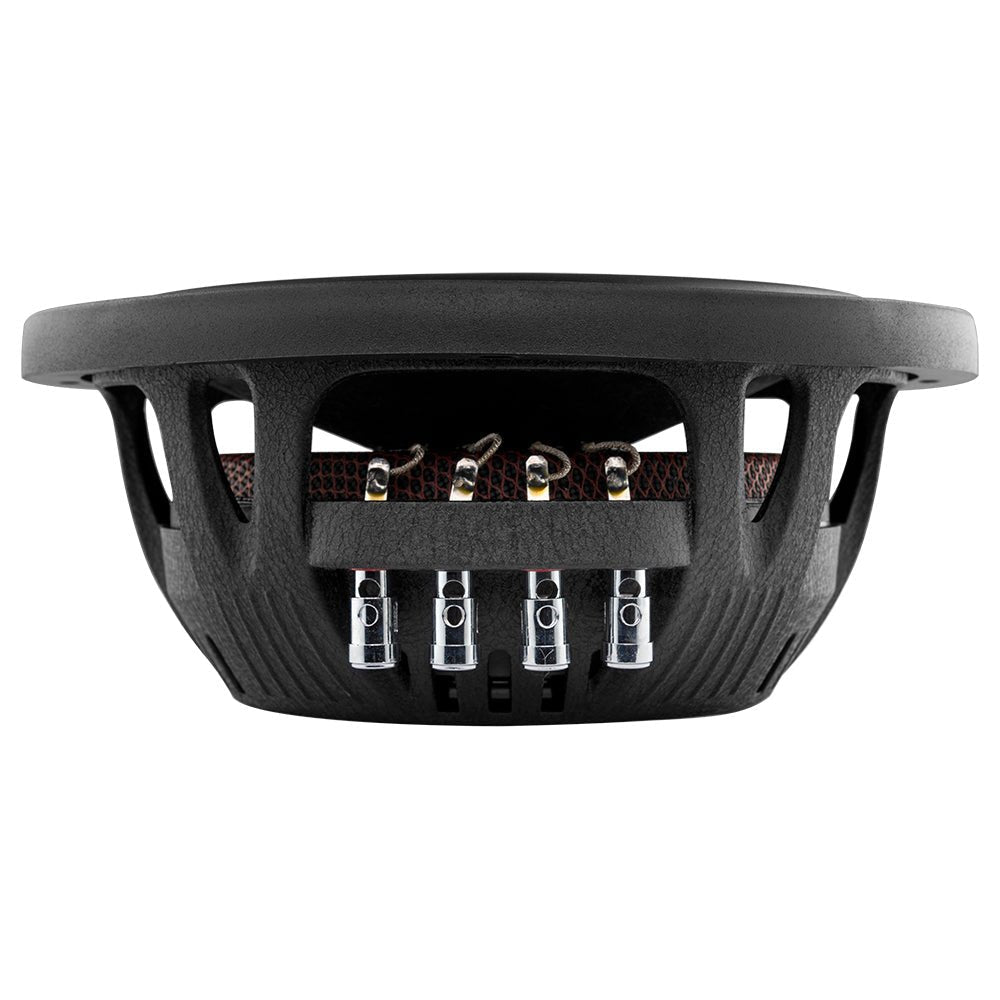

DS18 IXS10.2D 10" Car Subwoofer 1200 Watts 2 Ohm DVC Shallow Mount
DS18’s IXS Line of Shallow Mount Subwoofers are back with the IXS10.2D!
Built from our best selling SW slim subwoofer line the experts at DS18 took the SW line and made it even beefier for more bass.
This sub handles 600 W RMS and 1200 W MAX Power with a 84 dB sensitivity: high sensitivity for a shallow mount sub raising this model above and beyond the standard.
These Dual Voice Coil Subs are perfect for the listener looking to add more thump to their system.
Make the most of your space with the IXS10.2D!
Highlights
- IXS series was made to produce more bass than other shallow mount subs of it rating in ported or sealed boxes.
- Large surround with flexible spider packs will help the CCA voice coil reach the highest Xmax per watt which produces full and deep bass with the correct box spec.
- Shallow mount size will let you fit this sub in compact places and requires less box space than other subs its size giving you many options in which to place it.
Great For
- Car Audio
Technical Details
| SPECIFICATIONS | |
| Nominal Diameter | 10” / 254mm |
| Nominal Impedance | 2+2 ohms |
| RMS Power Handling | 600w |
| MAX Power Handling | 1200w |
| Sensitivity (1w/1m) | 84 dB |
| Frequency Response | 20 - 800 Hz |
| Recommended Lo Pass Crossover | 90 Hz |
| MOTOR | |
| Voice Coil Diameter | 2.5" / 63.5mm |
| Voice Coil Former Material | Aluminum |
| Winding Material | Copper |
| Cone Material | Paper |
| Dust Cap Material | Fiberglass |
| Surround Material | Stitched rubber |
| Basket Material | Aluminum |
| Basket Color/Finish | Corrugated Black |
| Magnet Material | Ferrite |
| Magnet Weight | 62 Oz |
| Displacement Volume | 0.9L / 0.032ft3 |
| MEASUREMENT | |
| Overall Diameter | 10.63" / 270 mm |
| Overall Depth | 4.48" / 114 mm |
| Front Mount Baffle Cutout | 9.25" / 235 mm |
| Mounting Depth | 3.66" / 93 mm |
| Motor Diameter | 6" / 154 mm |
