Stetsom IR 800.4 Compact Digital Multi Channel Amplifier 4 Channels 800 W Full Range
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.

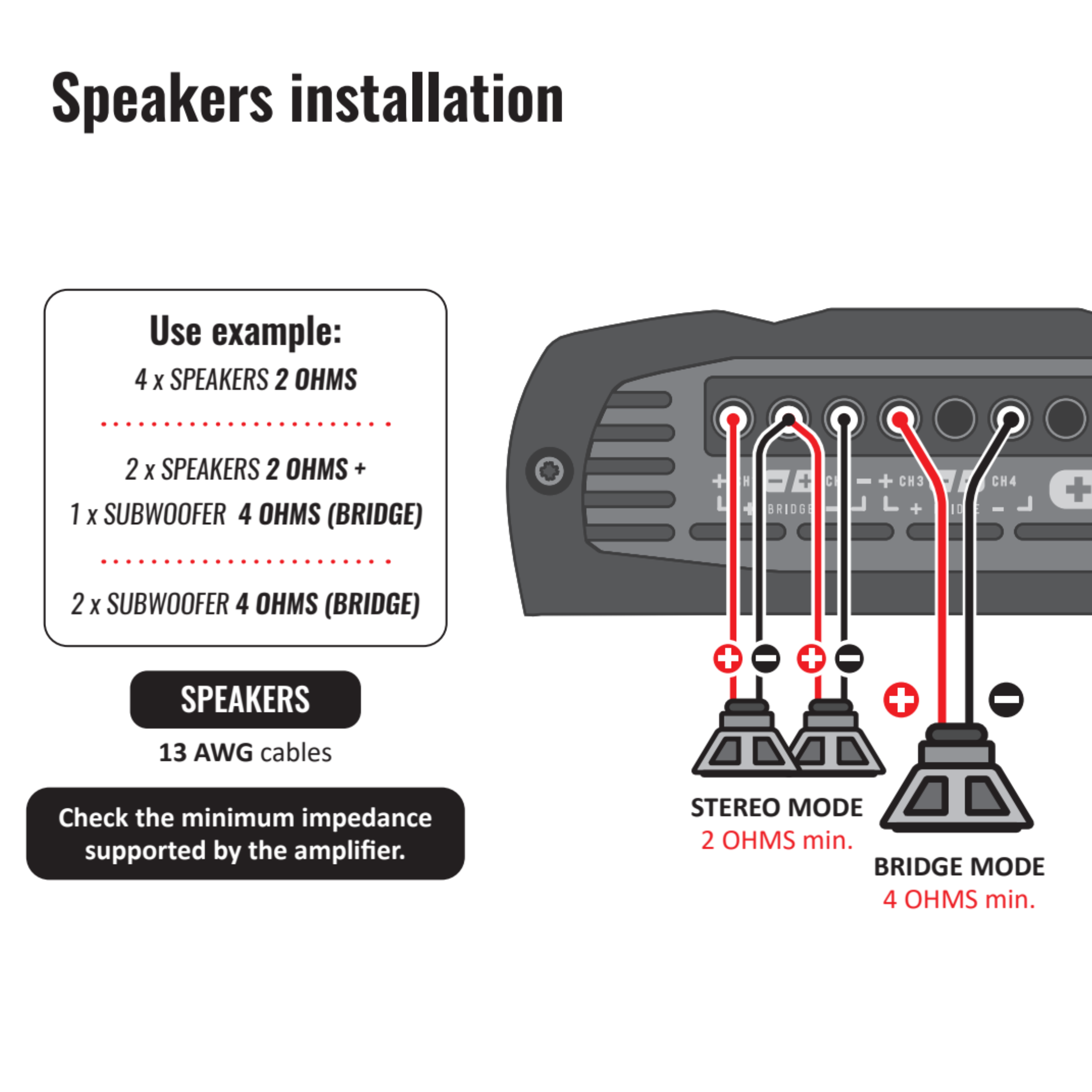

Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.

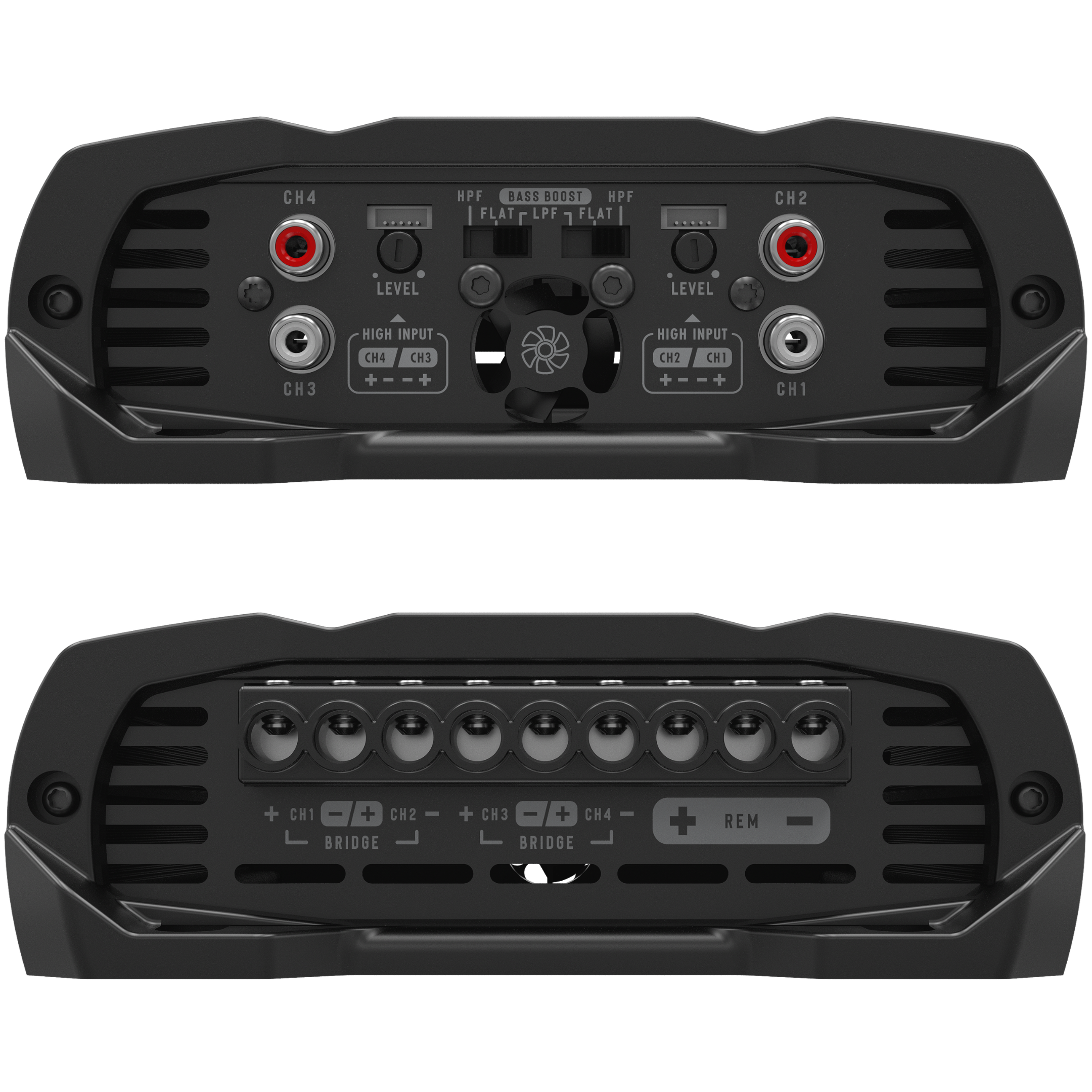

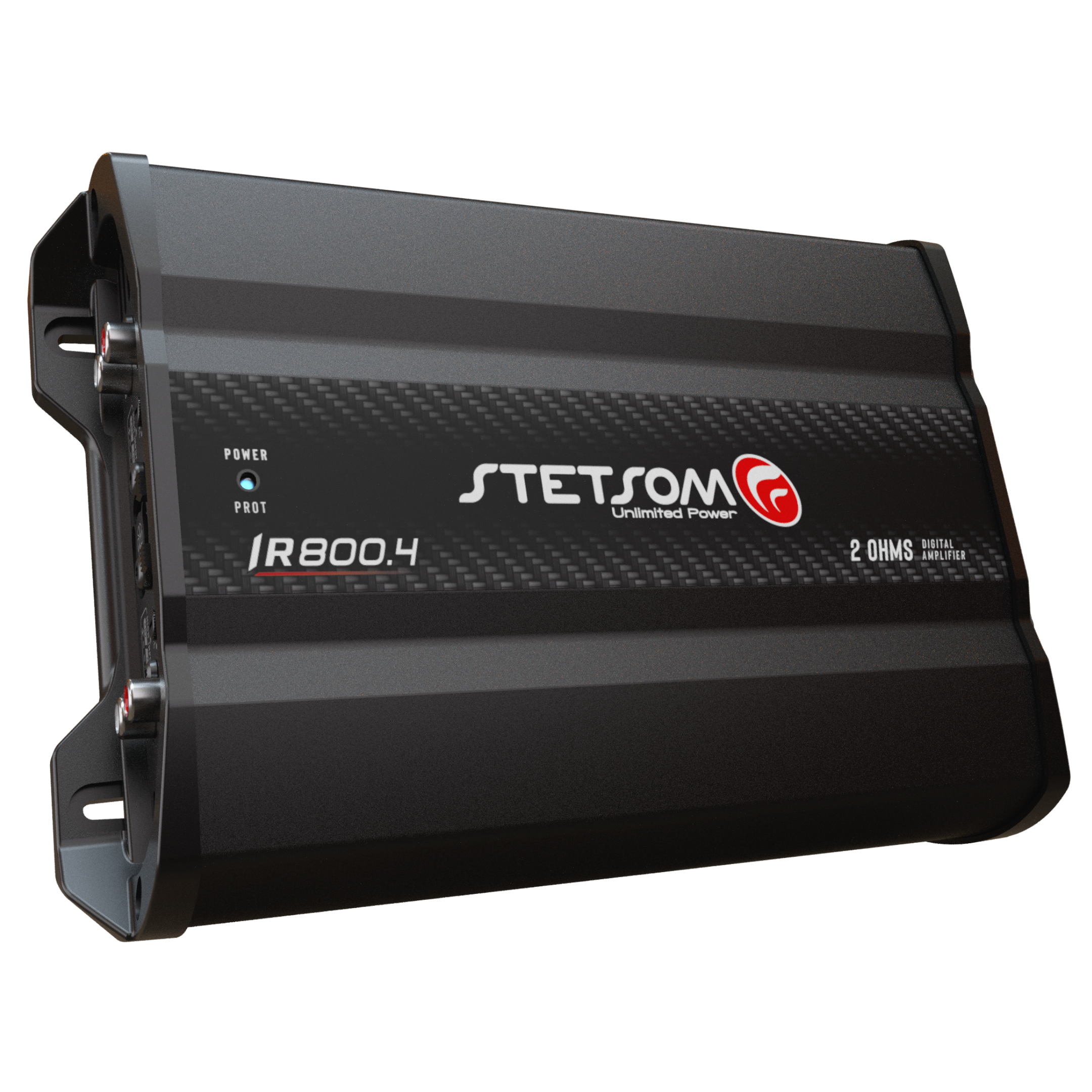

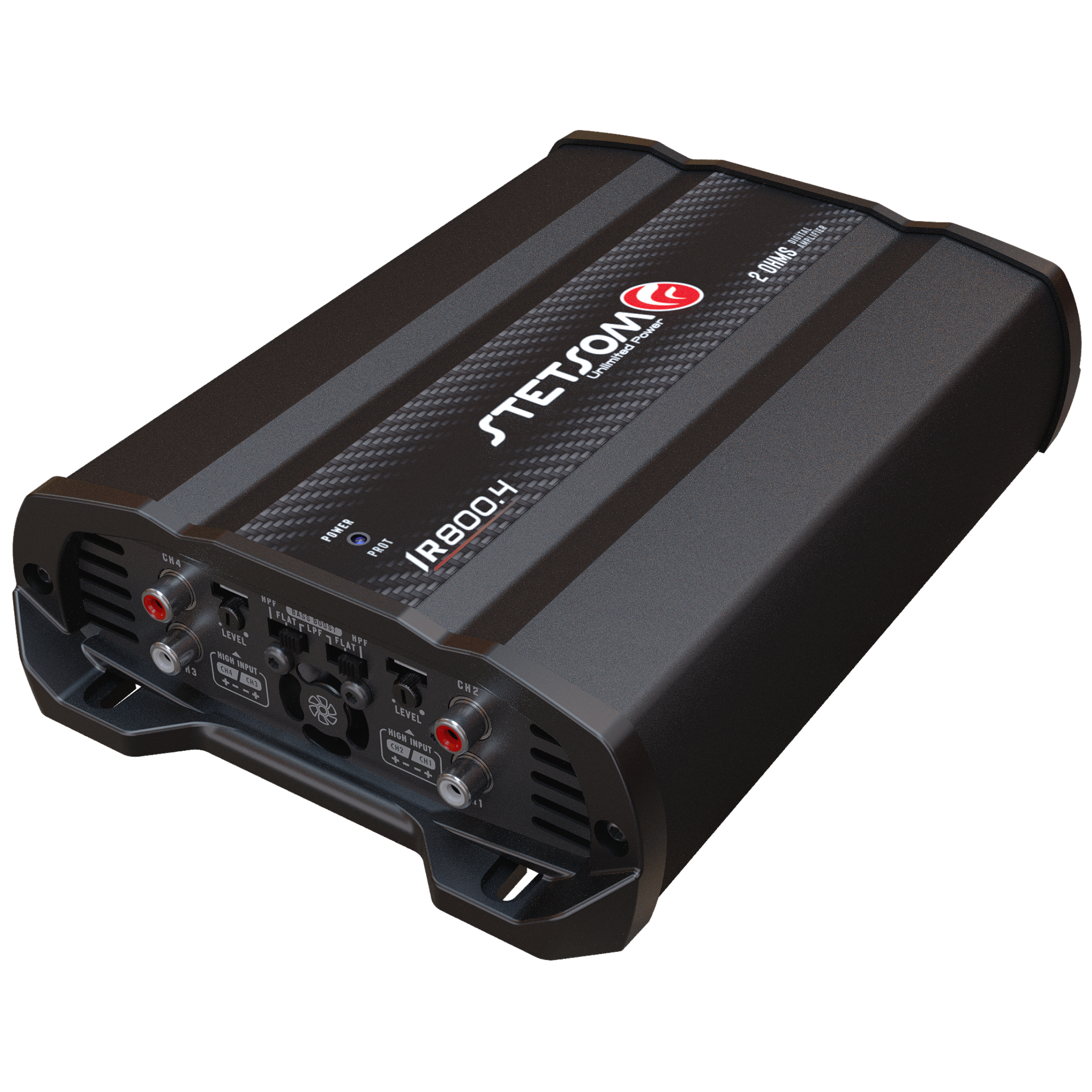

The IR 800.4 Compact Digital Multi Channel Amplifier 4 Channels 800 W Full Range brings Stetsom's Brazilian-engineered car audio performance to your build. It pairs efficient Class D power with reliable protection for clean, hard-hitting sound.
Key Features
- 800w RMS ( 12.6v ) | 1060w peak RMS ( 14.4v ) at 2 Ohms

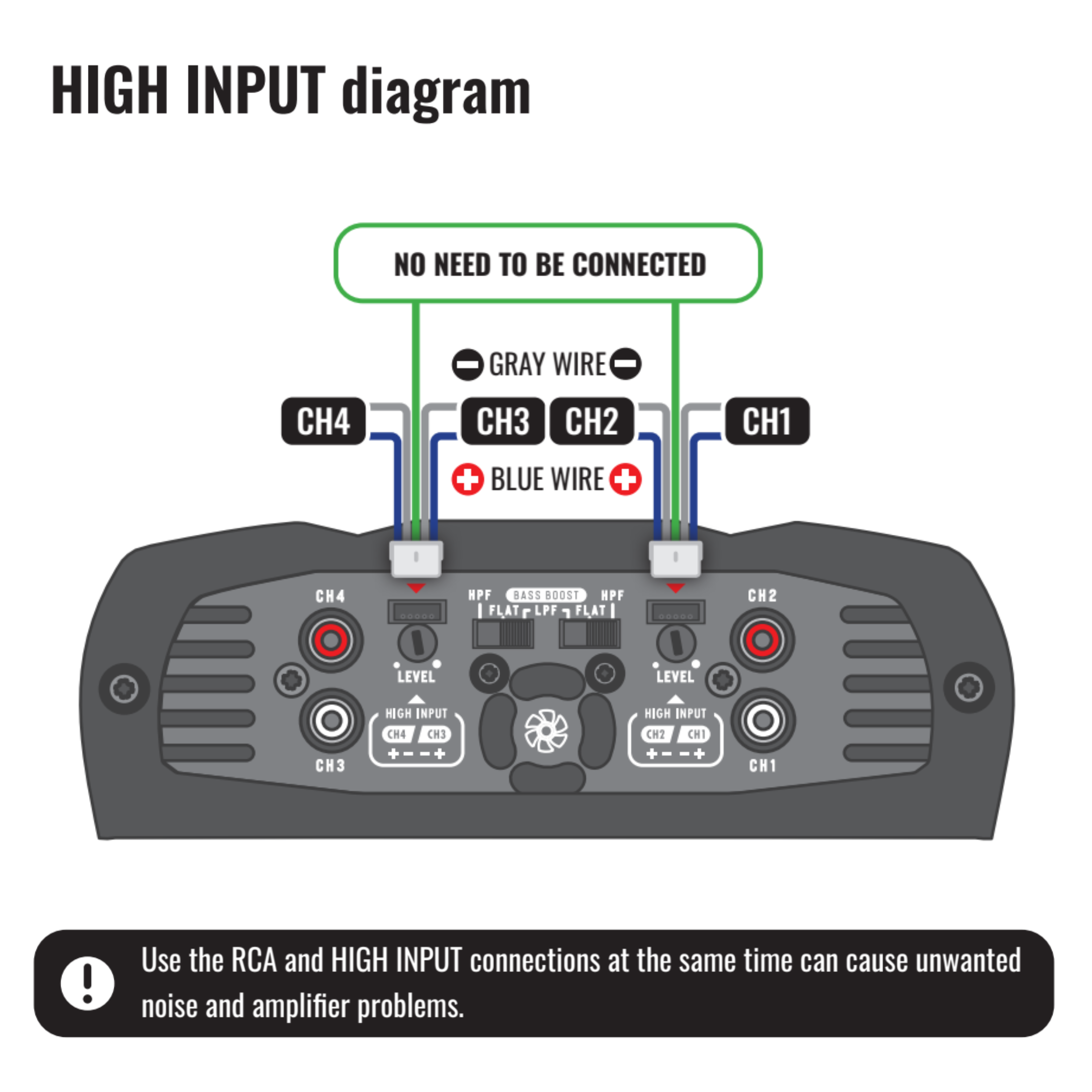

- RCA & High inputs; 4 channel monoblock amplifier, Mosfet Class D, Full Range stable at 2 Ohms
- Audio Controls:Crossover ( HPF & LPF fixed at 90Hz ) | Flat mode where every ajustments on the amp stay disabled, allowing reproduction of all frequencies supported by the amp.
- Compact and powerfull cooler for better ventilation and safety long use for hours

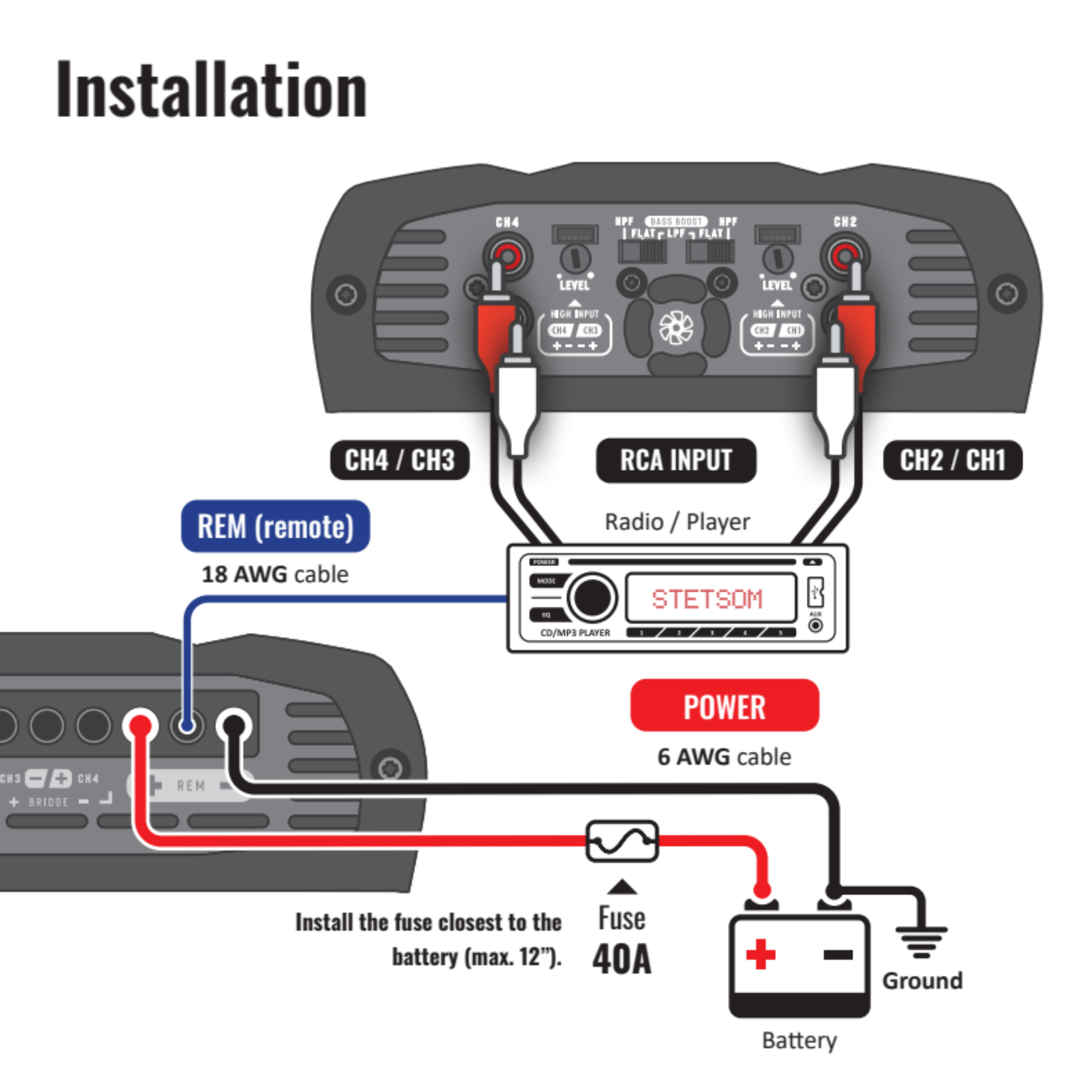

- Power connectors ( power / ground ) 6awg, Remote connector 18awg, Speakers 13awg, Fuse 40A ( max 12" far from the battery )
Specifications
| Channels | 4 |
| Operation | Full-Range |
This listing includes: (1) IR 800.4 Compact Digital Multi Channel Amplifier 4 Channels 800 W Full Range.
Authentic Stetsom, shipped fast from JS Ultimate Sounds — your authorized dealer.
