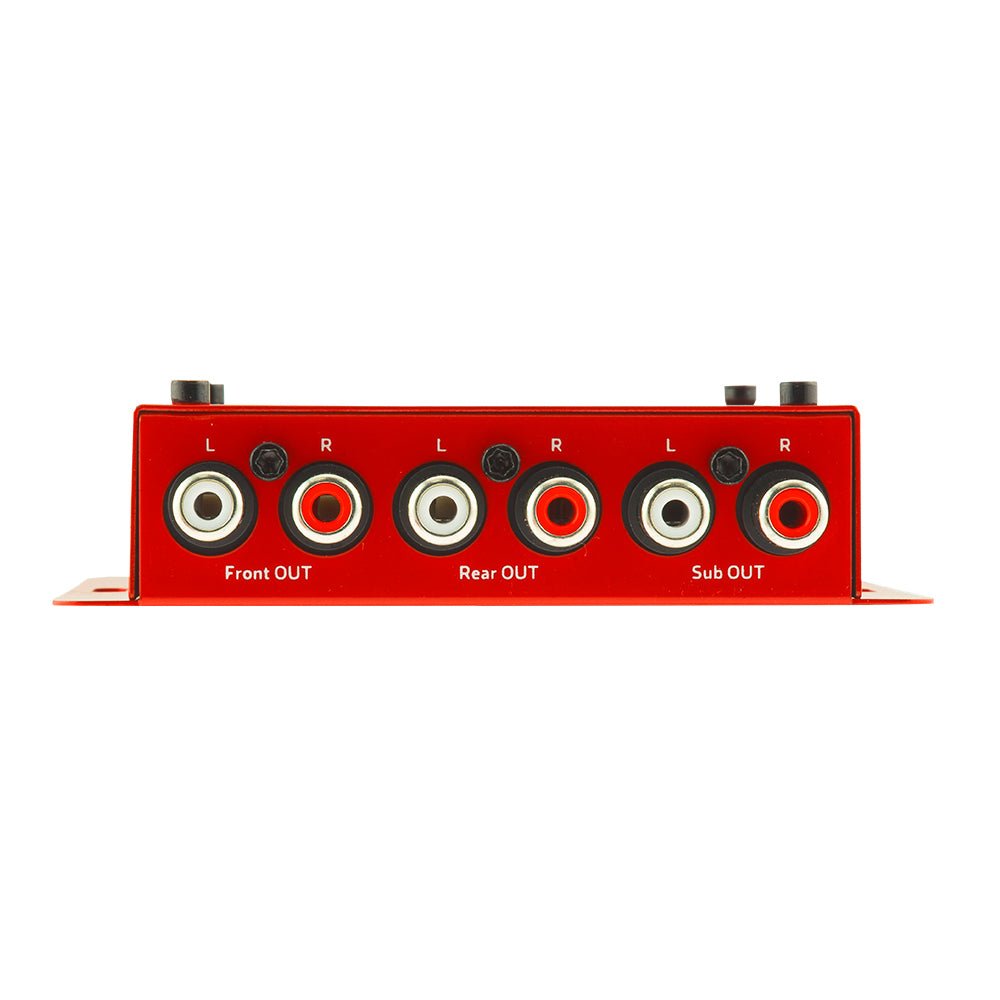

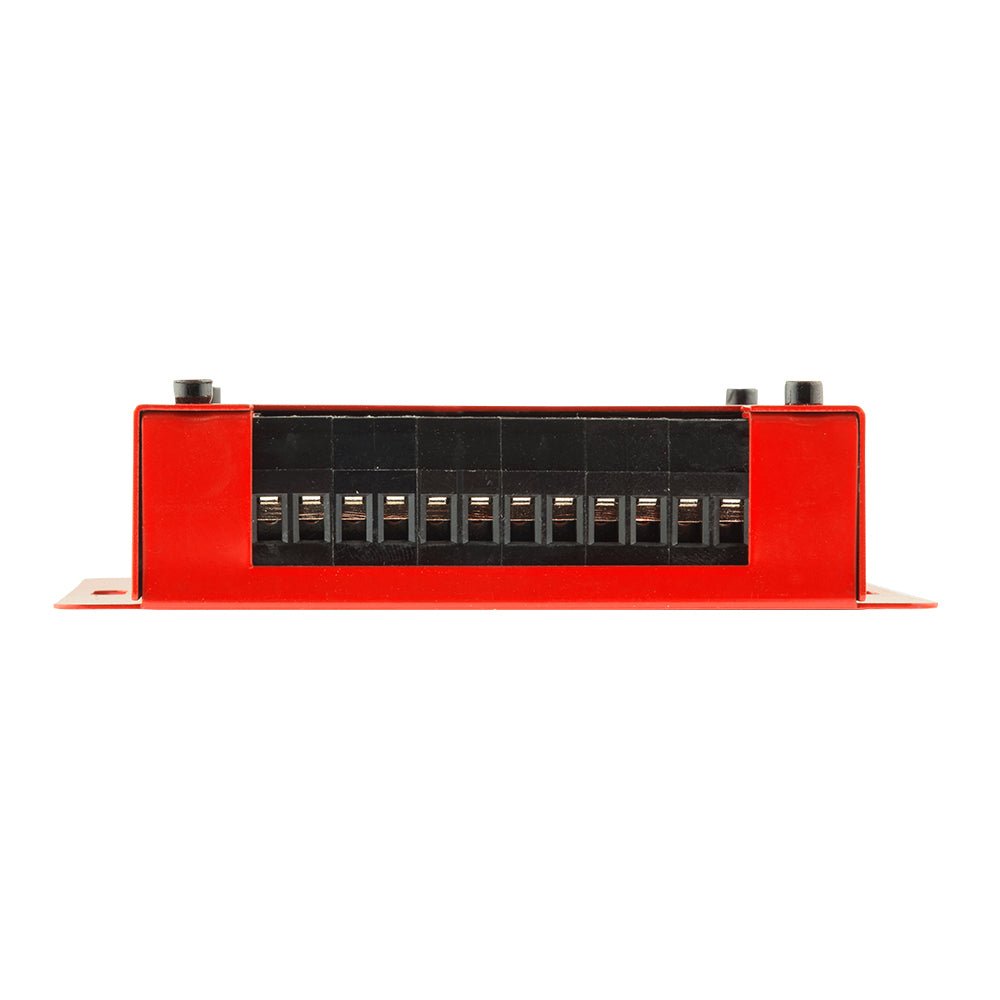

DS18 V5HL Hi/Lo Converter 5-Channel with 12 Volt Trigger Output (Remote out)
|
Having the perfect tools to make your sound system the ultimate music machine is what DS18 has for you. Our crossovers are designed to provide the perfect frequency distribution throughout your system to ensure the clarity and peak efficiency for your acoustic. Highlights
|
Technical Details
| Model: | V5HL |
| Working Voltage: | +12V |
| Input: Sensitivity: | 0.1-16V |
| MAX RCA Output: | 4V |
| Frequency Response: | 10Hz - 30KHz |
| Input Impedance: | 20K Ohms |
| Standby Current: | 200 mA |
| Dimensions: | 109 L x 88 W |
| Features: | 4 CH High Level Input / 5 CH RCA Output Surface Mount Component Technology Direct Insert Power / Speaker Terminal Lowest Impedance and Best Power Filter FR4 Double Sides PCB Remote Trigger Output with Signal Sensing Power / Clipping LED Indicators |
