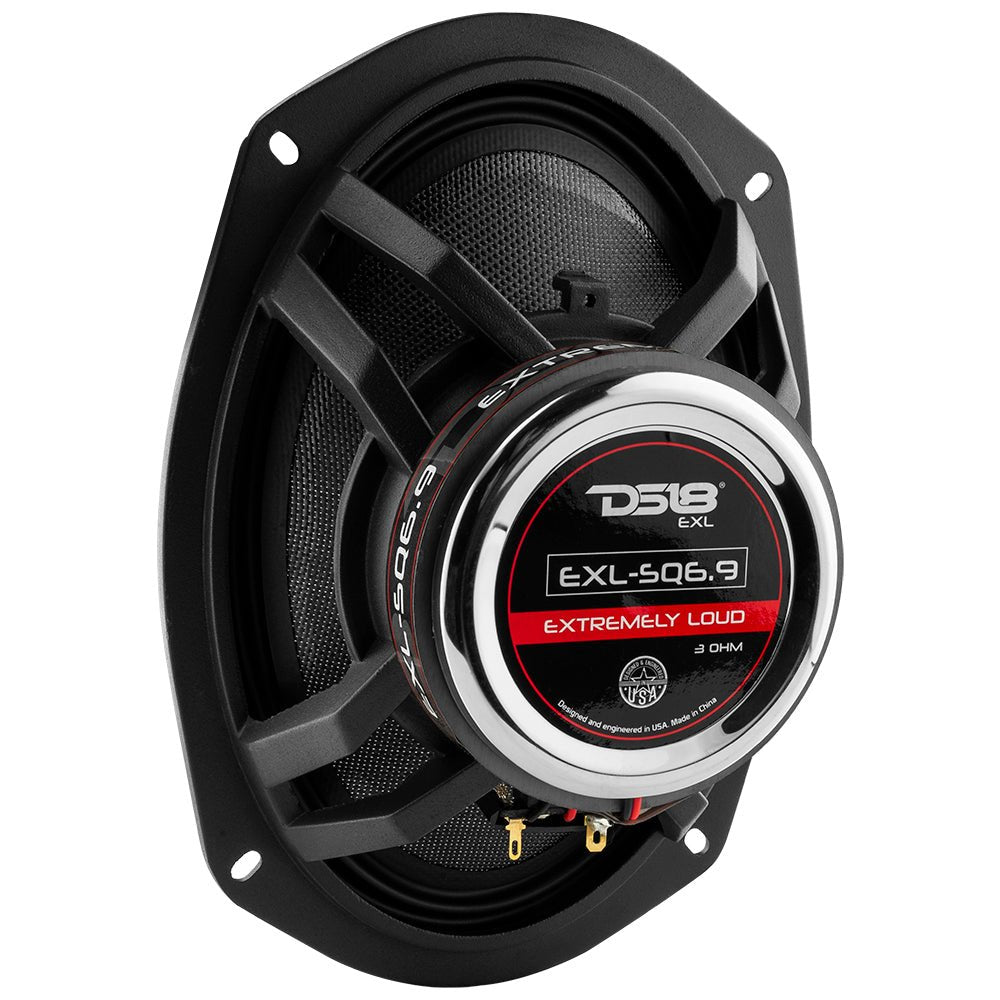

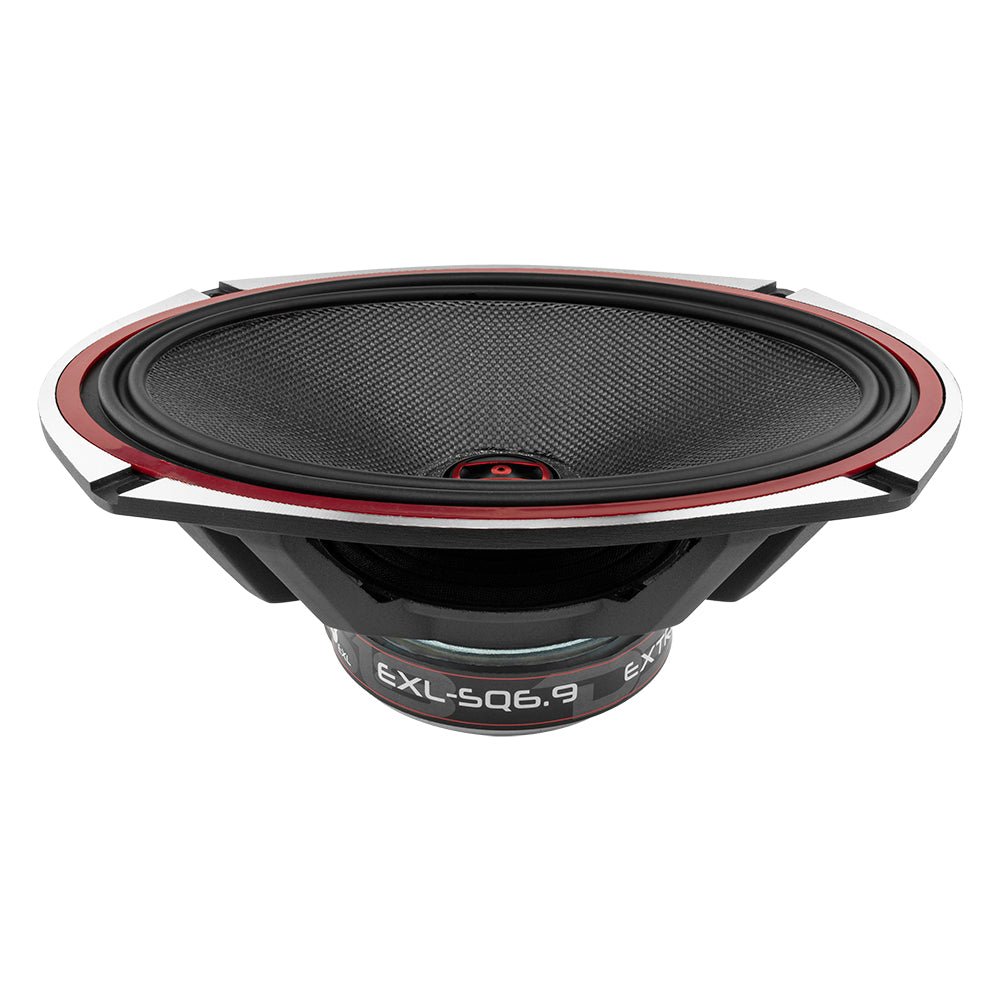

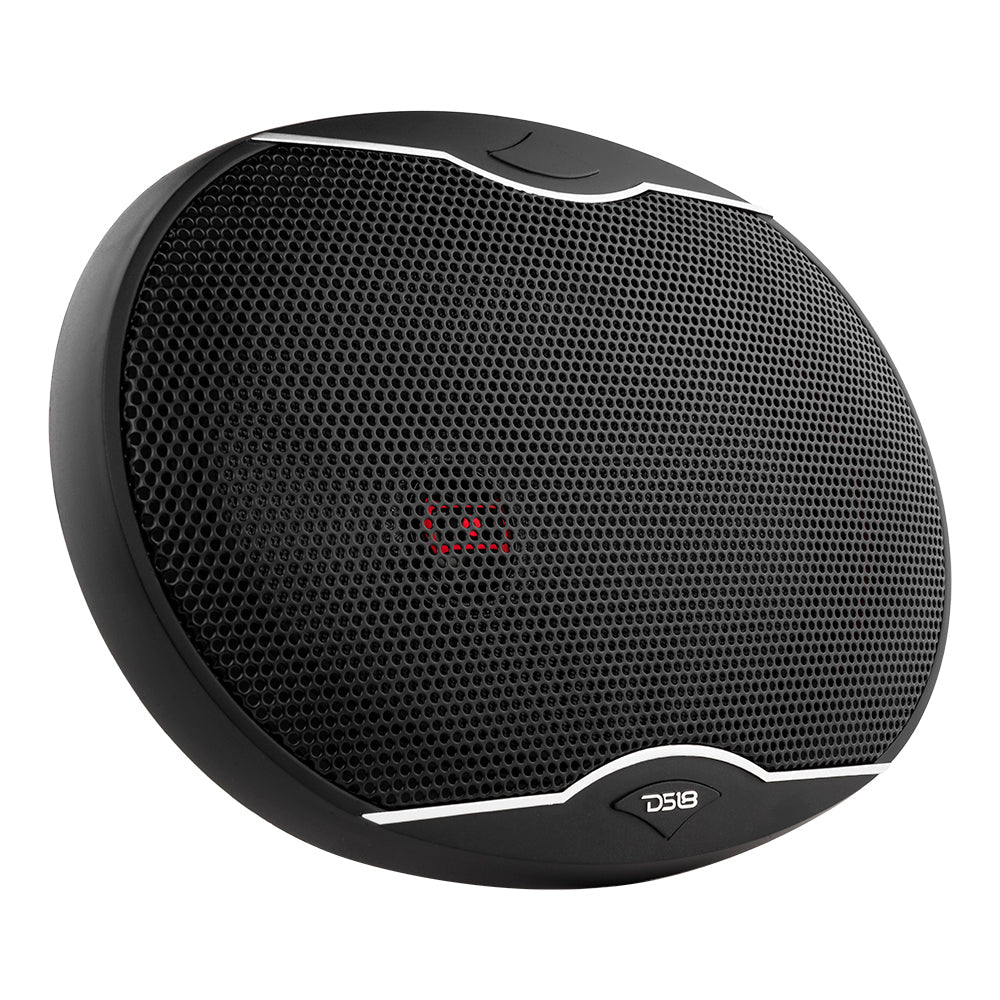

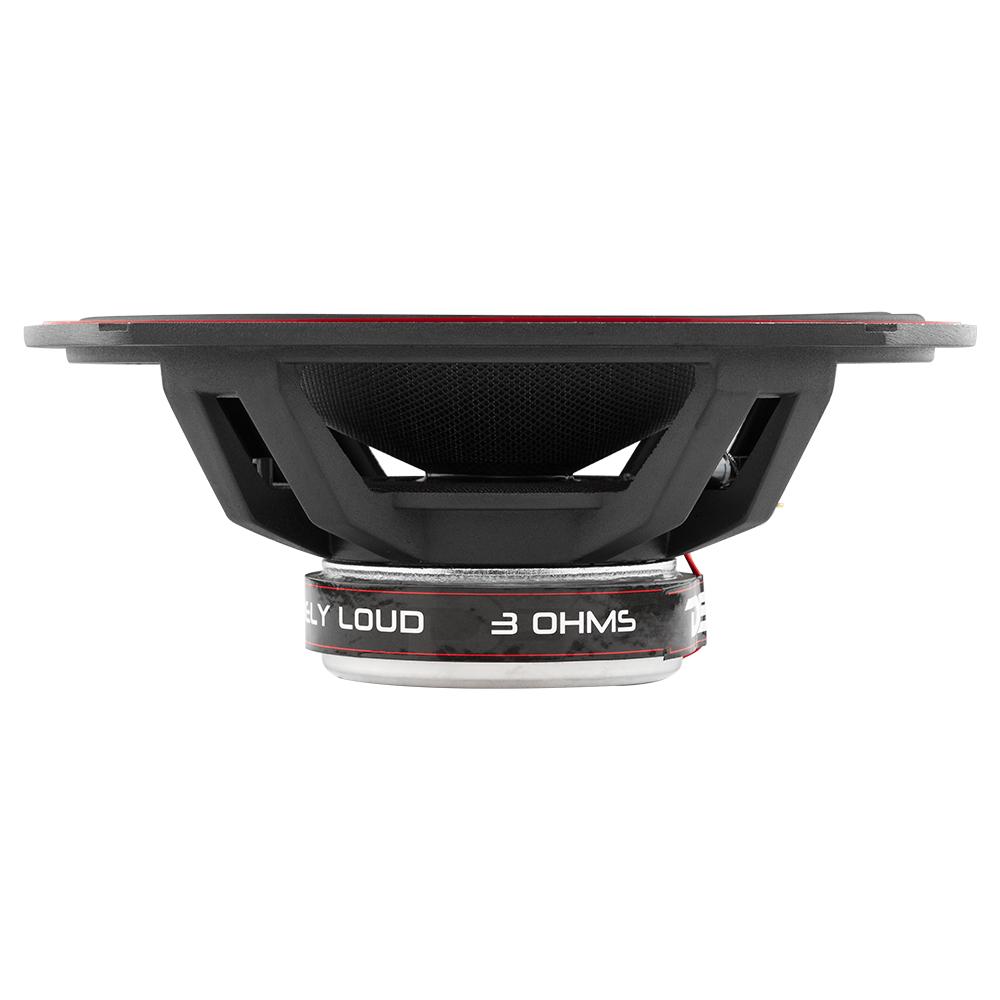

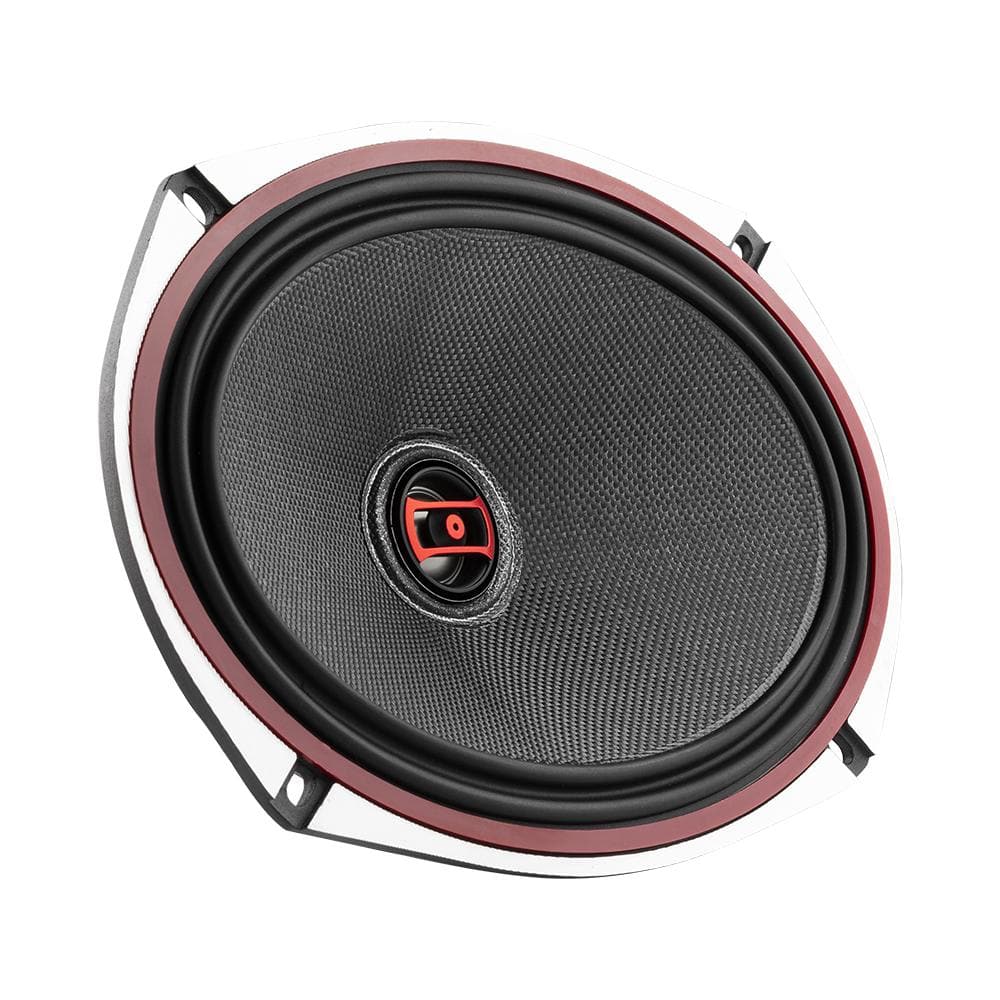

DS18 EXL 6x9" 2-Way Coaxial Speaker with Fiber Glass Cone | 160W RMS 3-Ohm
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
DS18 EXL-SQ6.9 Glass Fiber 6x9" 2-Way Coaxial Car Speaker 560 Watts 3-Ohm
|
When you seek sound quality, it is best to have an idea of what to look for. Sensitivity, frequencies, woofer, tweeter, surround materials, and power handling are all important key factors. EXL SQ Coaxial Speaker brings it all with black glass fiber cone, advanced PEI dome tweeter, NEO magnets, 1" BASV voice coils, 3 Ohms impedance strontium-magnets and aluminum basket. Highlights
|
Technical Details
| Model: | EXL-SQ6.9 |
| Type: | Coaxial |
| Size: | 6x9" |
| RMS Power: | 160W |
| MAX Power: | 560W |
| Frequency Response: | 55Hz - 22KHz |
| Impedance: | 3 ohms |
| Sensitivity: | 90dB |
| Materials | |
| Surround: | Rubber Edge |
| Cone: | Black Glass Fiber |
| Magnet: | Strontium |
| Voice Coil Wire: | BASV |
| Measurements | |
| Voice Coil Size: | 1.3" / 33 mm |
| Woofer Magnet: | Stronium |
| Magnet Weight: | 20 oz |
| Tweeter Voice Coil: | .08" / 20.3 mm |
| Tweeter: | 1.14" / 29 mm |
| Tweeter Magnet: | Neodymium |
| Mounting Cutout: | 5.9"x8.6" / 150x220 mm |
| Mounting Depth: | 3.22" / 82 mm |
| Grills: | Yes |
