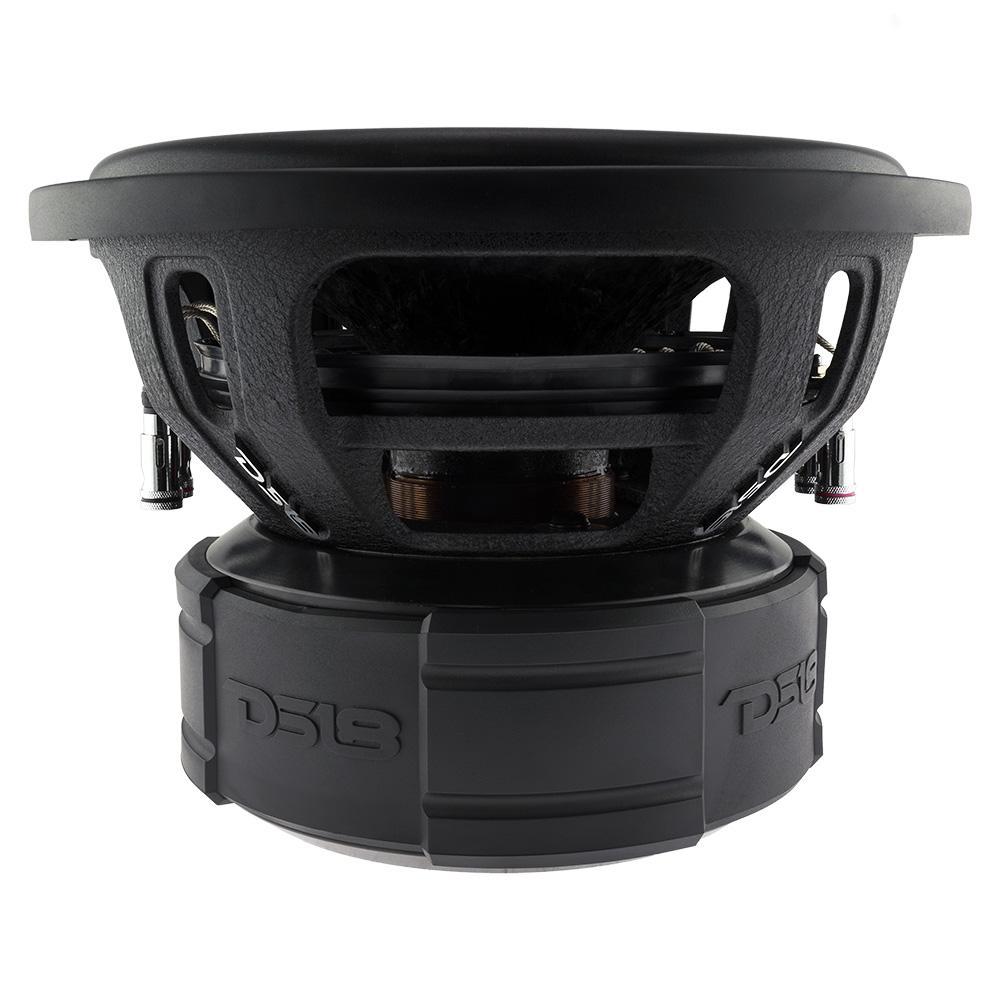

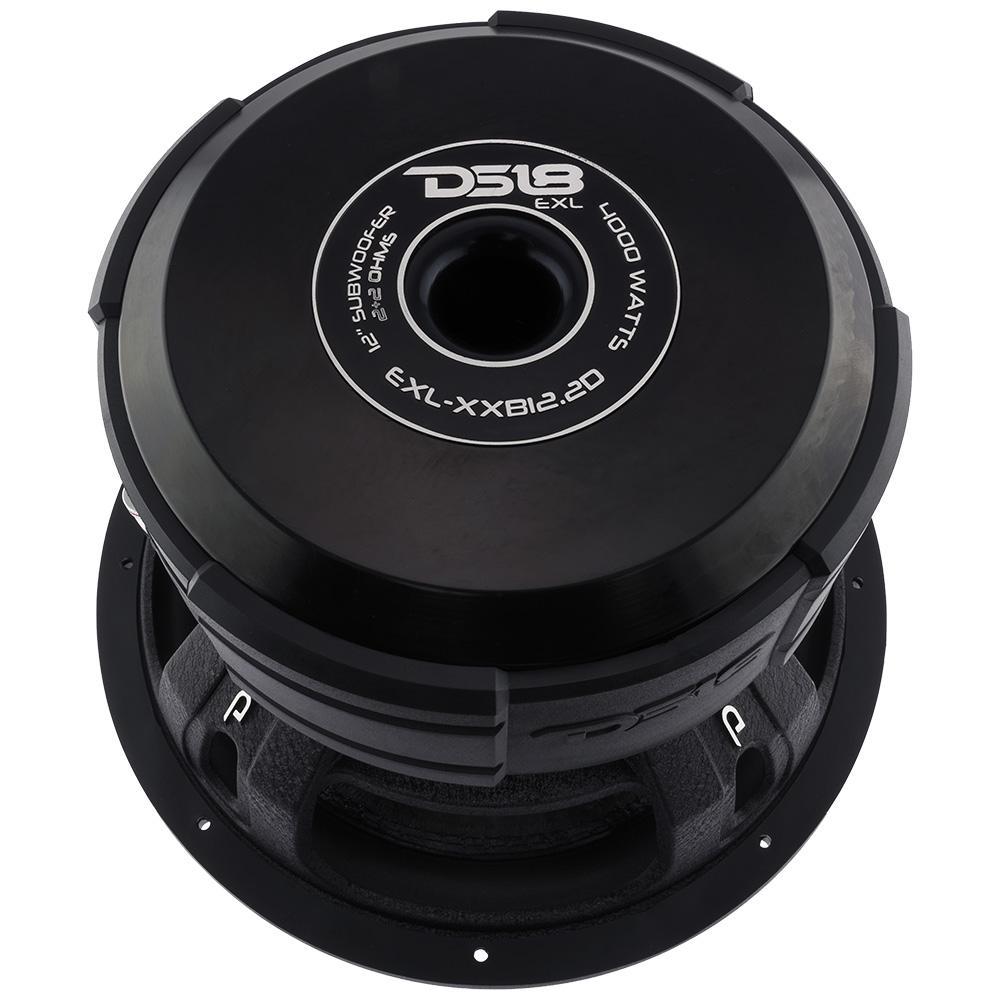

DS18 EXL-XXB12.2D 12" Subwoofer 4000 Watts DVC 2-Ohms
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
DS18 EXL-XXB12.2D 12" Subwoofer 4000 Watts DVC 2-Ohms
| The EXL series subwoofers have massive power handling abilities! Choosing the right materials makes the difference! Aluminum frame, paper with fiber glass cones, and a foam edge are all the makings of an all powerful subwoofer. These can be purchased in either 2 ohms or 4 ohms dual voice coil configurations. At 2,000 RMS power, the EXL-XX comes in 12" and 15" sizes respectively in order to provide more standard options of modifications and installations for our serious competitors. |
Manual
Specifications
| Model: | EXL-XXB12.2D |
| Type: | Subwoofer |
| Size: | 12" |
| RMS Power: | 2000W |
| MAX Power: | 4000W |
| Impedance: | 2 + 2 Ohms |
| Voice Coil Size: | 3" |
| Magnet: | Ferrite |
| Magnet Size: | 2 x 153 oz |
| Frequency Response: | 20Hz - 1.6KHz |
| Materials | |
| Frame: | Aluminum |
| Cone: | Paper with Glass Fiber |
| Surround: | Foam Edge |
| Voice Coil Former Material: | Black Aluminum |
| Diameters | |
| Mounting Cut-Out: | 11.1" (282mm) |
| Mounting Depth: | 7.87" (200mm) |
| Overall Diameter: | 12.63" (321mm) |
| Net Weight: | 27kg |
