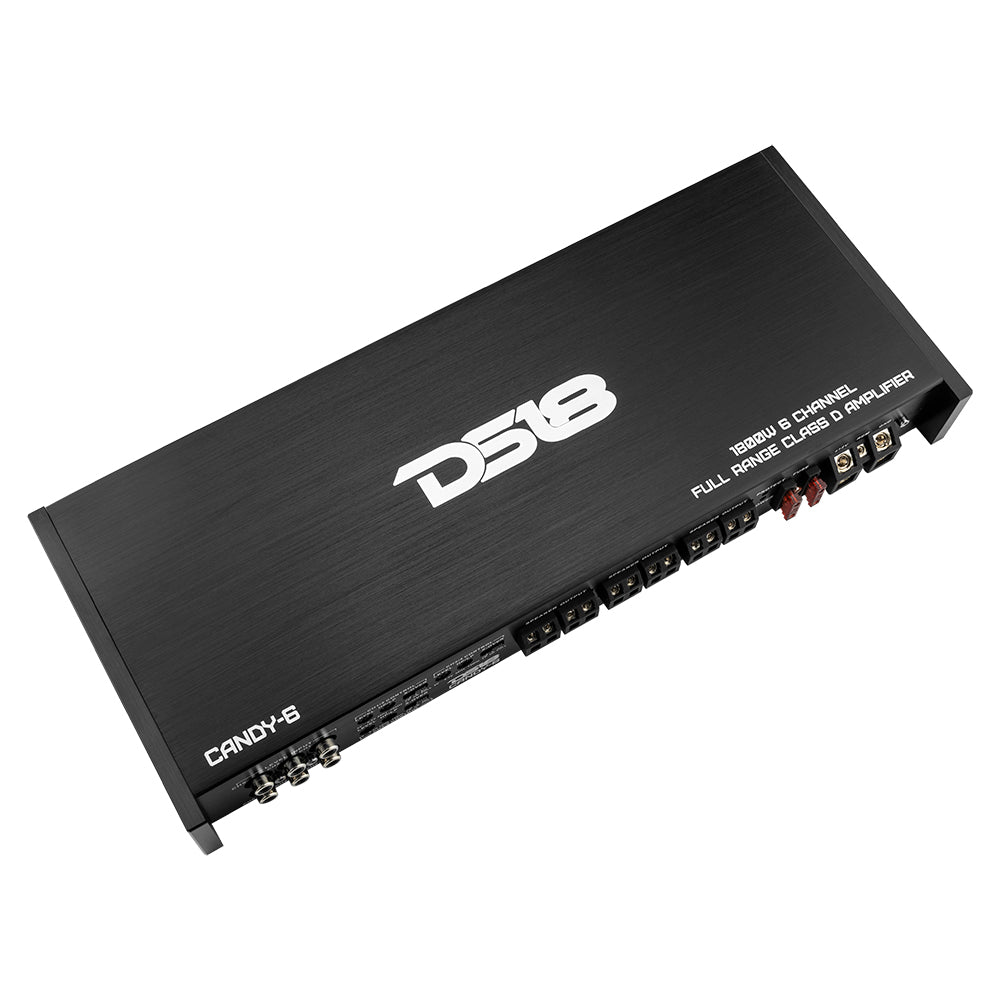

DS18 CANDY-6 Compact Full-Range Class D 6-Channel Car Amplifier 1800 Watts
DS18’s Candy Amplifier Series delivers powerful charge. Like a candy store, DS18 offers a variety of flavors for every audio enthusiast to choose from. Our selection of CANDY amplifiers provide a charge rich enough to power all your speakers and give goosebumps to any audio purist.
These amps not only have the power to keep your speakers at maximum wattage efficiently, they are very small and compact in design so they can be mounted almost anywhere and give you just enough room to never worry about space! These mini amps come in 2 channel stereo, 4 channel, 1 channel, 5 channels, and even 6 channel configurations so the setup of your entire audio system is easy and painless to match up.
These amps are perfect for people who want a very small audio footprint with also having all the benefits of a huge amplifier putting out lots of power in a small package.
Highlights
- One of our most popular models because of its power output to size ratio.
- Small and powerful design that gives it a wide range of versatility because of its size.
- High grade components made to stand the test of time and give you loud sound on demand.

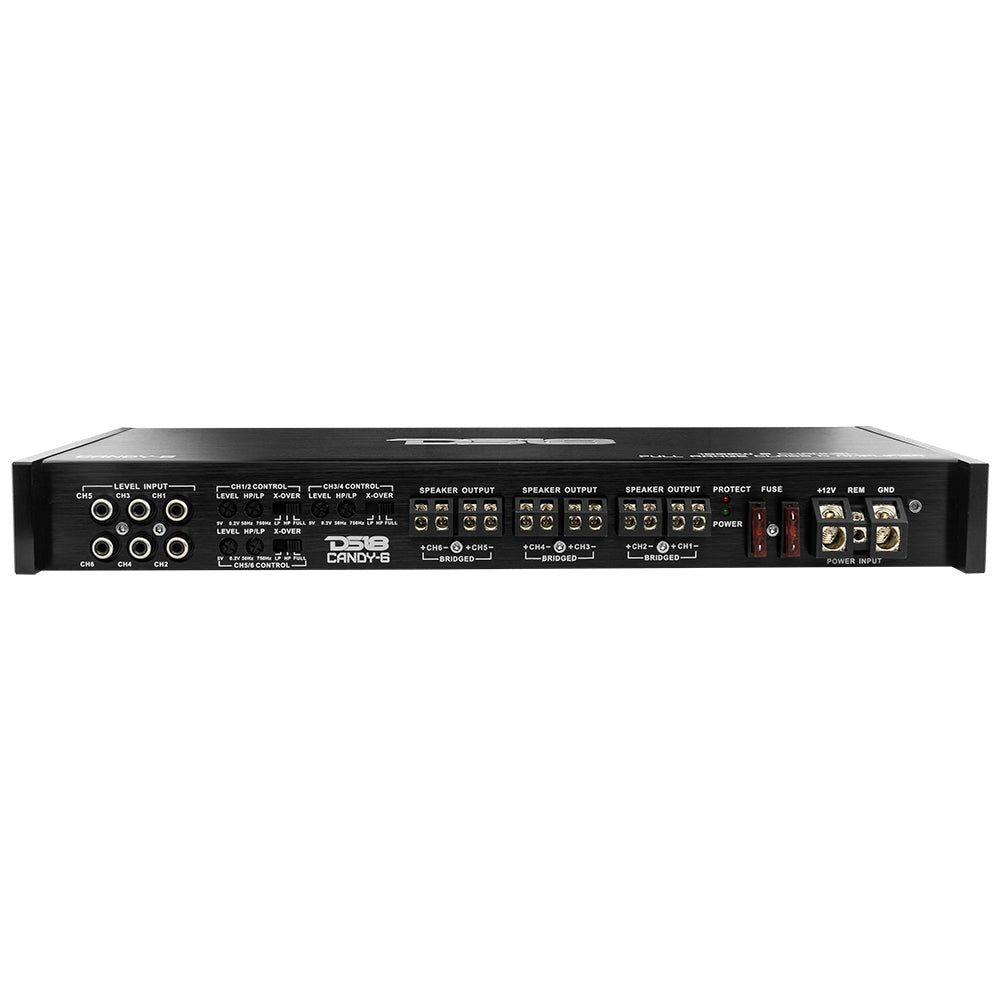

- RCA and Hi/Lo inputs so you can integrate this amp into your factory audio system easily.
Great For:
- Car Audio
- Pro Audio
- Jeep Audio
- DIY Projects
- Stunt wall
Technical Details
| Model: | CANDY-6 |
| Class: | D |
| Number of Channels: | 6 |
| Frequency Response: | 10Hz - 60KHz |
| 2 Ohms RMS Power (14.4V) Per Channel: | 6 x 125W |
| 4 Ohms RMS Power (14.4V) Per Channel: | 6 x 80W |
| 4 Ohms RMS Power Bridge (14.4V) Per Channel: | 3 x 250W |
| Speaker Impedance Range: | 2-4 Ohms |
| Input Sensitivity: | 0.2-5V |
| Low Pass Filter: | 50Hz - 750Hz |
| High Pass Filter: | 50Hz - 750Hz |
| Fuse Size: | 2 x 40A |
| Signal-to-Noise Ratio: | >80dB |
| THD: | <0.01% |
| Product Dimensions (L x W x H): | 351 x 137 x 43mm |
