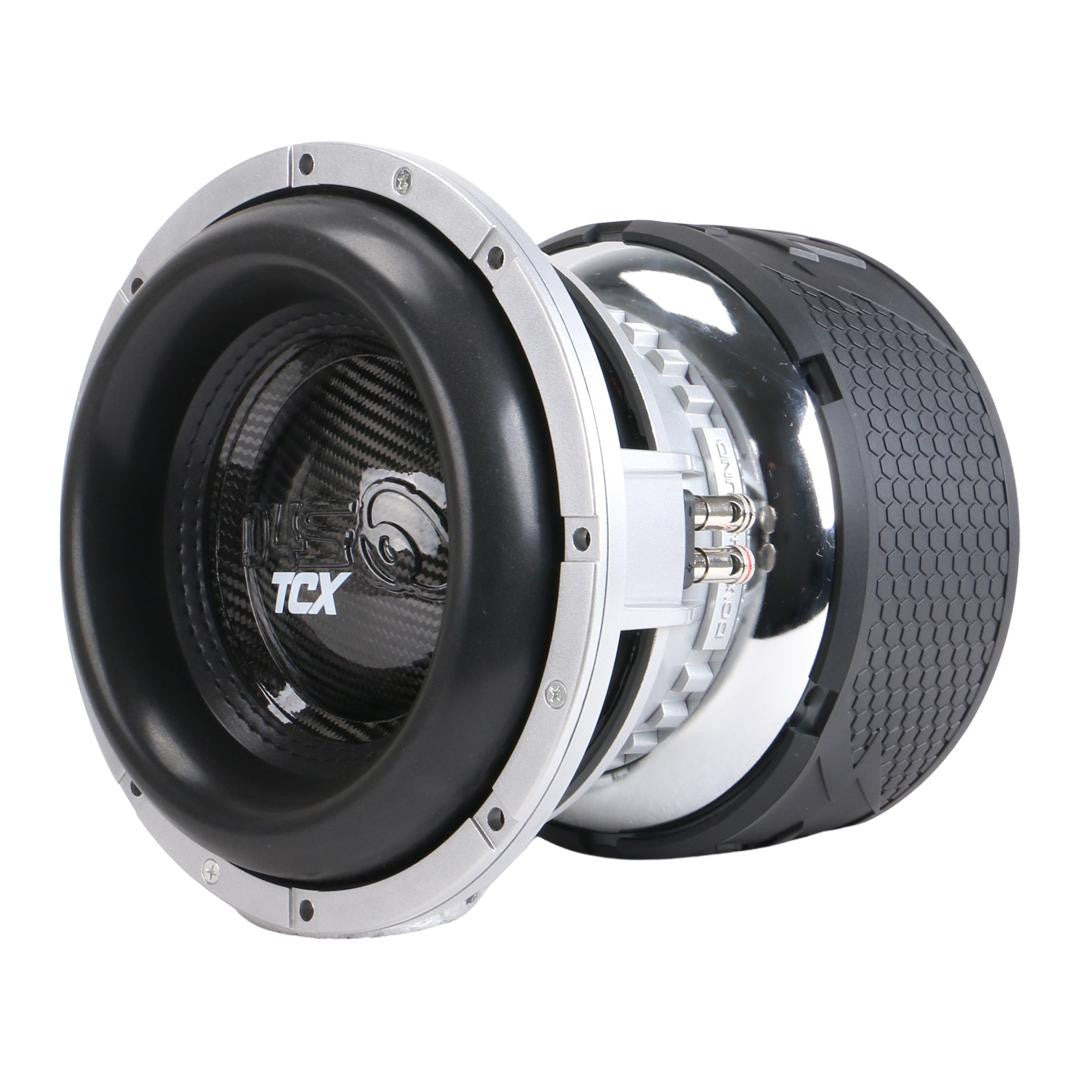

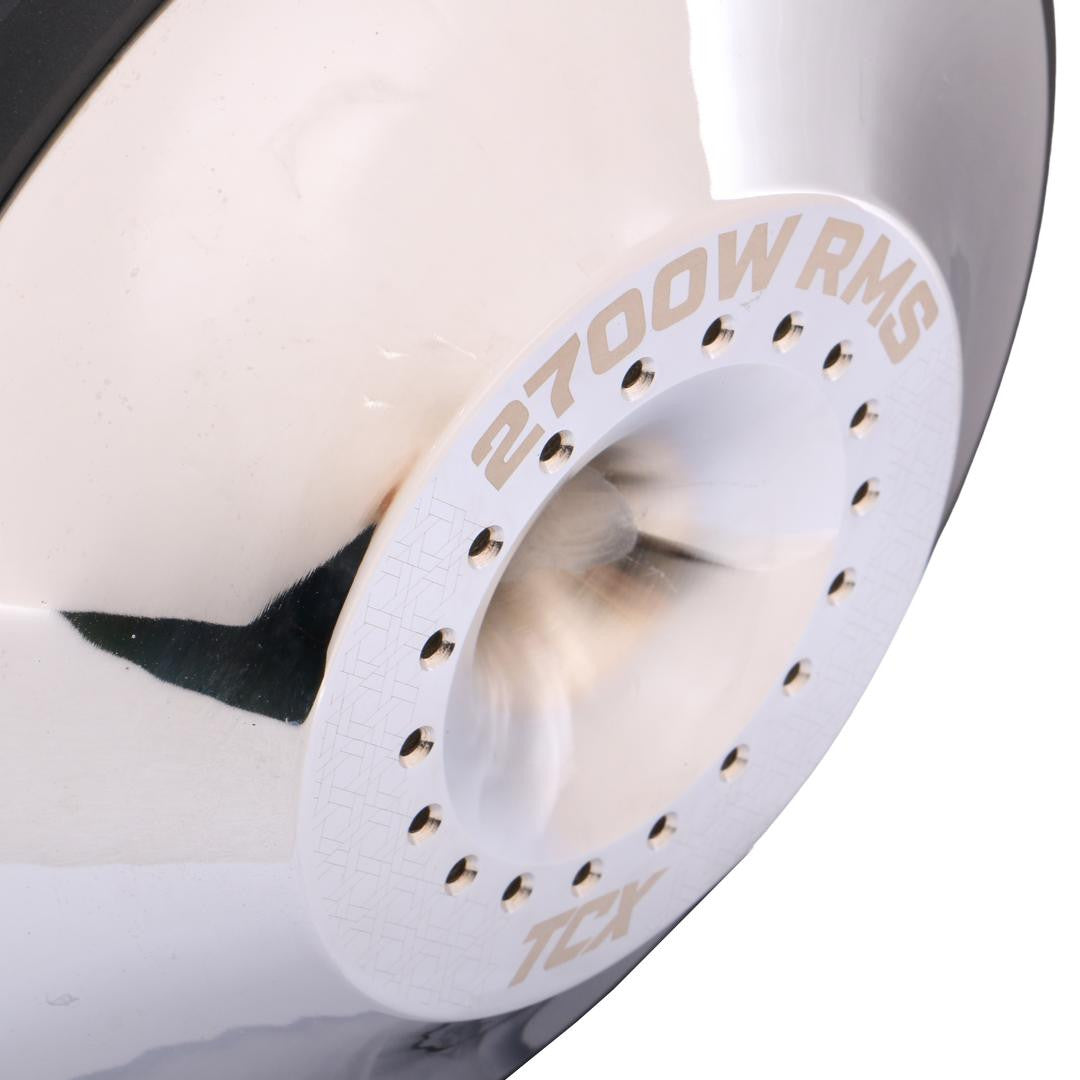

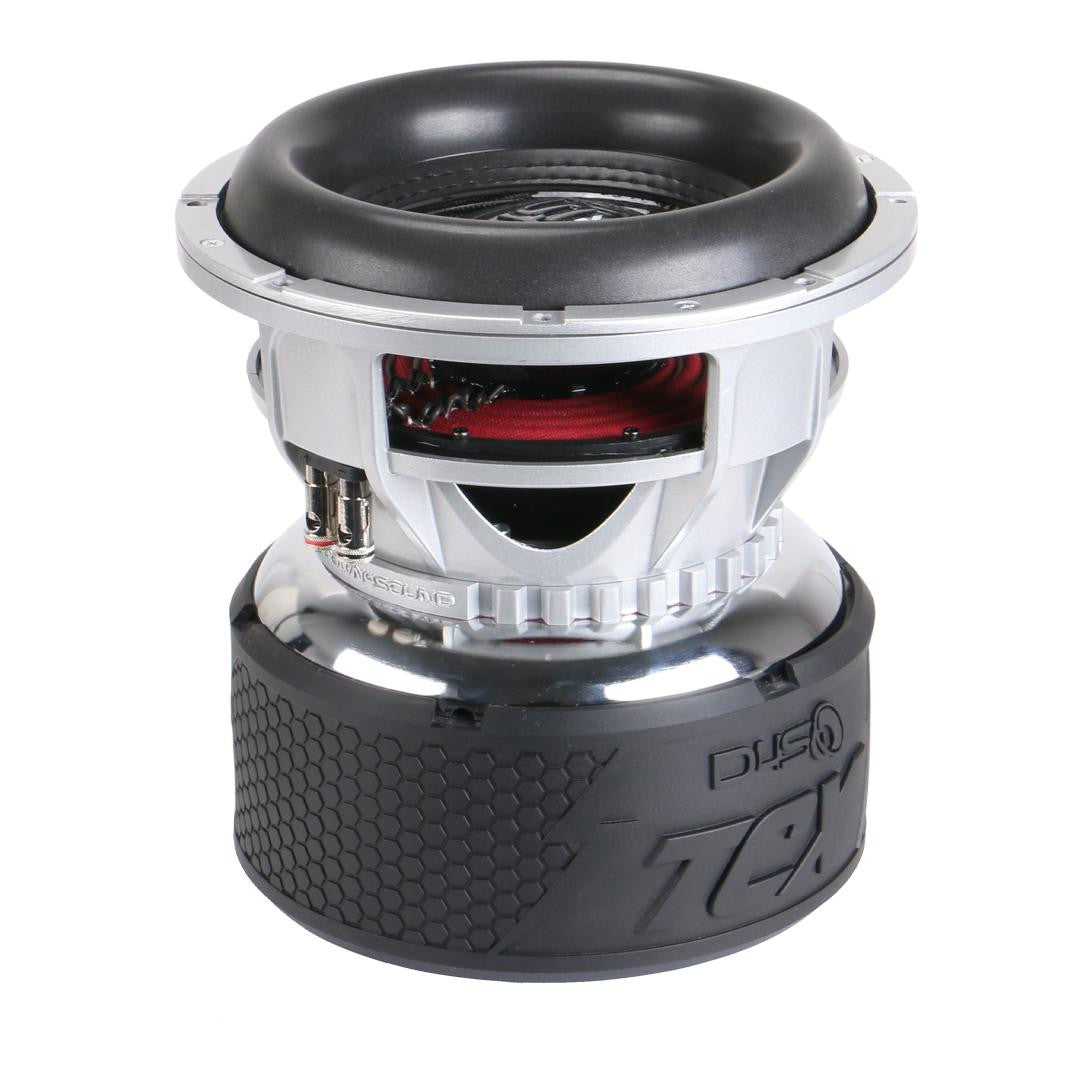

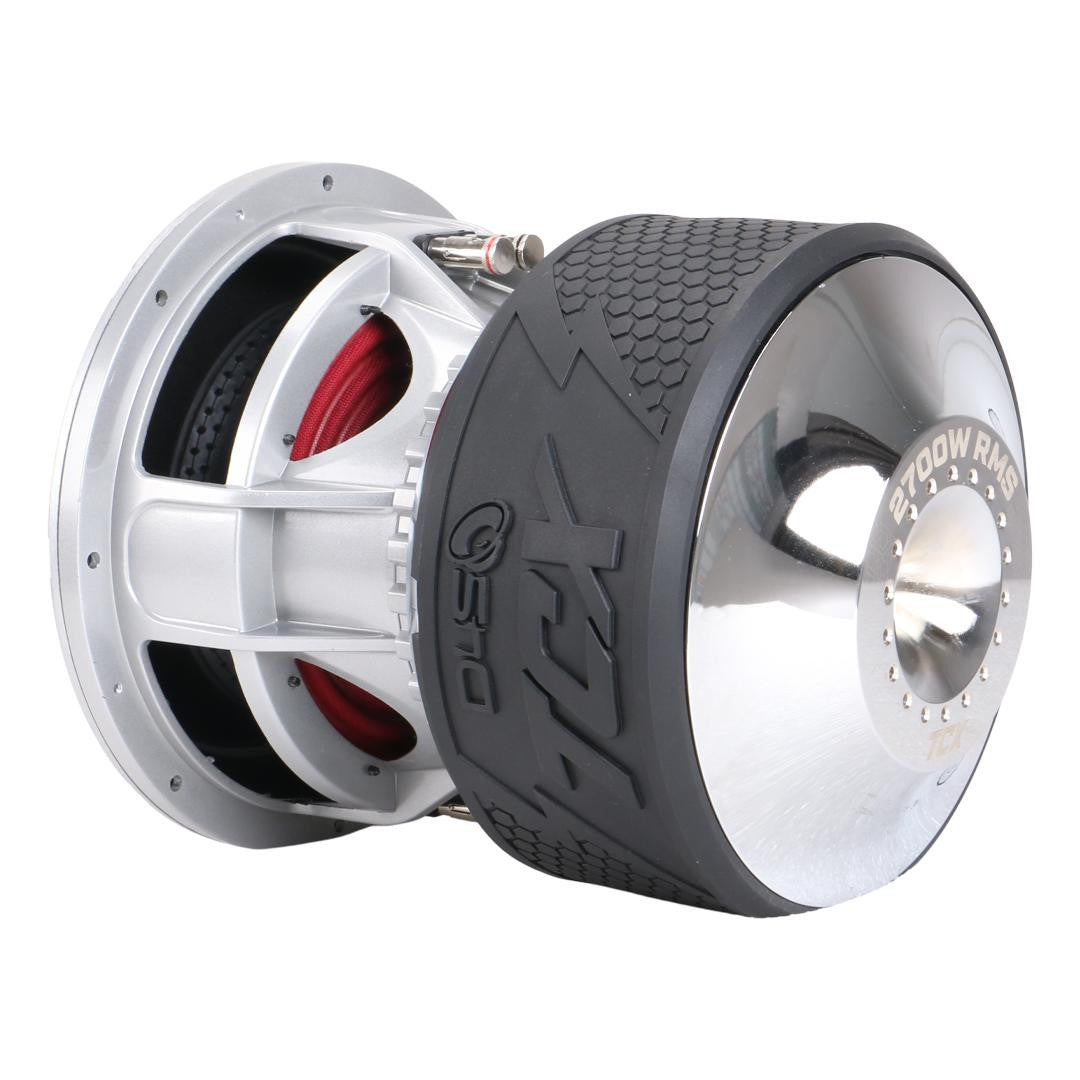

Down4Sound TCX 10" Subwoofer 2700W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
The DOWN4SOUND TCX-10 D2 is engineered for builders who demand maximum output from a compact 10-inch subwoofer. Designed for high-current systems and aggressive use, this subwoofer delivers a staggering 2700W RMS while maintaining control, thermal stability, and long-term durability.
Built around a 3-inch 8-layer flat aluminum voice coil, carbon fiber cone, and a heavy-duty 5-stack Y35 ferrite motor, the TCX-10 D2 is optimized for dual 2-ohm wiring, extreme excursion, and sustained high-power play. This is not a casual 10-inch sub — it is a compact weapon for serious systems.
Key Features
- 2700W RMS power handling
- Dual 2-ohm voice coil (D2)
- 3-inch 8-layer flat aluminum voice coil
- Carbon fiber cone for rigidity and low distortion
- 33 mm one-way Xmax
- Heavy-duty 5-stack Y35 ferrite motor
- Stitched high-roll surround
- Triple-spider suspension system
- Fully vented motor, basket, and backplate for enhanced cooling
Technical Specifications (T/S Parameters)
- Resonance Frequency (Fs): 39.76 Hz
- Qms: 4.011
- Qes: 0.678
- Qts: 0.582
- Moving Mass (Mms): 430.2 g
- Compliance (Cms): 37.80 µm/N
- Vas: 7.07 L
- Sd: 113.41 cm²
- BL Product: 28.58 T·m
- Sensitivity (SPL): 80.5 dB
- Xmax: ~33 mm (one-way)
- Displacement: 0.23 cu ft
Engineering and Construction
- Extended pole piece for improved linear control
- Dual flared pole vent to reduce air turbulence
- Fully vented motor structure for maximum thermal efficiency
- Triple-spider suspension for stability under extreme excursion
- Precision-wound 3-inch 8-layer flat aluminum voice coil for high-current handling
- Carbon fiber cone minimizes flex under extreme load
Built to survive high power, long play sessions, and real-world abuse without loss of control or reliability.
Recommended Enclosure
- Ported enclosure volume: 1.25 – 1.75 cu ft
- Recommended tuning frequency: 34 Hz
- Optimized for tight, aggressive bass in compact enclosures
Physical Dimensions (Key Installation Specs)
- Cutout Diameter: 10.03 in (255 mm)
- Overall Diameter (Top Gasket): 11.42 in (290 mm)
- Mounting Depth: 11.50 in (292 mm)
- Motor Diameter: 10.28 in (261 mm)
- Net Weight: 97.66 lb
- Gross Weight: 102.5 lb
Why You Should Buy
- True 2700W RMS output from a compactly massive 10-inch platform
- Designed for high-current, low-impedance system builds
- Exceptional thermal management and mechanical control
- Compact size with big-sub behavior
- Maximum output per cubic foot for serious builds
Ideal Applications
- High-power daily-driven systems
- SPL-focused builds using multiple compact subwoofers
- Vehicles with limited enclosure space and upgraded electrical
- Builders seeking extreme output without stepping up in size
- Serious audio systems where normal 10s are not enough
