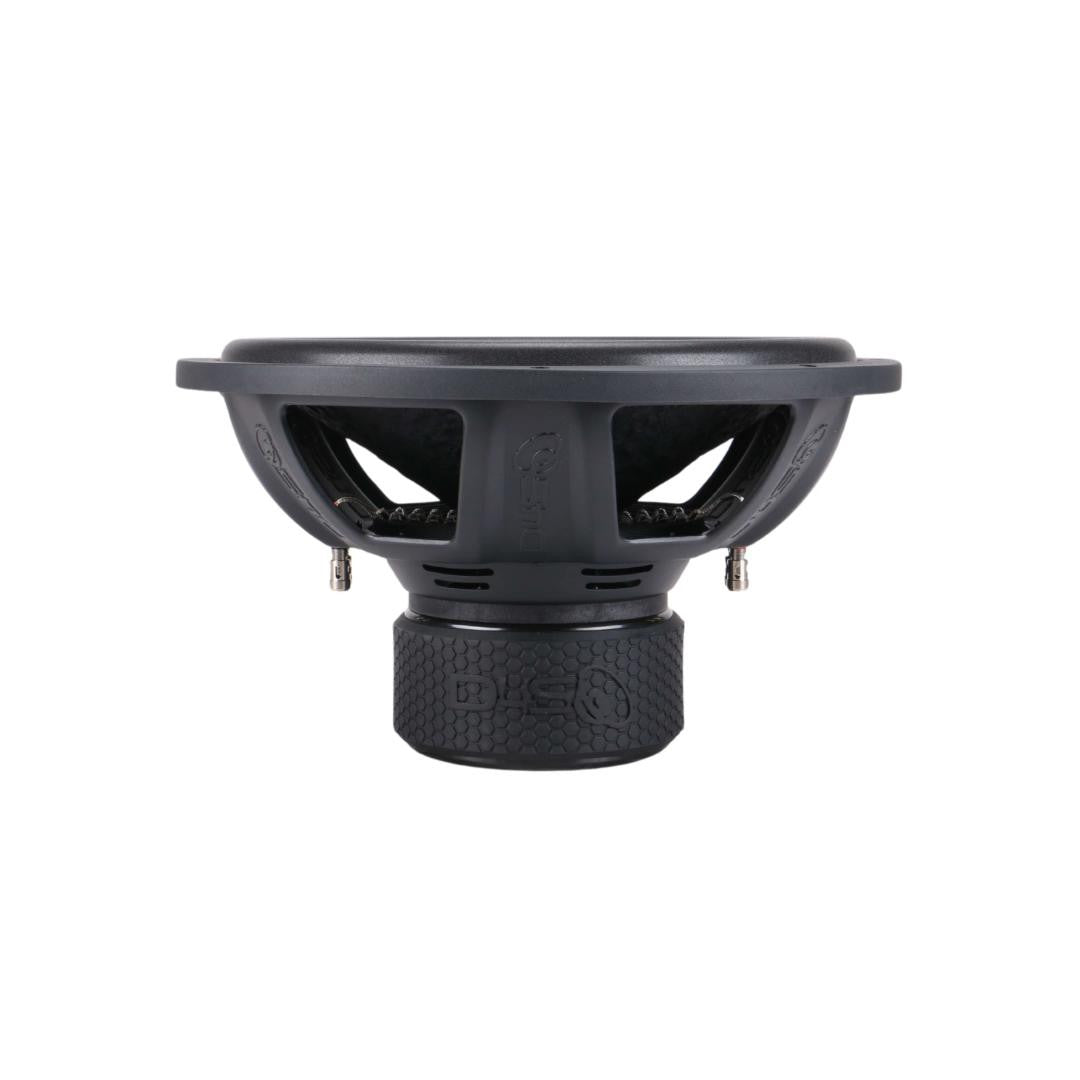

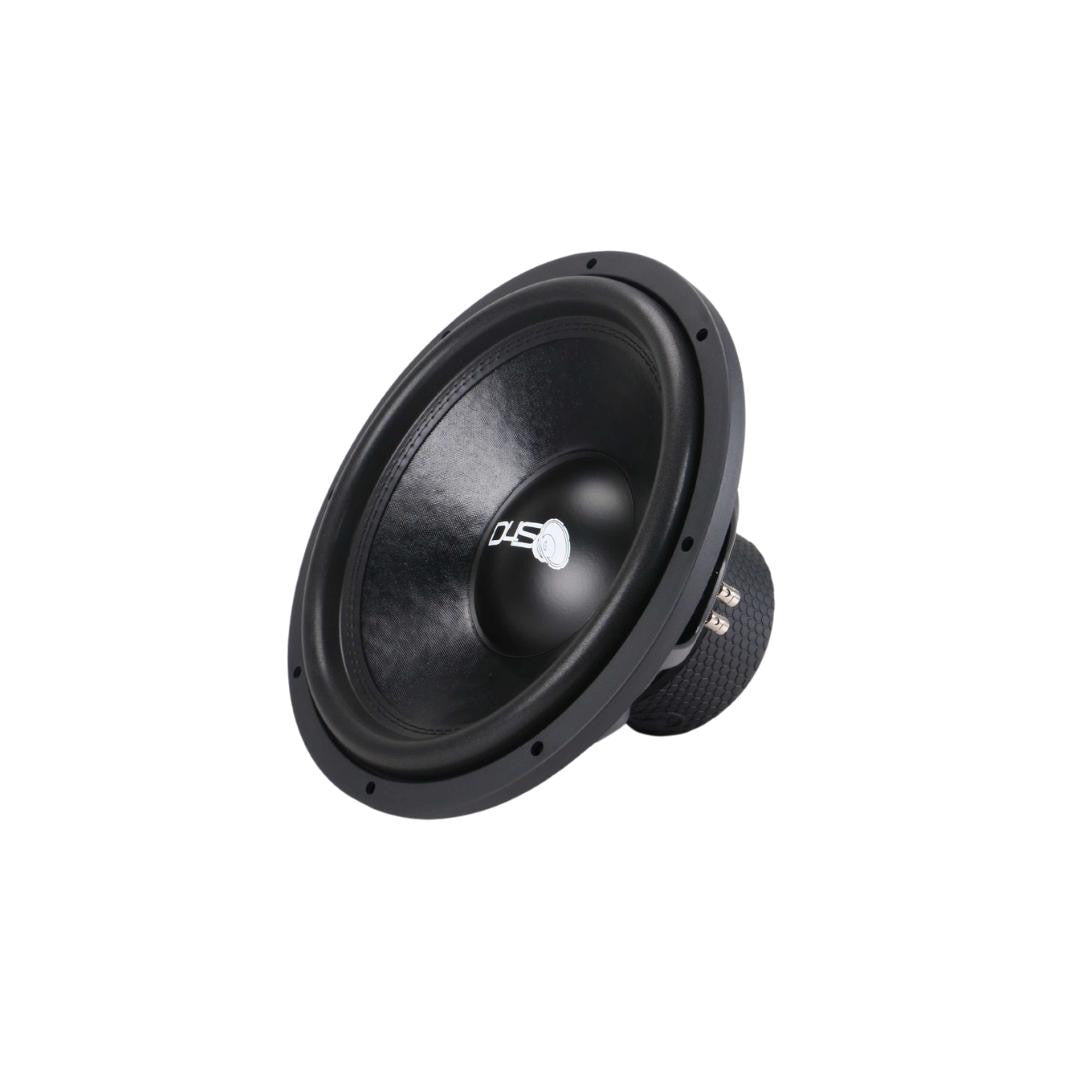

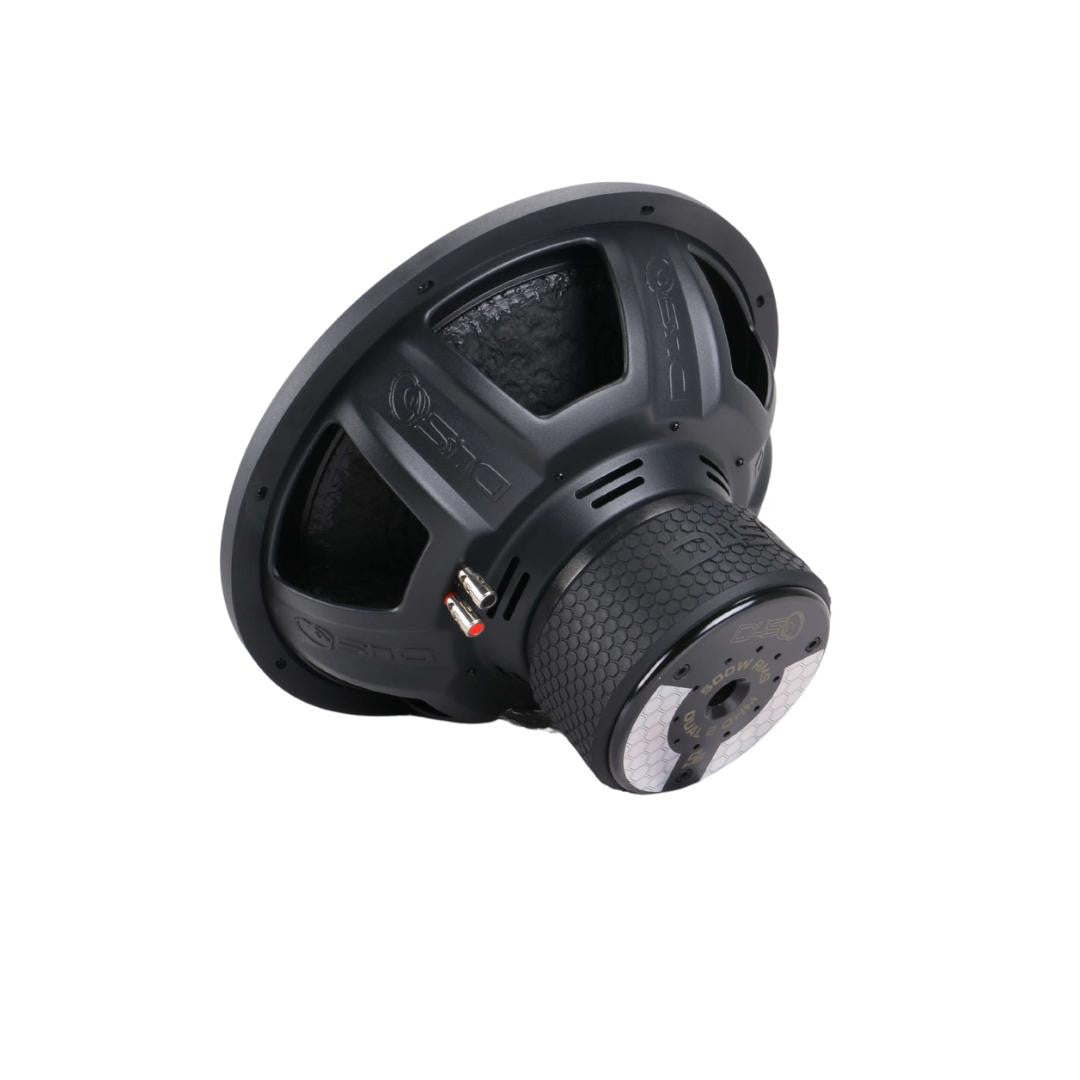

Down4Sound SB 15" Subwoofer 500W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
Elevate your car audio system with the DOWN4SOUND SB-15 Subwoofer, crafted to deliver deep, precise bass and exceptional clarity. Designed with a dual 2-ohm voice coil configuration and 500W RMS power handling, this subwoofer is built for high-performance setups that demand durability and top-tier sound quality. Its optimized suspension and robust motor structure ensure strong, accurate low-frequency output for daily or demo-focused builds.
Key Features
- 500W RMS power handling
- Dual 2-ohm voice coil configuration
- 2.5-inch high-temperature voice coil
- 21 mm one-way Xmax
- Highly optimized suspension
- Designed for high-performance systems
Technical Specifications (T/S Parameters)
-
Revc (DC Resistance)
2.03 ohm -
Resonance Frequency (Fs)
30.87 Hz -
Qms
4.132 -
Qes
0.825 -
Qts
0.689 -
Mms (Moving Mass)
271.1 g -
Cms (Compliance)
83.11 μm/N -
Rms
Not specified -
Vas
91.18 L - Sd: 855.29 cm²
-
BL Product
16.42 T·m -
Sensitivity (SPL)
87.0 dB -
Xmax
21 mm -
Displacement
0.19 cu ft
Engineering and Construction
- Optimized suspension for accurate low-frequency reproduction
- Vented motor for improved cooling
- Precision-wound 2.5-inch voice coil
- Durable cone and surround assembly
- Robust motor designed for consistent high-output performance
Recommended Enclosures
-
Ported
3.0 cu ft (net) -
Port Area
44 sq in -
Port Tuning
35 Hz -
Sealed
Not recommended
Physical Dimensions
-
Cutout Diameter
13.62 in (346 mm) -
Outside Diameter
15.51 in (394 mm) -
Mounting Depth
8.01 in (203.5 mm) -
Motor Height
3.54 in (90 mm) -
Net Weight
23.3 lb -
Gross Weight
25.5 lb
Why You Should Buy
- Powerful low-end performance
- Dual 2-ohm wiring flexibility
- Durable, long-lasting construction
- Designed for precise, impactful bass reproduction
Authorized Down4Sound dealer at JS Ultimate Sounds. Free shipping on orders $99+.
