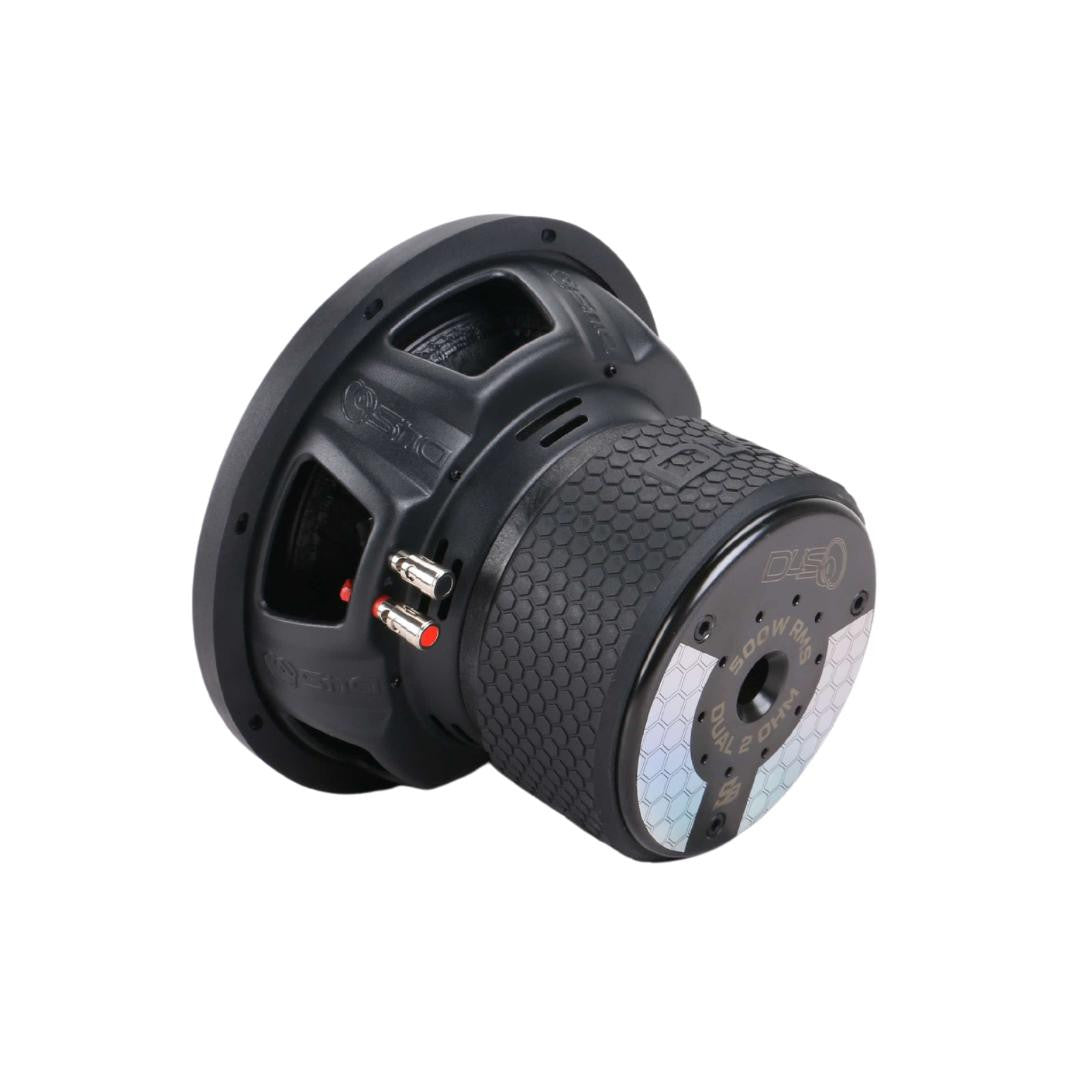

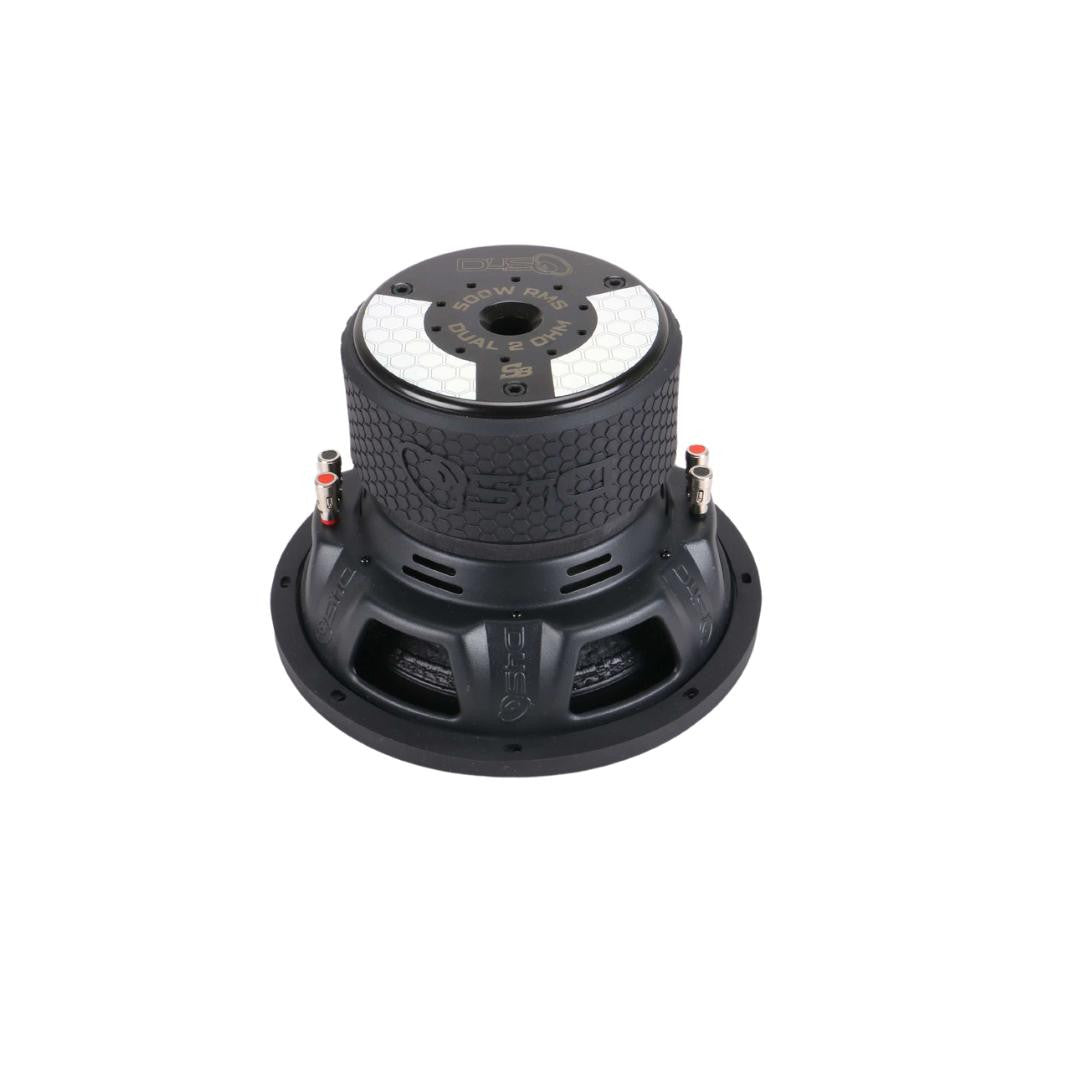

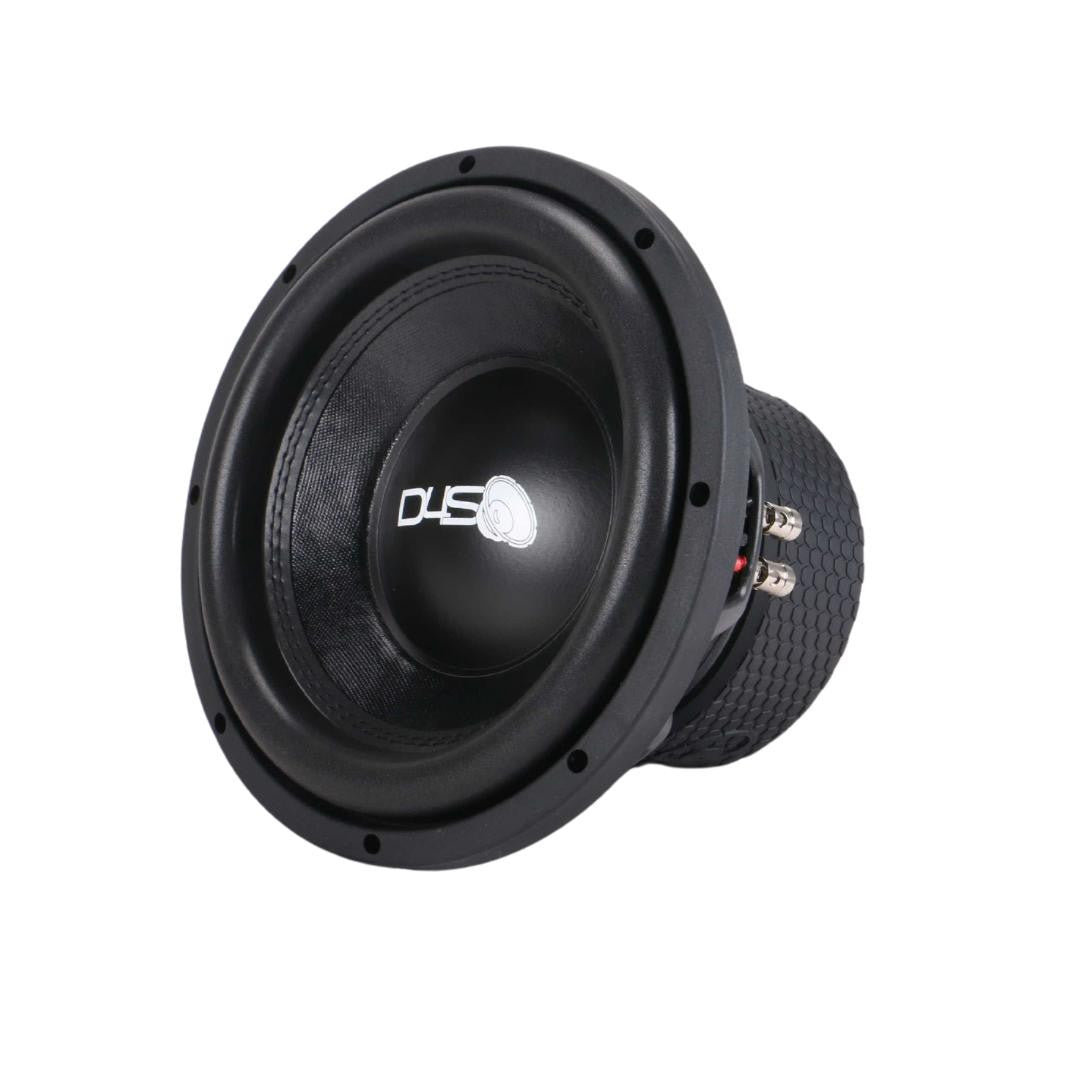

Down4Sound SB 10" Subwoofer 500W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
Elevate your car audio system with the DOWN4SOUND SB-10 Subwoofer, designed to bring precise, deep bass and exceptional clarity to your setup. With a dual 2-ohm voice coil configuration and 500W RMS power handling, this subwoofer delivers a perfect balance of performance and durability in a compact footprint. Engineered with a highly optimized suspension and robust motor system, the SB-10 D2 provides clean, accurate, and impactful bass for daily use or high-performance builds.
Key Features
- 500W RMS power handling
- Dual 2-ohm voice coil configuration
- 2.5-inch high-temperature voice coil
- 21 mm one-way Xmax
- Highly optimized suspension
- Compact, high-output design
Technical Specifications (T/S Parameters)
-
Revc (DC Resistance)
4.030 ohm -
Resonance Frequency (Fs)
37.717 Hz -
Qms
3.510 -
Qes
0.486 -
Qts
0.427 -
Mms (Moving Mass)
158.478 g -
Cms (Compliance)
158.882 μm/N -
Rms
0.740 -
Vas
25.653 L - Sd: 333.654 cm²
-
BL Product
16.190 T·m -
Sensitivity (SPL)
84.1 dB -
Xmax
21 mm -
Displacement
0.09 cu ft
Engineering and Construction
- Optimized suspension for accurate sound reproduction
- Vented motor for improved cooling
- Precision-wound 2.5-inch voice coil
- Durable cone and surround assembly for long-term reliability
- Compact motor structure optimized for output and control
Recommended Enclosures
-
Ported
1.0 cu ft (net) -
Port Area
15 sq in -
Tuning
35 Hz -
Sealed
Not recommended
Physical Dimensions
-
Cutout Diameter
9.02 in (229 mm) -
Outside Diameter
10.28 in (261 mm) -
Mounting Depth
6.46 in (164 mm) -
Motor Height
3.54 in (90 mm) - Net Weight: 21.9 lbs
-
Gross Weight
25.2 lb
Why You Should Buy
- Strong 500W RMS performance
- Accurate and controlled bass reproduction
- Dual 2-ohm coils for flexible wiring
- Durable construction for long-term reliability
- Compact size ideal for space-limited installs
Ideal Applications
- Daily-driven systems needing clean, solid low end
- Ported enclosures offering strong output and accuracy
- Small-to-mid-size vehicle installs
- Users seeking dependable performance without sacrificing space
