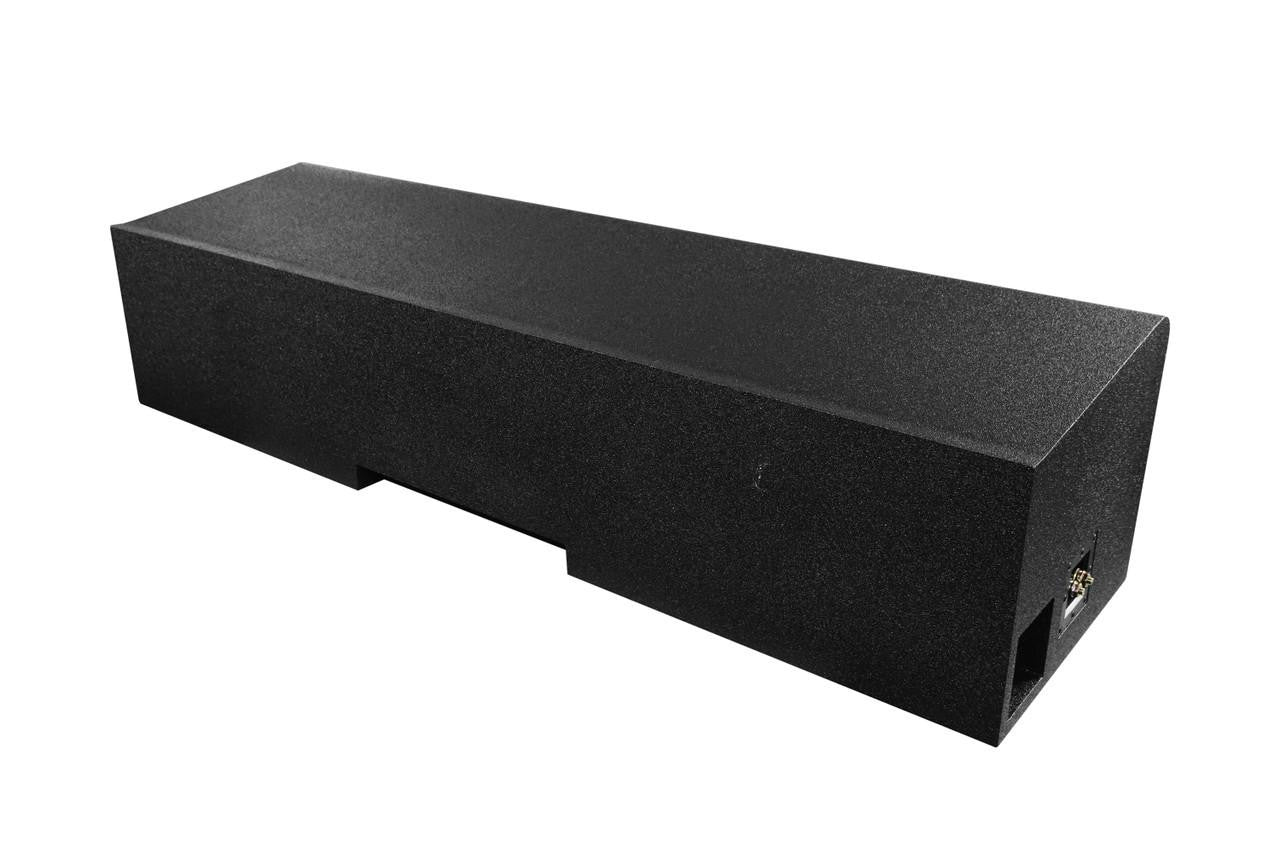

Down4Sound PRO-FAB - Birch - 4X 8-INCH Ported Subwoofer Enclosure - 07-13 CHEVY/GM Crew CAB - 2.5-INCH Seat Lift Required
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%20enclosure%20is%20engineered%20to%20deliver%20ground-shaking%20bass.%20With%20four%208-inch%20subwoofer%20openings,%20this%20ported%20...
){kind=link}

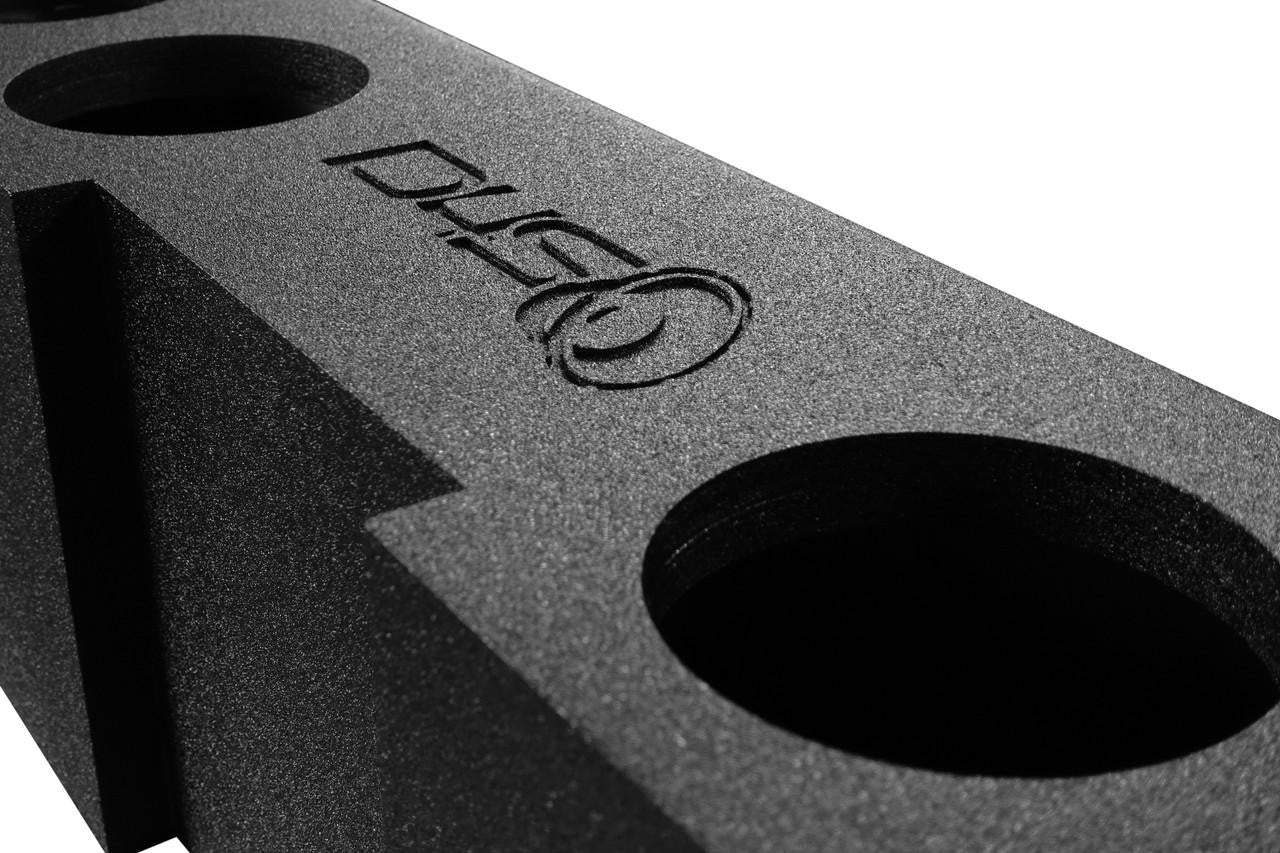

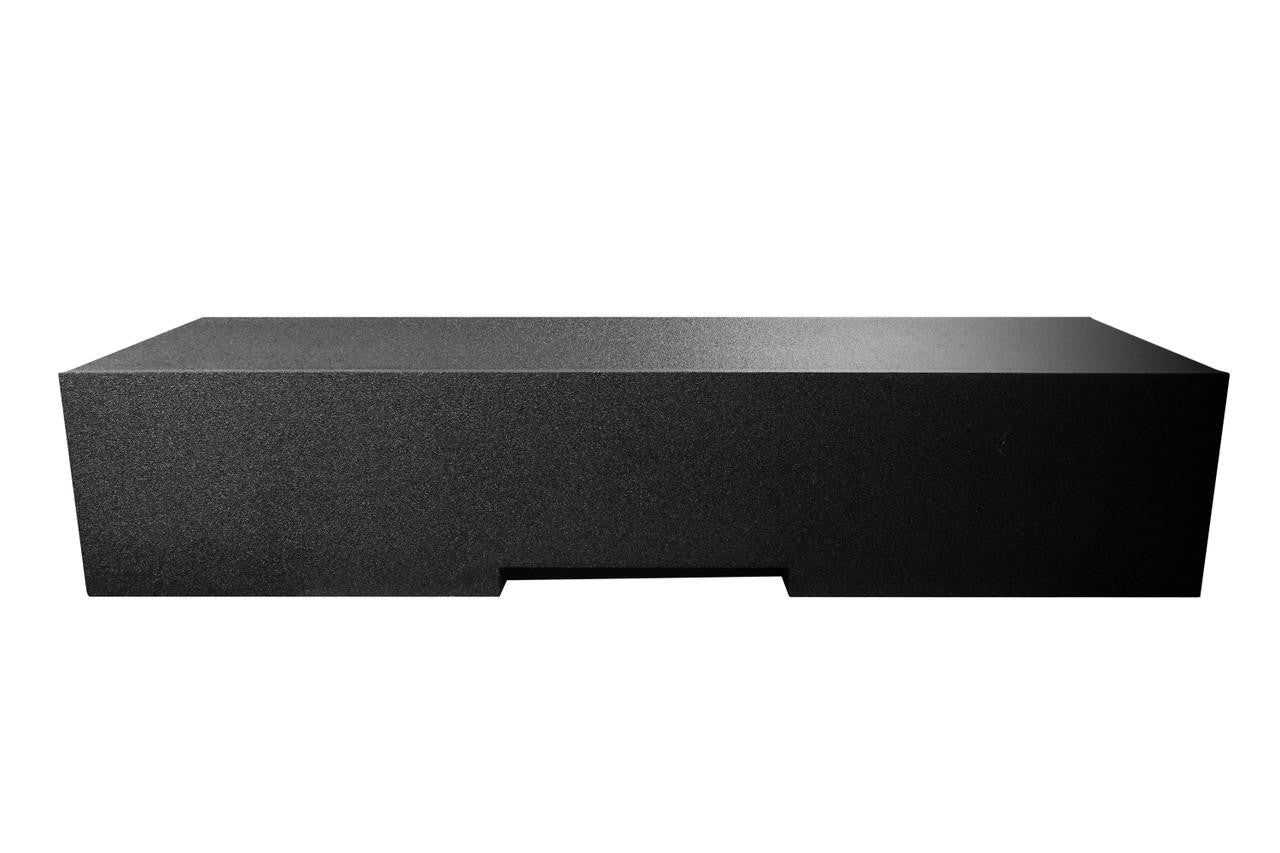

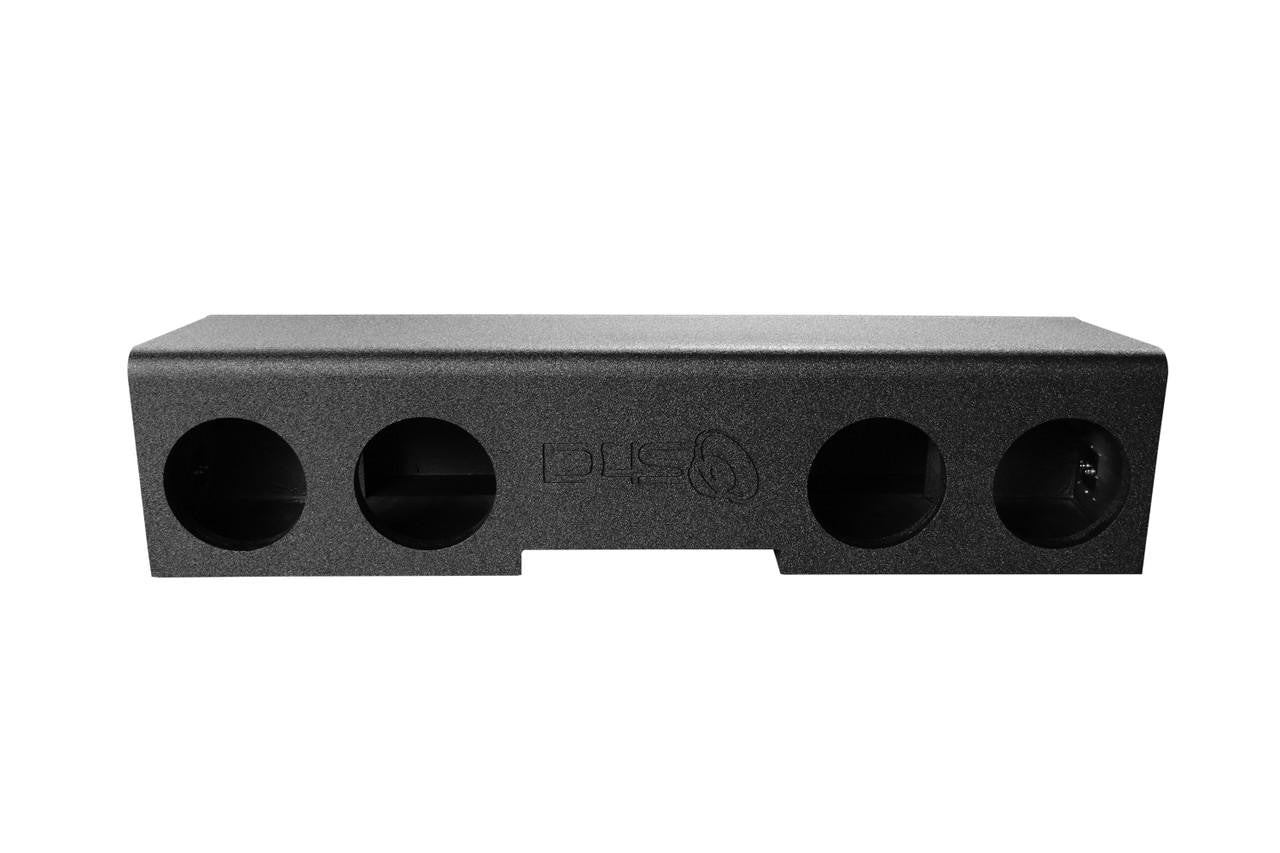

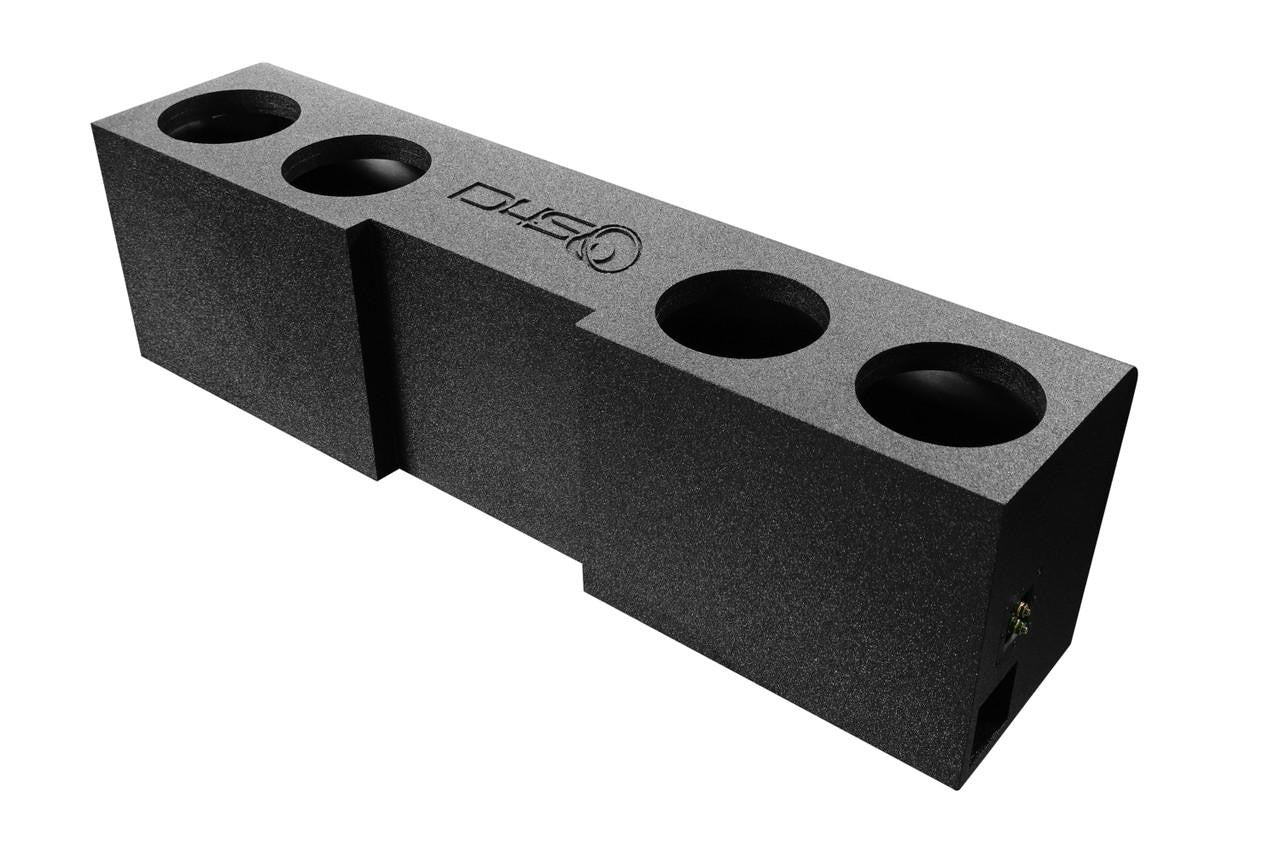

Designed specifically for 2007-2013 Chevy/GM Crew Cab trucks, the Down4Sound PRO-FAB (Quad) enclosure is engineered to deliver ground-shaking bass. With four 8-inch subwoofer openings, this ported enclosure is built from premium birch wood and coated with a polyurethane bedliner for enhanced durability. Featuring a square air port design, it’s precision-tuned for powerful and accurate bass performance. This enclosure fits seamlessly under the seat but requires a 2.5-inch seat lift for proper installation.
-
Compatibility
2007-2013 Chevy/GM Crew Cab (Under Seat, 2.5-Inch Seat lift is required BUT IS NOT INCLUDED) -
Configuration

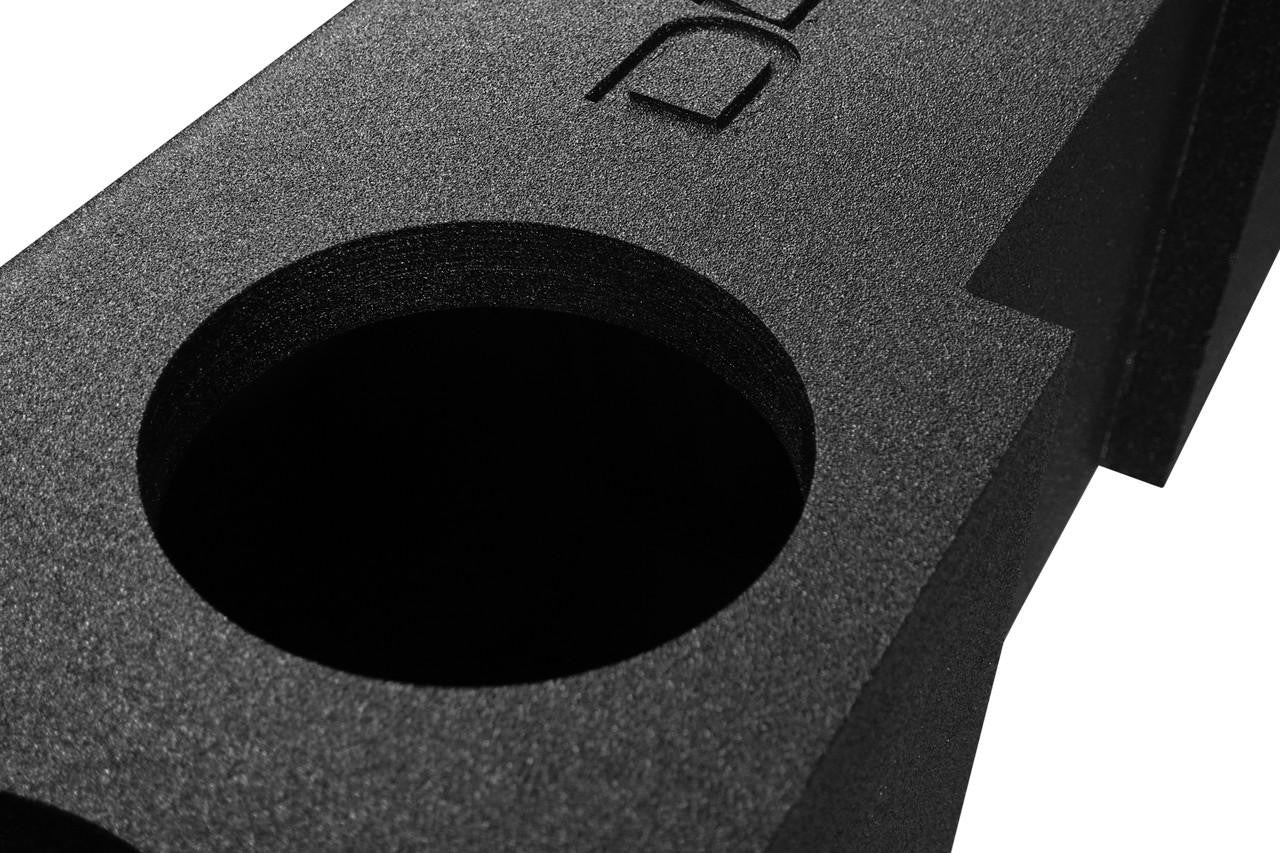

Quad 8-inch subwoofer openings -
Material
Premium birch wood with polyurethane bedliner coating for extra durability
Outside Dimensions
-
Width
54 inches -
Front Height
12.5 inches -
Rear Height
11 inches -
Depth
14.75 inches
Net Airspace (After Displacements)
1.795 cubic feetSubwoofer Cutout: 7.32 inch

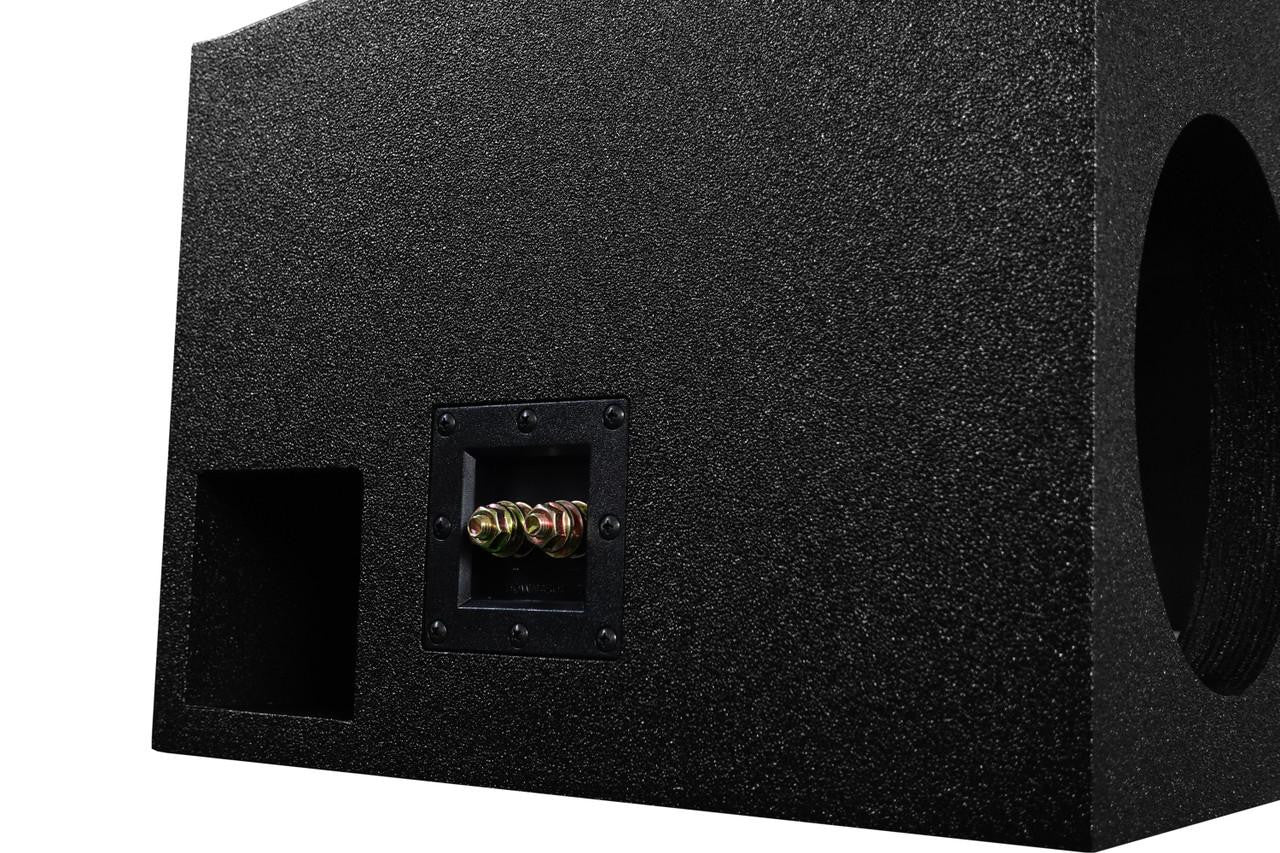

Port Information
- Type: Square air ports - DRIVERS & PASSENGER SIDE - 2 PORTS TOTAL
-
Inner Surface Area
12.18 square inches -
Depth
9.91 inches (including cabinet thickness)
-
Tuning Frequency
40.06 Hz
Recommended Subwoofer
Down4Sound DBz 8" Subwoofers
