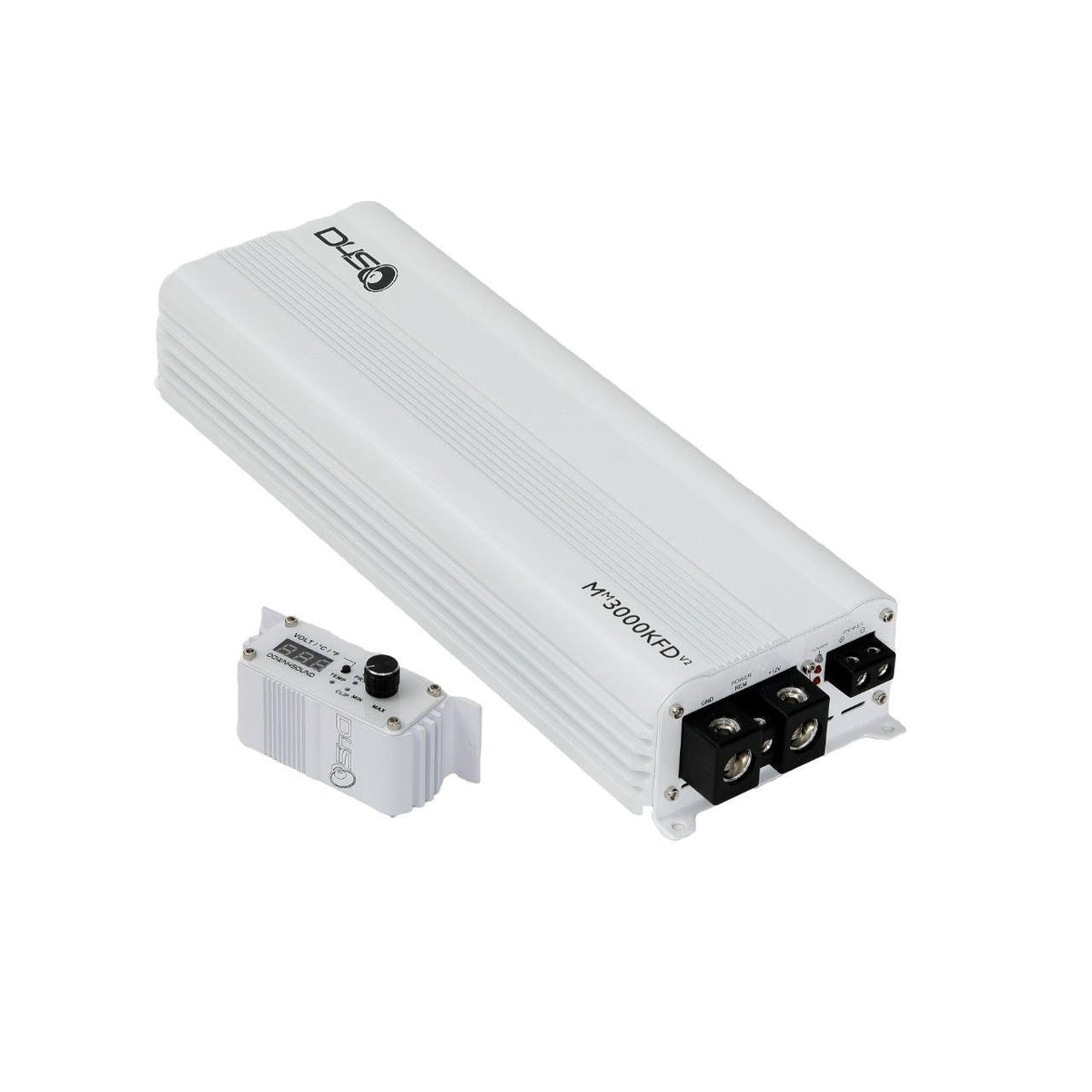

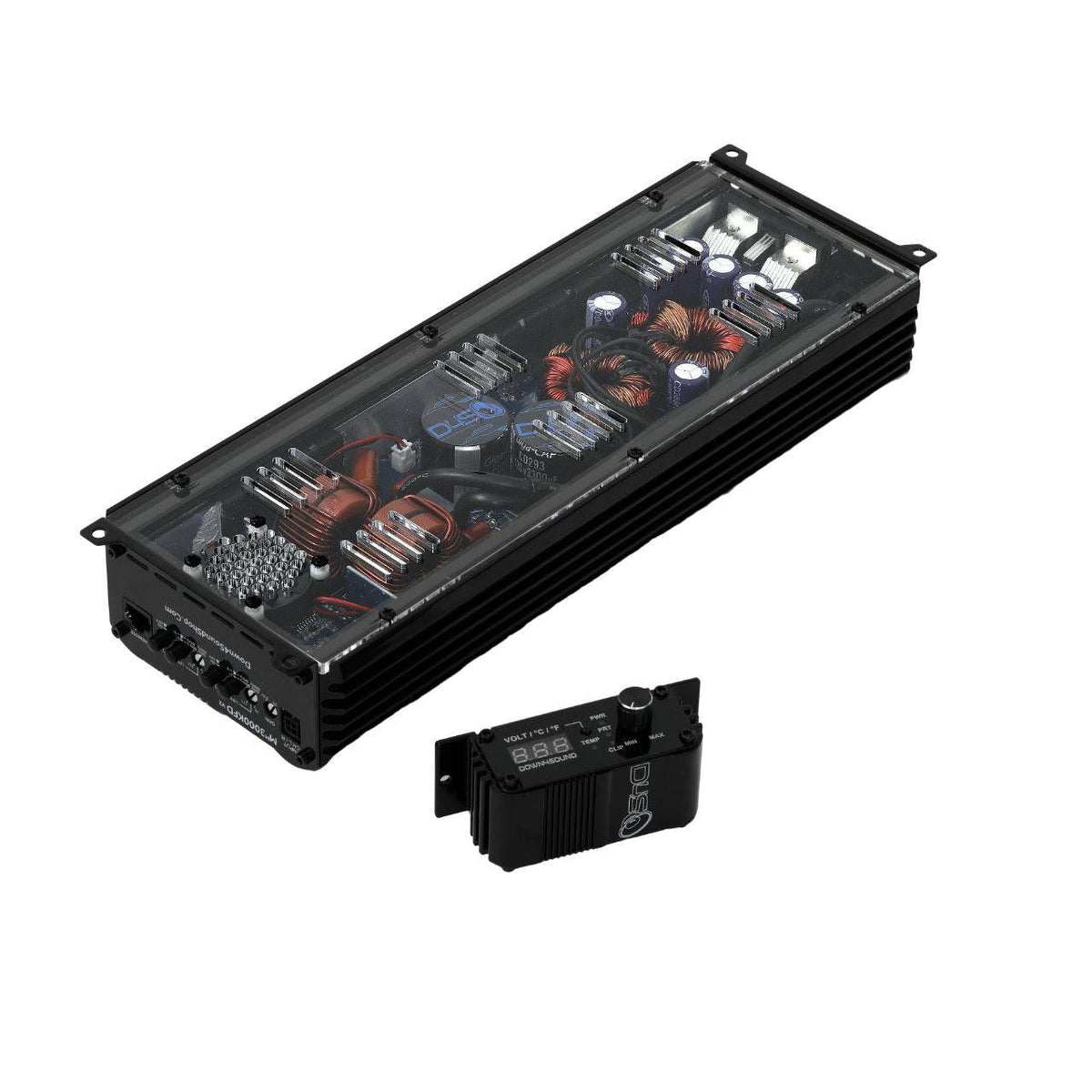

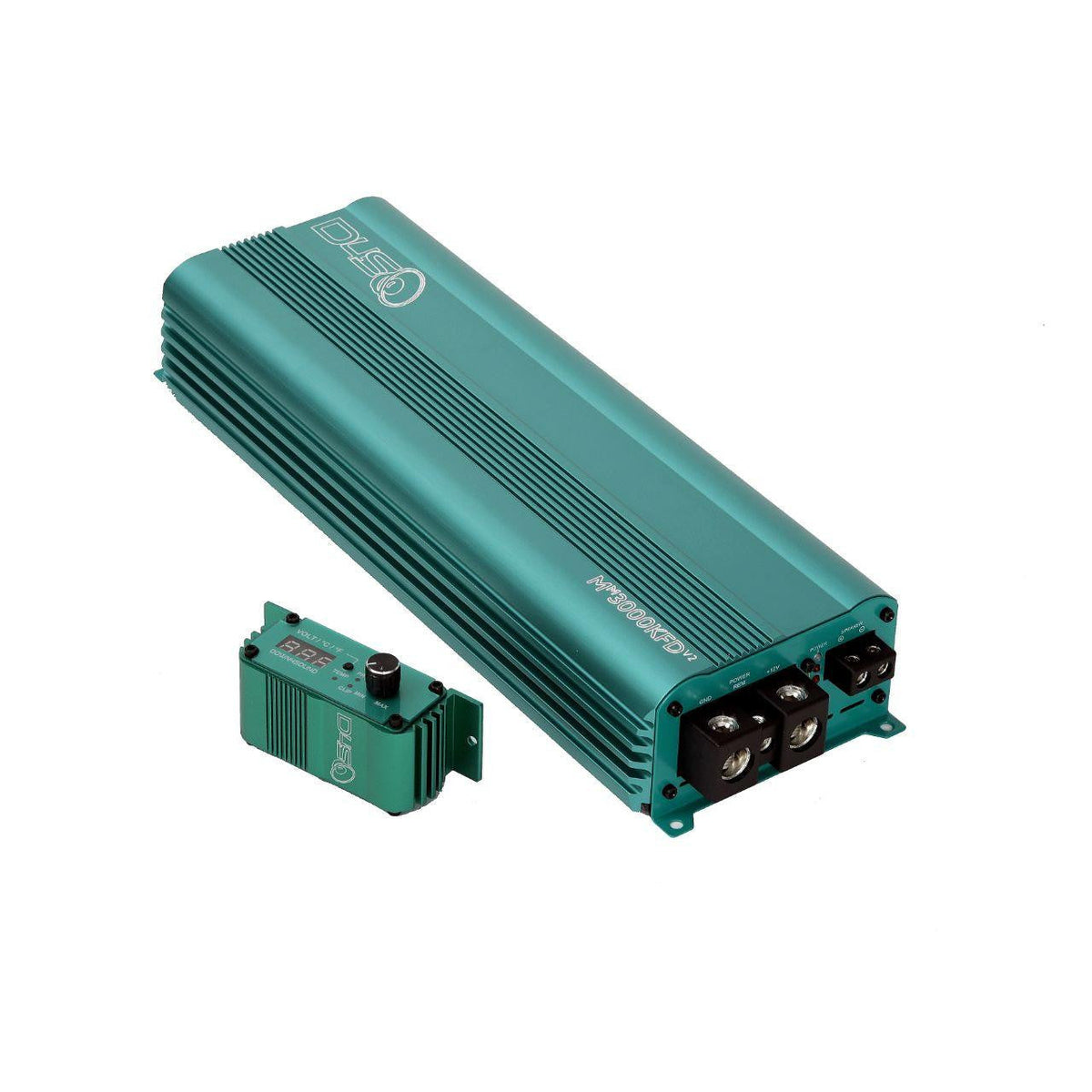

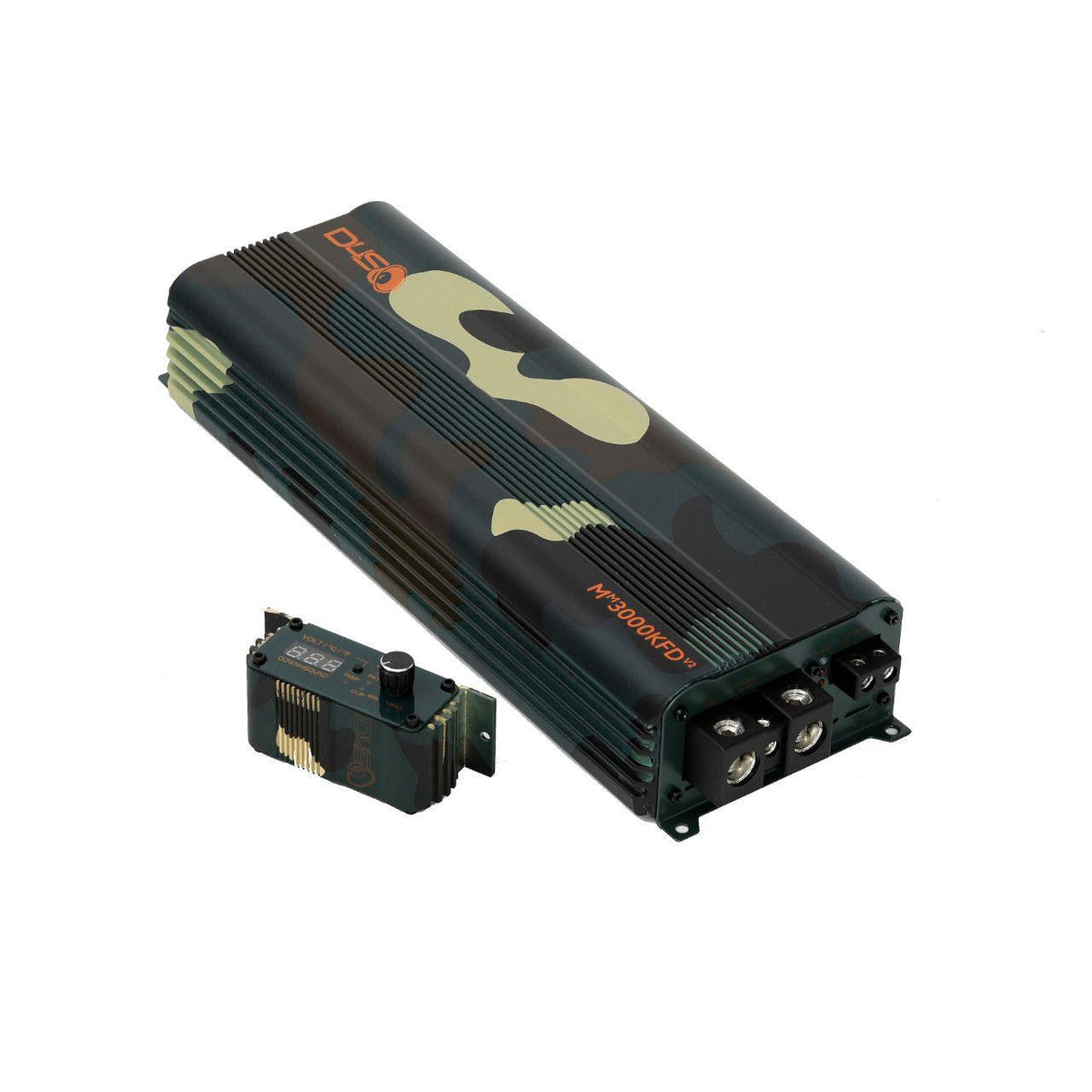

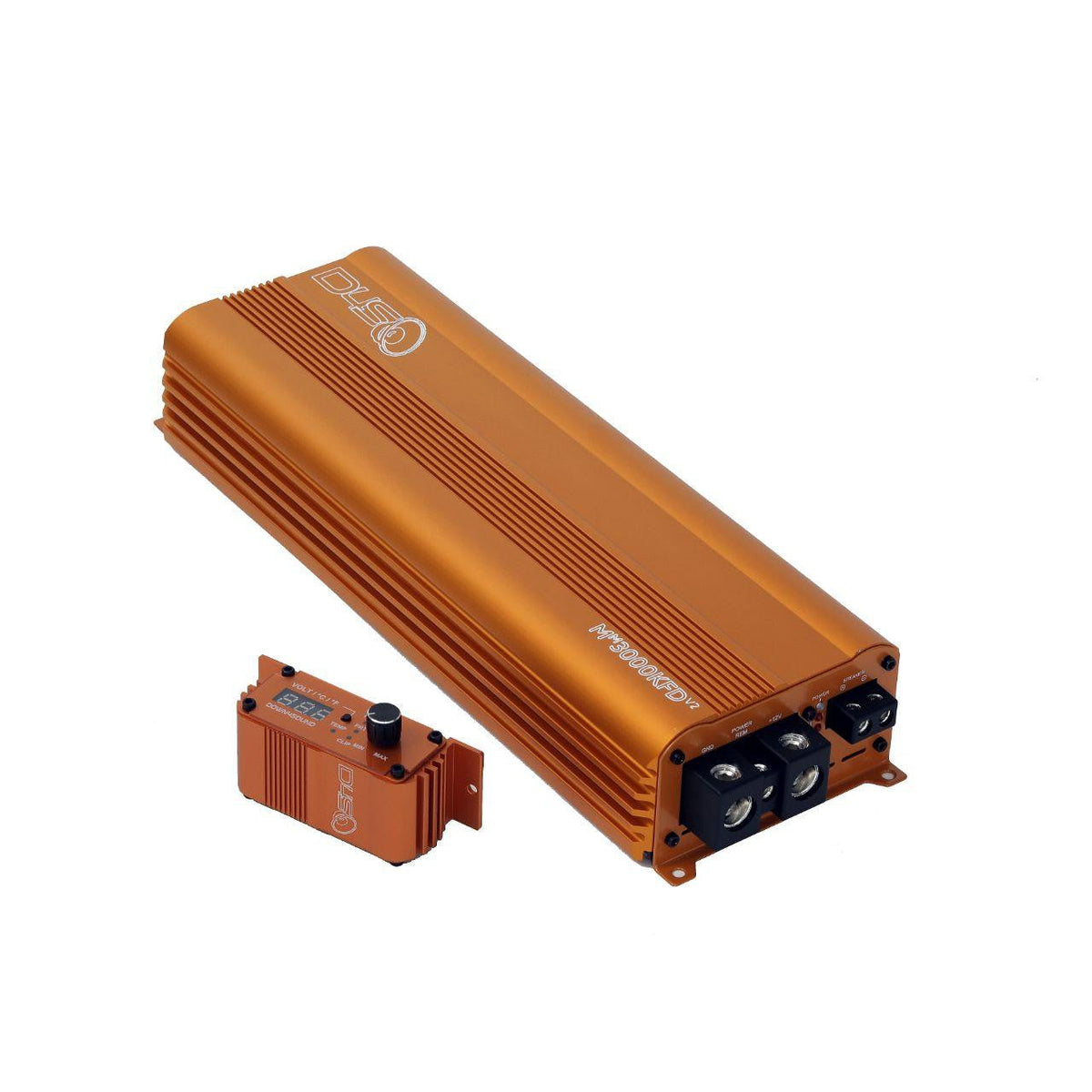

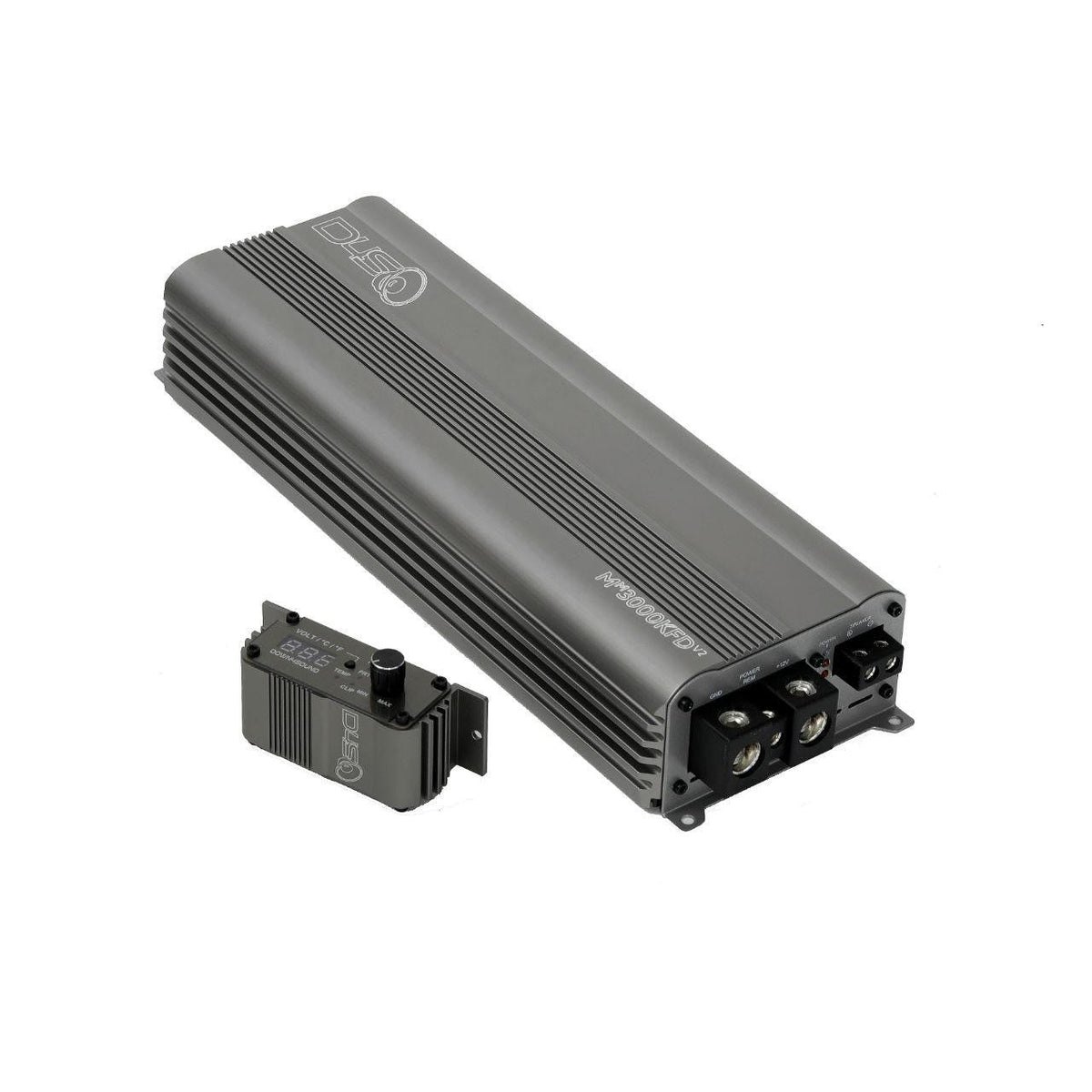

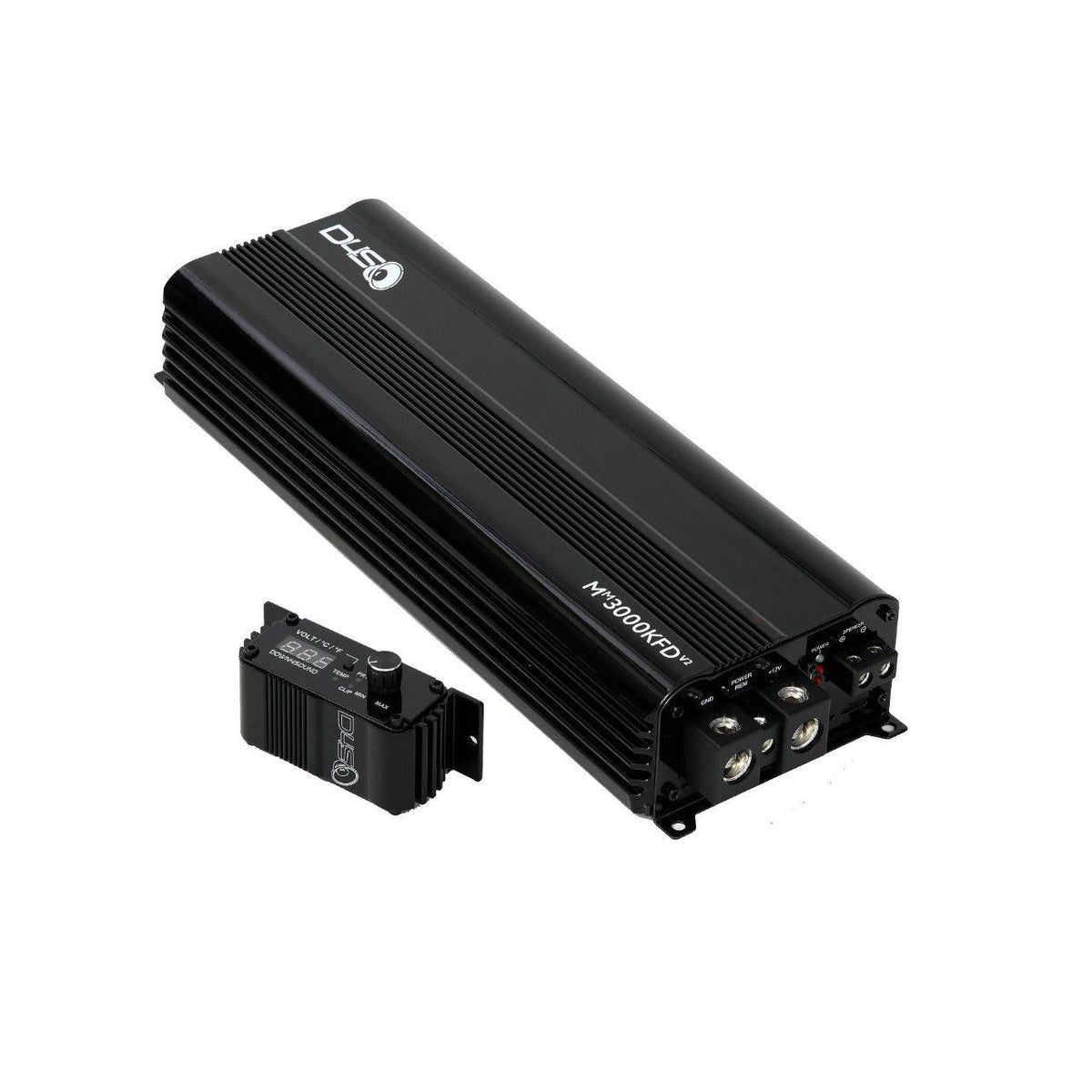

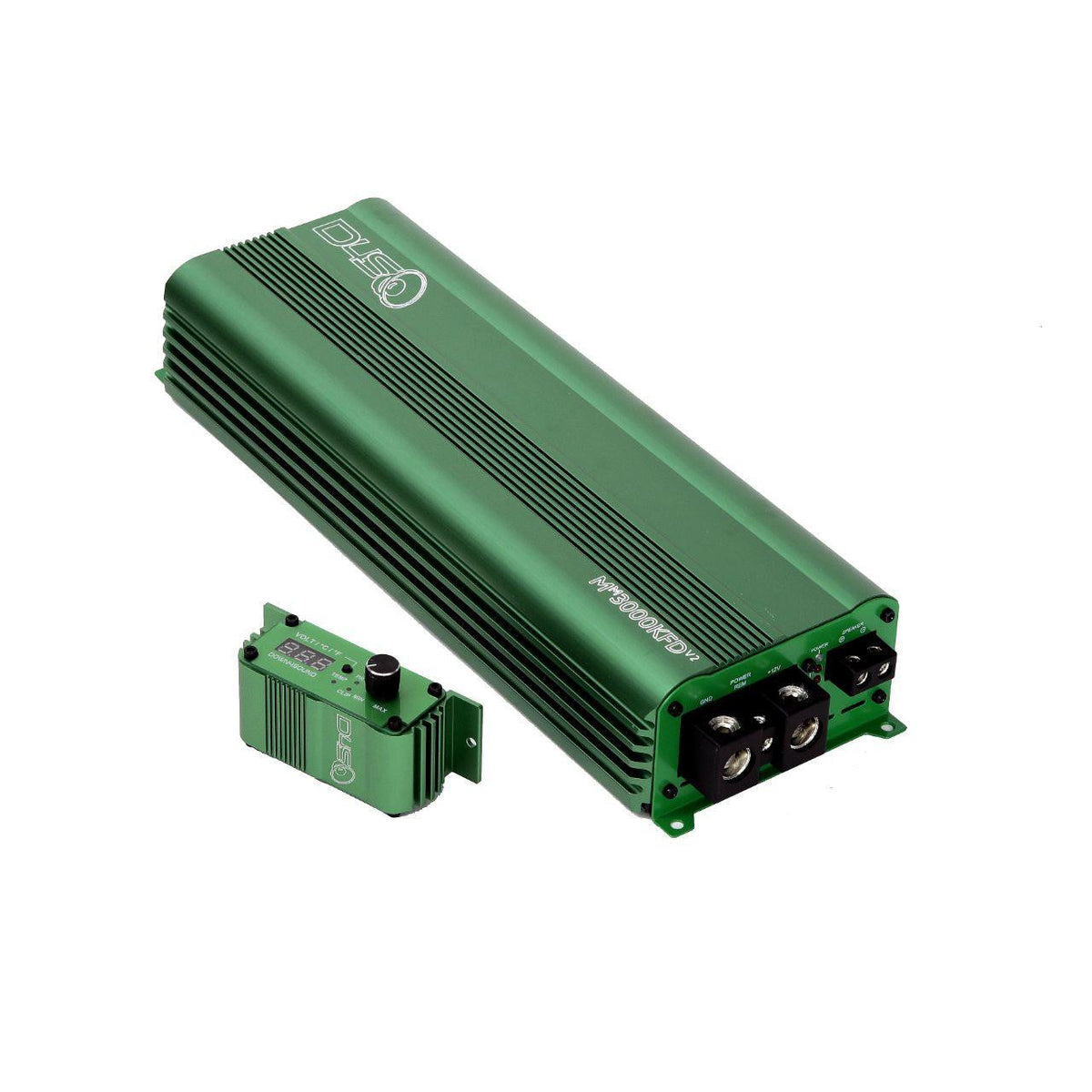

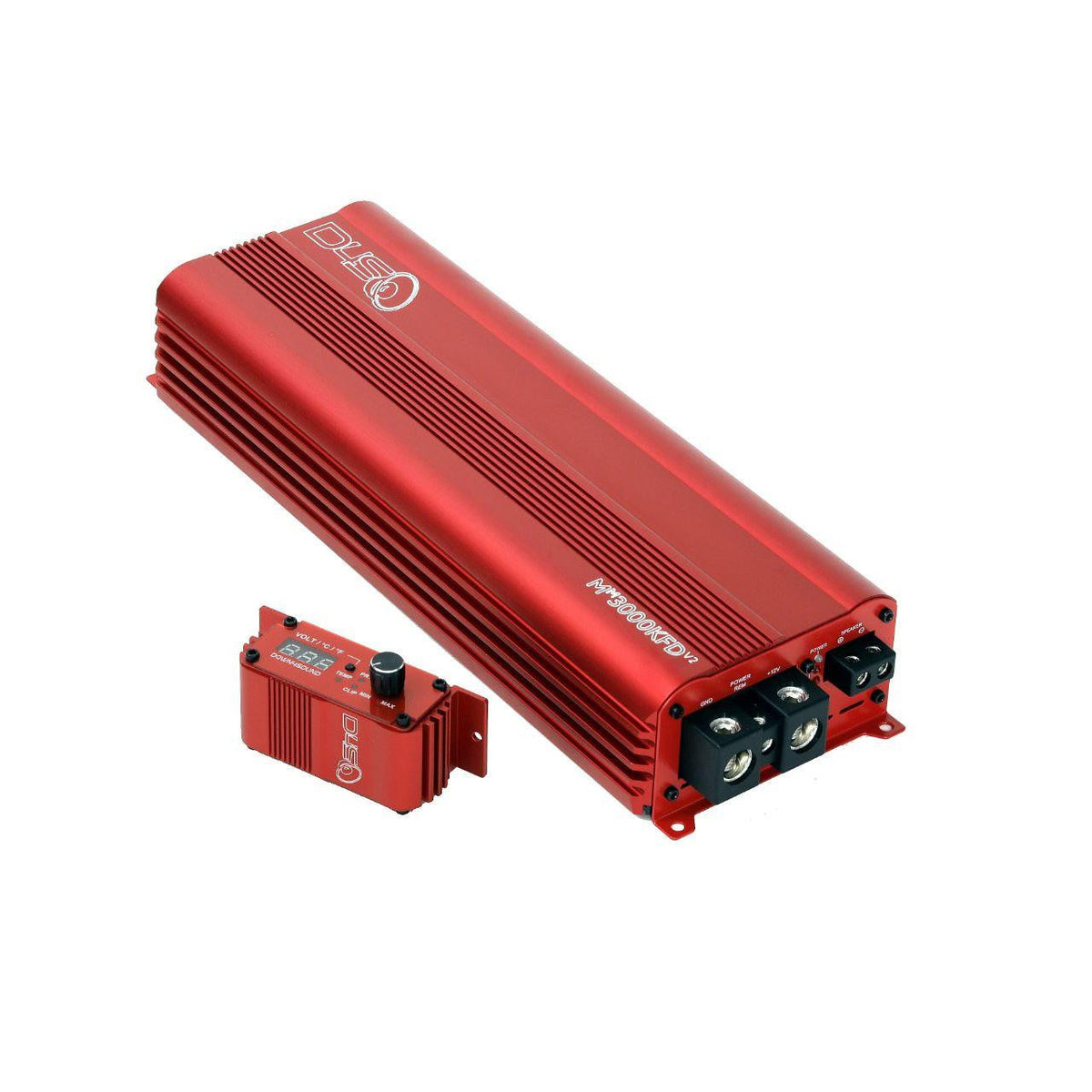

Down4Sound MM3000KFD V2 Mini Maxx Monoblock Amplifier 3000W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order, and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 within the contiguous US. Freight items may require delivery coordination; any shipping exceptions are shown before checkout. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%0A%0ATuning%20%E2%80%94%2041-click%20HPF%20(20...
){kind=link}
- Power — 3000W RMS @ 1Ω, 2300W RMS @ 2Ω, 1400W RMS @ 4Ω
- Class — Full-range full-bridge Class D monoblock
- Chassis — Compact 12.99" x 4.88" x 2.25" (330 x 124 x 57.3 mm)

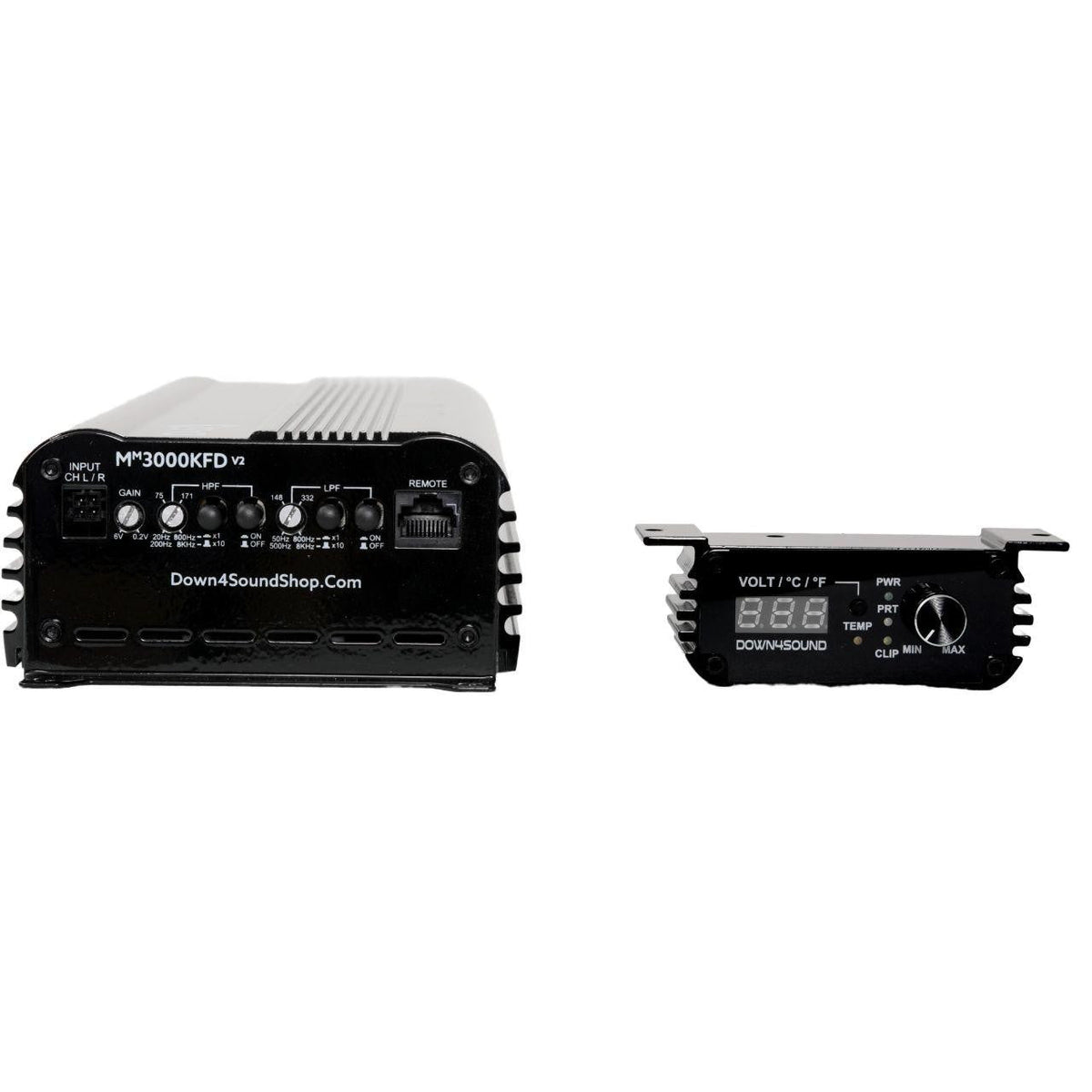

- Tuning — 41-click HPF (20–800Hz) and LPF (50–800Hz) with x1/x10 multipliers, band-pass capable

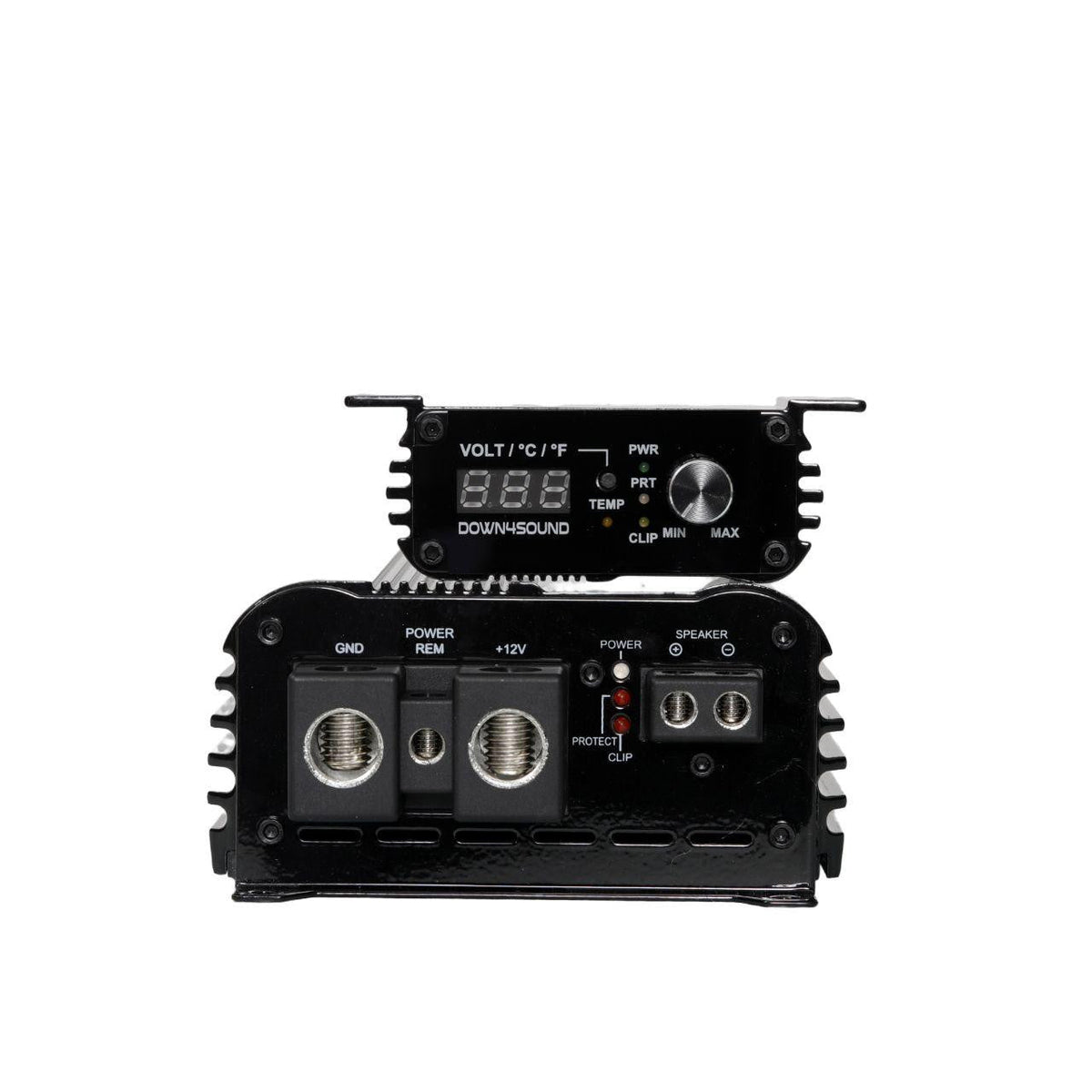

- Included Remote — Real-time voltage and temperature with onboard clipping indicator
This Listing Includes: (1) Down4Sound MM3000KFD V2 Mini Maxx Amplifier
The Down4Sound MM3000KFD V2 is a full-bridge Class D monoblock that delivers 3000W RMS at 1 ohm from a chassis barely larger than a shoebox lid. A 500 damping factor and 91dB signal-to-noise ratio keep output tight and clean, while 41-click HPF and LPF potentiometers with x1/x10 multipliers allow precise tuning for subs, mids, highs, or pro audio. The included remote displays real-time voltage and temperature with an onboard clipping indicator. Note that the MM3000KFD V2 is not strap-compatible. Pre-order now from JS Ultimate Sounds — your Down4Sound retailer; it ships as soon as it arrives.
Features
- 3000W RMS full-bridge Class D power at 1 ohm
- Compact Mini Maxx chassis for tight installs
- 41-click HPF/LPF with x1/x10 multipliers, band-pass capable
- Included voltage and temperature remote with clipping indicator
- Available in all 10 colors
Specifications
| RMS Power @ 1Ω | 3000W |
| RMS Power @ 2Ω | 2300W |
| RMS Power @ 4Ω | 1400W |
| Max Output | 4700W @ 1Ω at 16V |
| Amplifier Class | Full-Range Full-Bridge Class D |
| Configuration | Monoblock (1-channel) |
| Frequency Response | 10Hz–20.2kHz |
| High-Pass Filter | 20Hz–800Hz (x1/x10) |
| Low-Pass Filter | 50Hz–800Hz (x1/x10) |
| Damping Factor | 500 |
| Signal-to-Noise Ratio | 91dB |
| Input Sensitivity | 0.2V–6V |
| Working Voltage | 9V–15.5V |
| Dimensions | 12.99" x 4.88" x 2.25" (330 x 124 x 57.3 mm) |
| Strap Compatible | No |
