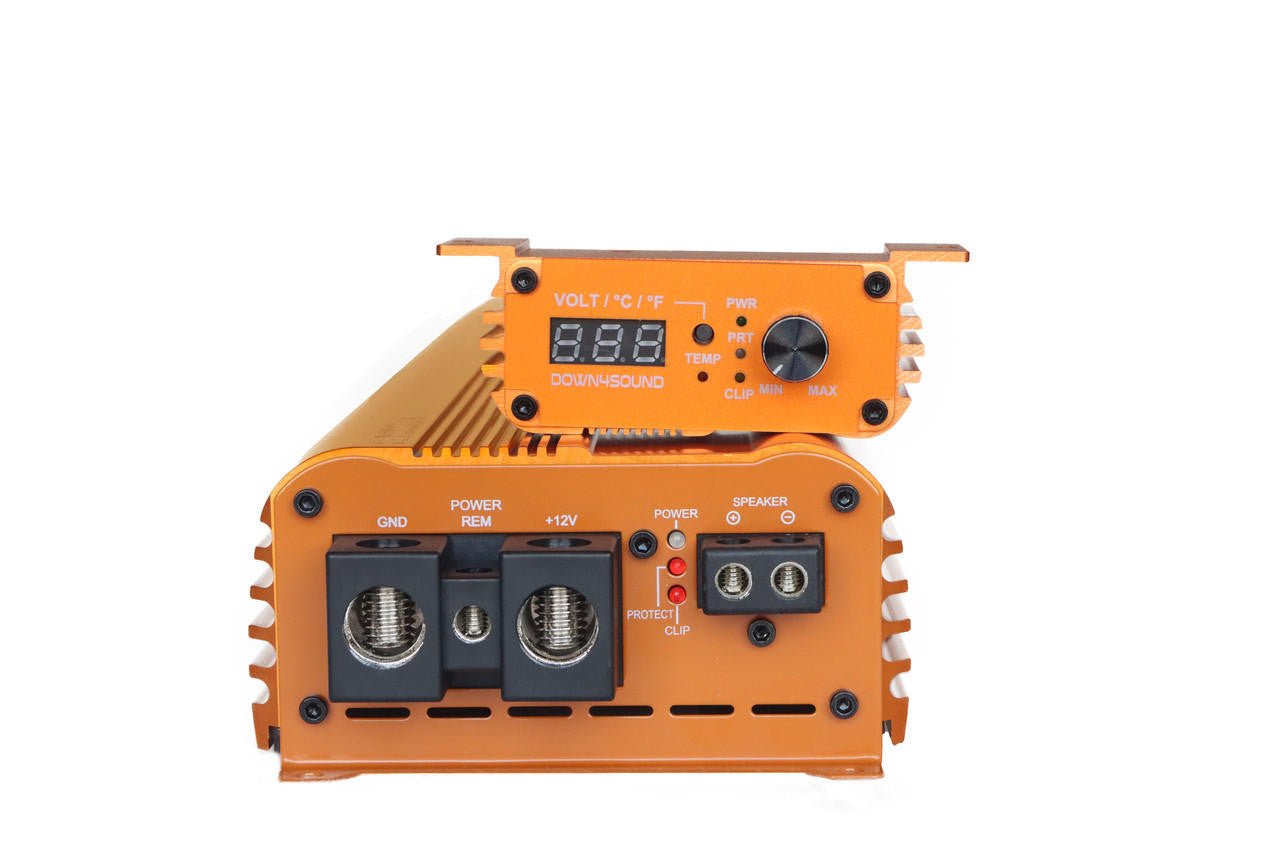

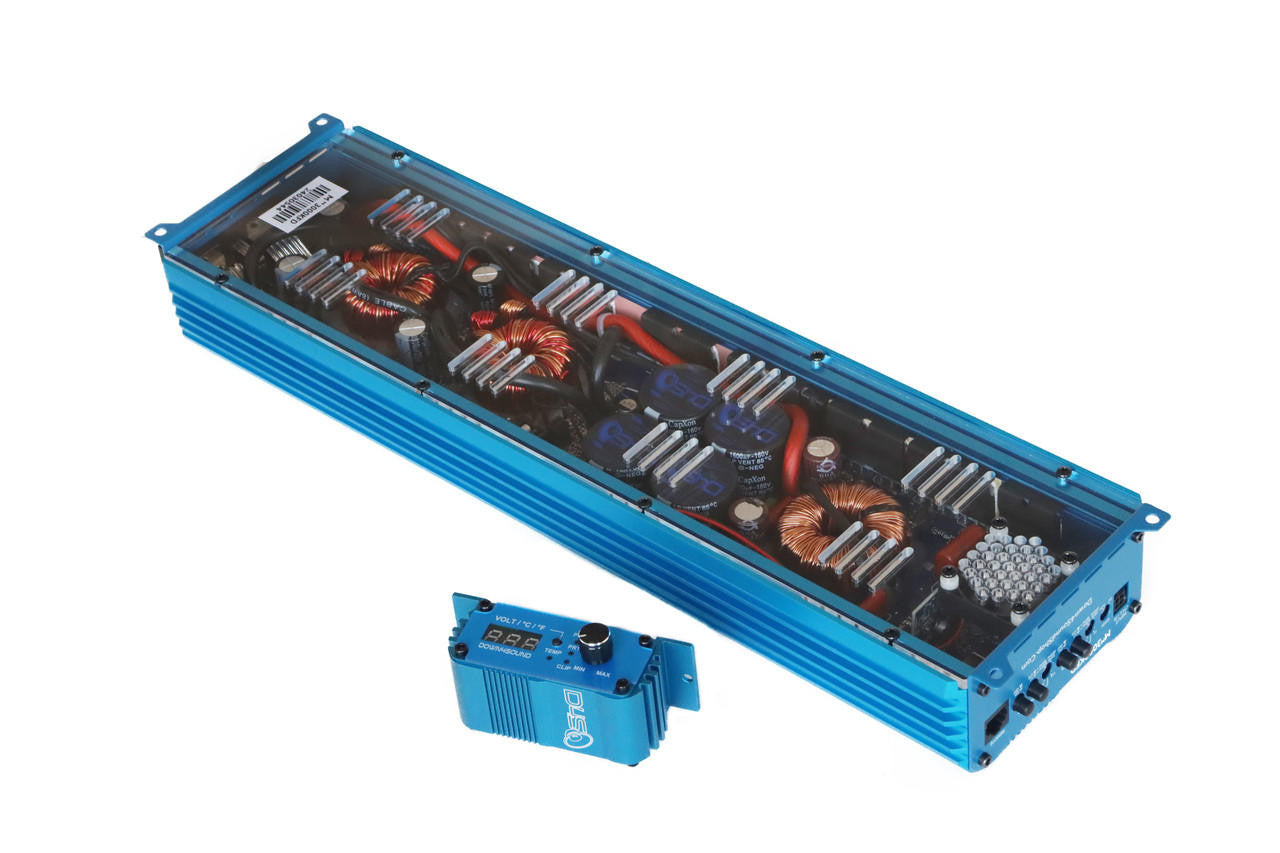

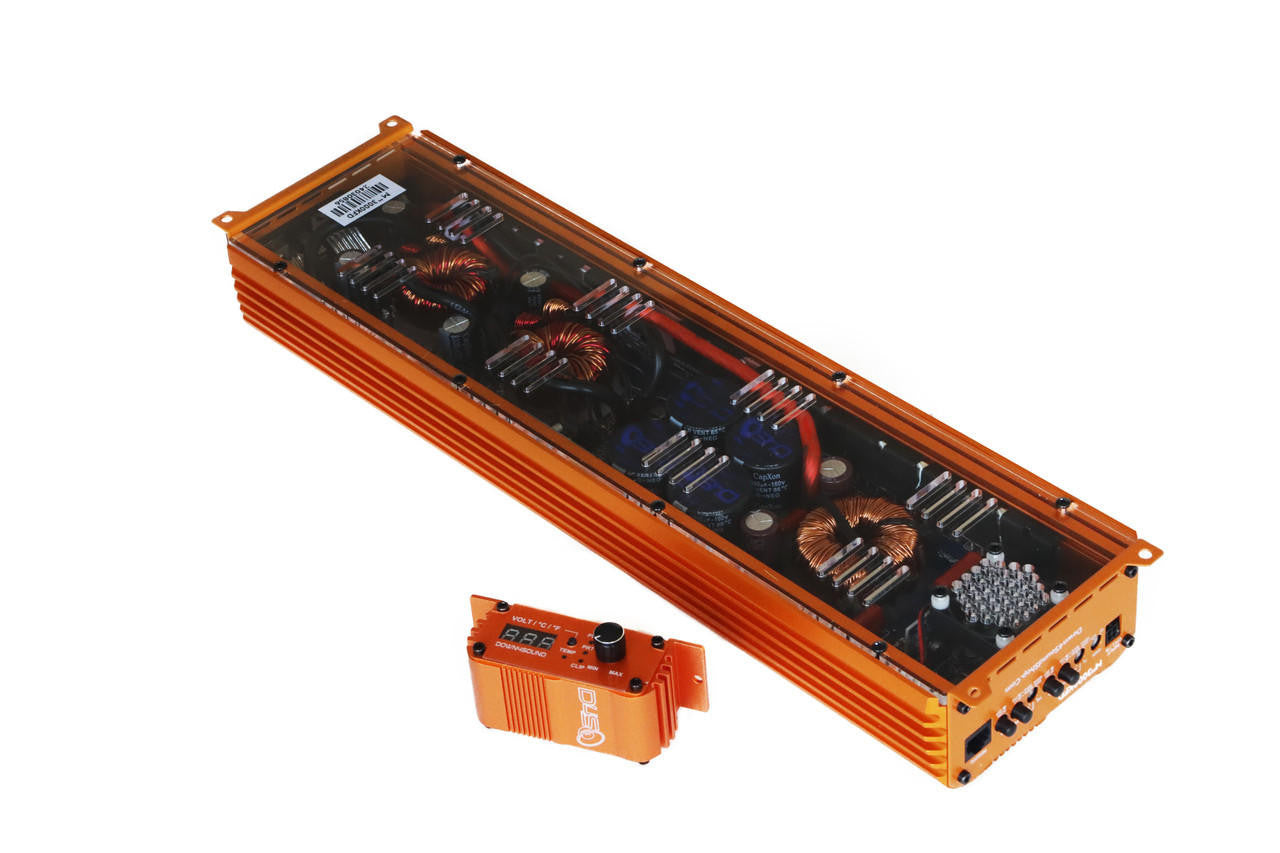

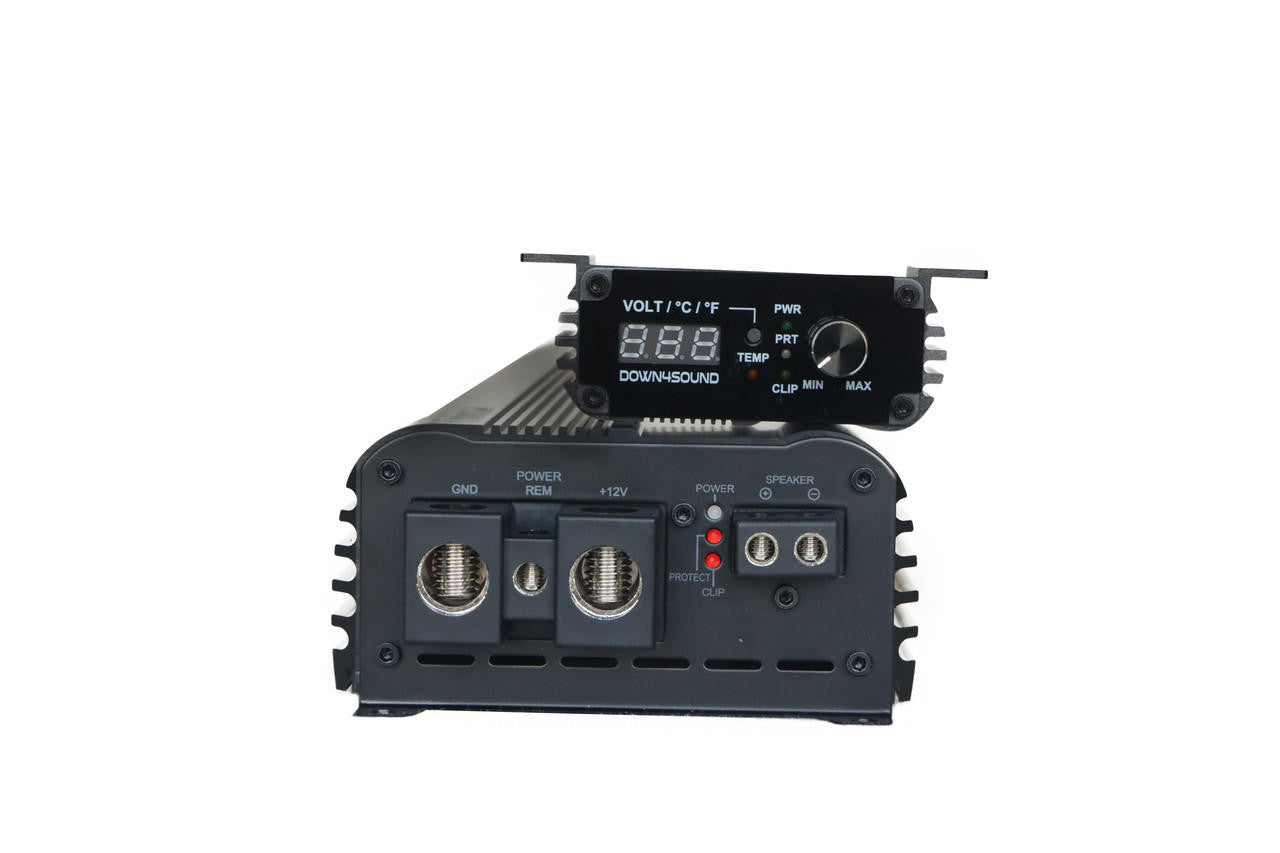

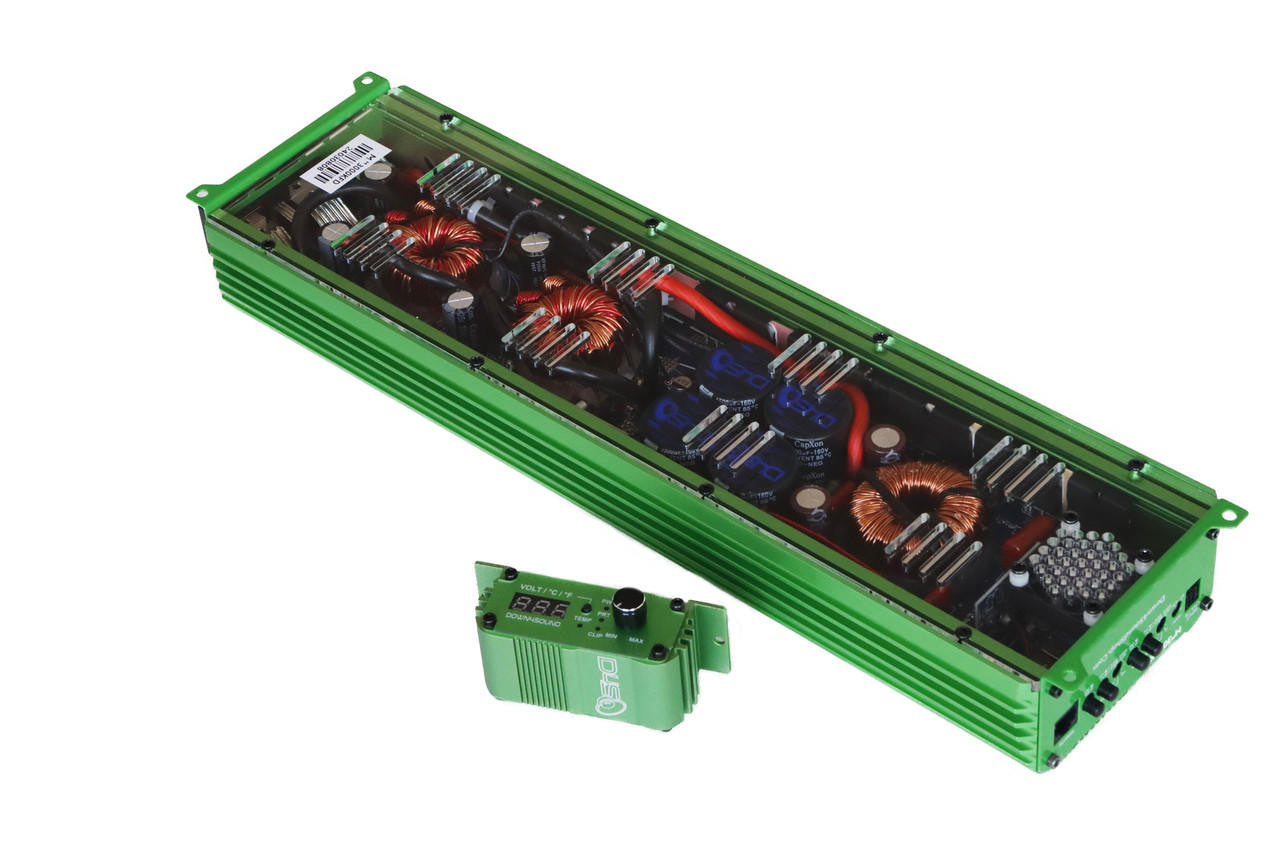

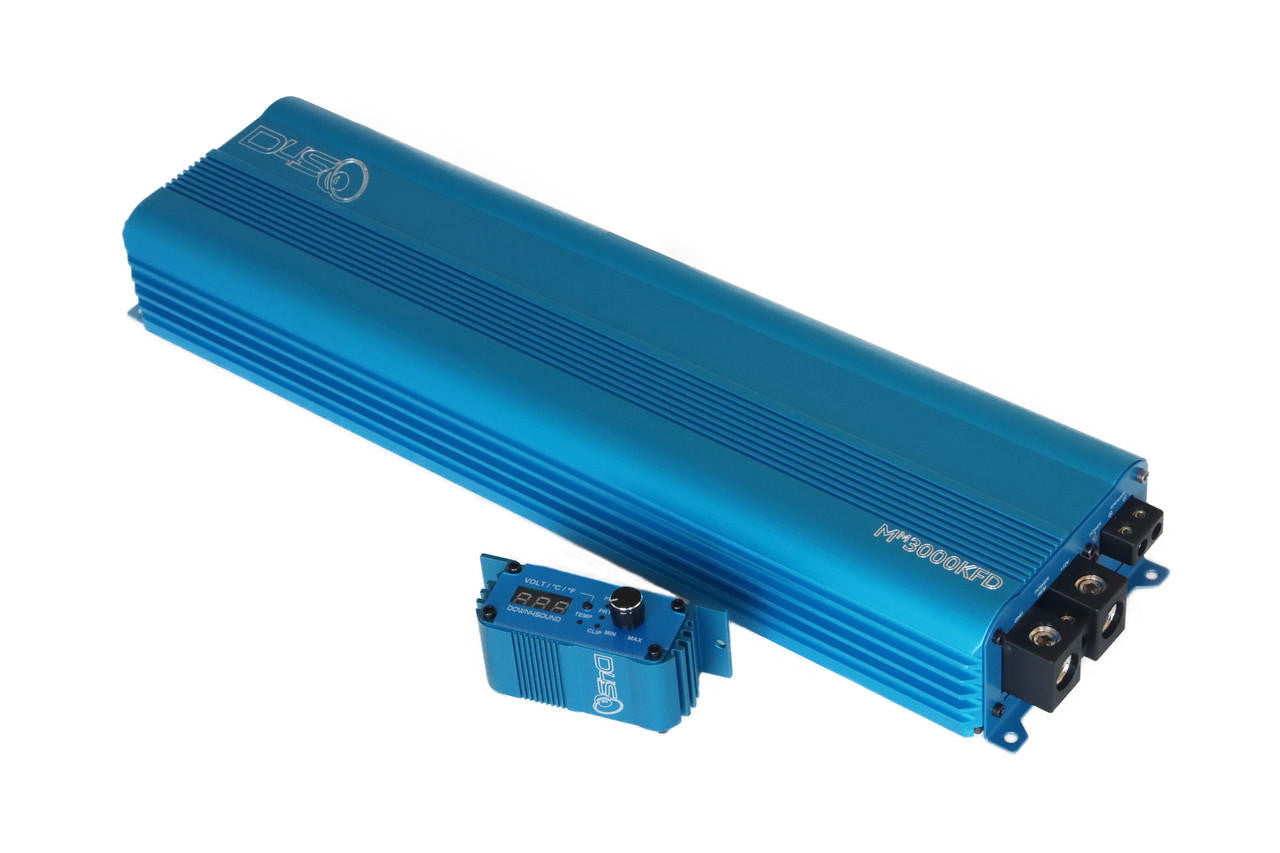

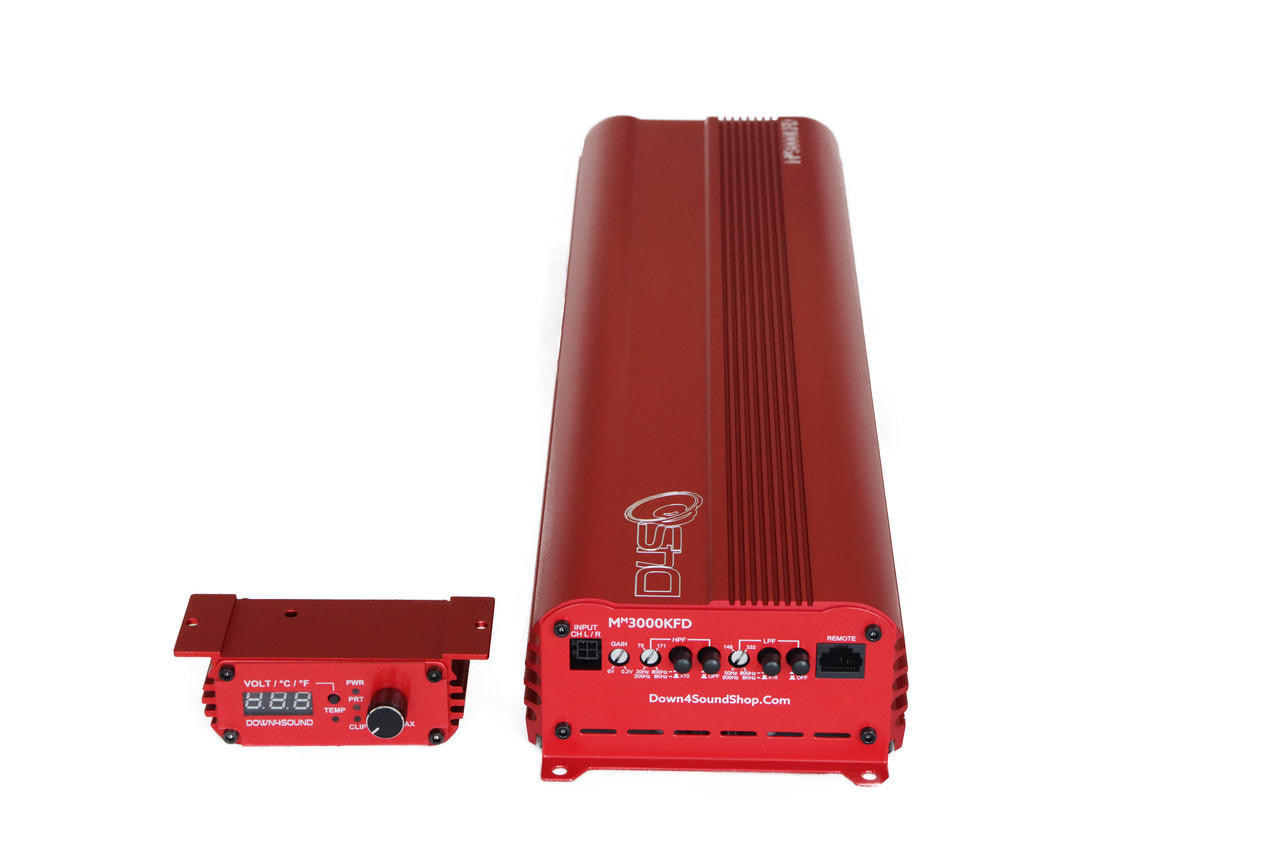

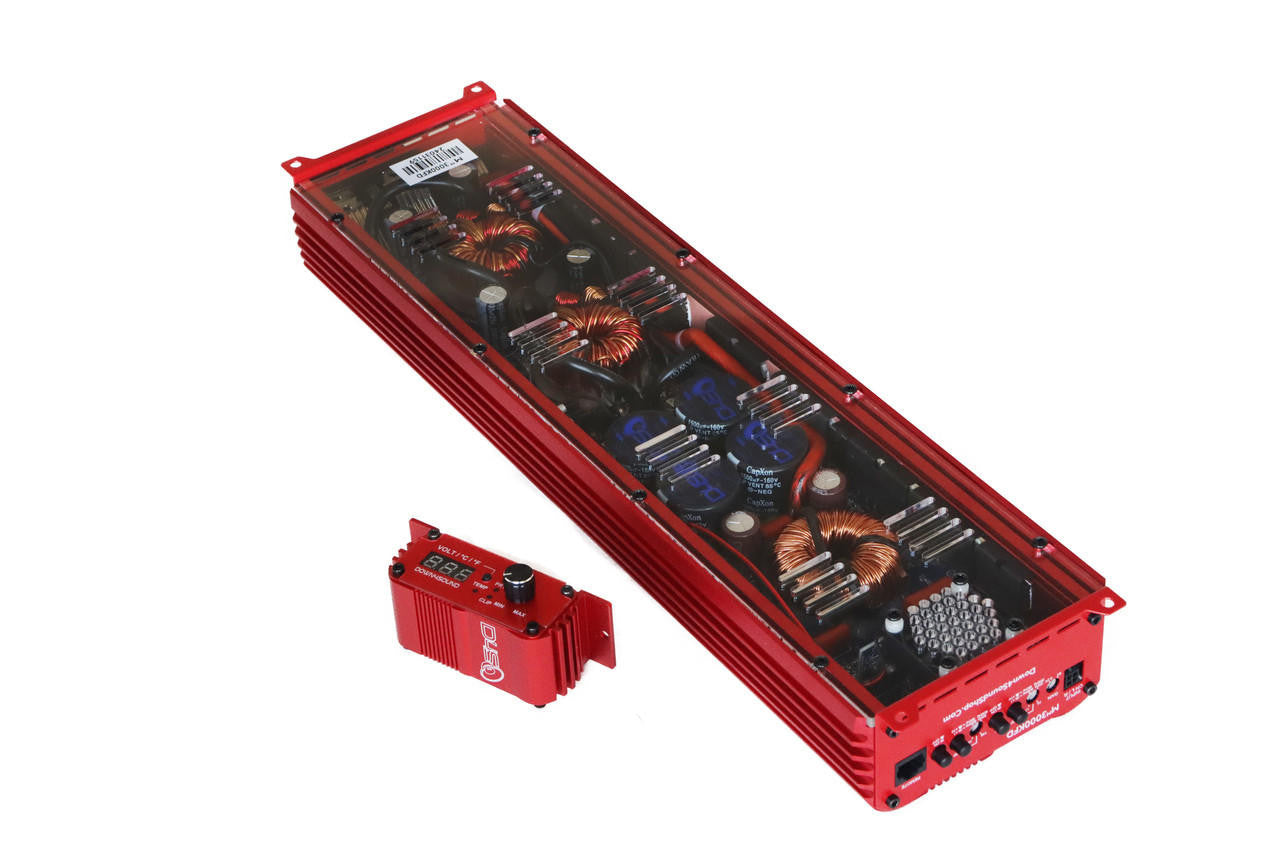

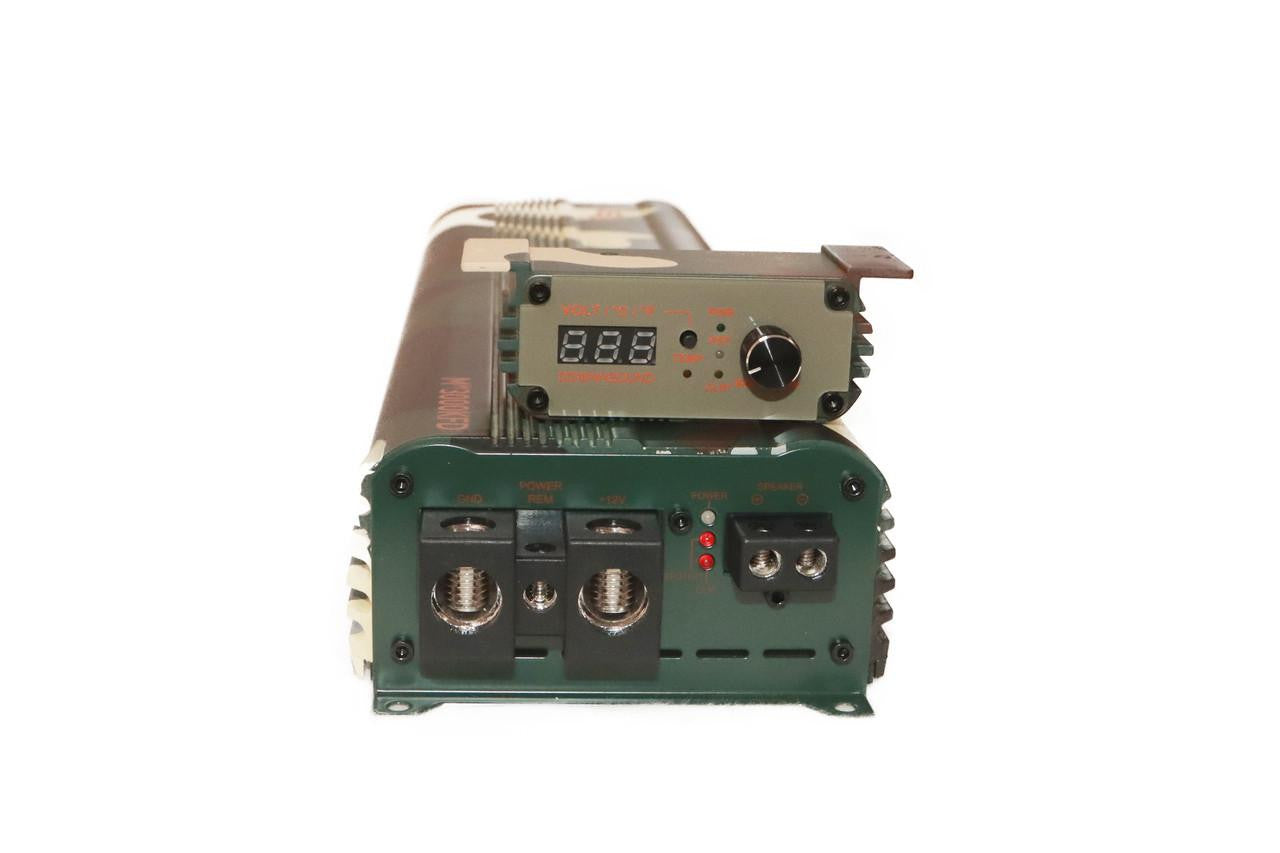

Down4Sound MM3000KFD (mini Maxx) - 3000W RMS Mini Full Bridge Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order, and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 within the contiguous US. Freight items may require delivery coordination; any shipping exceptions are shown before checkout. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%20The%20Down4Sound%20MM3000KFD%20(MINI%20MAXX)%20is%20a%203000W%20RMS%20Mini%20Full%20Range%20Amplifier%20designed%20for%20ultimate%20audio%20performance%20across%20all%20frequencies.%20Compac...
){kind=link}

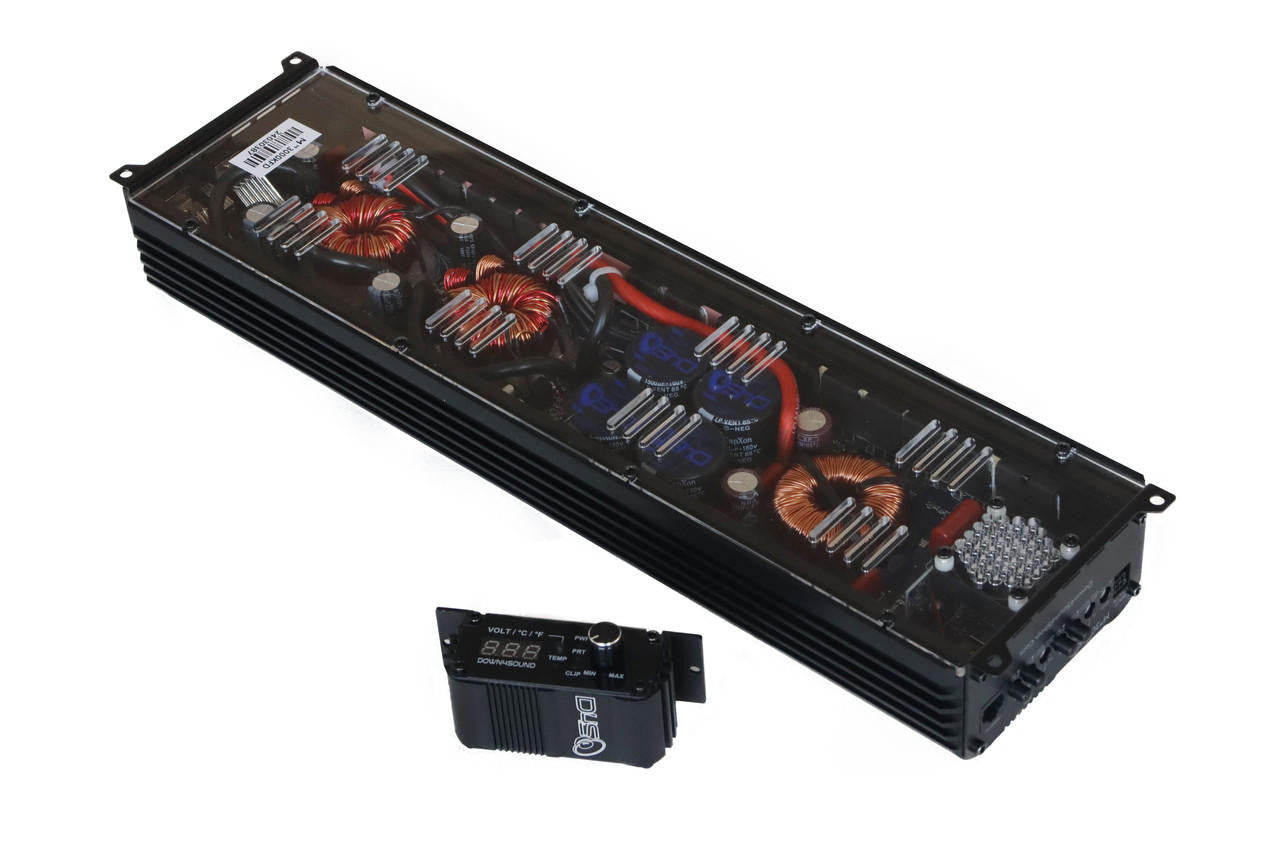

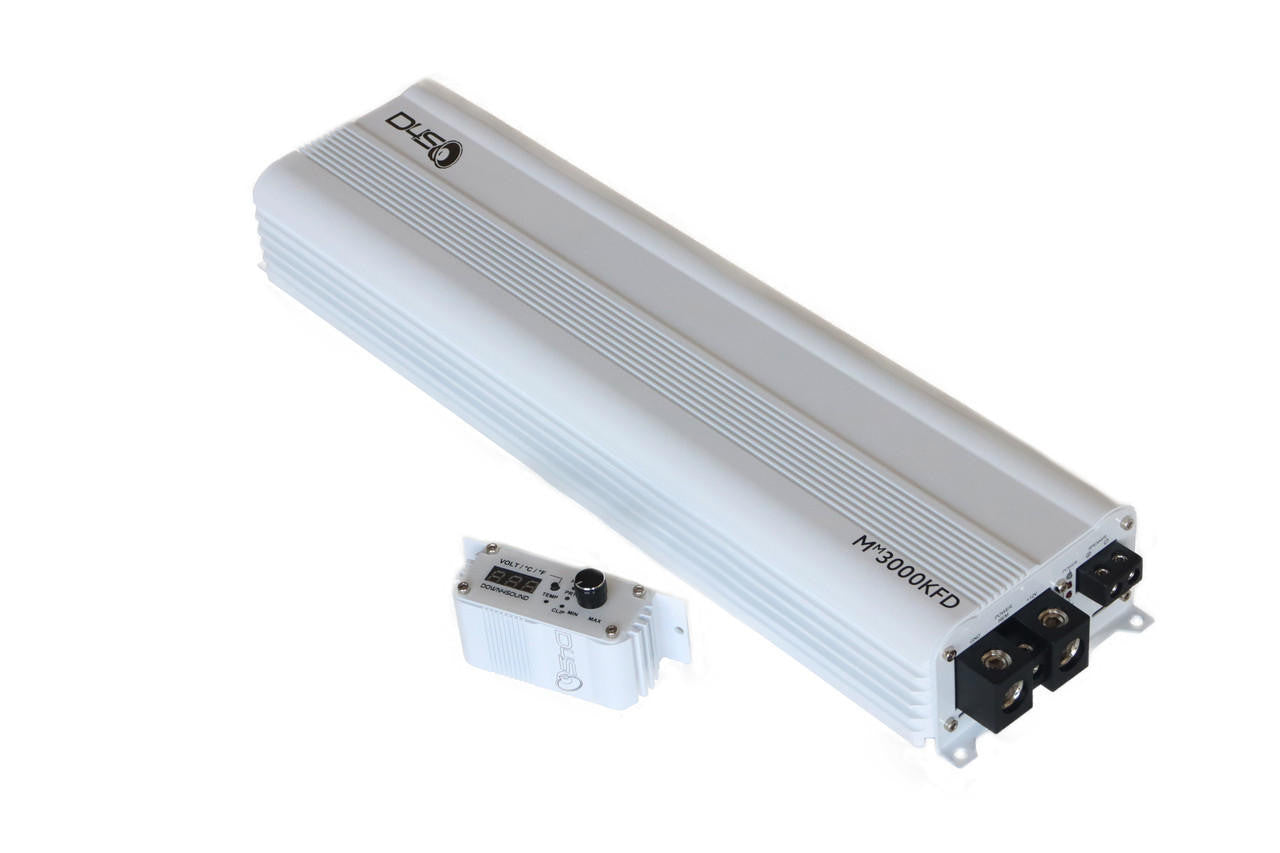

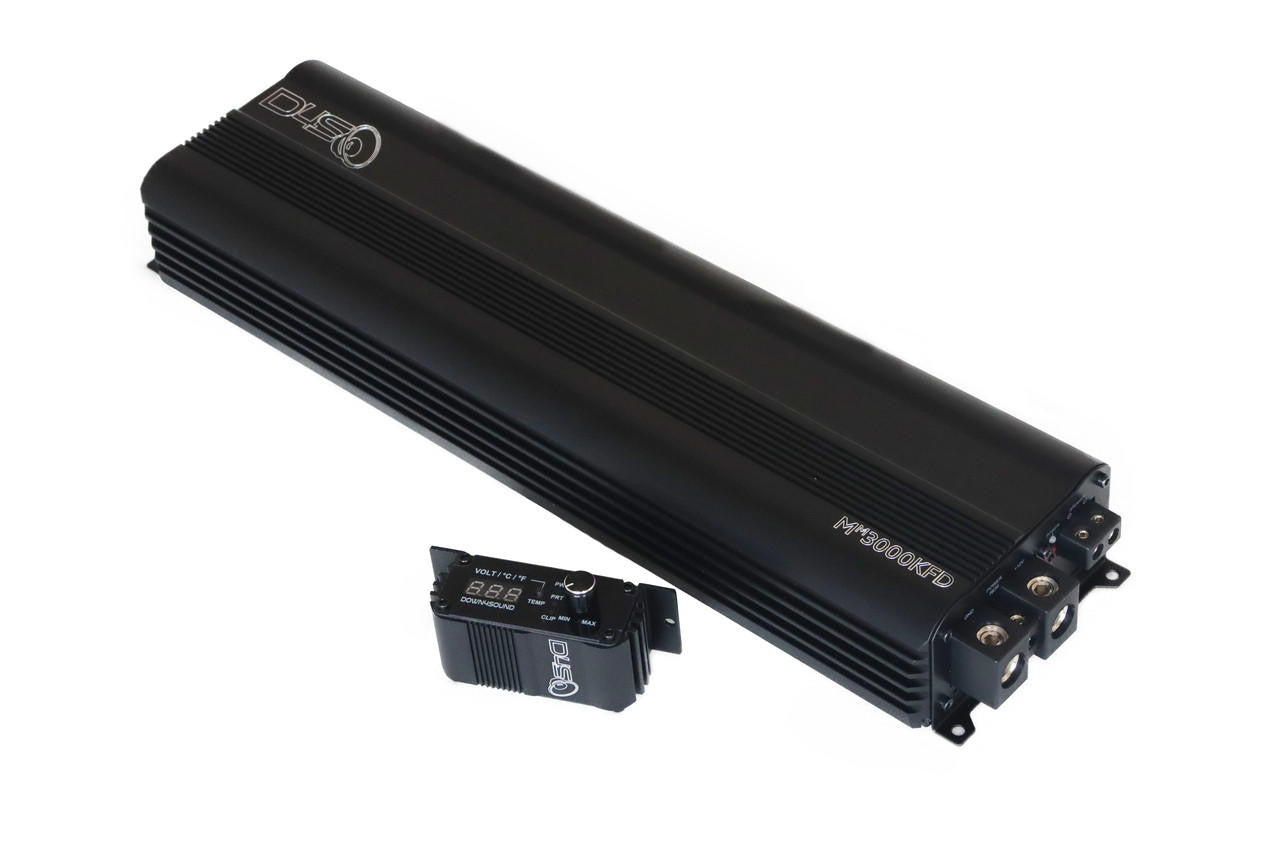

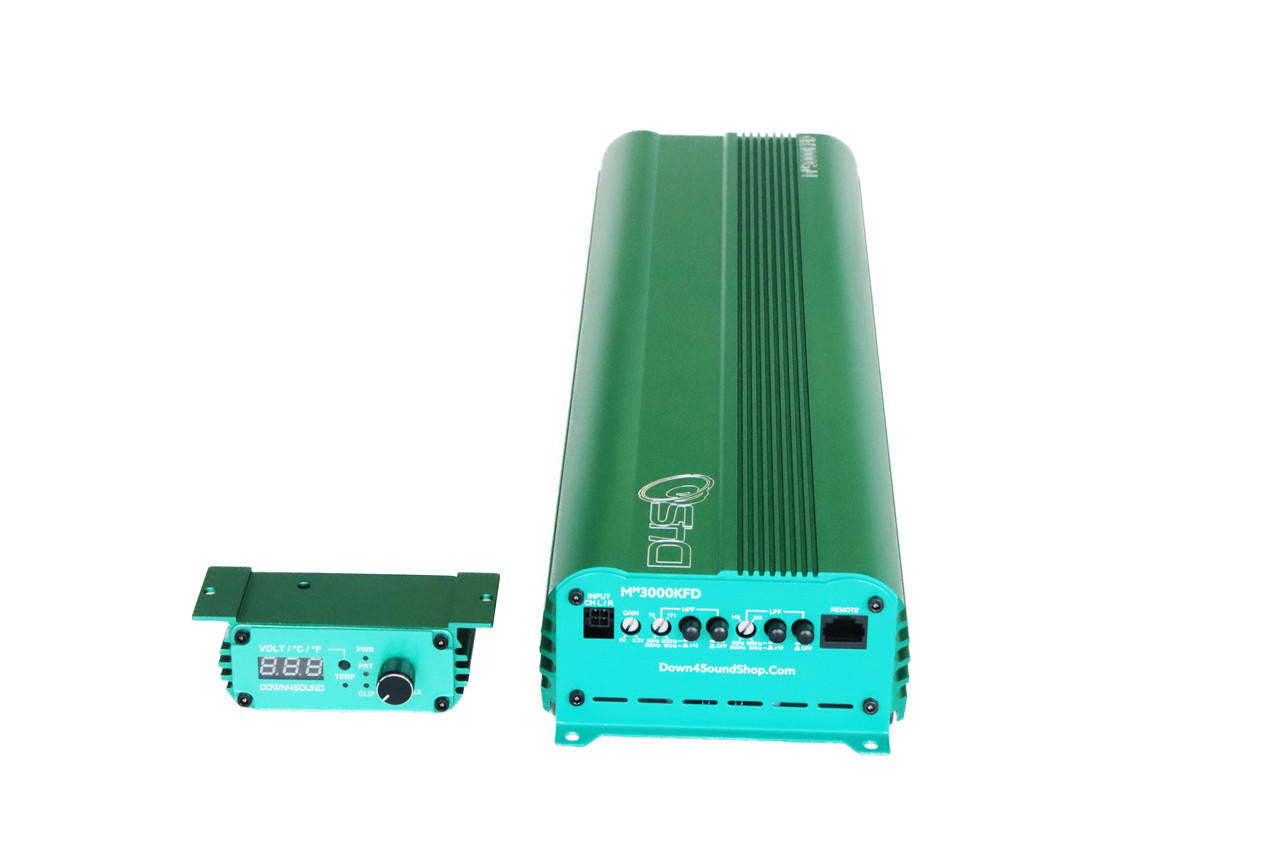

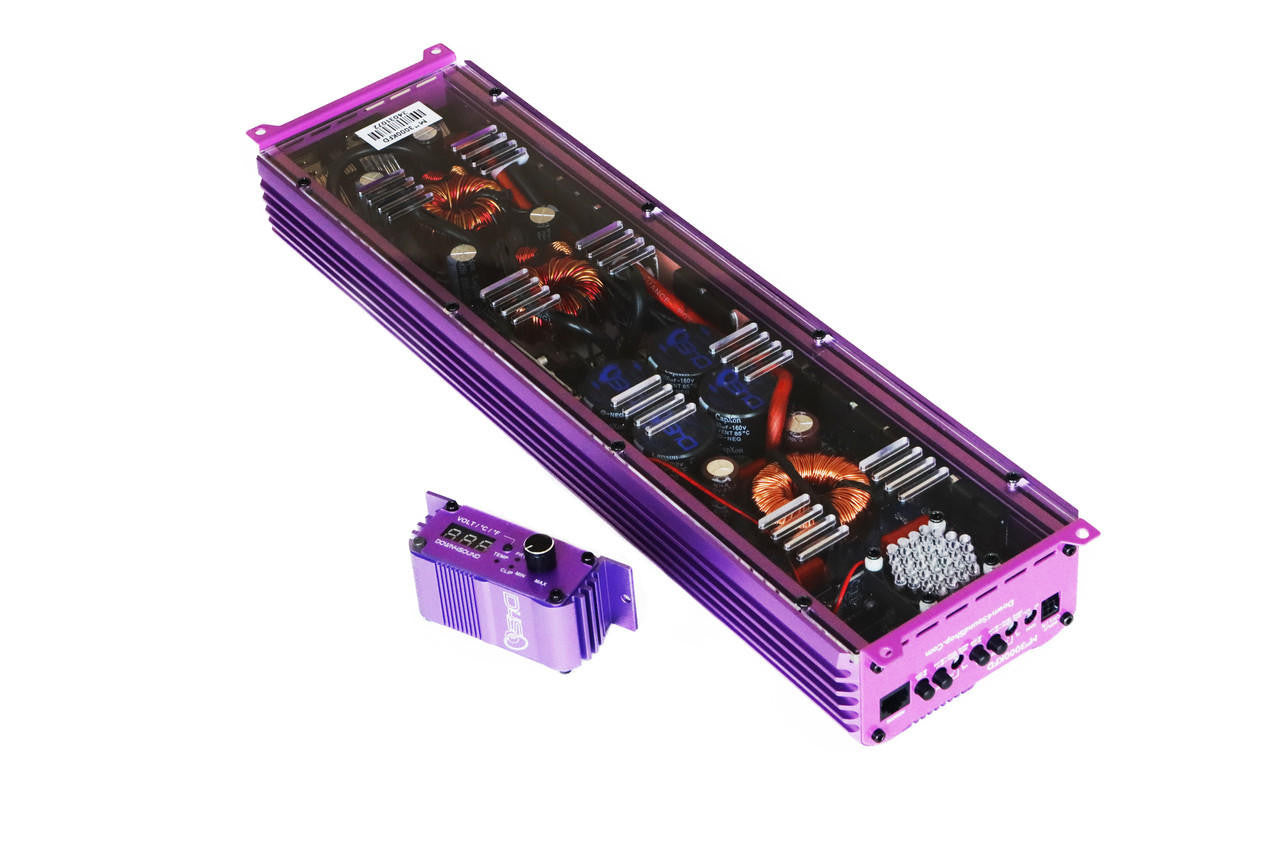

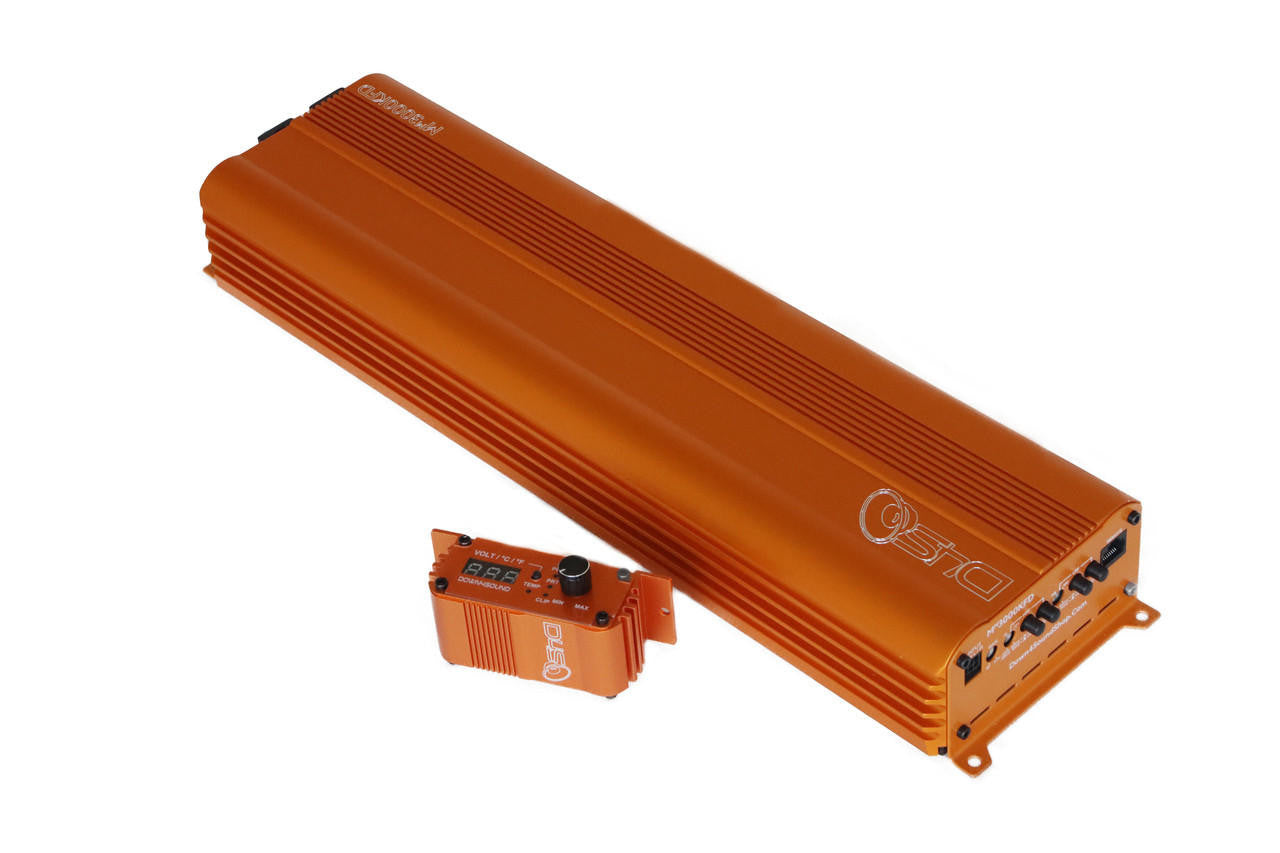

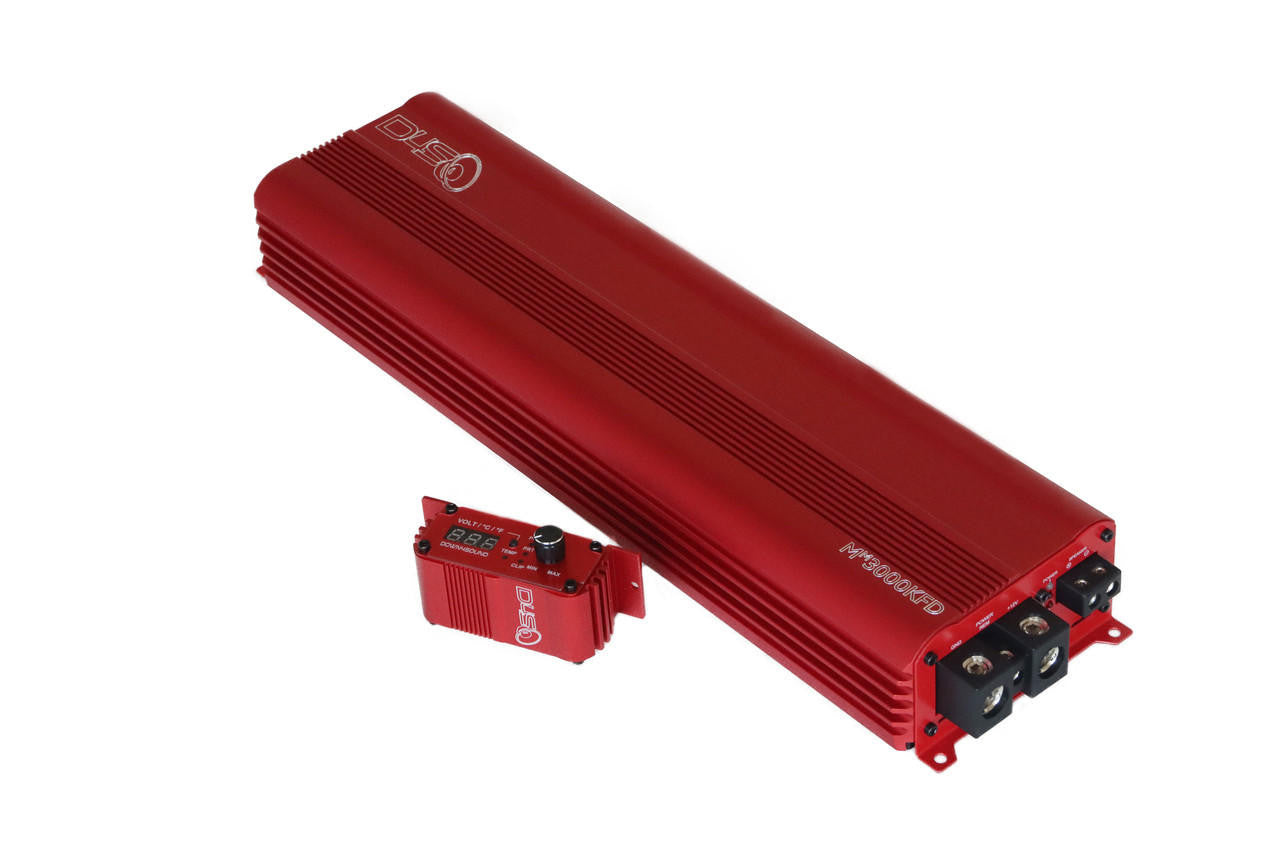

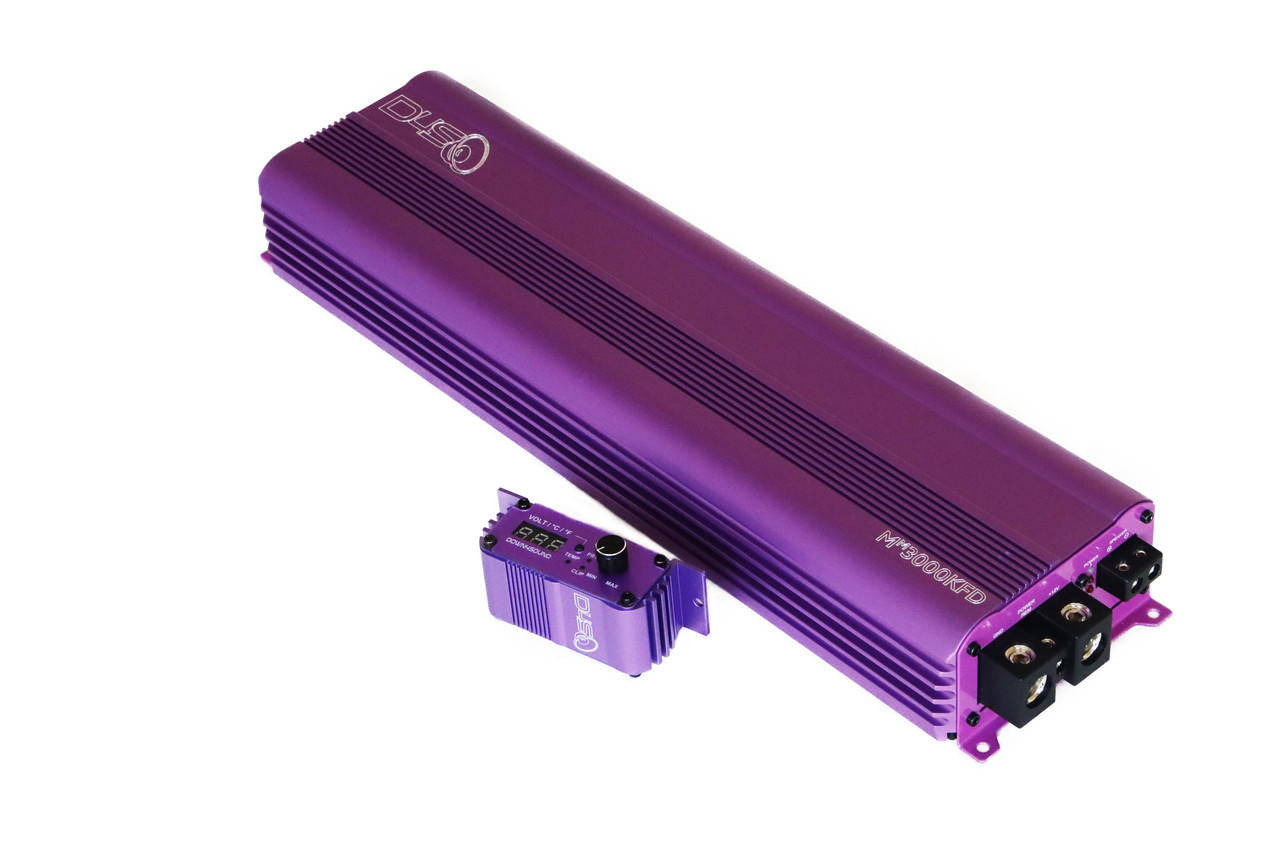

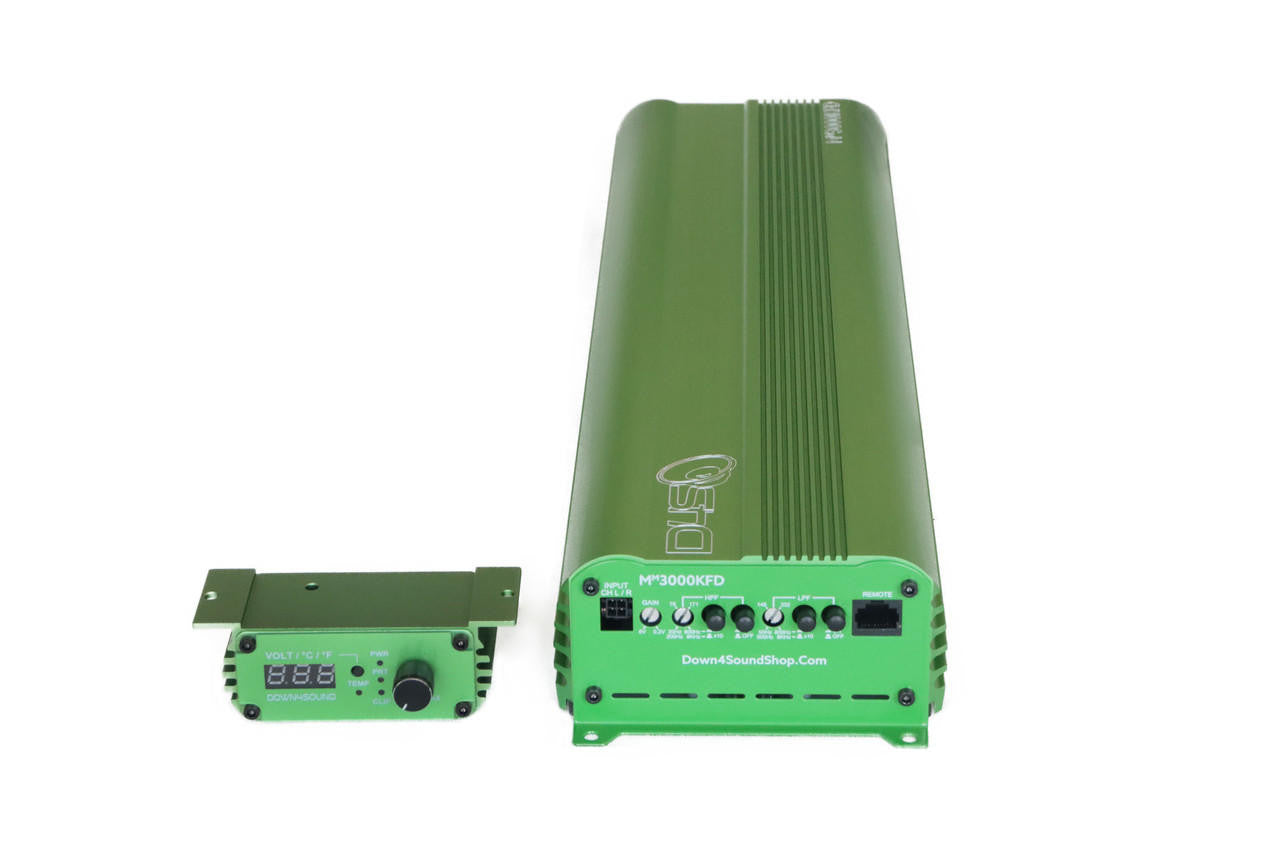

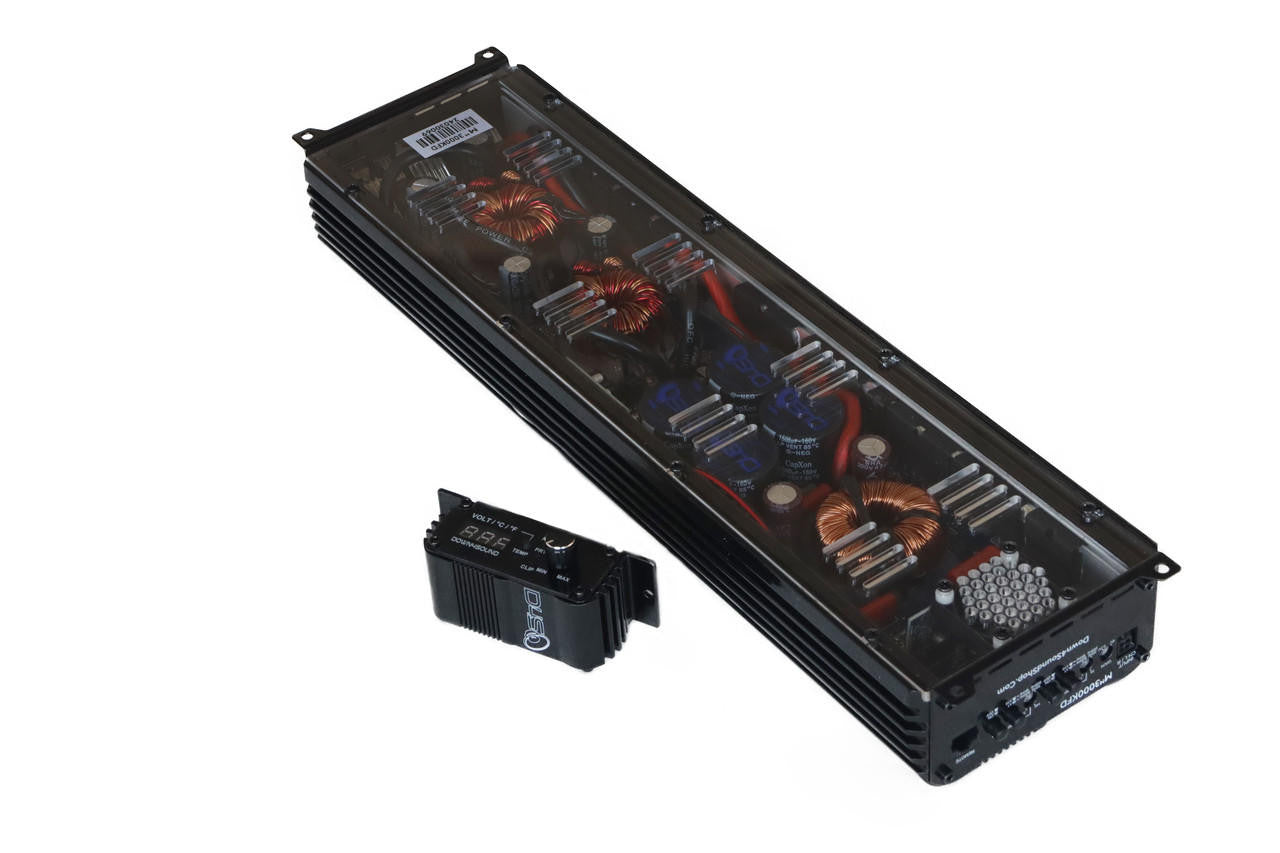

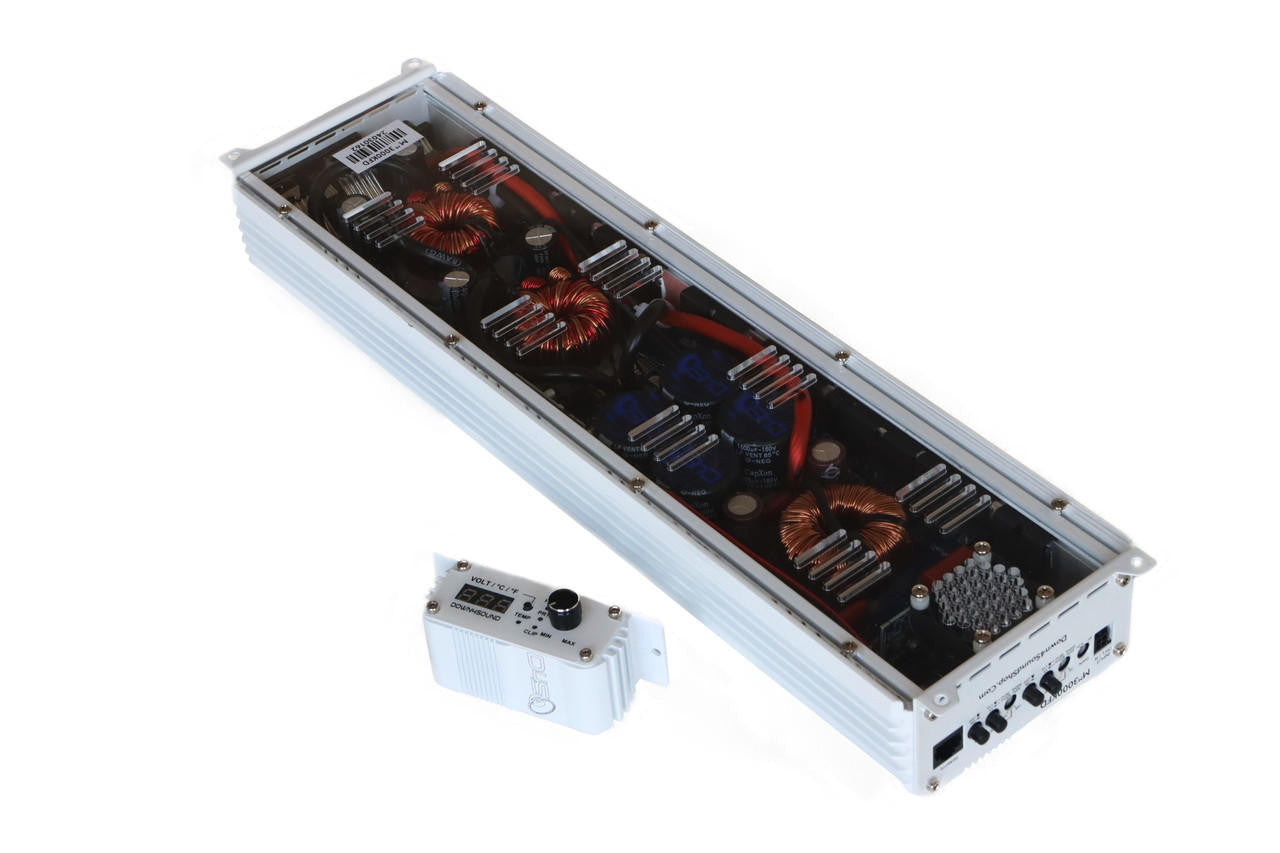

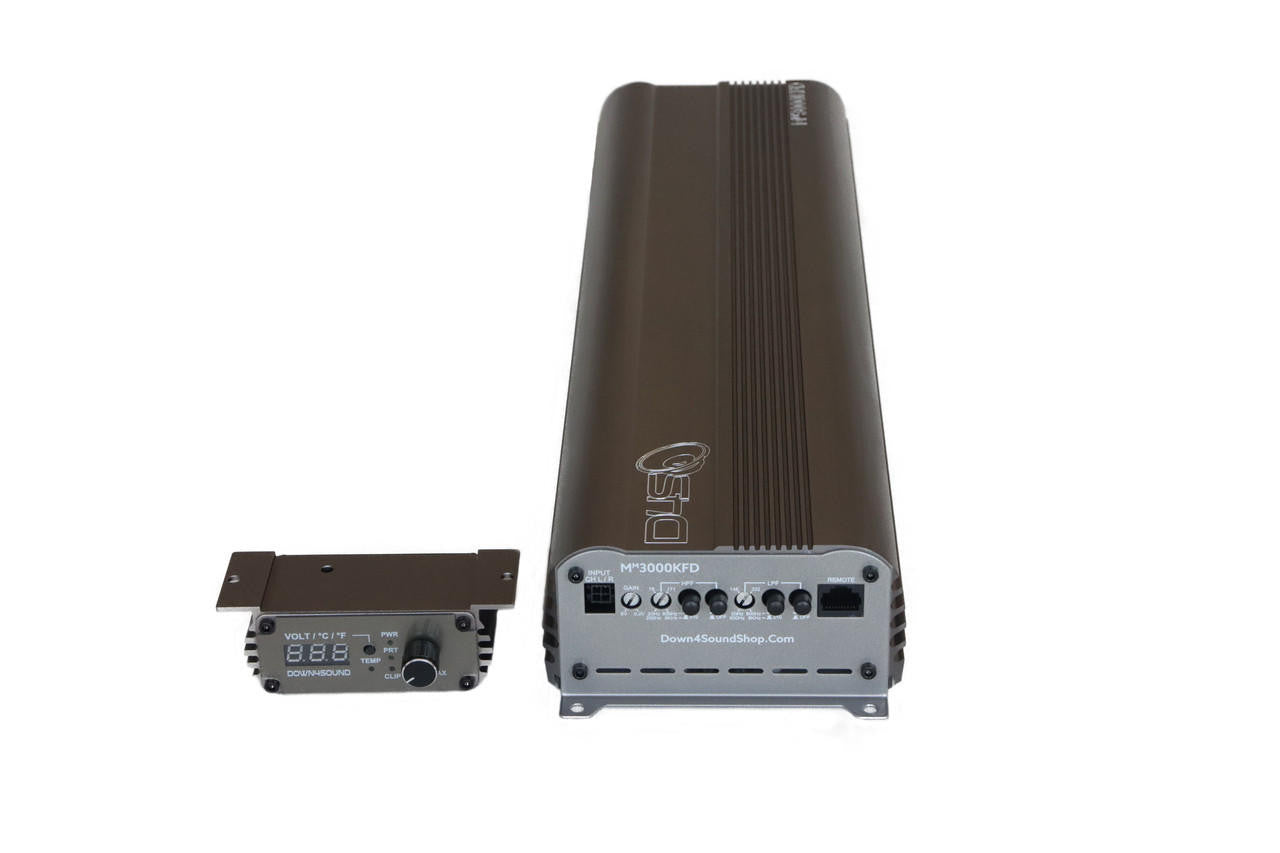

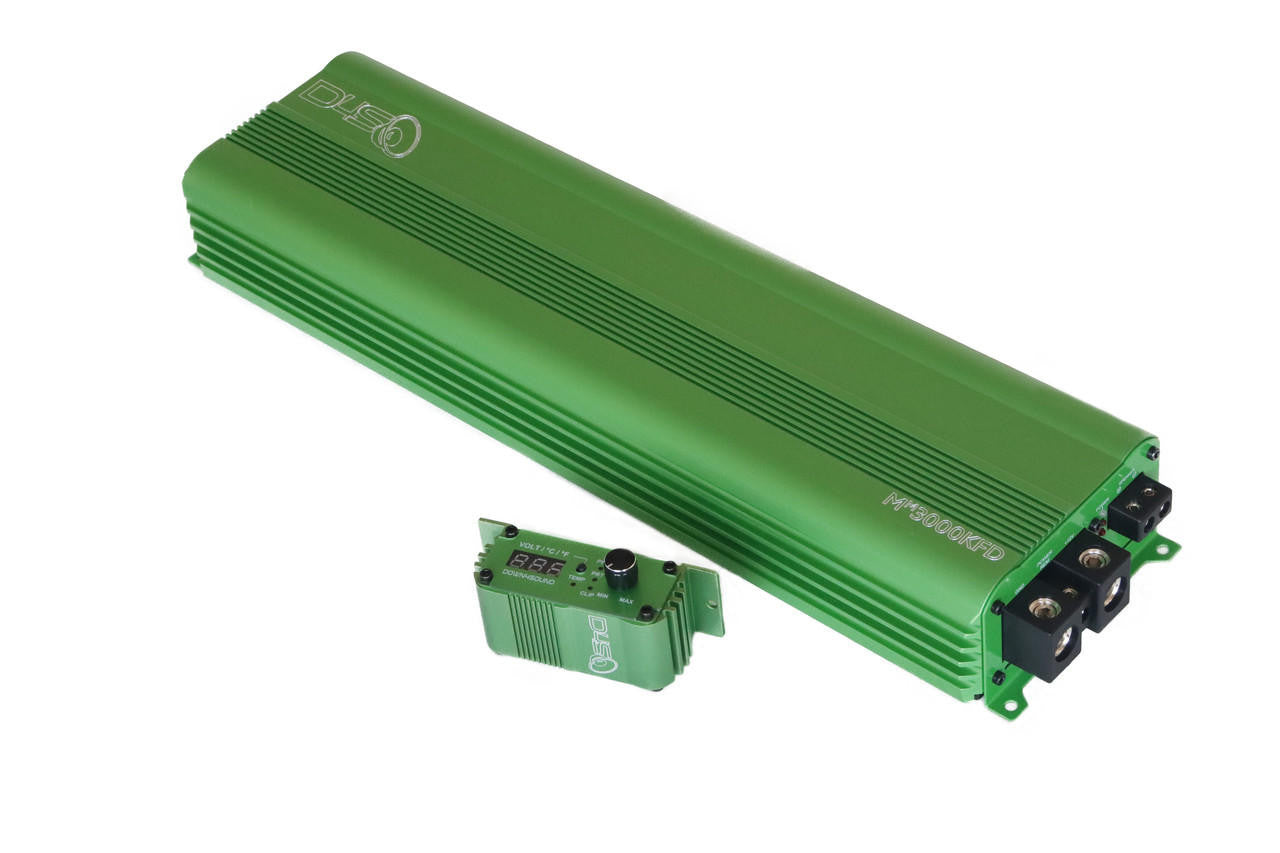

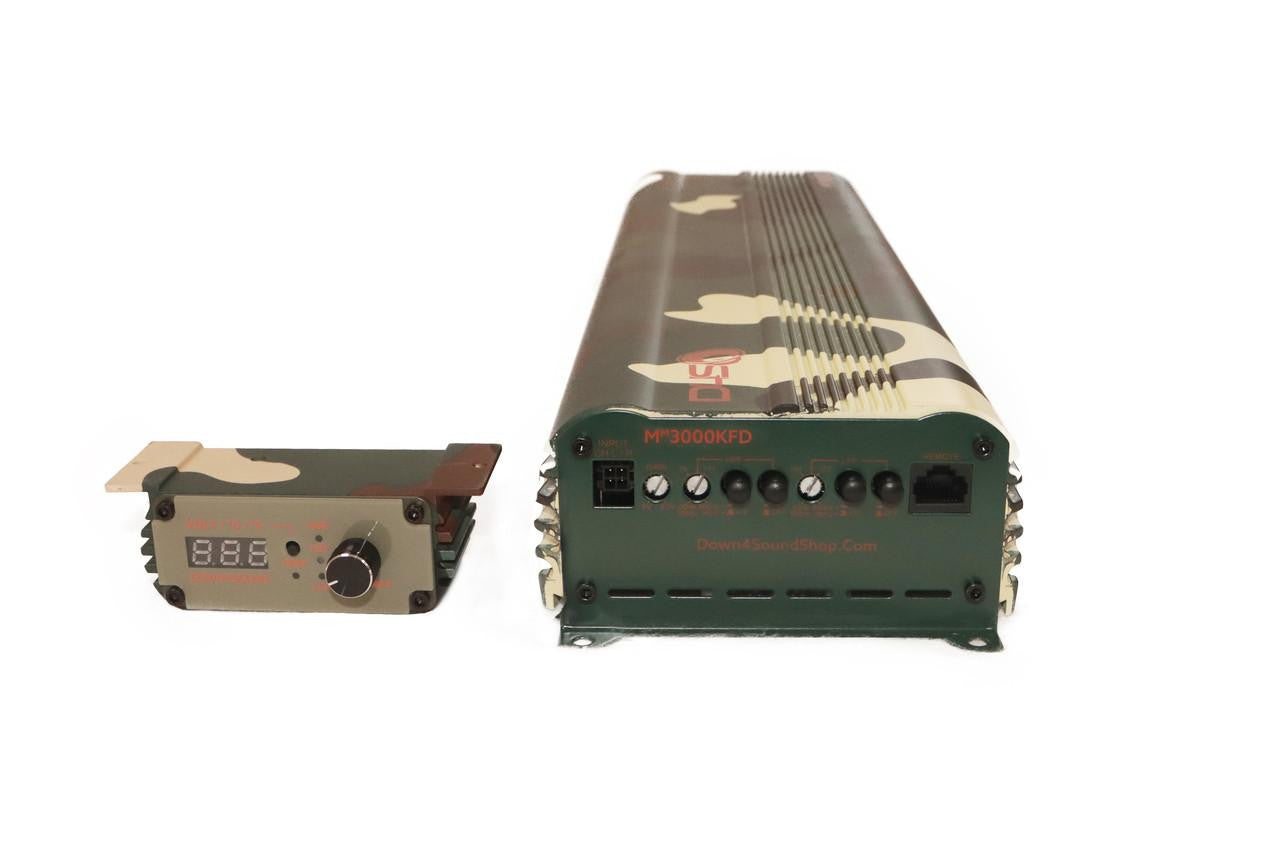

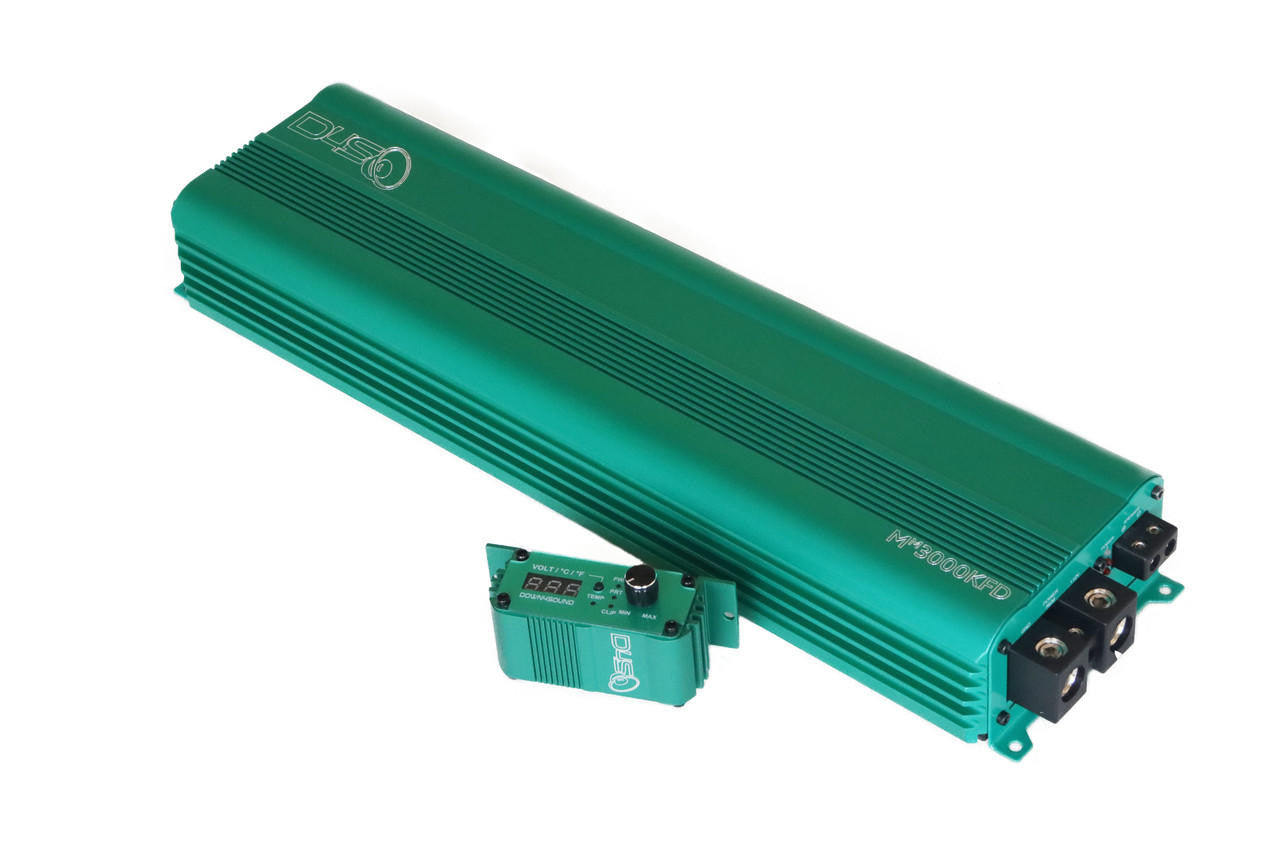

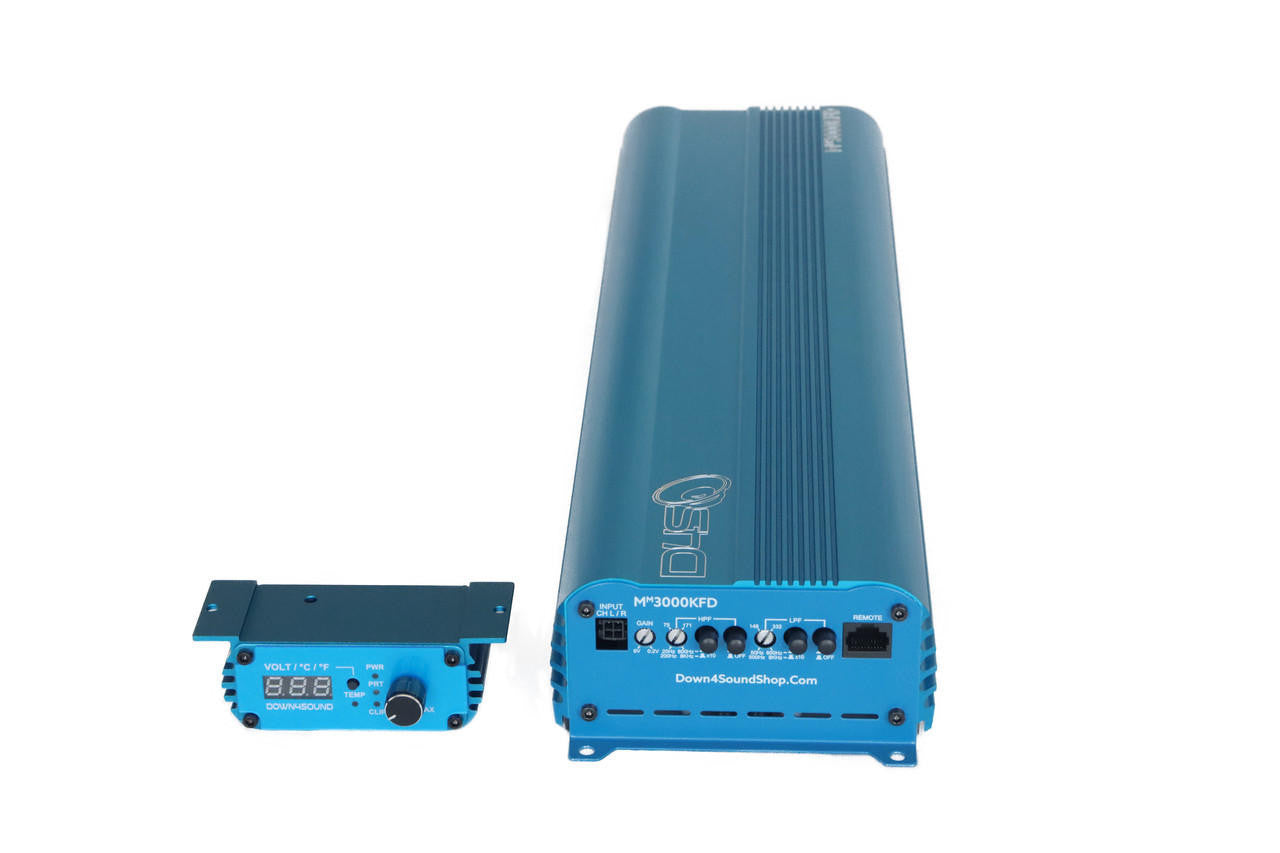

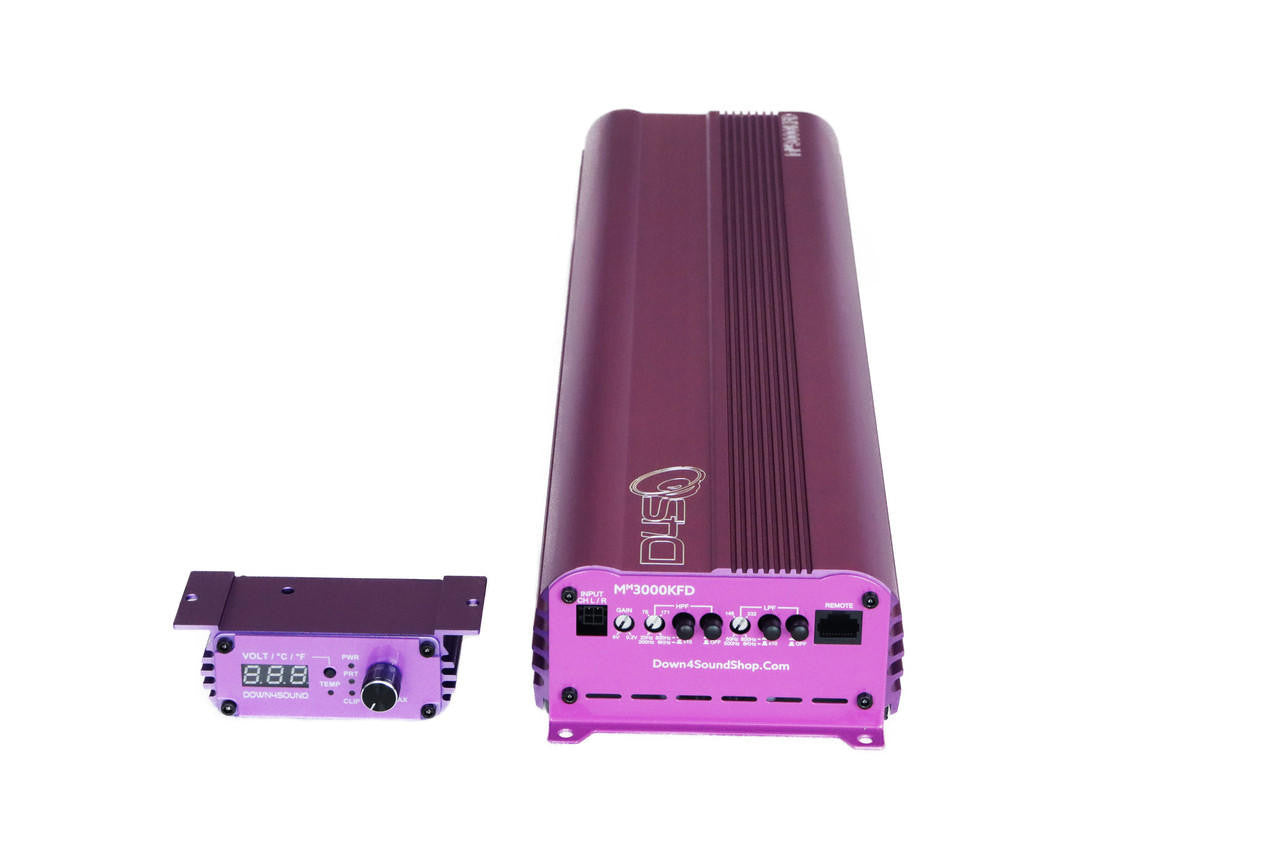

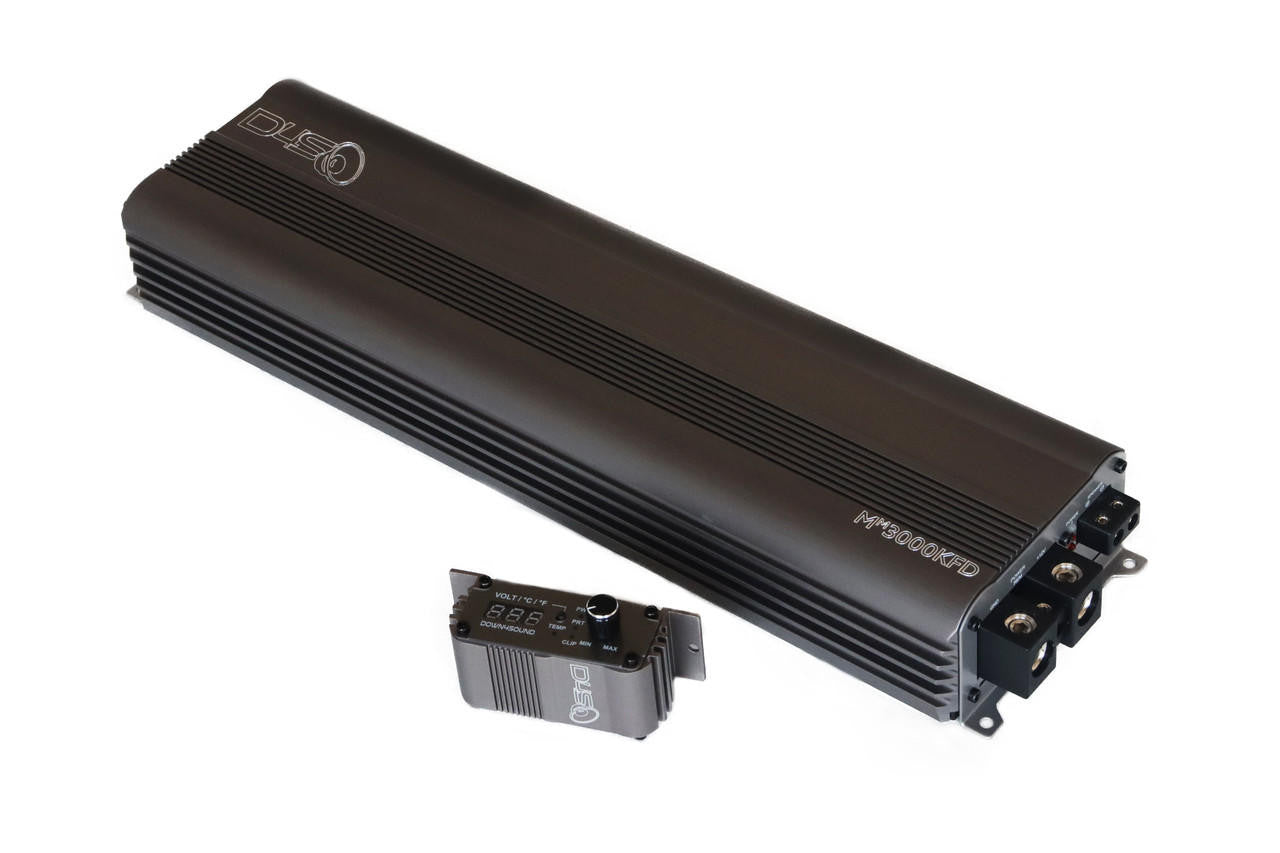

Introducing the Down4Sound MM3000KFD (MINI MAXX)

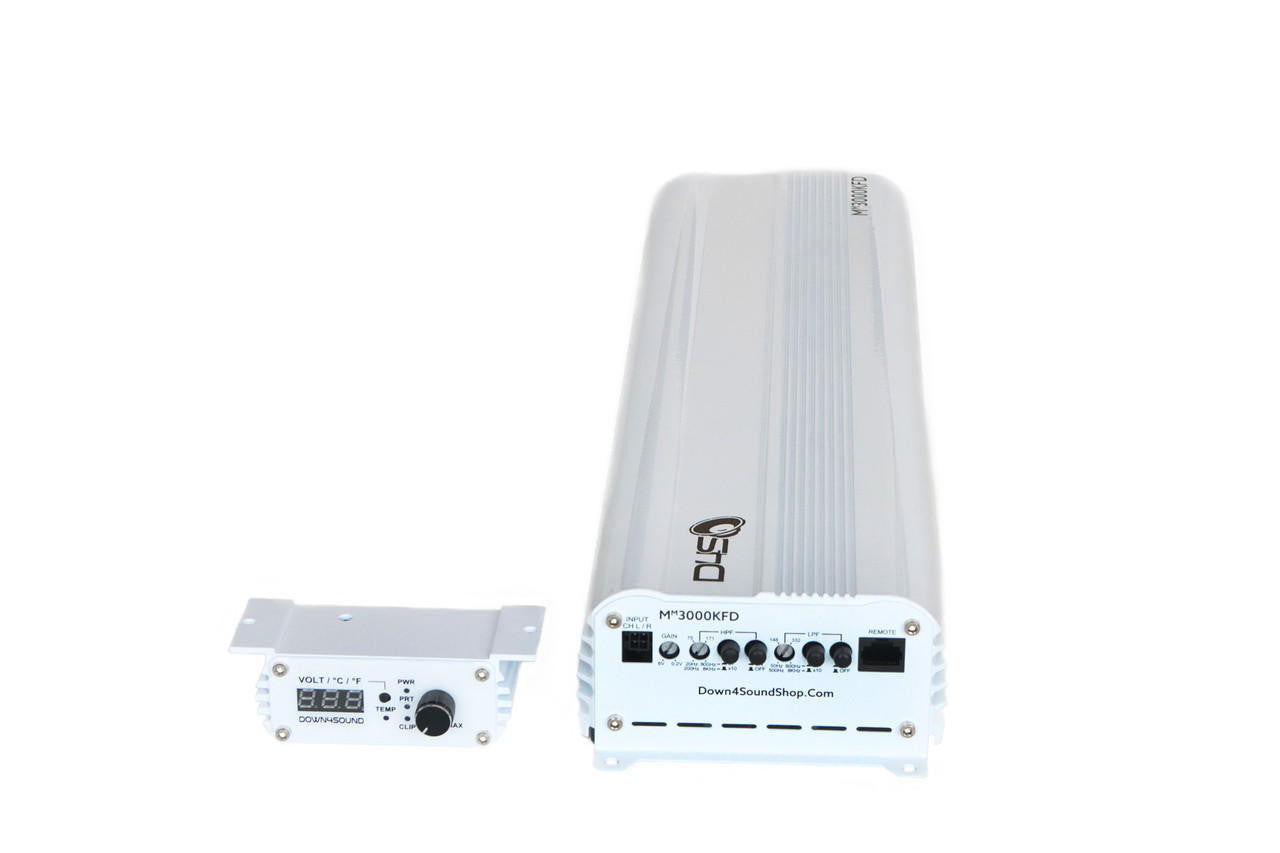

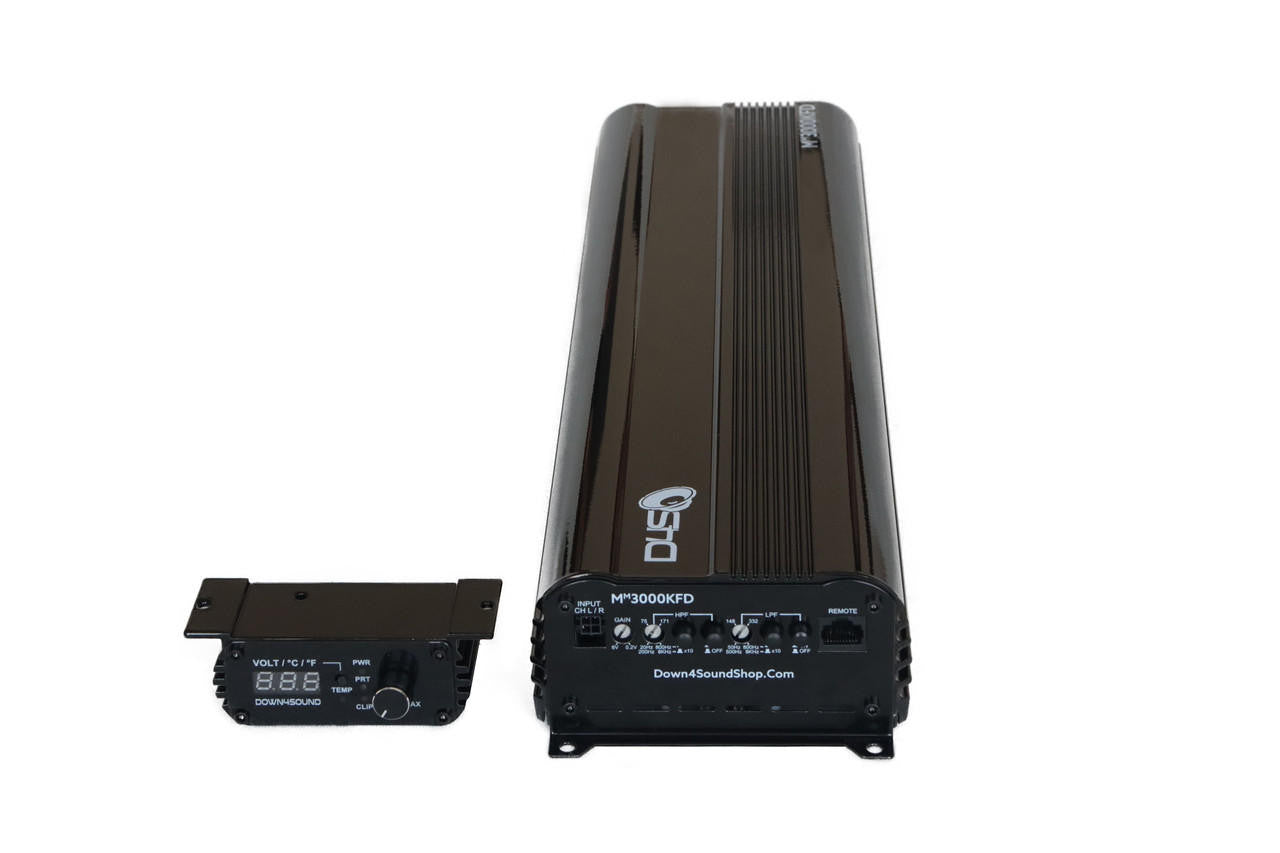

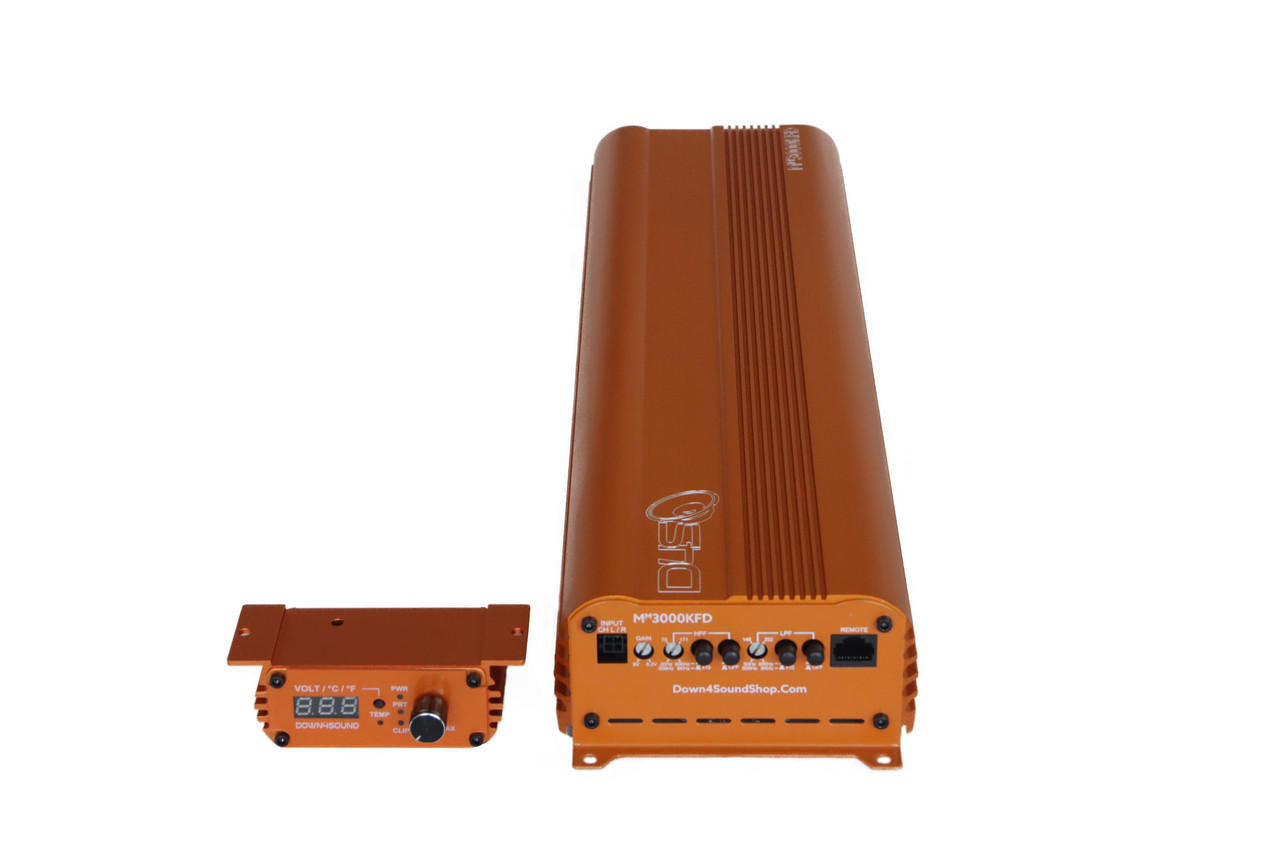

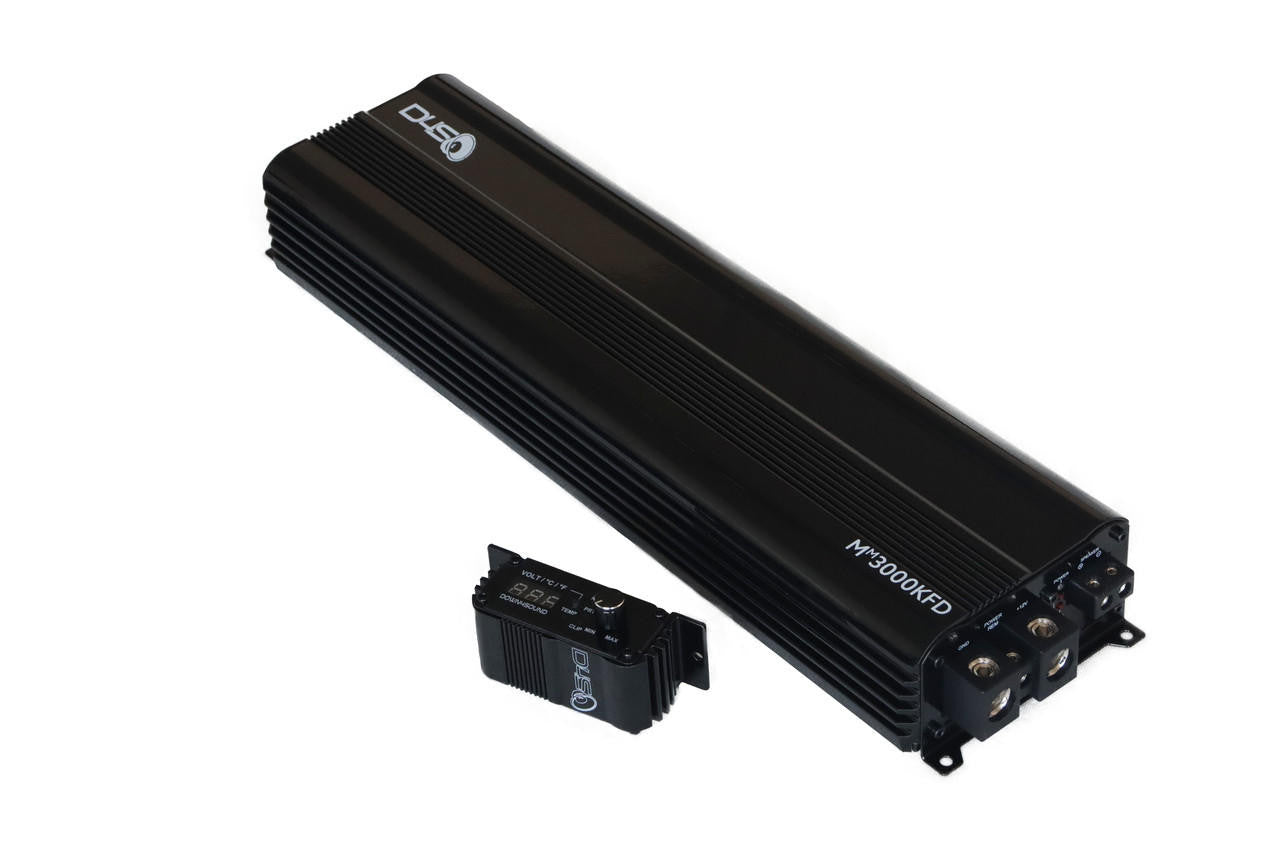

The Down4Sound MM3000KFD (MINI MAXX) is a 3000W RMS Mini Full Range Amplifier designed for ultimate audio performance across all frequencies. Compact yet powerful, this amplifier delivers exceptional power and clarity while adding a sleek, professional look to your car audio setup.
Key Features:
- Full Range Digital Amplifier — powers subwoofers, mids, and highs seamlessly.
- High-Speed MOSFET Power Supply for consistent, efficient power.
- Variable High Pass Filter (20Hz - 800Hz) and Low Pass Filter (50Hz - 800Hz).
- Crossover Multiplier x10 (up to 8KHz) and Bandpass capability.
- 4-Way Protection Circuits (thermal, high/low voltage, speaker short, DC).

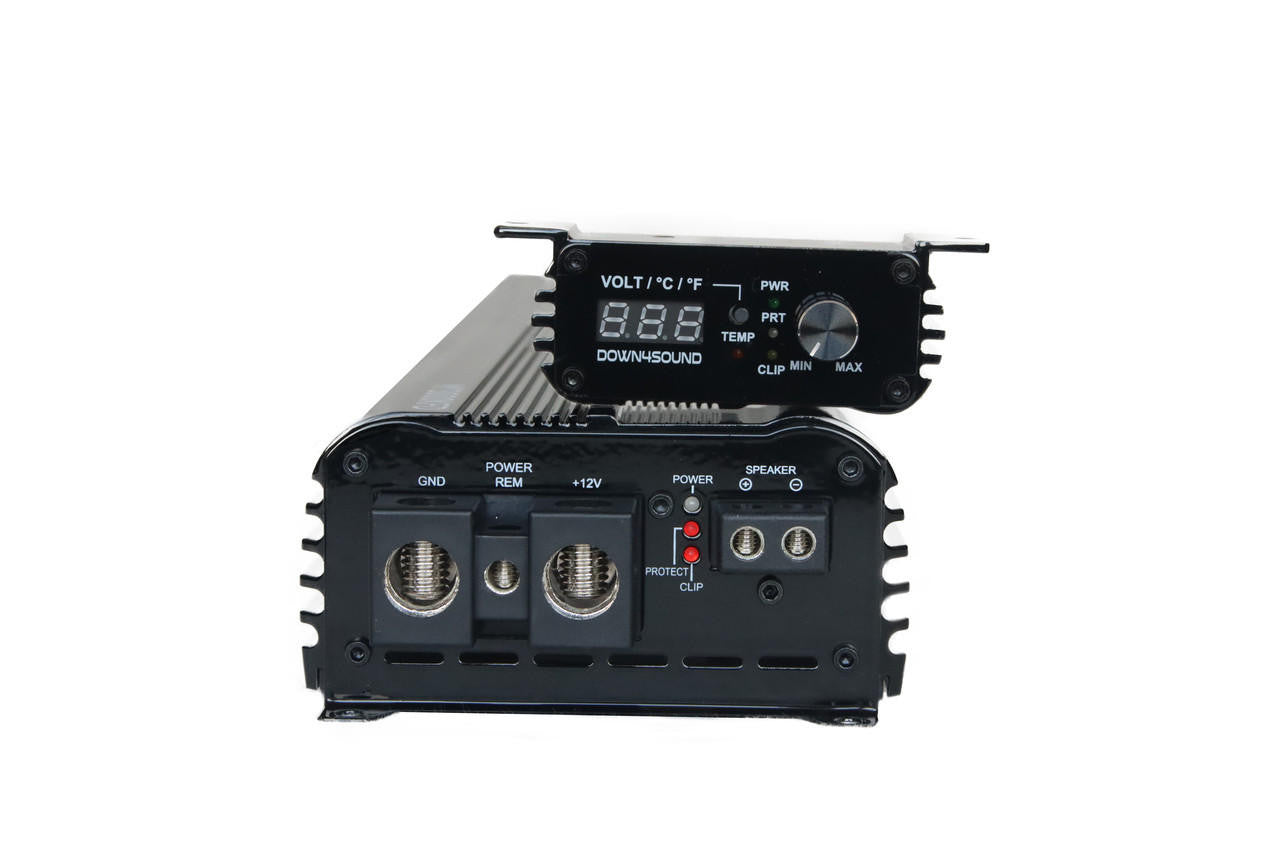

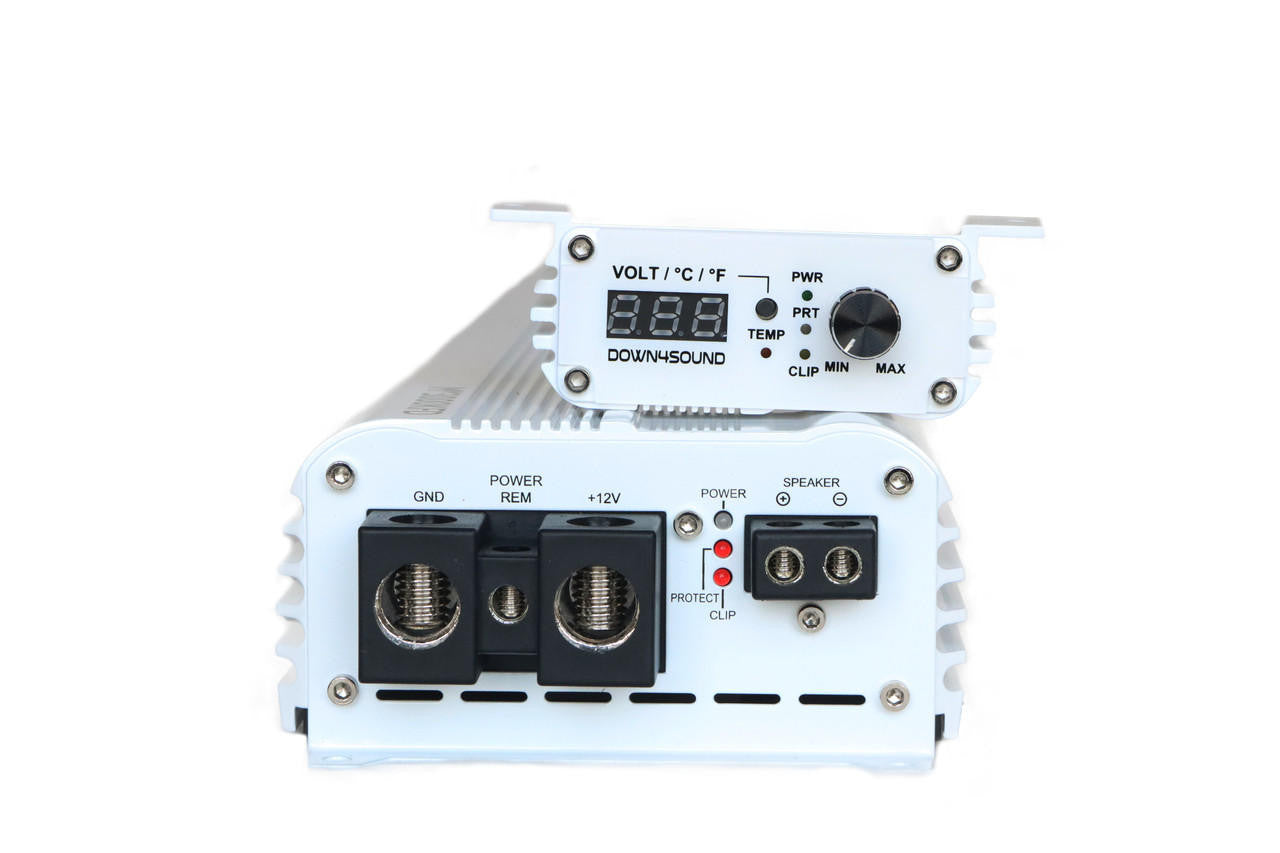

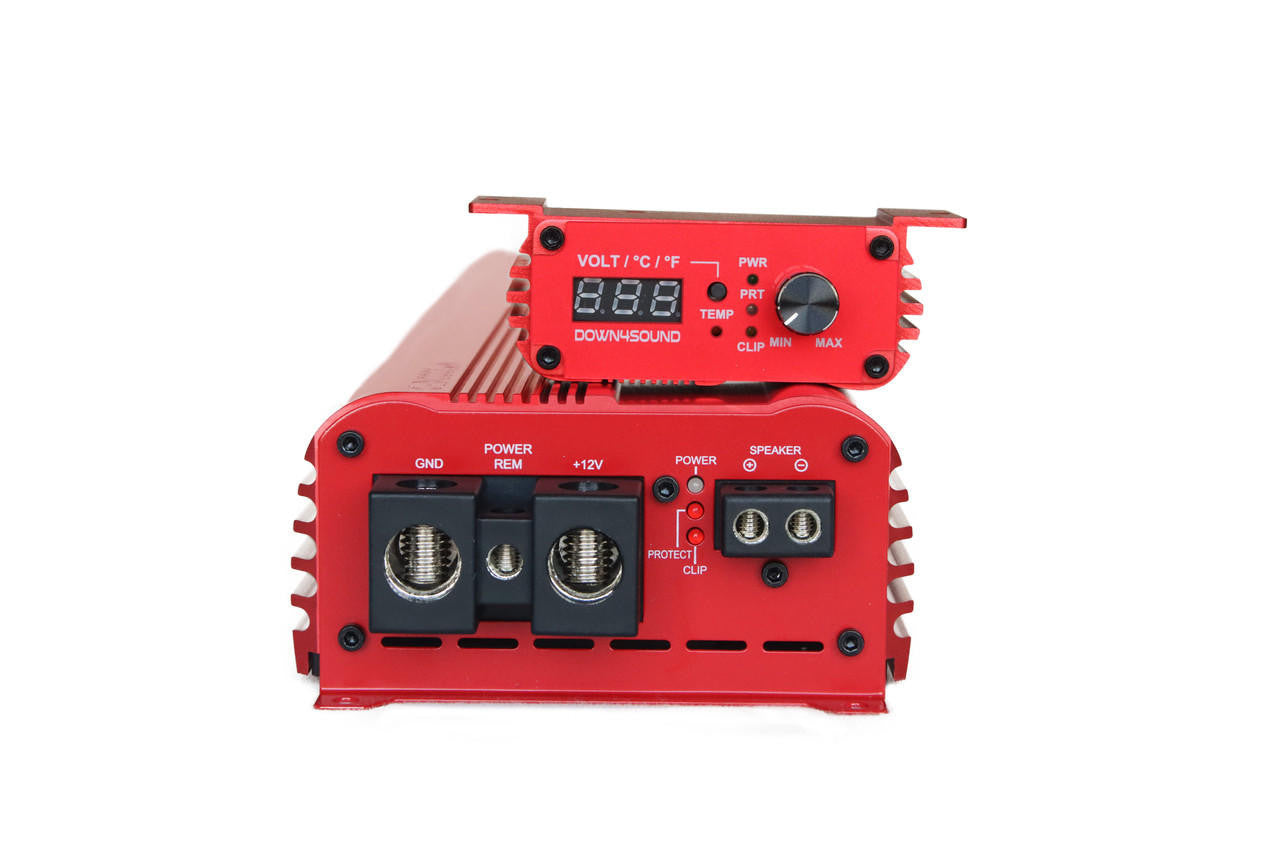

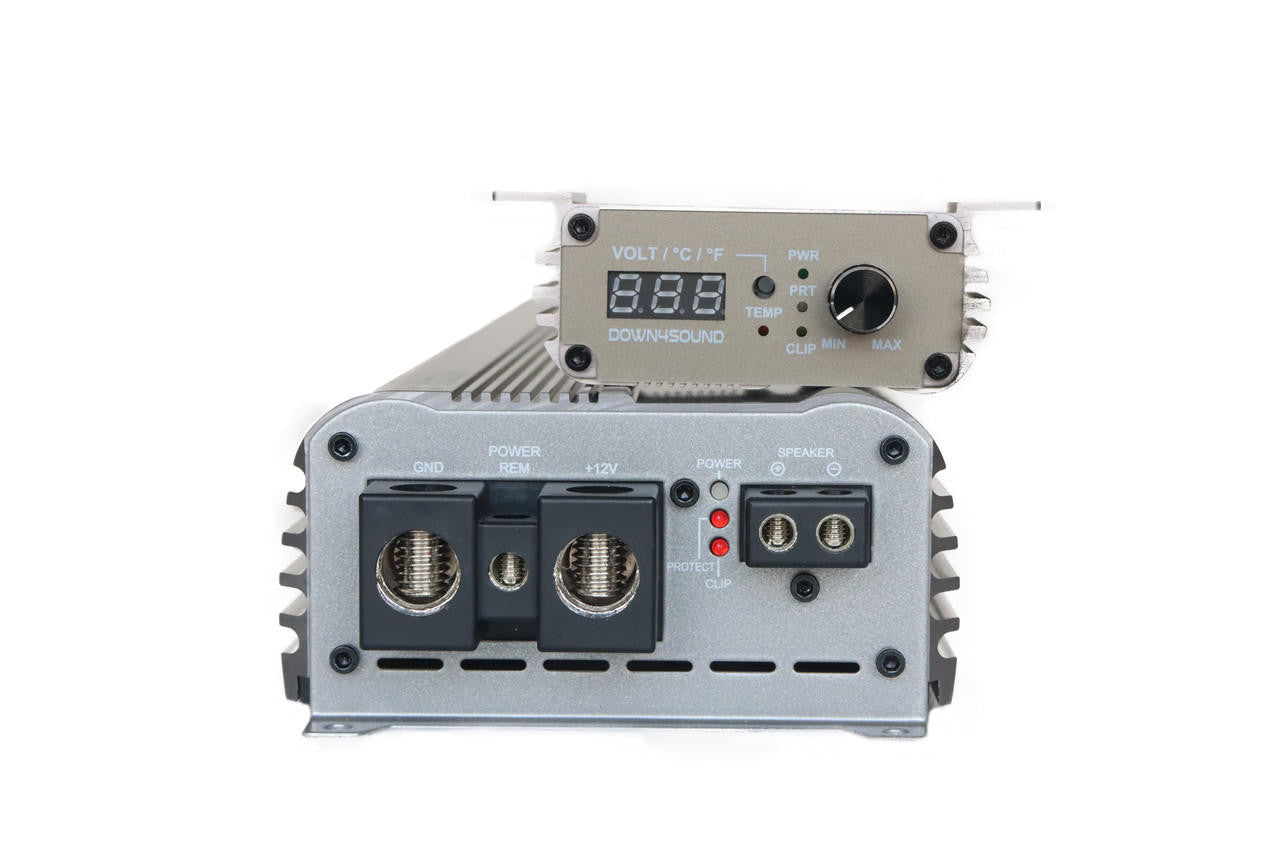

- Remote bass knob with voltmeter, temperature display, and clipping indicator.

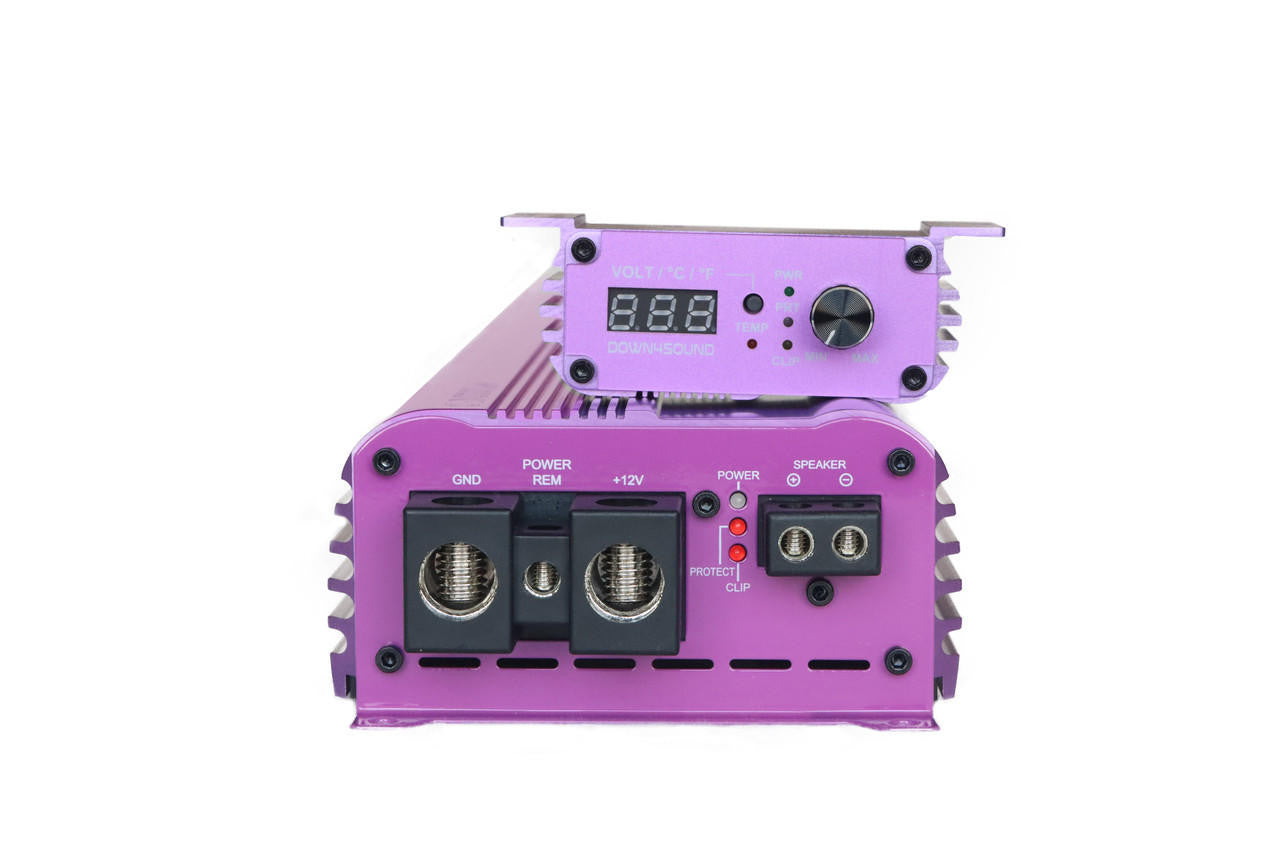

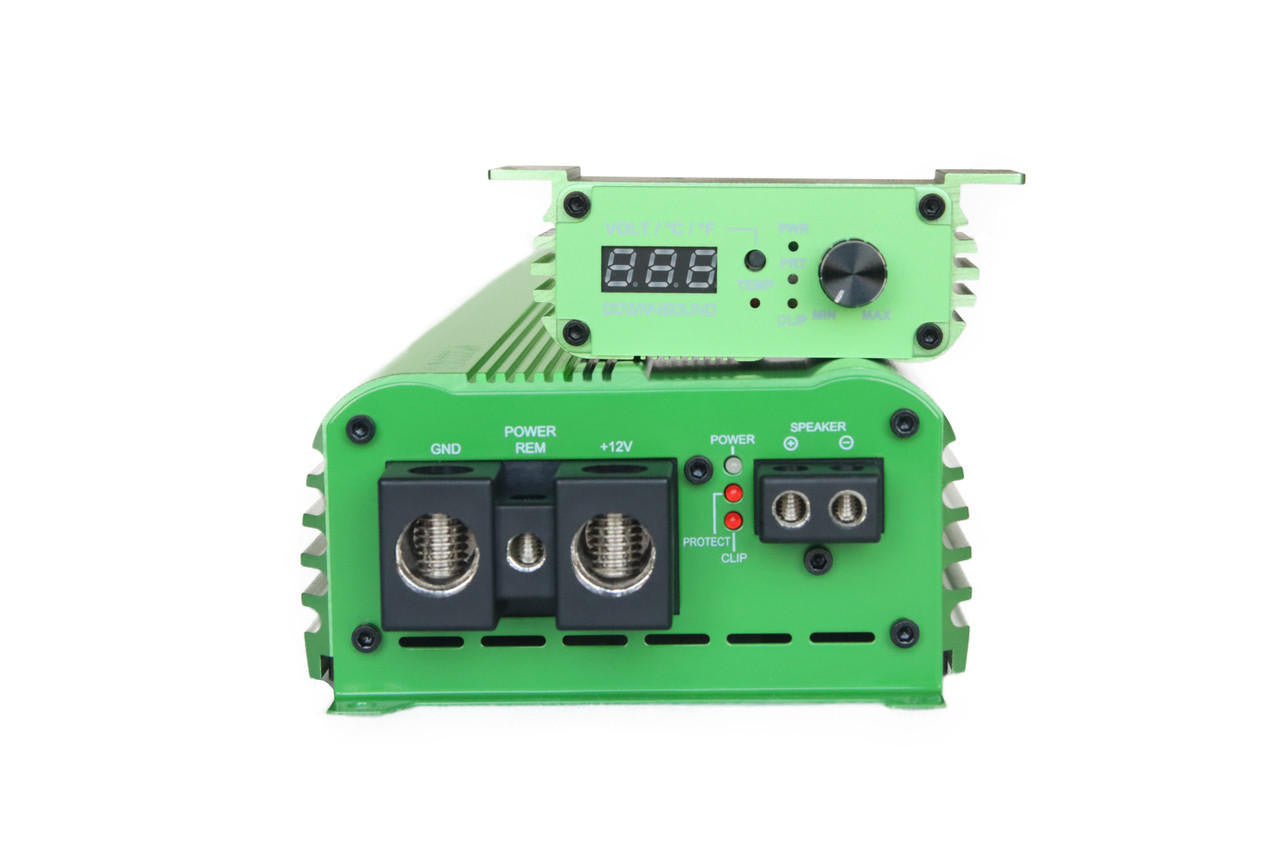

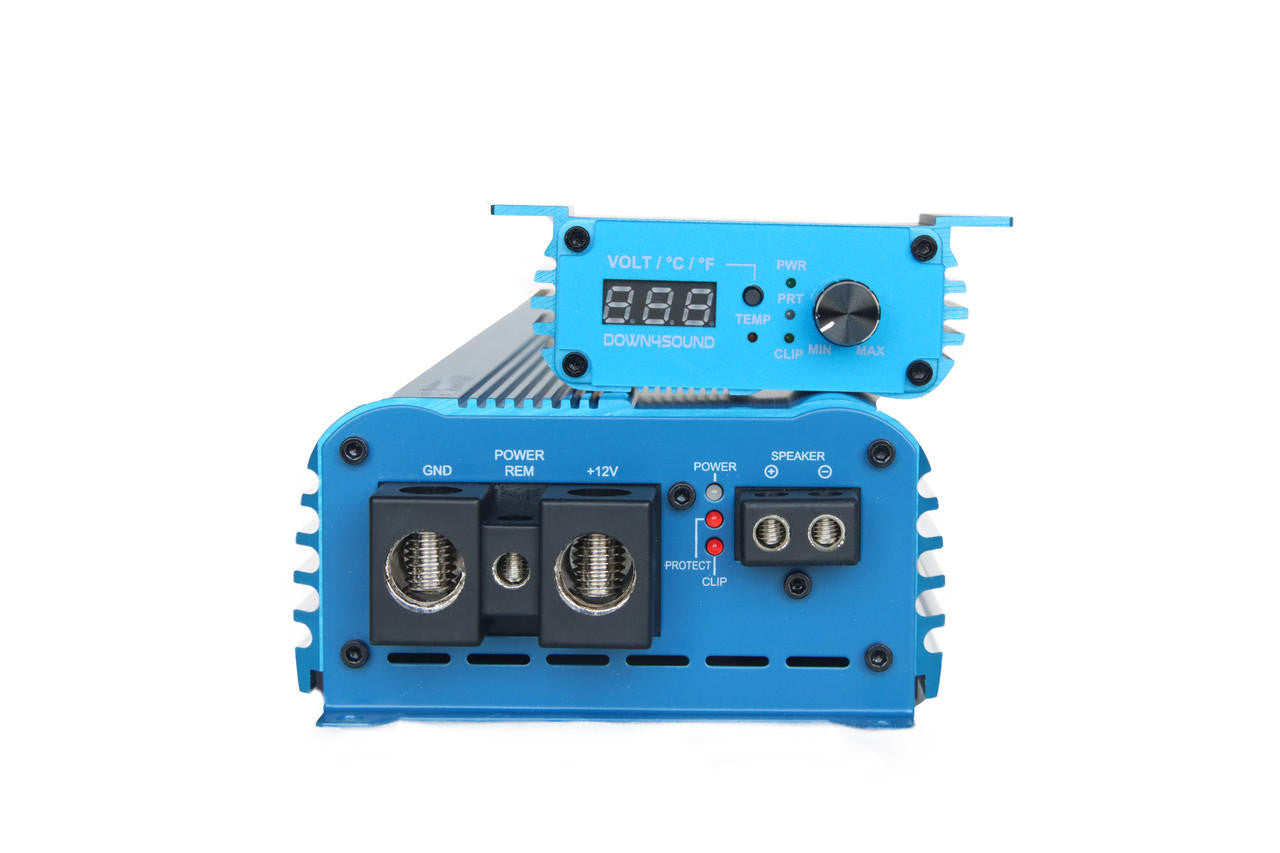

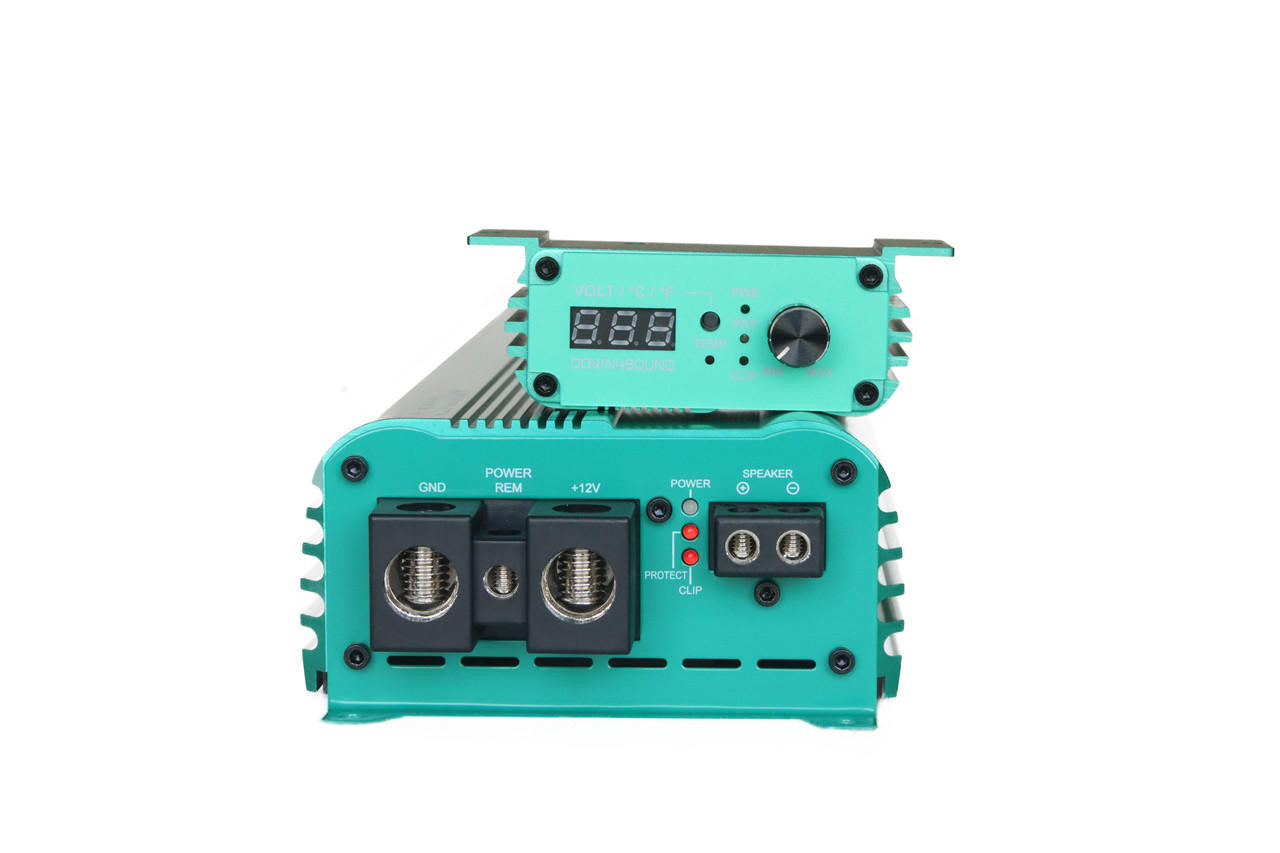

- 0 Gauge Power/Ground inputs; up to 8 Gauge speaker terminals.

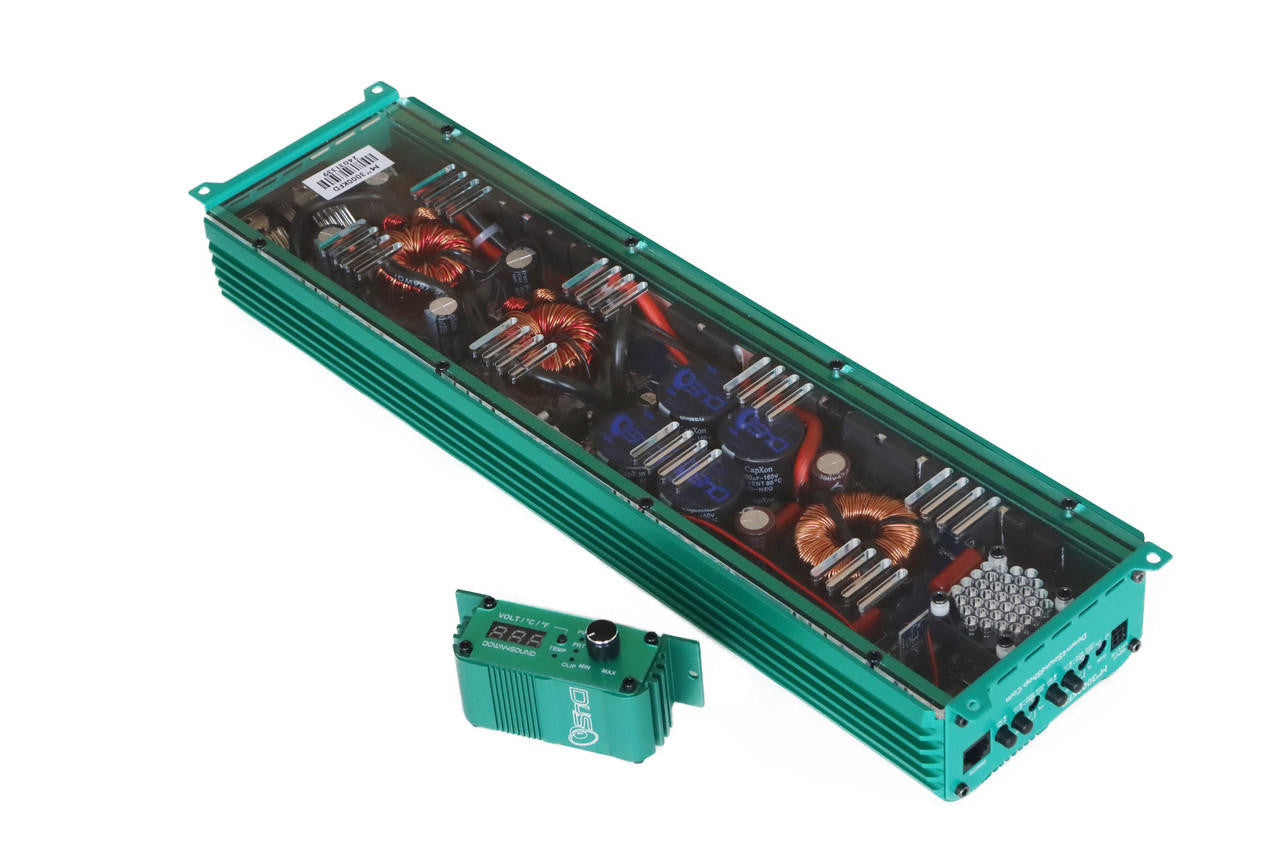

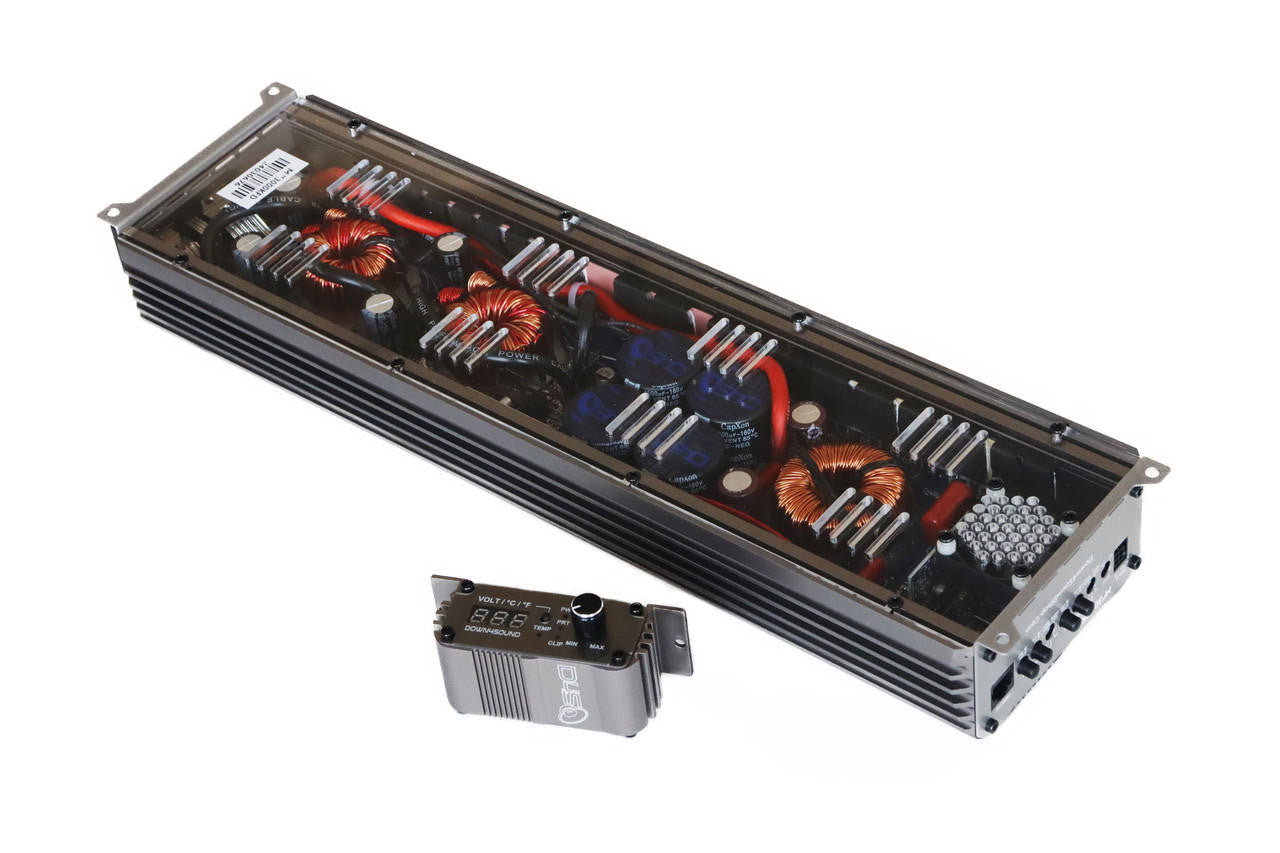

- High Purity Copper PCB.
Specifications:
- RMS Power: 3000W x 1 @ 1 Ohm; 1888W x 1 @ 2 Ohms; 1234W x 1 @ 4 Ohms
- Frequency Response: 10Hz - 26.4KHz
- Input Sensitivity: 6V - 0.2V
- Signal-to-Noise Ratio: 89dB
- Total Harmonic Distortion: Less than 0.1%
- Operating Voltage: 9V - 15.5V
- Fuse Rating: 250A
- Dimensions: 16.93" L x 4.88" W x 2.25" H
For a detailed demonstration, check out the amp dyno video from Williston Audio Labs in the video tab. Upgrade your car audio experience with the Down4Sound MM3000KFD (MINI MAXX).
