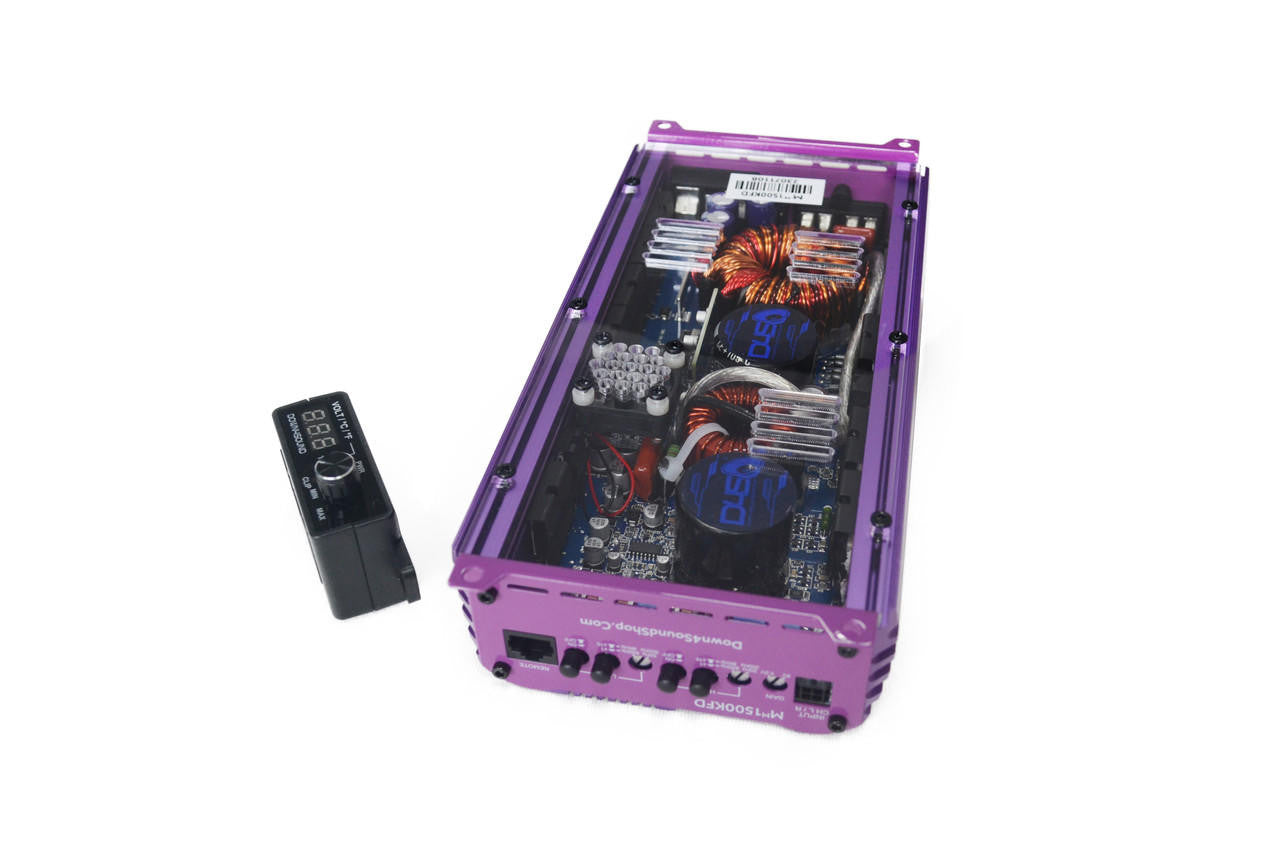

Down4Sound MM1500KFD (mini Maxx) - 1500W RMS Mini Full Bridge Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%20The%20Down4Sound%20MM1500KFD%20(MINI%20MAXX)%20is%20a%201500W%20RMS%20Mini%20Full%20Range%20Amplifier%20crafted%20to%20deliver%20unmatched%20sound%20quality%20across%20all%20frequencies.%20Com...
){kind=link}

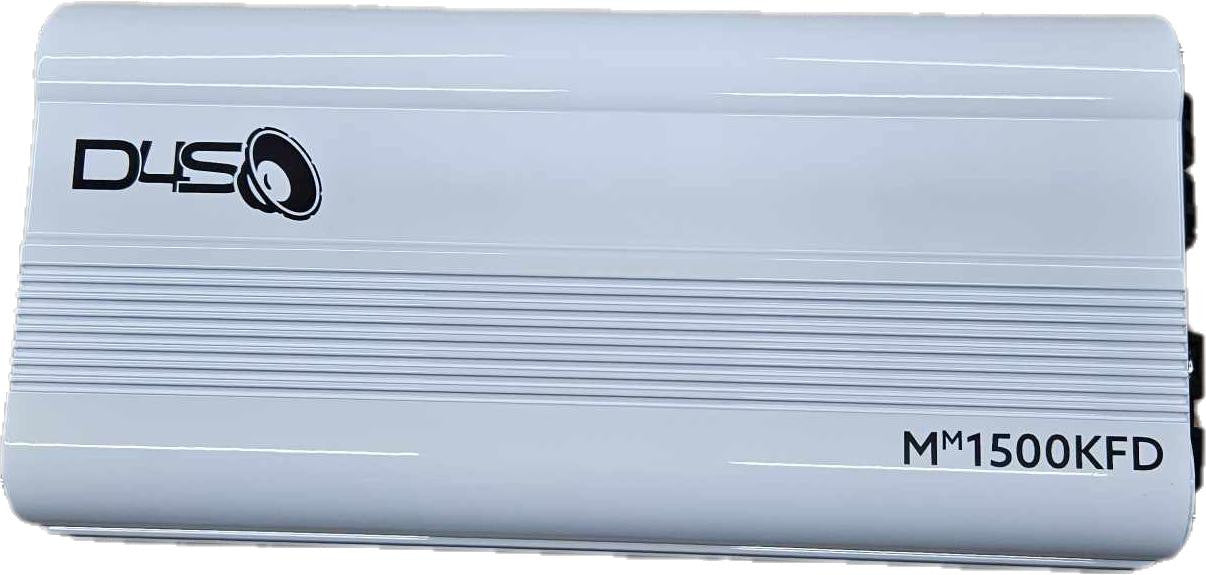

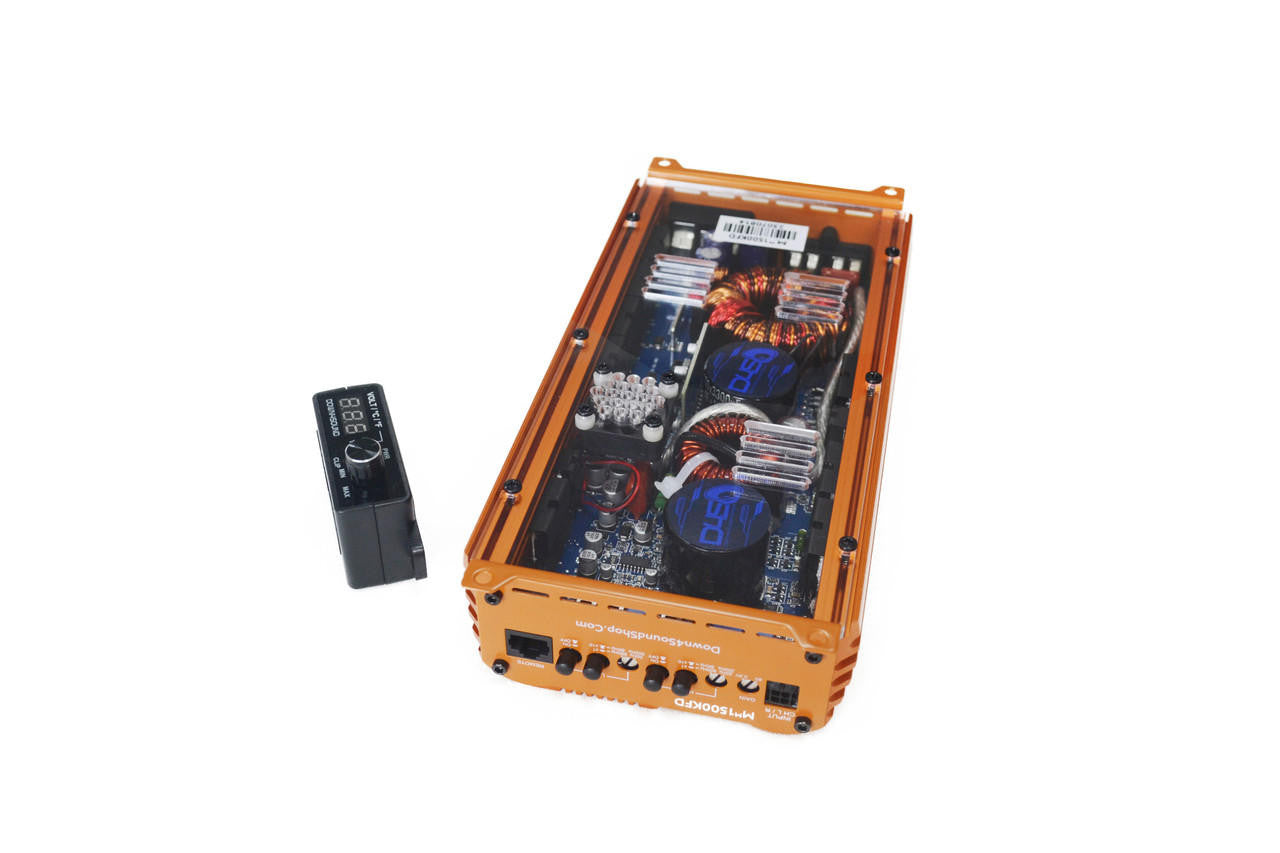

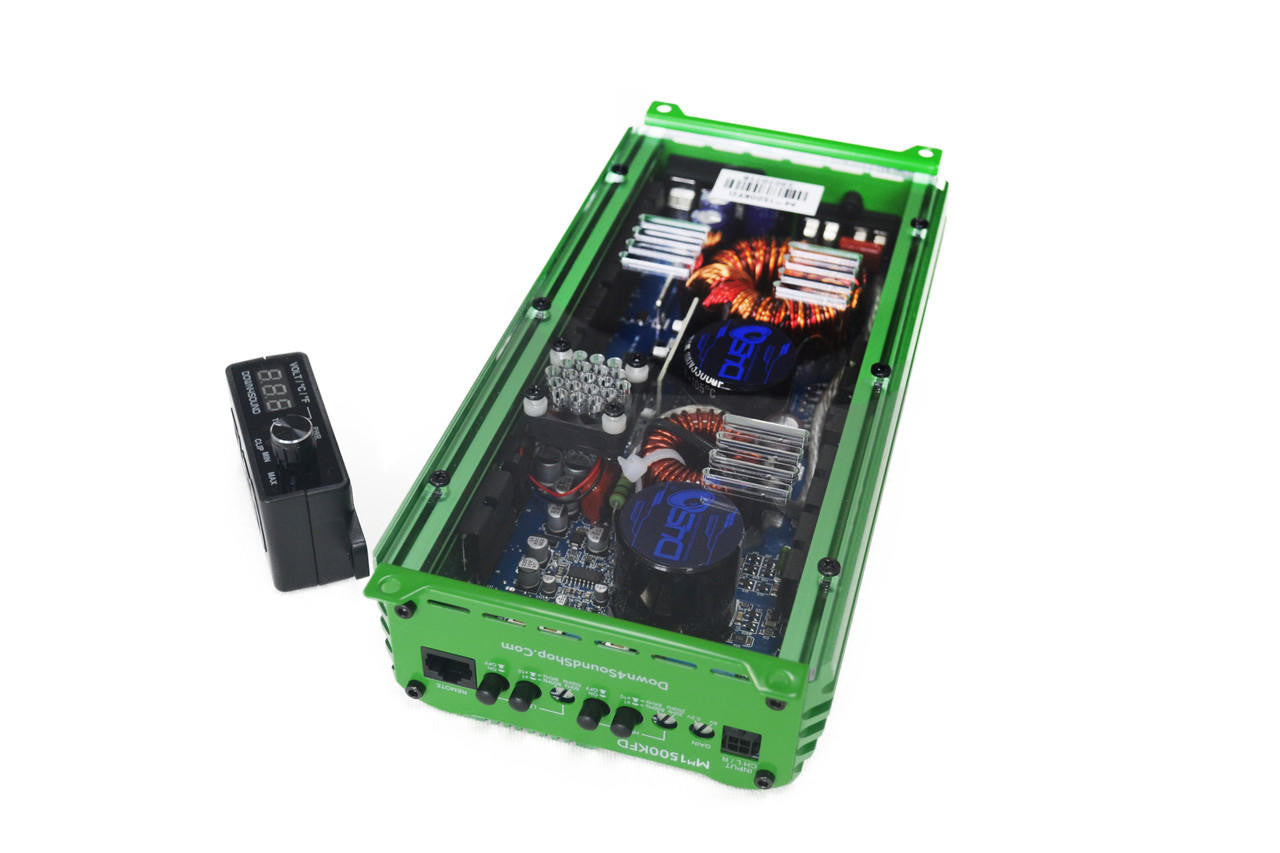

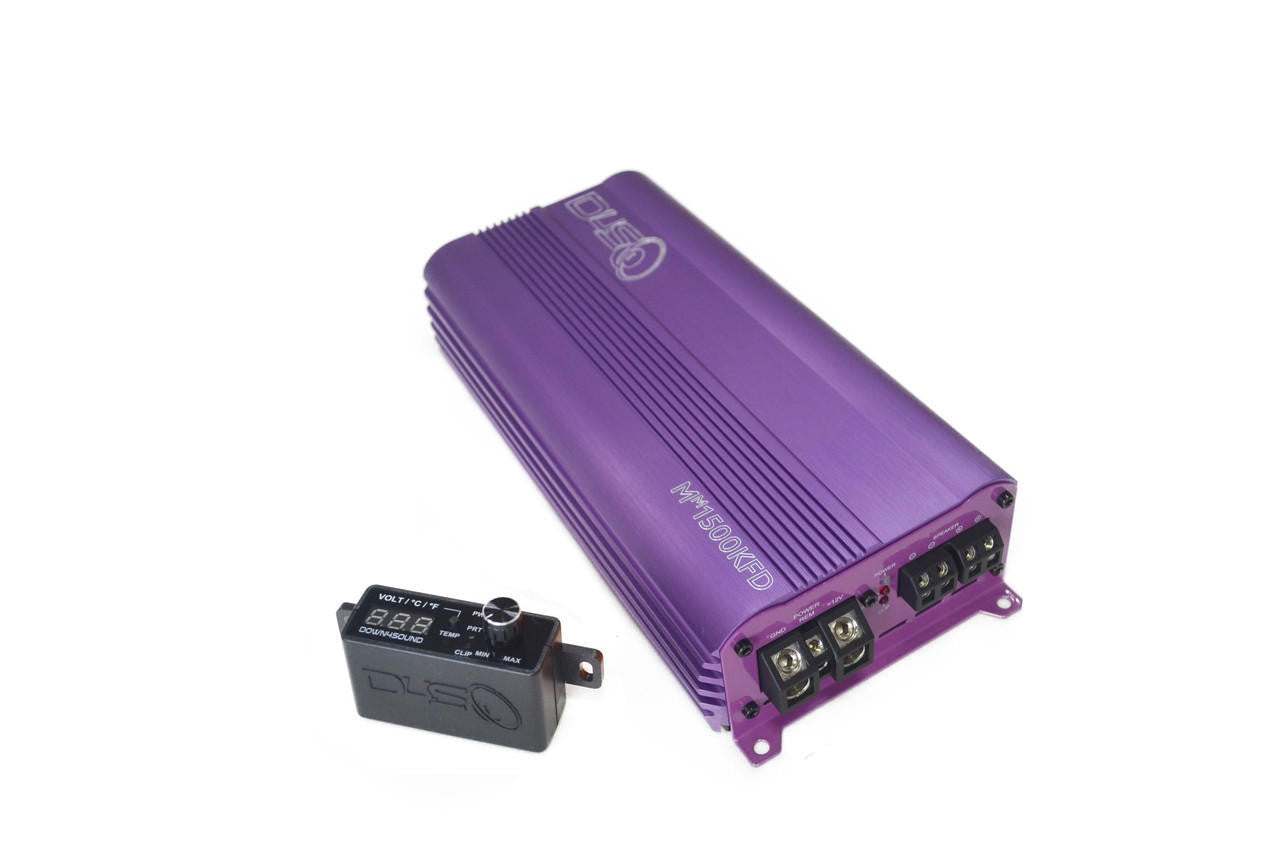

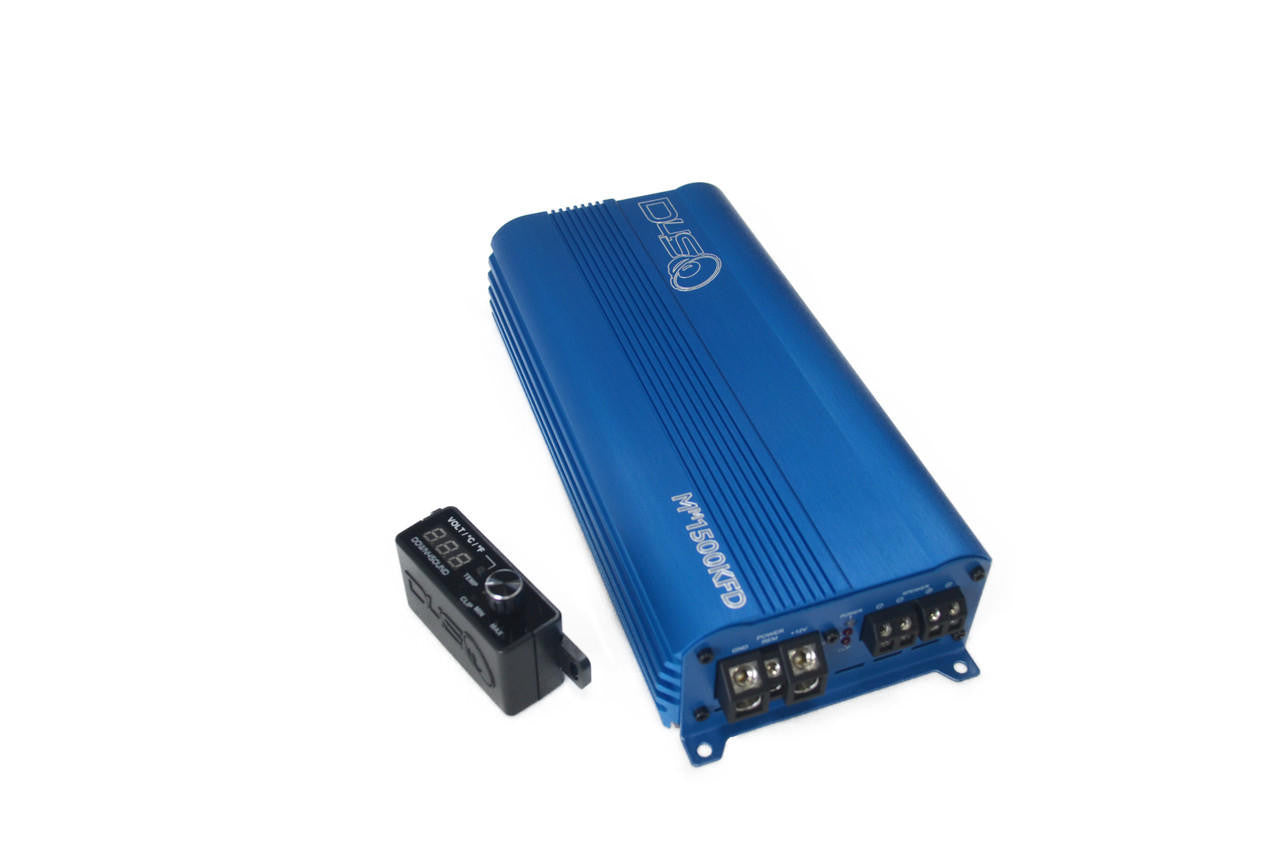

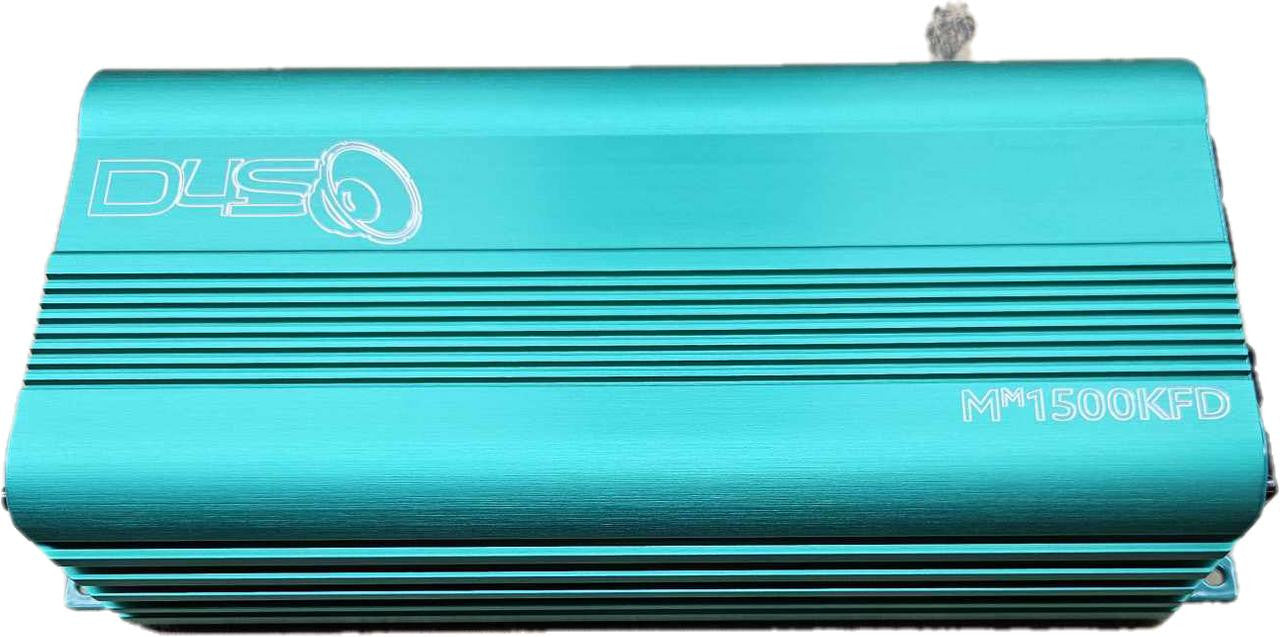

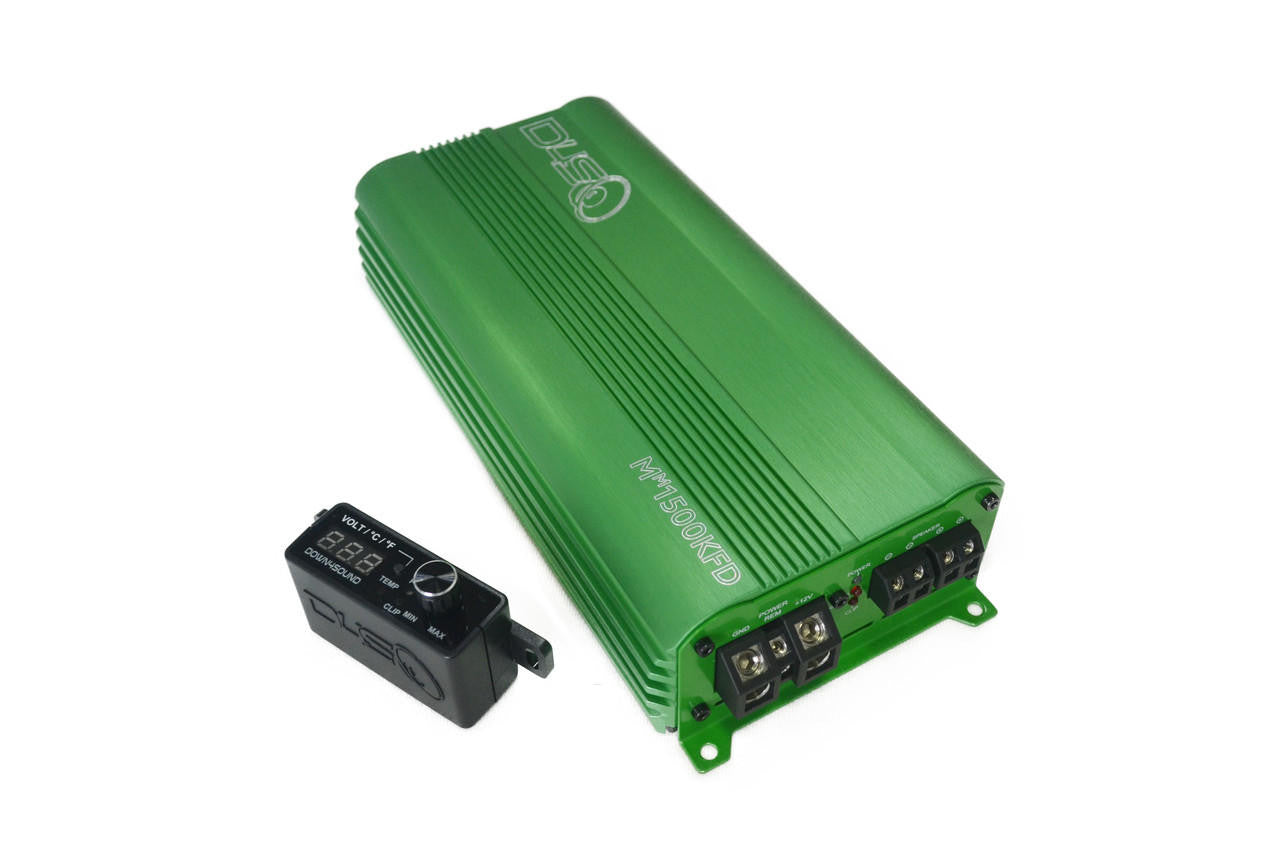

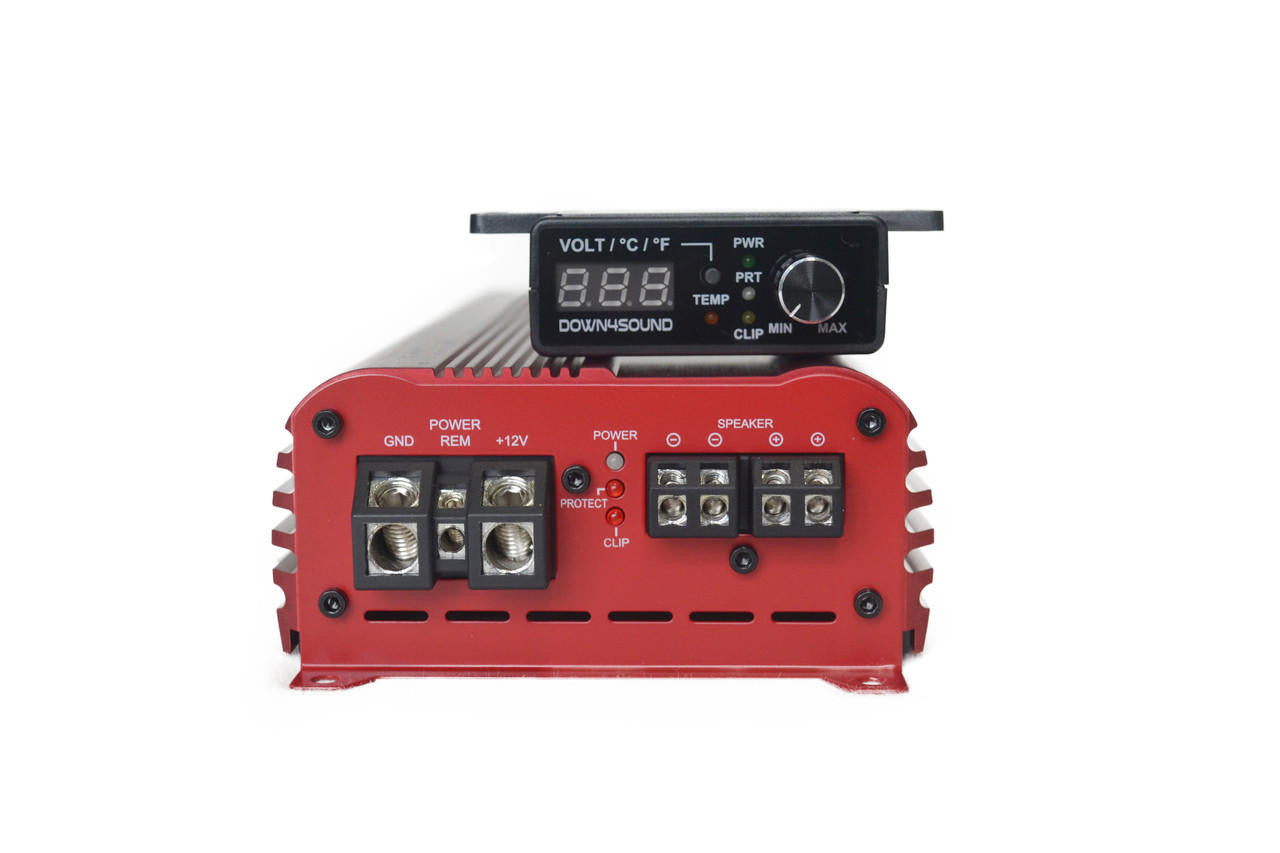

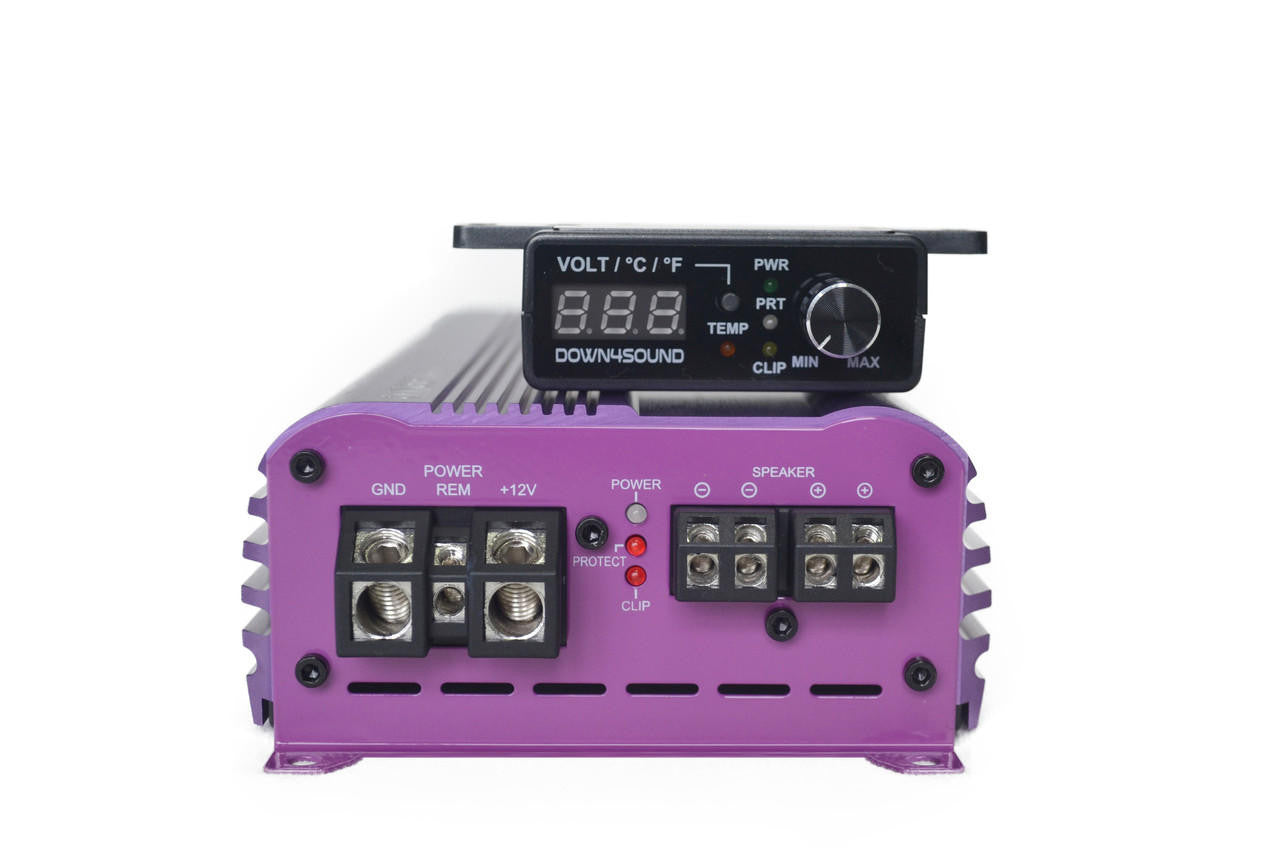

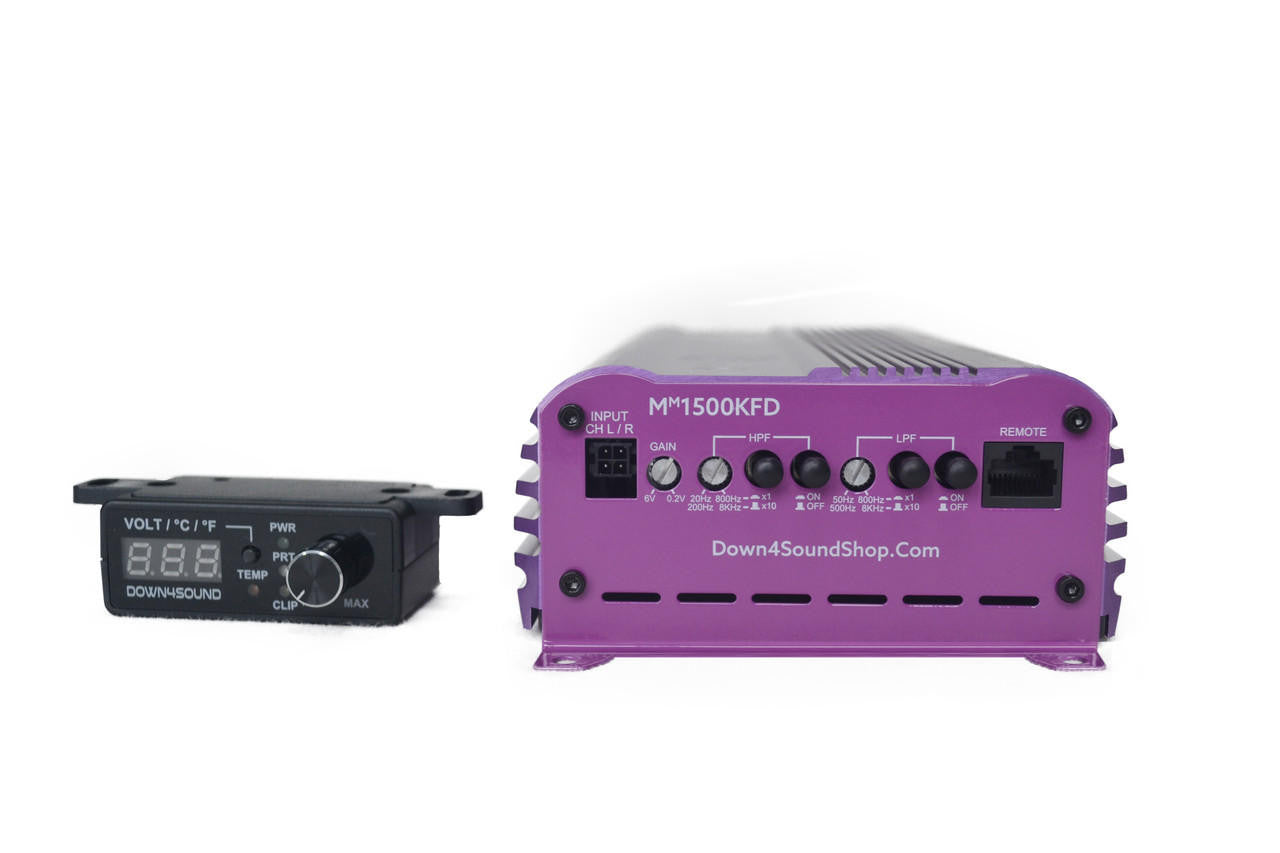

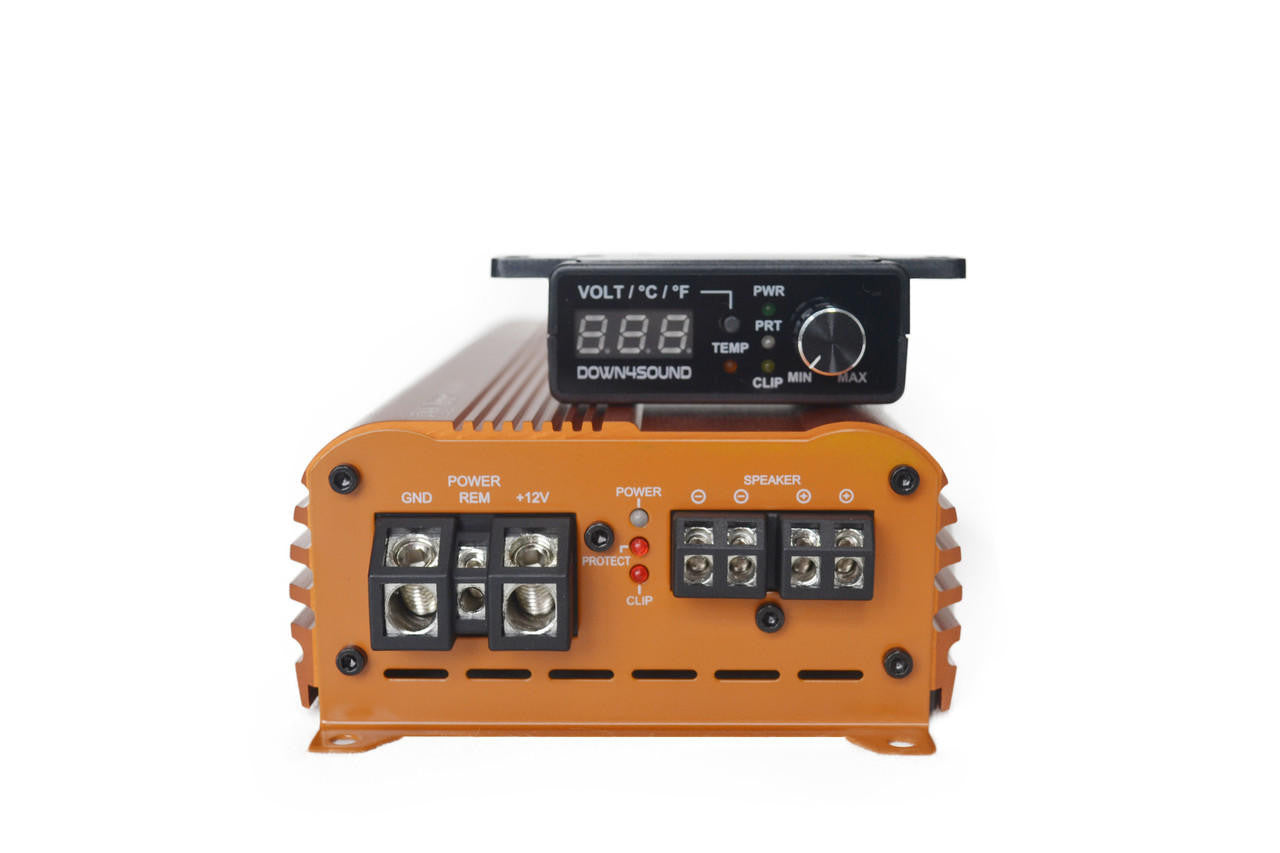

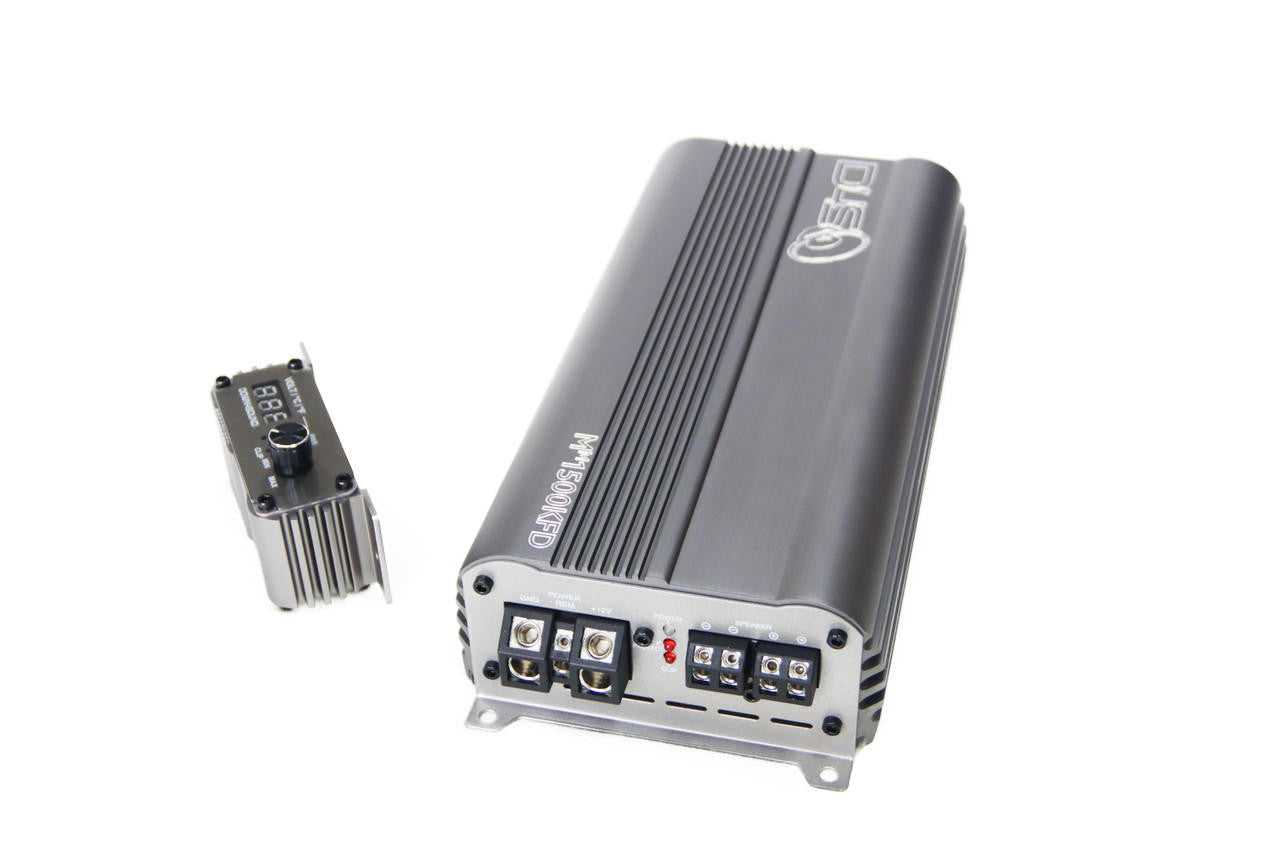

Introducing the Down4Sound MM1500KFD (MINI MAXX)
The Down4Sound MM1500KFD (MINI MAXX) is a 1500W RMS Mini Full Range Amplifier crafted to deliver unmatched sound quality across all frequencies. Compact and powerful, this amplifier is perfect for any car audio setup.
Key Features:
- Full Range Design: Powers subwoofers, mids, and highs seamlessly, ensuring clear, distortion-free sound.
- RMS Power Ratings: 500W x 1 @ 4 Ohm, 1000W x 1 @ 2 Ohm, 1500W x 1 @ 1 Ohm (14.4V, 1% THD, 1KHz)
- Frequency Response: 10Hz – 23.6KHz
- Signal-to-Noise Ratio: 90dB
- Damping Factor: 150
- Input Sensitivity: Adjustable from 6V to 0.2V

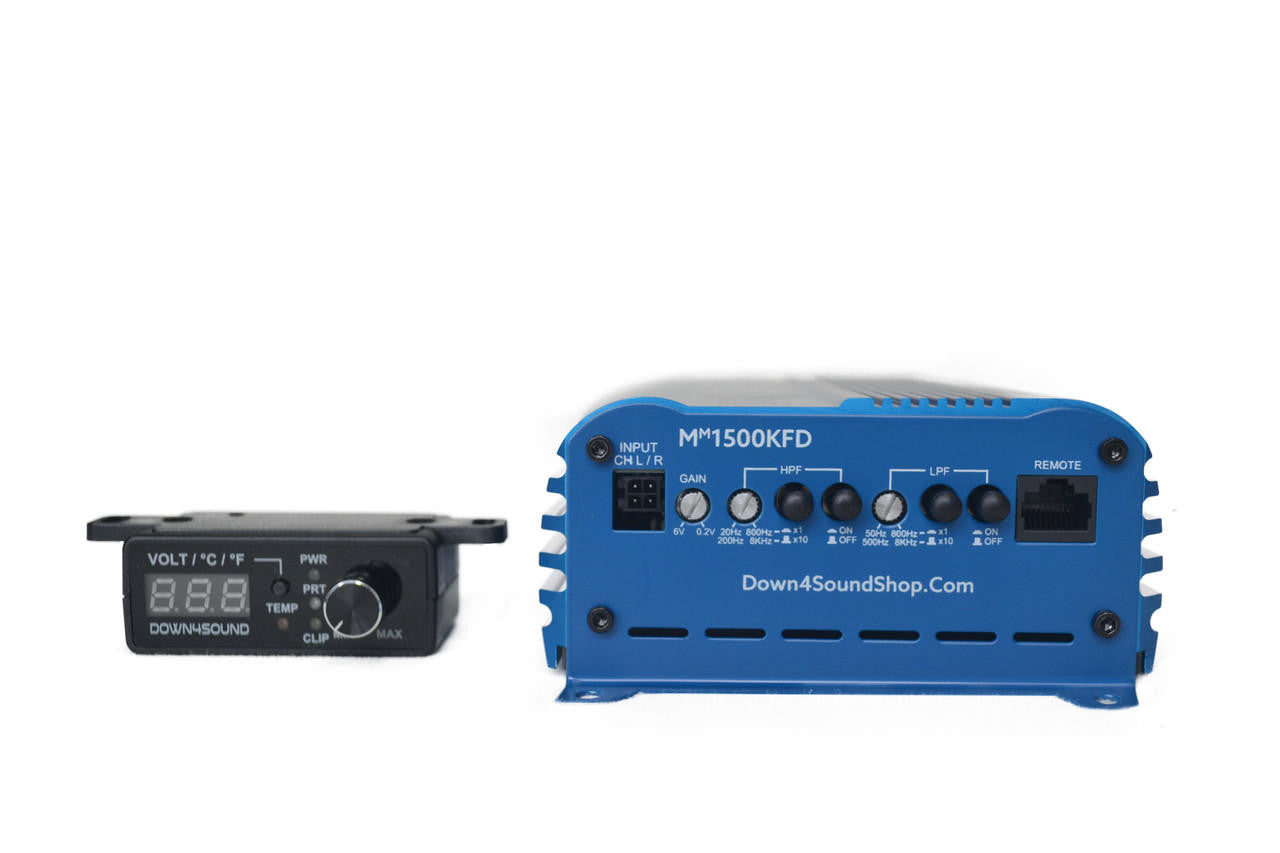

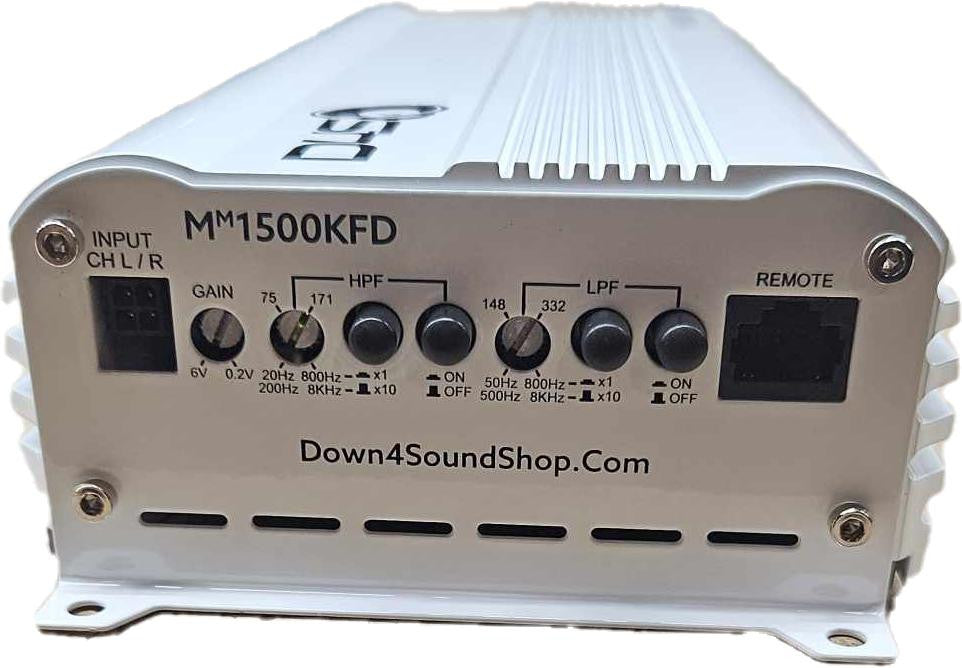

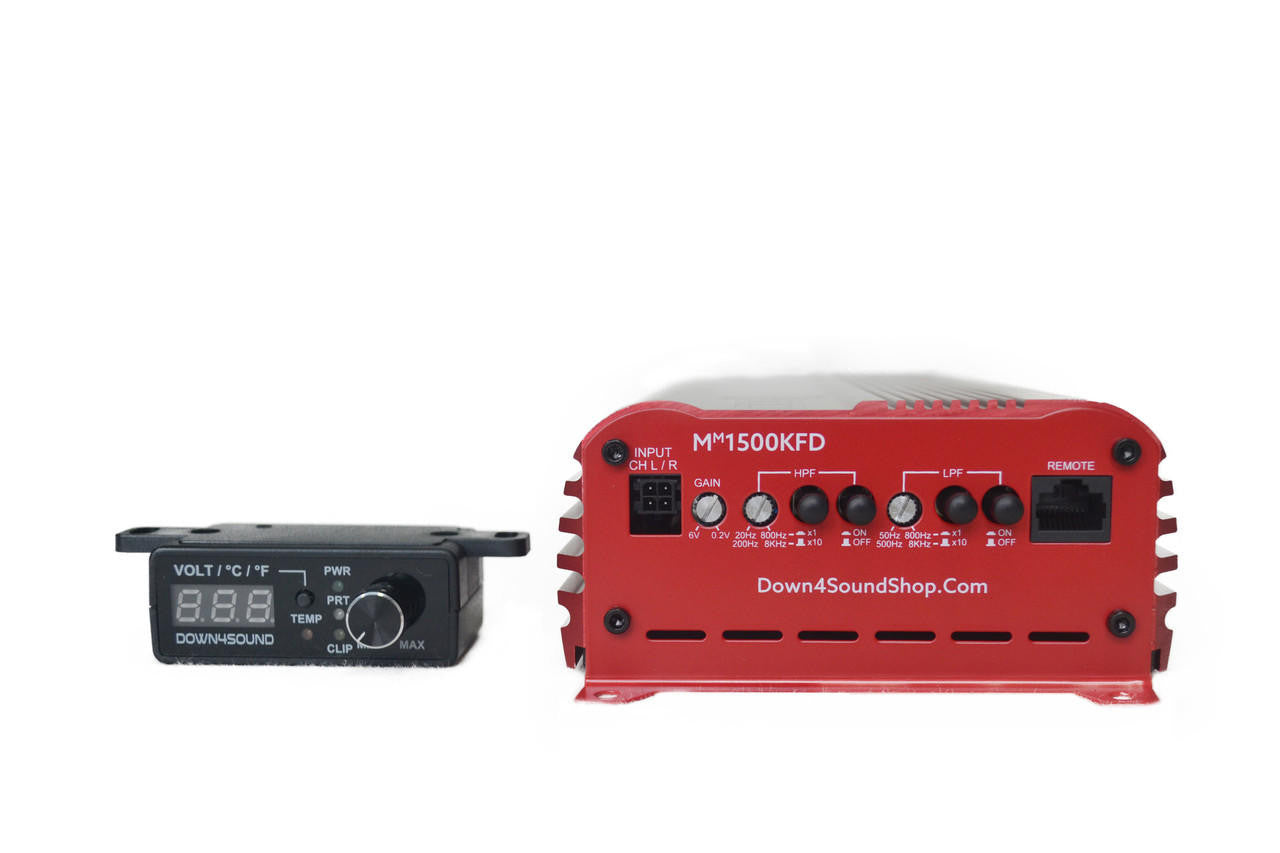

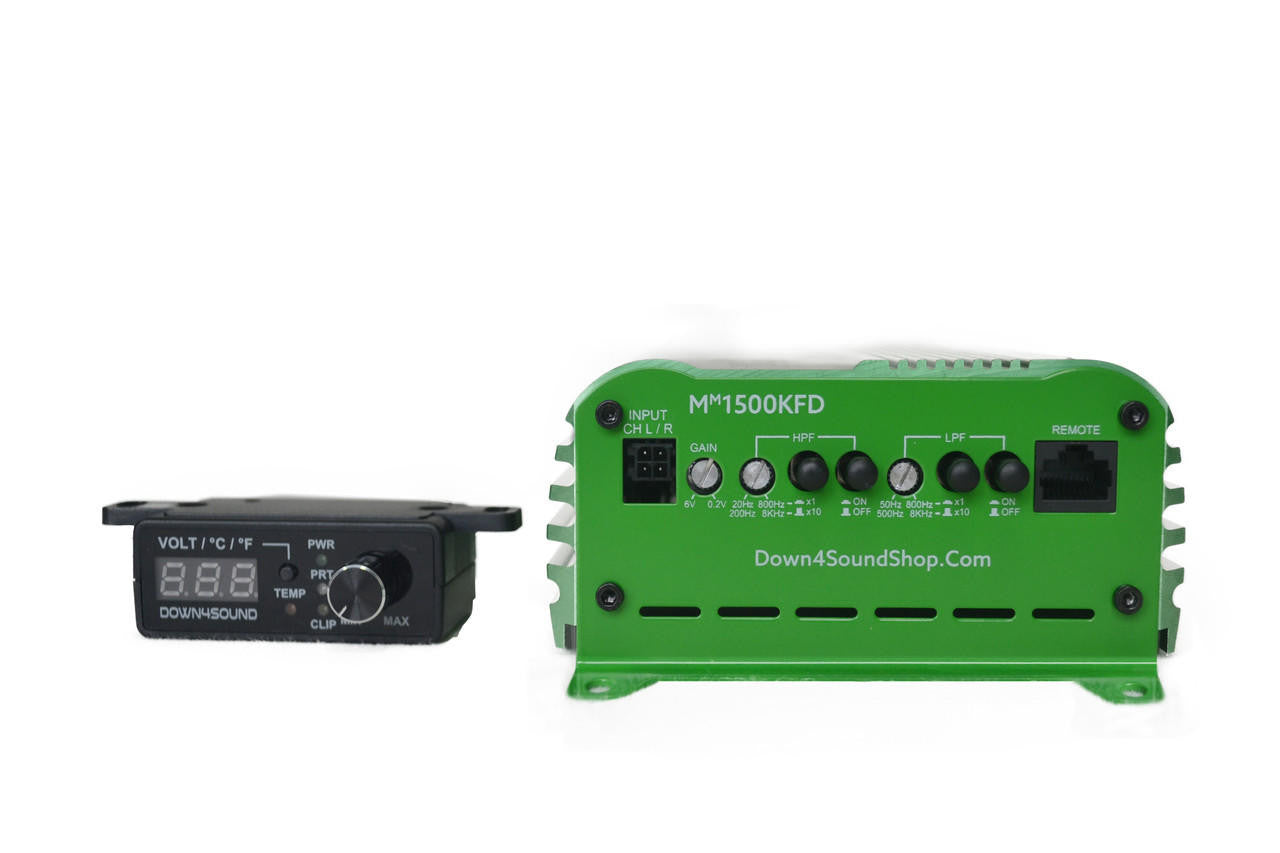

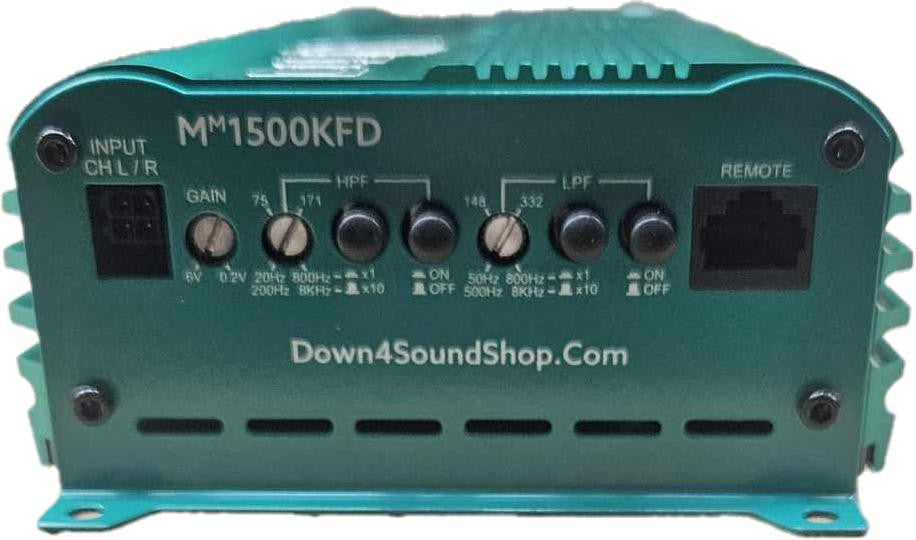

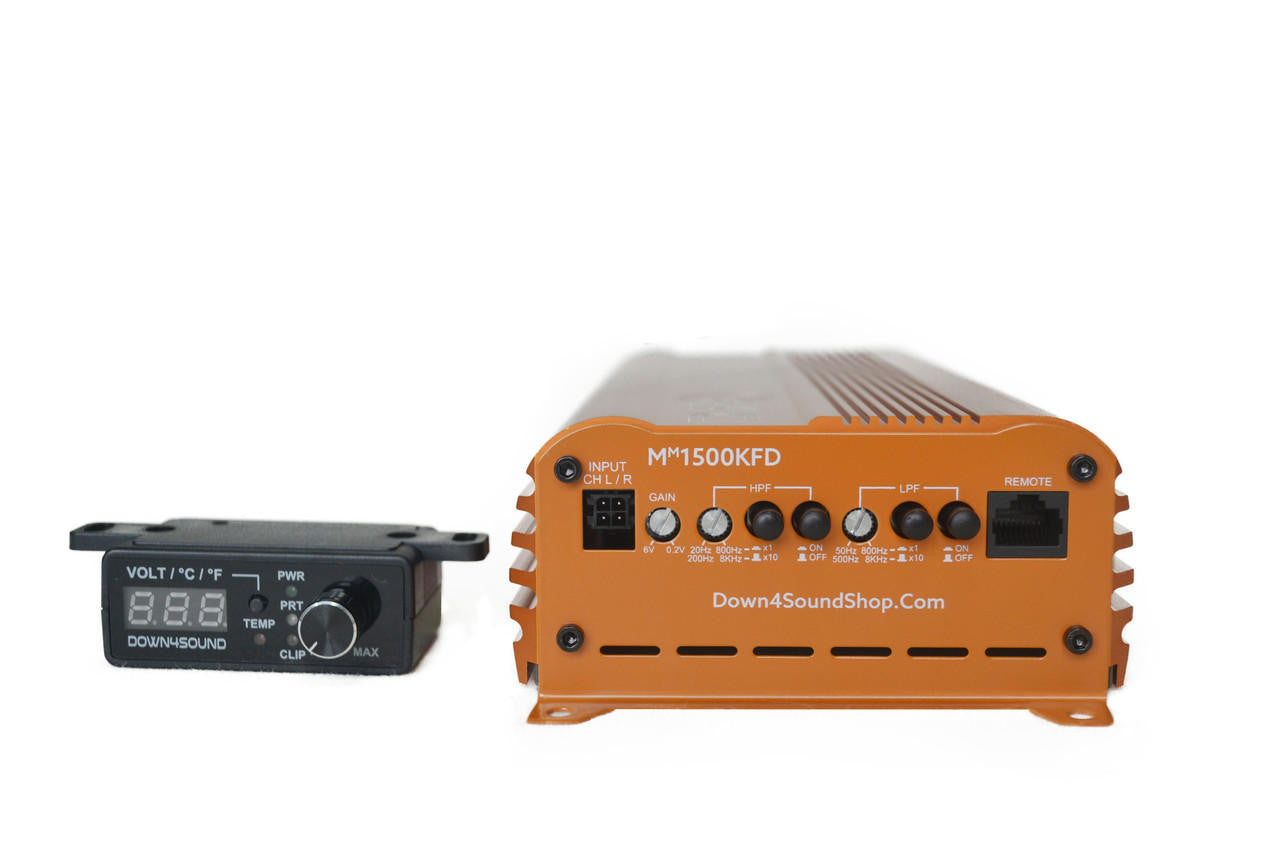

Advanced Tuning Options:
- High Pass Filter: Adjustable from 20Hz to 800Hz, with multiply options (x1, x10 for 200Hz to 8KHz).
- Low Pass Filter: Adjustable from 50Hz to 800Hz, with multiply options (x1, x10 for 500Hz to 8KHz).
- Bandpass Capable: Optimize your system for clear mids, highs, and bass.
Specifications:

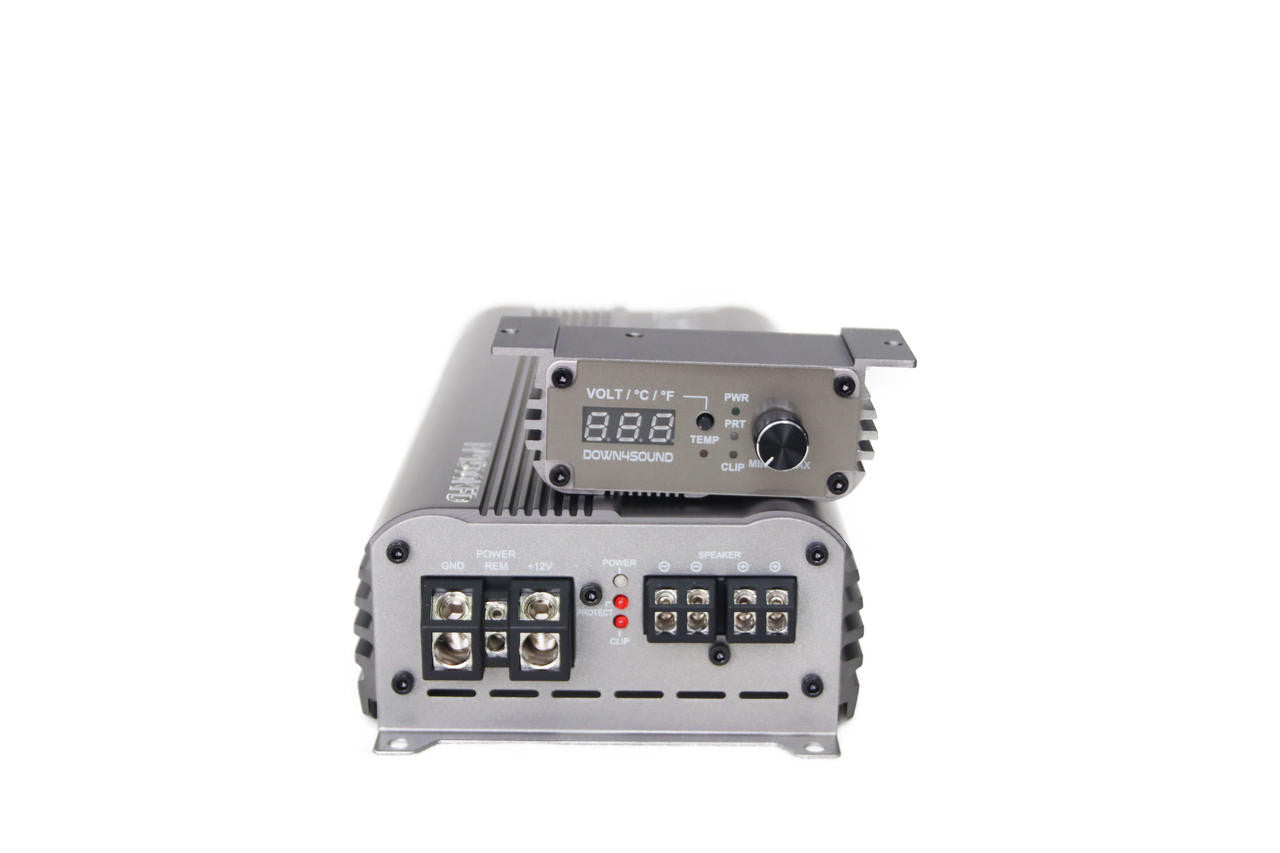

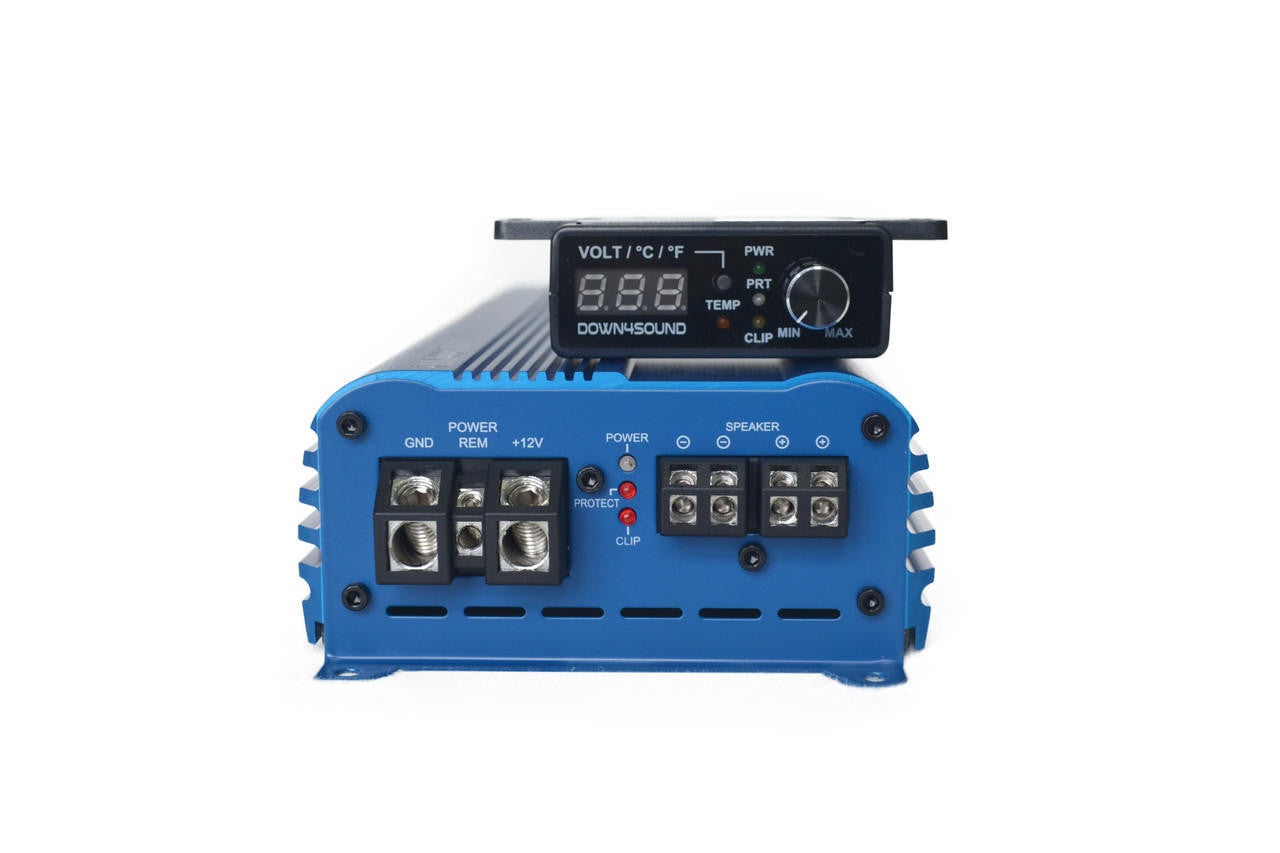

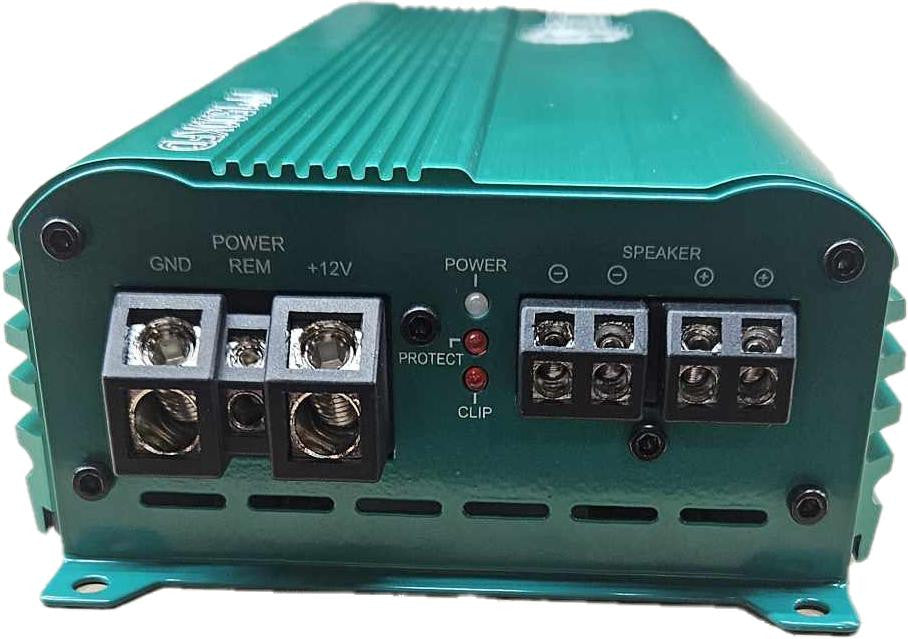

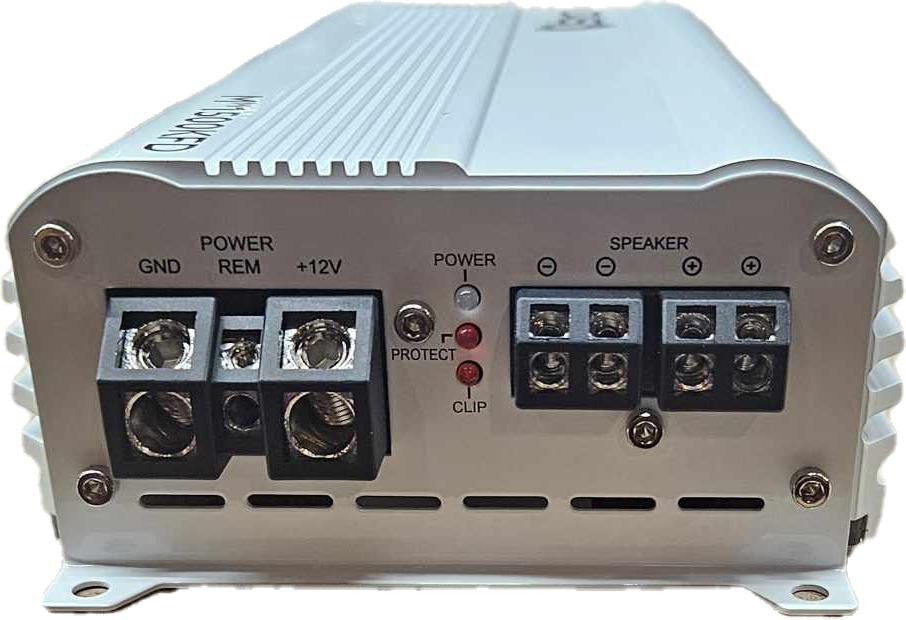

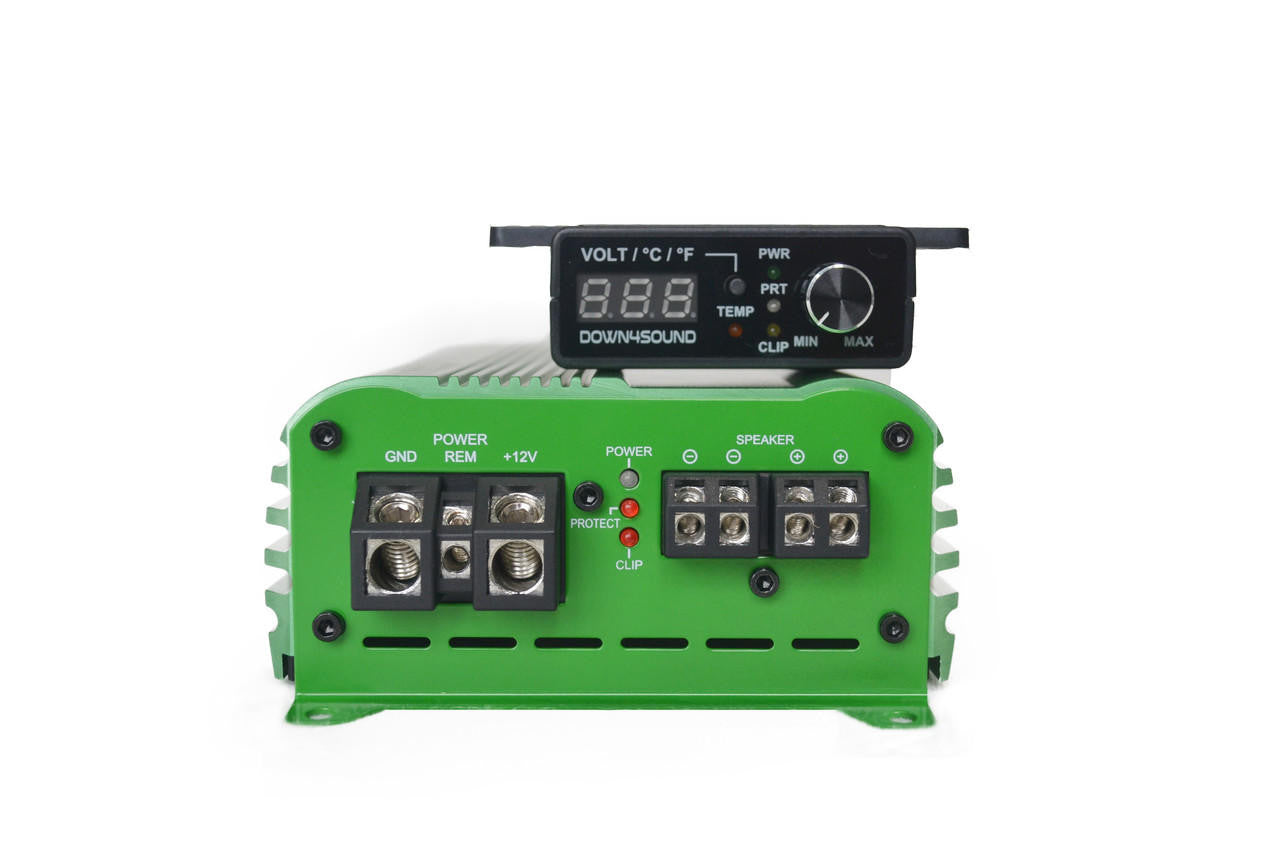

- Power & Ground Terminals: 4 GA
- Speaker Terminals: 14 GA
- Dimensions: 9.44" x 4.87" x 2.13" (240mm x 123.9mm x 54.3mm)
- Wide Voltage Range: 9V to 15.5V
The Down4Sound MM1500KFD (MINI MAXX) combines premium performance, stylish design, and advanced features to elevate your car audio experience.
