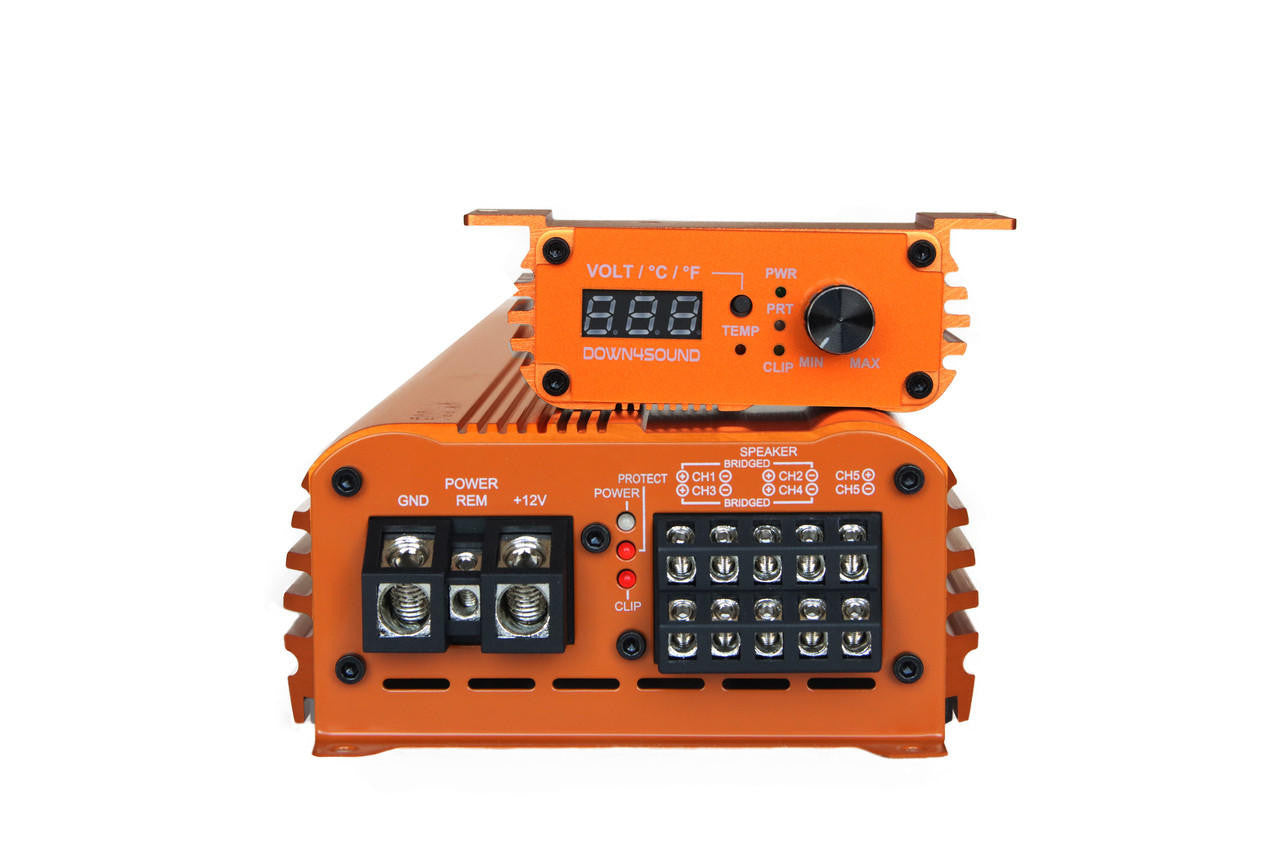

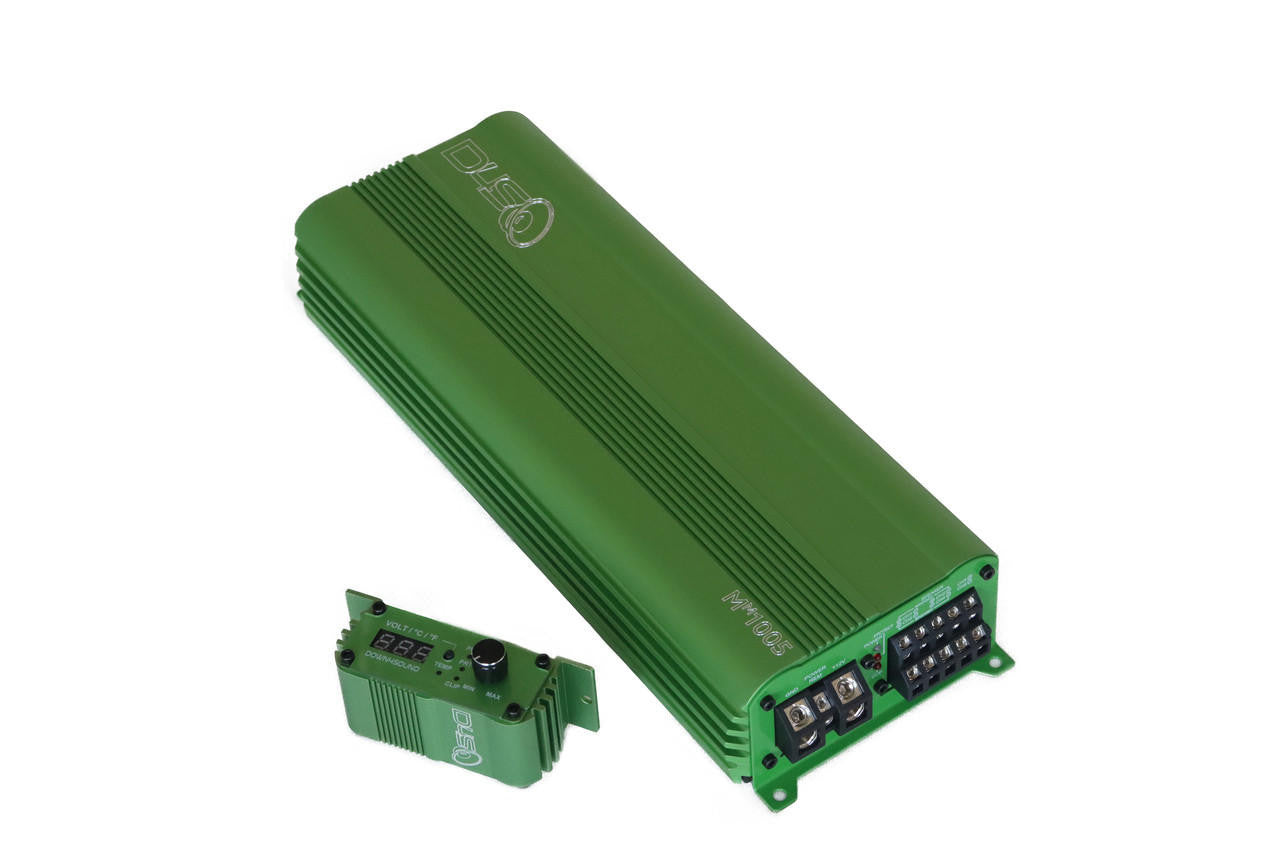

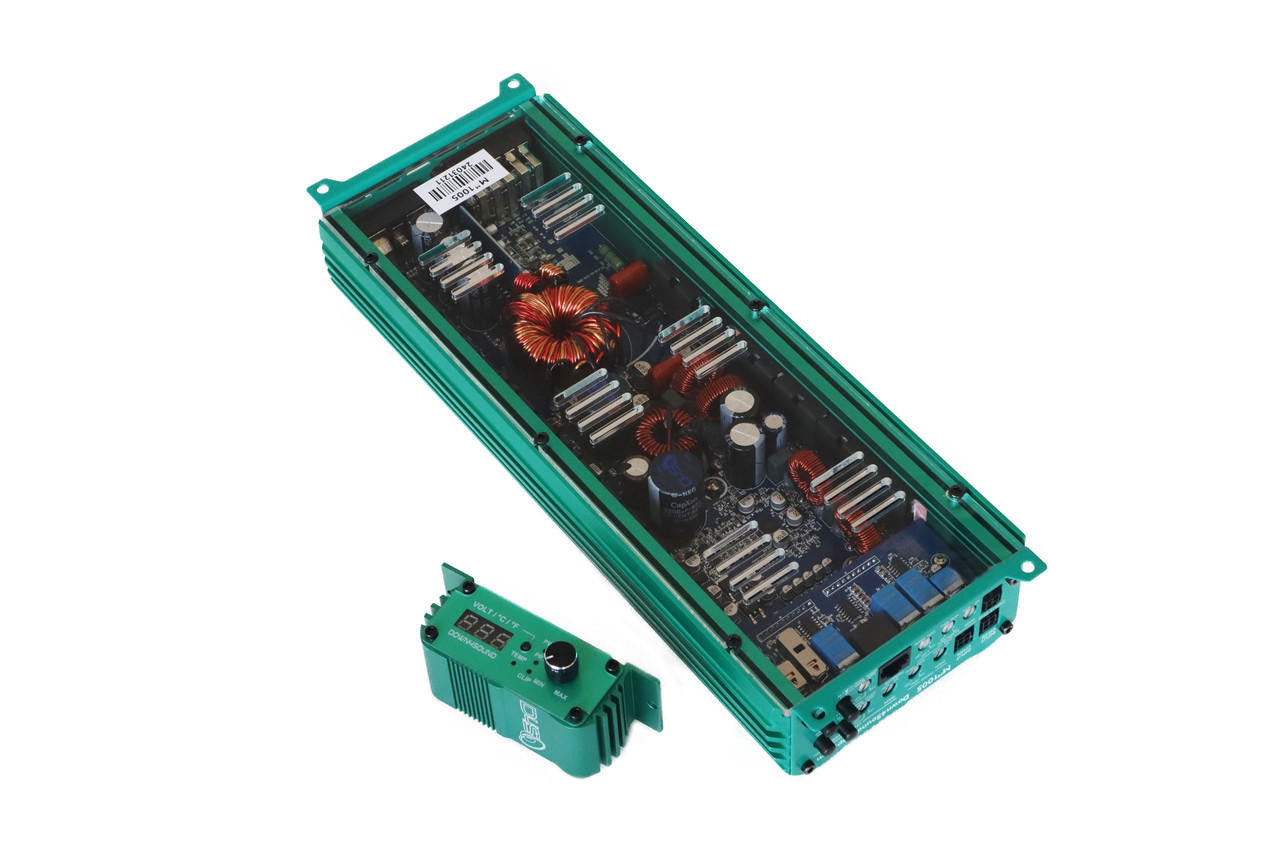

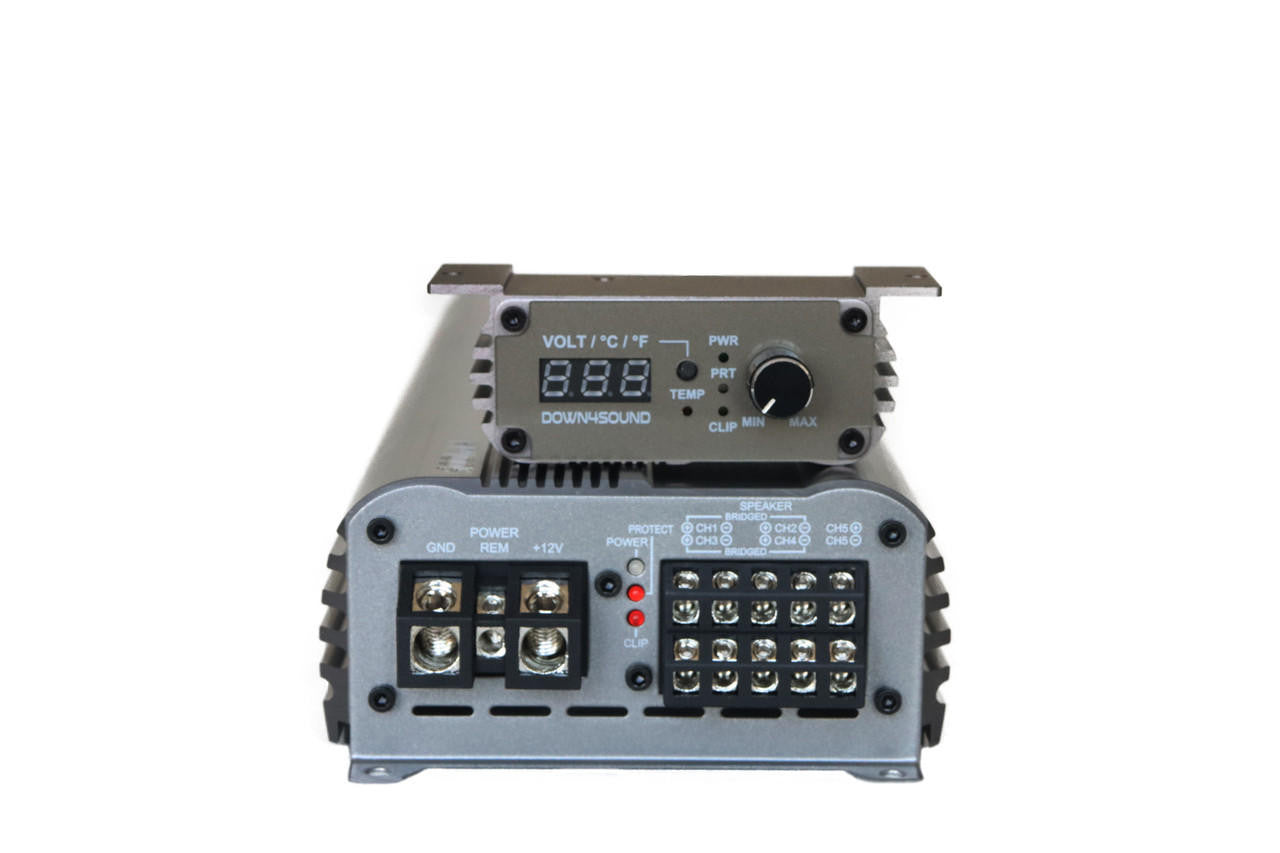

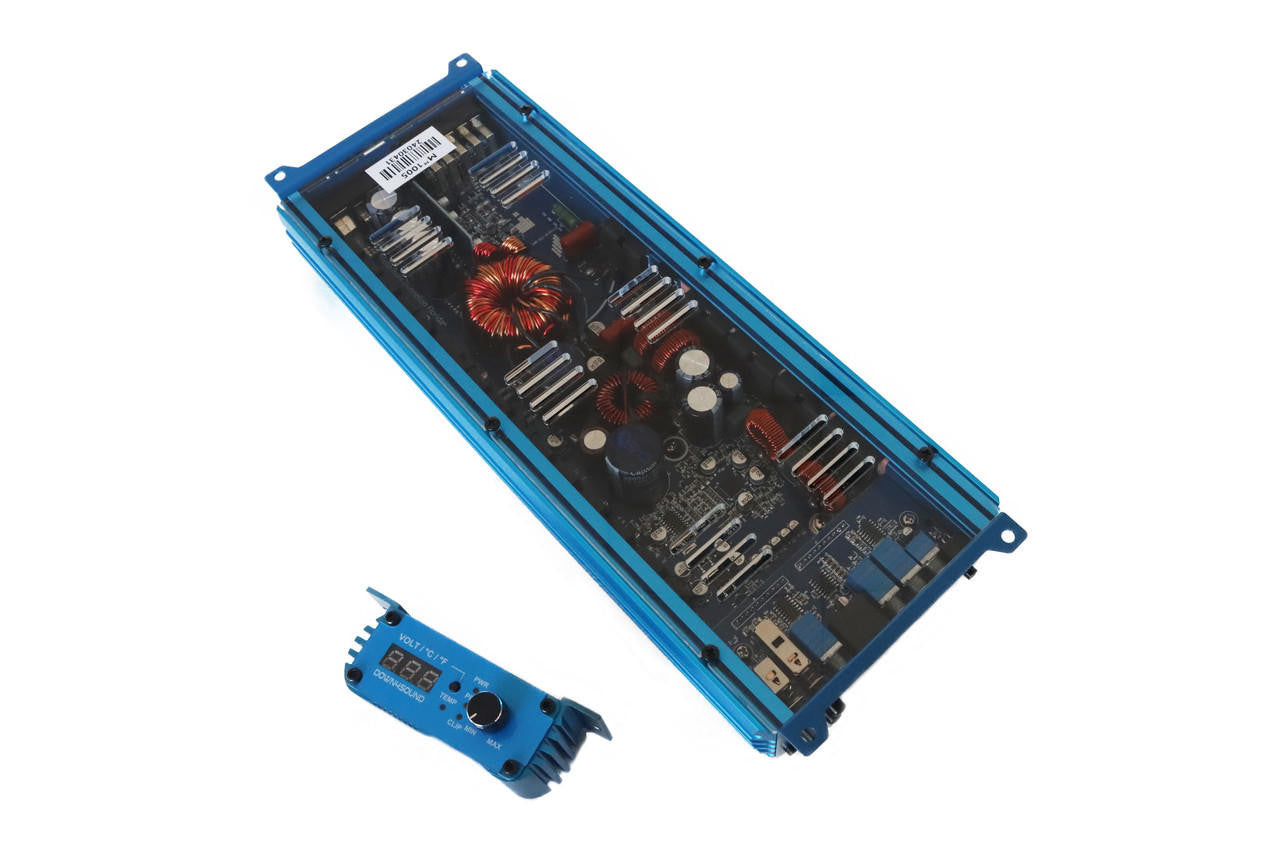

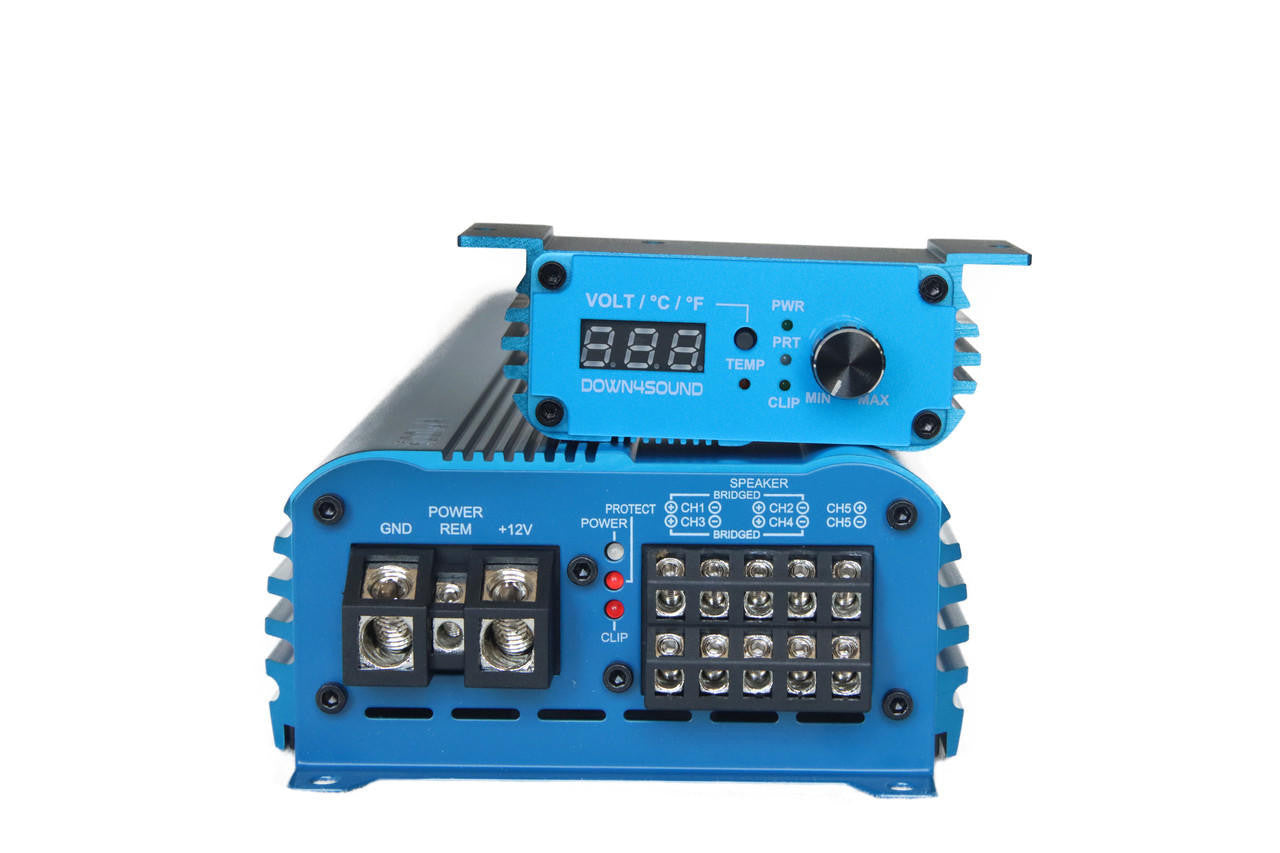

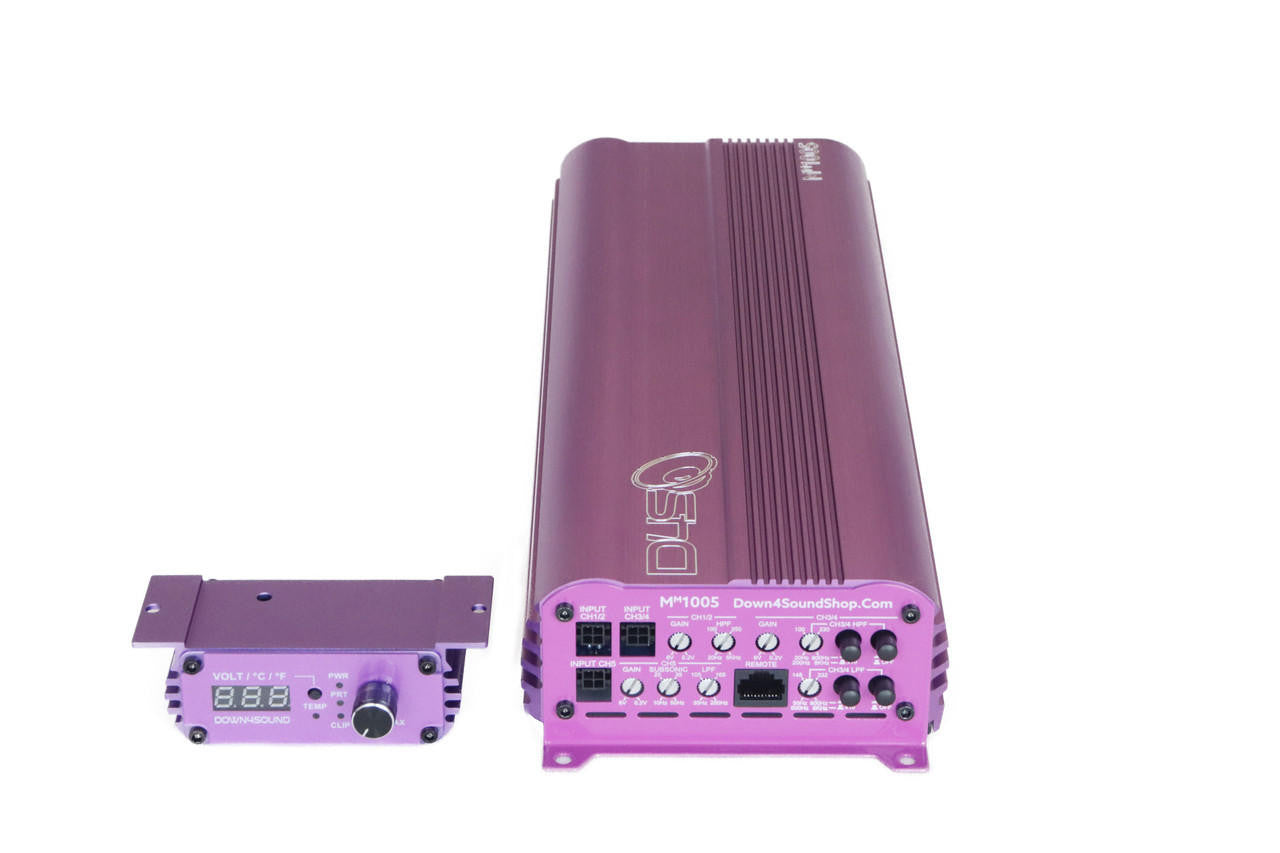

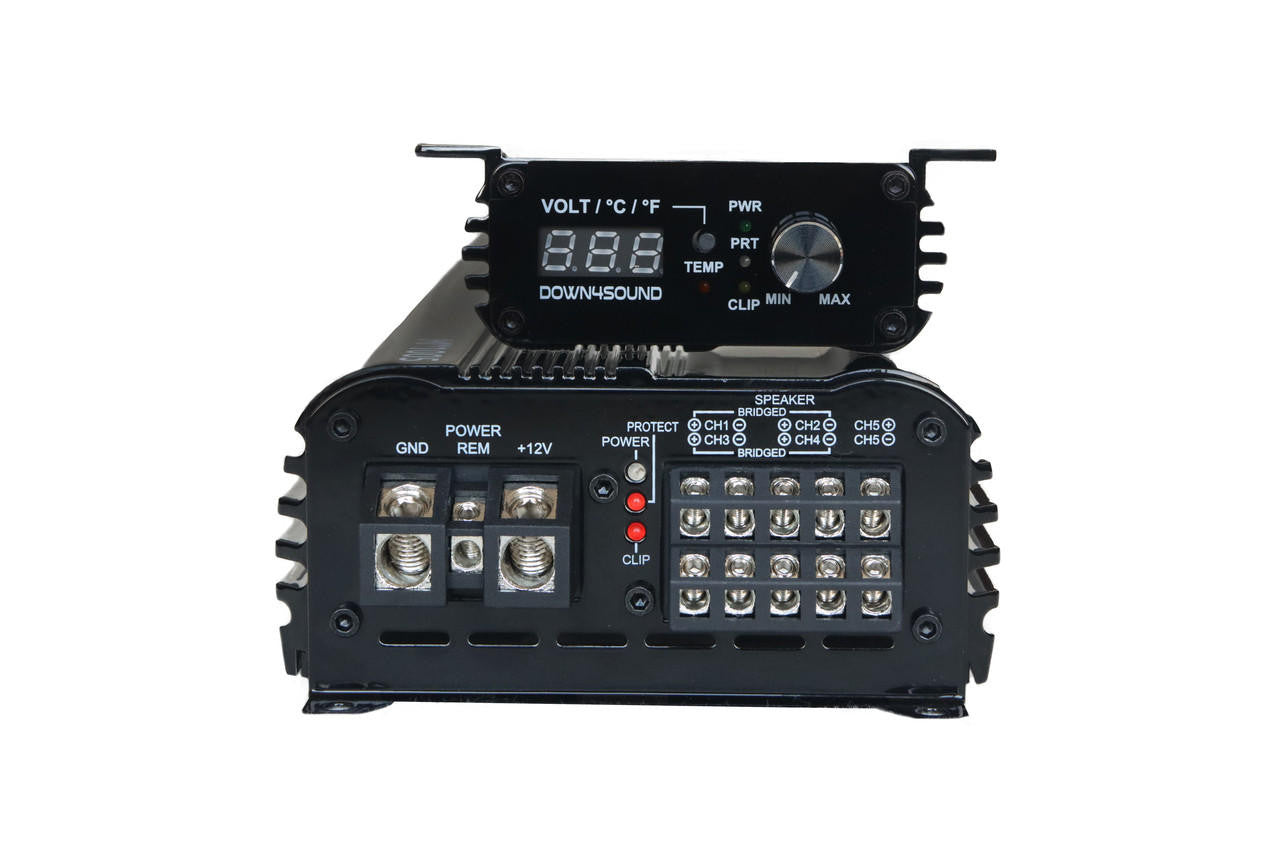

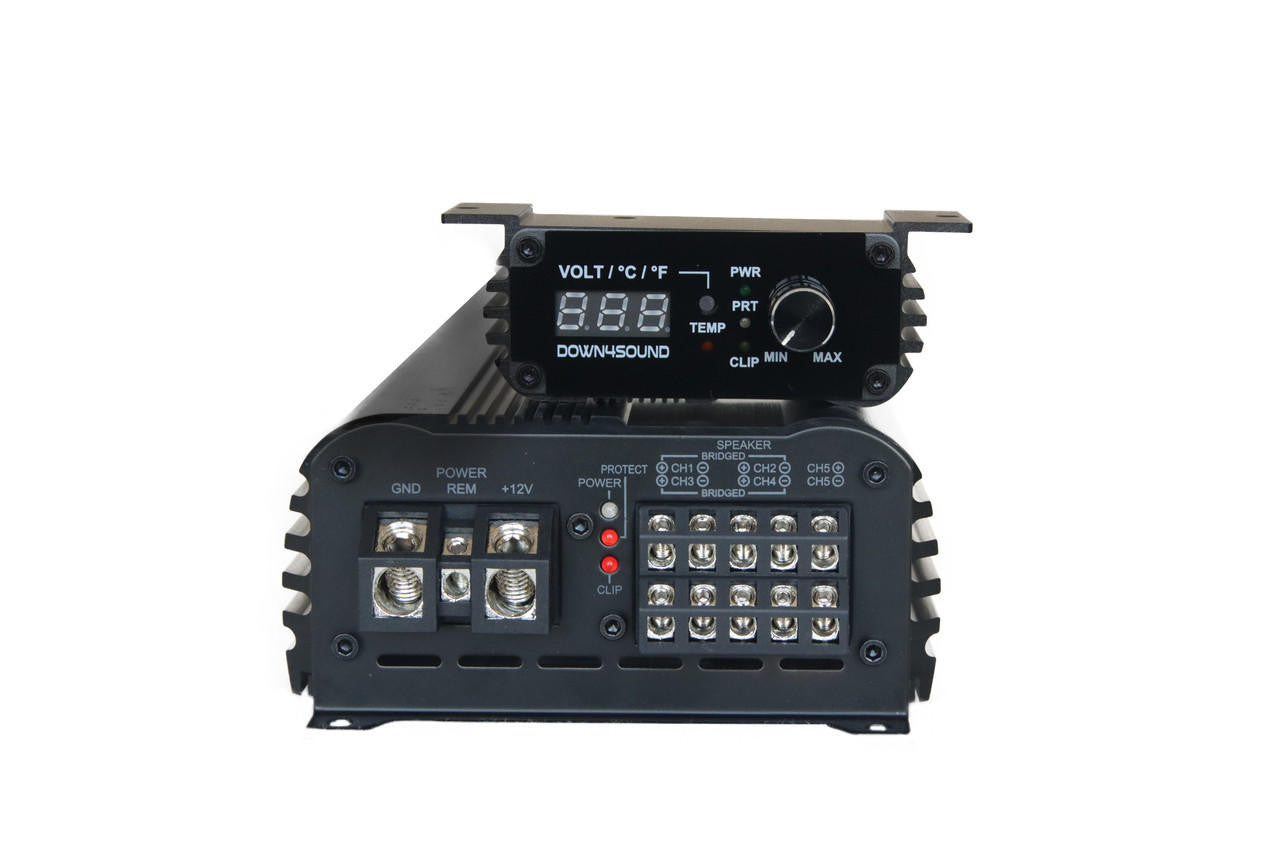

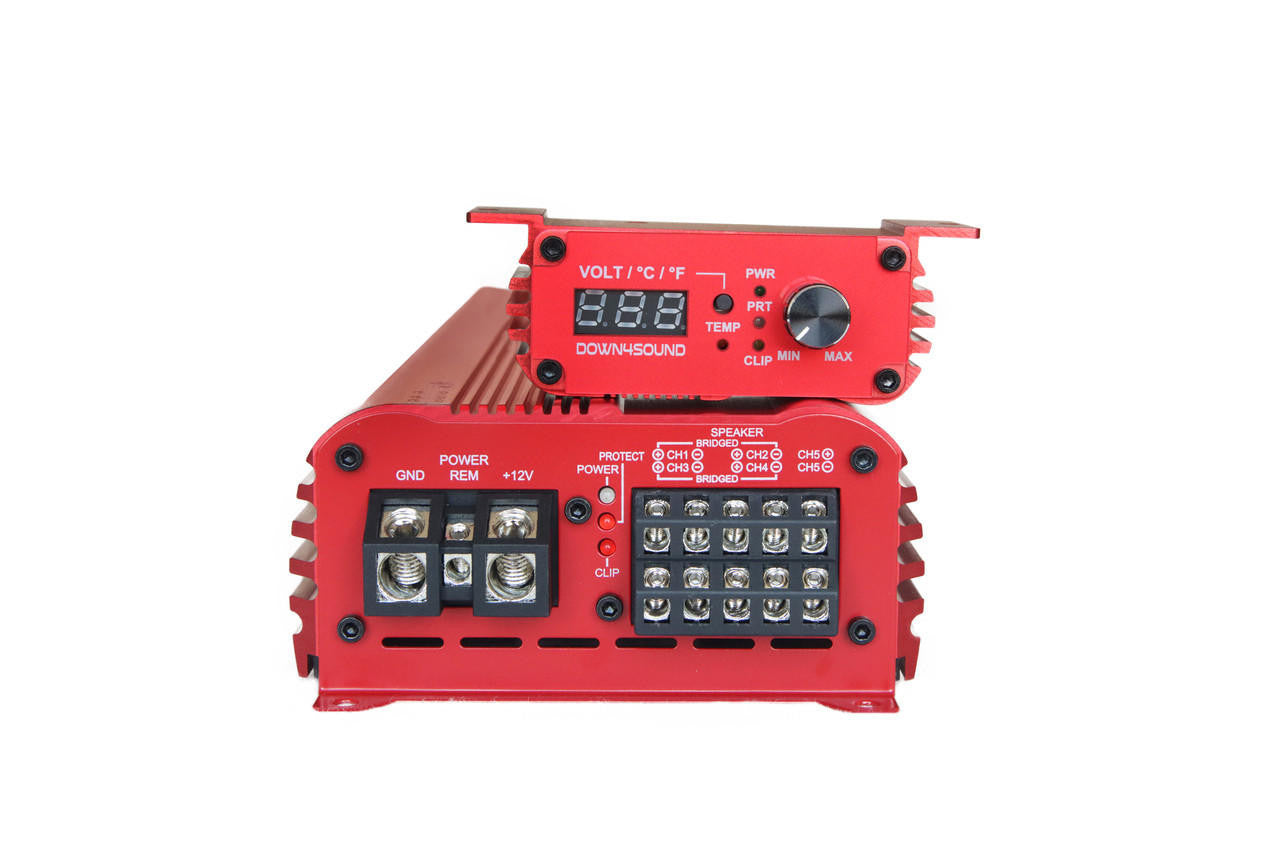

Down4Sound MM1005 (mini Maxx) - 1100W RMS Mini 5 Channel Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
,%20a%20dynamic%205-channel%20amplifier%20designed%20to%20deliver%20exceptional%20sound%20quality%20and%20performance.%20Key%20Features:%20%0AFull%20Range%20%26amp;%20D...
){kind=link}

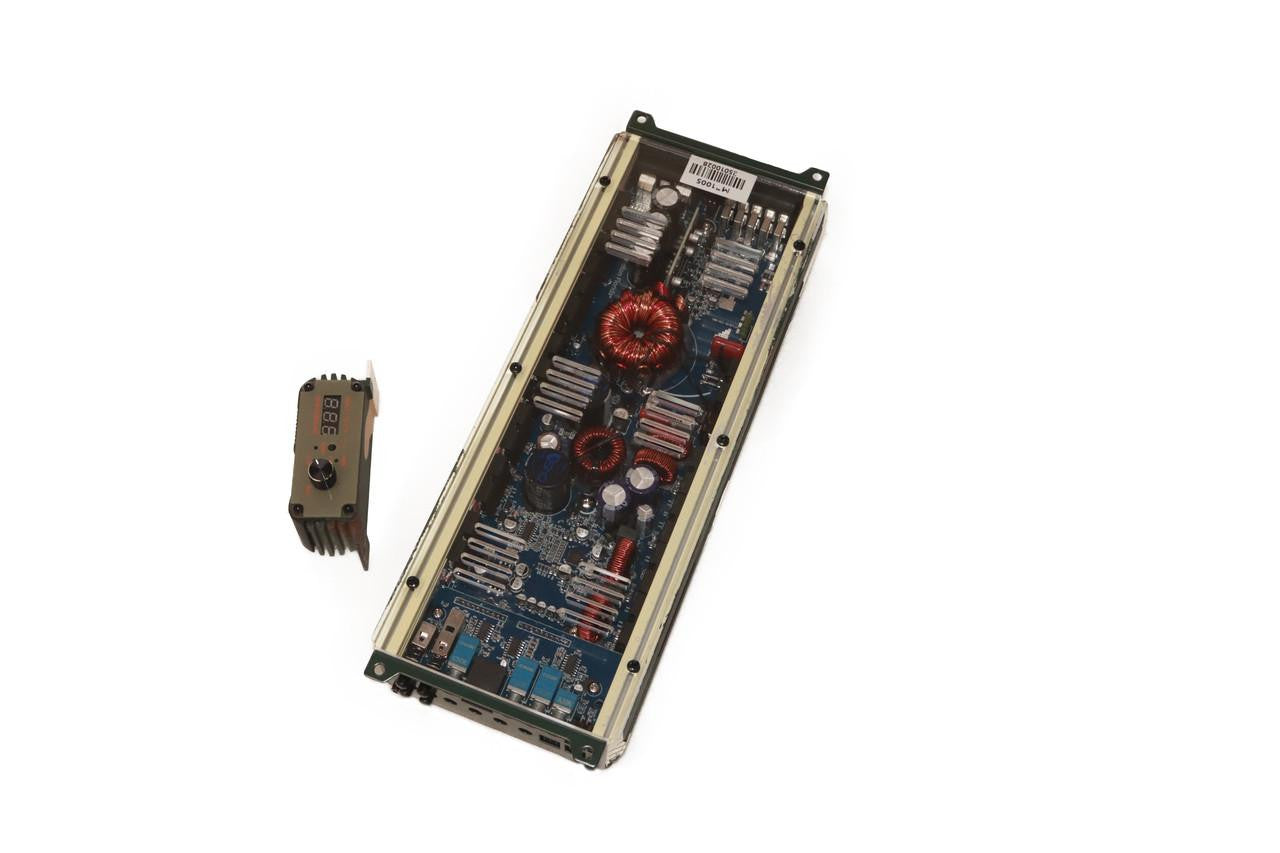

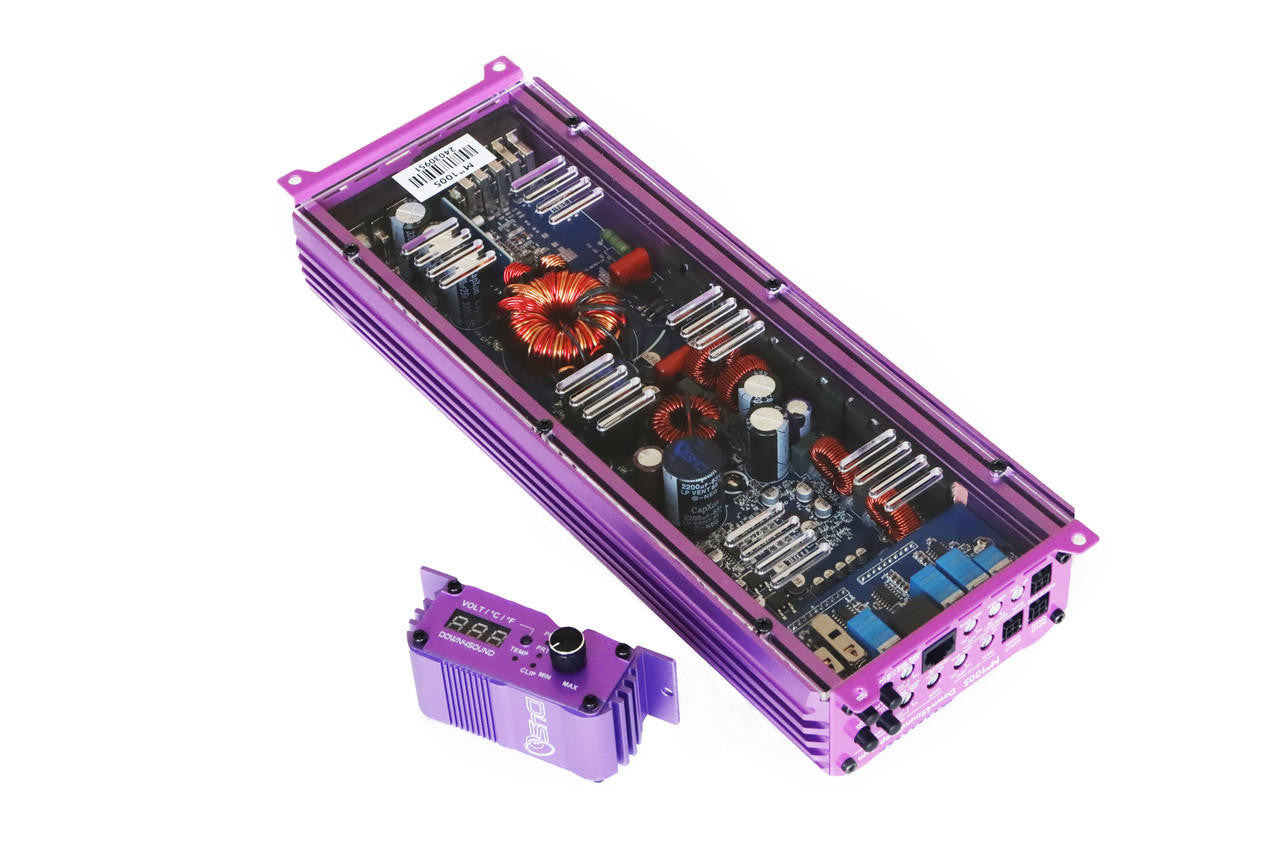

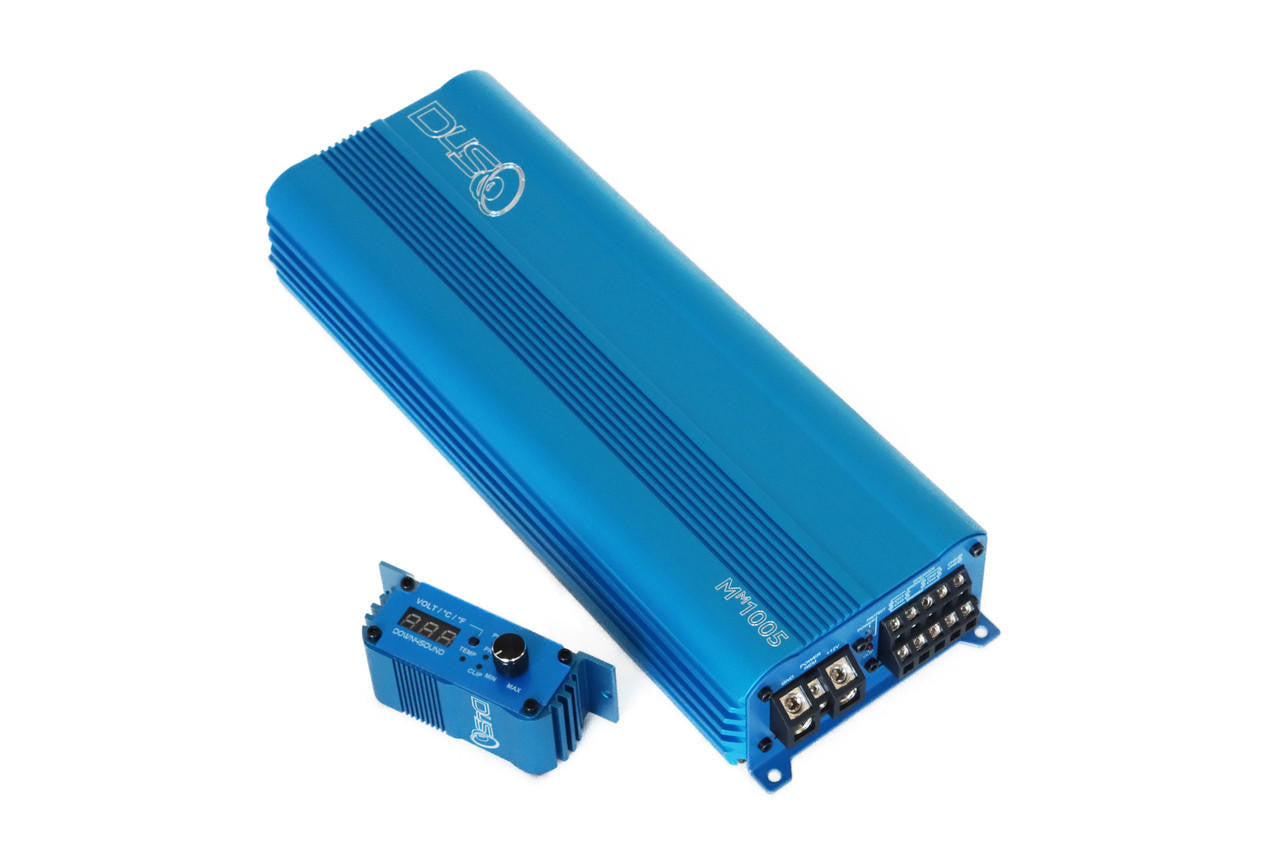

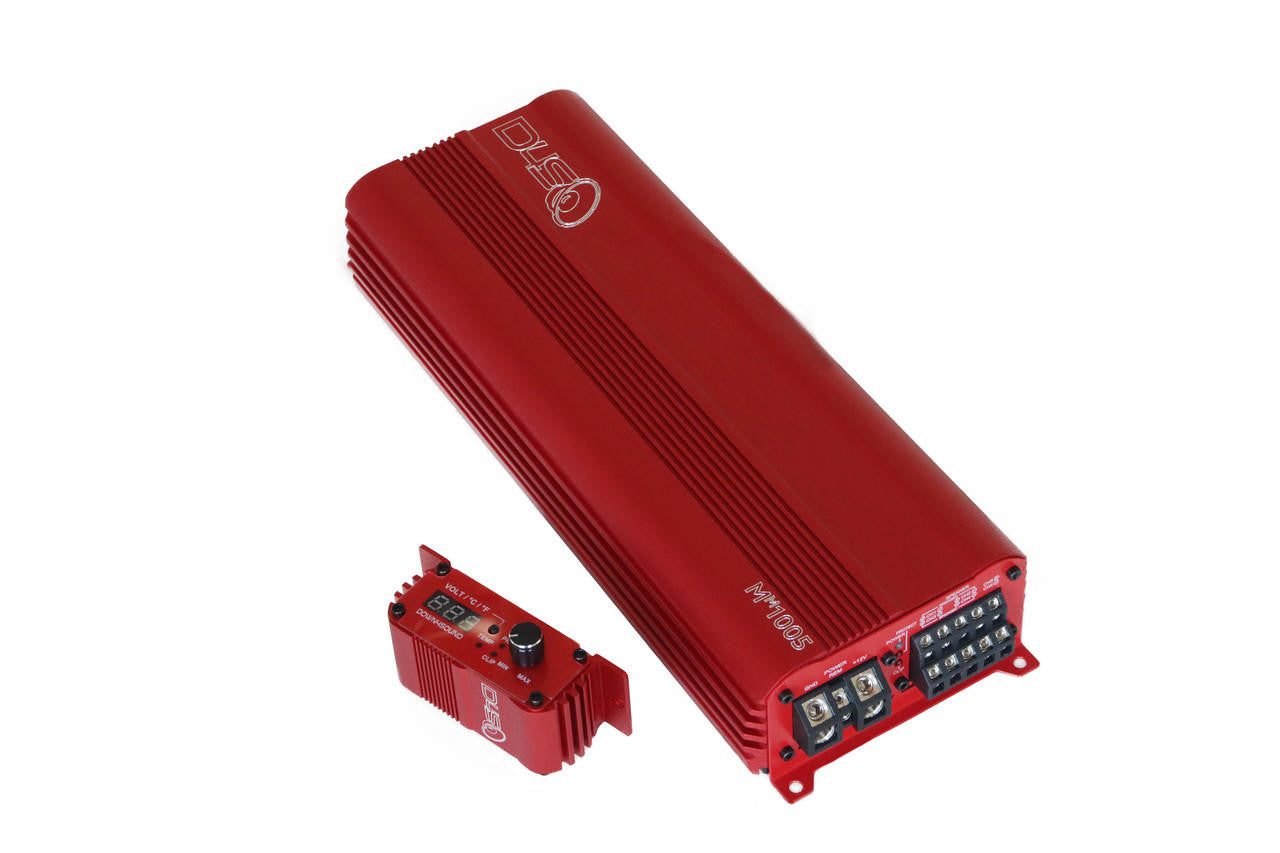

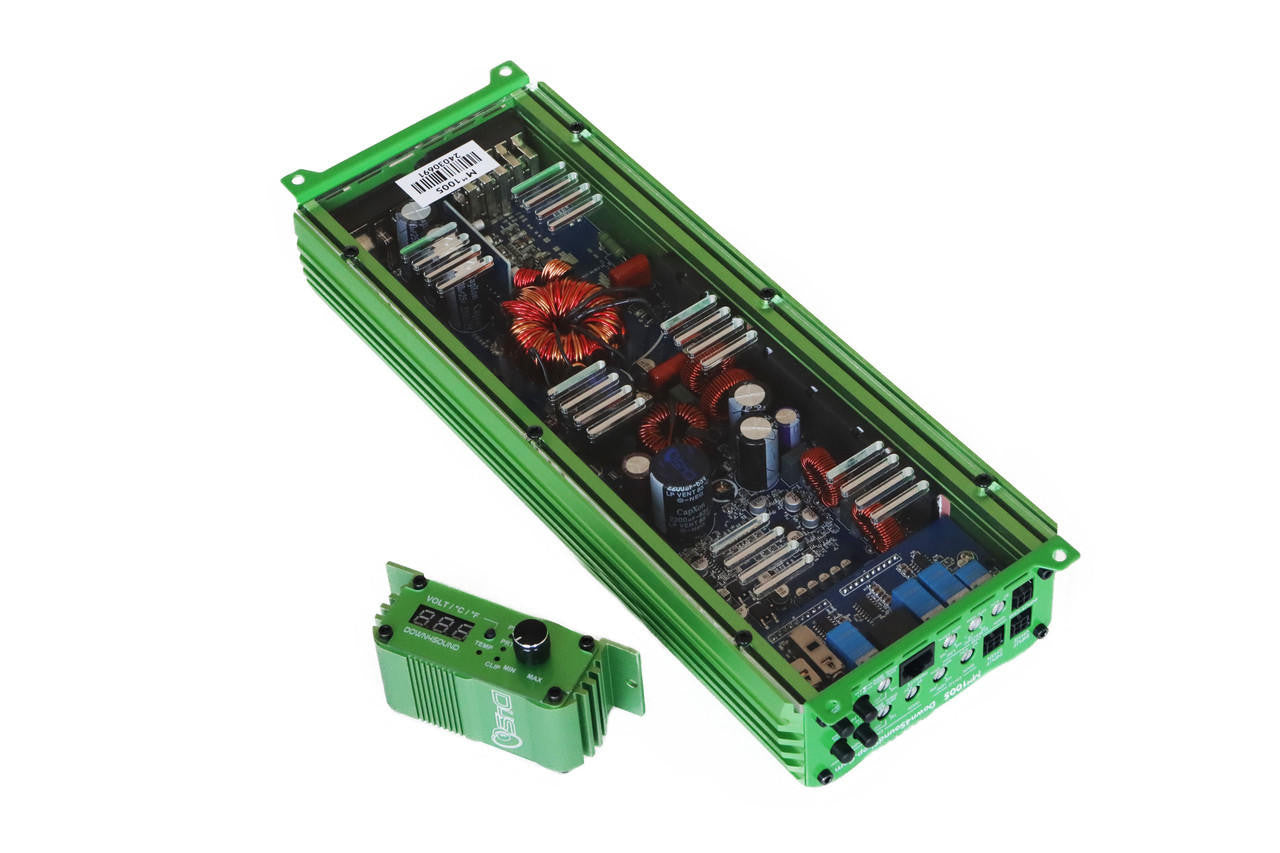

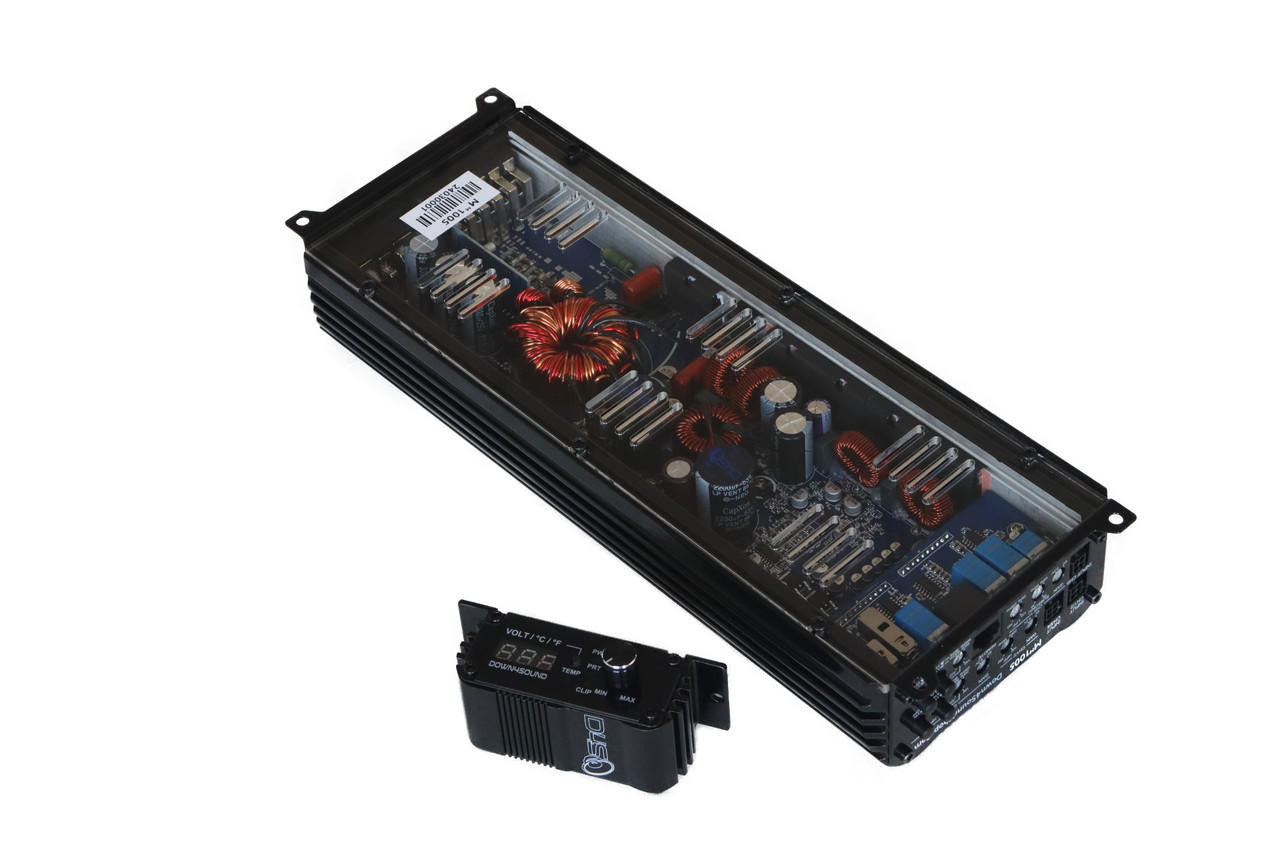

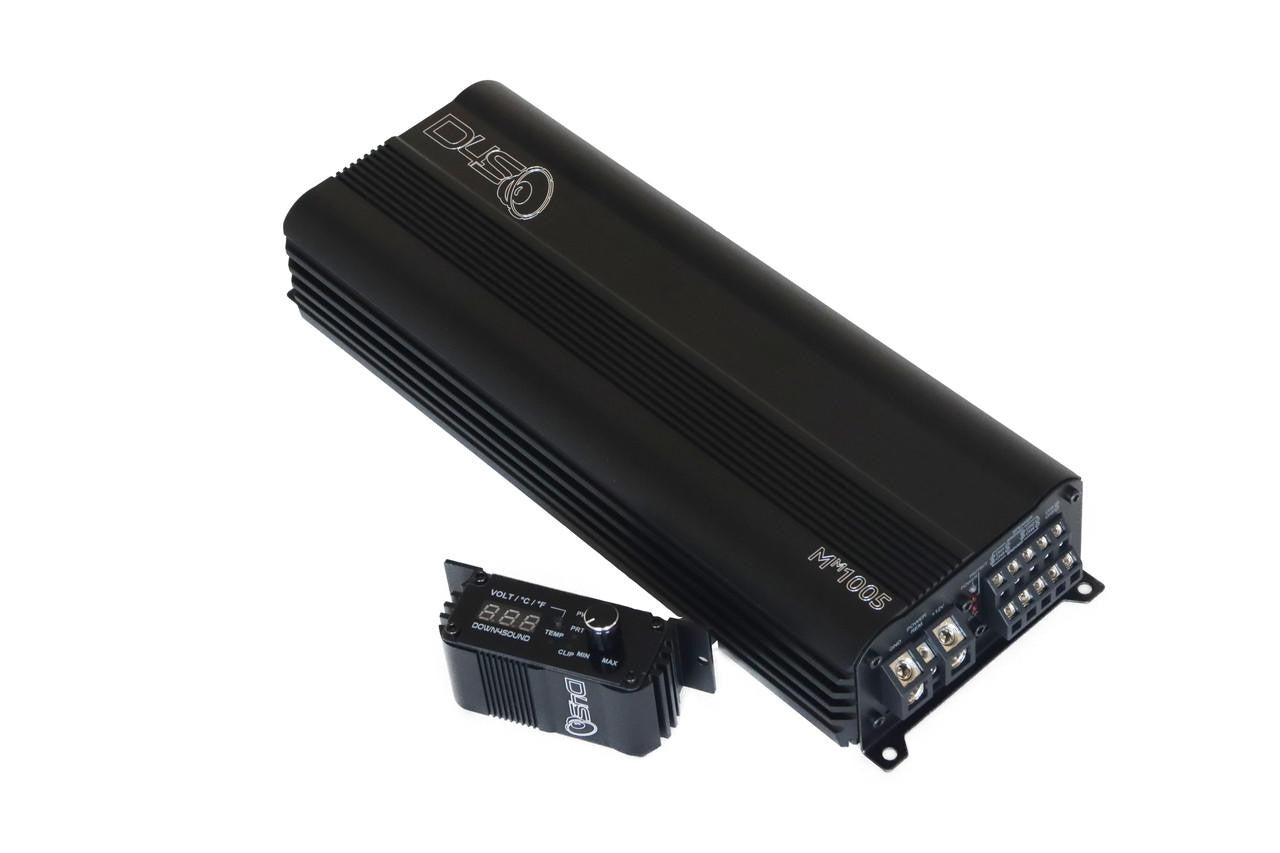

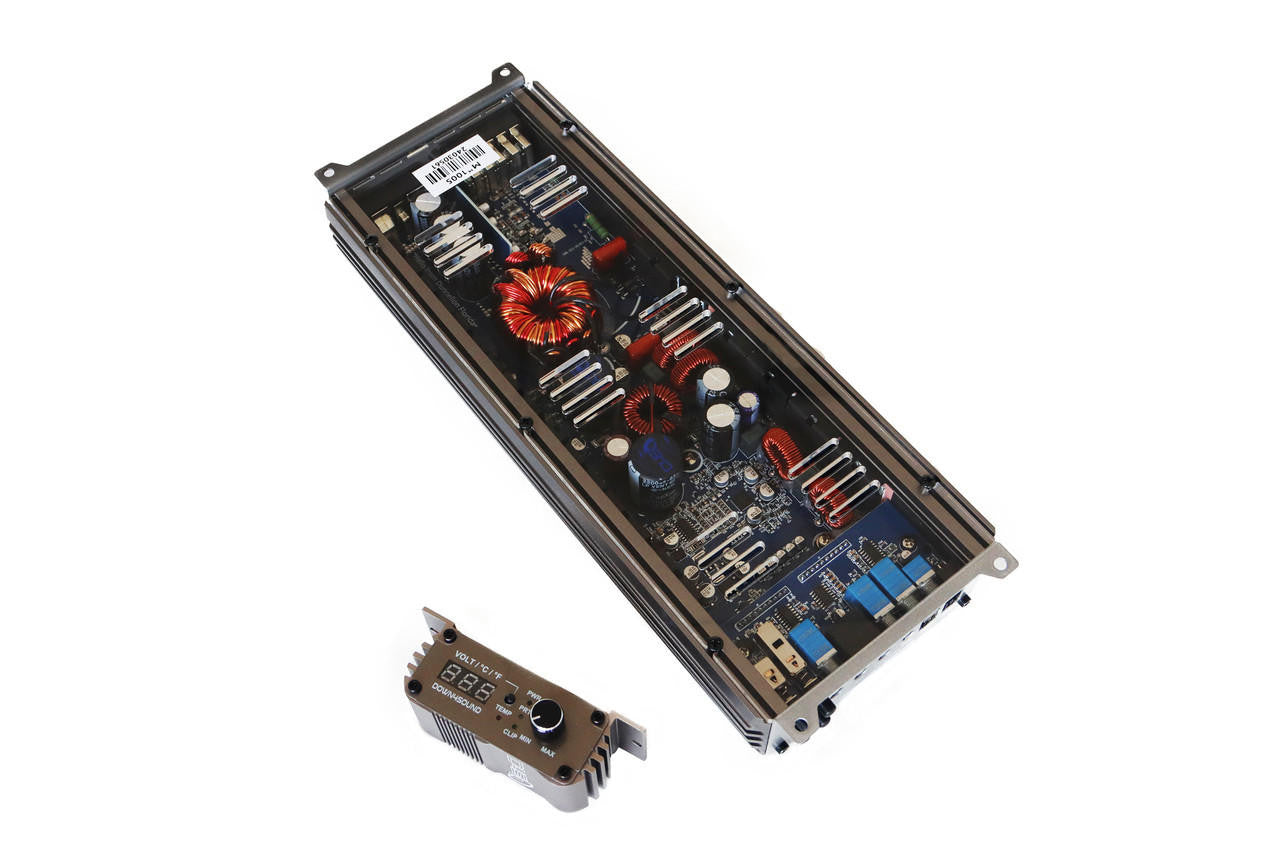

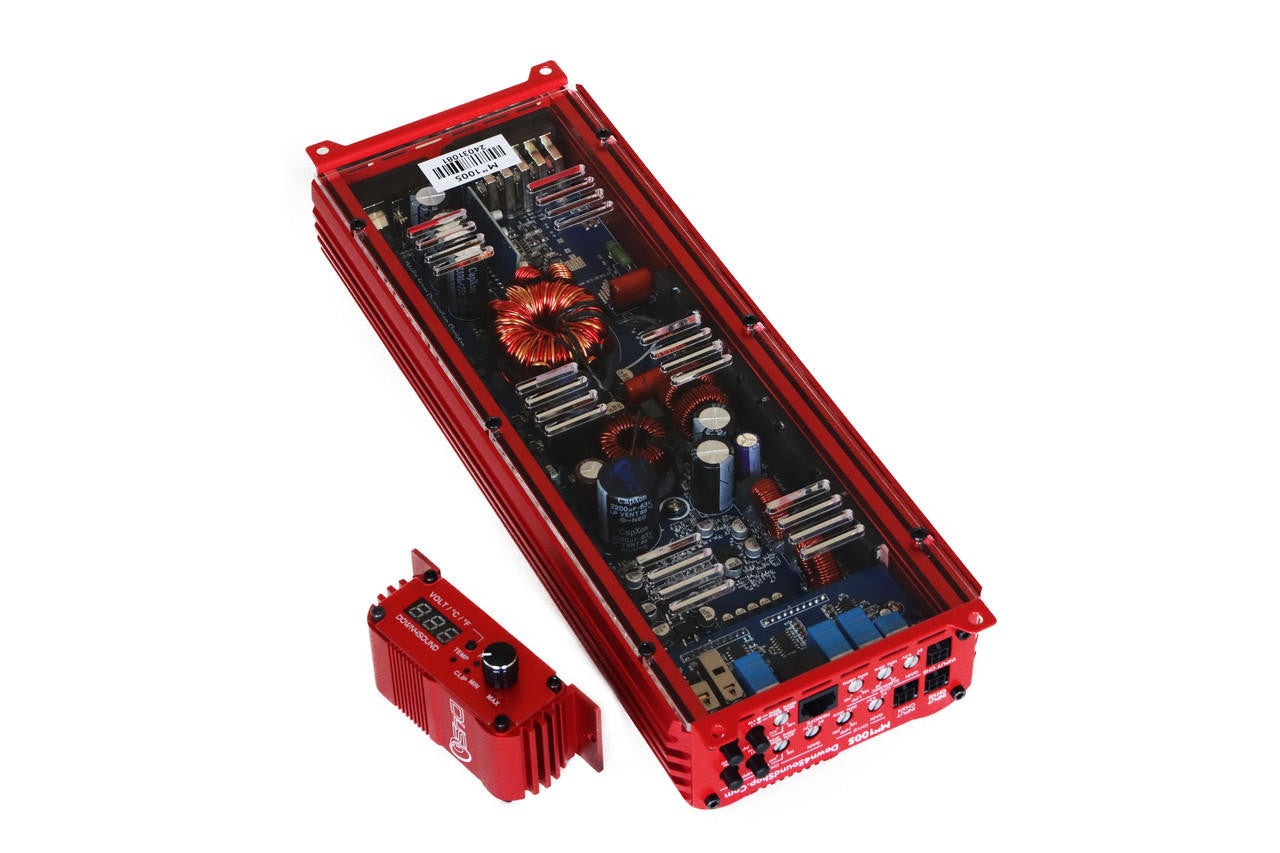

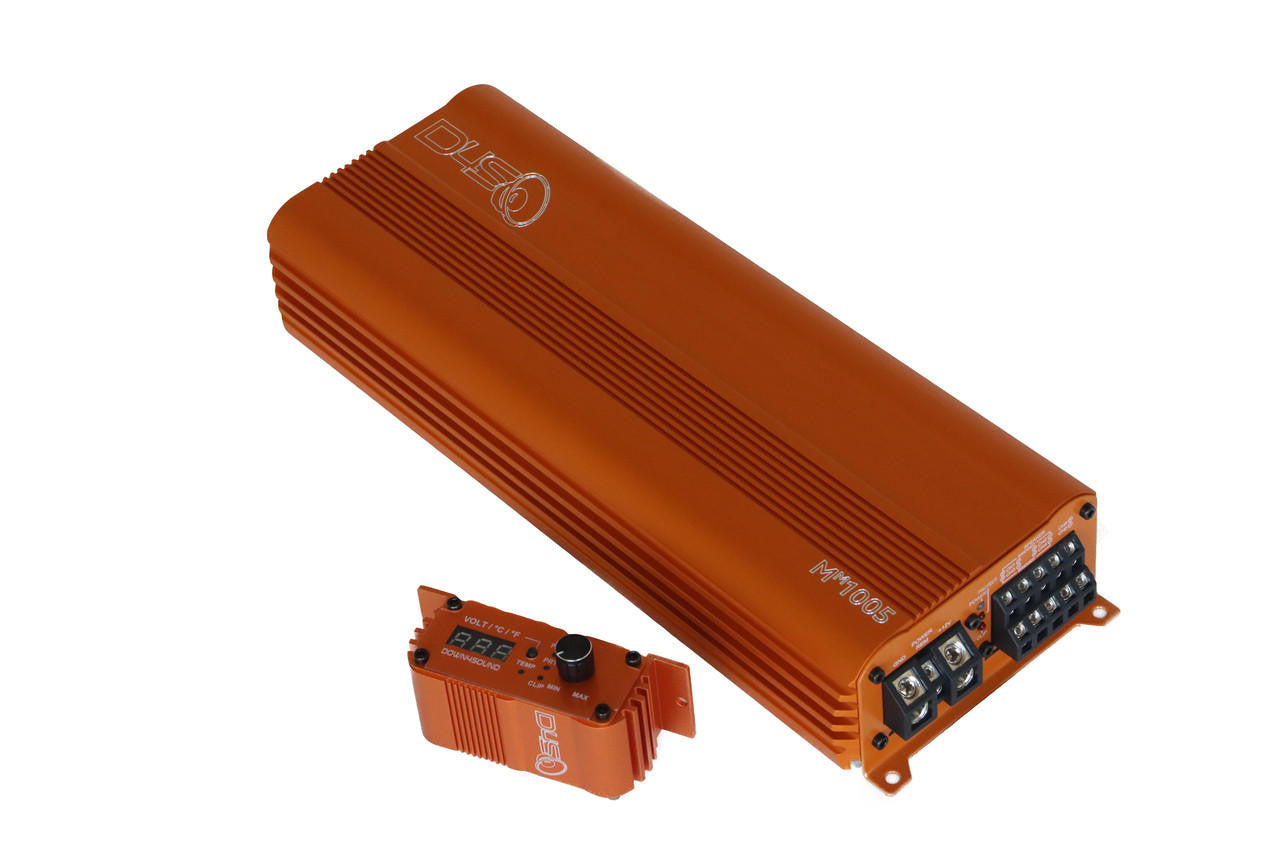

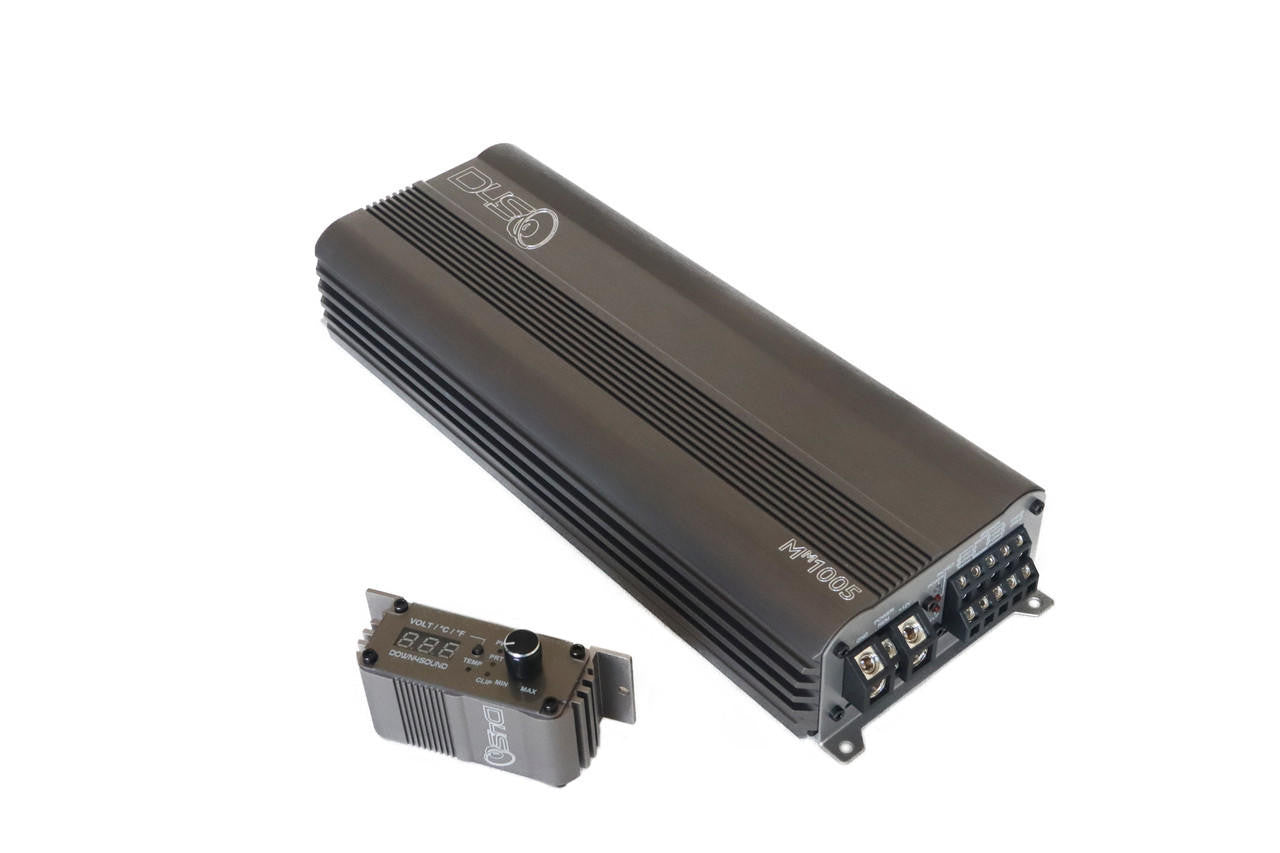

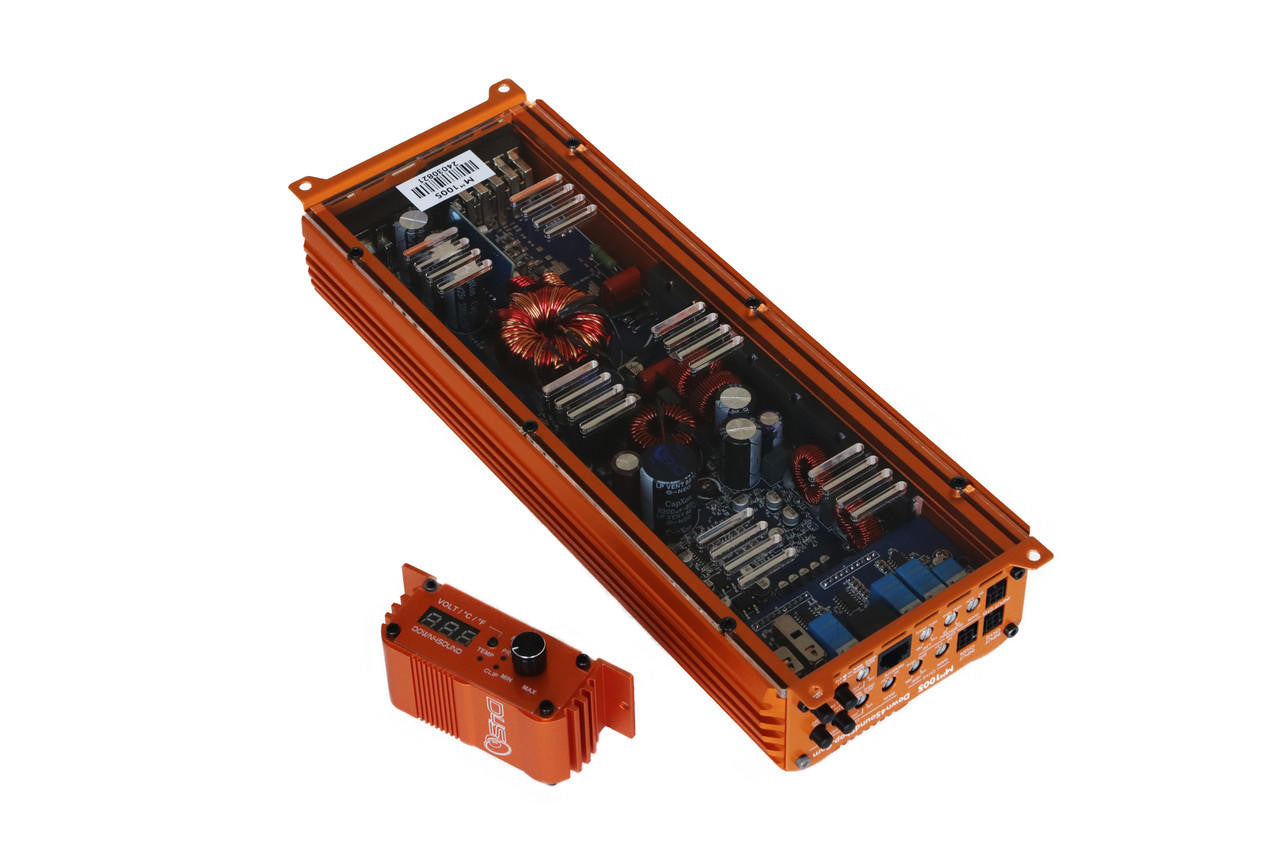

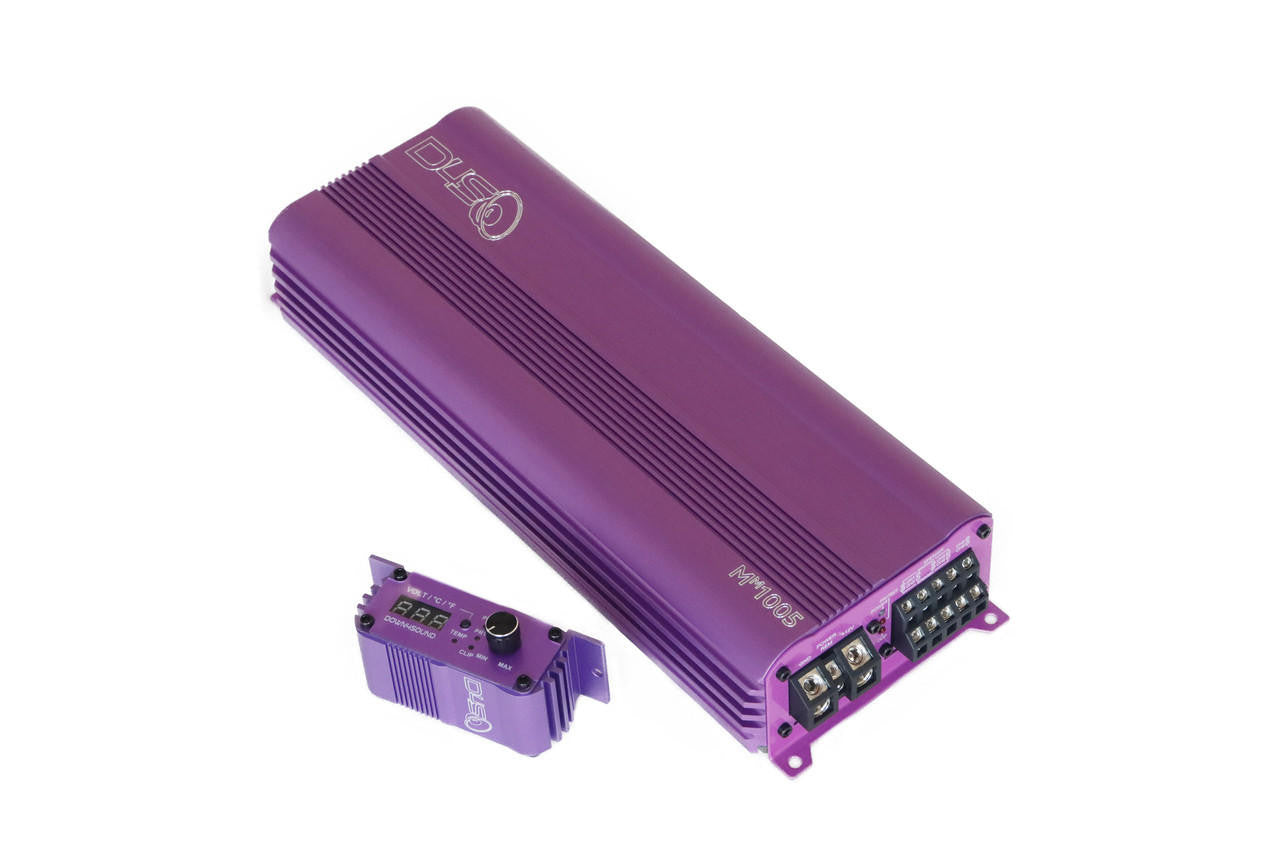

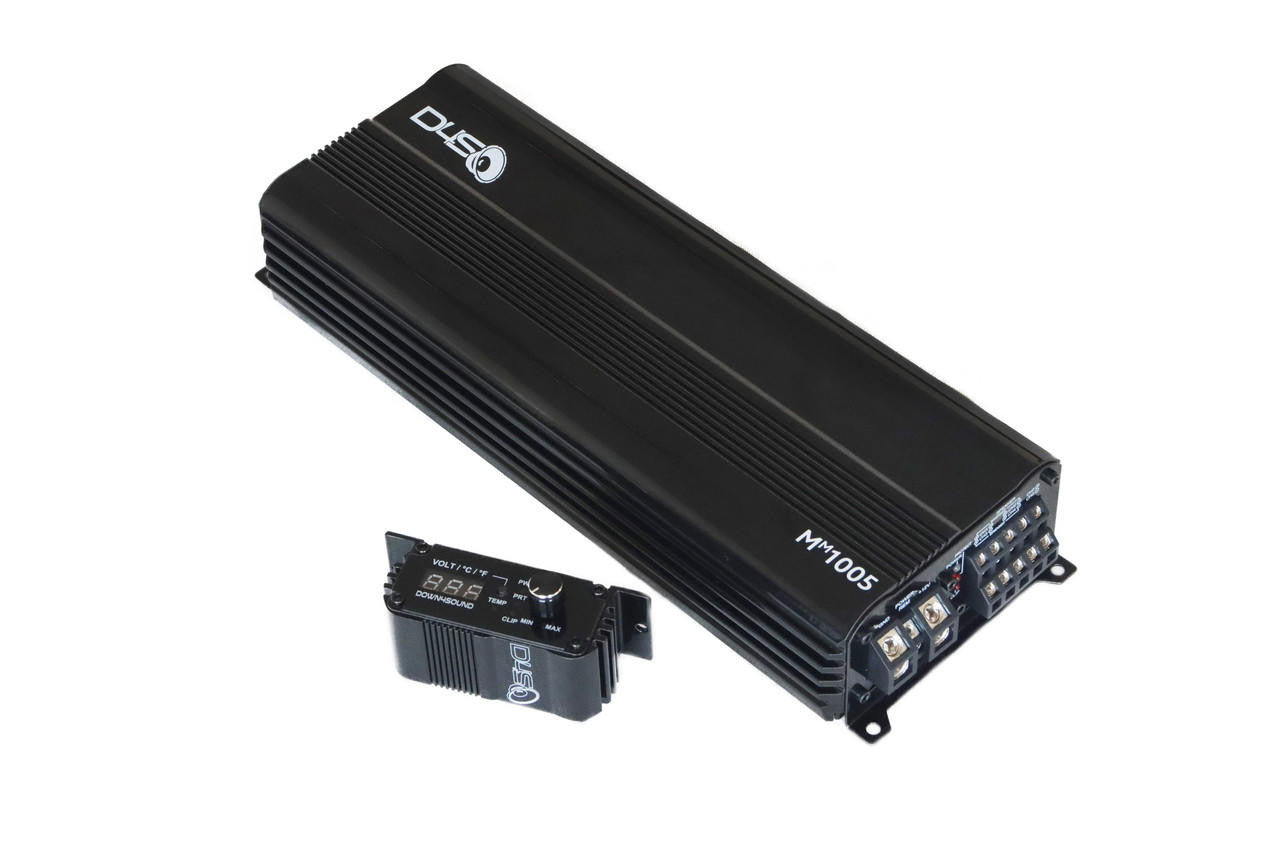

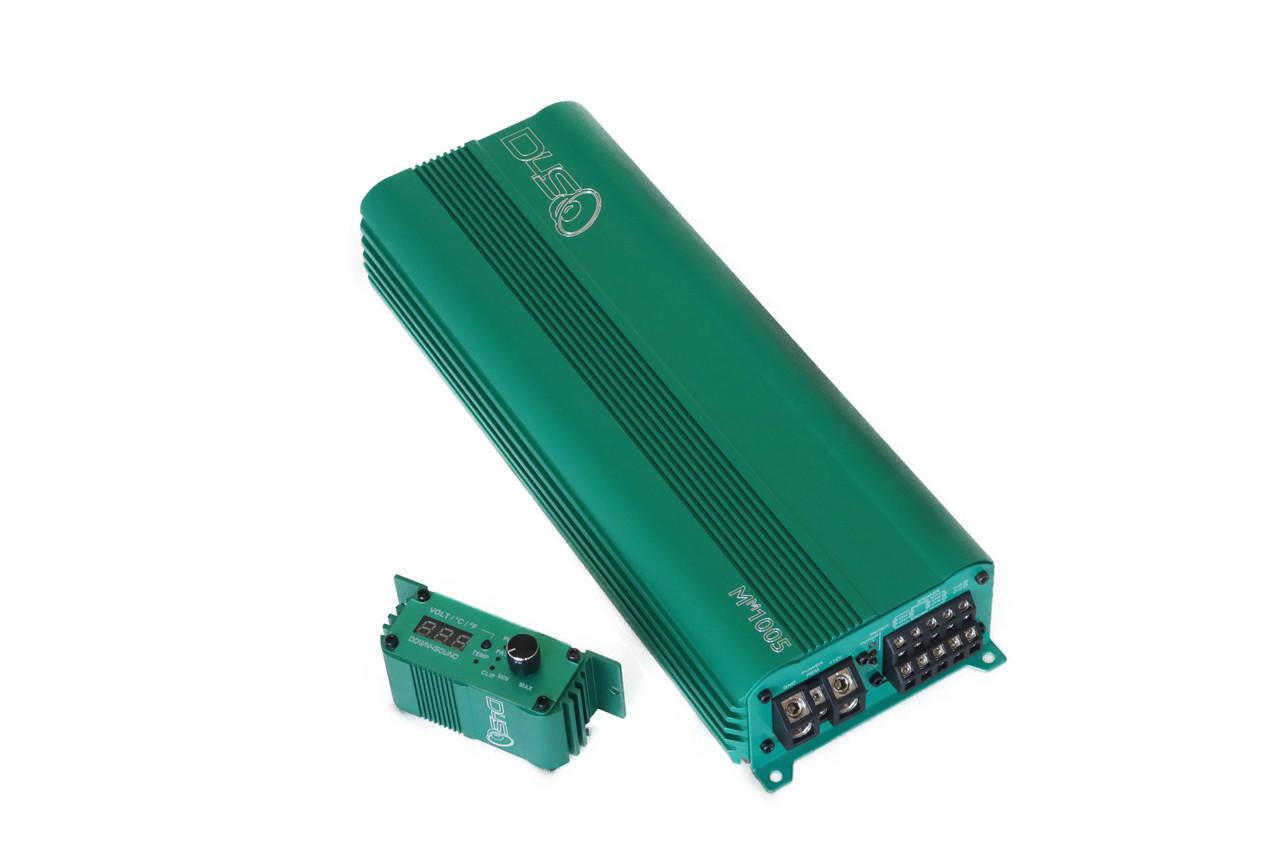

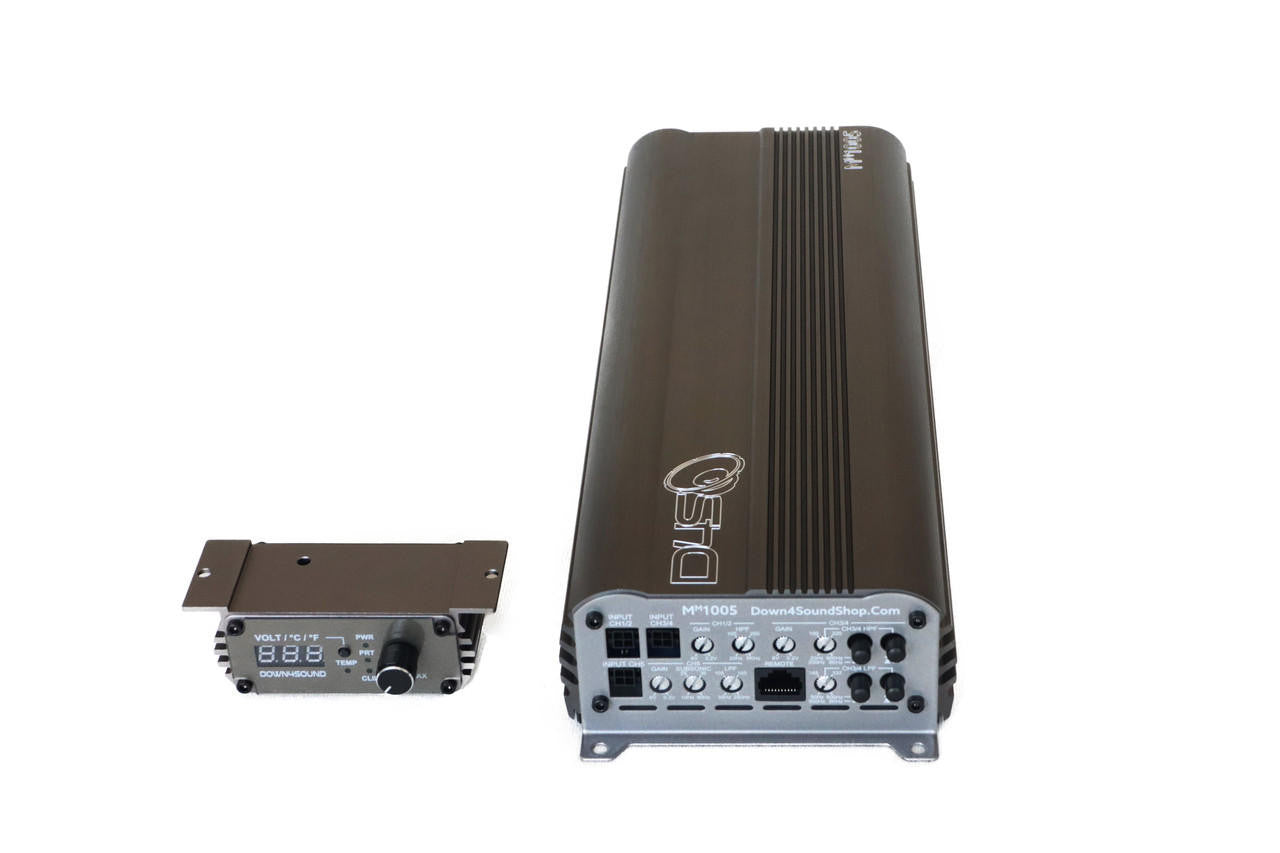

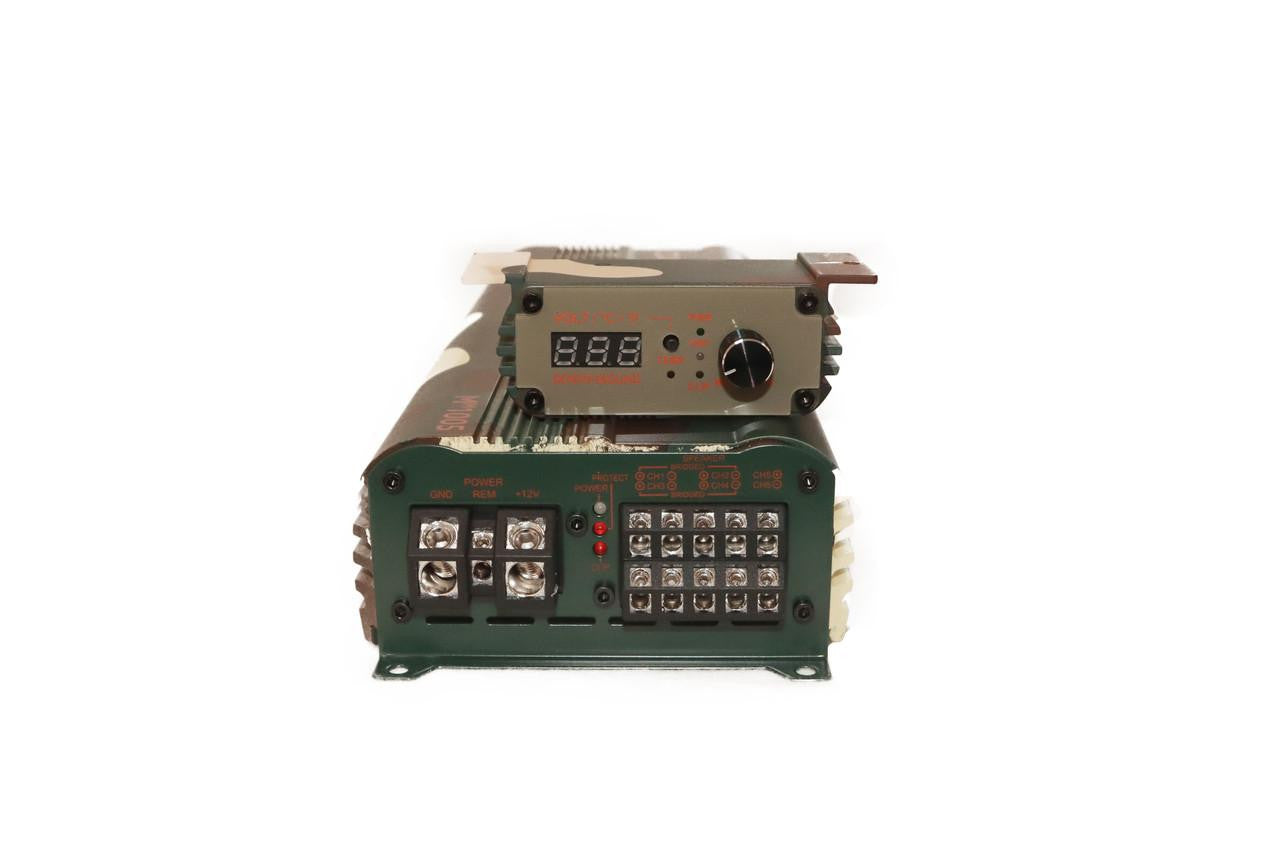

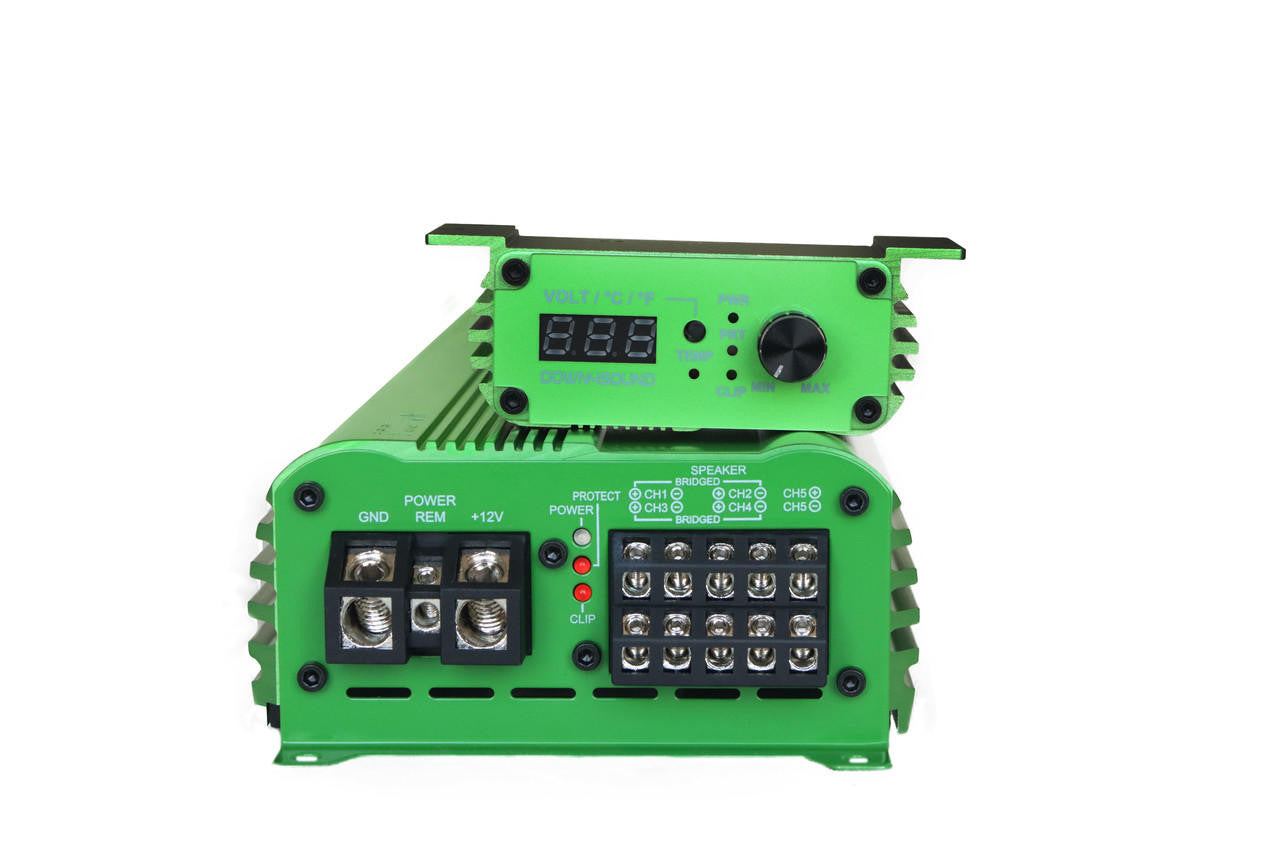

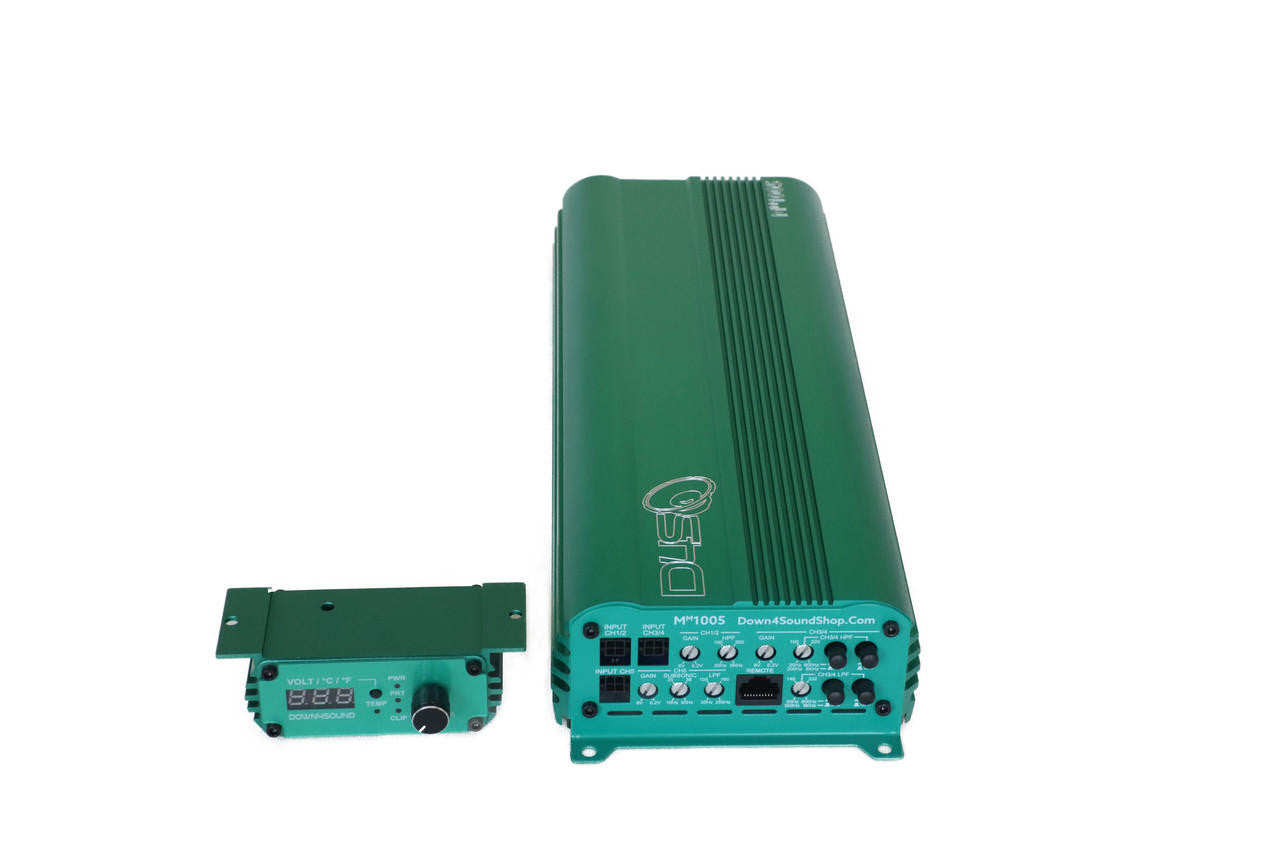

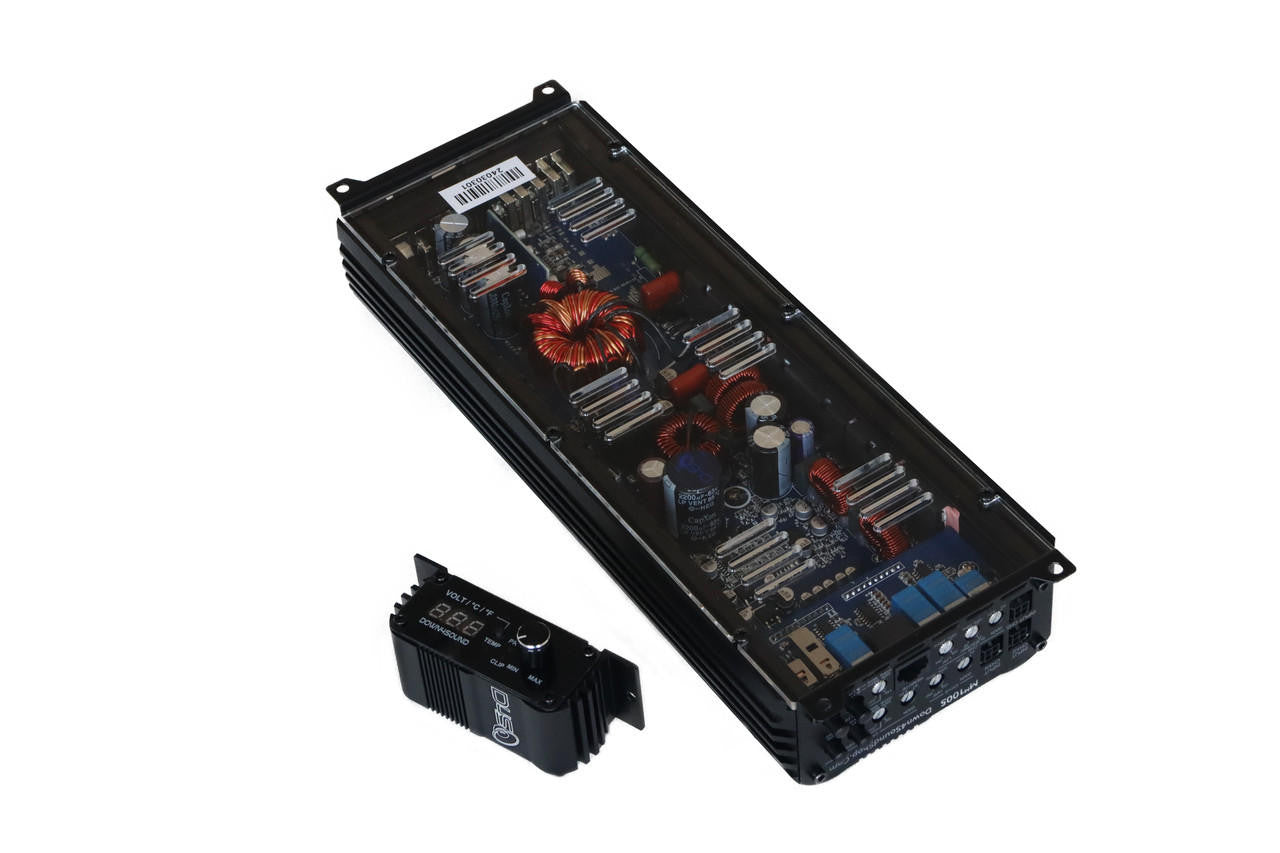

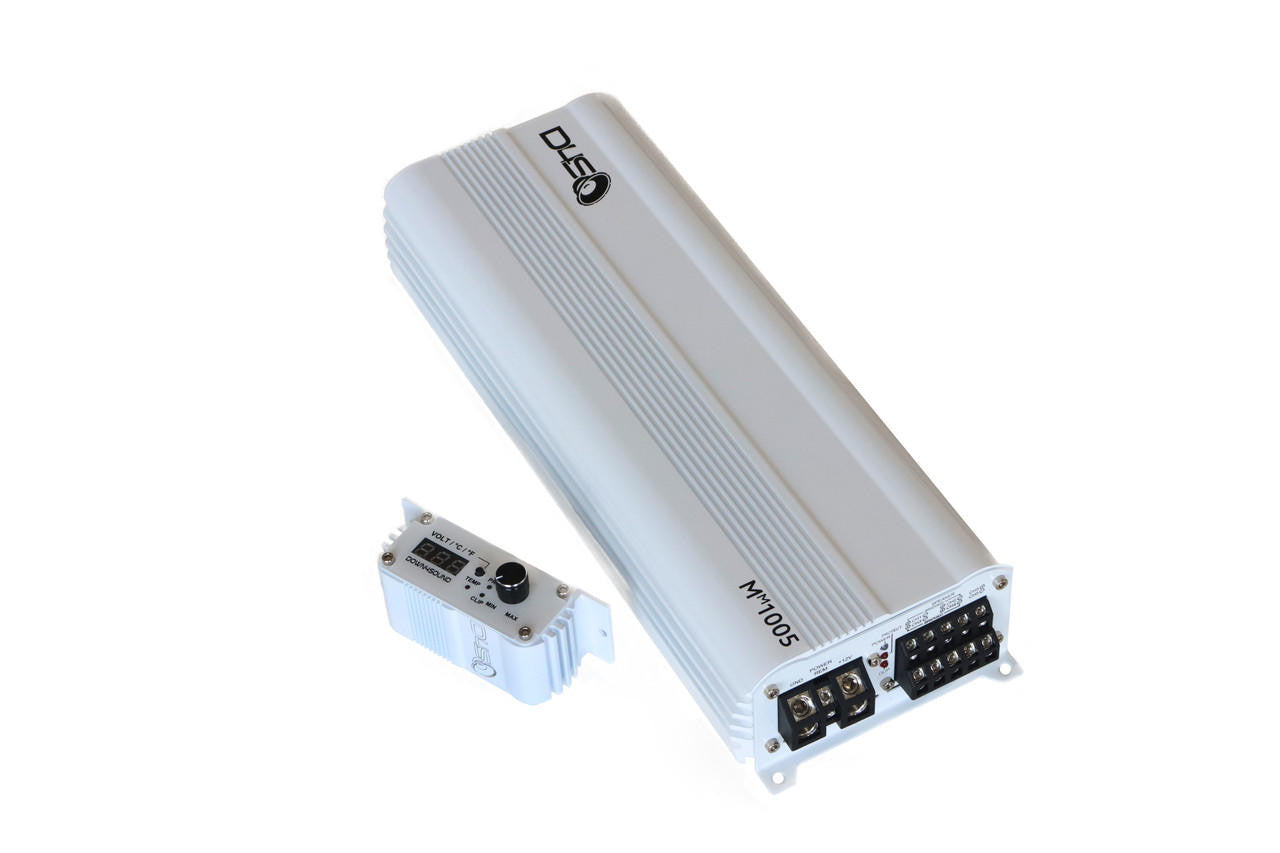

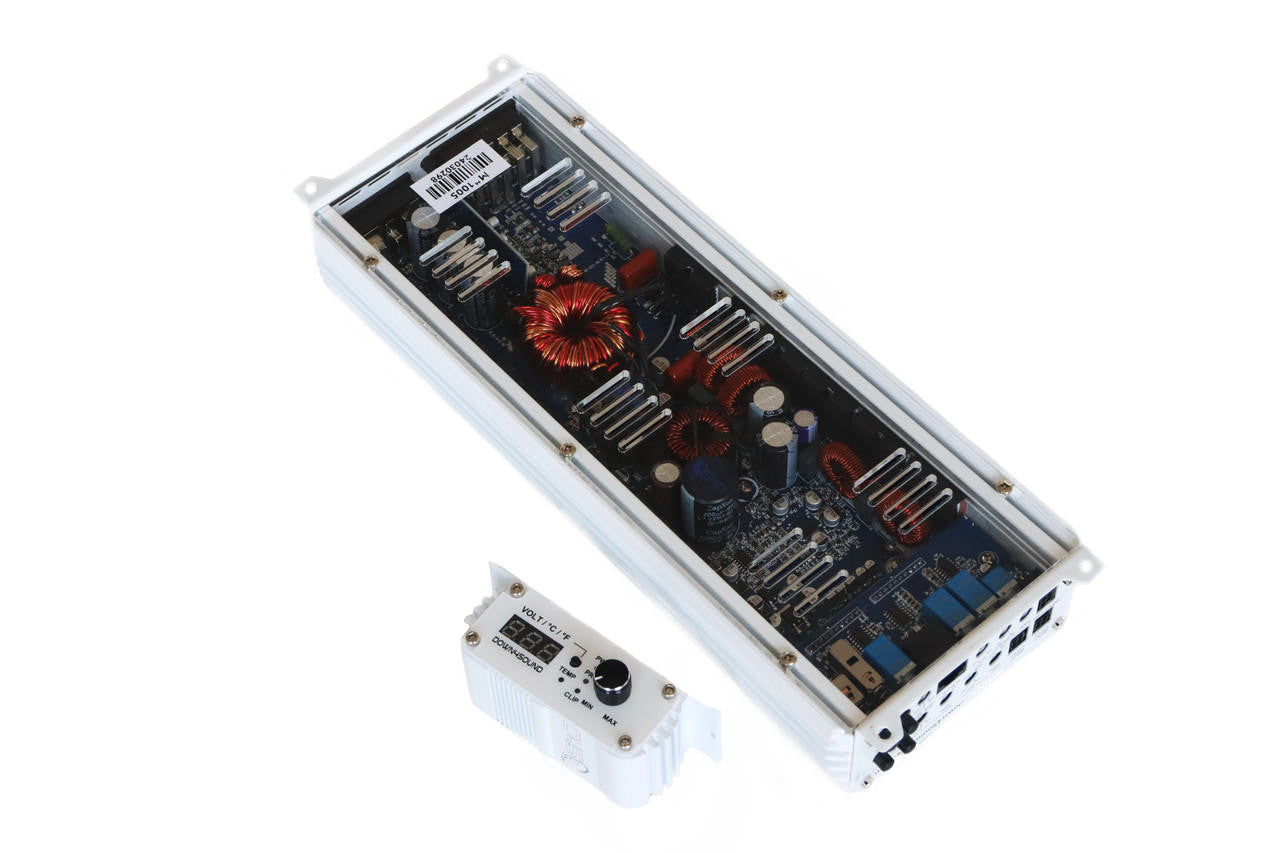

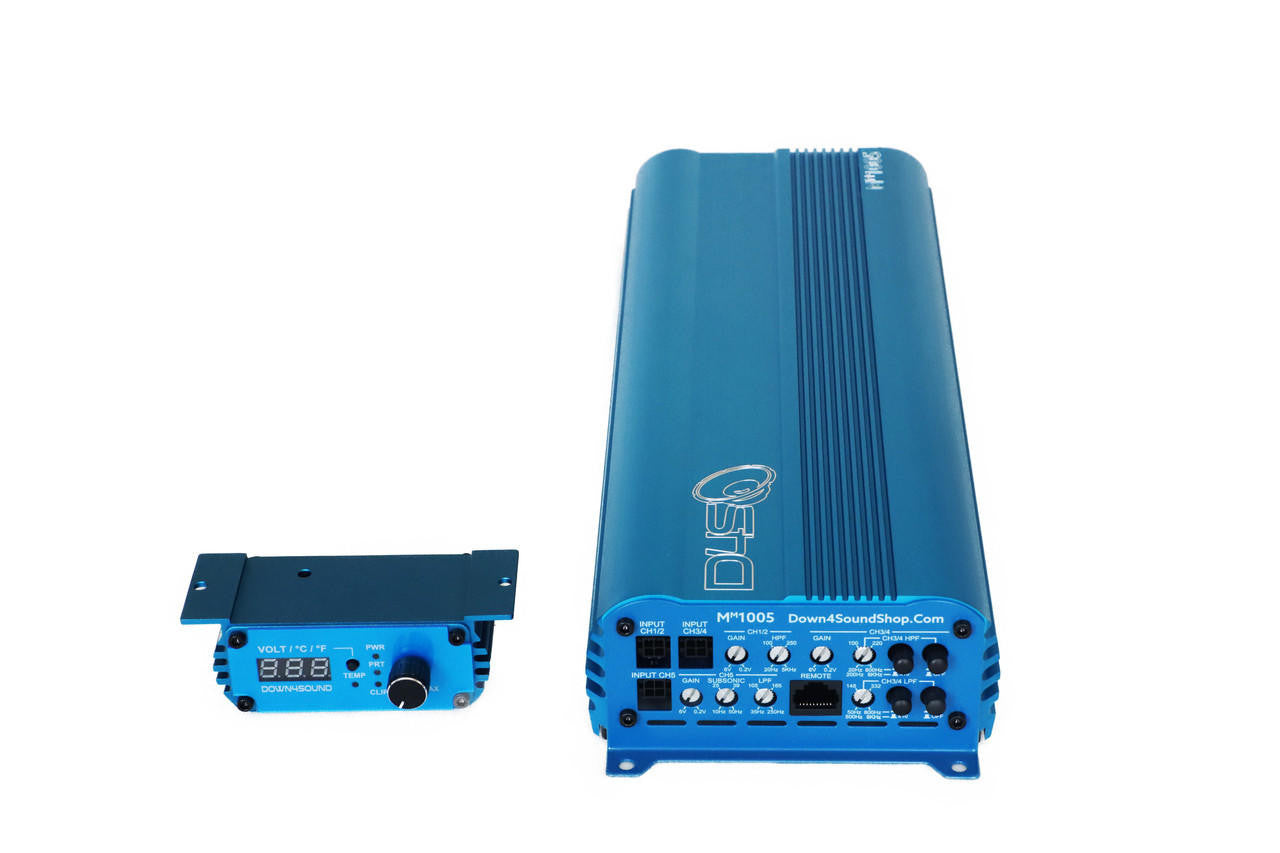

Power up your car audio system with the Down4Sound MM1005 (MINI MAXX), a dynamic 5-channel amplifier designed to deliver exceptional sound quality and performance.
Key Features:
- Full Range & Digital 5 Channel Amplifier
- CH1-CH4 stable into 2 ohm stereo or 4 ohm bridged
- CH5 stable into 1 ohm mono
- High-speed MOSFET power supply
- Variable high pass filter, with x10 multiply for CH3 & CH4
- Low pass filter multiply x10 for CH3 & CH4
- Bandpass filter capable for CH3 & CH4
- Variable subsonic filter
- 4-Way Protection Circuits

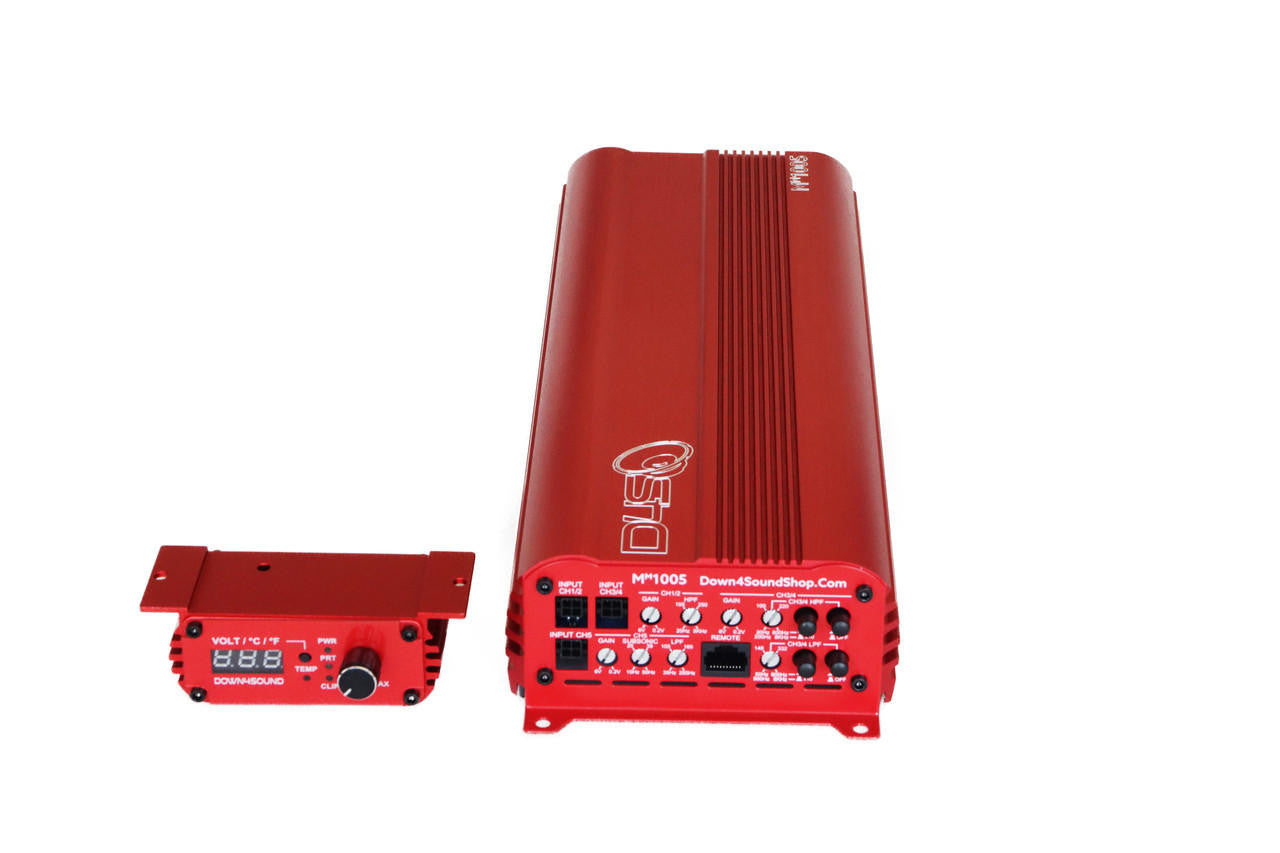

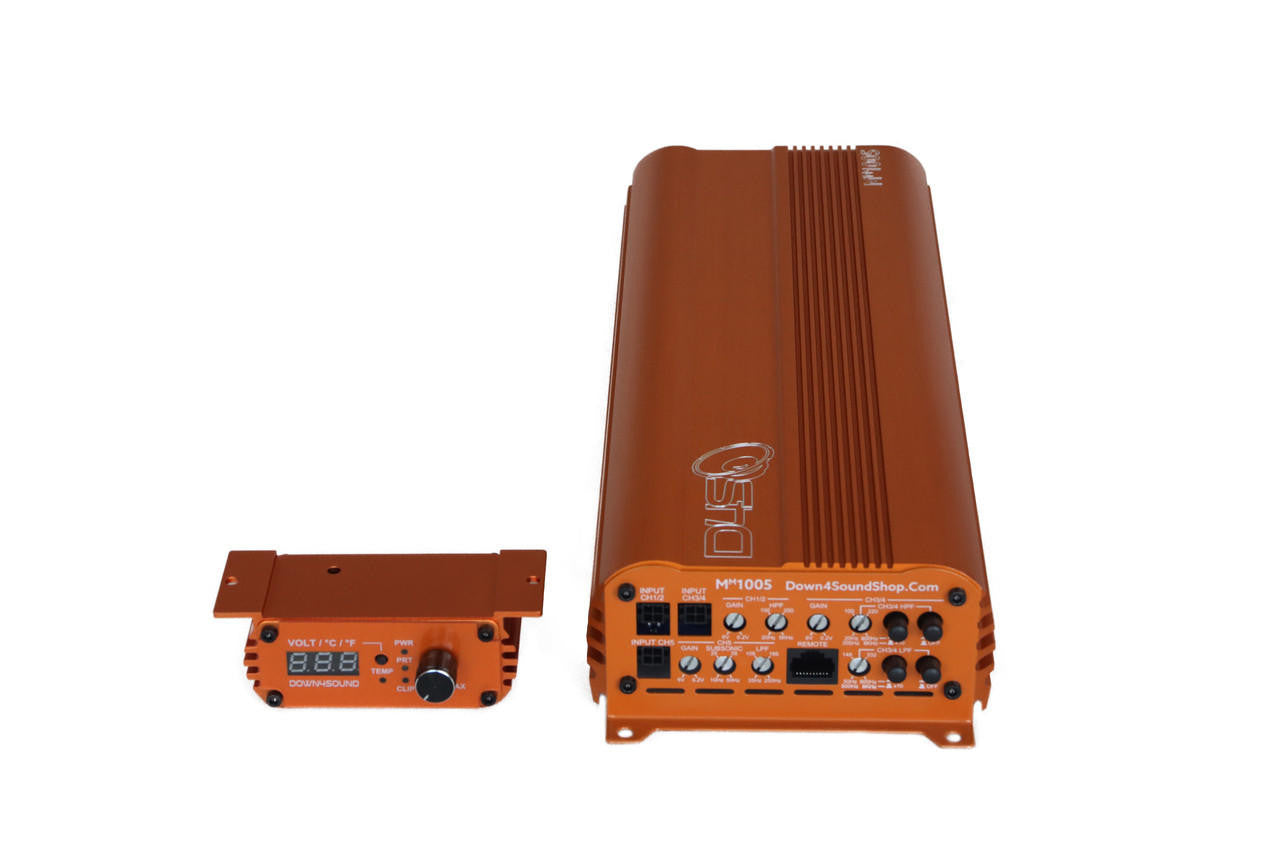

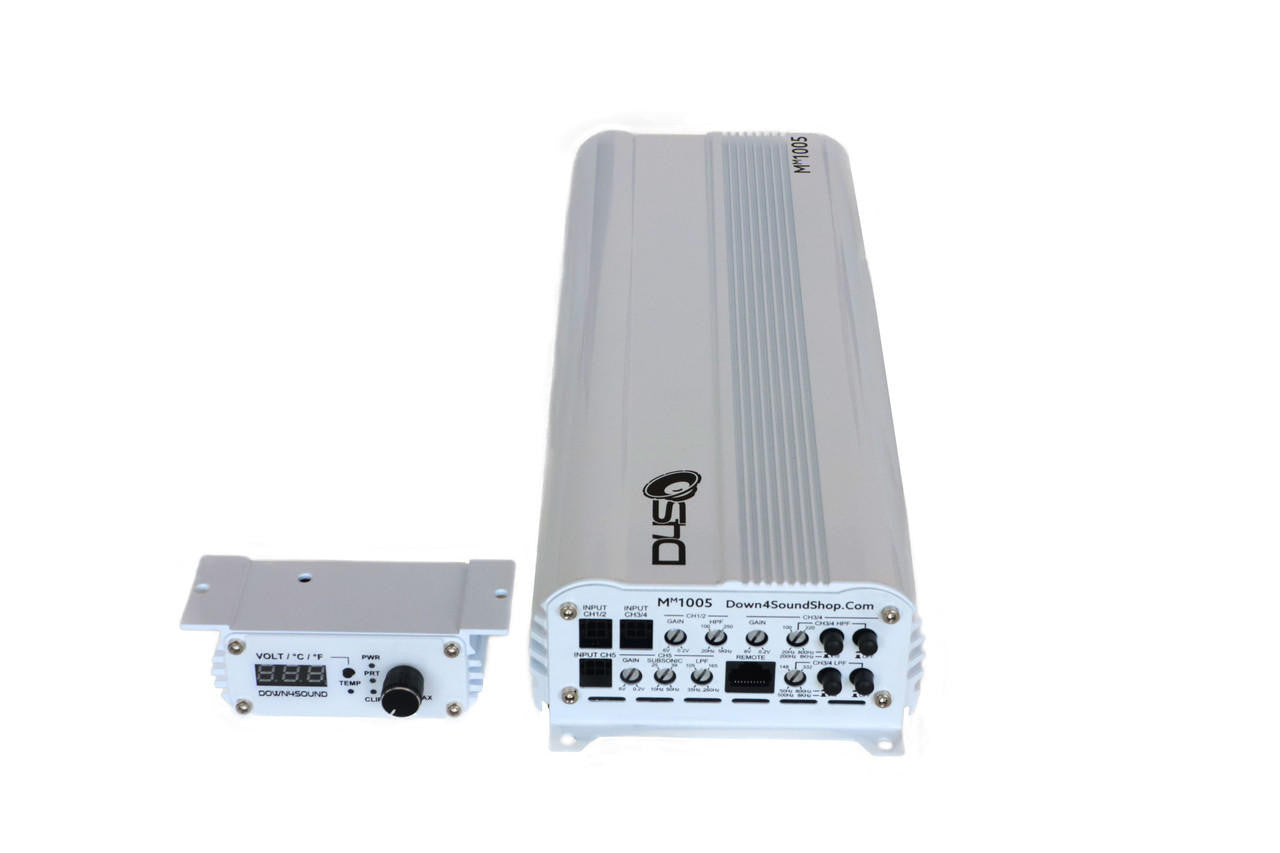

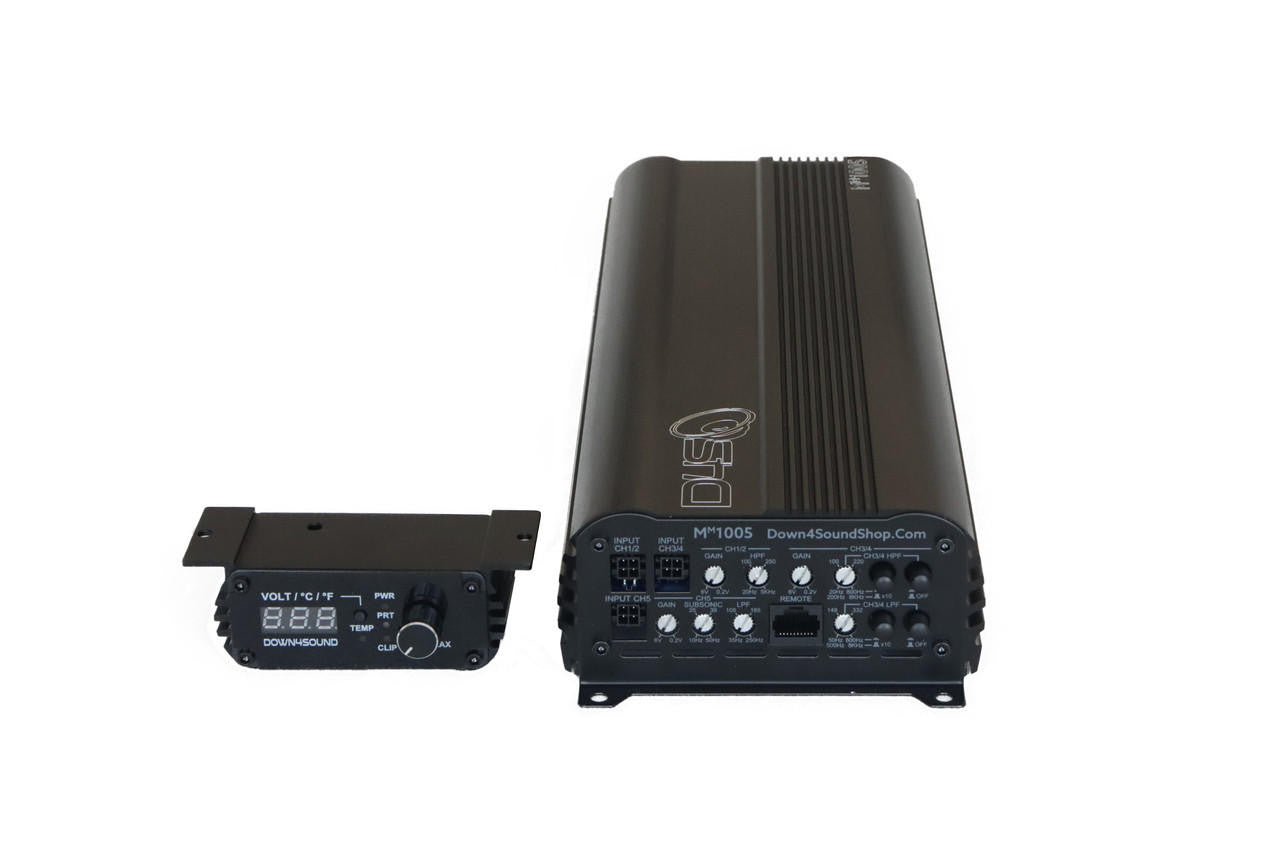

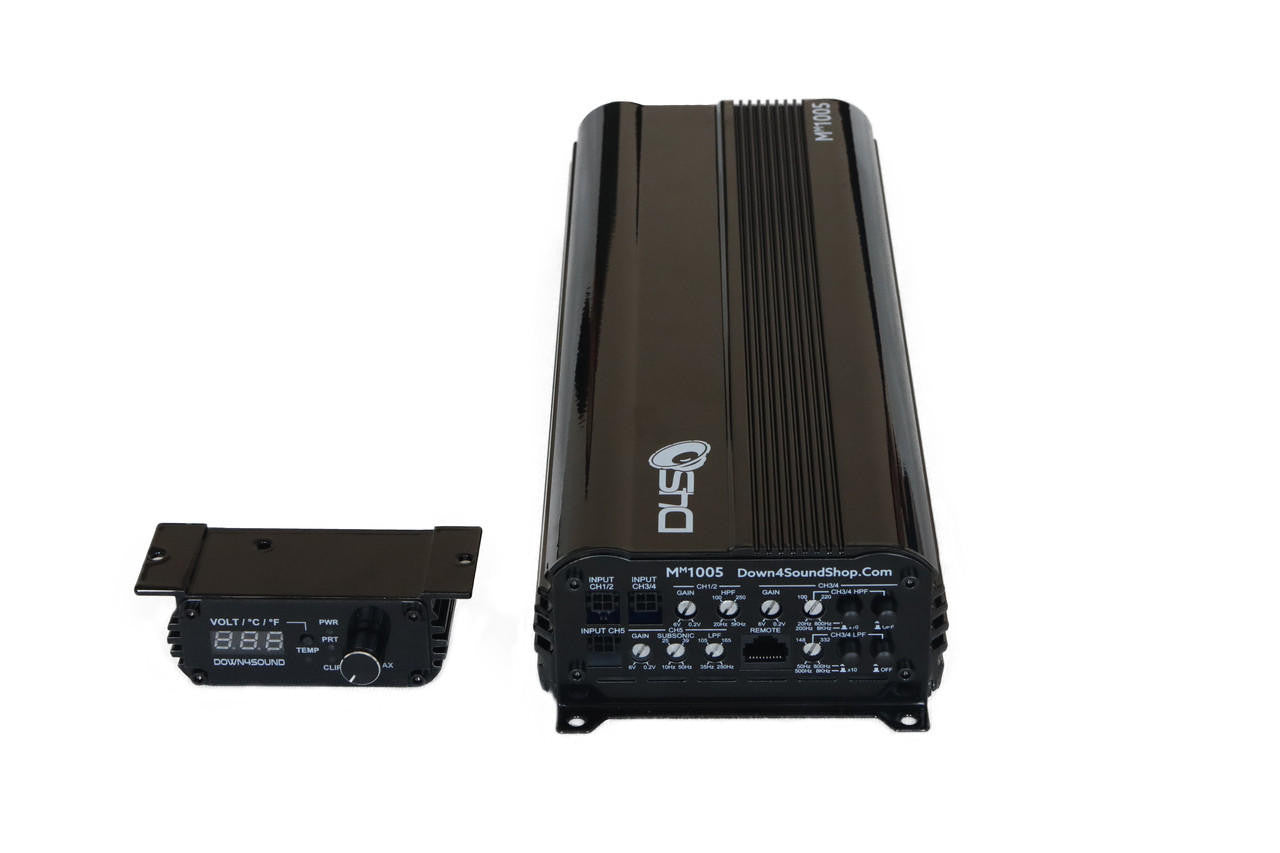

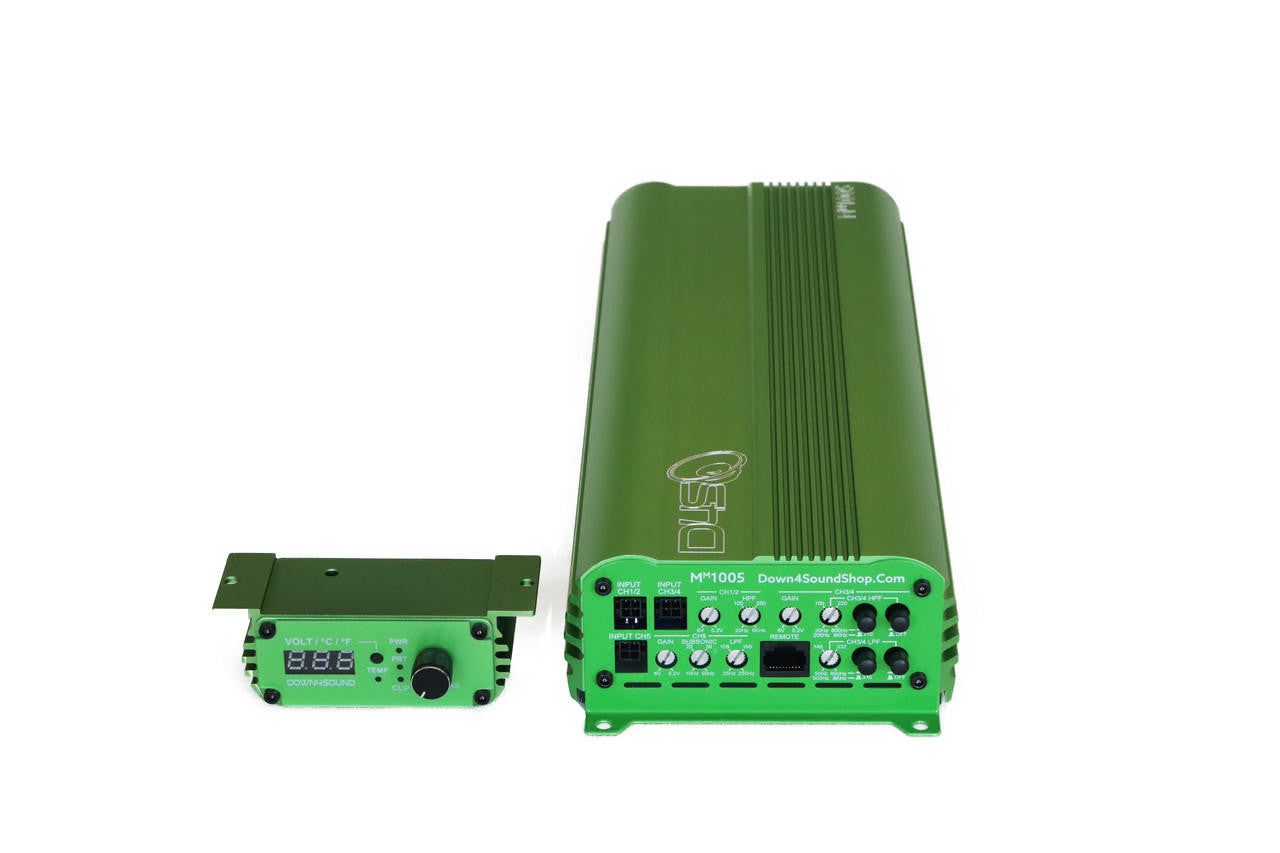

- Remote bass knob with voltmeter
- High purity copper printed circuit board

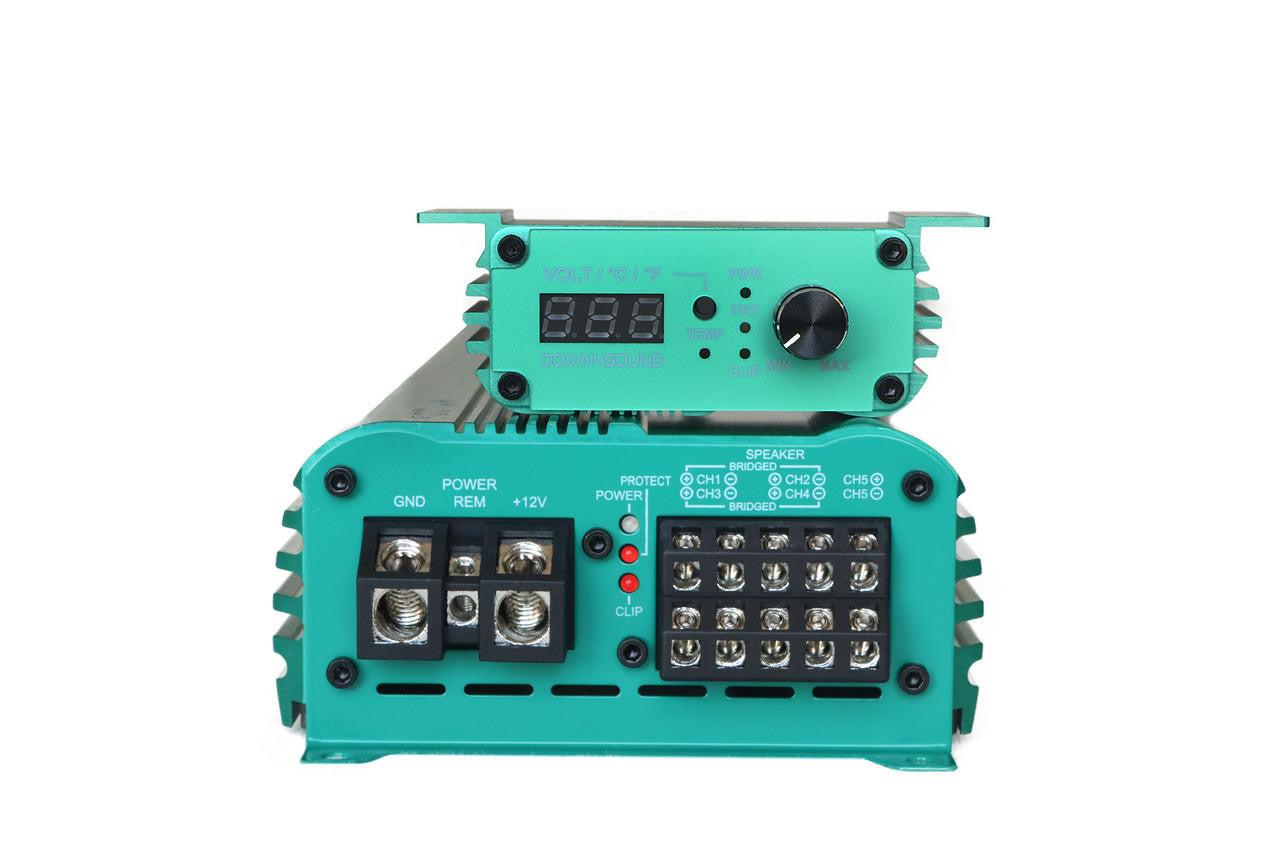

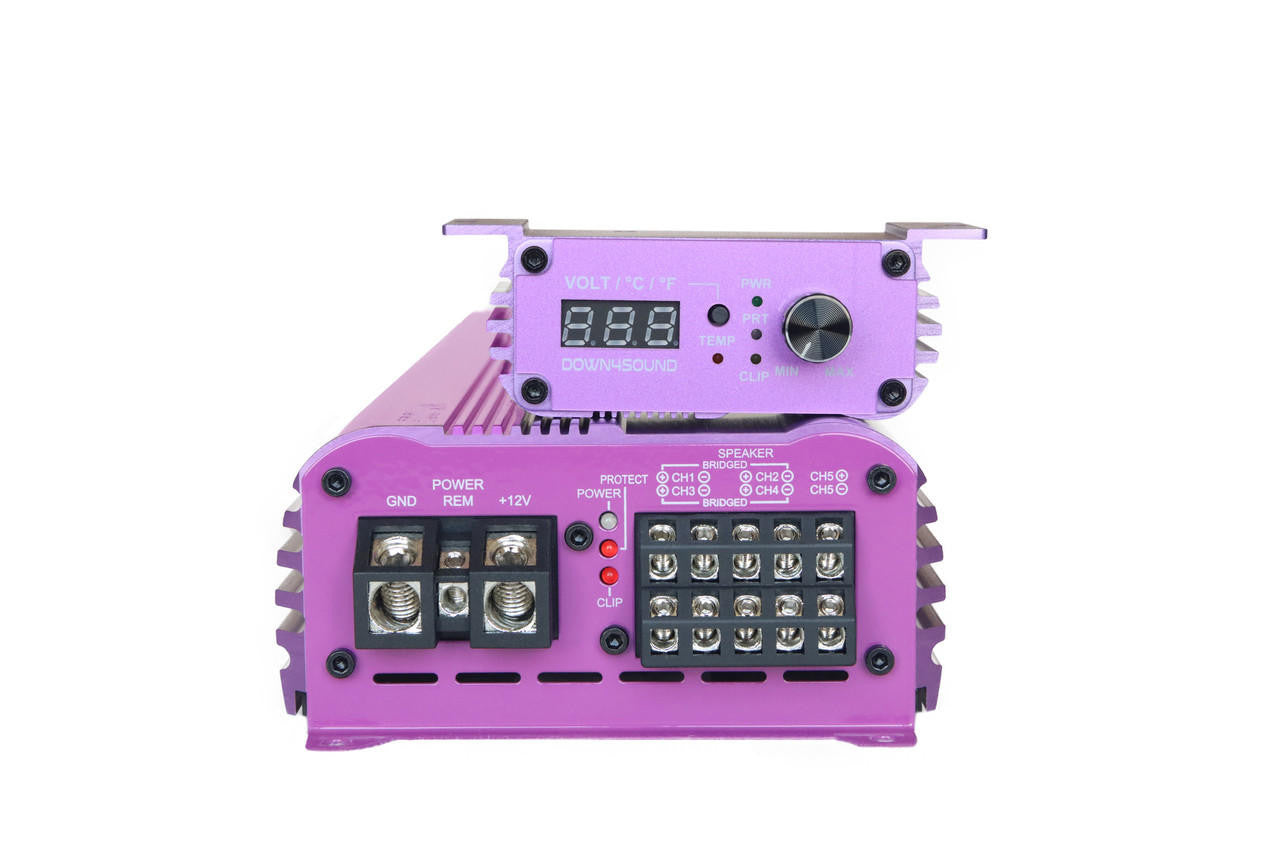

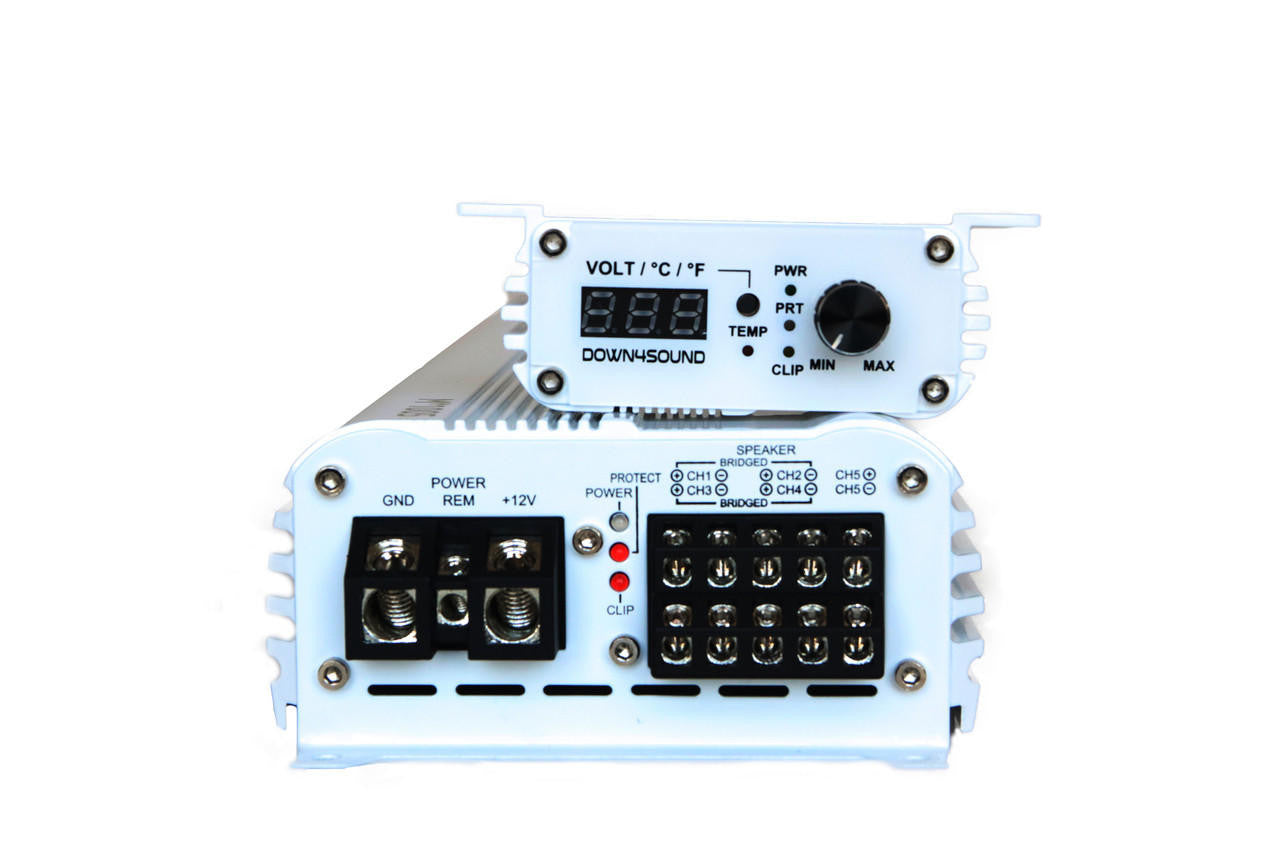

- 4 gauge power / ground terminals
Specifications:
- RMS power, 1ohm for CH5: 500W x 1
- RMS power, 2ohm: 120W x 4 + 400W x 1
- RMS power, 4ohm: 80W x 4 + 250W x 1
- RMS power, 4ohm Bridged: 260W x 2 + 250W x 1
- Frequency Response: 10Hz - 23KHz for CH1 - CH4, 11Hz - 260Hz for CH5
- Subsonic Filter (CH5): 10Hz - 50Hz
- Low Pass Filter (CH5): 35Hz - 250Hz
- Input Sensitivity: 6V - 0.2V
- Signal to Noise Ratio: 92dB
- Total Harmonic Distortion (T.H.D @ 4ohm): Less than 0.1%
- Fuse Rating: 80A
- Dimensions: 12.20" L x 4.87" W x 2.13" H
Experience the ultimate in car audio performance with the Down4Sound MM1005 (MINI MAXX).
