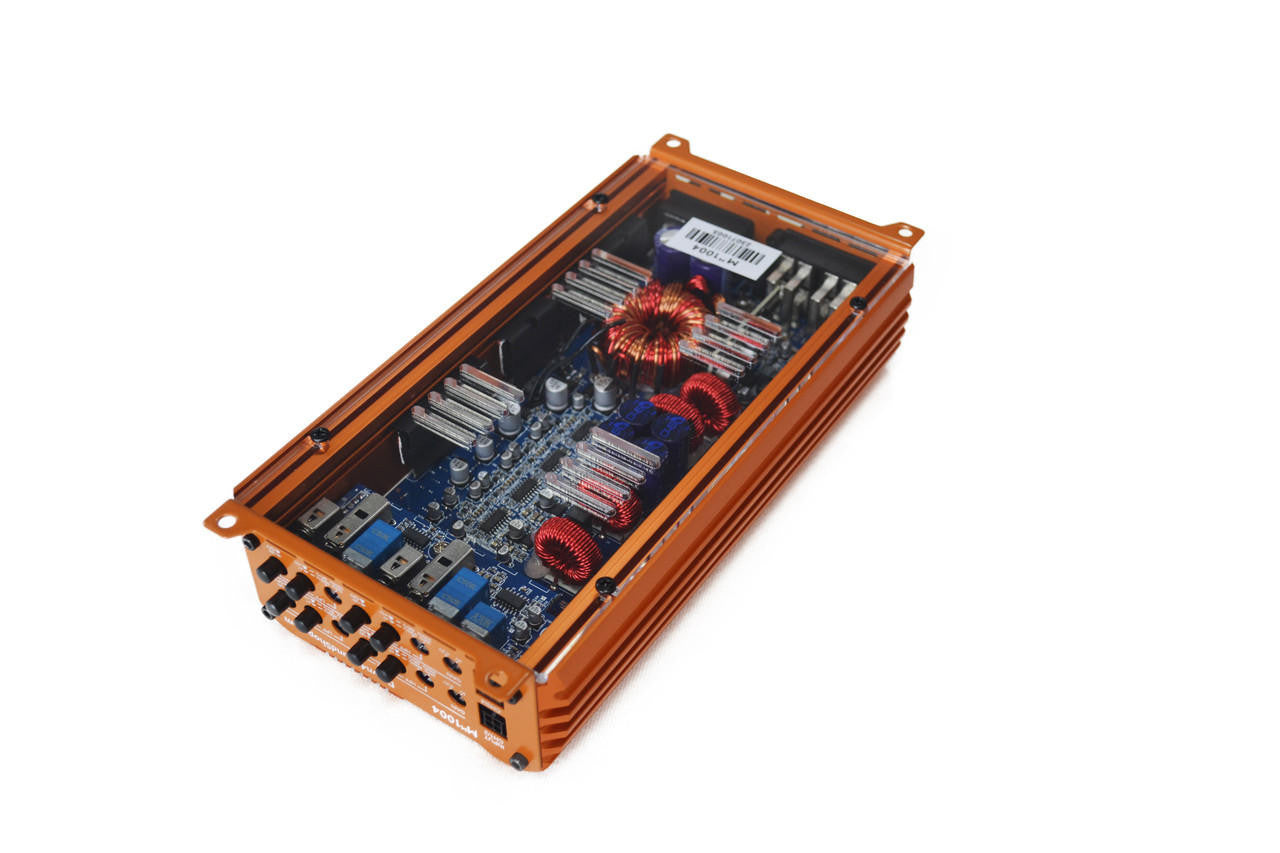

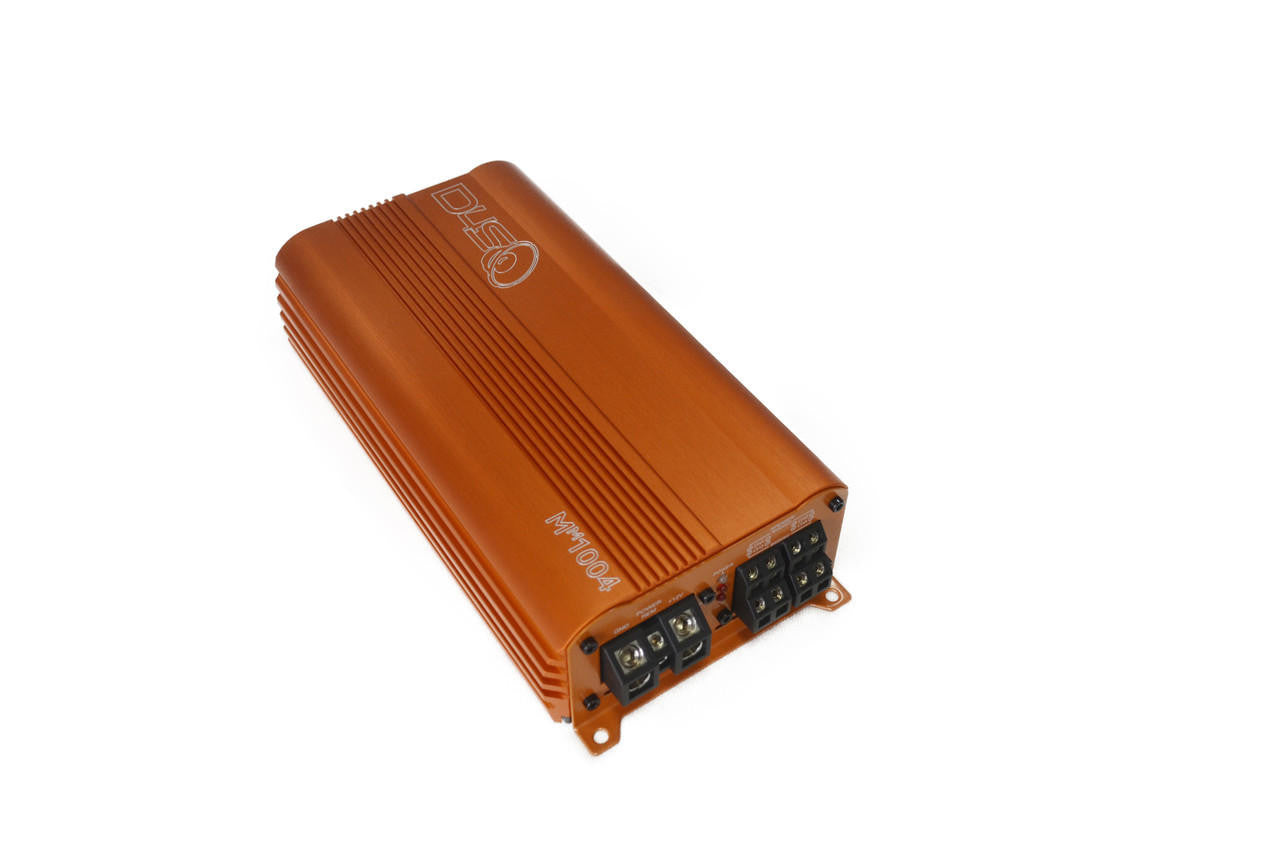

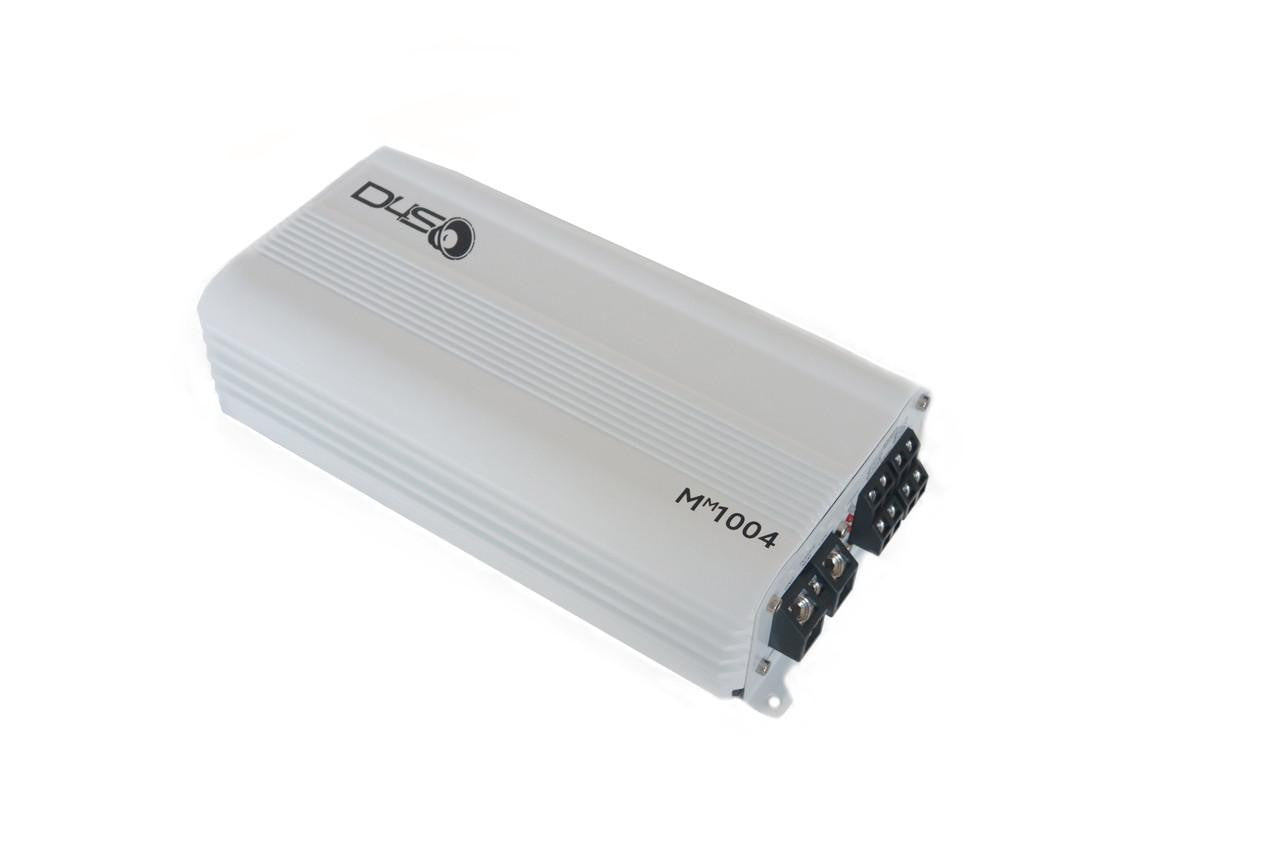

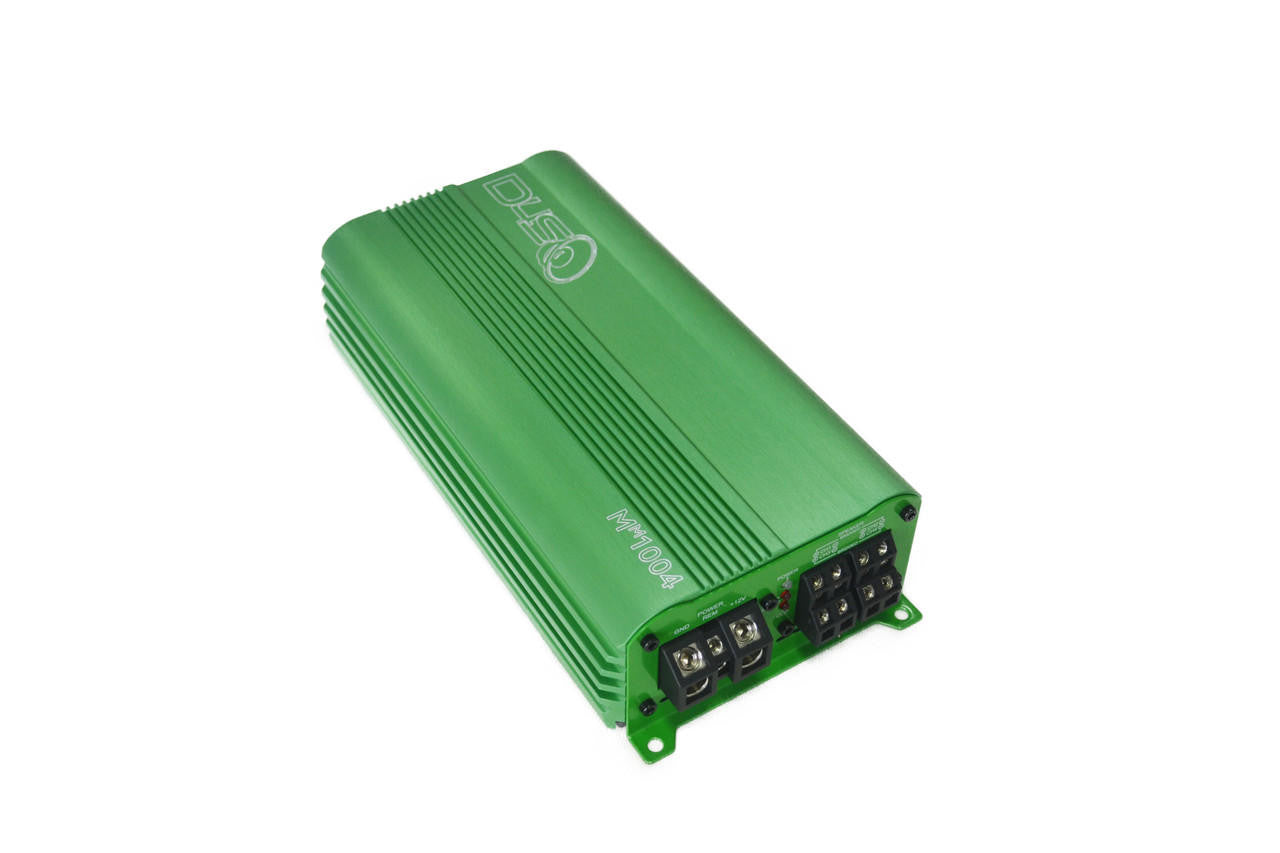

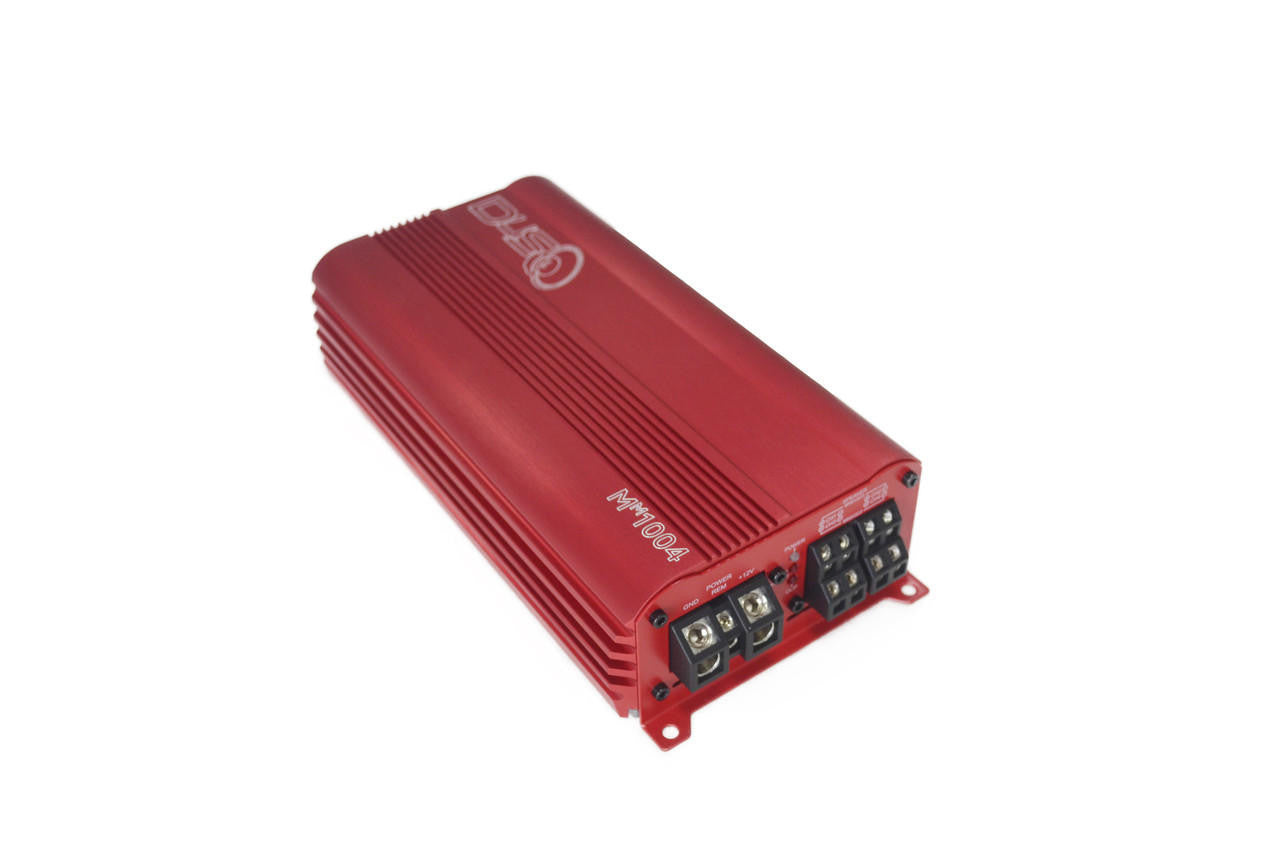

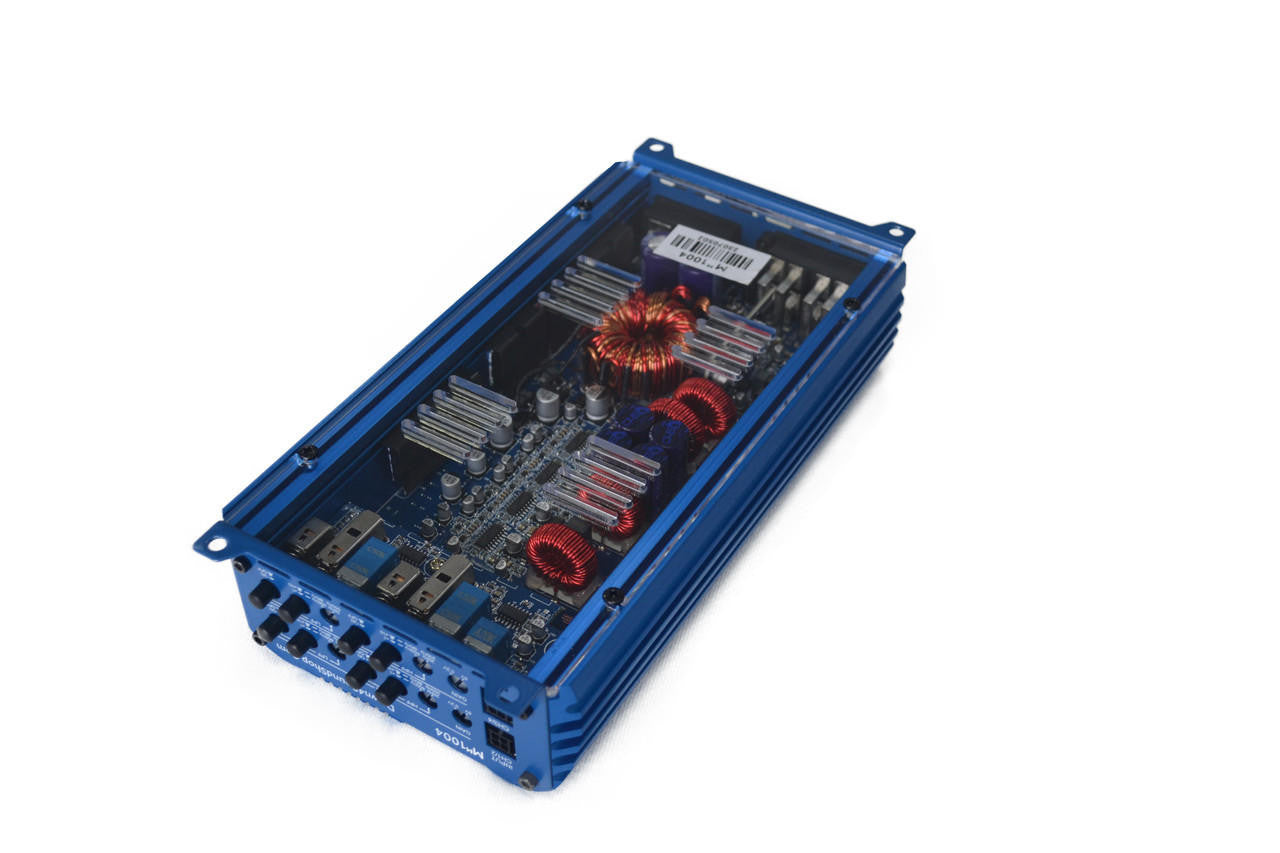

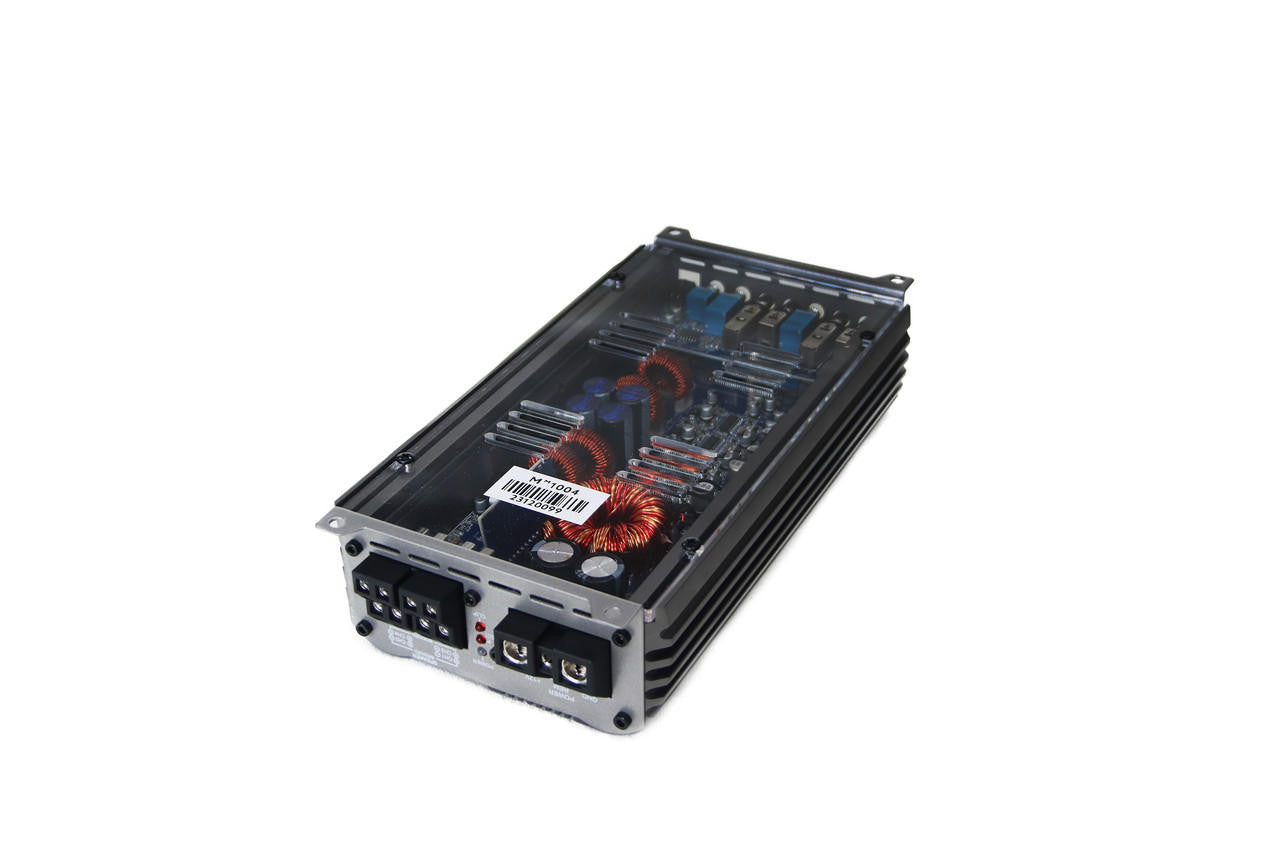

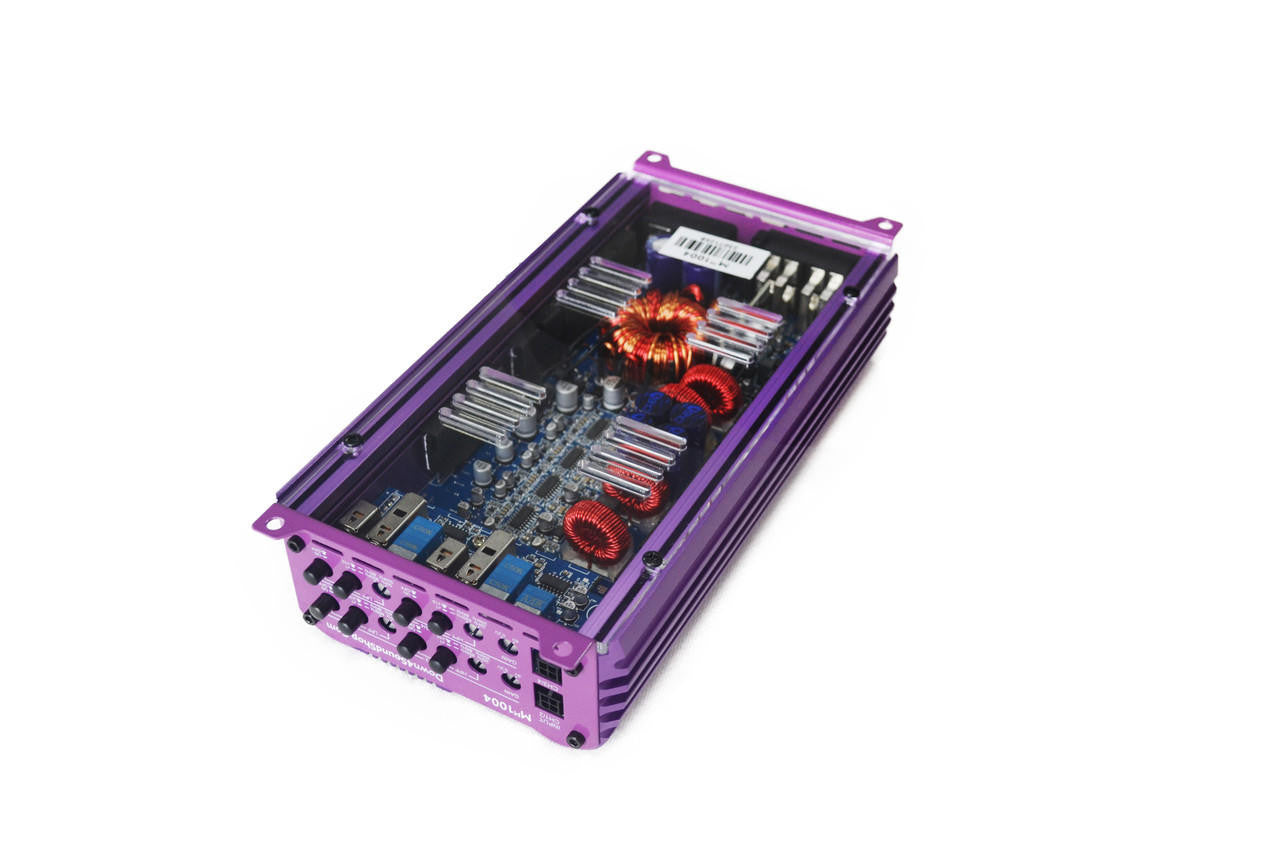

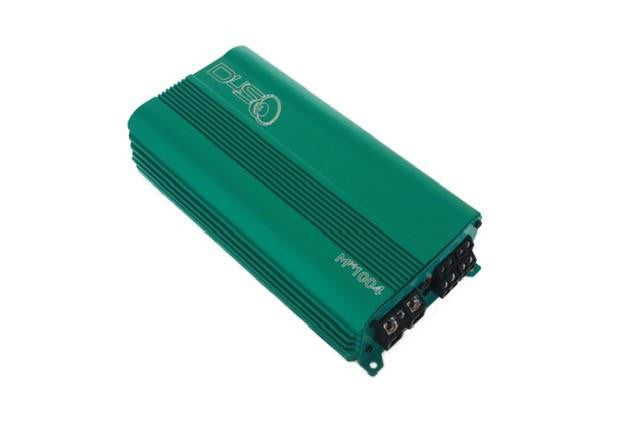

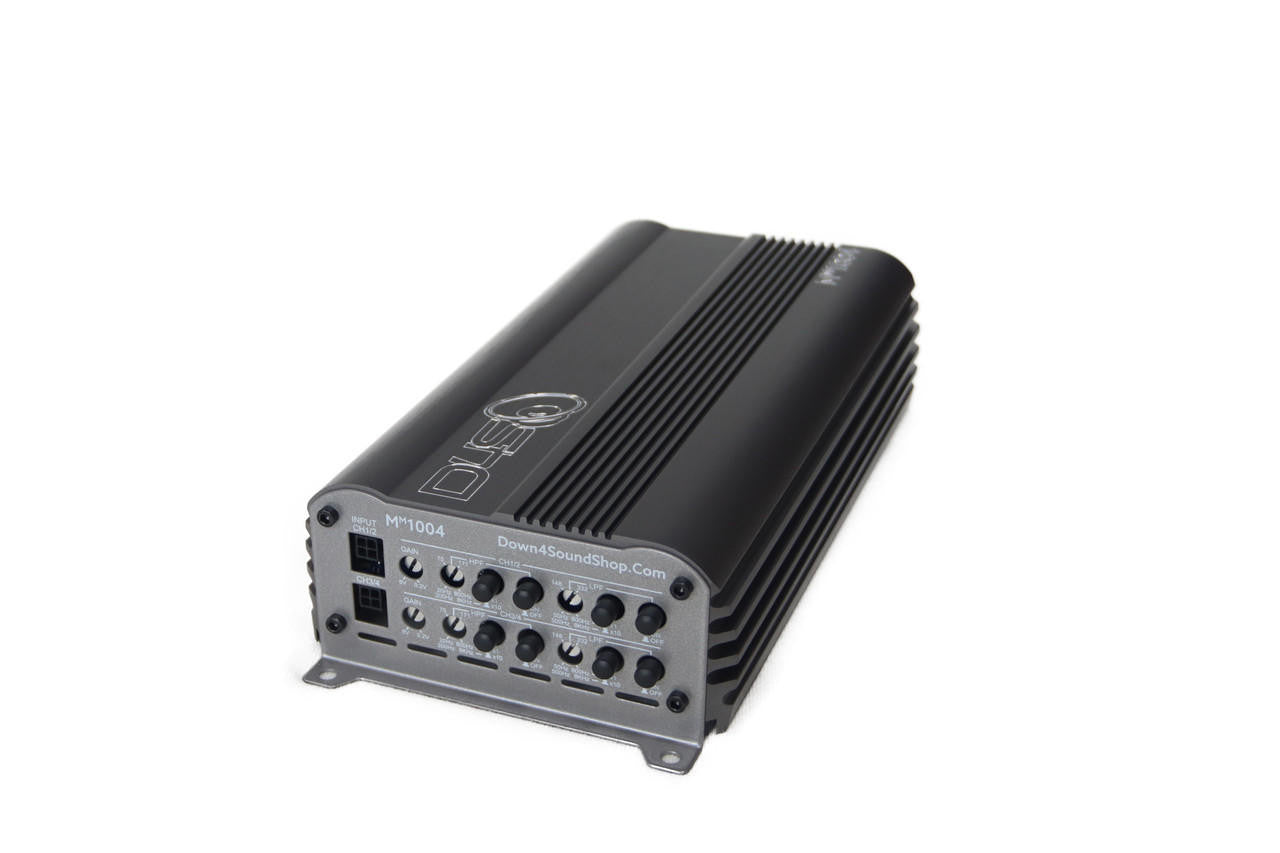

Down4Sound MM1004 (mini Maxx) - 700W RMS Mini 4 Channel Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.

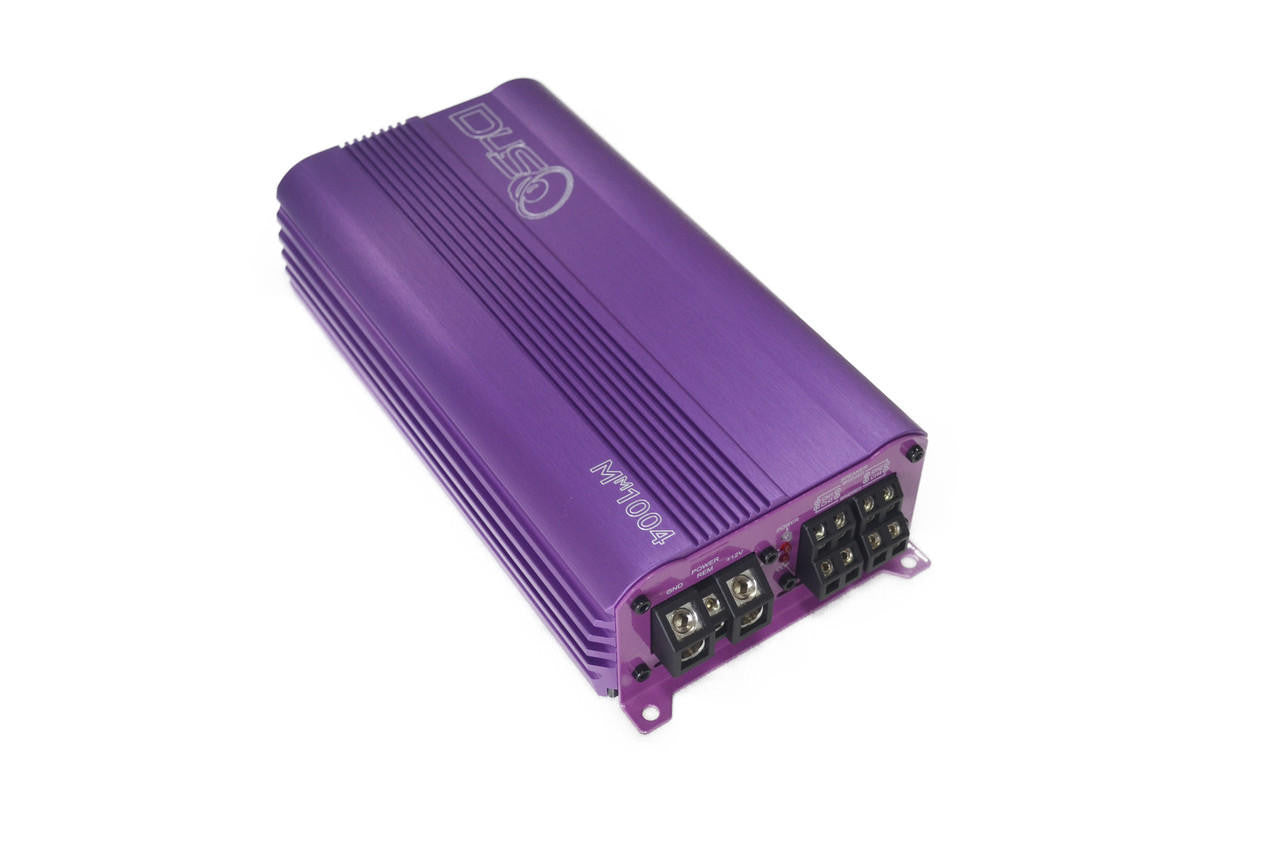

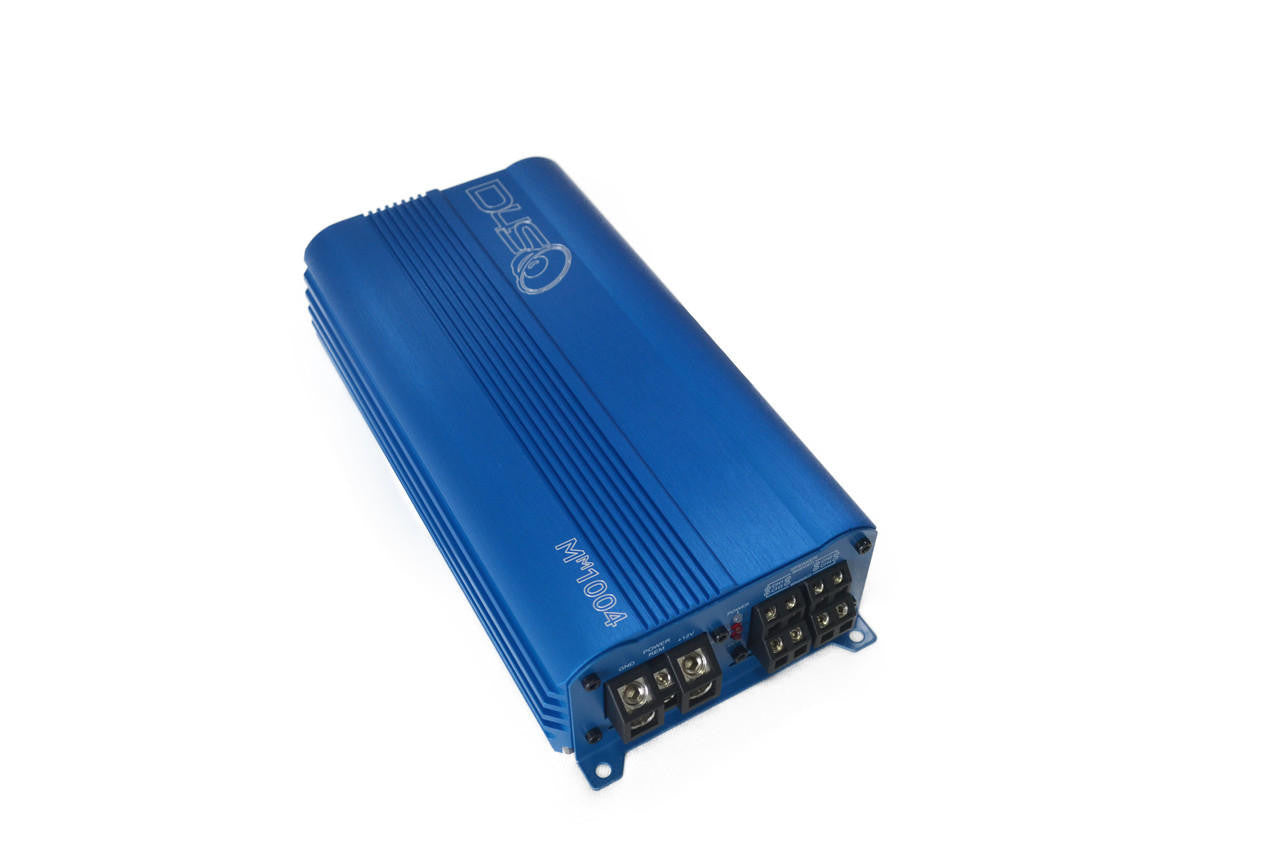

Unleash the sound of music to it full potential with the MM1004 a MINI 4-Channel Amplifier
Designed to be compact with band-passable crossovers X1 & X10, this dynamic amplifier allows you to run mids and highs on one channel and bass on the other, or bi-amplify the 4 channels differently for a customizable listening experience.
**Technical Specifications:**
- 4ohm rms power: 100W x 4ch
- 2ohm rms power: 150W x 4ch
- 4ohm rms bridged power: 300W - 350W x 2ch Tested at 14,4V & 1% THD (RANGE).
- Frequency response: 10Hz –23.8KHz
- Signal to noise: 93dB Damping factor: 100
- Input sensitivity: 6V –0.2V

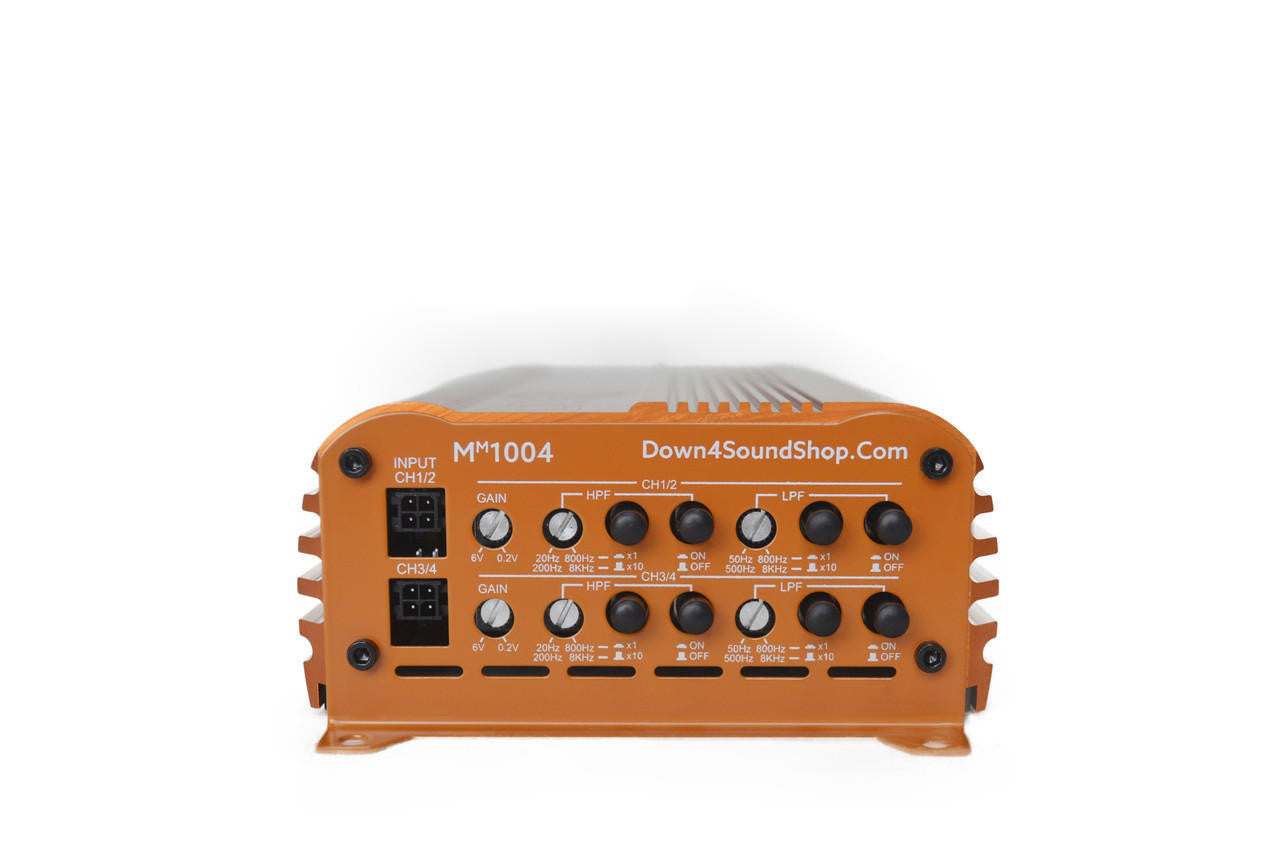

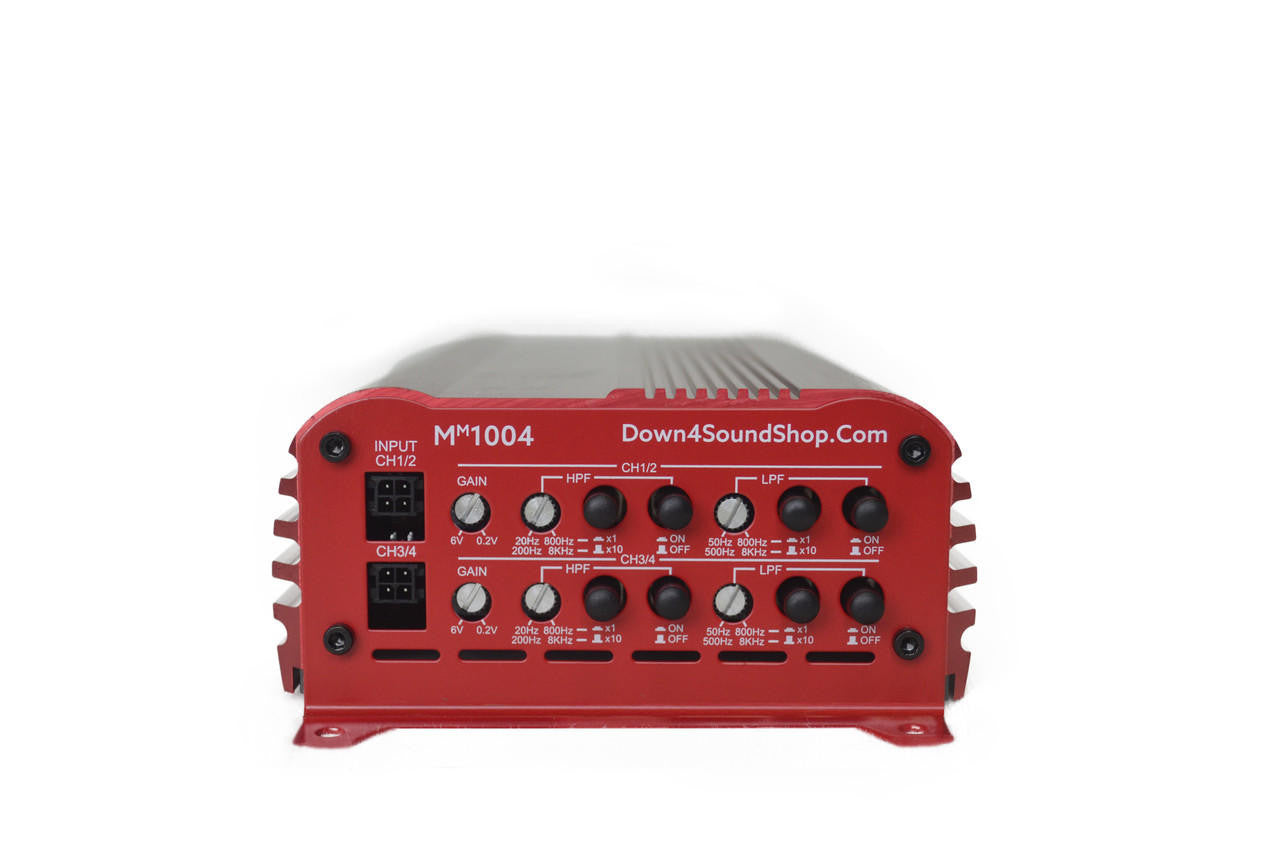

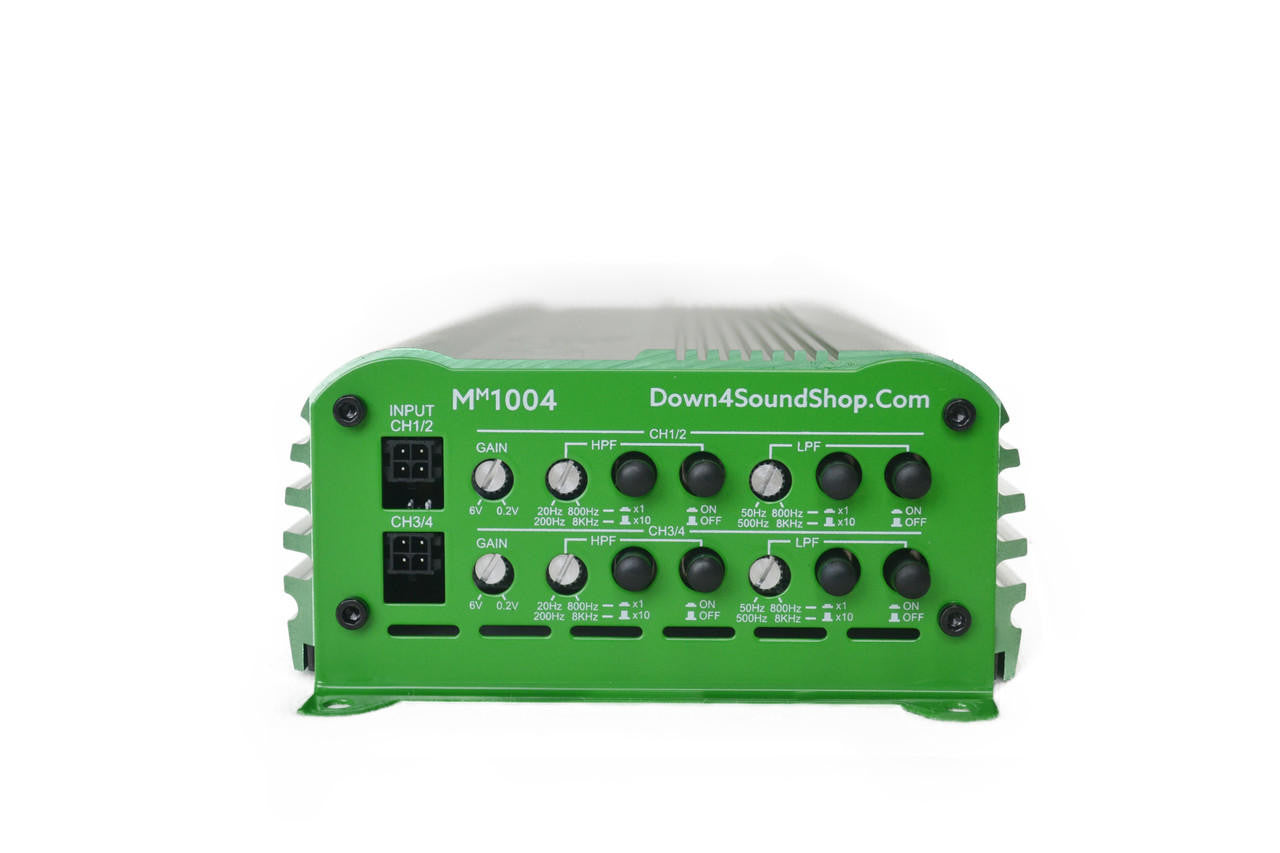

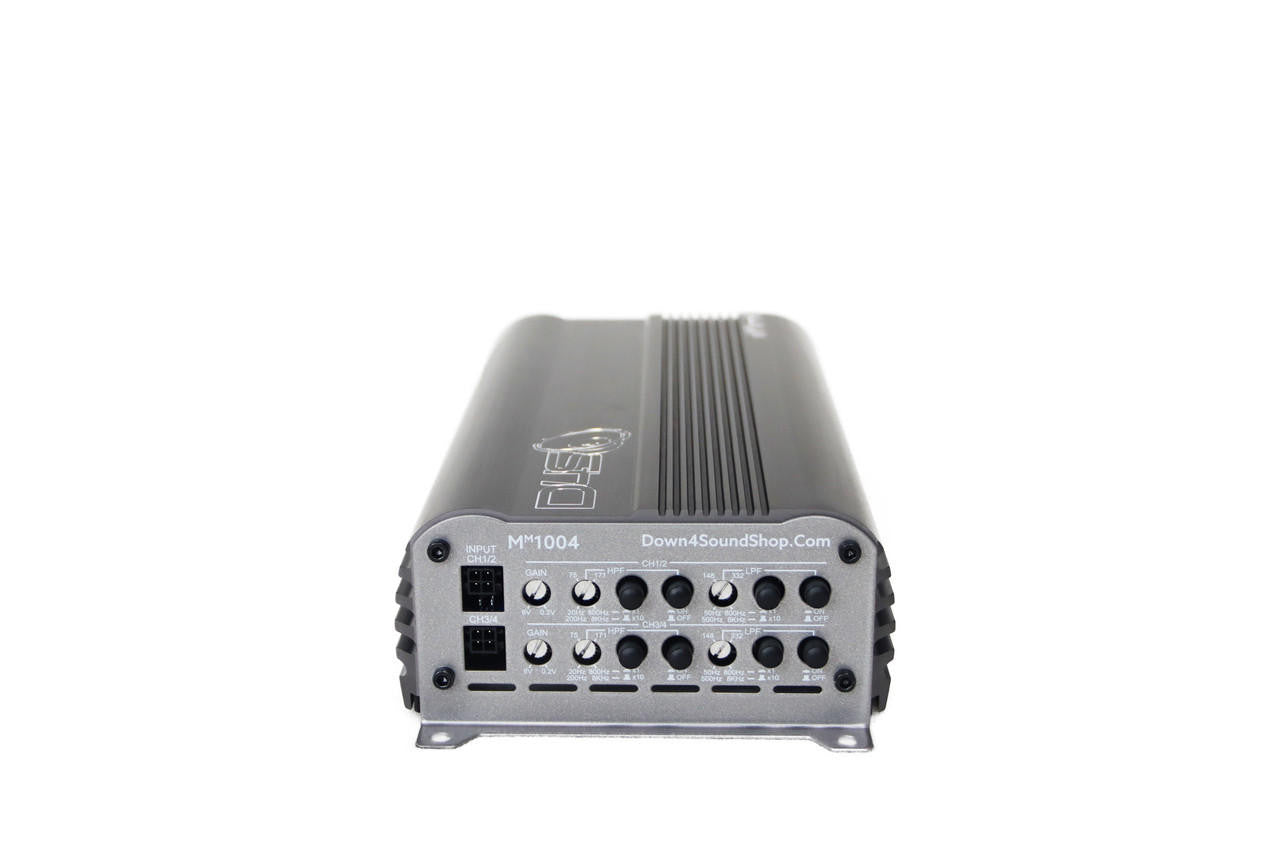

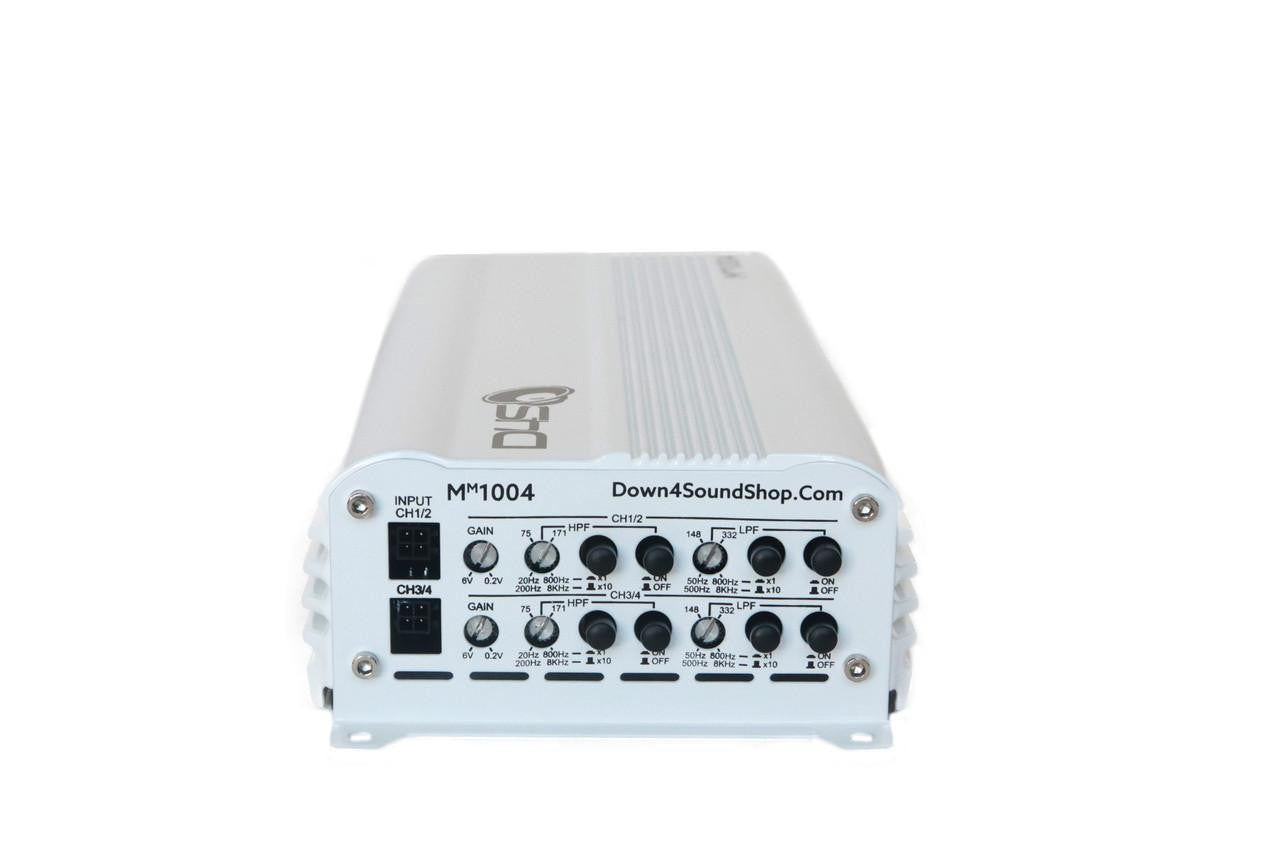

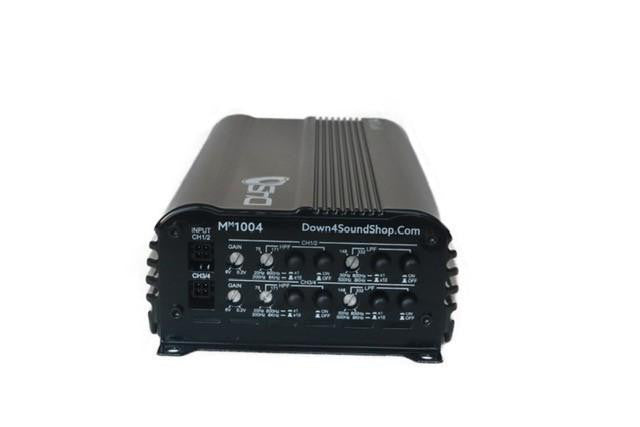

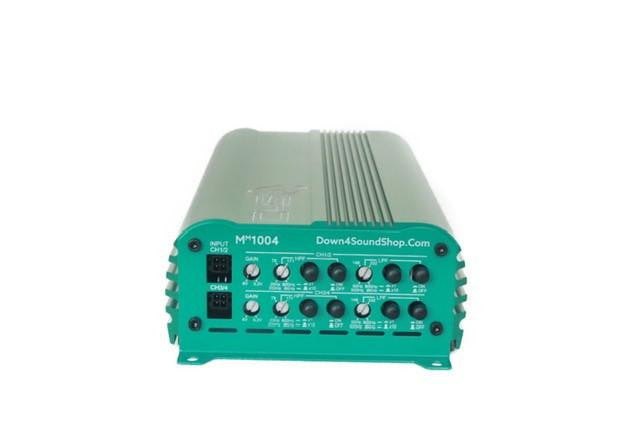

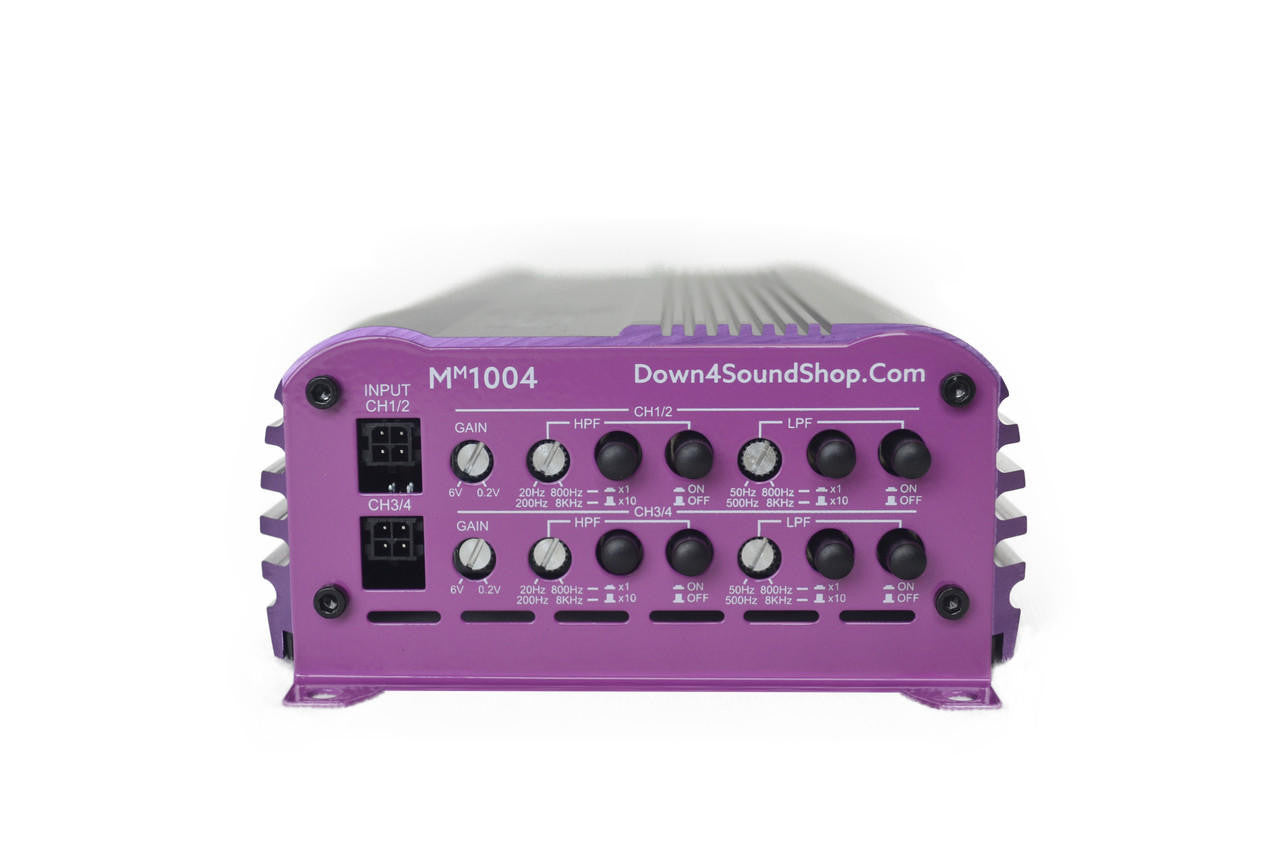

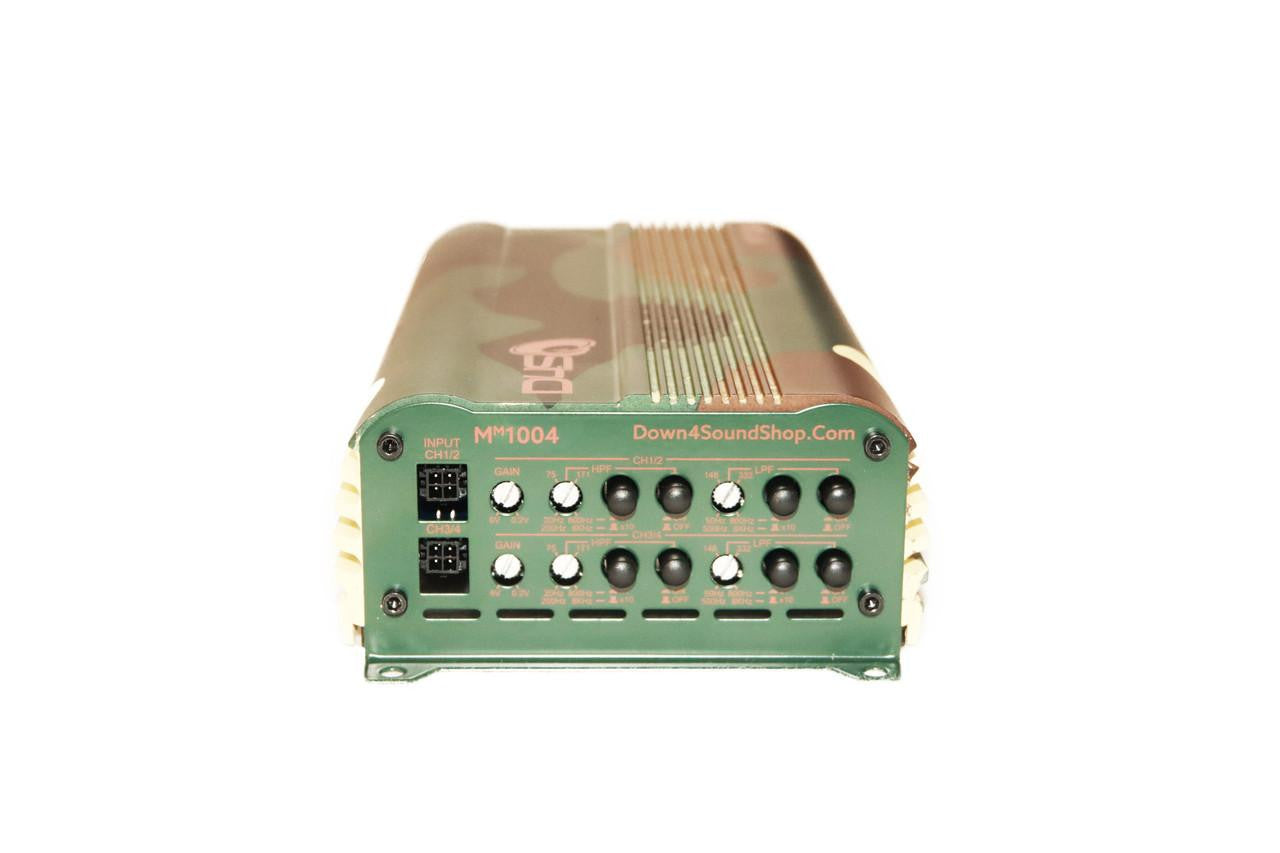

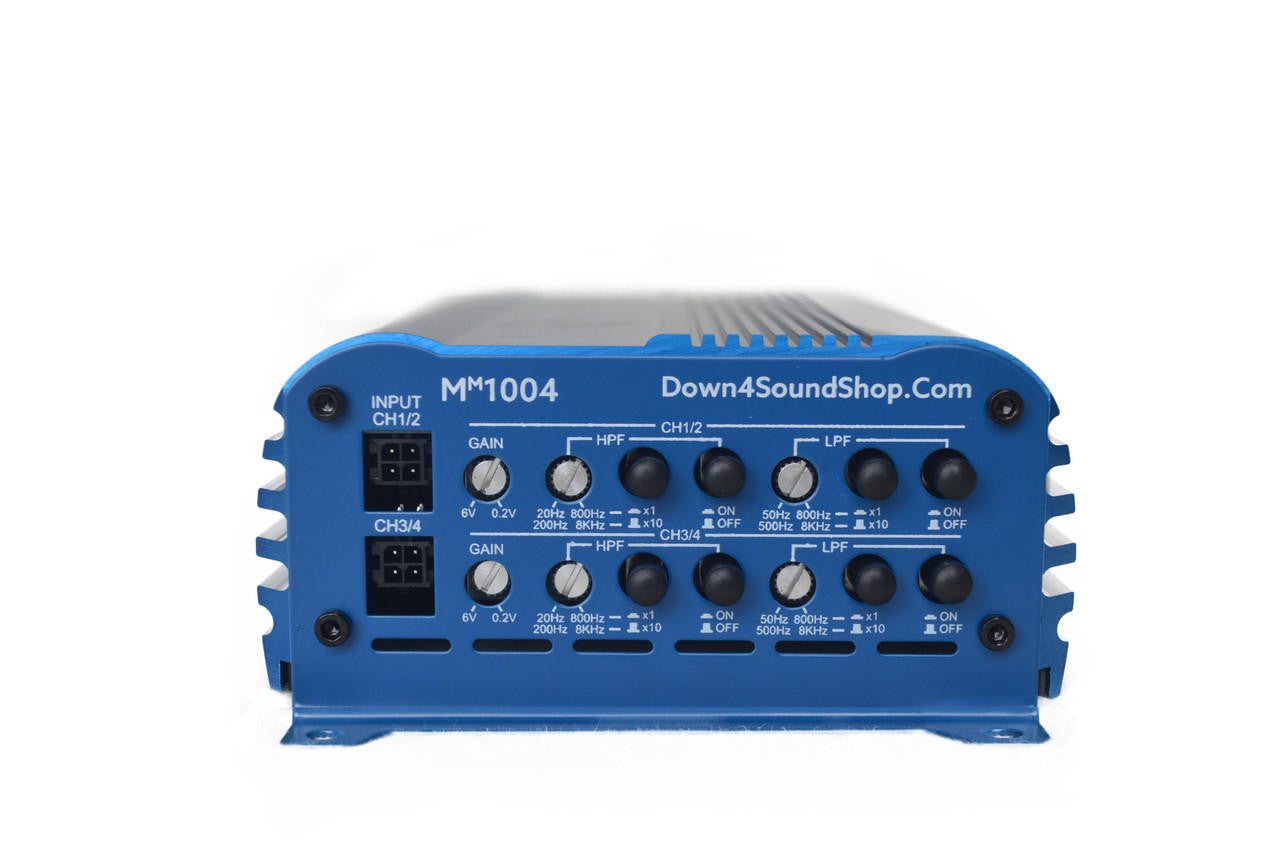

- CH1/2 High Pass Filter: 20Hz –800Hz
- HighPass multiply: x1, x10 ( 200Hz –8Khz )
- Low Pass Filter: 50Hz –800Hz Low Pass multiply: x1, x10 ( 500Hz –8Khz ) Bandpass capable
- CH3/4 High Pass Filter: 20Hz –800Hz
- High Pass multiply: x1, x10 ( 200Hz –8Khz )
- Low Pass Filter: 50Hz –800Hz Low Pass multiply: x1, x10 ( 500Hz –8Khz ) Bandpass capable
- Clipping Indicator
- Working voltage: 9 to 15.5Volts.

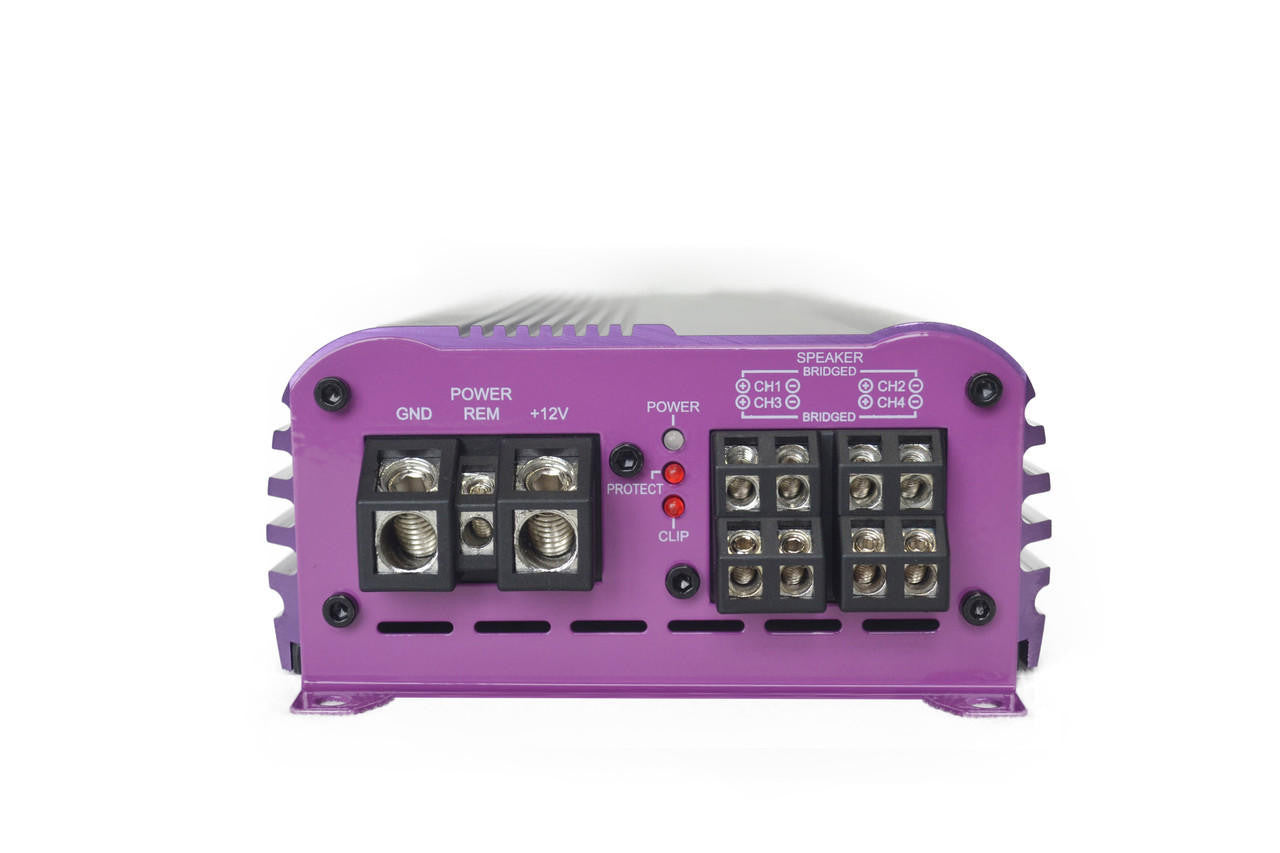

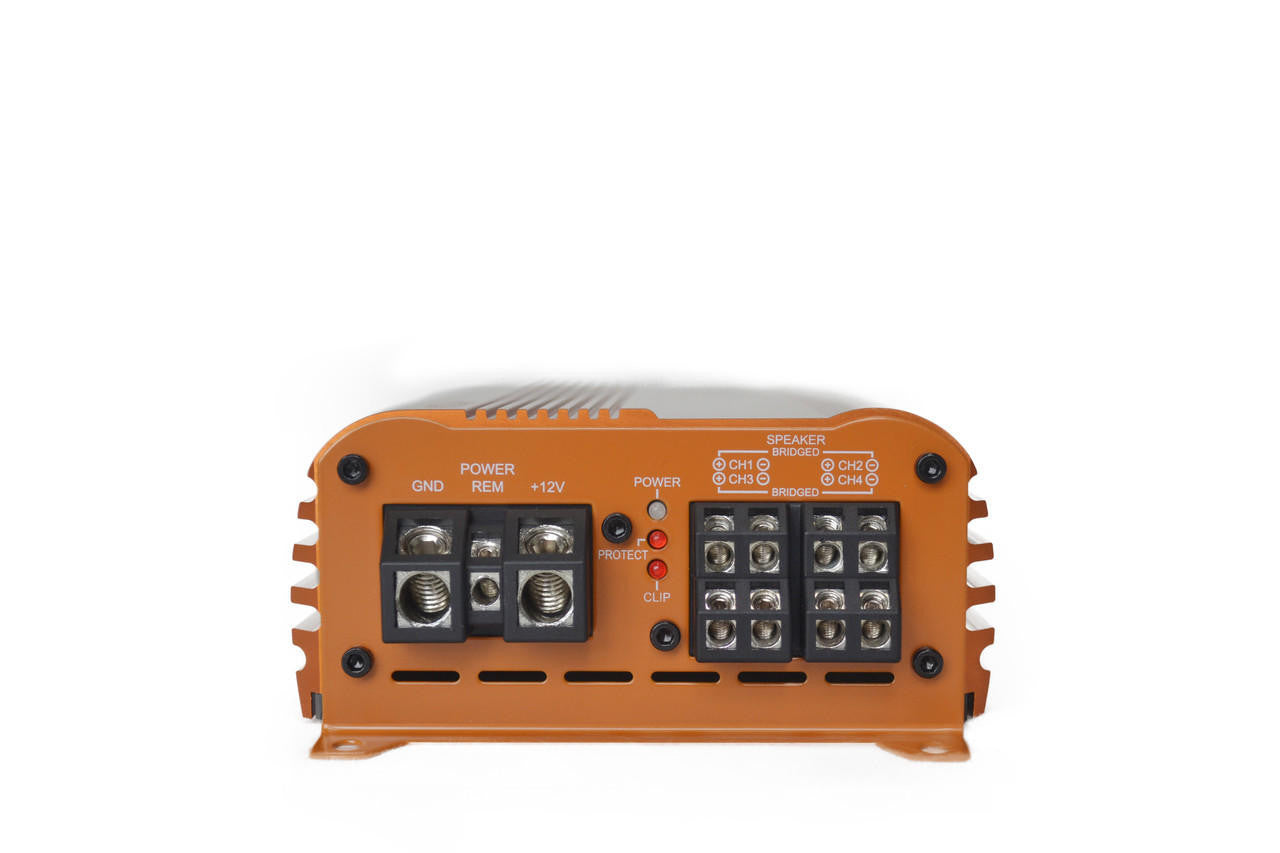

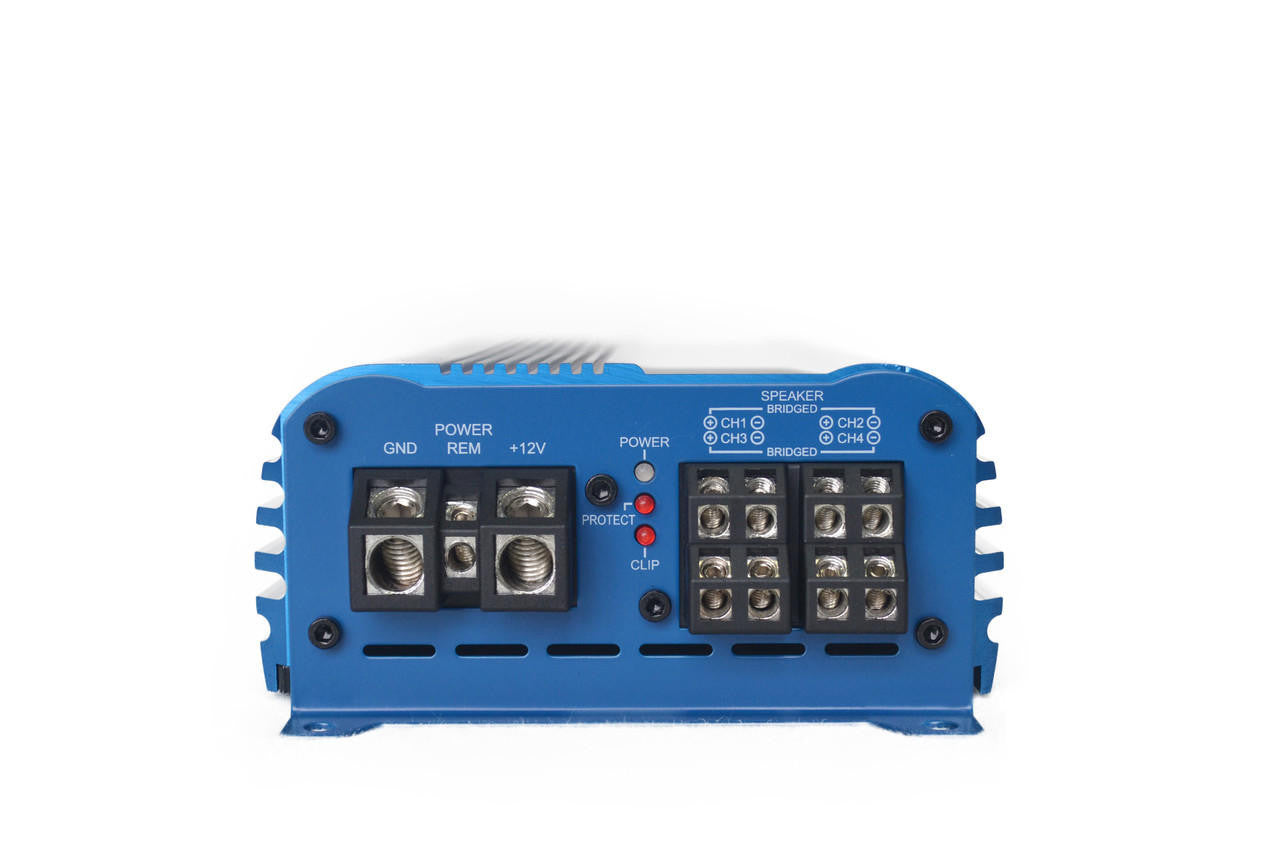

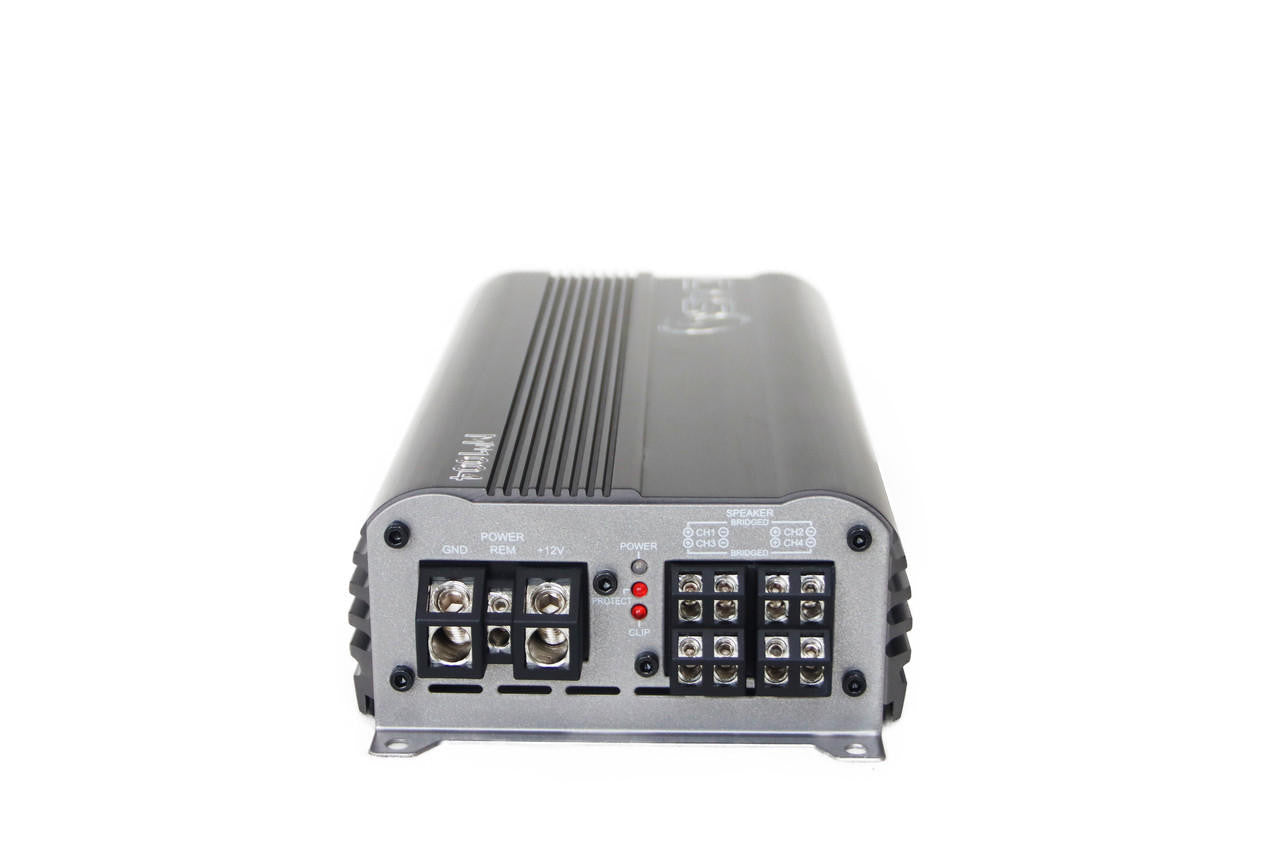

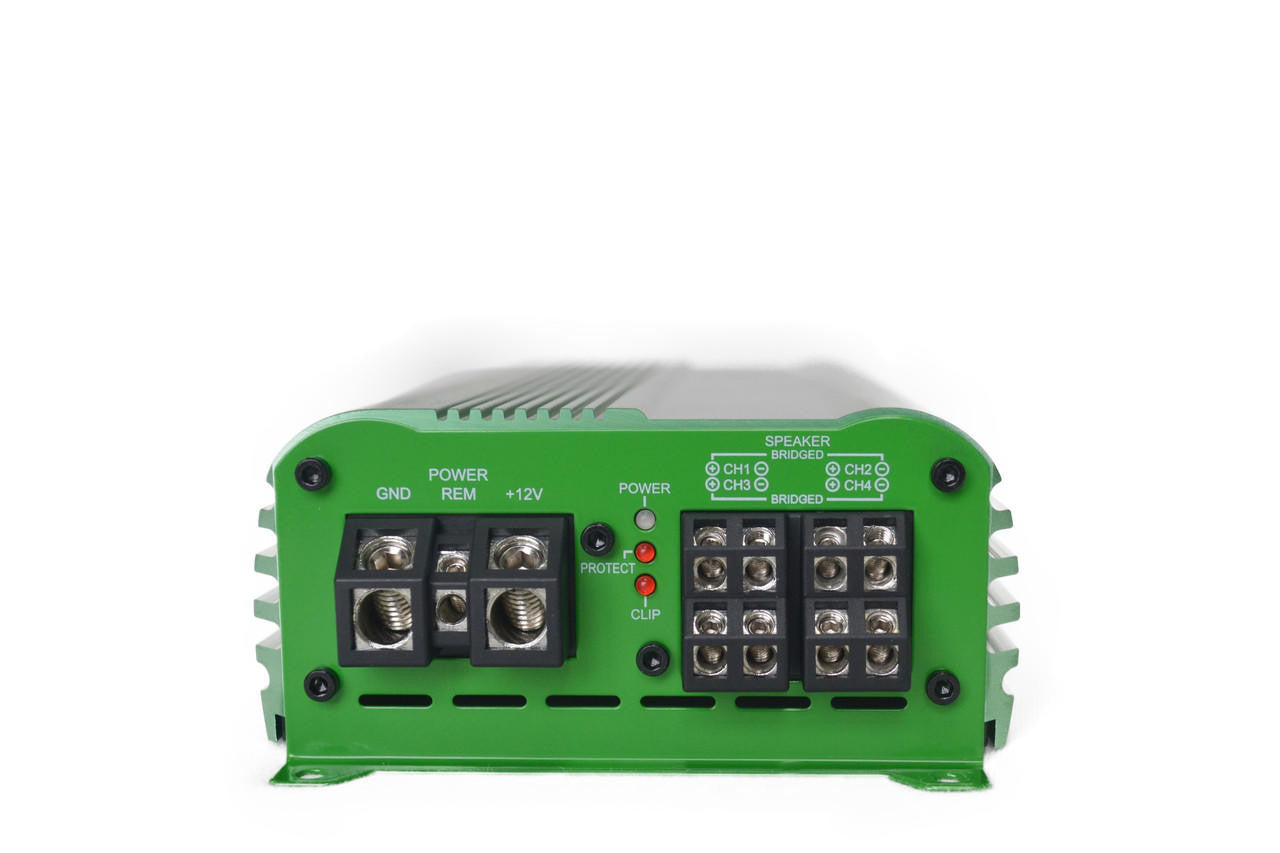

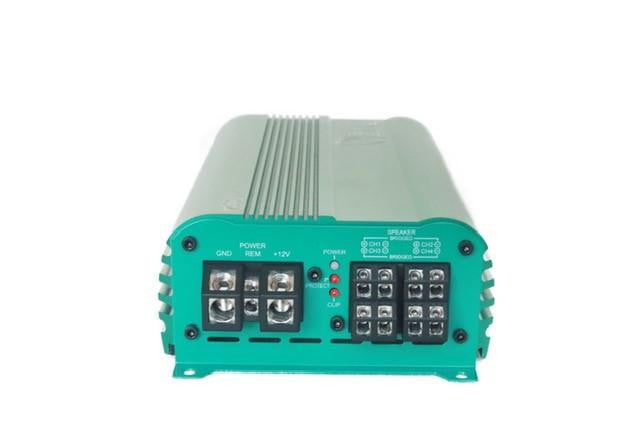

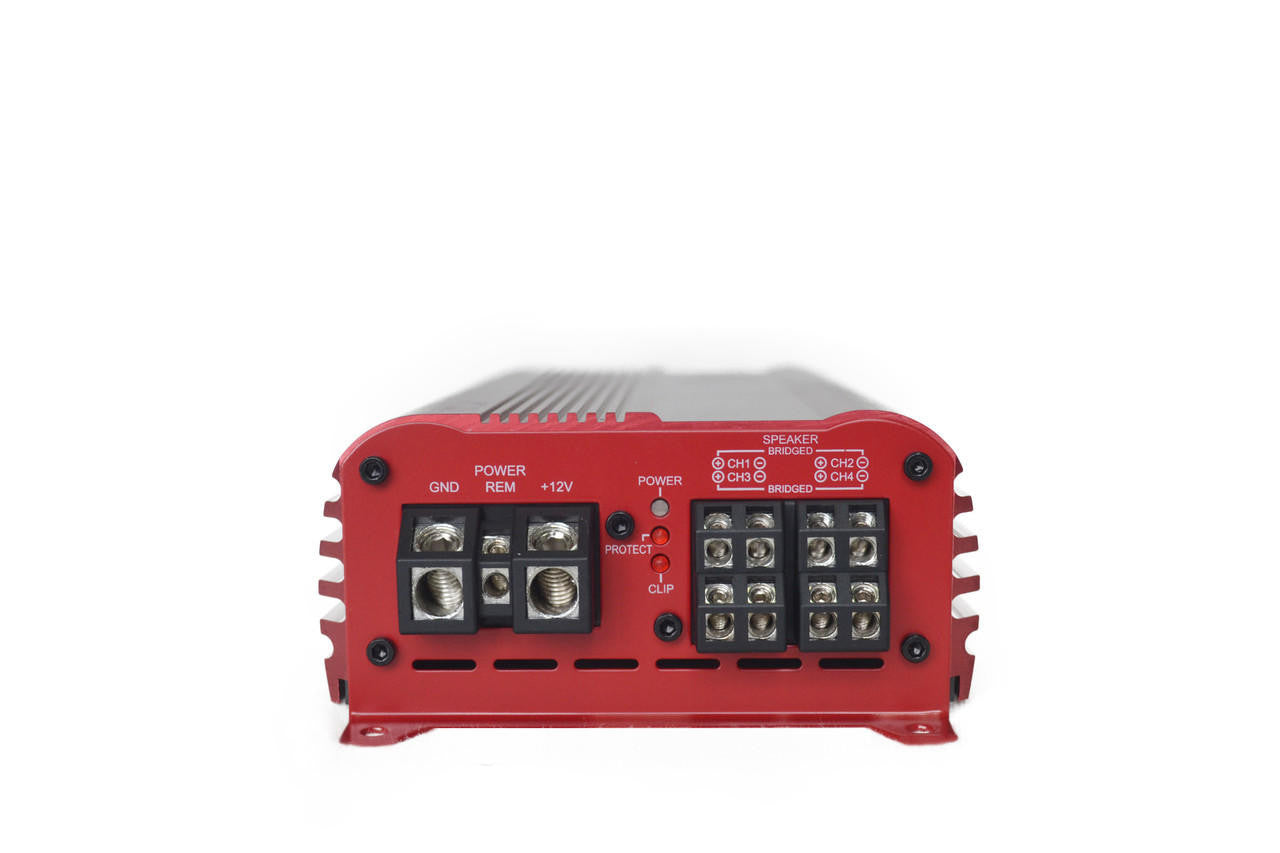

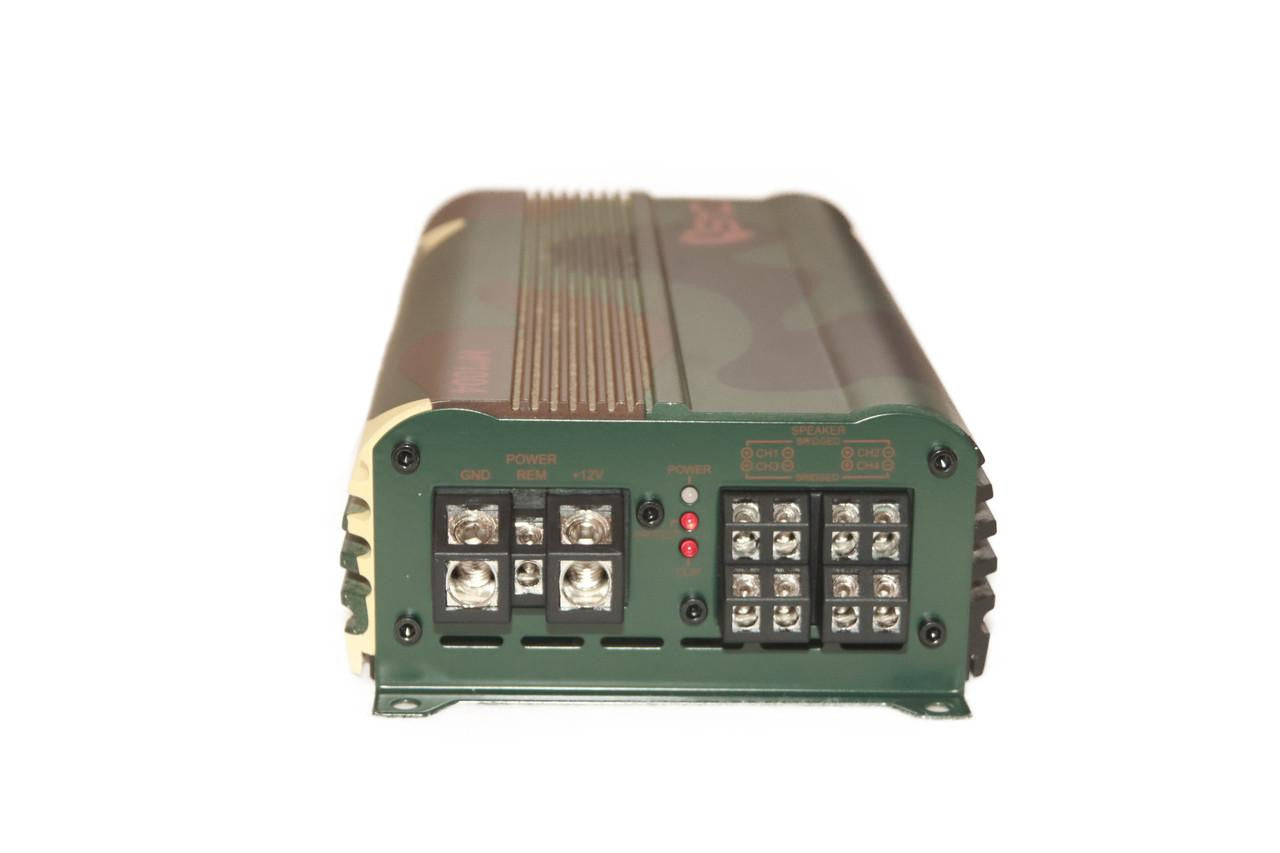

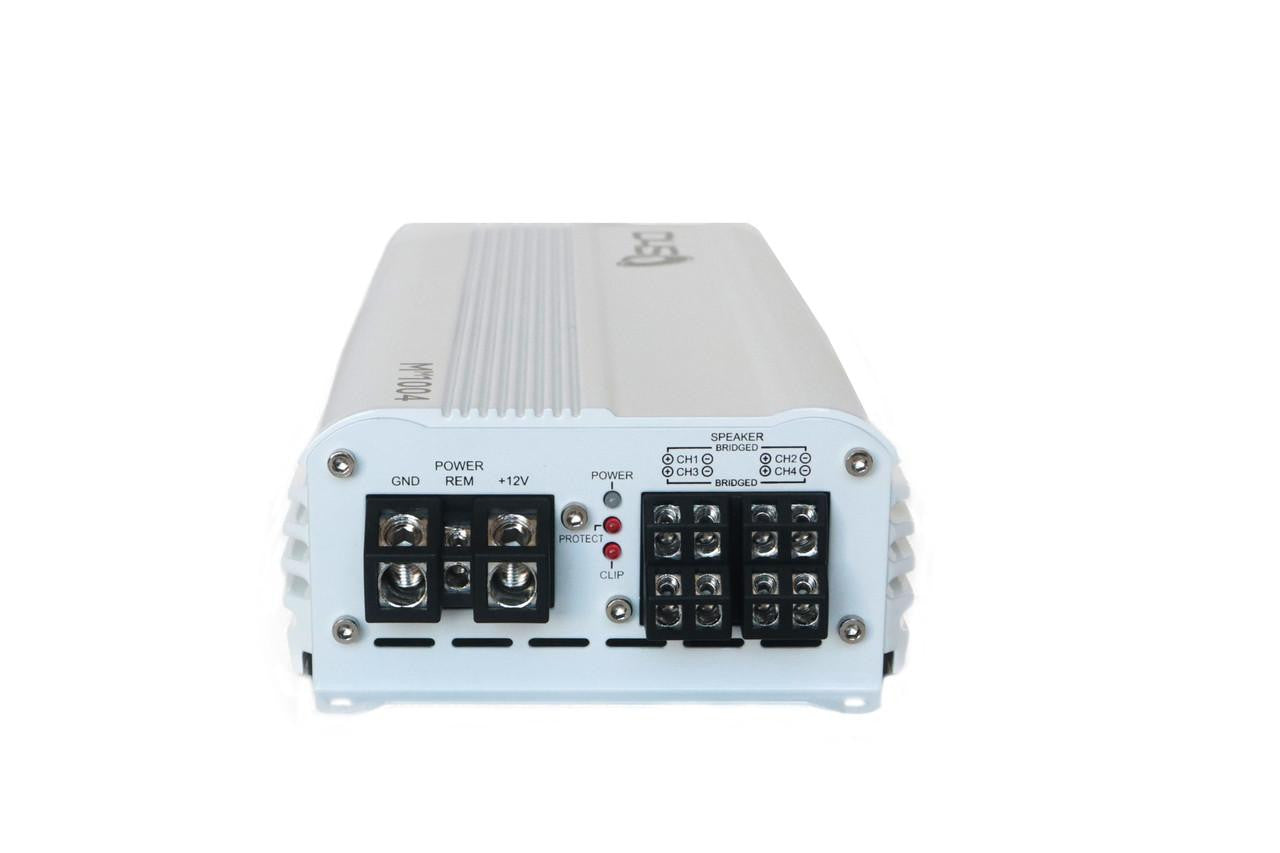

- 4 GA Power & Ground Terminal
- 14GA Speaker wire Terminal
Dimensions:
- 220mm L x 123.9mm W x 54.3mm H
- 8.66 x 4.87 x 2.13 inches
