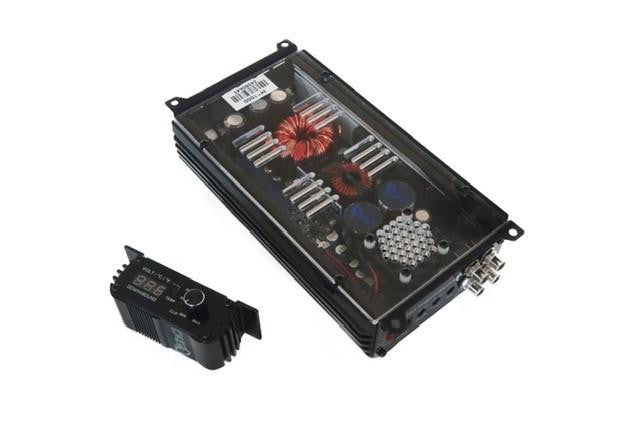

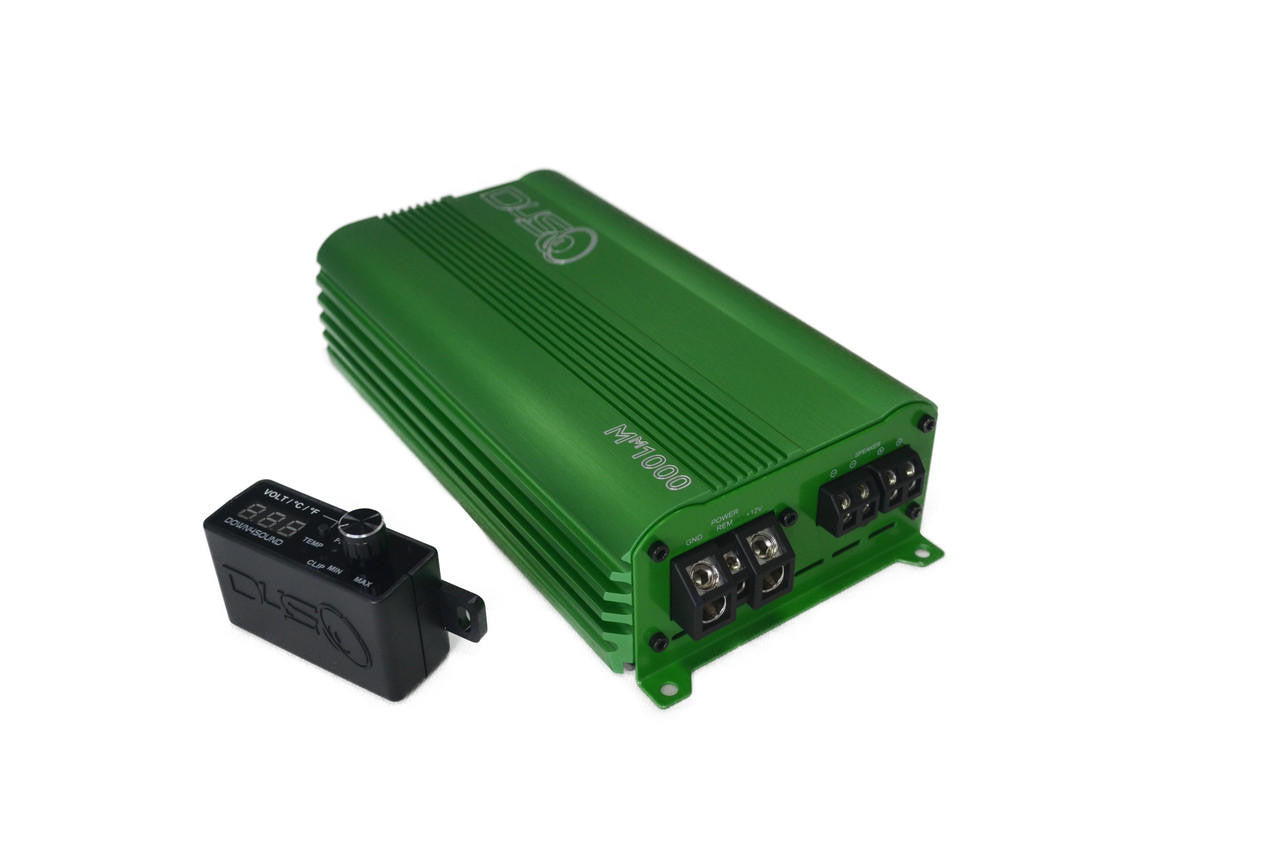

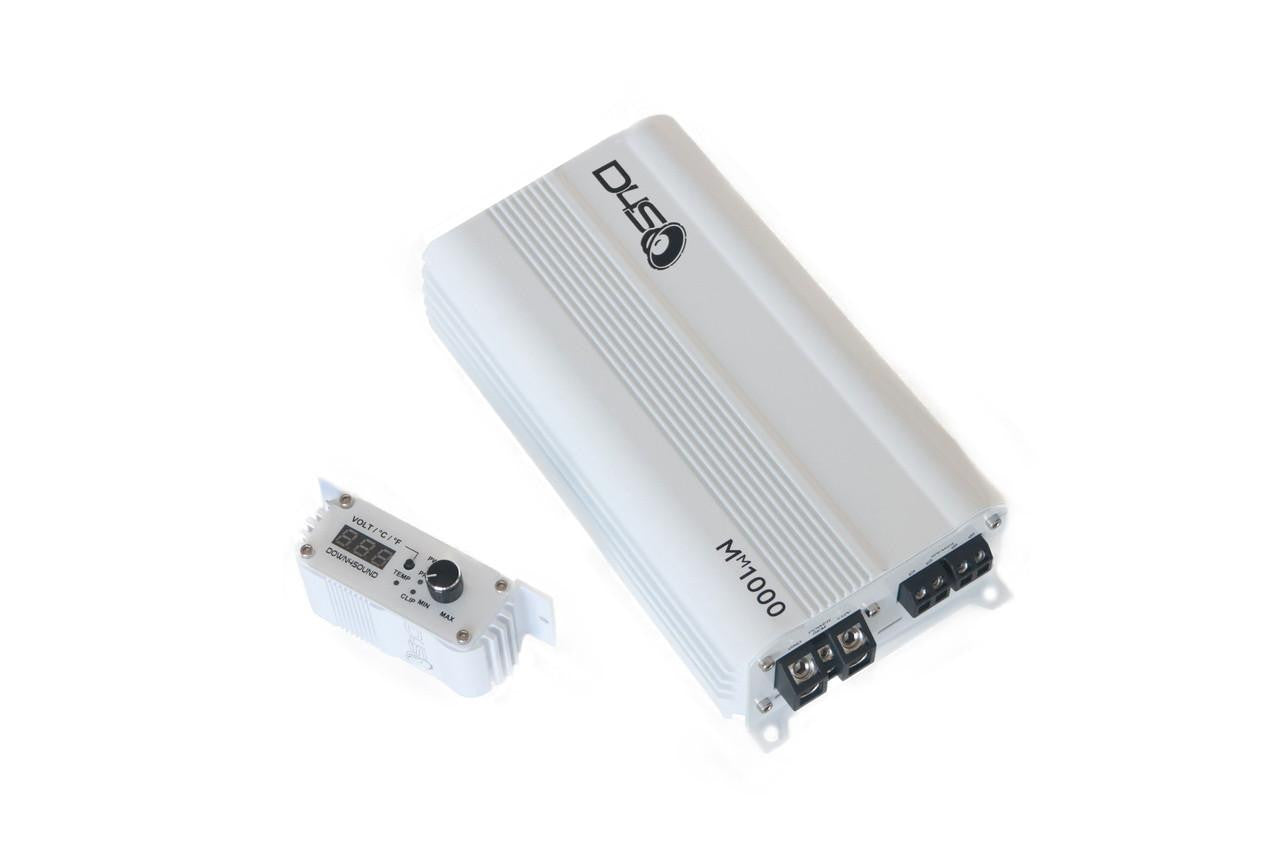

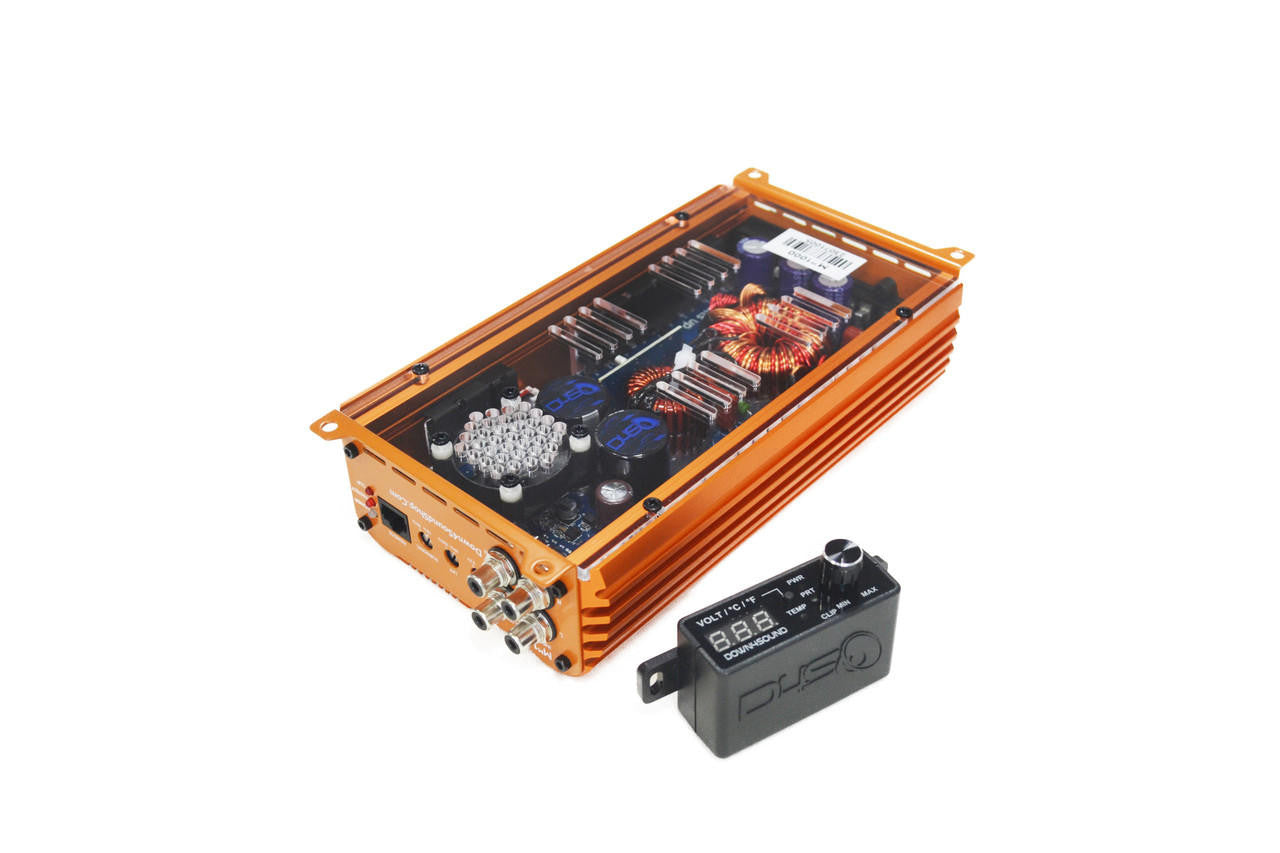

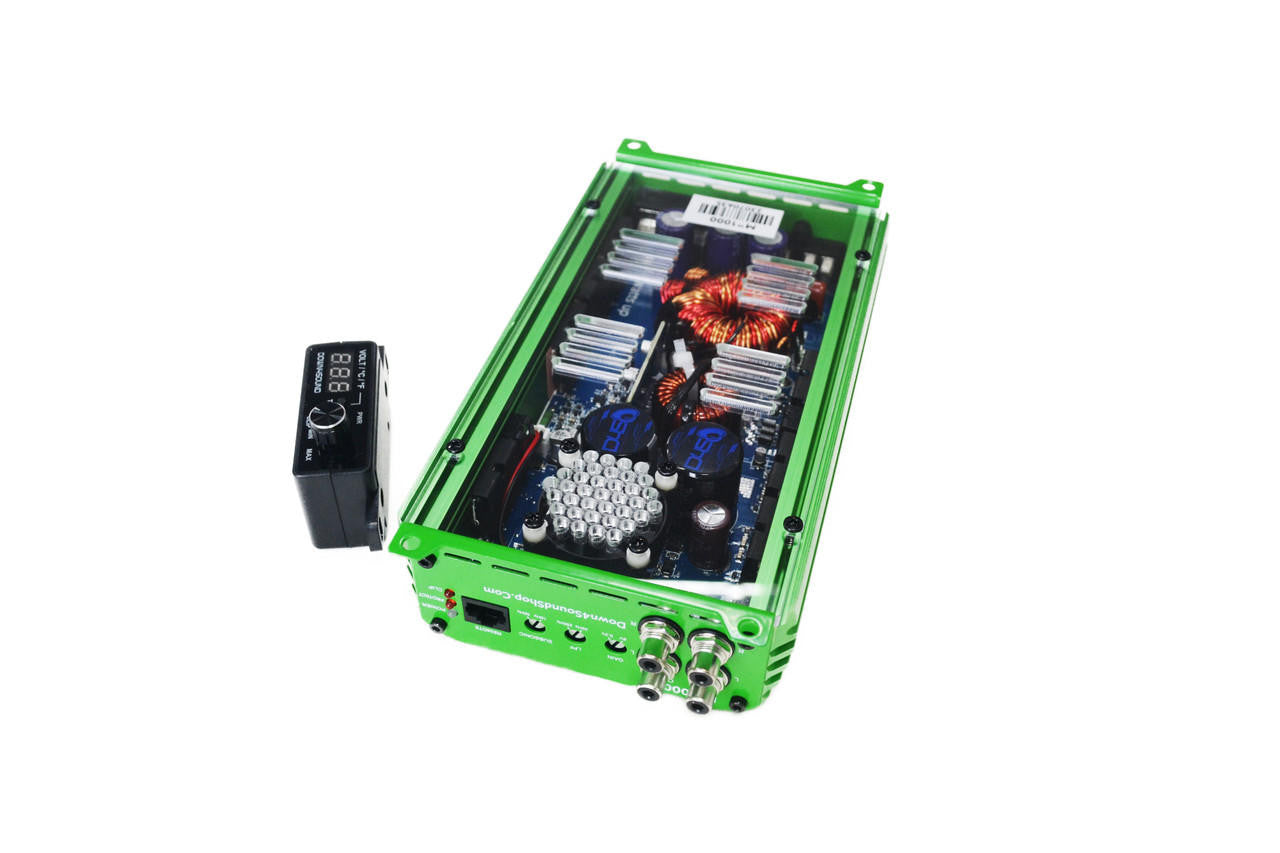

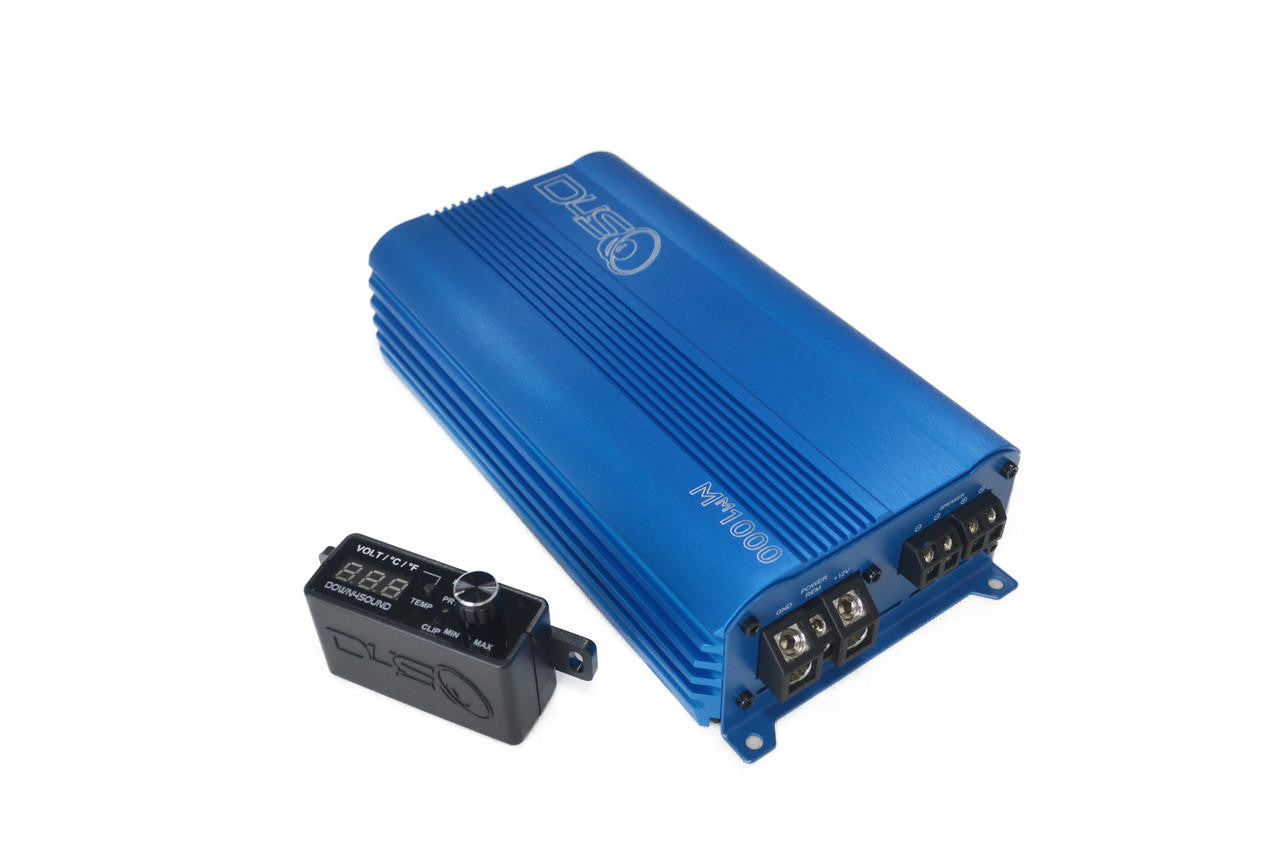

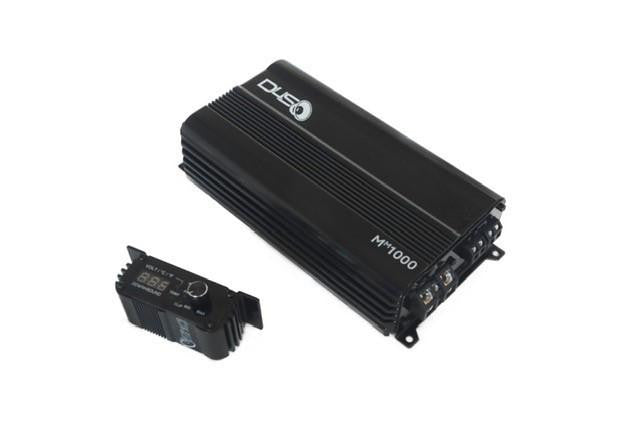

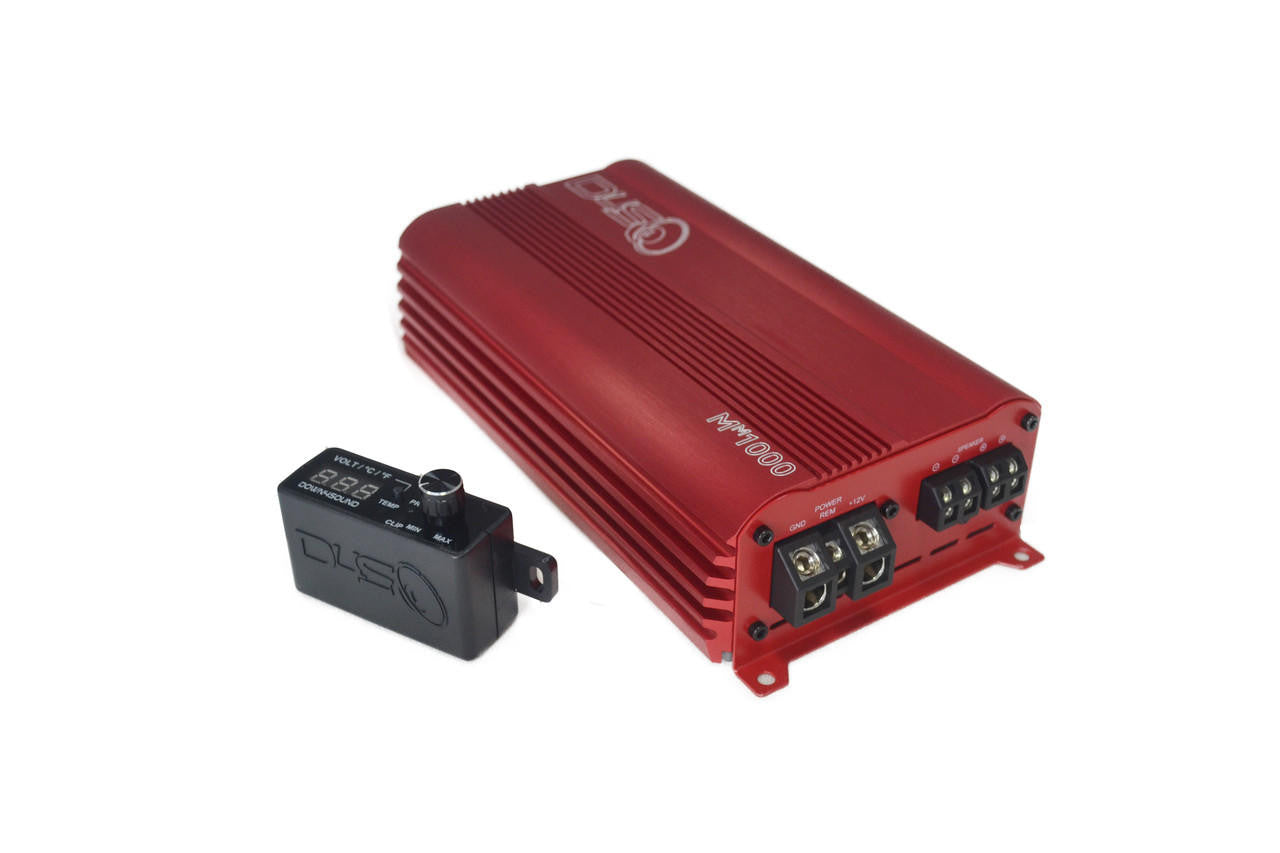

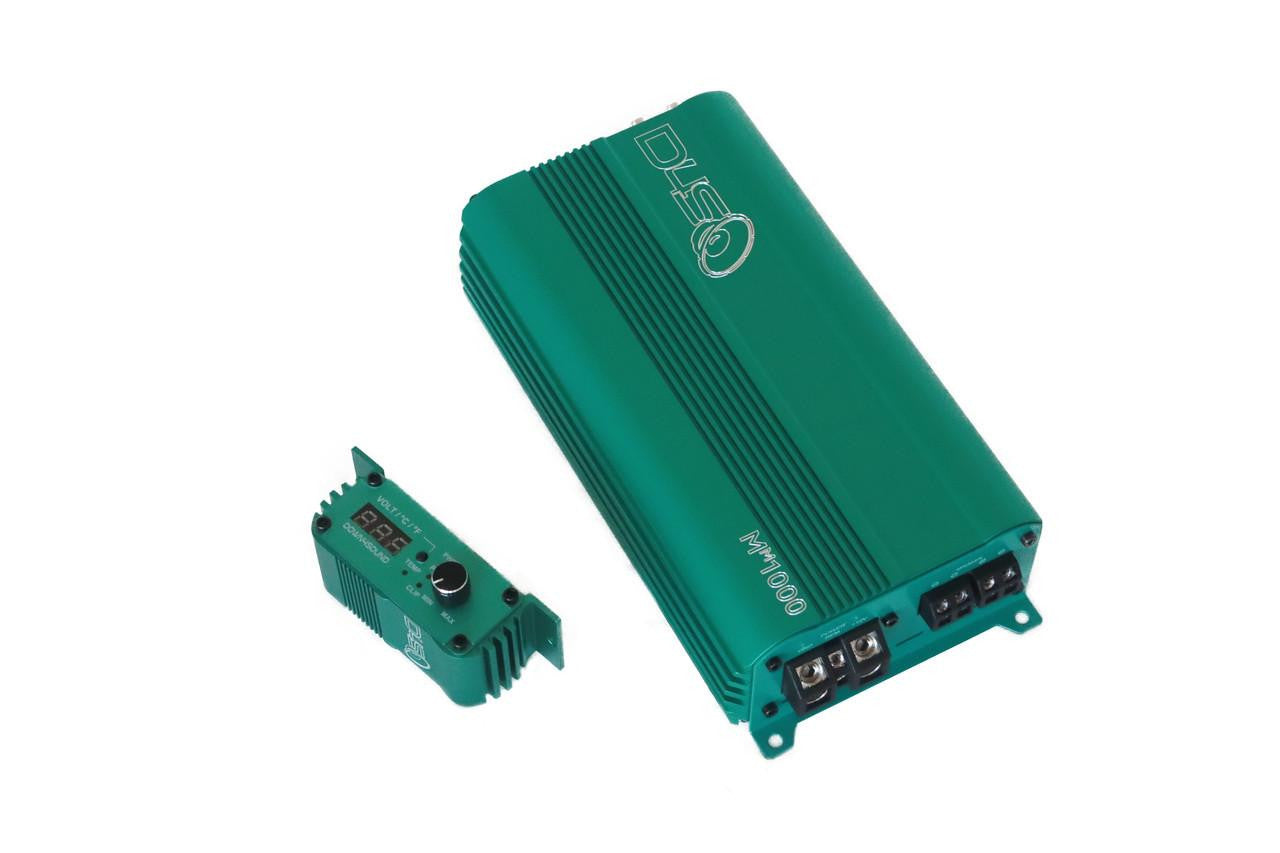

Introducing the Down4Sound MM1000 (MINI MAXX)
A 1000W RMS Mini Car Audio Amplifier that’s a compact powerhouse of performance. Despite its small size, this amplifier is engineered to deliver deep and resonant bass, making it a perfect fit for almost any vehicle.

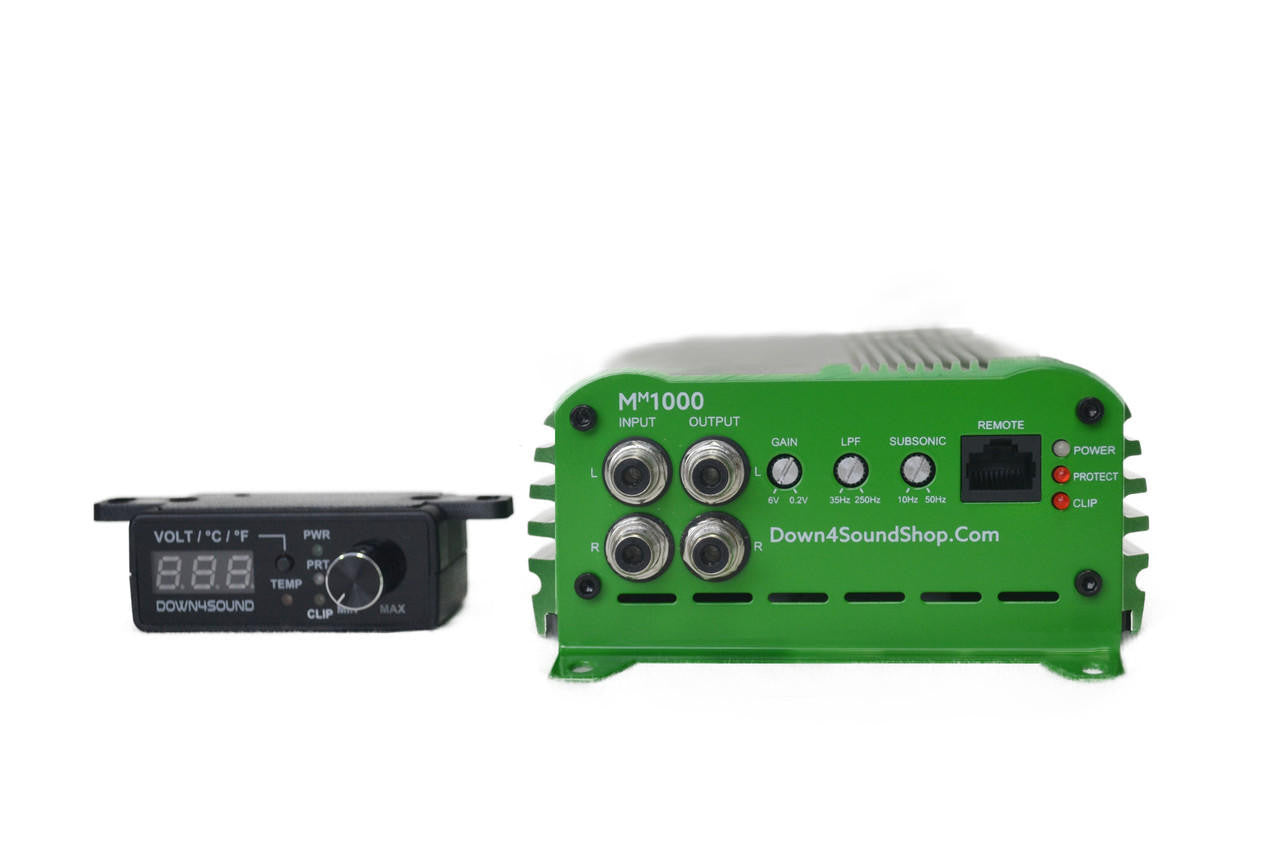

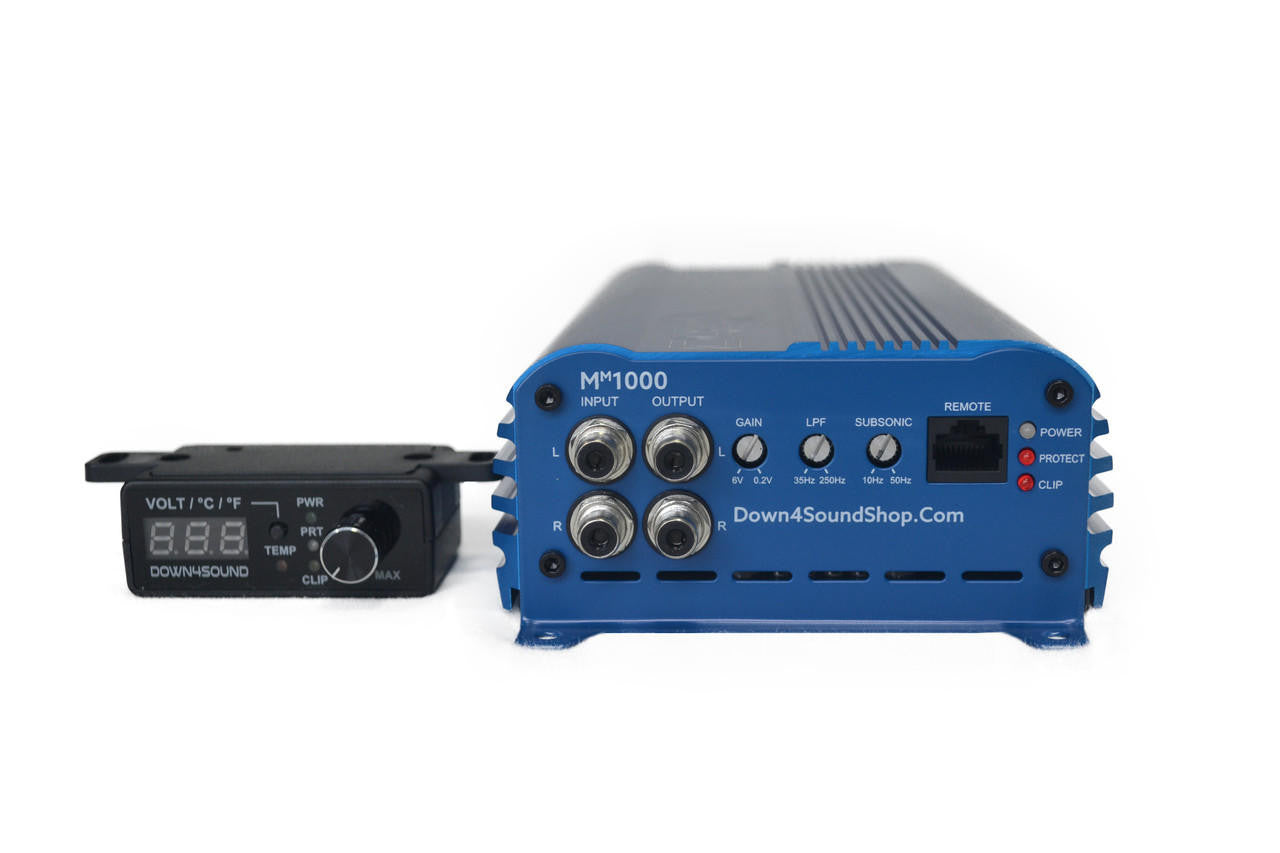

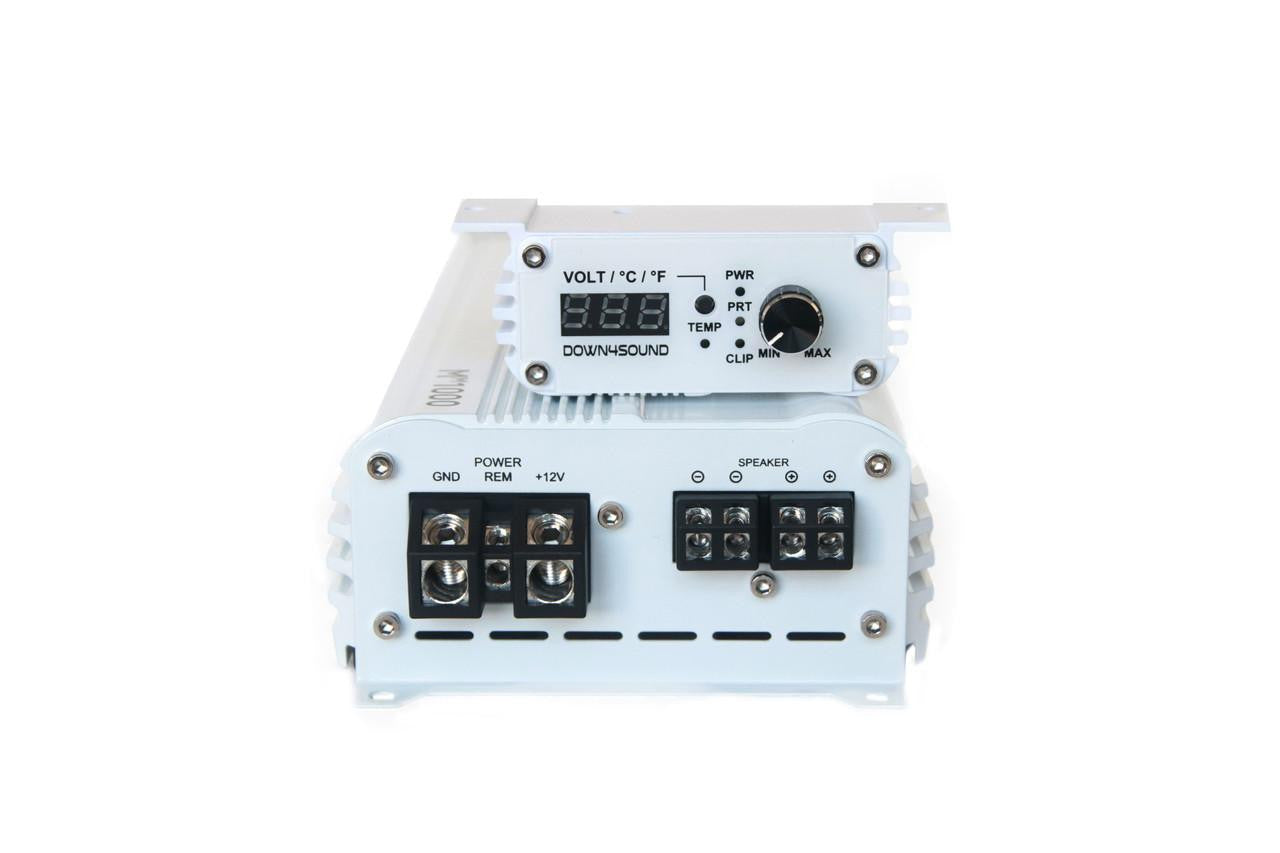

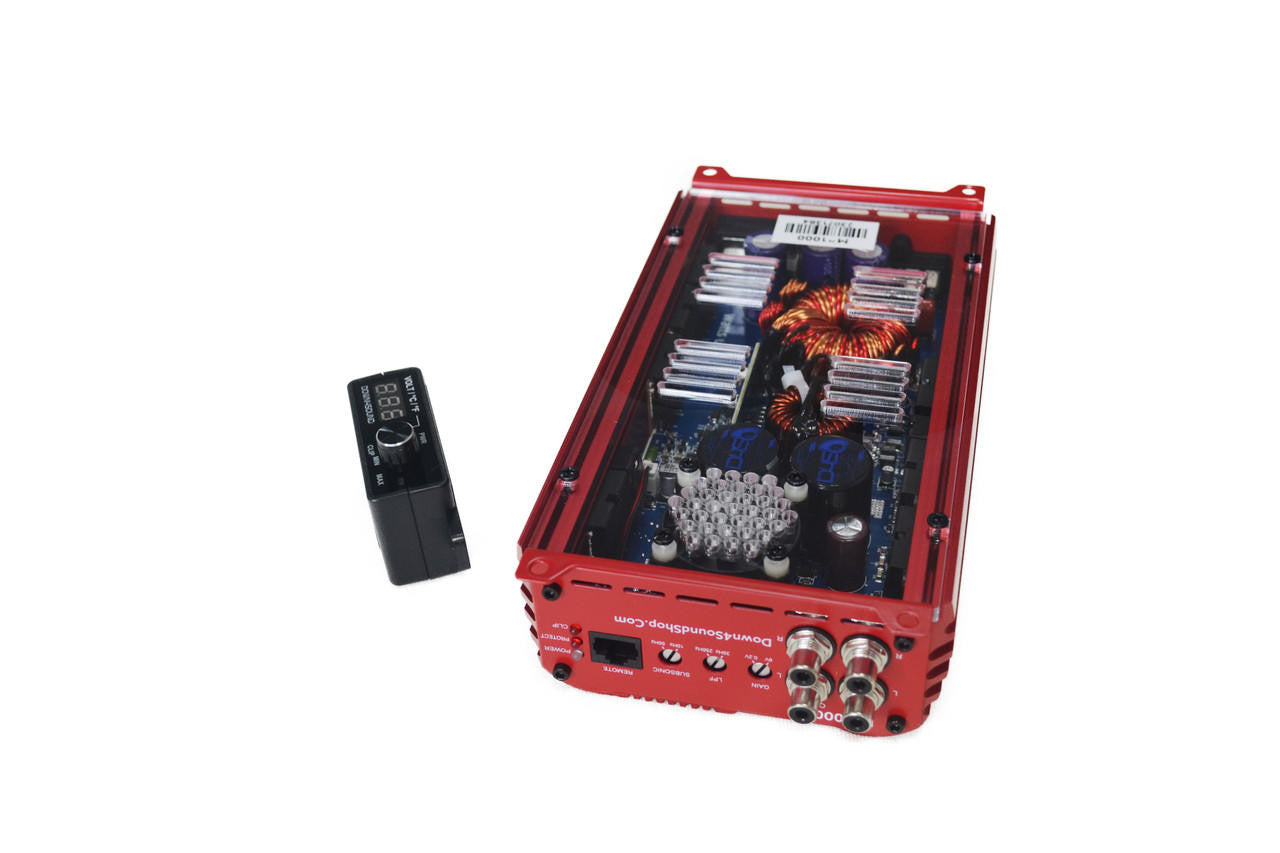

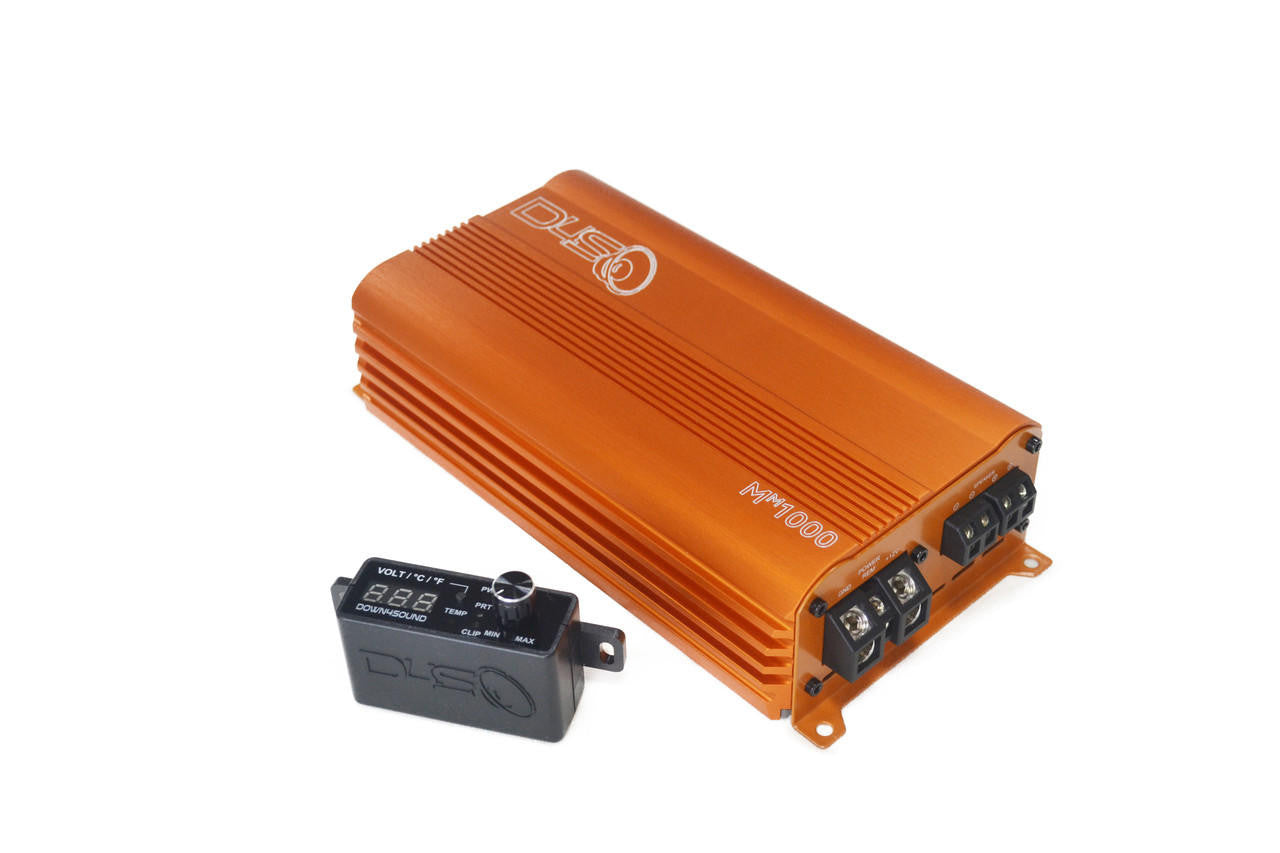

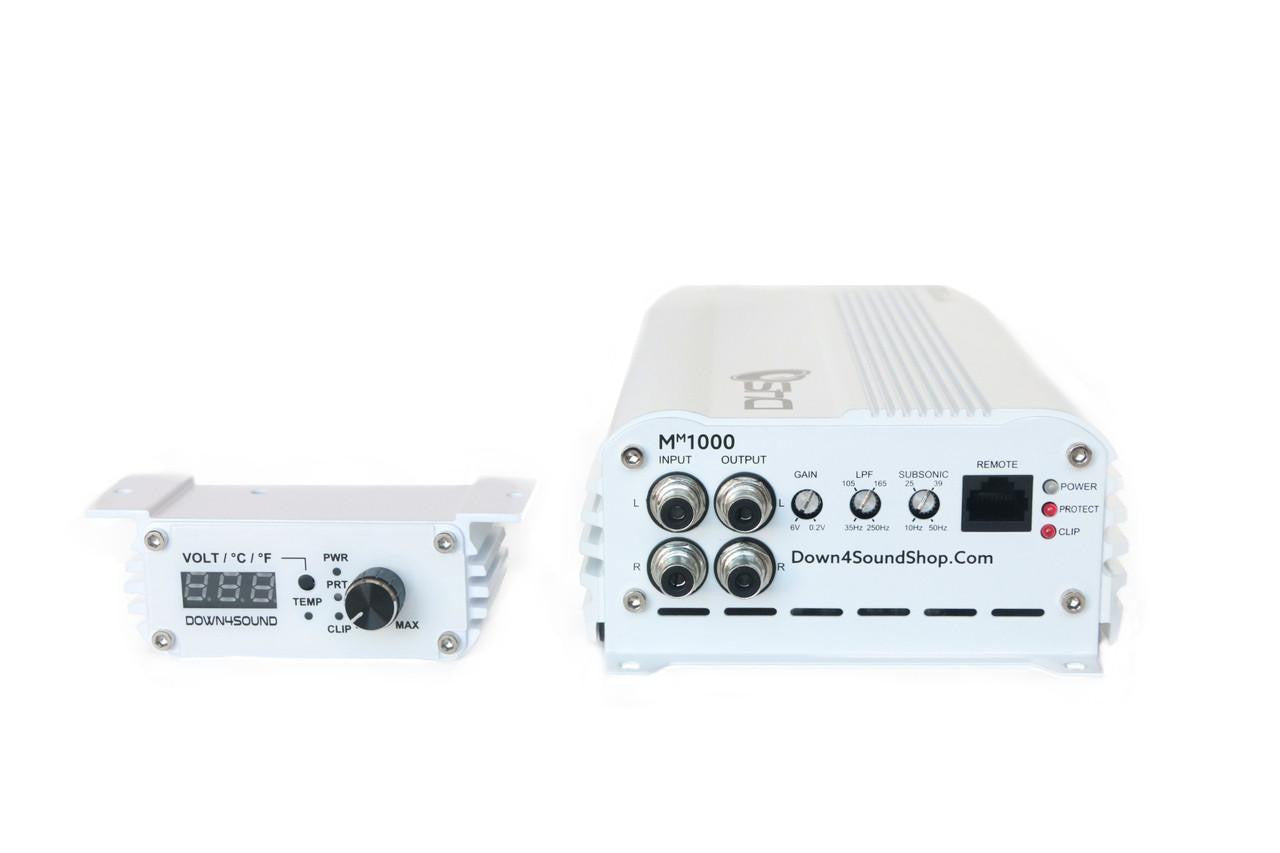

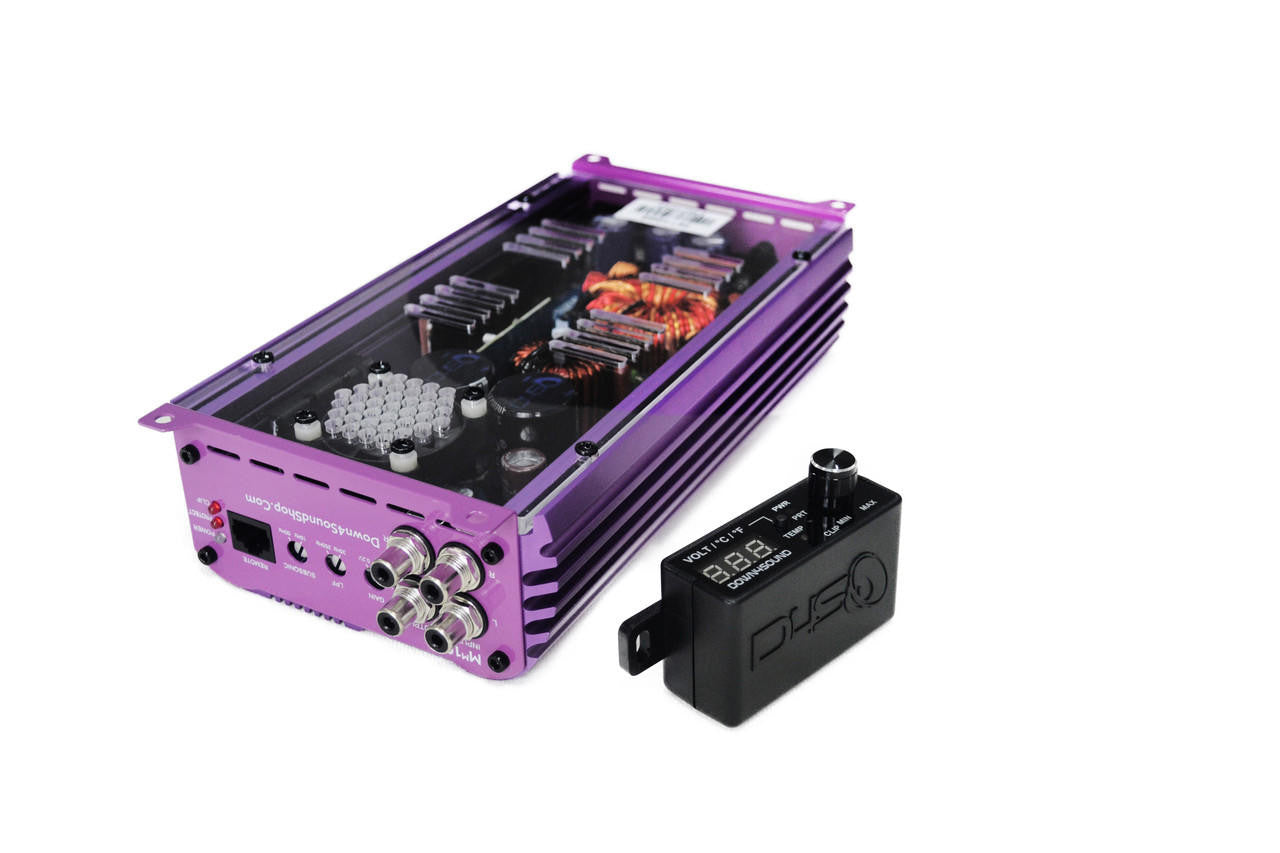

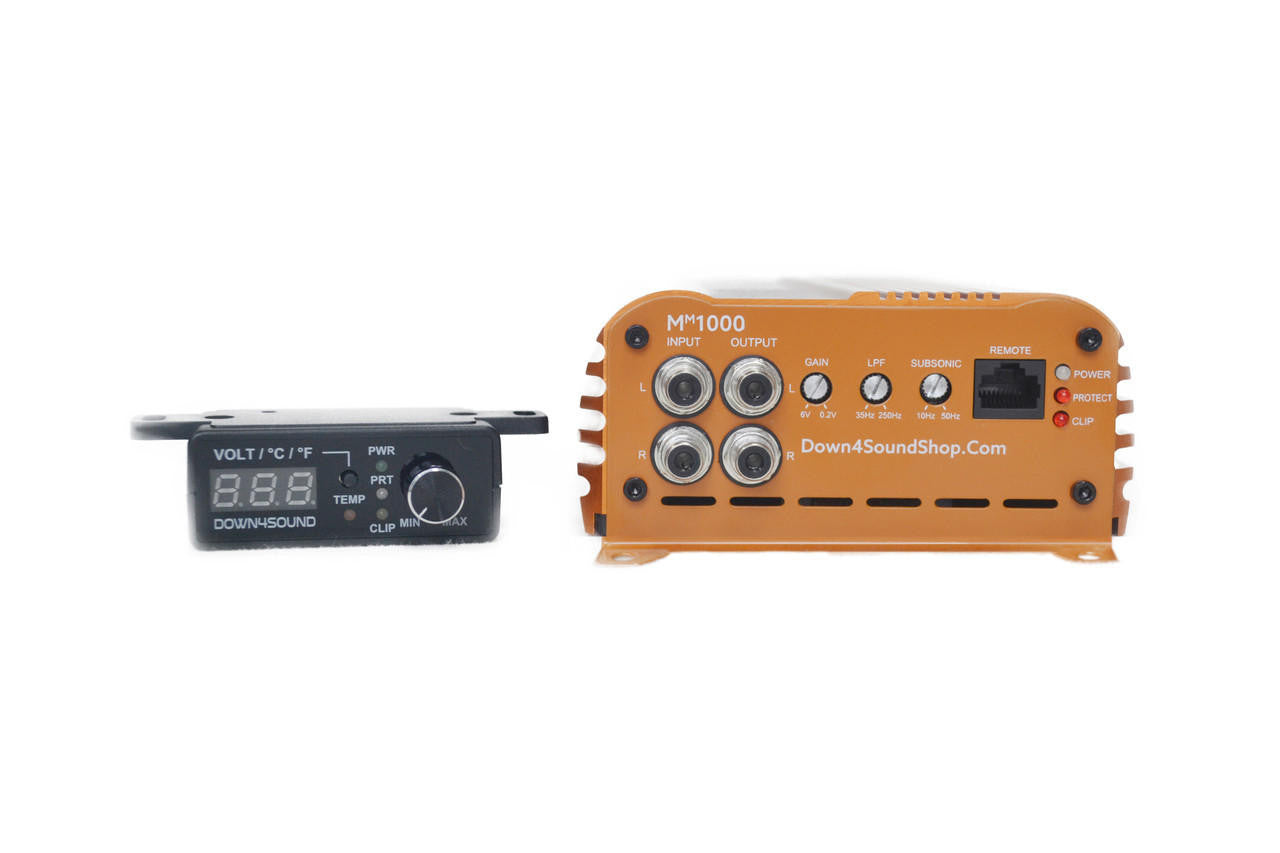

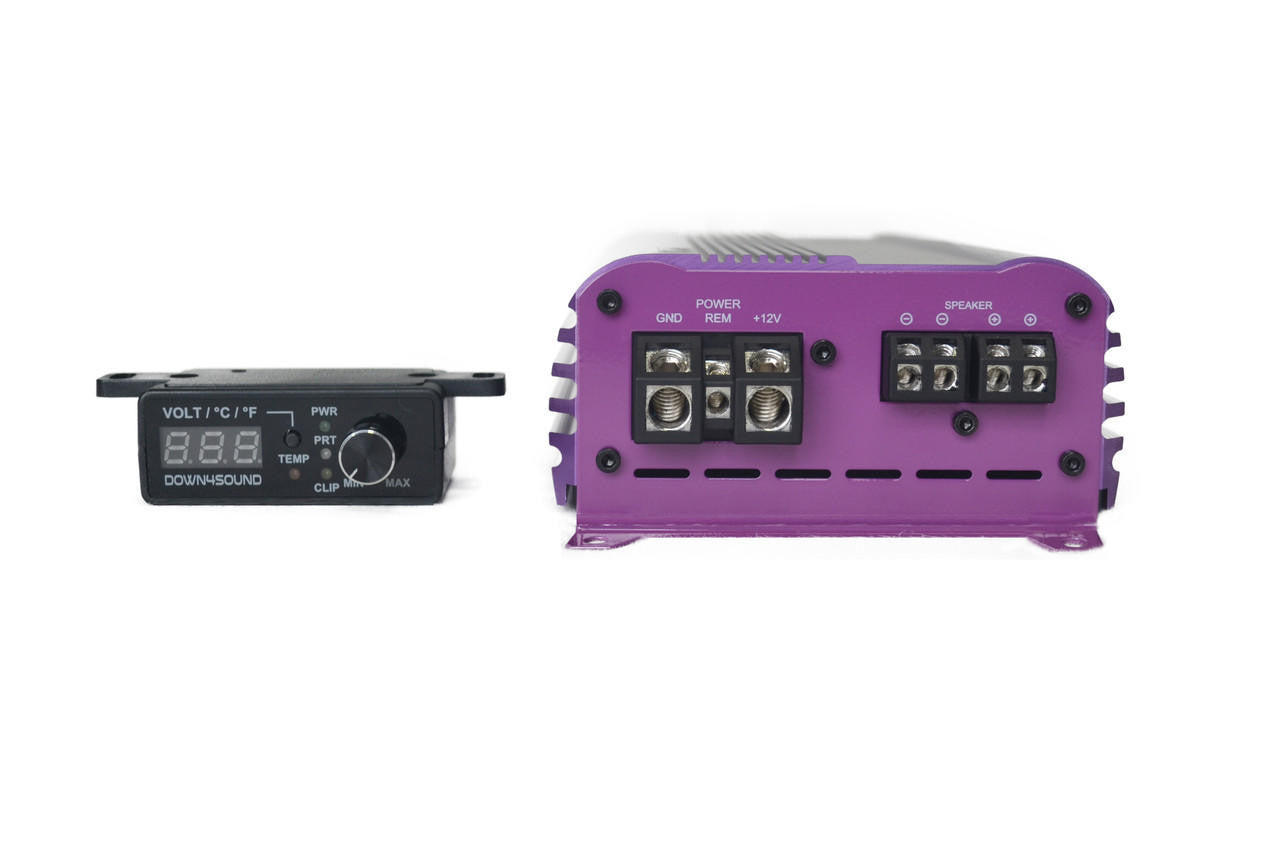

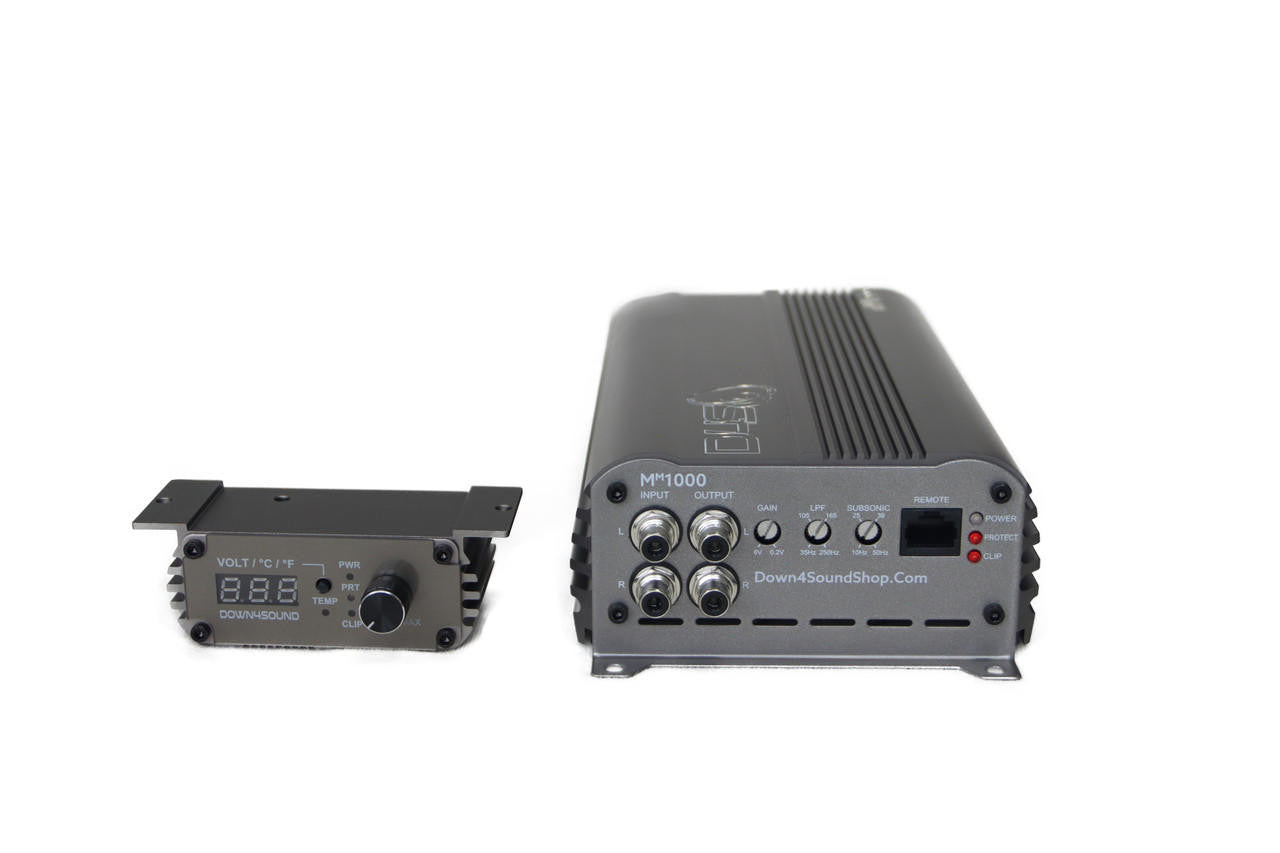

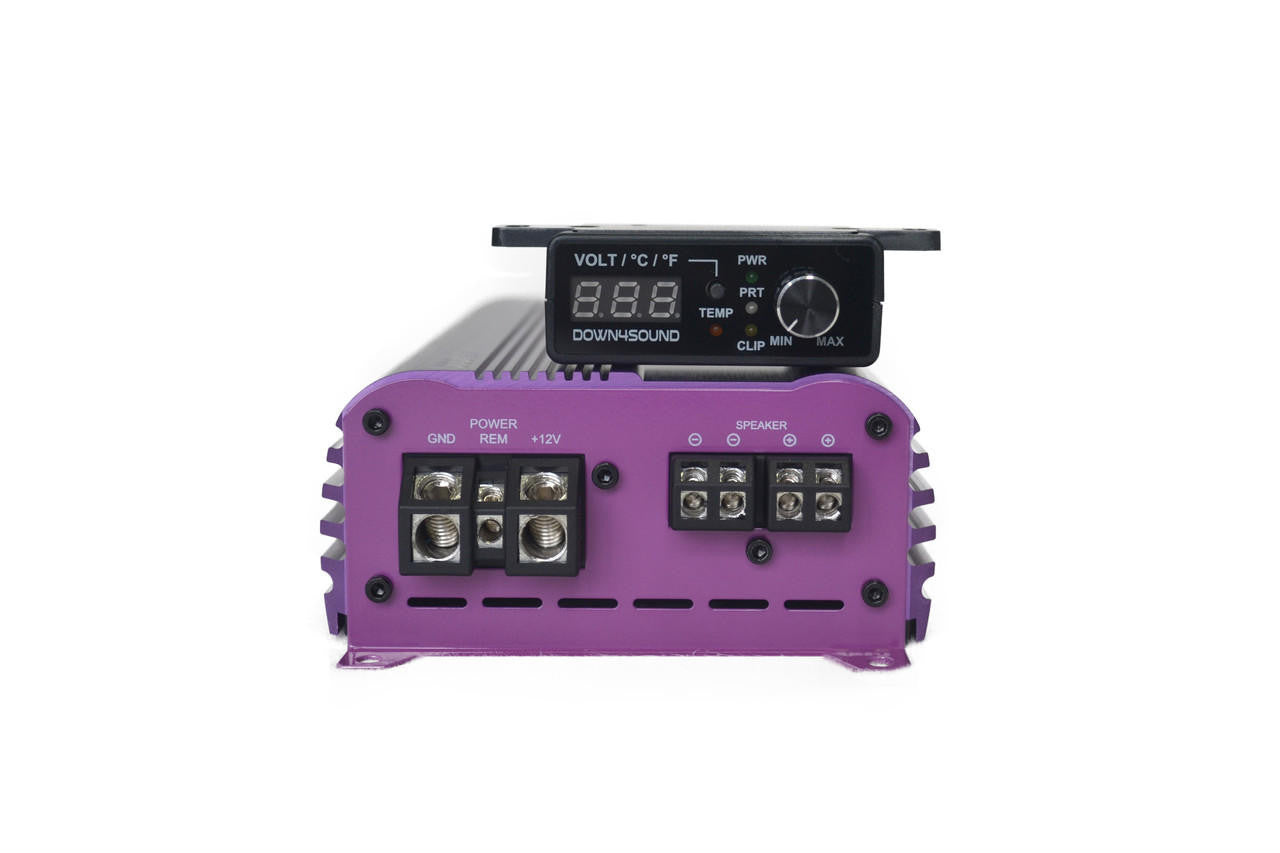

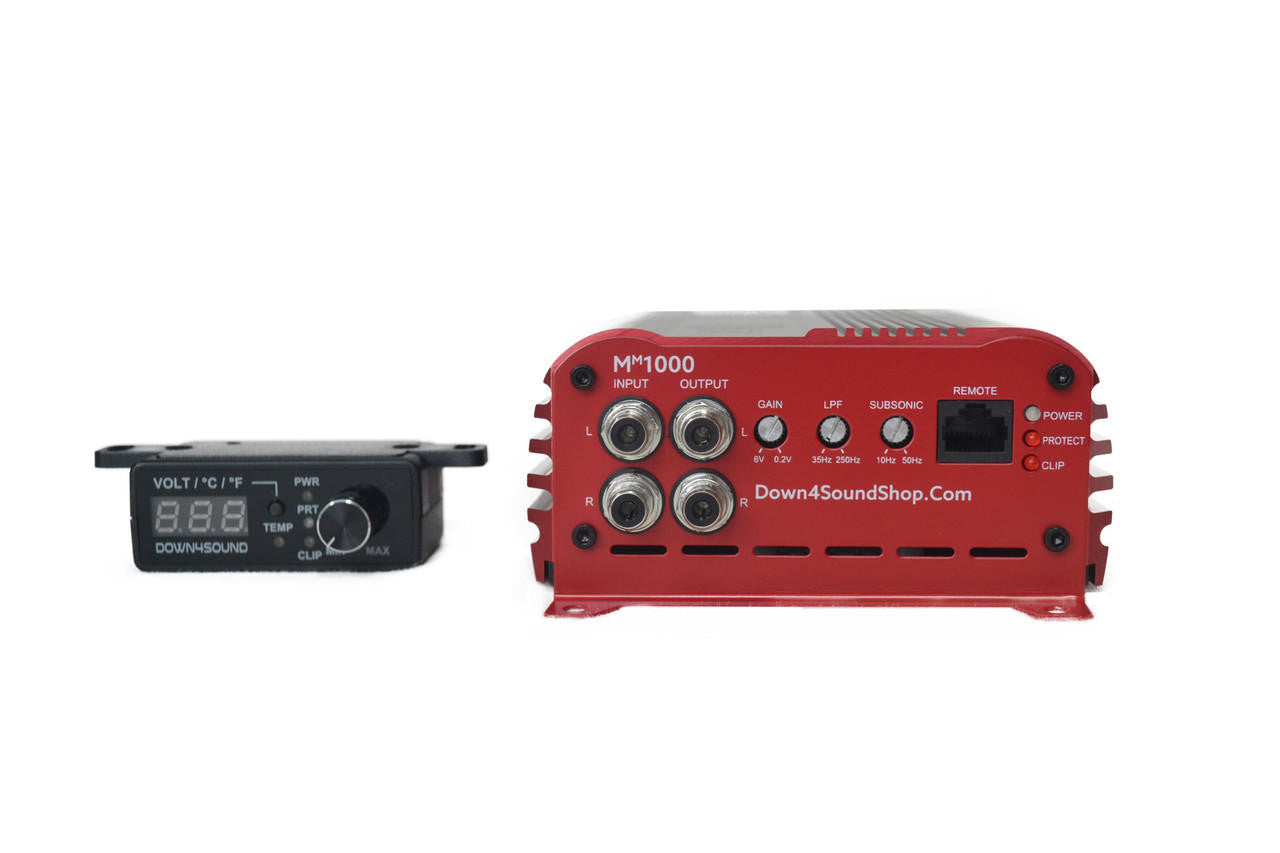

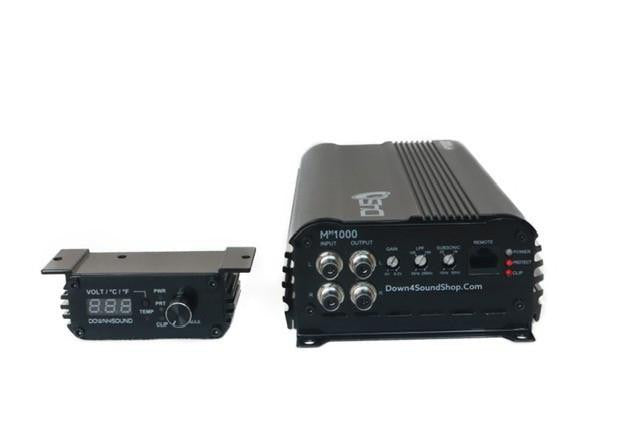

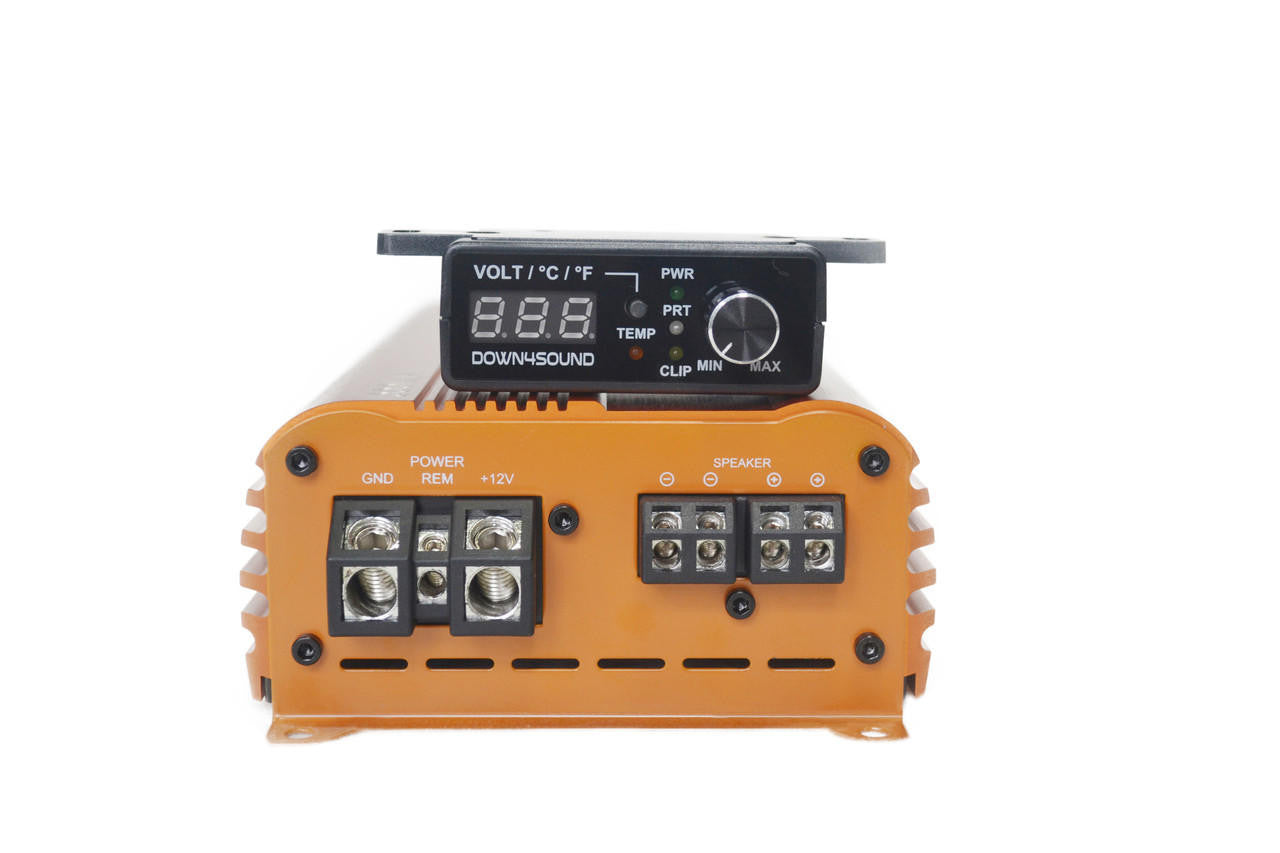

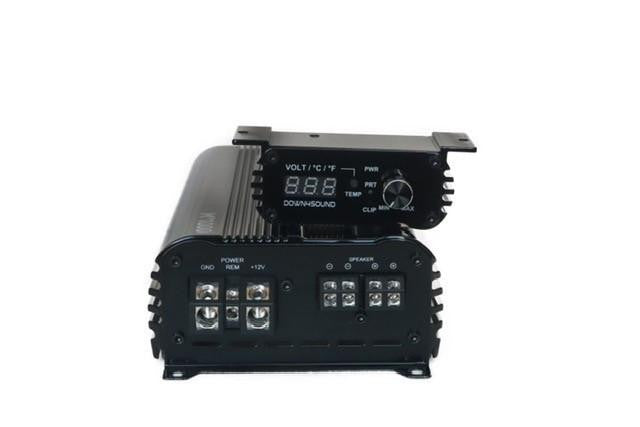

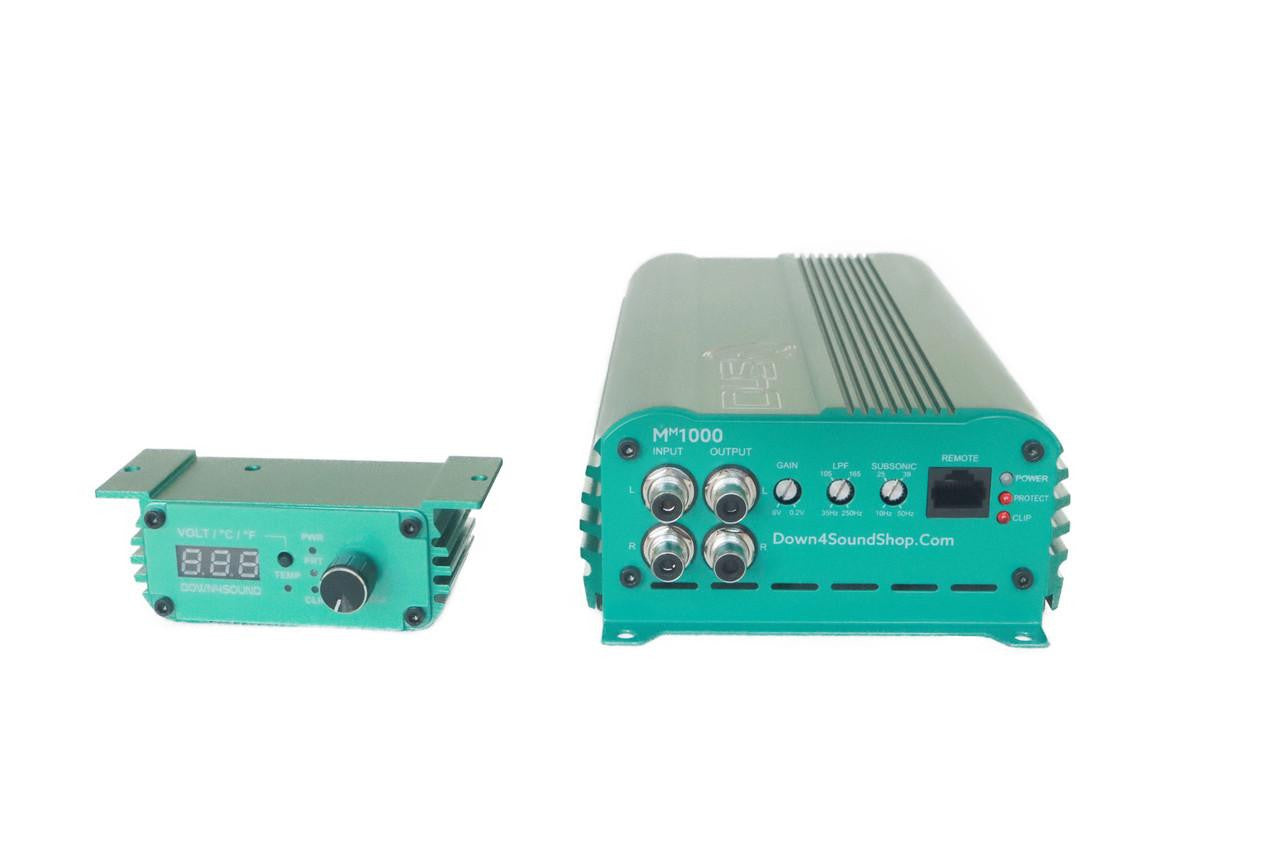

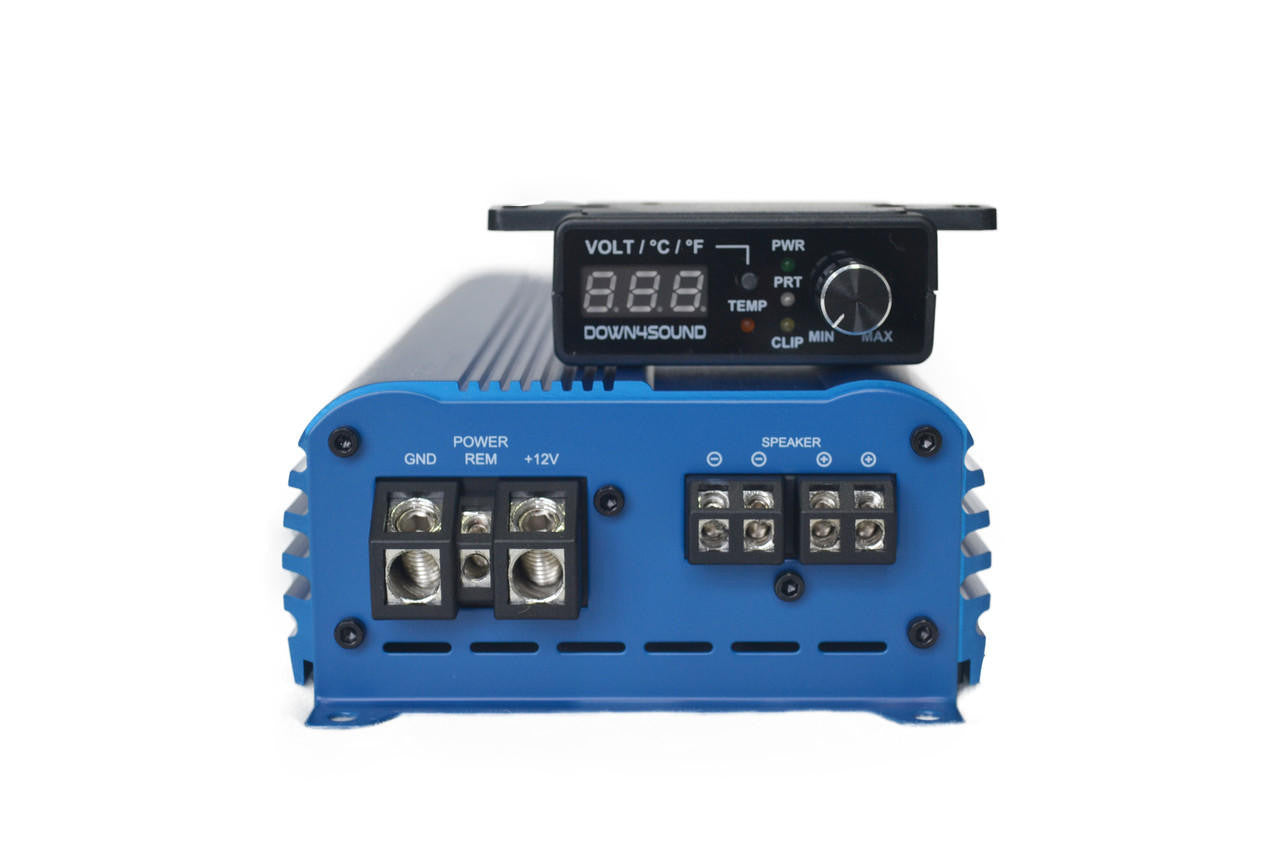

The MM1000 comes with a remote bass knob, giving you the power to adjust bass levels on the go. This feature-rich knob includes a voltmeter, amplifier temperature monitor, and clipping indicator, keeping you in sync with your system's performance.
Technical Specifications
- Power Ratings: 1 ohm: 1000W x 1; 2 ohms: 850W x 1; 4 ohms: 550W x 1
- Frequency Response: 10Hz - 264Hz
- Low Pass Filter: 35Hz - 250Hz
- Subsonic Filter: 10Hz - 50Hz
- Input Sensitivity: 6V - 0.2V
- Signal to Noise Ratio: >95dB
- Total Harmonic Distortion (T.H.D): <0.1%
- Operating Voltage: 9V - 15.5V
- Fuse Rating: 100A
- Speaker Wire Input: Up to 12 gauge
- Power and Ground Input: 4 gauge
- Dimensions: 8.26" L (210mm) x 4.87" W x 2.13" H
Advanced Features
- Digital Monoblock Amplifier optimized for bass and stable at a 1-ohm mono load.
- High-Speed MOSFET Power Supply for consistent power delivery.
- Variable Low Pass & Subsonic Filters.
- 4-Way Protection Circuits (thermal, high & low voltage, speaker short, DC).

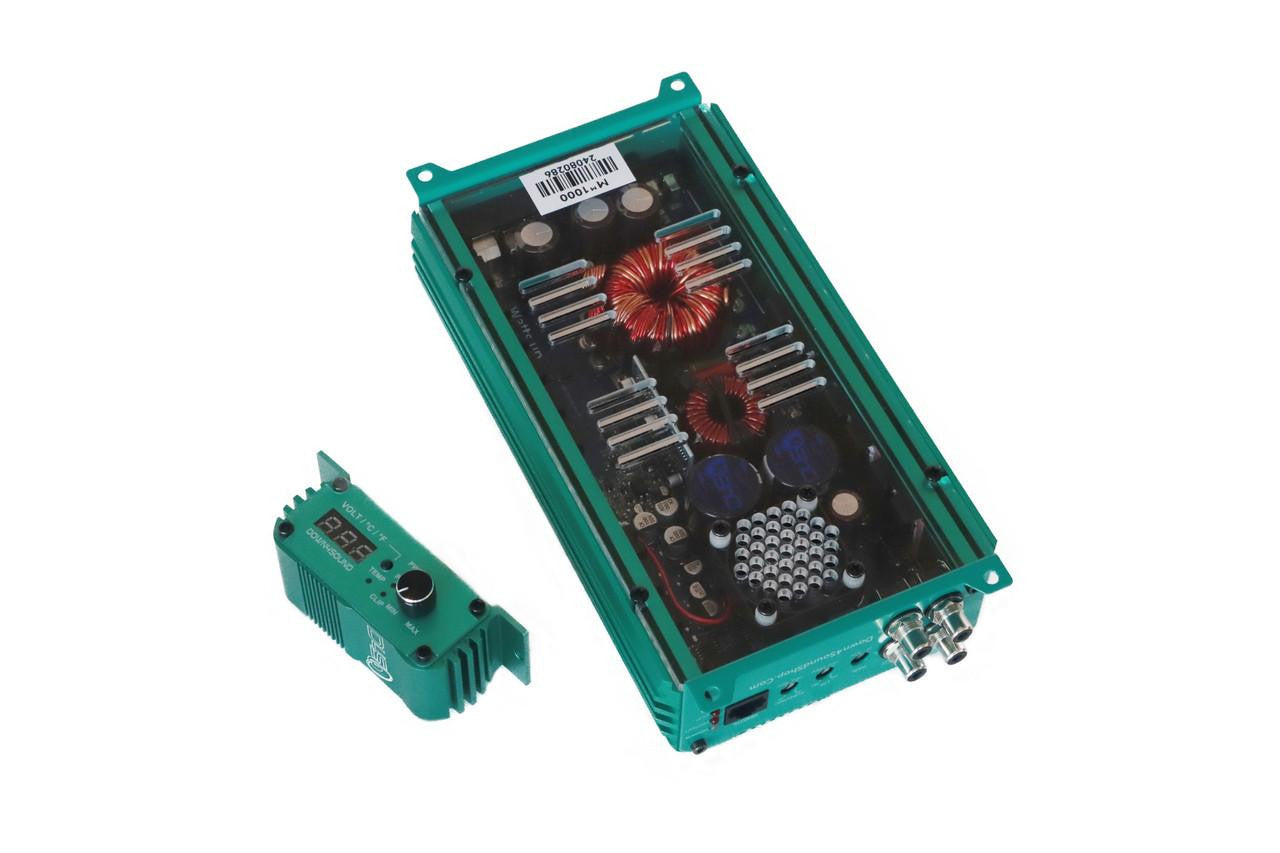

- High Purity Copper Printed Circuit Board.
The Down4Sound MM1000 (MINI MAXX) is the ideal amplifier for achieving clear and powerful bass in a compact package.
