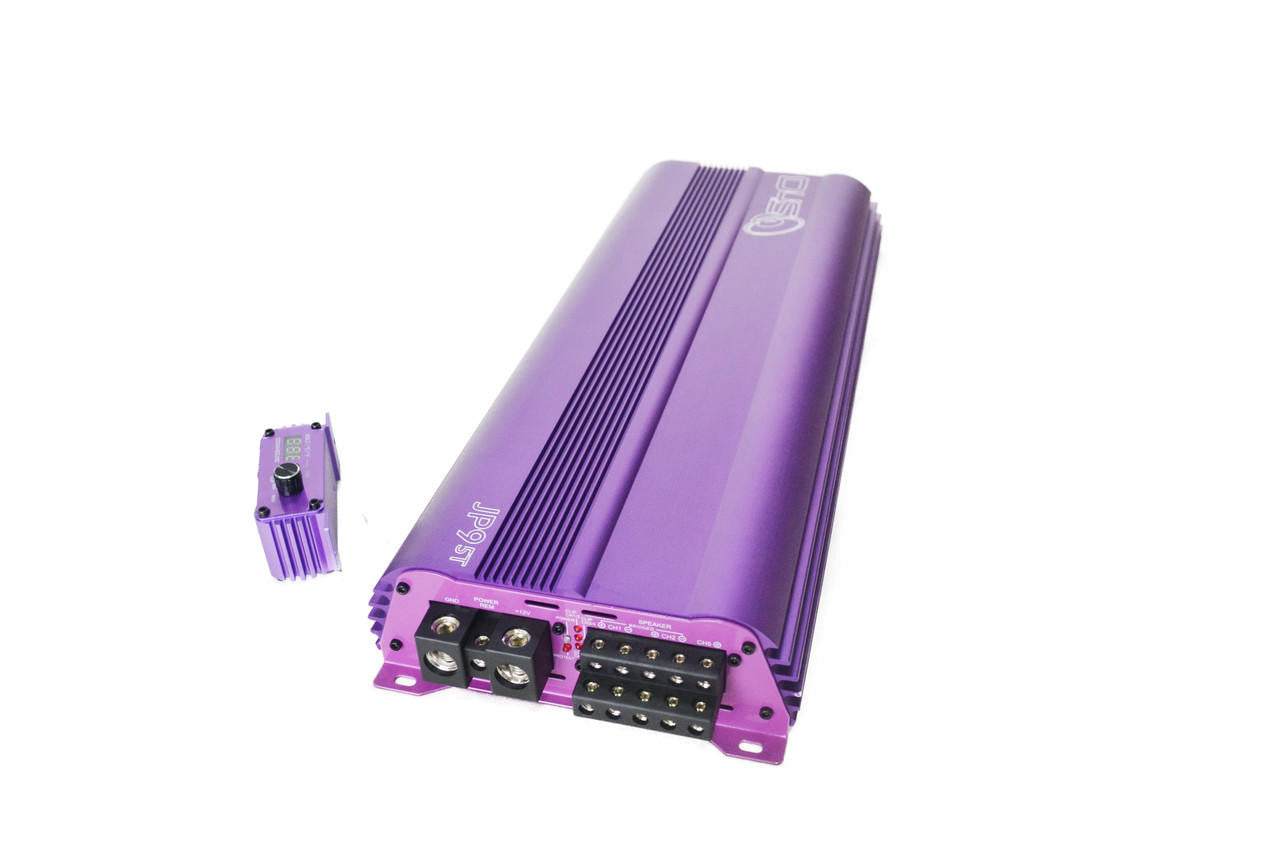

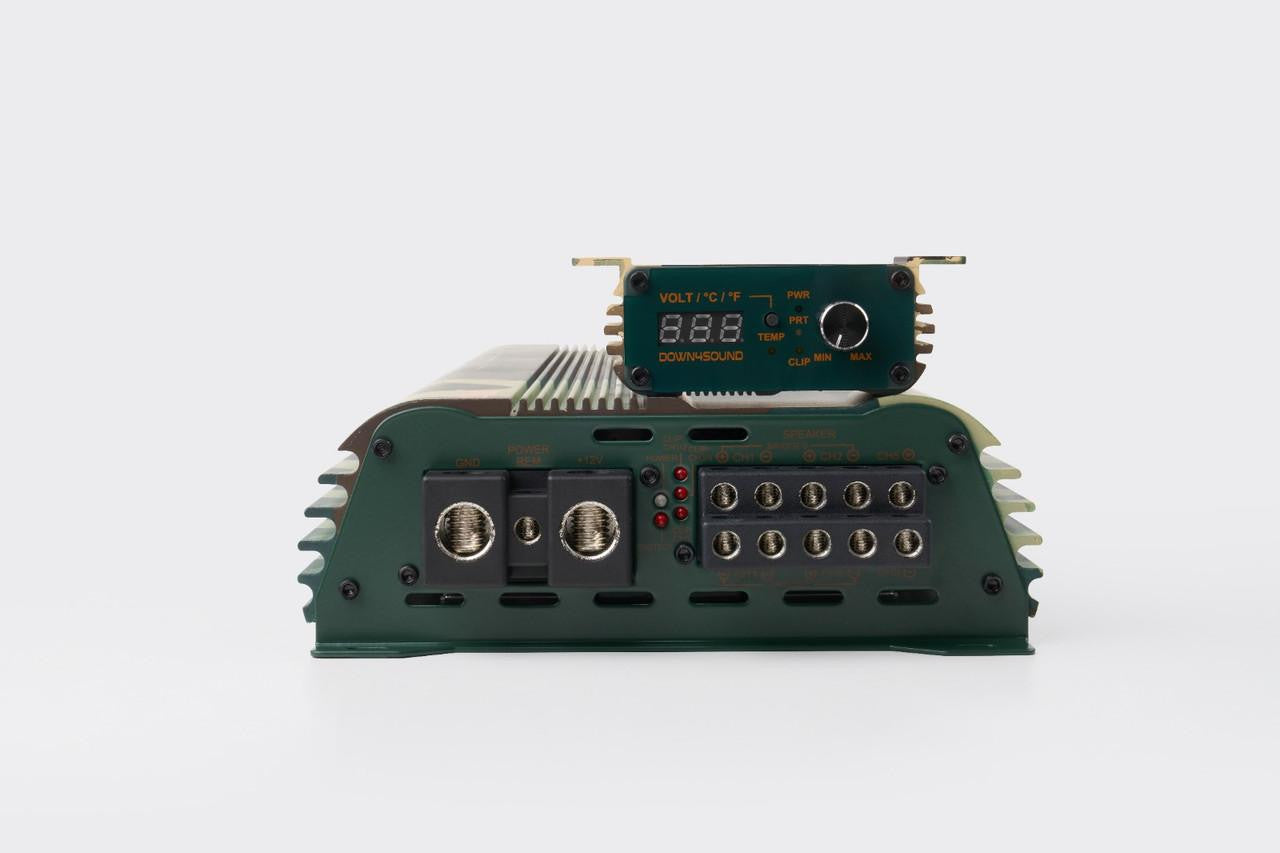

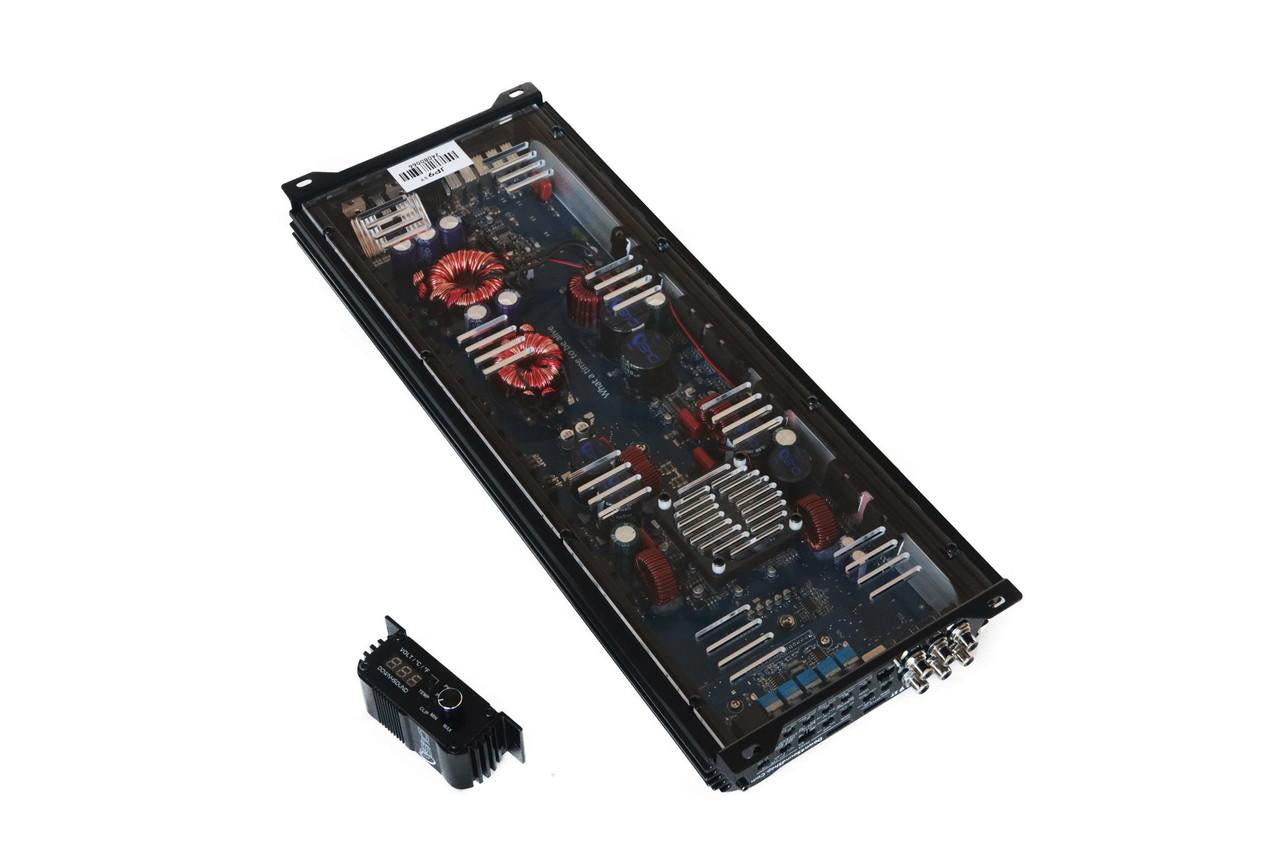

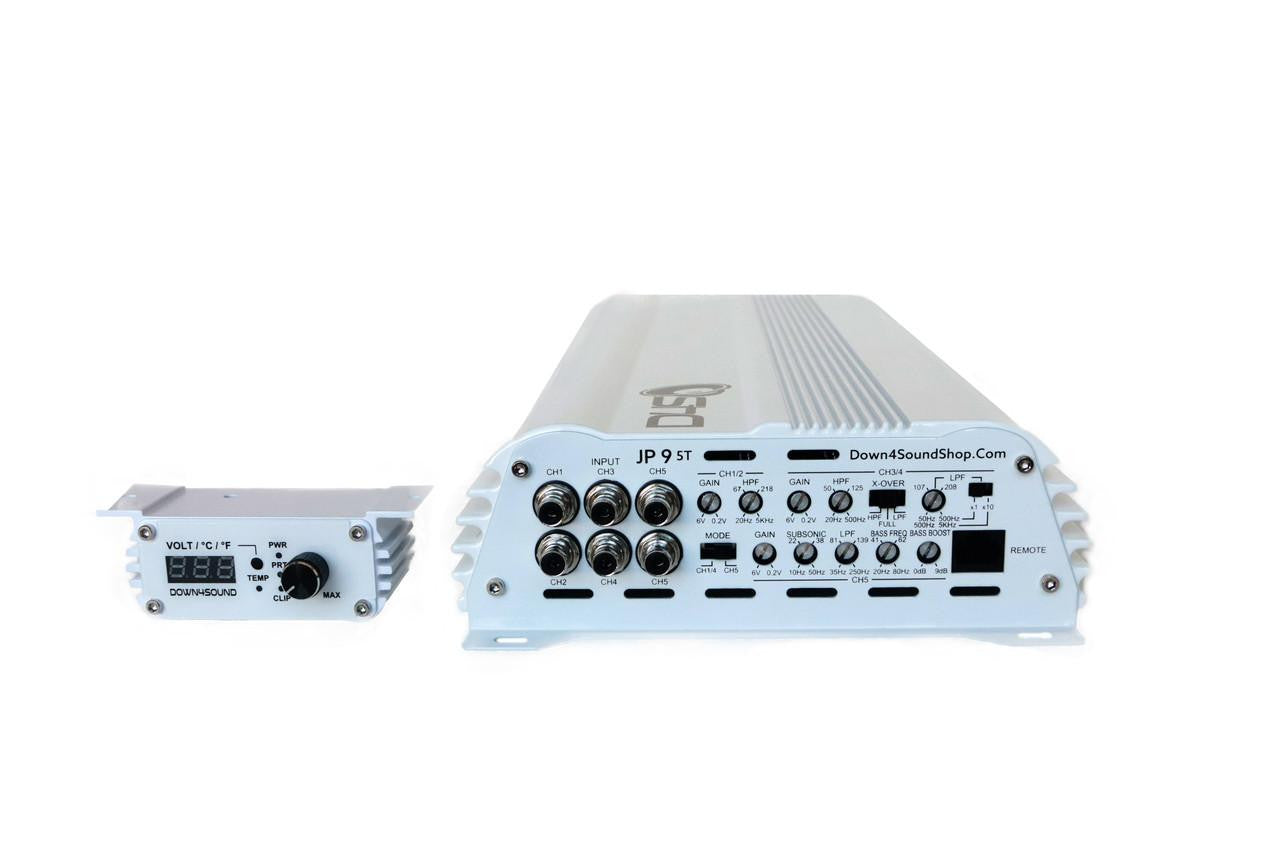

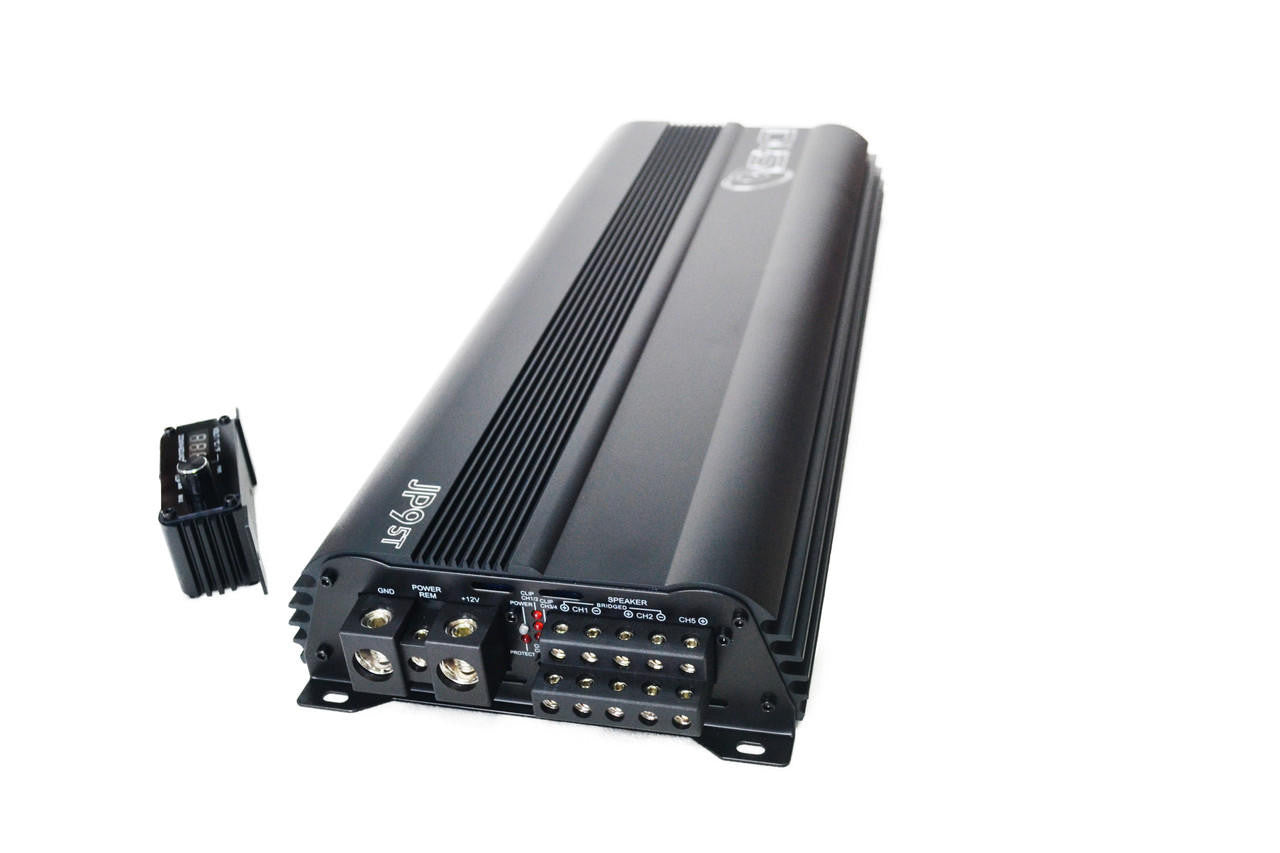

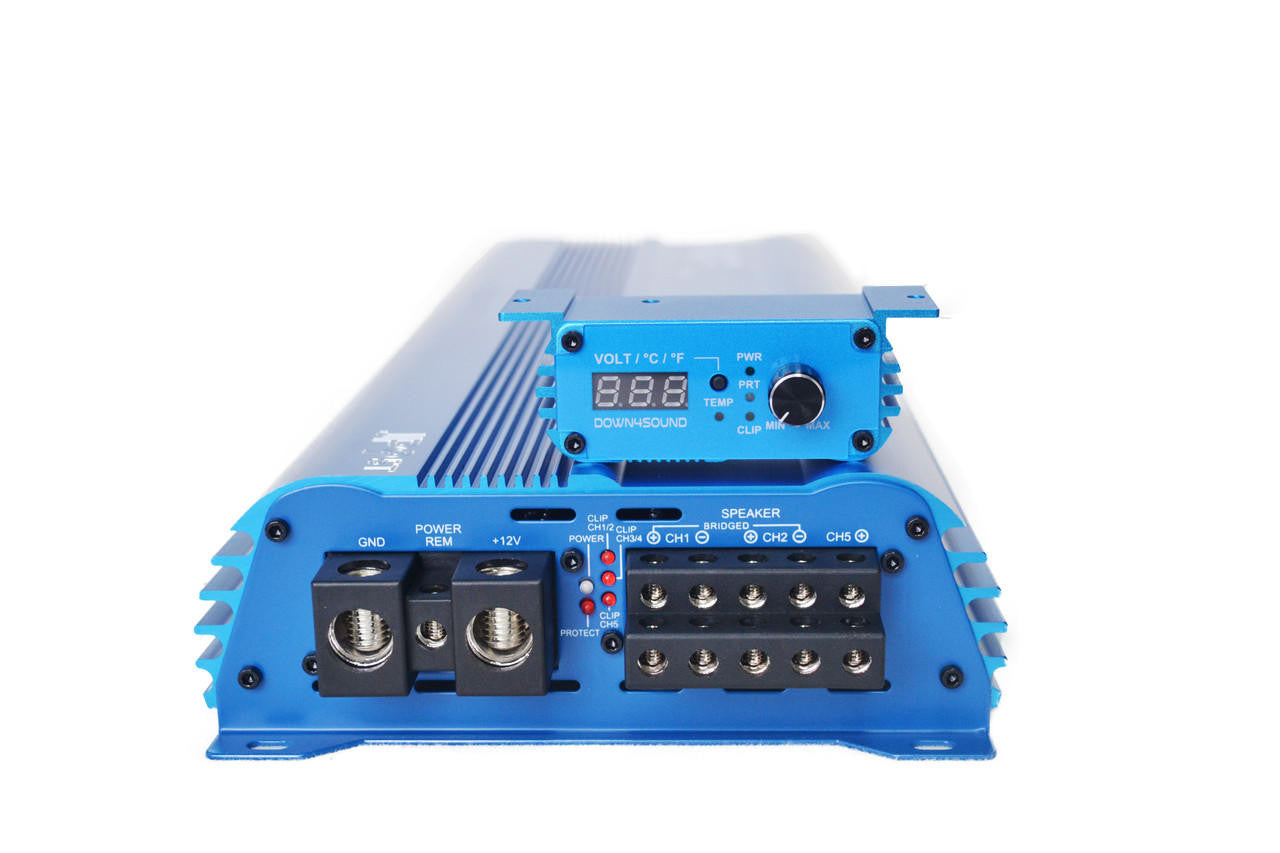

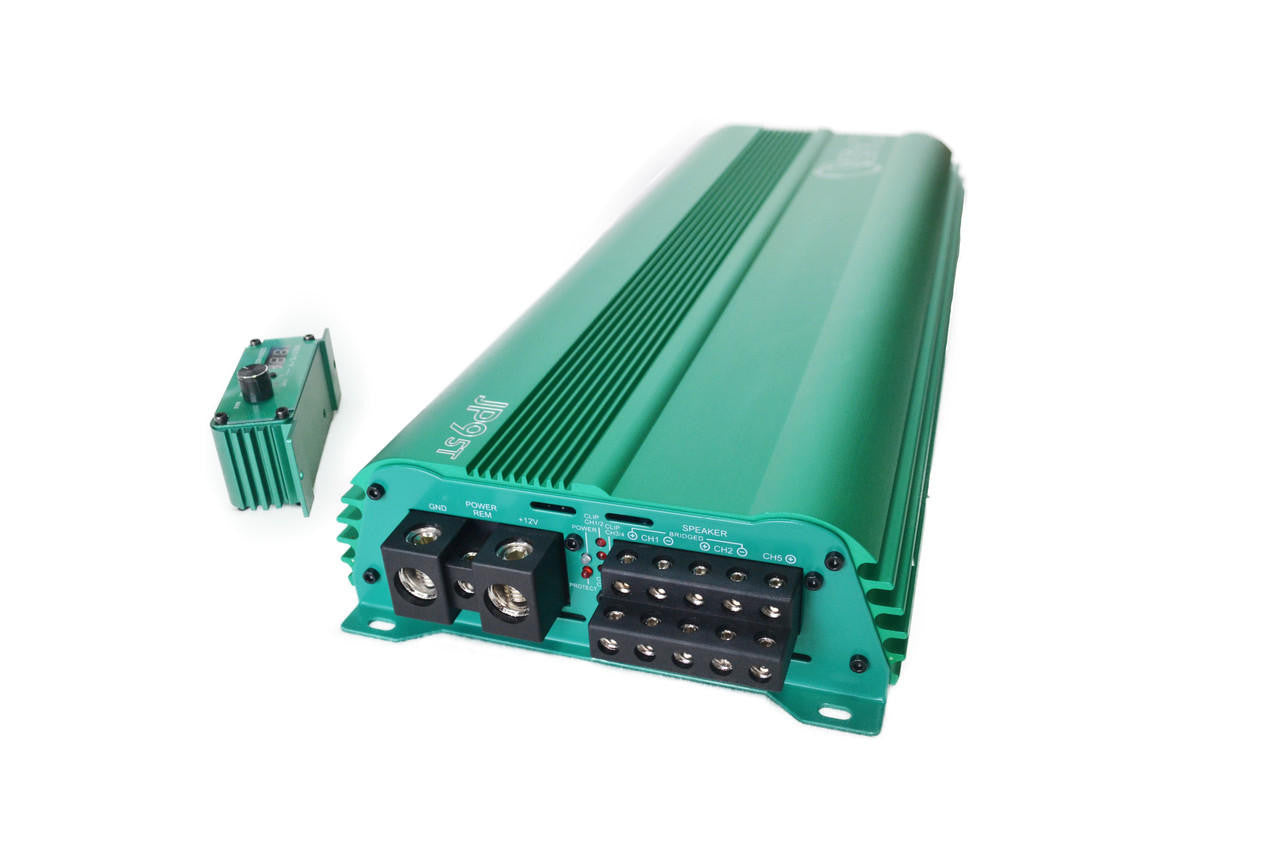

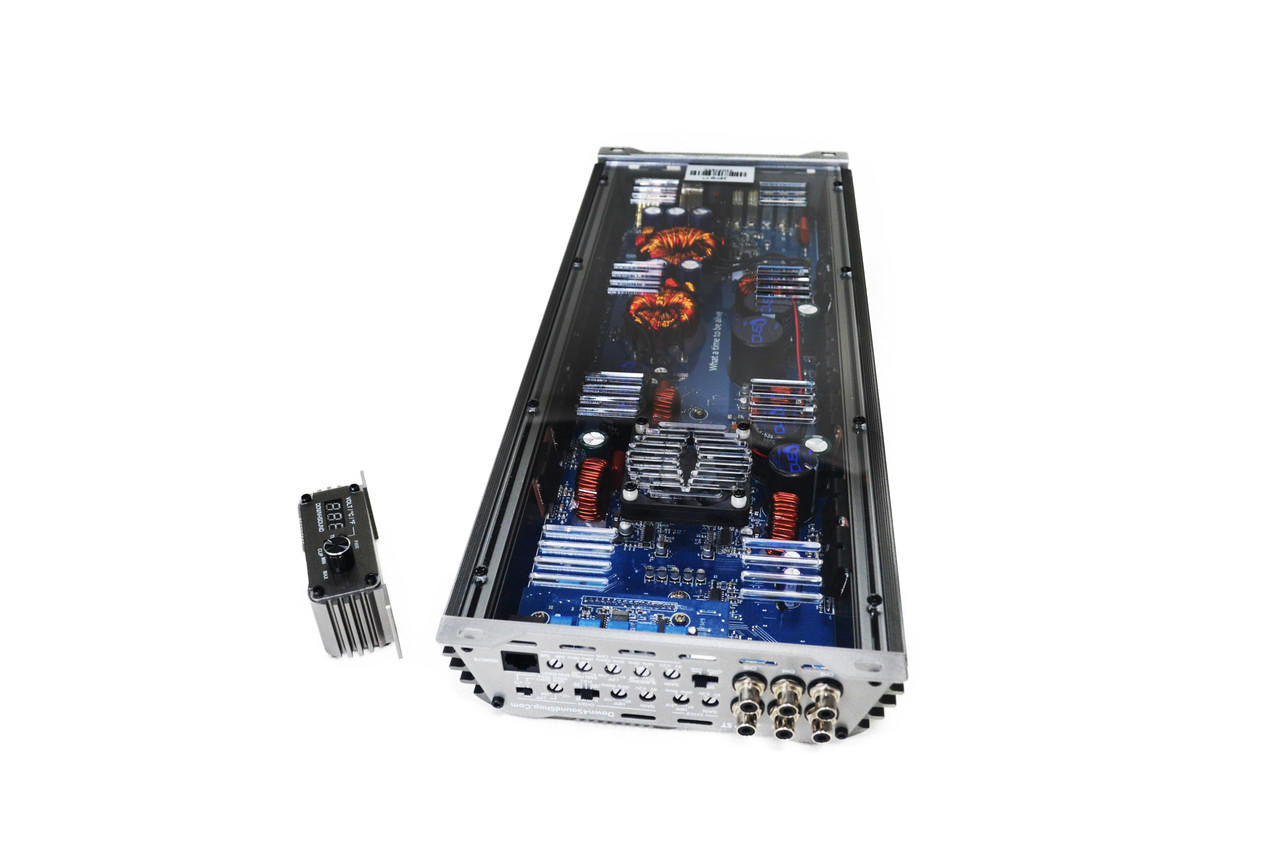

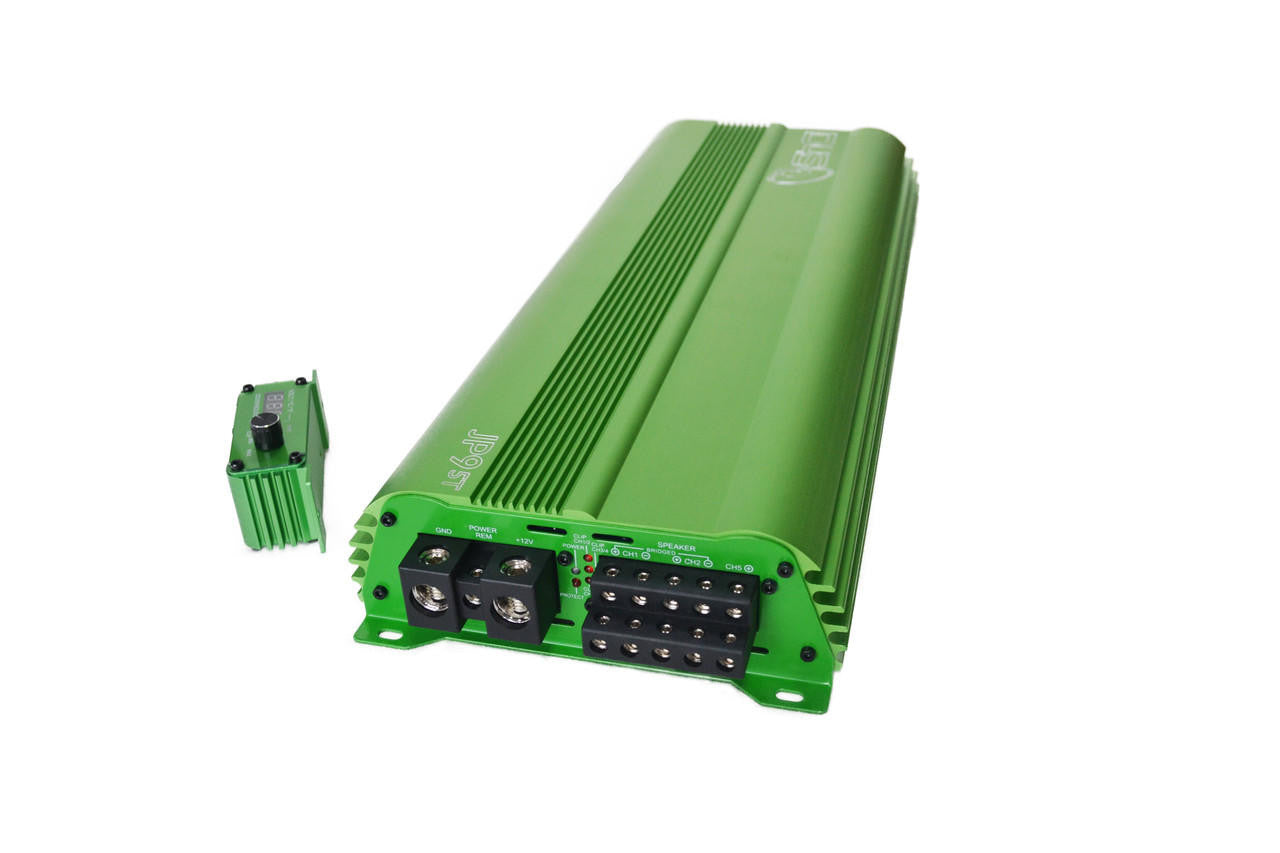

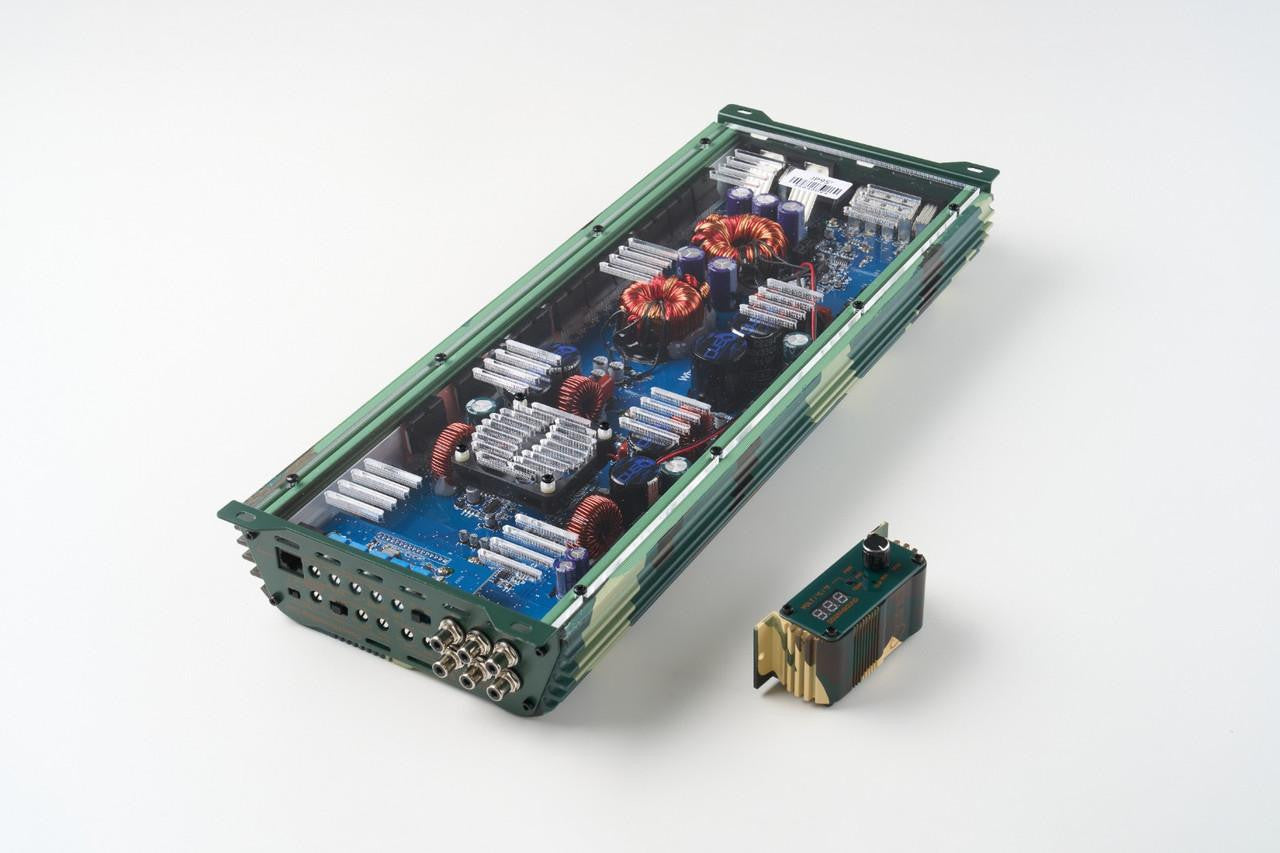

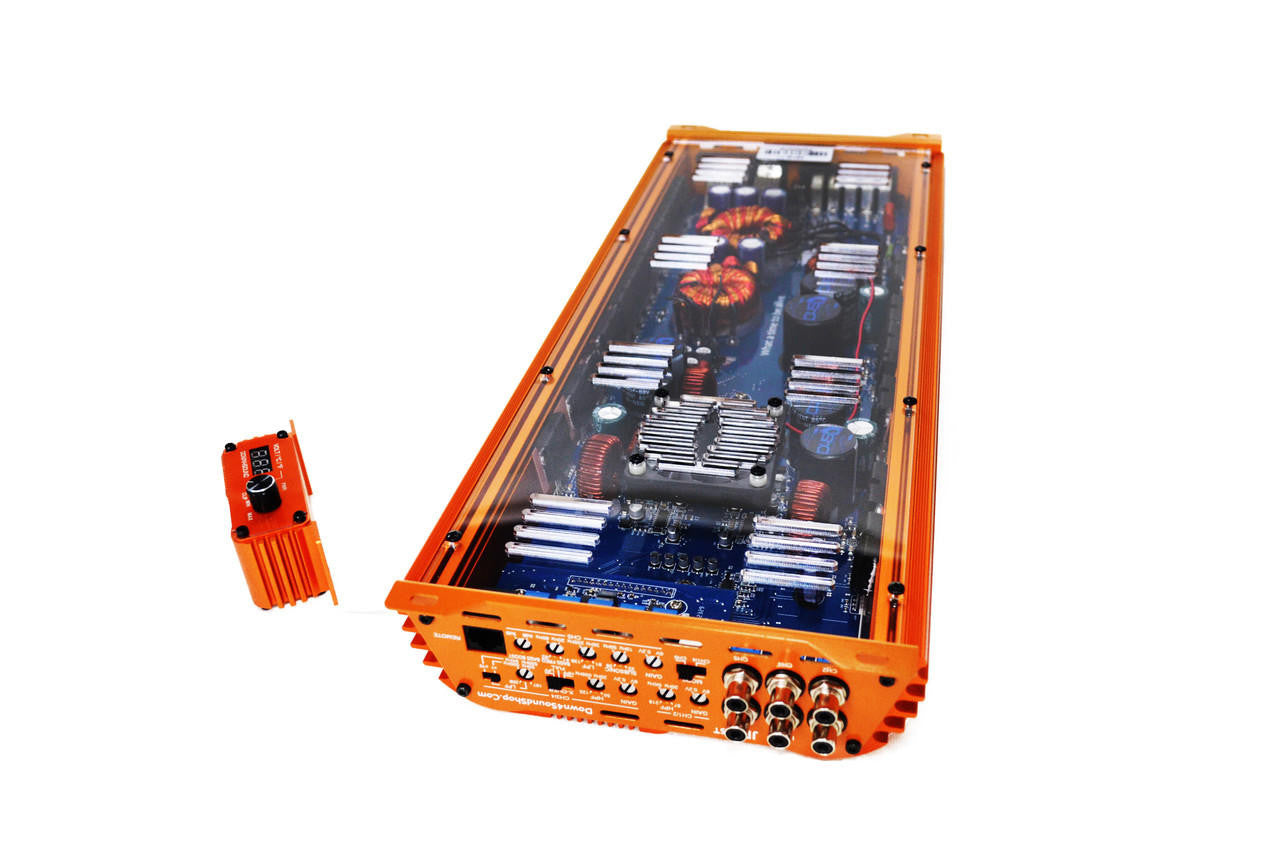

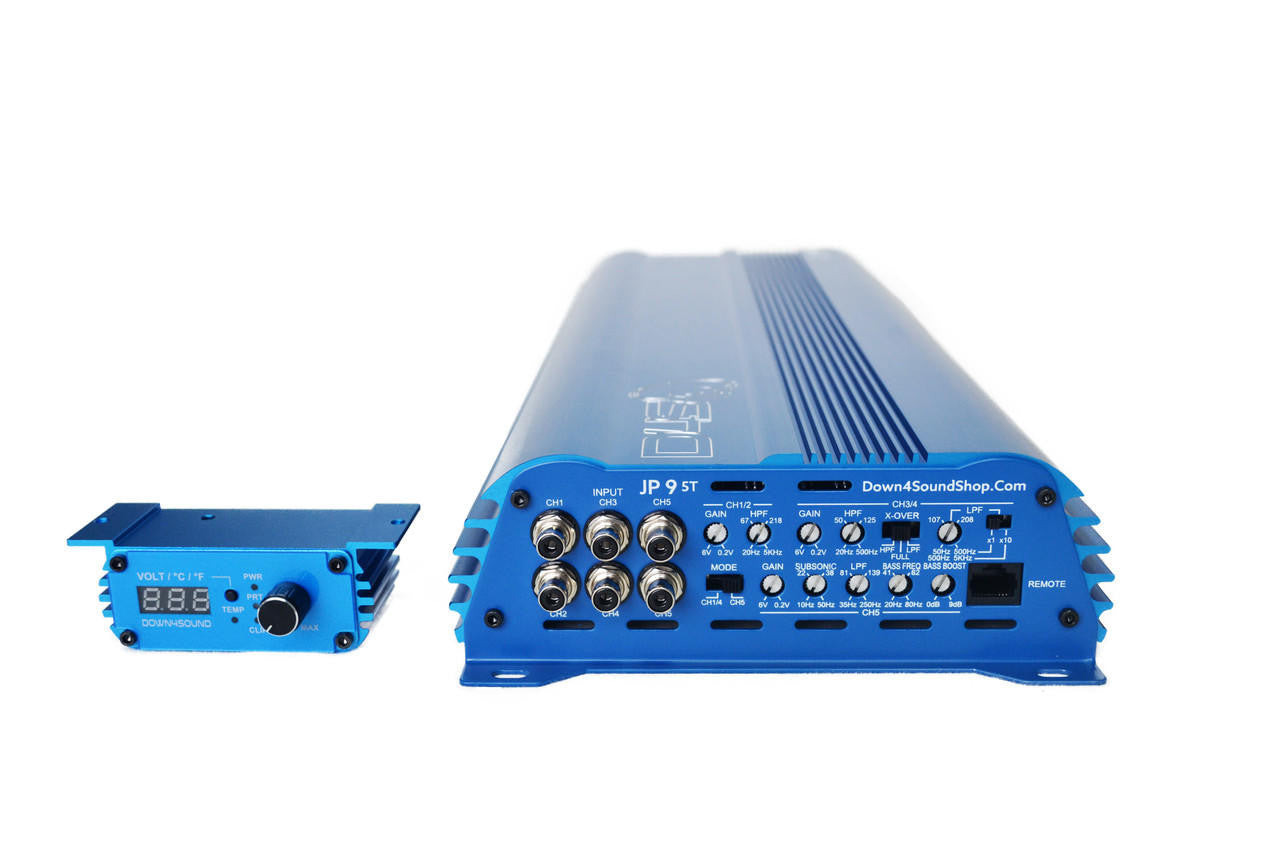

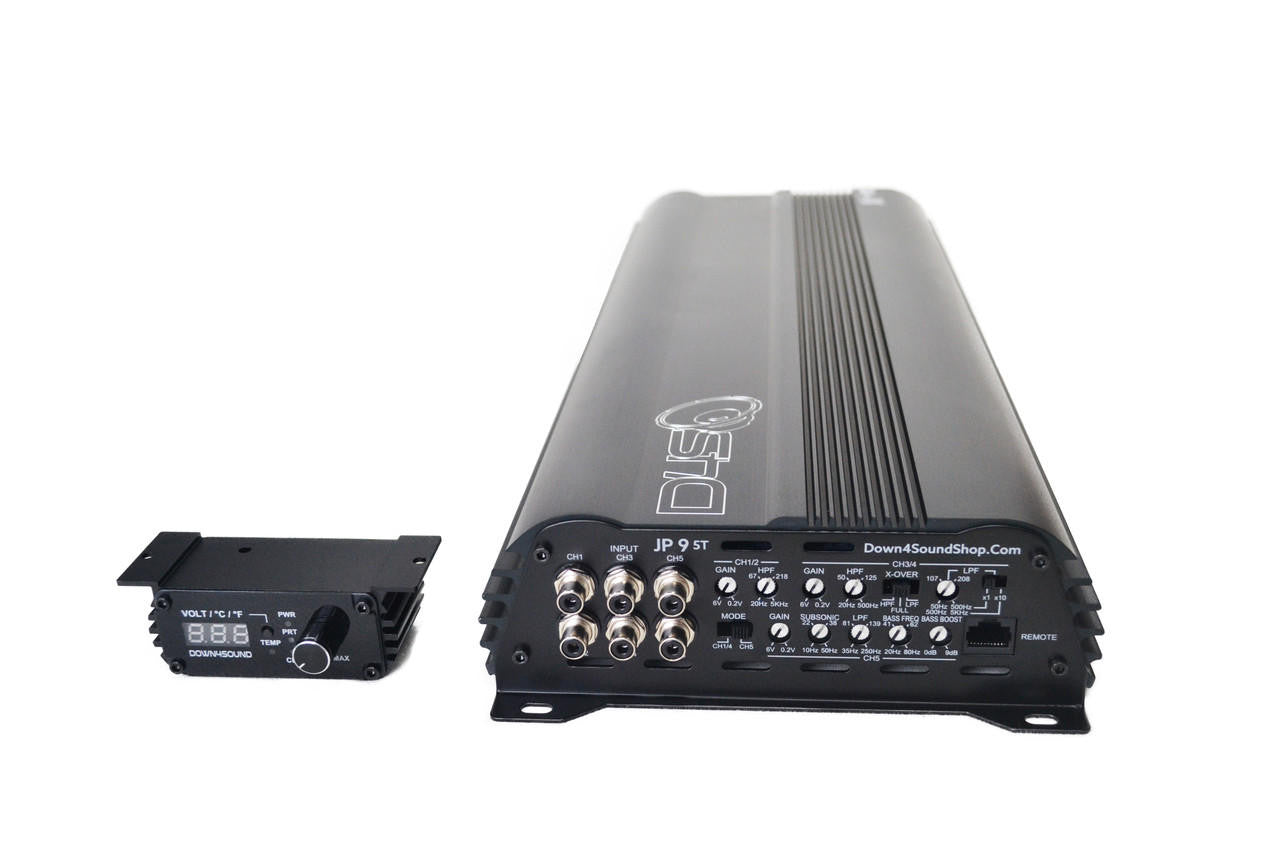

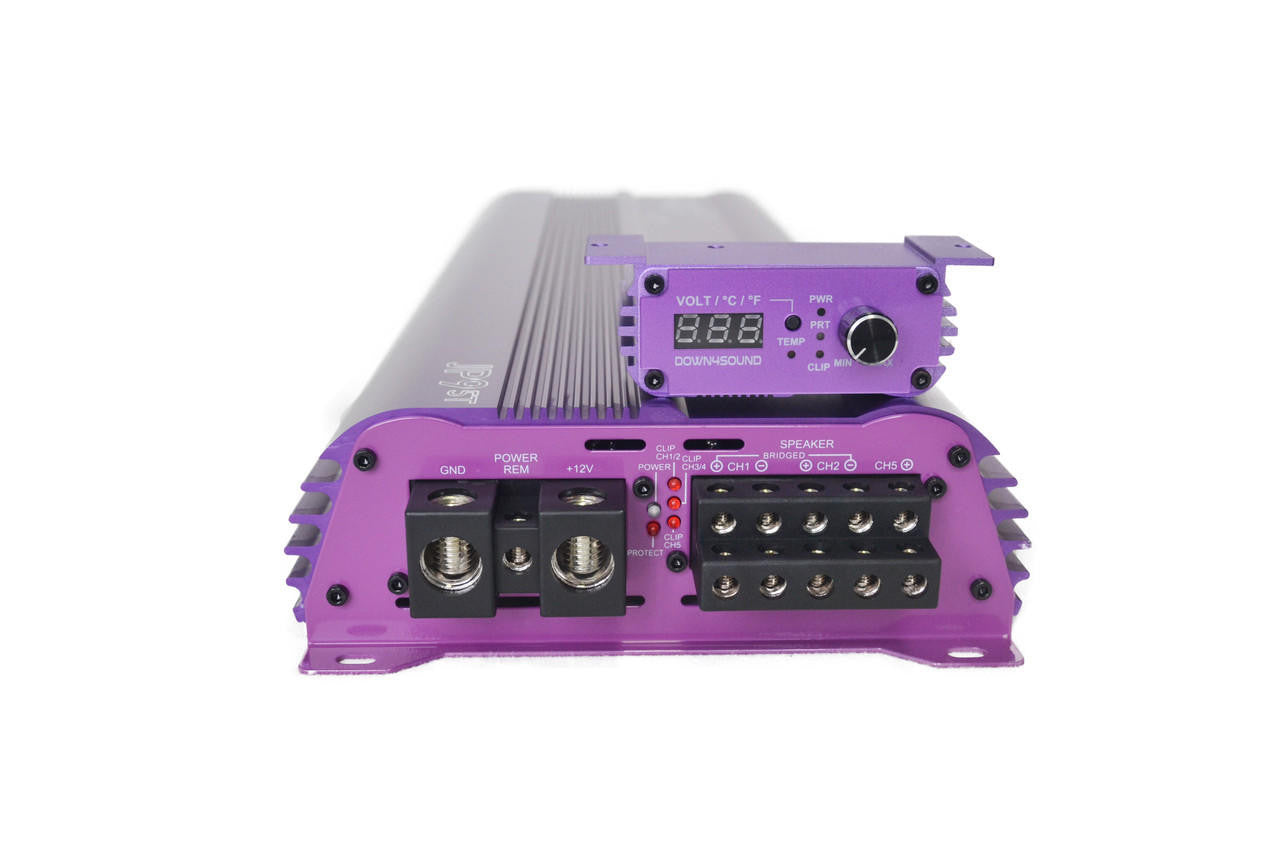

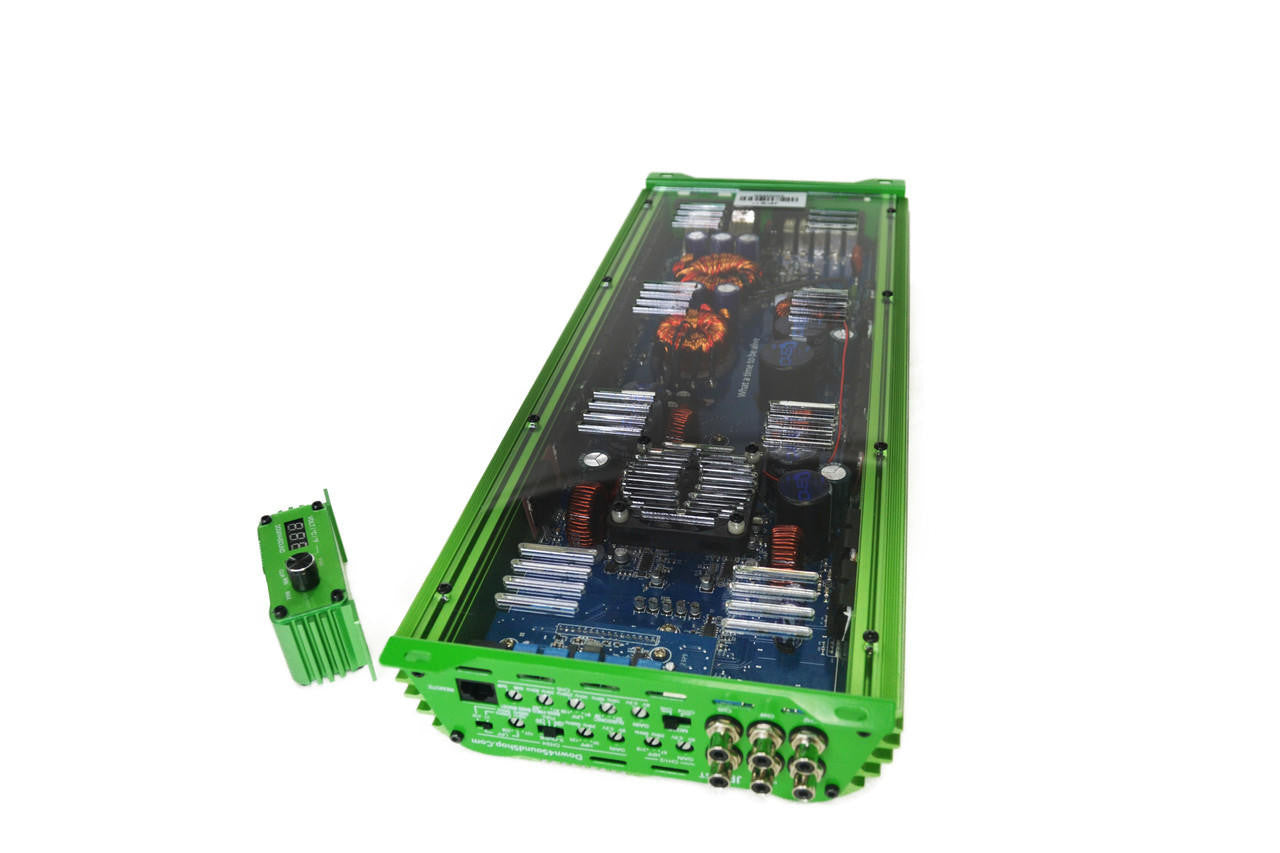

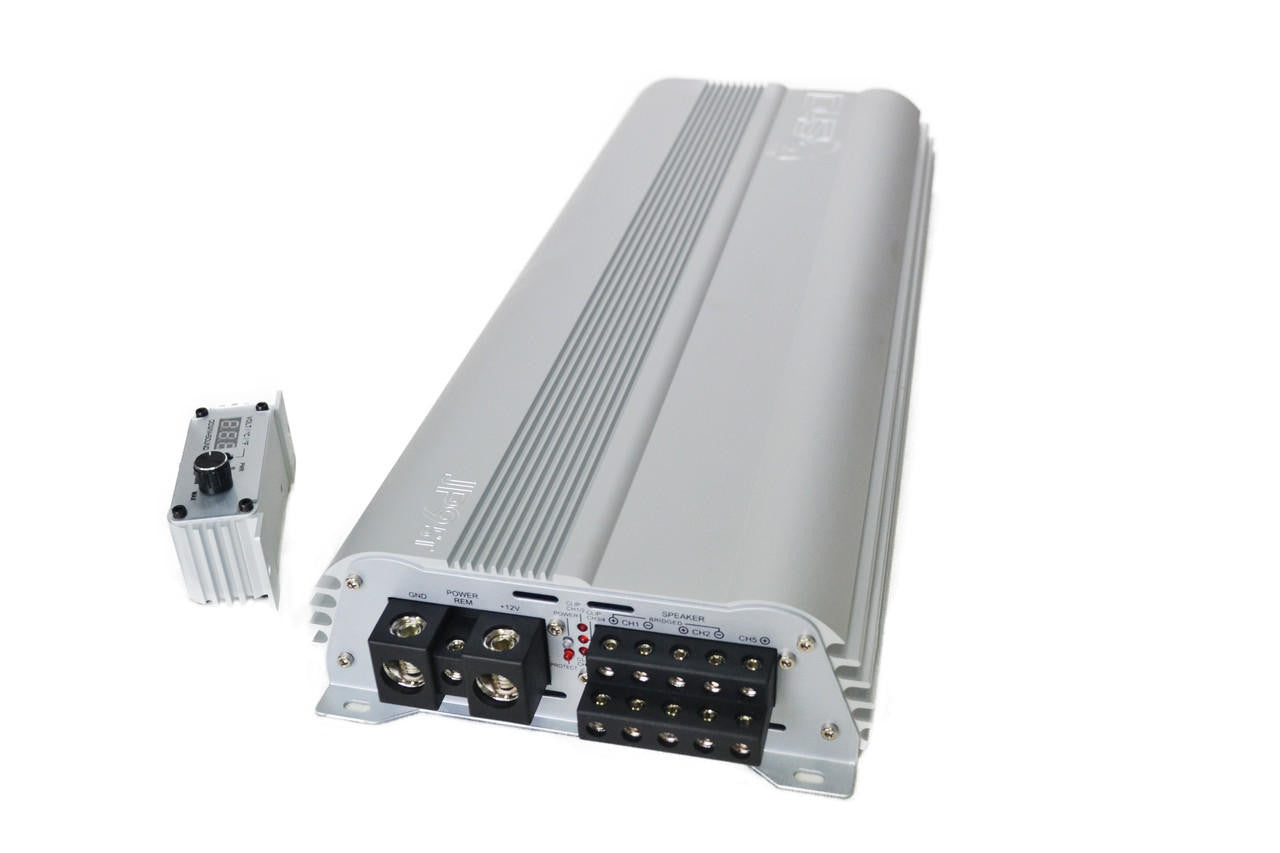

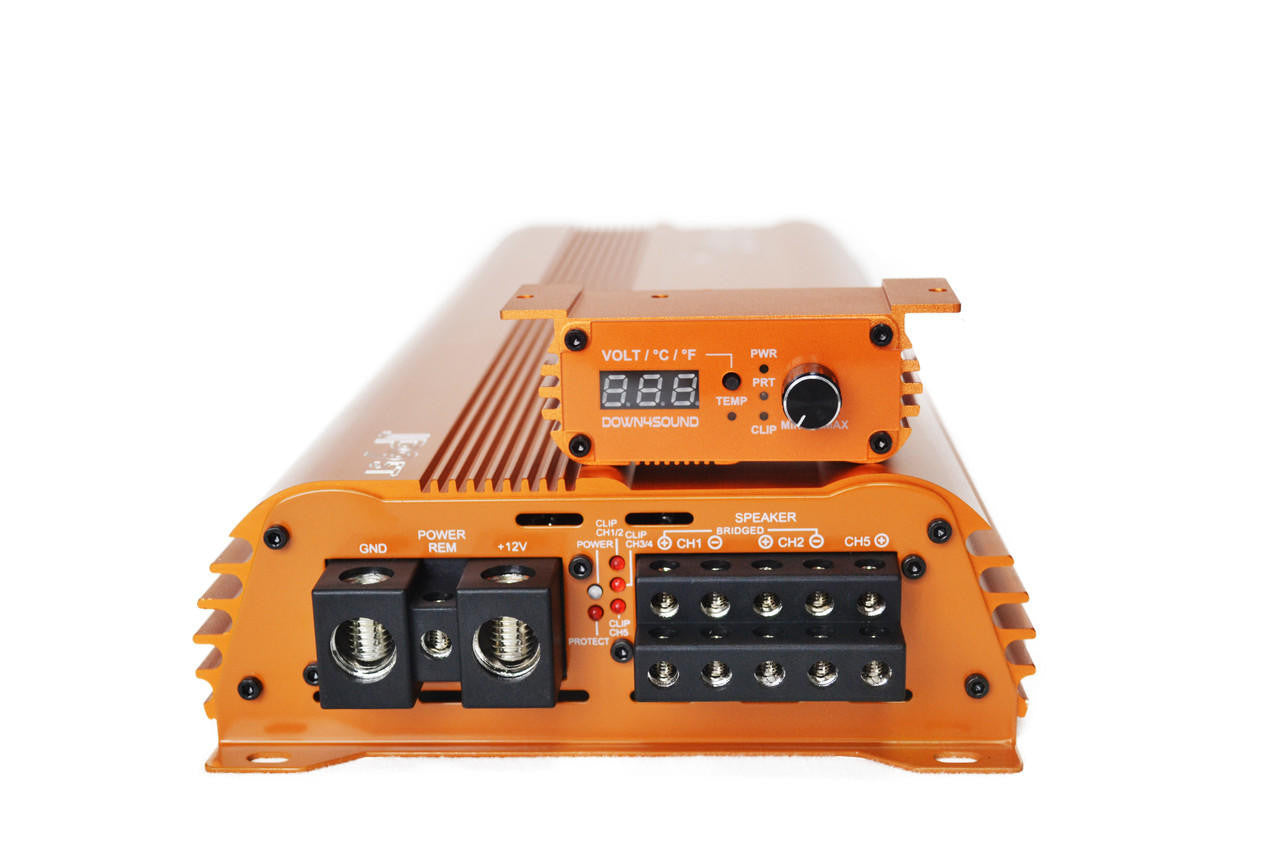

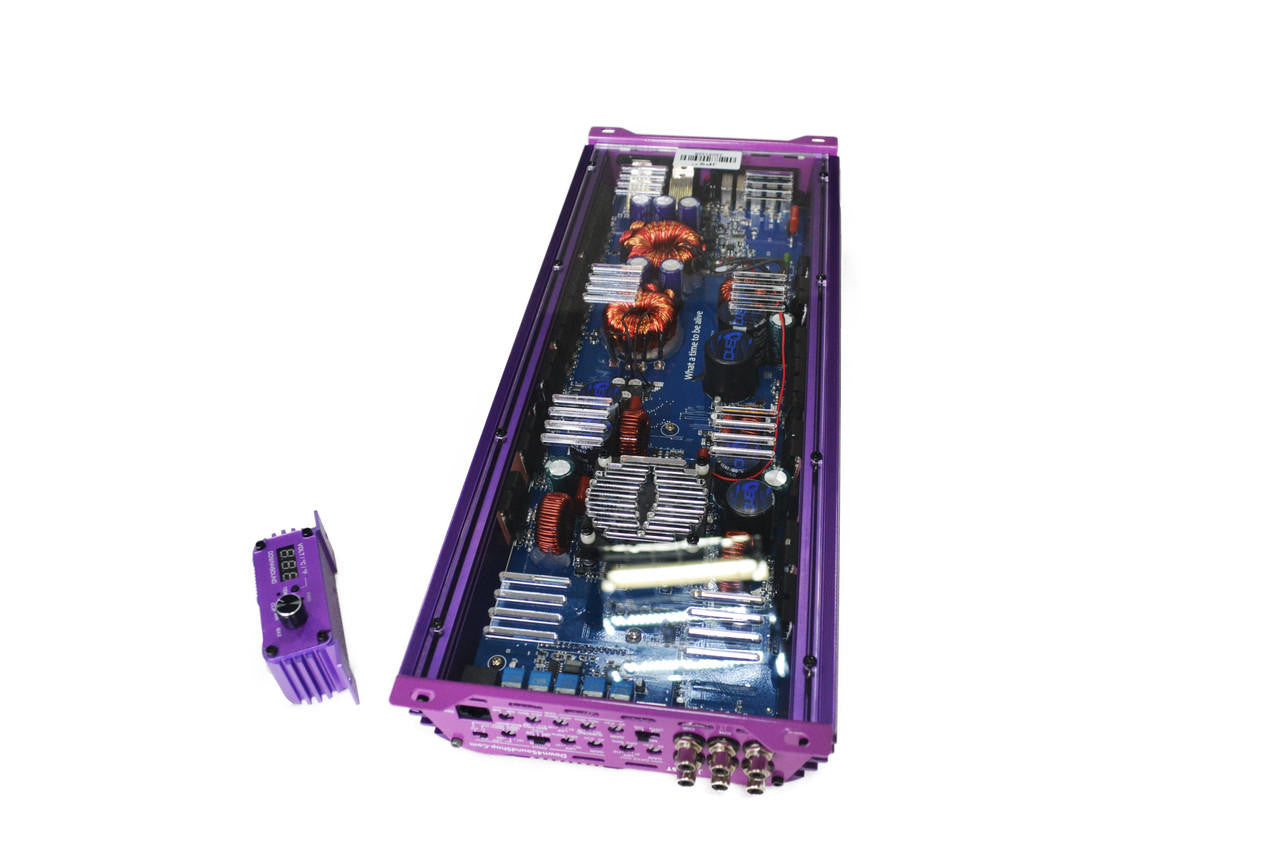

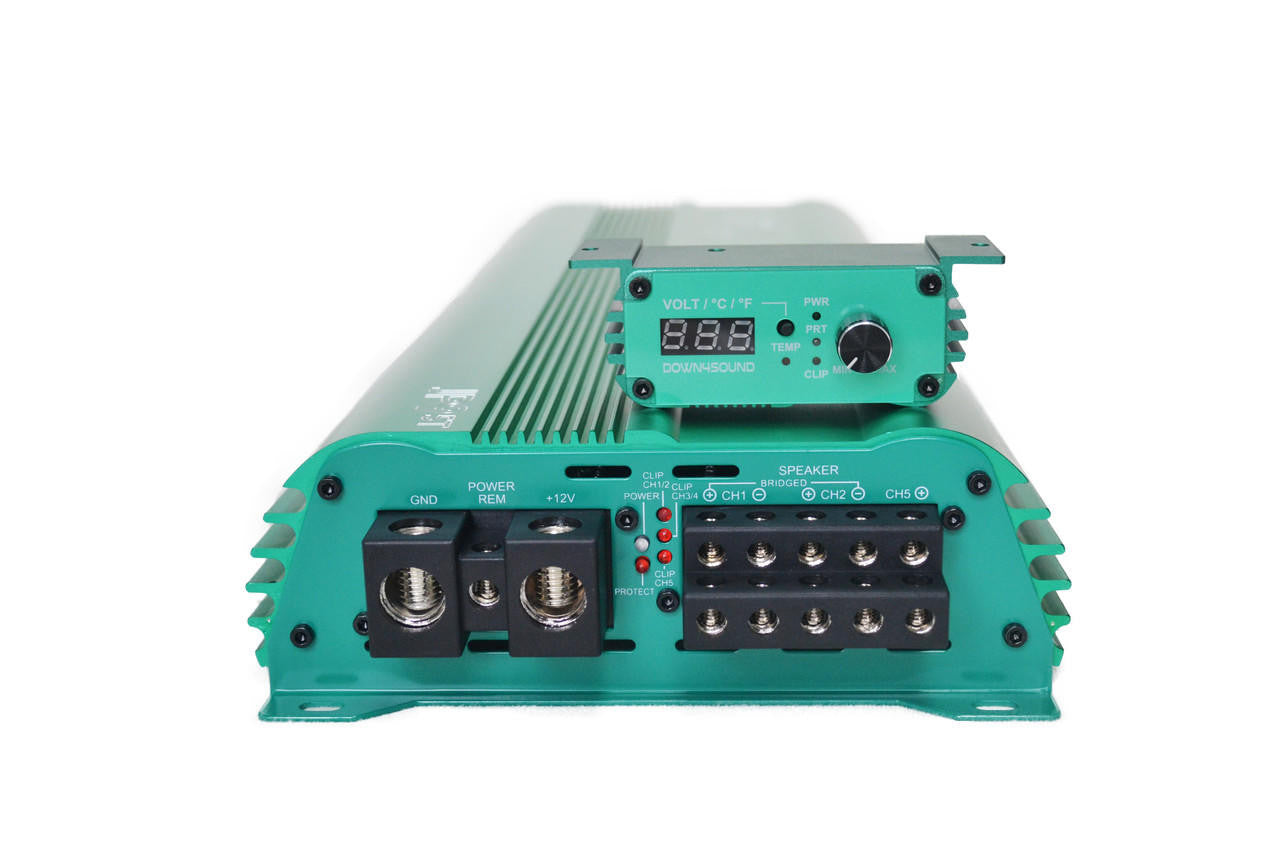

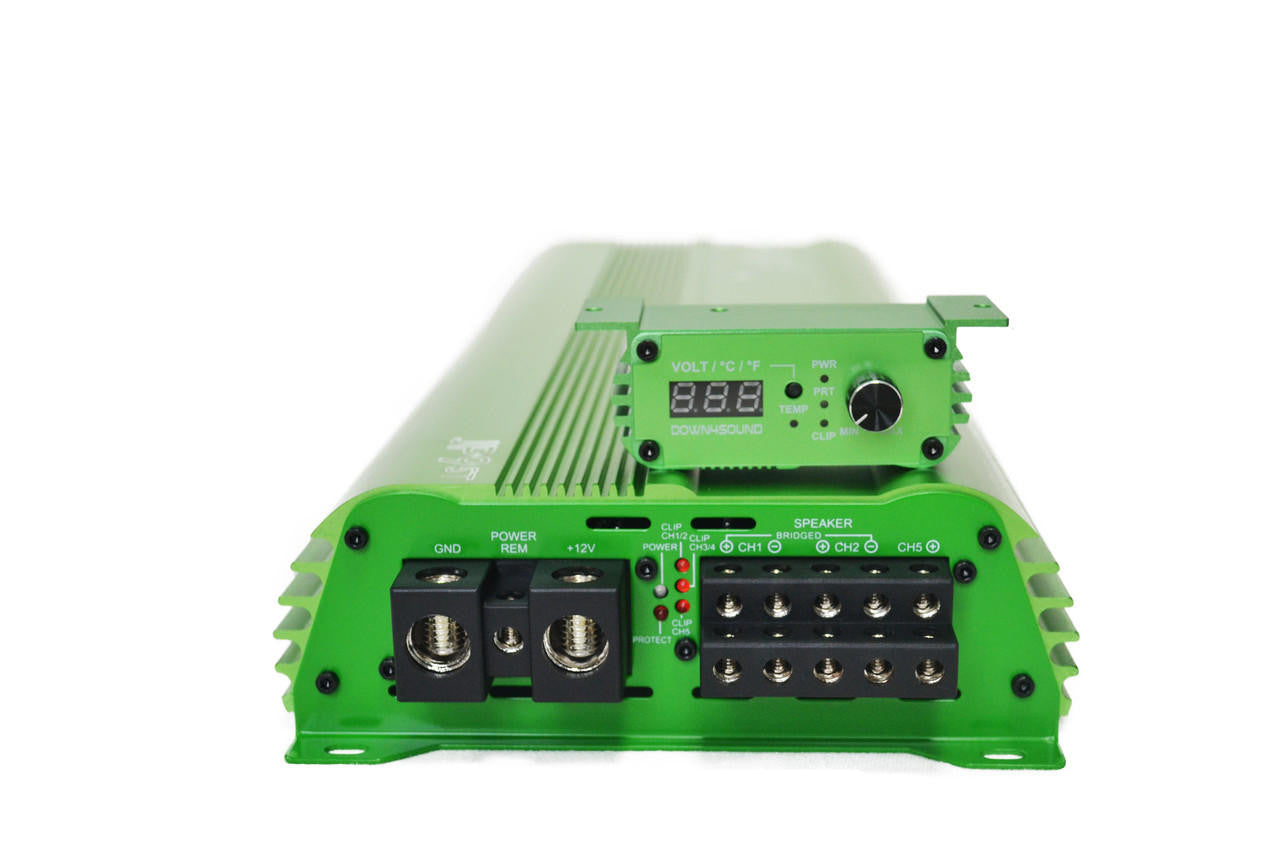

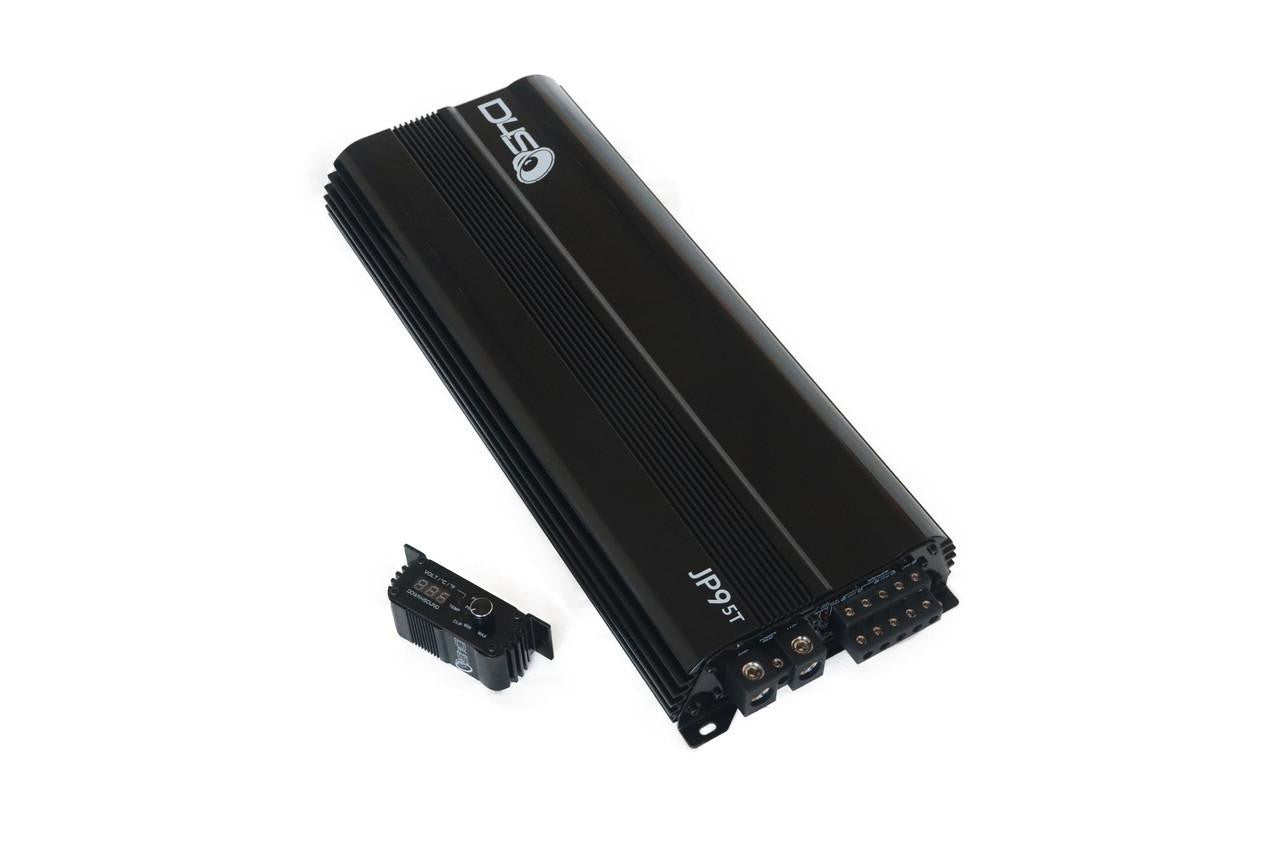

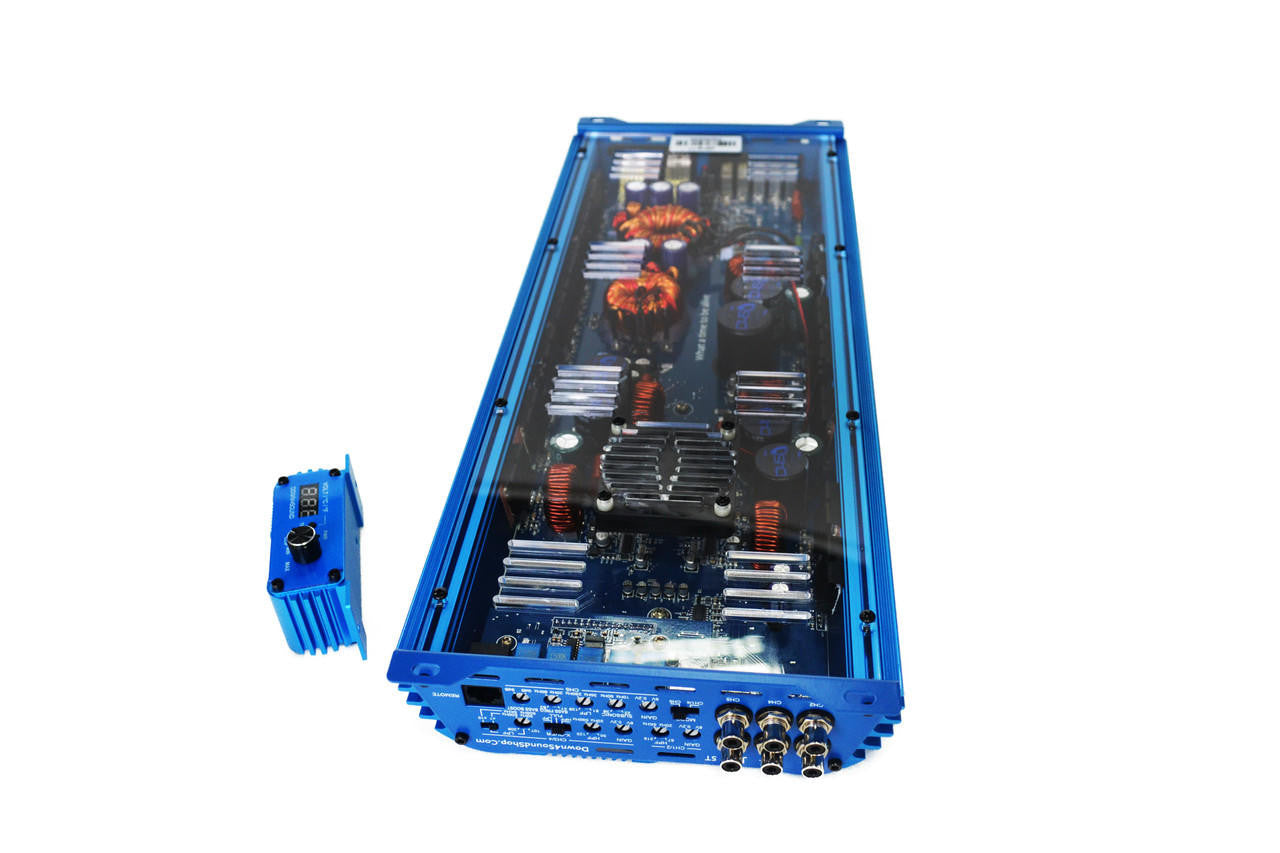

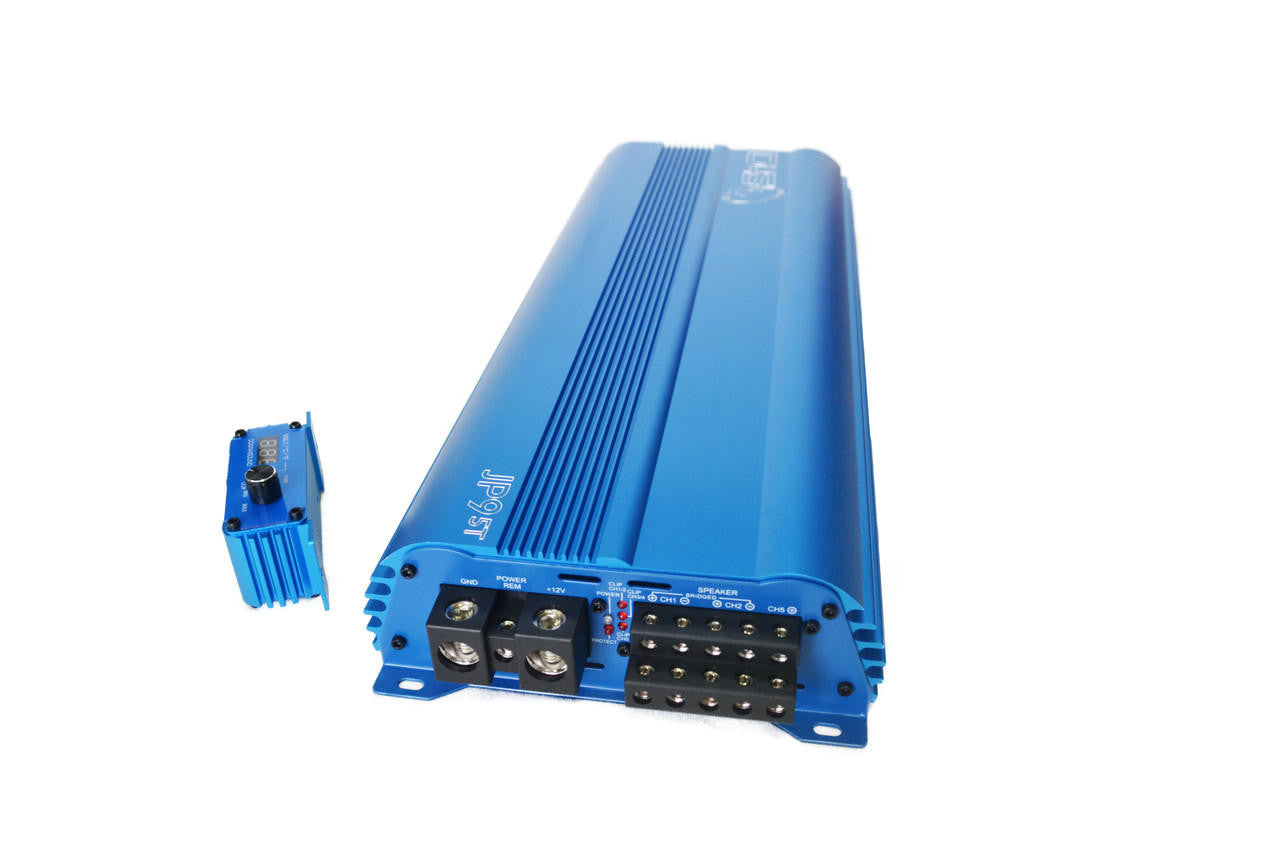

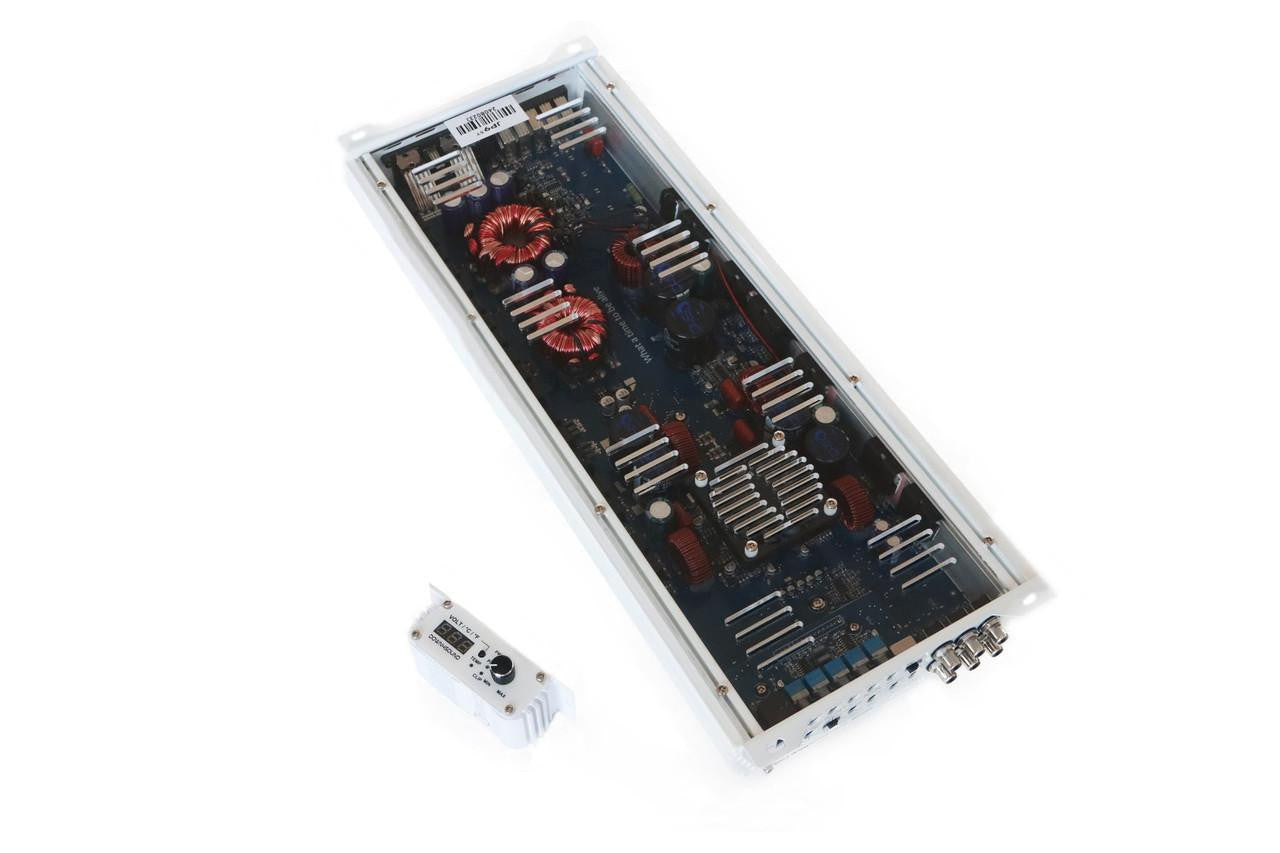

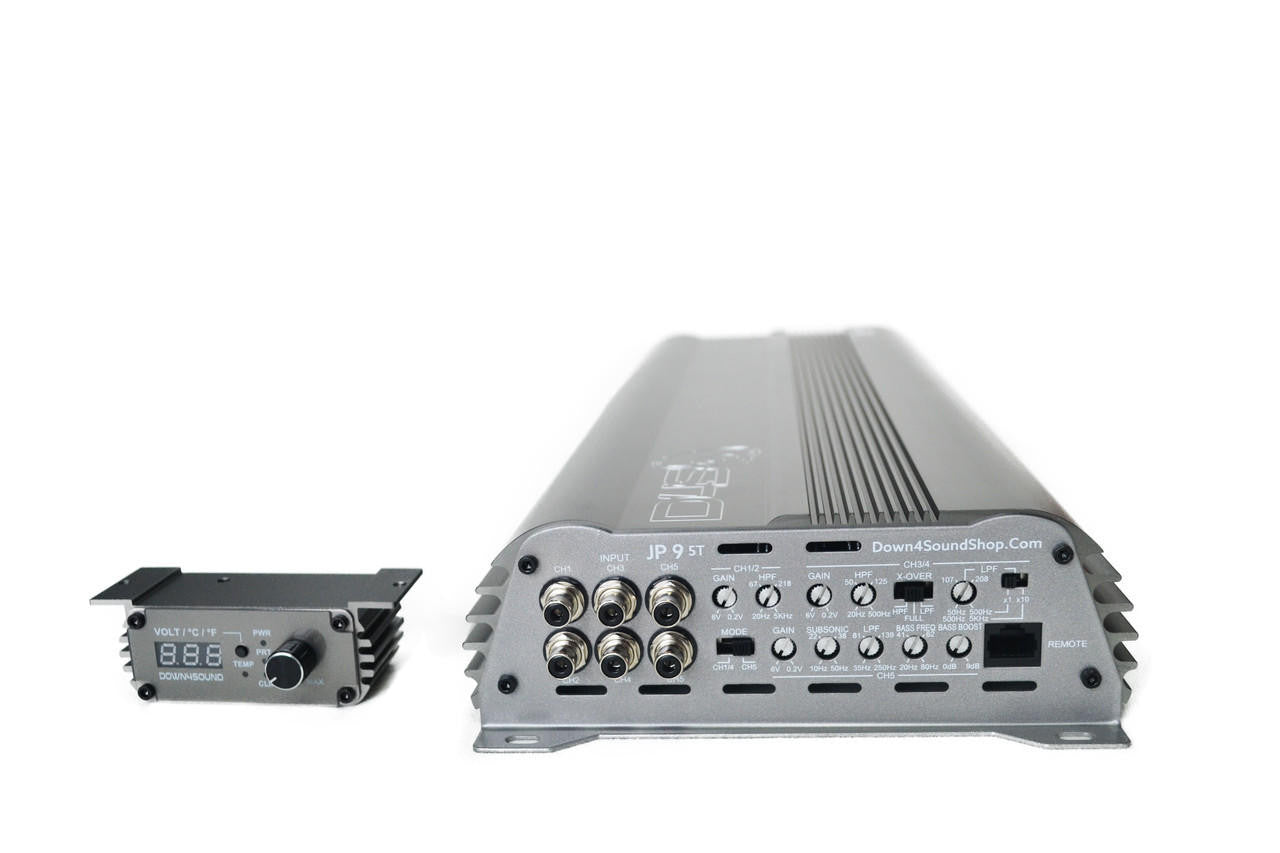

Down4Sound JP95T 1500W RMS 5 Channel Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
JP 95 AMP: Your Ultimate 5 Channel Amplifier
Introducing the JP95T AMP in a mesmerizing finish, reminiscent of the most beautiful ocean, the culmination of sound engineering and design. Representing the zenith of the JP95 series, this amplifier is not just a device but a testament to craftsmanship. With its roots in Las Vegas, NV, and Dunnellon, FL, the JP95T AMP is the embodiment of what "Total" truly signifies in the world of sound systems, combining aesthetic appeal with unparalleled technical prowess.
Technical Details:
- Power Dynamics:
- 900W x 1 RMS power at 1ohm for CH5
- 200W x 4 + 700W x 1 RMS power at 2ohm
- 120W x 4 + 400W x 1 RMS power at 4ohm
- 400W x 2 RMS power at 4ohm when bridged
- Frequency Range: 10Hz - 30KHz for CH1 - CH4, 10Hz - 240Hz for CH5.
- Cooling System: A dedicated fan ensures optimal temperature management.
- Operating Voltage: Optimized range of 9 to 15.5 Volts.
User Benefits:
- Sound Customization: Comprehensive tuning specs, including High Pass Filters and Low Pass Filters.
- Compact Powerhouse: Despite its immense power, it's designed to integrate seamlessly into any setup.
- Elegant Aesthetics: The sleek finish is a modern touch, symbolizing the pinnacle of the JP95 series.
SPECIFICATIONS:
- Power Output: As detailed in the "Technical Details" section.

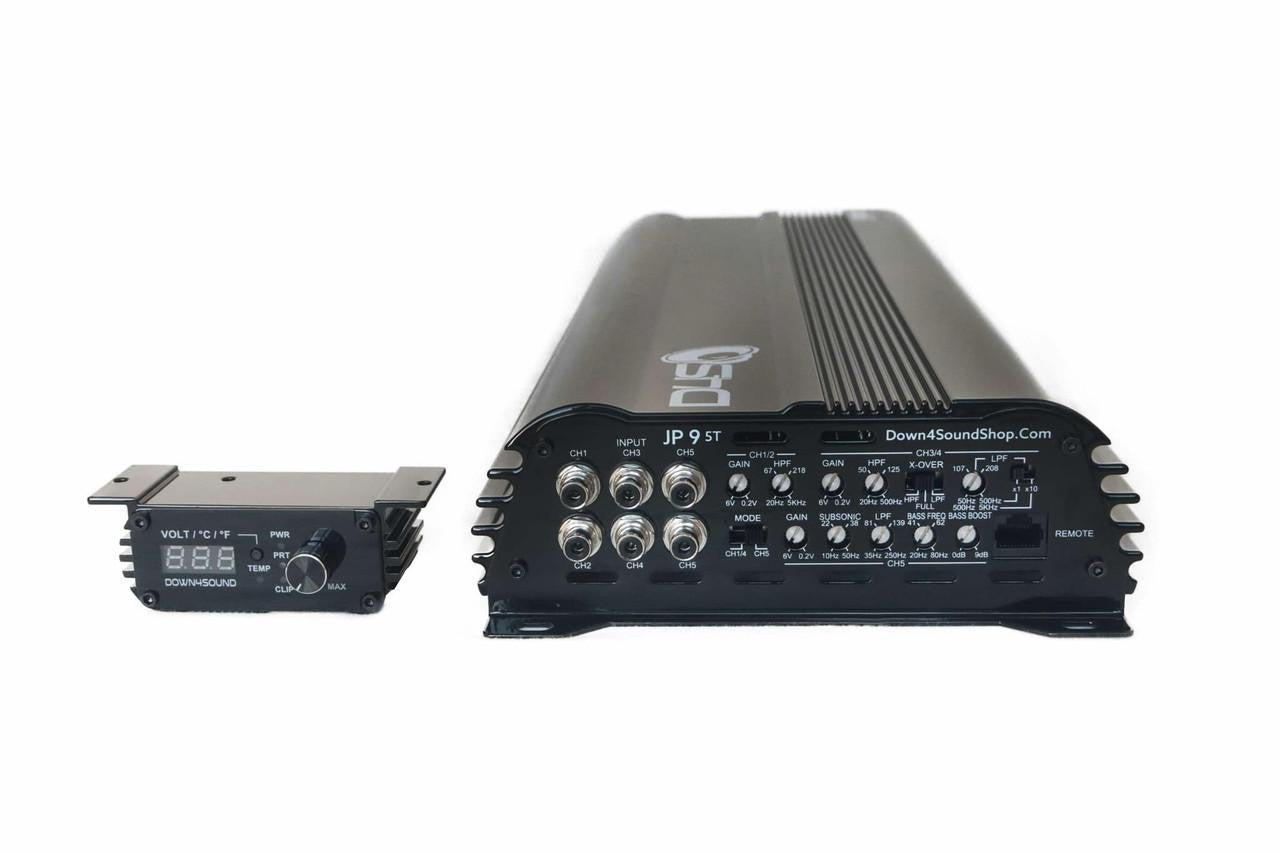

- Tuning Specs:
- CH1 & CH2: High Pass Filter: 20Hz - 5KHz
- CH3 & CH4: High Pass Filter: 20Hz - 500Hz, Low Pass Filter: 50(500)Hz - 500(5K)Hz, Low pass Filter Multiply: x1, x10
- CH5: Subsonic Filter: 10Hz - 50Hz, Low Pass Filter: 35Hz - 250Hz
- Acoustic Purity: Signal to Noise Ratio: 95dB <, T.H.D @ 4ohm: less than 0.1%
- Fuse Ratings: 160A
- Dimensions: Length: 17.71", Width: 7.4", Height: 2.24"
JP95T MANUAL available for comprehensive guidance.
Elevate your auditory journey with the JP95T AMP, the epitome of power, precision, and elegance in the JP95 series. Experience the "Total" difference today.
