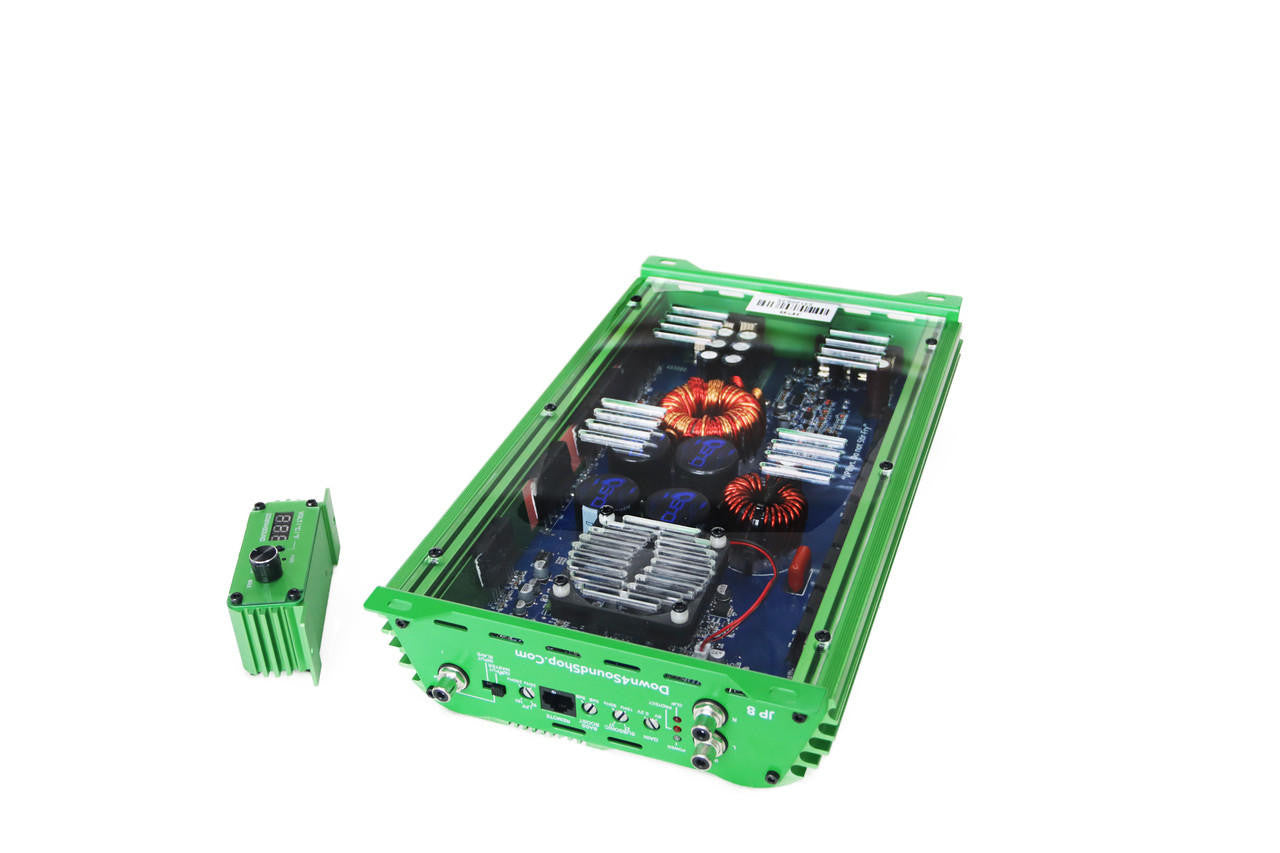

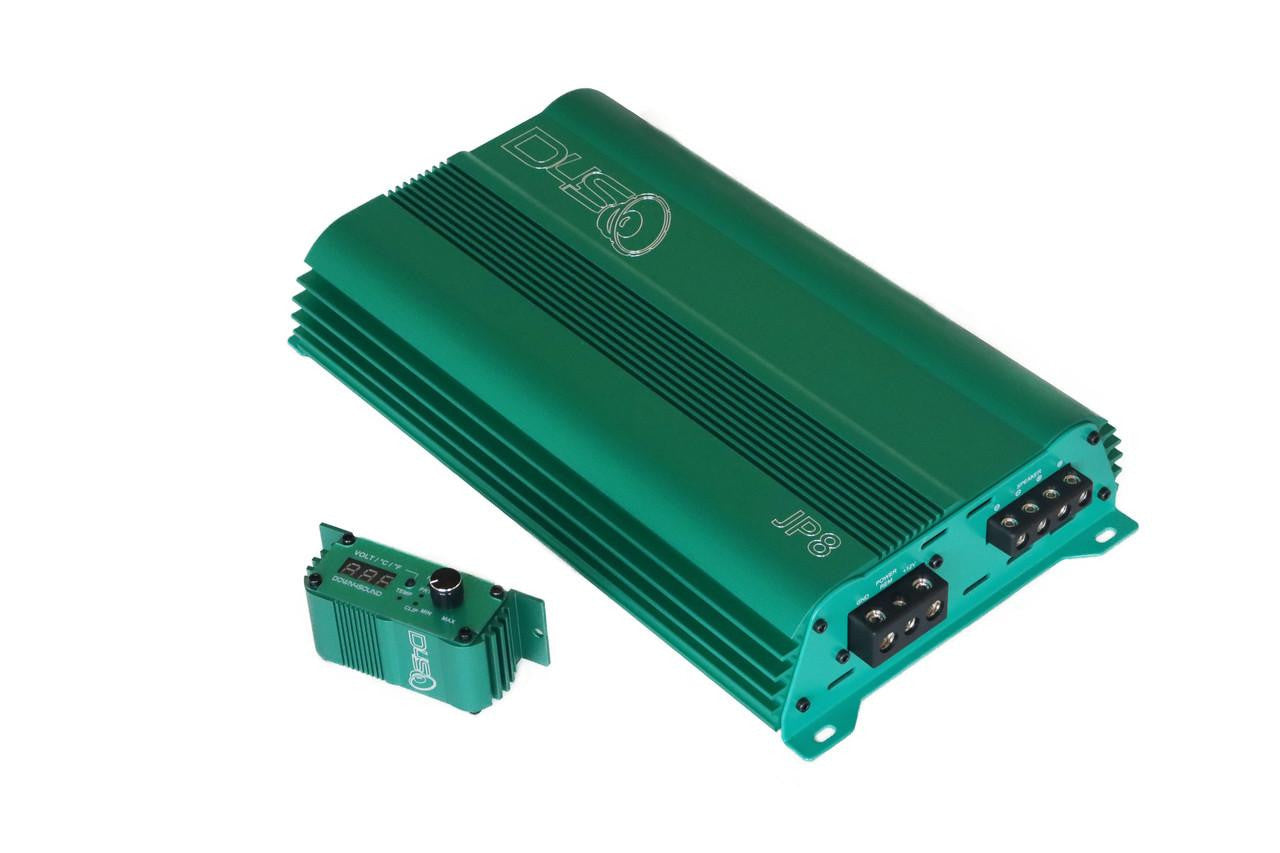

Down4Sound JP8 V1.5 - 800W RMS Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.

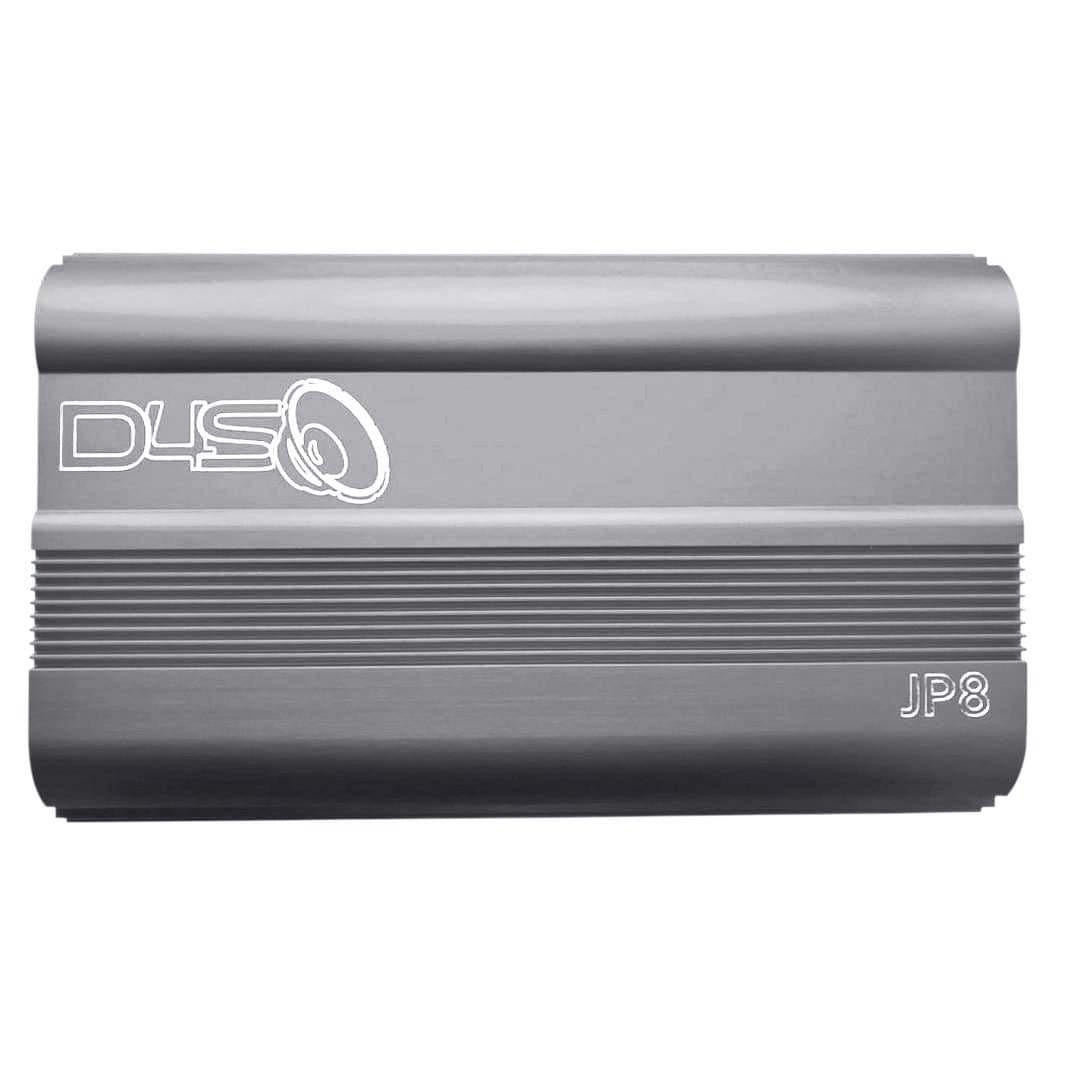

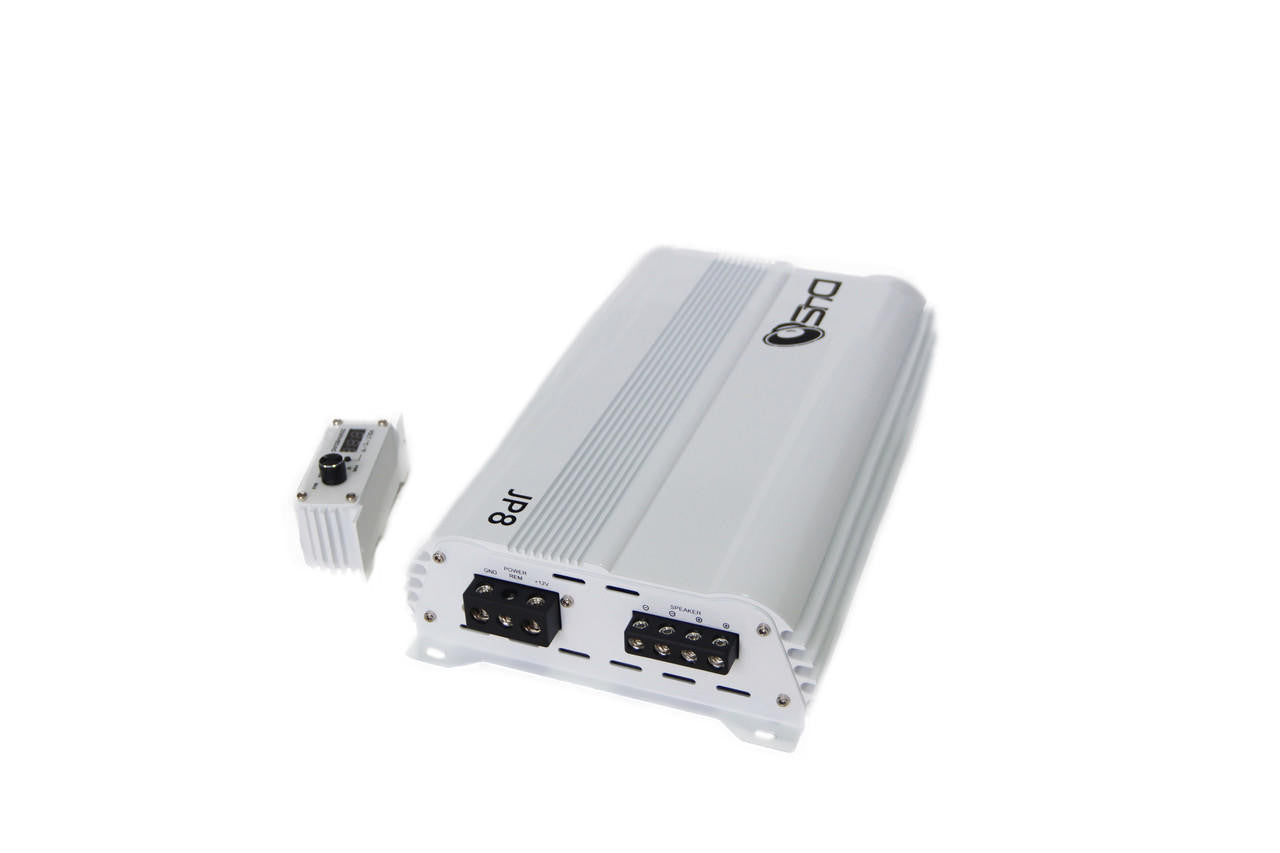

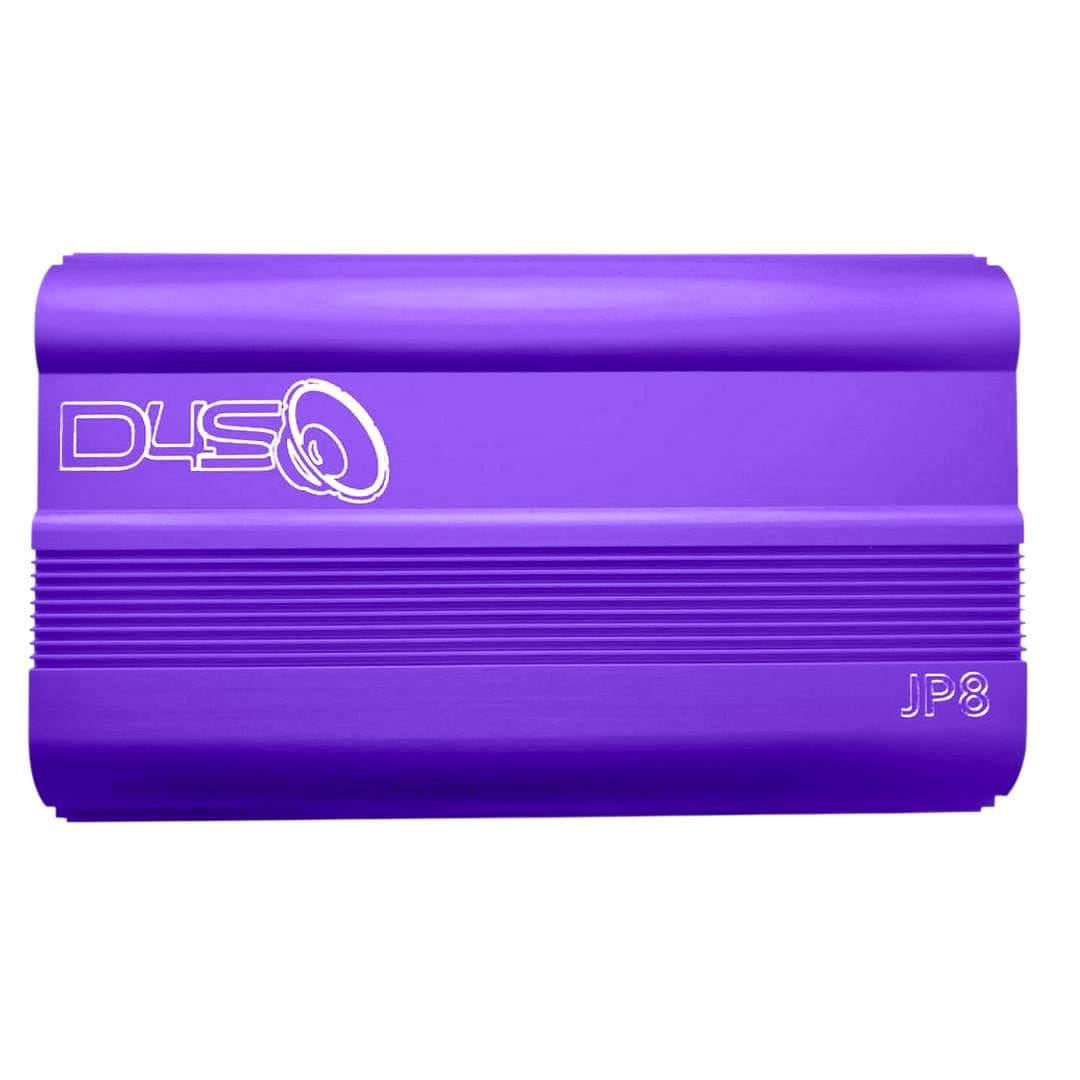

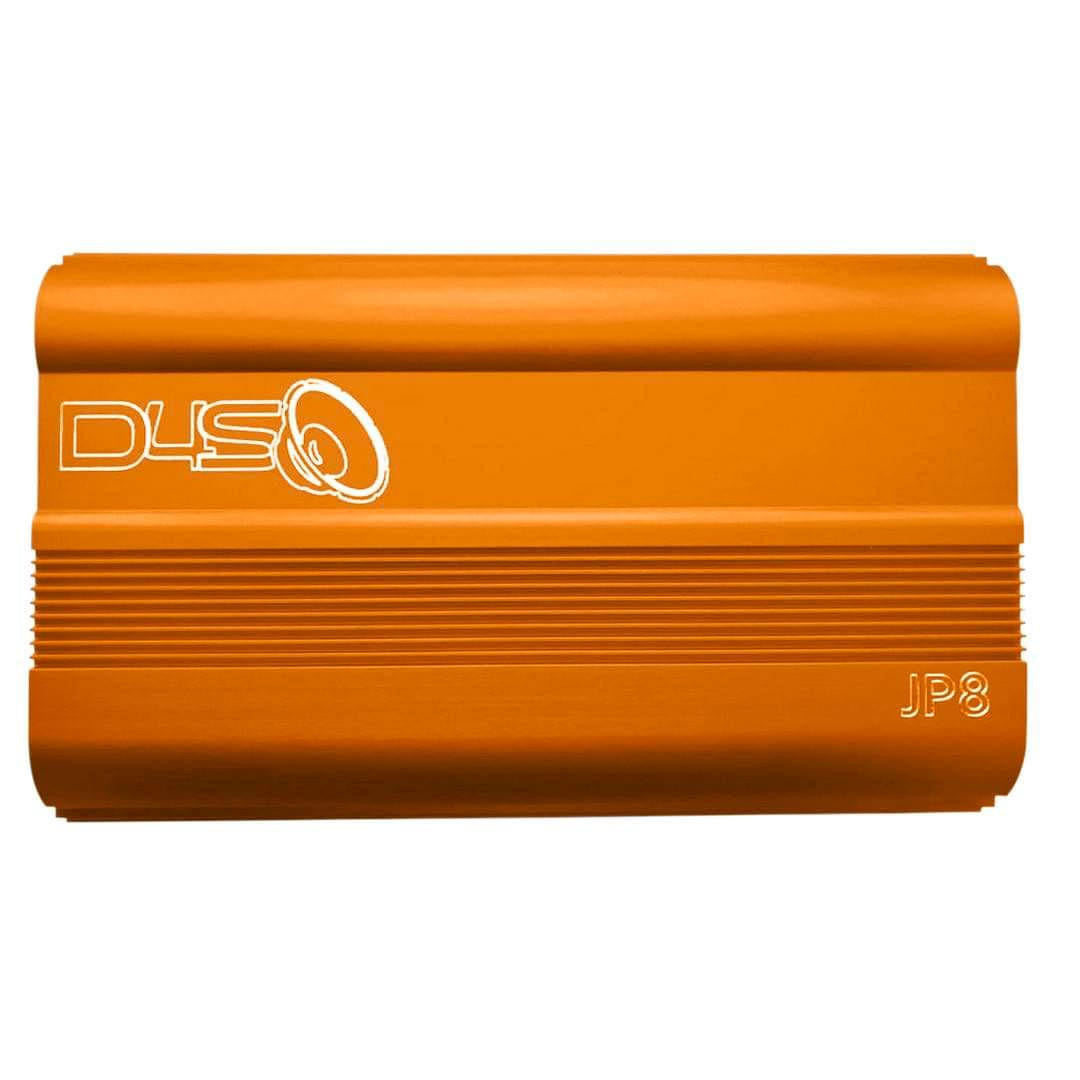

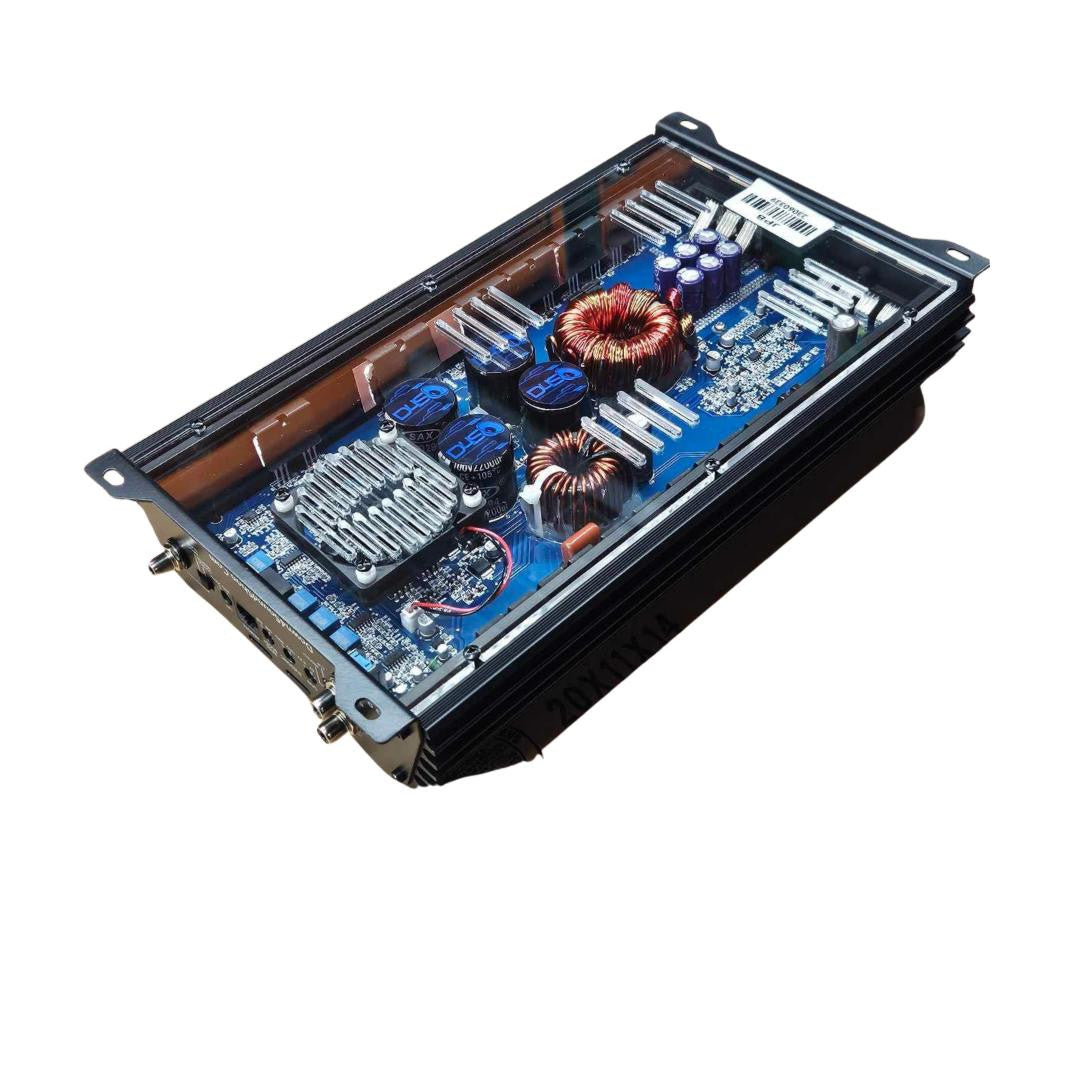

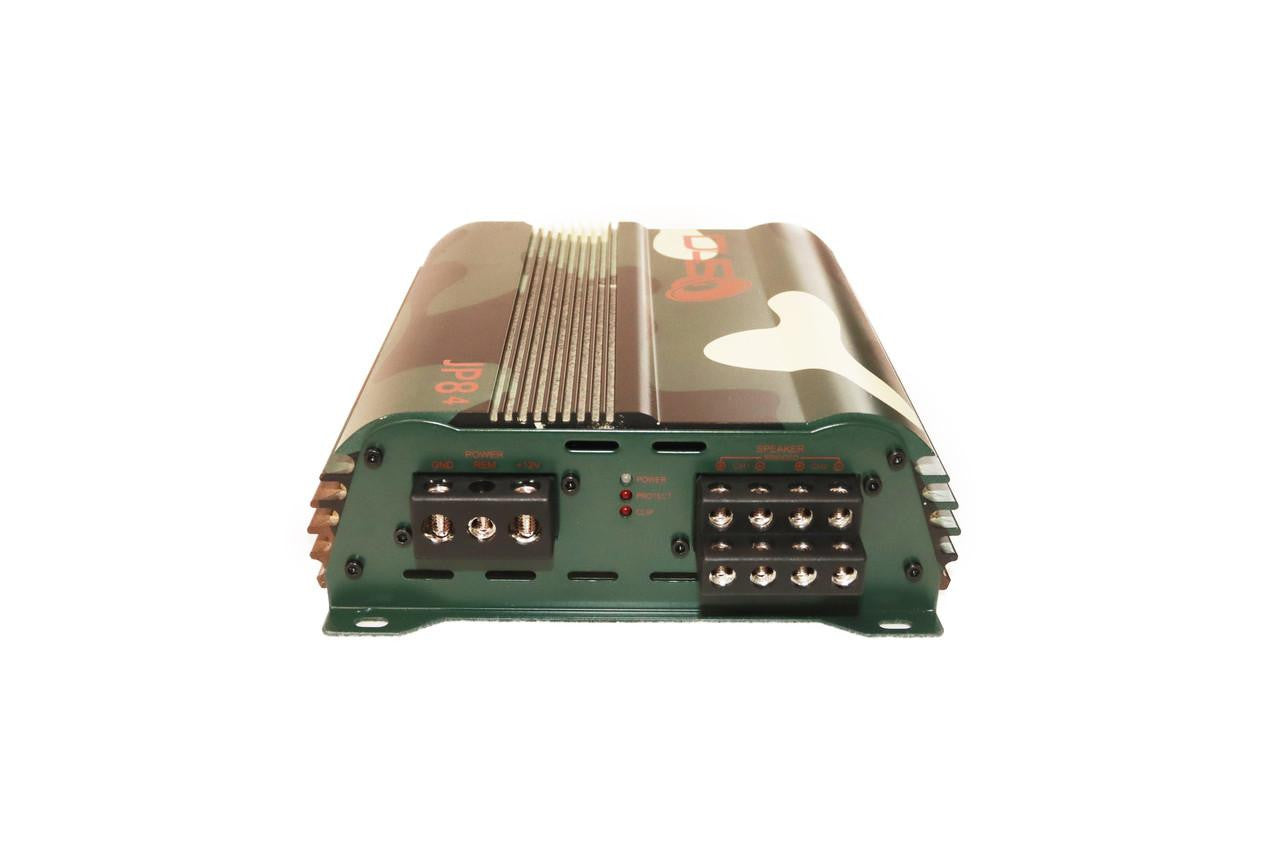

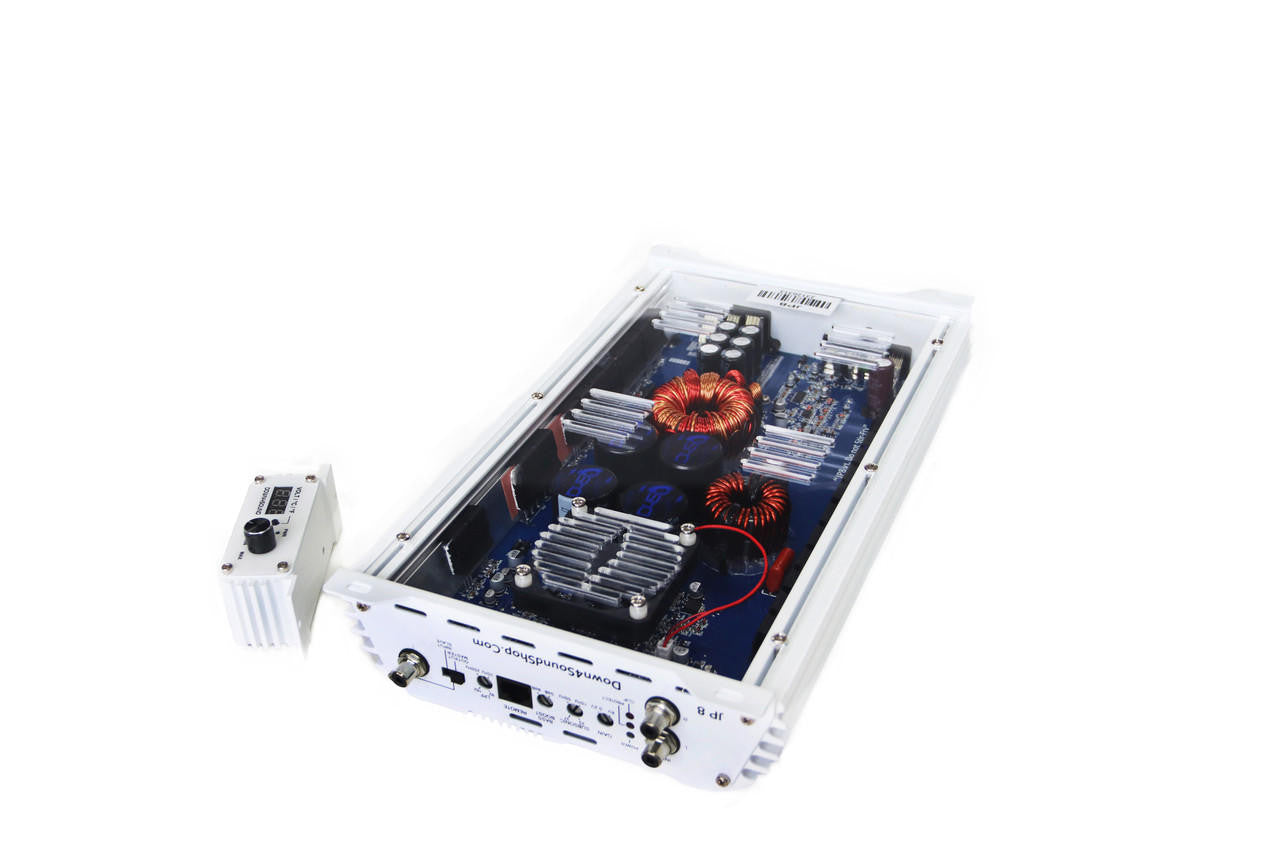

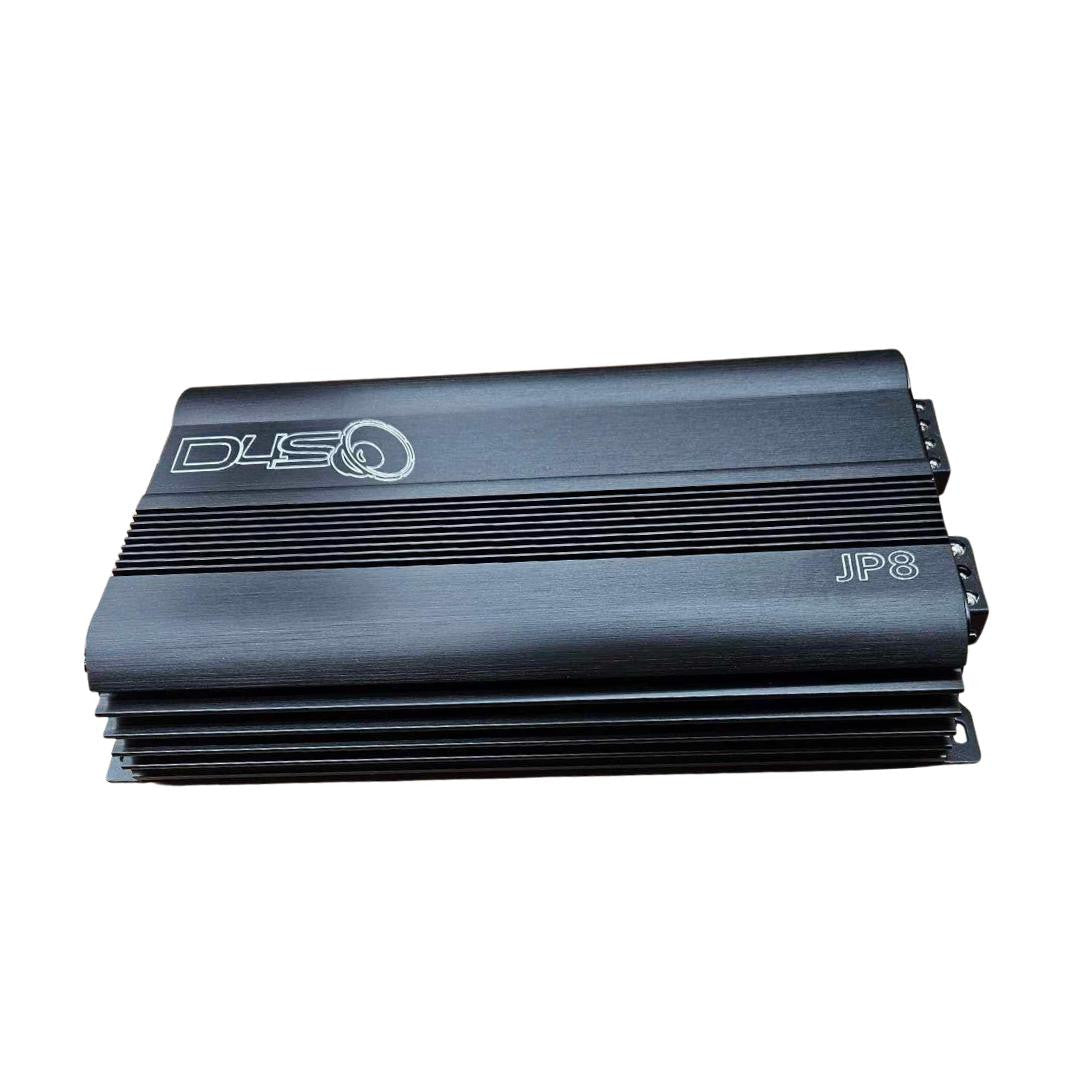

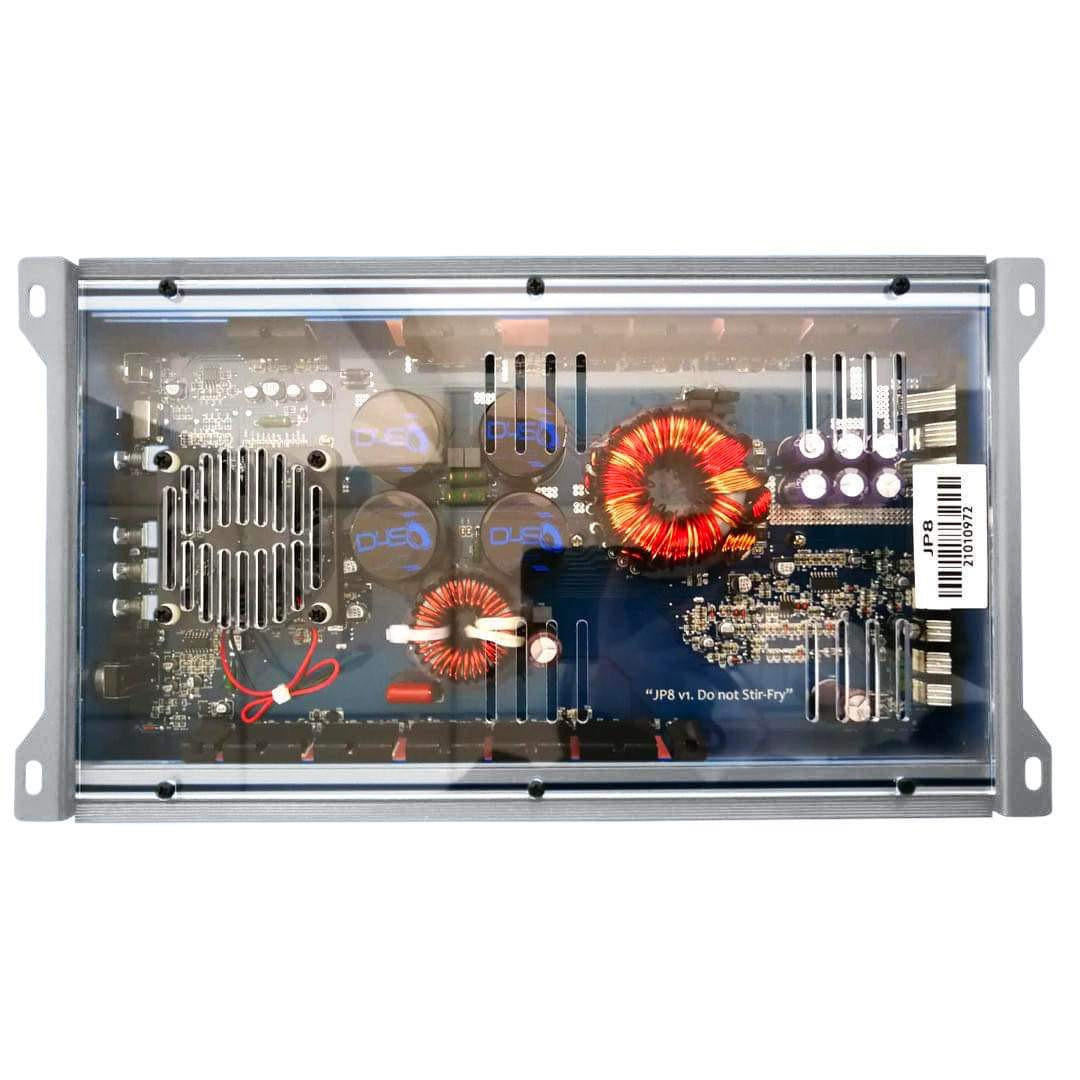

Welcome to the realm of power and elegance with the JP8 800W+ RMS Monoblock Amplifier. Crafted with dedication and expertise, this amplifier showcases a formidable 800-watt output, a result of extensive research and development in Las Vegas, NV, and Dunnellon, FL. The JP8 merges the classic charm of Car Audio's original days with cutting-edge technology, offering unparalleled performance.
Key Features
- Retro-inspired SKOOL design from Down4Sound and Car Audio's original era.
- Integrated cooling fan for superior performance and durability.

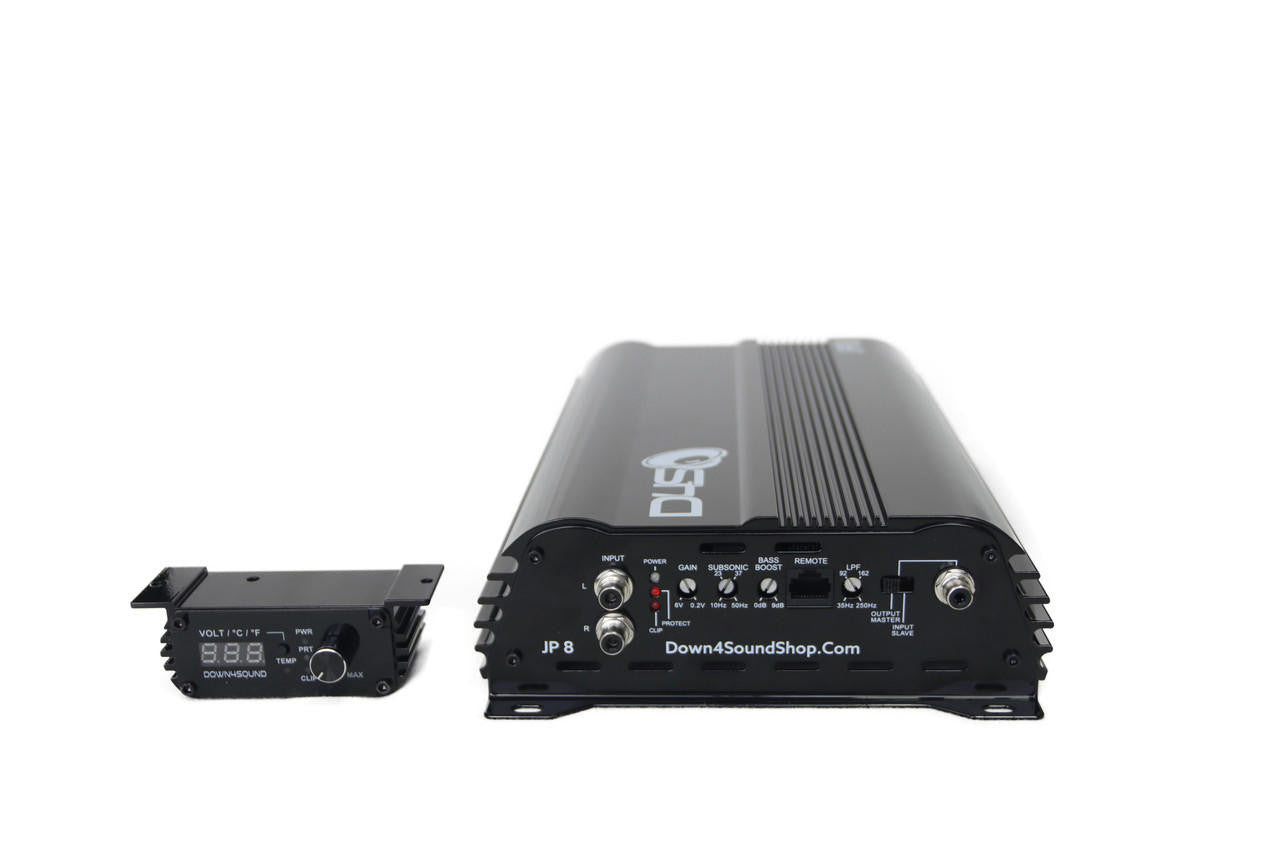

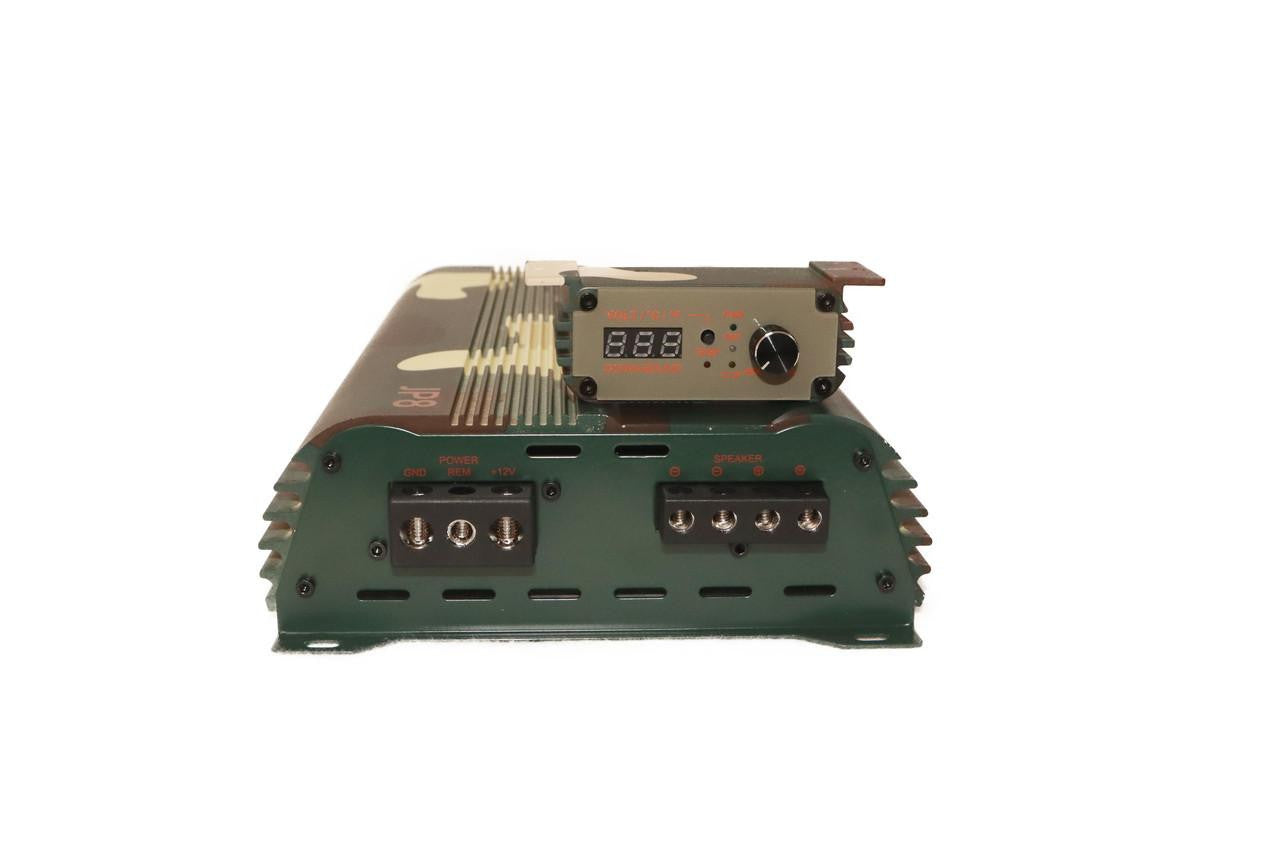

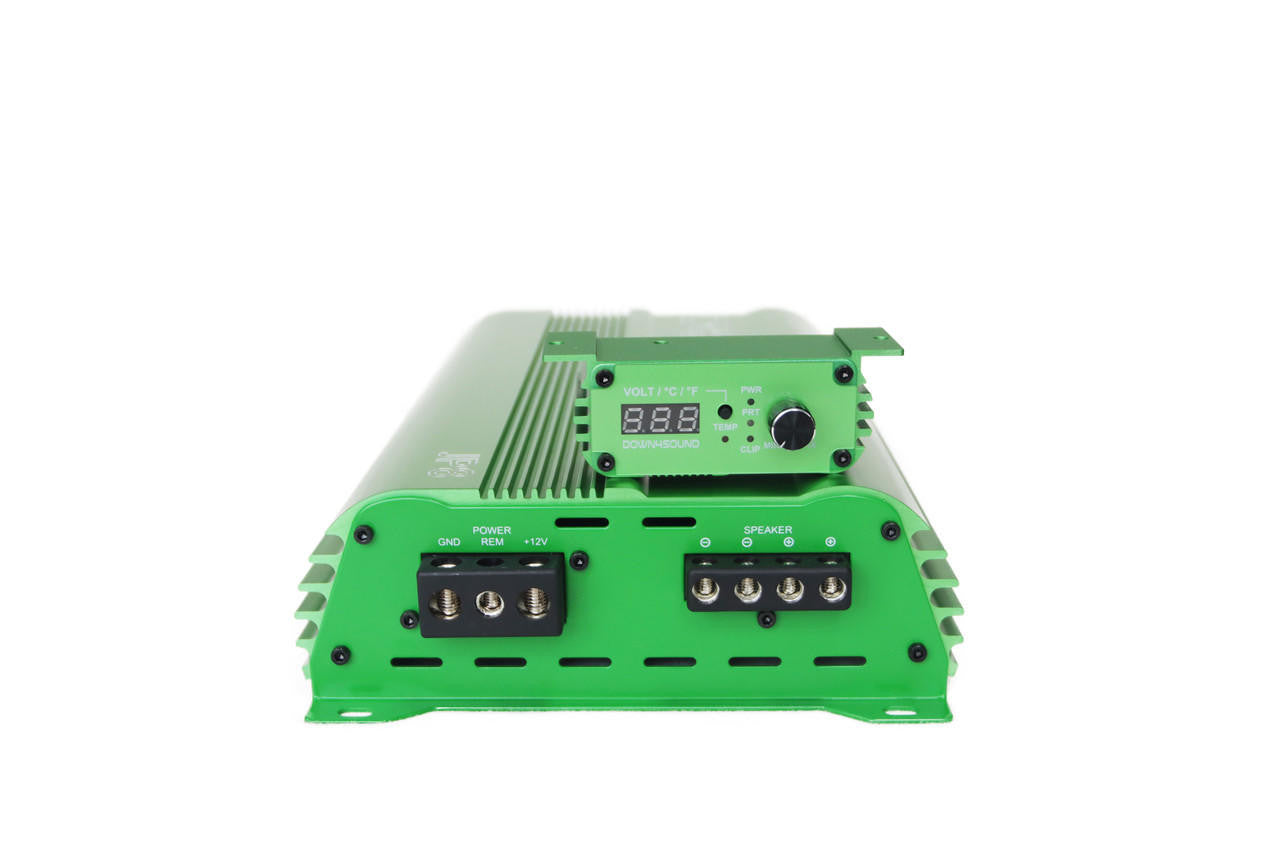

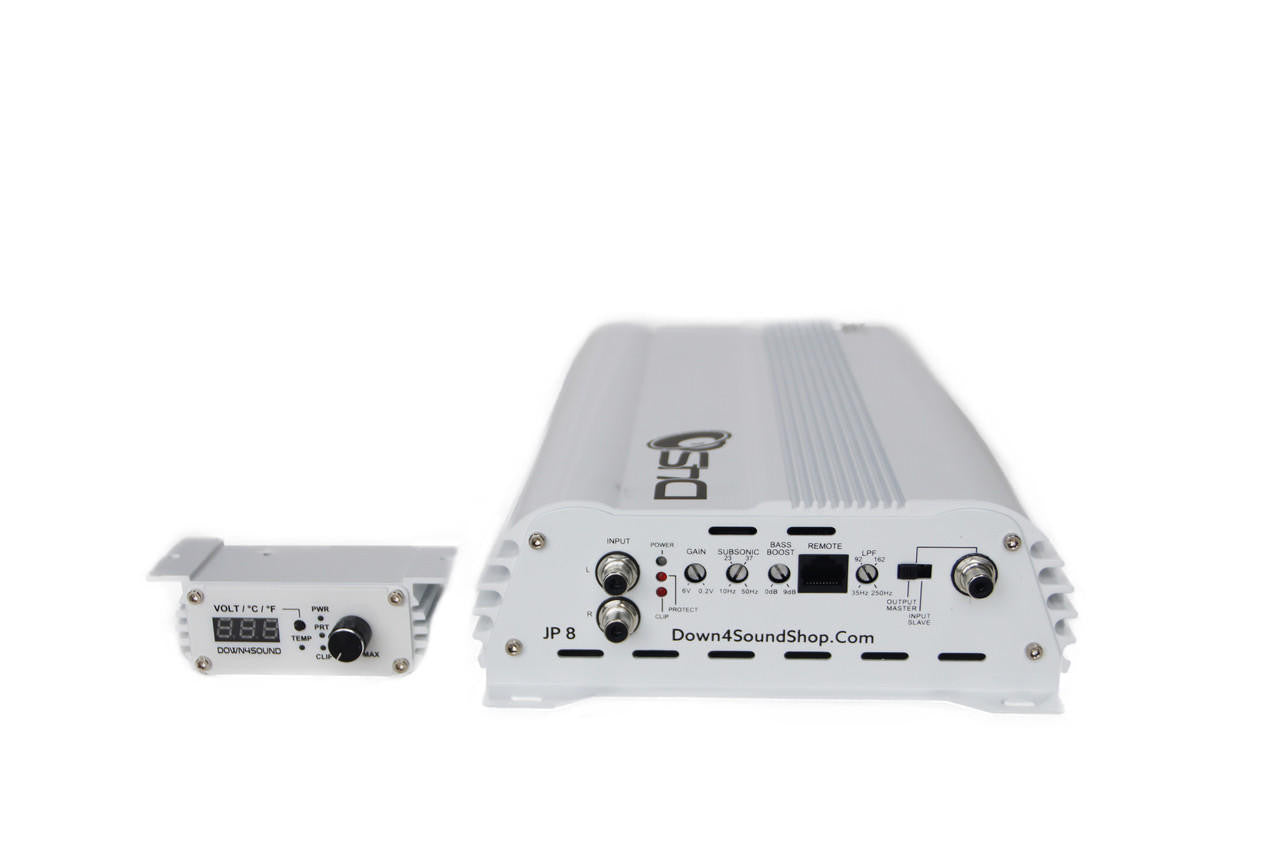

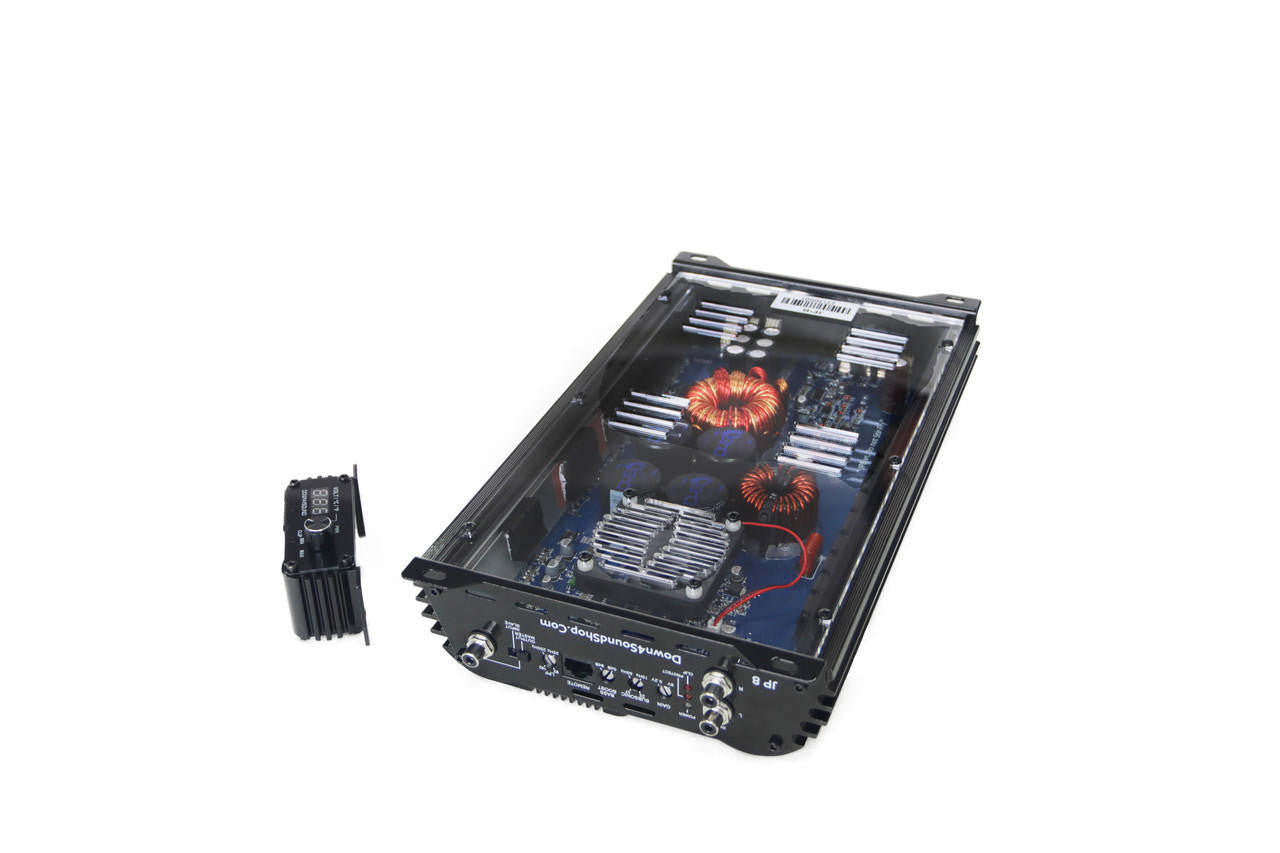

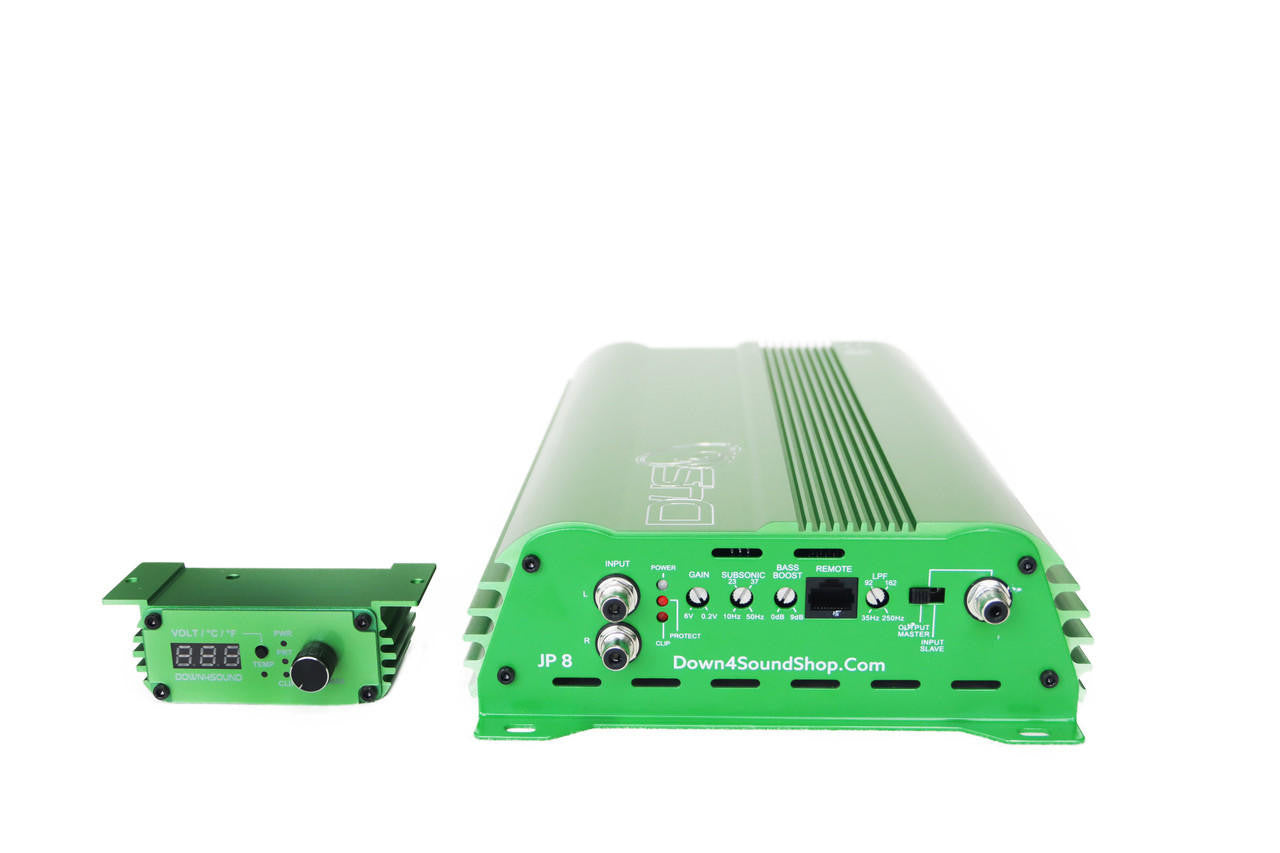

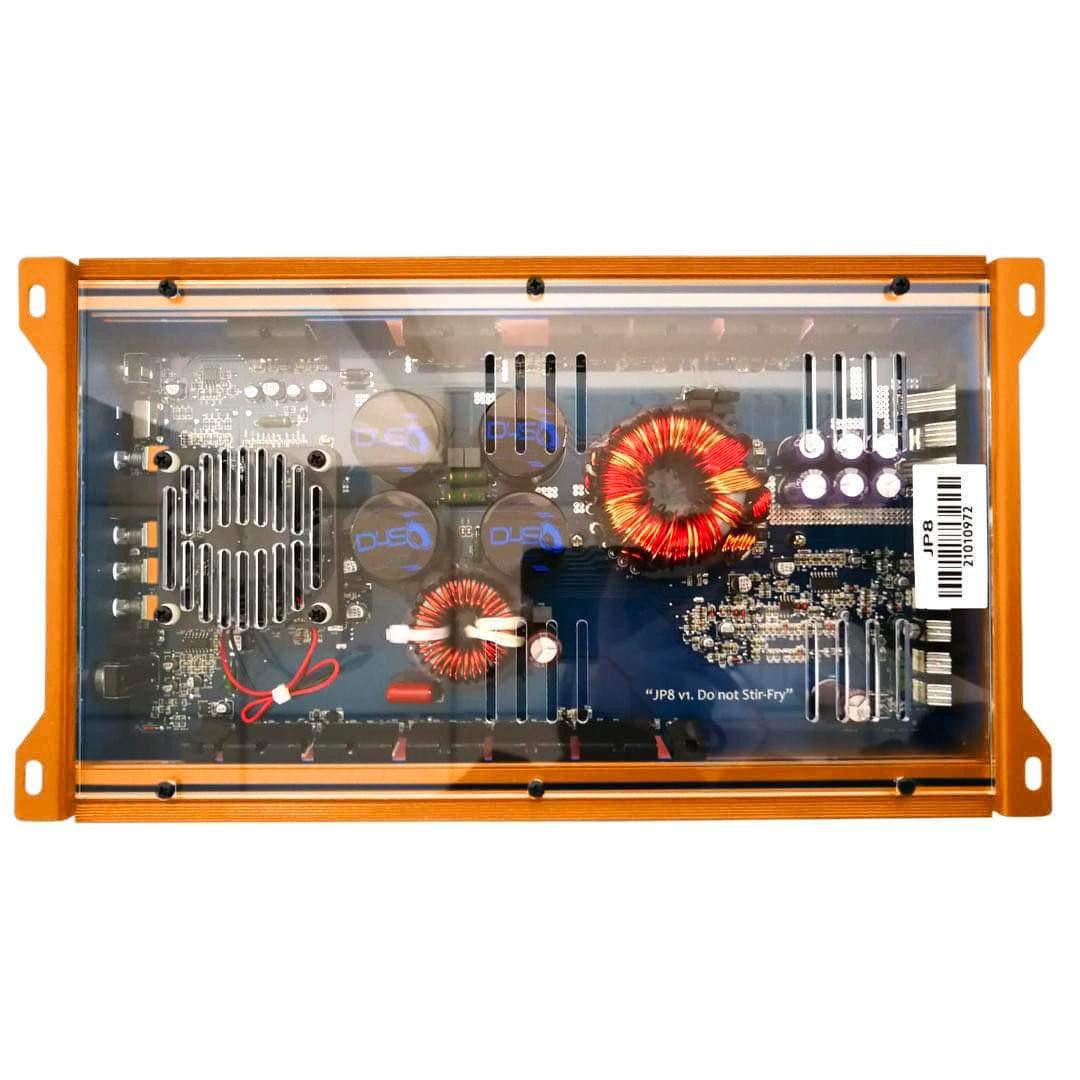

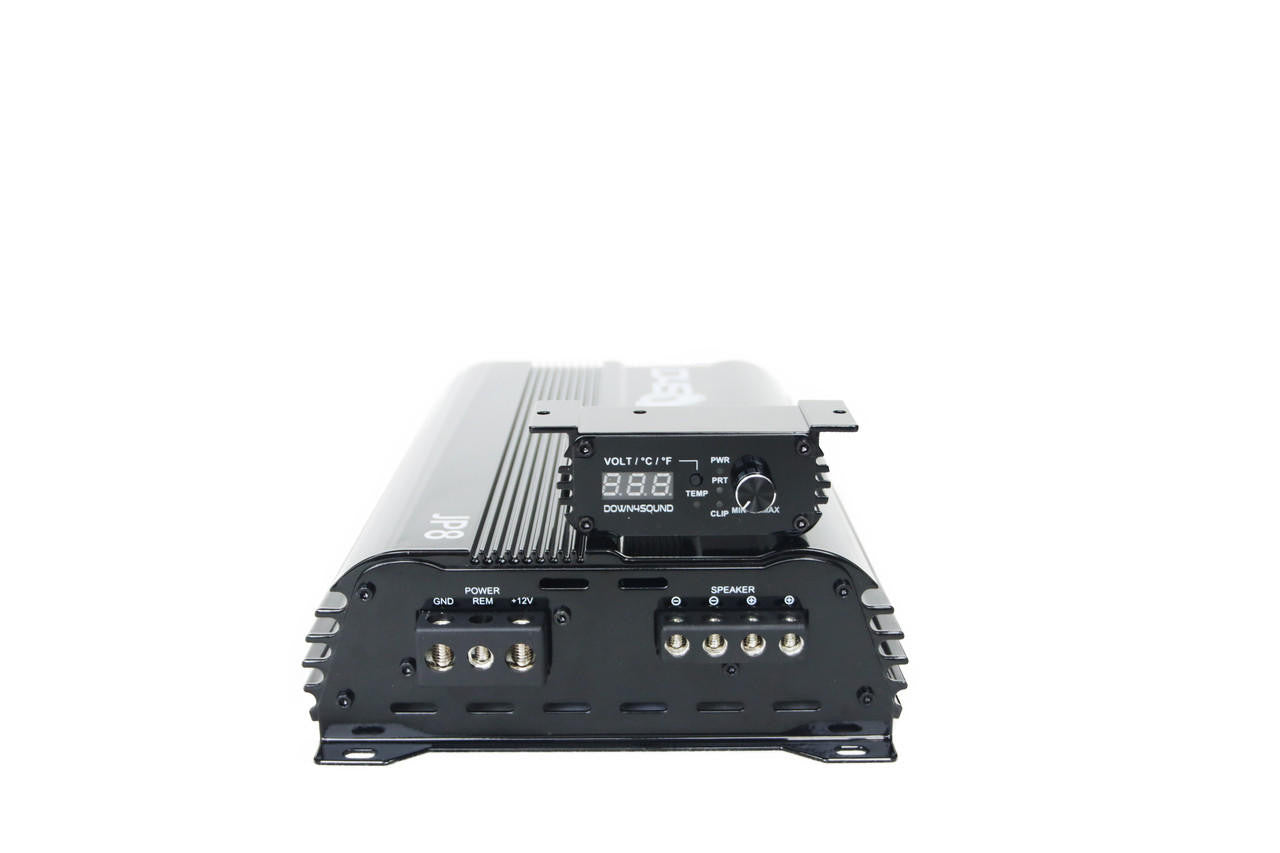

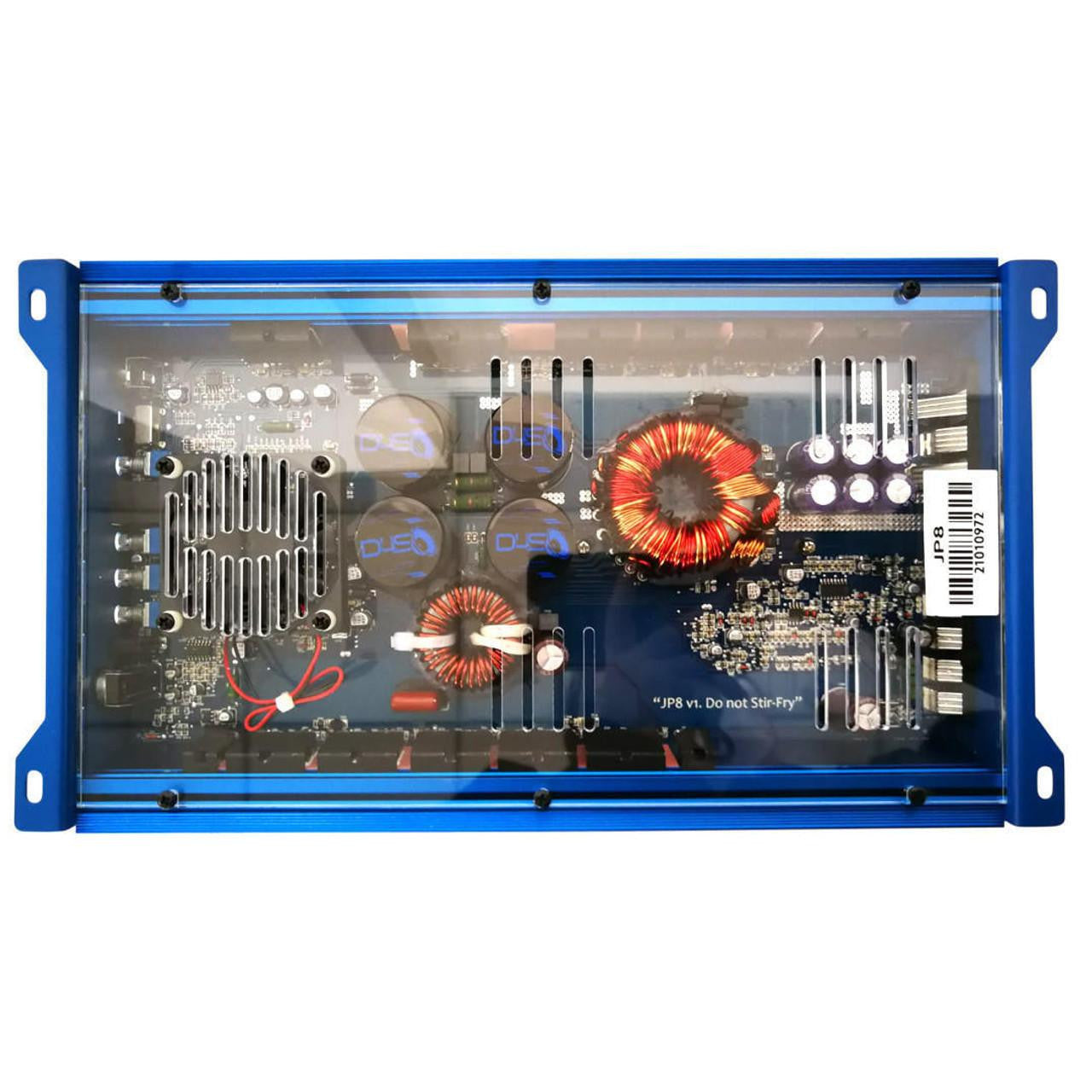

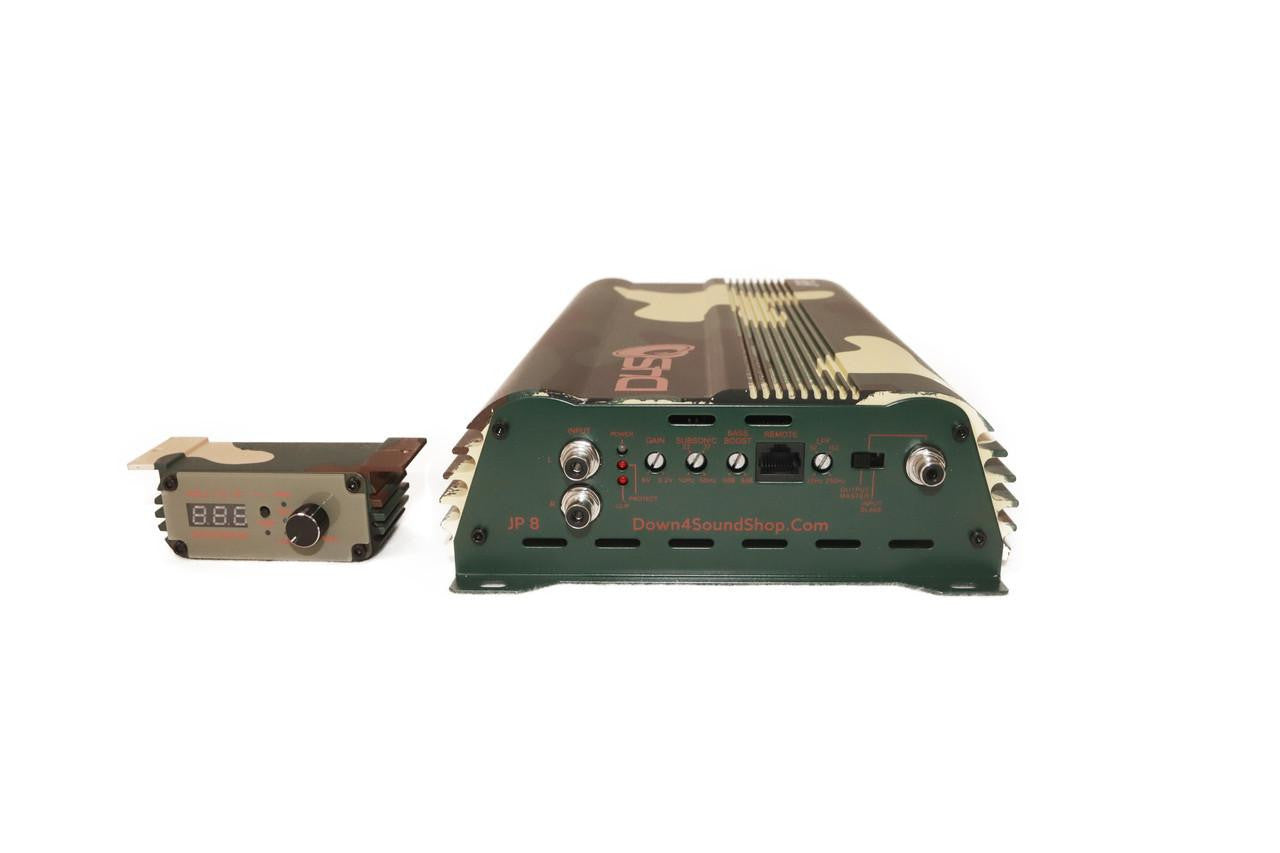

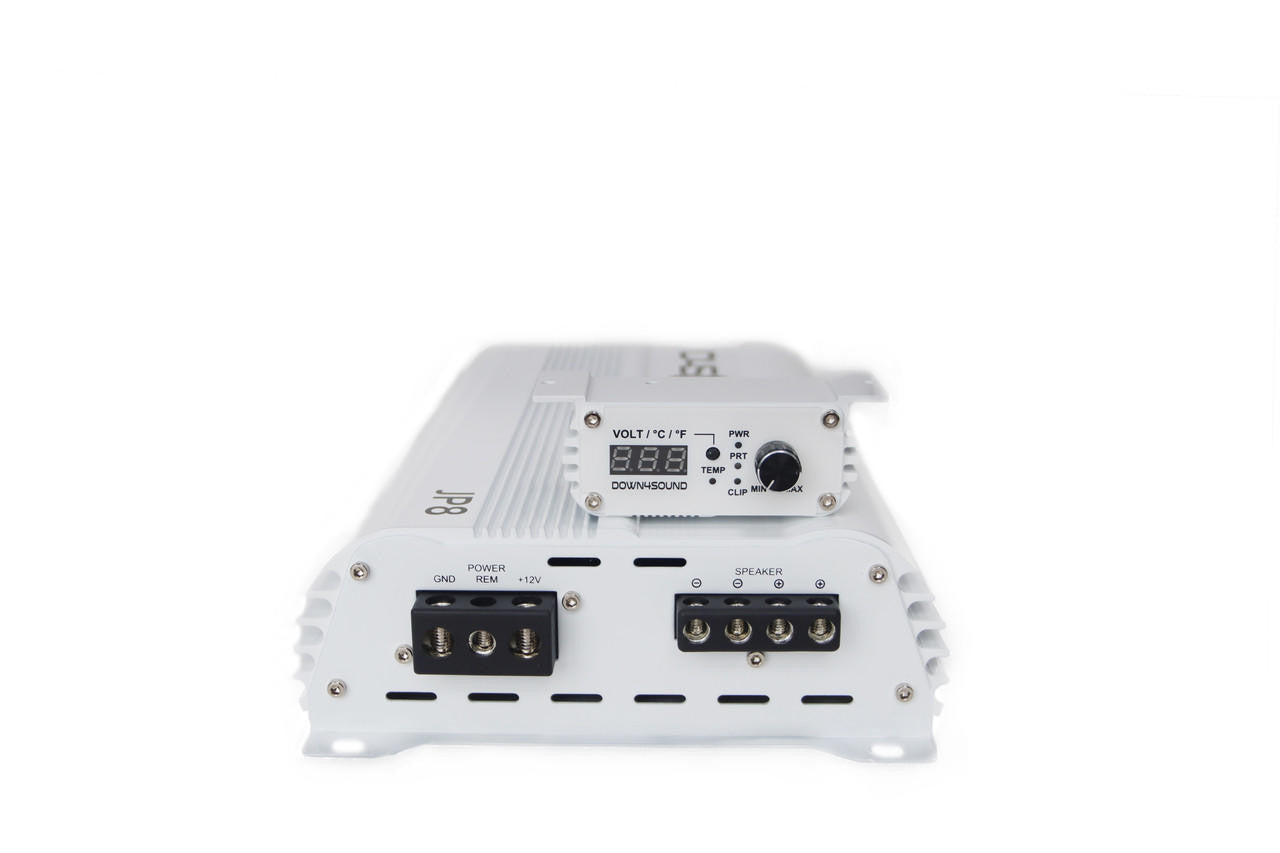

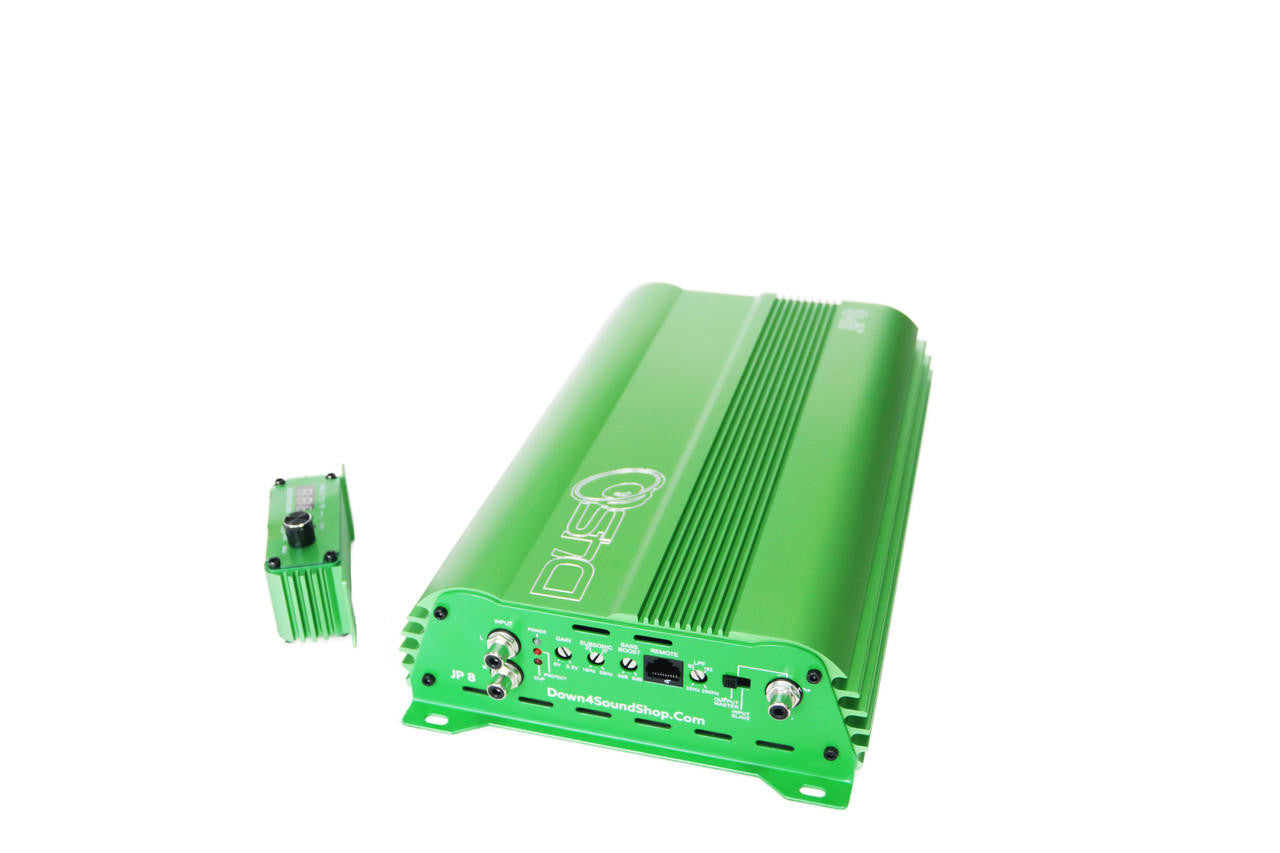

- Plexi black plate and NEW ALUMINUM Bass Knob featuring a voltage and temperature meter.
- Standard 1-year warranty for manufacturer defects.
- Optional half-ohm warranty for extra security during 0.5 ohm setups.
Testing Results by Big D Wiz
Independent verification by Big D Wiz affirms the true power output. Confirmed RMS power ratings at 14.4 volts:
- 4 OHM: 511 Watts RMS
- 2 OHM: 892 Watts RMS
- 1 OHM: 1256 Watts RMS
Our Testing Ratings (Worst Case Power Output):
- 1 Ohm: 700W x 1 @ 12v | 850W x 1 @ 14.4v
- 2 Ohms: 500W x 1 @ 12v | 650W x 1 @ 14.4v
- 4 Ohms: 490W x 1 @ 12v
- 2 Ohm Linked: 2300W x 1 @ 14.4v
Tuning Specifications
- Frequency Response: 10 Hz - 270 Hz
- Low Pass Filter: 35 Hz - 250 Hz
- Subsonic Filter: 10 Hz - 50 Hz
- Bass Boost: 0 - 9 dB
- Input Sensitivity: 6V - 0.2V
- Signal to Noise Ratio: 97dB
- T.H.D @ 4 Ohm: Less than 0.1%
- Fuse Rating: 120A single, 220A strapped
- Operating Voltage: 9 to 16 Volts
- Dimensions: 11.81" x 7.4" x 2.24"
- Damping Factor: 100
- Class: D - DIGITAL
- Power & Ground Input: 4GA; Speaker Output: Up to 12GA
Embark on the ultimate audio adventure with the JP8 800W+ RMS Monoblock Amplifier.
