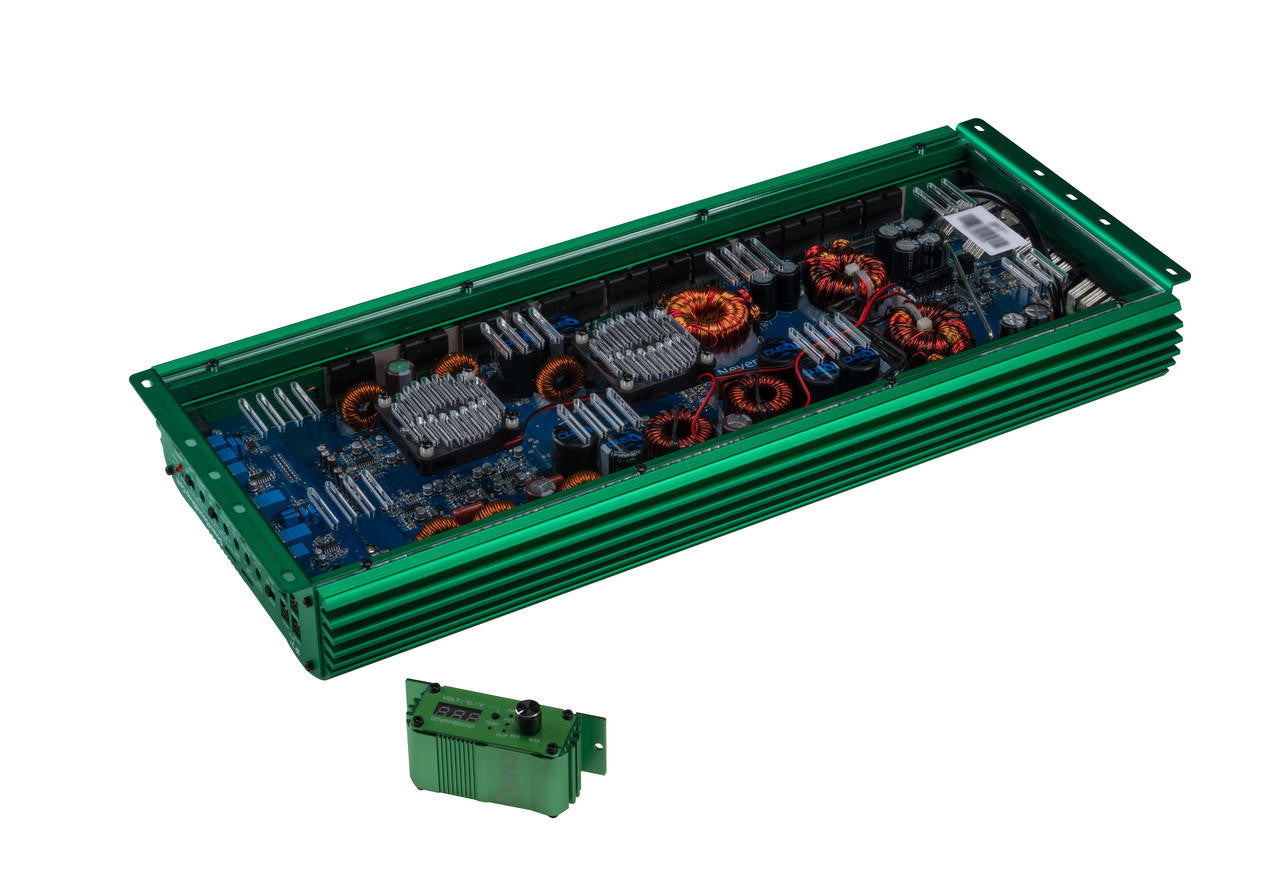

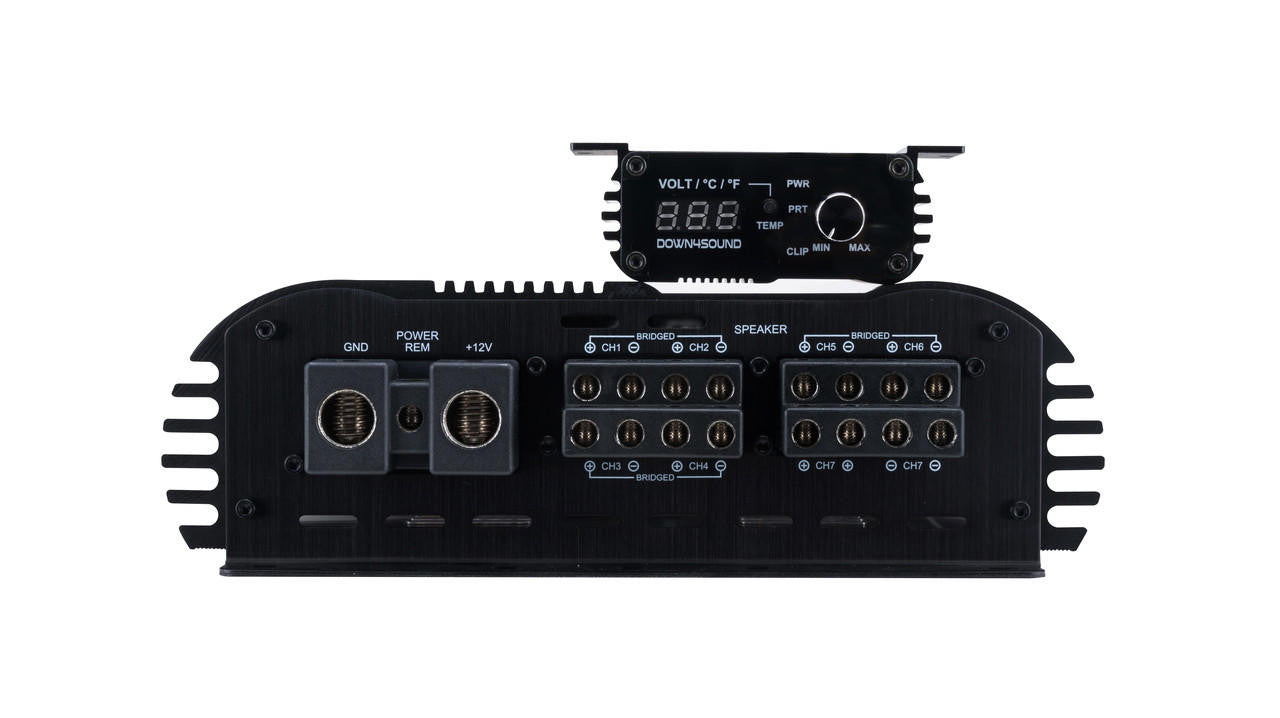

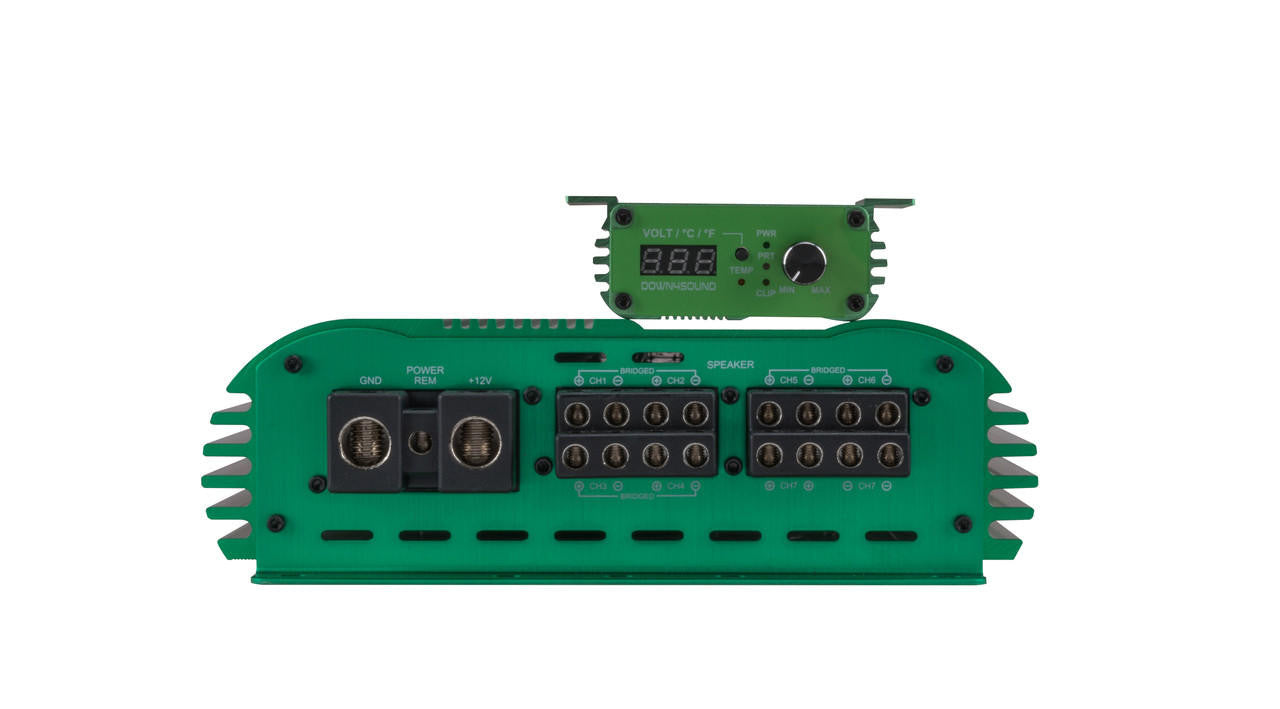

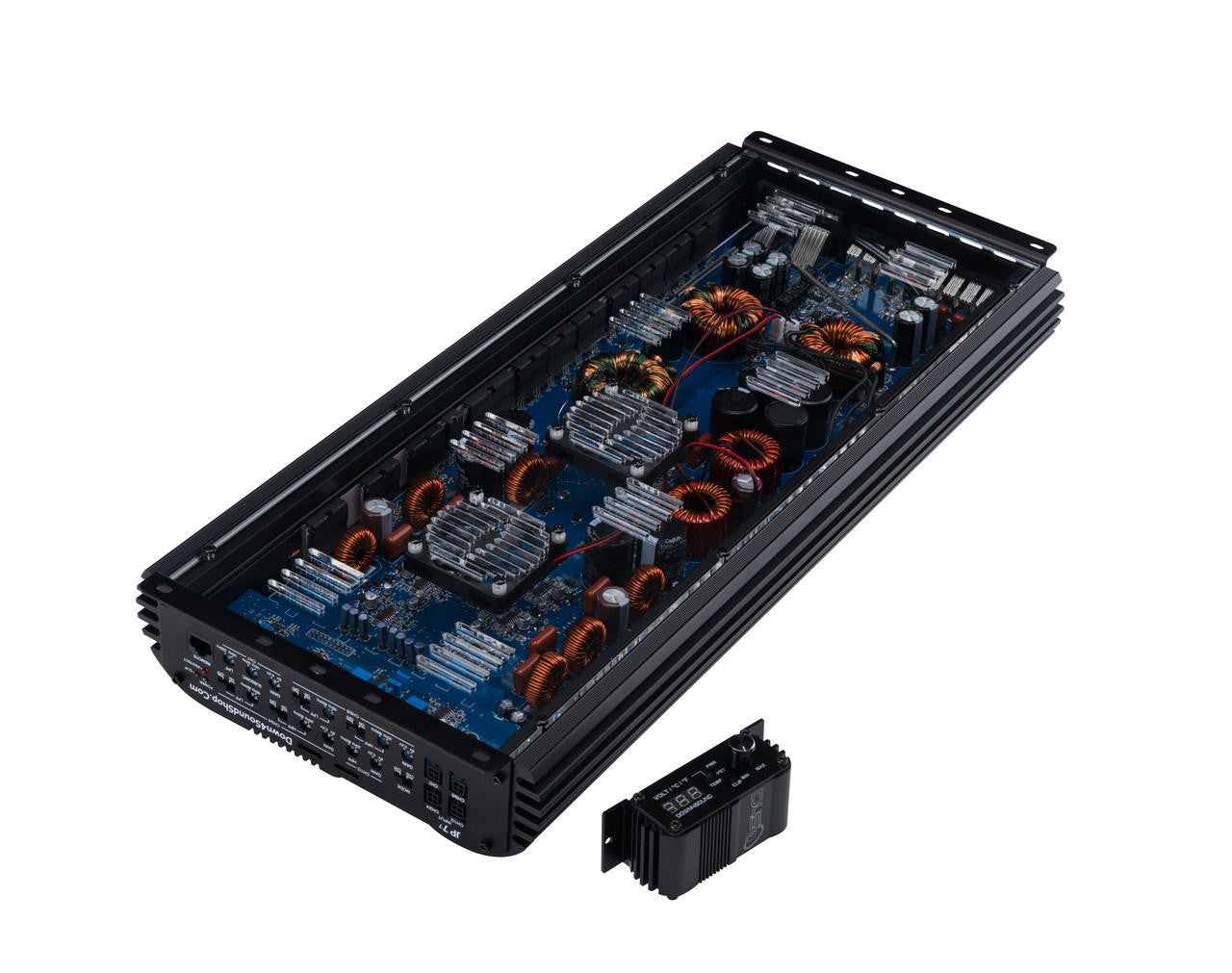

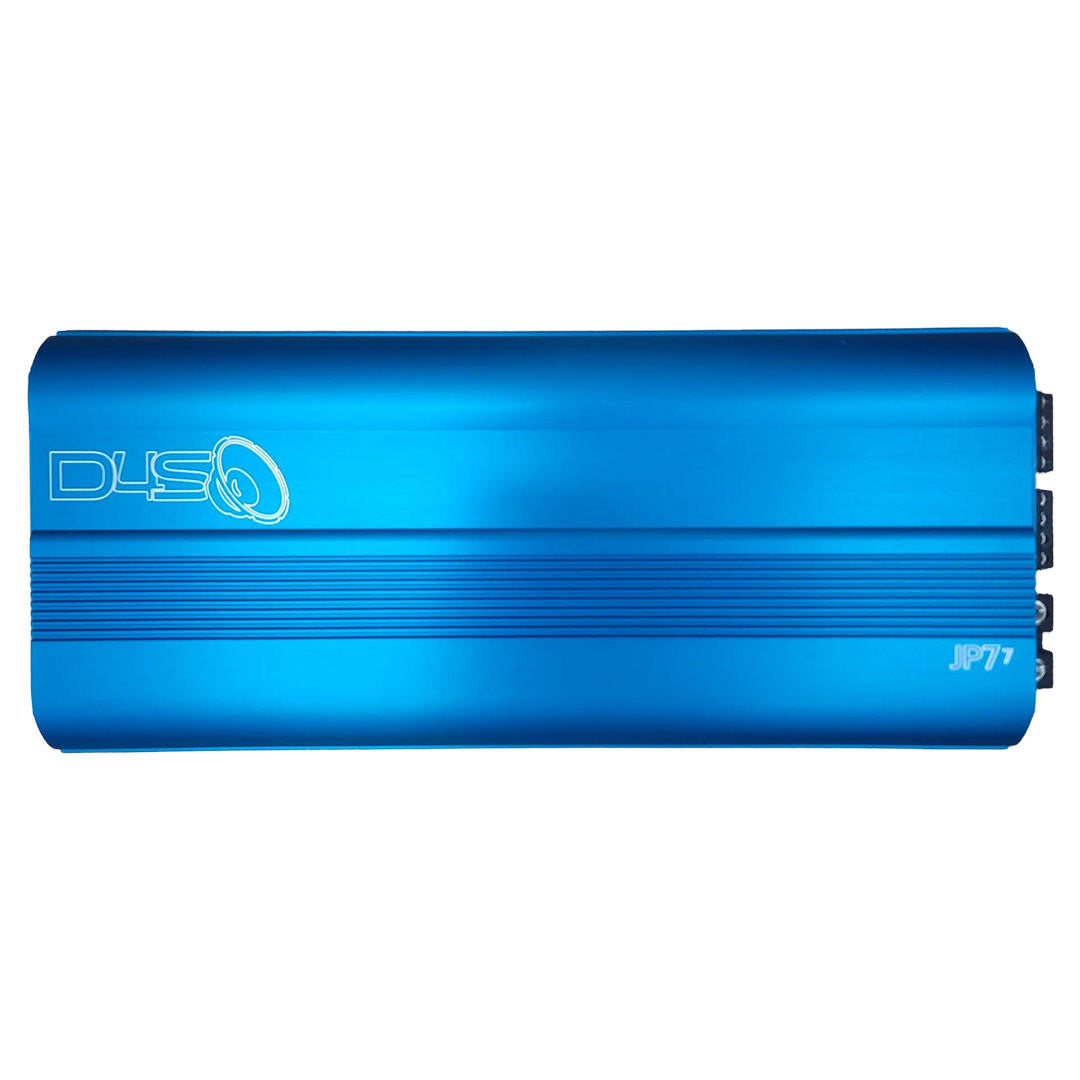

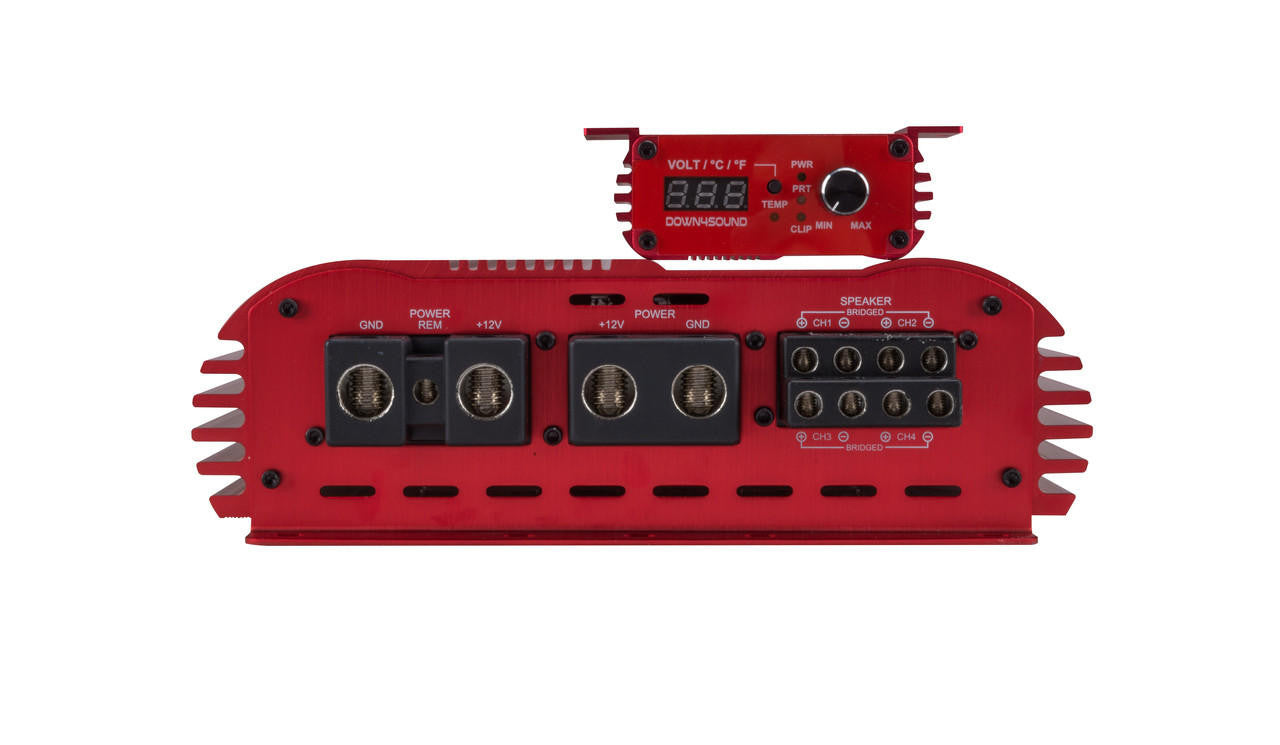

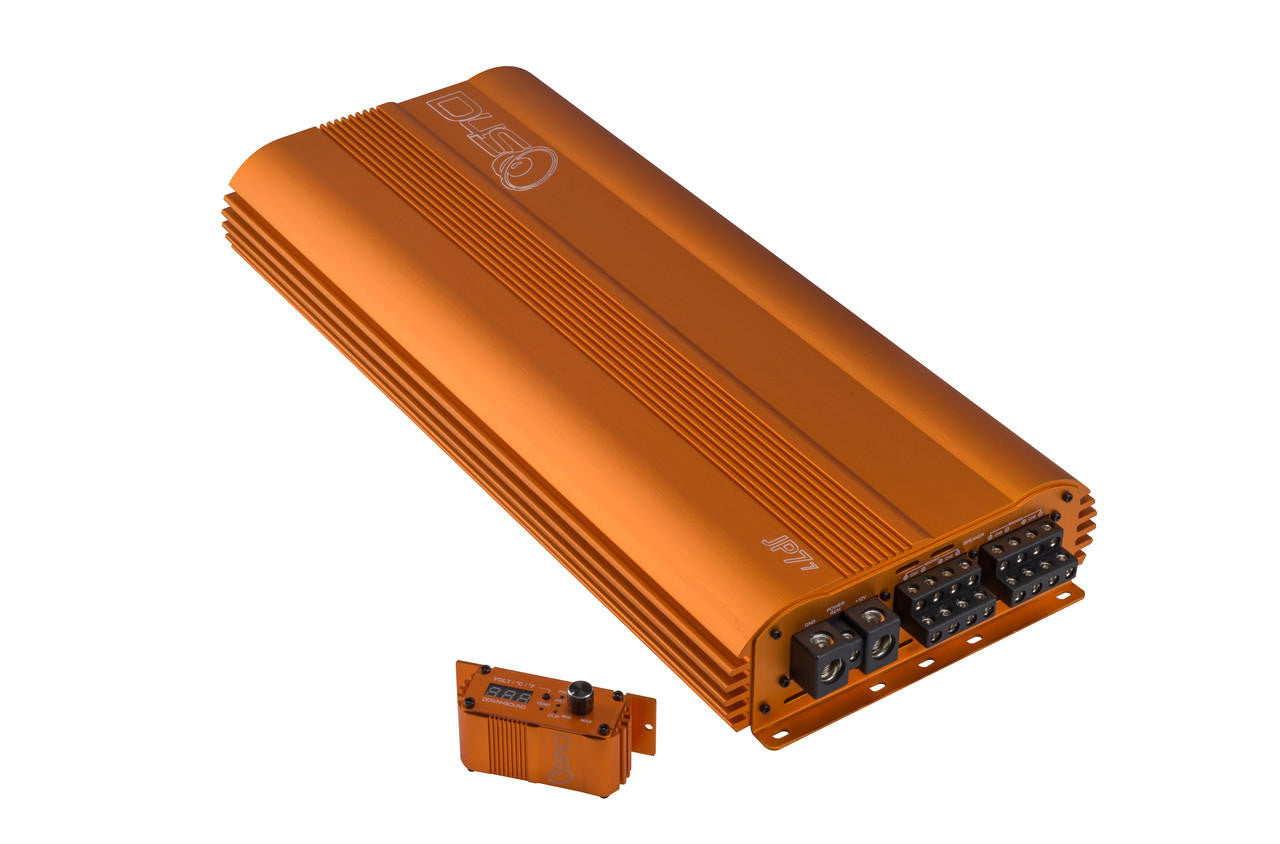

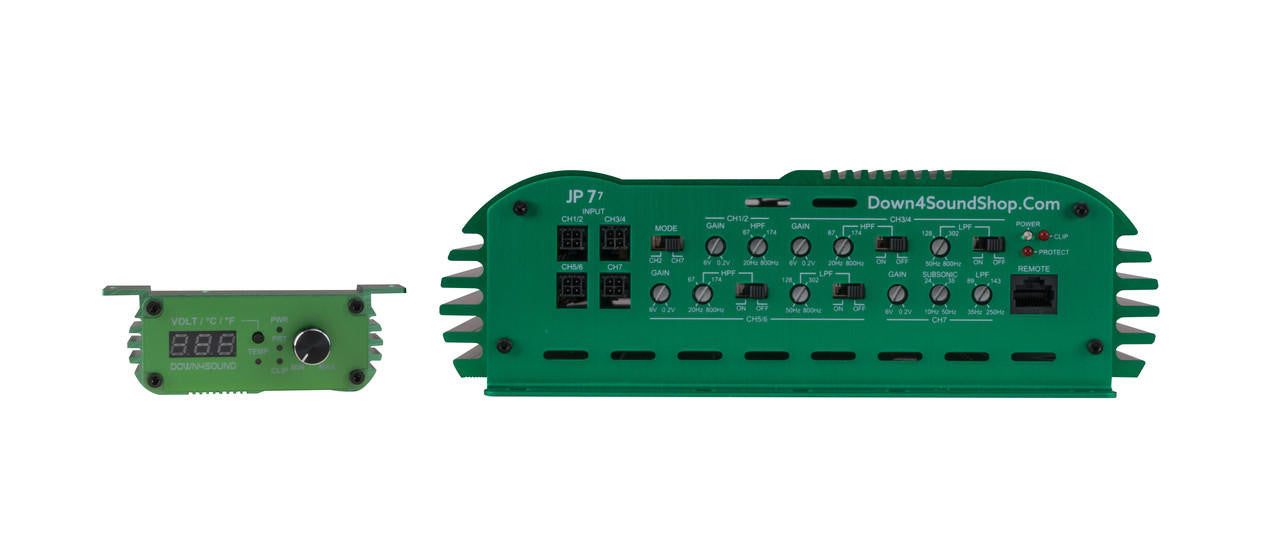

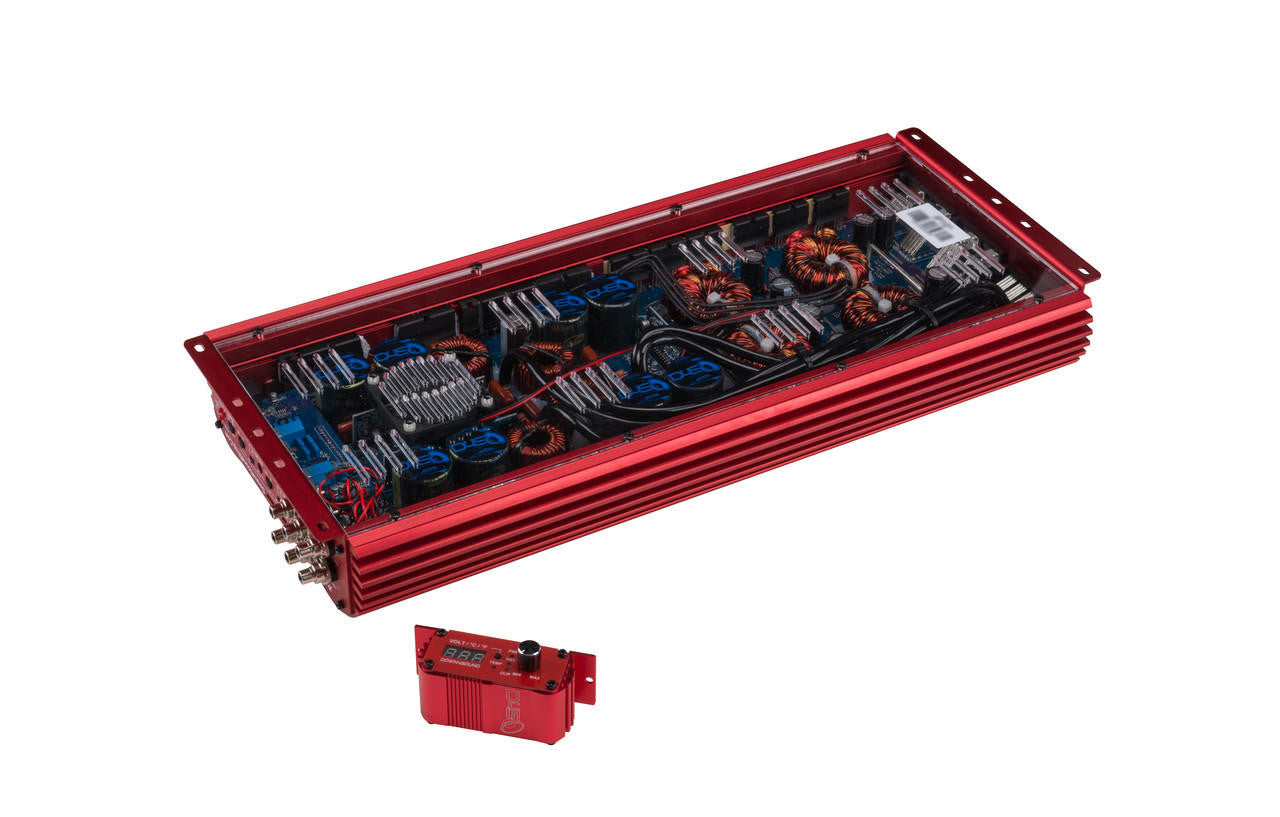

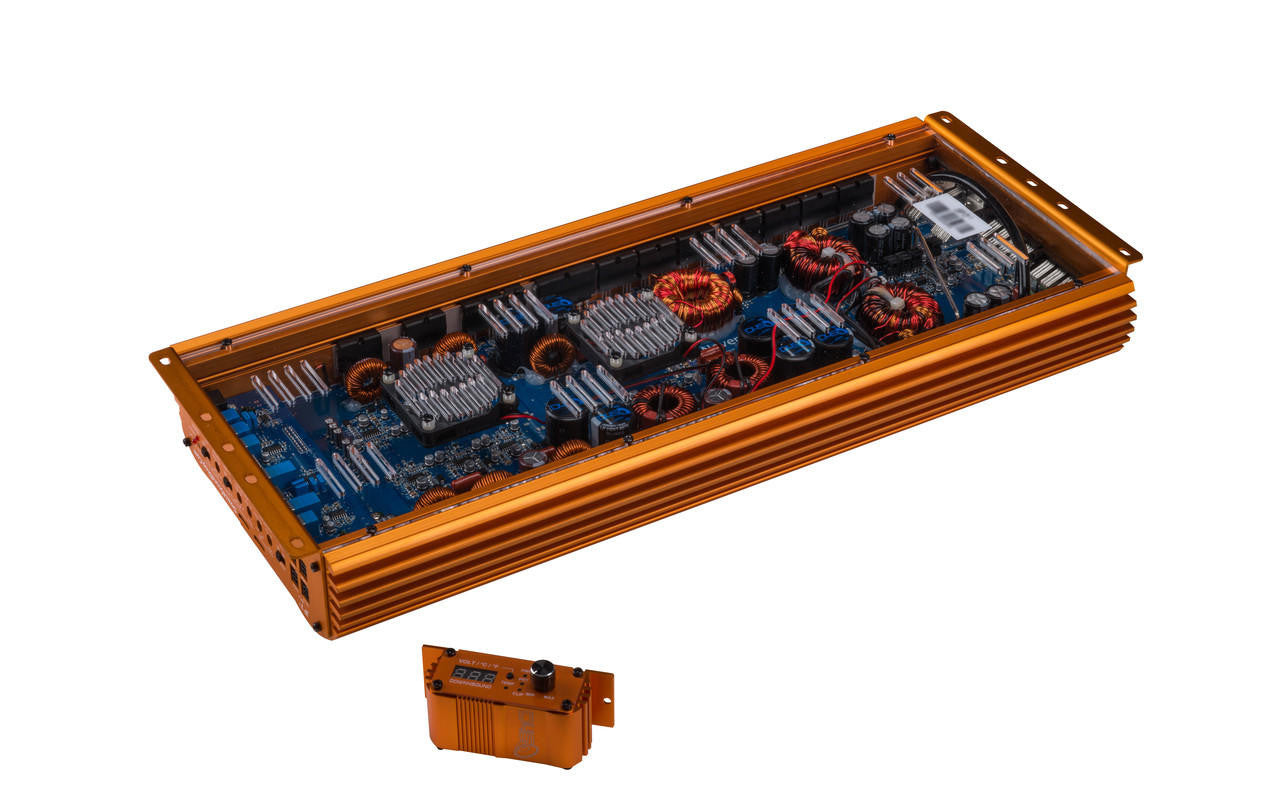

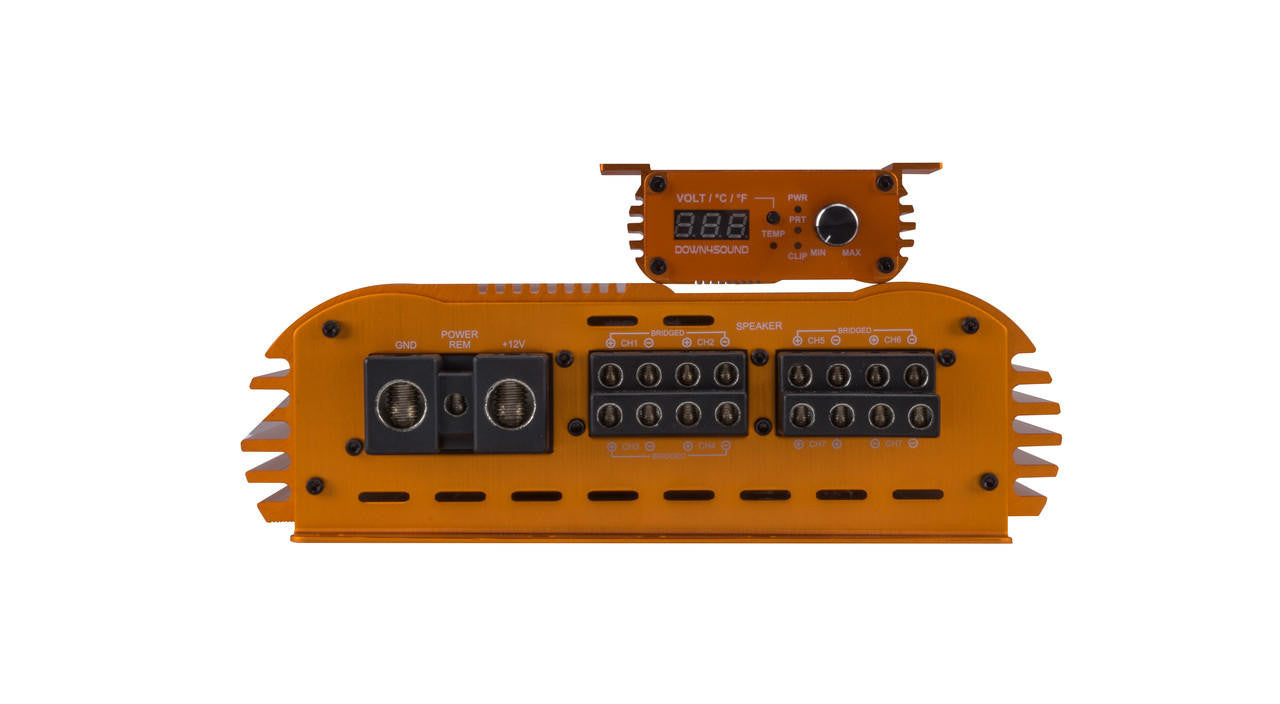

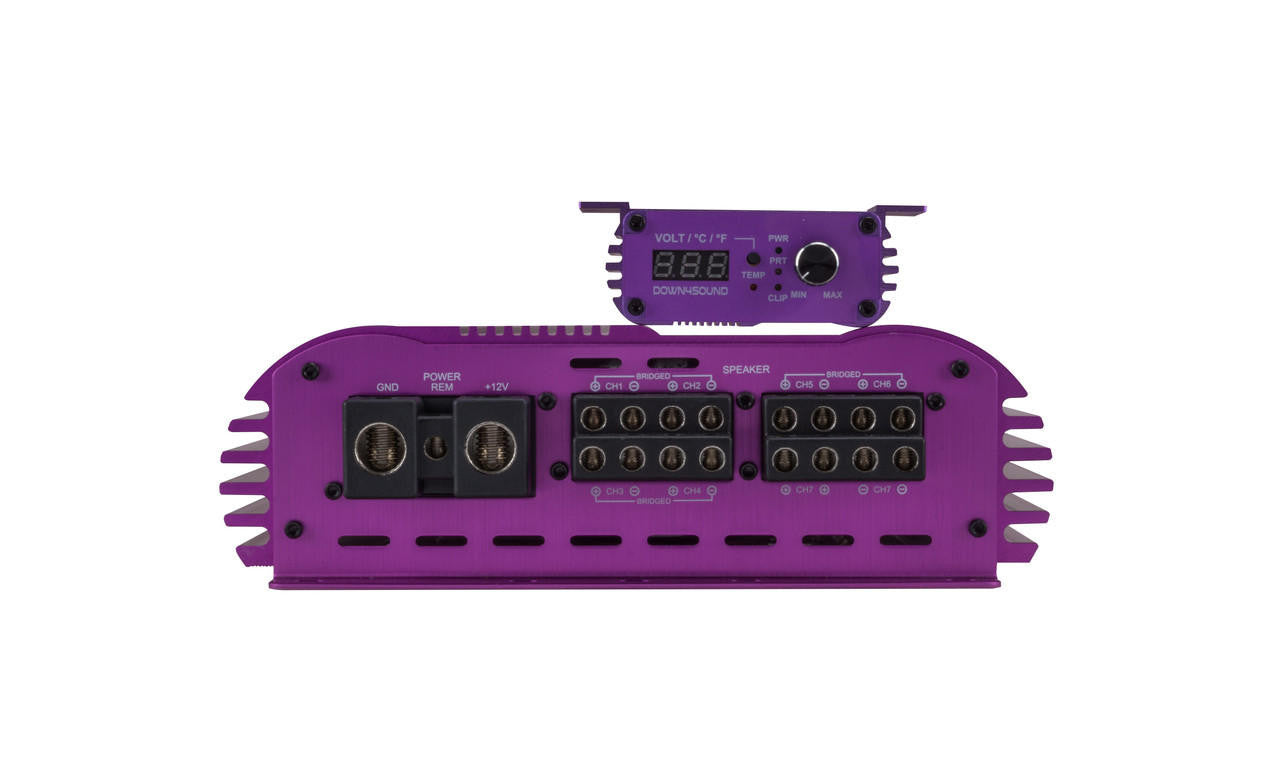

Down4Sound JP77 3000W RMS 7 Channel Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.

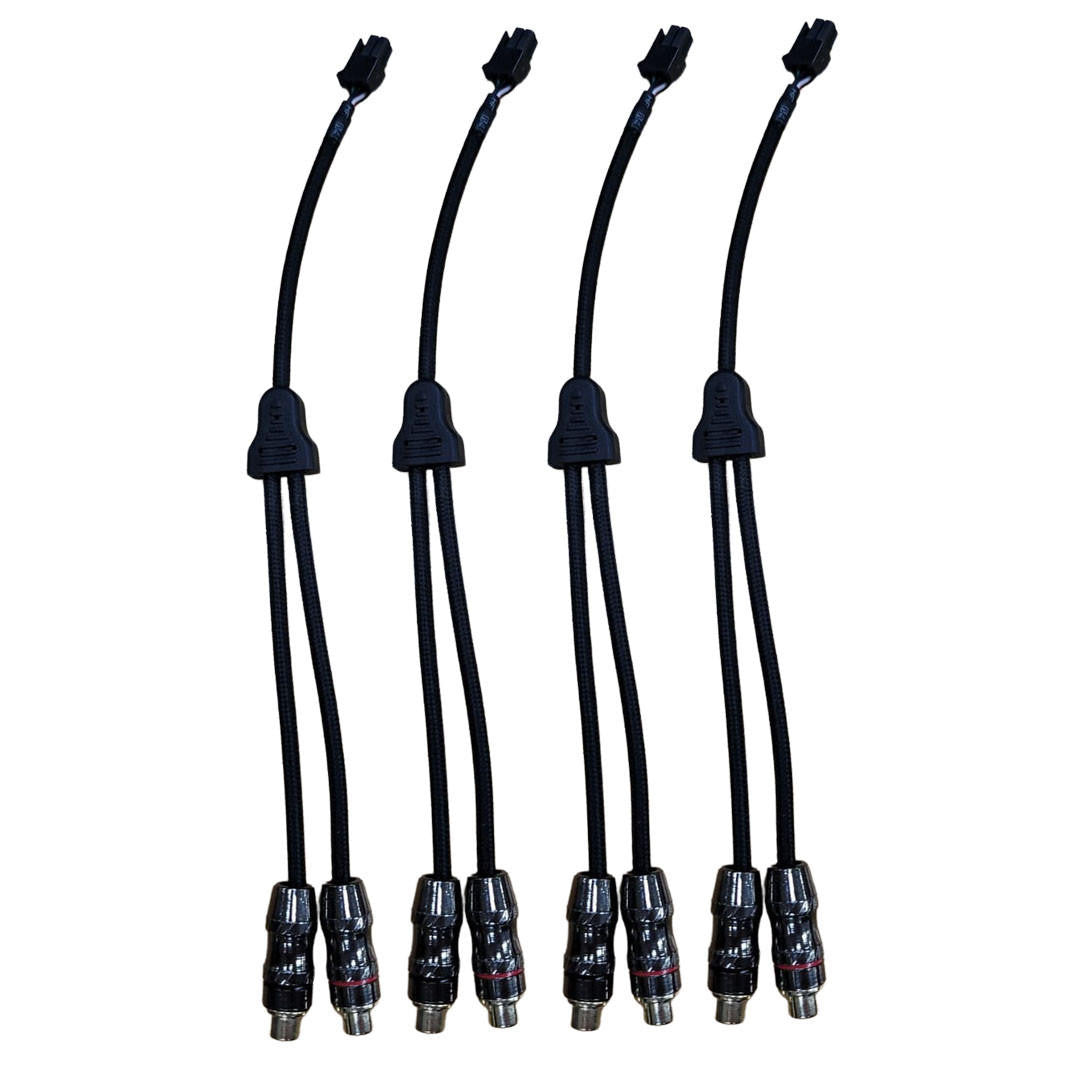

If you're looking for an all-in-one car amplifier that produces over 3000W RMS of power, then the Down4Sound JP77 is the perfect choice for you. This amplifier is designed to suit the demands of those who want to upgrade their entire audio system with one powerful and durable car audio amplifier. With its bandpassable crossovers and upgraded RCA cables, the JP77 offers superior sound quality and a strong connection that won't fall apart. Plus, its 2000W RMS at 1 ohm just for bass makes it the perfect choice for anyone who wants to pump up the volume on their favorite tunes. So don't wait any longer, order your Down4Sound JP77 today!
MADE IN KOREA
JP77 specifications
- RMS power, 1ohm for CH7: 2000W x1
- RMS power, 2ohm: 190W x 6 + 1600W x 1
- RMS power, 4ohm: 120W x 6 + 1000W x 1
- RMS power, 4ohm Bridged: 350W x 3
- Freqyency Response: 10Hz - 24KHz for CH1 - CH6 || 10Hz - 250Hz for CH7
- Input Sensitivity: 6V - 0.2V
- Signal to Noise Ratio: 80dB
- T.H.D @ 4ohm: 0.1%

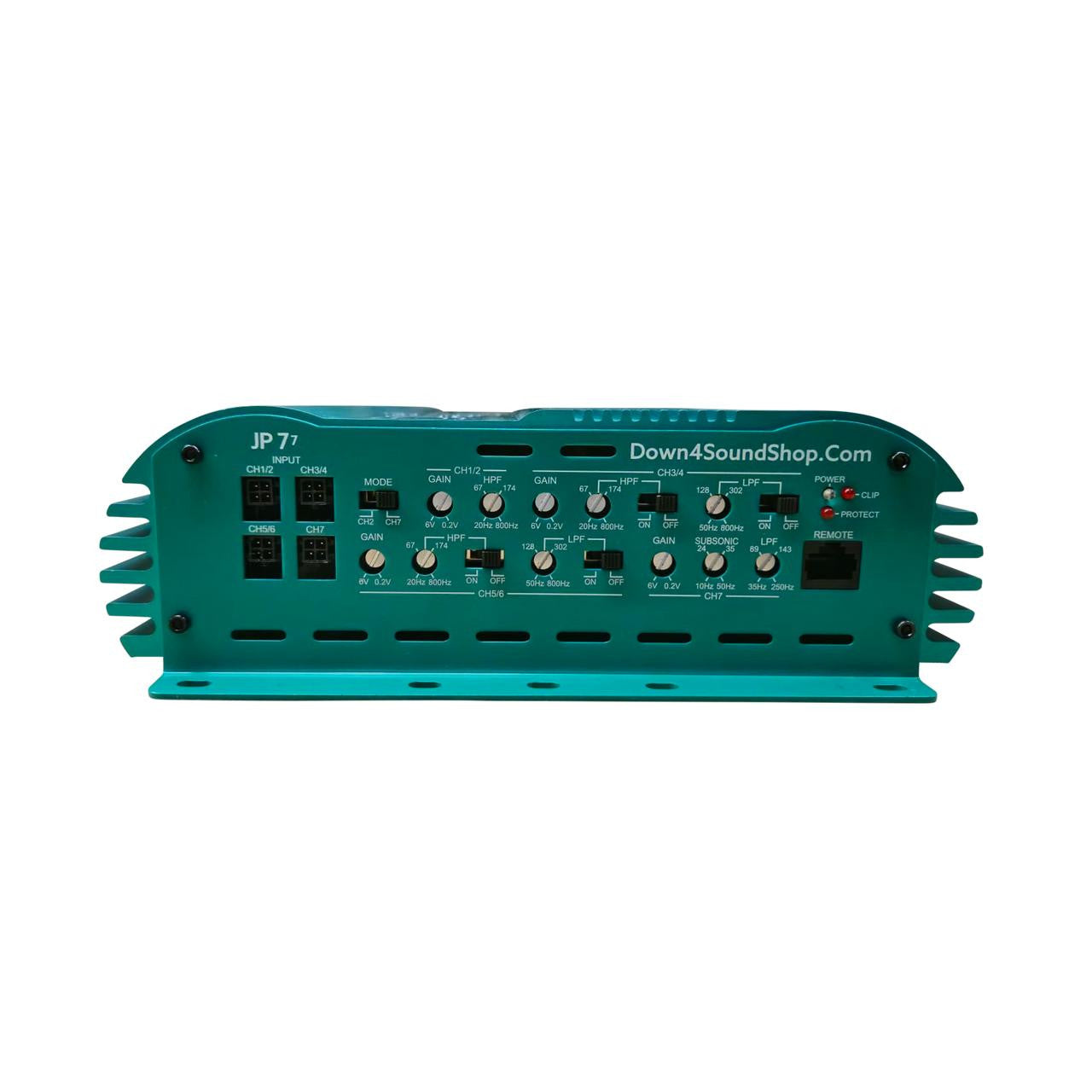

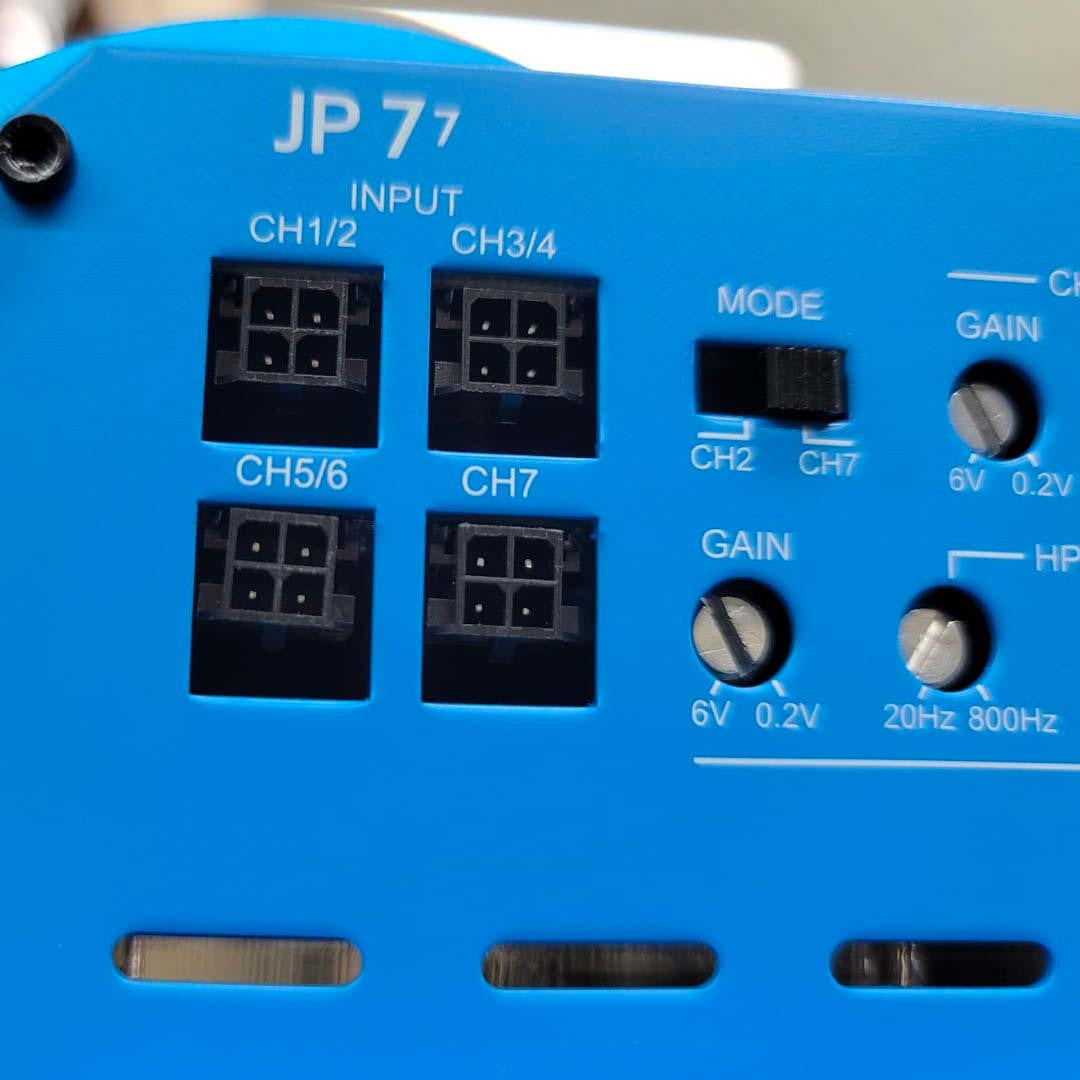

CH1 & CH2
- High Pass Filter: 20 Hz - 800 Hz
CH3 & CH4
- High Pass Filter: 20 Hz - 800 Hz
- Low Pass Filter: 50 Hz - 800 Hz
- Band Pass capable: Yes
CH5 & CH6
- High Pass Filter: 20 Hz - 800 Hz
- Low Pass Filter: 50 Hz - 800 Hz
- Band Pass capable: Yes
CH7
- Subsonic Filter: 10 Hz - 50 Hz
- Low Pass Filter: 35 Hz - 250 Hz
- Remote Bass Knob
- Fuse Rating: 330A
- Length ( Inches ) Width x height ( Inches ) 20.47" x 9.37" x 2.71" INCHES
