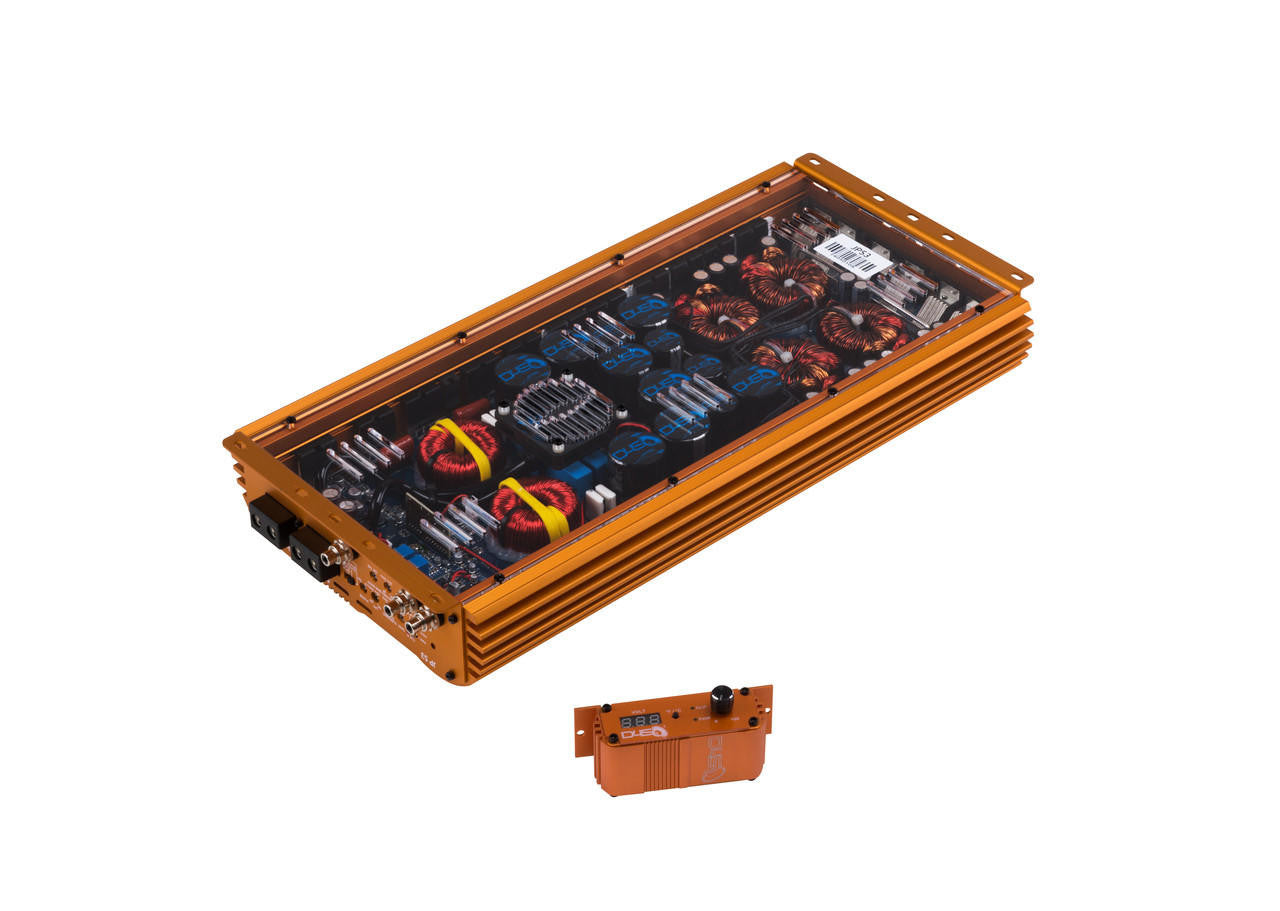

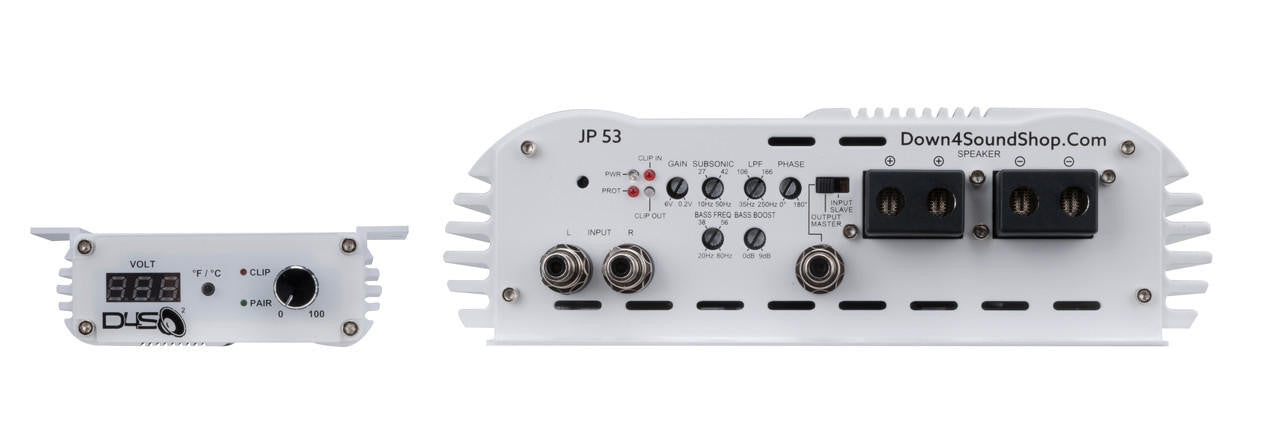

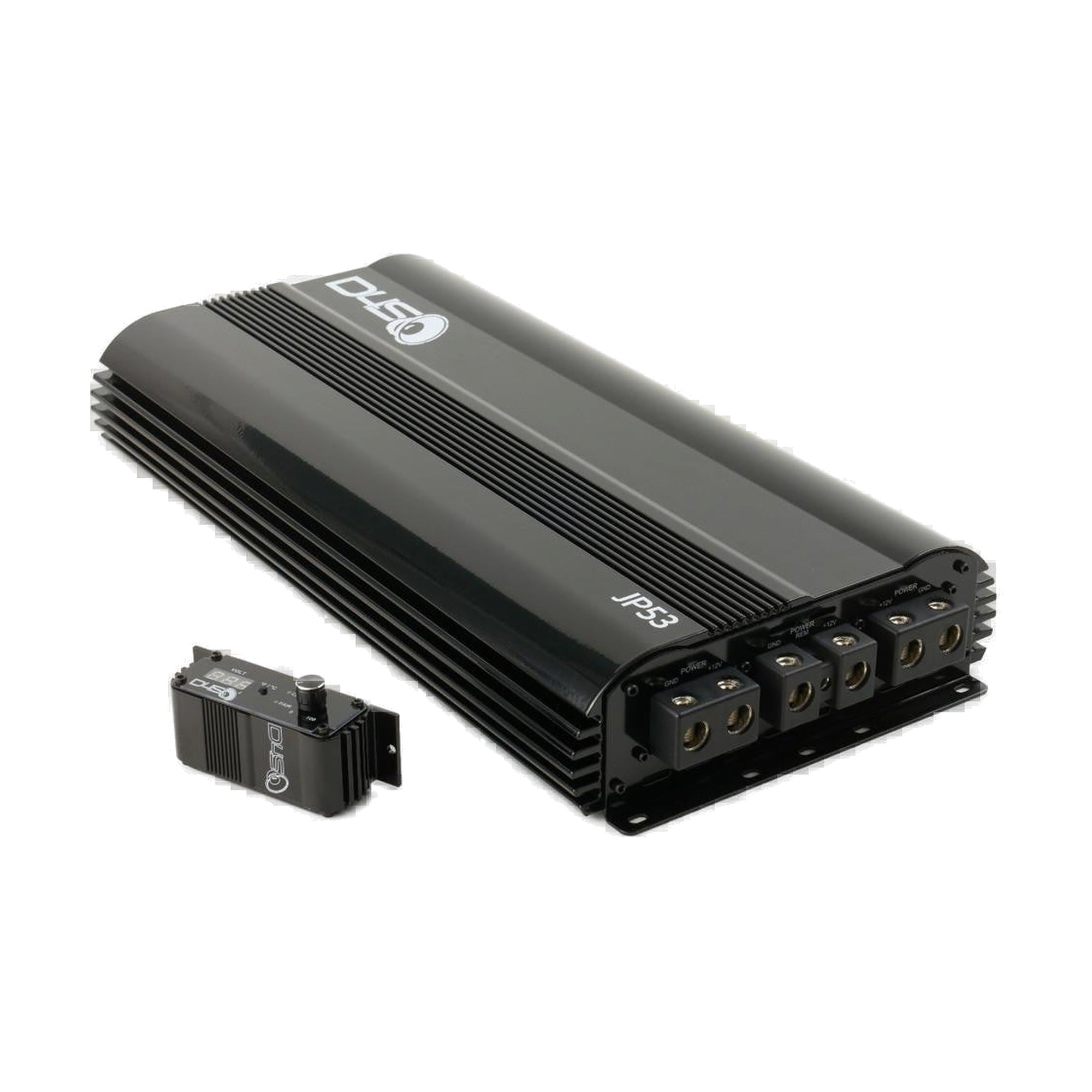

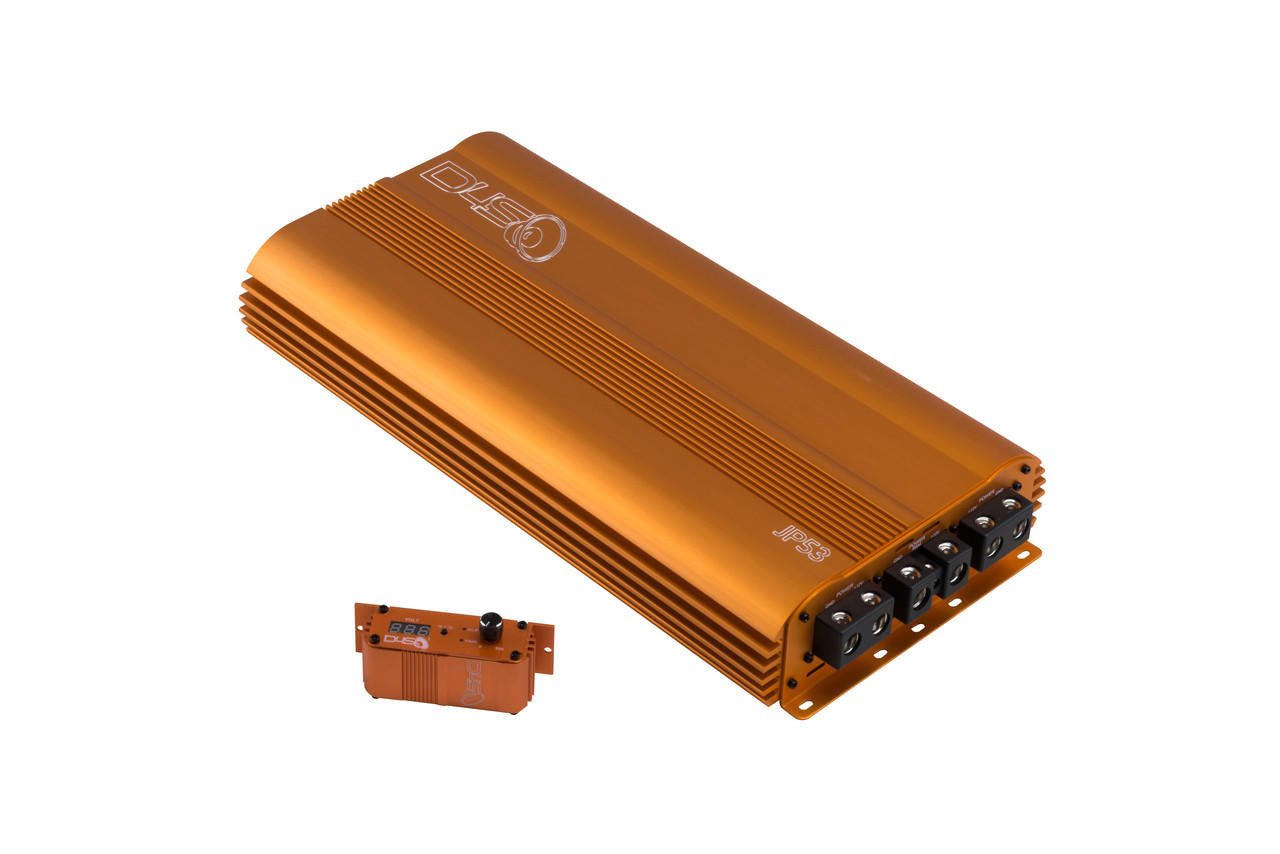

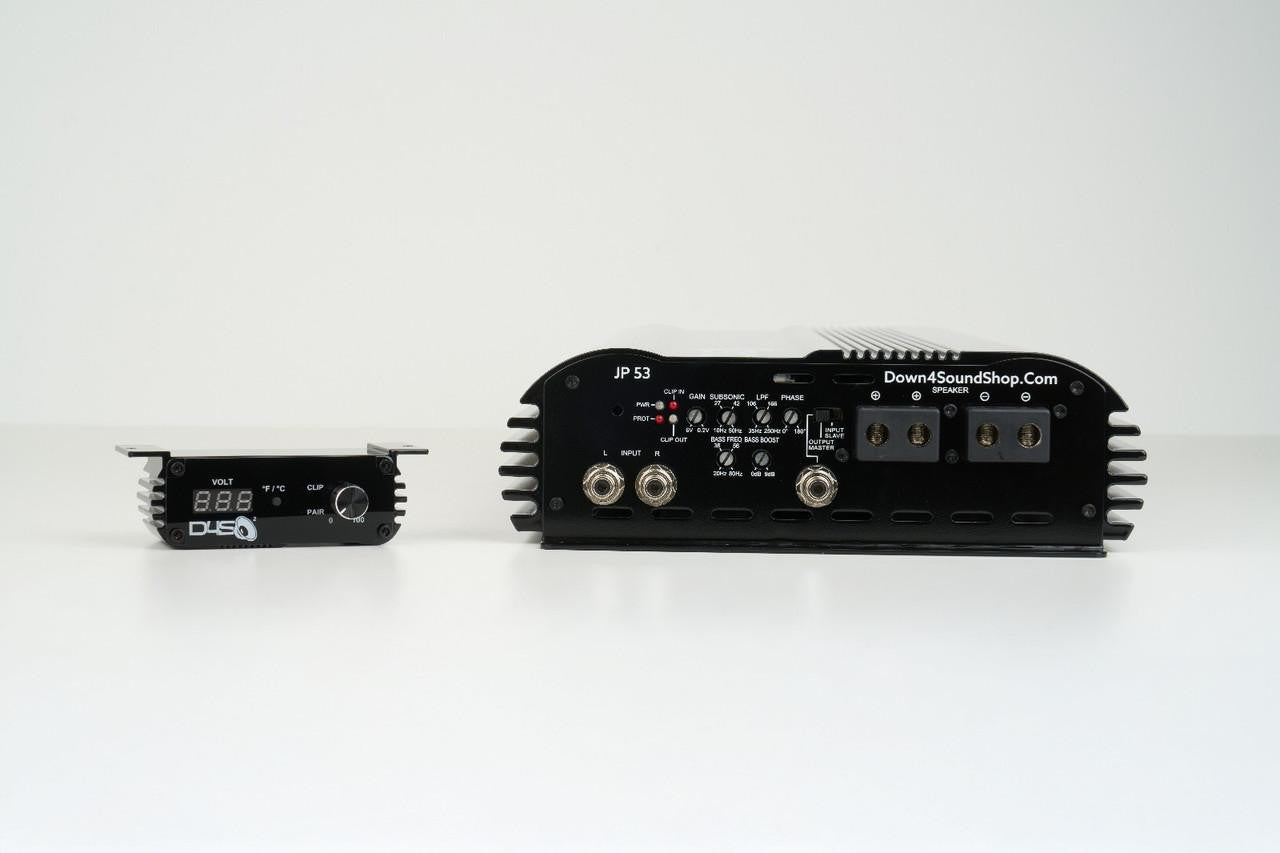

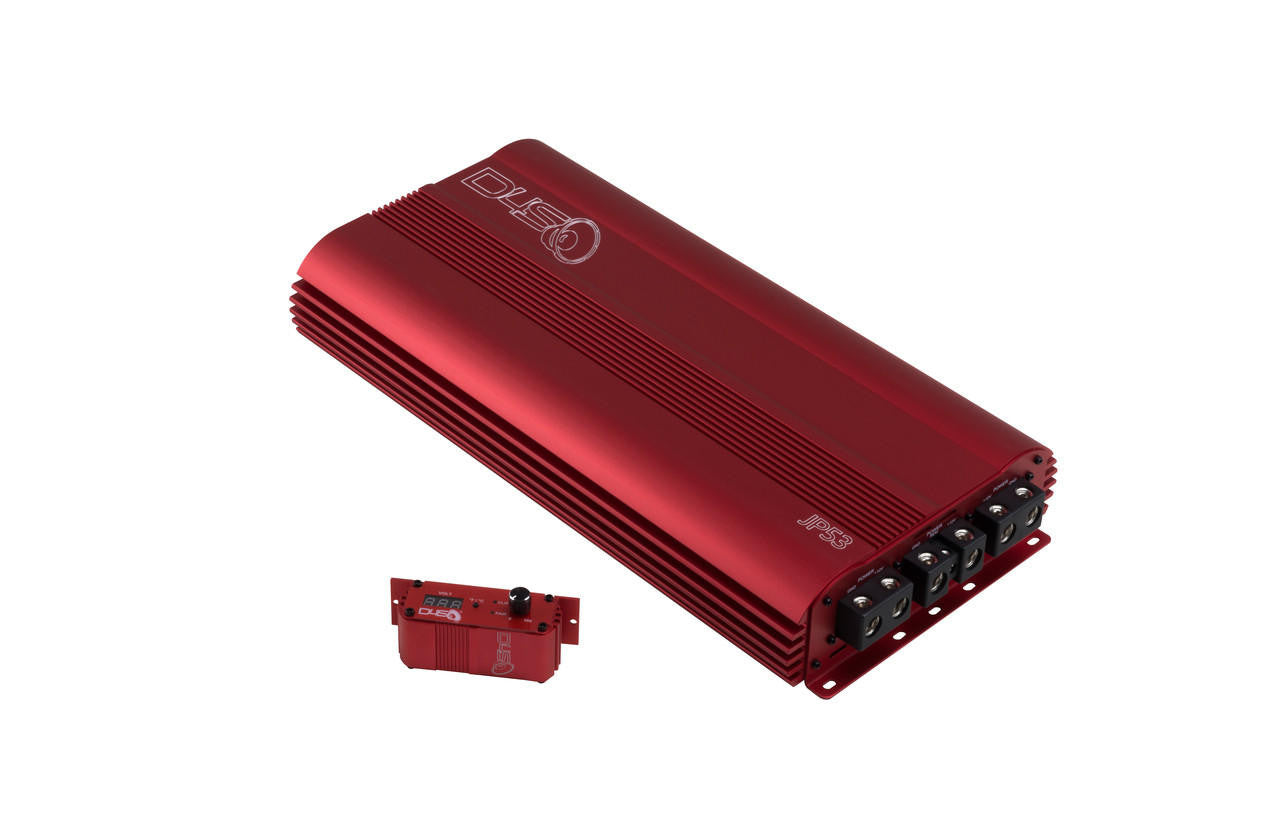

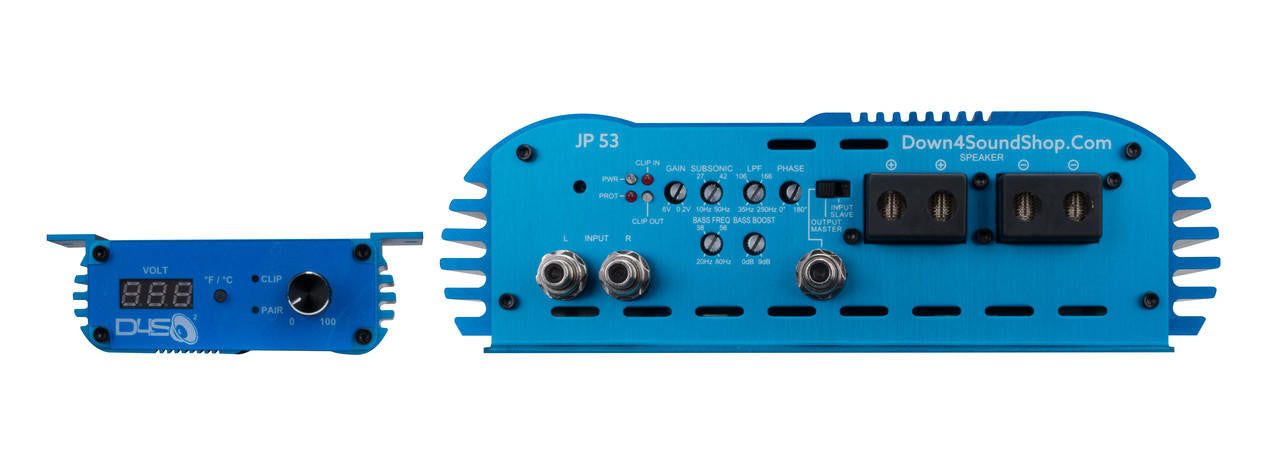

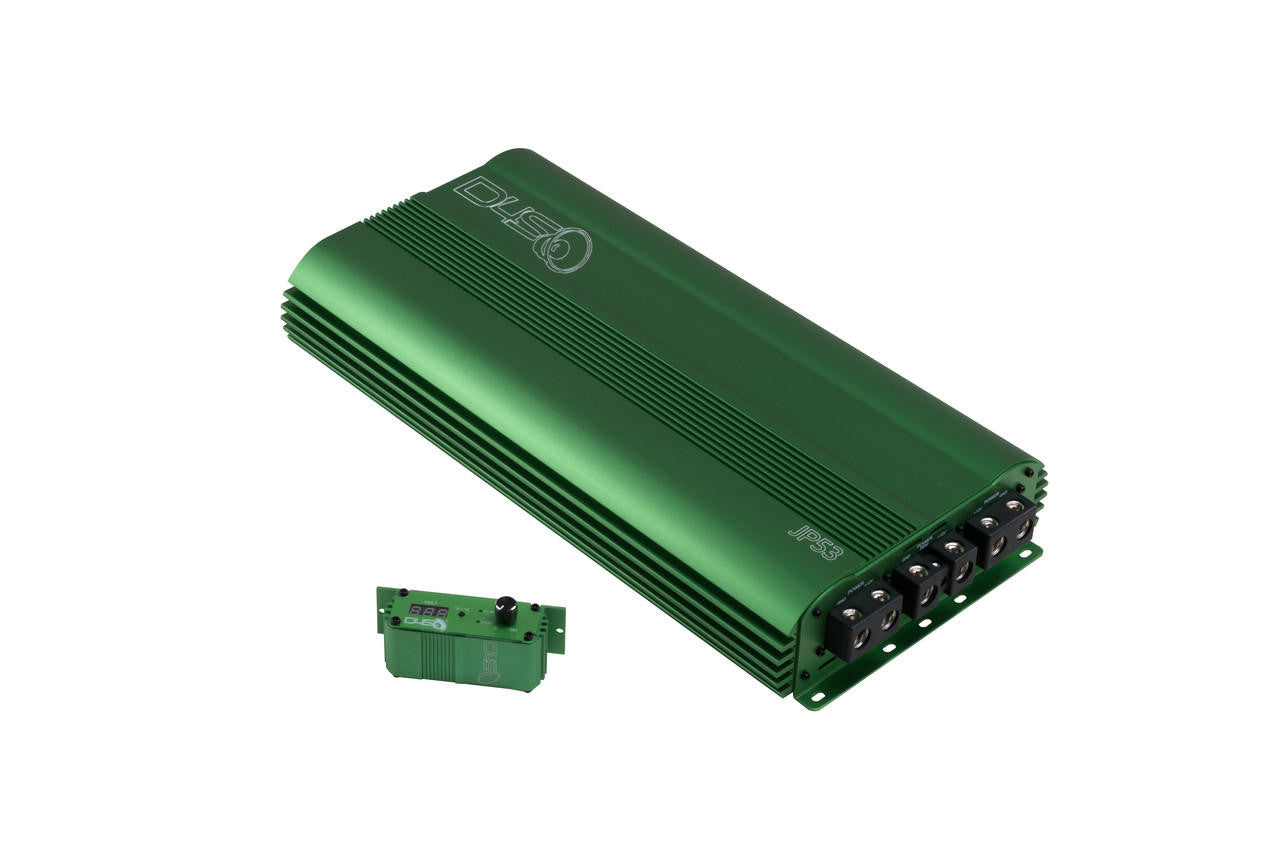

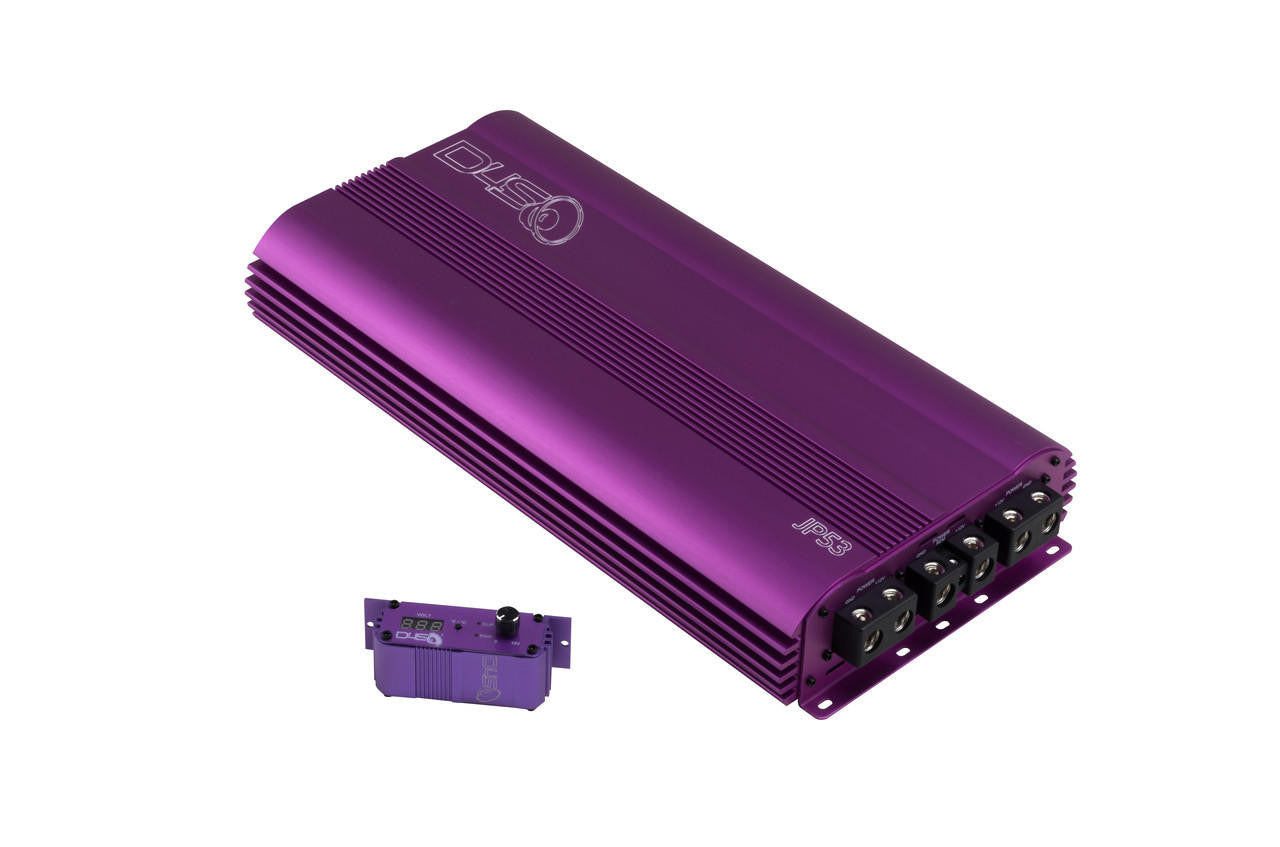

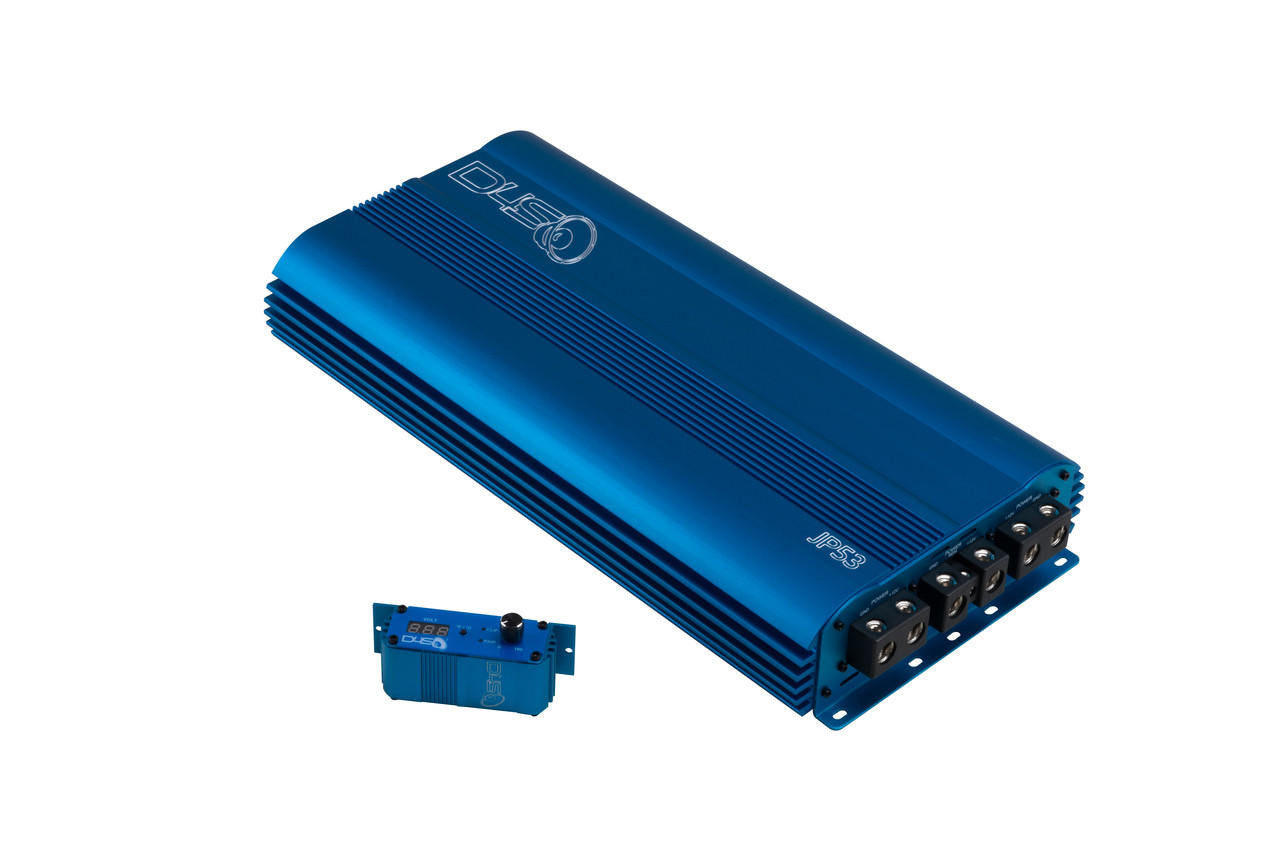

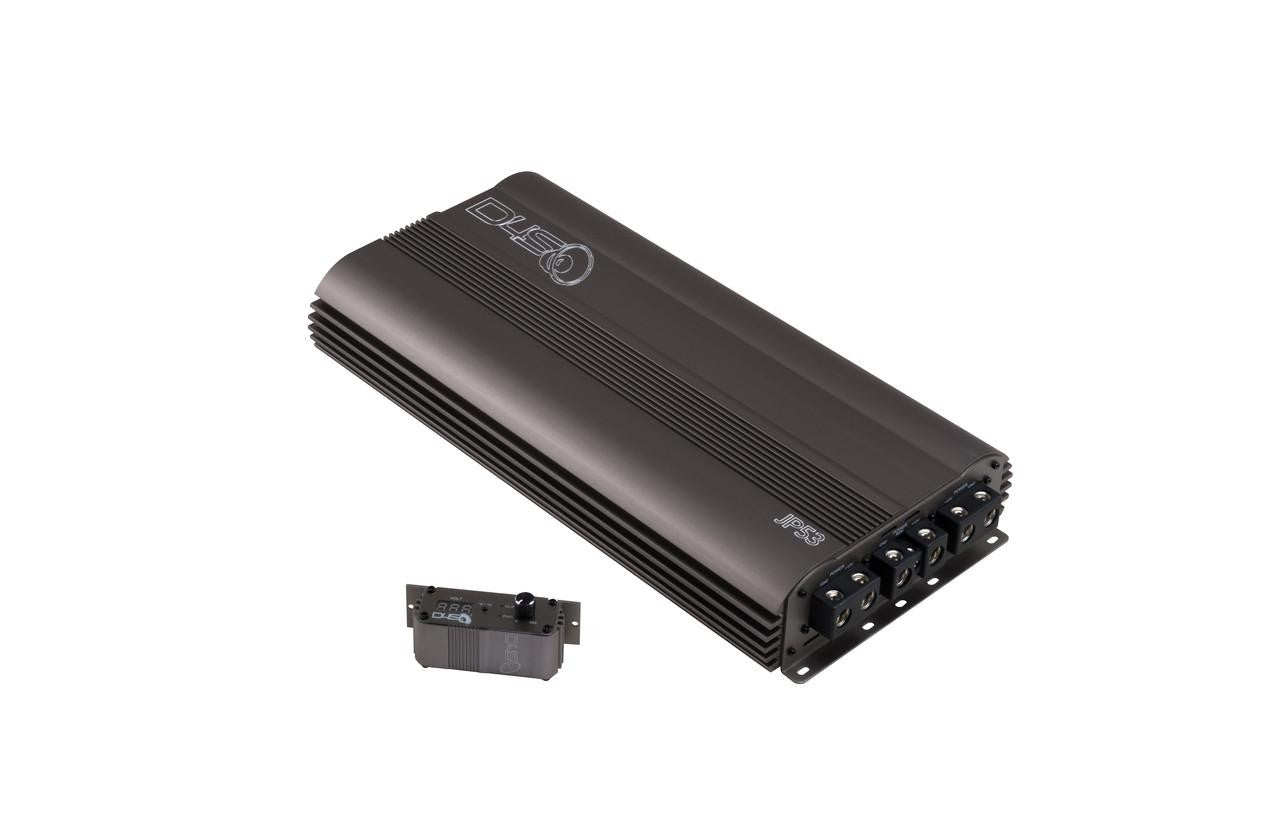

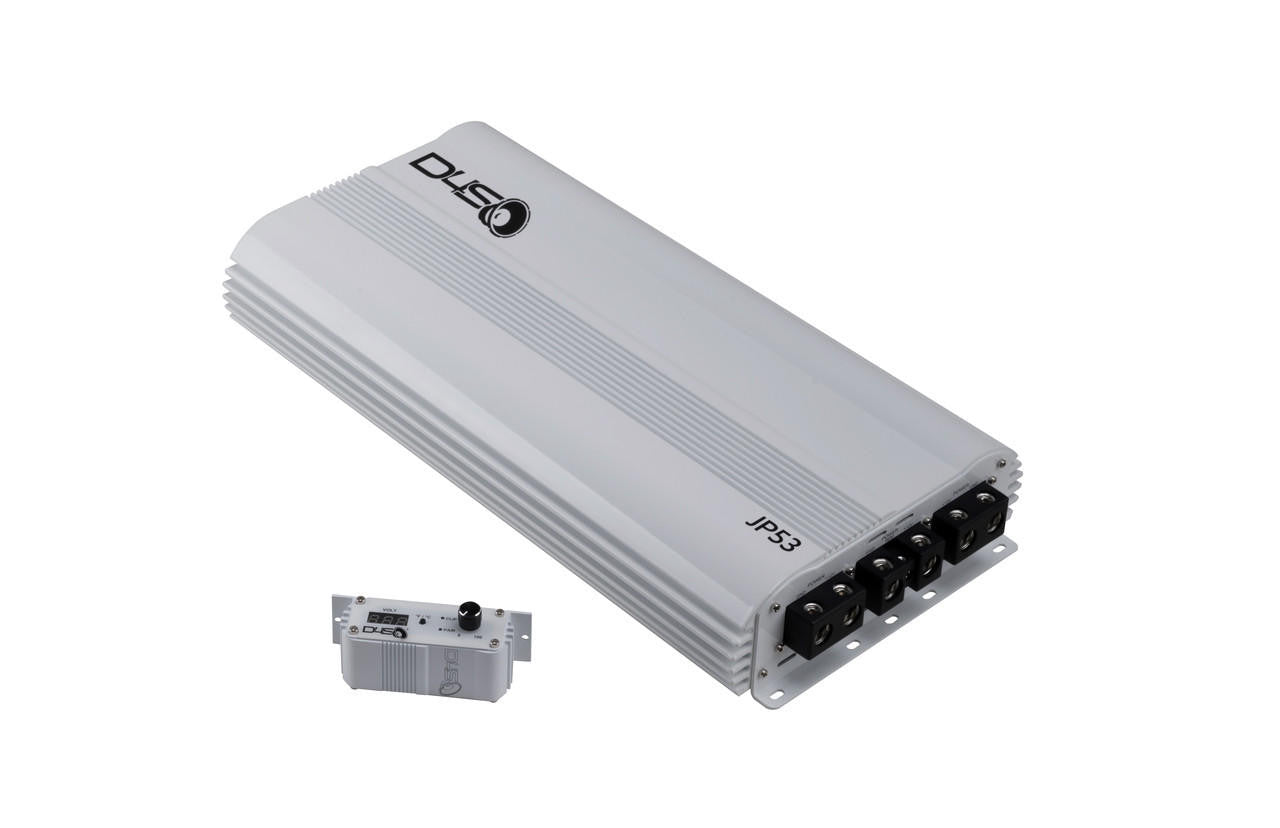

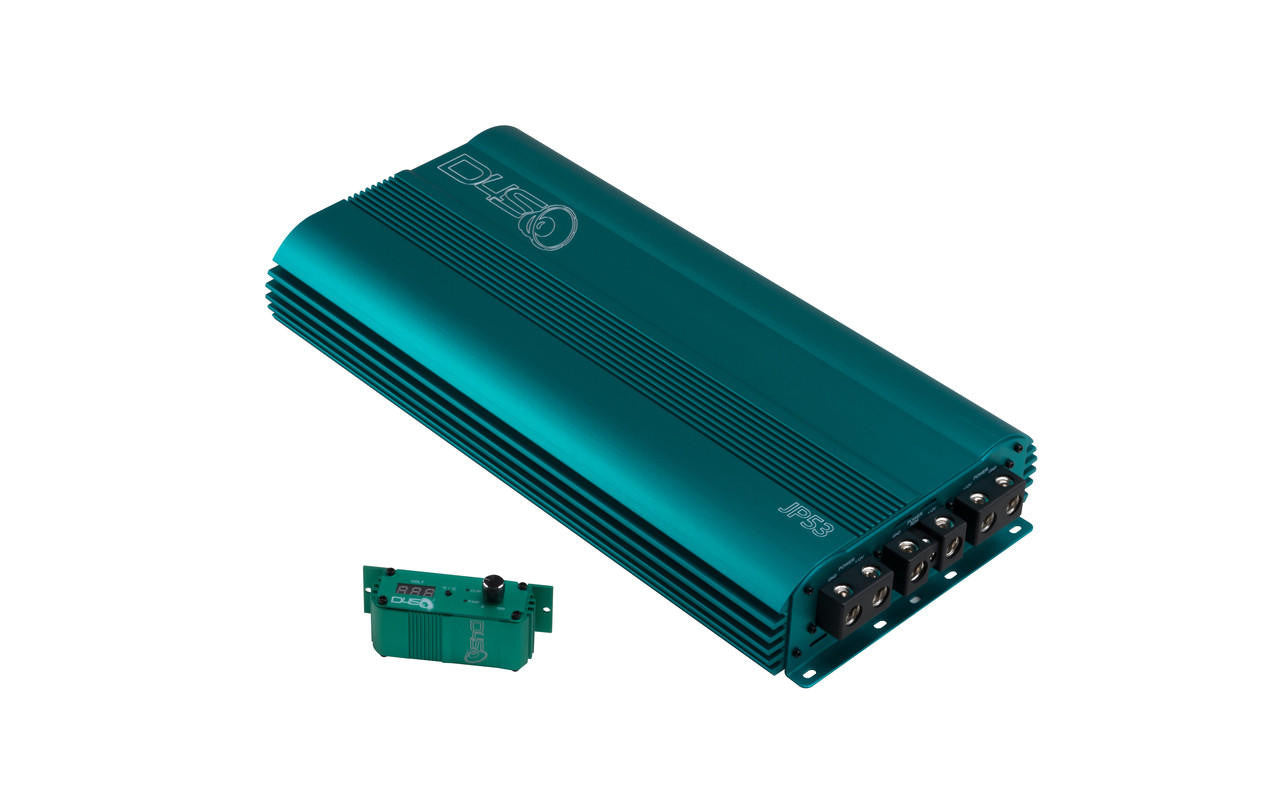

Down4Sound JP53 5300W RMS Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
Immerse yourself in the heart-pounding world of bass with the DOWN4SOUND JP53 Monoblock Amplifier. Engineered for bassheads seeking unparalleled power and performance, this amplifier delivers thunderous lows and crystal-clear audio quality.
Key Features:
- Power Ratings:
- 5300W x 1 @ 1 Ohm
- 4100W x 1 @ 2 Ohms
- 2100W x 1 @ 4 Ohms
- 10600W x 1 @ 1 Ohm (Linked)
- Frequency Response: 14Hz - 271Hz
- High Pass Filter: 35Hz - 250Hz
- Low Pass Filter: 10Hz - 50Hz
- Phase: 0º - 180º
- Bass Boost: 0 - 9dB
- Bass Frequency: 20Hz - 80Hz
- Input Sensitivity: 6V - 0.2V
- Signal to Noise Ratio: 95dB <
- Total Harmonic Distortion: Less than 0.1%
- Operating Voltage: 12V - 15.5V
- Fuse Rating: 600A (Strapped: 1200A)
- Dimensions: 17.71"L x 9.37"W x 2.71"H
Additional Features:
- STRAPPABLE DIGITAL MONOBLOCK AMPLIFIER
- STABLE INTO 1OHM MONO LOAD
- HIGH SPEED MOSFET POWER SUPPLY

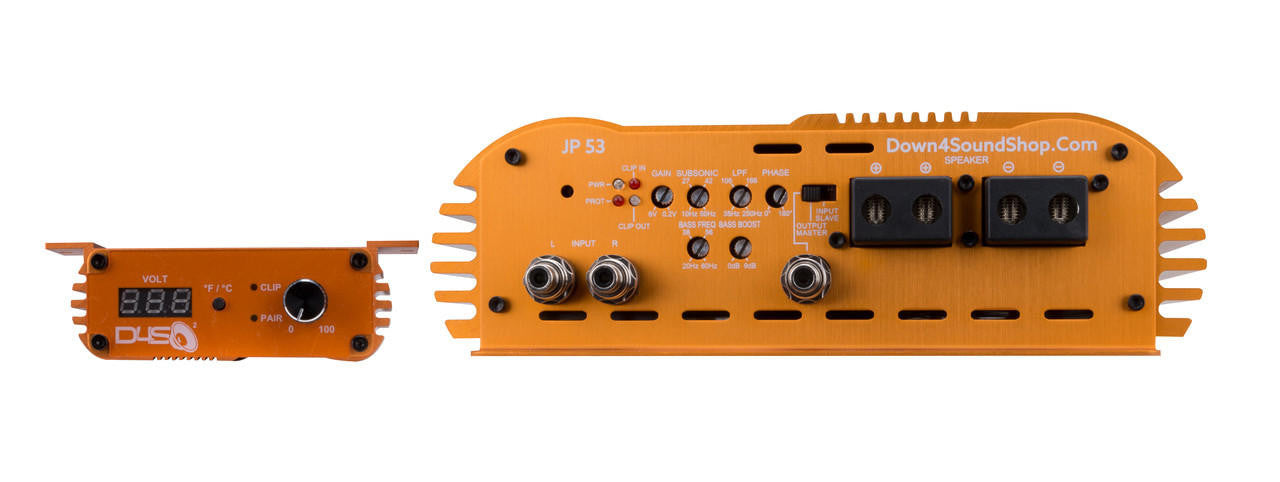

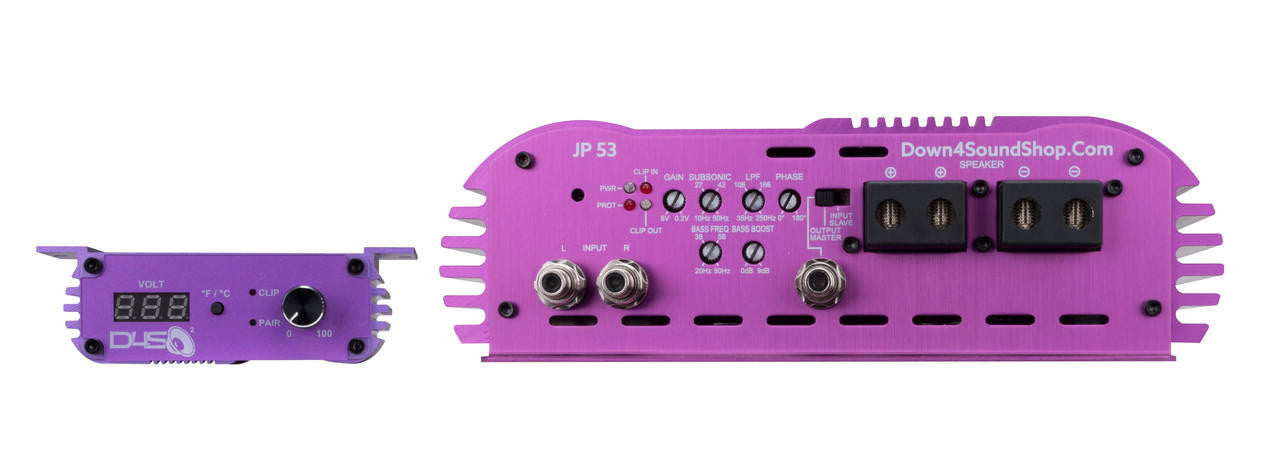

- VARIABLE LOW PASS FILTER
- VARIABLE SUBSONIC FILTER
- VARIABLE BASS BOOST & BASS FREQUENCY
- 4 WAY PROTECTION CIRCUITS (THERMAL, HIGH & LOW VOLTAGE, SPEAKER SHORT AND DC)

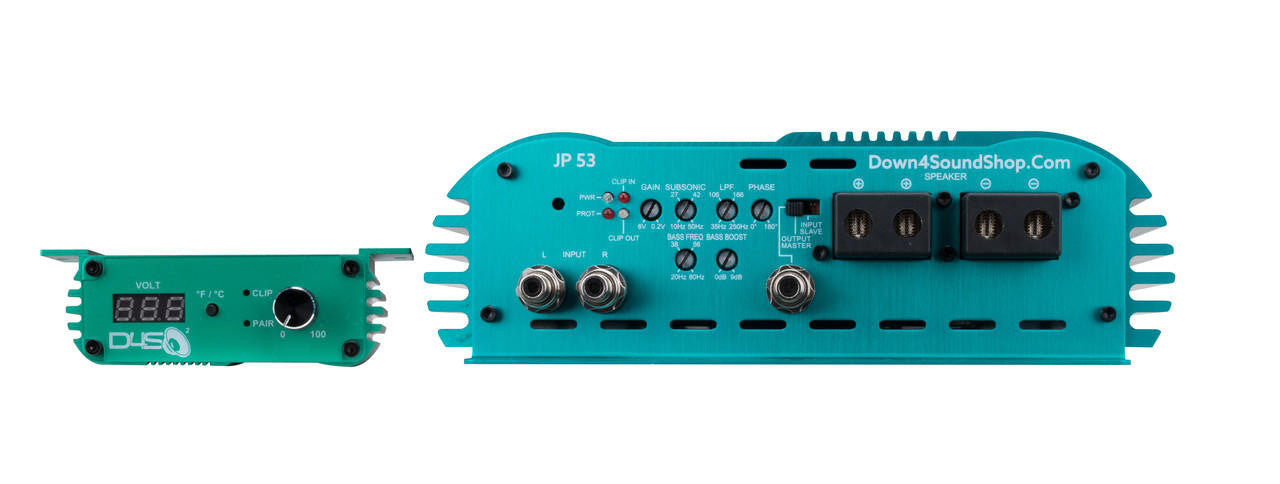

- BLUETOOTH REMOTE CONTROL (REMOTE BASS KNOB WITH VOLTMETER, AMPLIFIER TEMPERATURE AND CLIPPING INDICATOR)

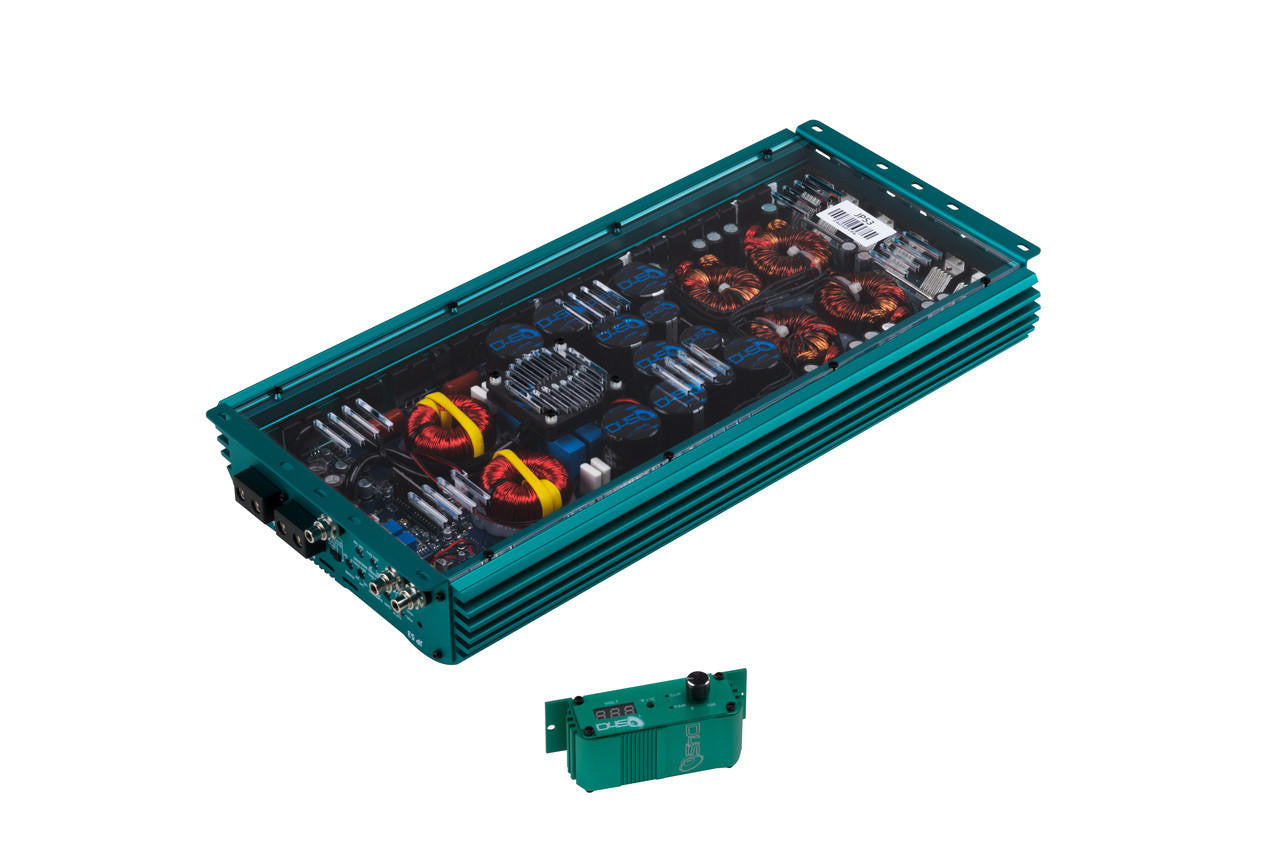

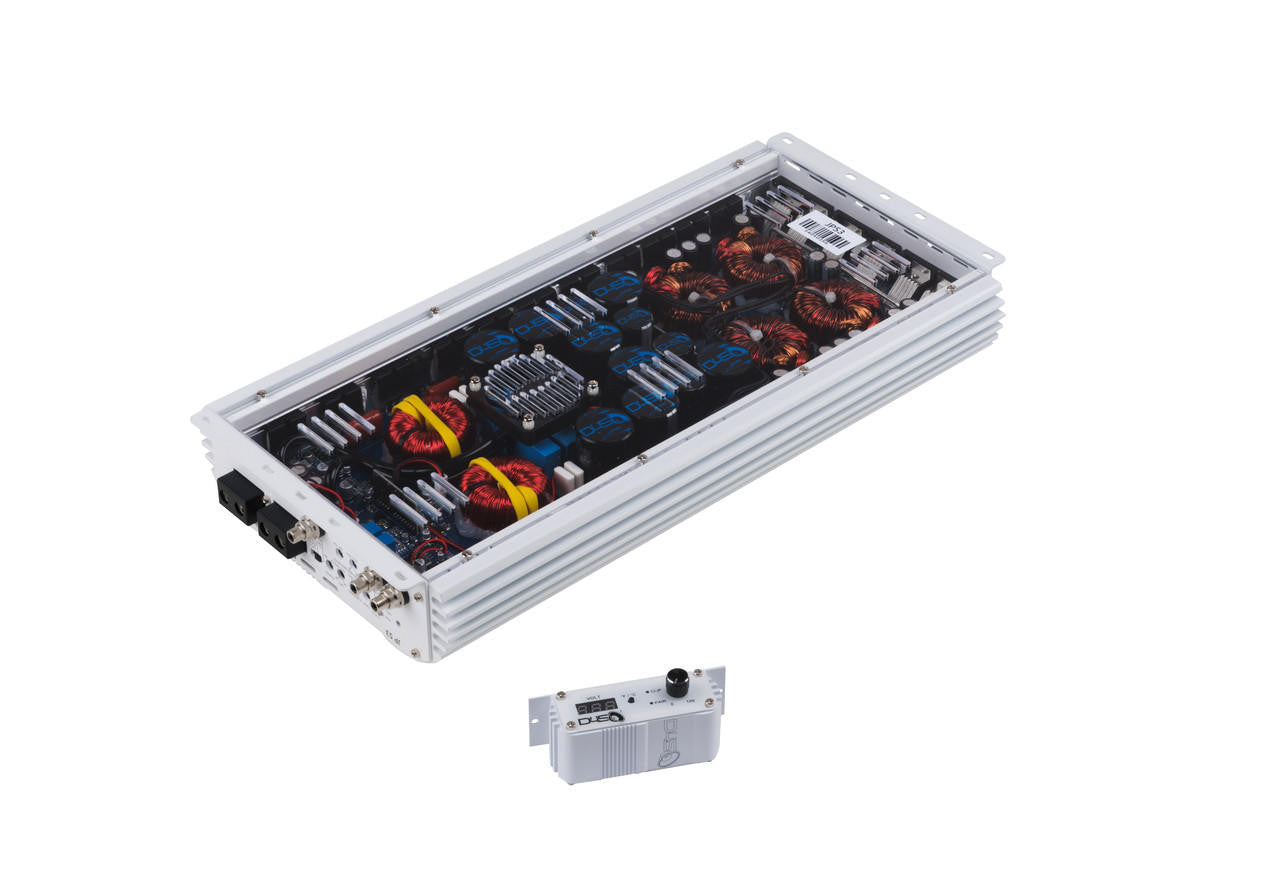

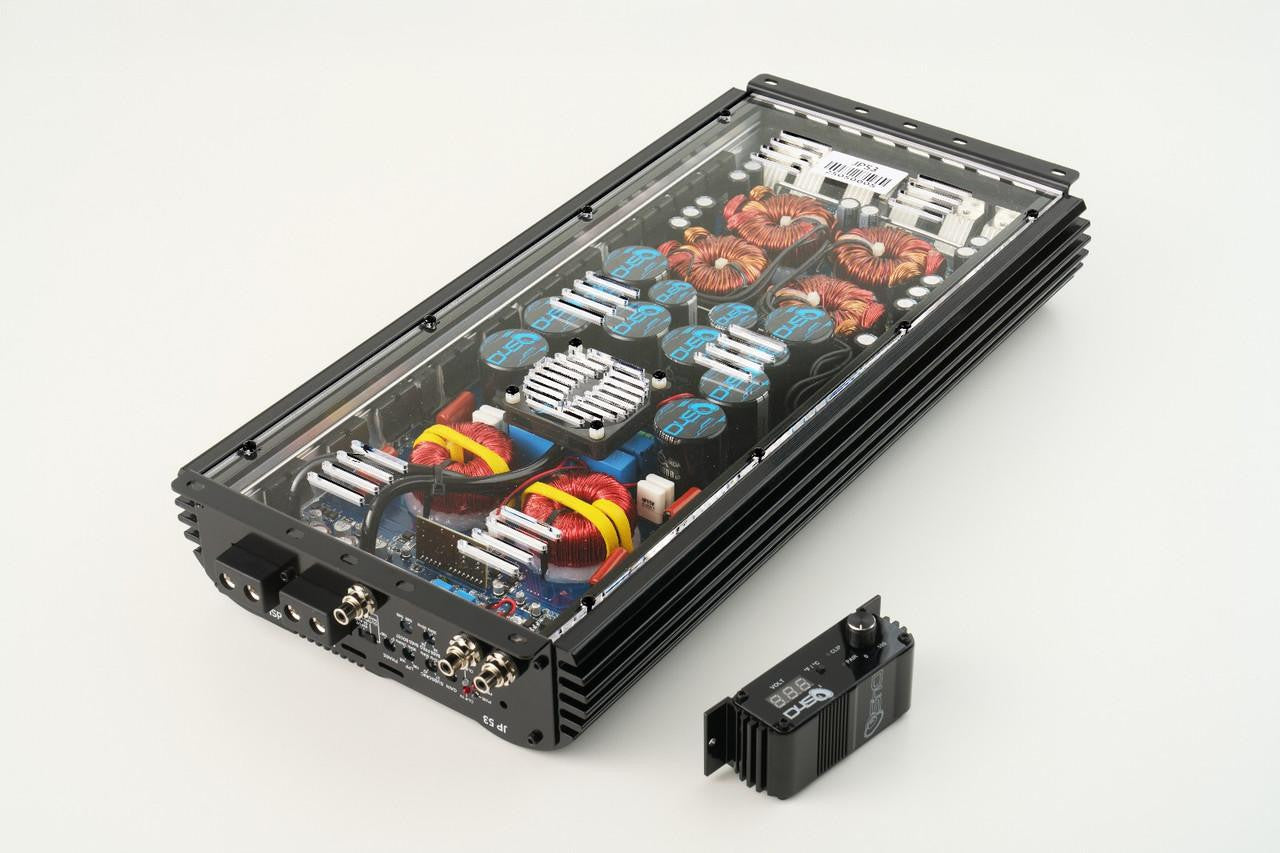

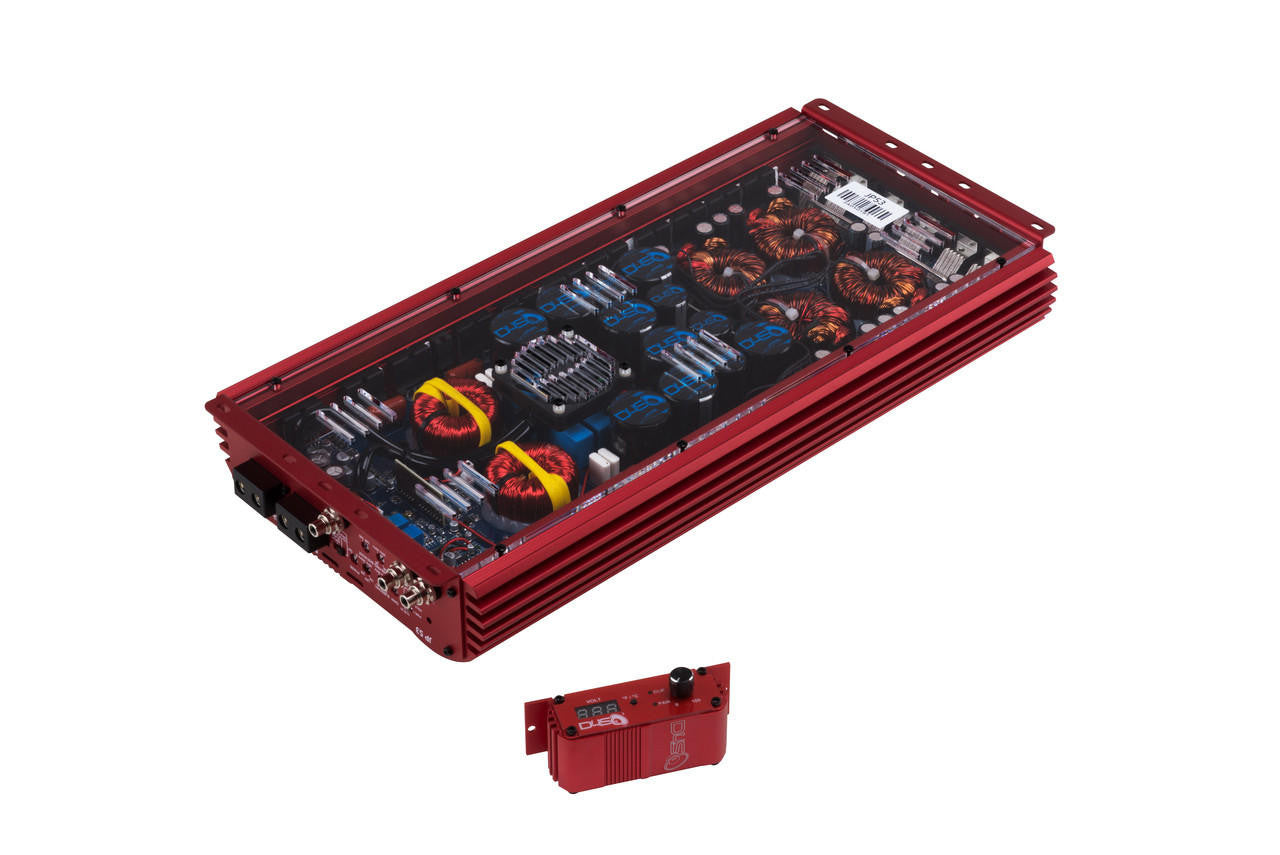

- HIGH PURITY COPPER PRINTED CIRCUIT BOARD

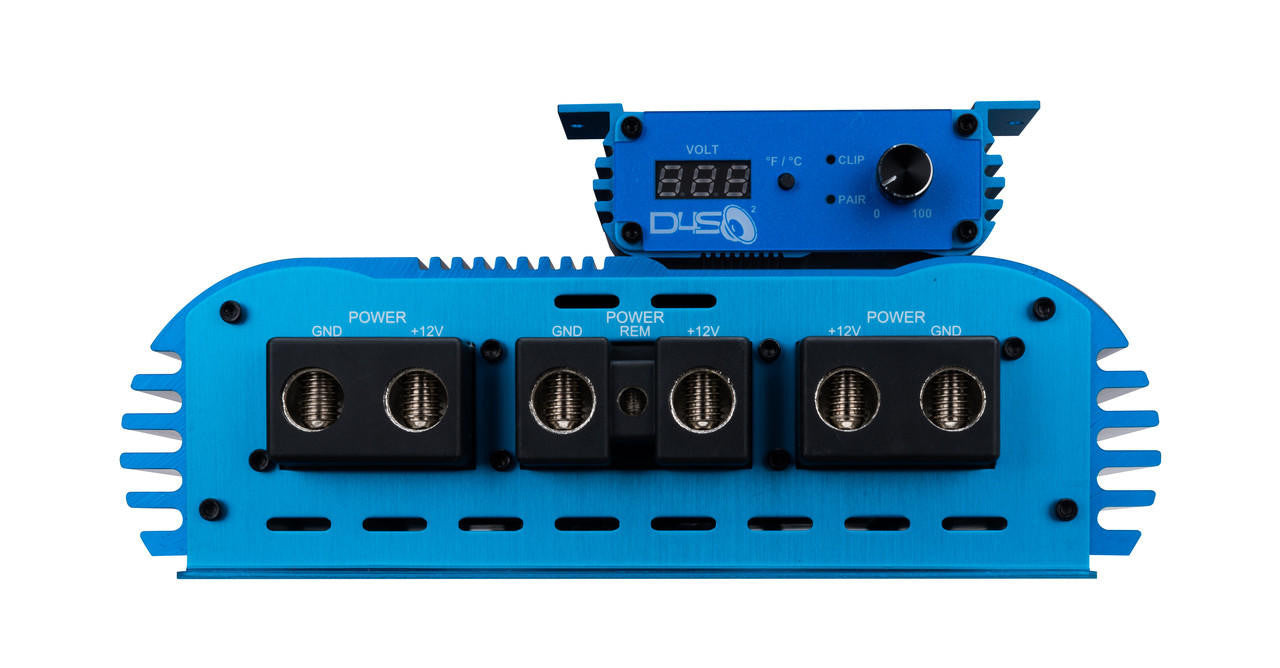

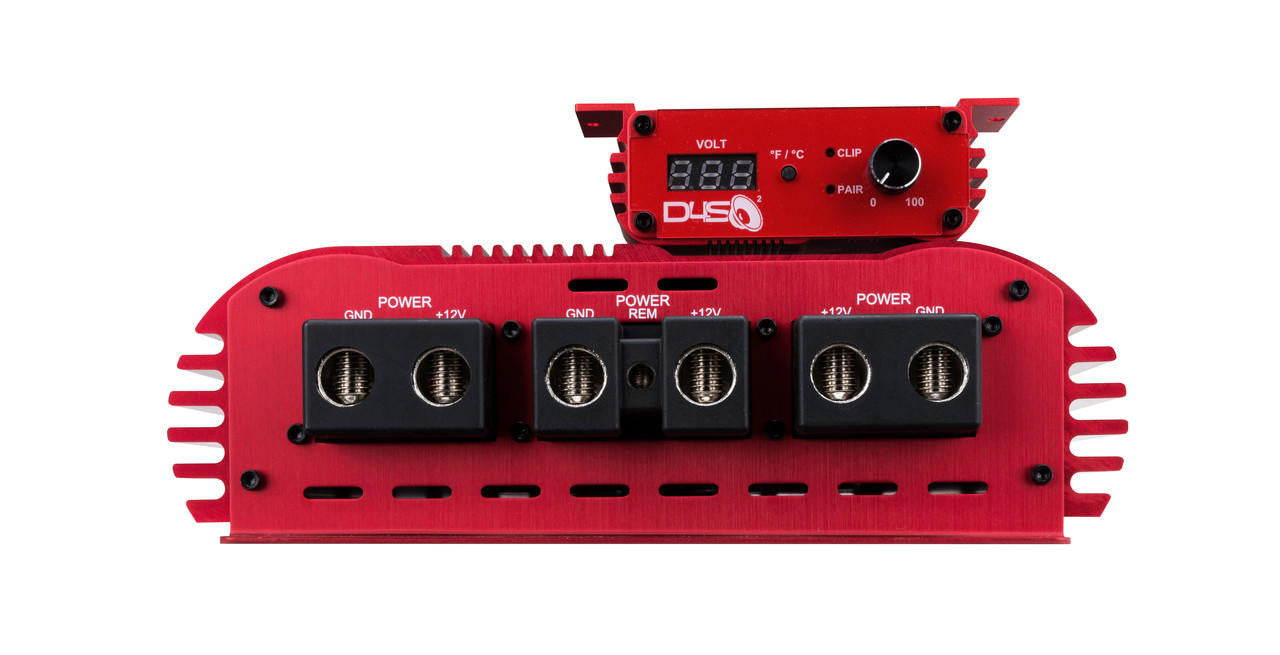

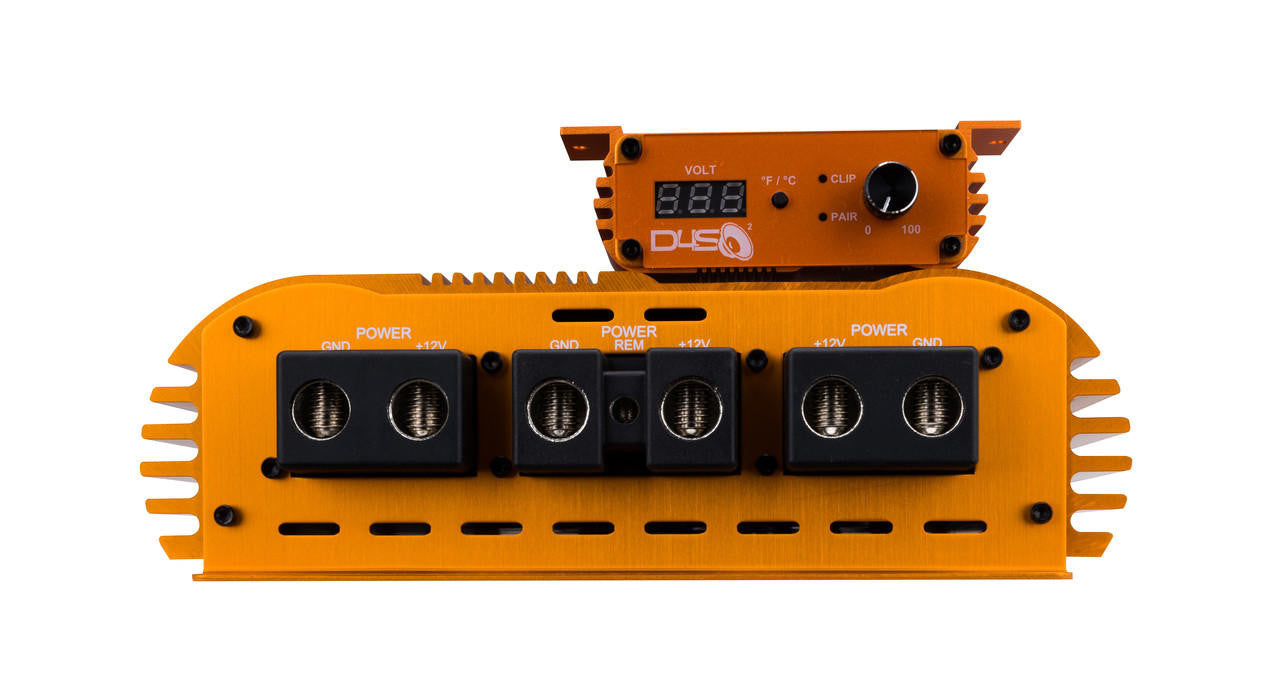

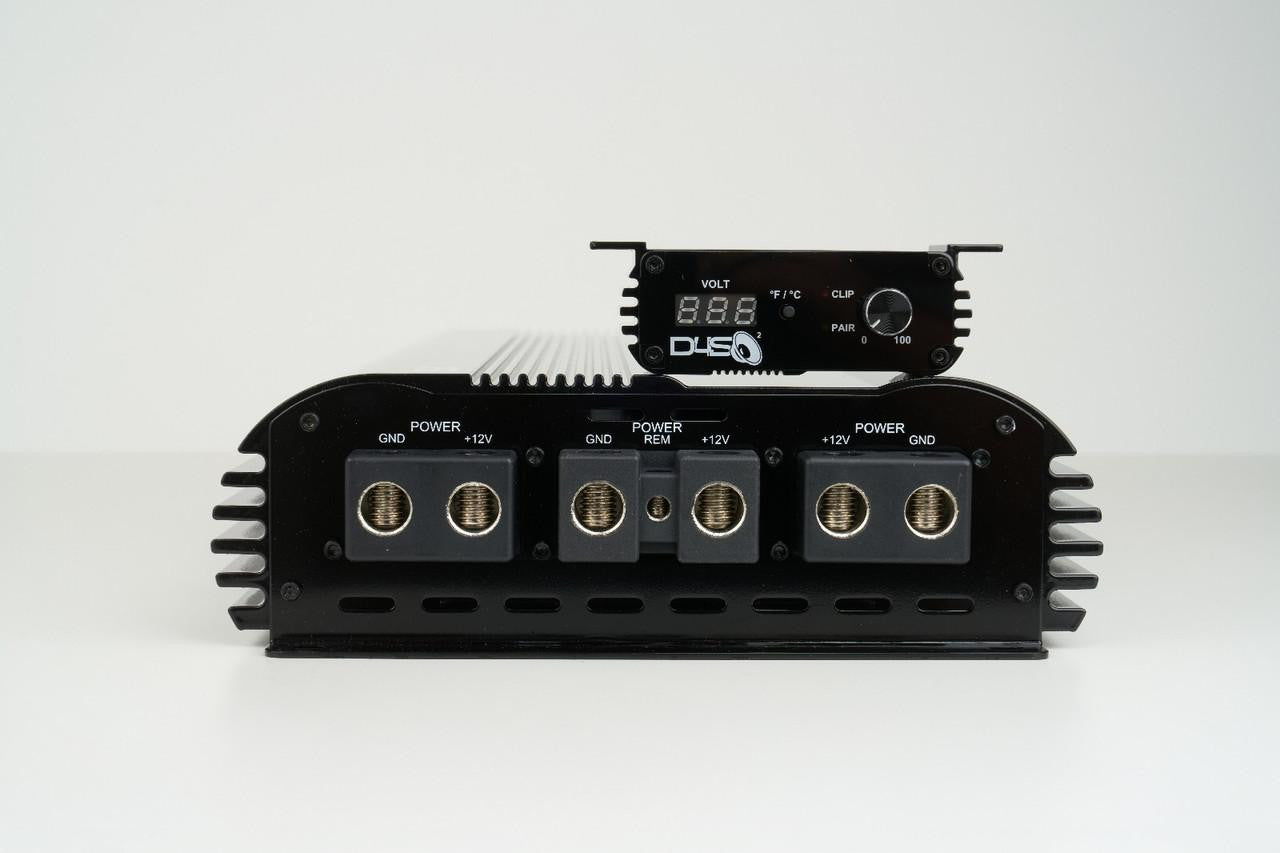

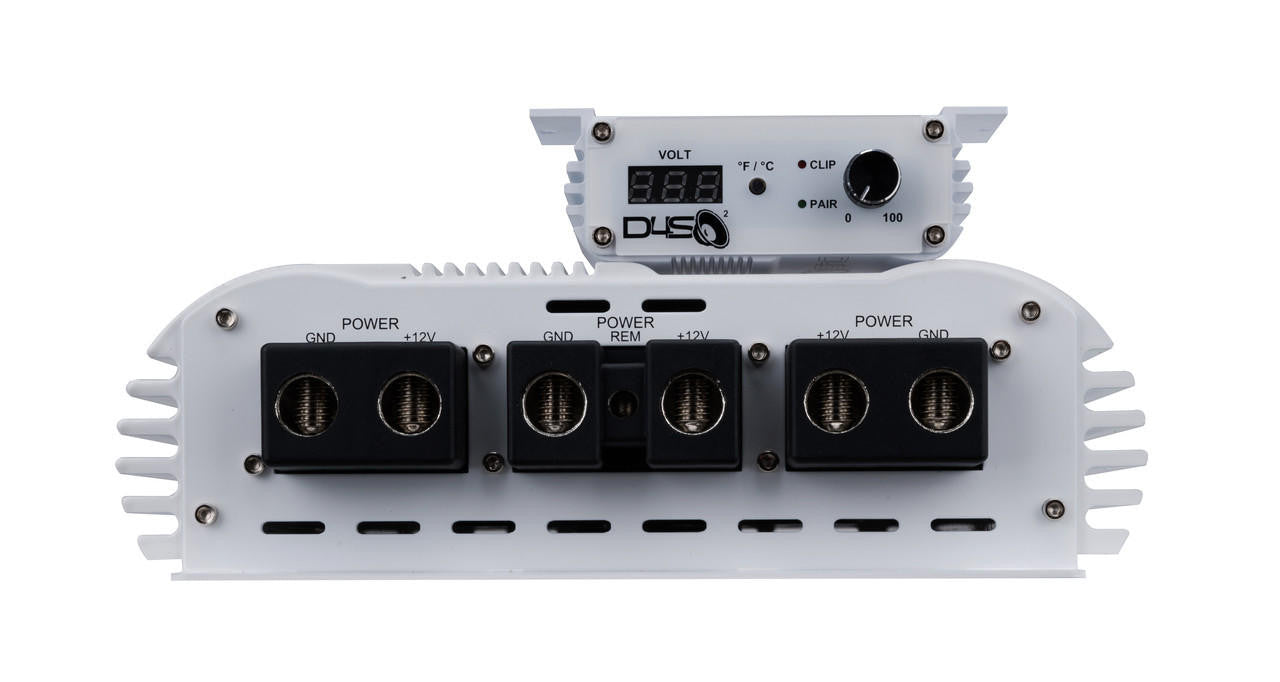

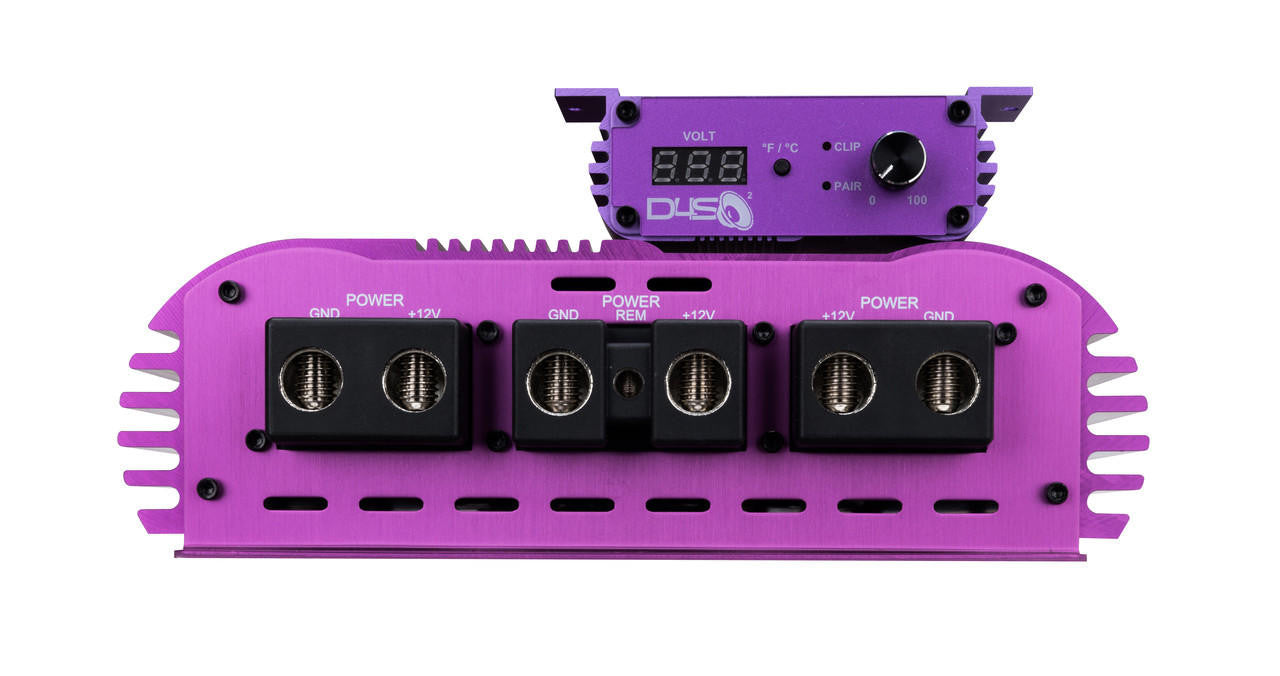

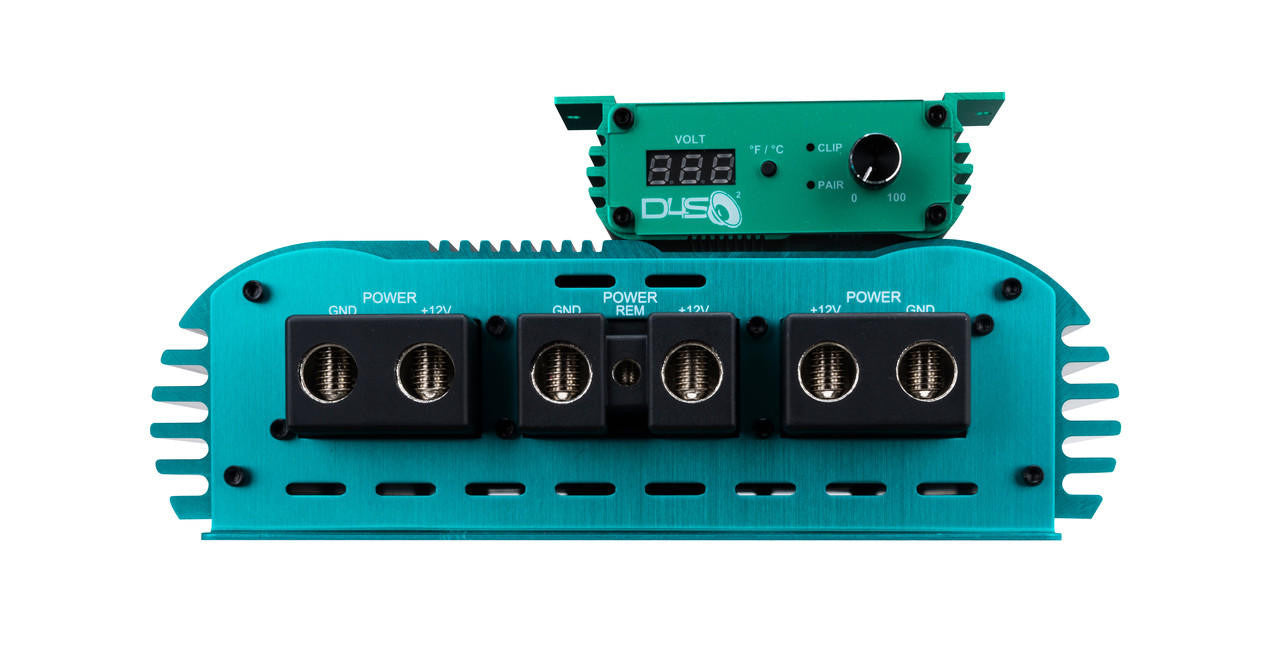

- 0 GAUGE POWER / GROUND TERMINALS
