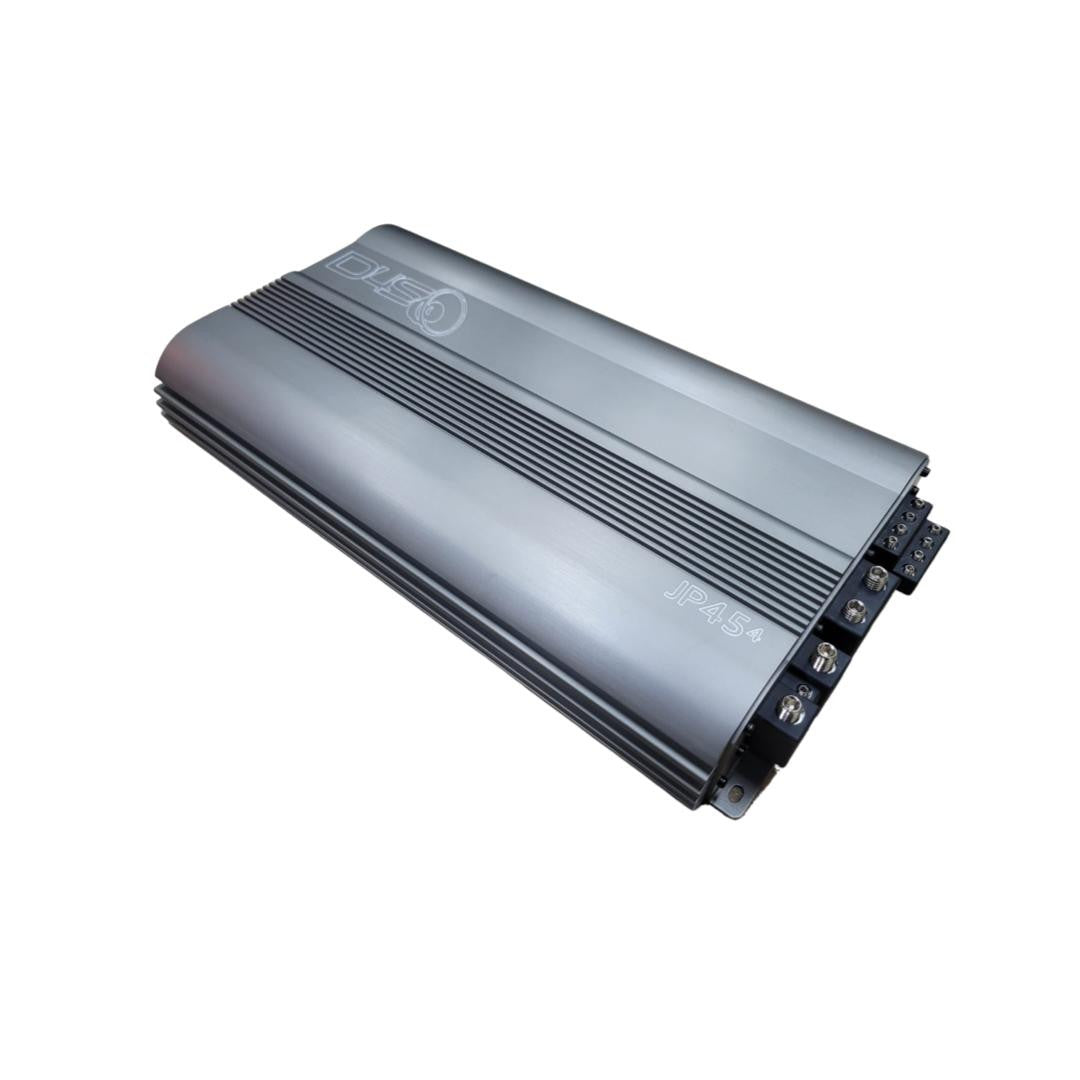

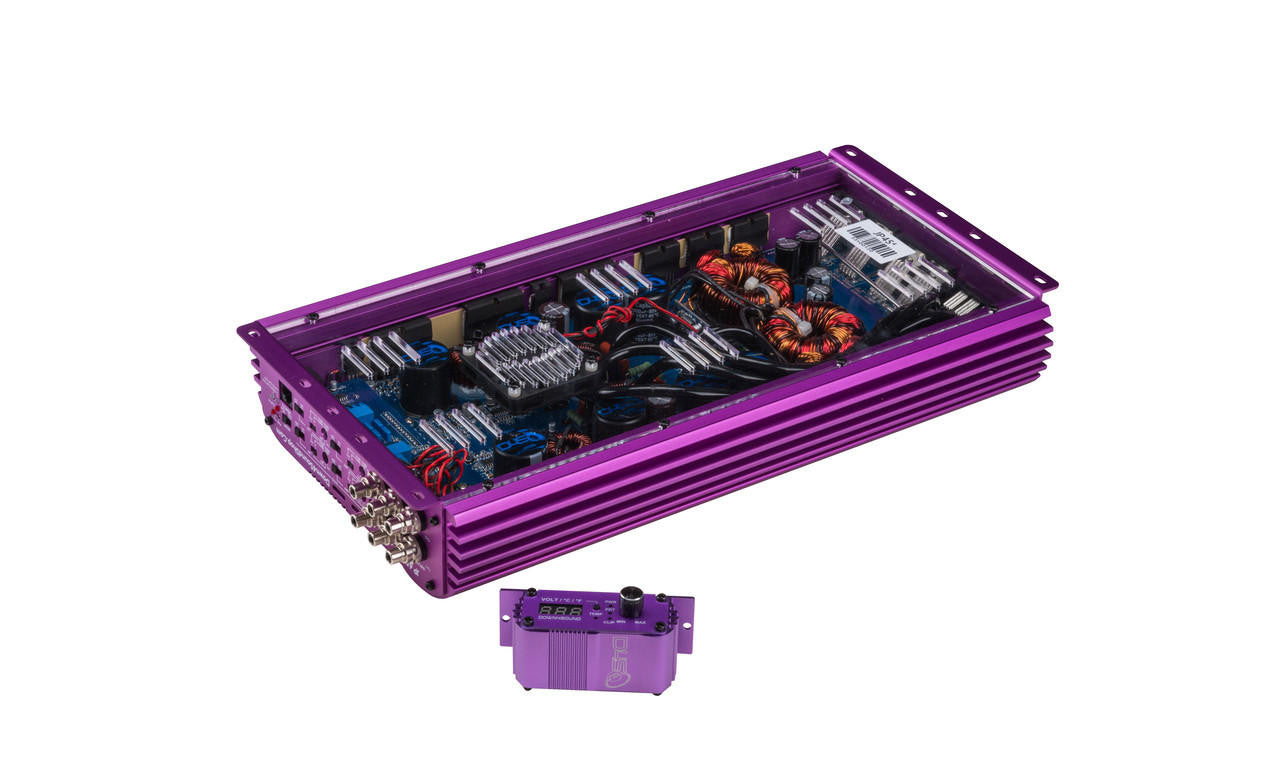

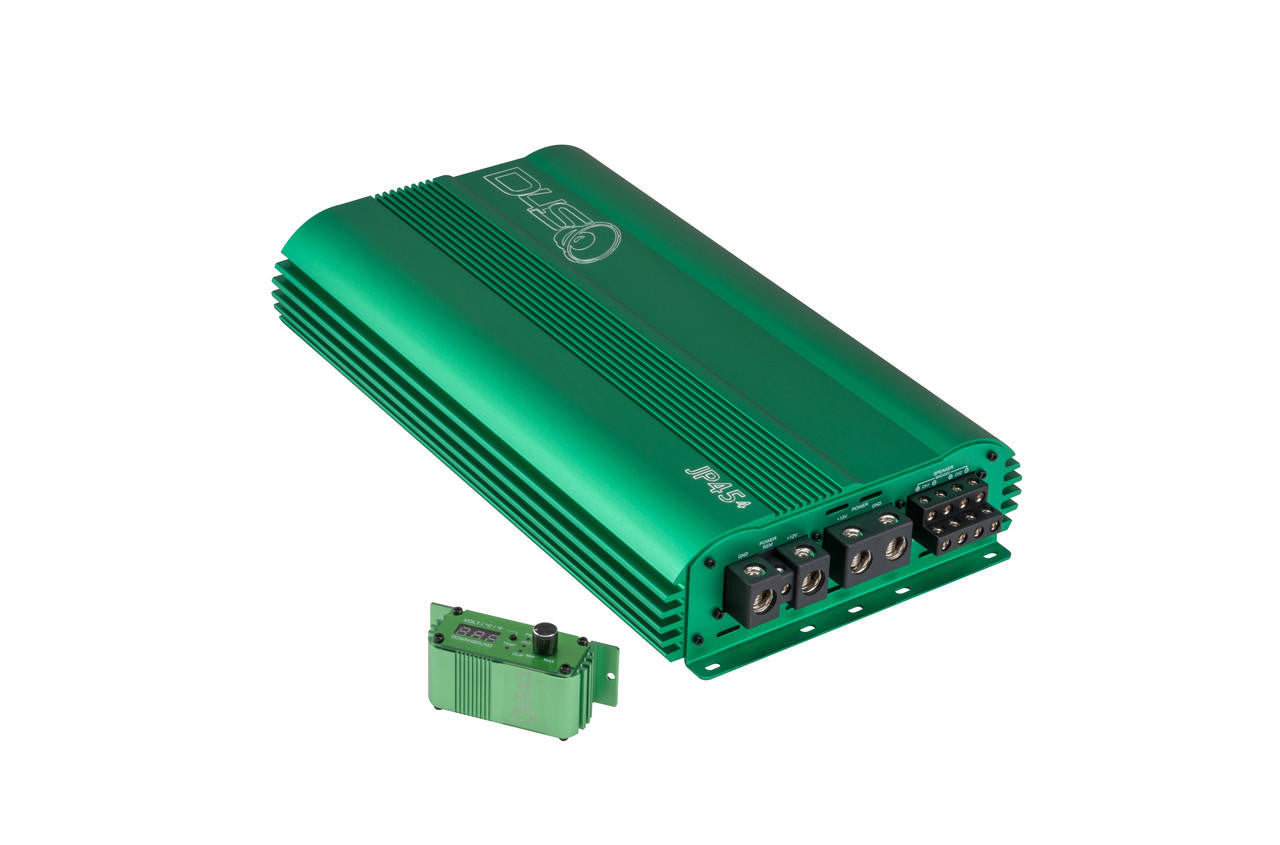

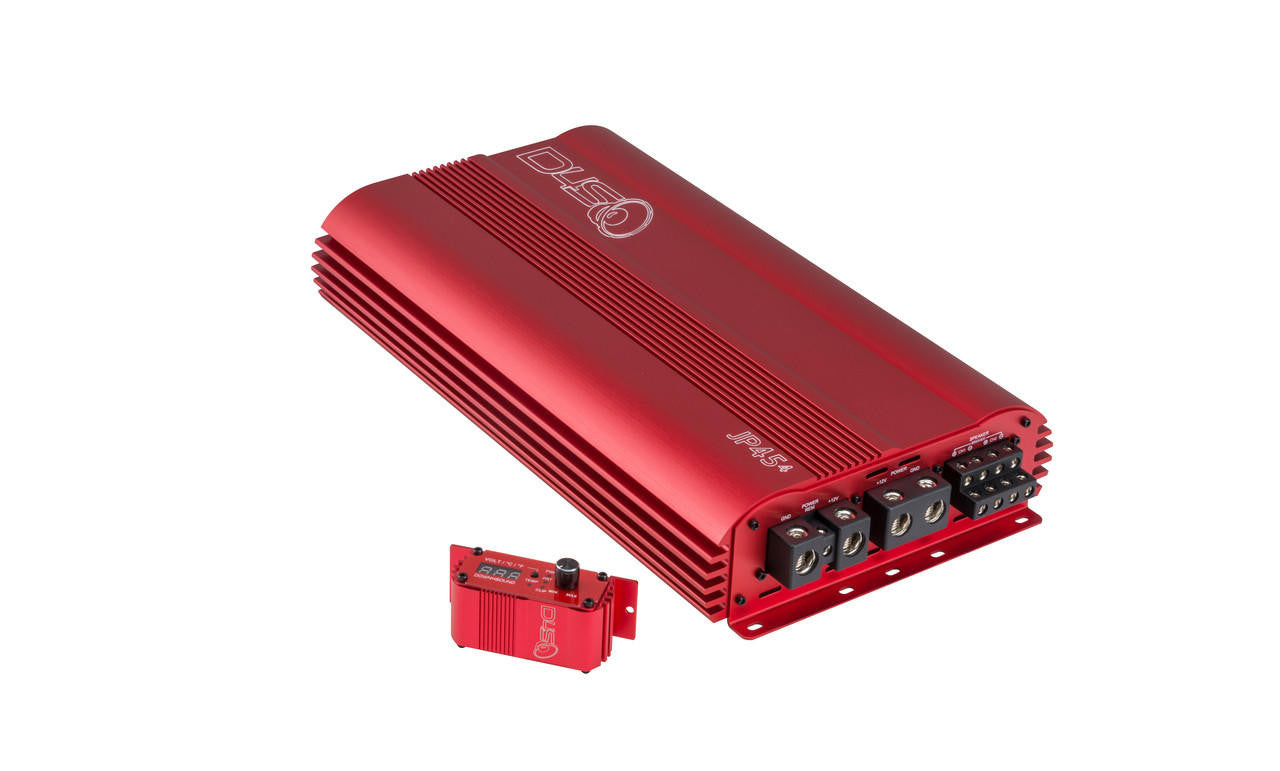

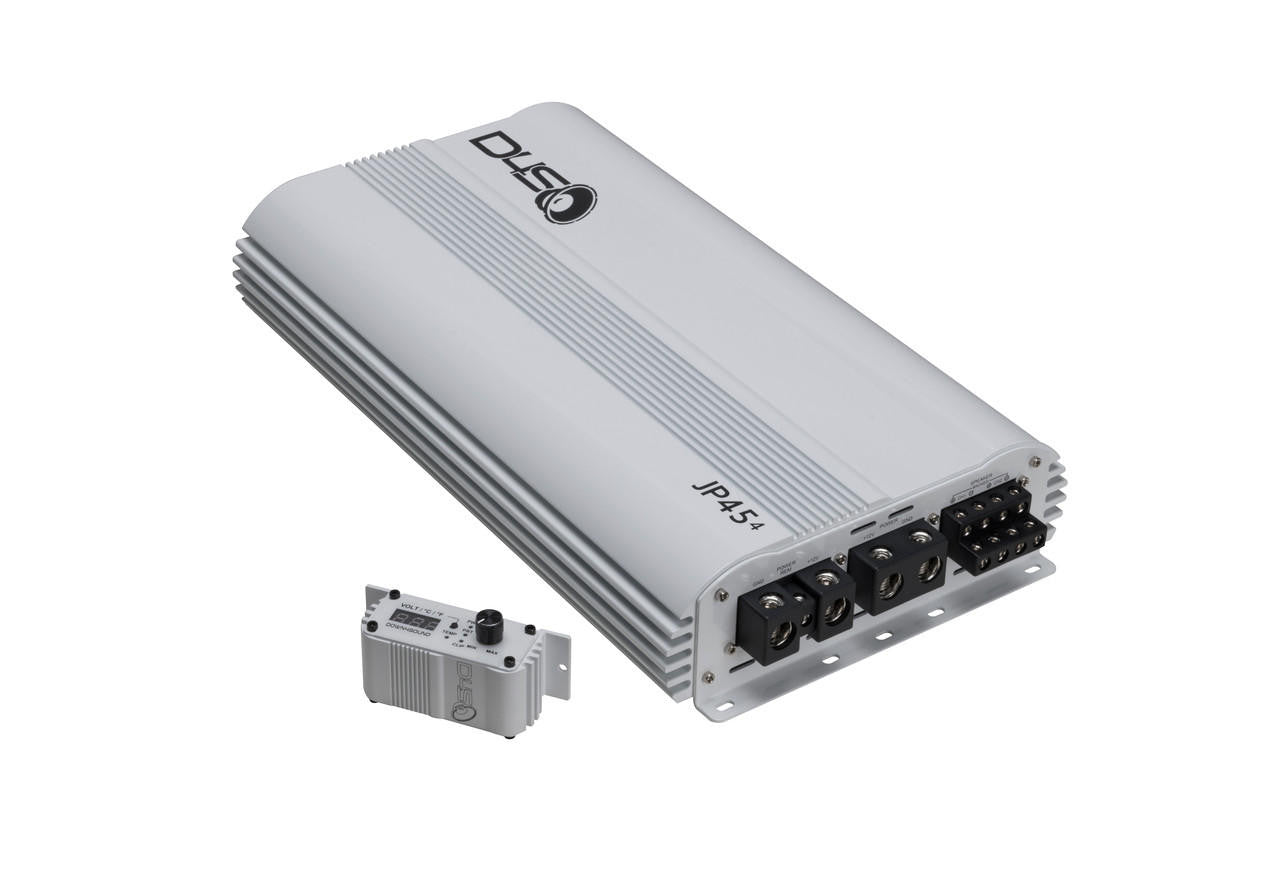

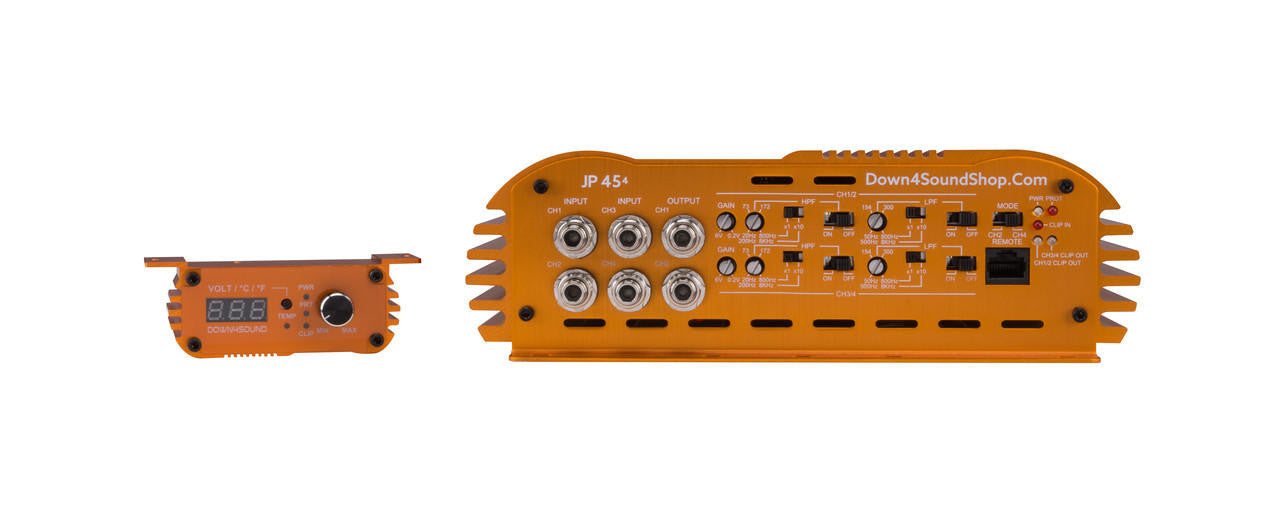

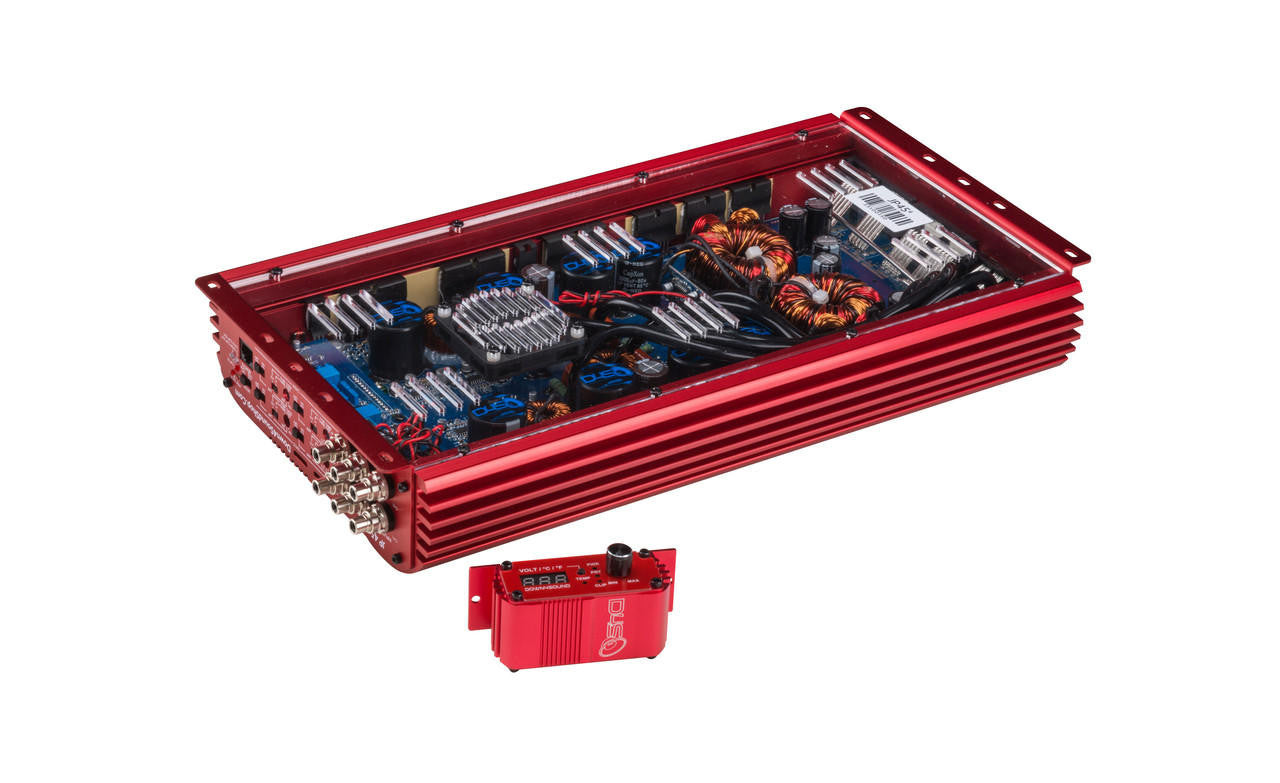

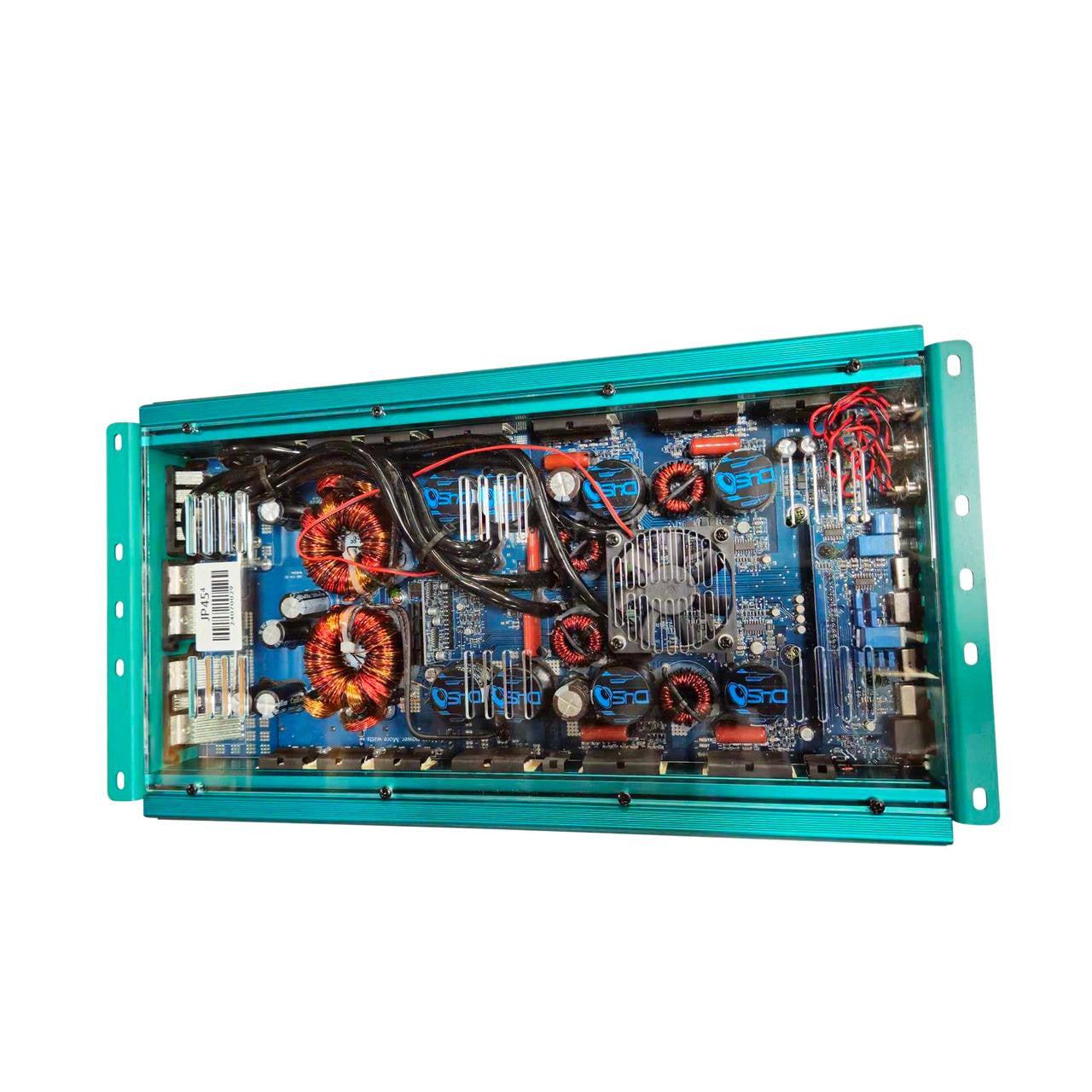

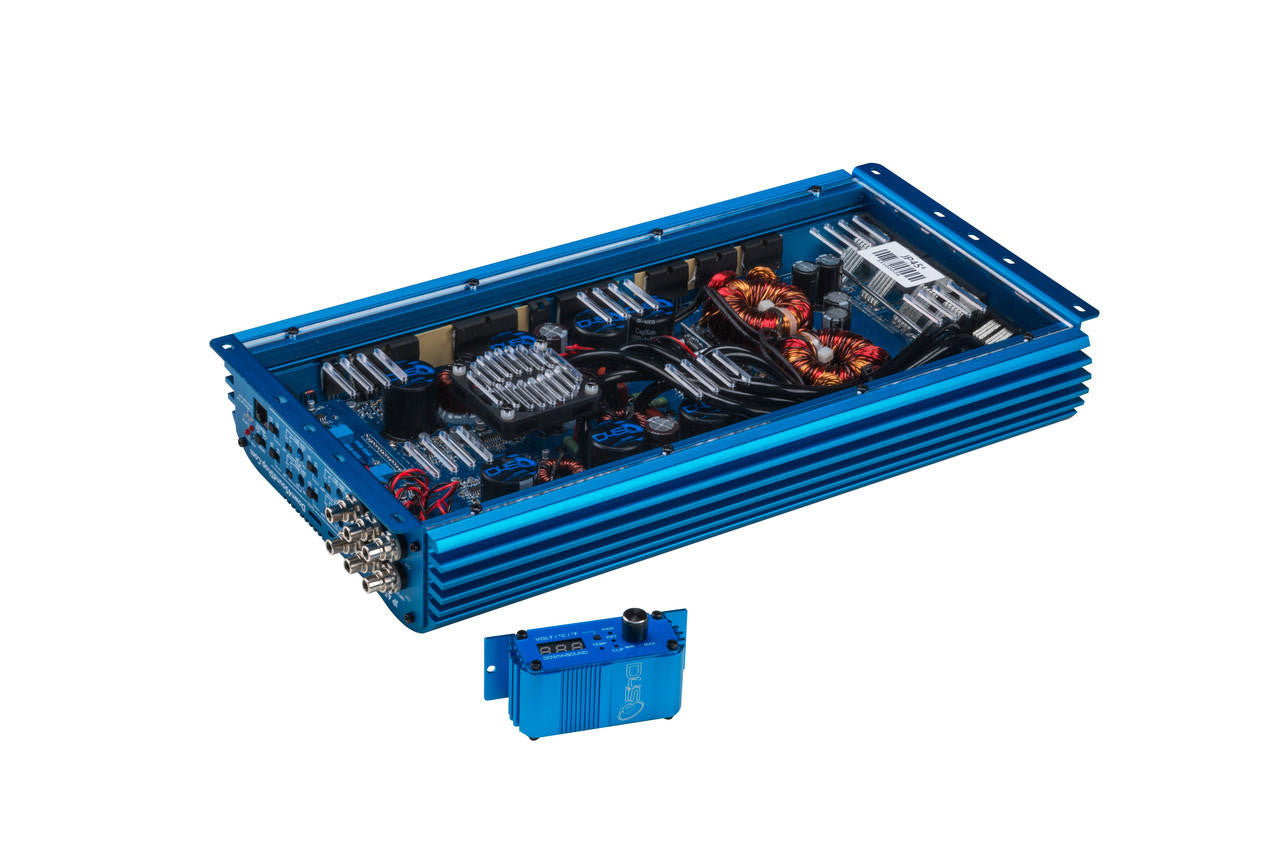

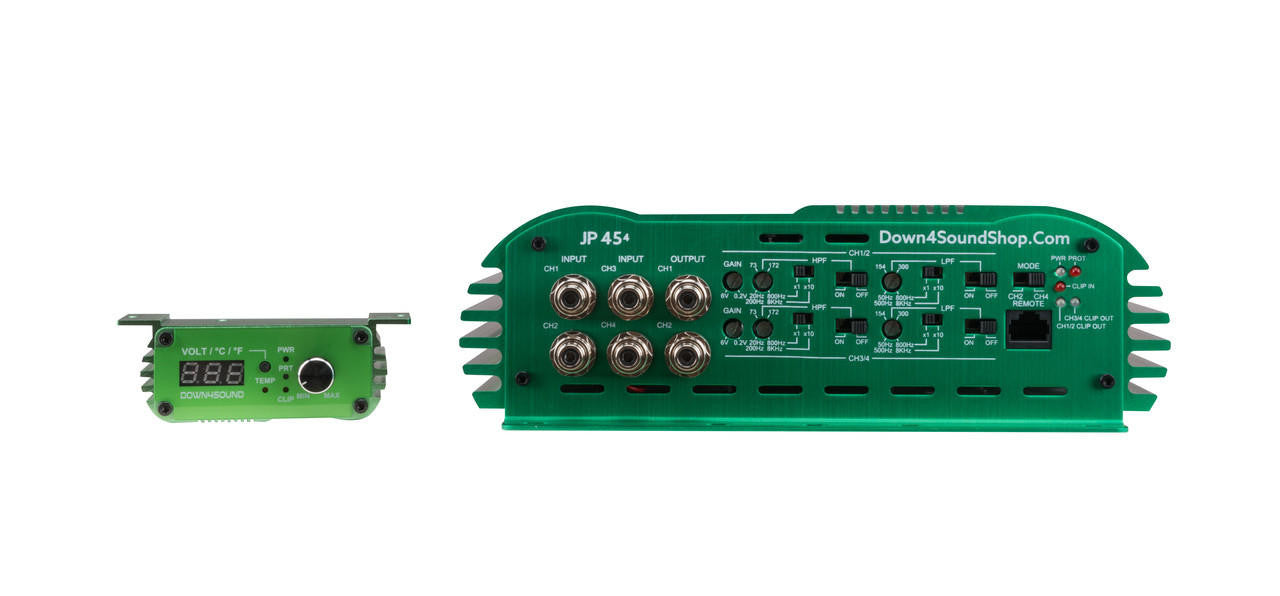

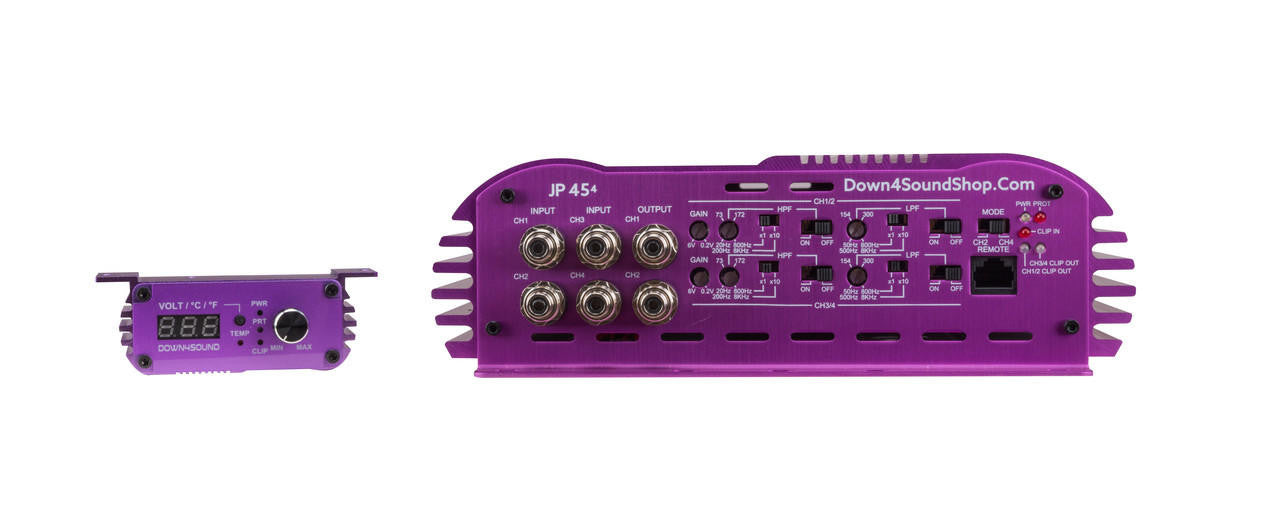

Down4Sound JP454 4000W RMS 4 Channel Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.

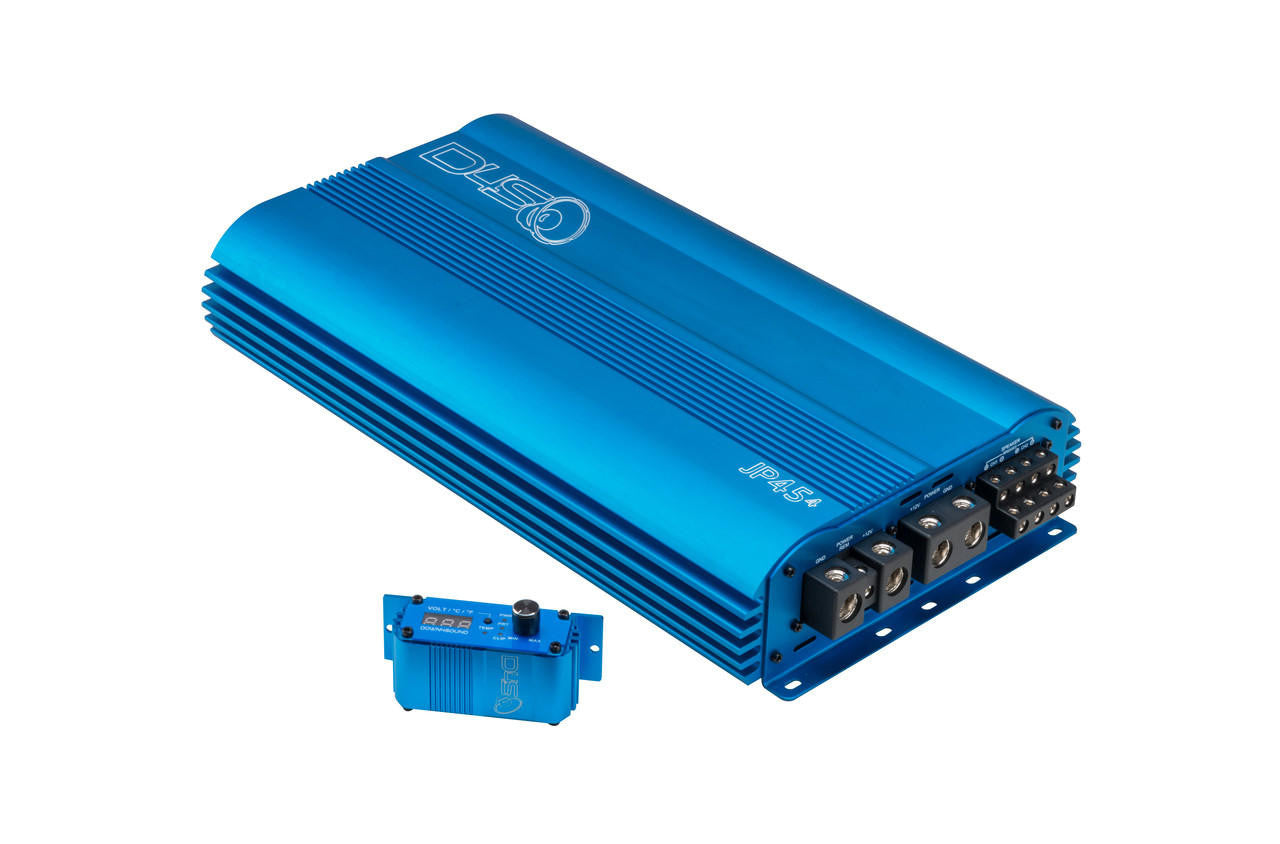

Step into a new dimension of audio excellence with the Down4Sound JP454, a 4-channel amplifier that sets a new standard in sound quality. This amplifier is not just about power; it's about delivering a pristine audio experience. With its impressive frequency response and high signal-to-noise ratio, the JP454 is perfect for audiophiles seeking clarity and depth in their music. Don't miss the amplifier dyno video in the VIDEOS TAB, showcasing the JP 454's exceptional performance.
Key Features:
- Powerful RMS Output: The JP 454 boasts a total of 4000W RMS, offering 888W x 4 at 2 ohms, 454W x 4 at 4 ohms, and a bridged output of 1645W x 2 at 4 ohms, ideal for sophisticated car audio systems.
- Precision without Distortion: Integrated SIGNAL Clipping IN and CLIPPING OUT indicators ensure a distortion-free audio experience.
Customizable Sound Experience:
- Versatile Filters: Tailor your sound with High Pass Filters (20Hz-800Hz) and Low Pass Filters (50Hz-800Hz), including Multiply x1 and x10 options.
- Bandpass Capability: Focus on specific frequencies for a distinct sound signature.
- CH1/2 & Ch3/4 Options: Simultaneous speaker operation for unparalleled sound quality.
User-Centric Features:

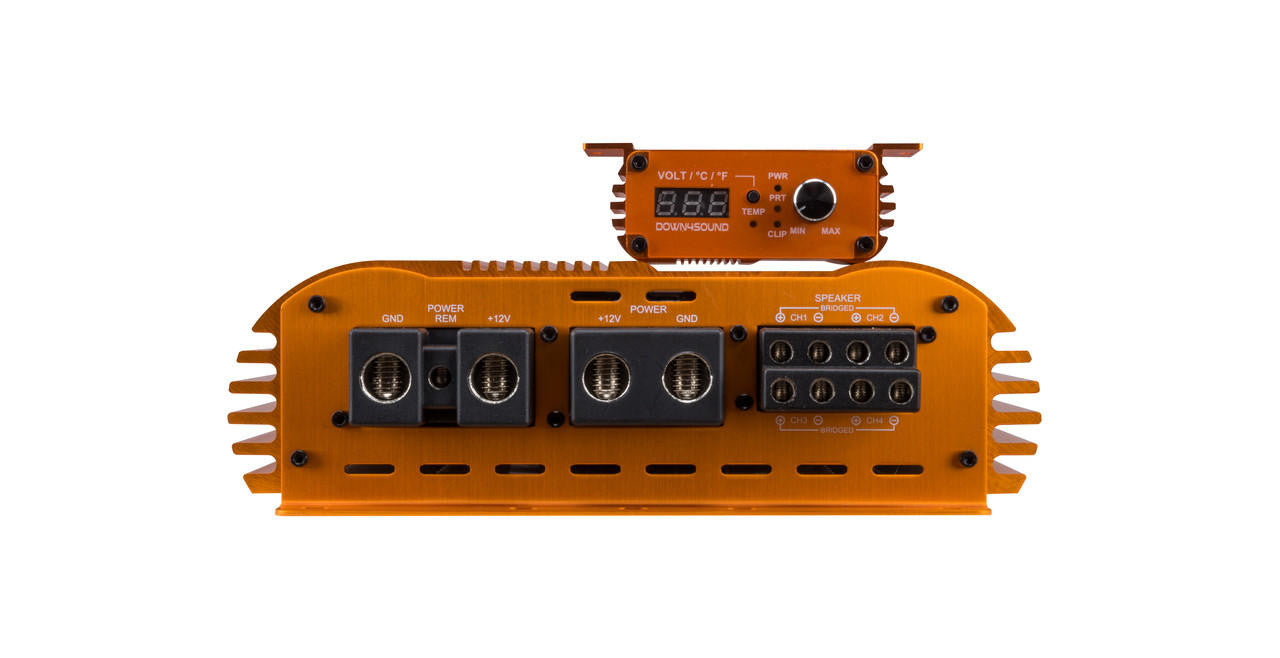

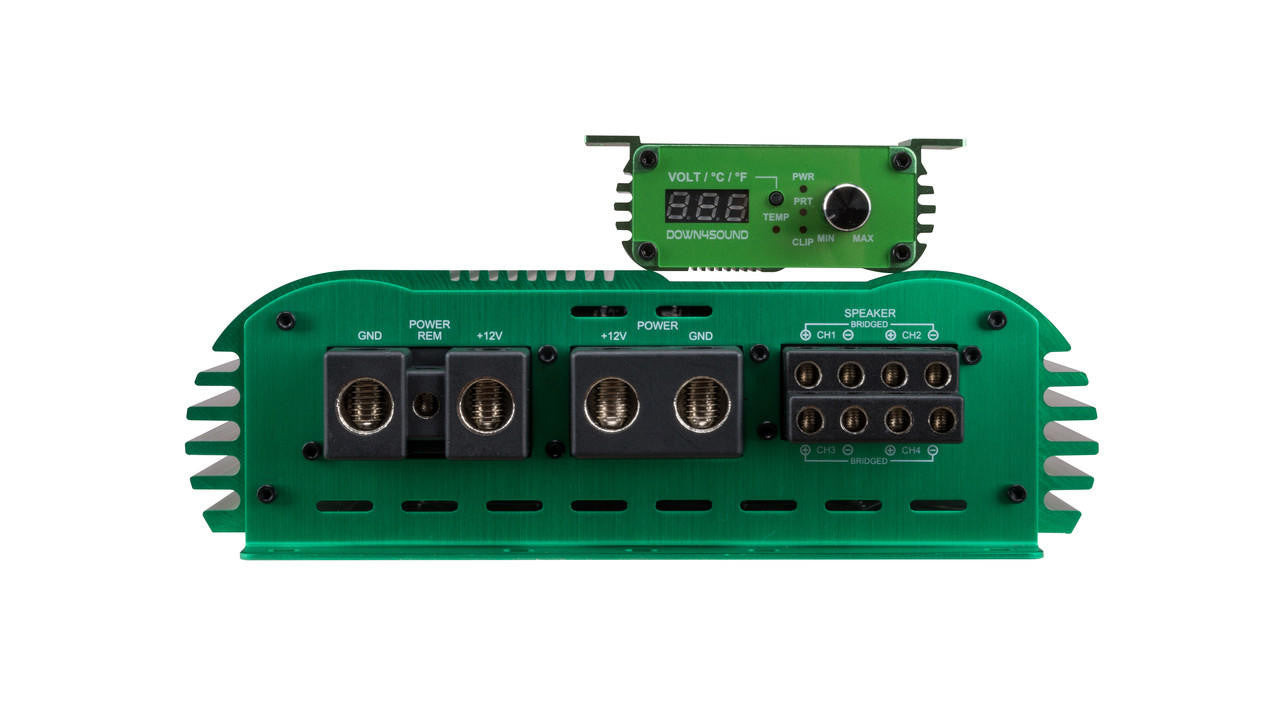

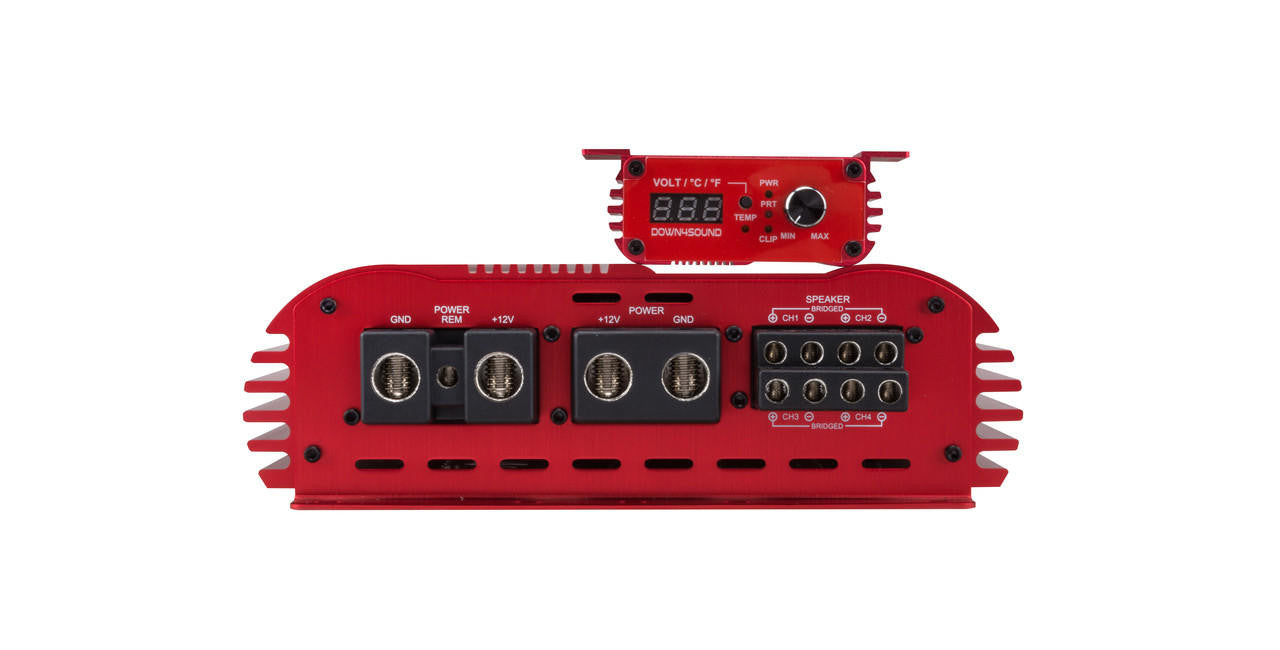

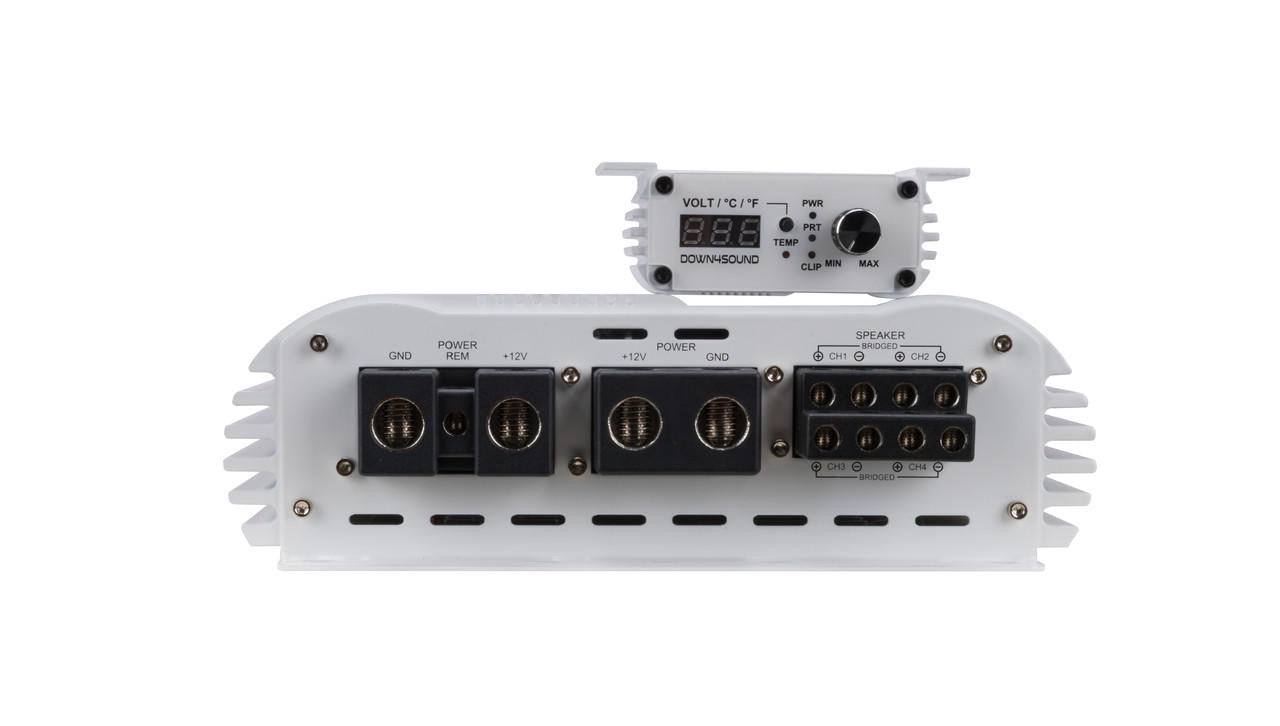

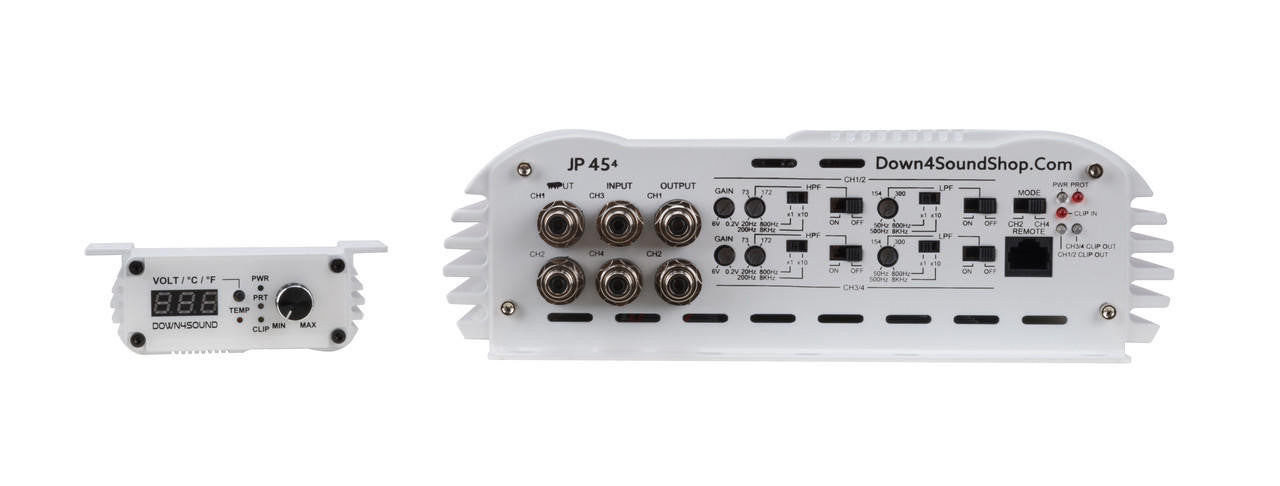

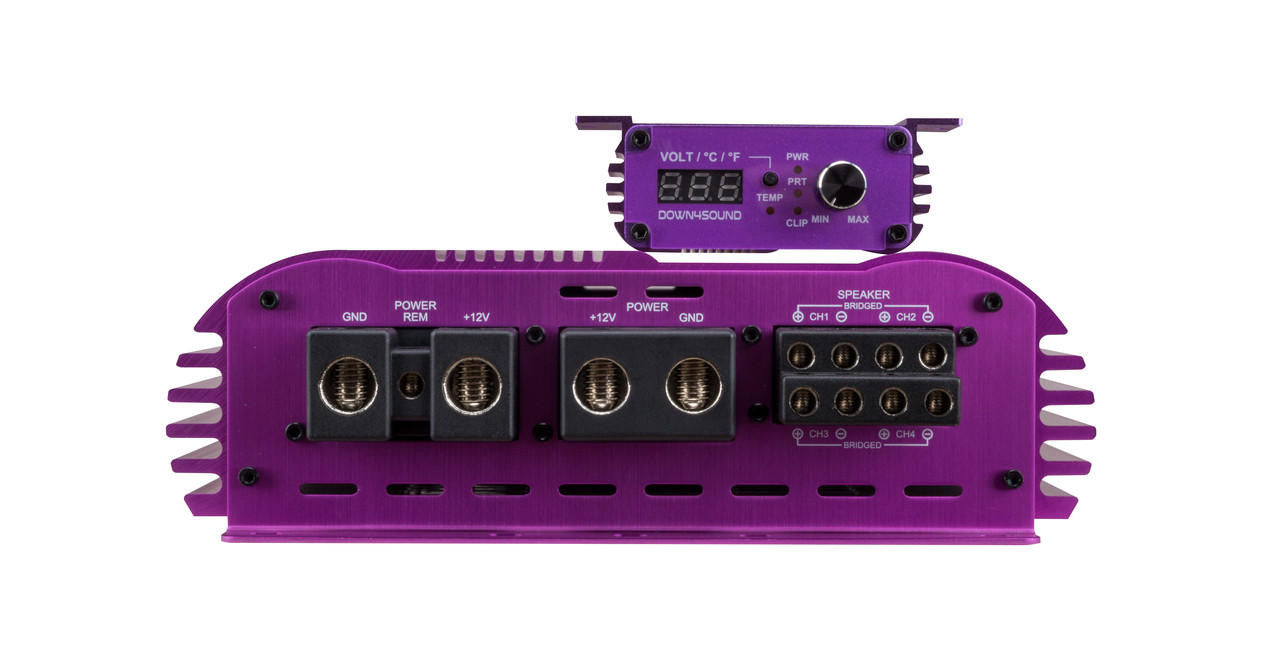

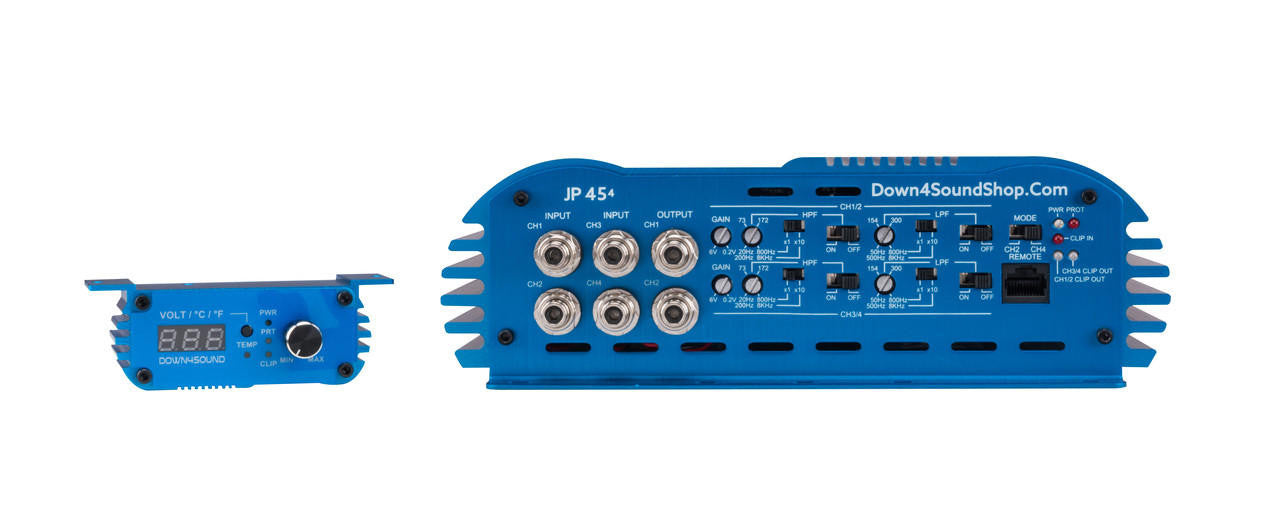

- Aluminum Remote Control: Comes with Voltage and Temperature displays, along with Thermal and Clipping indicators for total control.
- Optimal Working Voltage: Suitable for a range of 9 to 15.5 volts.
- Damping Factor: A factor of 170 for precise sound reproduction.
JP 454 Technical Specifications:
- Frequency Response: 10Hz – 21KHz
- Origin: Made in Korea
- Signal-to-Noise Ratio: 94dB
- Damping Factor: 170
- Input Sensitivity: 6V – 0.2V

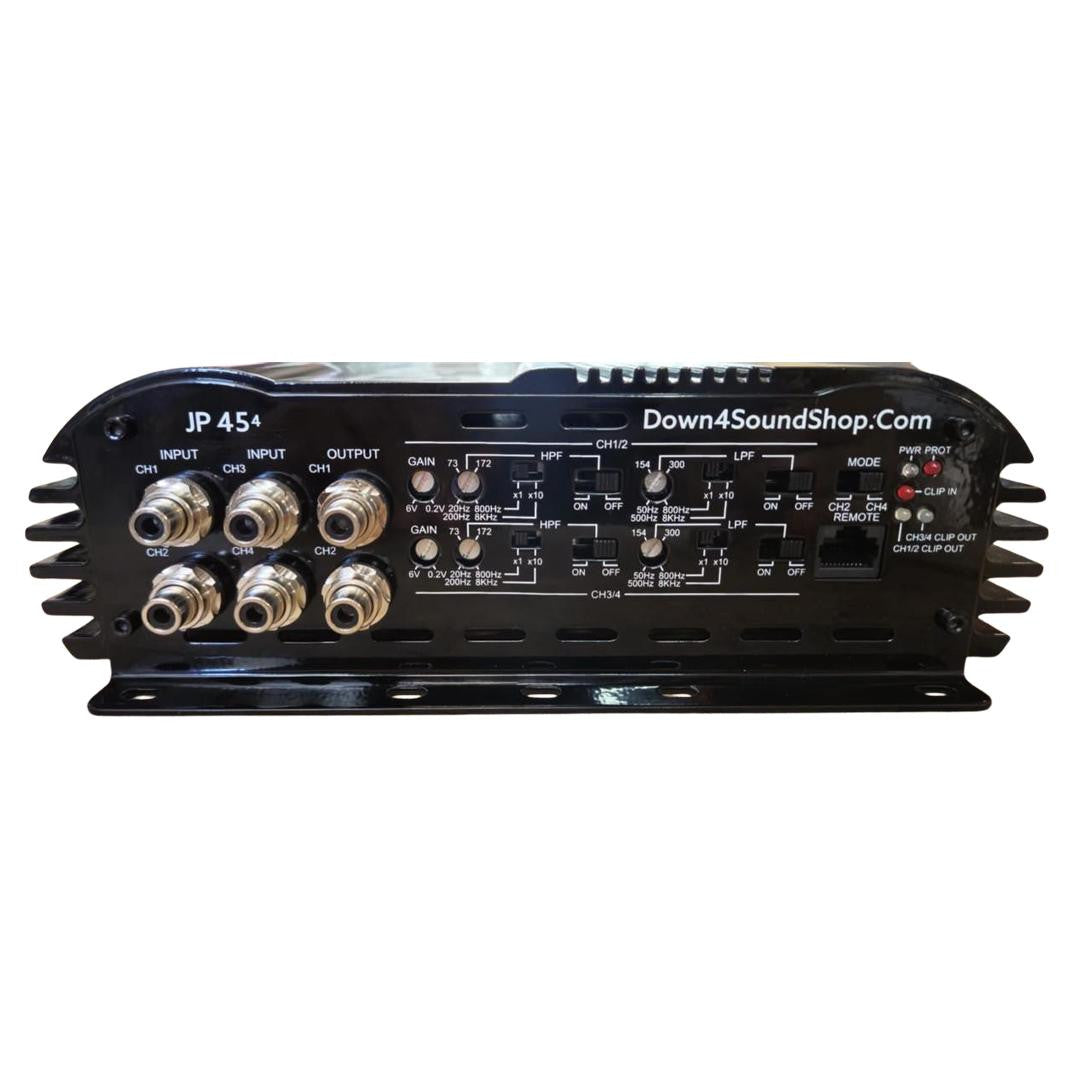

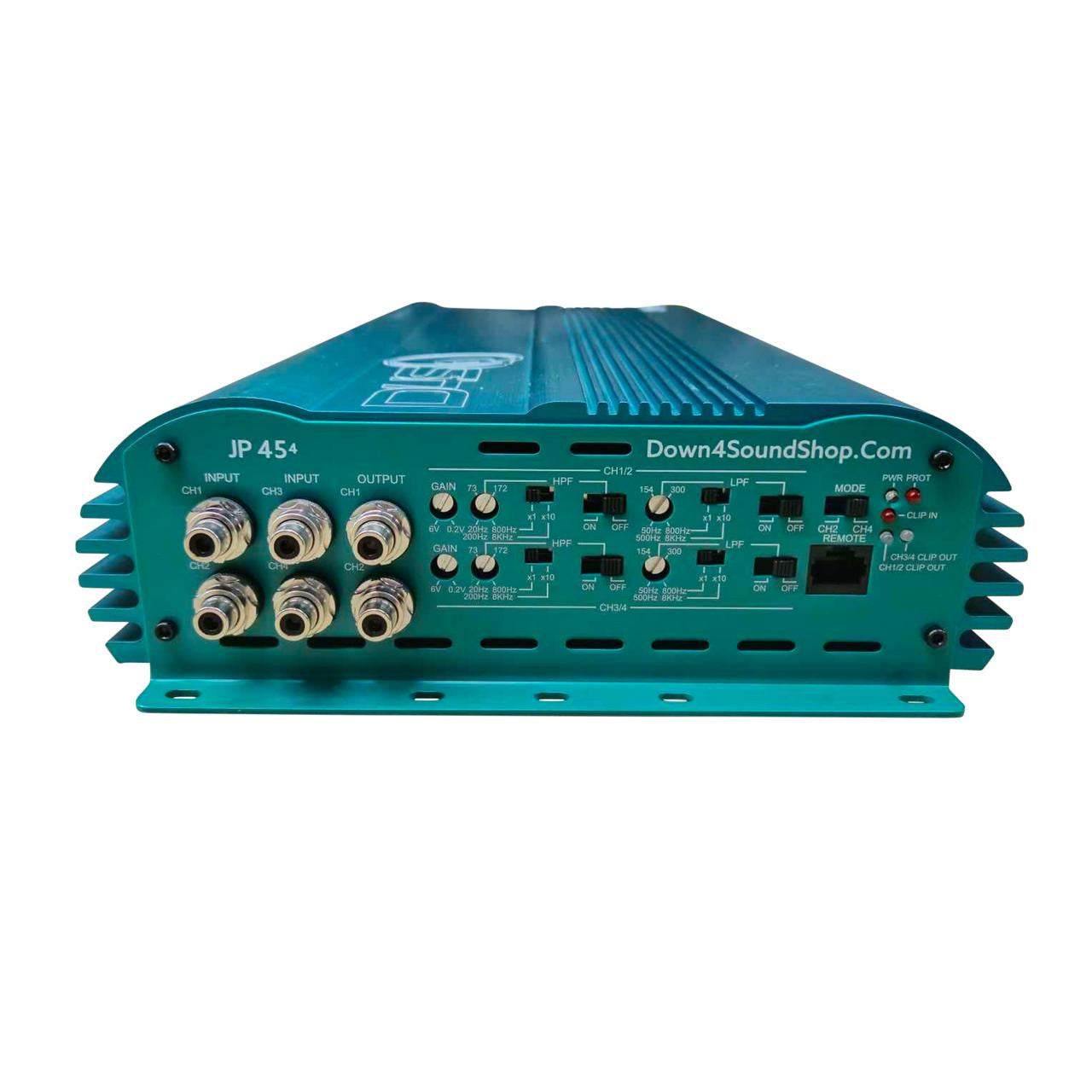

- Filters:
- CH1/2 & Ch3/4 High Pass: 20Hz – 800Hz (Multiply: x1, x10 ranging from 200Hz-8KHz)
- Low Pass: 50Hz – 800Hz (Multiply: x1, x10 ranging from 500Hz-8KHz)
- Bandpass Capability
- Indicators: SIGNAL Clipping IN & CLIPPING OUT
- Remote: Aluminum with Voltage, Temperature Display, Thermal, and Clipping Indicators
- Working Voltage: 9 to 15.5 Volts
- CLIP IN: Red
- CLIP OUT: 0.5% THD (Blue), 5% THD (Violet), 10% THD (Red)

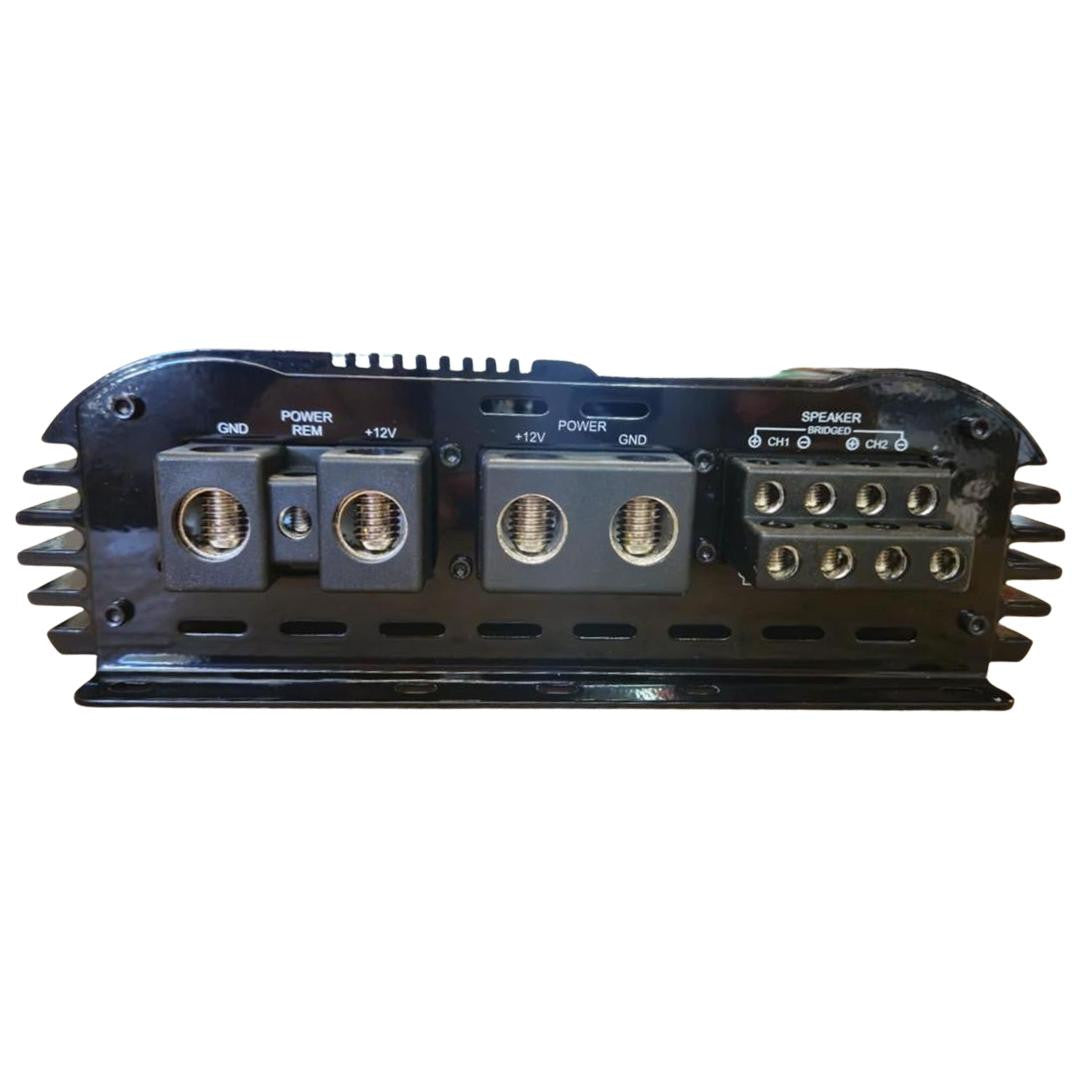

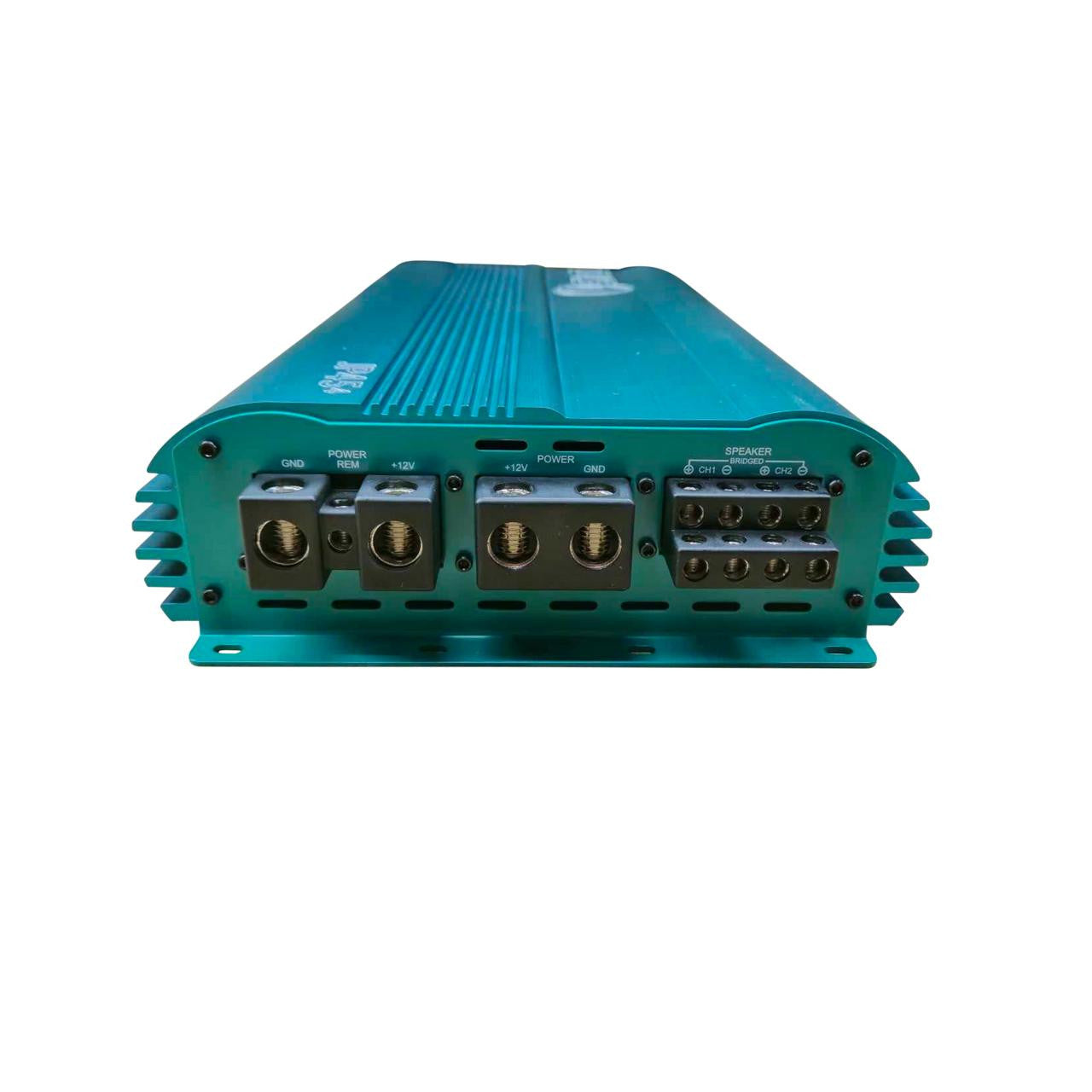

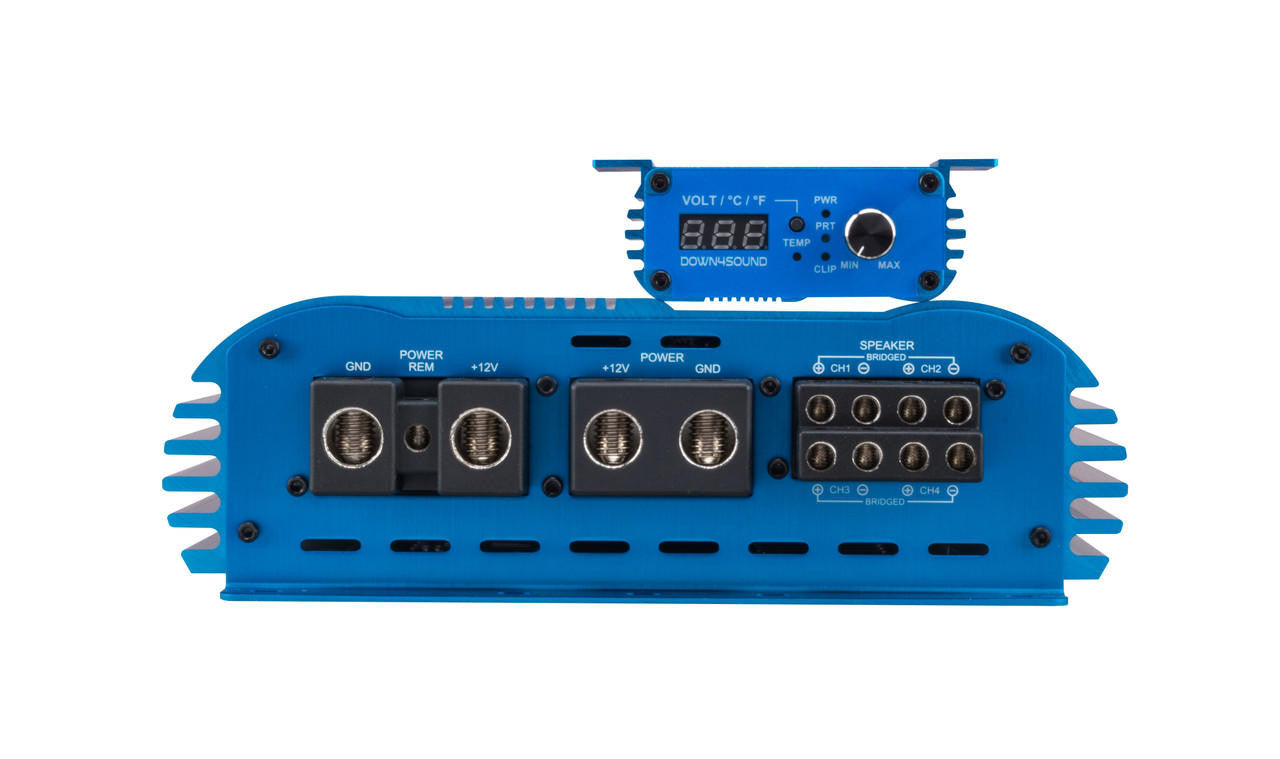

- Inputs: 4 - 0 gauge
- RMS Power Ratings:
- 888W x 4 at 14.4V 2 Ohms
- 454W x 4 at 14.4V 4 Ohms
- 1645W RMS x 2 at 4 Ohms
- Dimensions: 15.74"L x 9.37"W x 2.71"H
- 2 x 150a fuses
Elevate your car audio experience with the Down4Sound JP454 Amplifier, a true game-changer in the world of sound.
