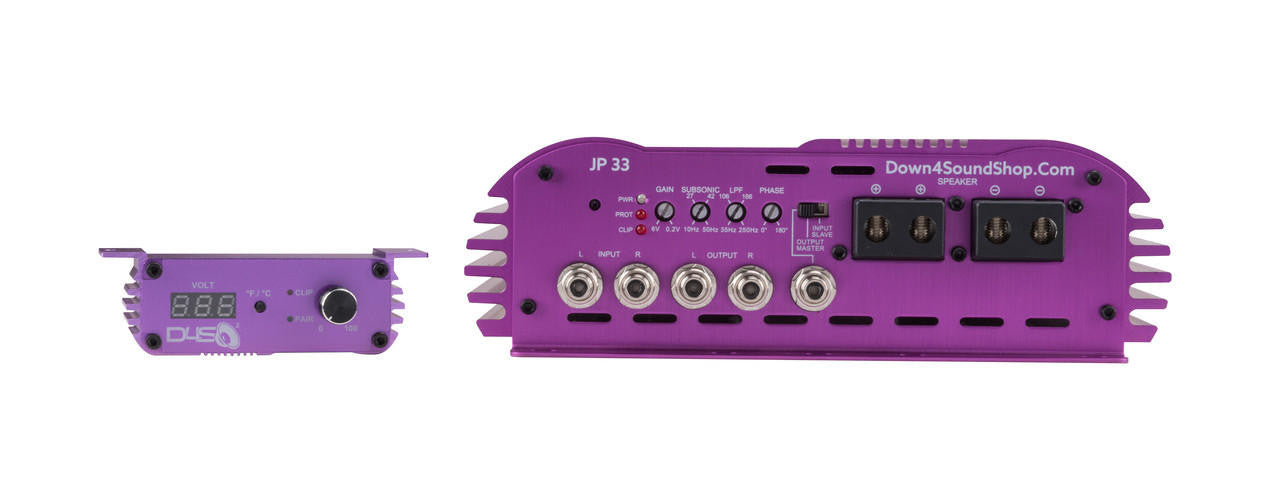

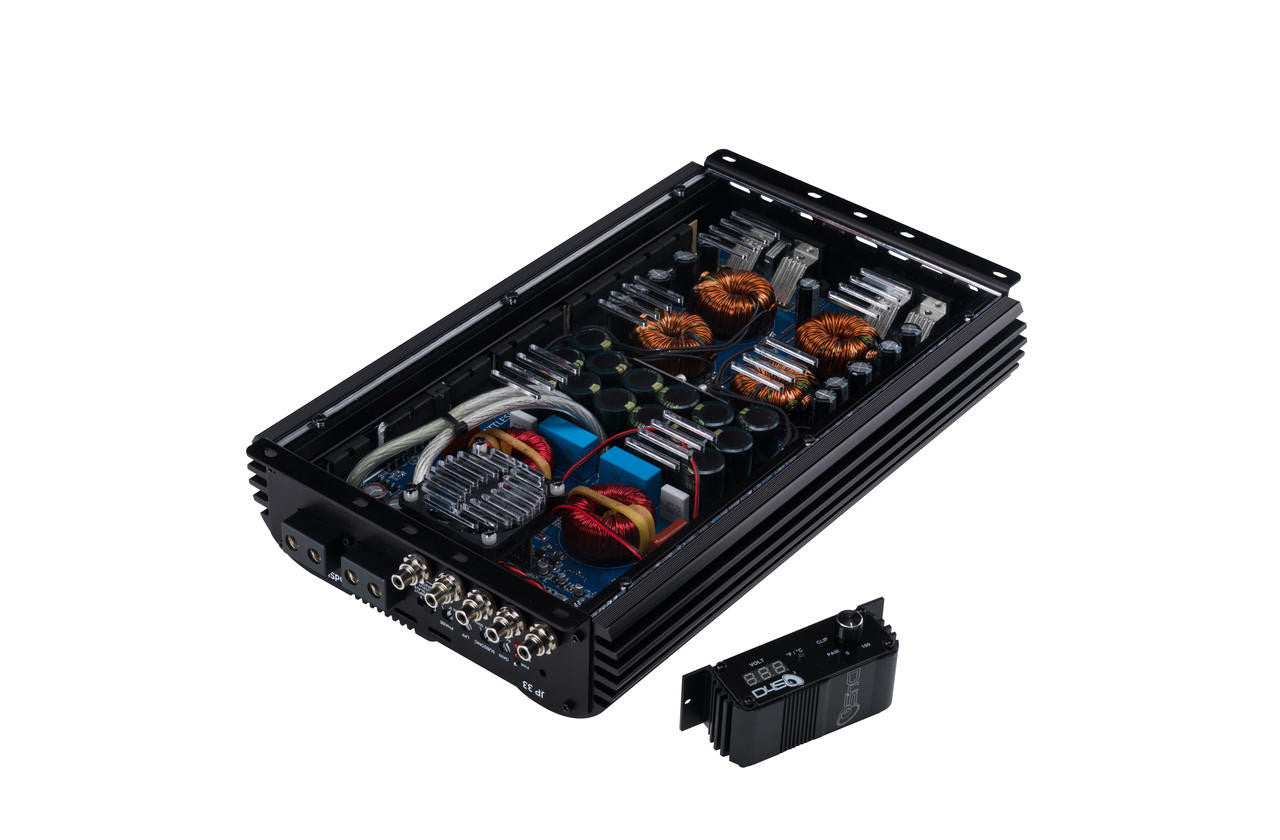

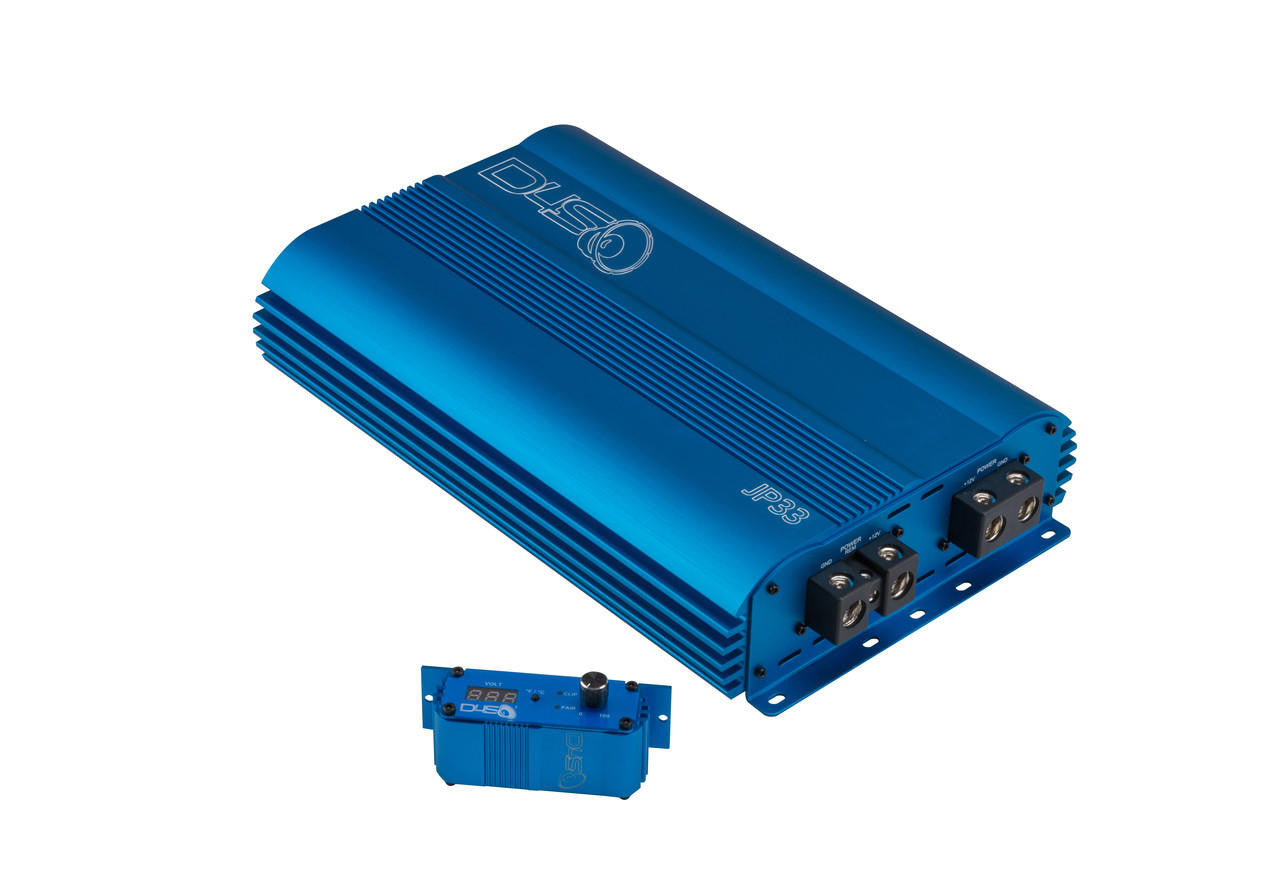

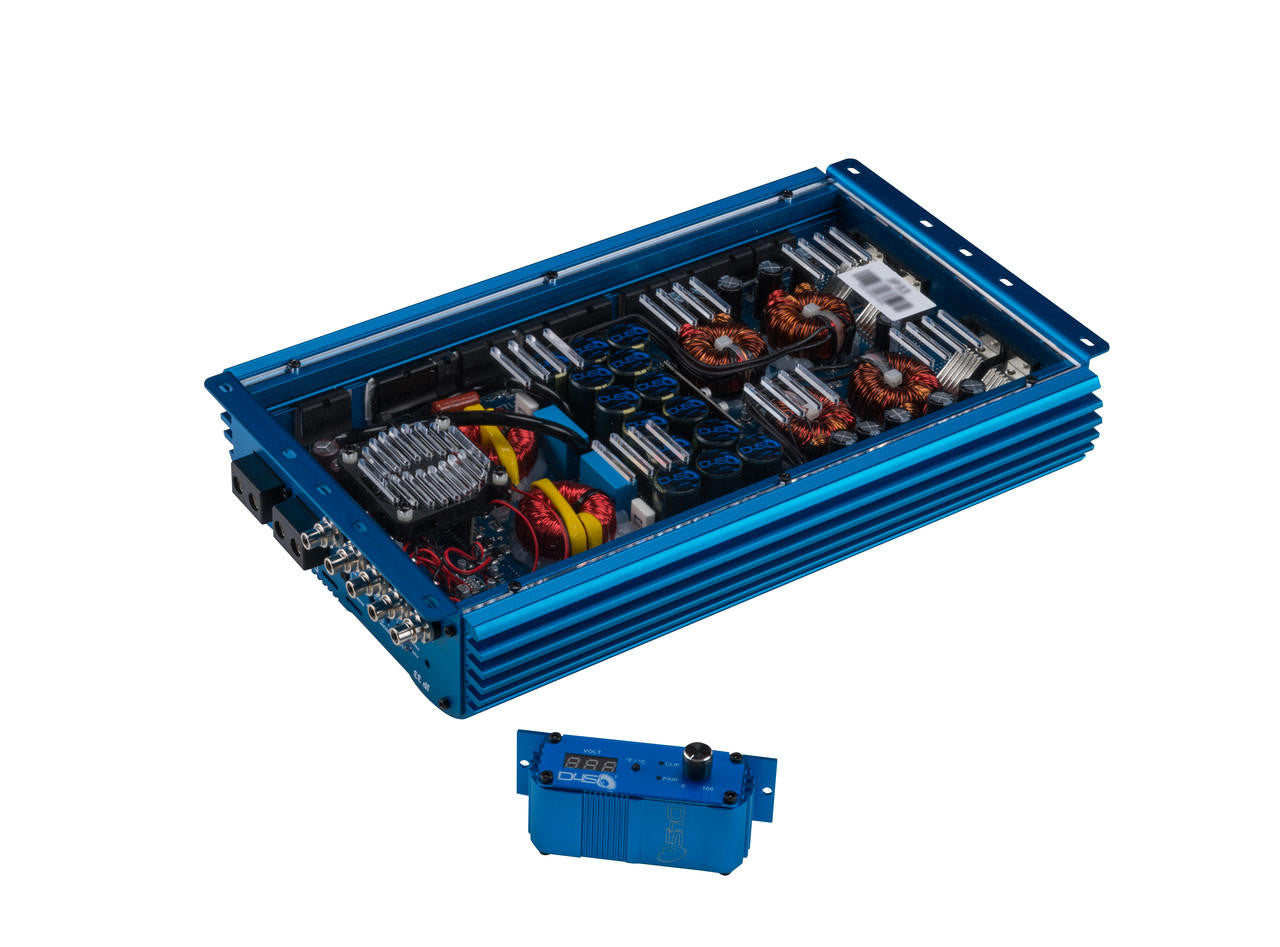

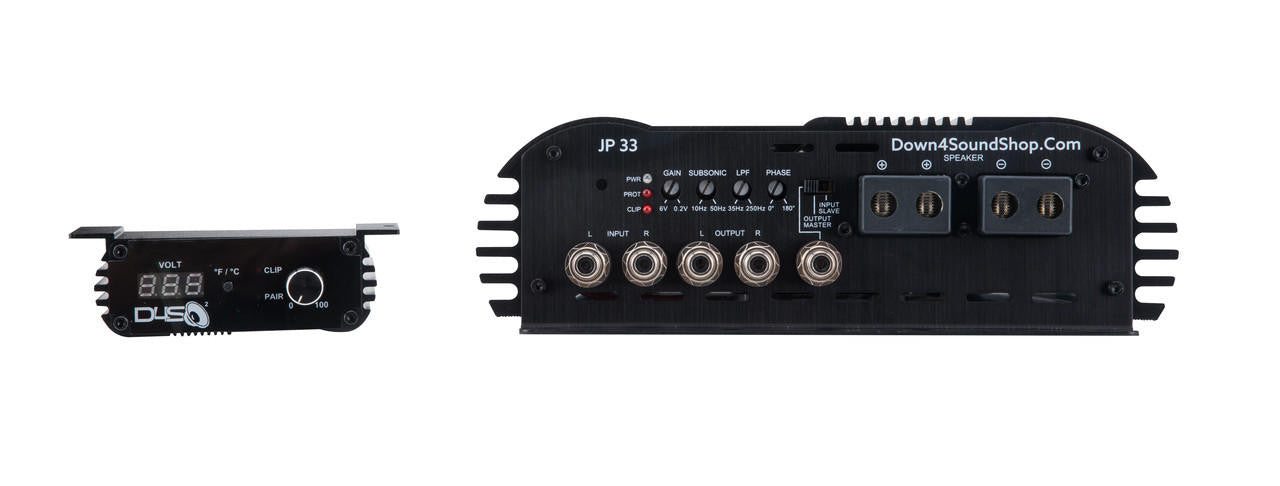

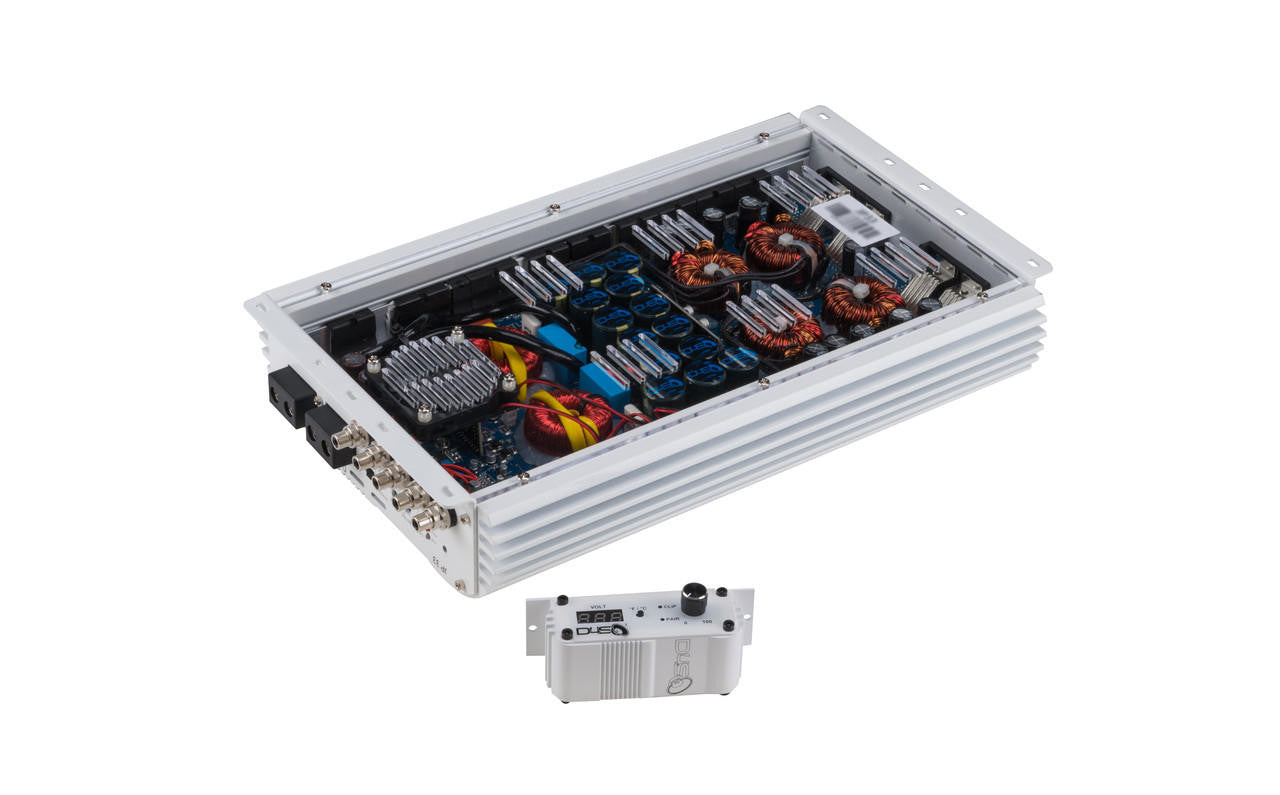

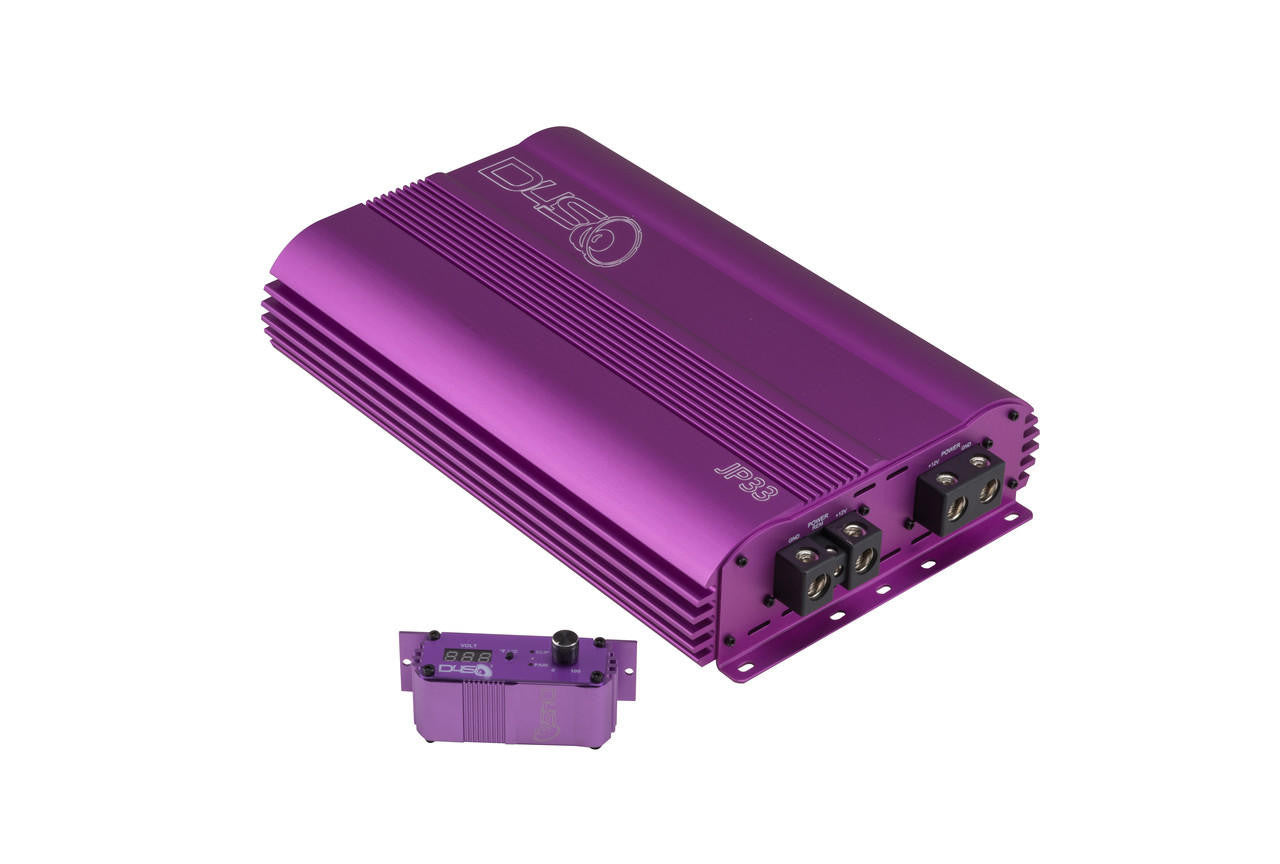

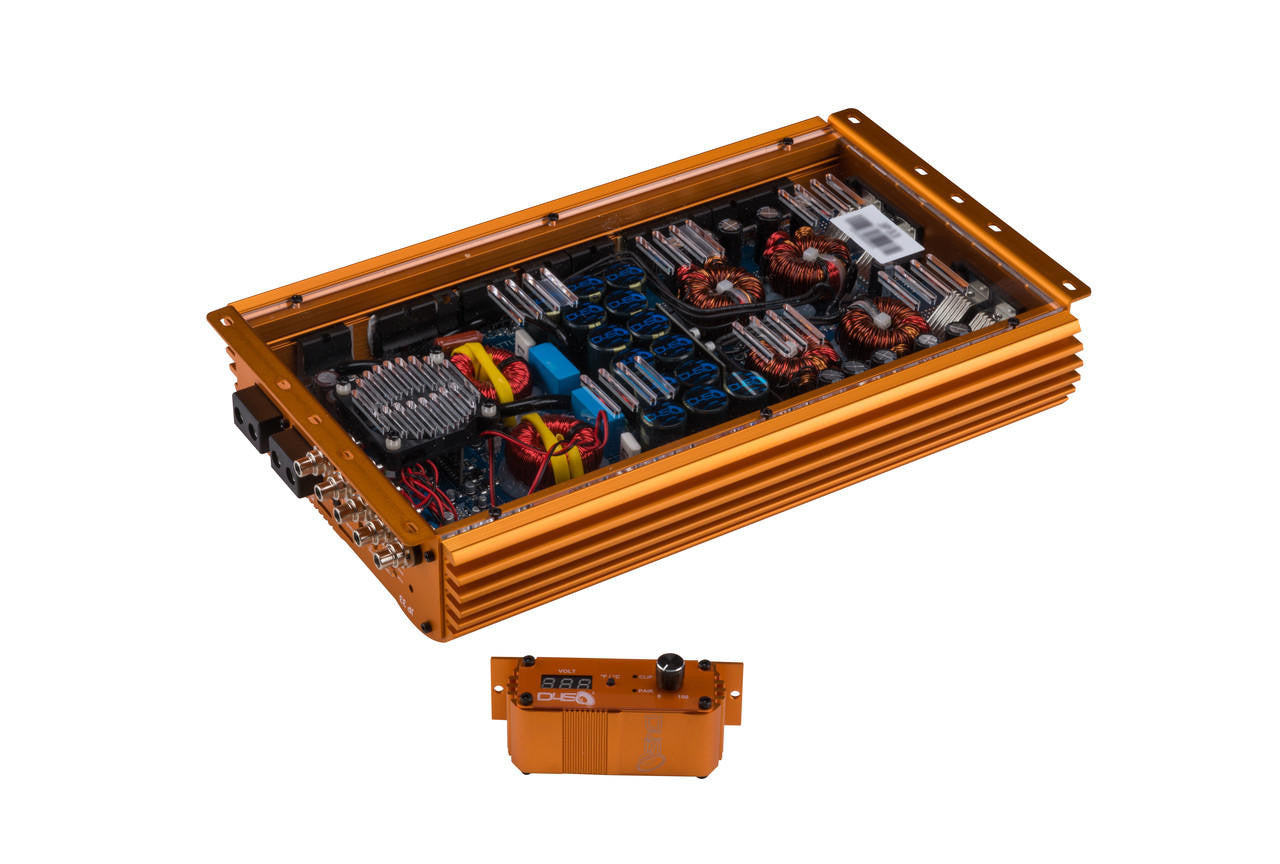

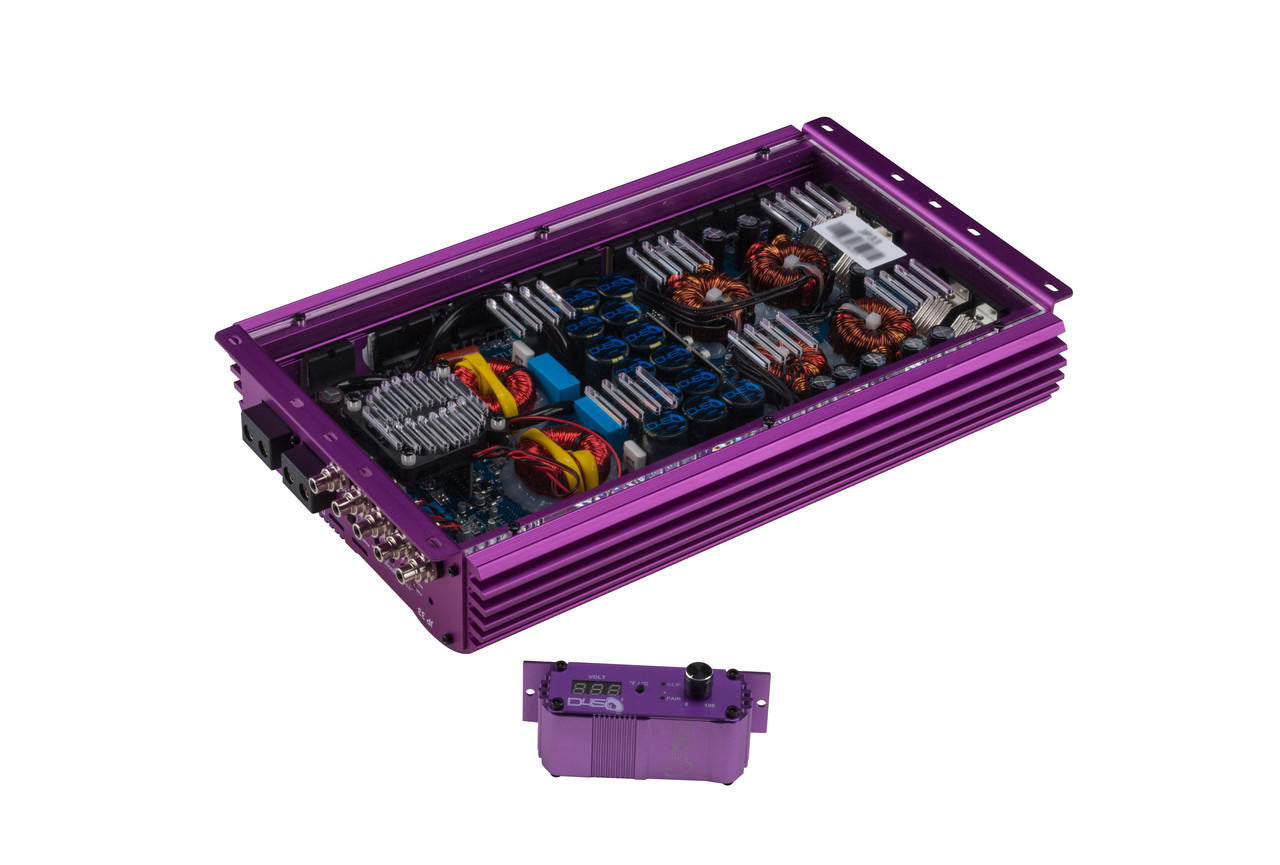

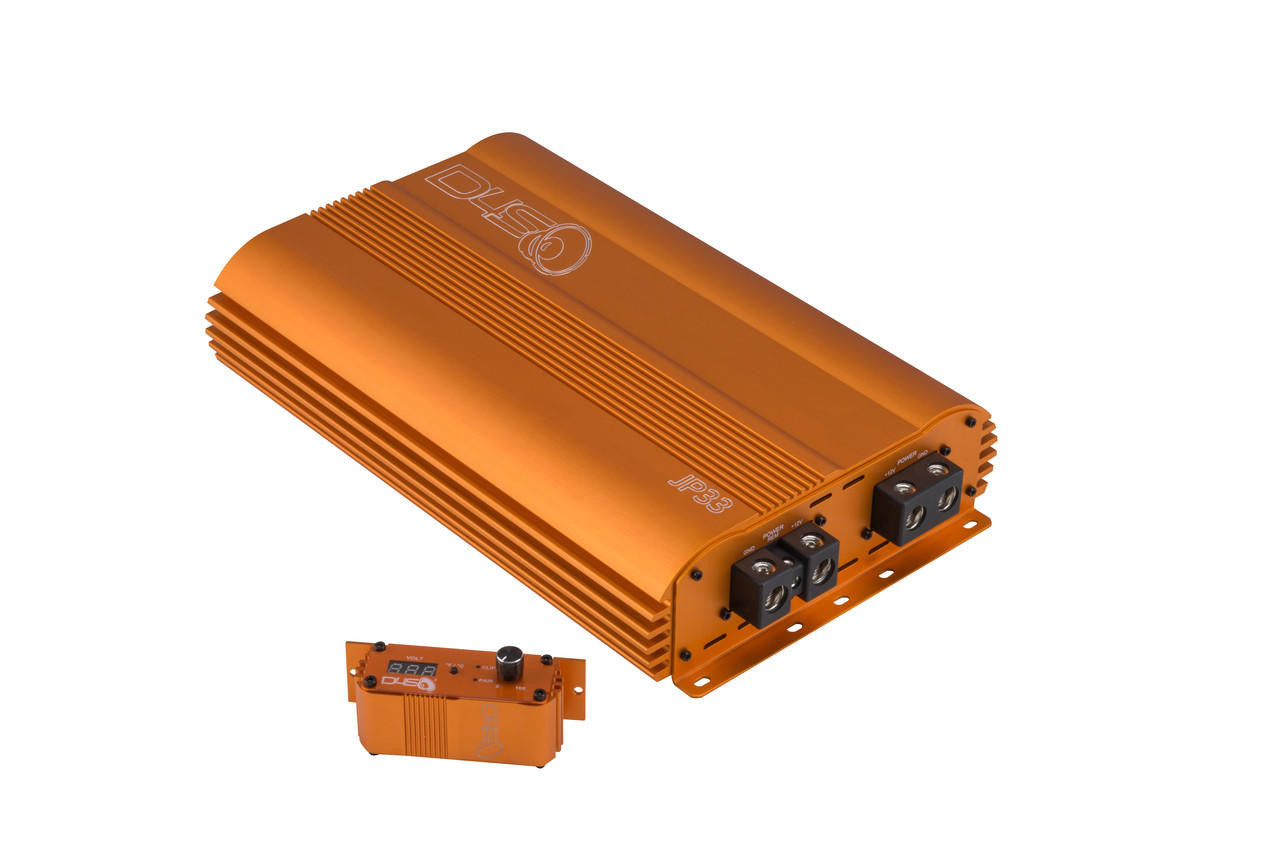

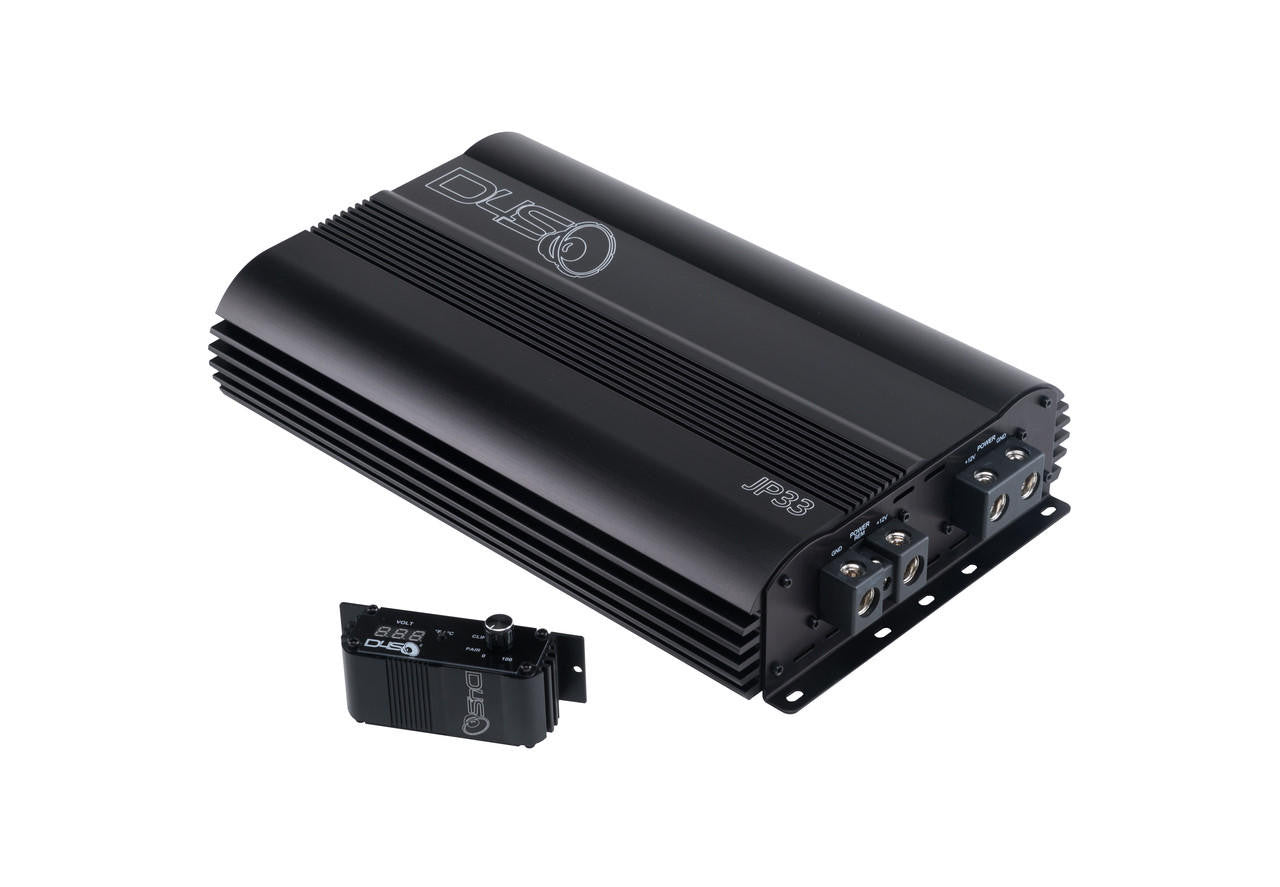

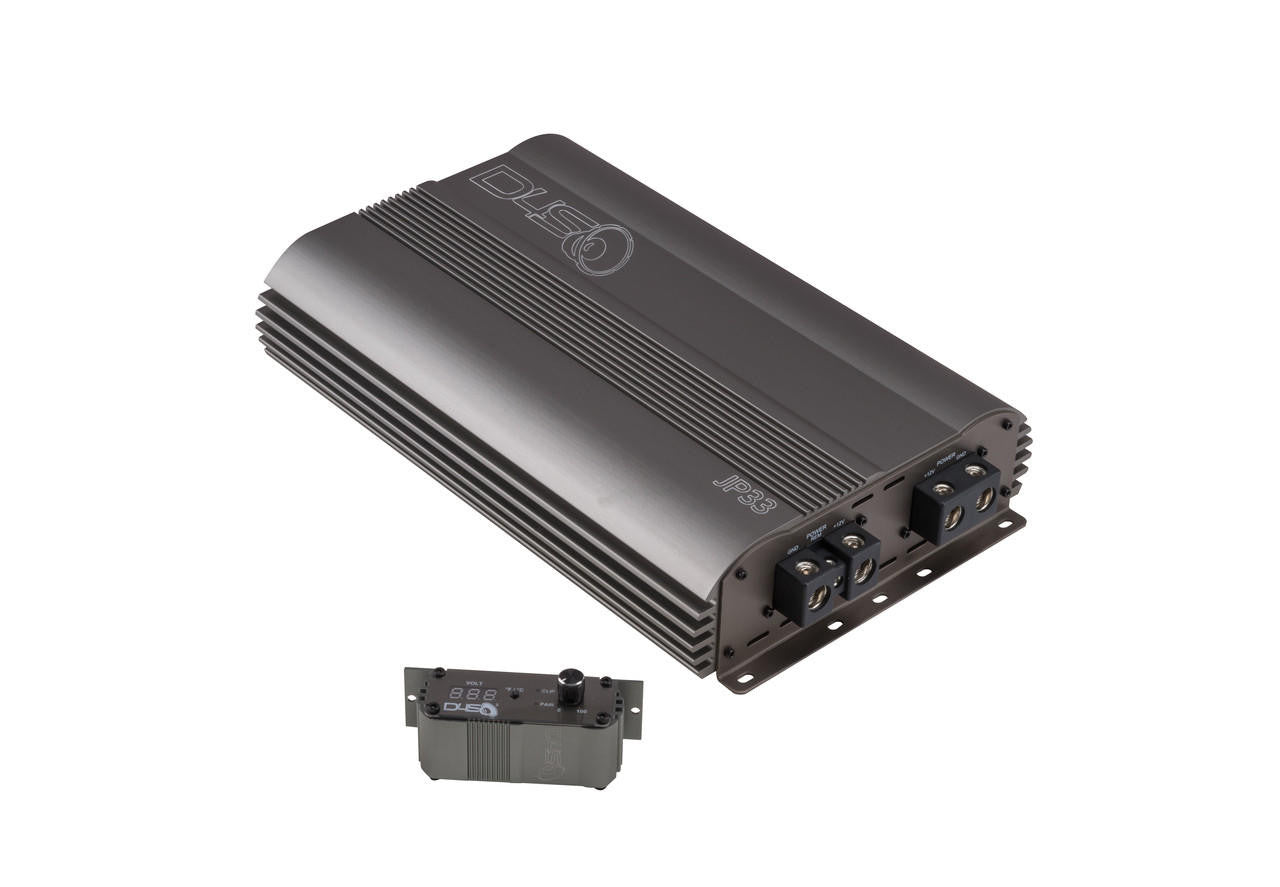

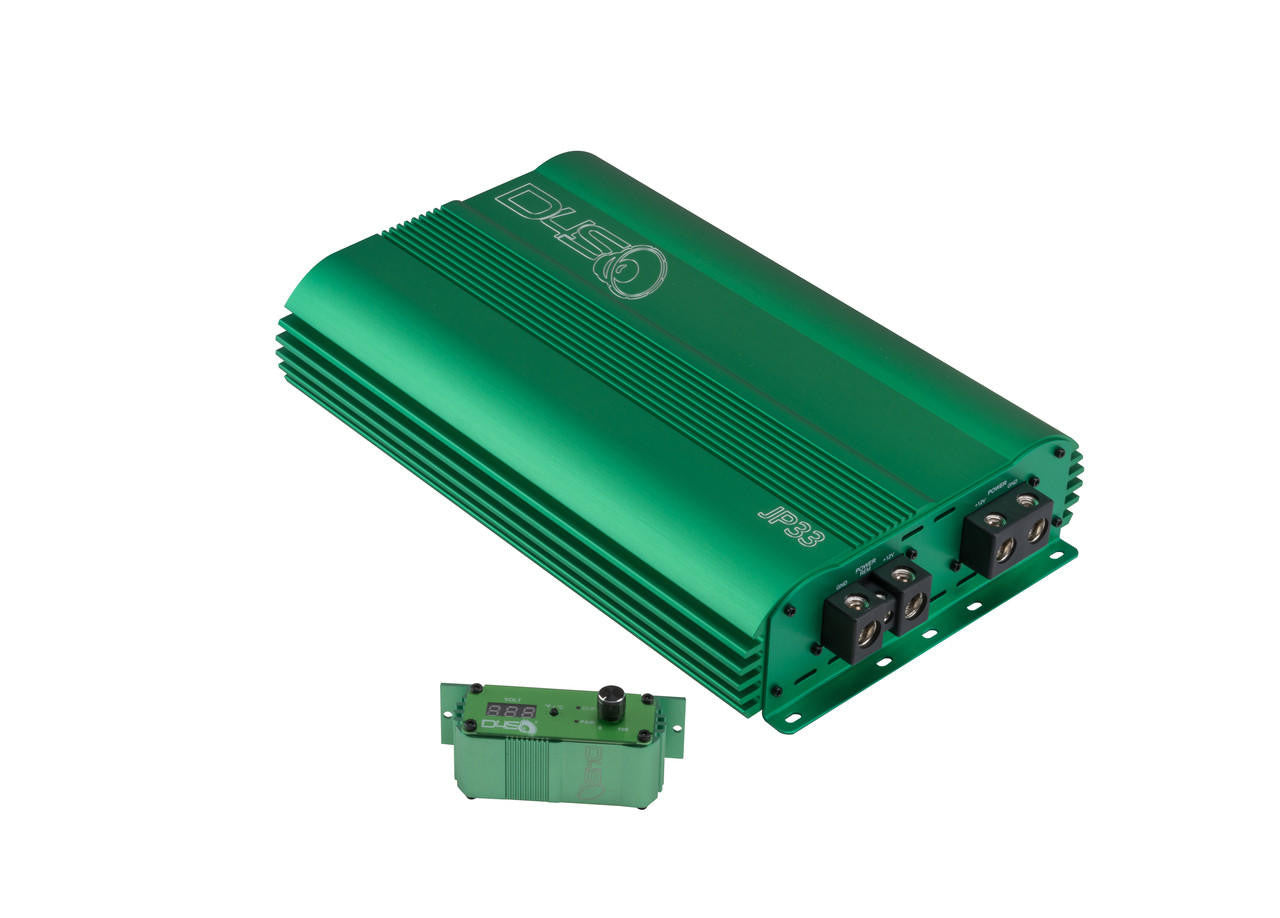

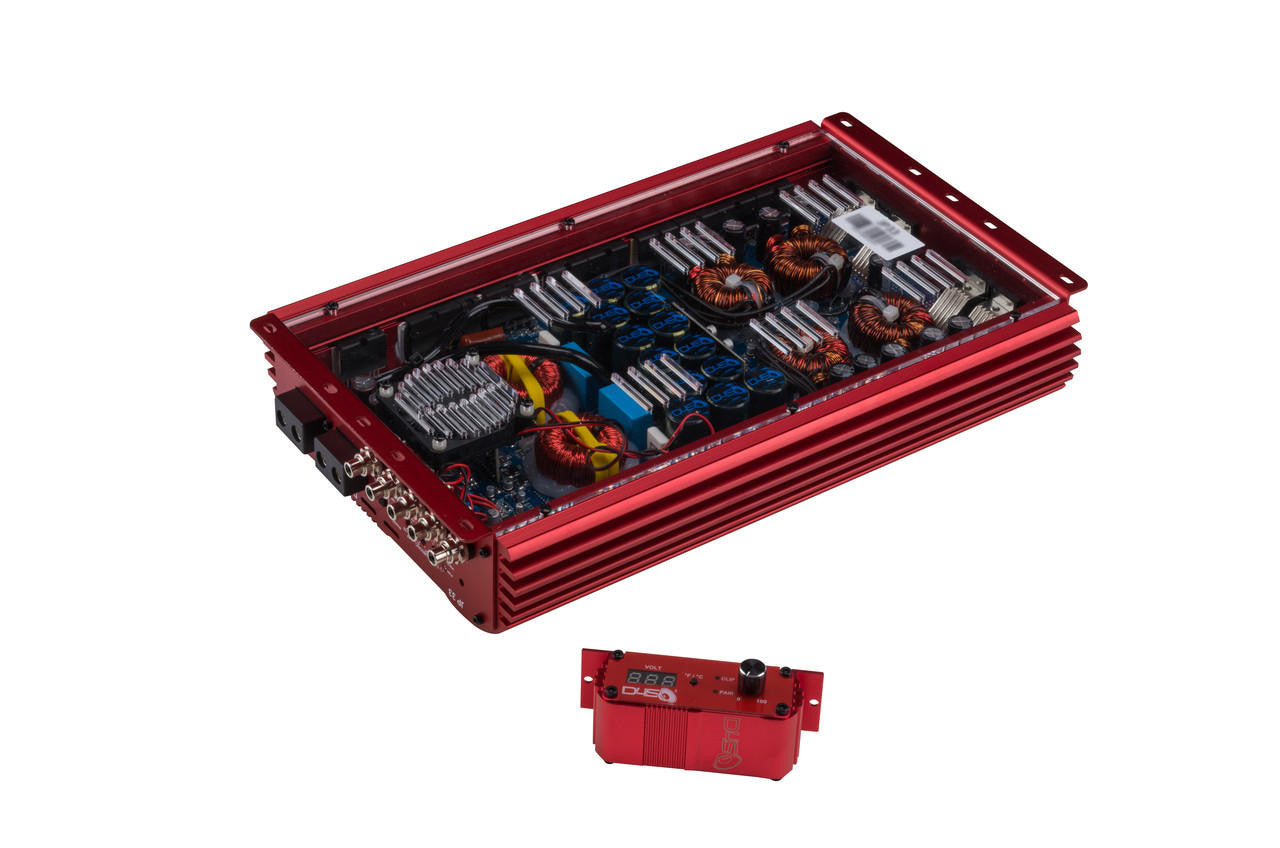

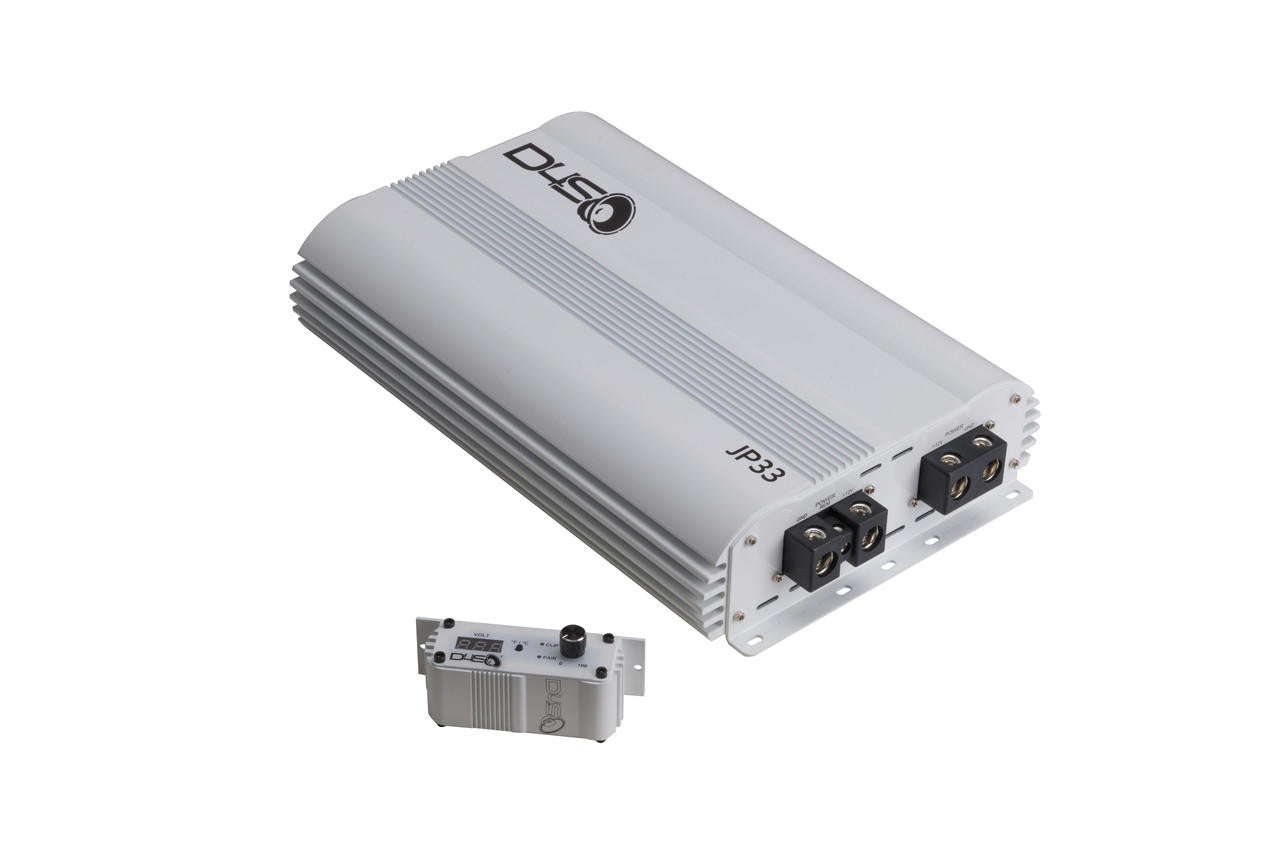

Down4Sound JP33 3300W RMS Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.

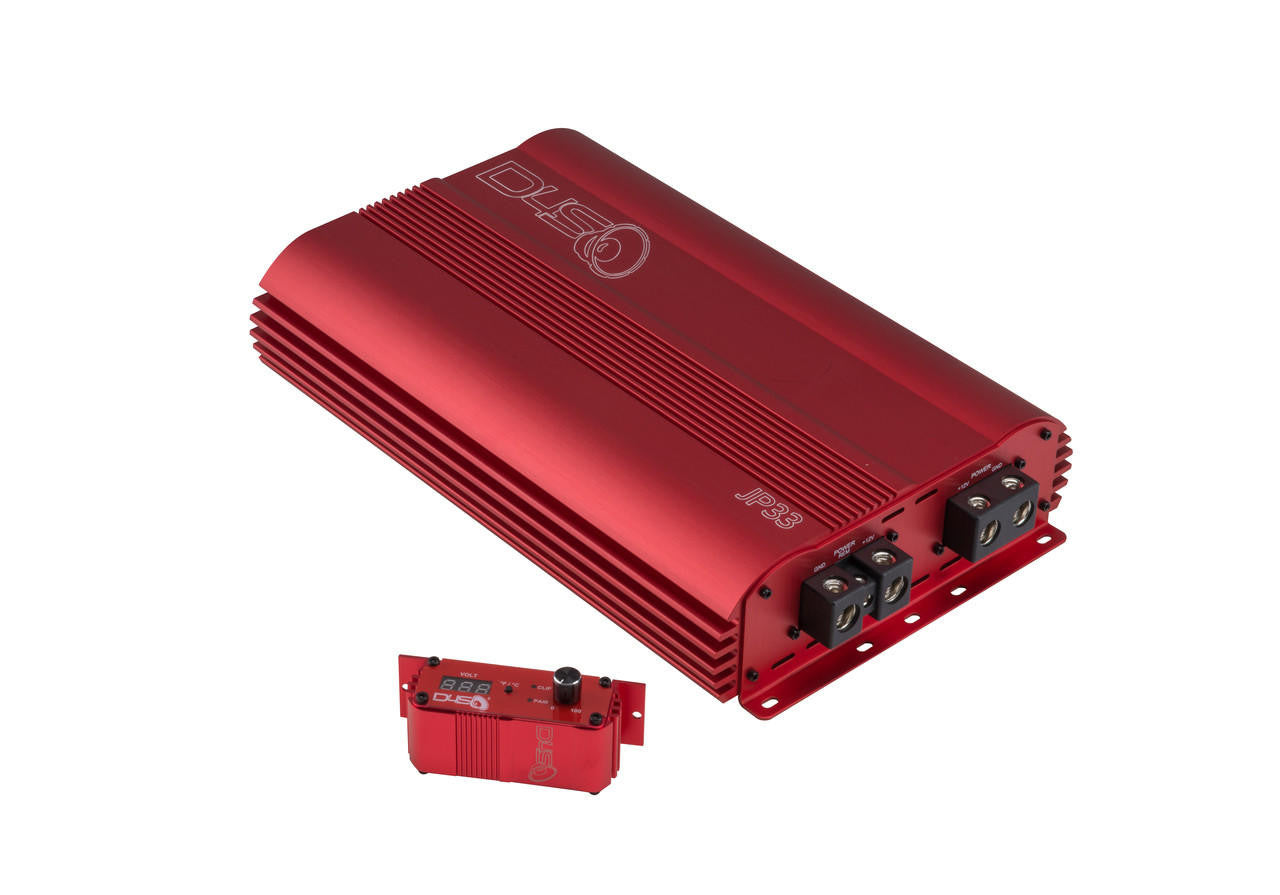

Overview: Experience unparalleled audio performance with the JP-33, a monoblock amplifier that's a true giant in sound amplification. With a staggering 3300 WATT RMS, this amplifier is more than just powerful; it delivers deep bass and immense sound, guaranteeing an extraordinary audio journey. Don't miss the JP33 amp dyno video in our videos section!
Key Features:
- Power Ratings:
- 1-ohm: 3300 WATTS RMS
- 2-ohm: 2300 WATTS RMSw
- 4-ohm: 1200 WATTS RMS
Essential Requirements:
- Electrical Upgrade: Required for warranty.
- Supportive Components: BIG 3, upgraded alternator, and reserve battery(s) for optimal performance.
Specifications:
- Frequency Response: 14Hz – 260Hz
- Signal to Noise Ratio: 96dB
- Damping Factor: >300
- Input Sensitivity: 6V – 0.2V

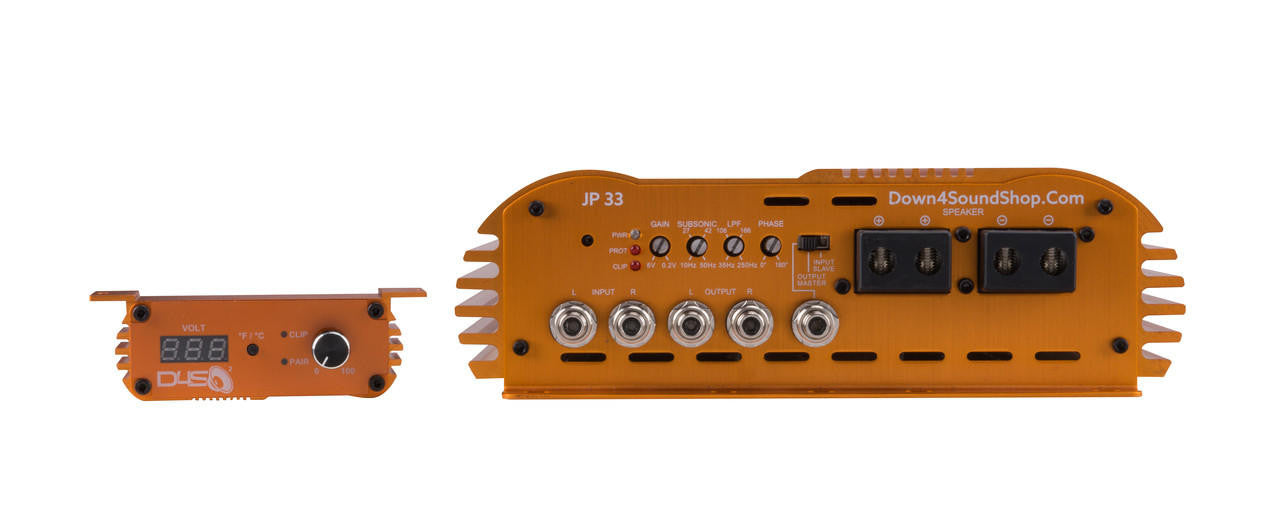

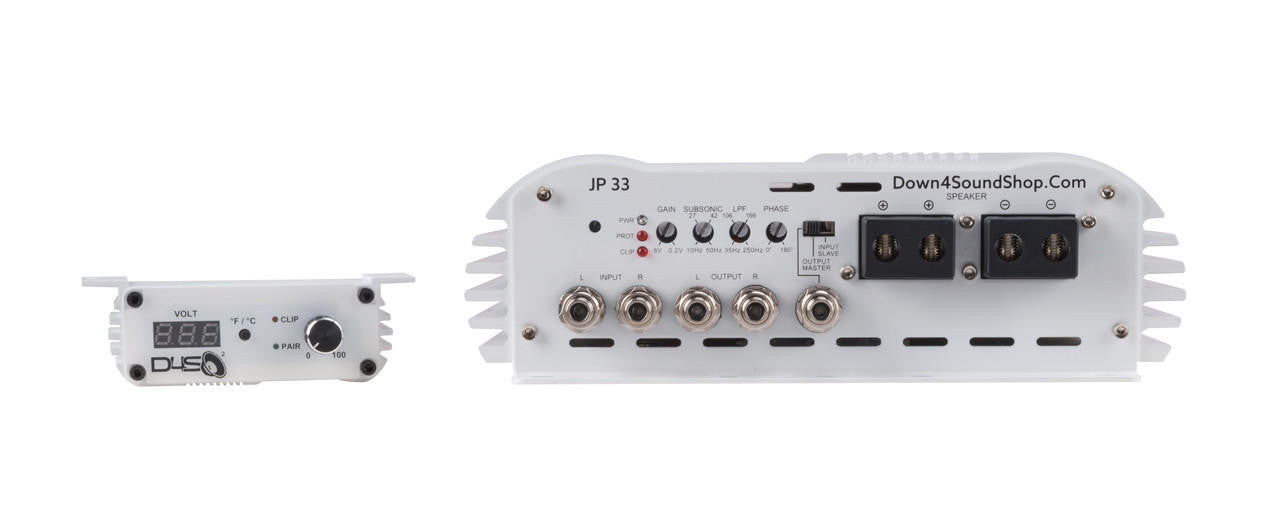

Filters and Phase Adjustments:
- Subsonic Filter: 10Hz – 50Hz
- Low Pass Filter: 35Hz – 250Hz
- Phase Adjustment: 0 – 180 degrees

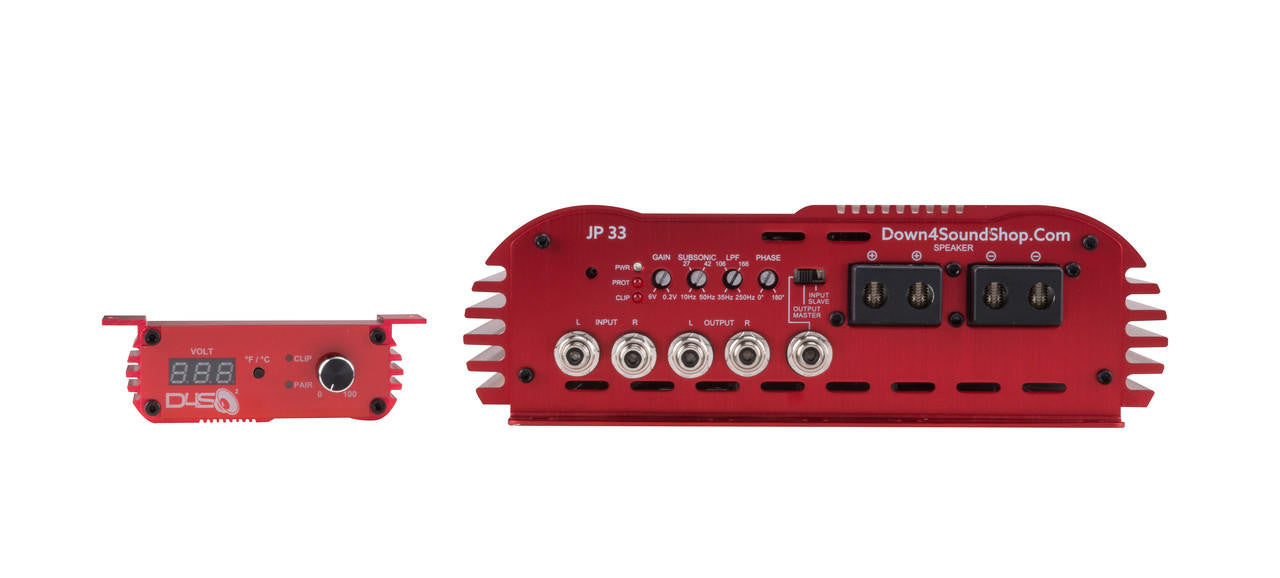

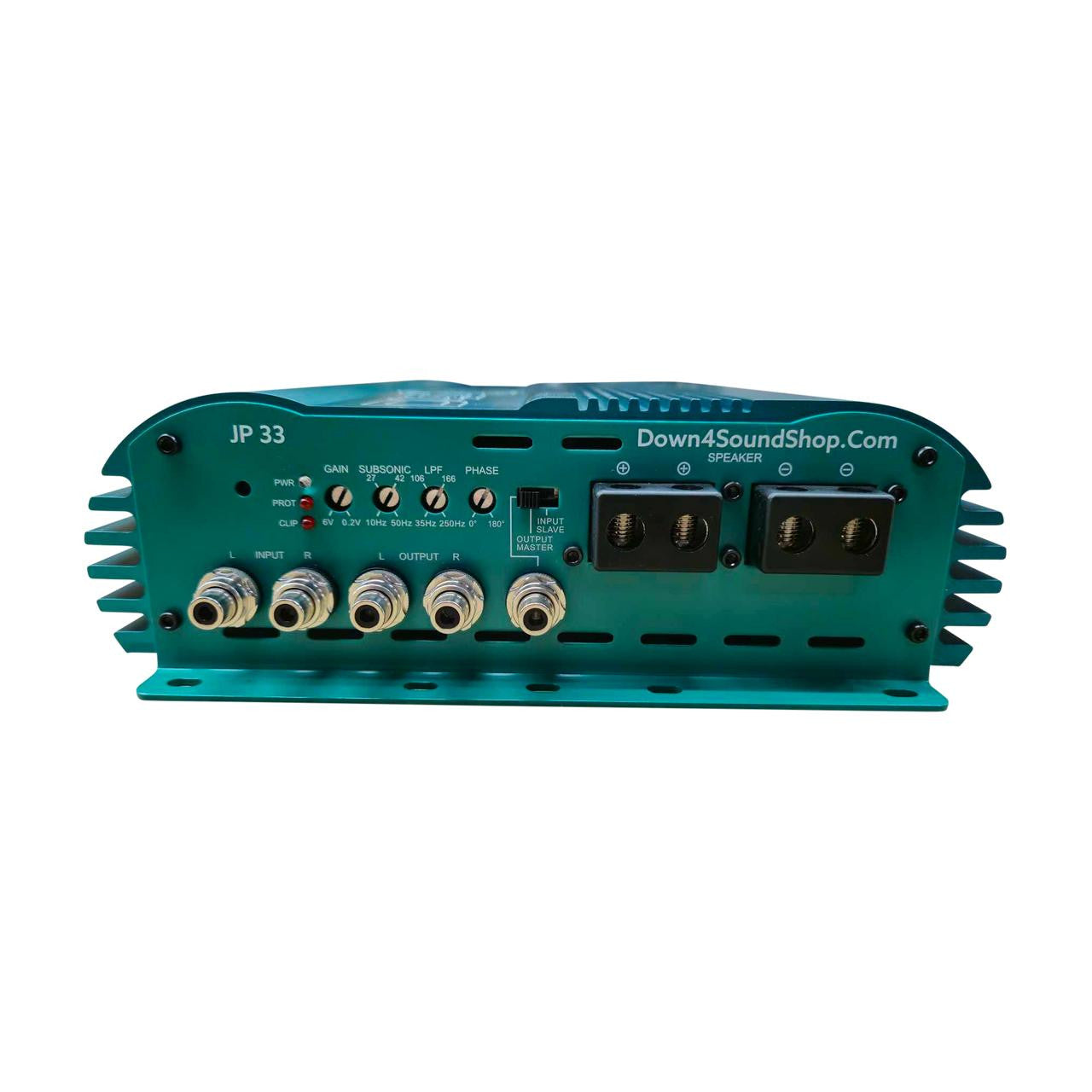

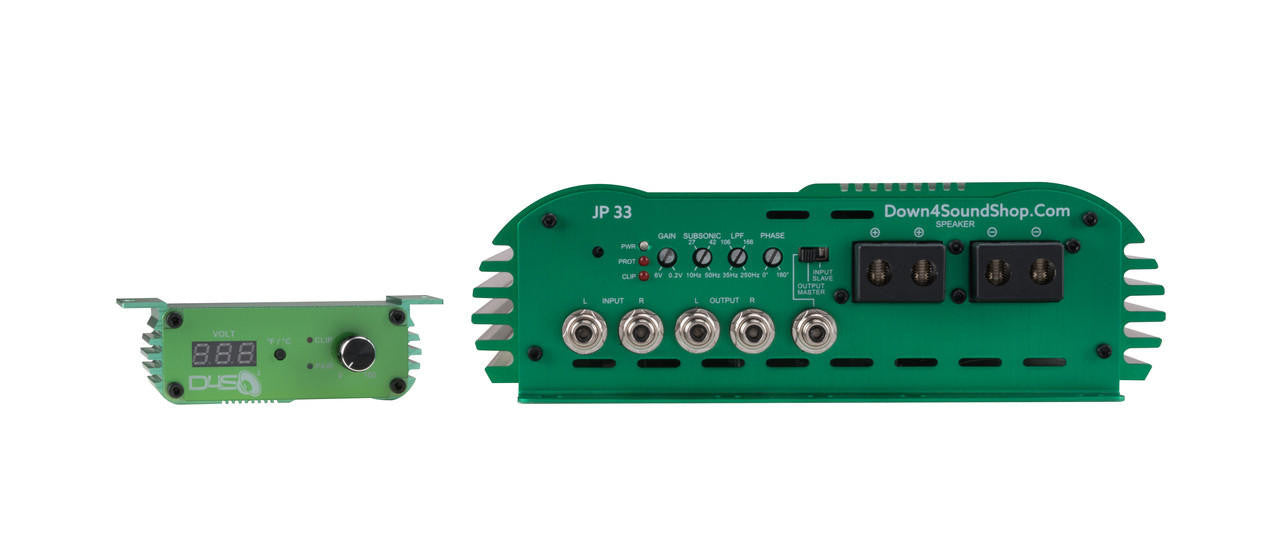

Connectivity:
- Strappable Connection
- 4 GA SPEAKER OUTPUT

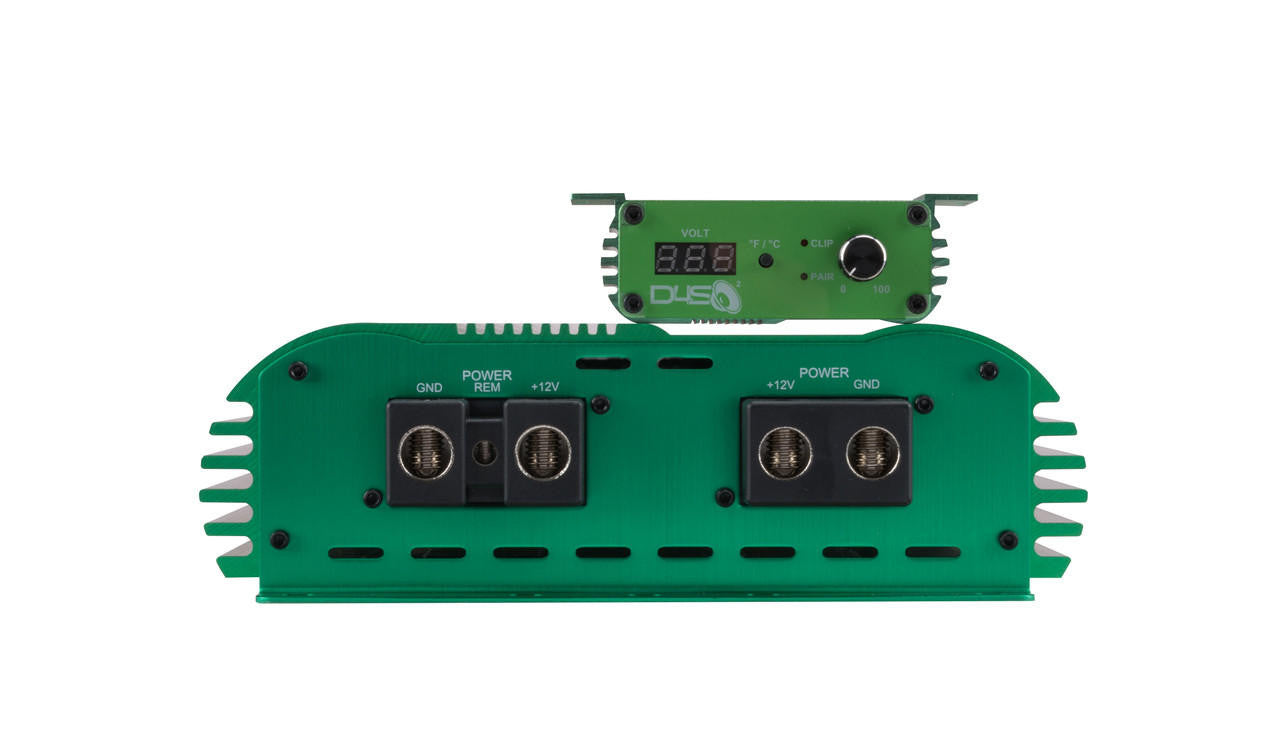

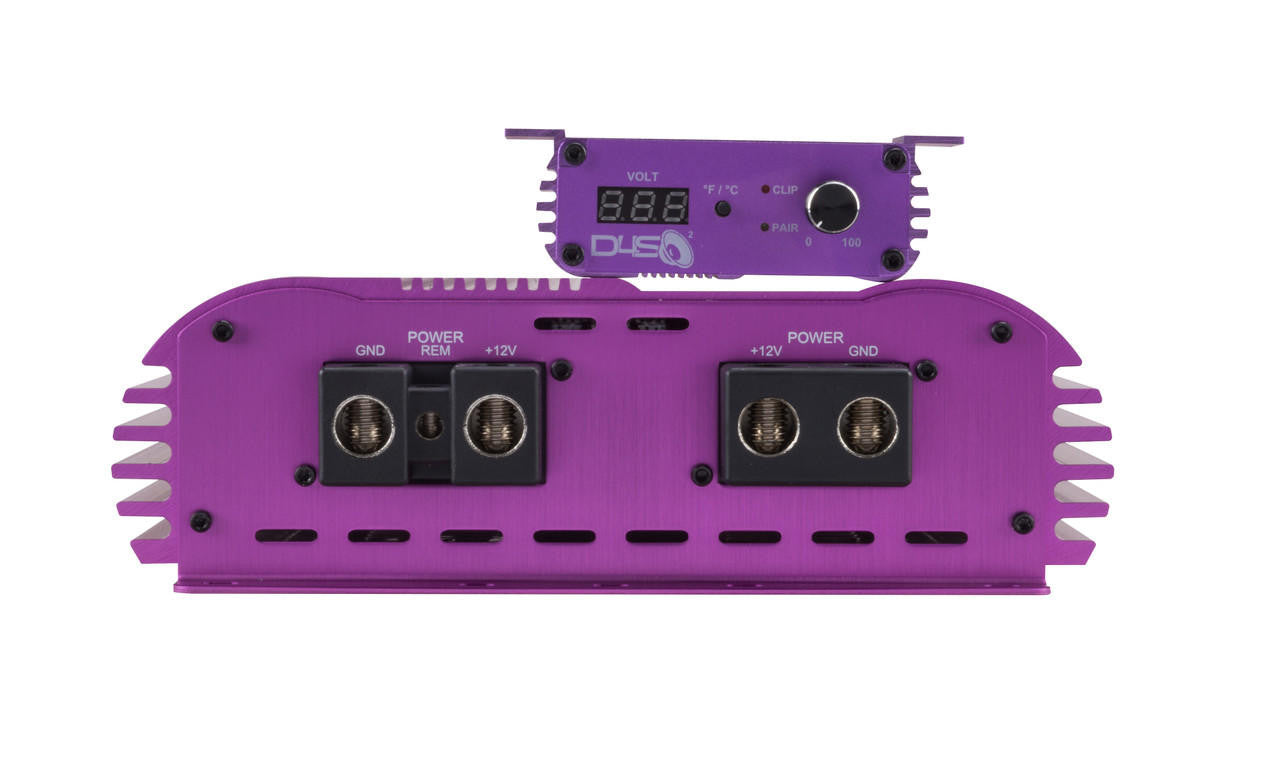

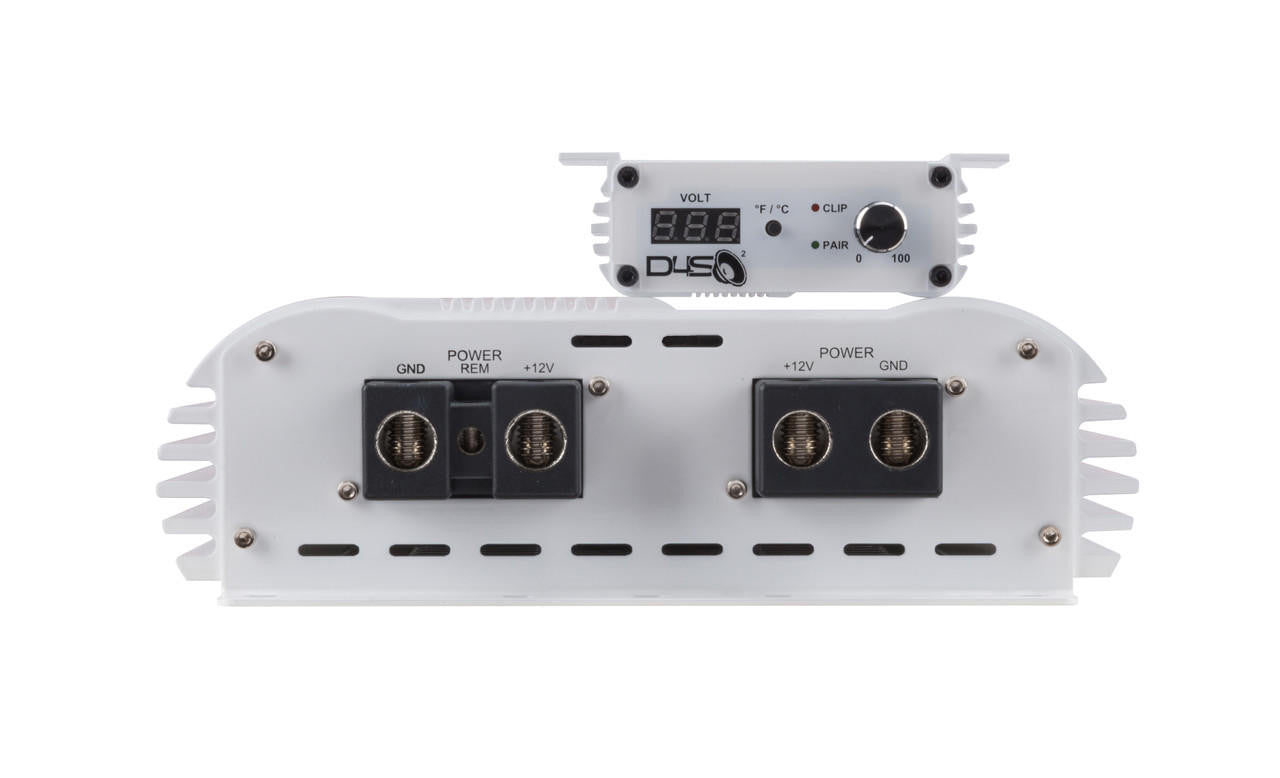

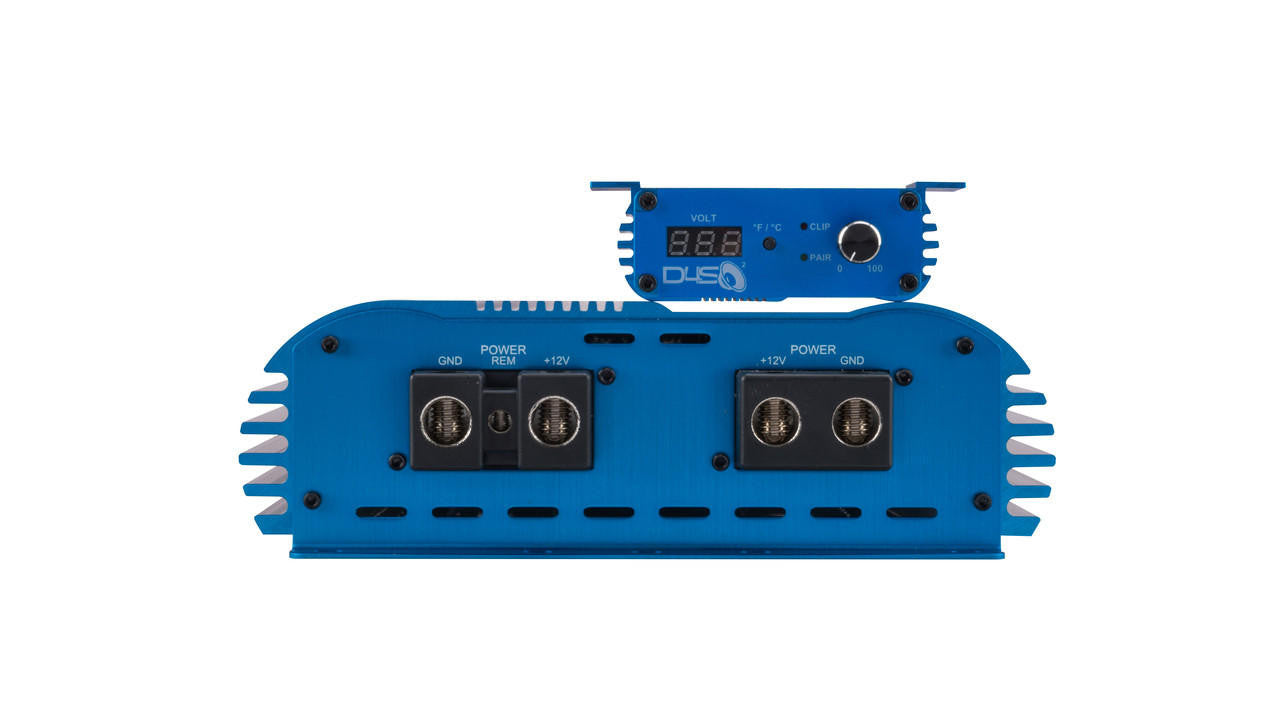

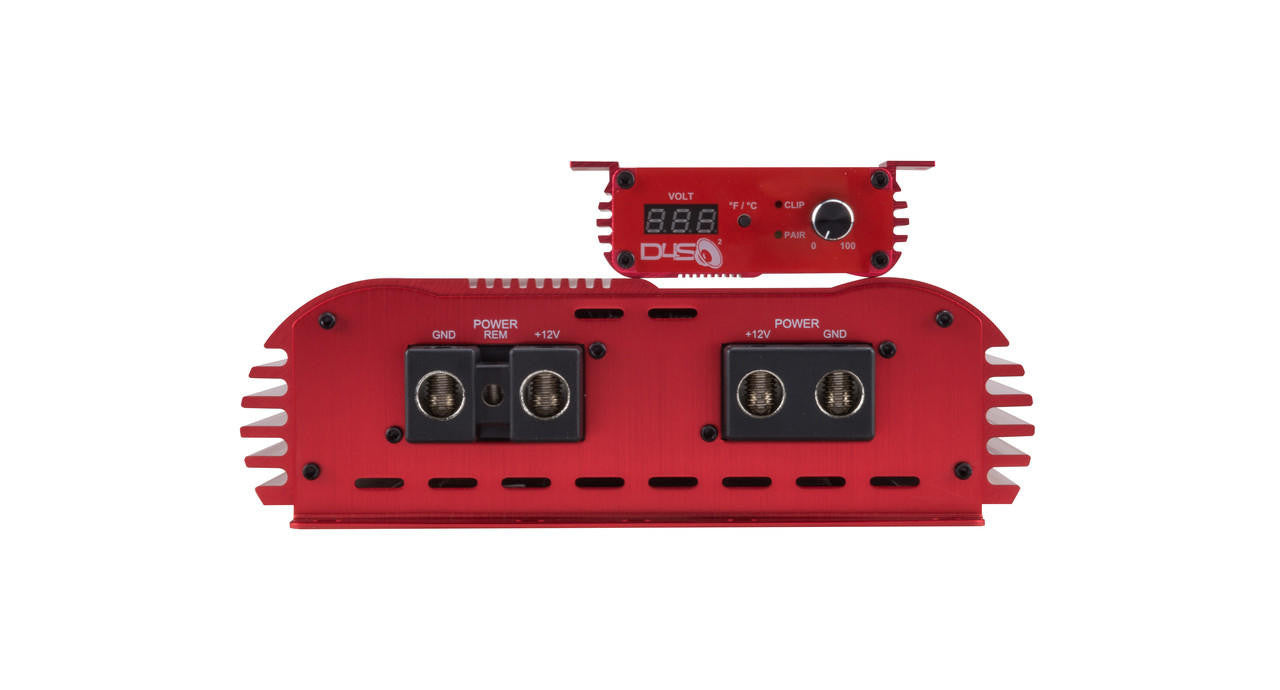

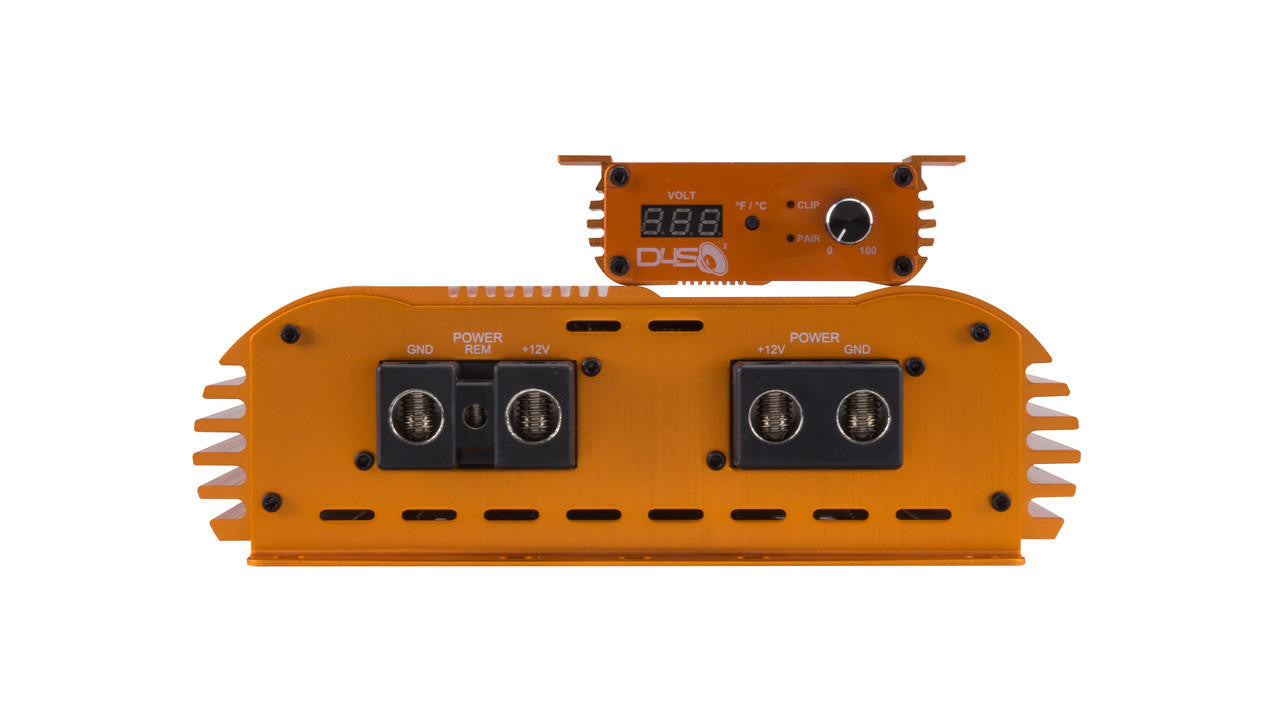

- 2 X 0 GA WIRE INPUT FOR POWER & GROUND
- Fusing: 350A TOTAL (175A each positive input x2)
Dimensions:
- Length: 13.8 inches
- Width: 9.37 inches
- Height: 2.63 inches
Origin:
- MADE IN SOUTH KOREA
Advanced Control:
- Remote Control: Patent Pending BT with voltage and temperature display, and clipping indicator.
- Remote Power Requirements: Type C connection; external battery or USB power source (non-rechargeable).
Strappable Feature:
- Linkable for double power with another JP 33.
Experience the ultimate in sound power with the JP-33 Amplifier, designed for audio excellence with profound BASS. Ready to power up.
