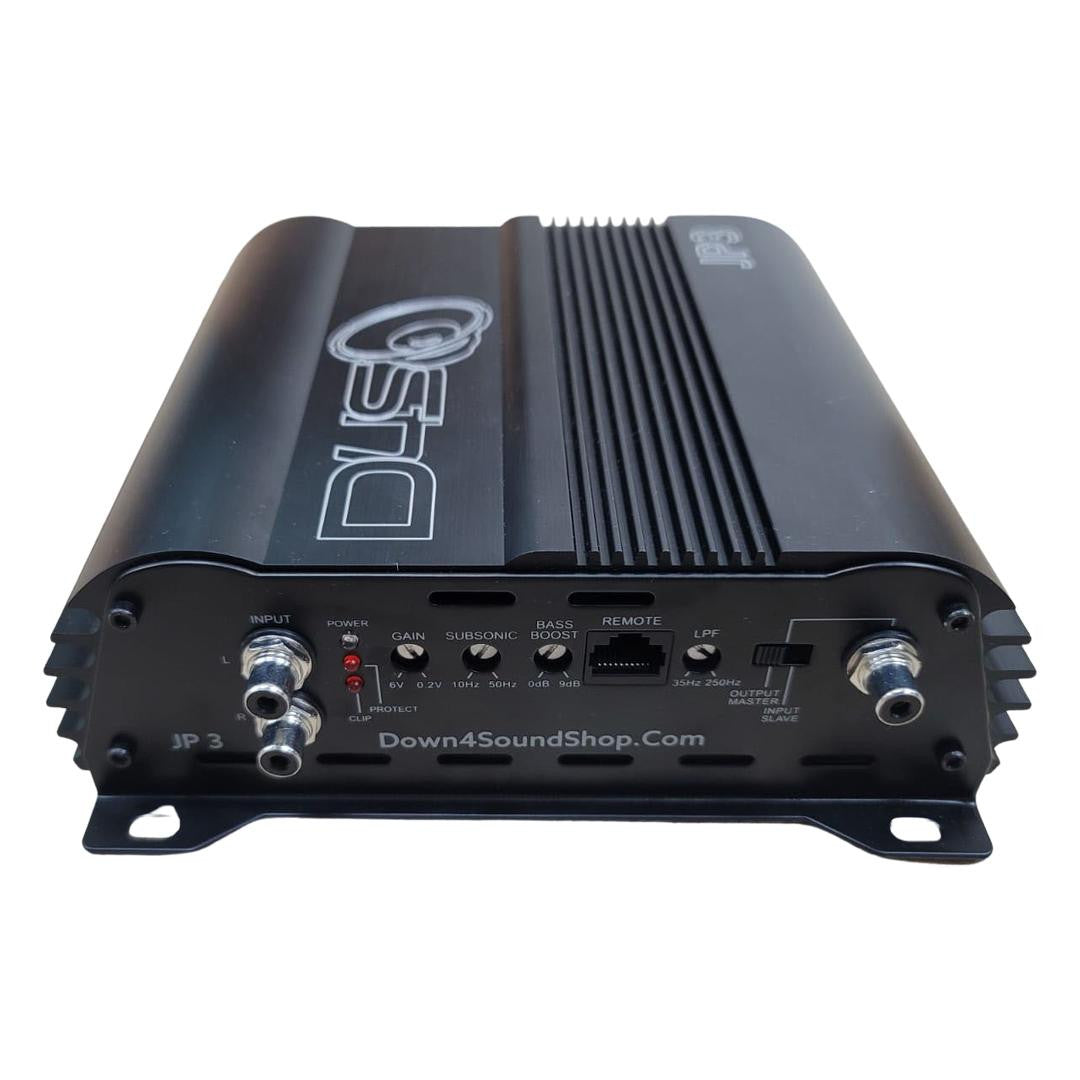

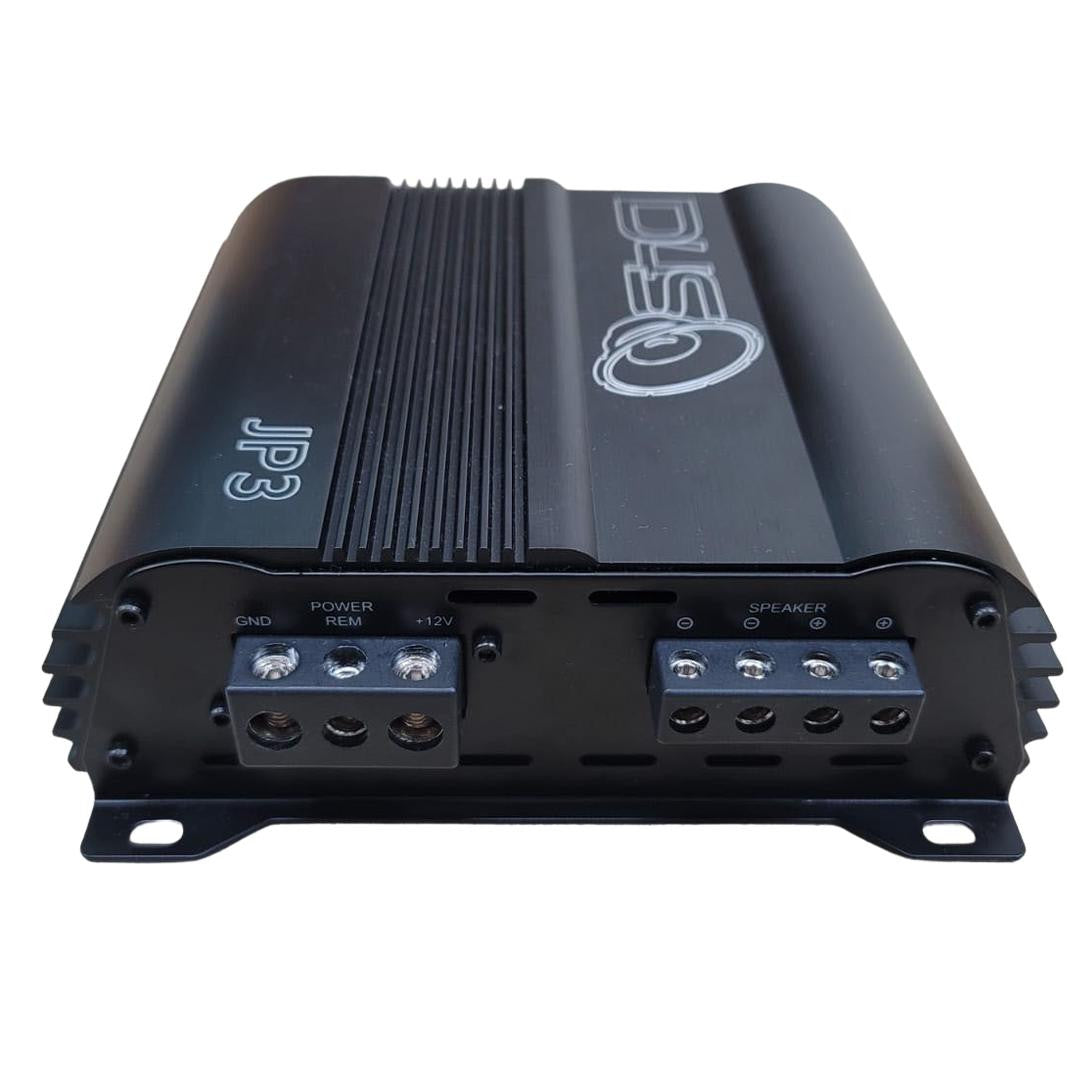

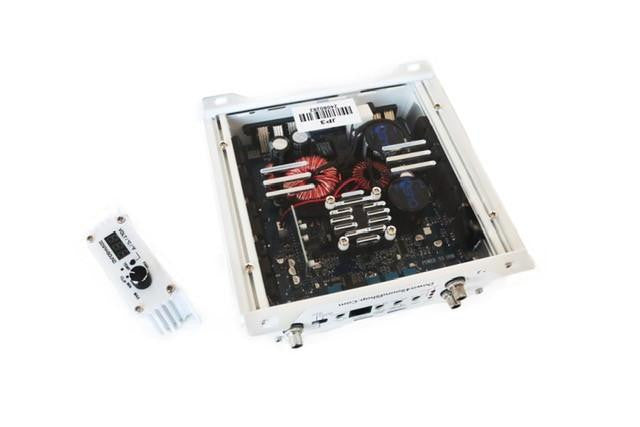

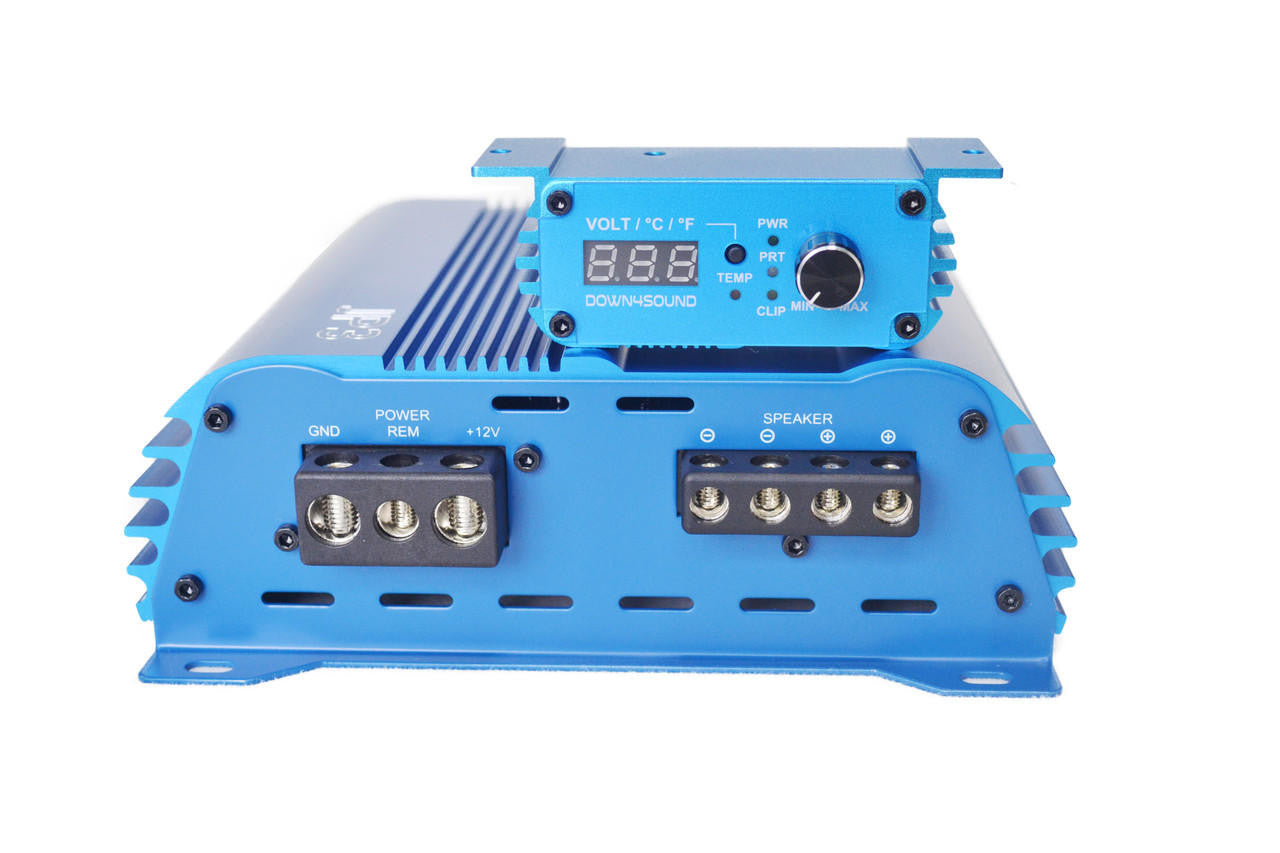

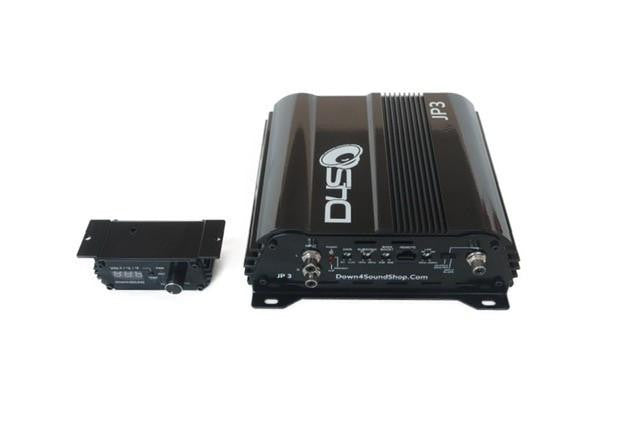

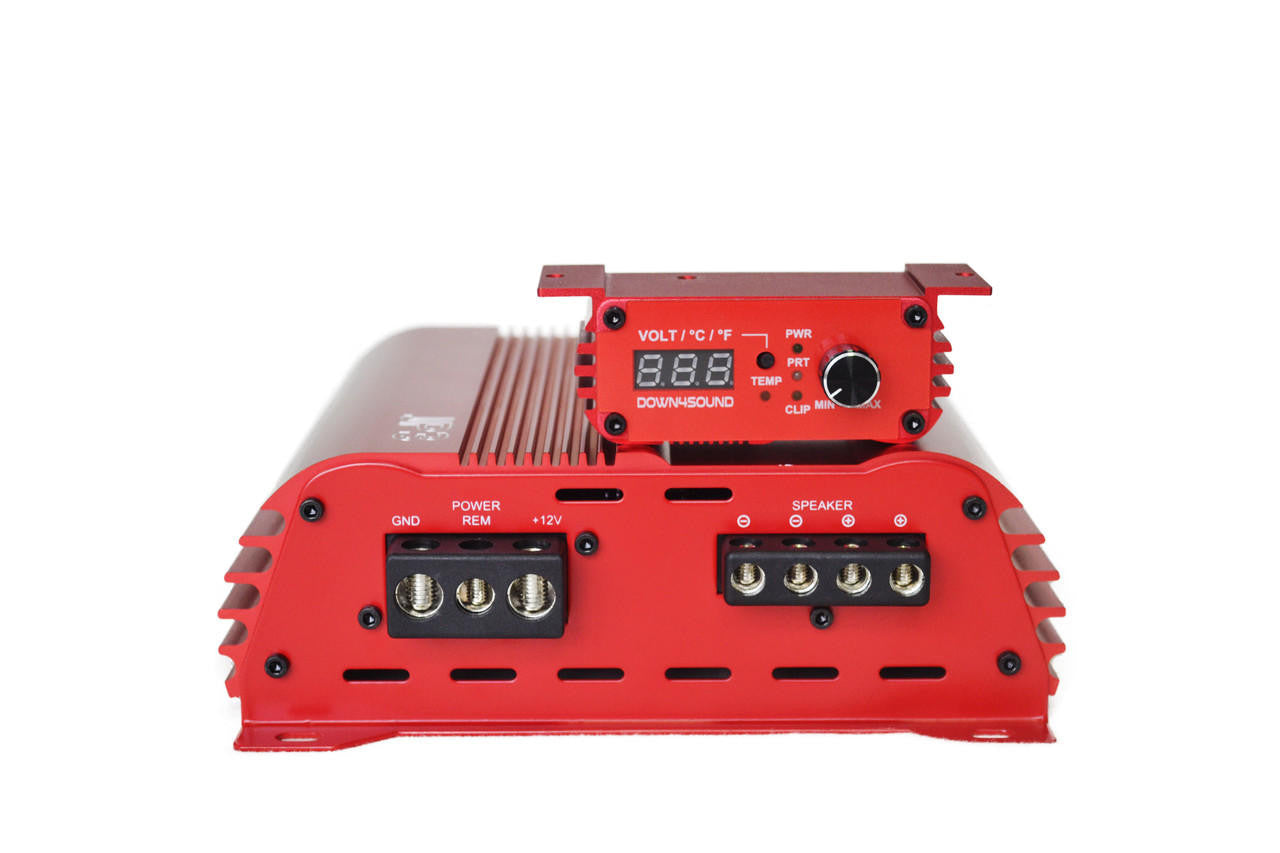

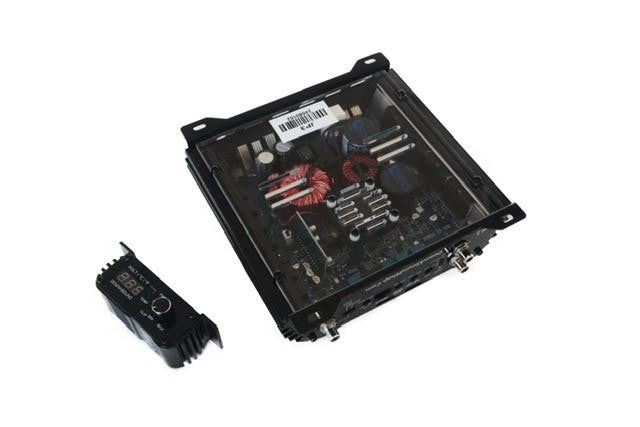

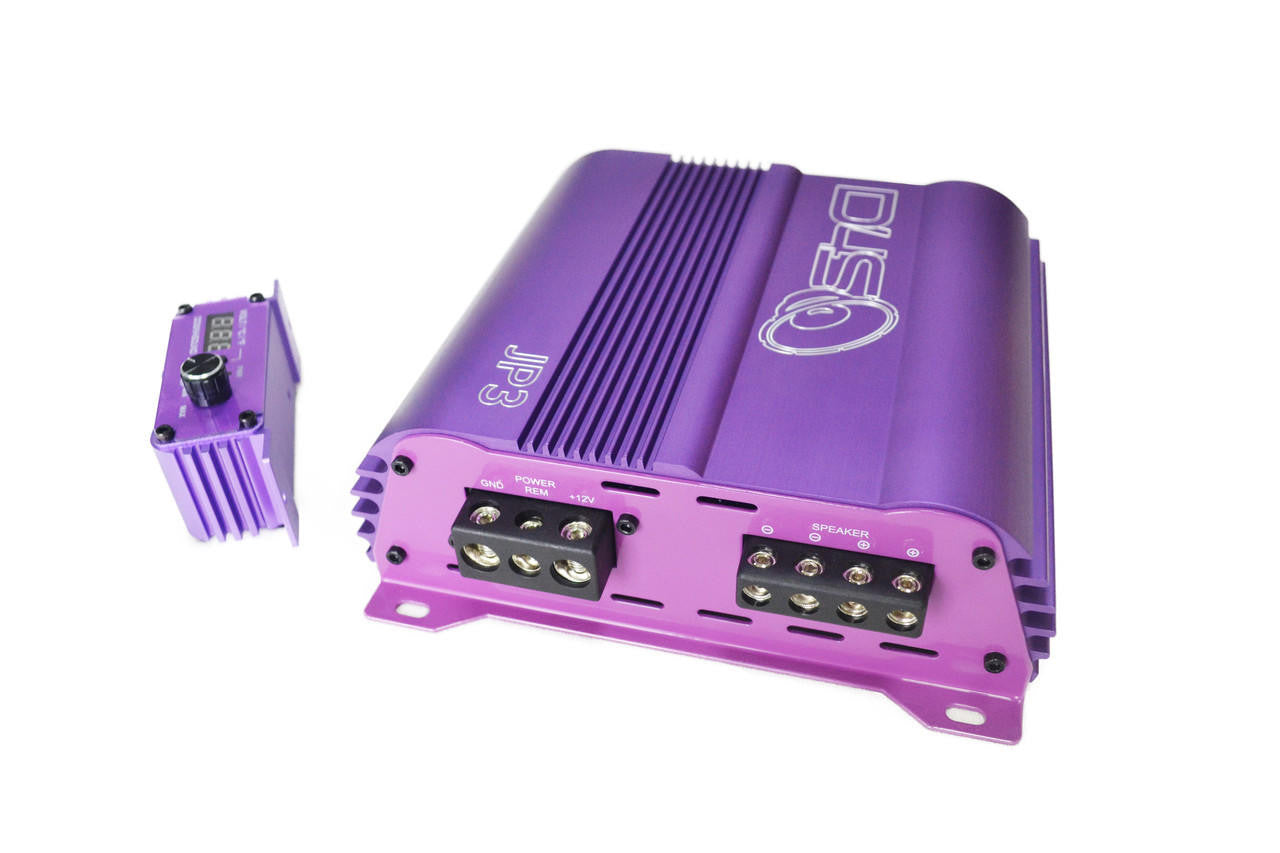

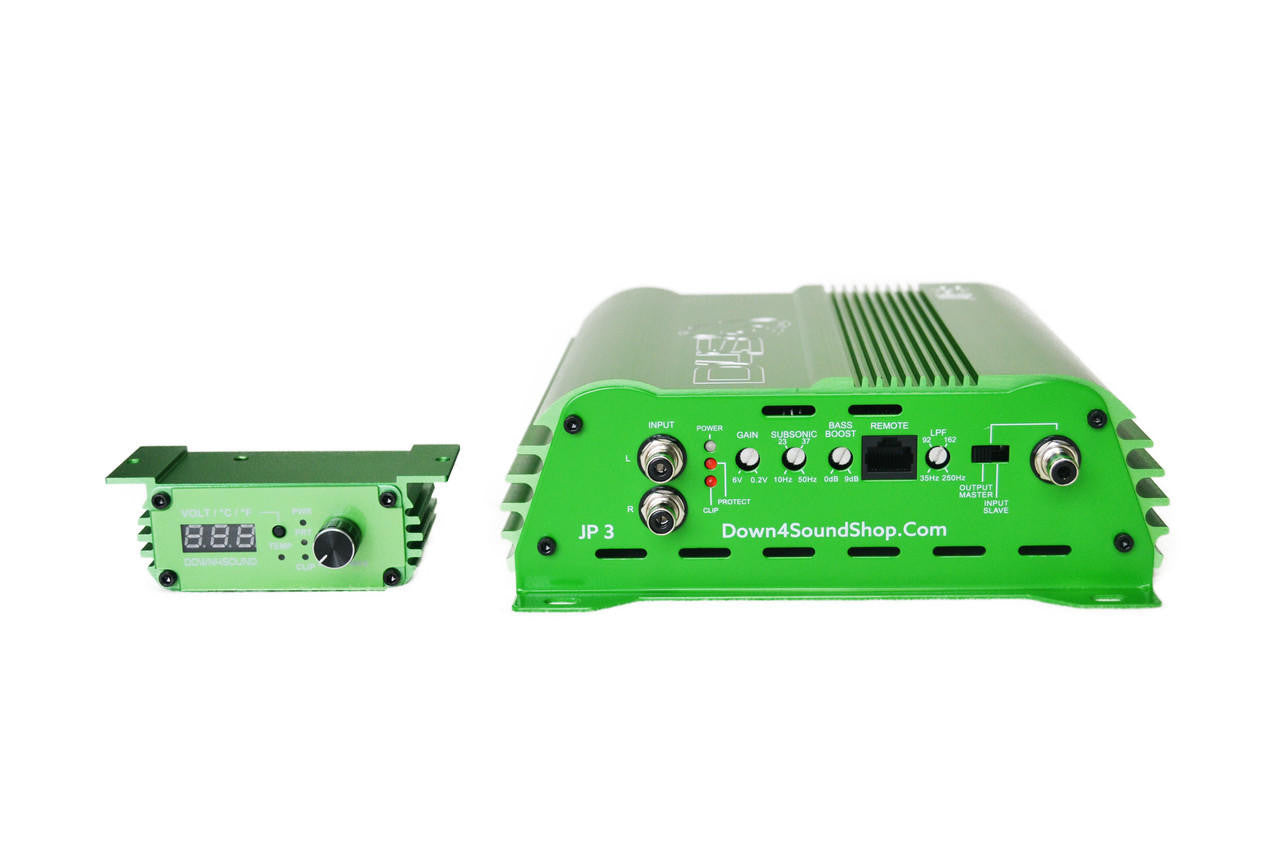

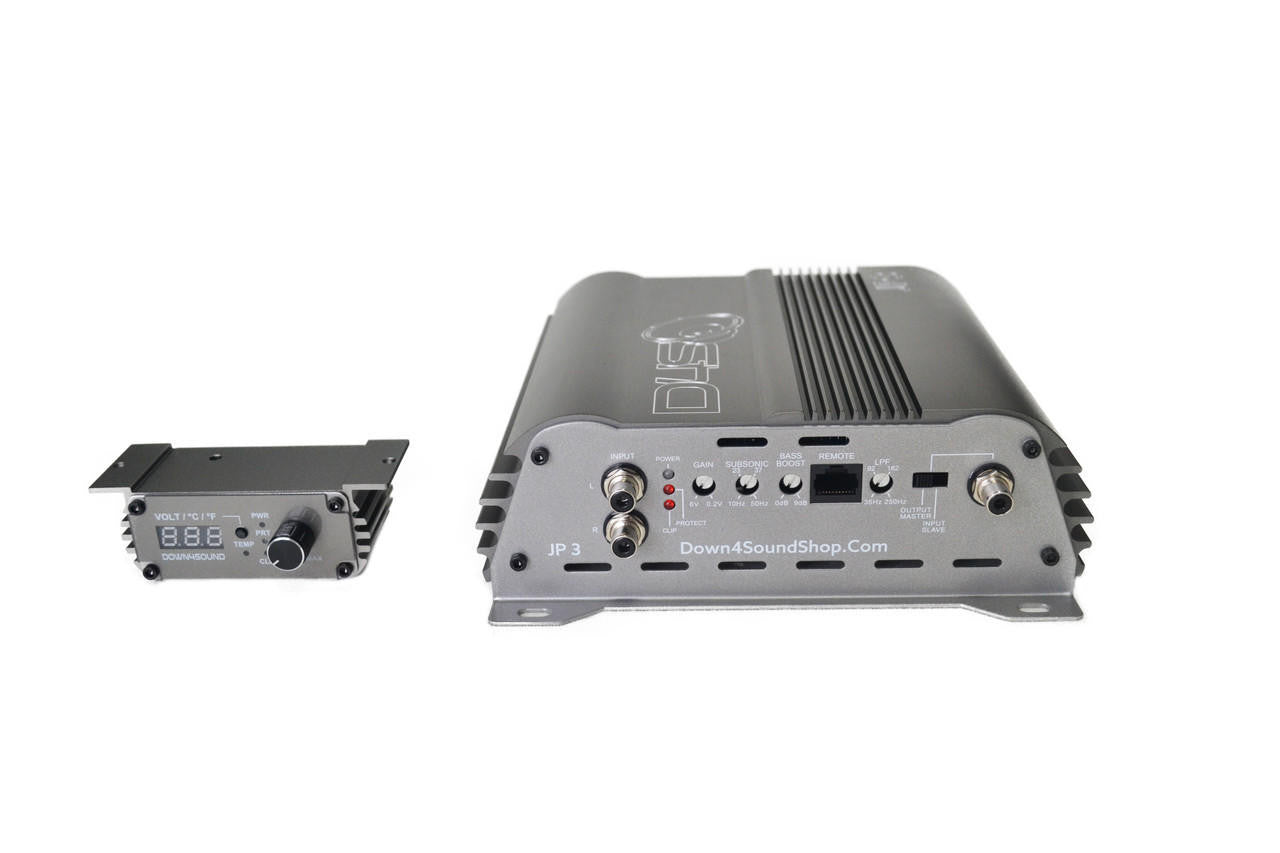

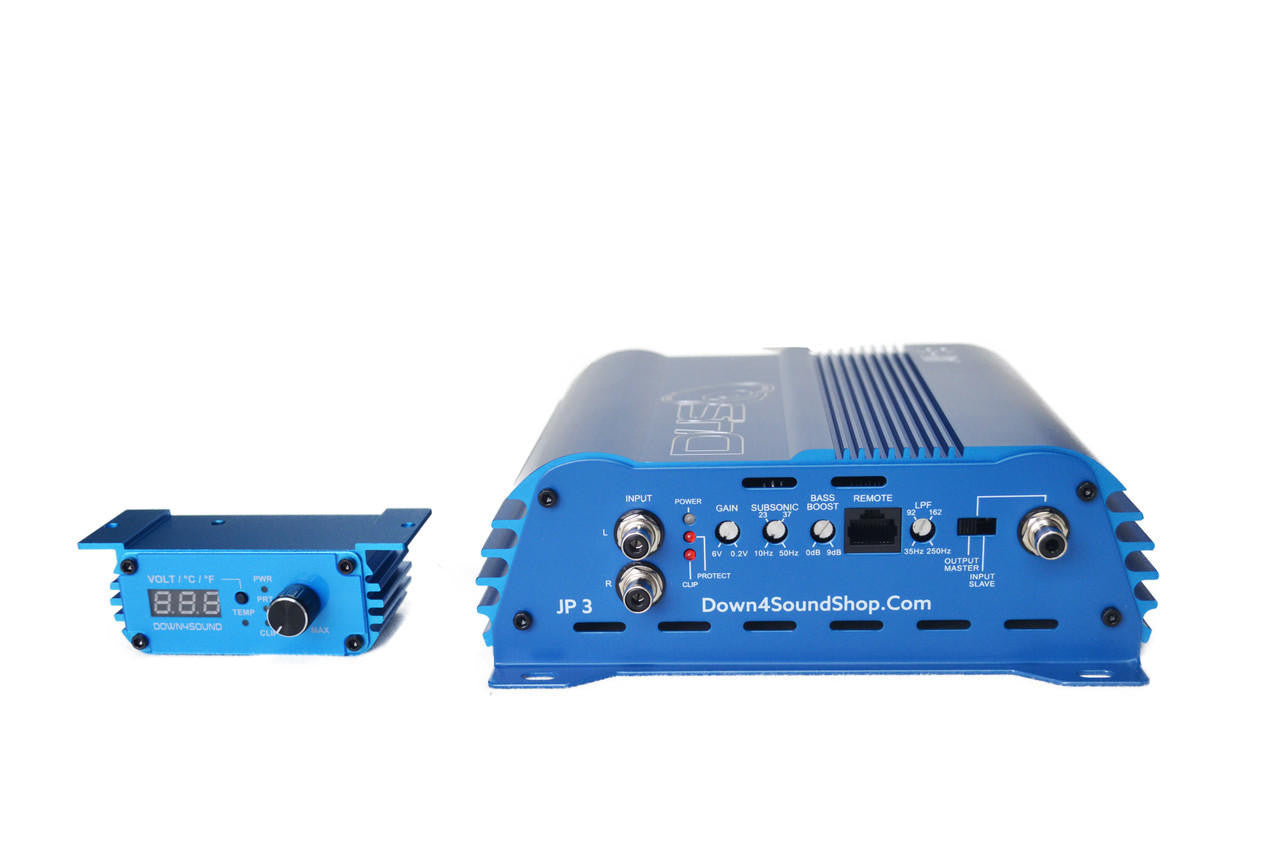

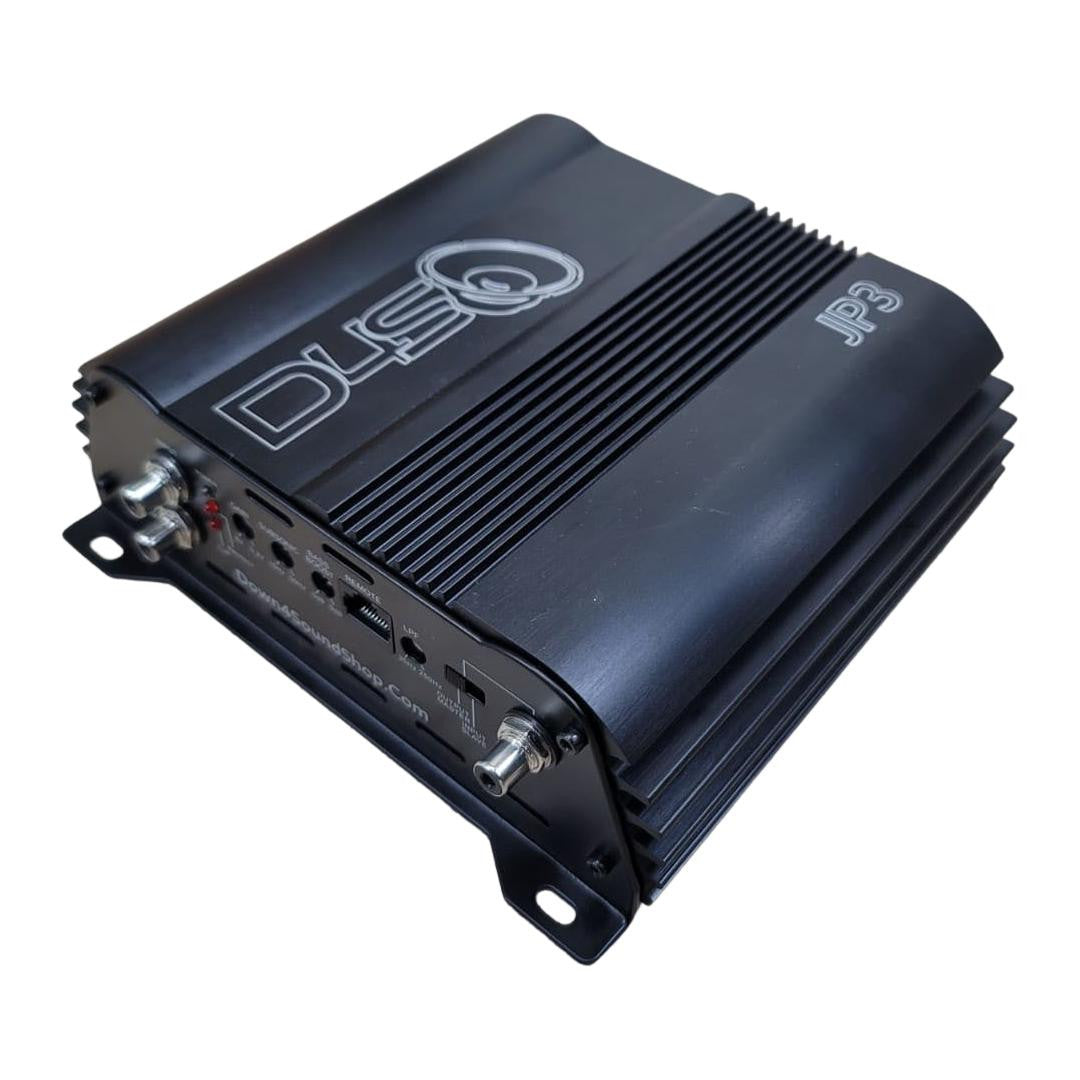

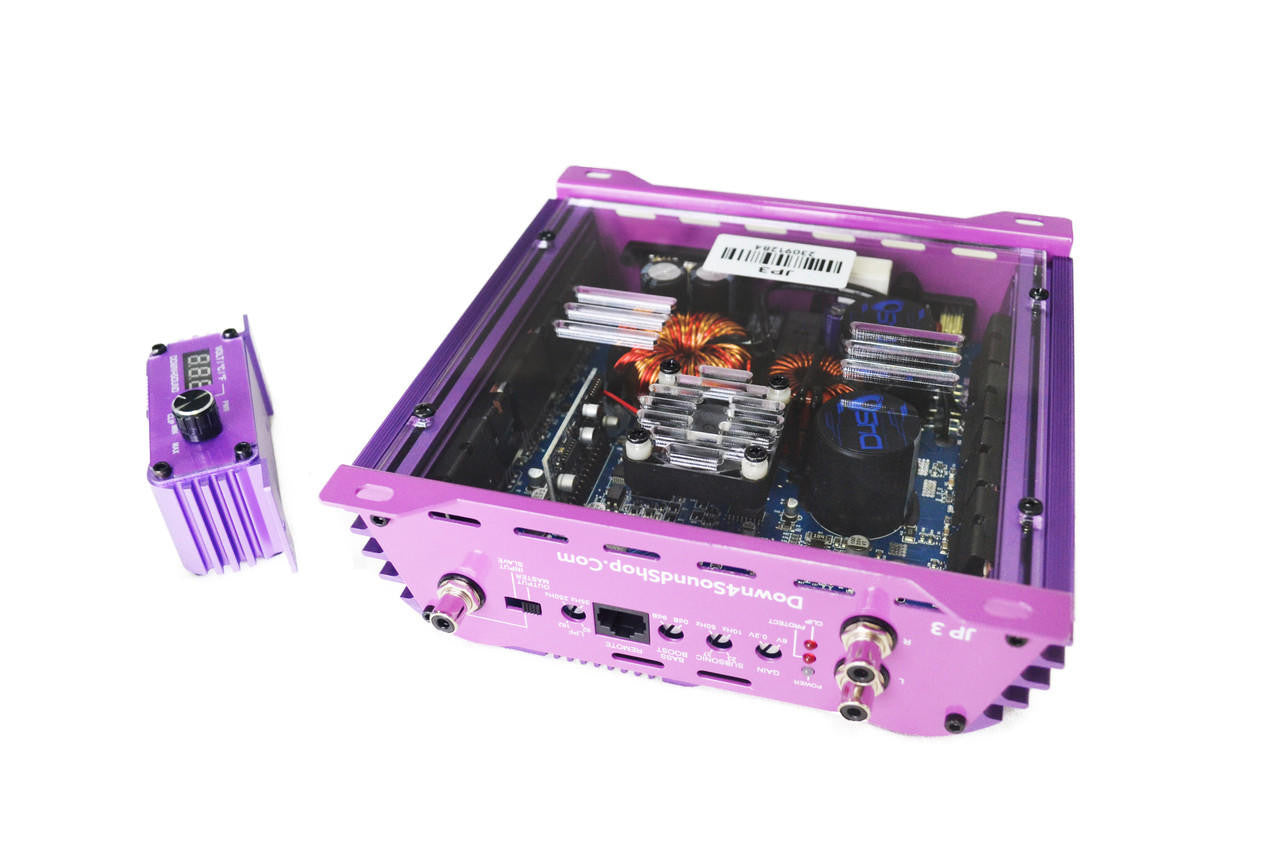

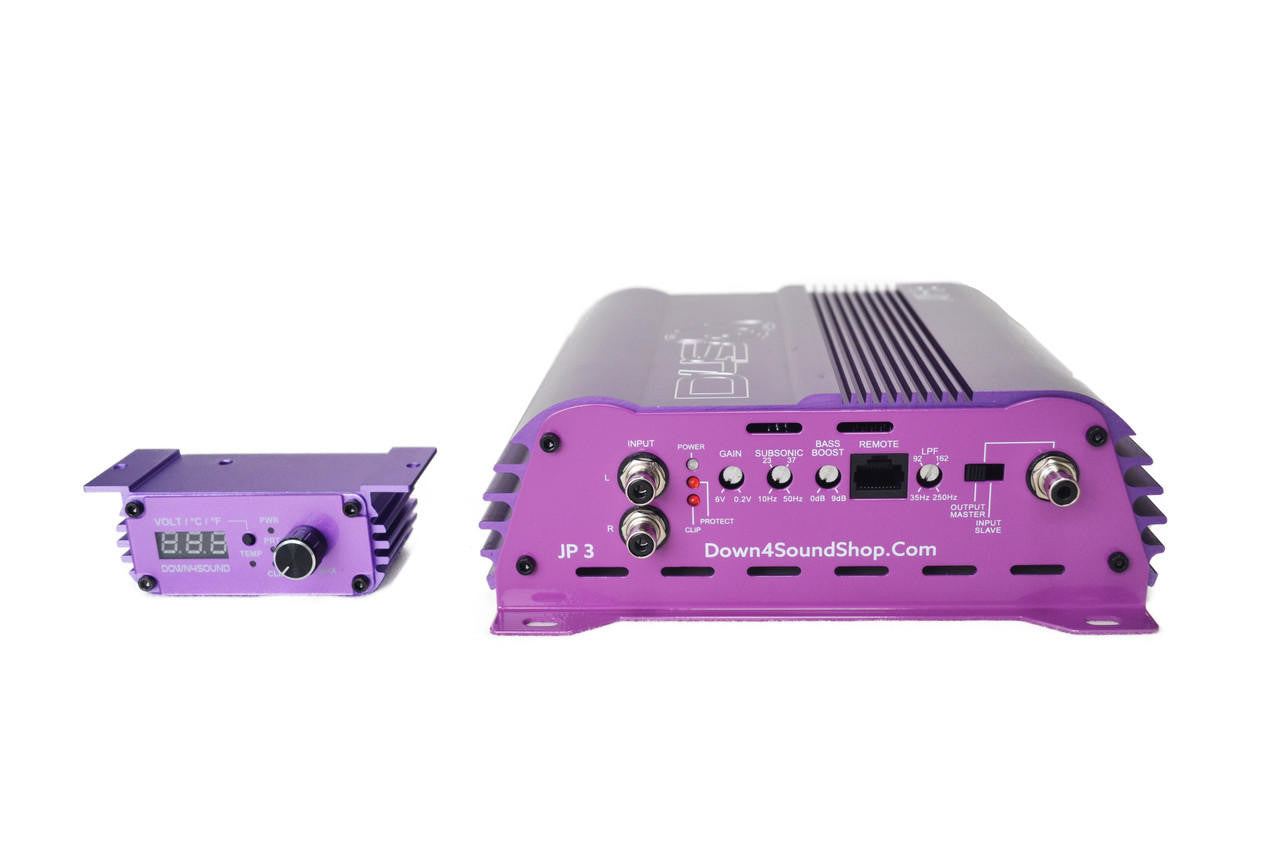

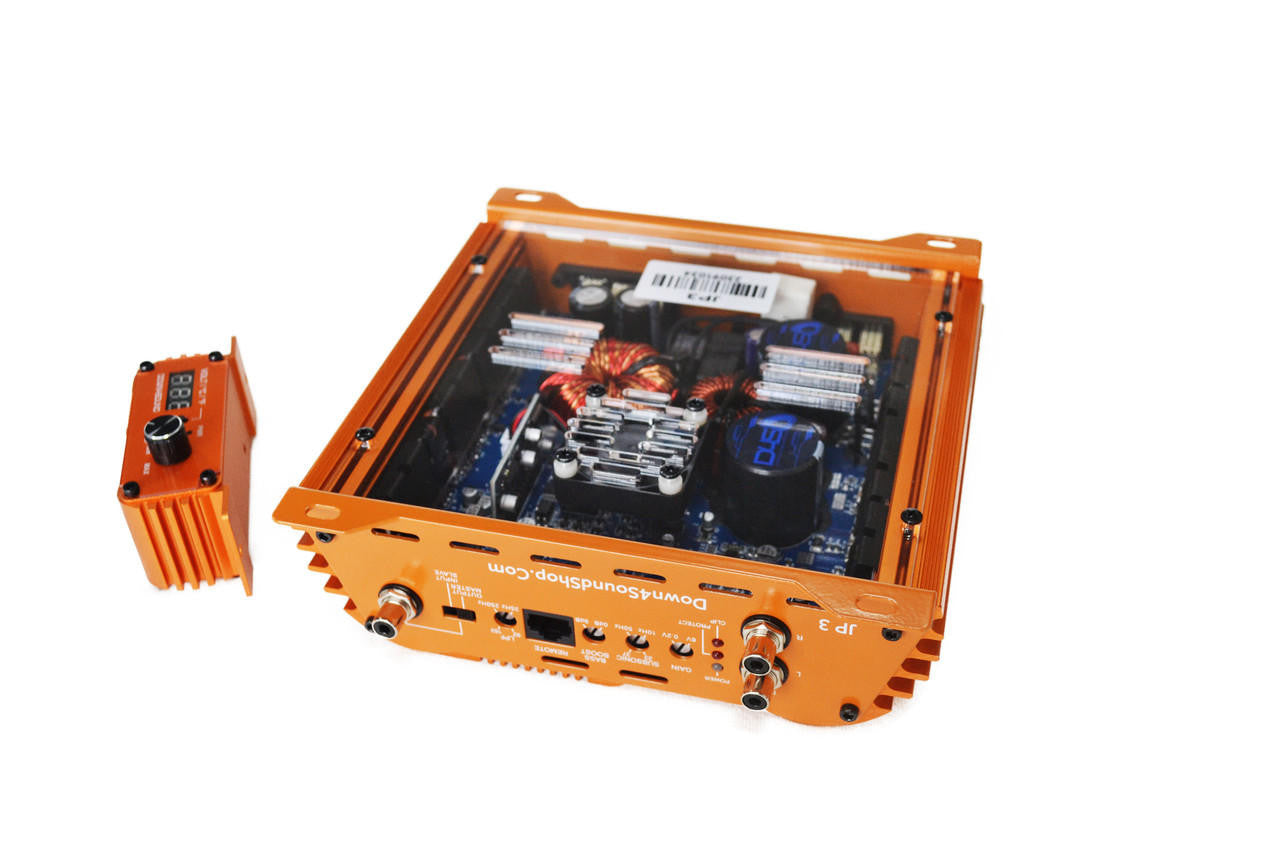

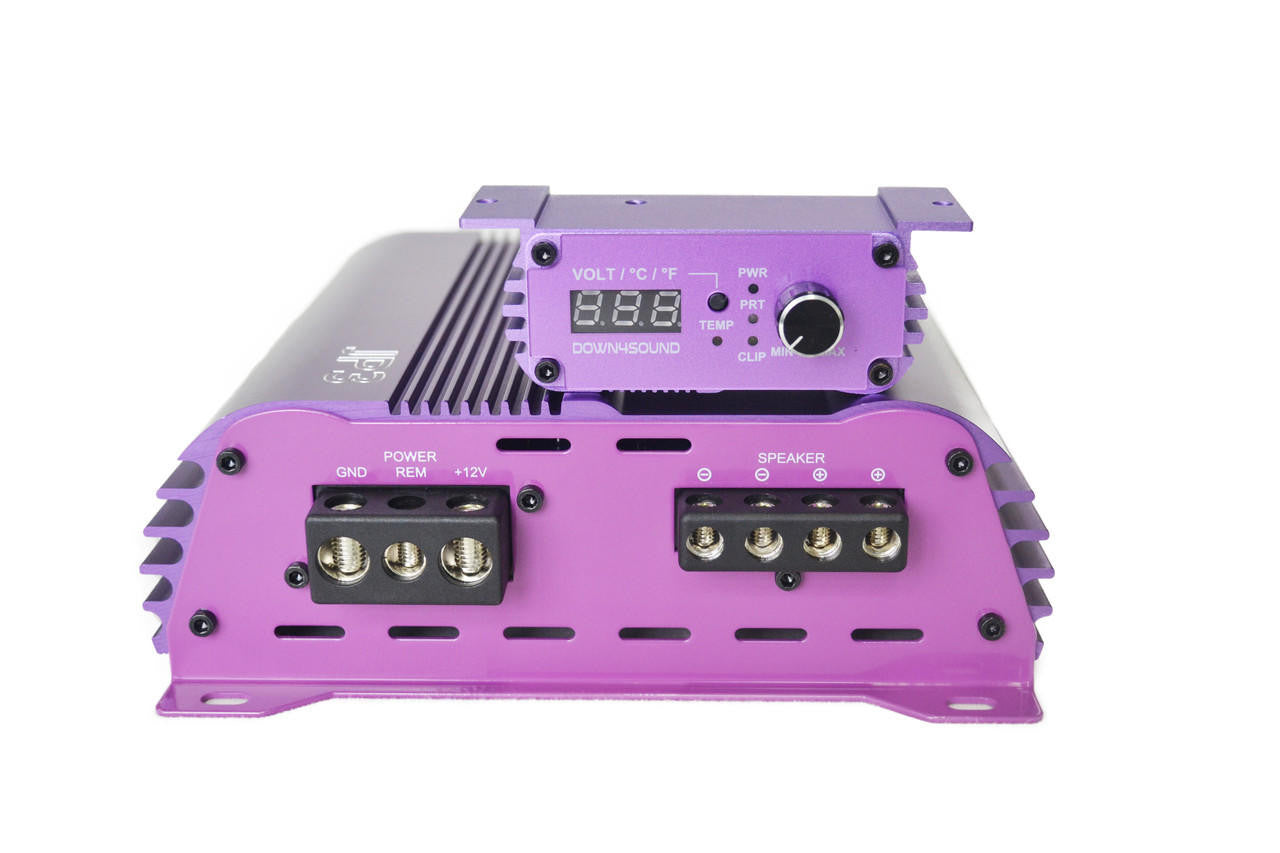

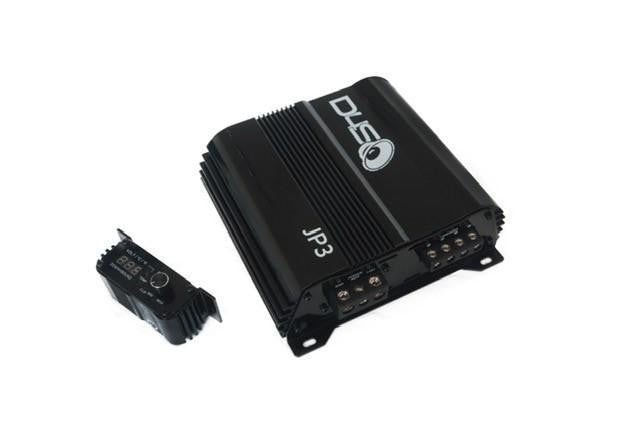

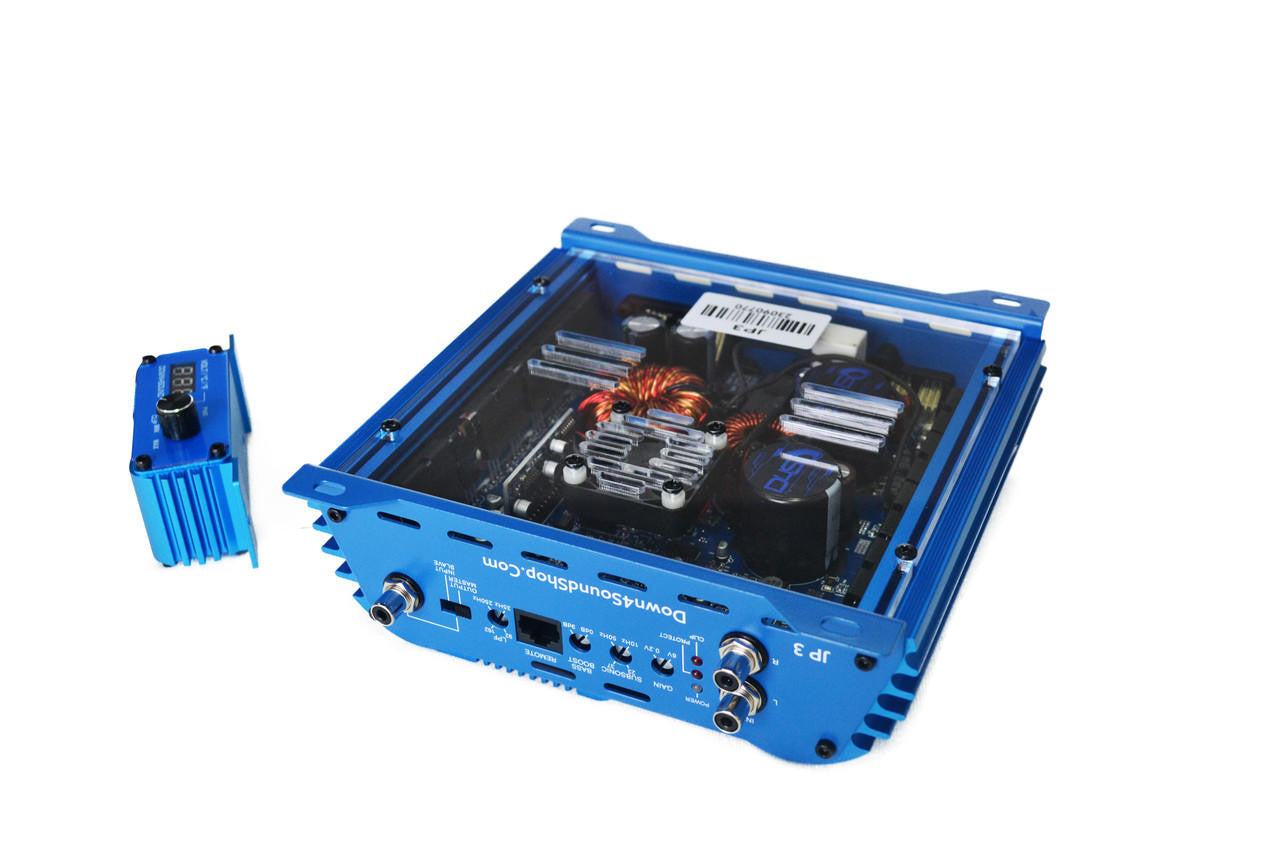

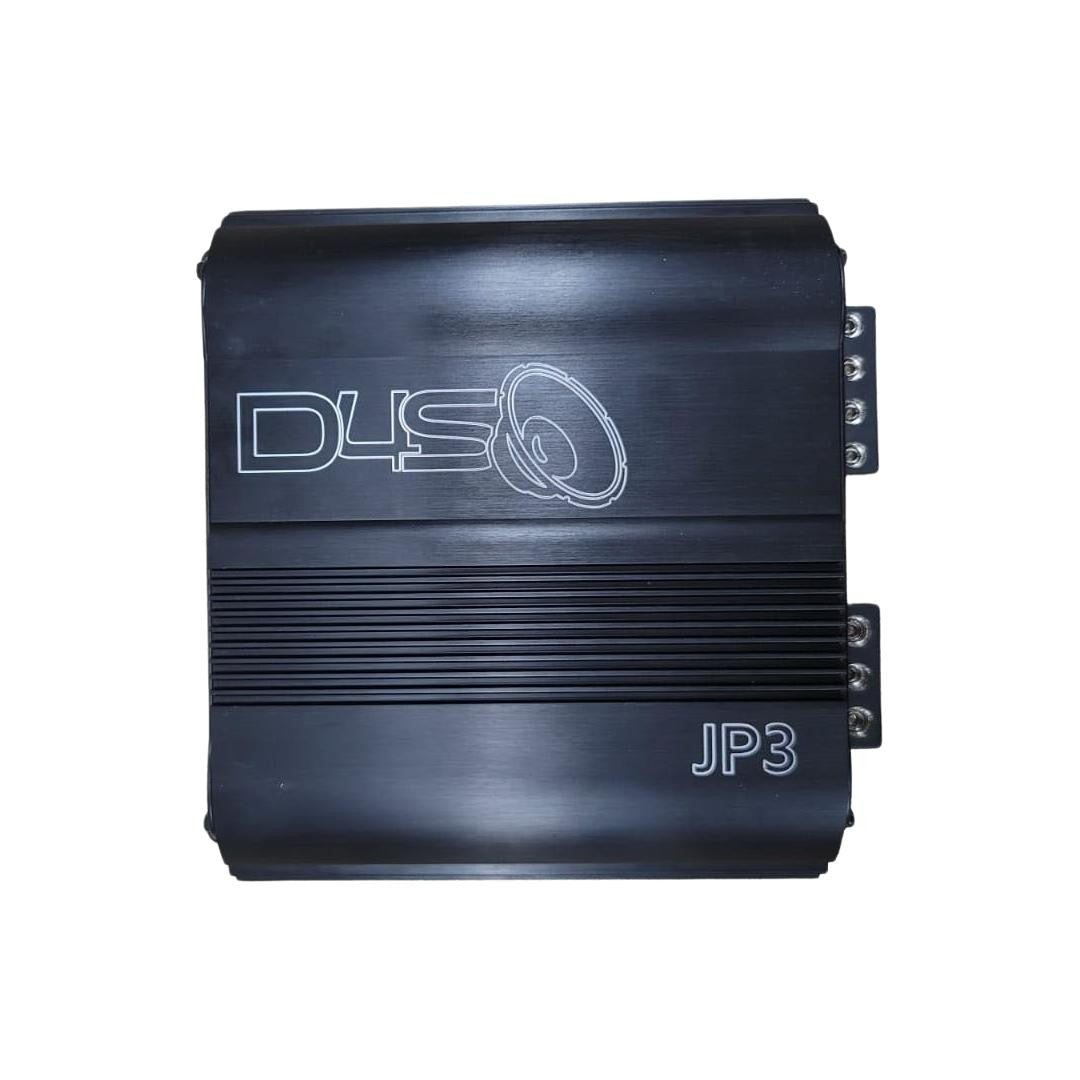

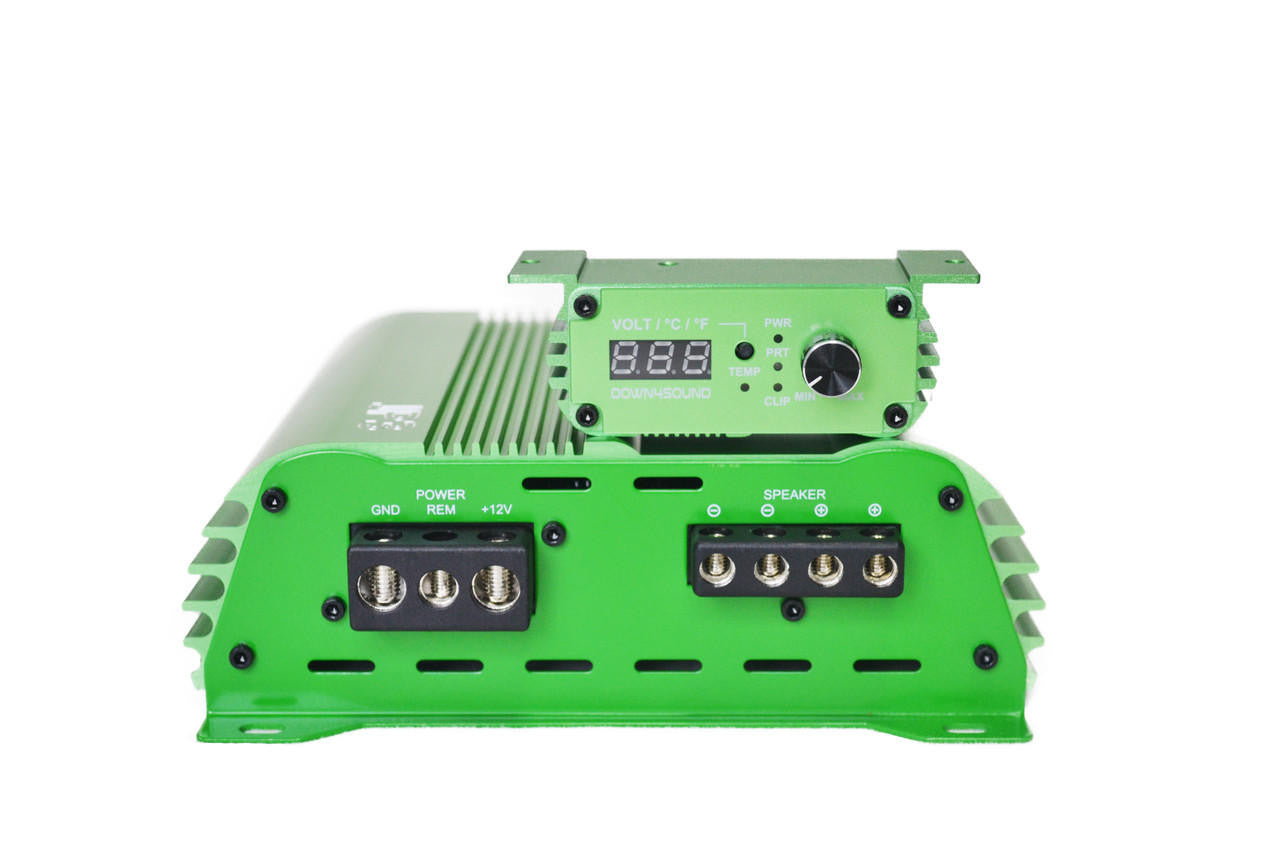

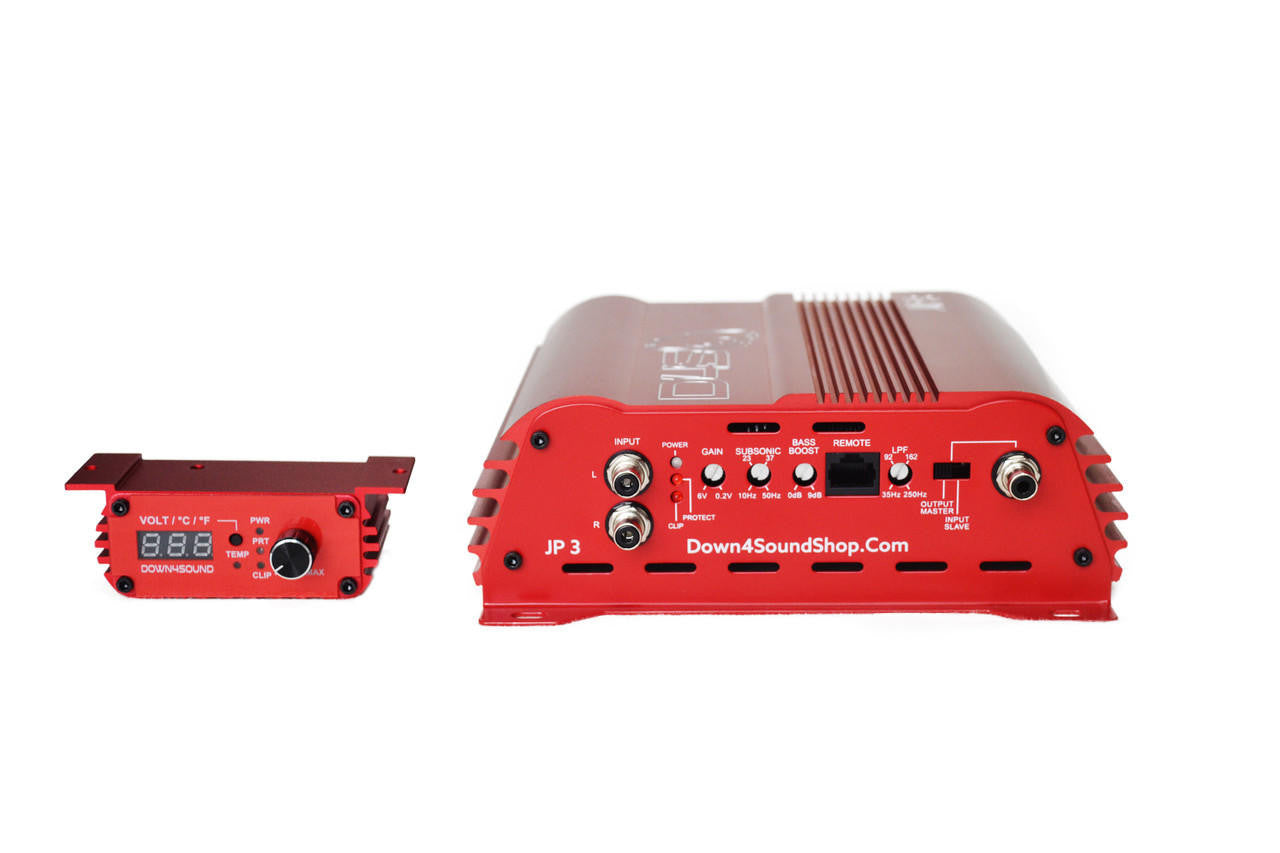

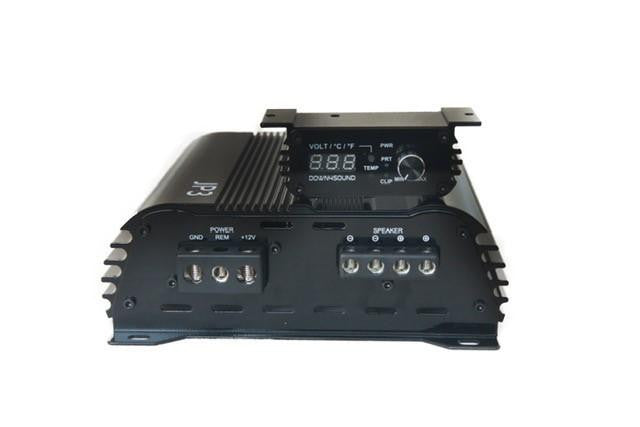

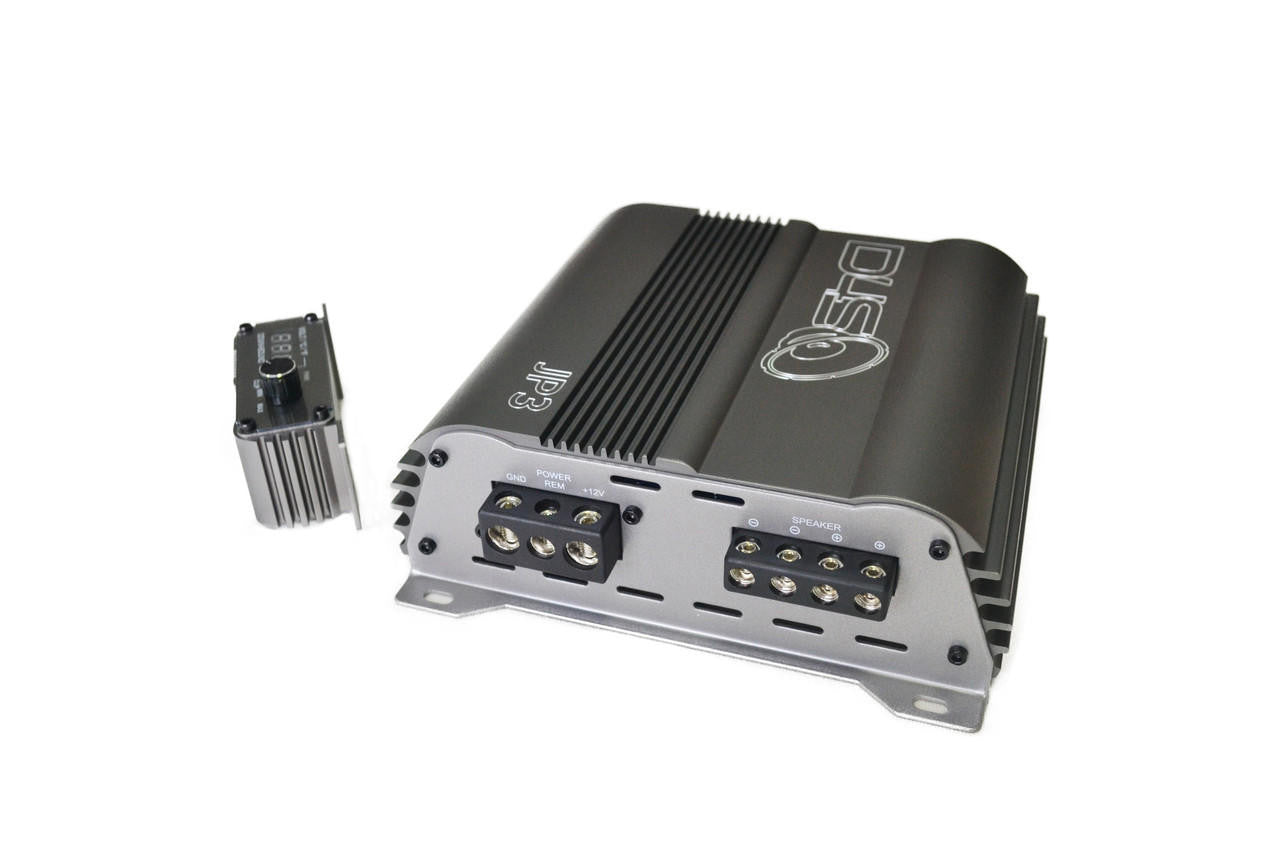

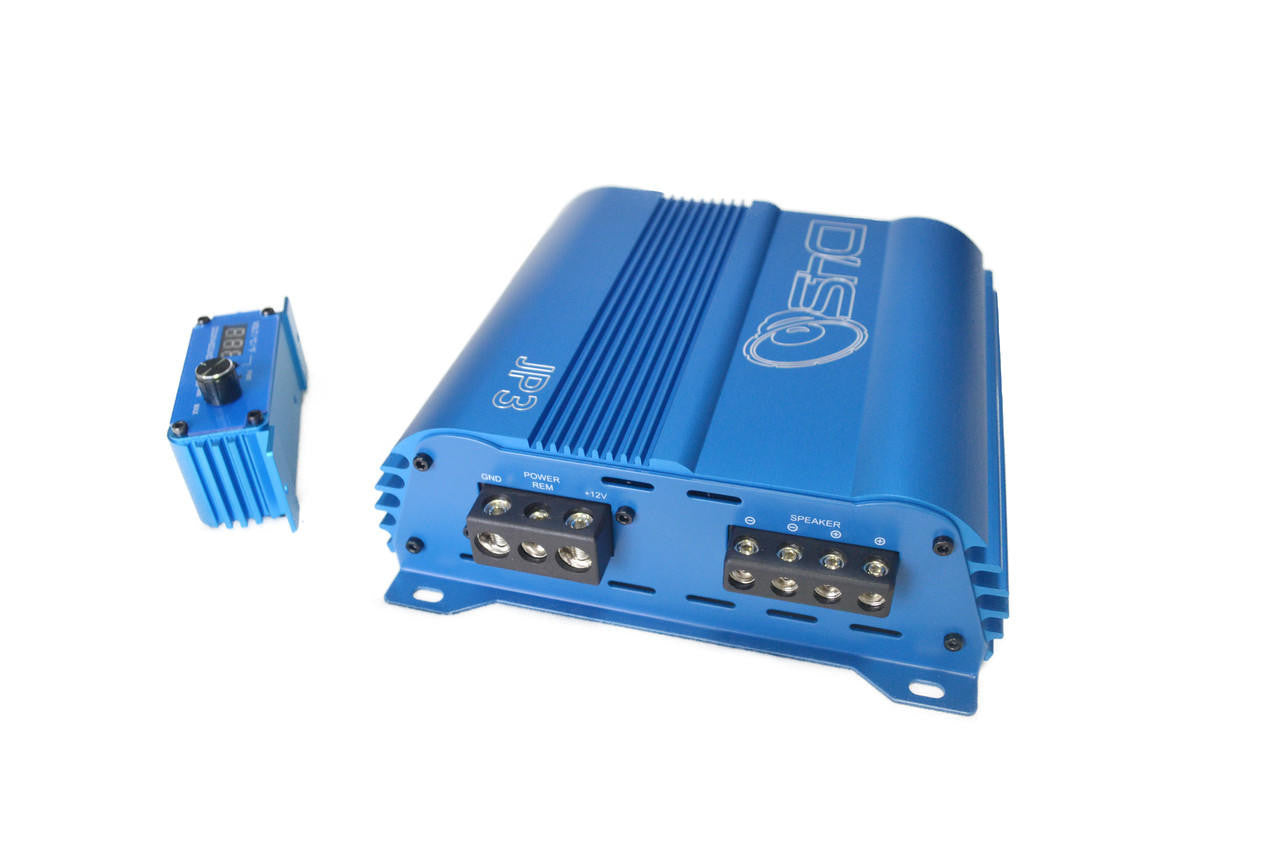

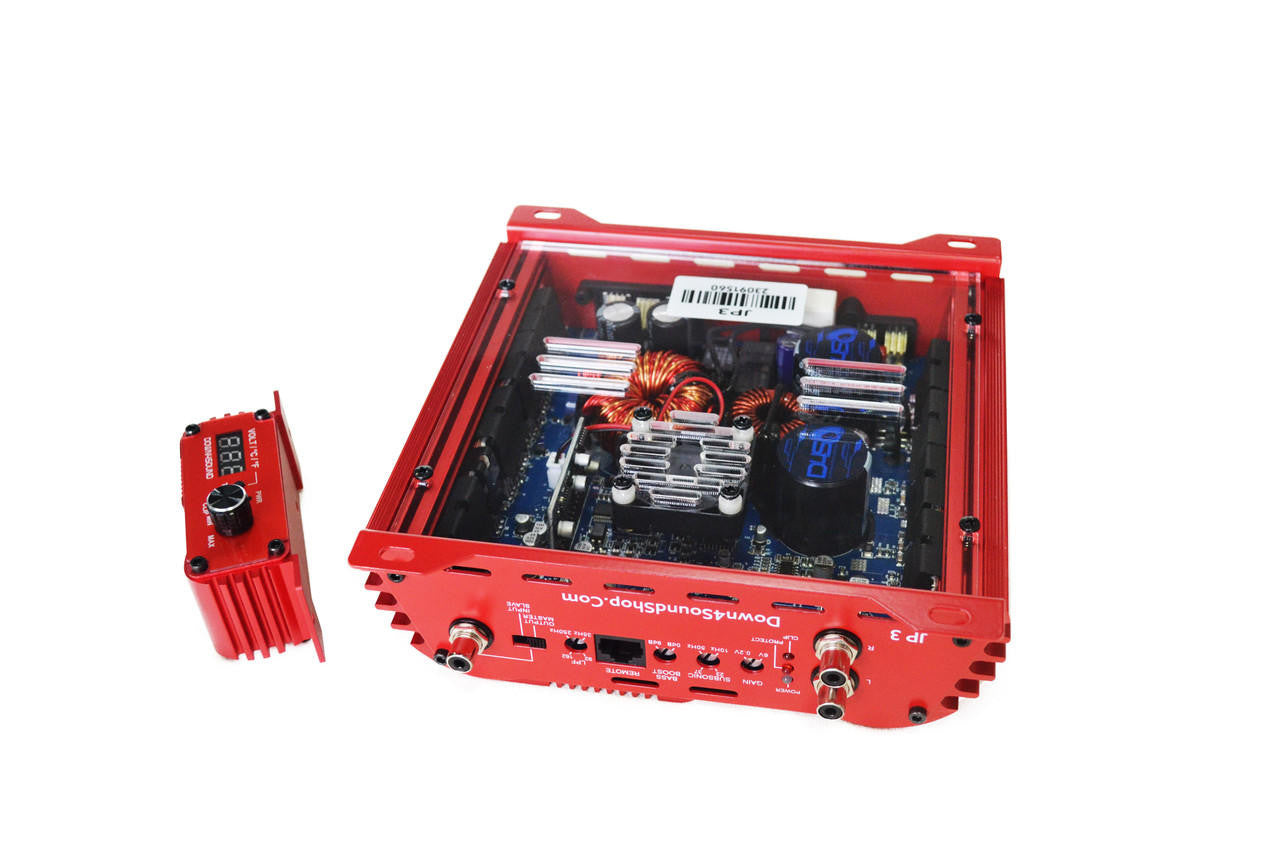

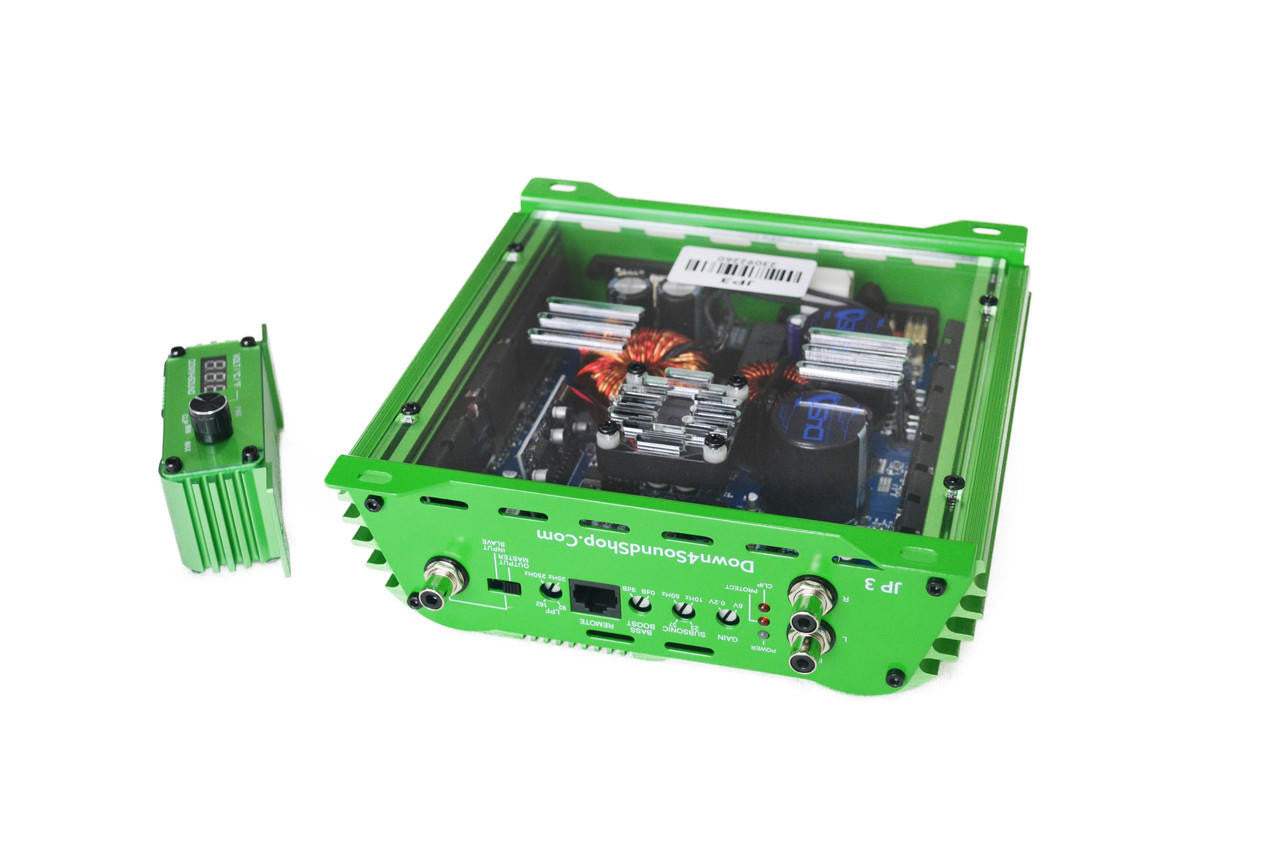

Down4Sound JP3 CPT 555W RMS 4 2 1 ANY-OHM Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
Discover the JP3 CPT Ω - 555W RMS Amplifier, now showcased in an elegant colored anodized silver finish. Crafted with precision, this amplifier stands as the heart of your audio ensemble, promising a sound experience like no other. Delve into its intricate features and grasp the unmatched prowess it offers to your audio environment.
Technical Excellence:
- Power Dynamics: Delivers a steadfast 555W RMS across 1, 2, and 4 ohms.
- Frequency Range: Expansive spectrum from 10 Hz - 254 Hz.
- Harmonic Clarity: Ensures a pure sound with less than 0.1% distortion at 4 ohms.
- Strappable Connection: For enhanced connectivity.
Advantages for the User:

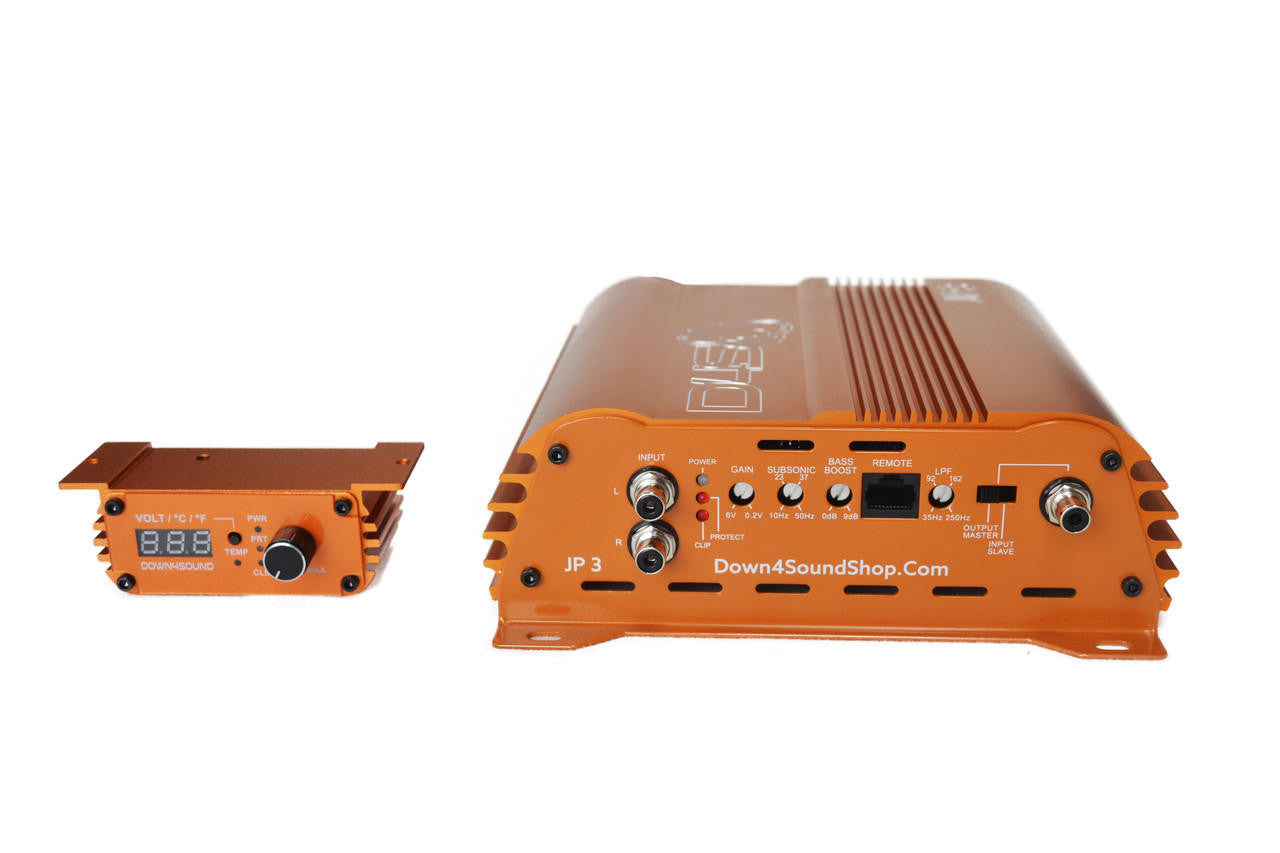

- Sound Customization: Fine-tune your audio with features like the low pass filter, subsonic filter, and bass boost.
- Compact Powerhouse: Its size belies its power. This amplifier is designed to seamlessly integrate into any audio system.

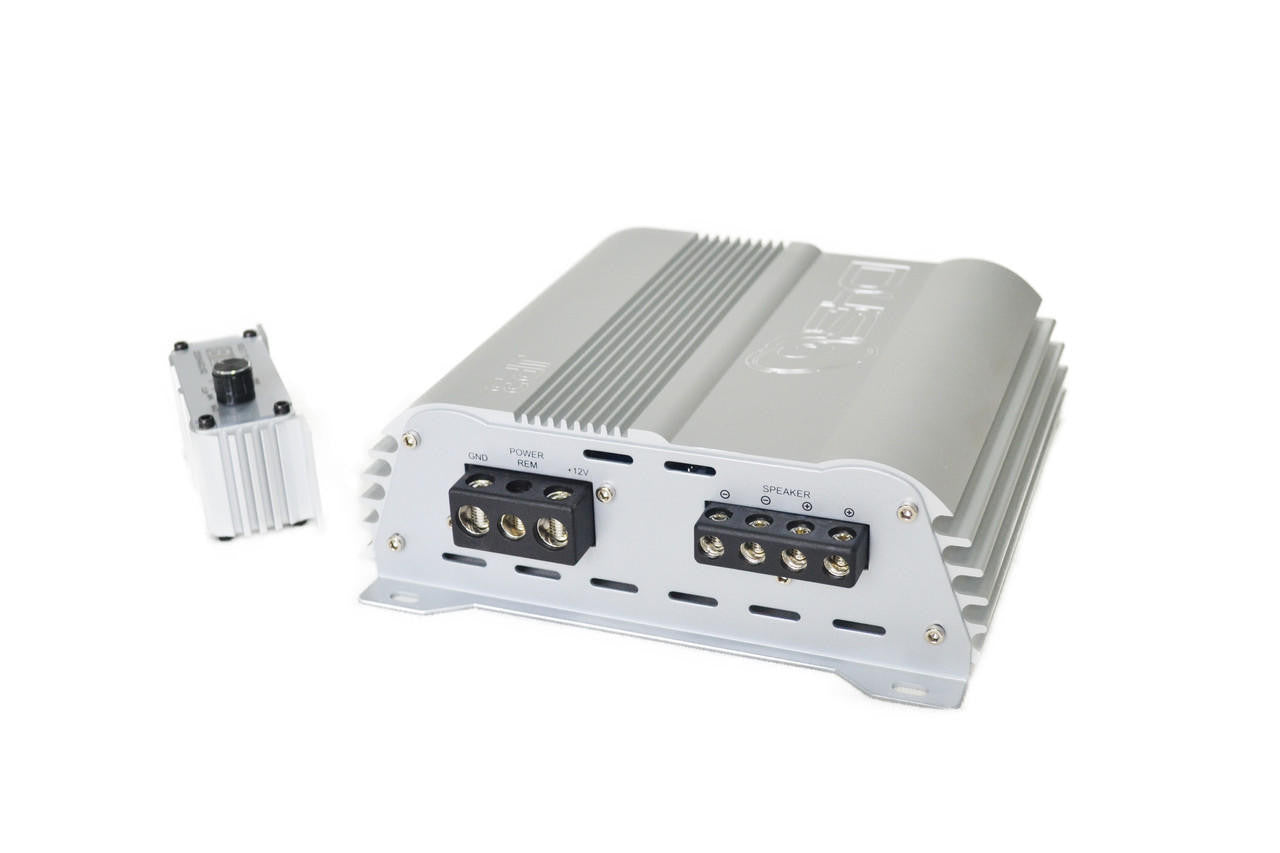

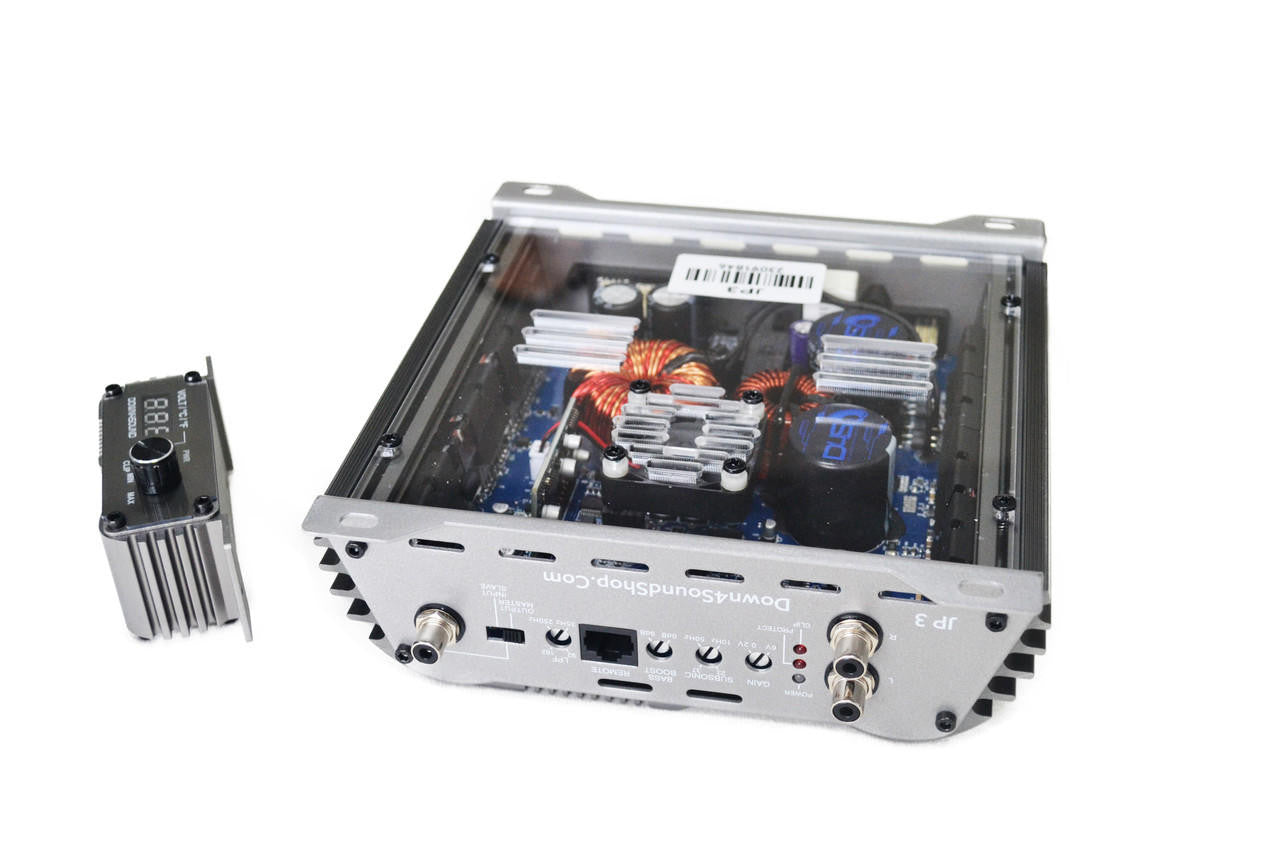

- Sleek Aesthetics: The anodized silver finish lends a touch of contemporary elegance to its powerful performance.
SPECIFICATIONS:
- Power Output:
- 1ohm: 555W @ 14.4V
- 2ohms: 555W @ 14.4V
- 4ohms: 555W @ 14.4V
- 2ohm Linked: 1110W - Strapped
- Frequency Dynamics: 10 Hz - 254Hz
- Filters: X-Over: 12 dB
- Low Pass: 35Hz - 250 Hz
- Subsonic: 10Hz - 50 Hz
- Bass Enhancement: 0-9 dB
- Input Sensitivity: 6V - 0.2V
- Acoustic Purity:
- Signal to Noise Ratio: 93dB
- Fuse Ratings:
- Single Unit Fuse: 70A
- Strapped Fuse: 140A
- Dimensions:
- Length: 6.29 inches
- Width x Height: 7.40 x 2.24 inches
Experience a world of superior audio with the JP3 CPT Ω - 555W RMS Amplifier silver.
