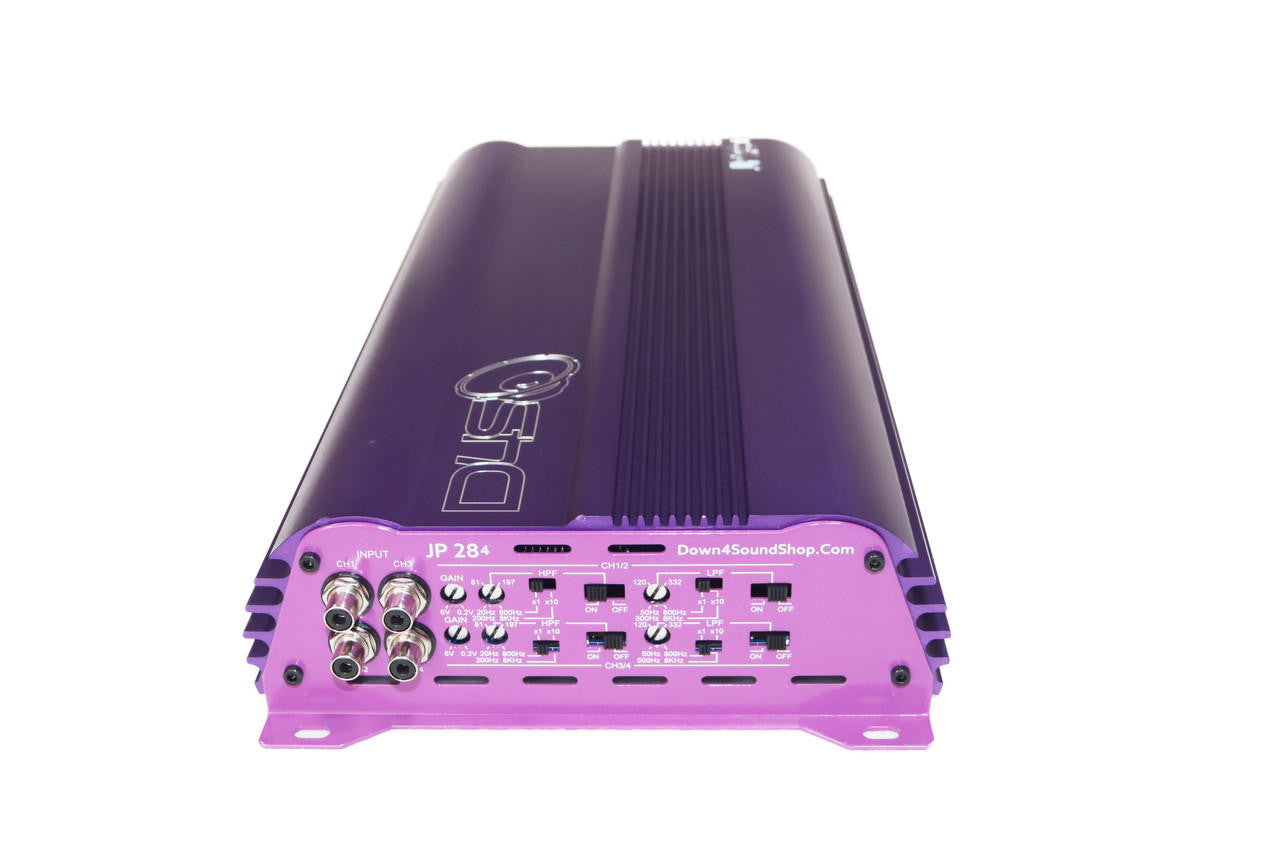

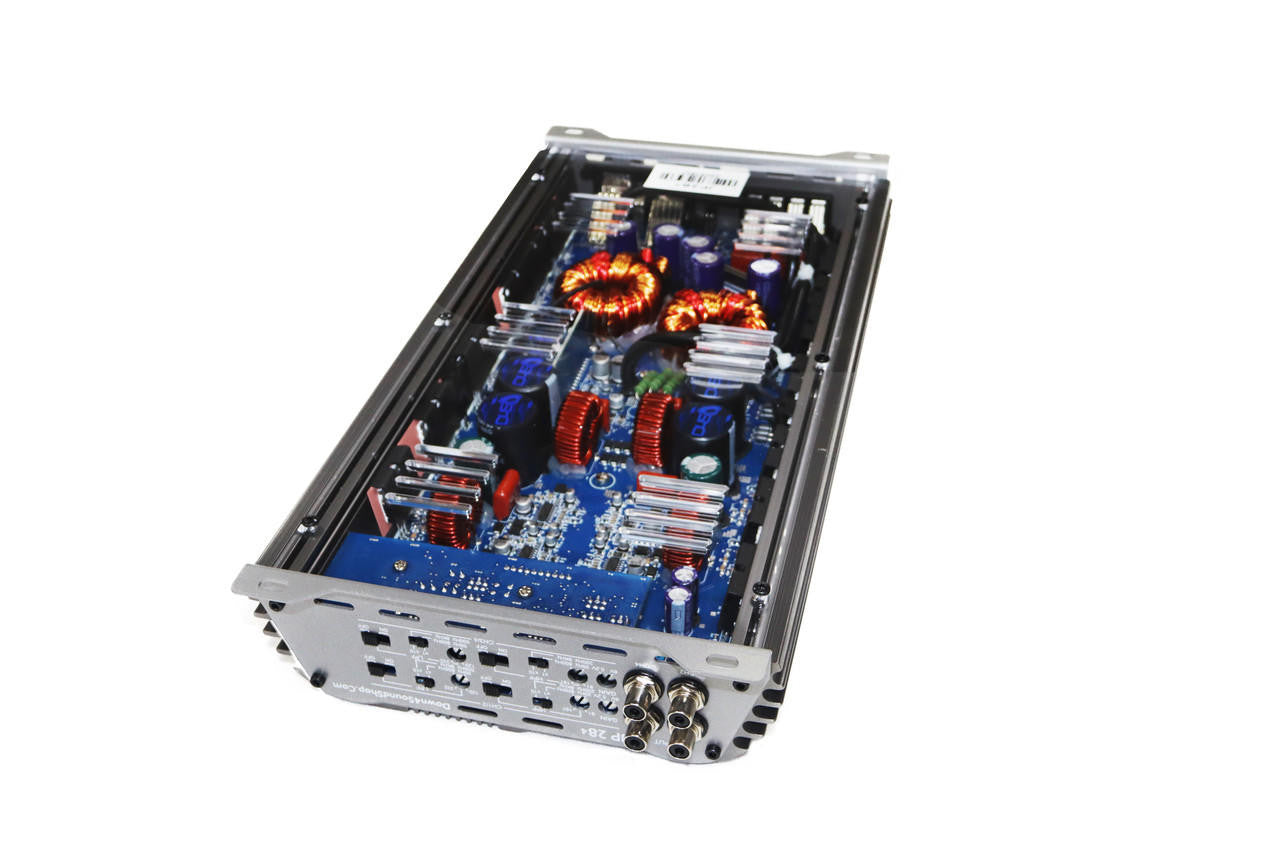

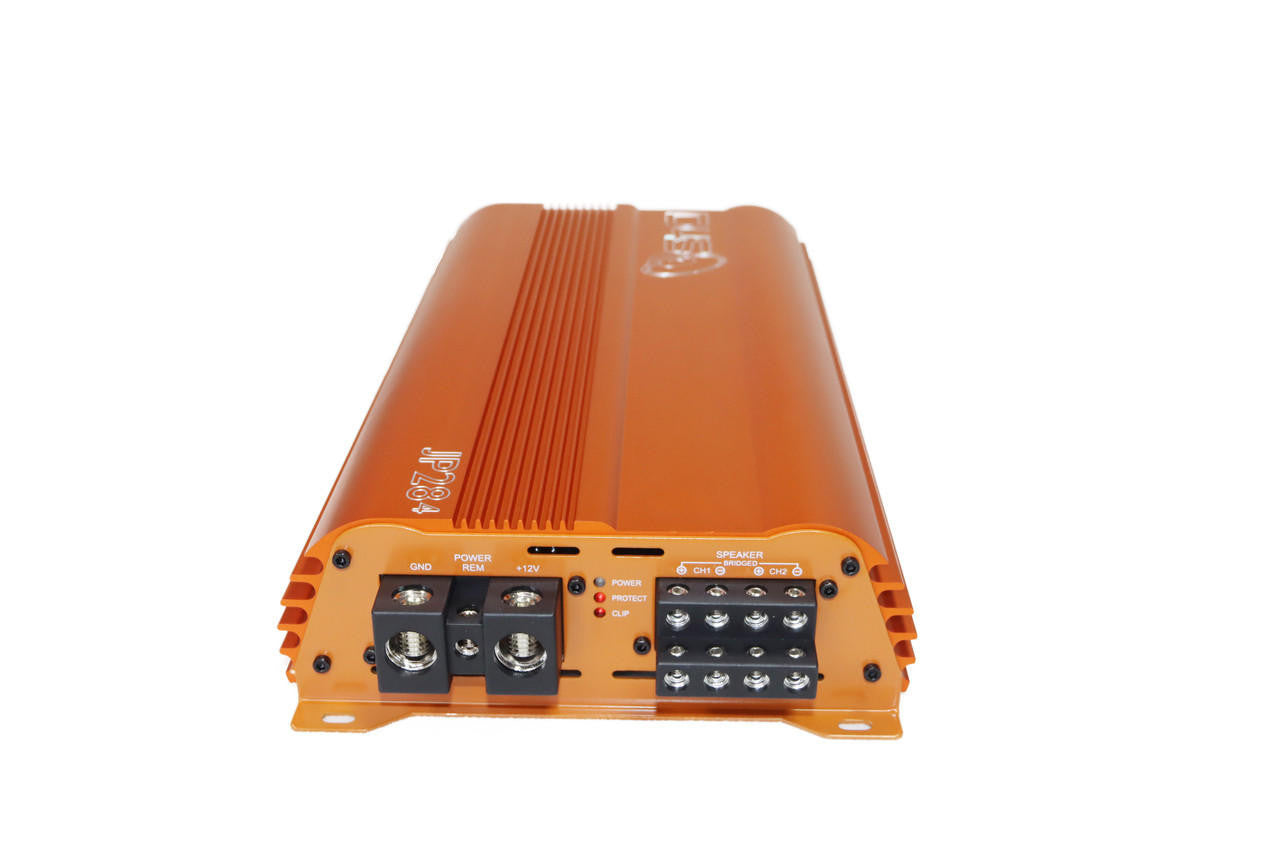

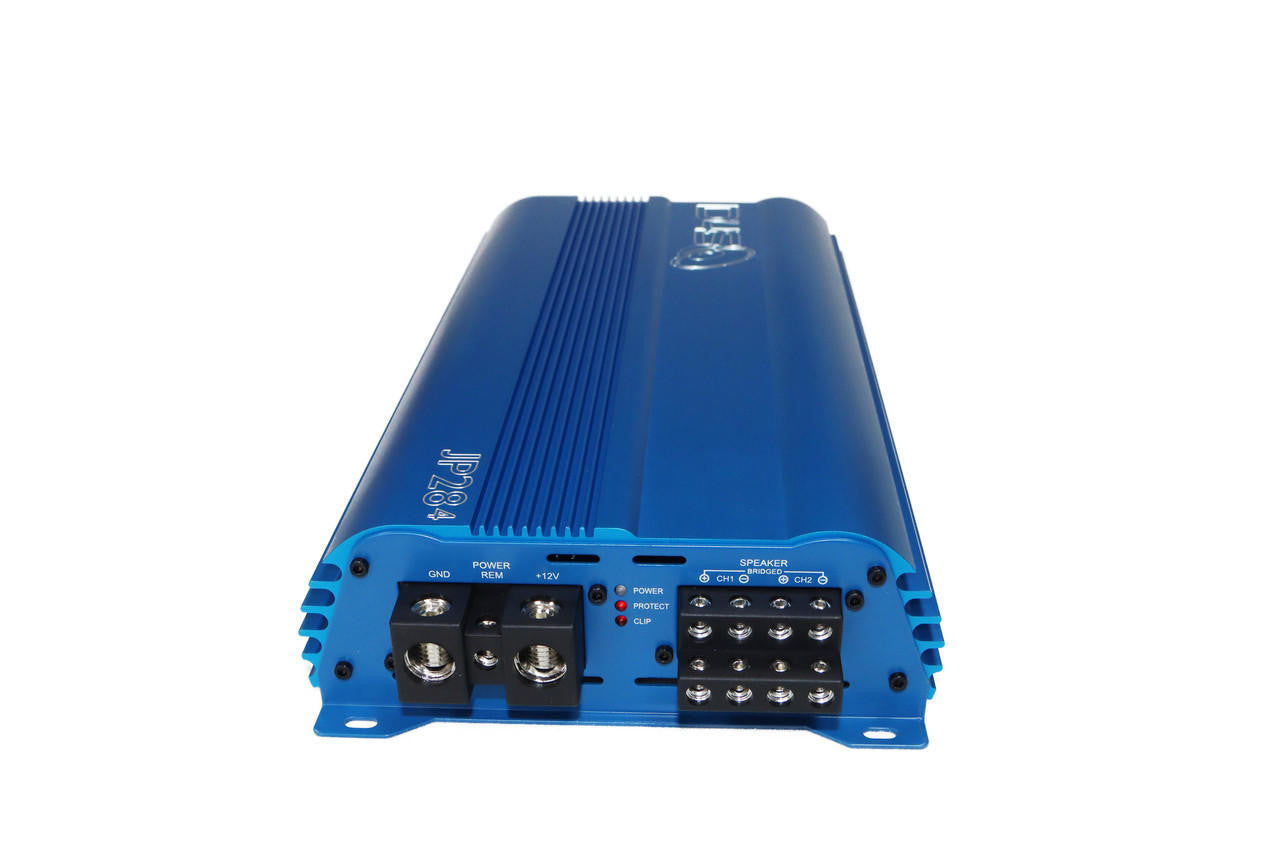

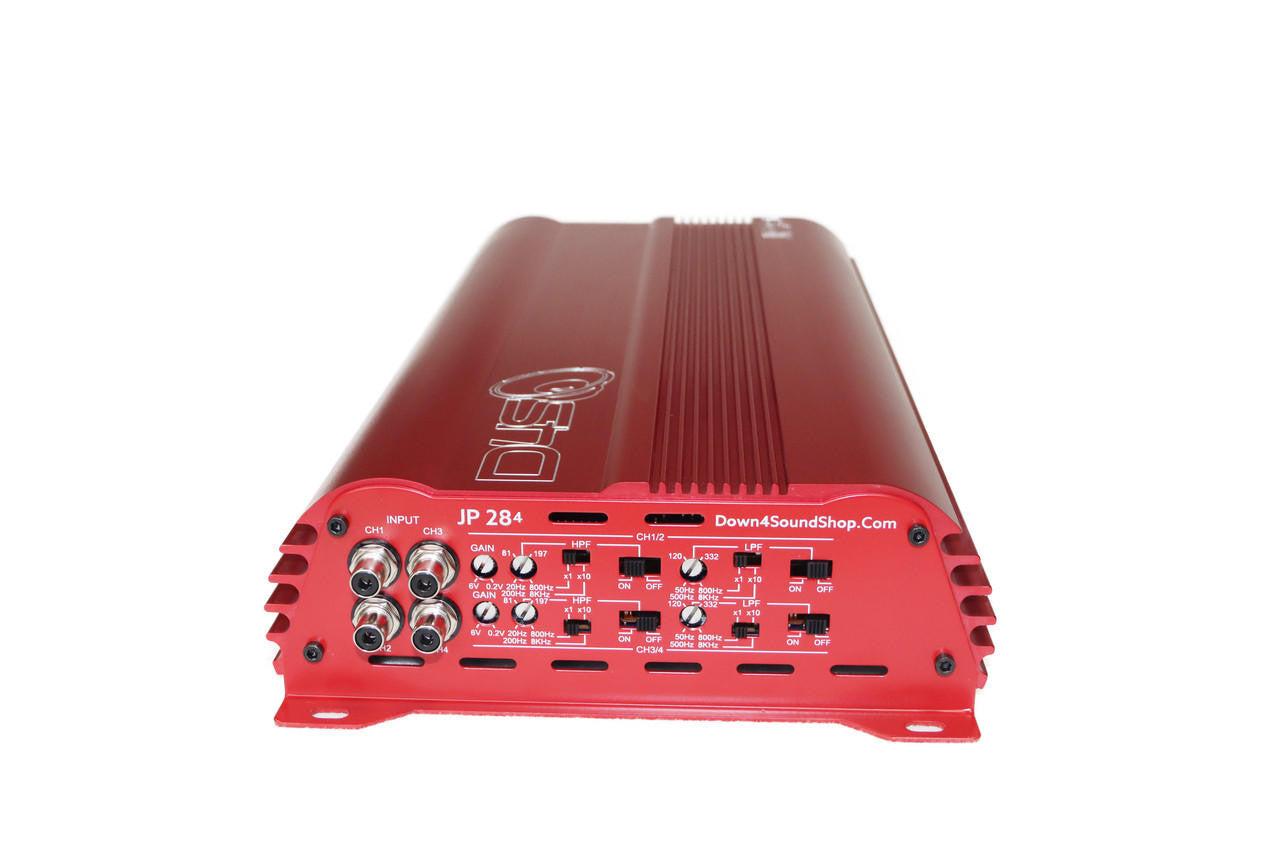

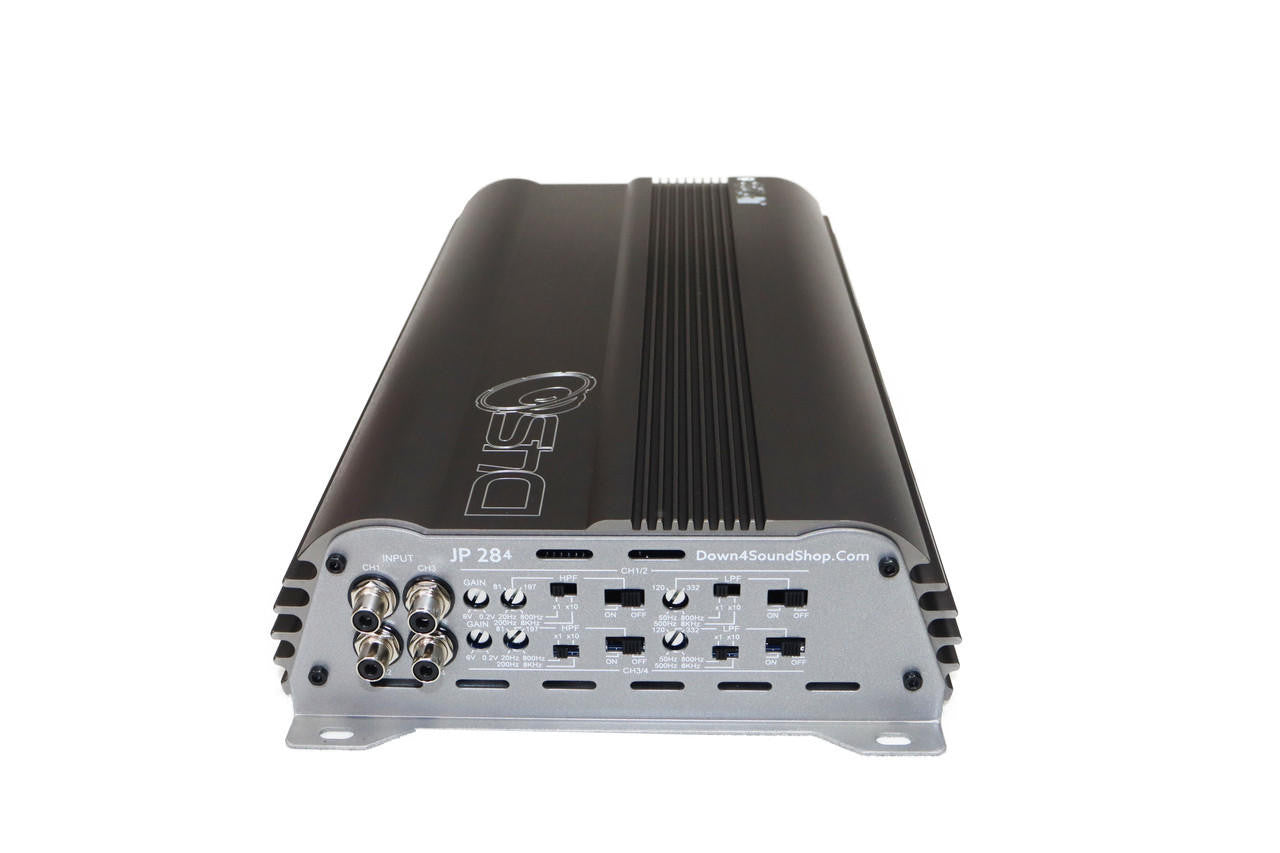

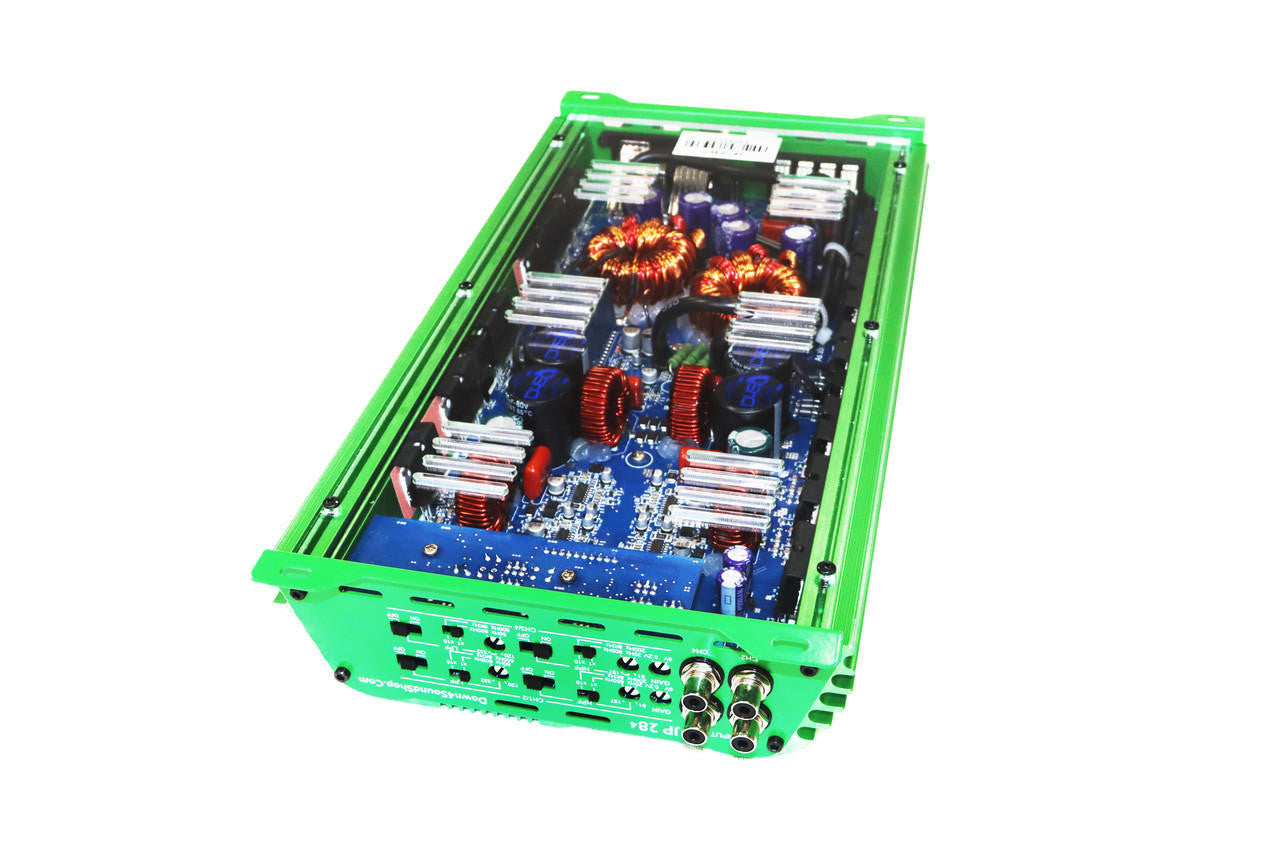

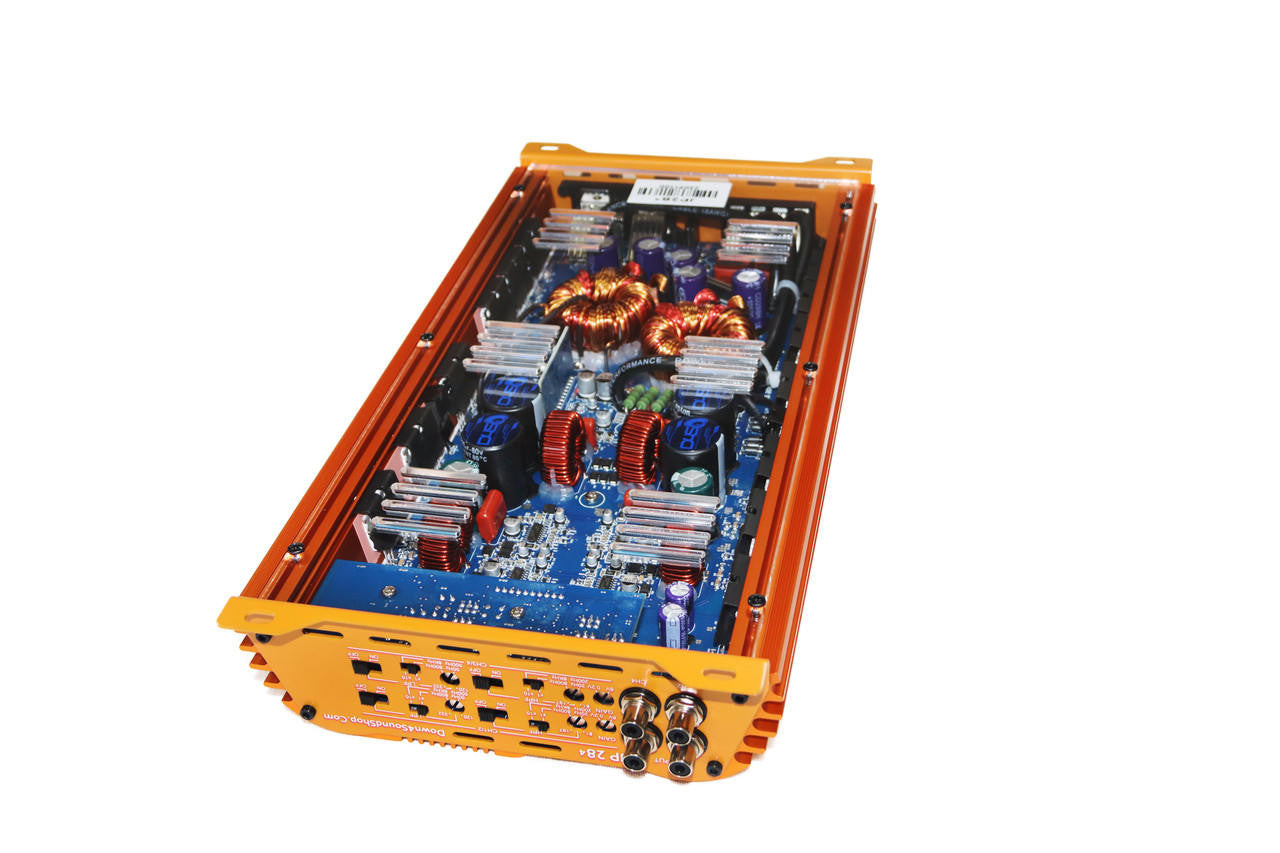

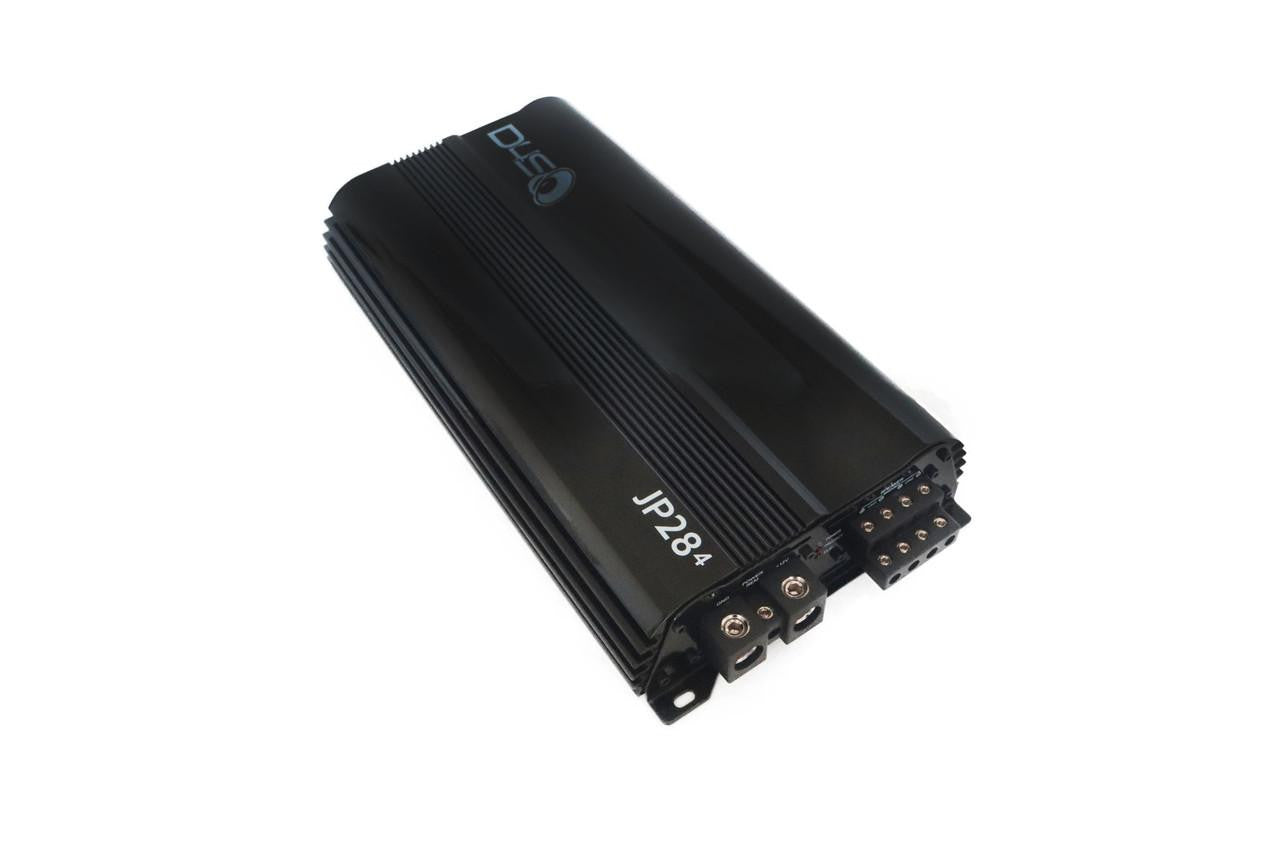

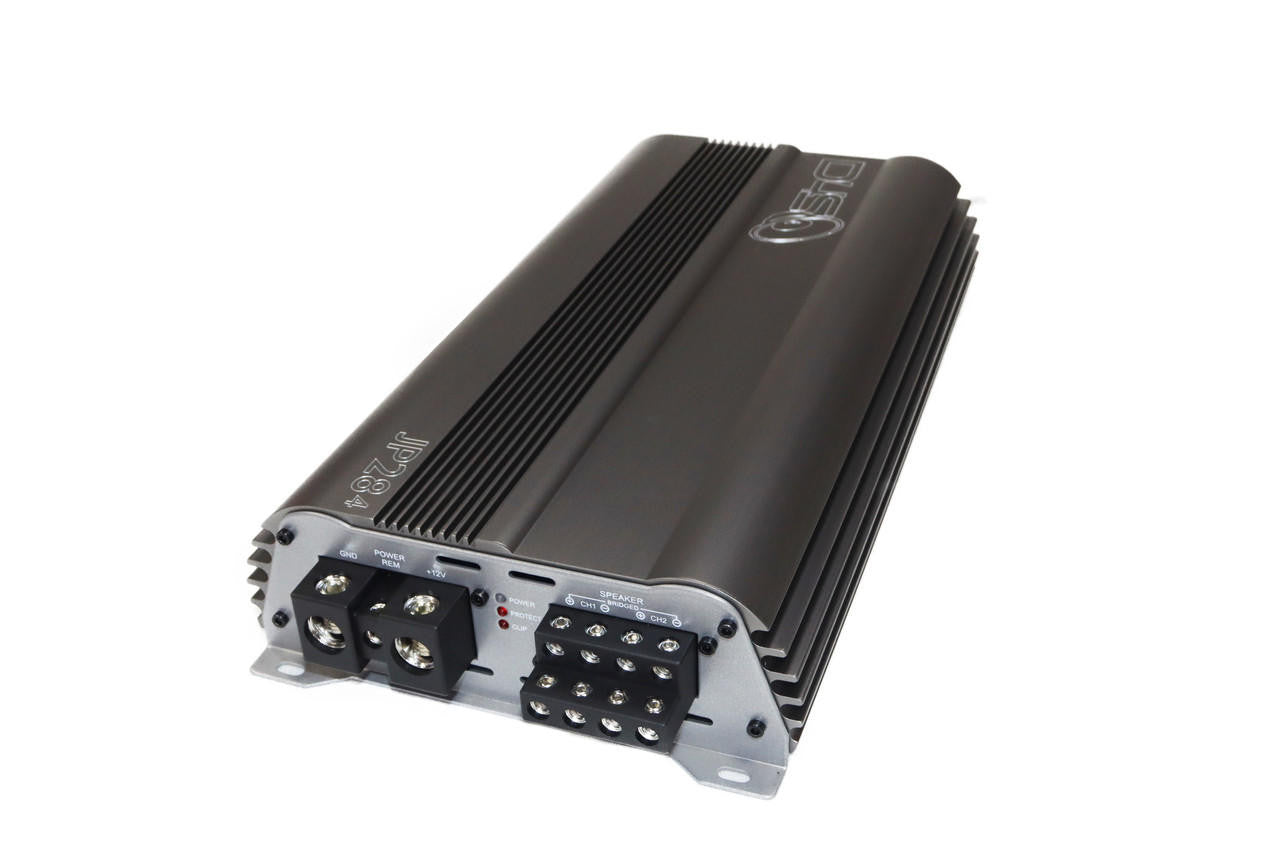

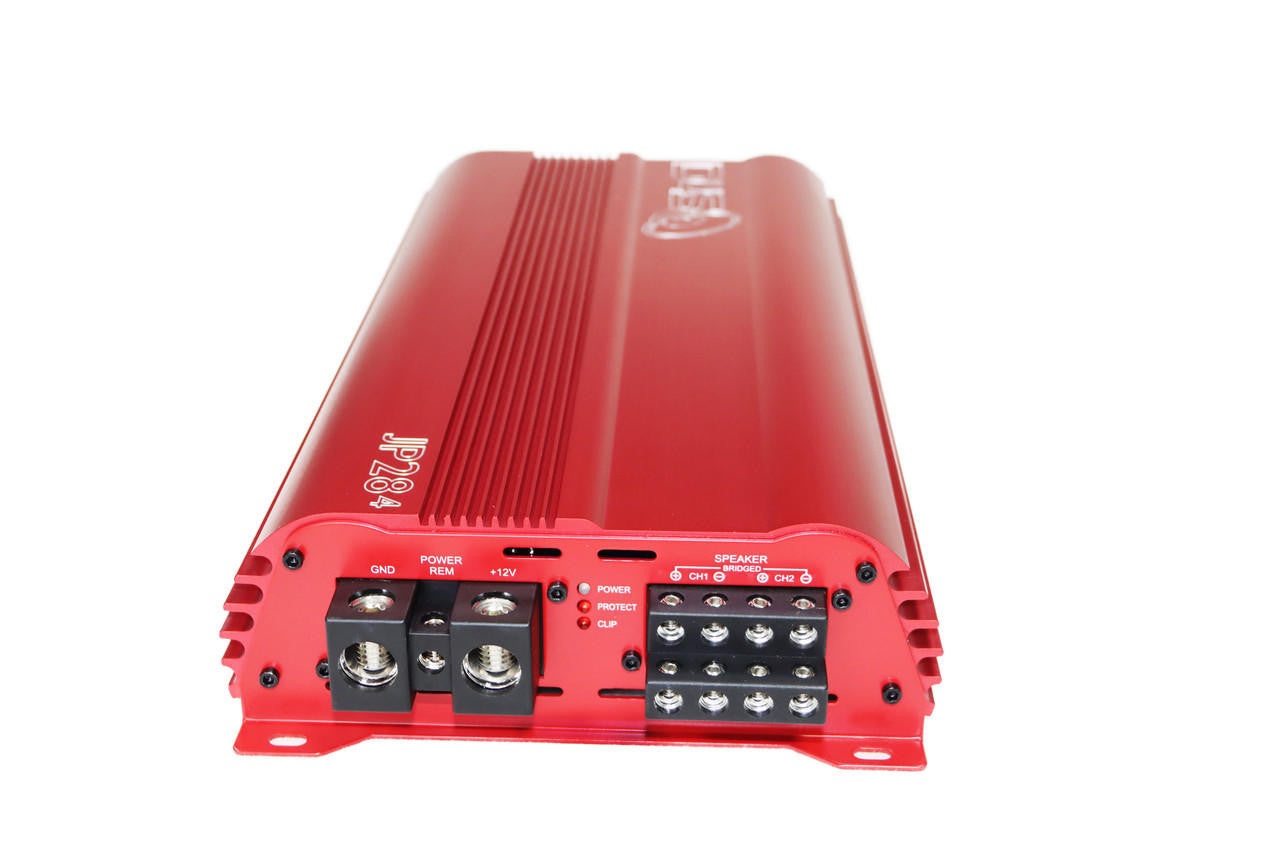

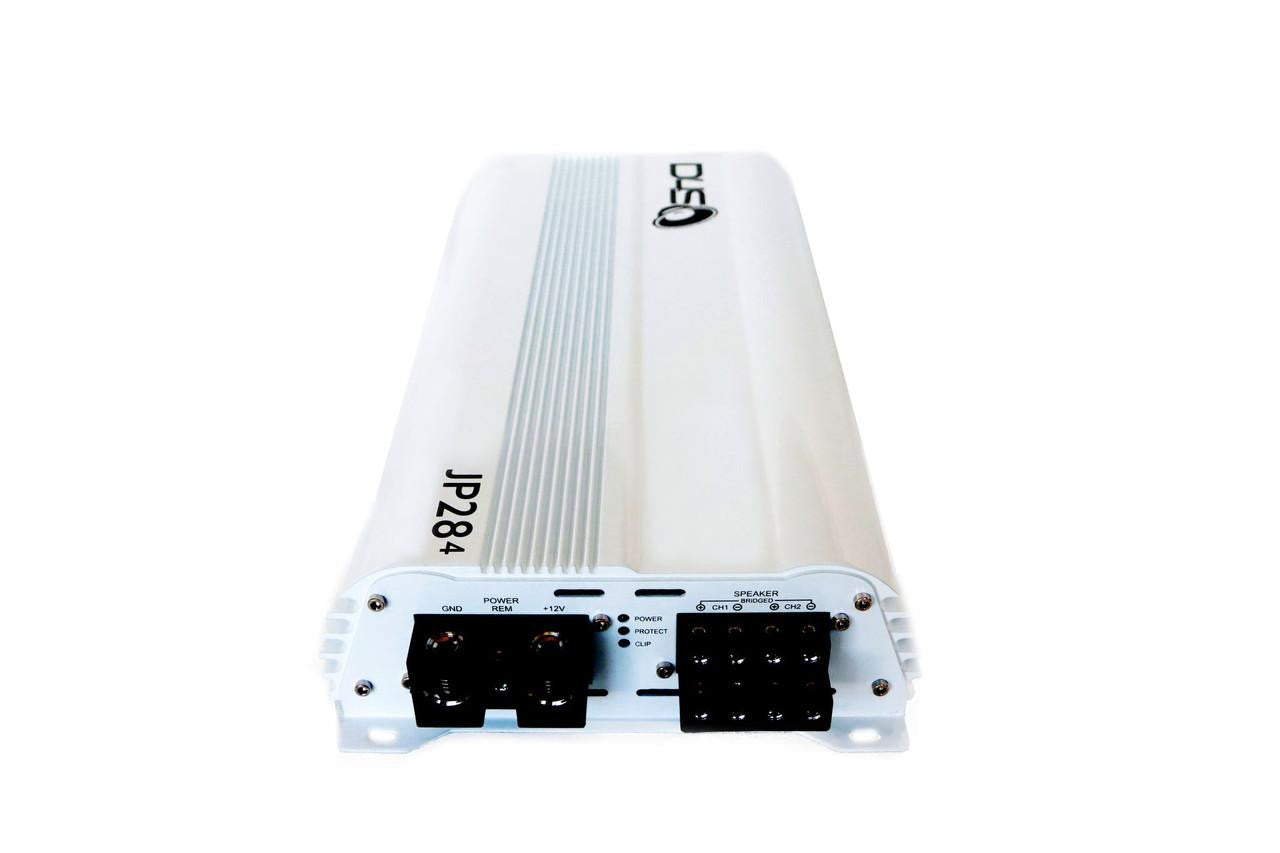

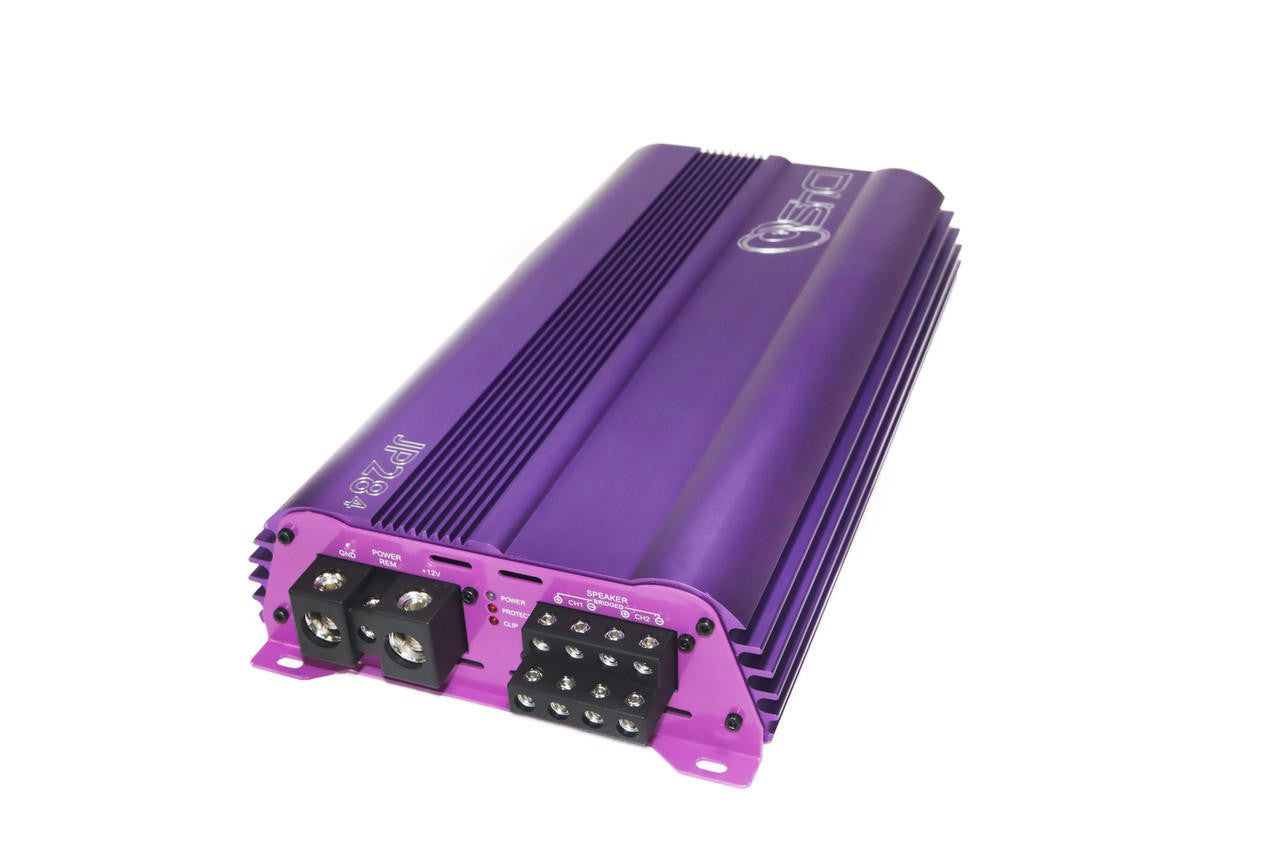

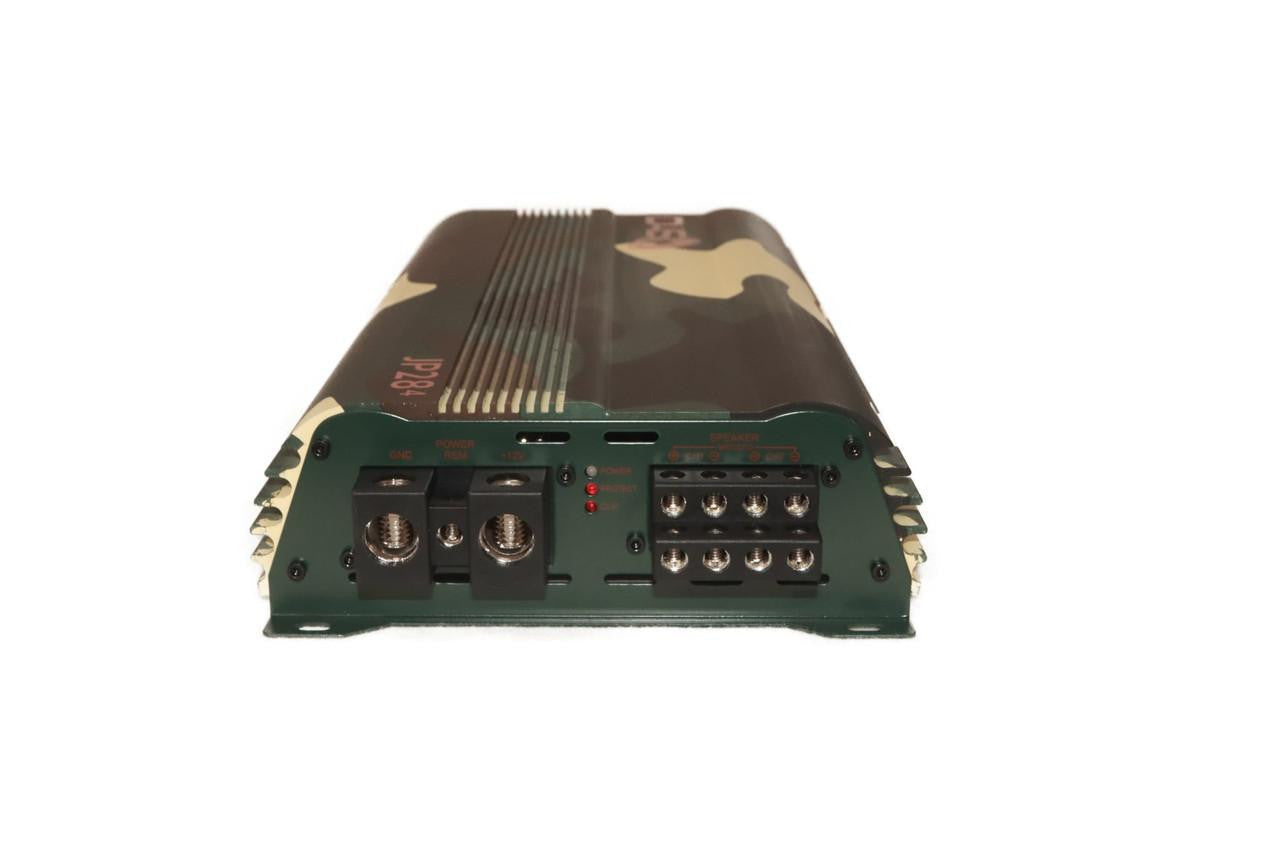

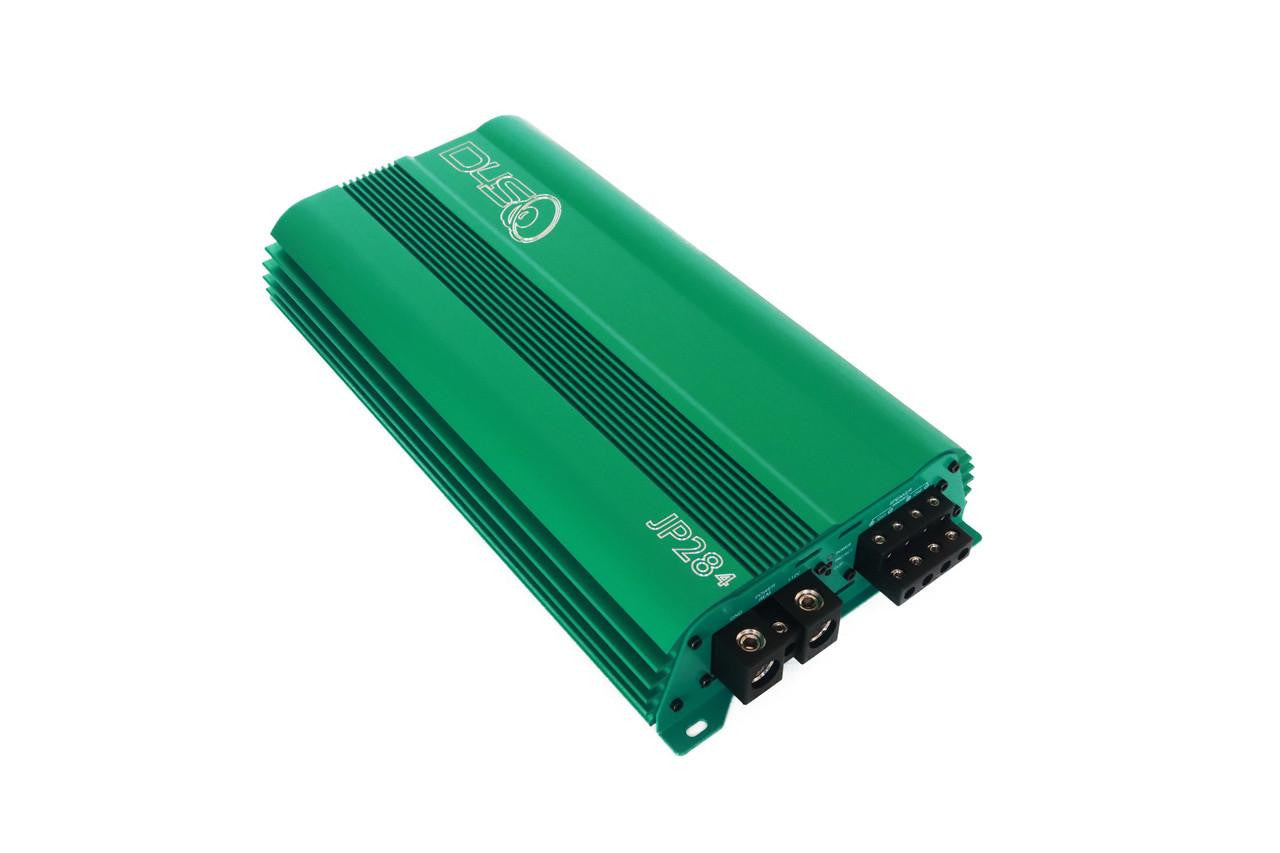

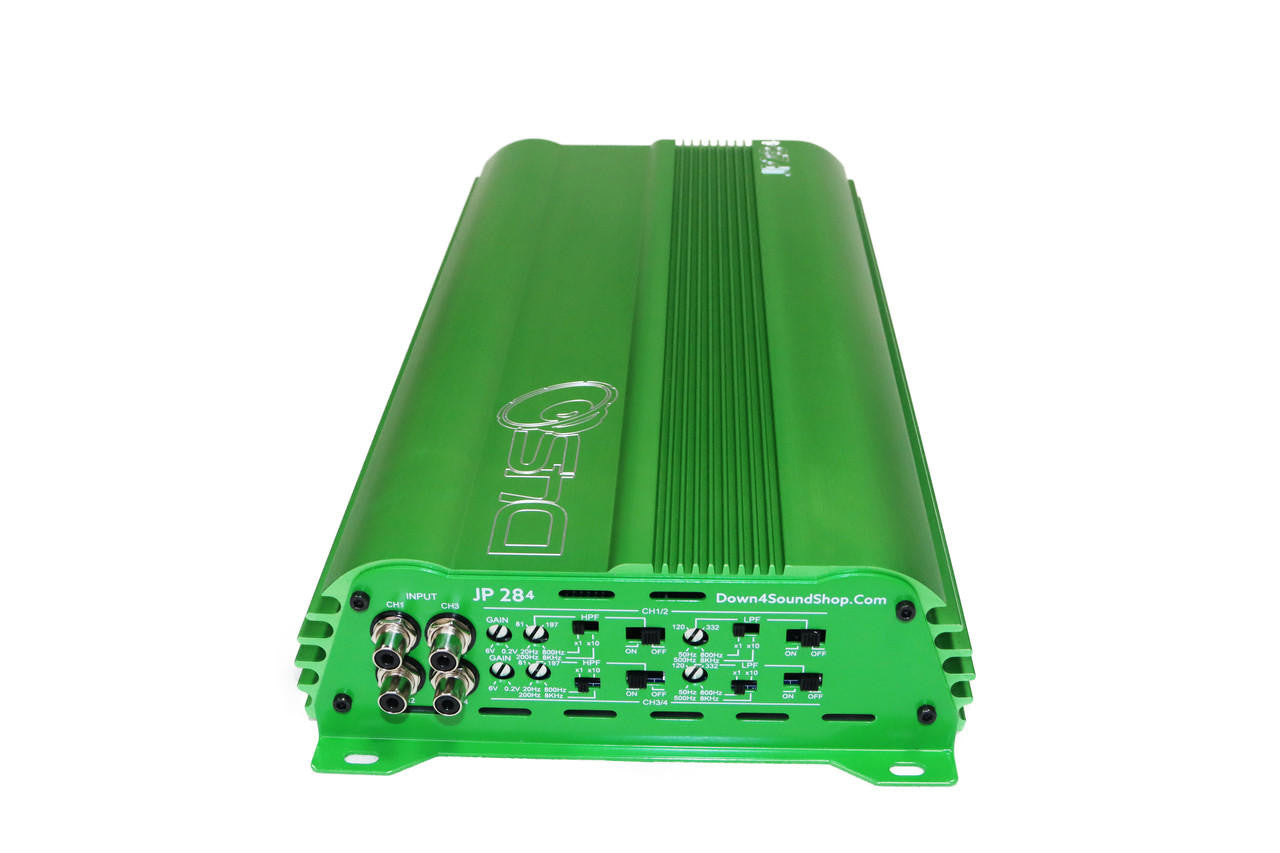

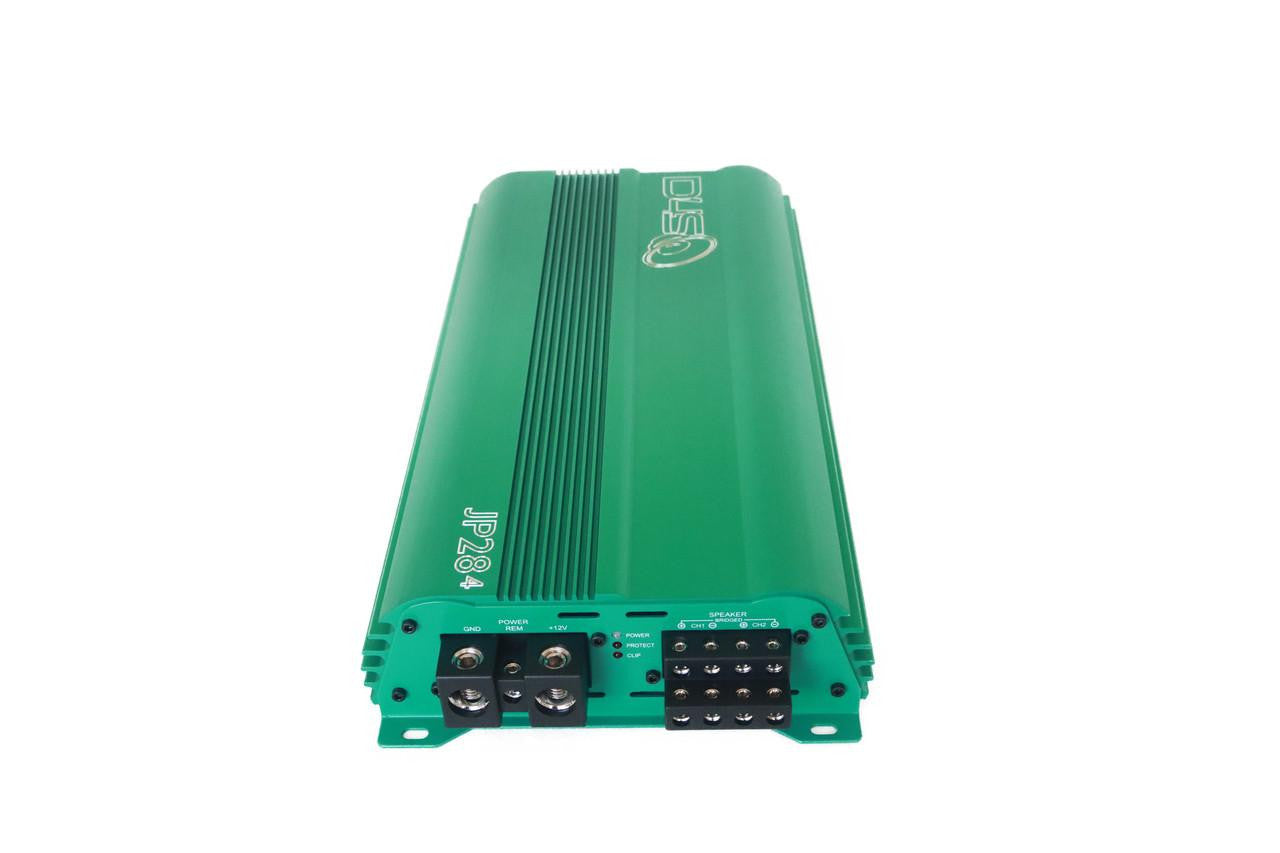

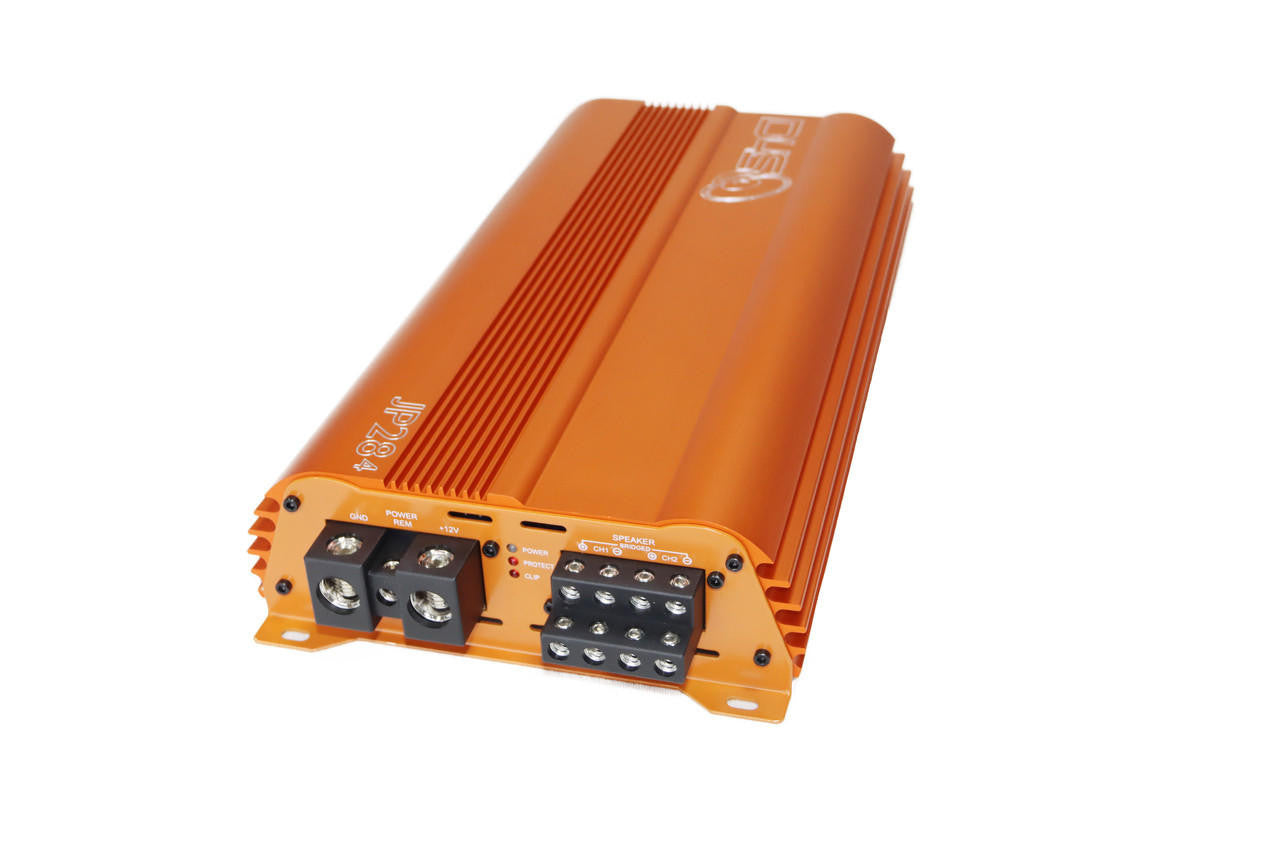

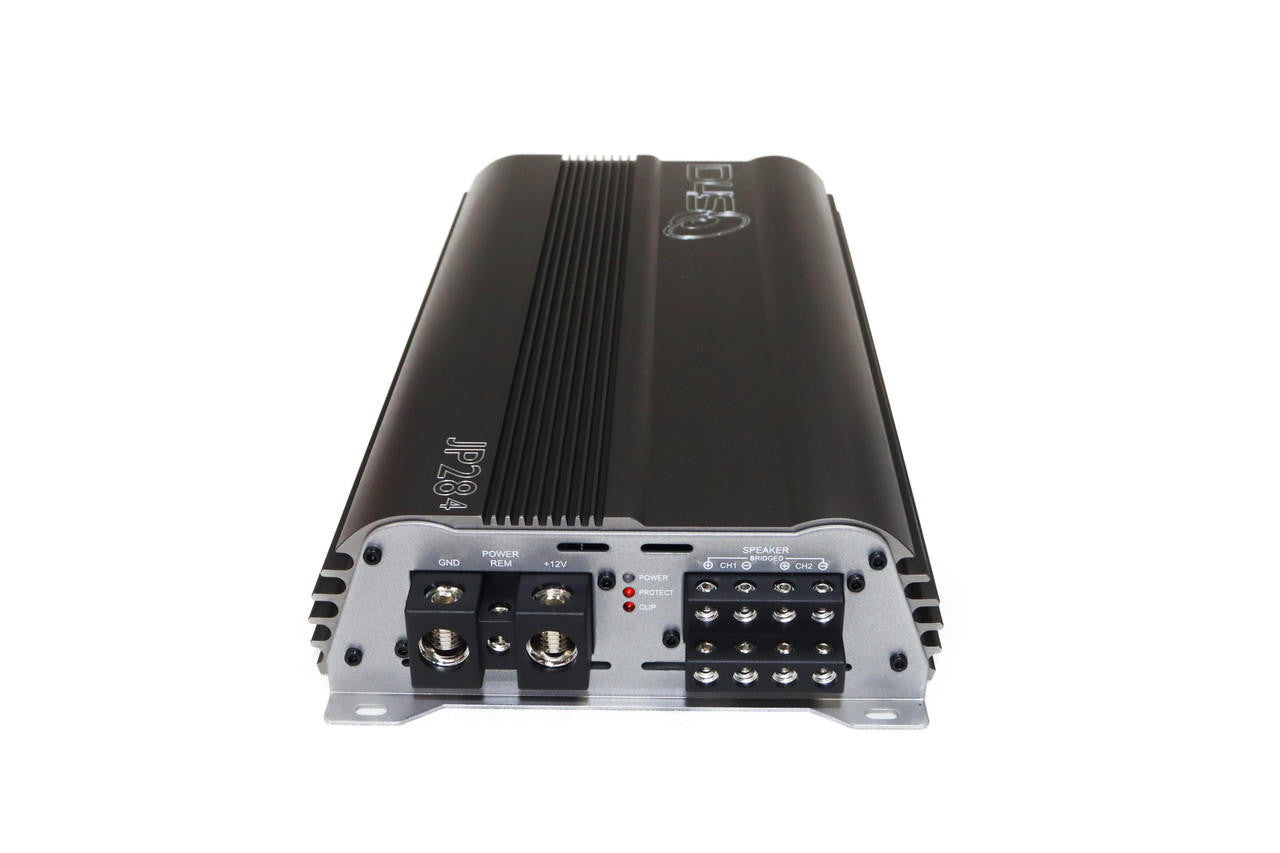

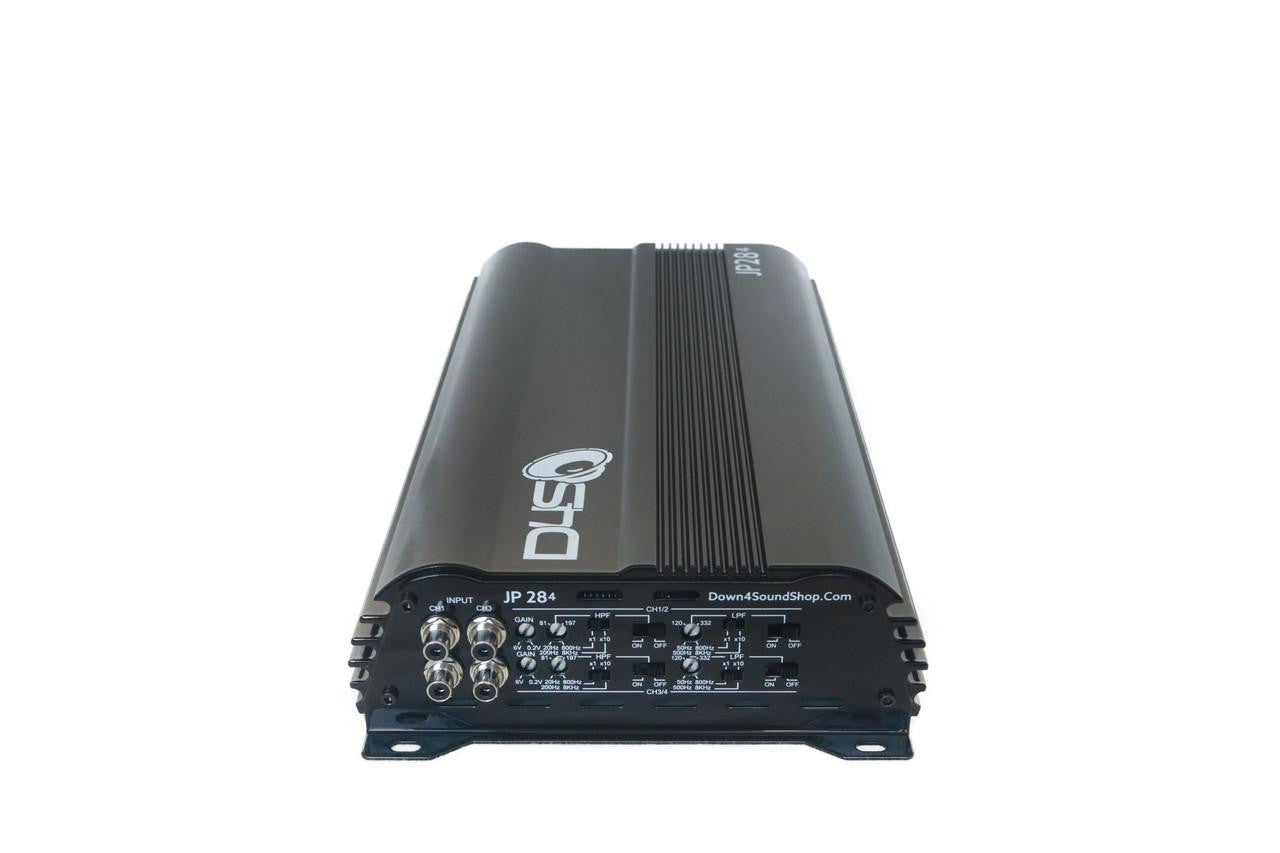

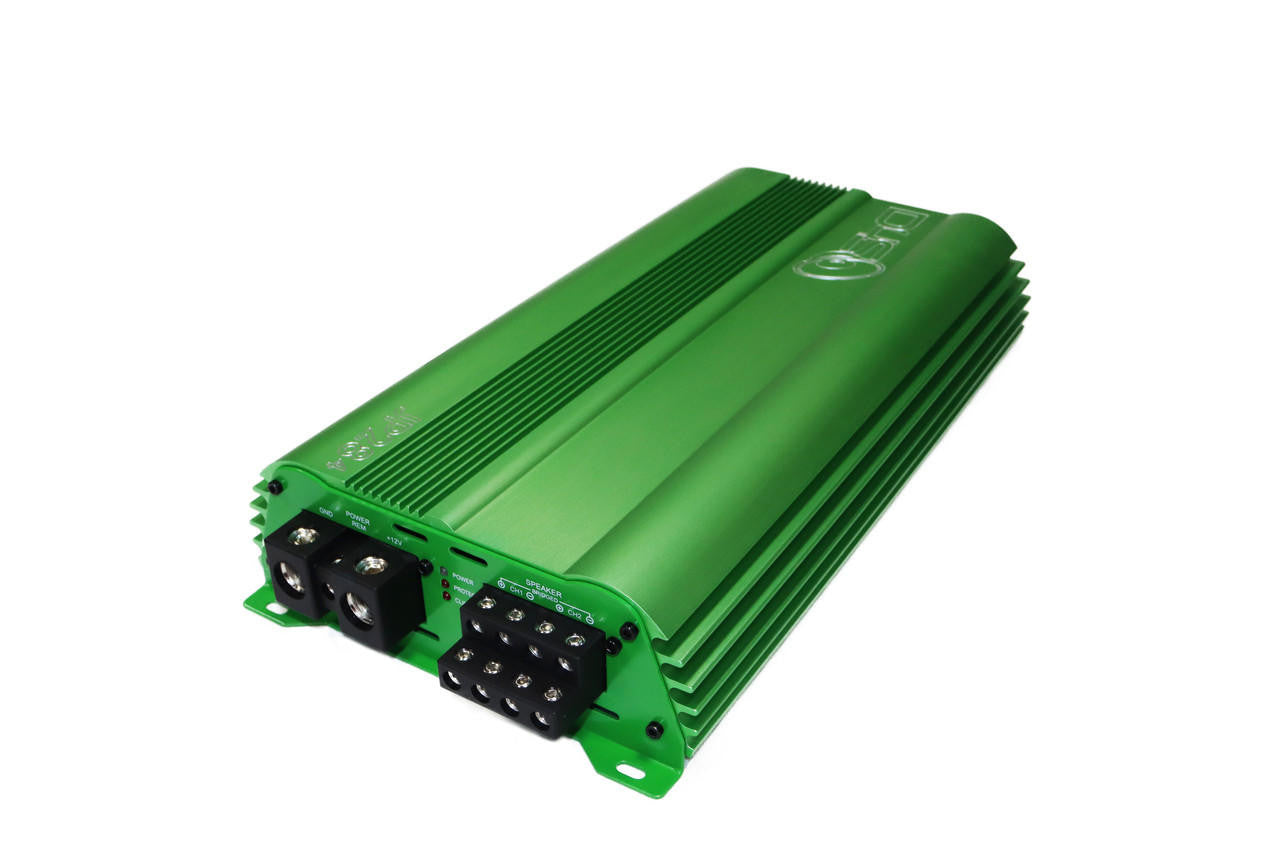

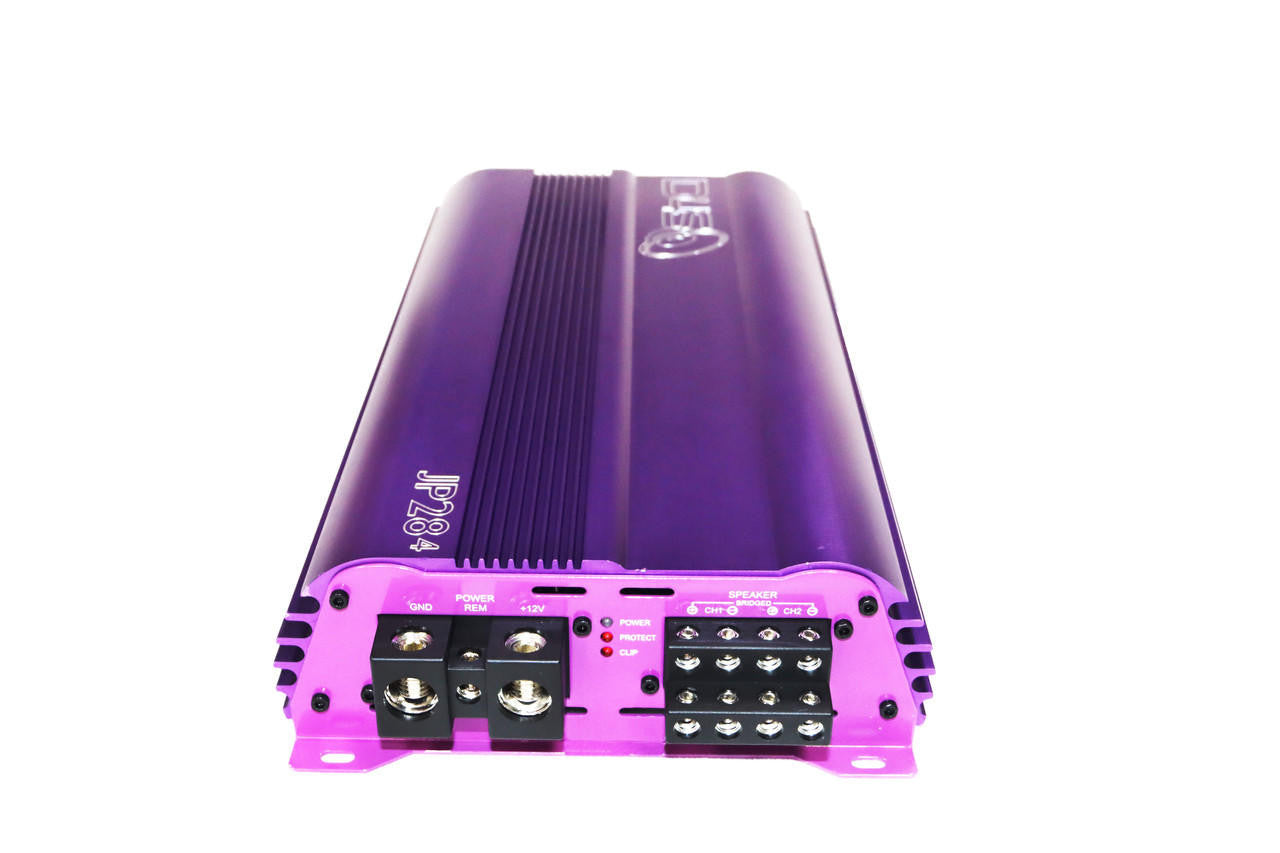

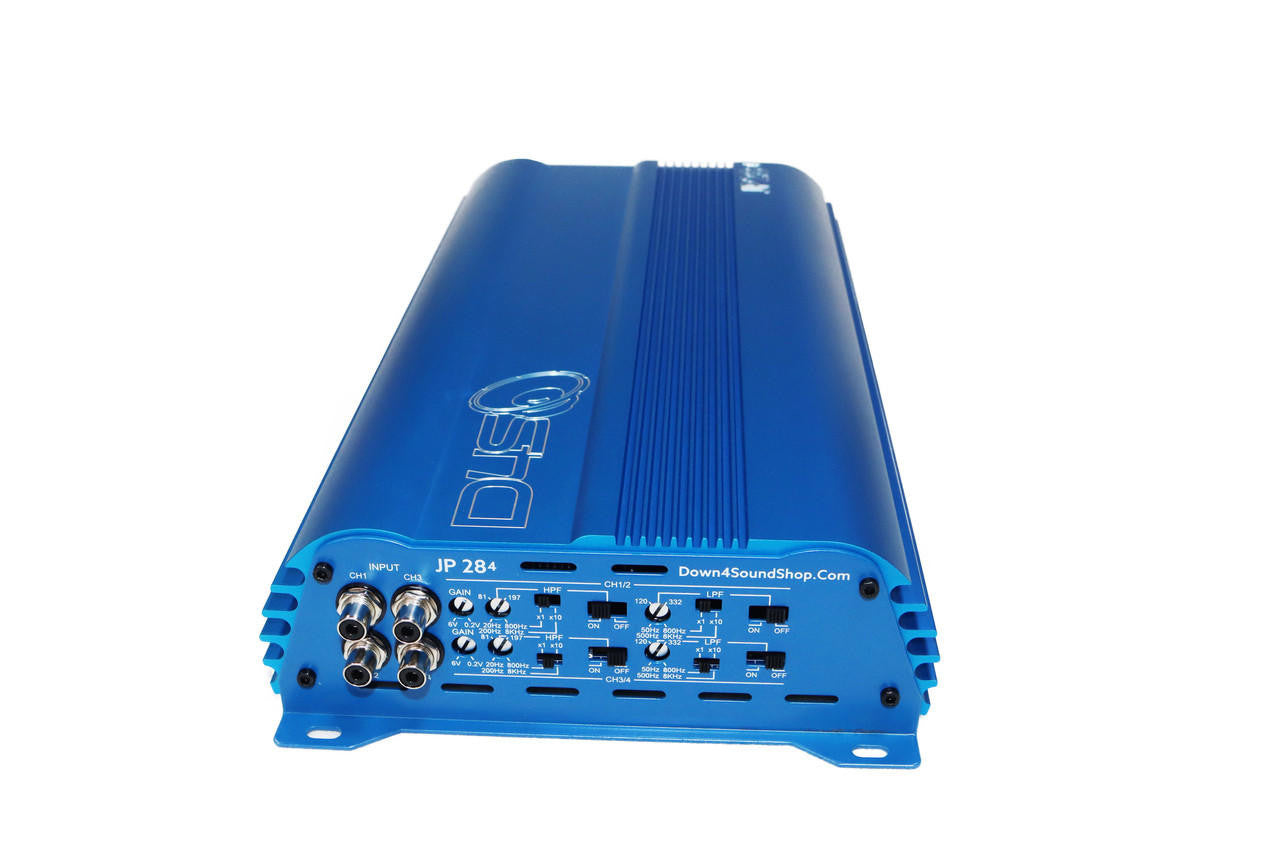

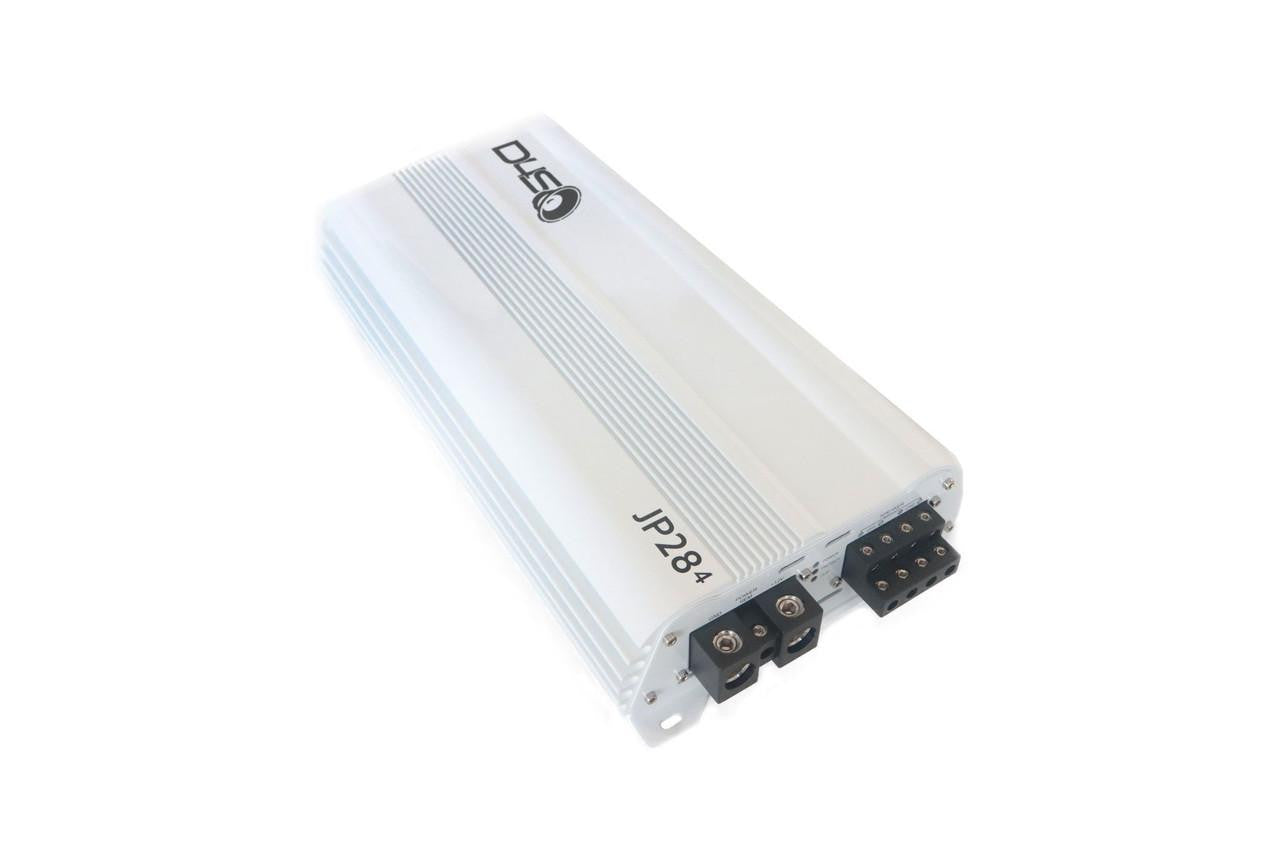

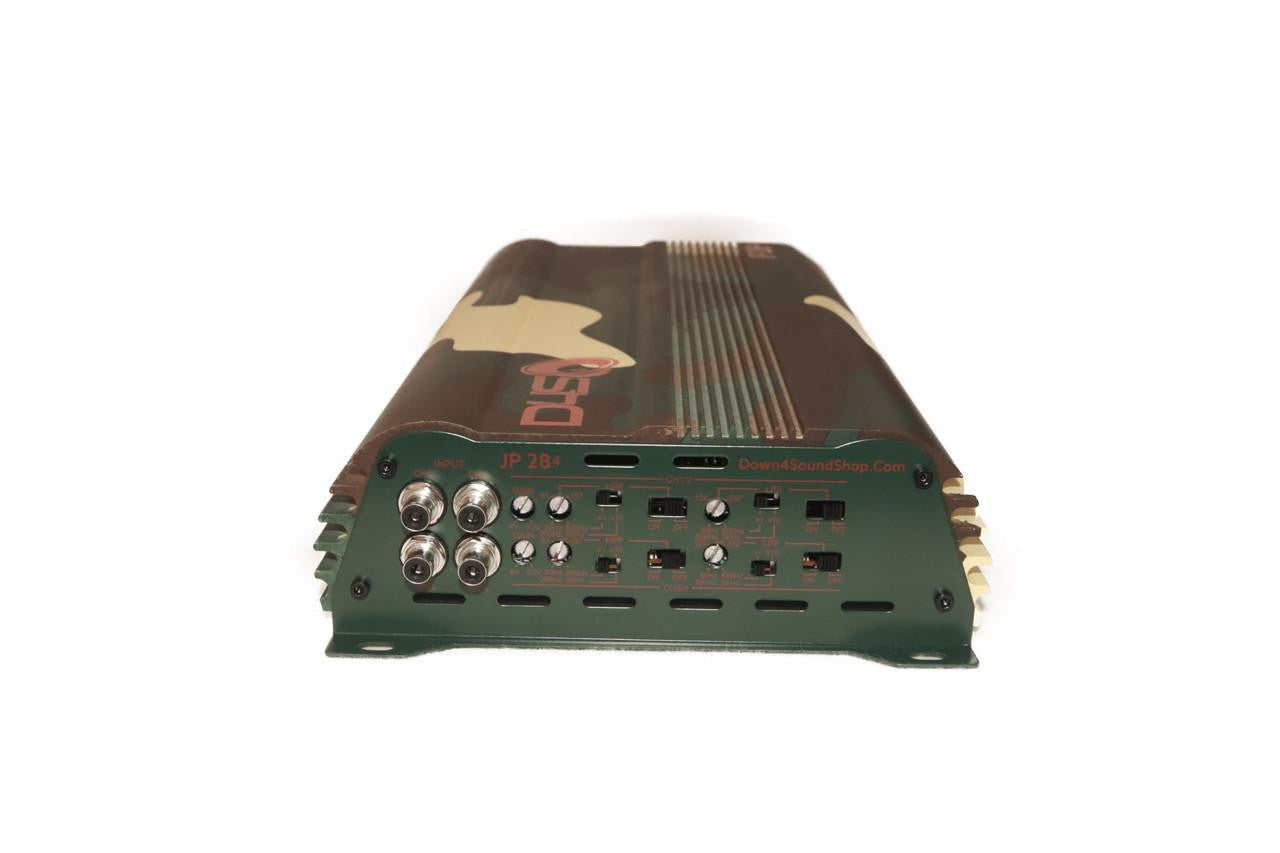

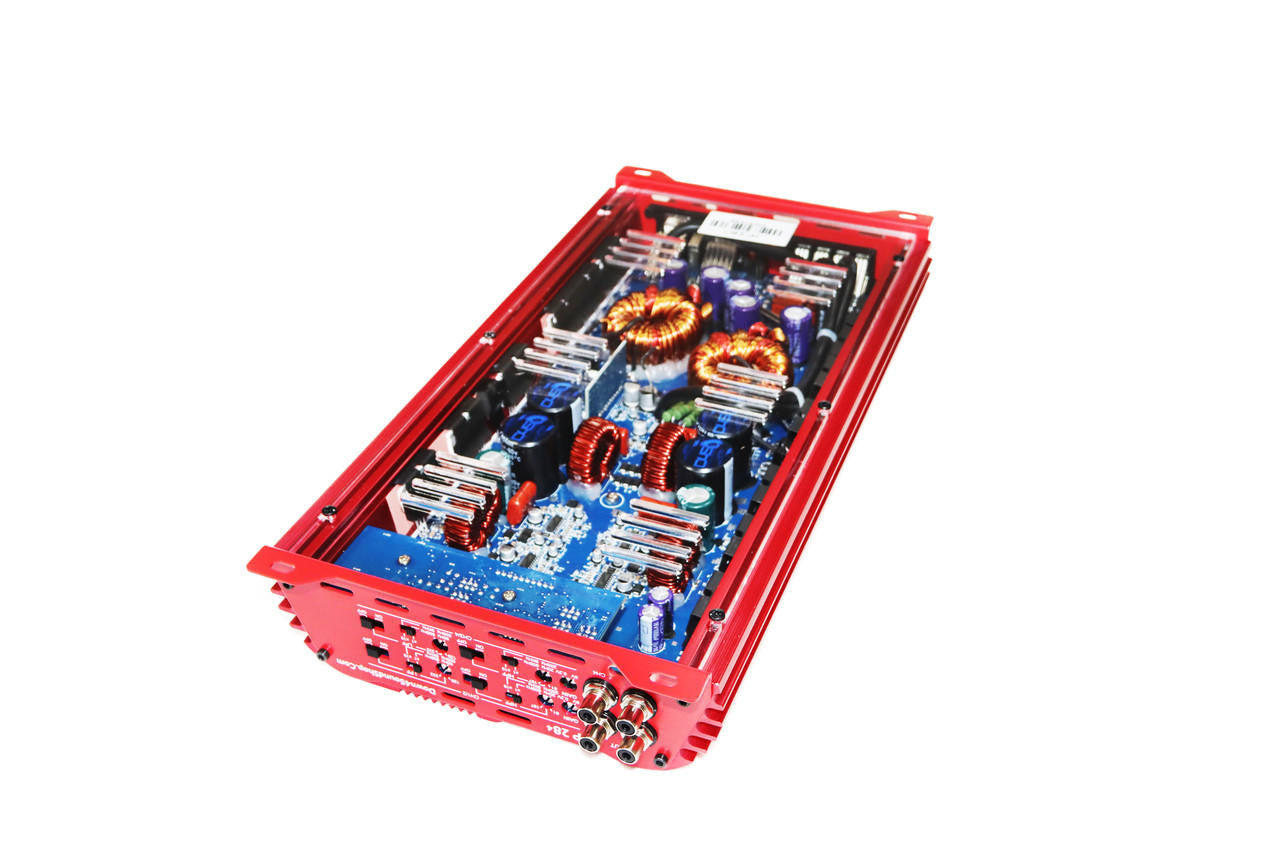

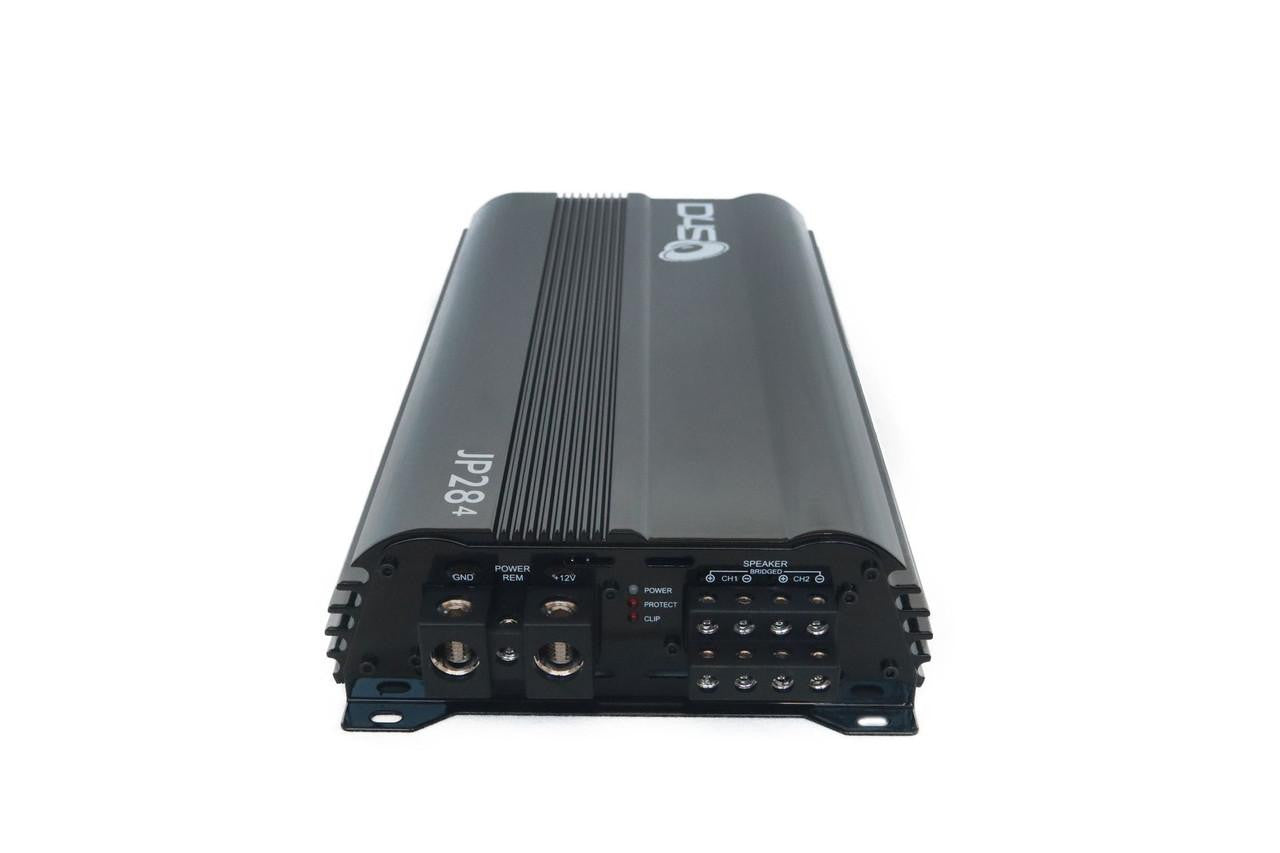

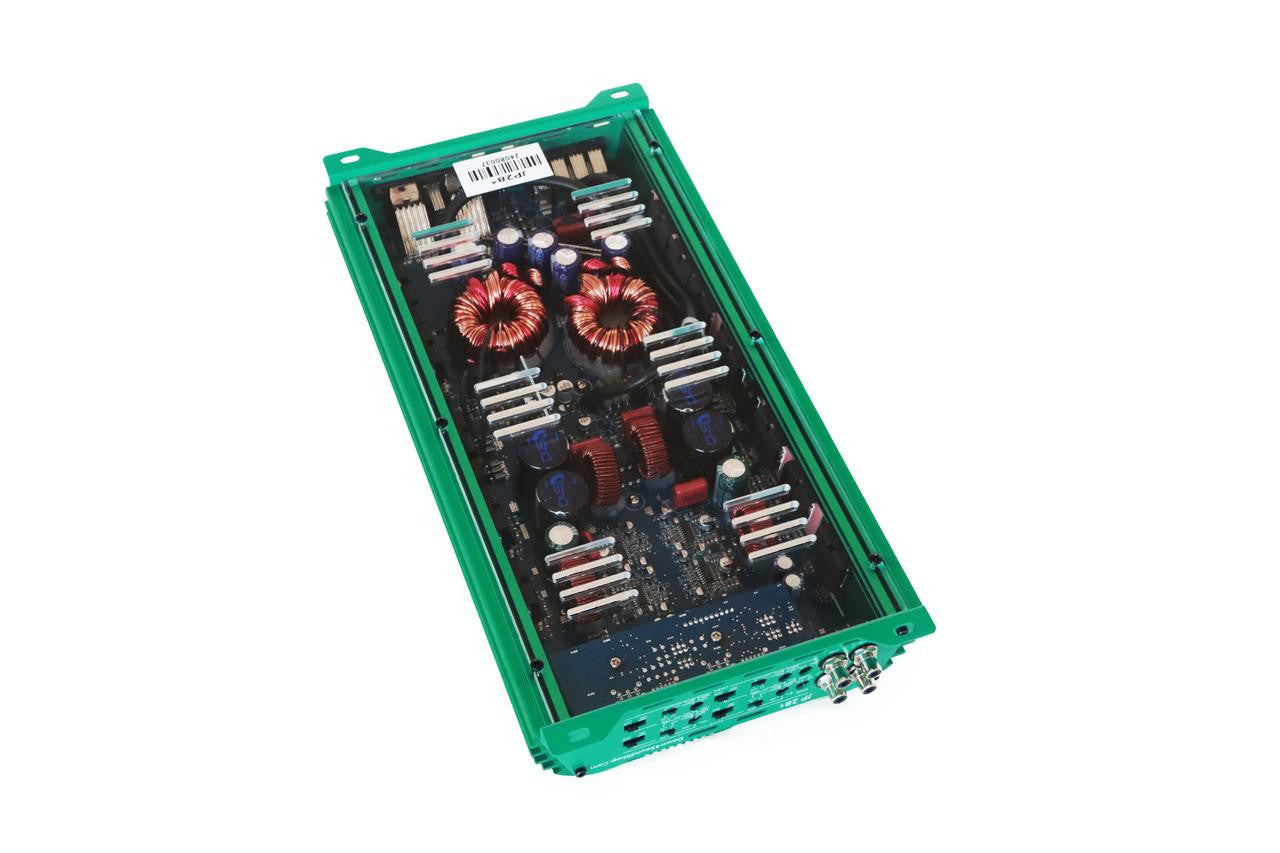

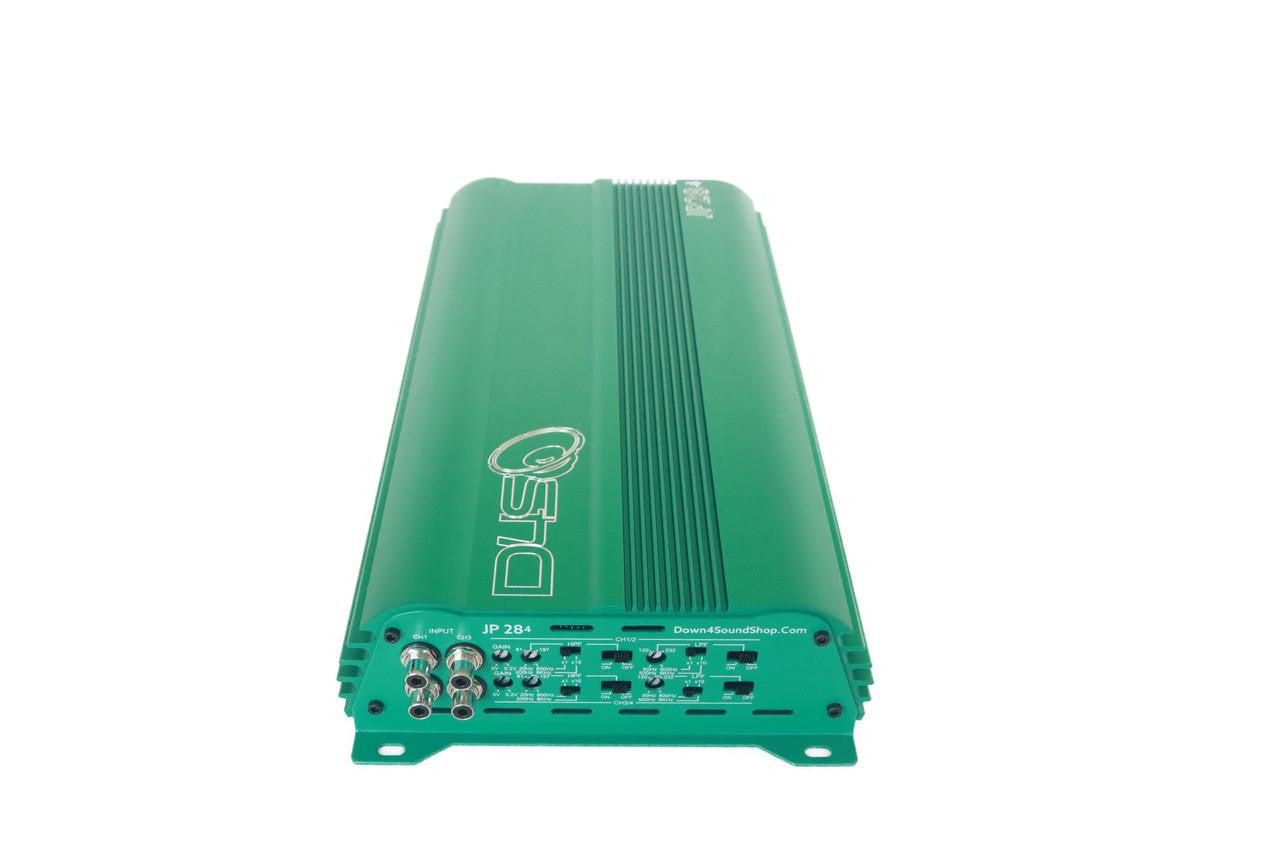

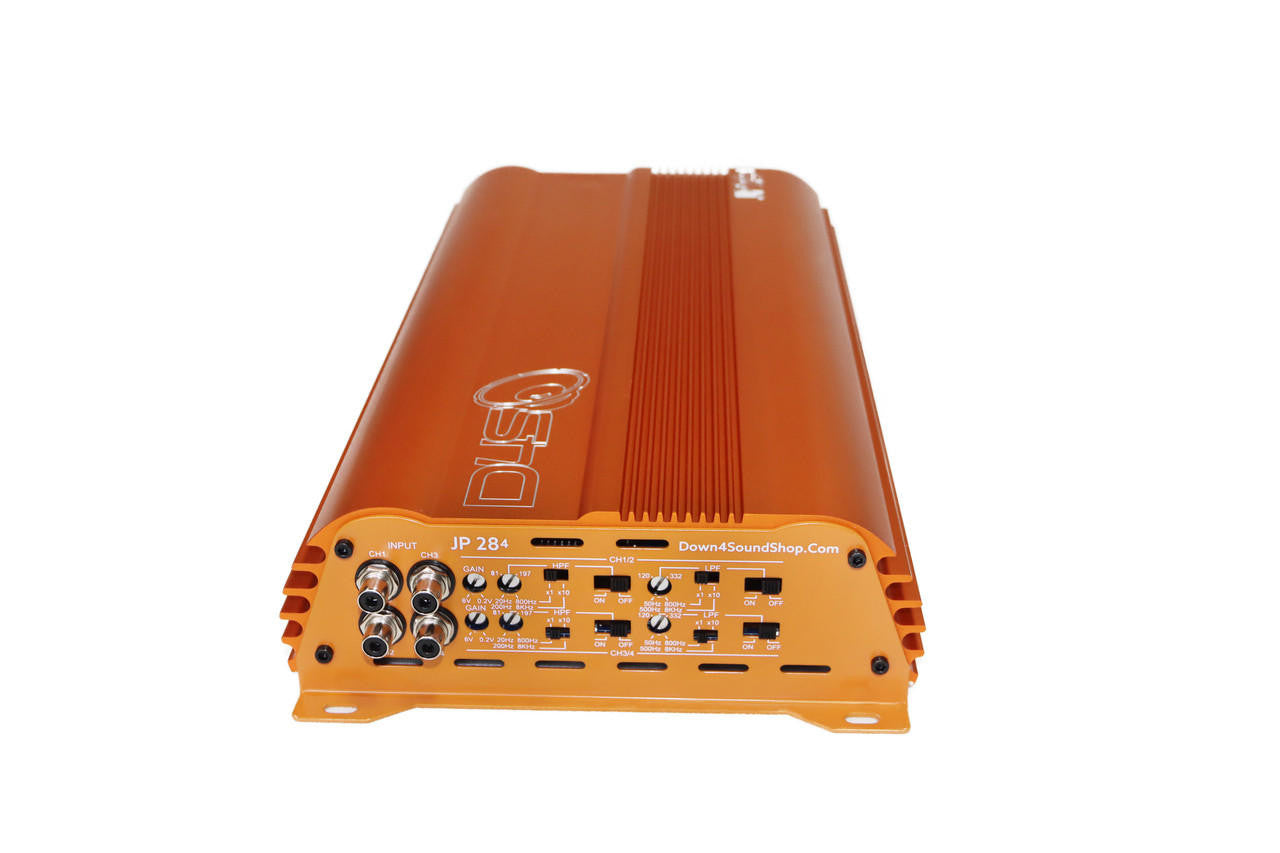

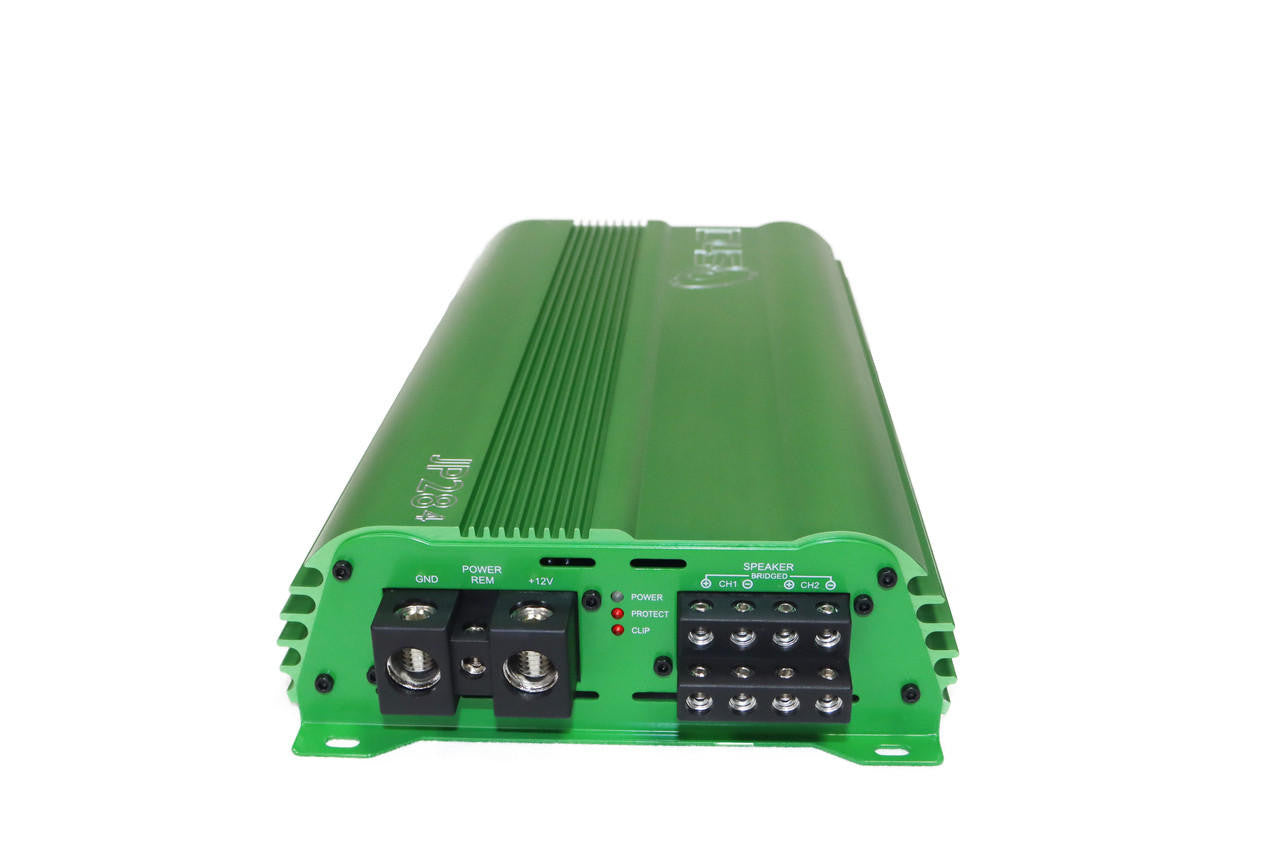

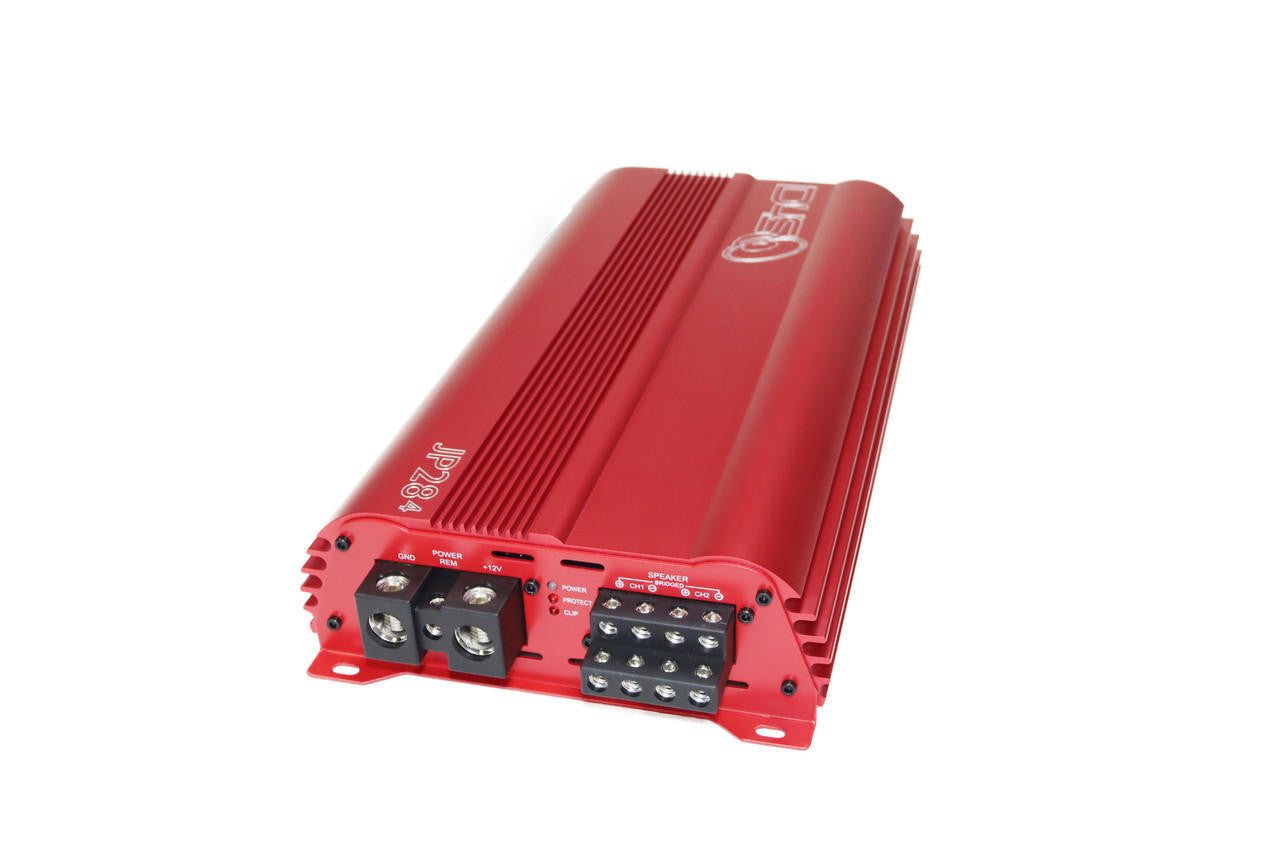

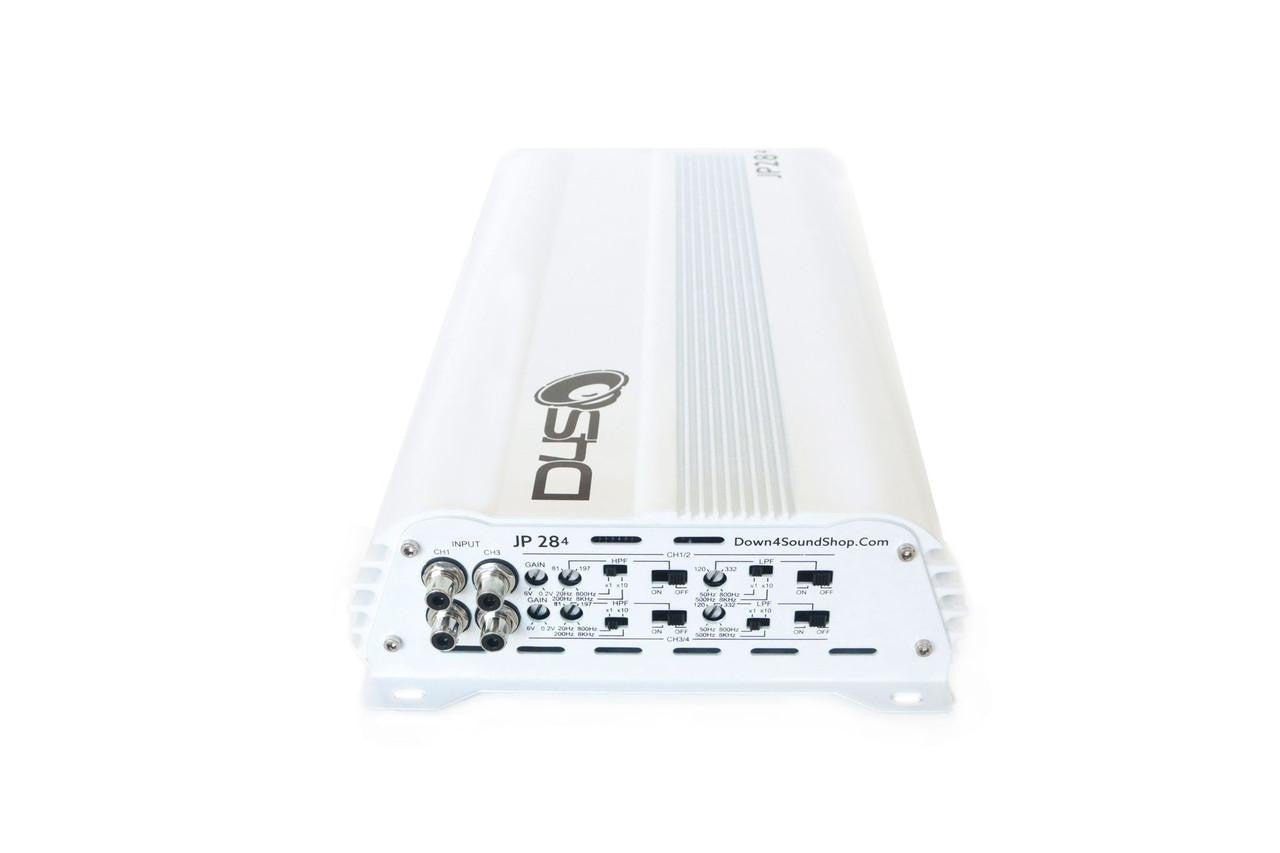

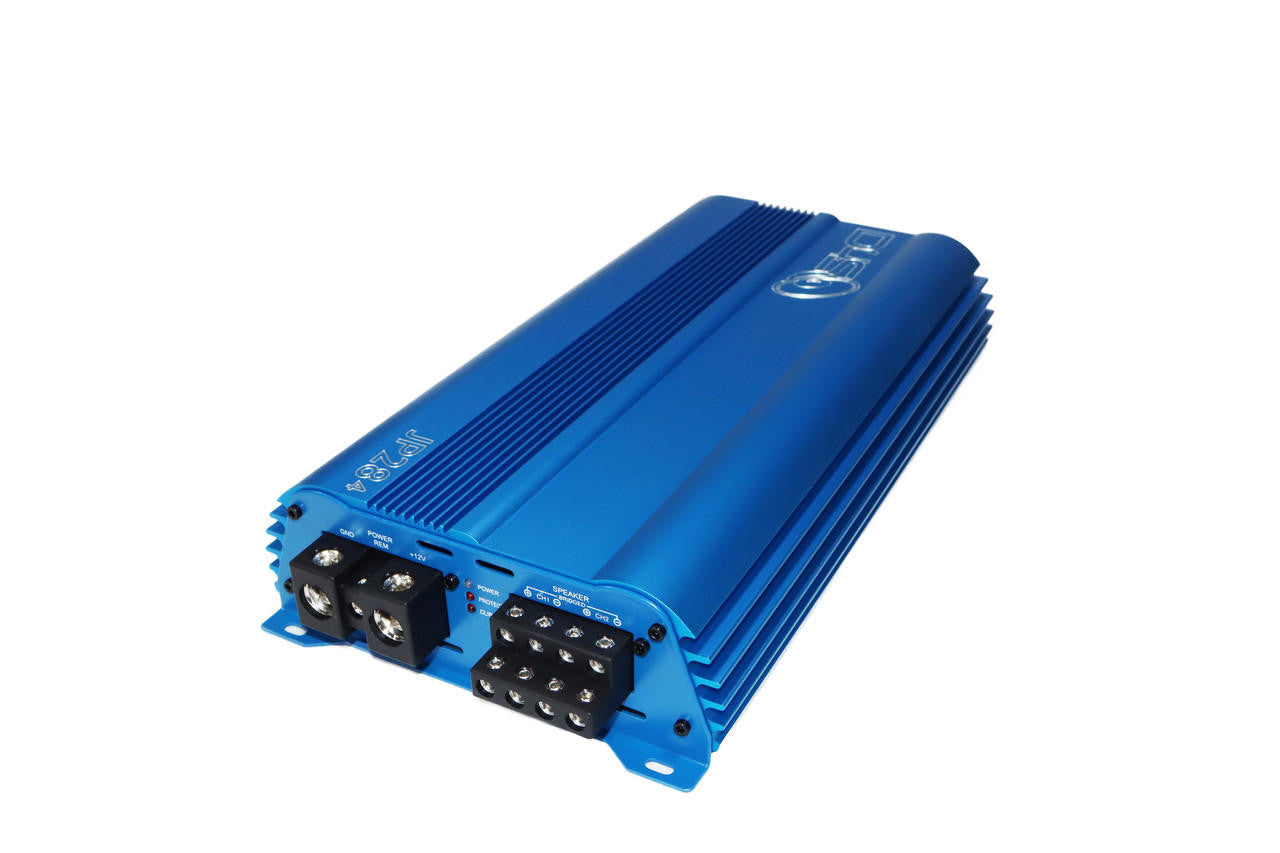

Down4Sound JP284 - 3000W 4 Channel Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
Introducing the JP 284 CLASS D Amplifier: The Ultimate 4-Channel Power Dynamo. The brand-new JP 284 is here, setting new standards in car audio amplification. This Class D amplifier is not only a testament to power but also to precision, ensuring that your audio experience is unparalleled. Dive deep into its specifications and discover why the JP 284 is capturing the attention of the audiophile community.
Specifications:
- 4 Ohm RMS Power: 284W x 4 channels
- 2 Ohm RMS Power: 460W x 4 channels
- 4 Ohm RMS Bridged Power: 888W x 2 channels
- Frequency Response: 10Hz – 23KHz
- Signal to Noise: 95dB
- Damping Factor: 150
- Input Sensitivity: 6V – 0.2V
- High Pass Filter: 20Hz – 800Hz with a multiplier of x1, x10 (200Hz-8KHz)
- Low Pass Filter: 50Hz – 800Hz with a multiplier of x1, x10 (500Hz-8KHz)
- Bandpass Capable
- 0 Gauge Input for Power and Ground
- Up to 12 Gauge Input on Speakers
- Tiffany Style RCA Connection
- Working Voltage: 9 to 15.5 Volts
- Dimensions: 340mm L x 190mm W x 57mm H (13.38 x 7.48 x 2.24 inches)
Elevate your car audio game with the JP 284. Secure yours now and immerse yourself in unparalleled sound quality.
