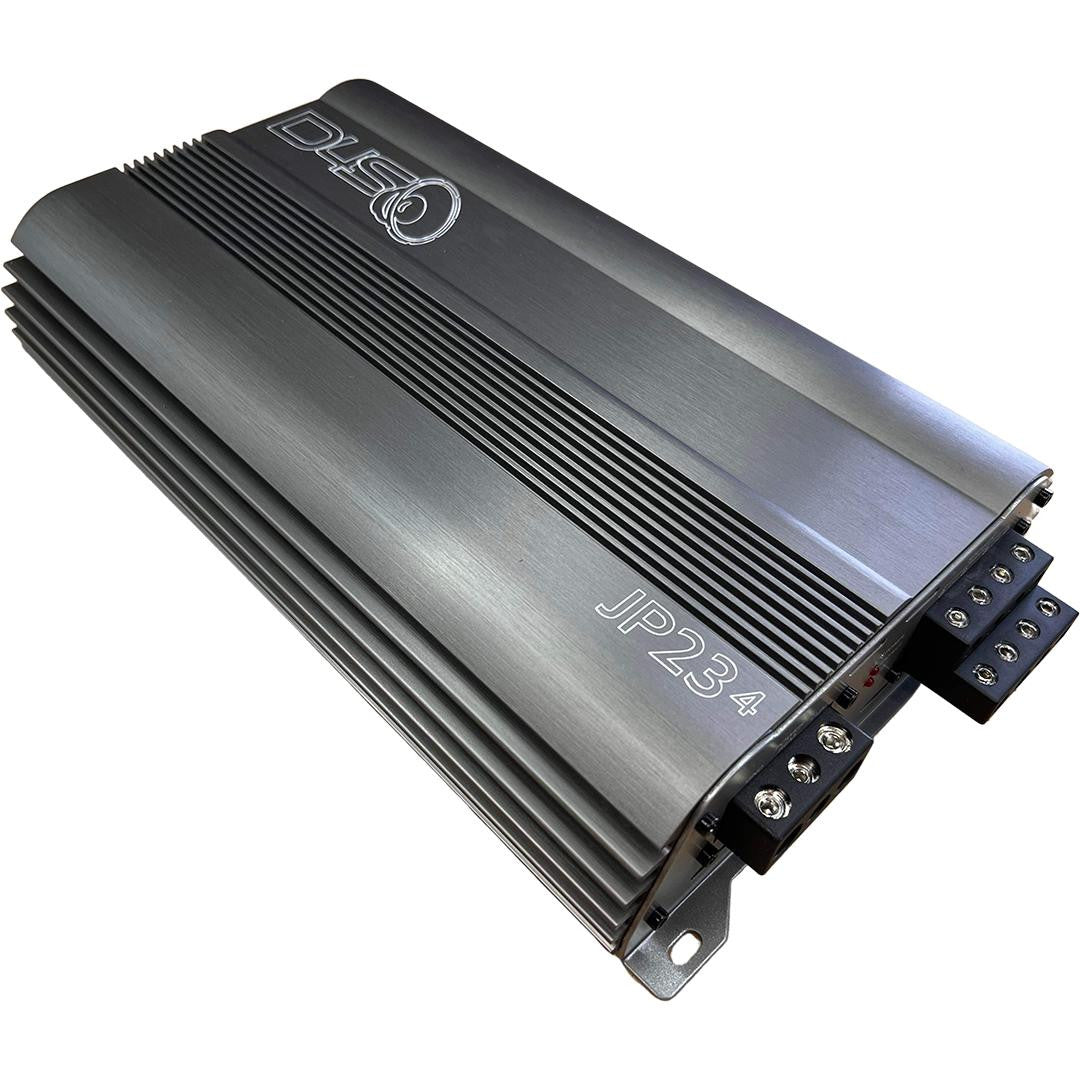

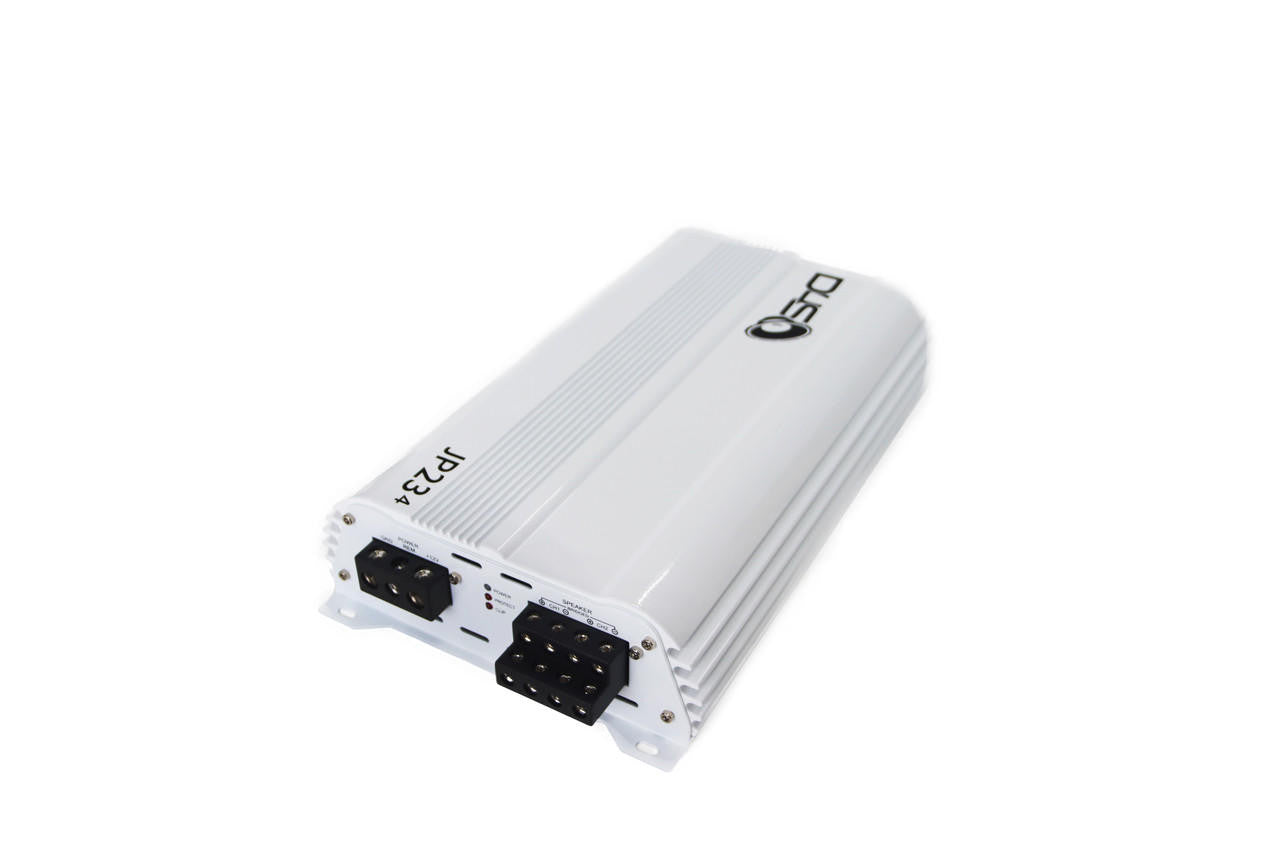

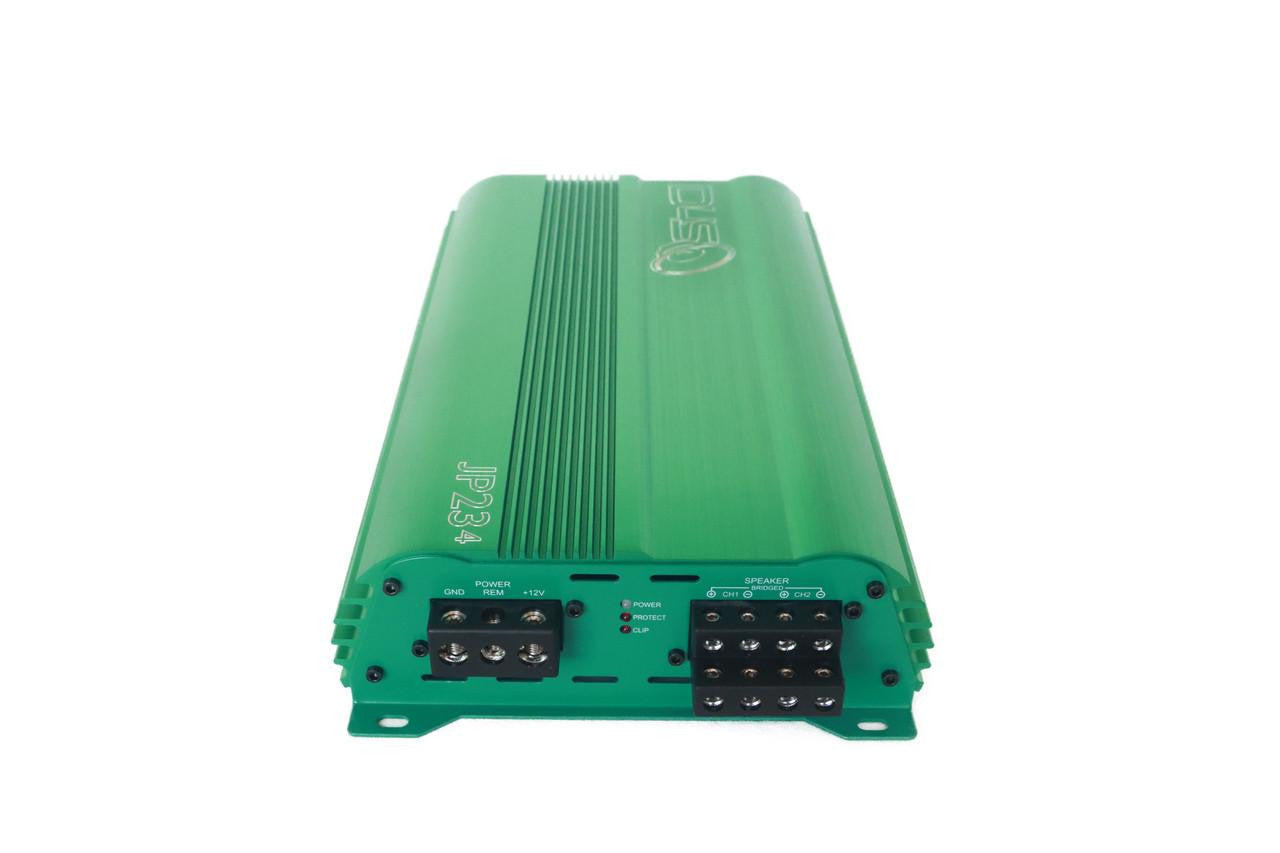

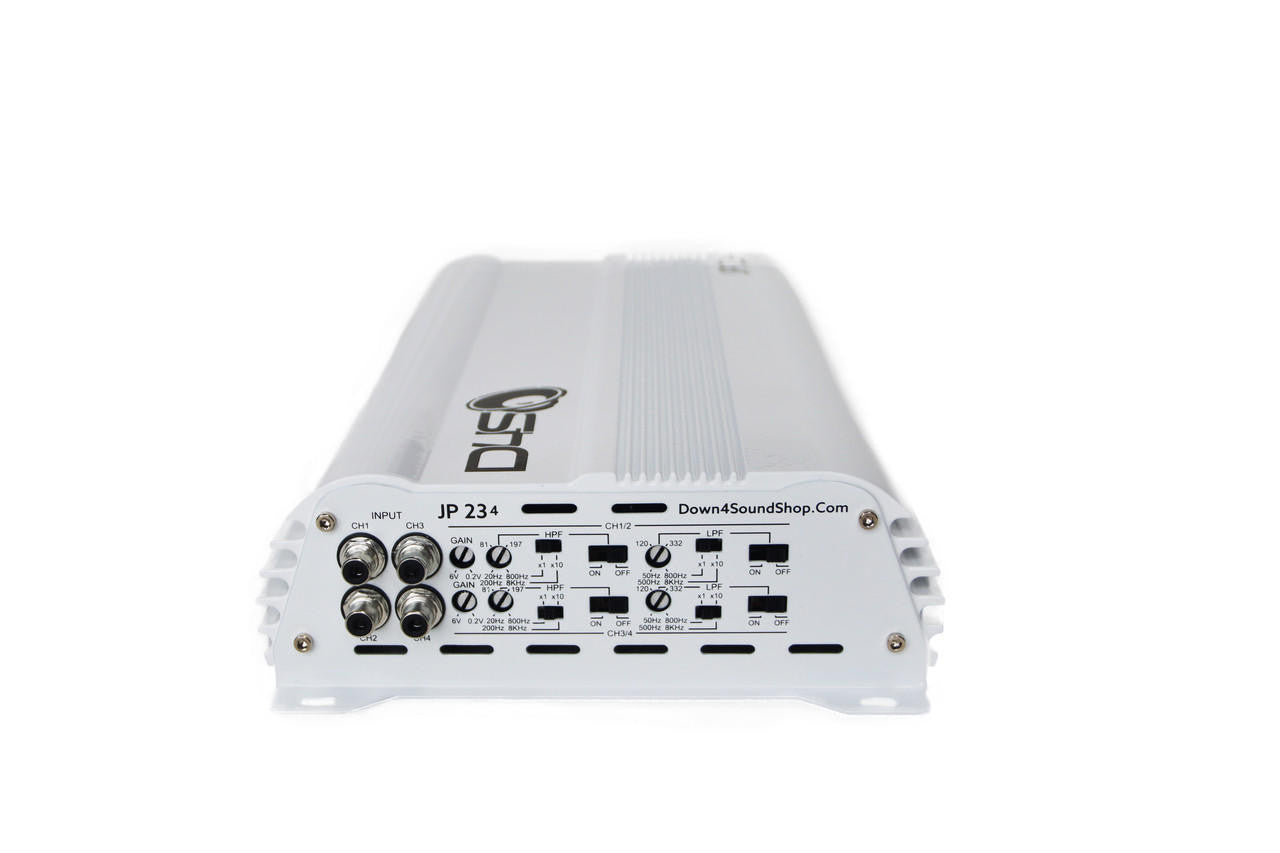

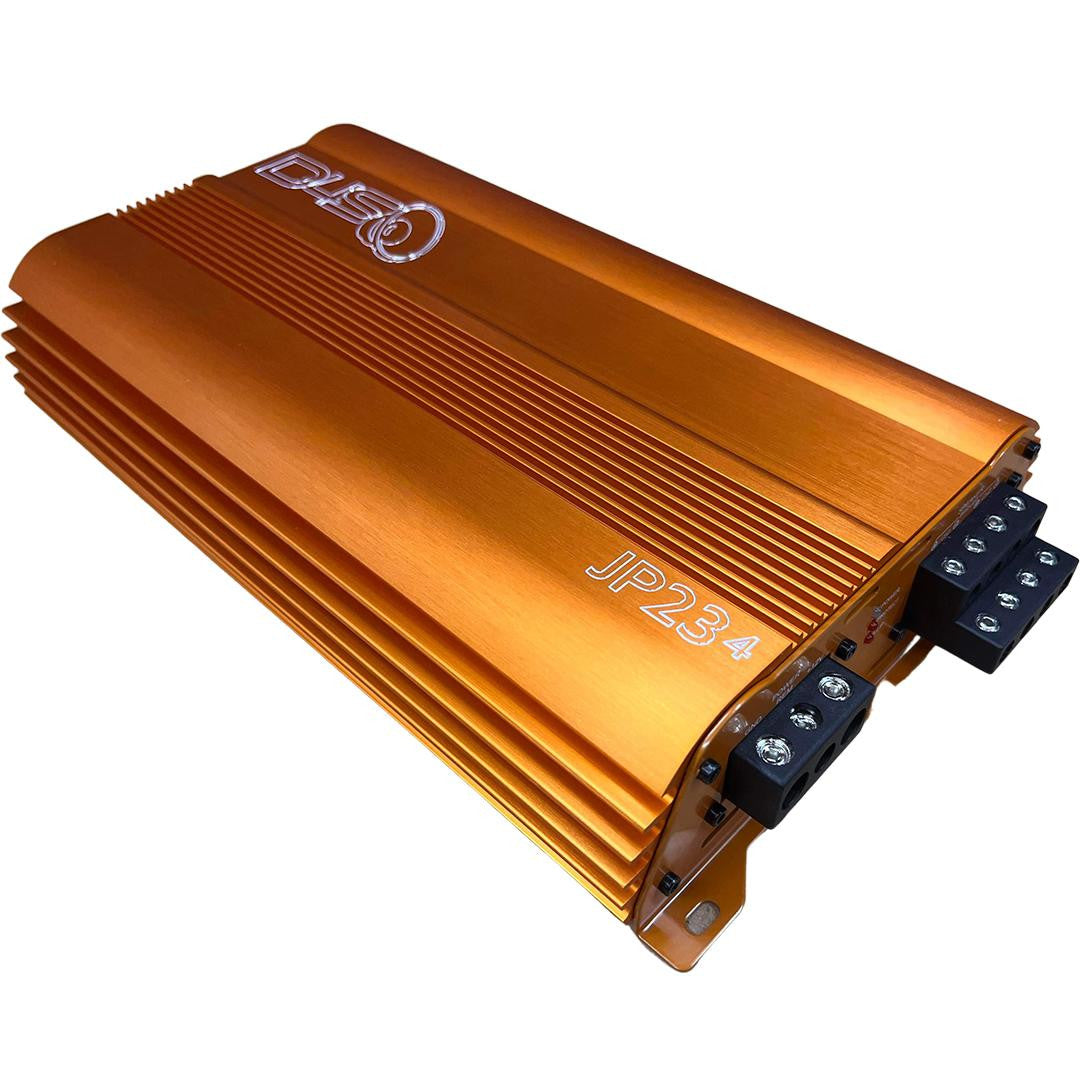

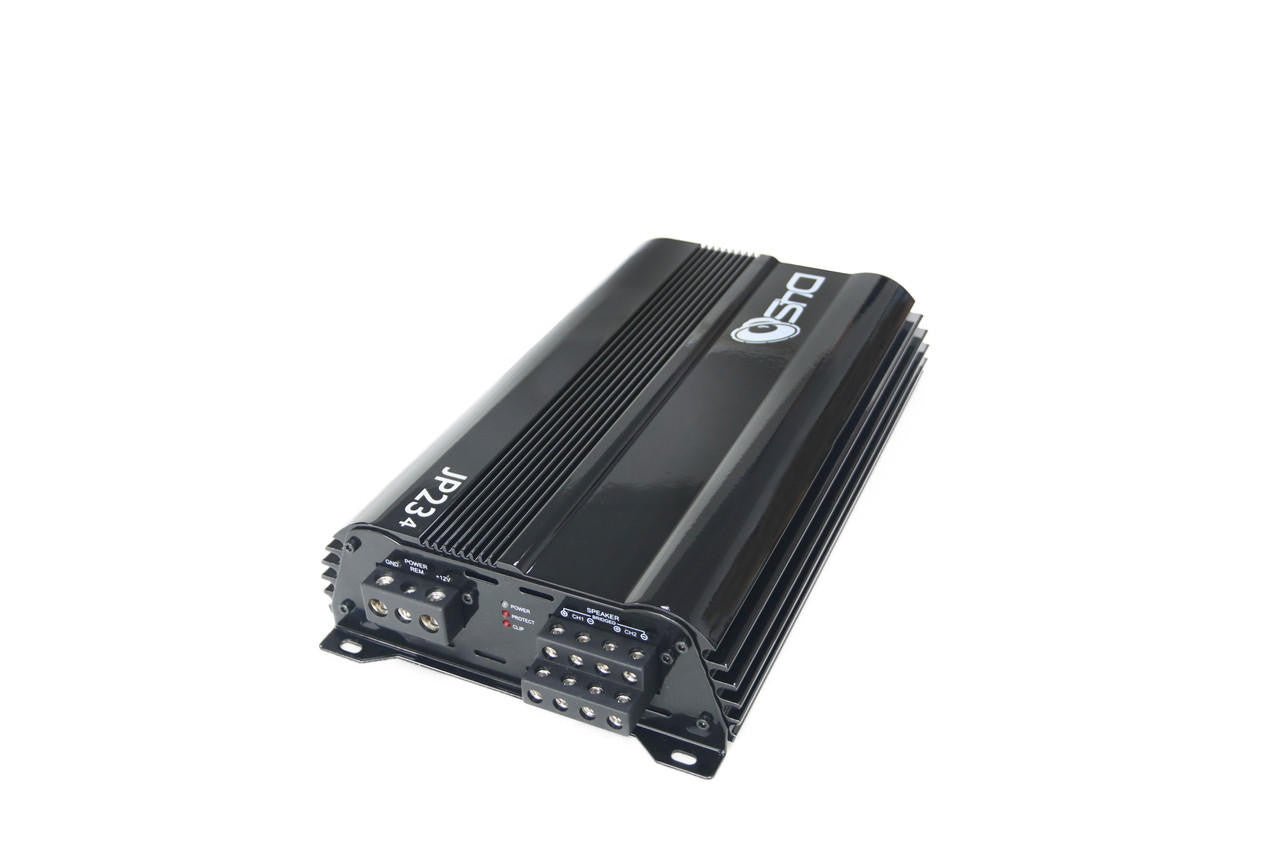

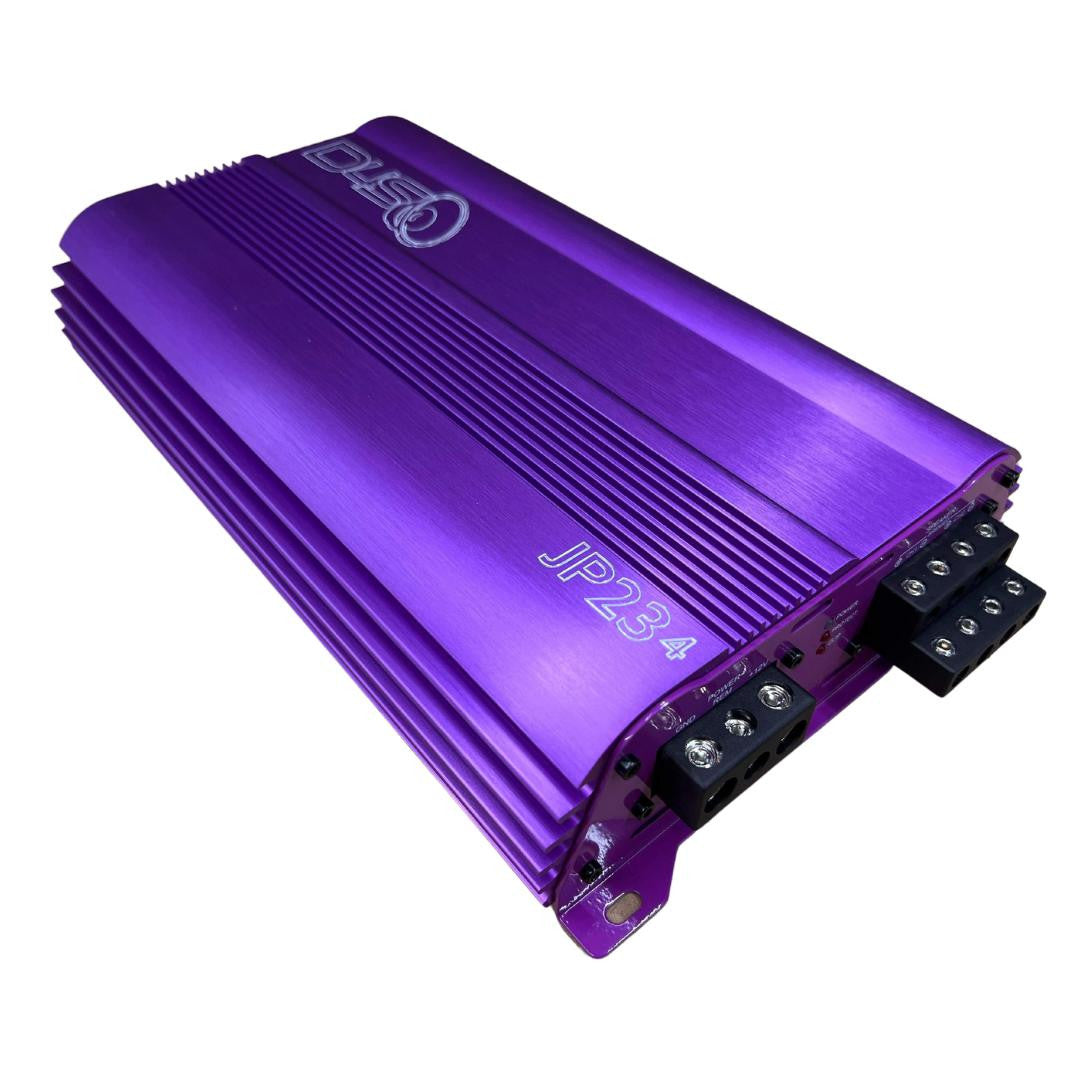

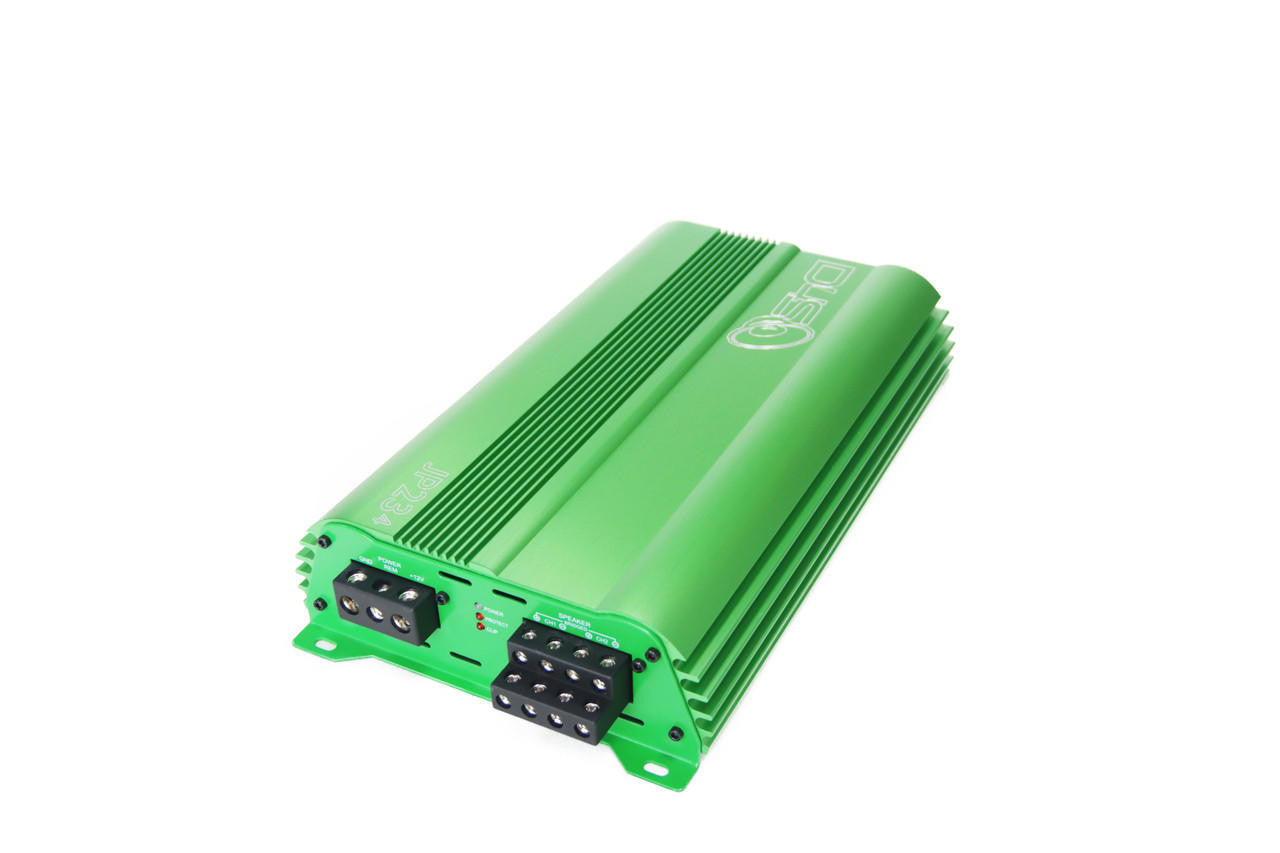

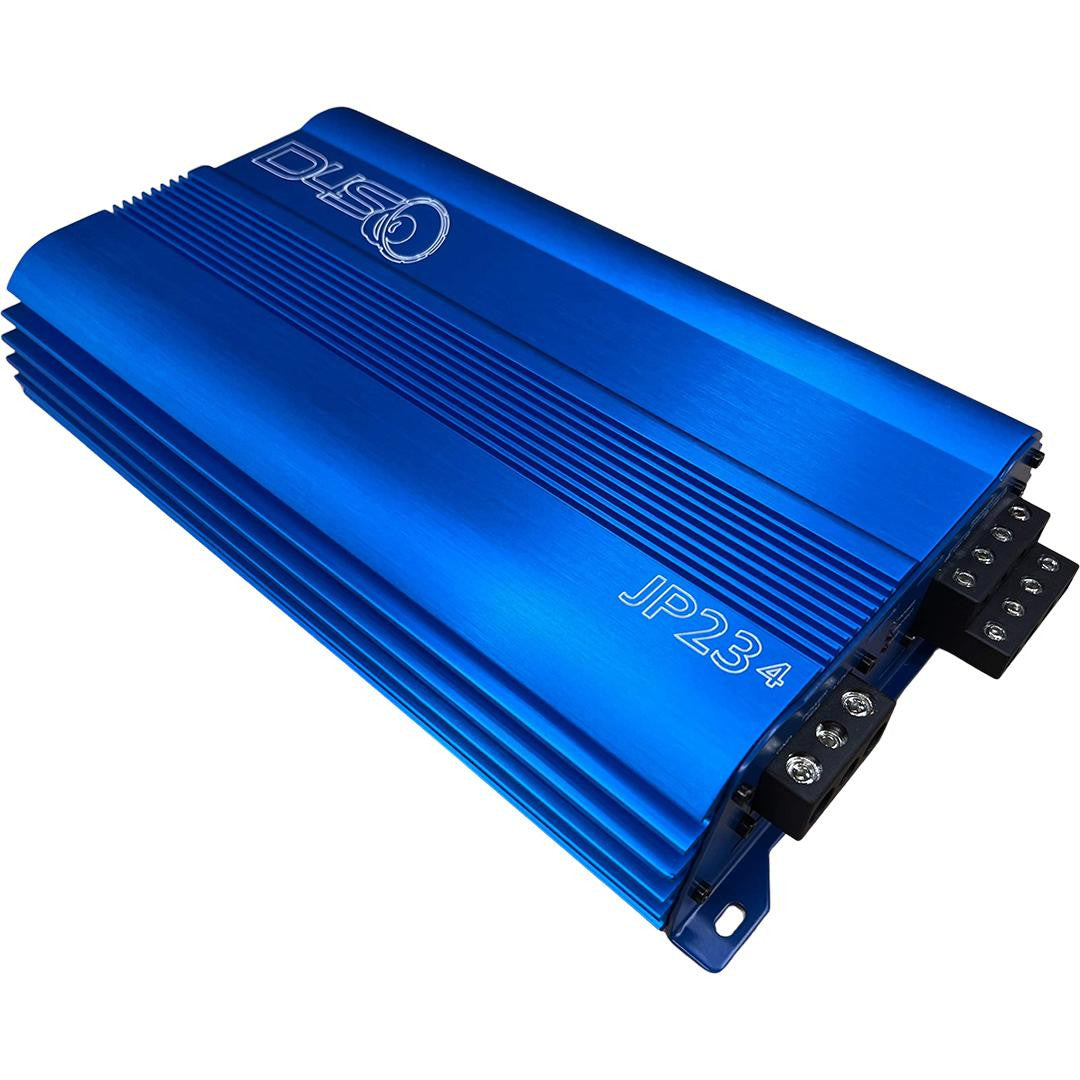

Down4Sound JP234 - 2000W 4 Channel Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.

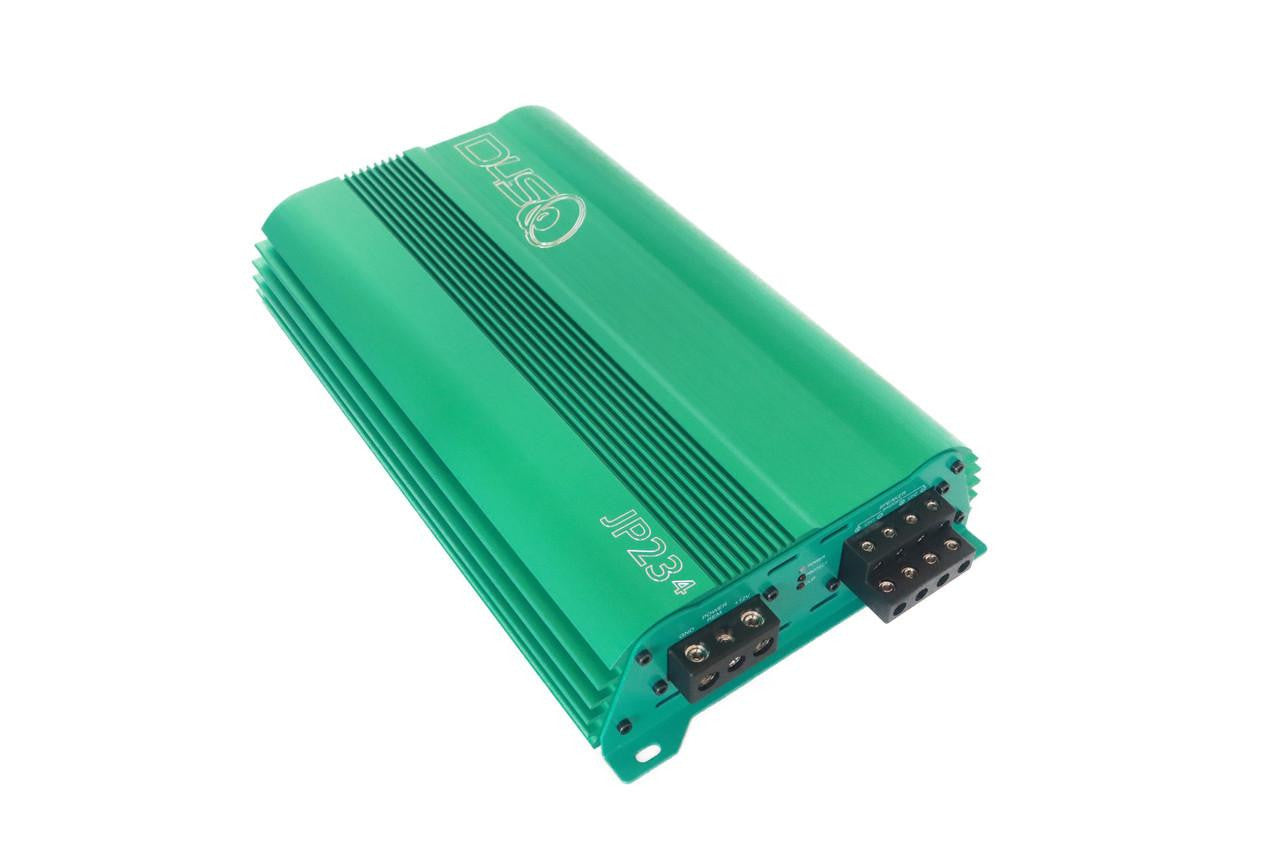

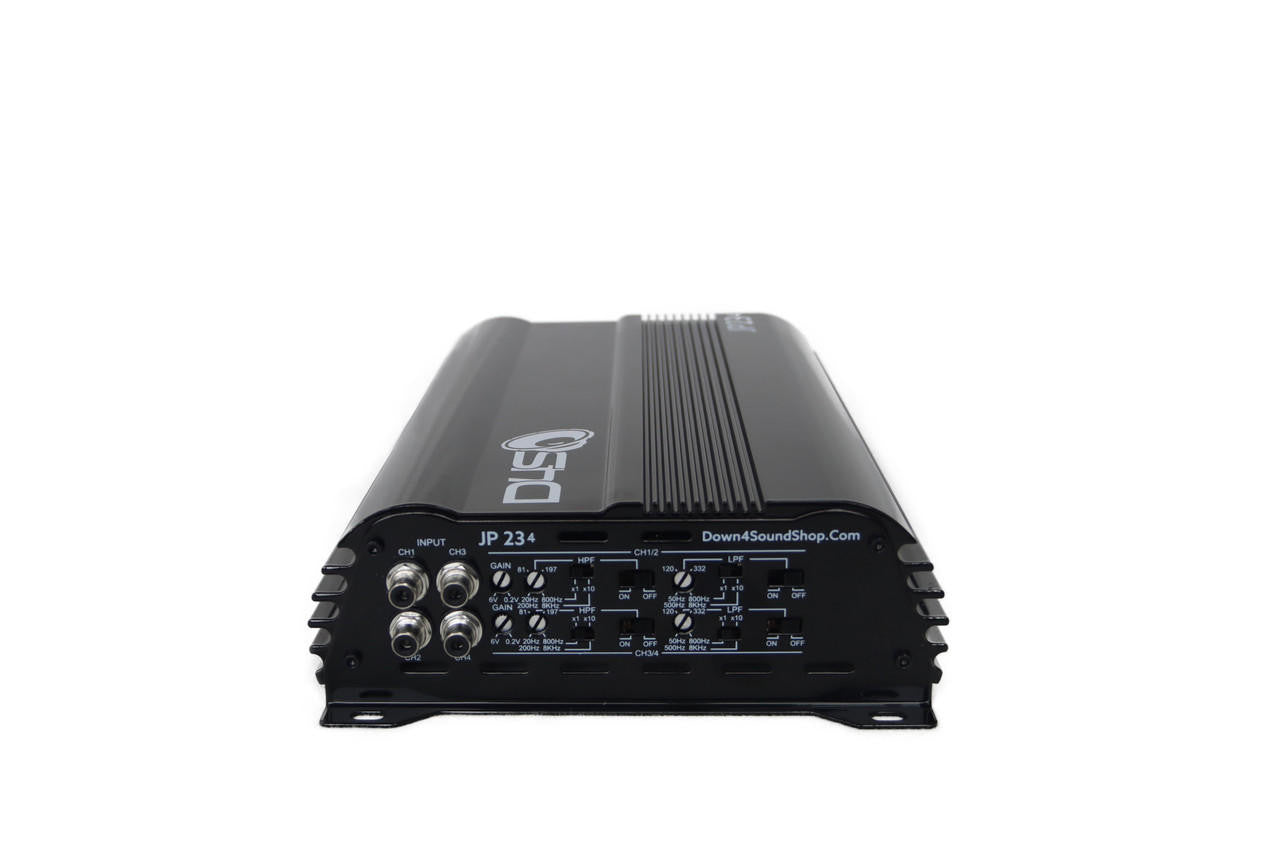

Introducing the Down4Sound JP234 4-Channel Amplifier — your gateway to powerful and immersive car audio. With 2000W of power, this amplifier is designed to elevate your audio experience to the next level. The full-range digital multi-channel amplifier offers stability into 2 ohms stereo or 4 ohms bridged configurations. Equipped with a high-speed MOSFET power supply, variable high and low pass filters, and crossover multiply x10, the JP234 redefines performance. Embrace the Class D design and 4-way protection circuits that ensure your system's safety and reliability. Certified independent testing by Big D Wiz with SMD Amplifier Dyno guarantees exceptional results. Immerse yourself in superior sound quality with the JP234.
Key Features
- 2000W of power for a dynamic audio experience
- Stable into 2 ohms stereo or 4 ohms bridged configurations
- High-speed MOSFET power supply for reliable performance

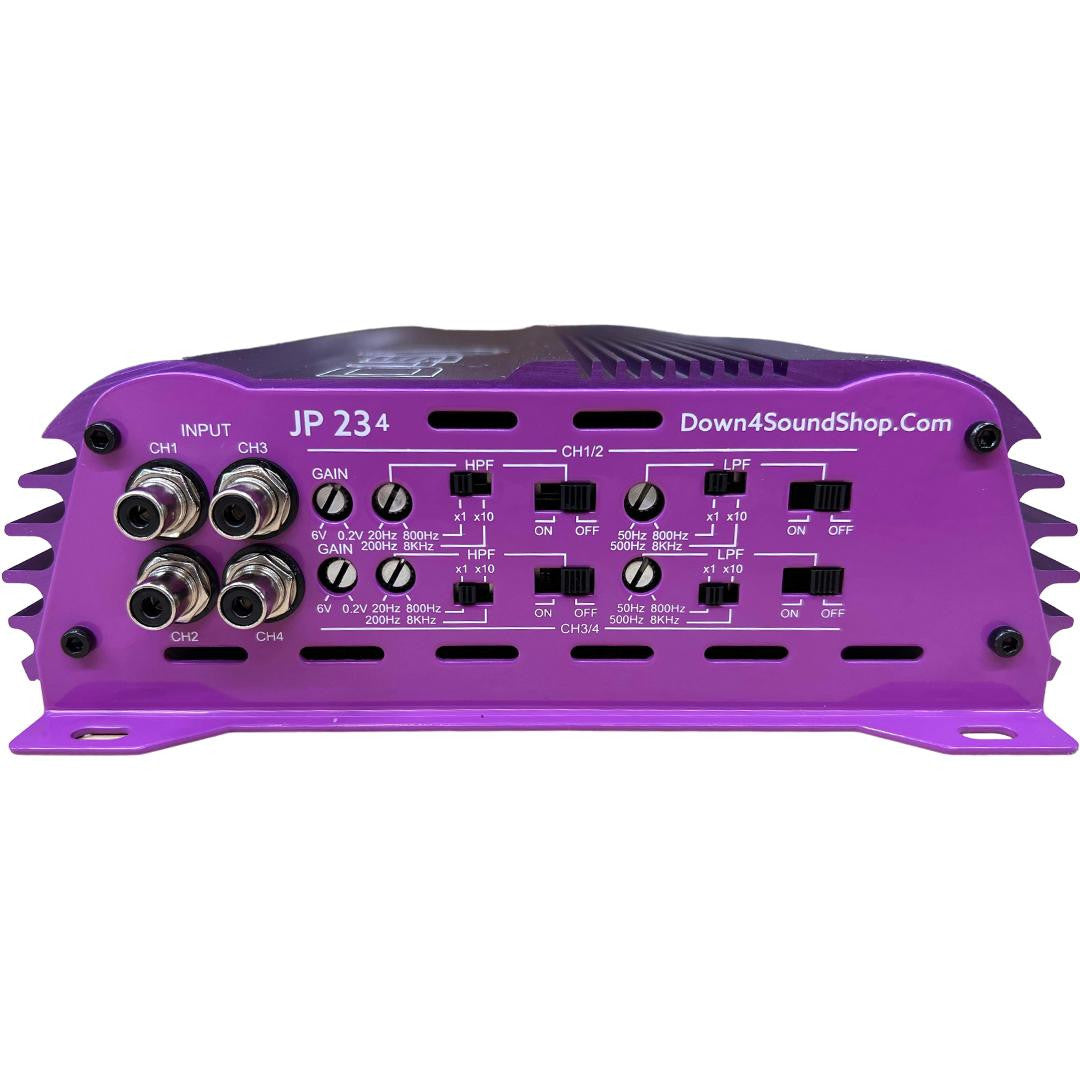

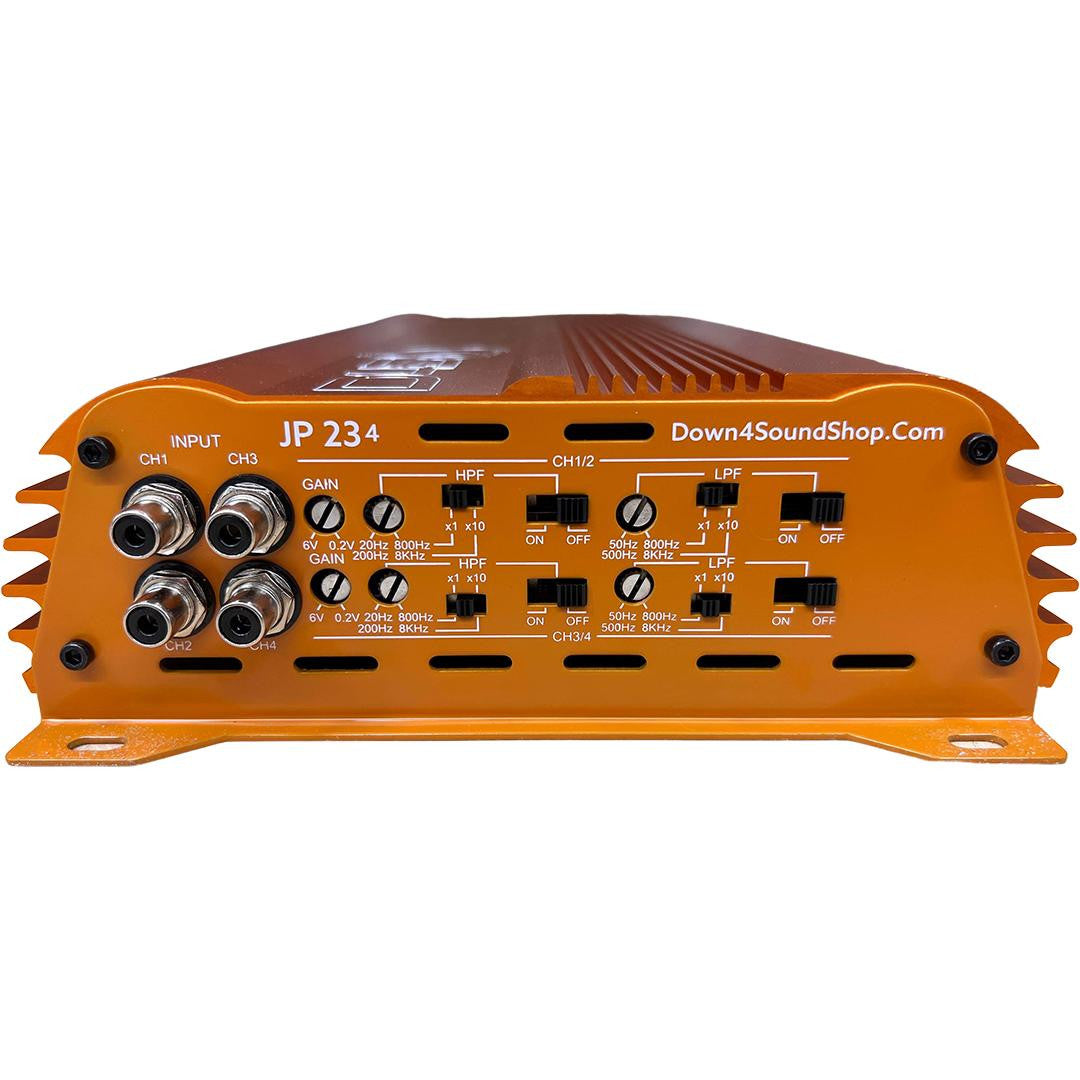

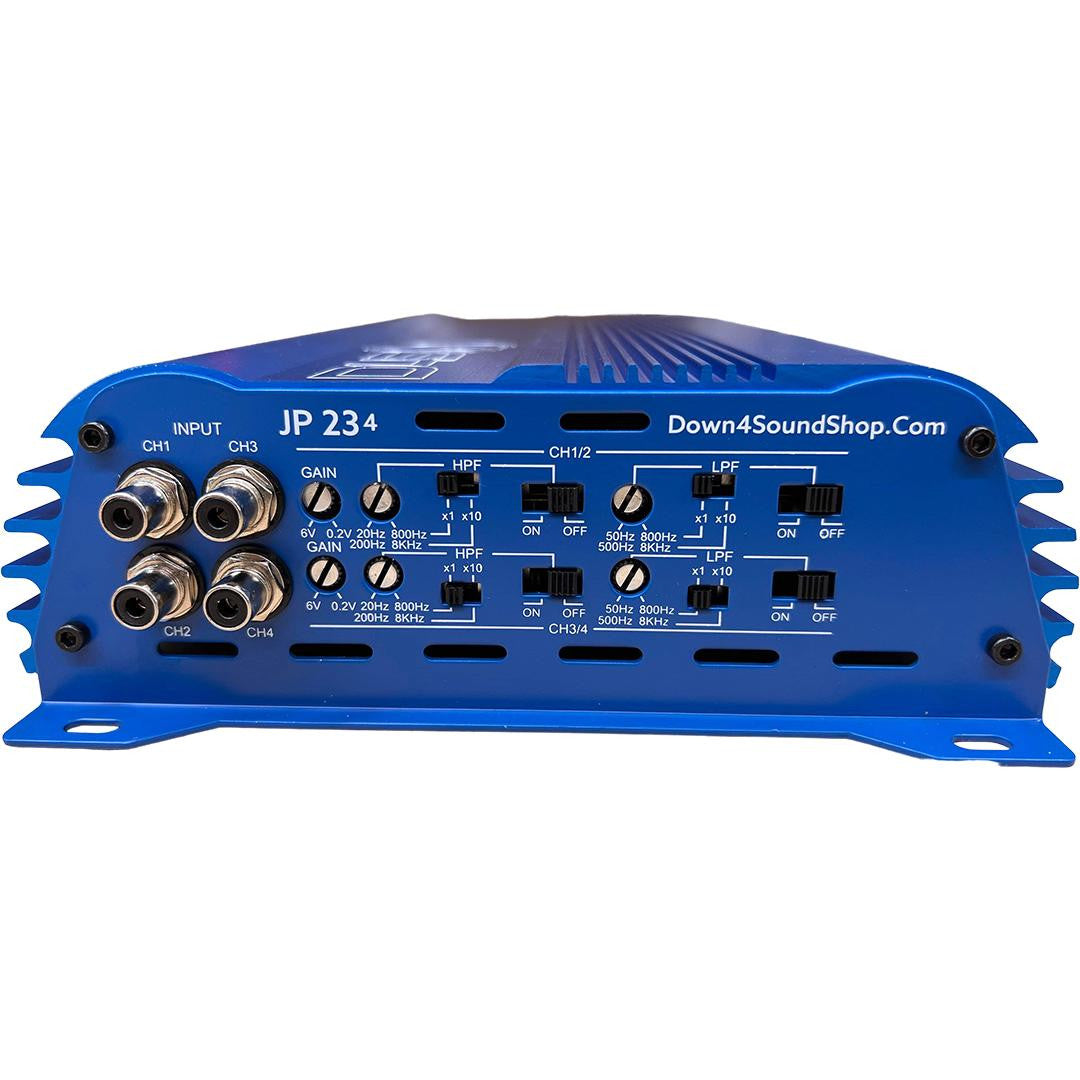

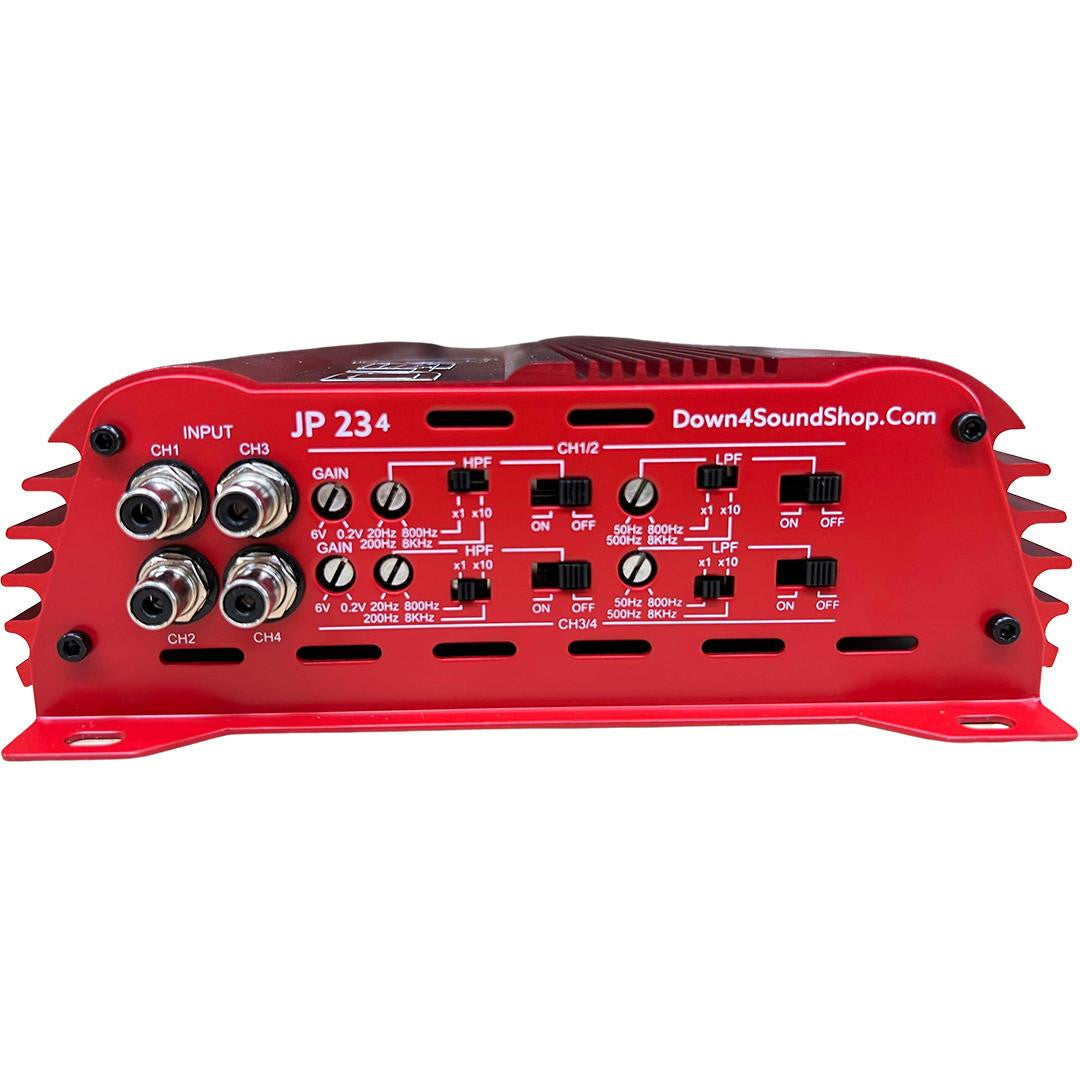

- Variable high and low pass filters for customizable sound
- Crossover multiply x10 for versatile audio options
- Class D design for efficient and powerful amplification
- 4-way protection circuits for safety and reliability
Independent Testing Results
- 4 ohms at 14.4V: 334W RMS — CERTIFIED
- 2 ohms at 14.4V: 425W RMS — CERTIFIED
- Bridged at 2 ohms: 678W RMS — CERTIFIED
Our Ratings
- RMS Power: 334W x 4 @ 14.4V — 2 ohms
- RMS Power: 234W x 4 @ 14.4V — 4 ohms
- Bridge Power: Range 640–740W x 2
Specifications
- Operating Voltage: 9 to 16 Volts
- Signal to Noise Ratio: >95dB
- Fuse Rating: 120A

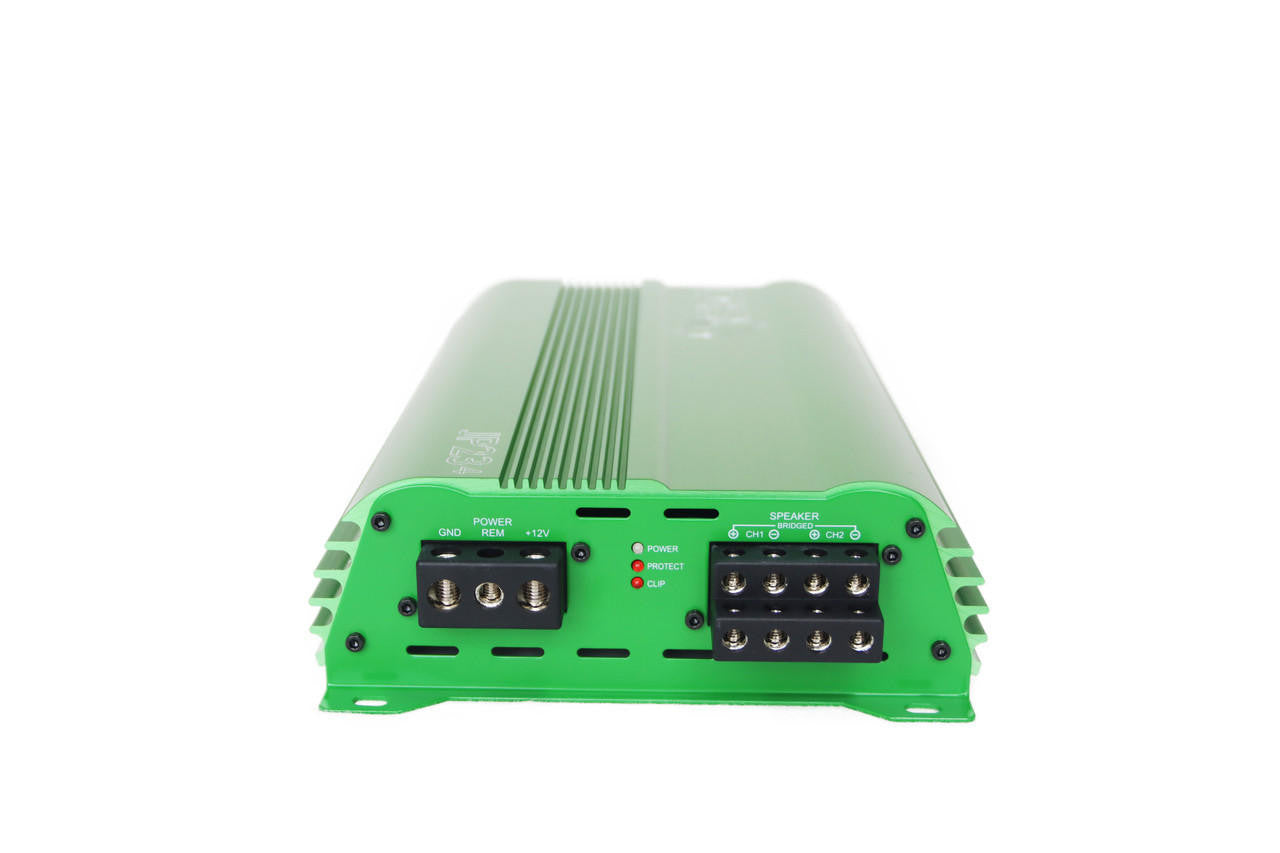

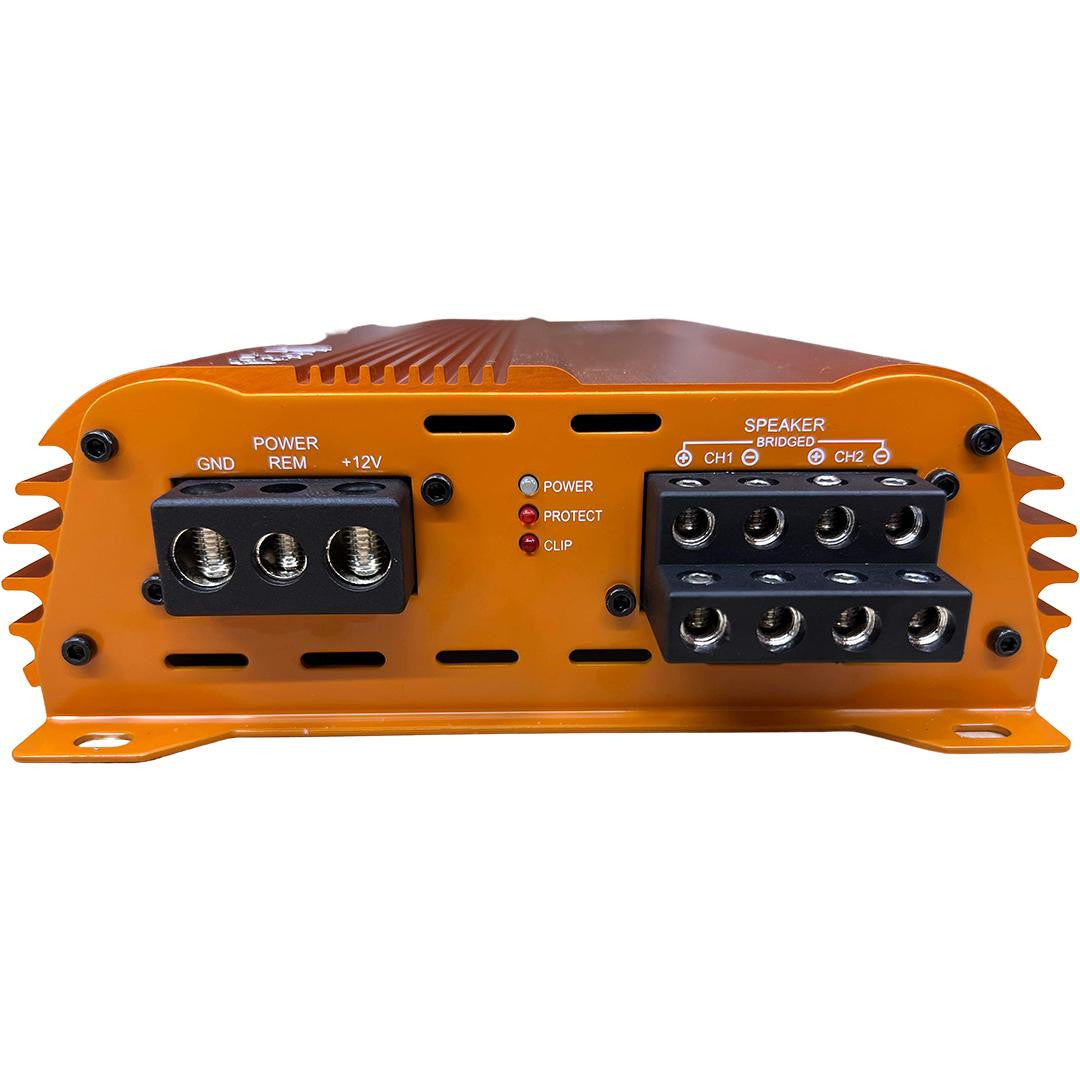

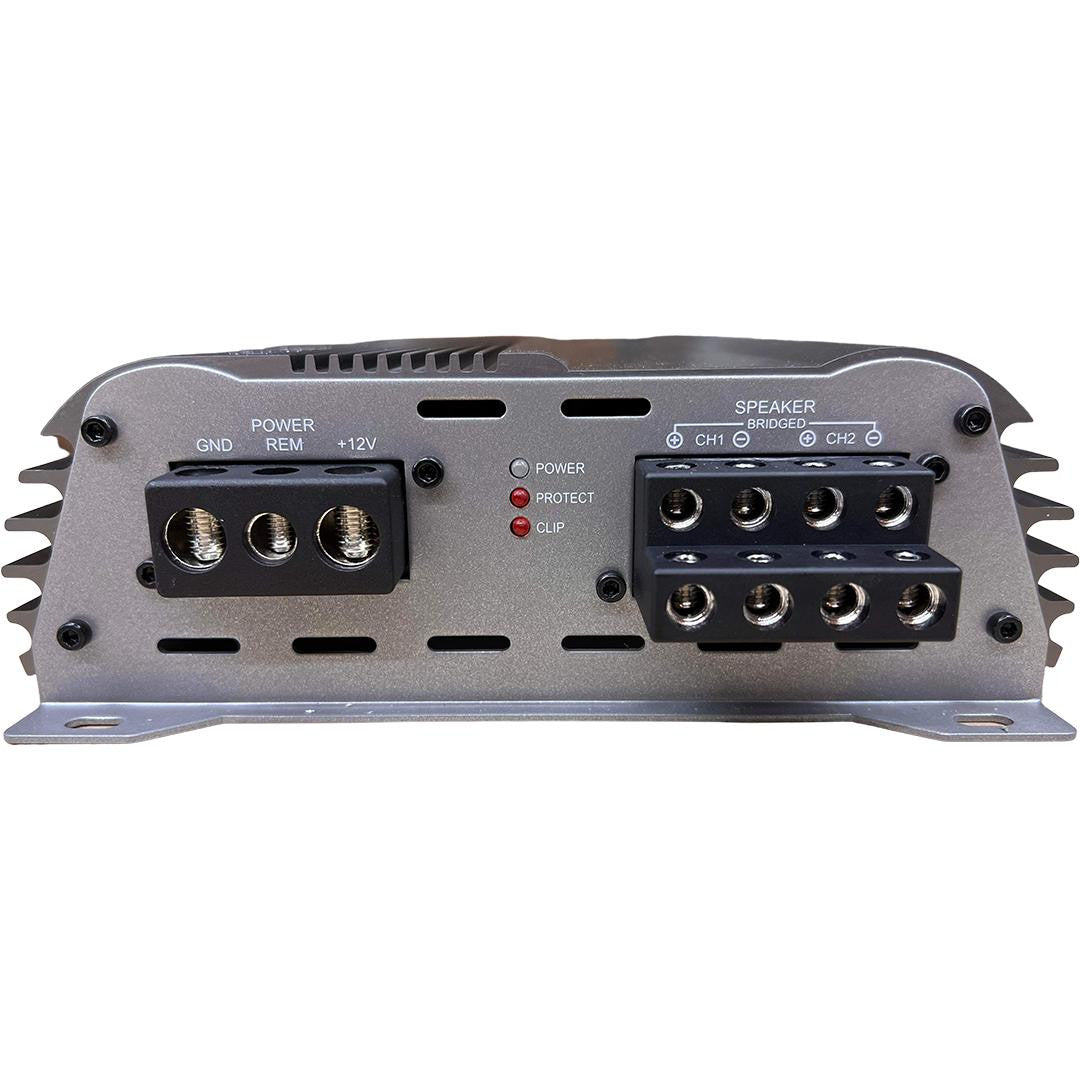

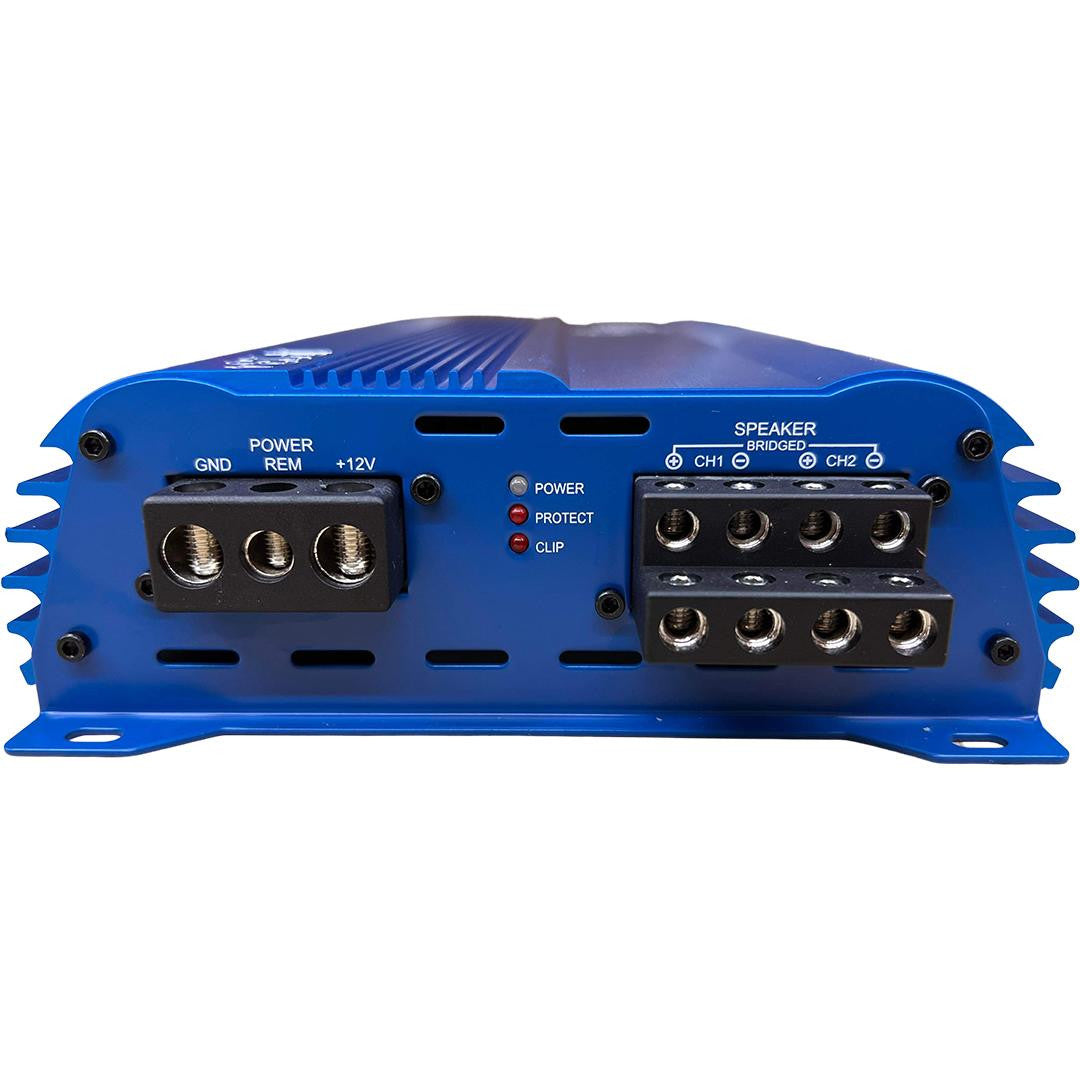

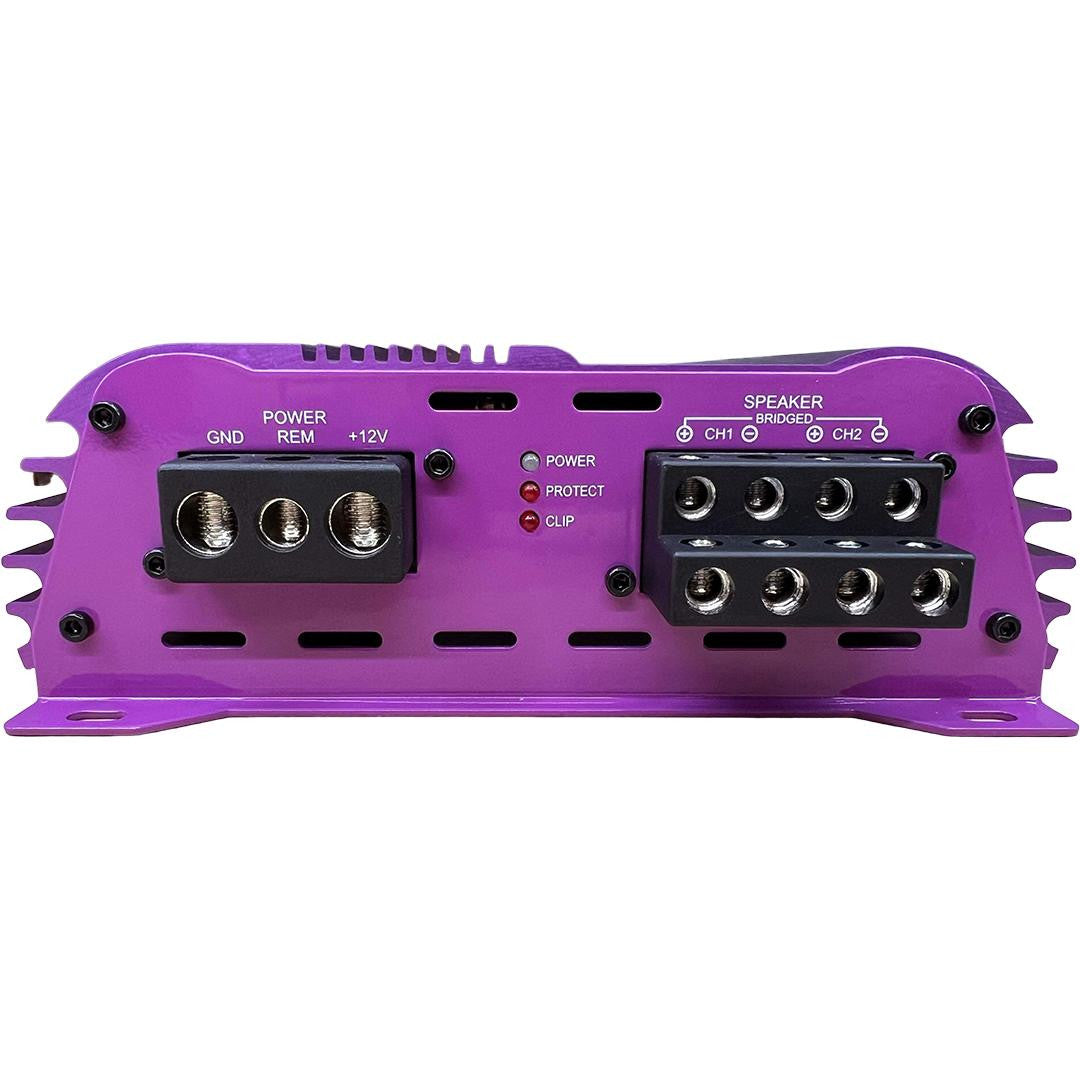

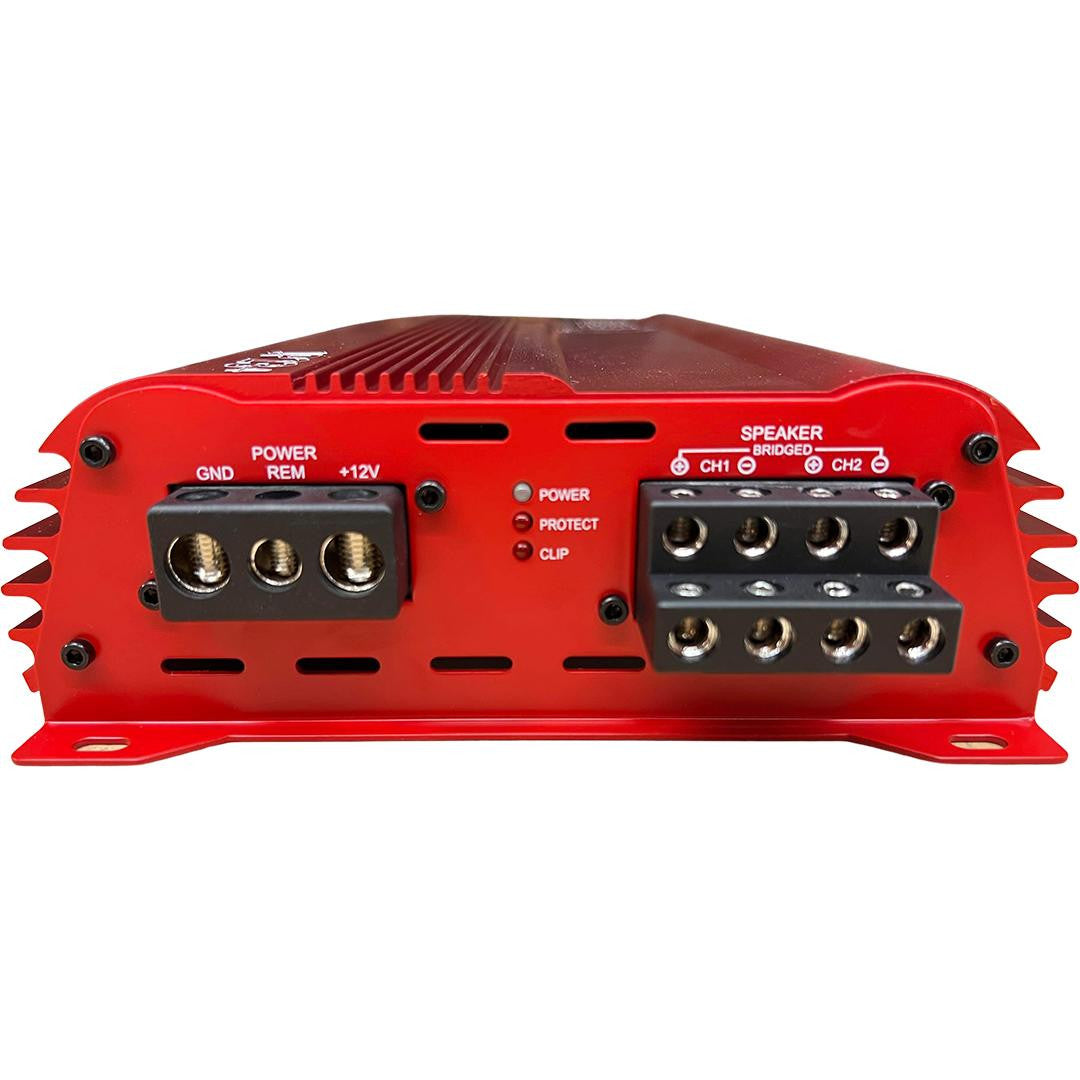

- Inputs: 4 GA input on Power Wire, 8 GA input for Speaker Wire
- Dimensions: 11.8 x 7.4 x 2.24 inches
Pair the JP234 with our amplifier combos for a complete, powerful car audio solution. Check out the JP234 Manual and watch the amplifier dyno video on the videos tab.
