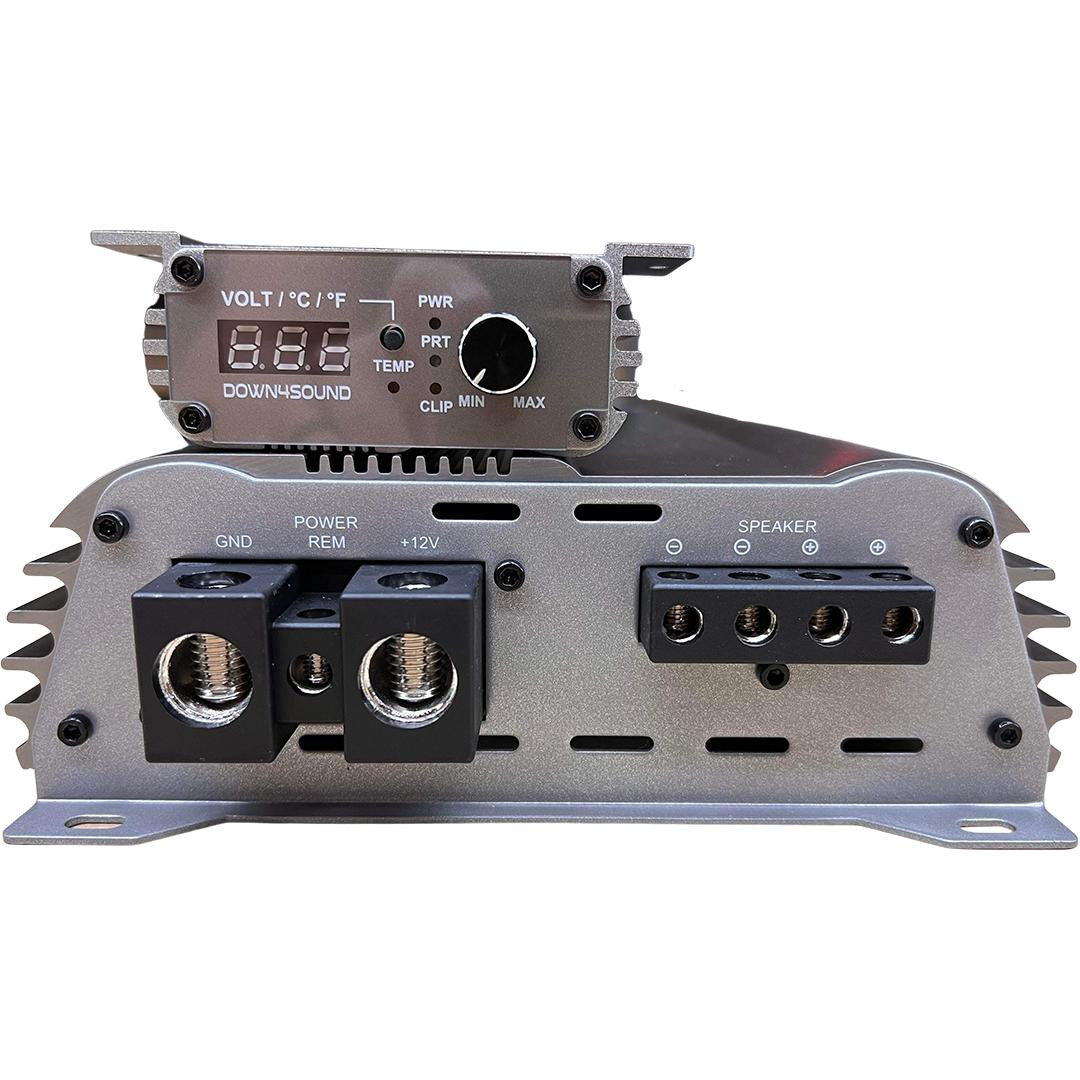

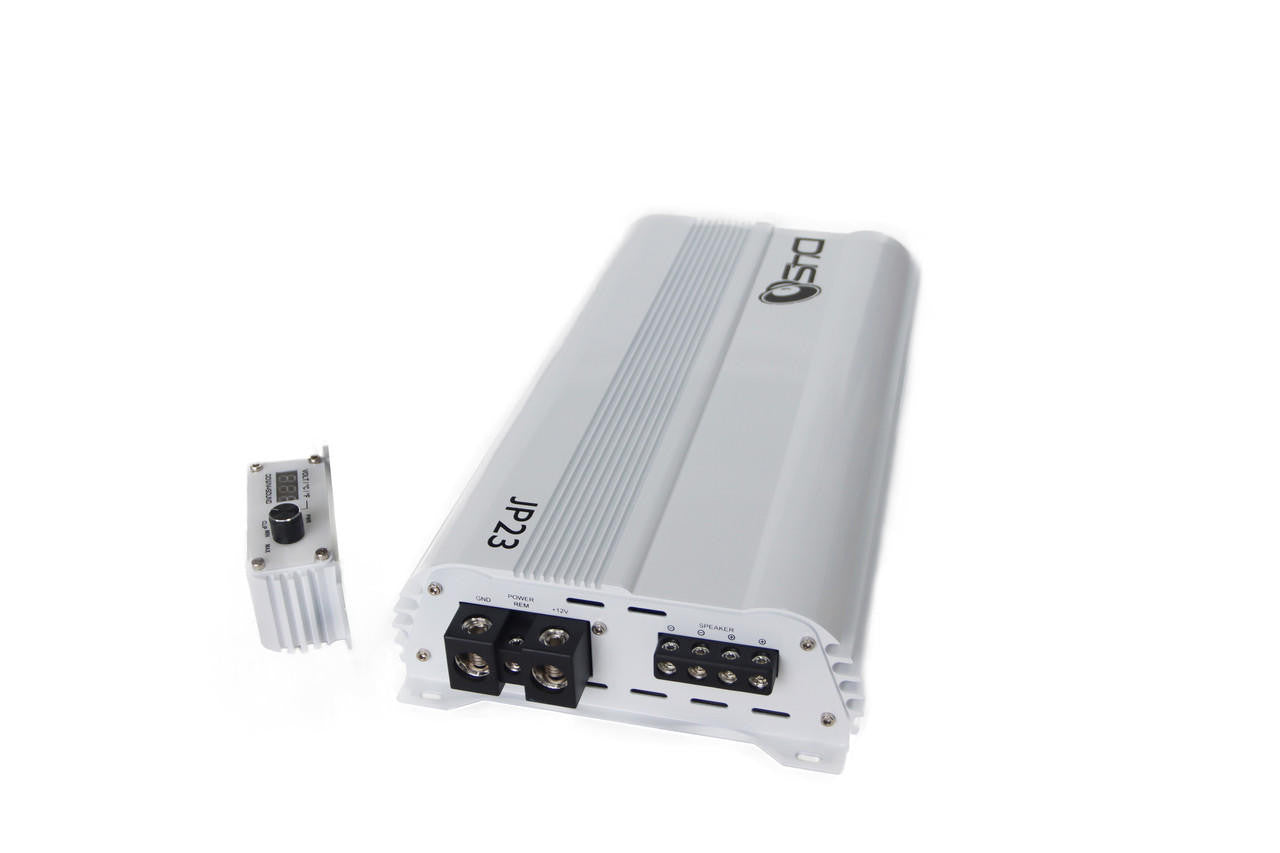

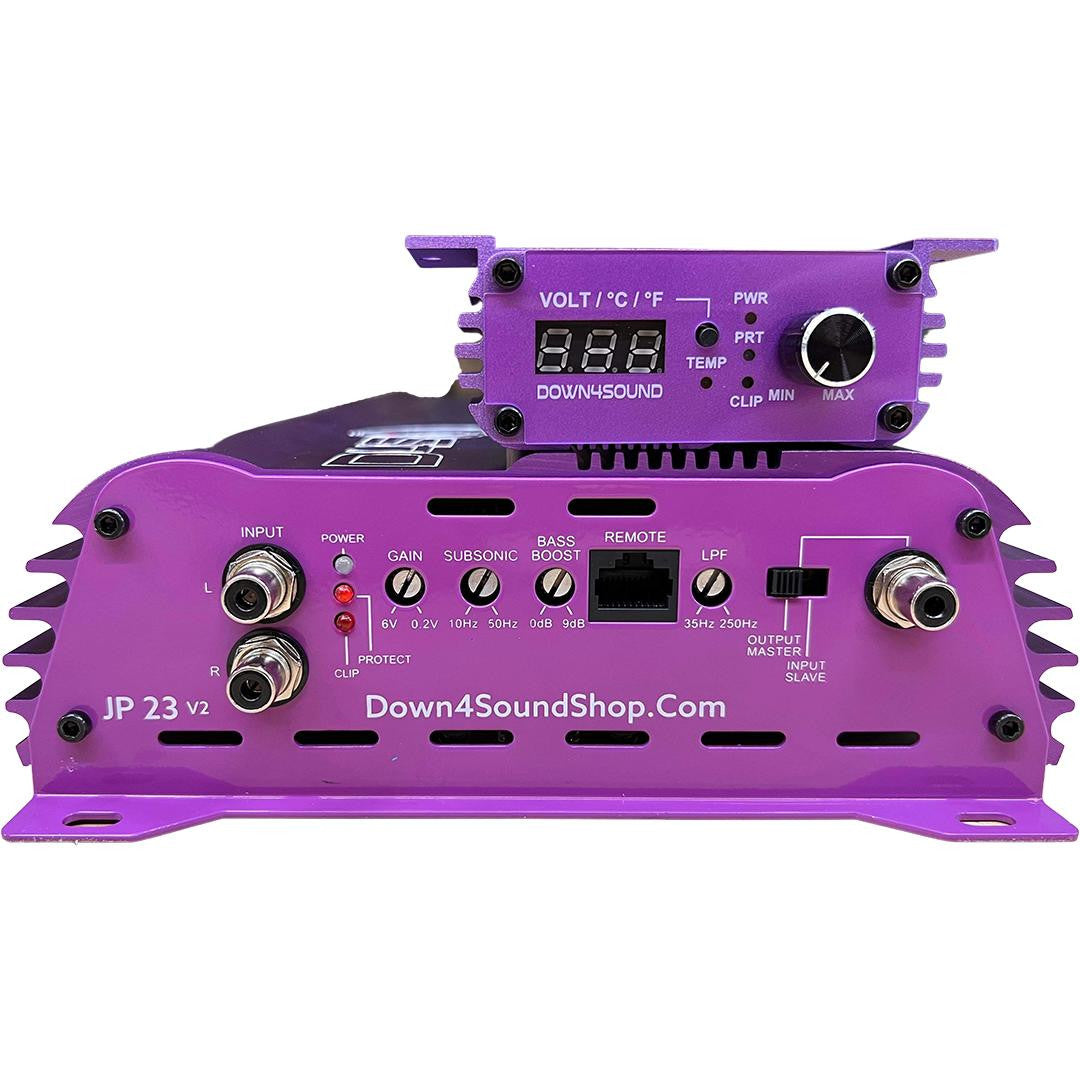

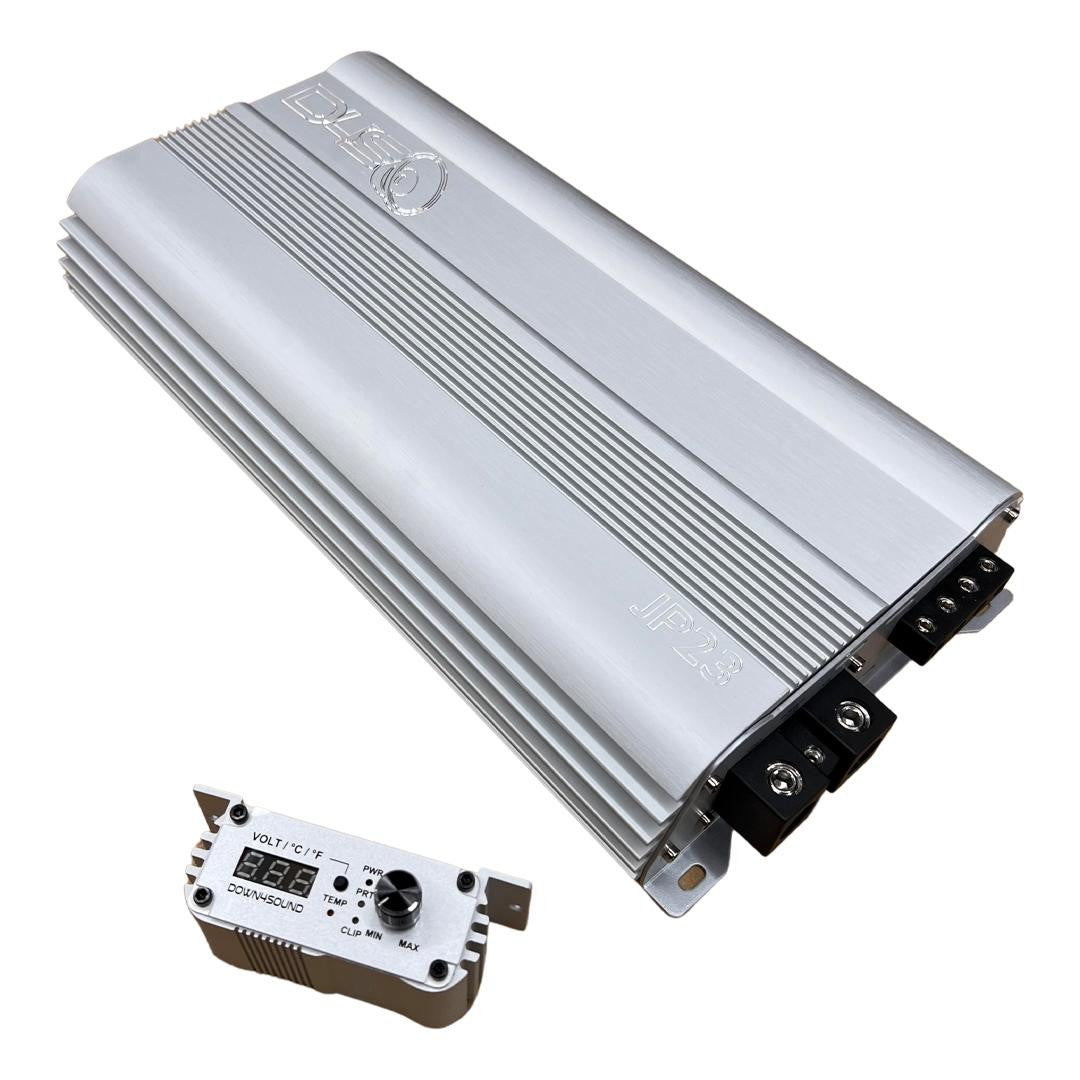

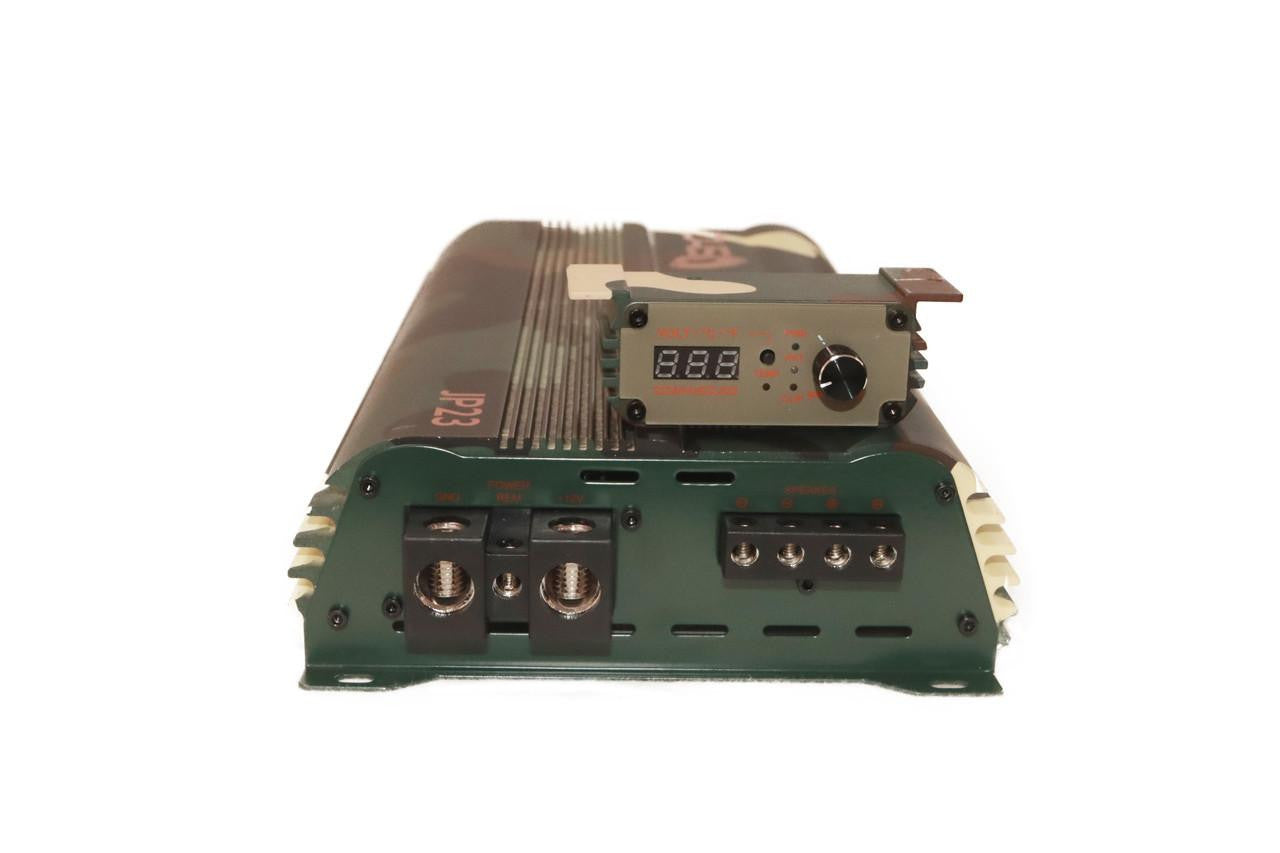

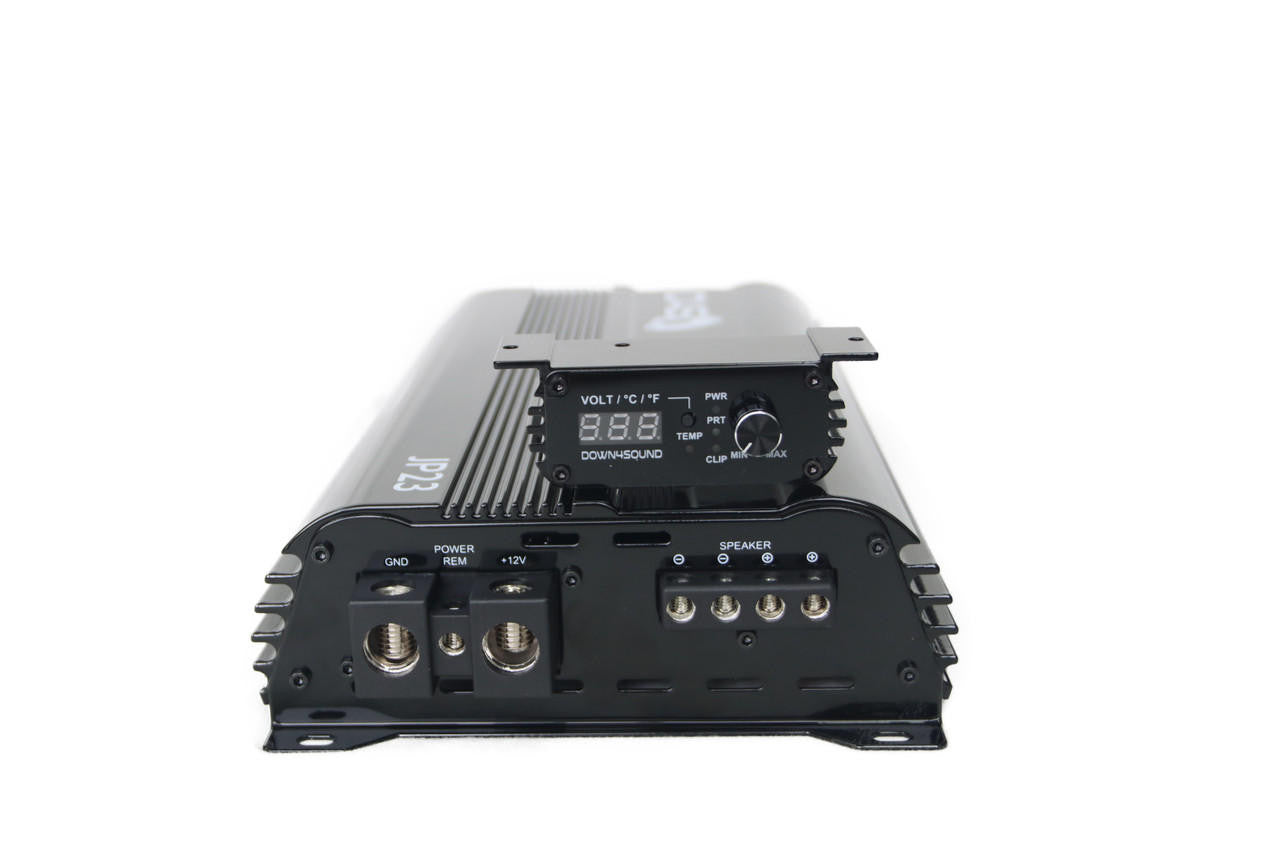

Down4Sound JP23 V2 - 2800W RMS Monoblock Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.

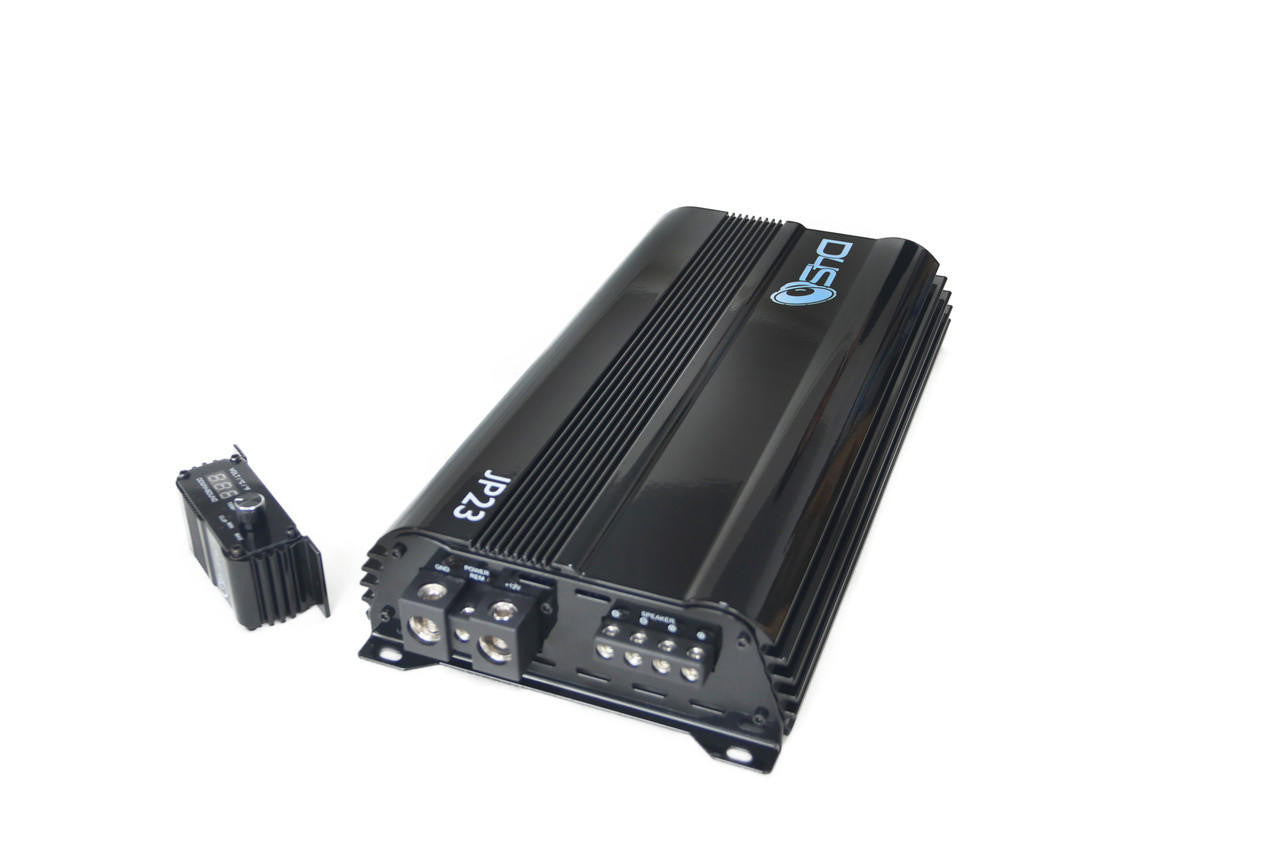

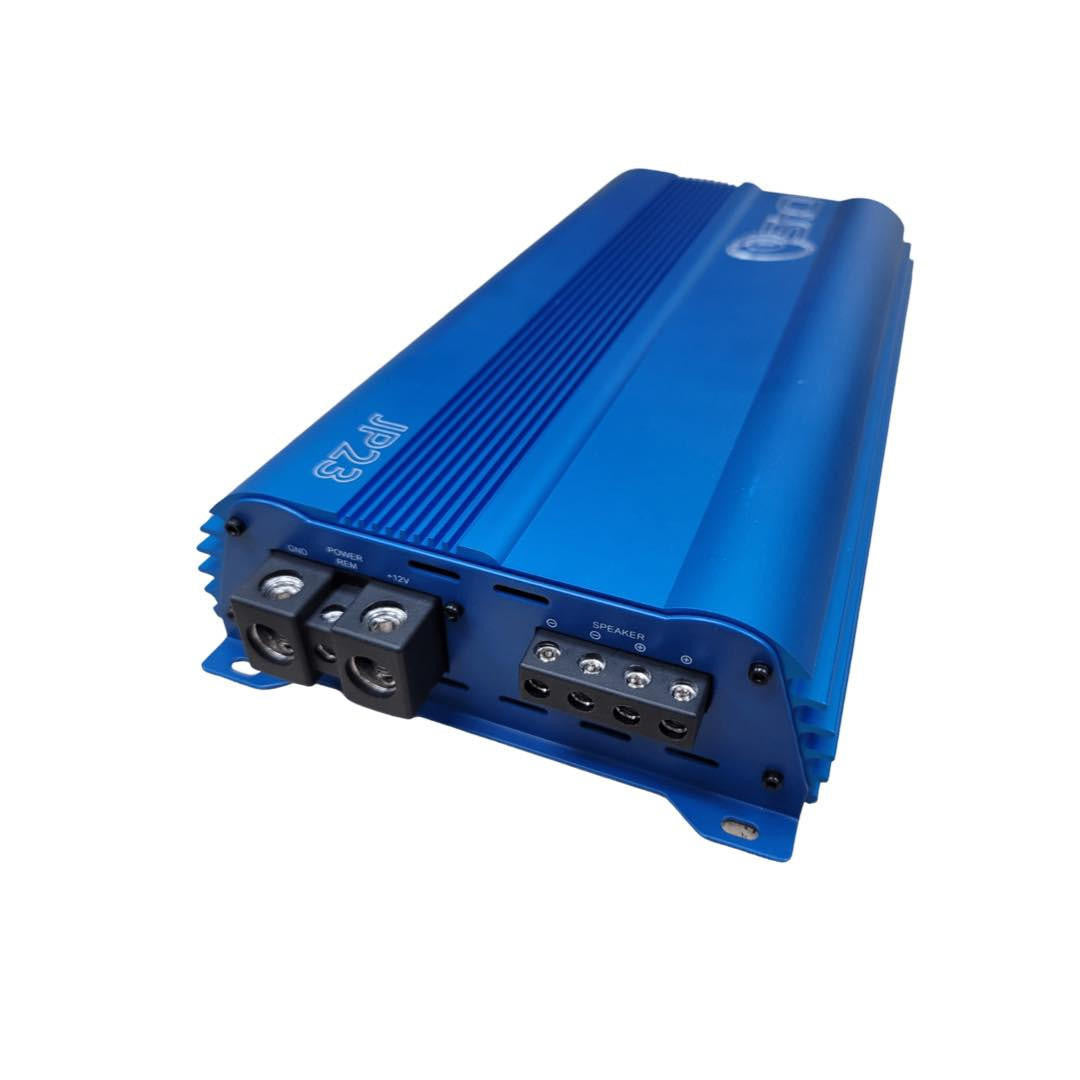

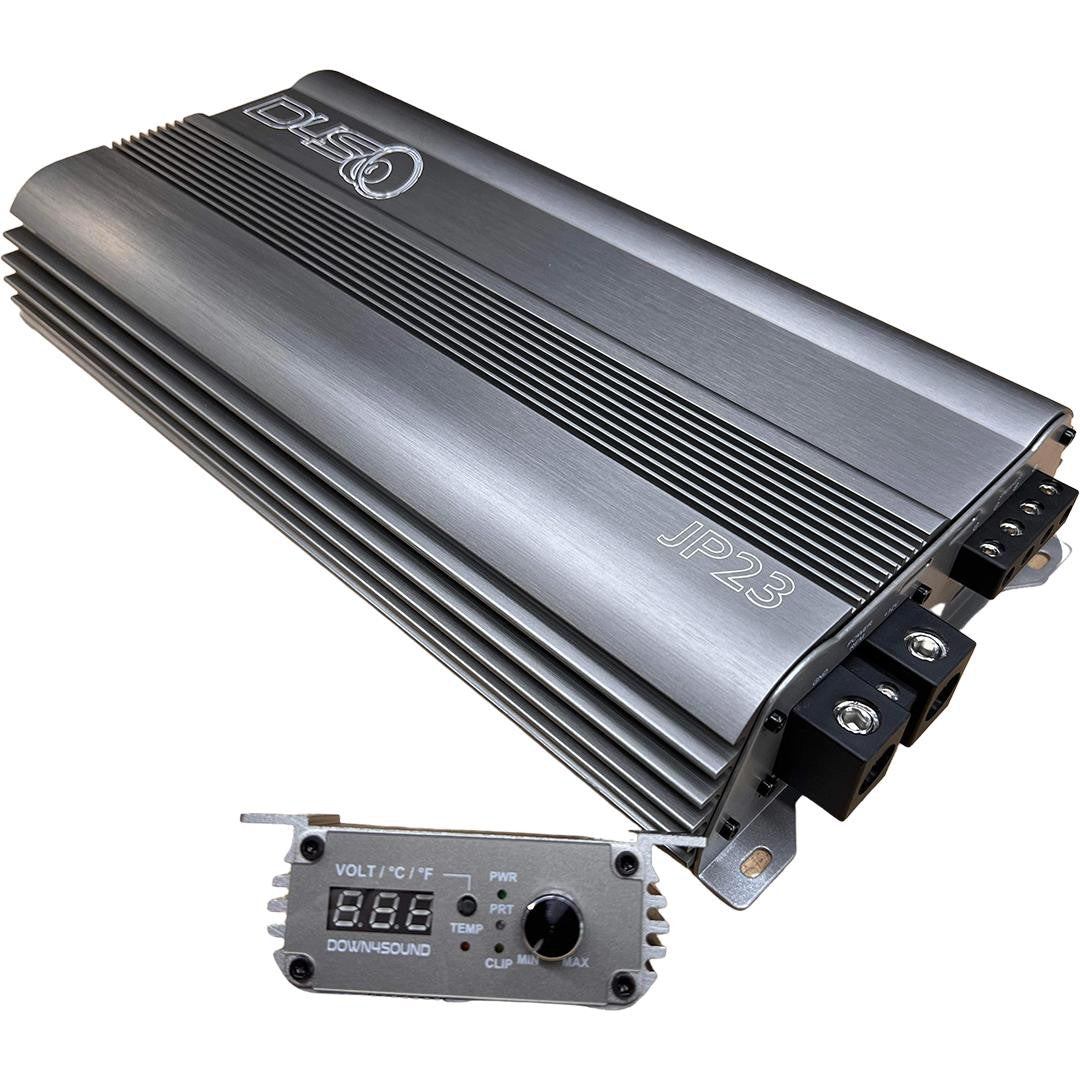

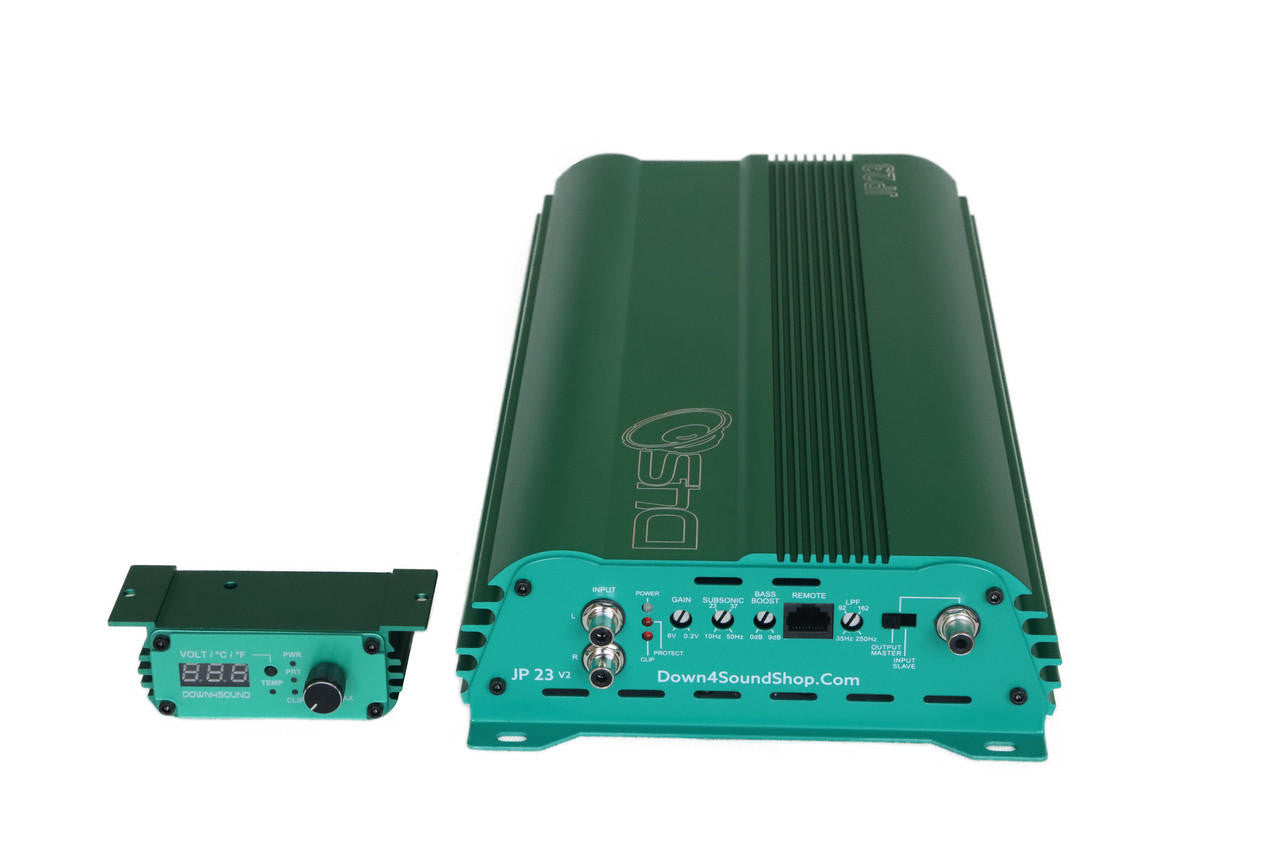

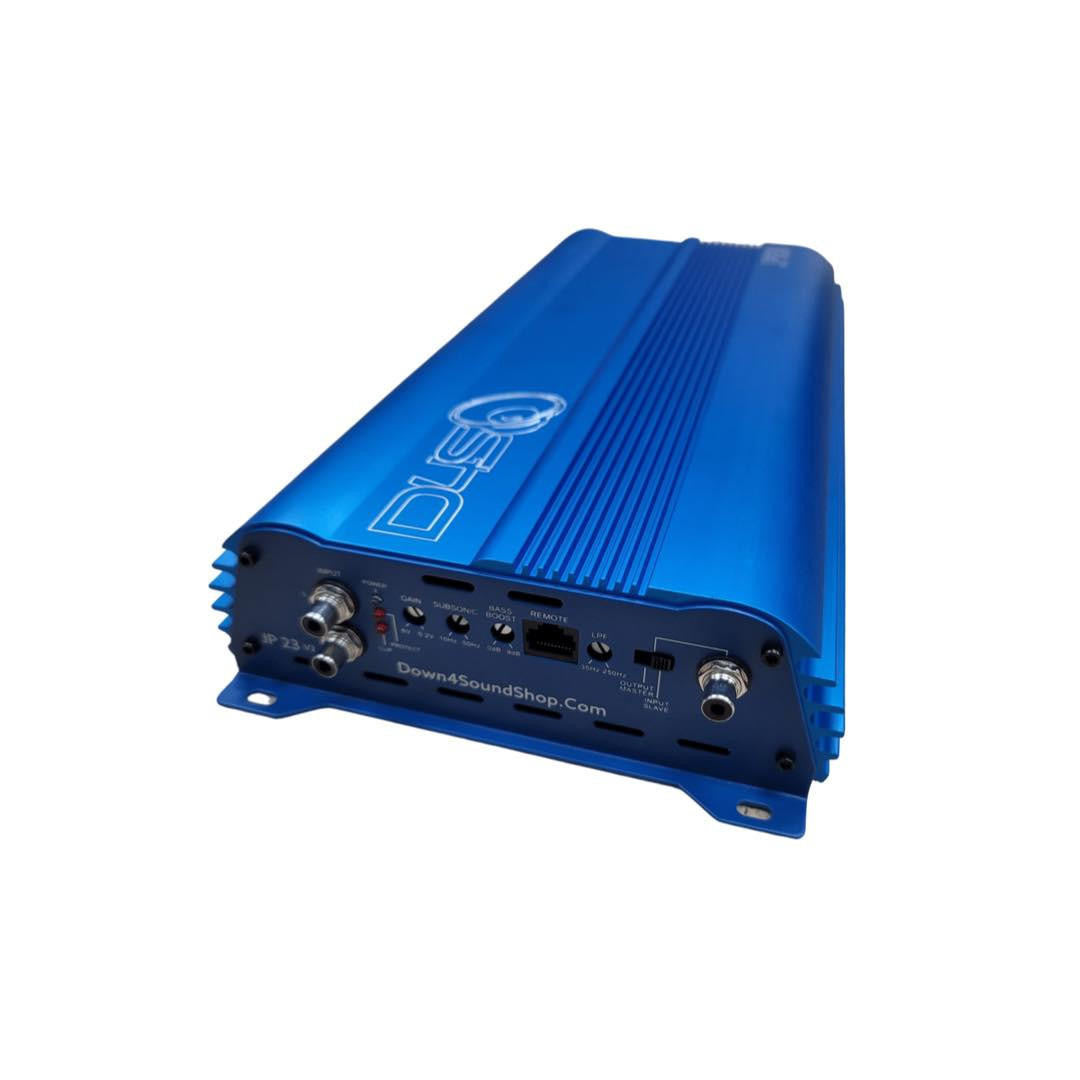

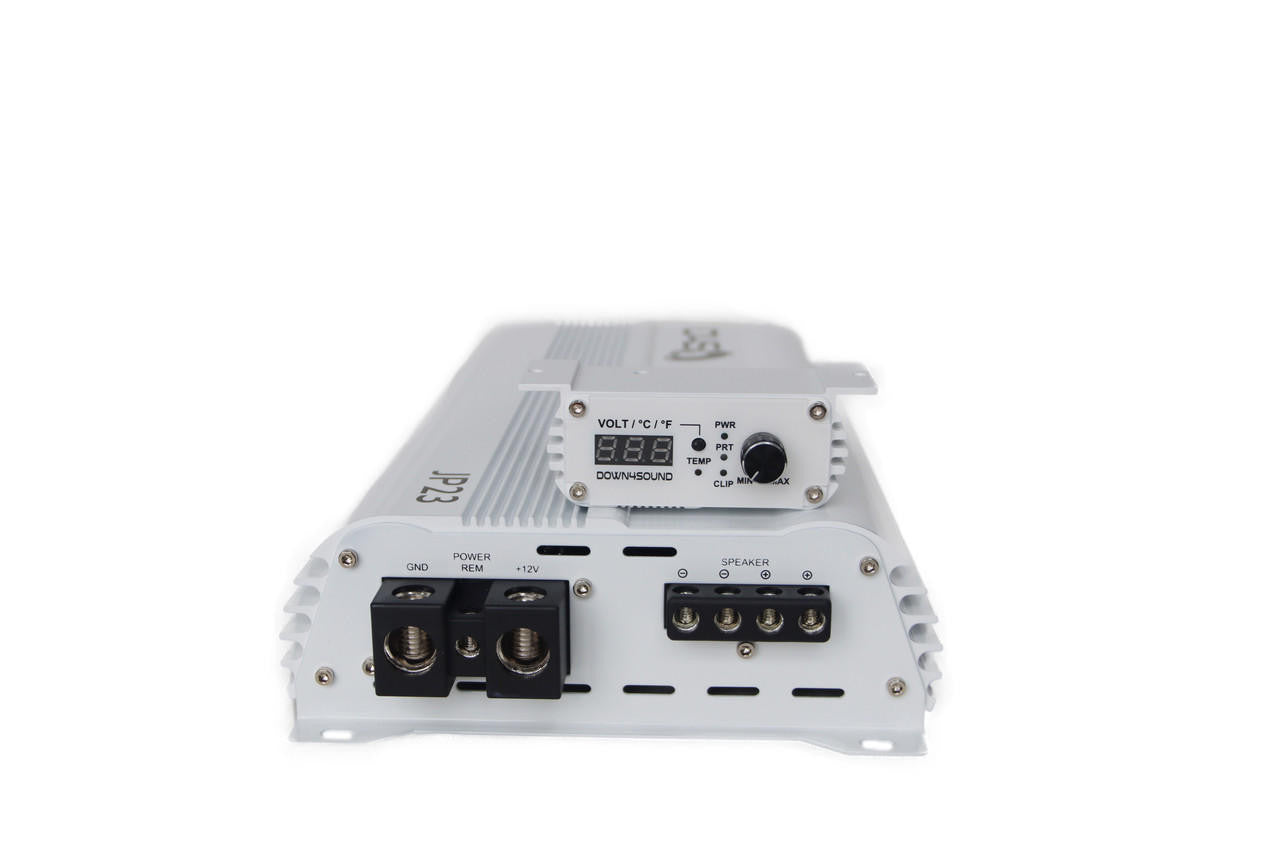

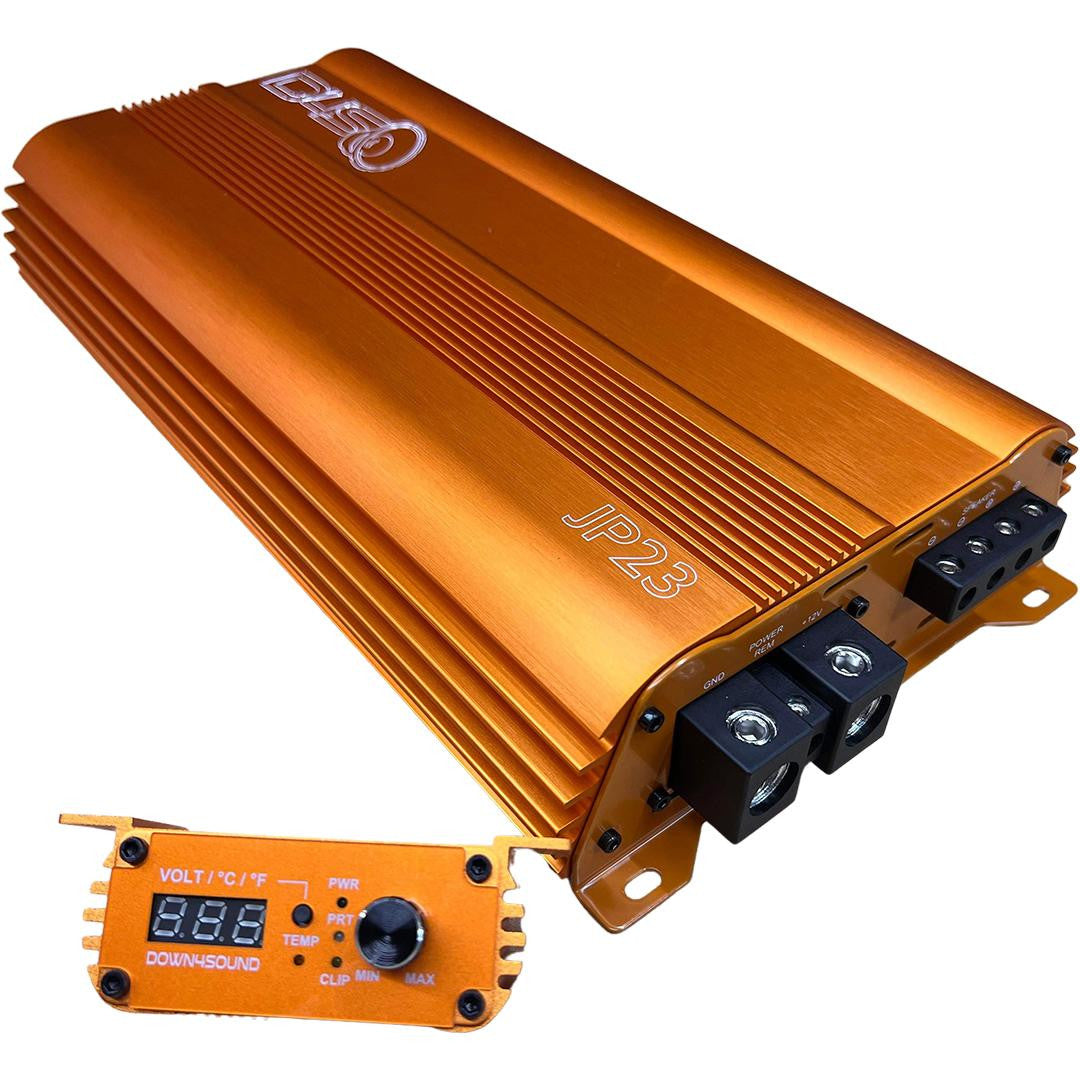

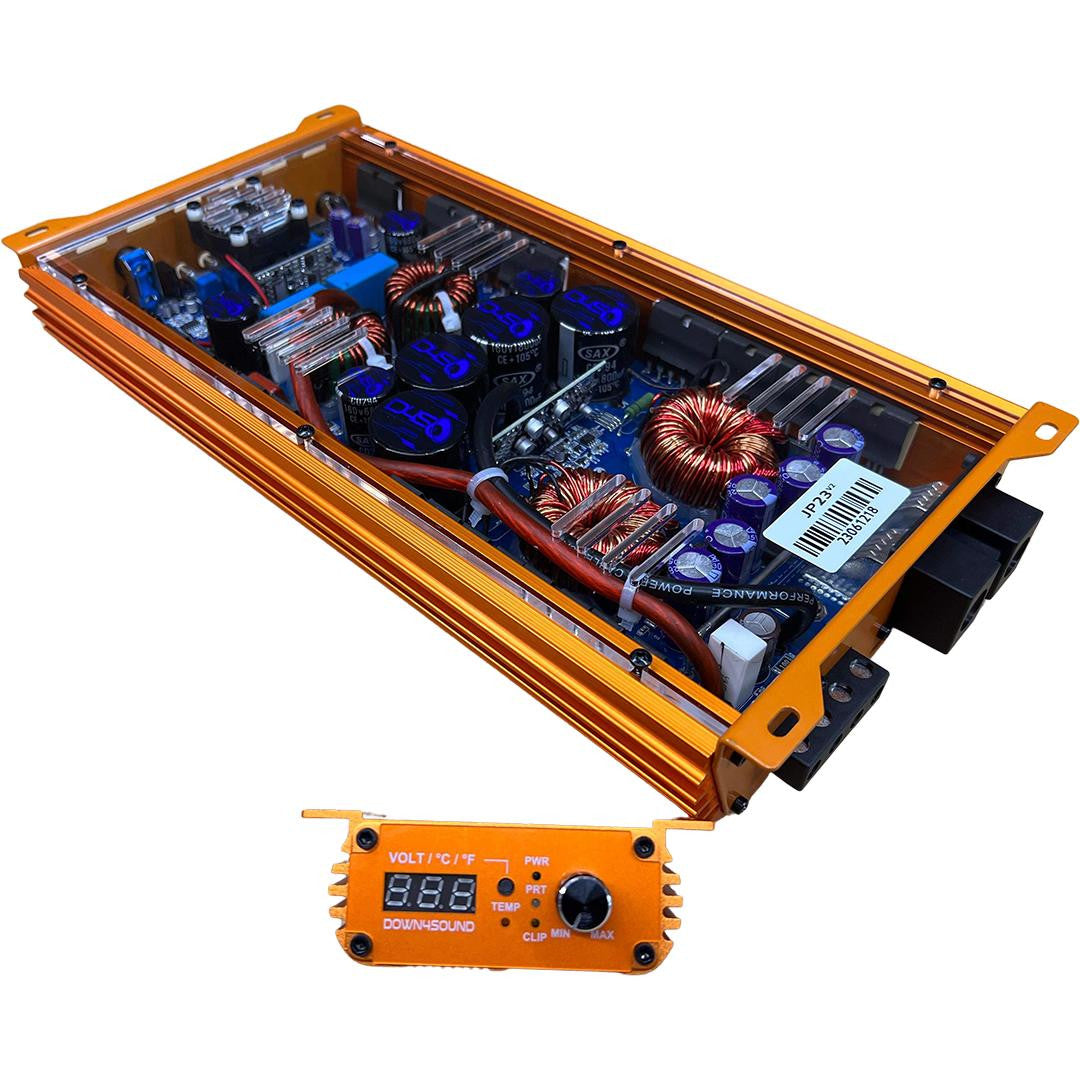

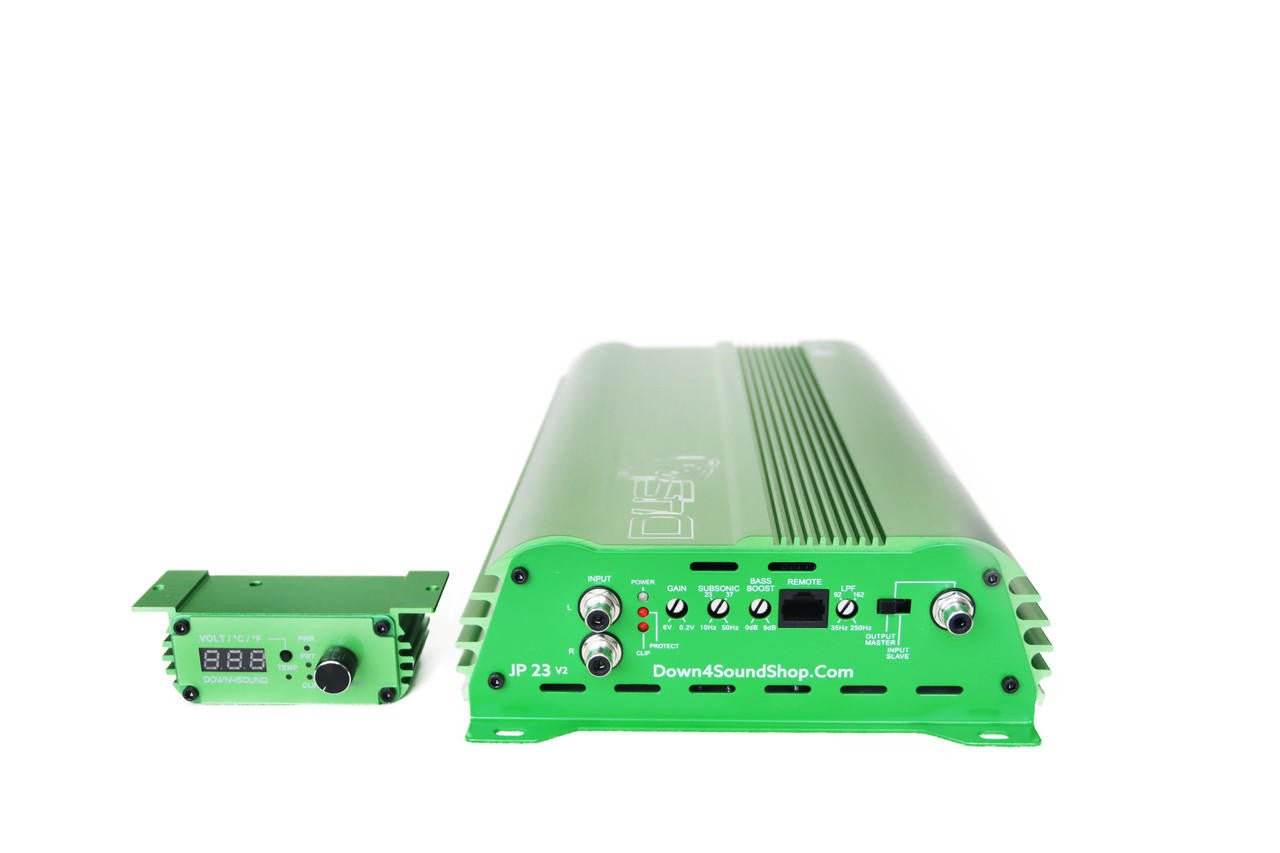

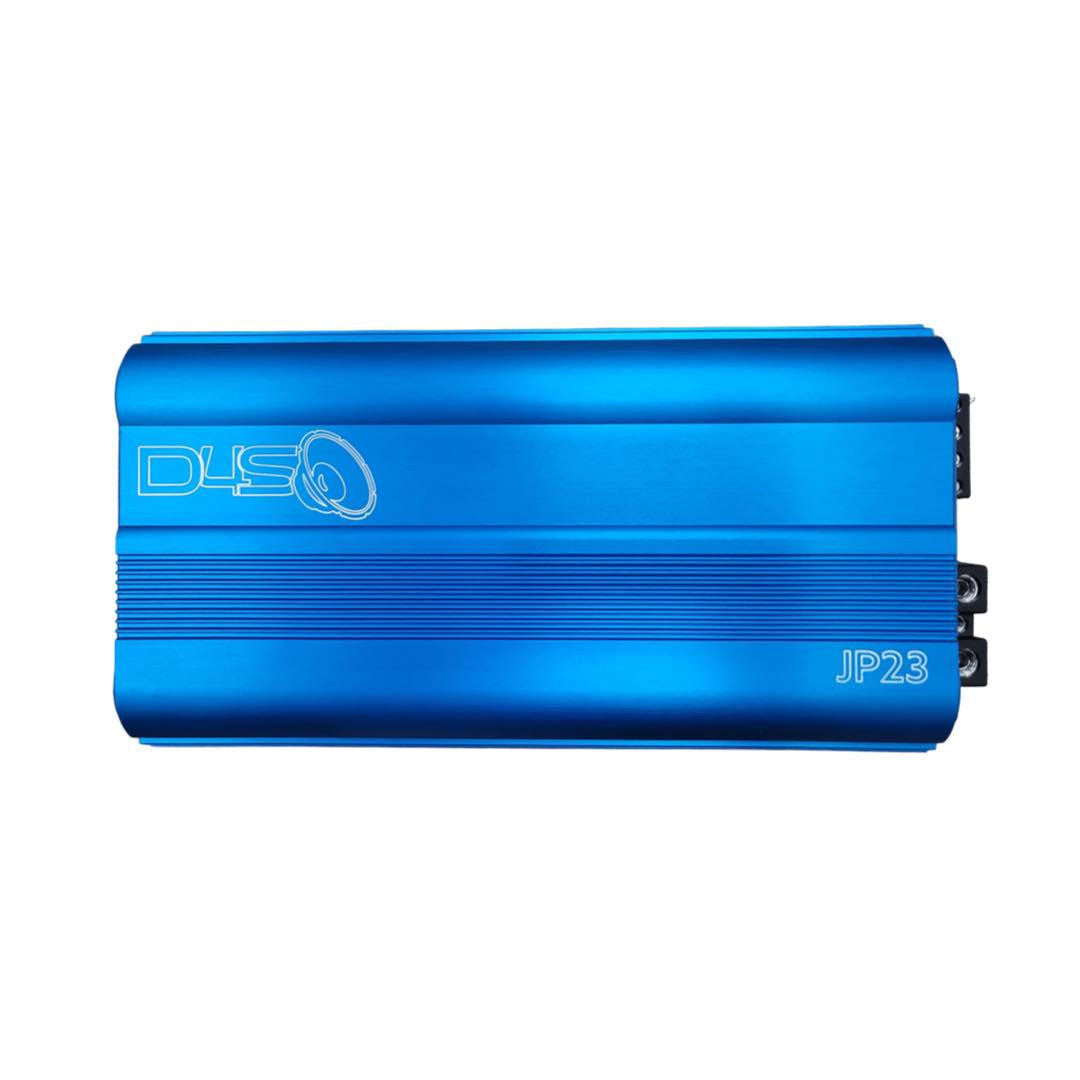

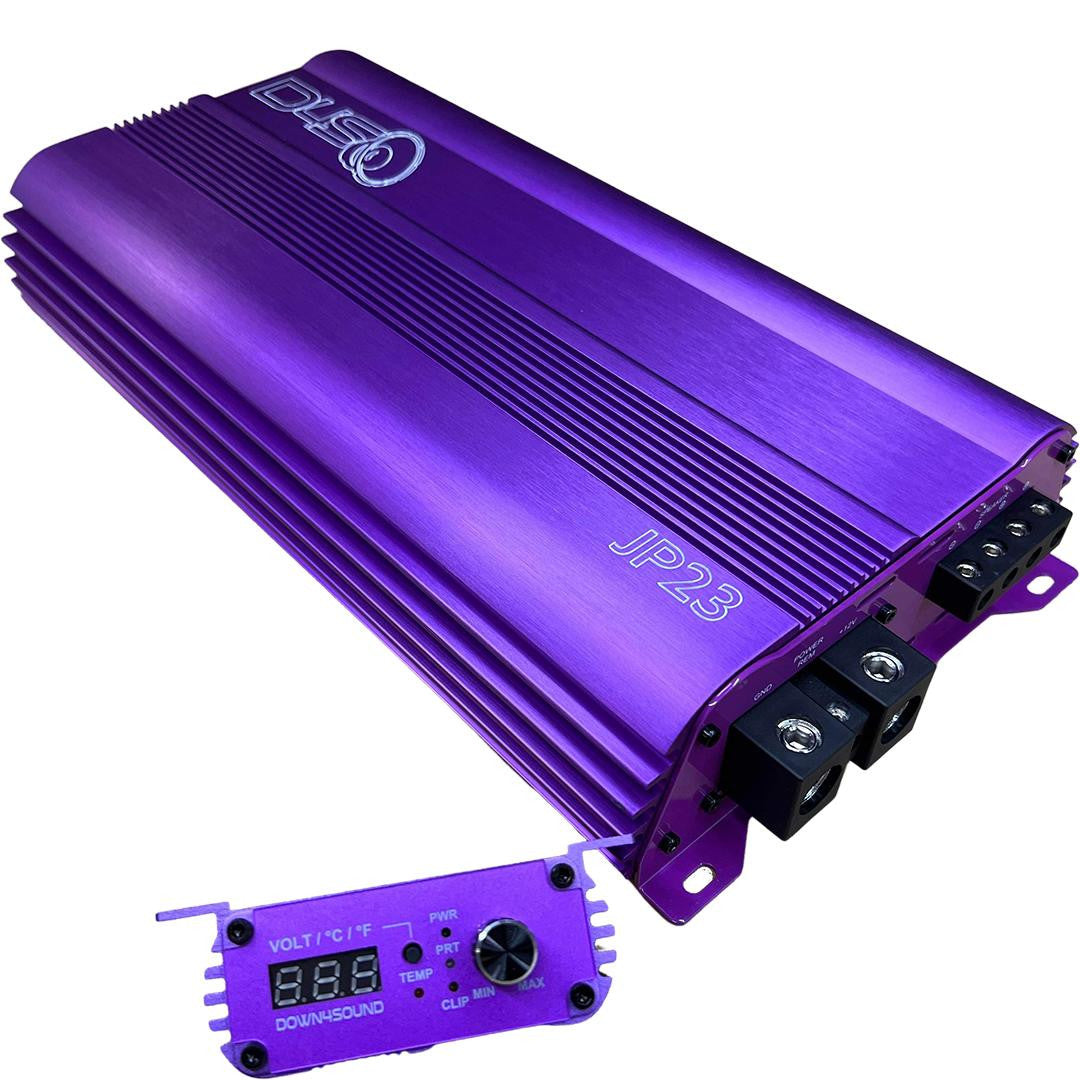

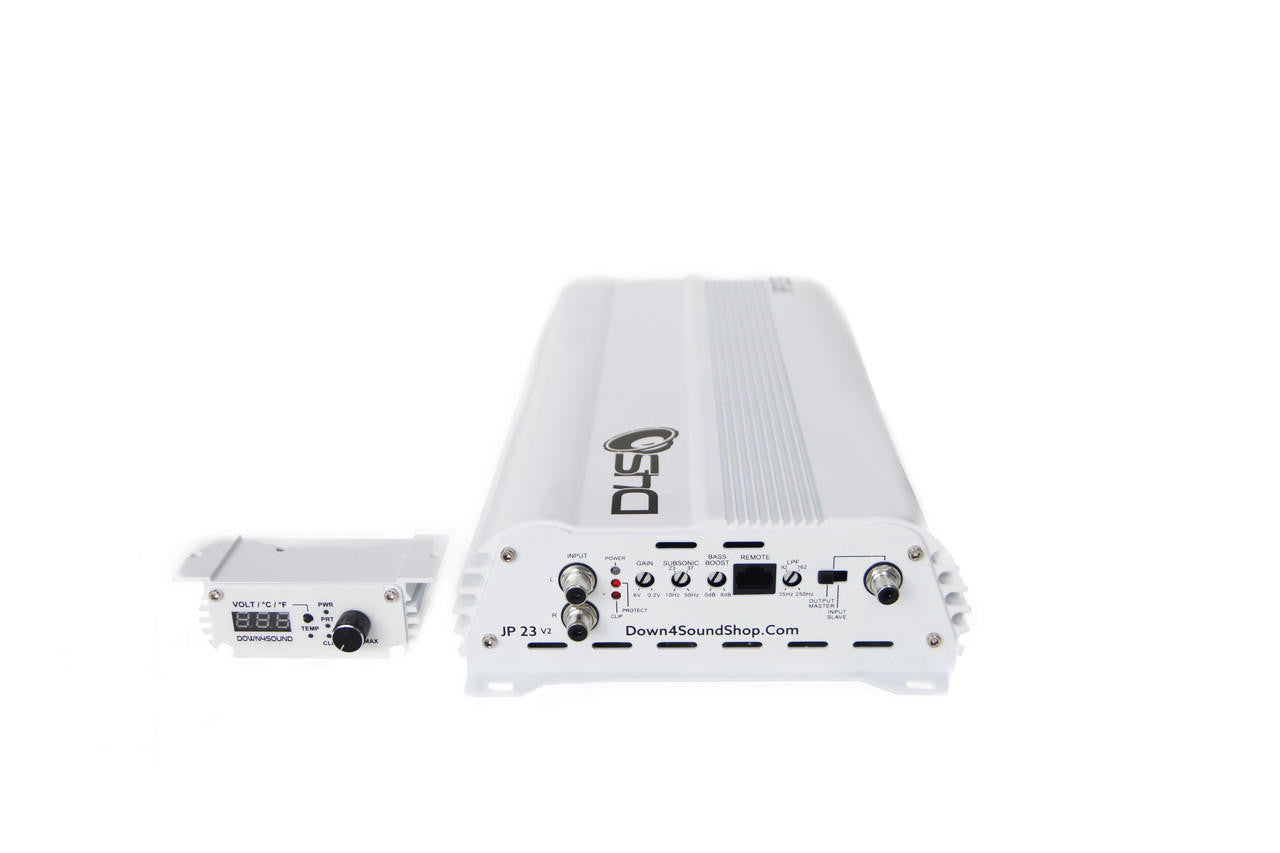

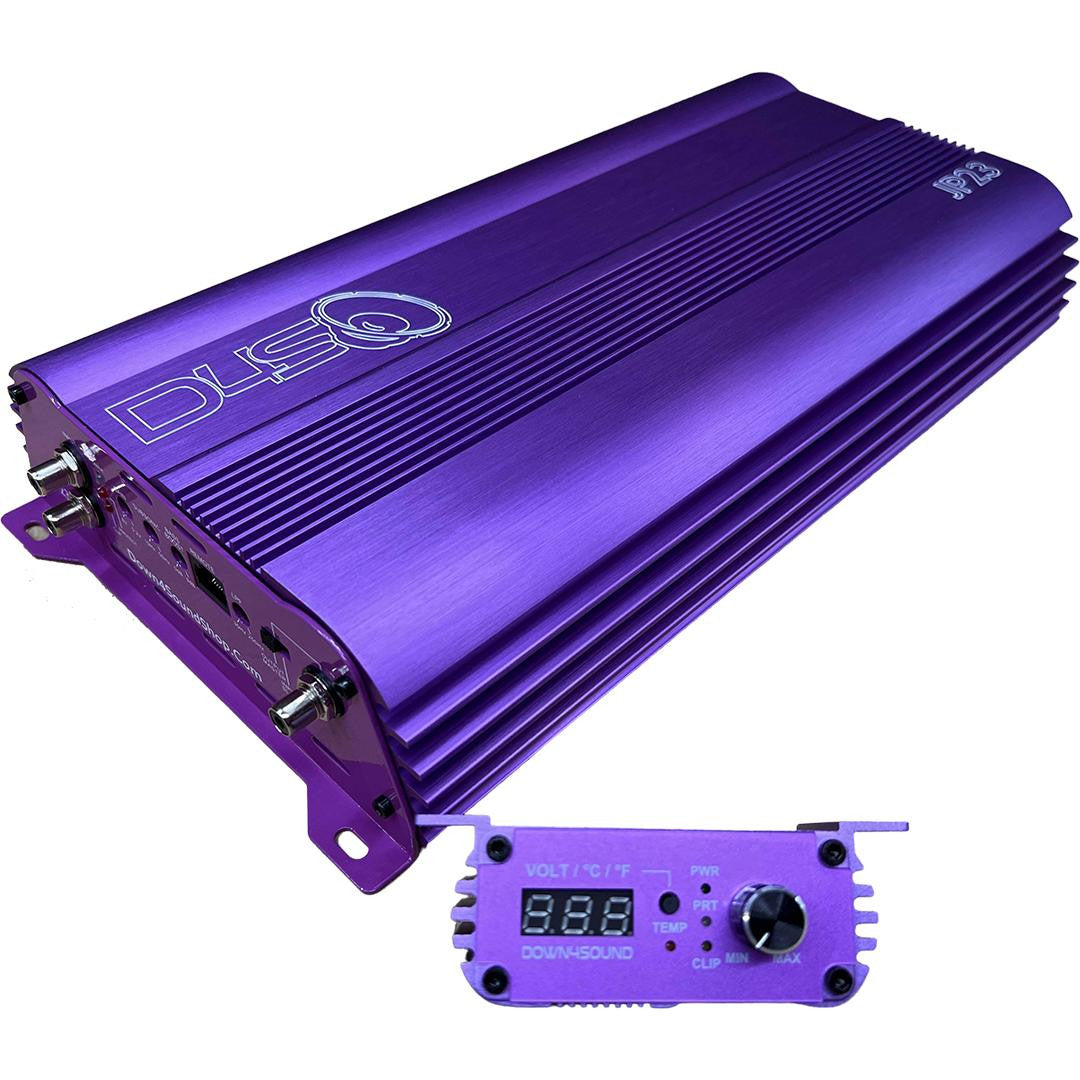

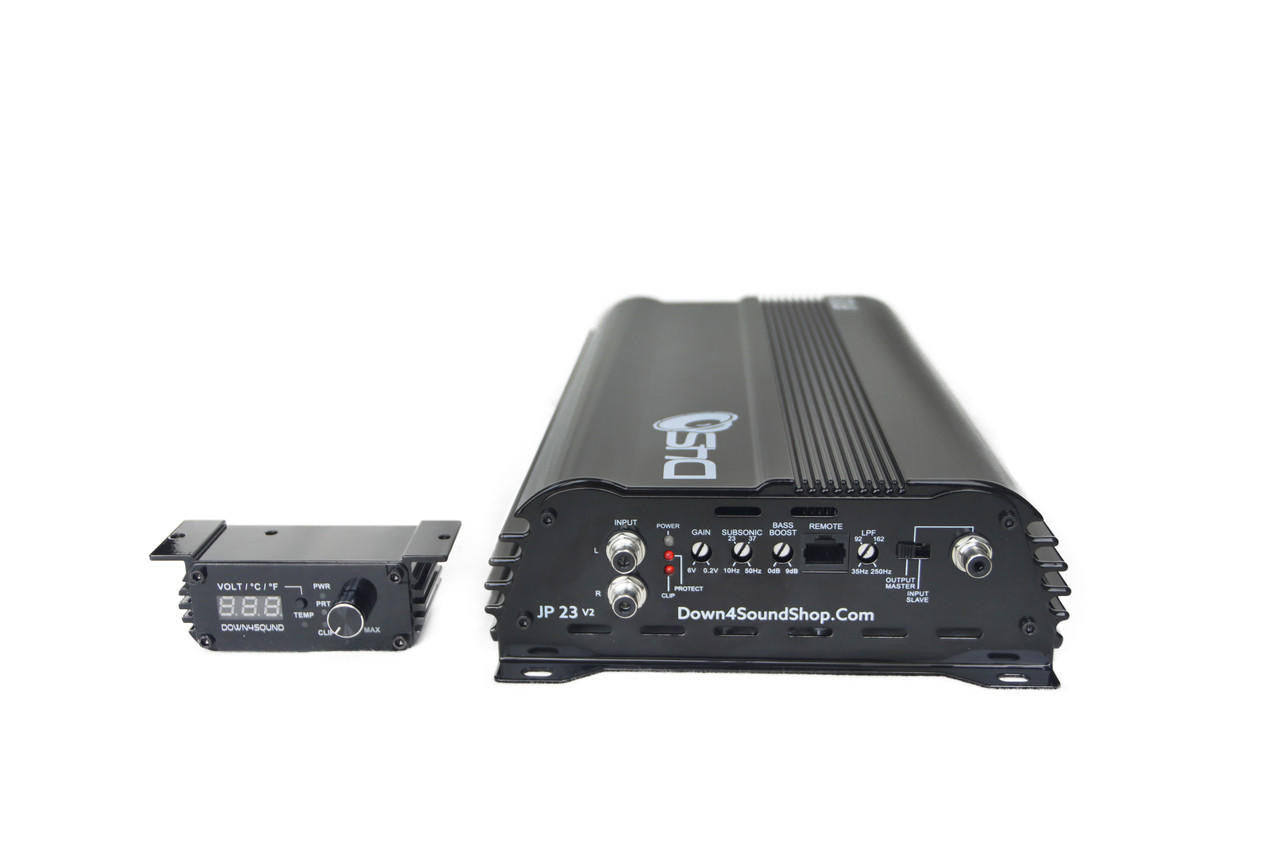

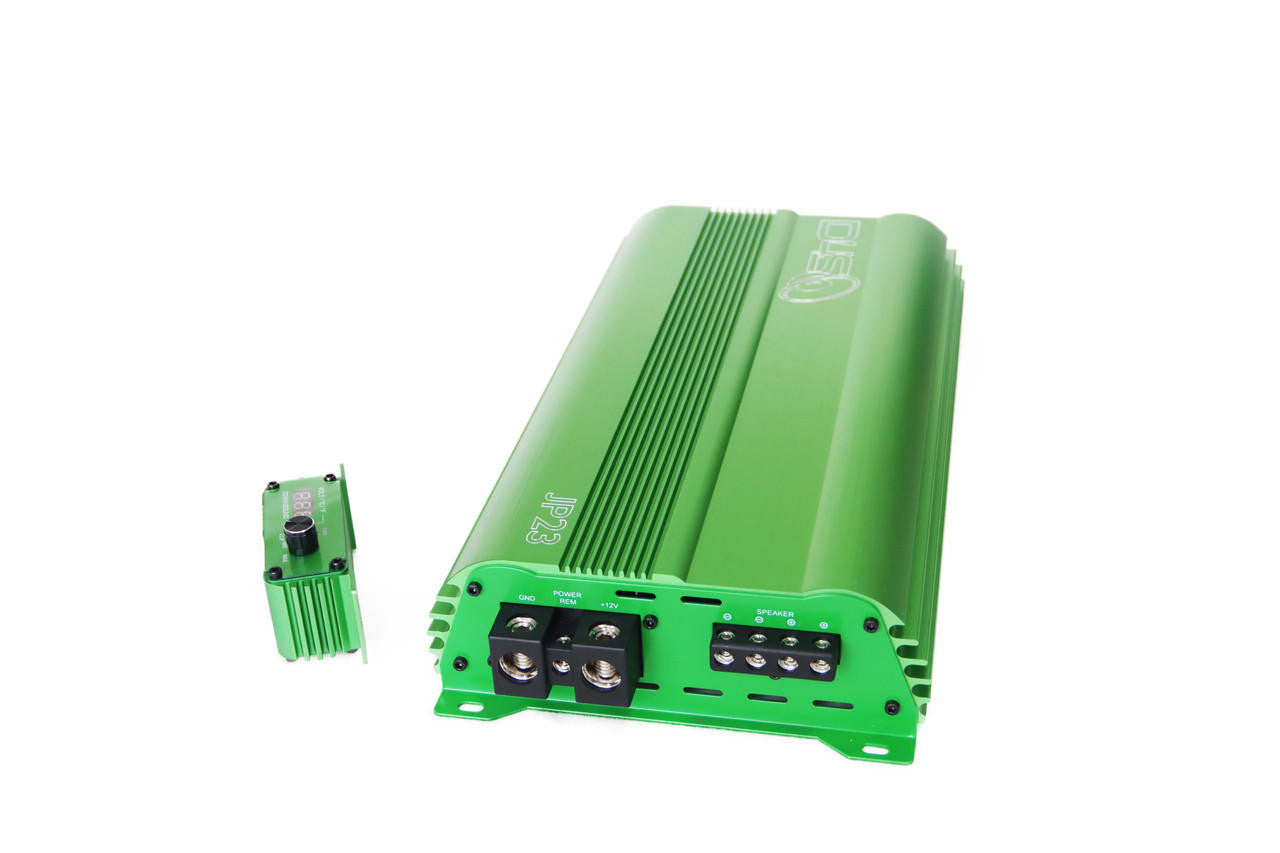

Experience unparalleled power and performance with the DOWN4SOUND JP23 V2 Amplifier. Meticulously engineered in Dunnellon, FL, and Las Vegas, NV, this compact powerhouse delivers an impressive 2800W RMS at 1-ohm, making it perfect for enthusiasts seeking top-tier sound quality in their car audio systems. Its 23% smaller footprint than the predecessor (JP 23 V1.5) allows for versatile installations without sacrificing power.
Key Features:
- High Power Output: 2800W RMS at 1 ohm ensures robust and clear audio performance.
- Compact Design: More space-efficient than previous models by 23%.
- Enhanced Cooling System: High-speed cooling fans maintain optimal performance.

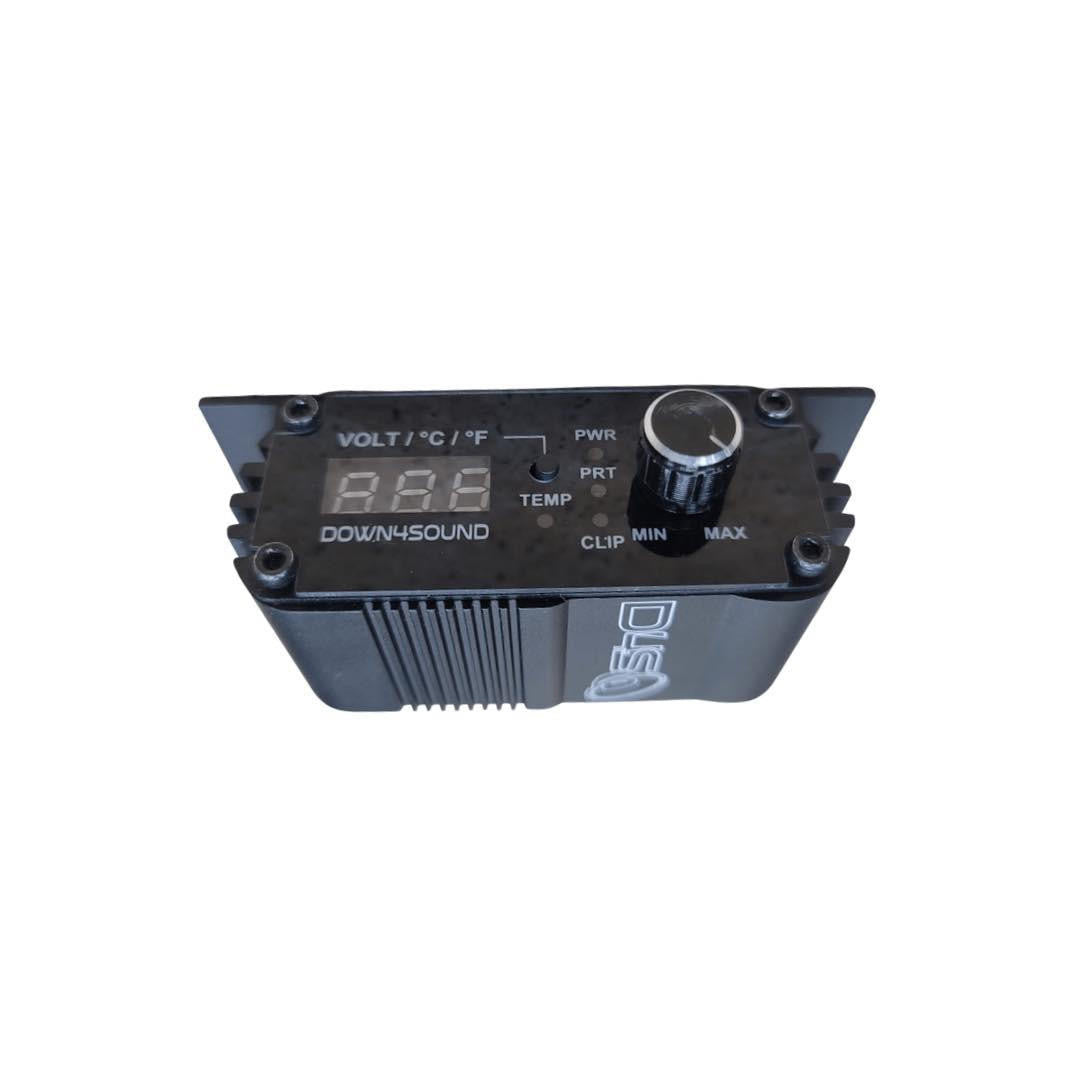

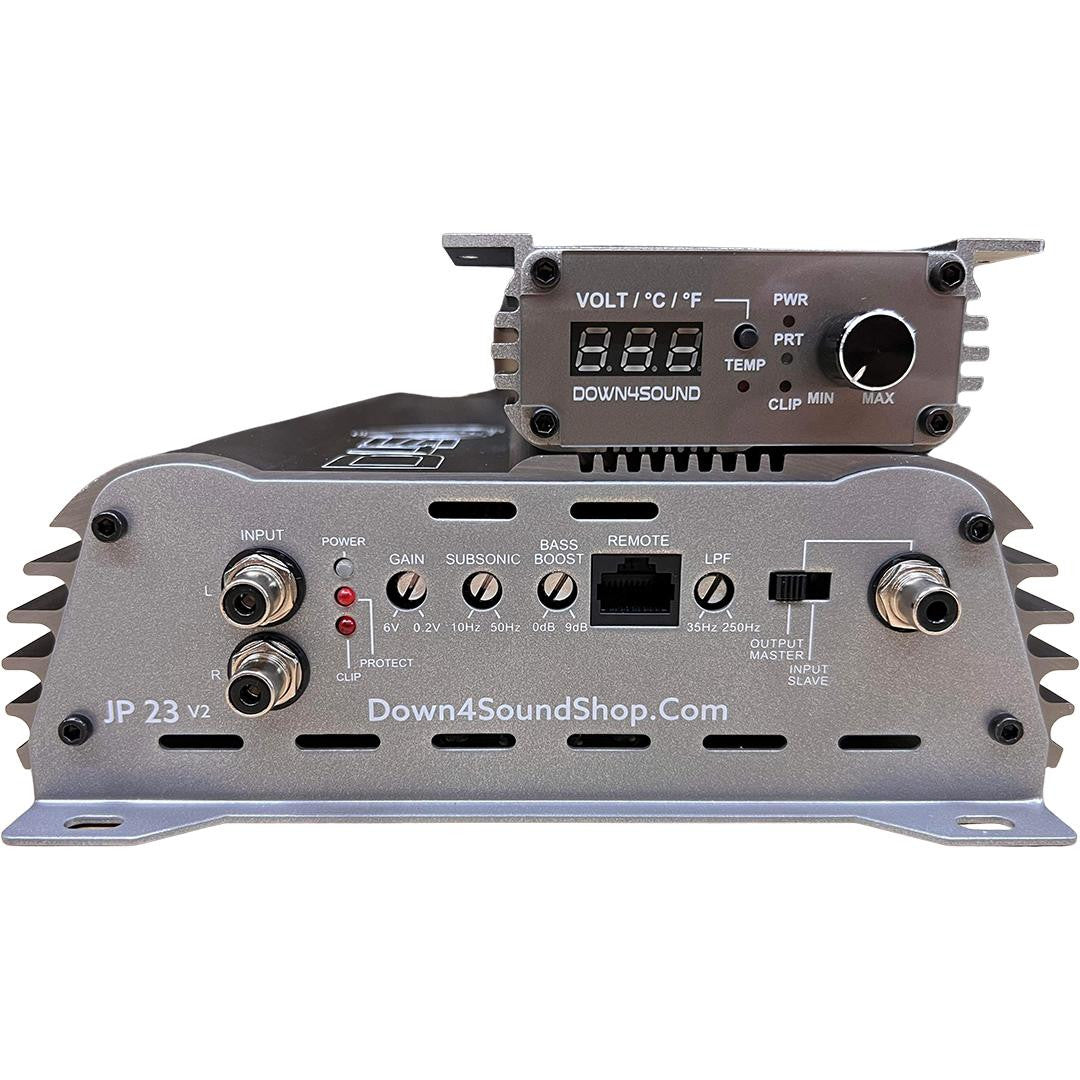

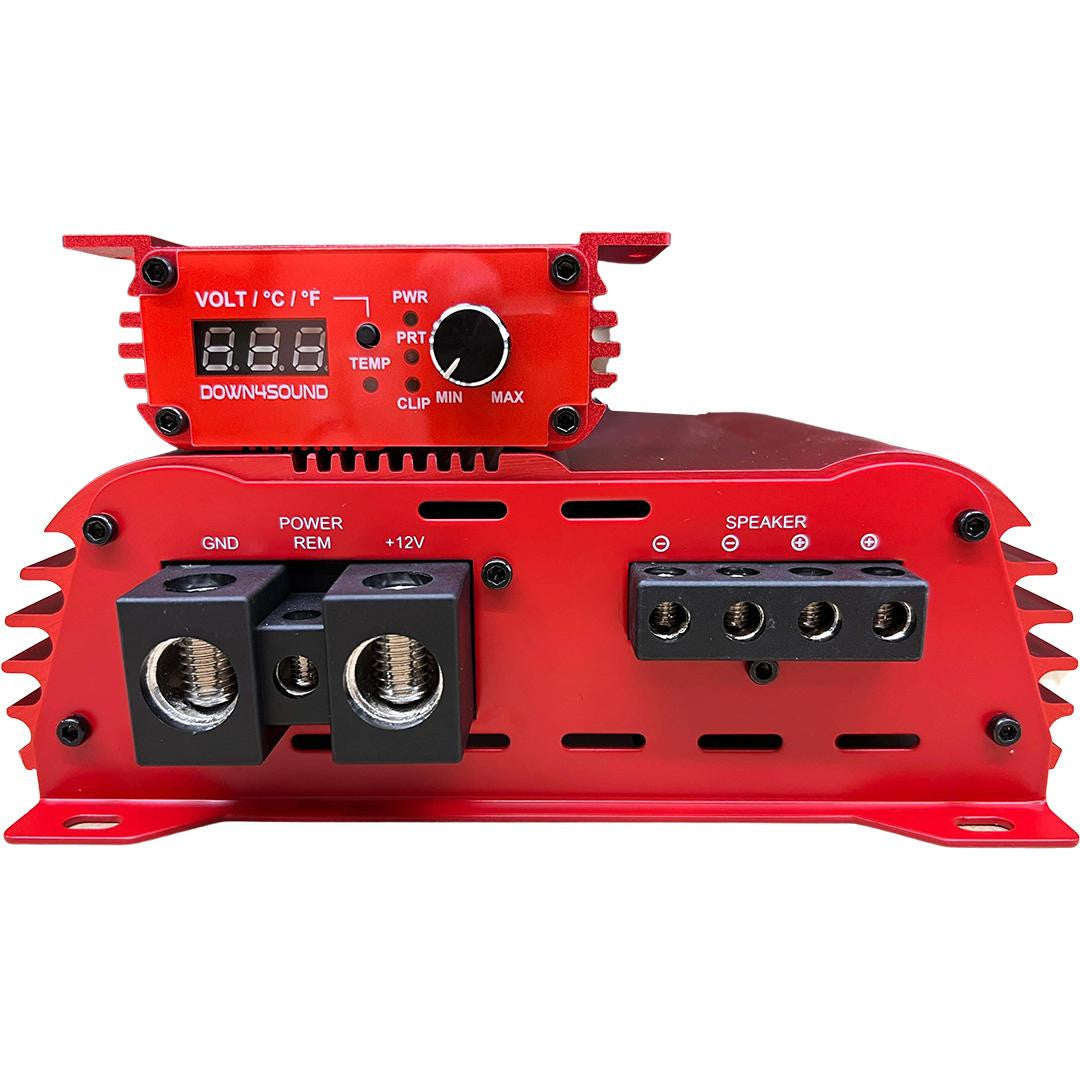

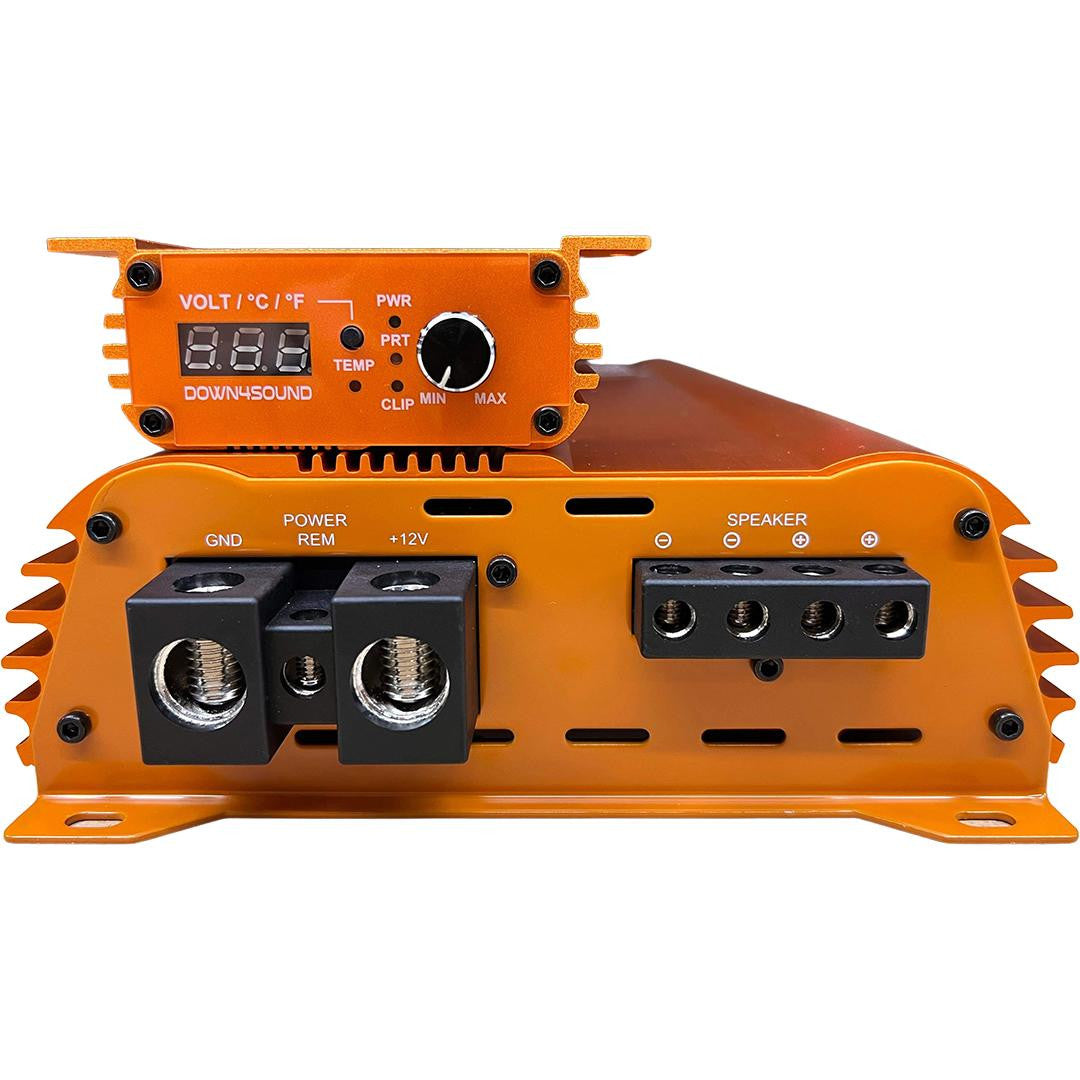

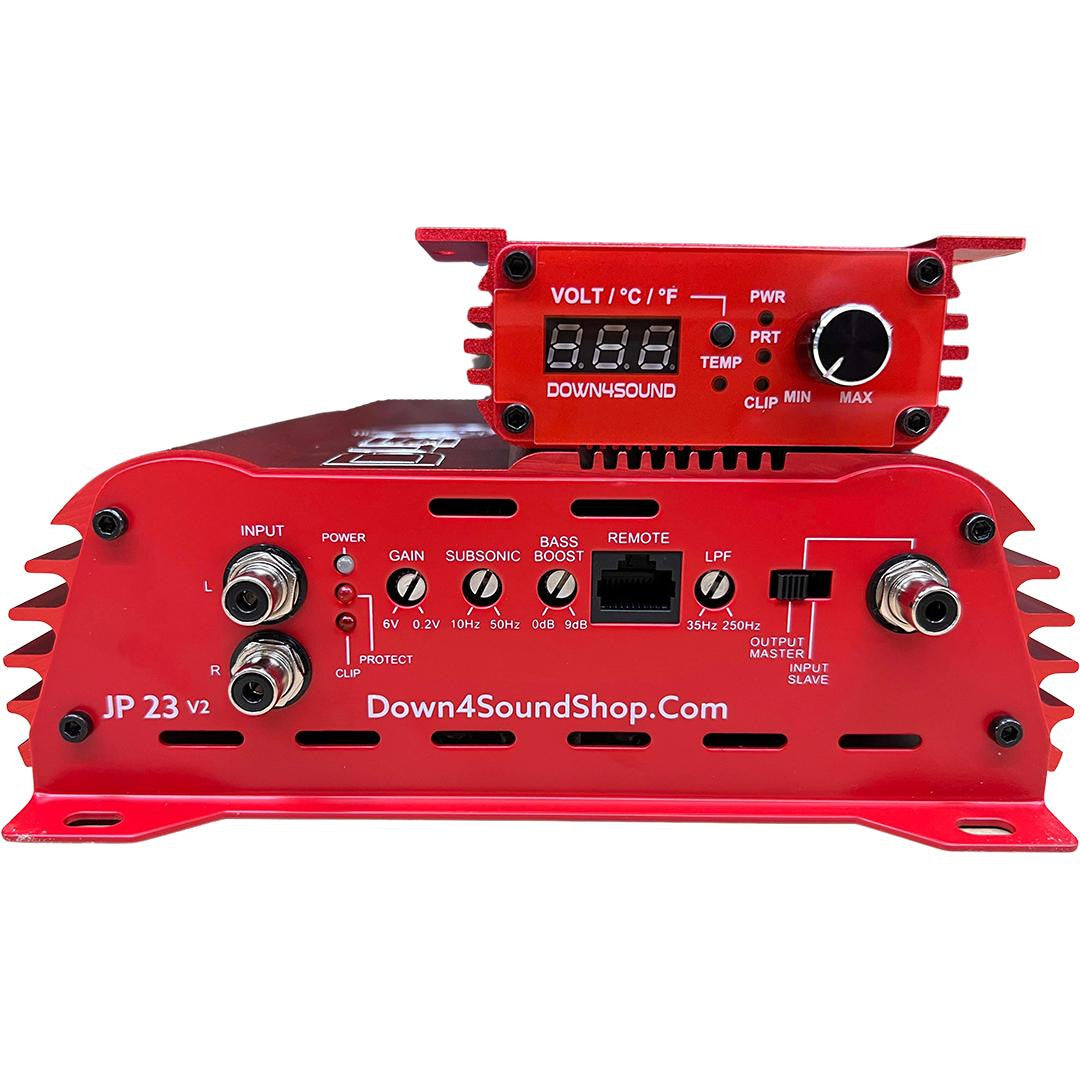

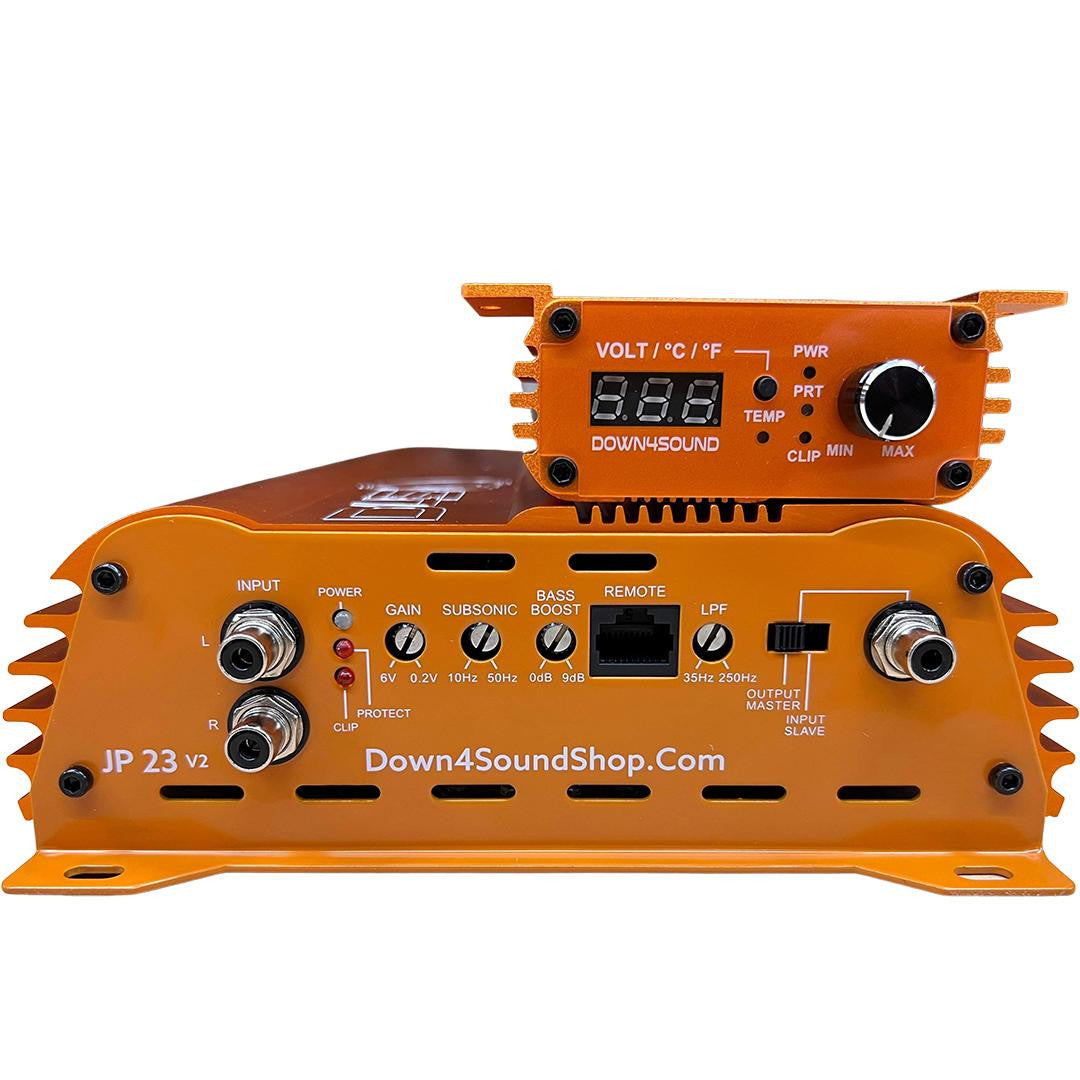

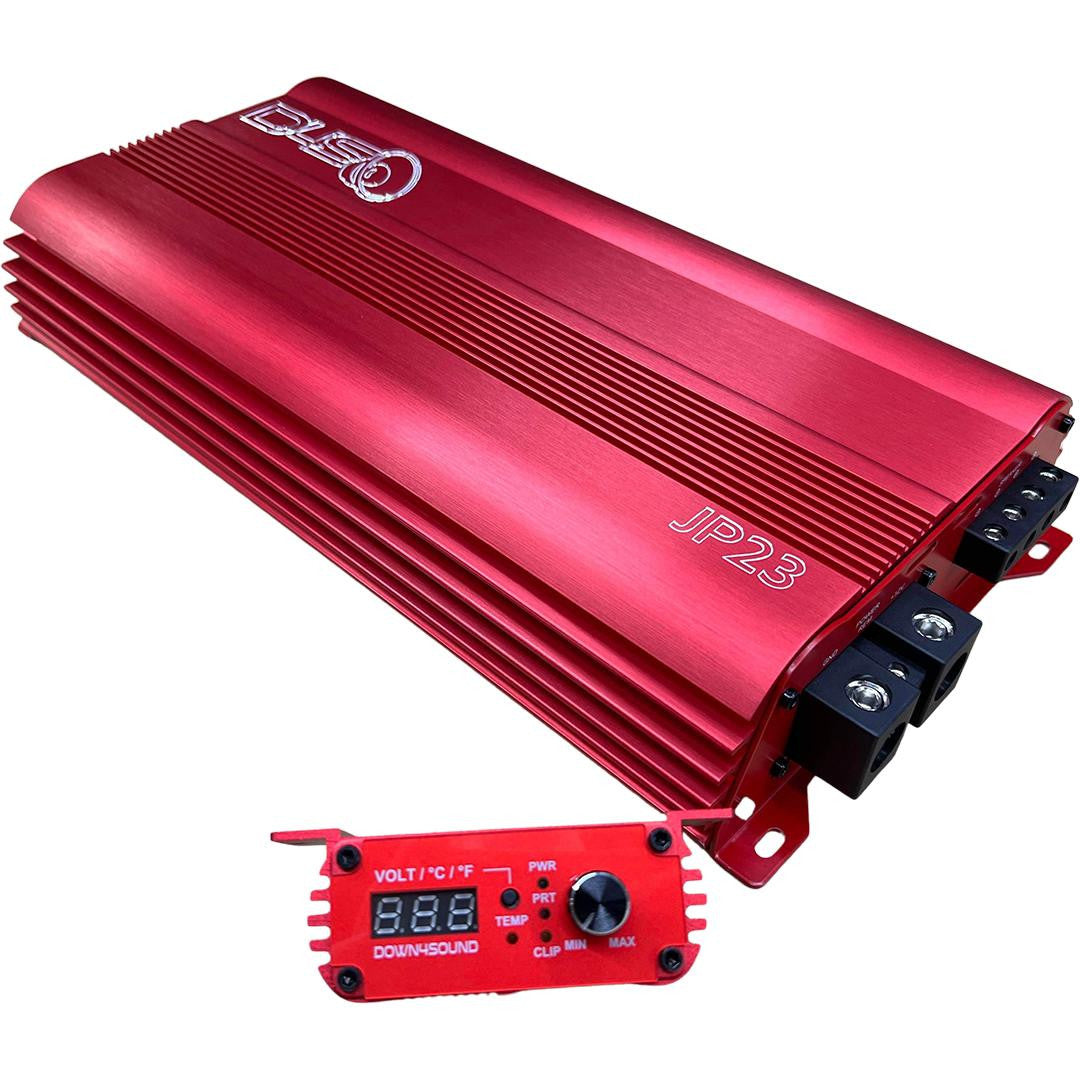

- Sleek Aesthetics with a matching aluminum bass knob displaying power, clip, protect, voltage, and temperature.
Technical Specifications:
- 1 Ohm: 2800W x 1 @ 14.4V
- 2 Ohms: 1800W x 1 @ 14.4V
- 4 Ohms: 800W x 1
- 2 Ohm Linked: 5600W x 1
- Voltage Range: 9 to 15.5 Volts
- Low Pass Filter: 35Hz - 250Hz
- Frequency Response: 10Hz - 270Hz
- Subsonic Filter: 10Hz - 50Hz
- Bass Boost: 0-9 dB
- Input Sensitivity: 6V - 0.2V
- Signal to Noise Ratio: 97dB
- Total Harmonic Distortion: <0.1% @ 4 ohms

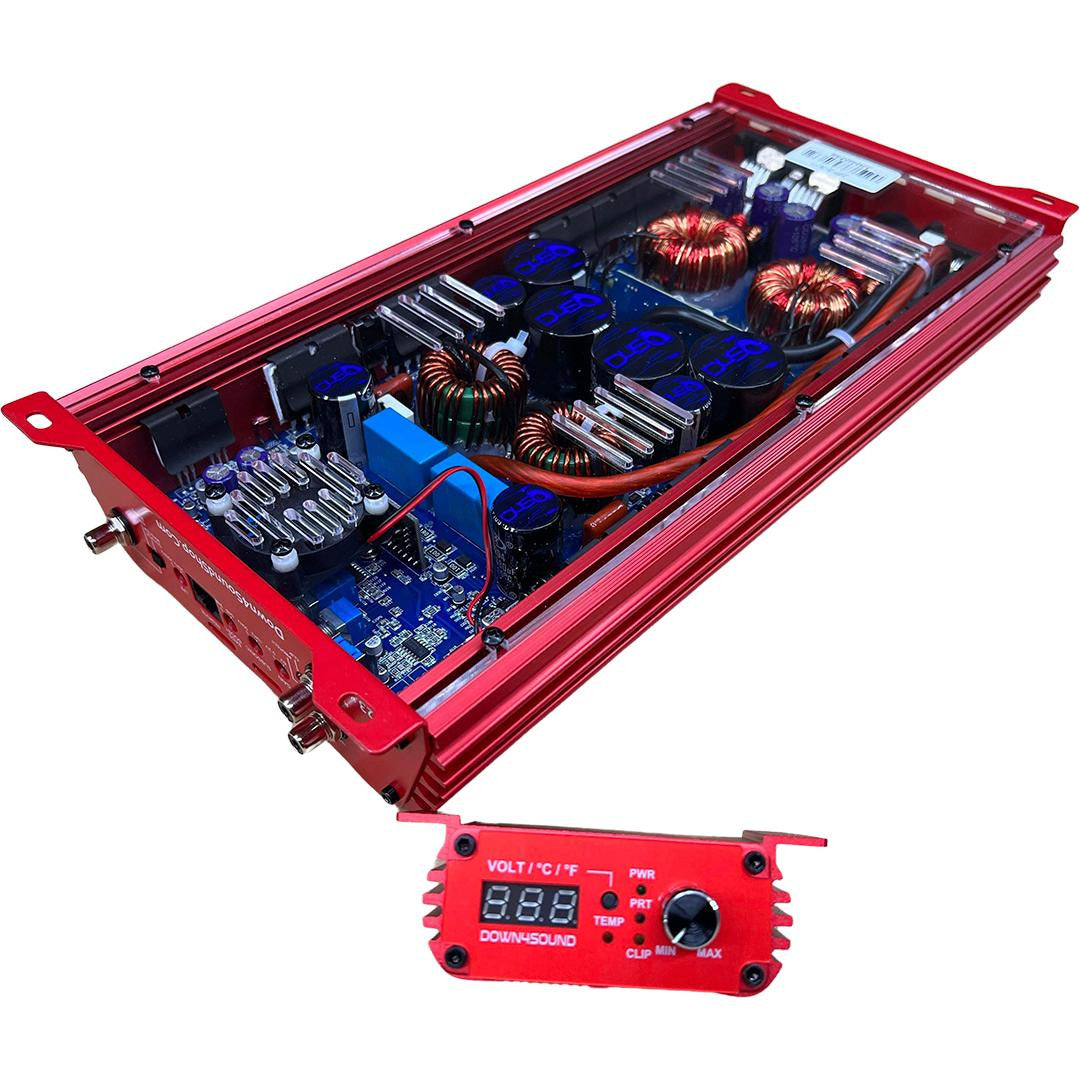

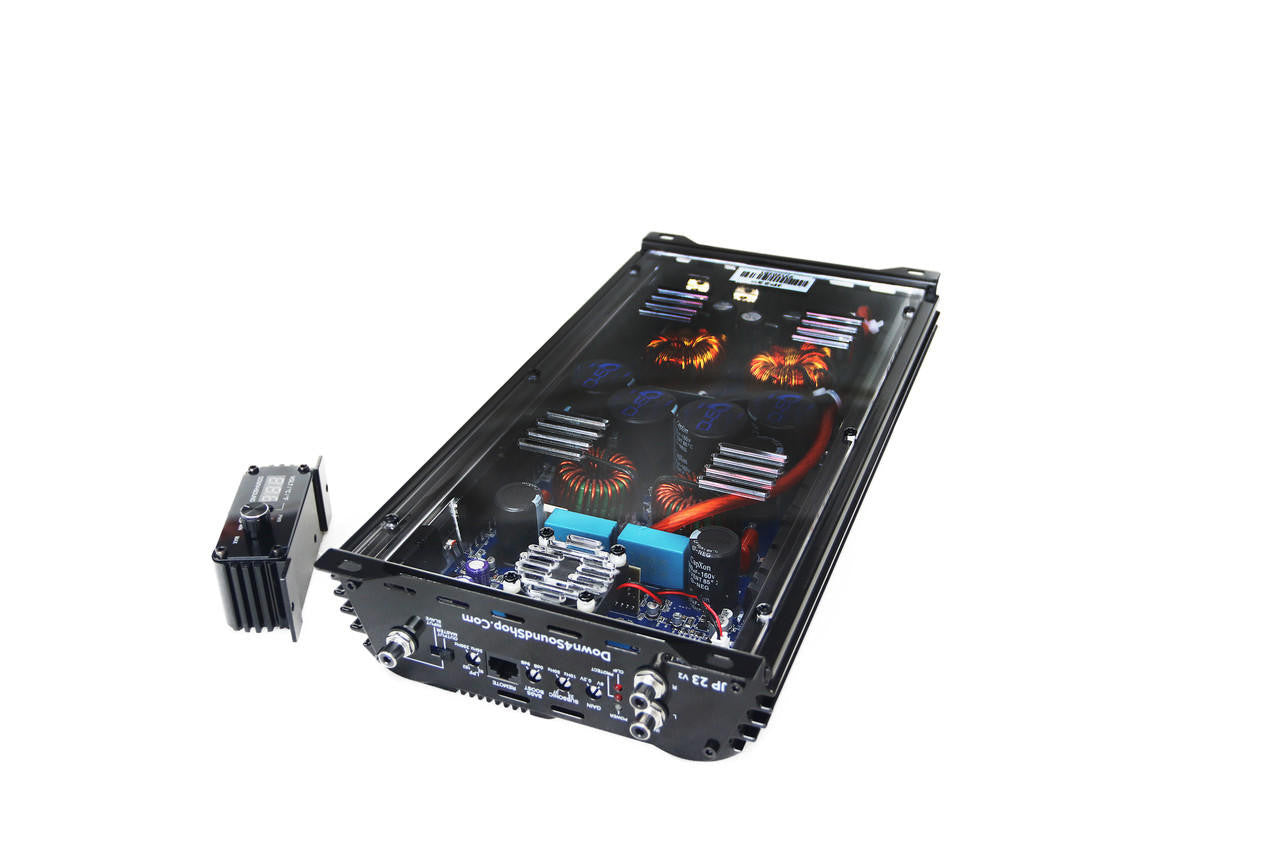

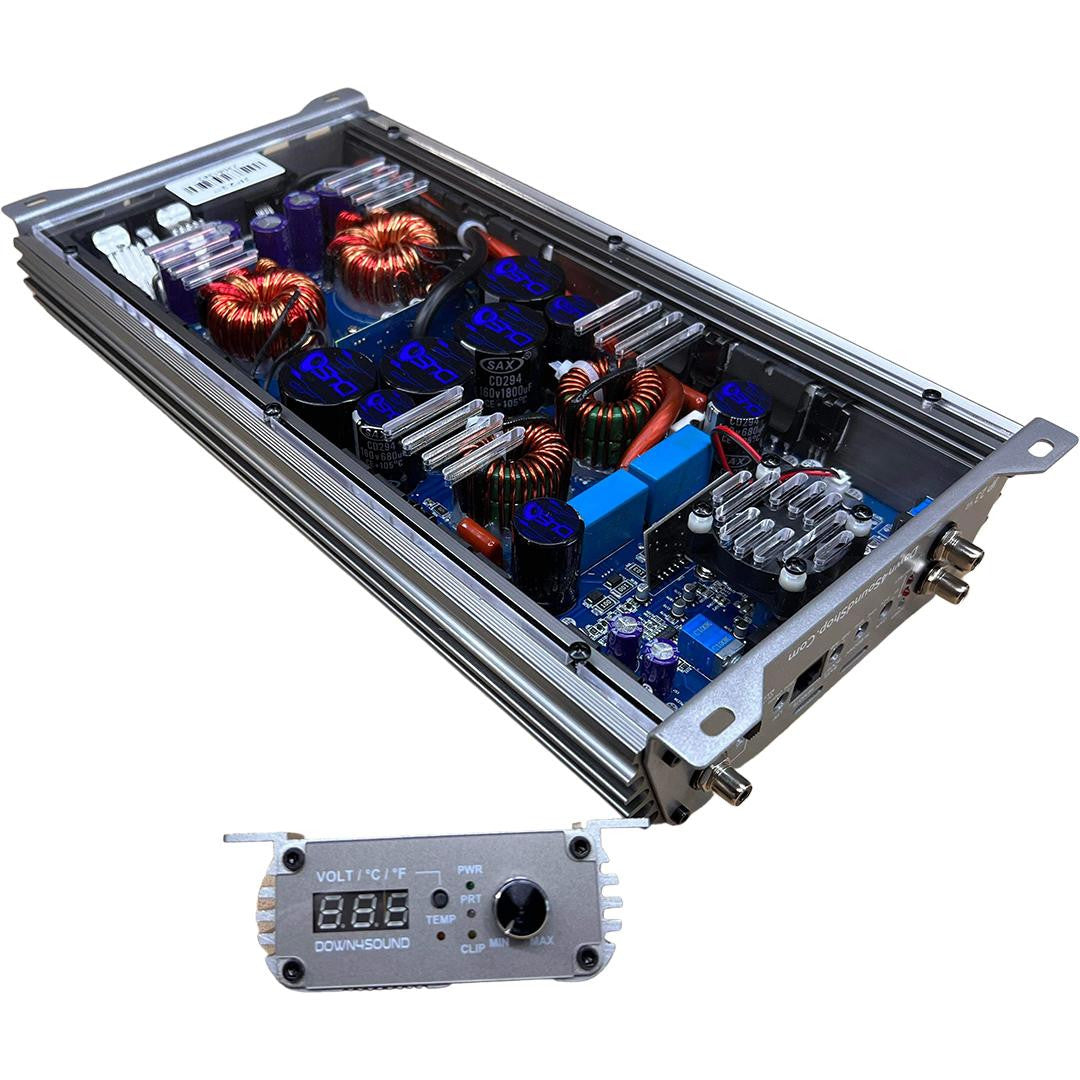

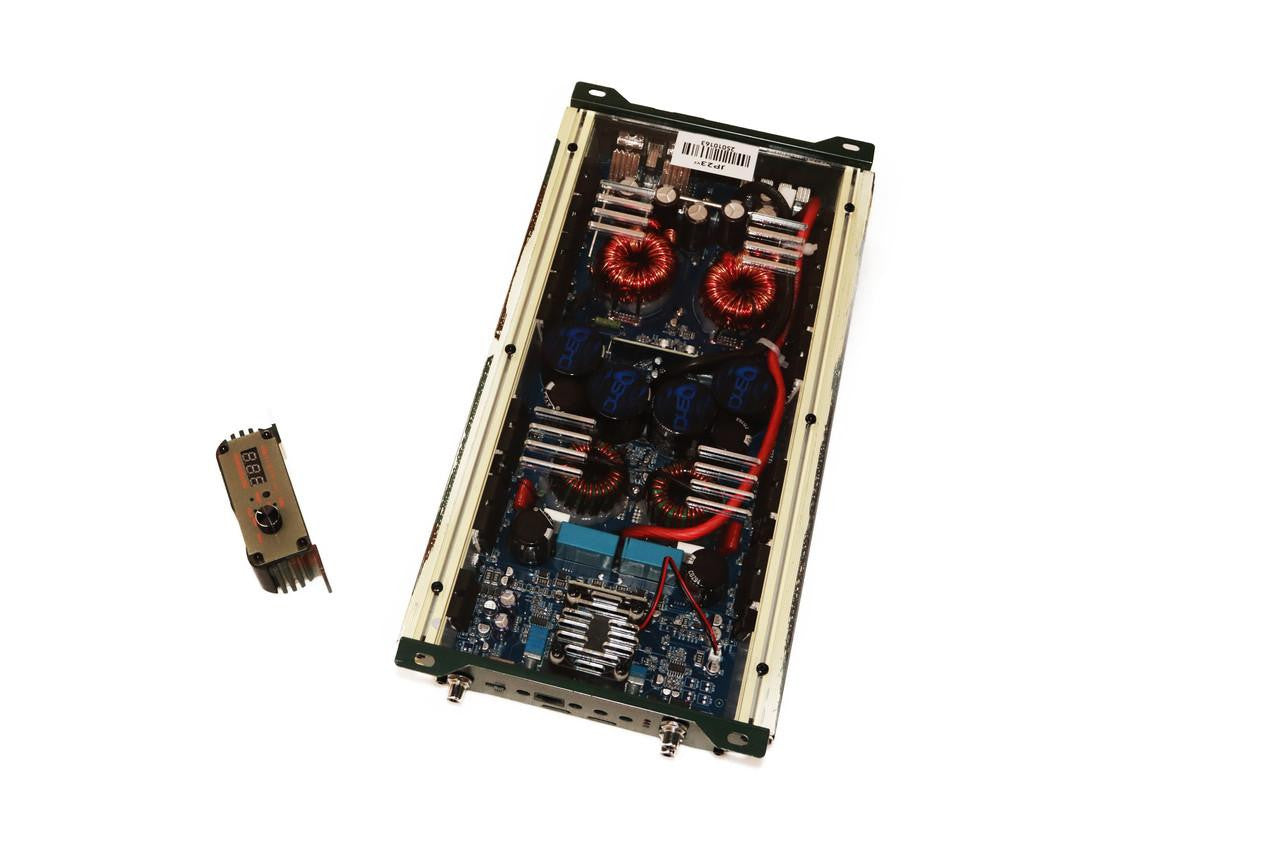

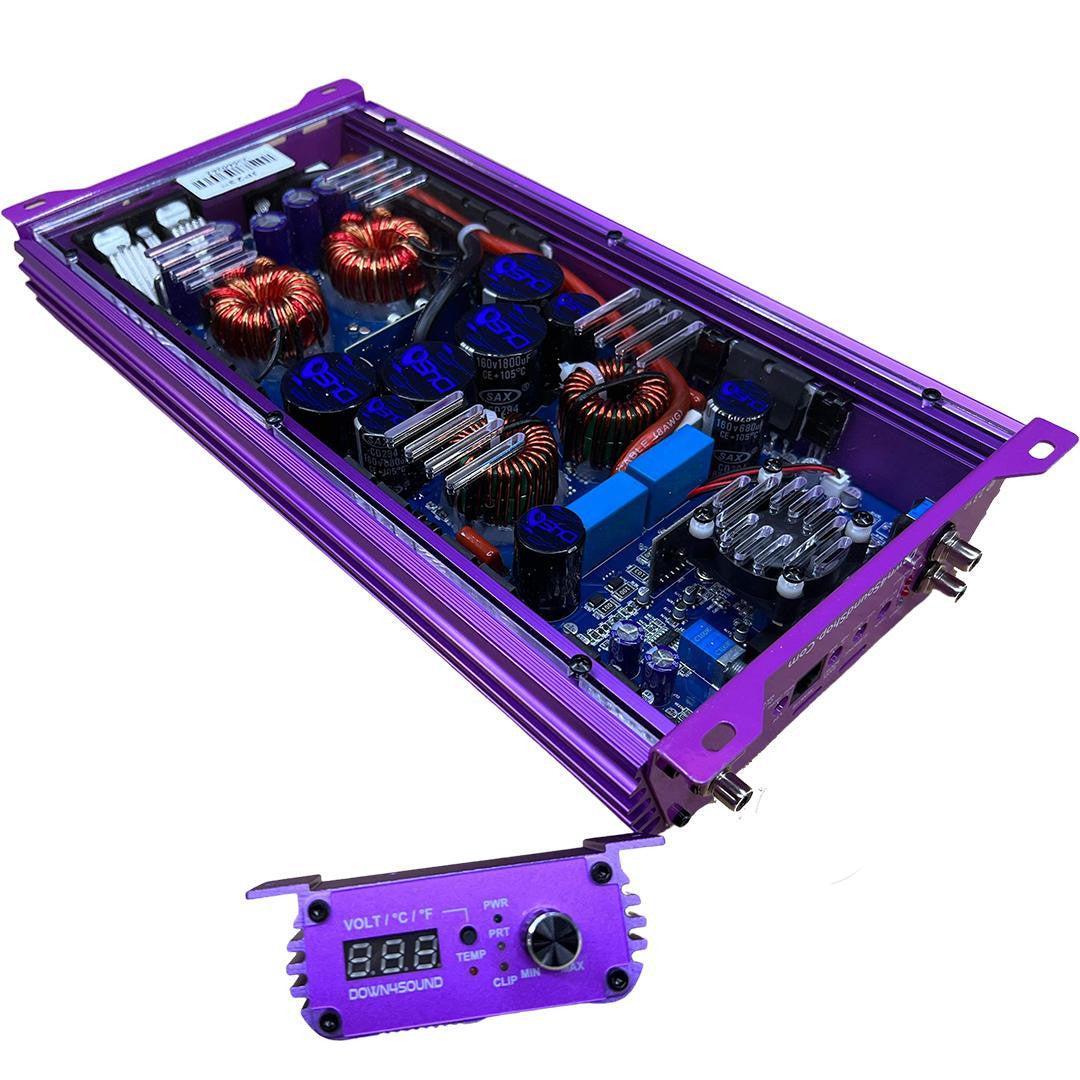

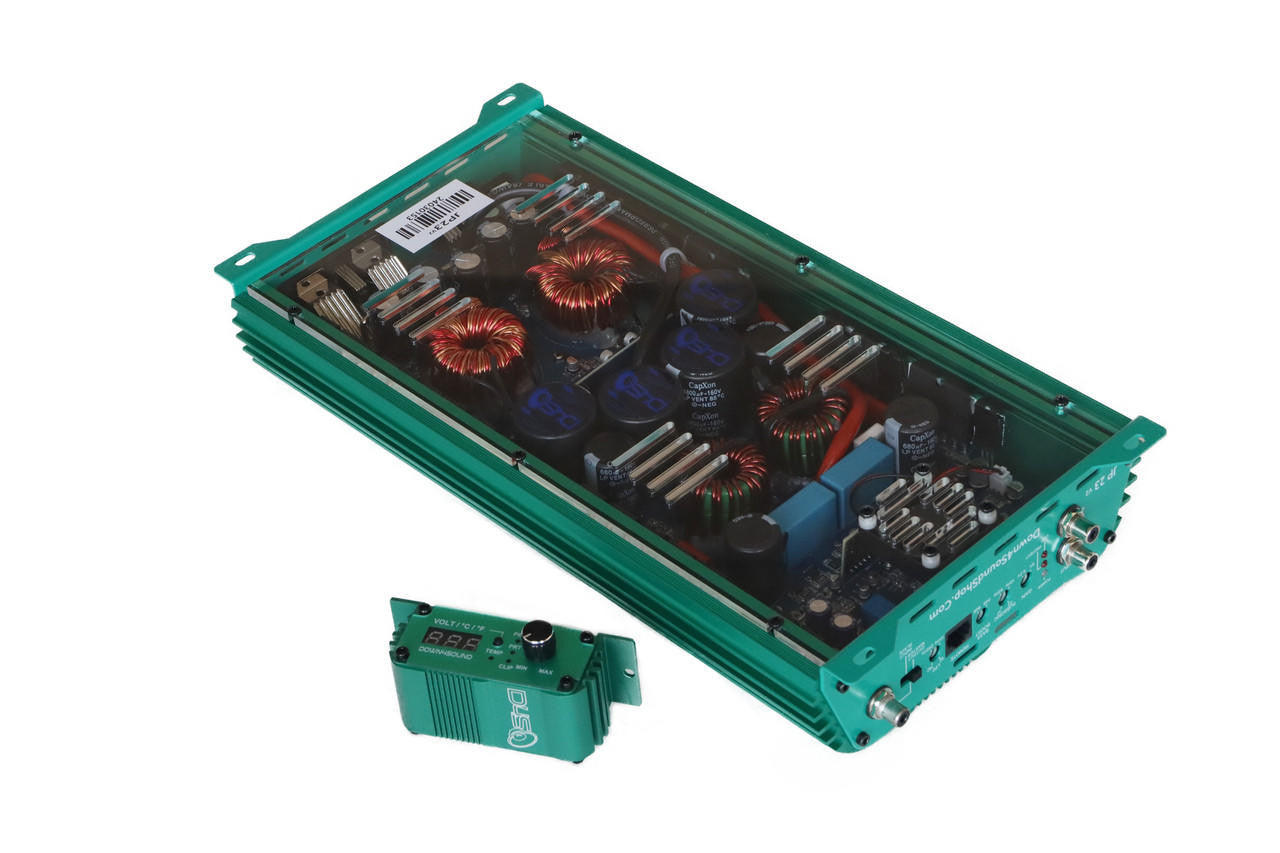

Safety and Durability: Thermal, High & Low Voltage, Speaker Short, and DC protections; advanced thermal management with quiet, high-speed fans; robust construction with a plexiglass backplate.
Dimensions: 13.38" L x 7.40" W x 2.24" H. Warranty: 1-year standard; optional extended warranty for 0.5-ohm usage.
Elevate your car audio to new heights with the DOWN4SOUND JP23 V2 Amplifier – where power meets precision in a stylish, compact package.
