JP23 v1.5 Amplifier by DOWN4SOUND | 2300W RMS Power Output

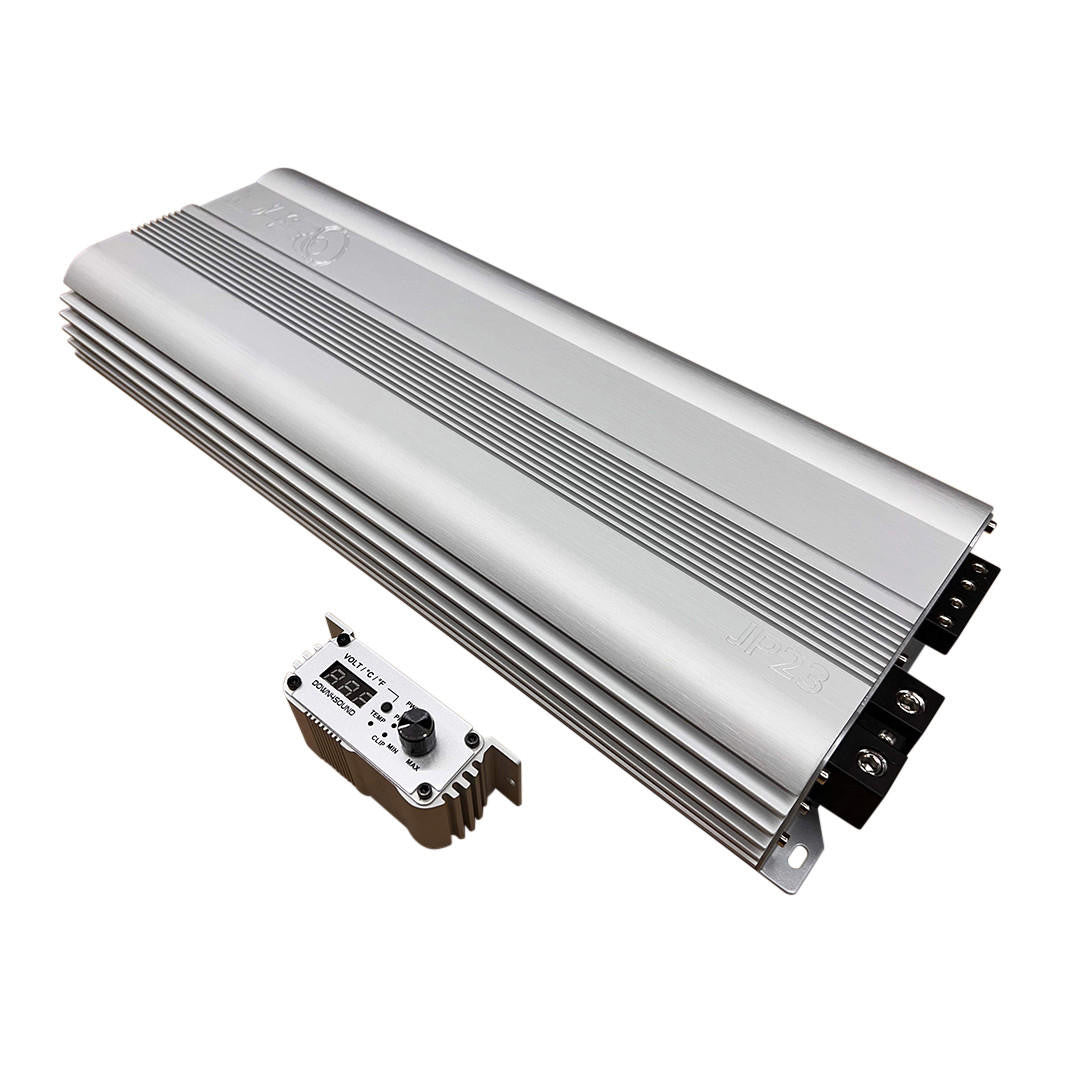

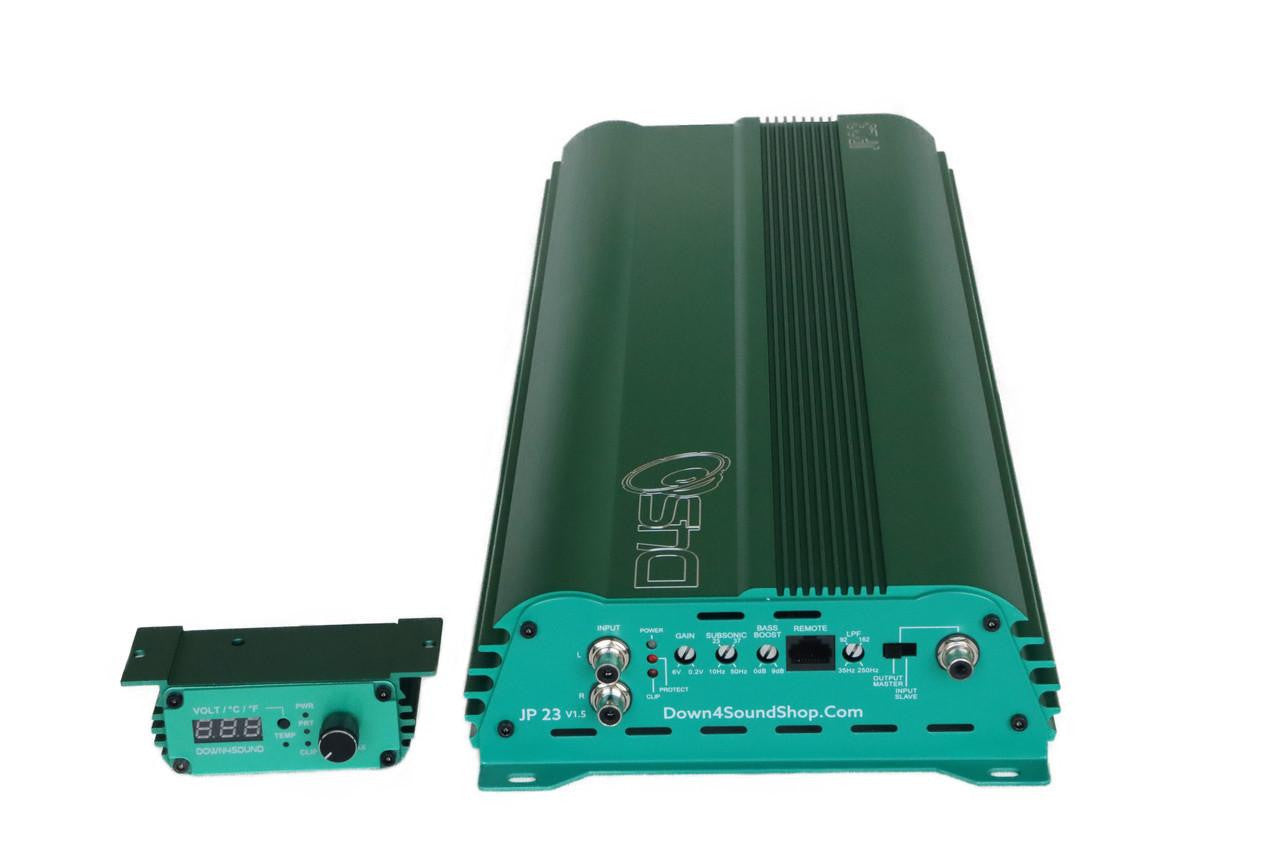

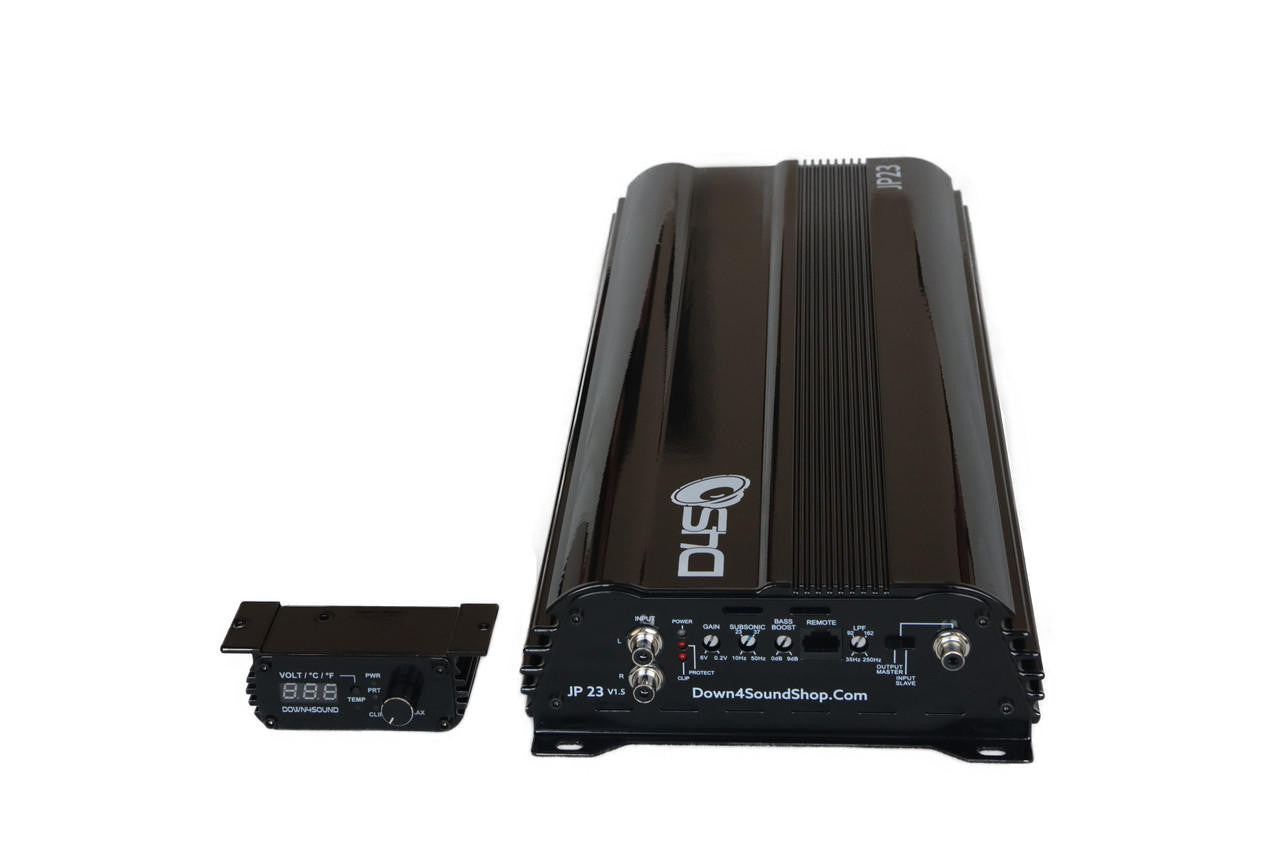

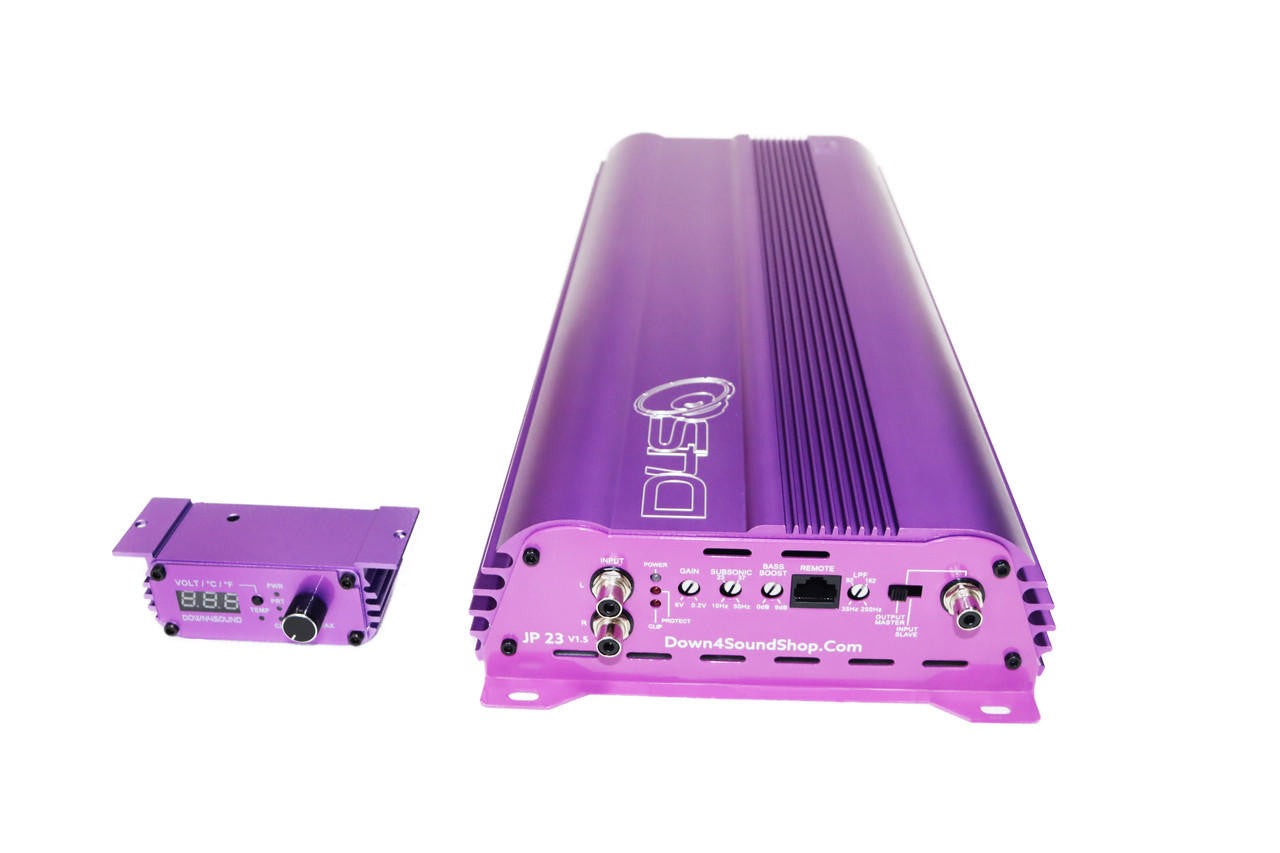

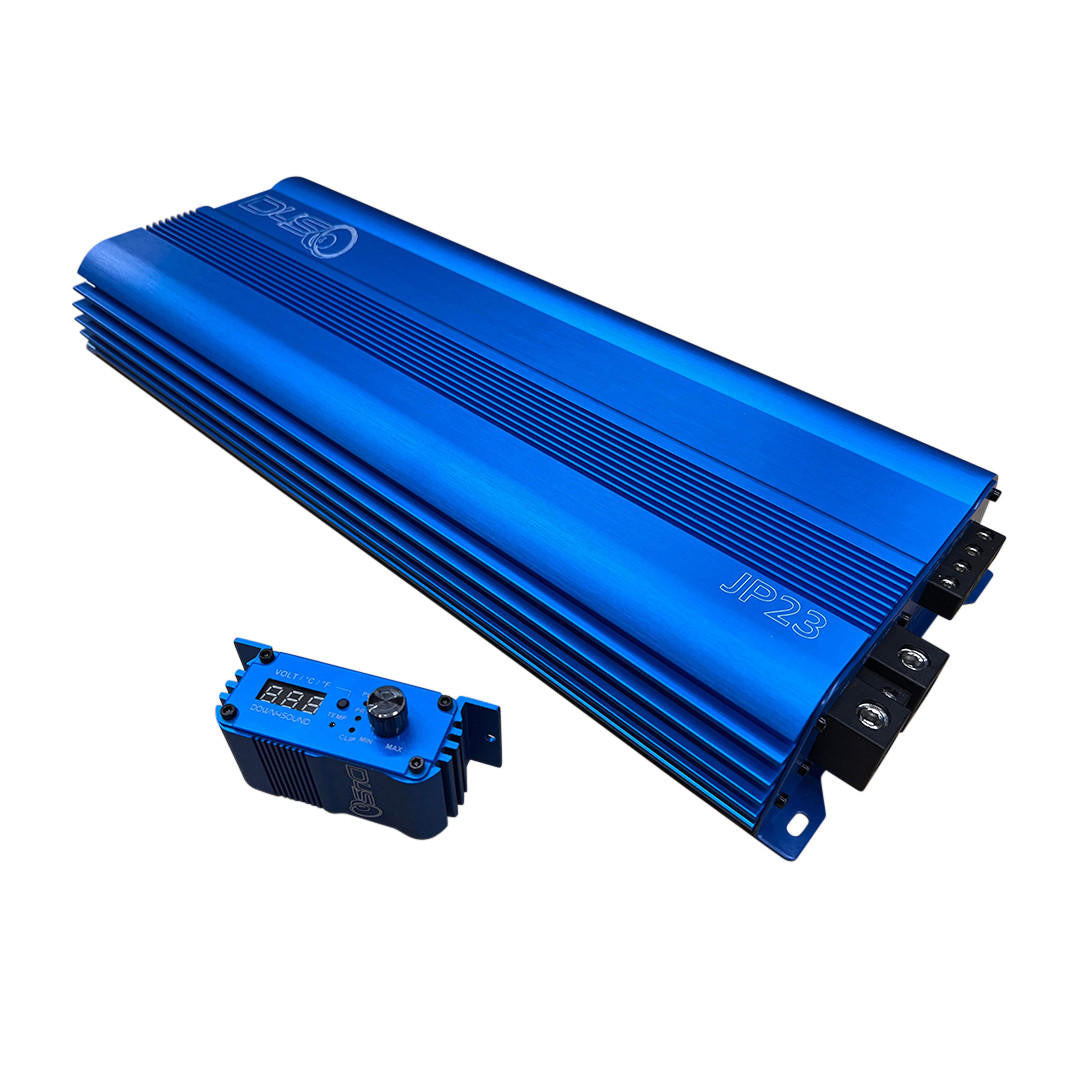

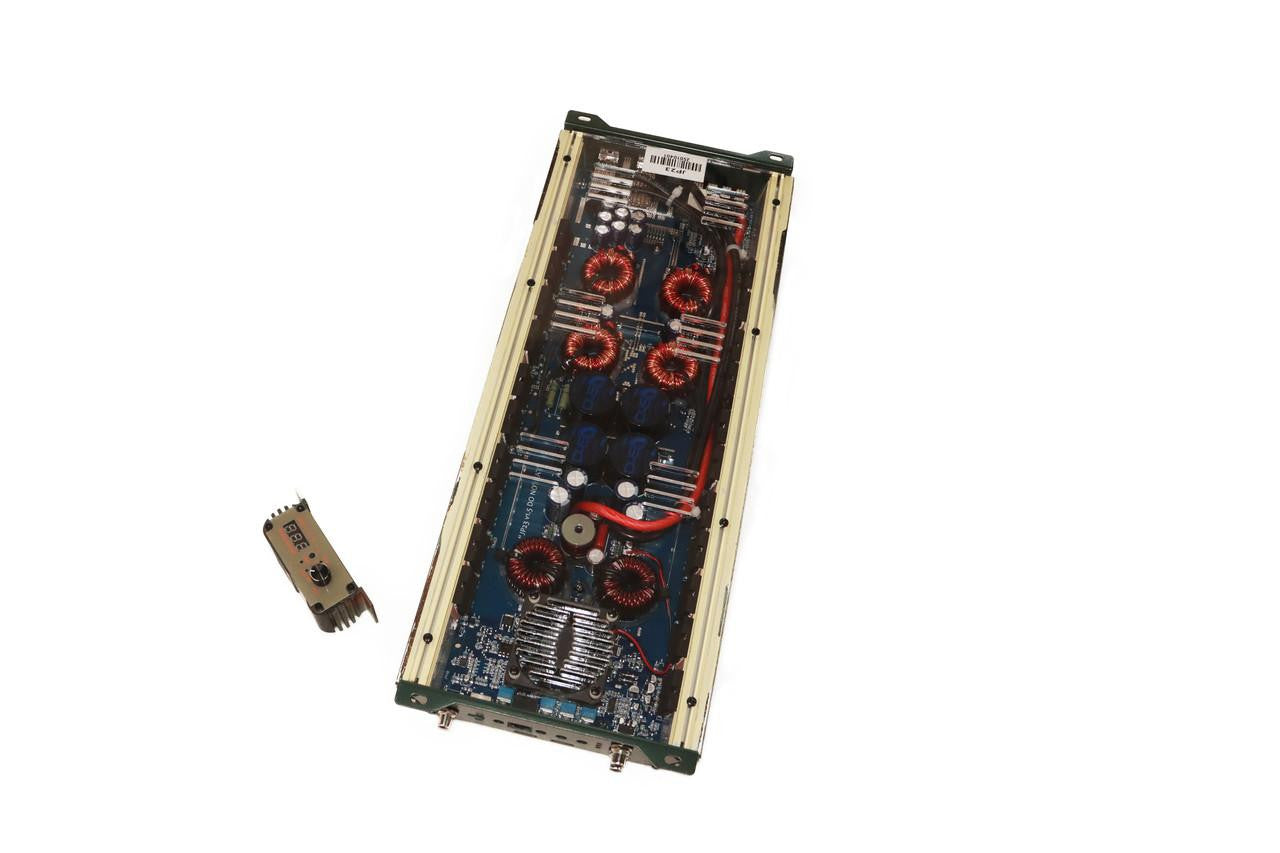

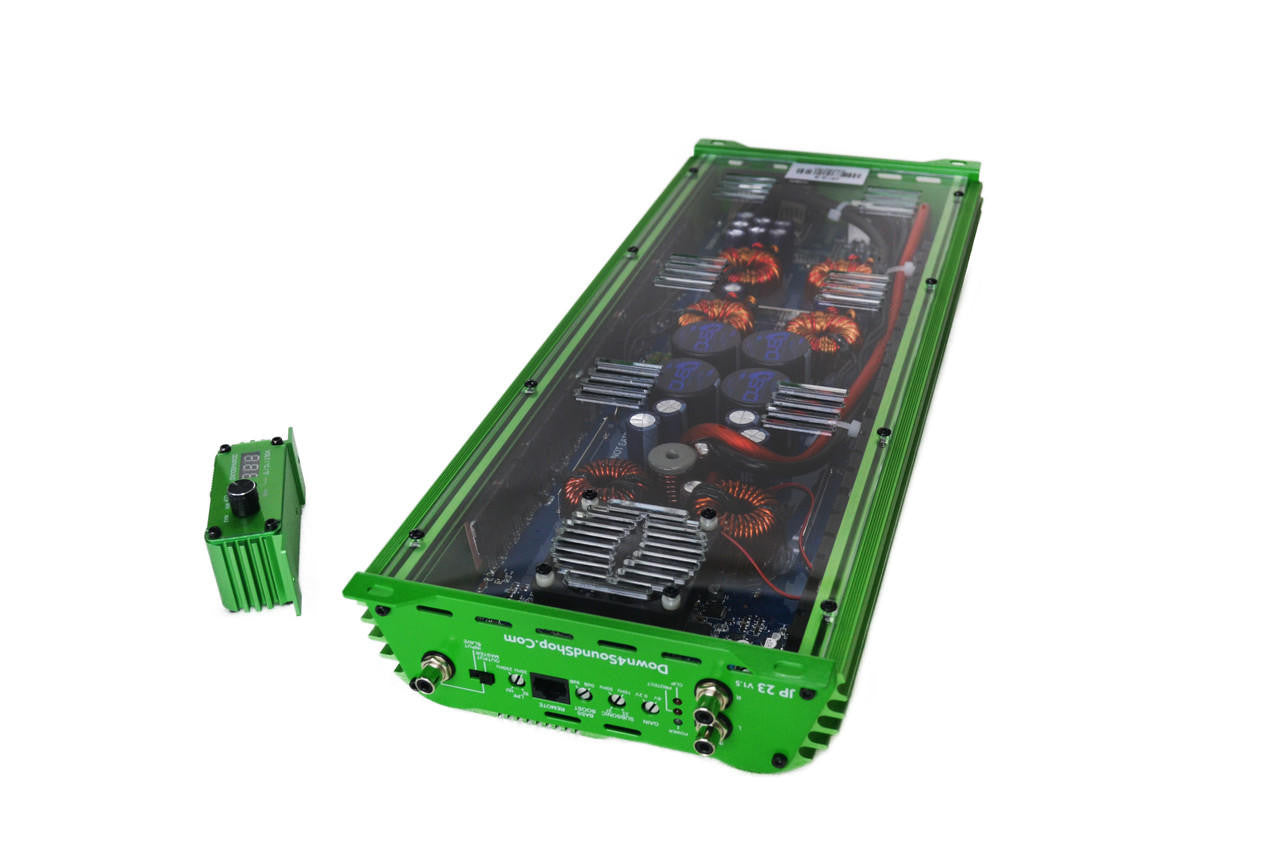

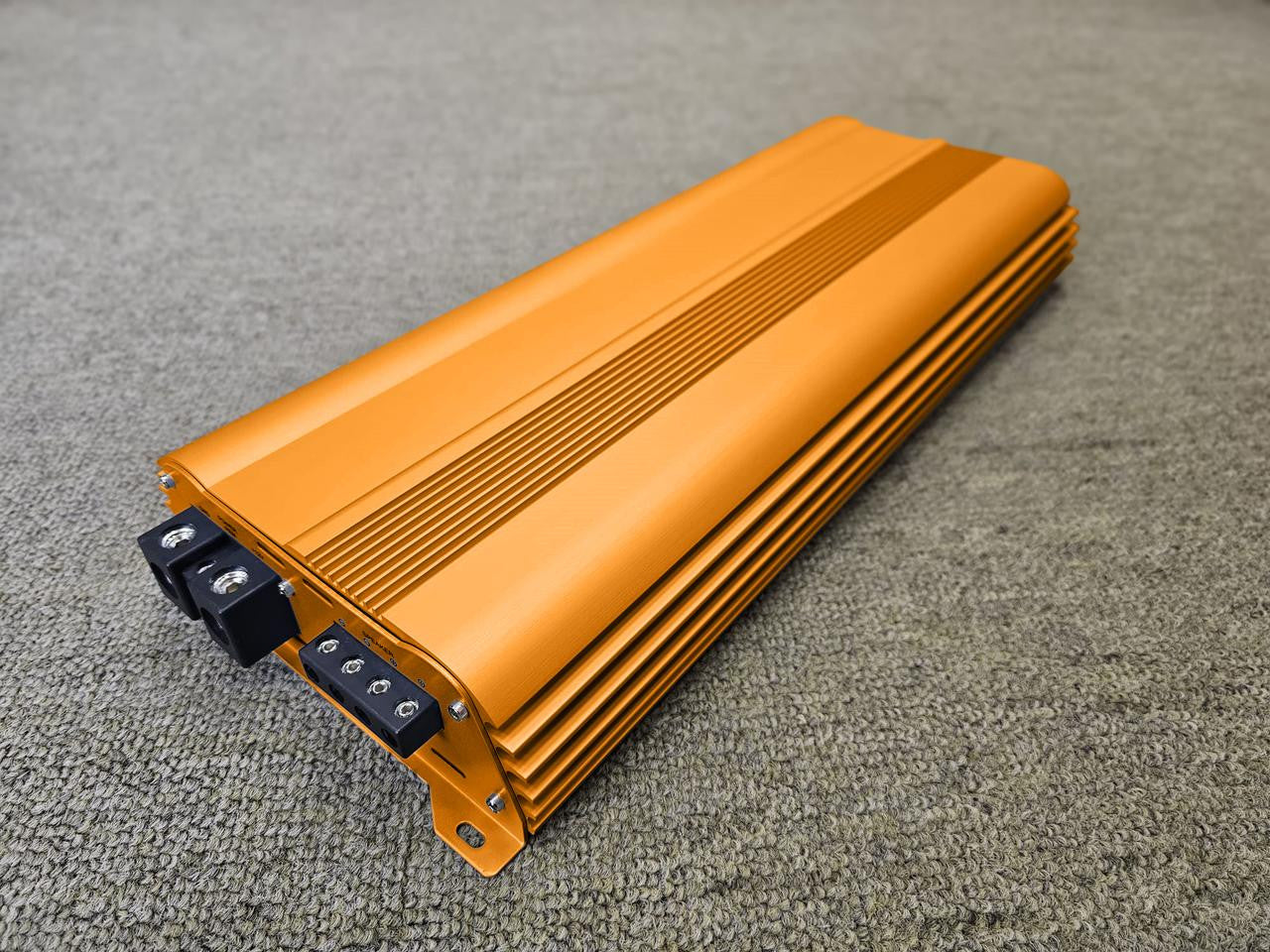

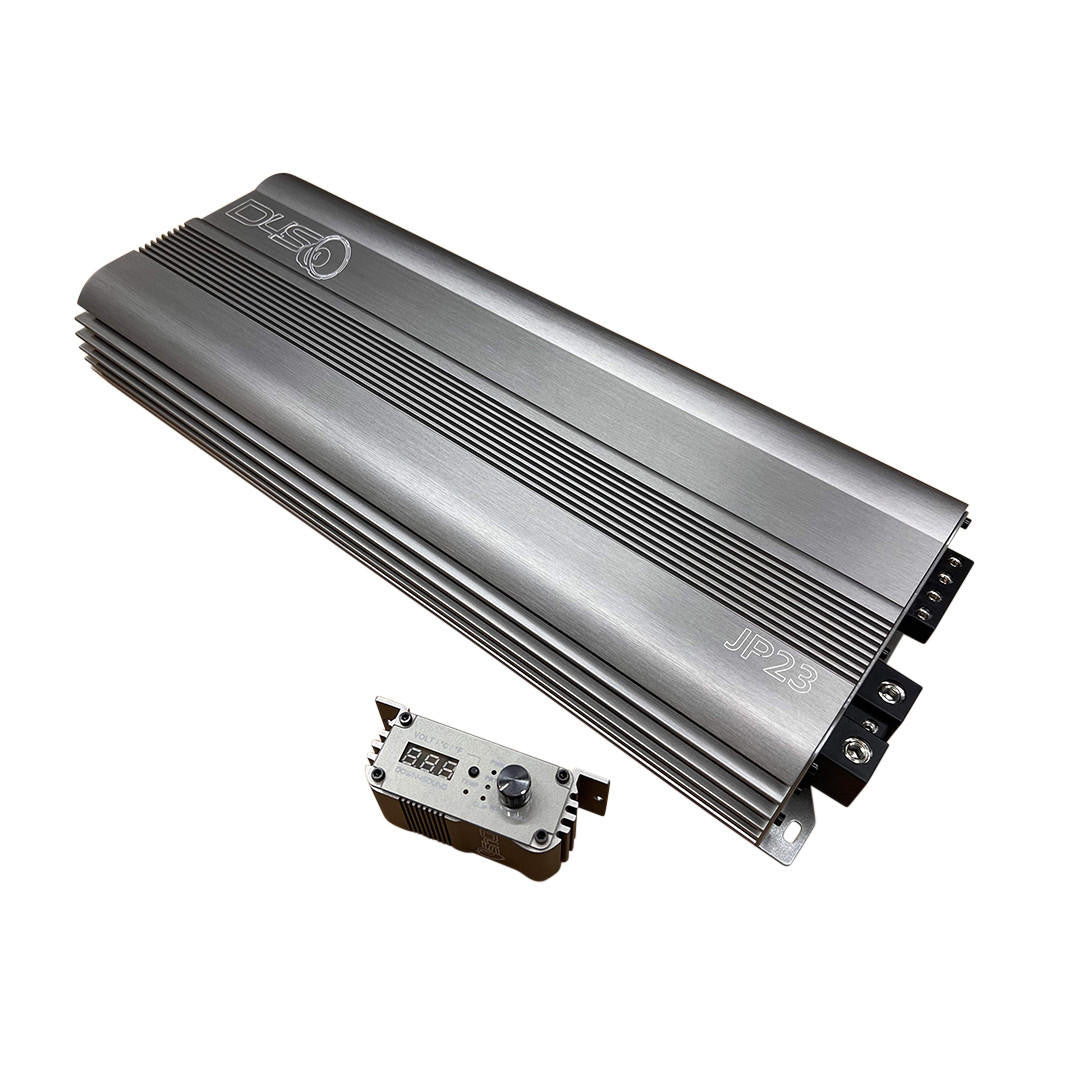

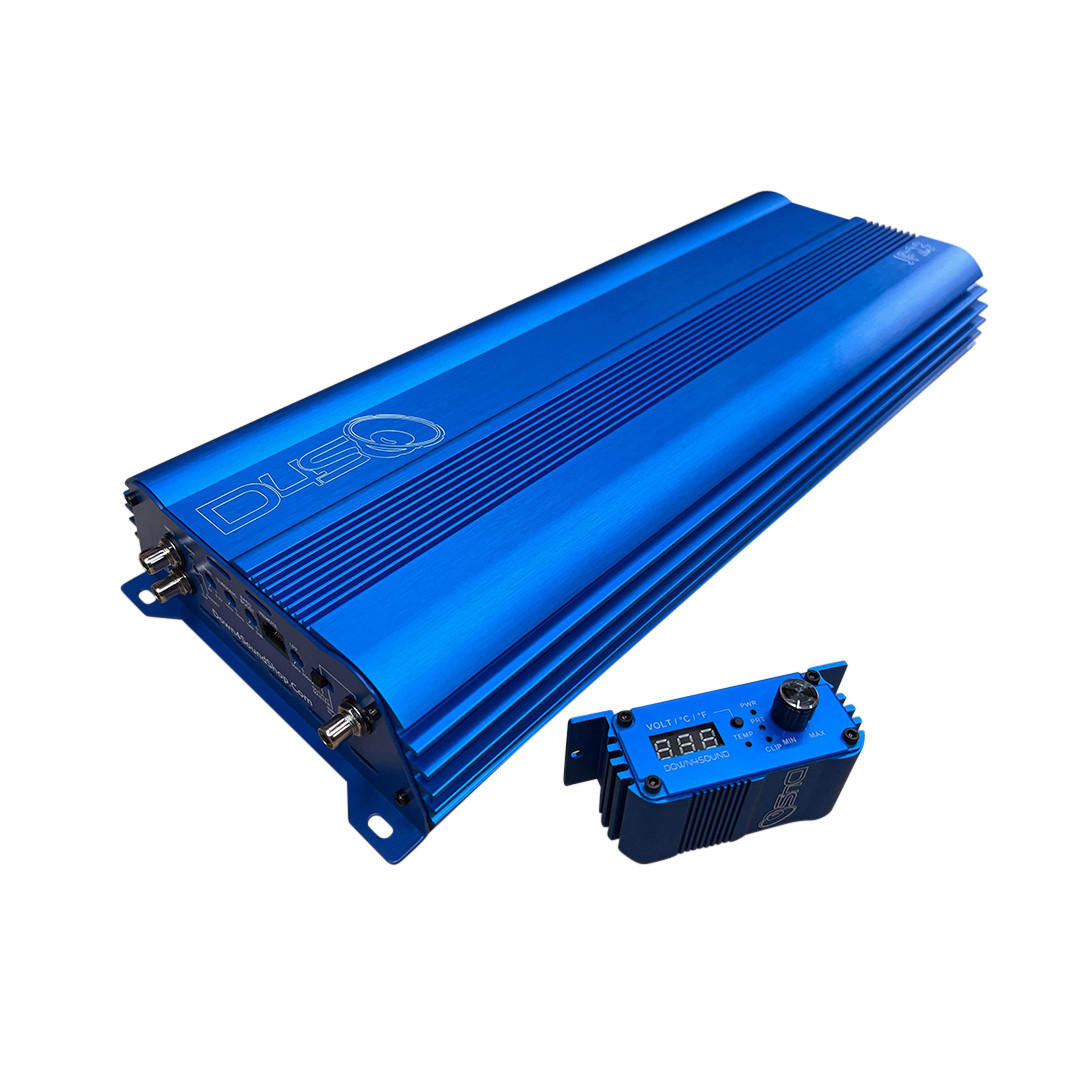

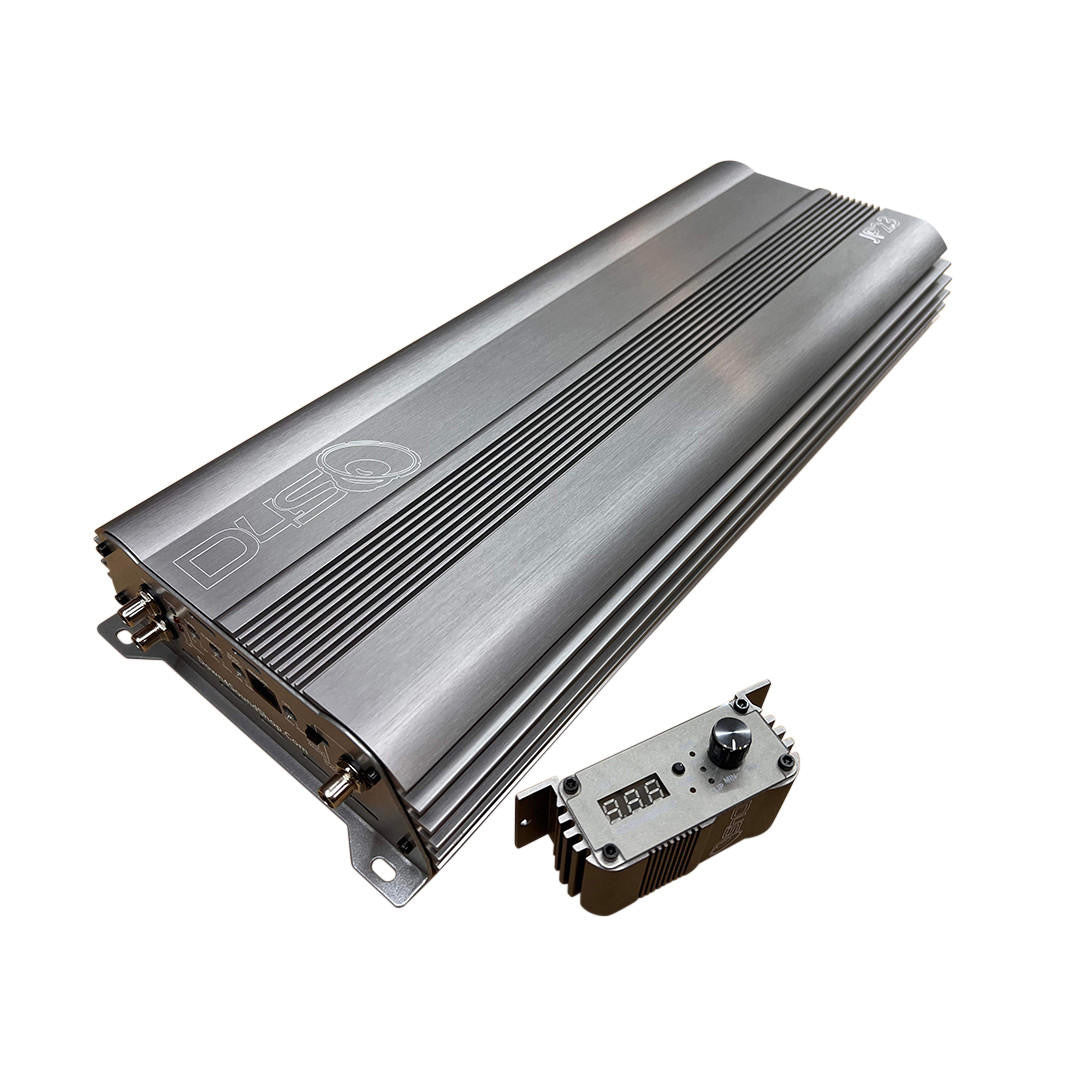

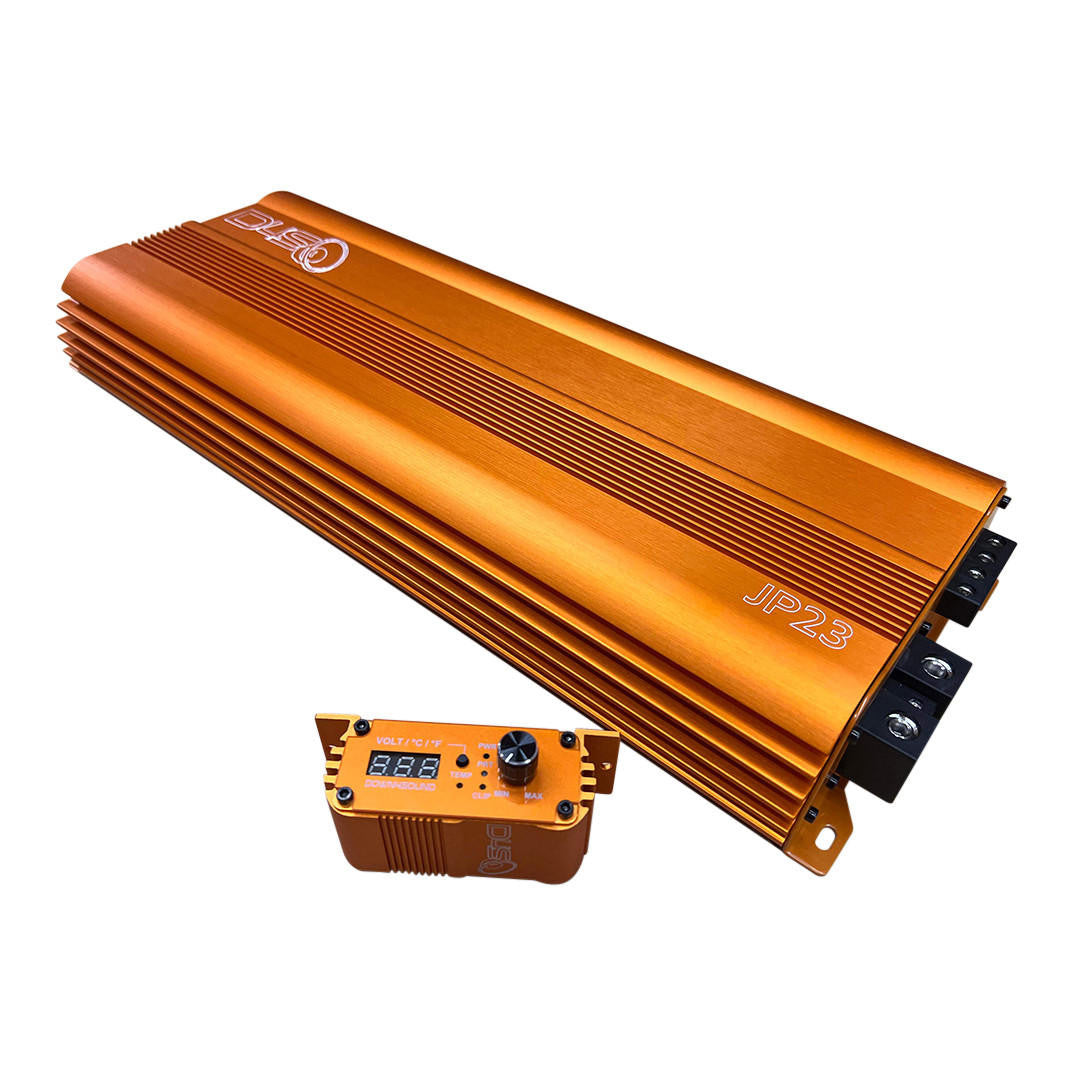

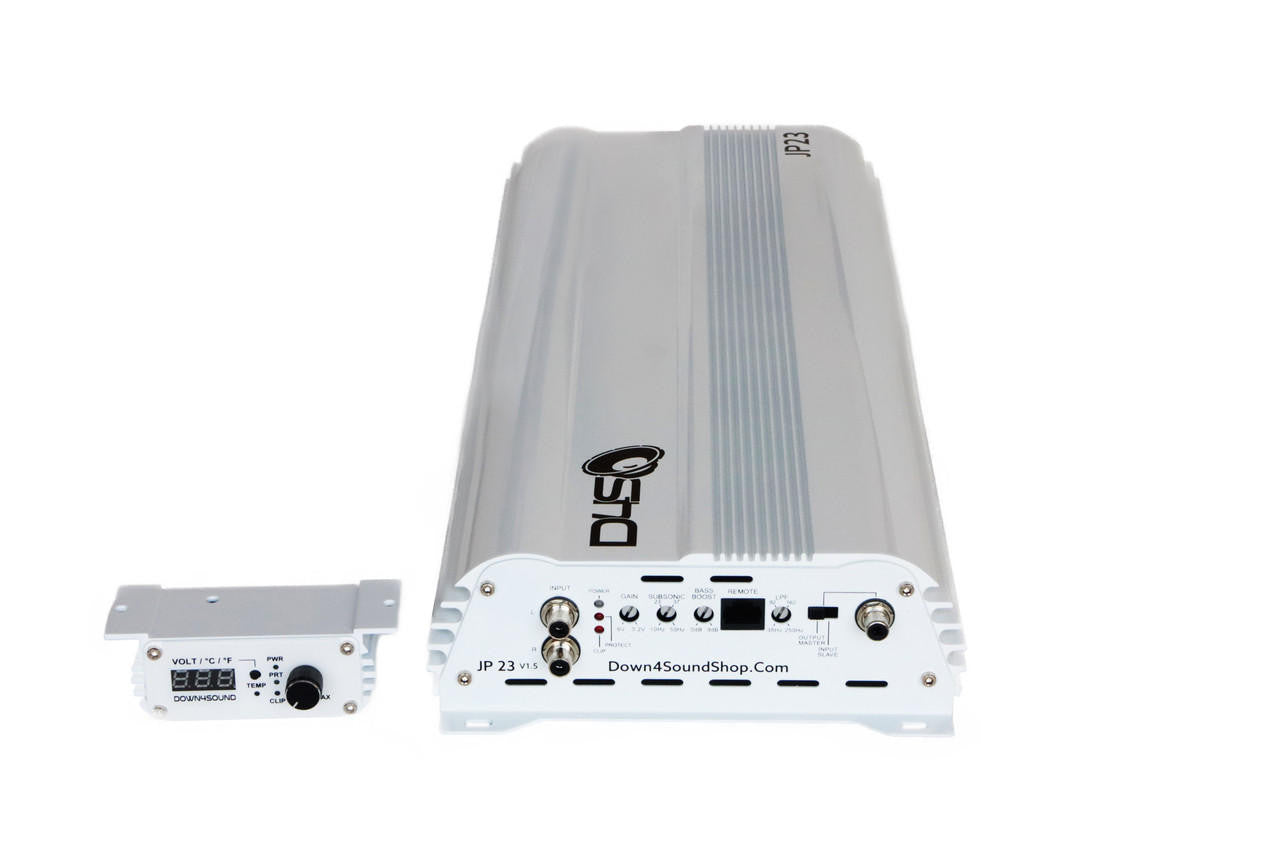

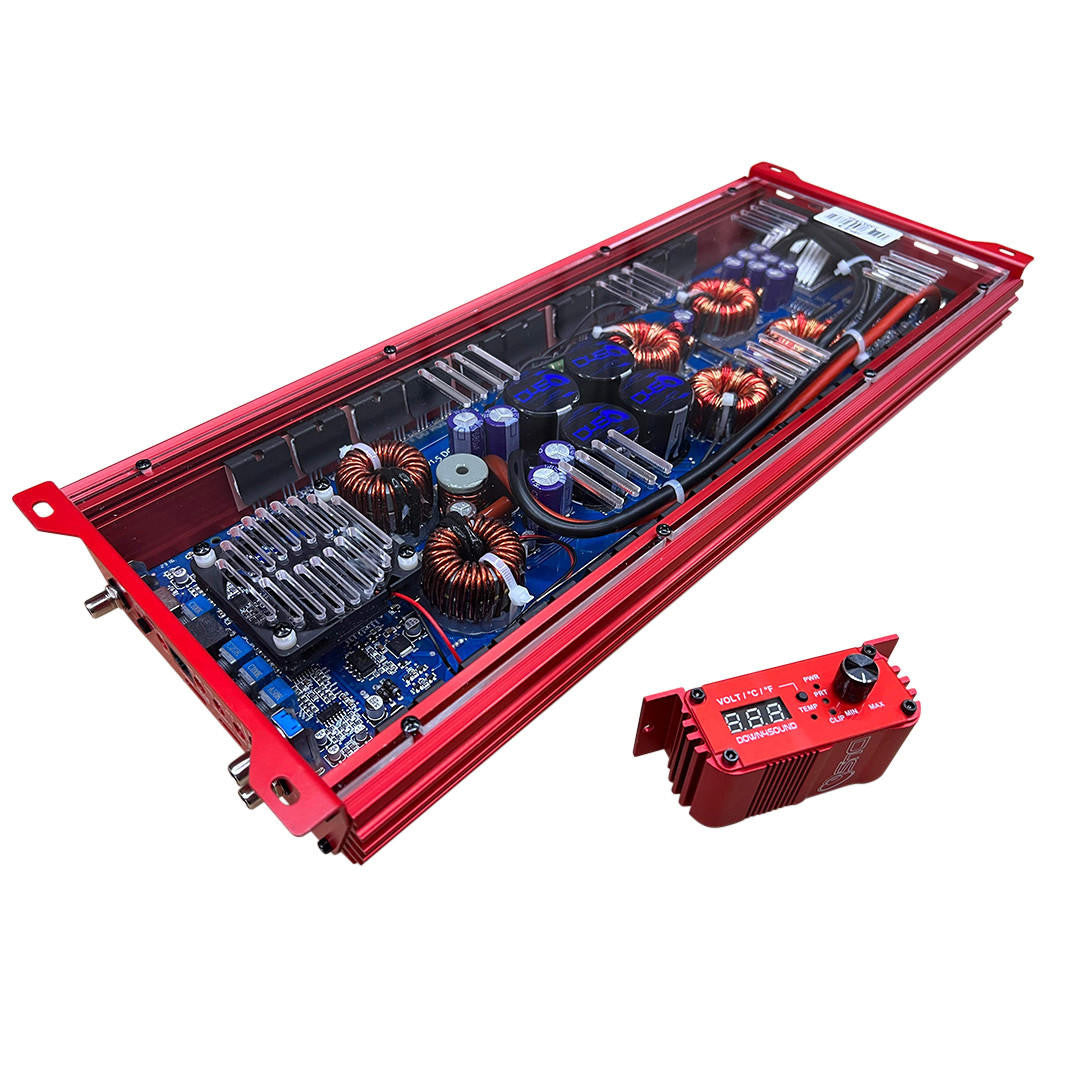

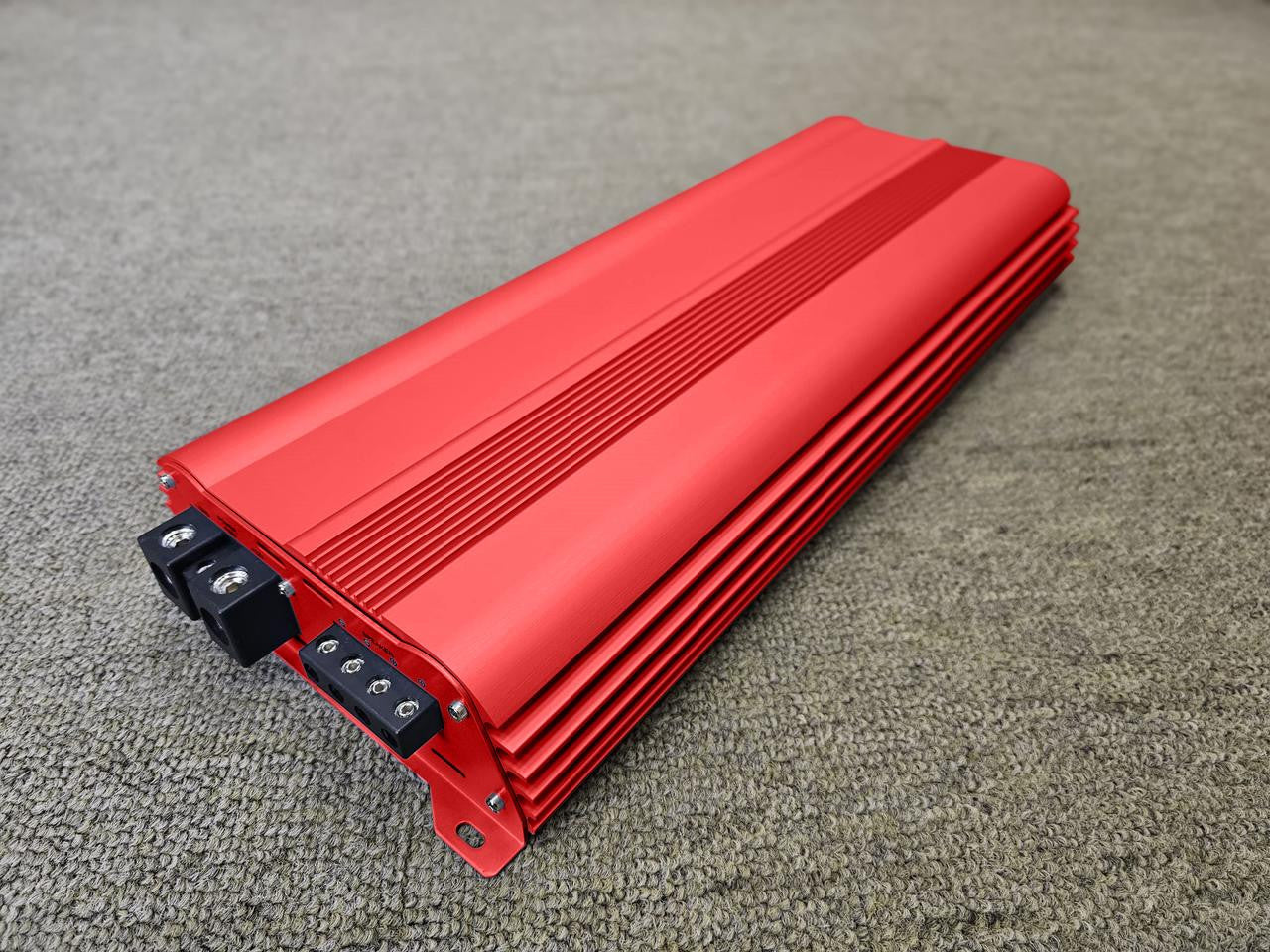

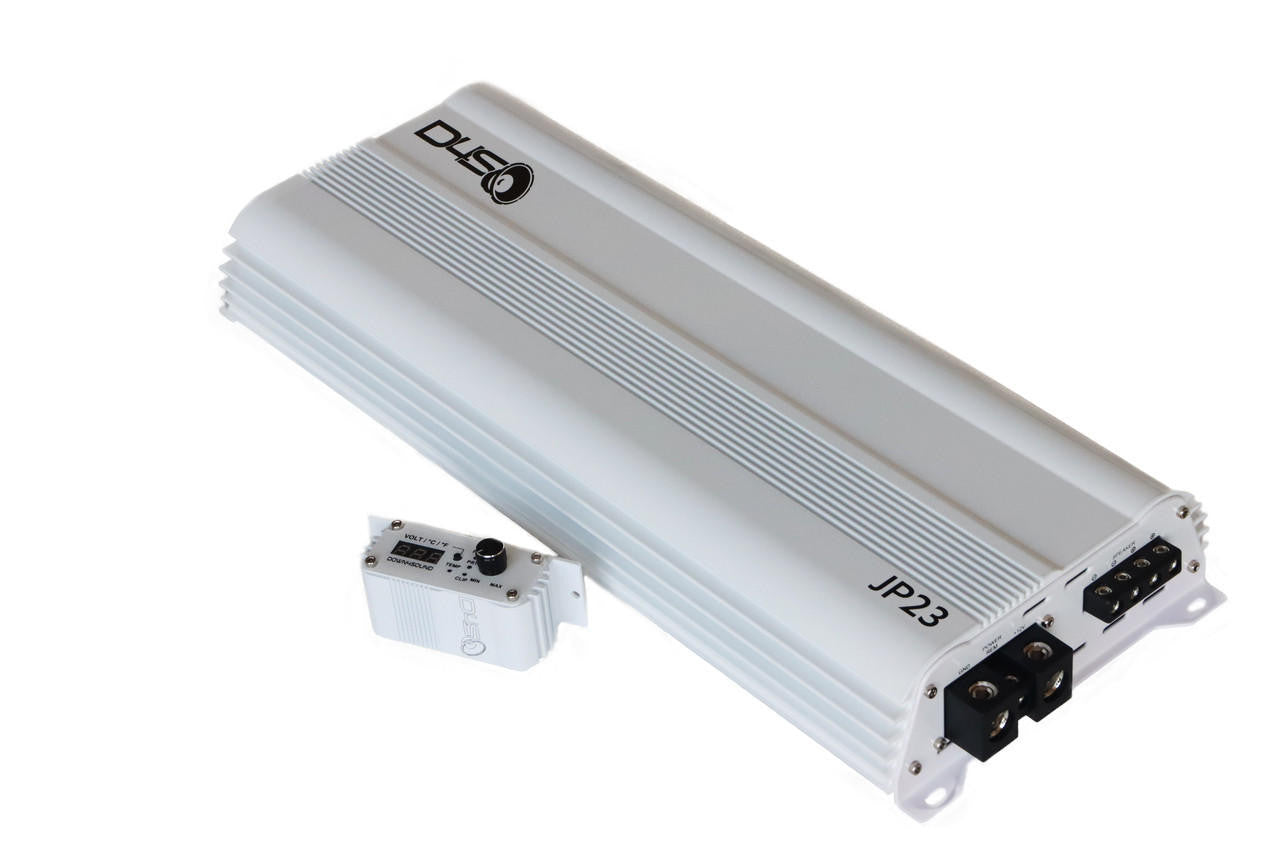

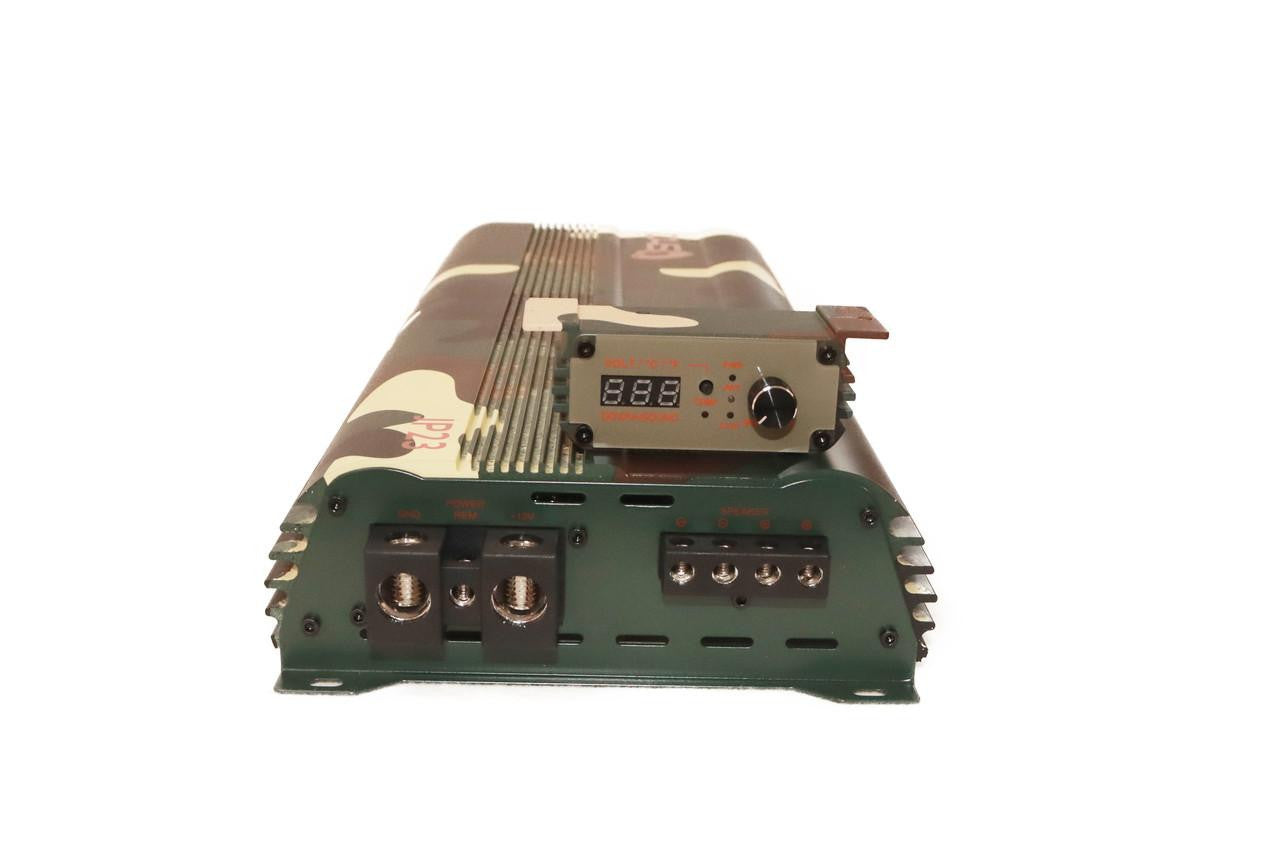

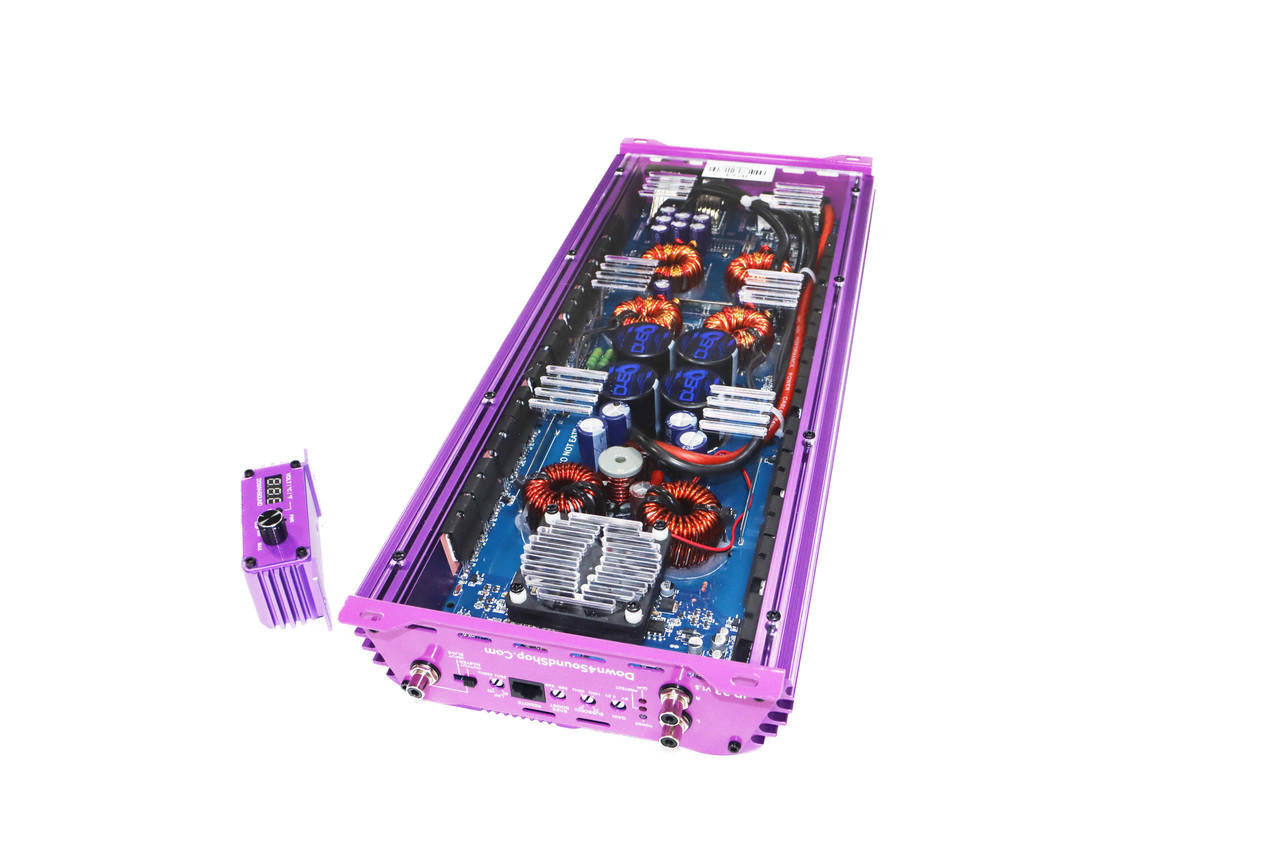

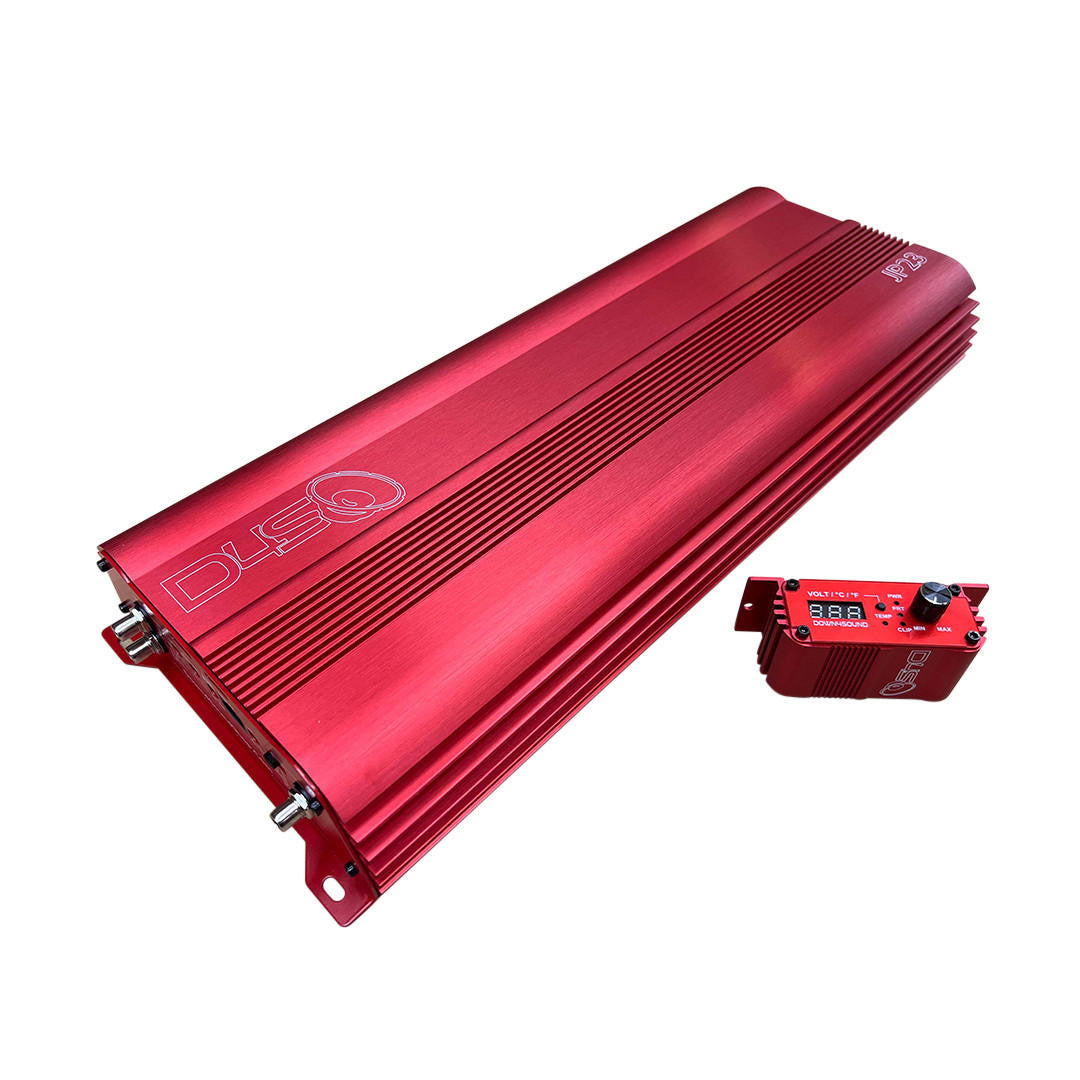

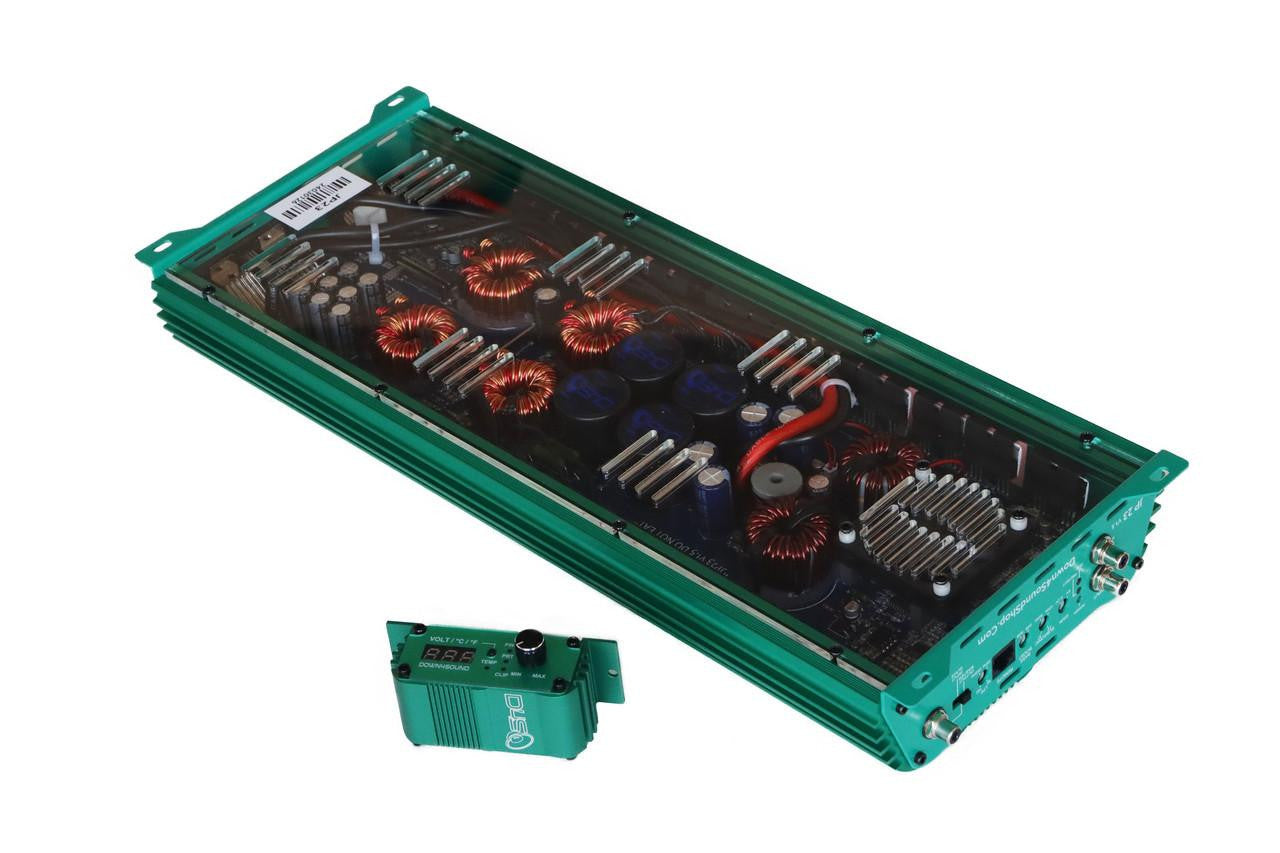

Passionate masterminds at Down4Sound from Dunnellon, Florida, Las Vegas, Nevada, and South Korea have meticulously designed and engineered the DOWN4SOUND JP23 v1.5 Amplifier. This 2300W powerhouse is crafted using the finest parts available on the market, ensuring it offers the best bang for the buck to all music lovers. After selling hundreds of thousands of units, this model is offered in multiple finishes, making it a standout choice for those seeking exceptional audio performance.

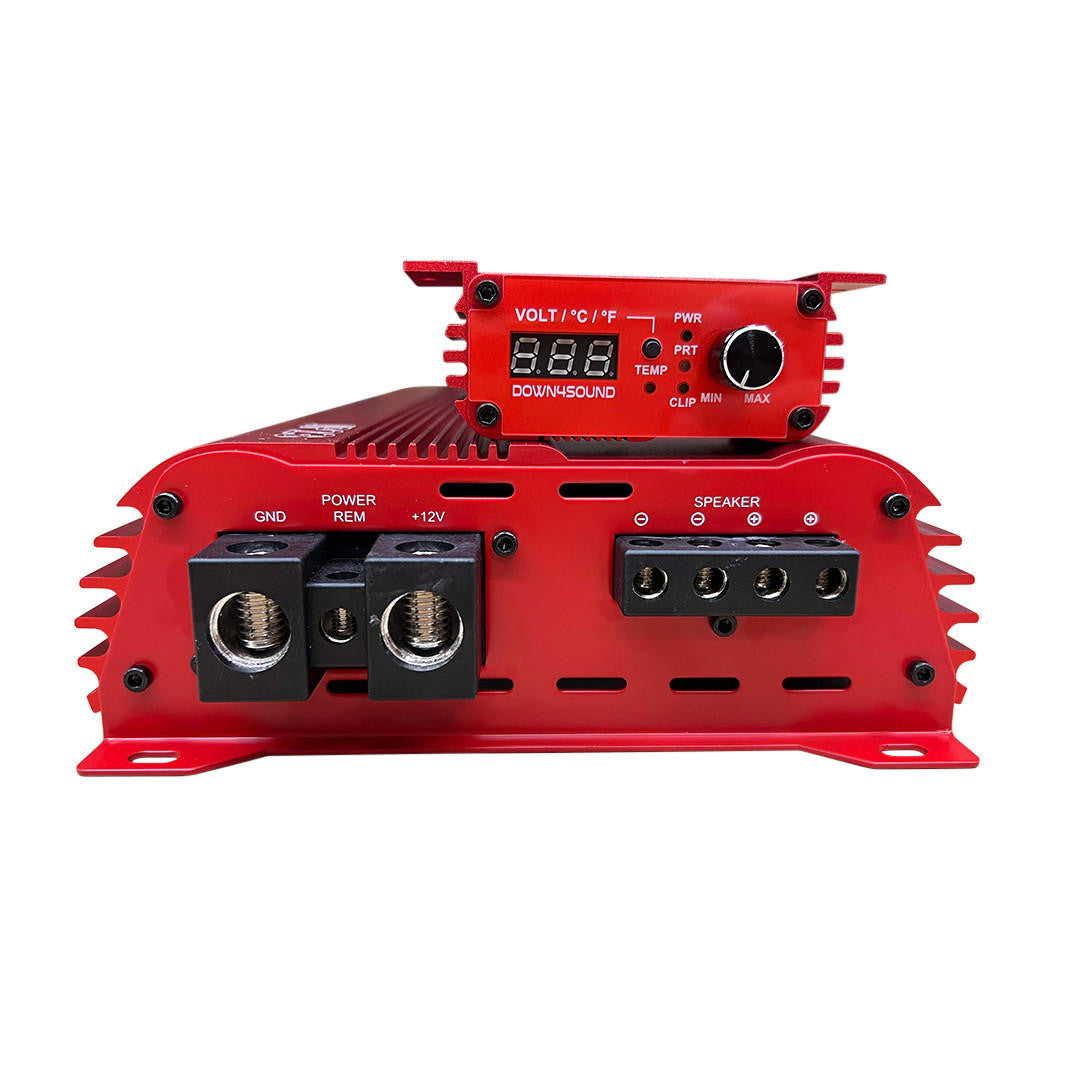

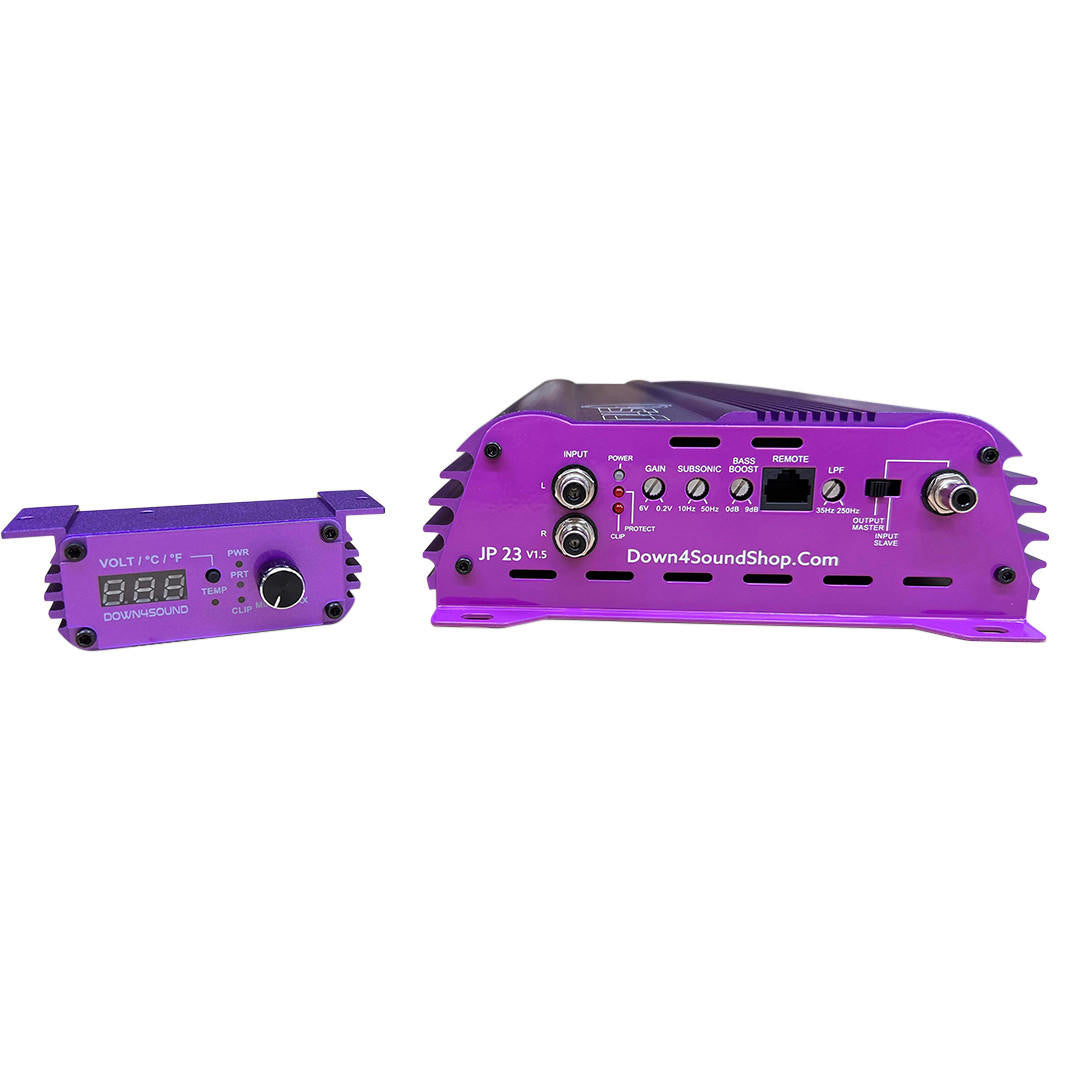

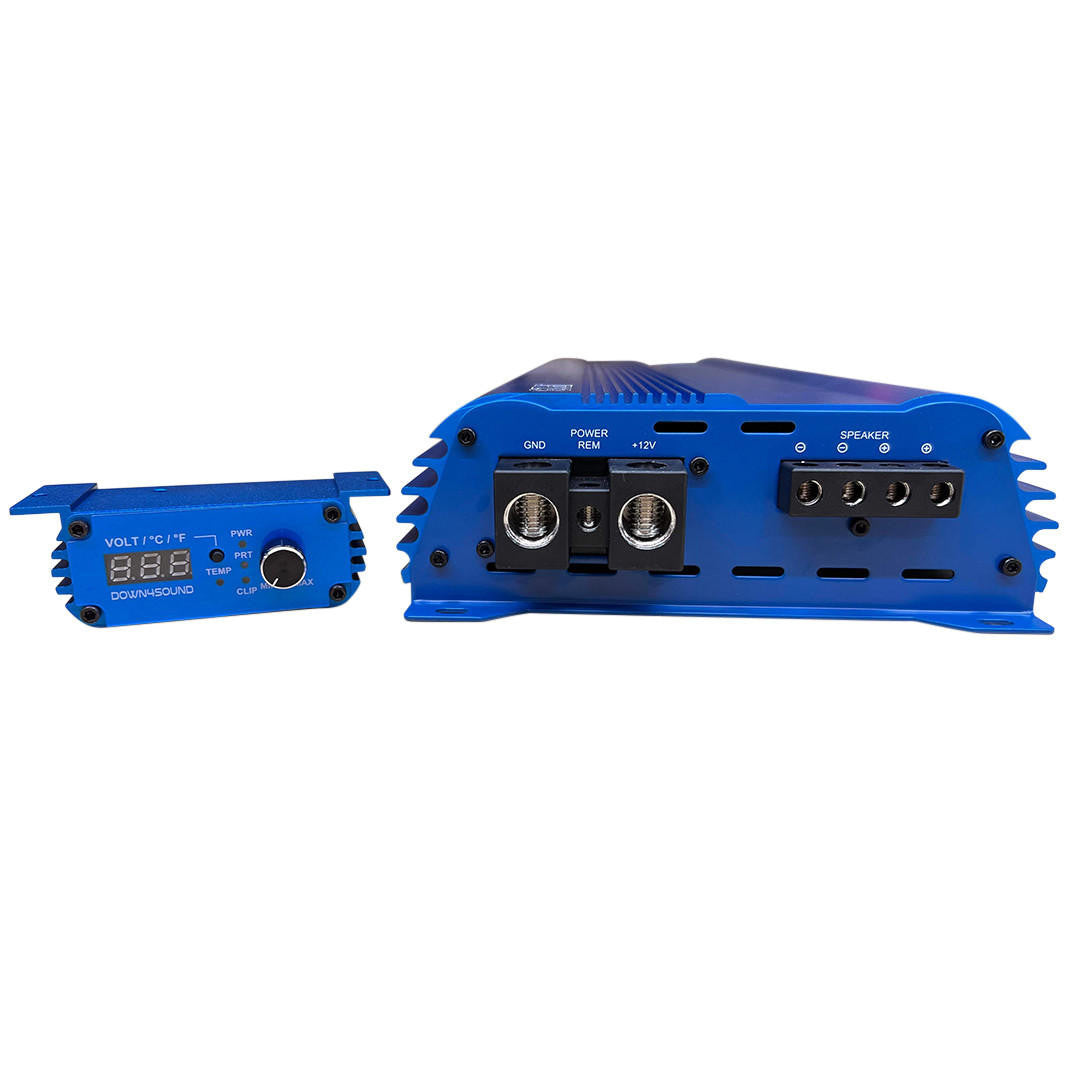

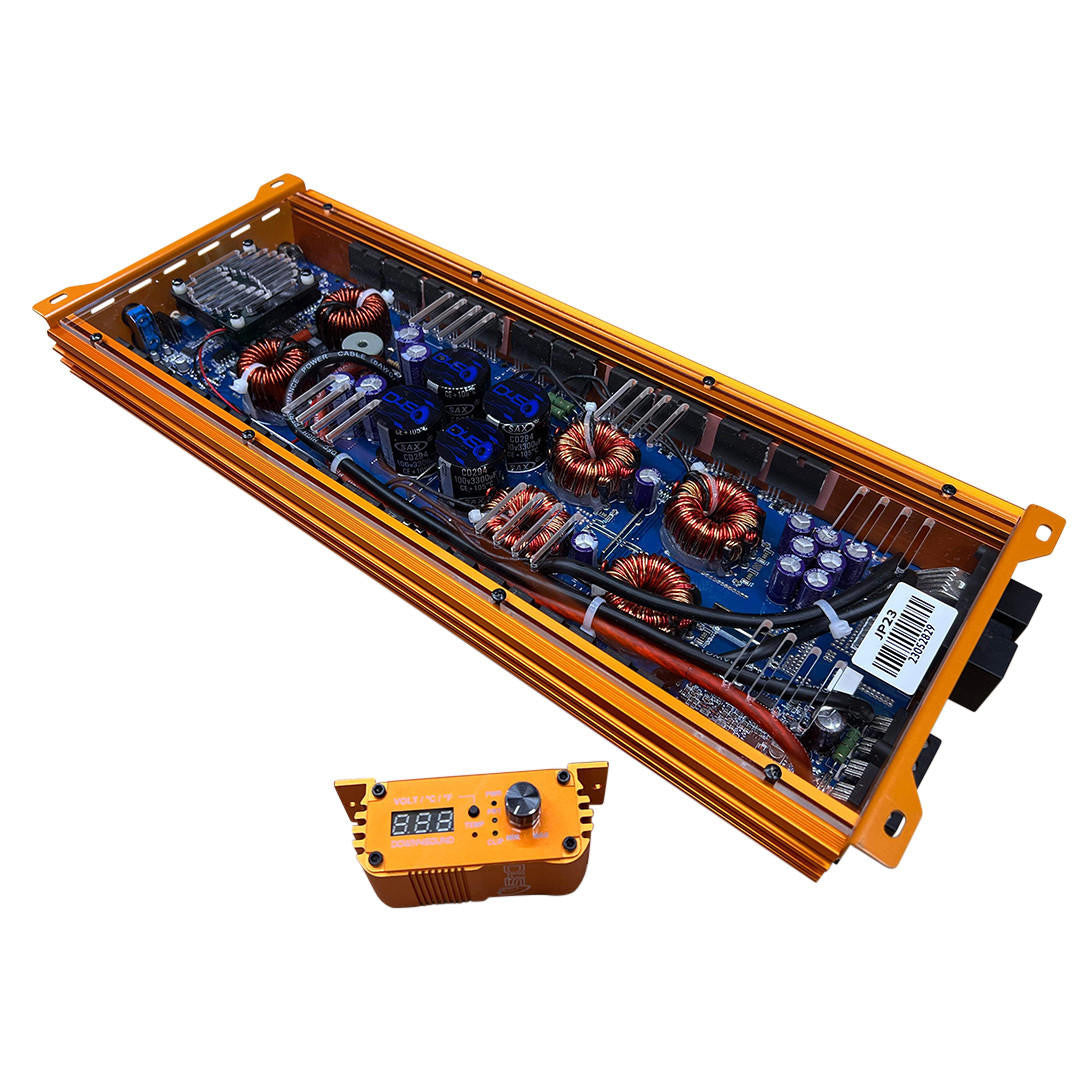

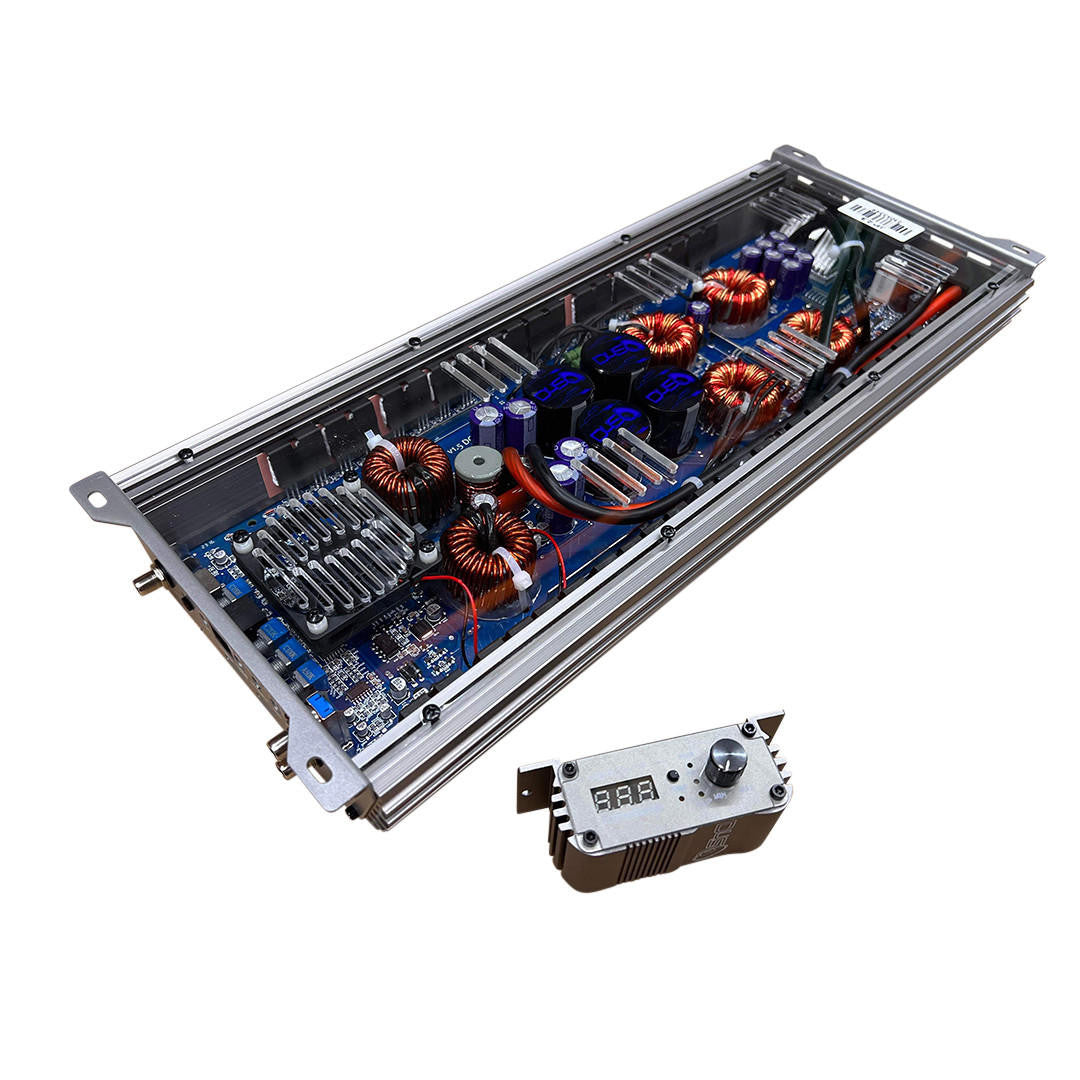

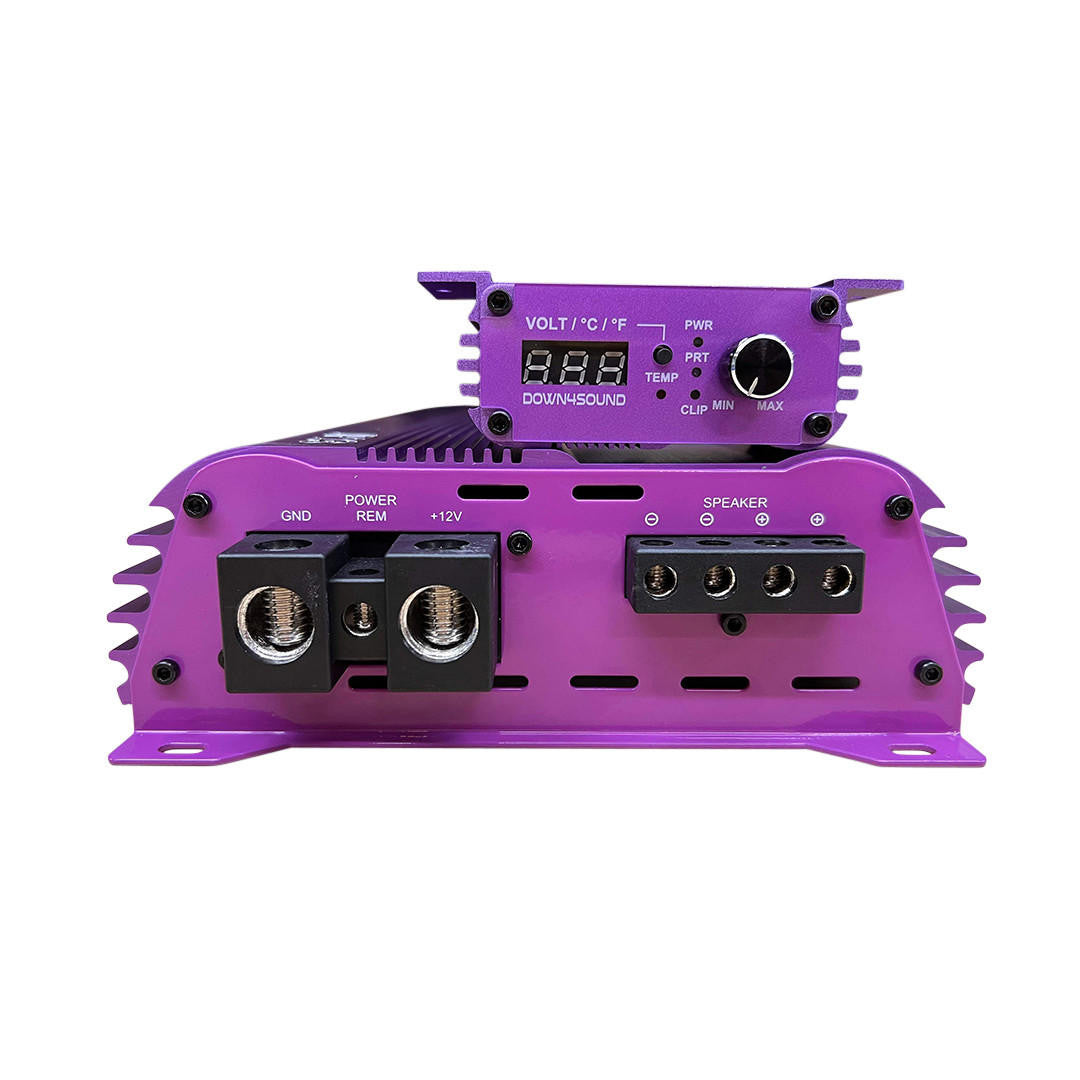

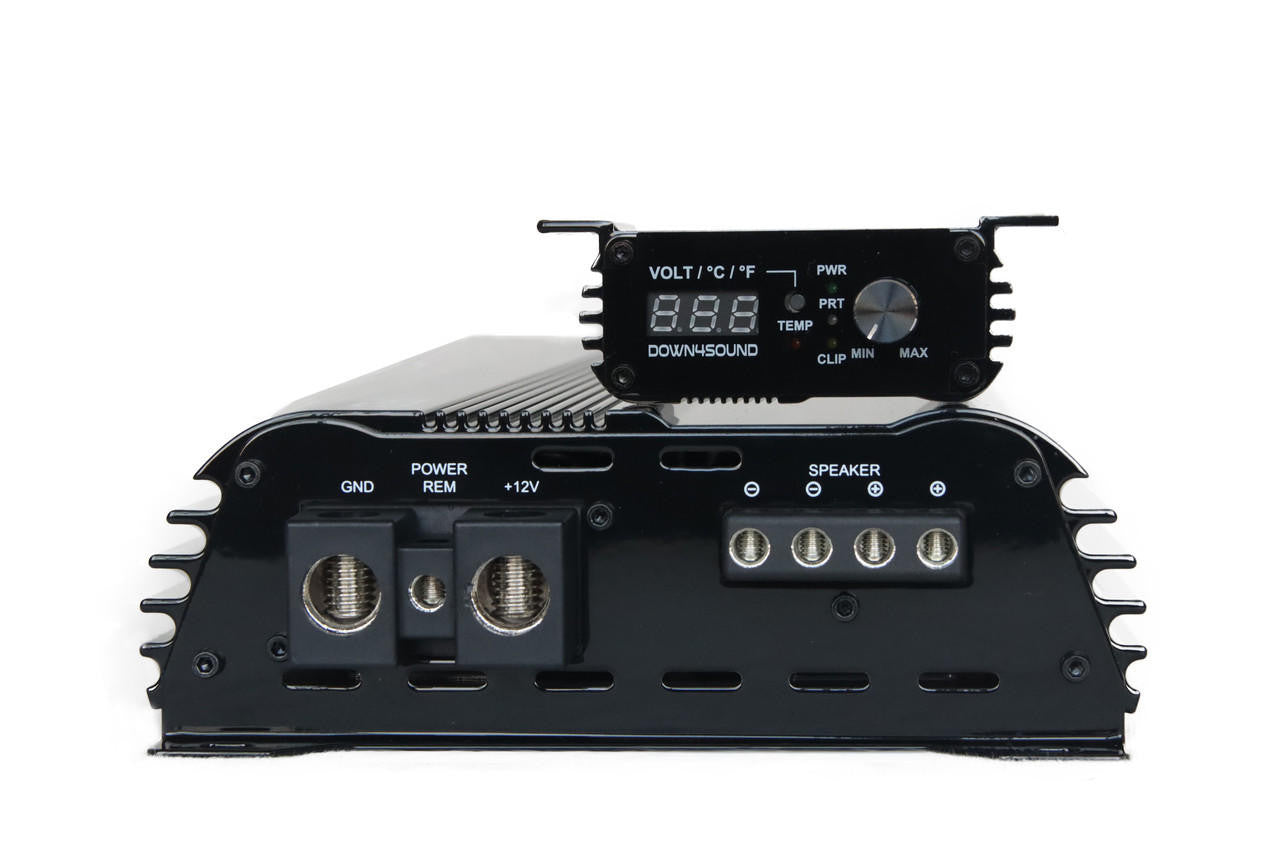

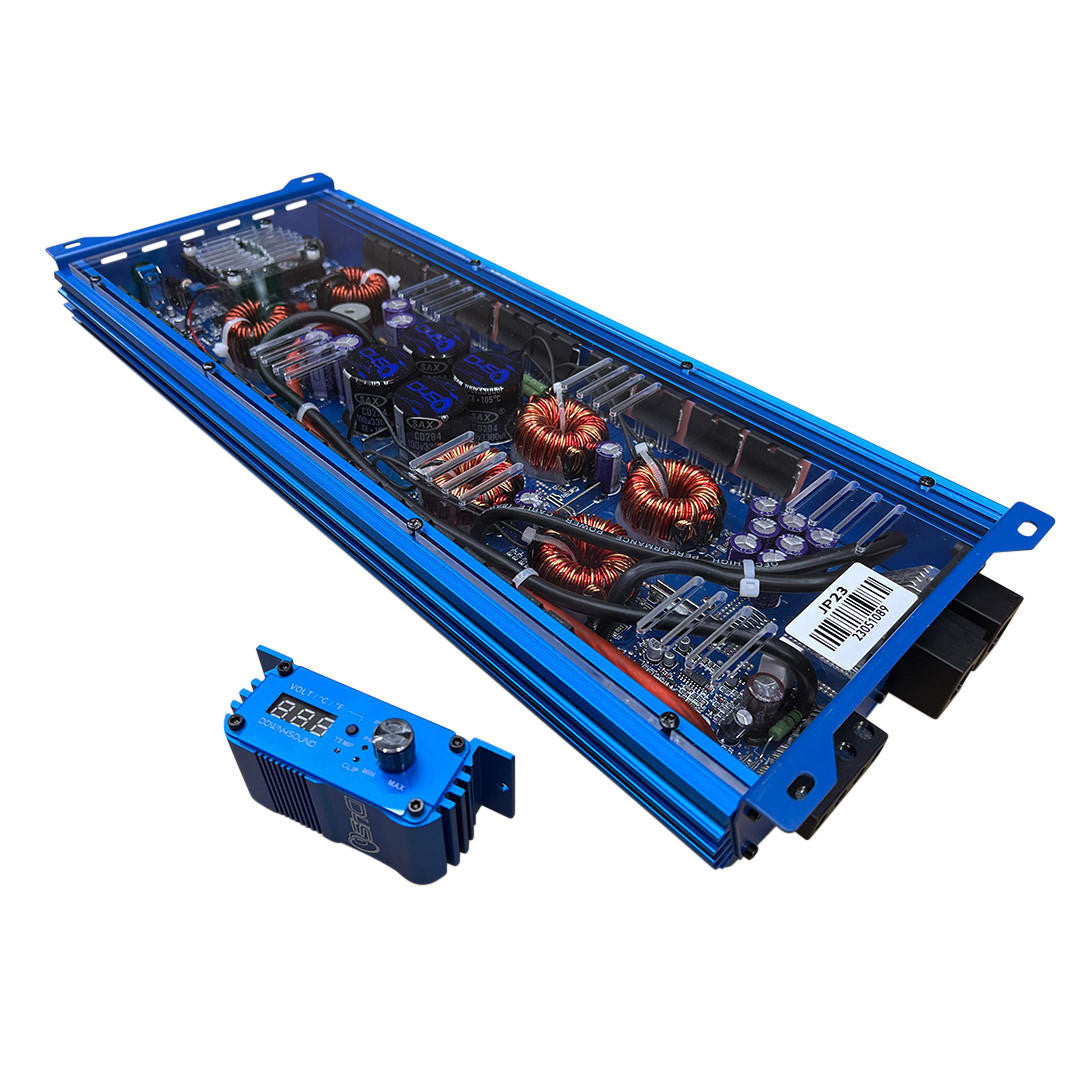

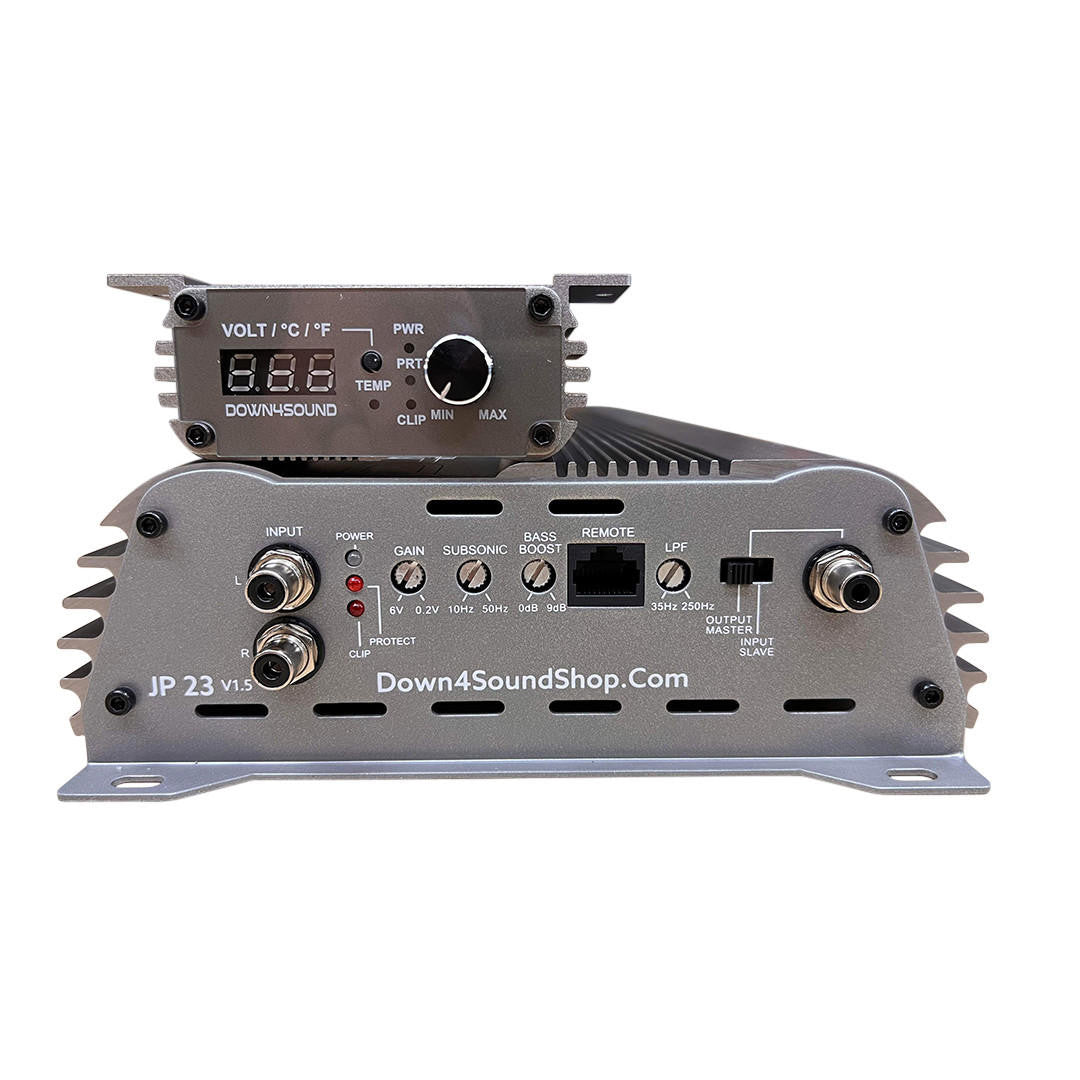

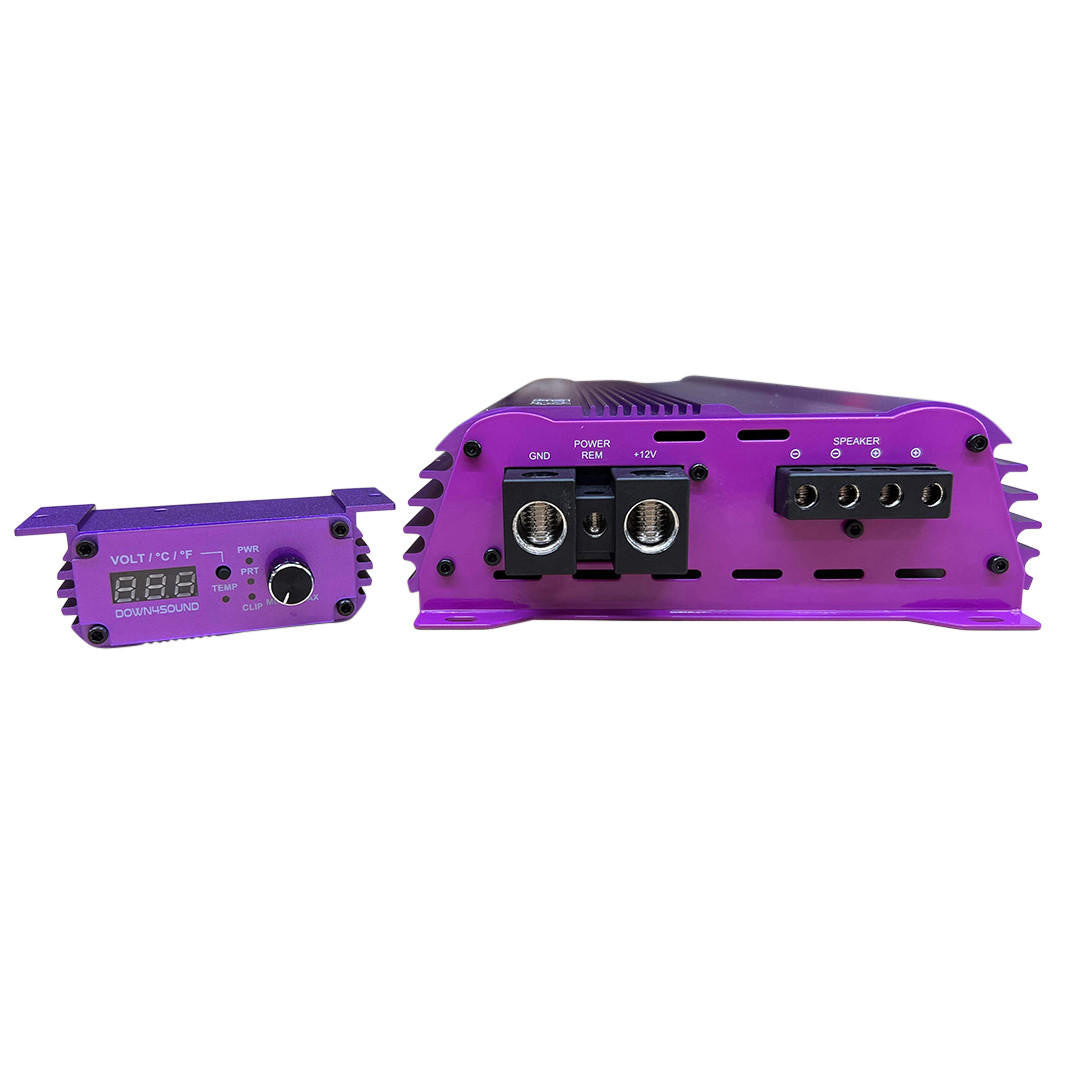

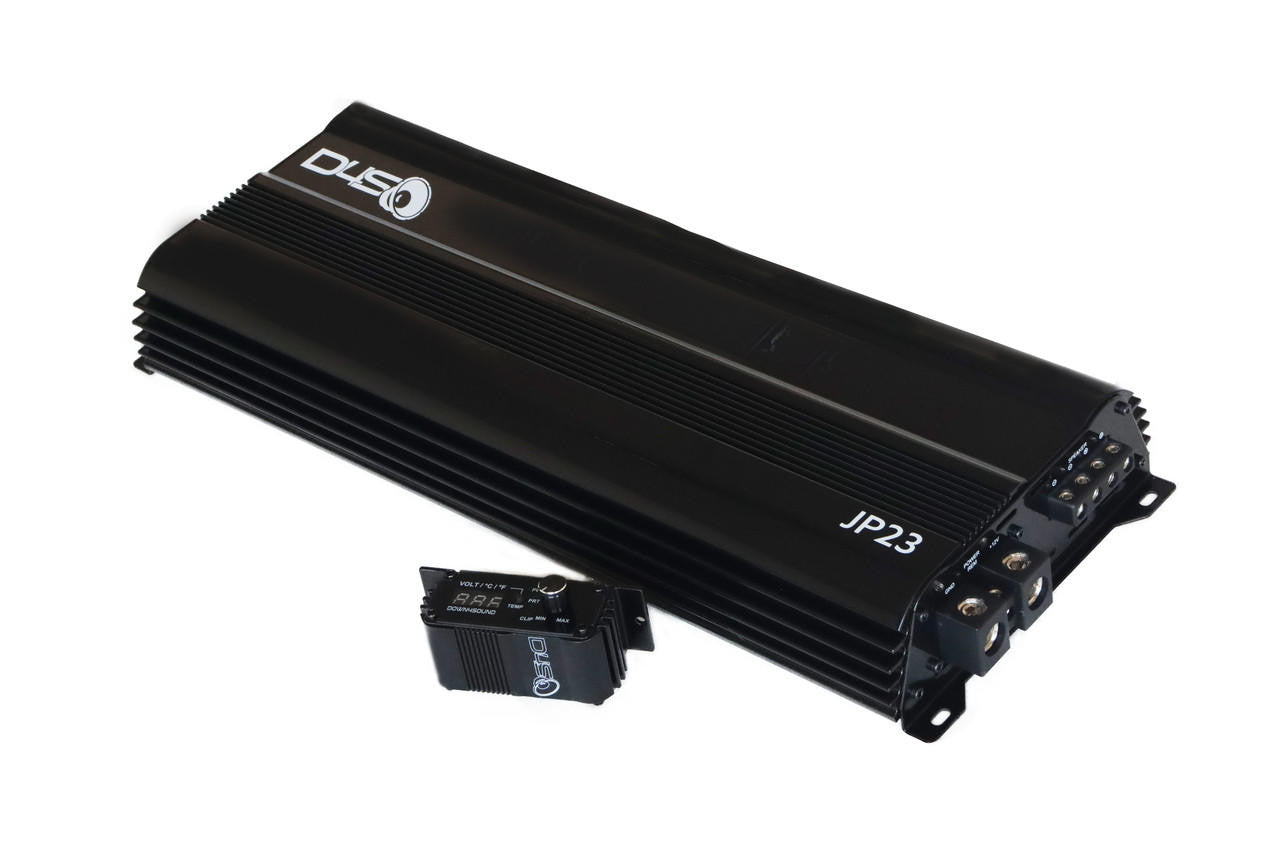

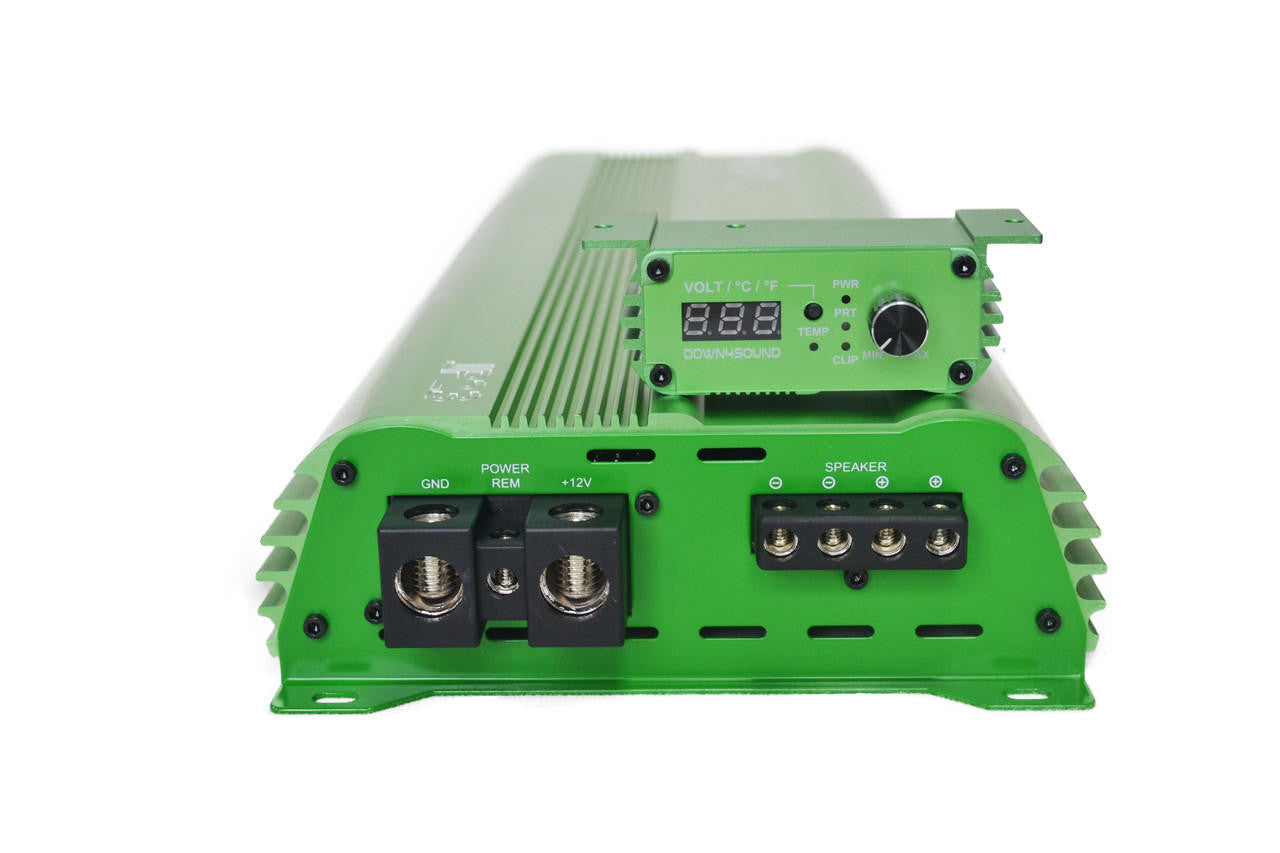

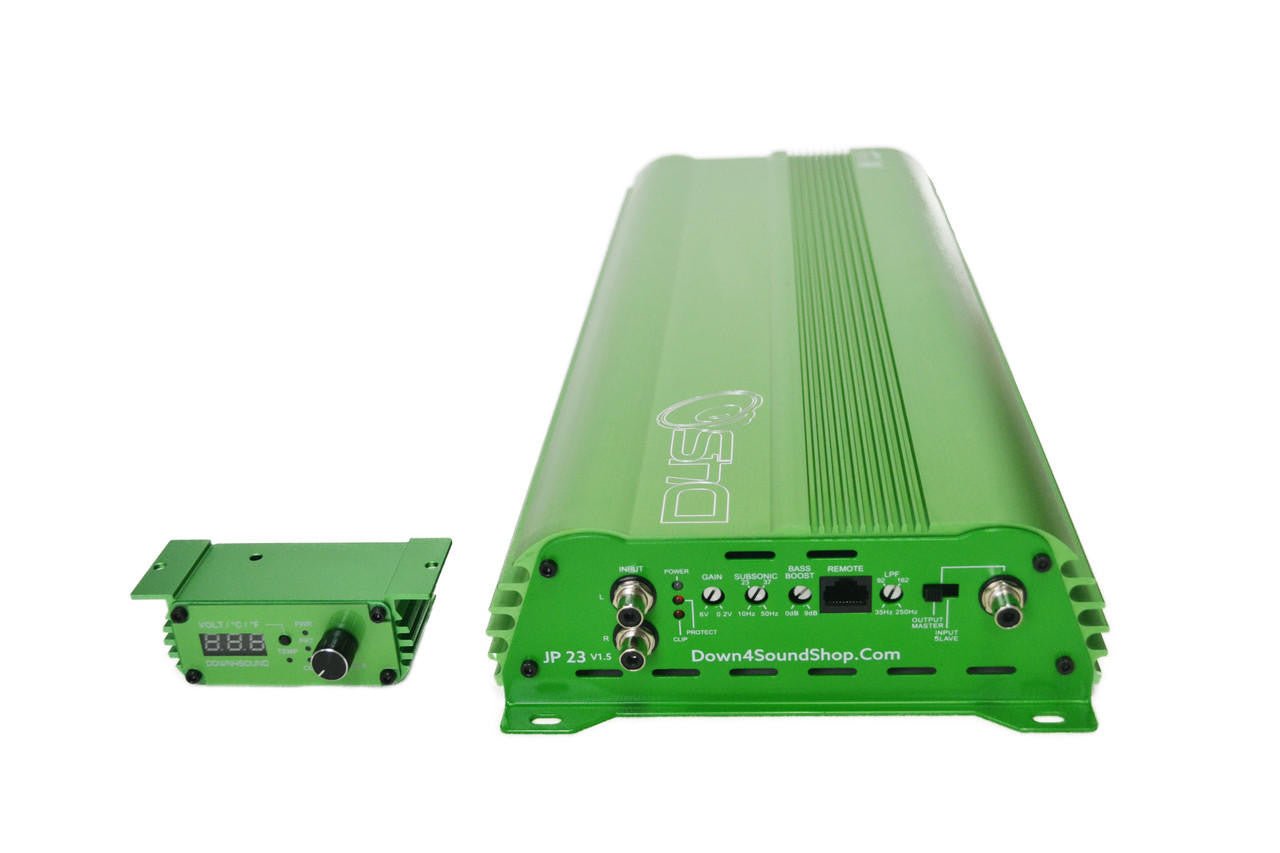

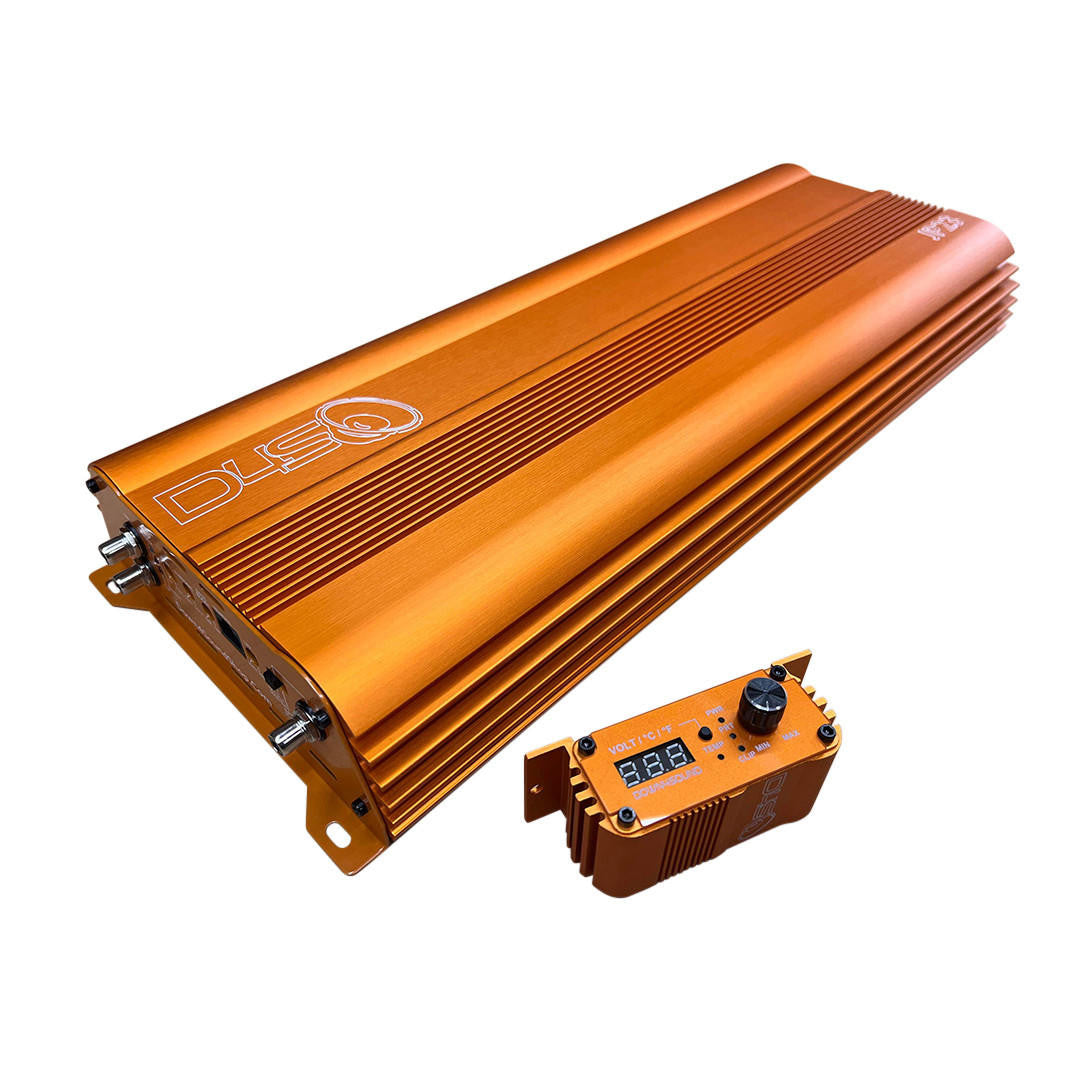

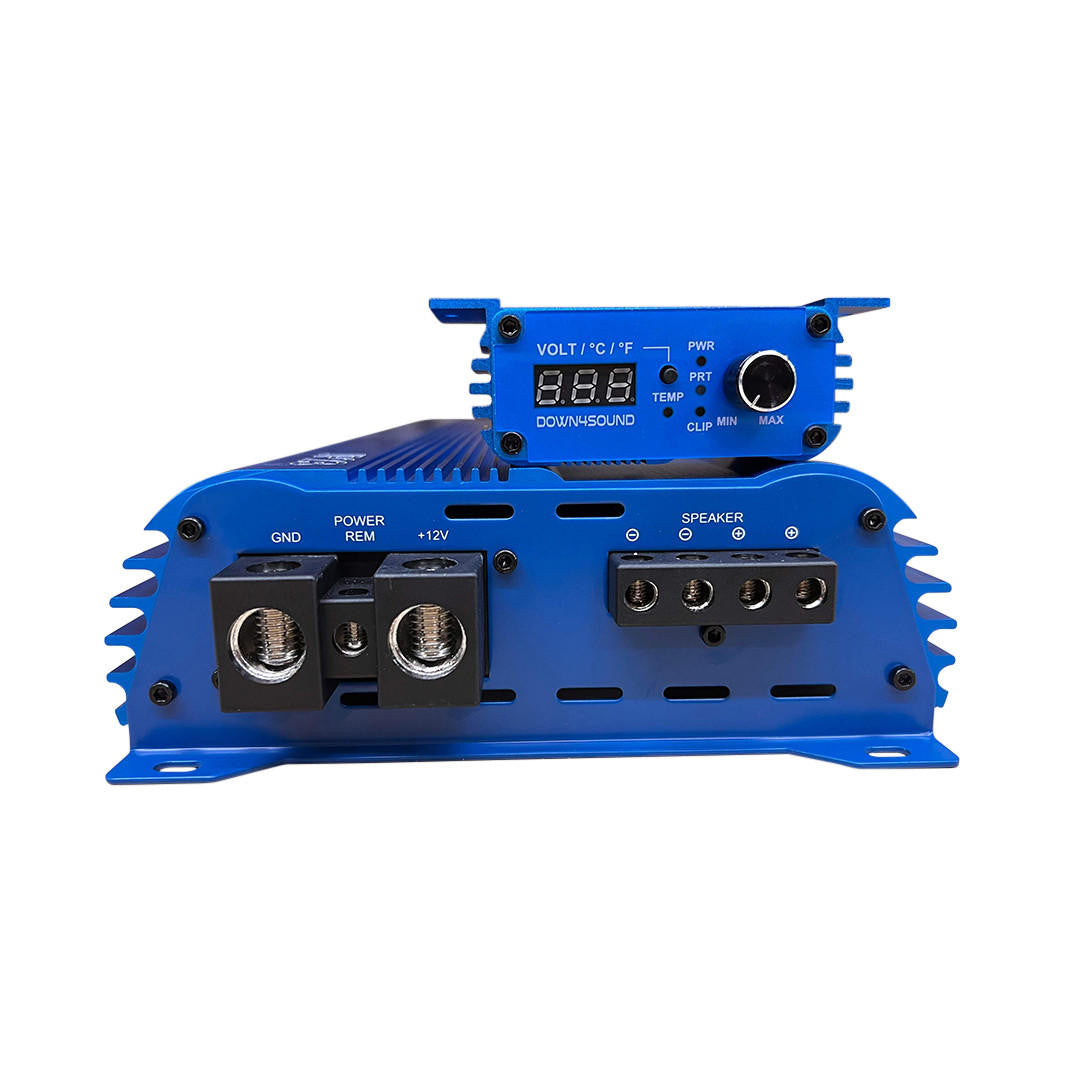

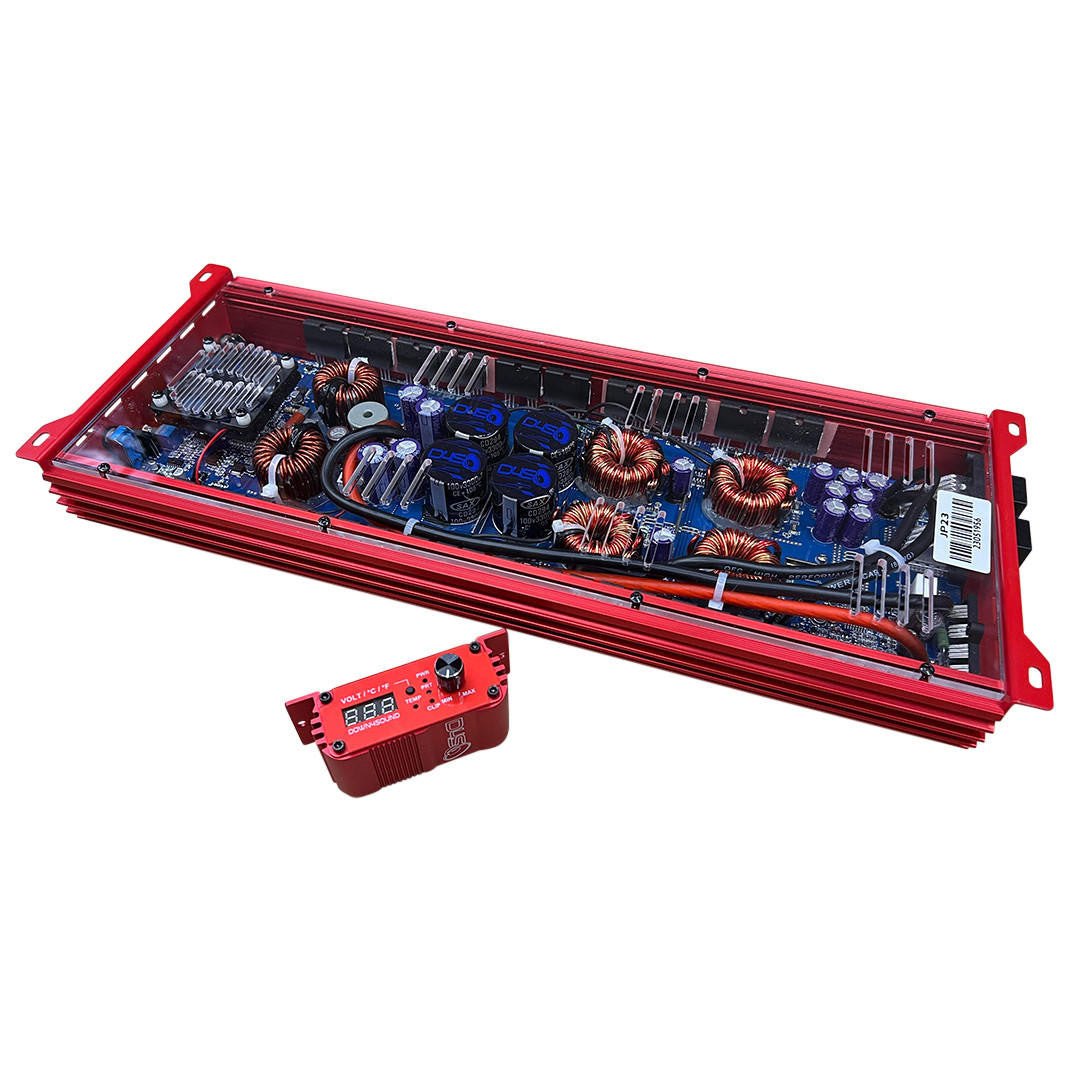

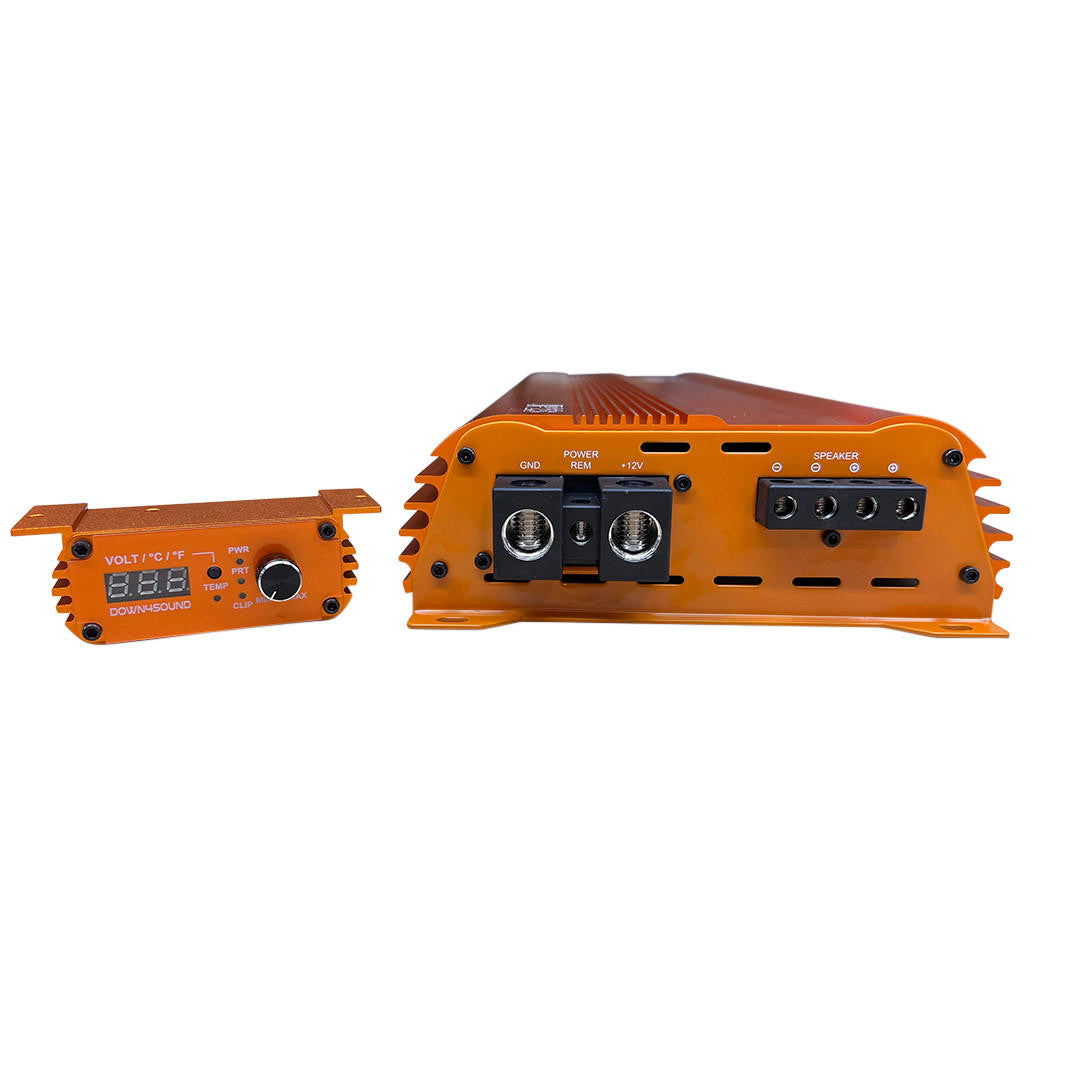

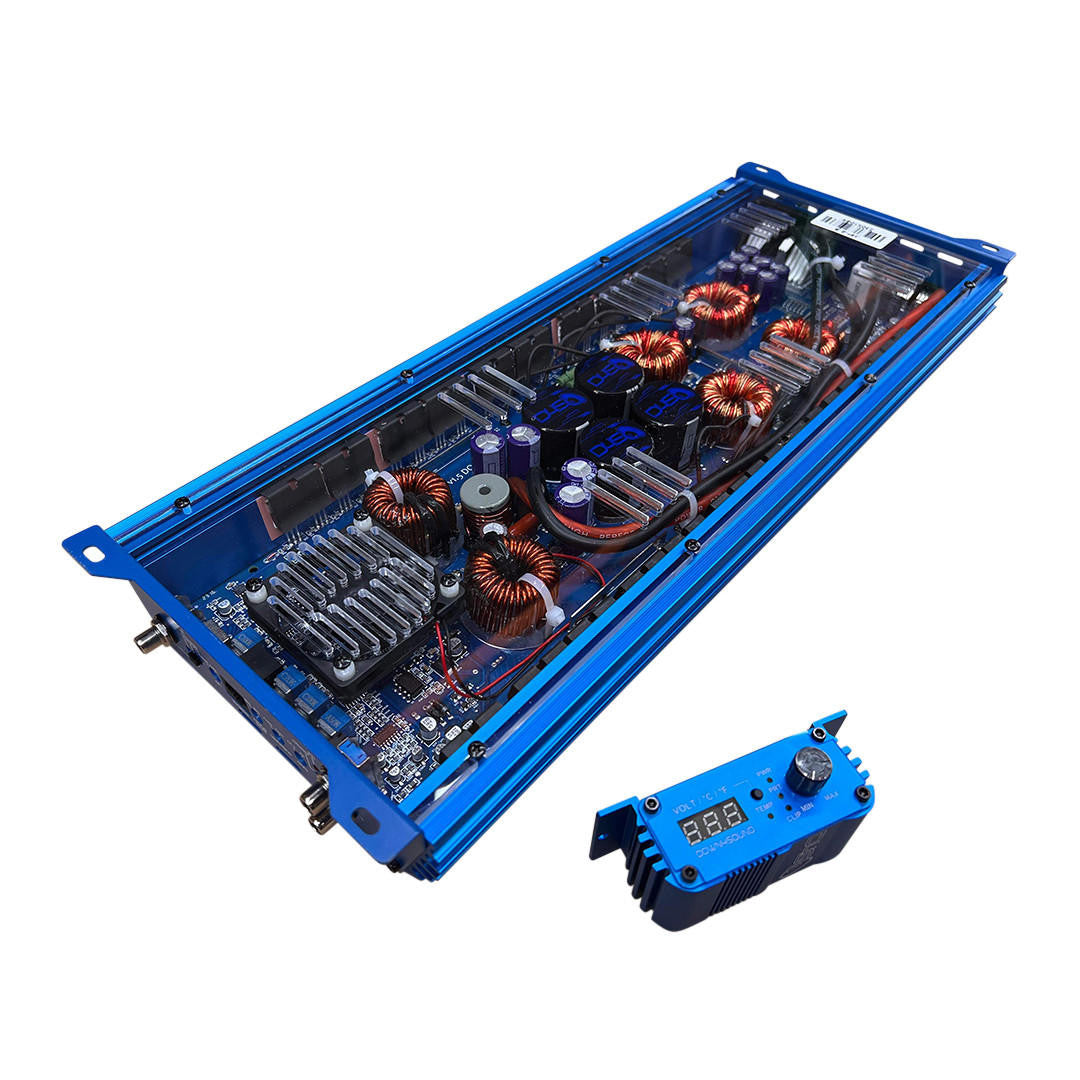

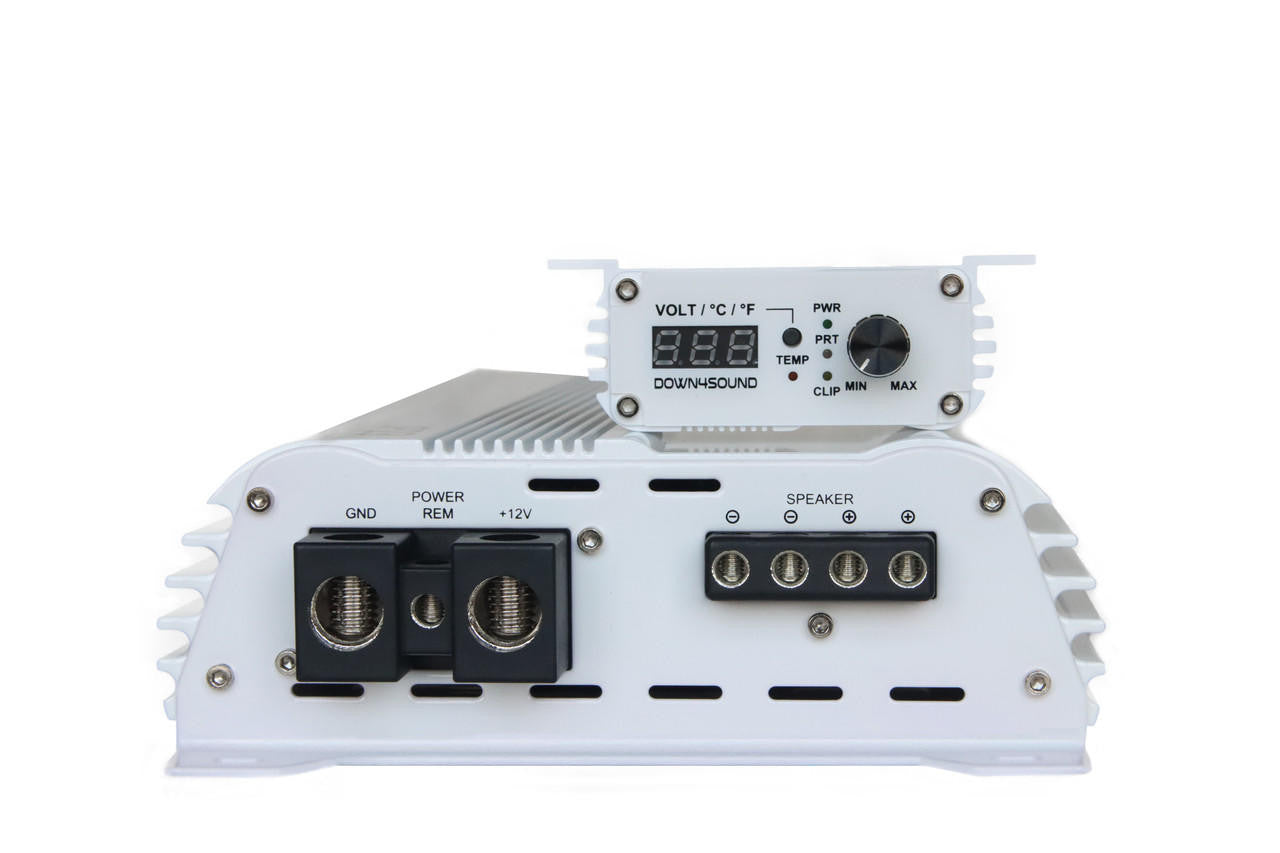

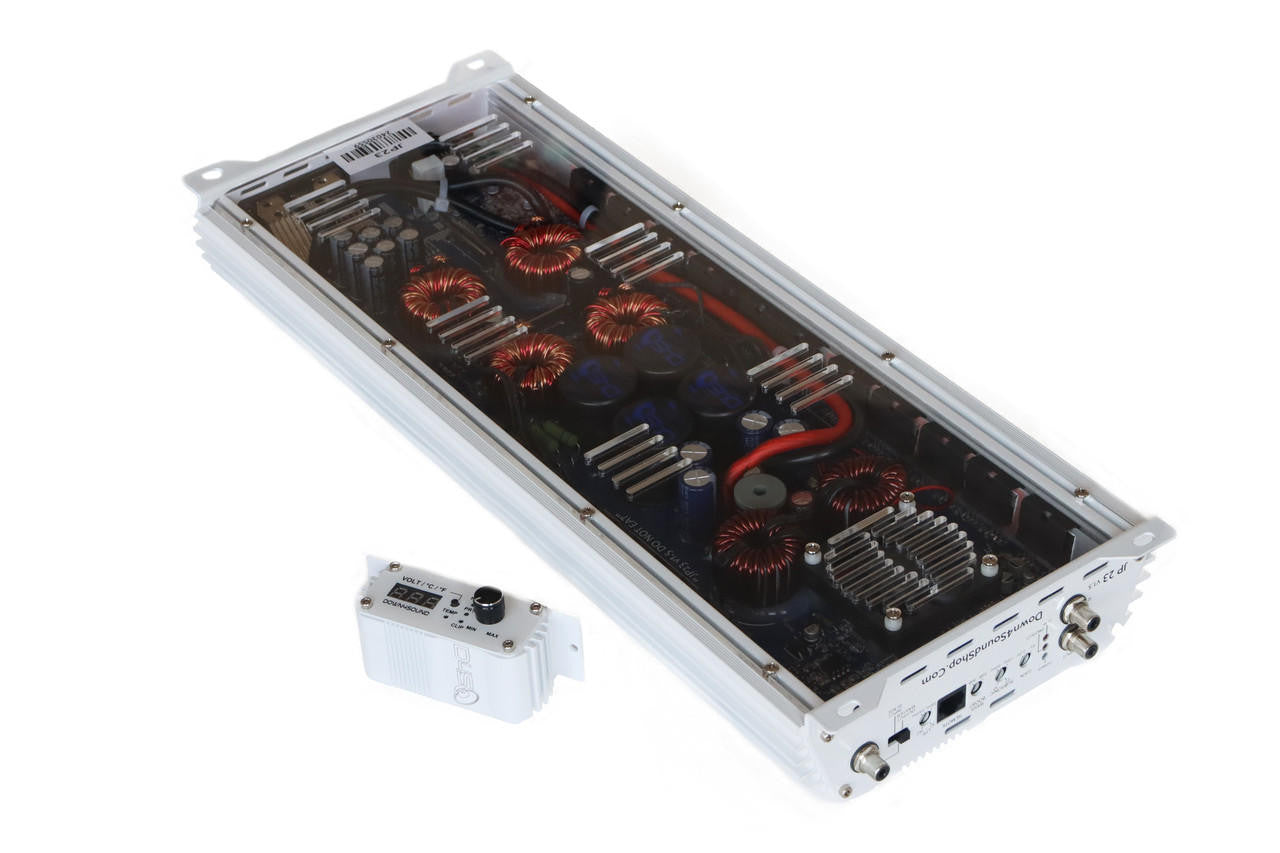

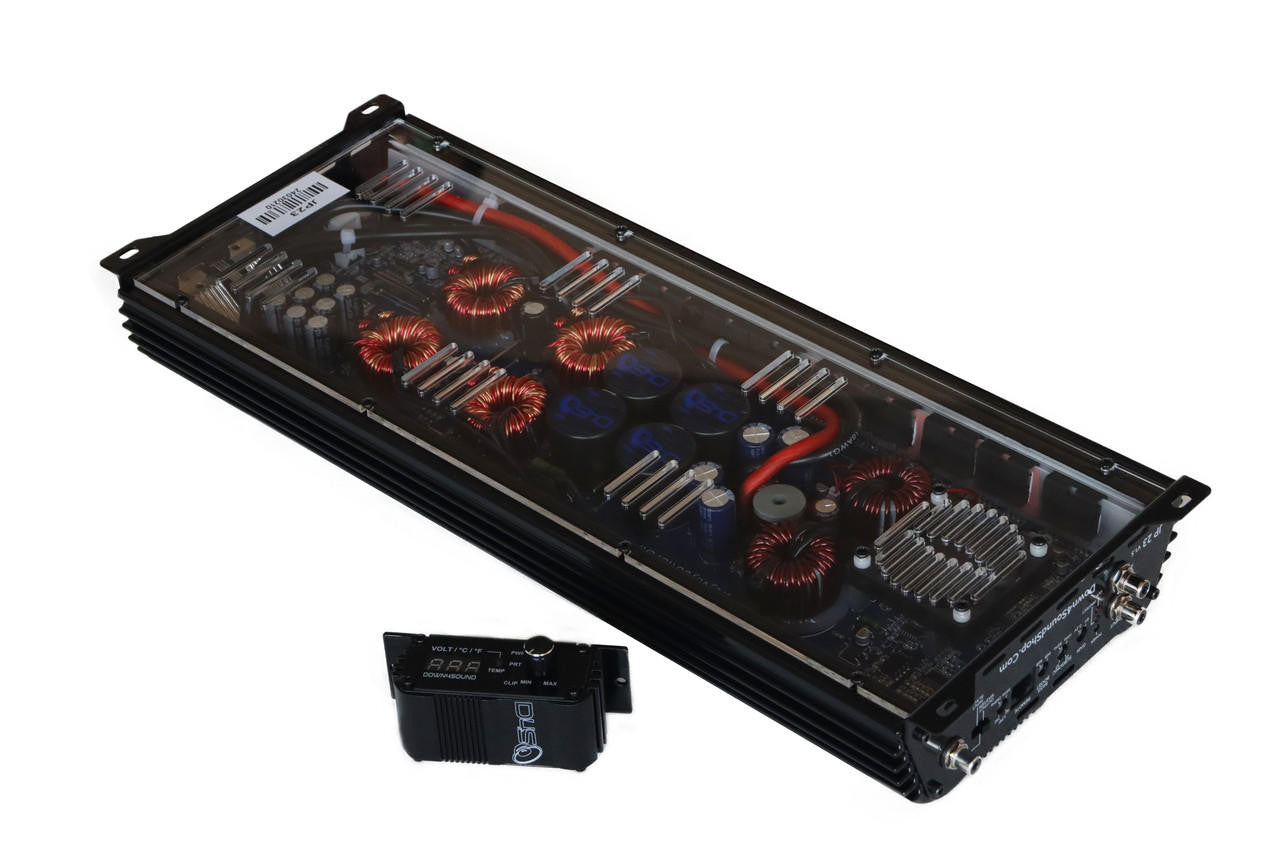

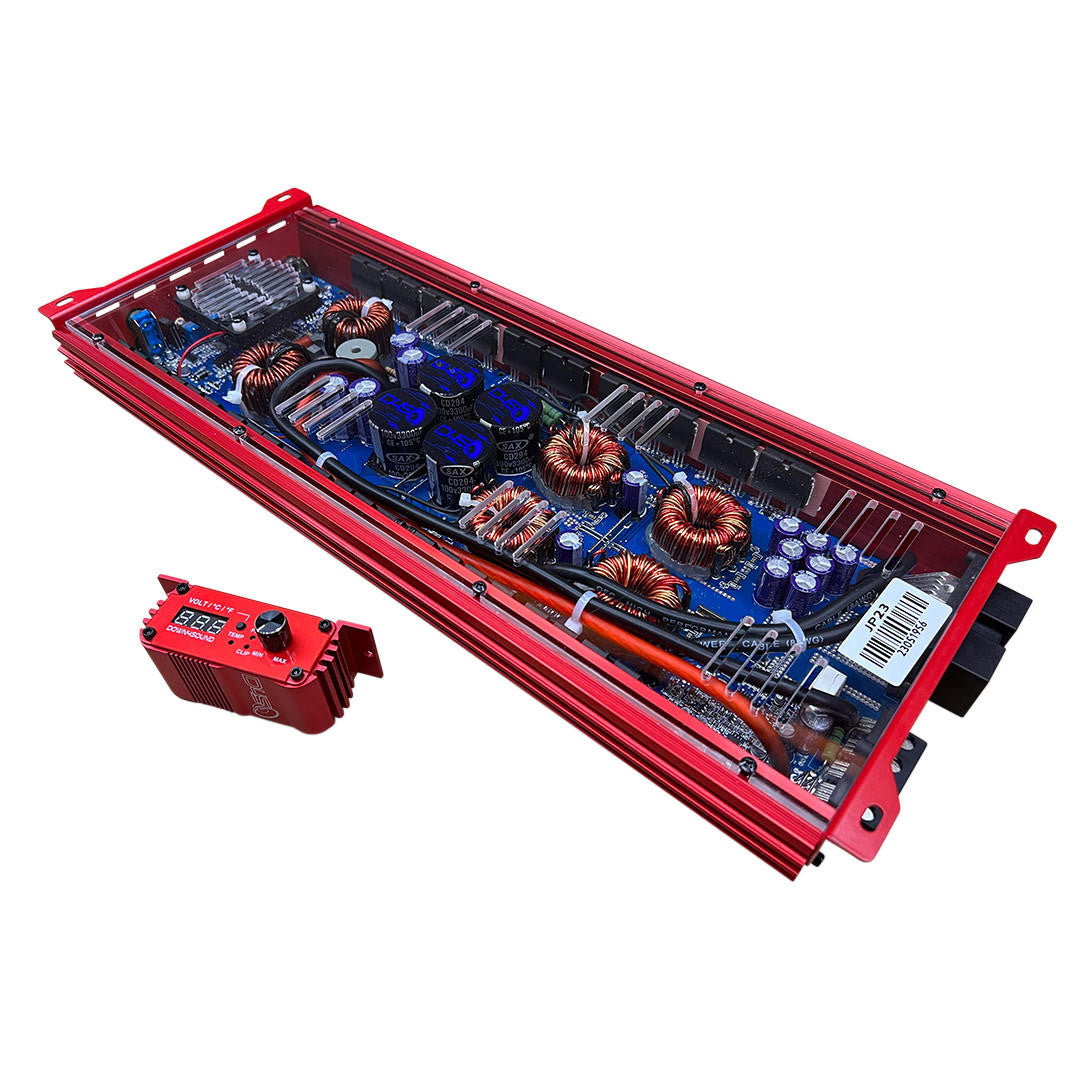

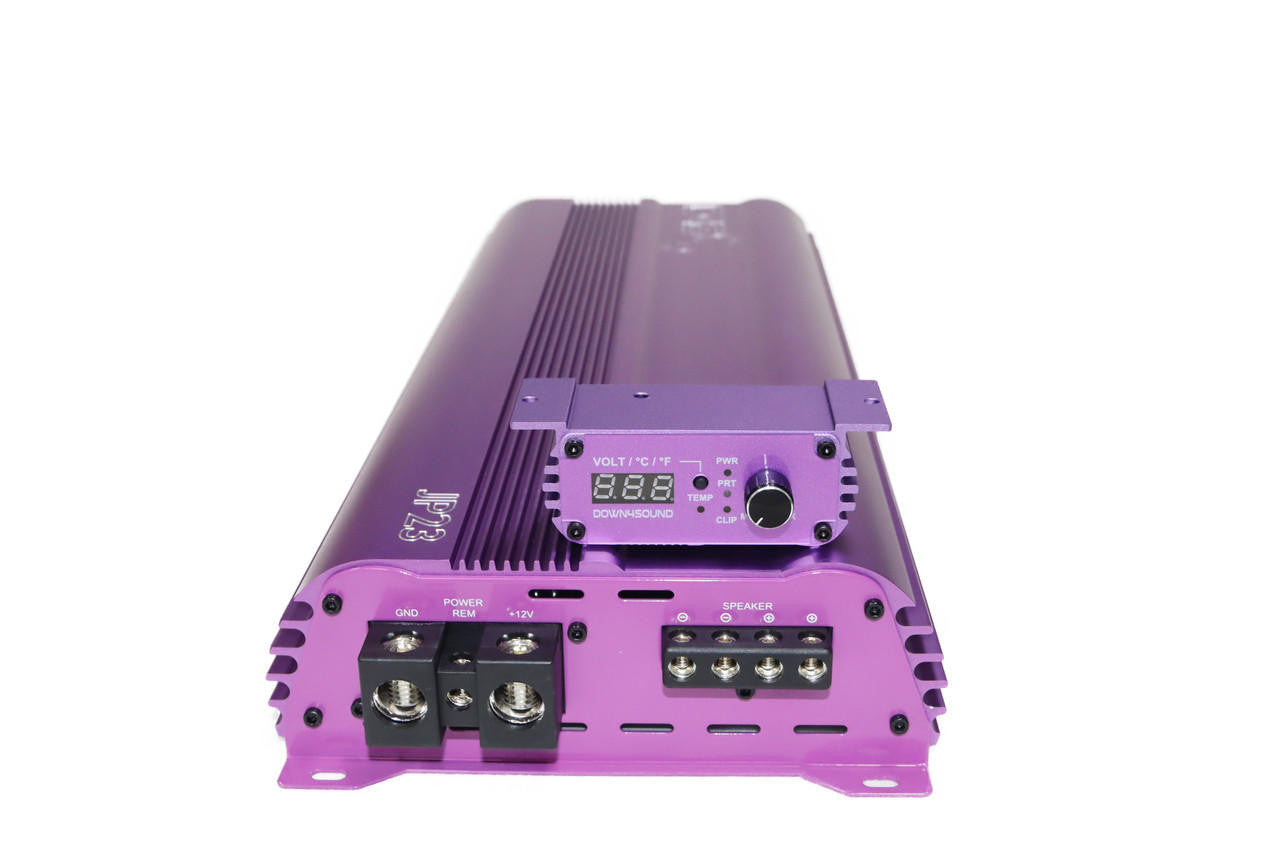

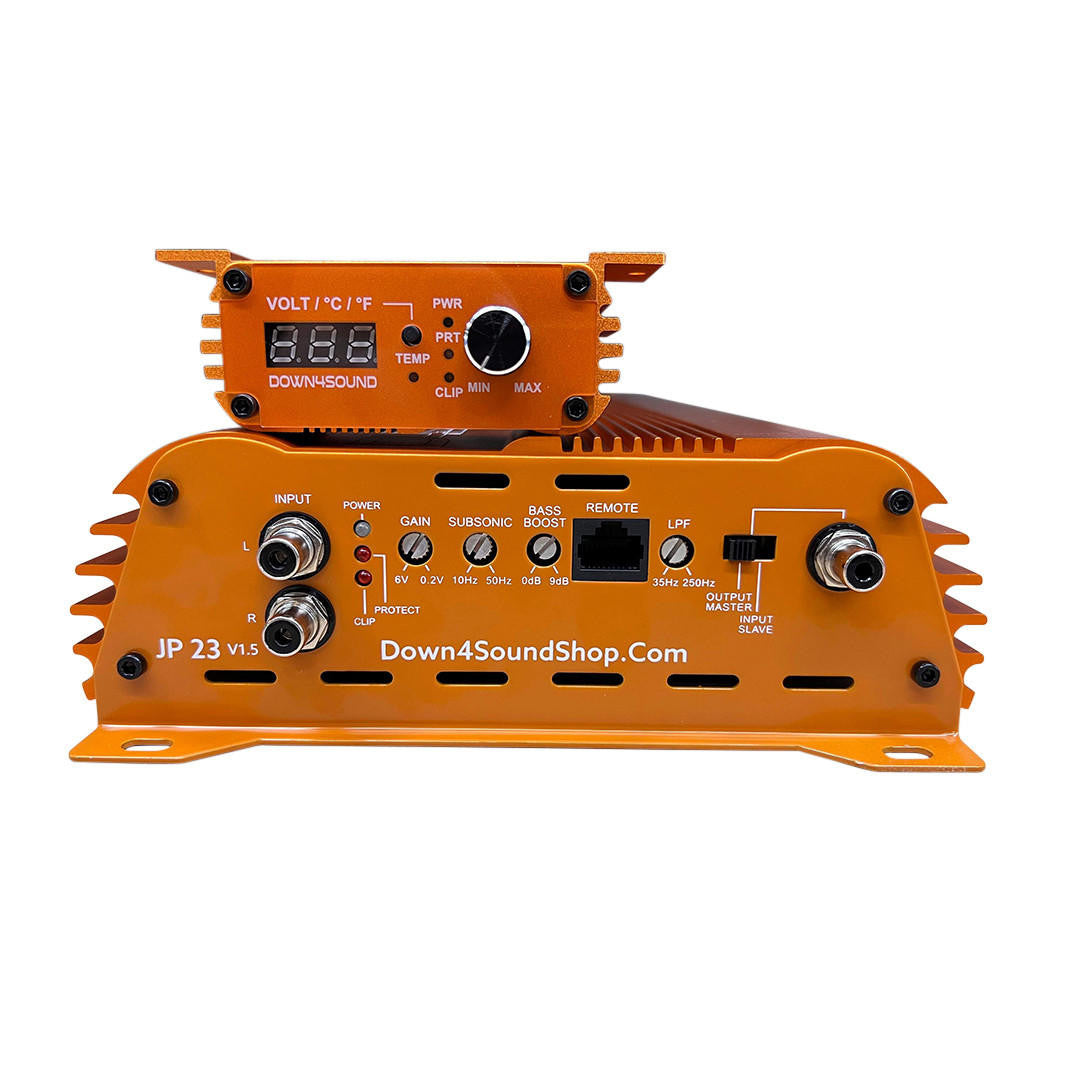

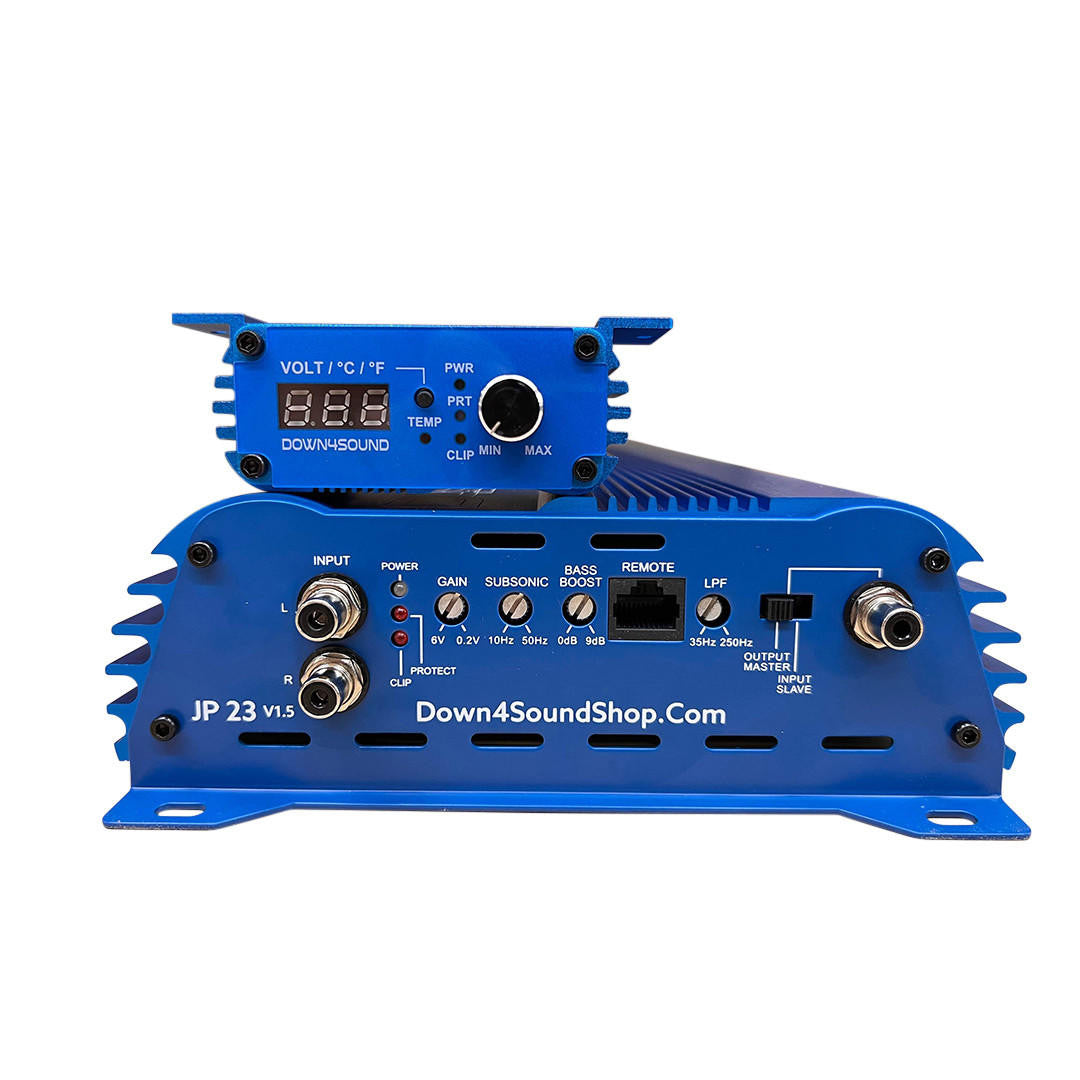

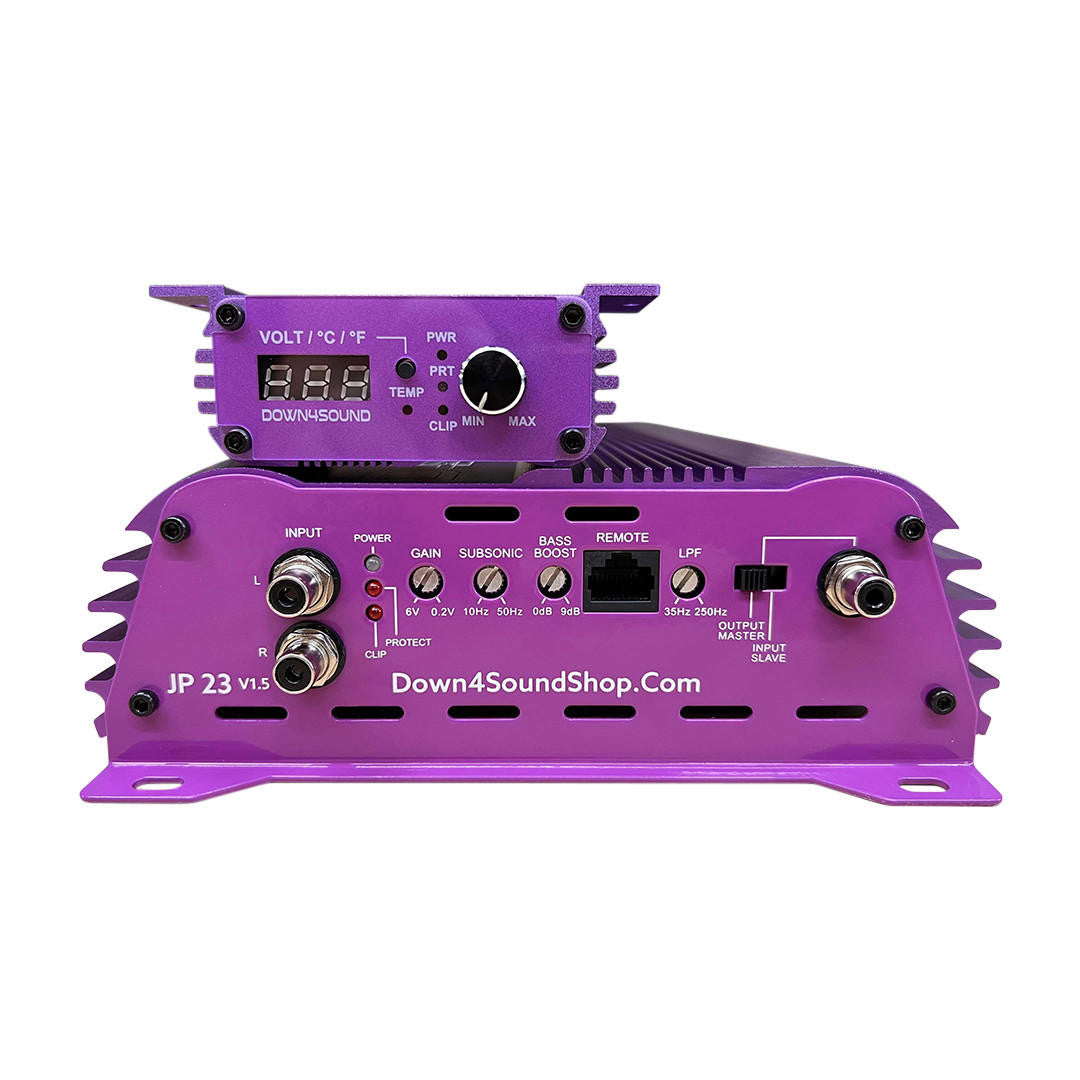

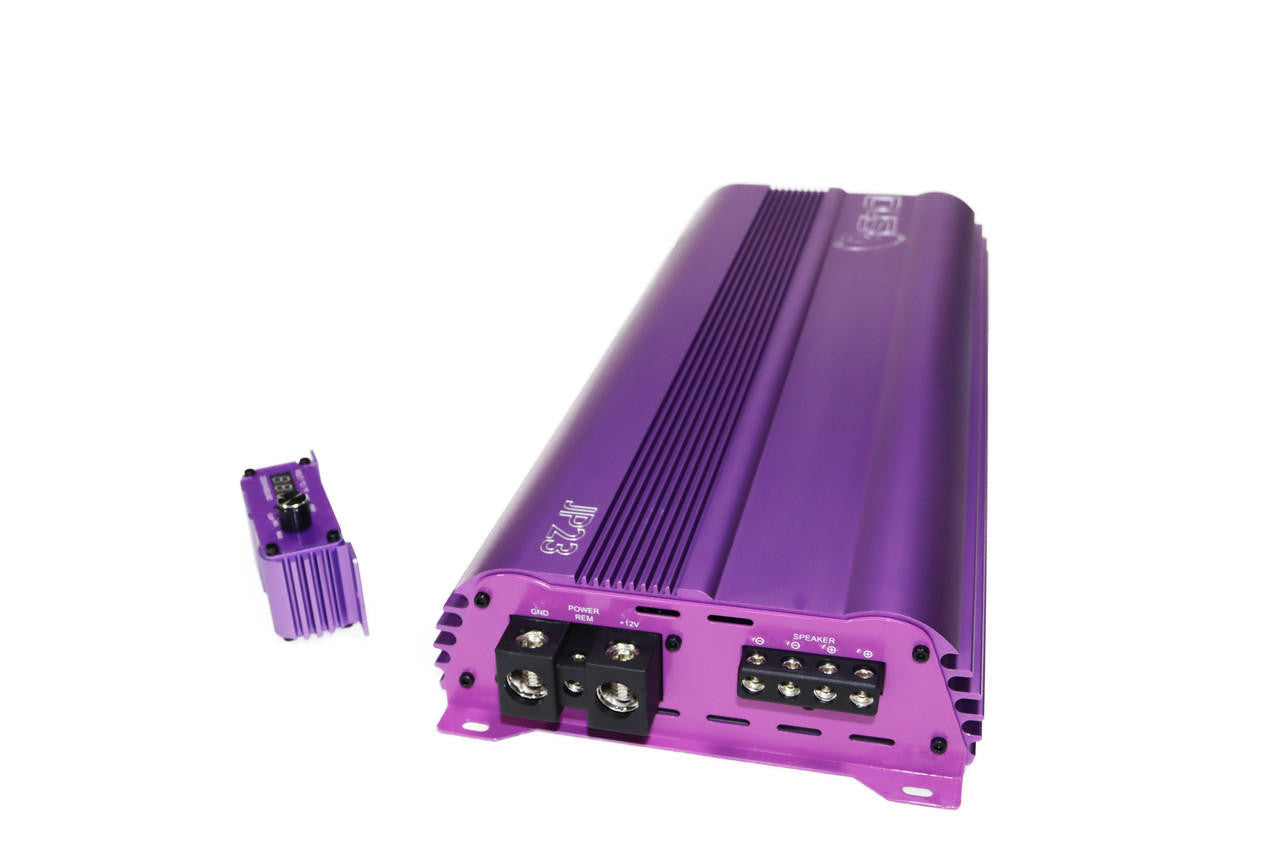

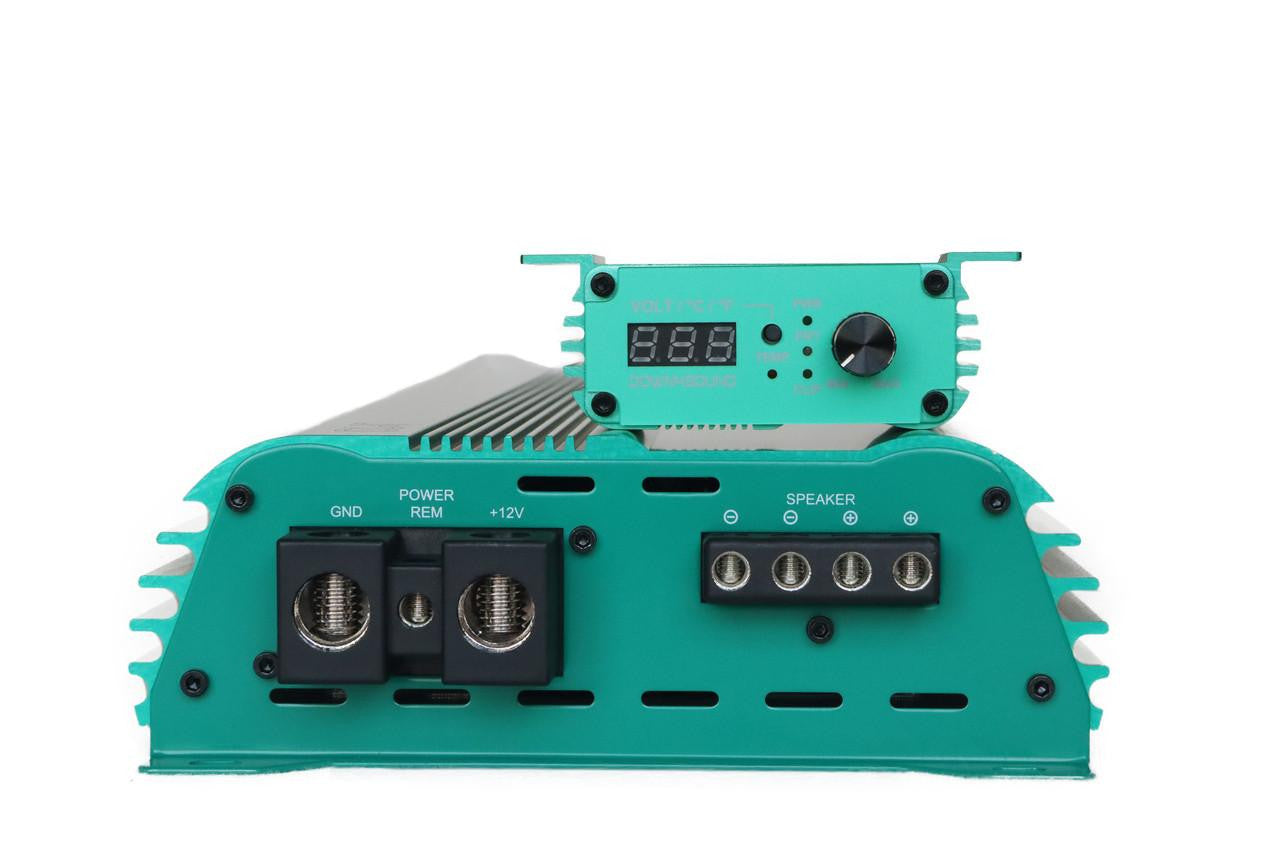

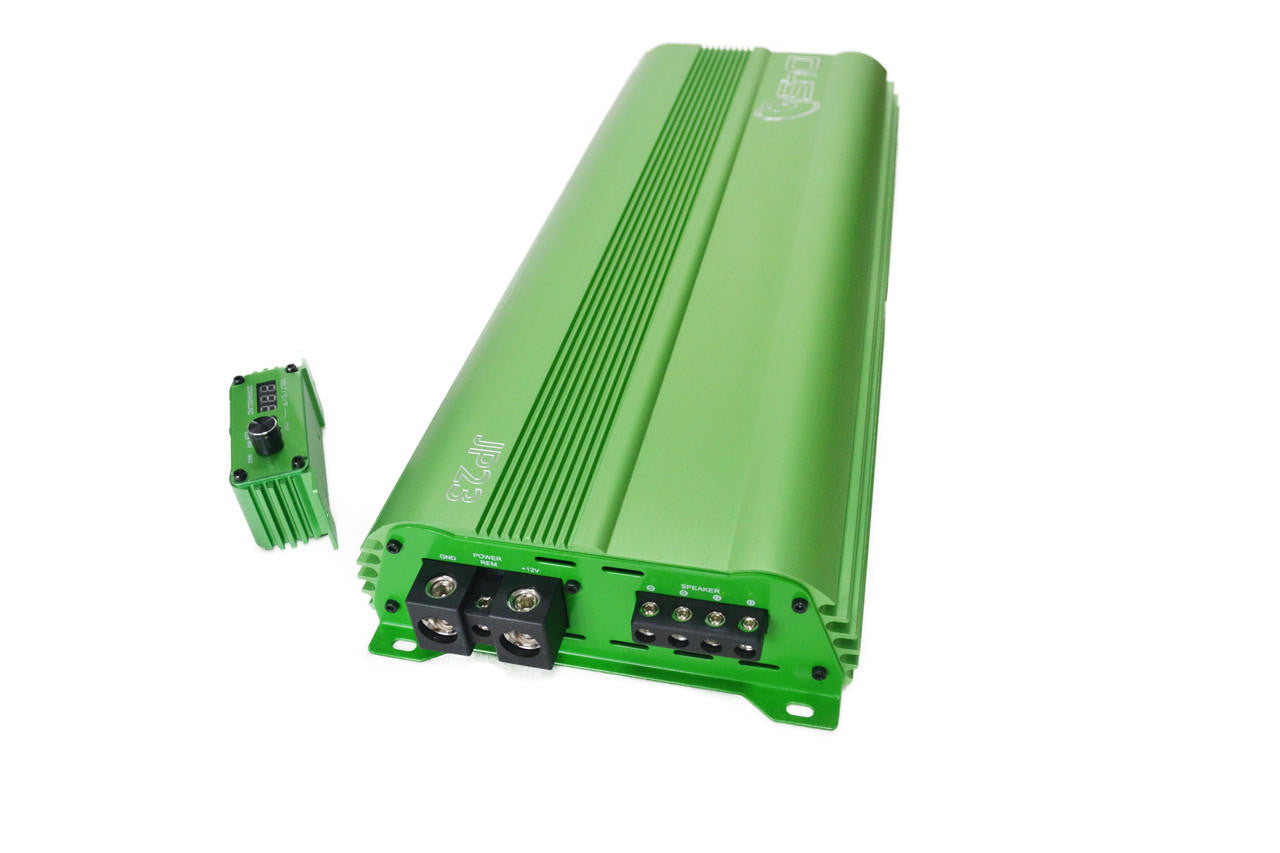

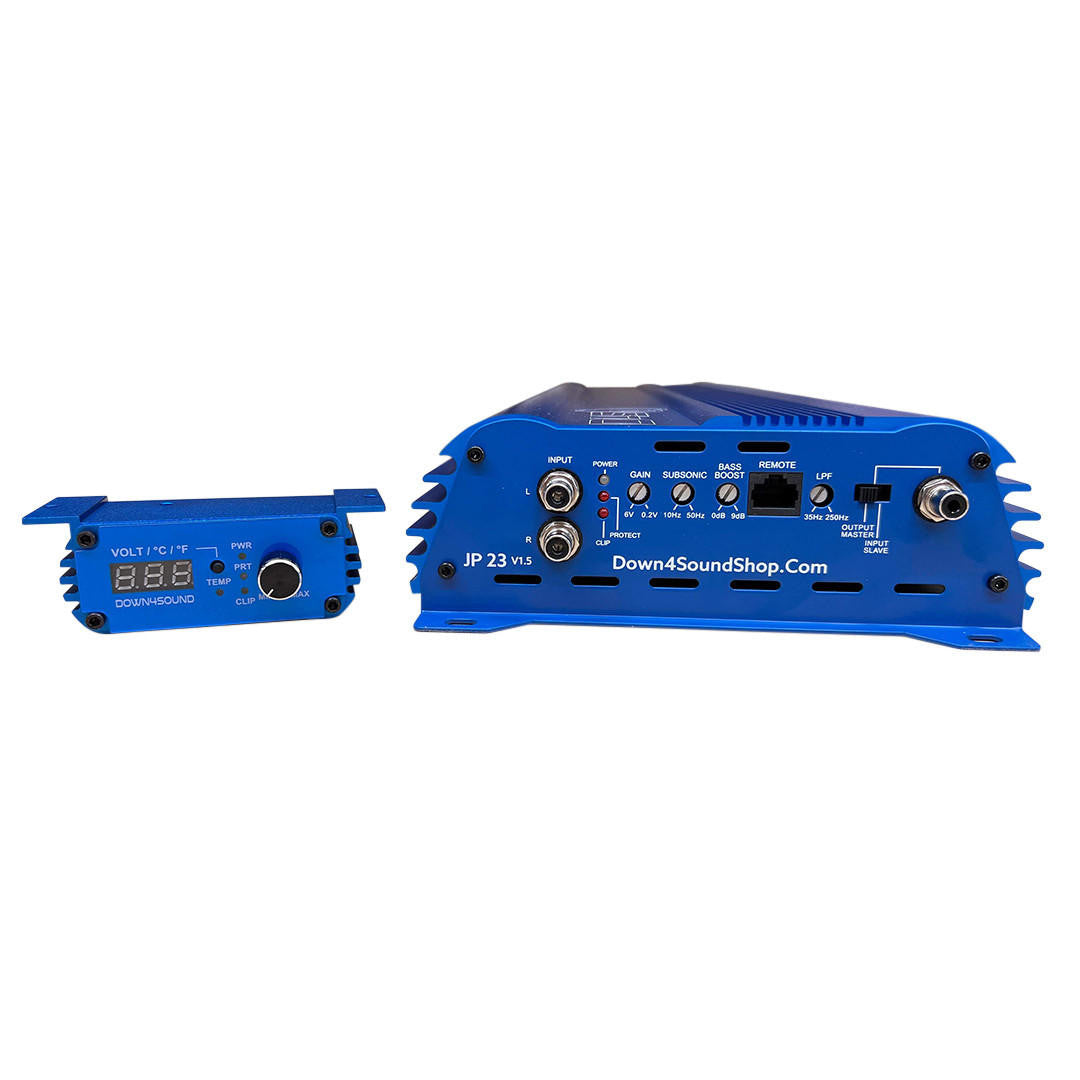

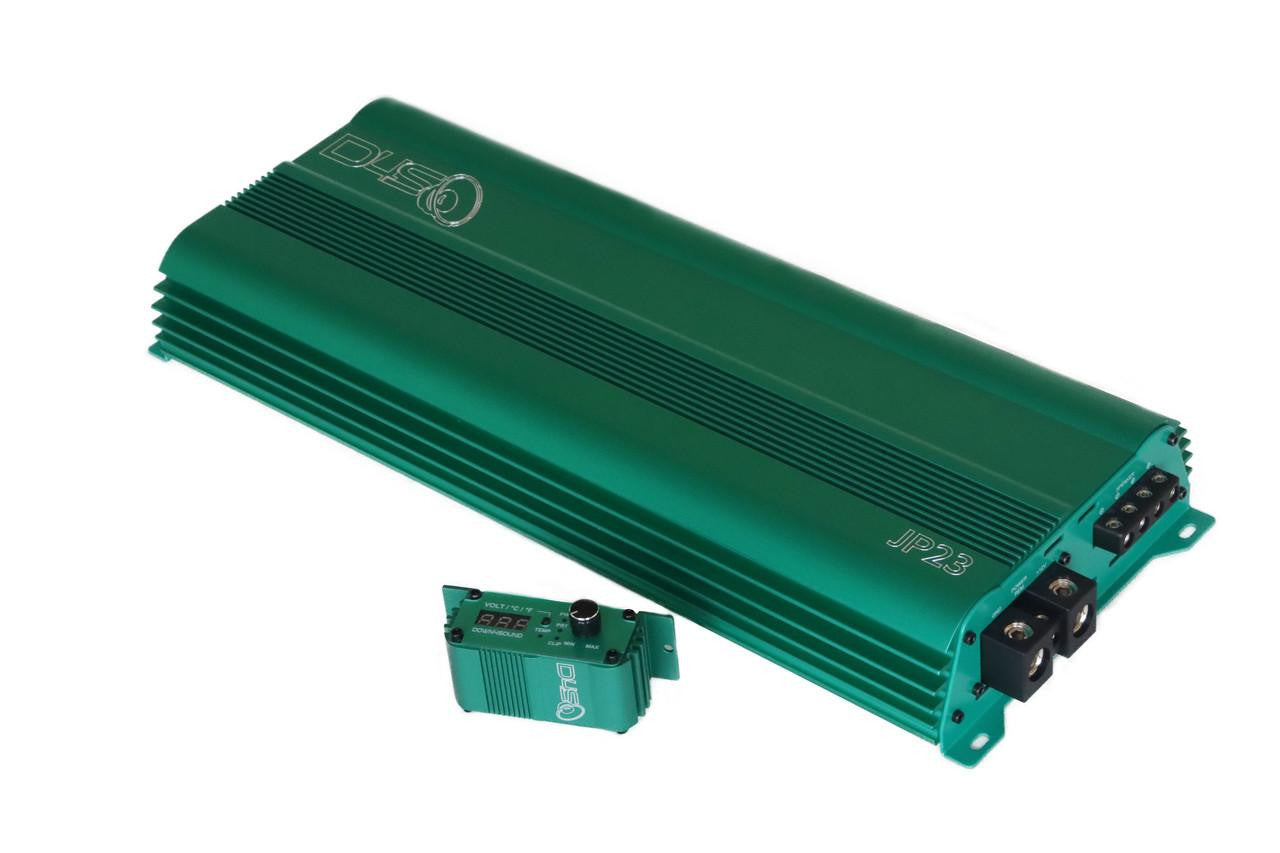

The amplifier comes with a wired aluminum bass knob in matching color, equipped with power, clip, protect lights, and a display for voltage and temperature, ensuring you have full control and monitoring capability over your audio experience.
Technical Highlights
Power Output
- 1ohm: 2000W @ 12v | 2300W @ 14.4v
- 2ohms: 1000W @ 12v | 1300W @ 14.4v
- 4ohms: 700W @ 12v
- 2ohm Linked: 4900W @ 14.4v
Frequency Spectrum: 10Hz - 250Hz. Voltage Range: 9 to 15.5 Volts. Class: D - DIGITAL.
Detailed Specifications
- Low Pass Filter: 35Hz - 250Hz
- Subsonic Filter: 10Hz - 50Hz
- Bass Boost: 0 - 9 dB
- Signal to Noise Ratio: 88dB
- T.H.D @ 4ohm: <0.1%
- Fuse Rating: Single unit 200A, Strapped 400A
- Dimensions: 17.71" L x 7.32" W x 2.24" H
- Warranty: 1-year warranty; optional extended warranty for 0.5-ohm usage.
Explore the full potential of the JP23 with our Amplifier Dyno Numbers in the VIDEOS TAB. Ensure optimal performance with a voltage range of 14.4v - 14.7v. Elevate your audio journey with the JP23 today!
