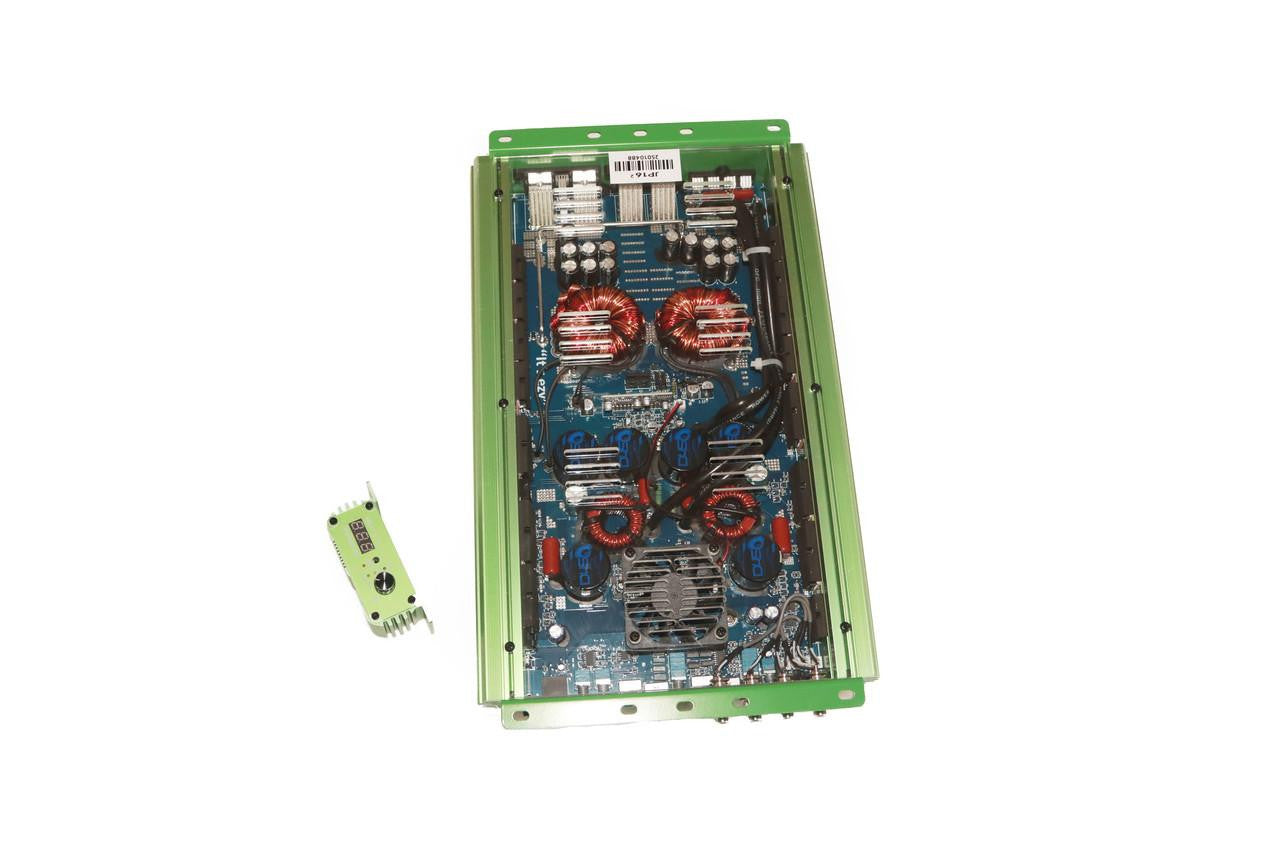

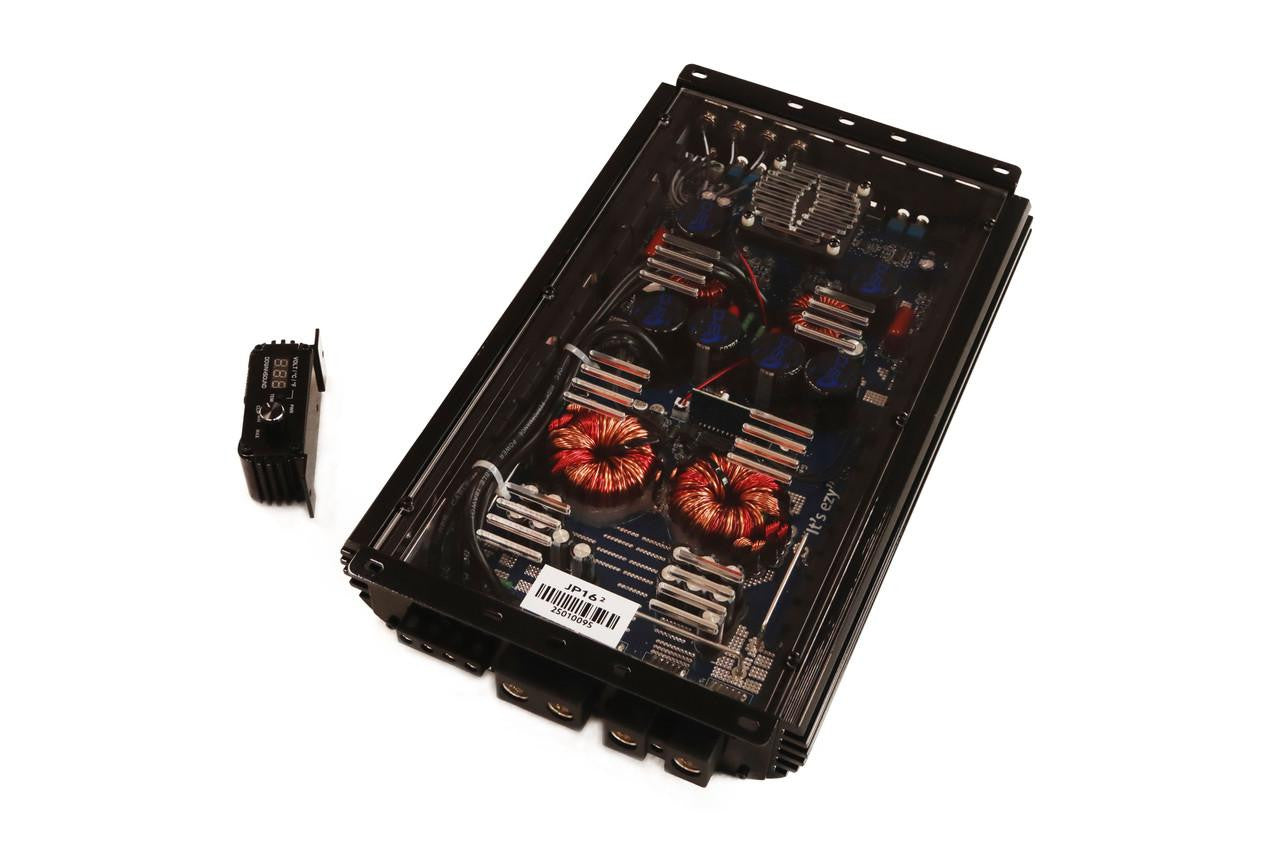

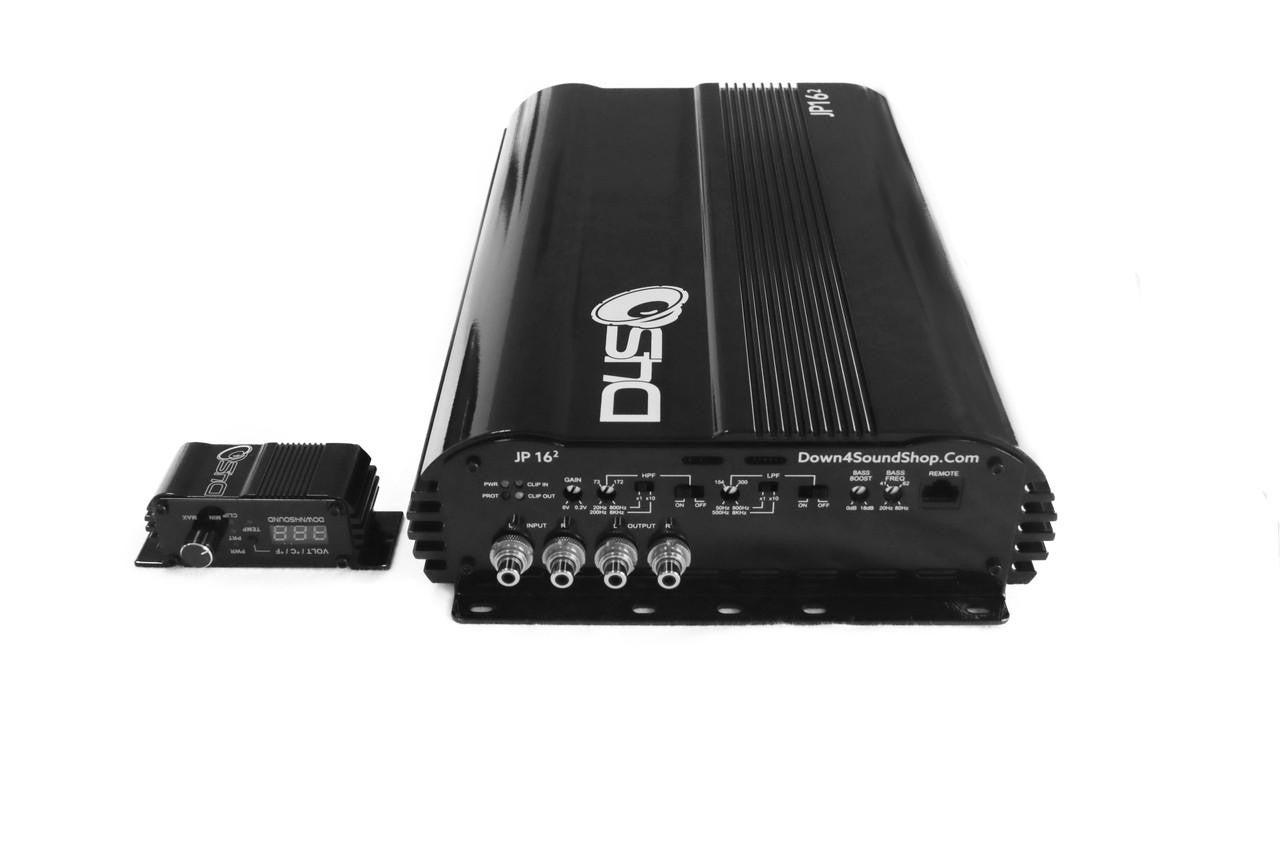

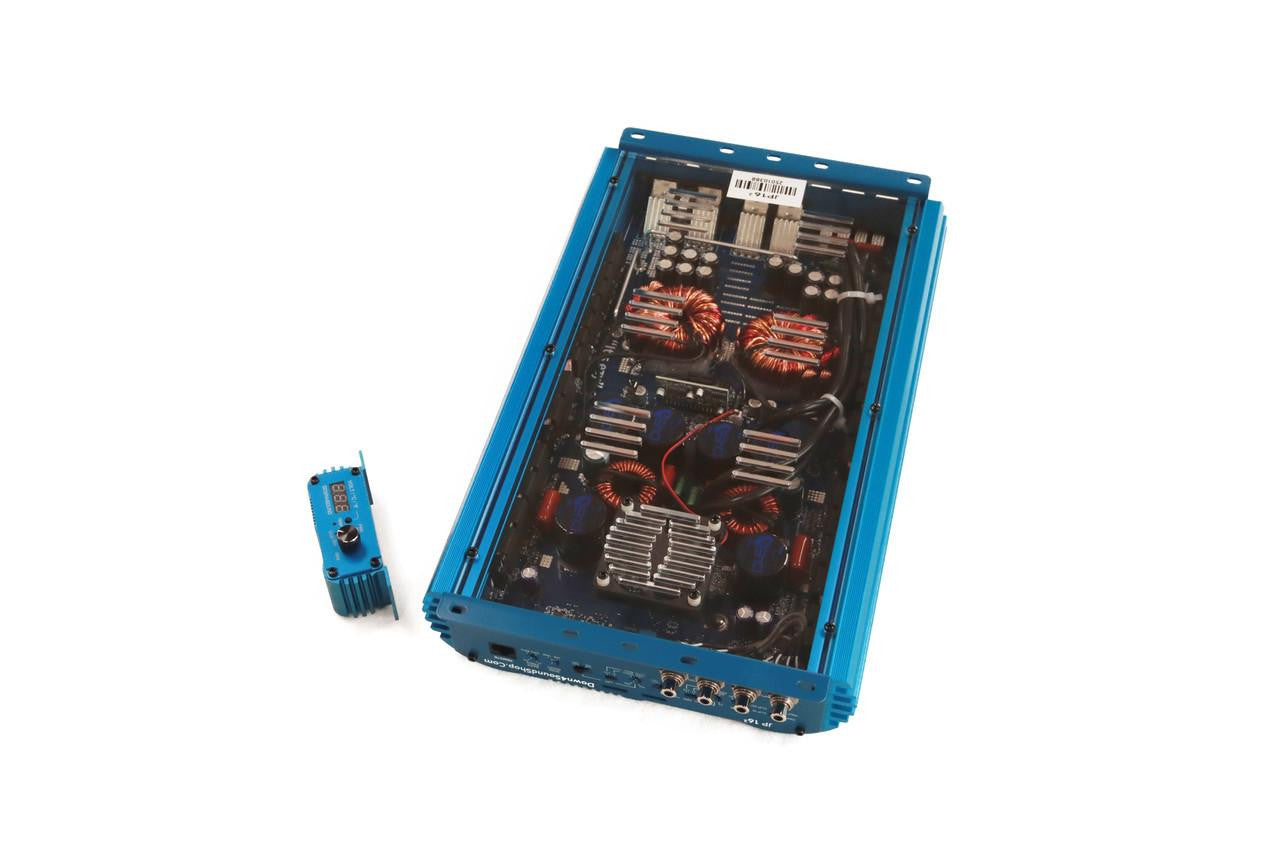

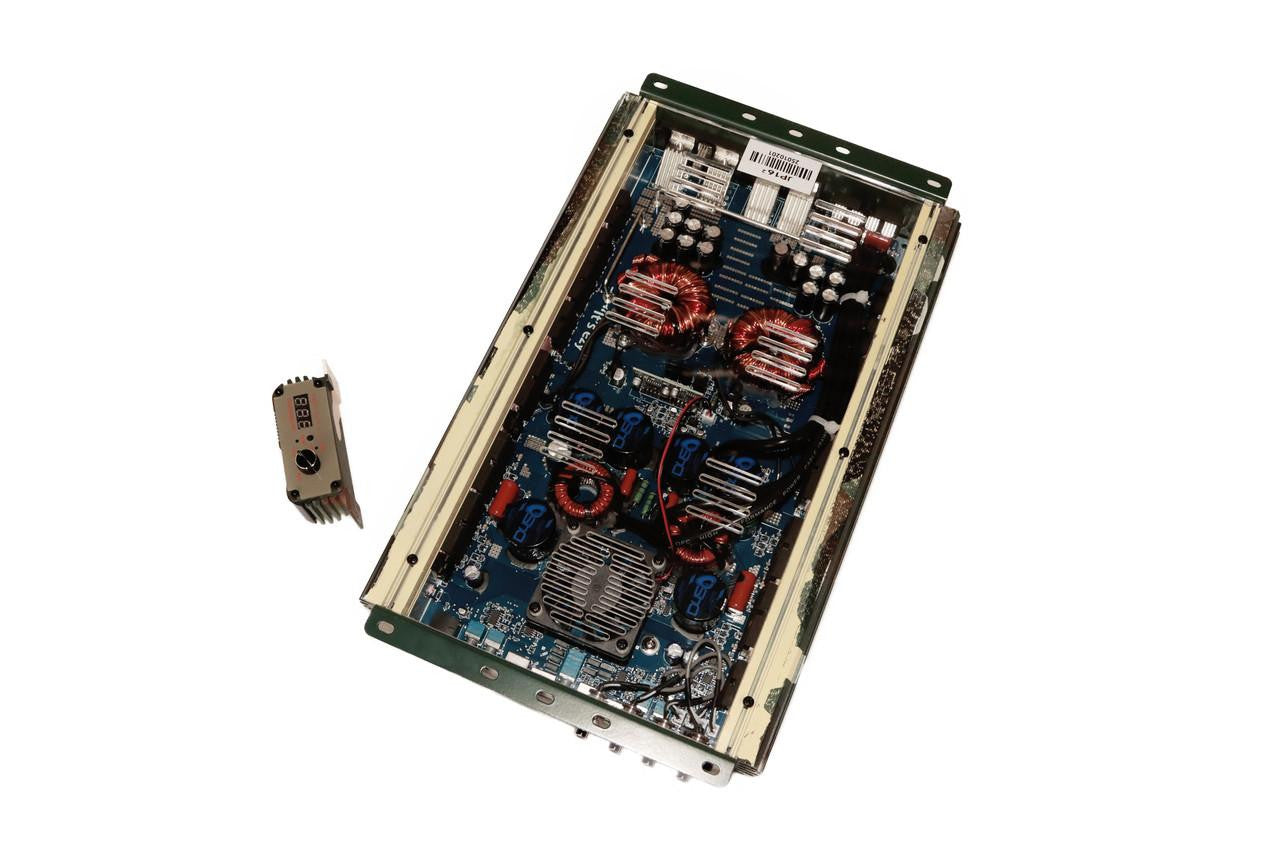

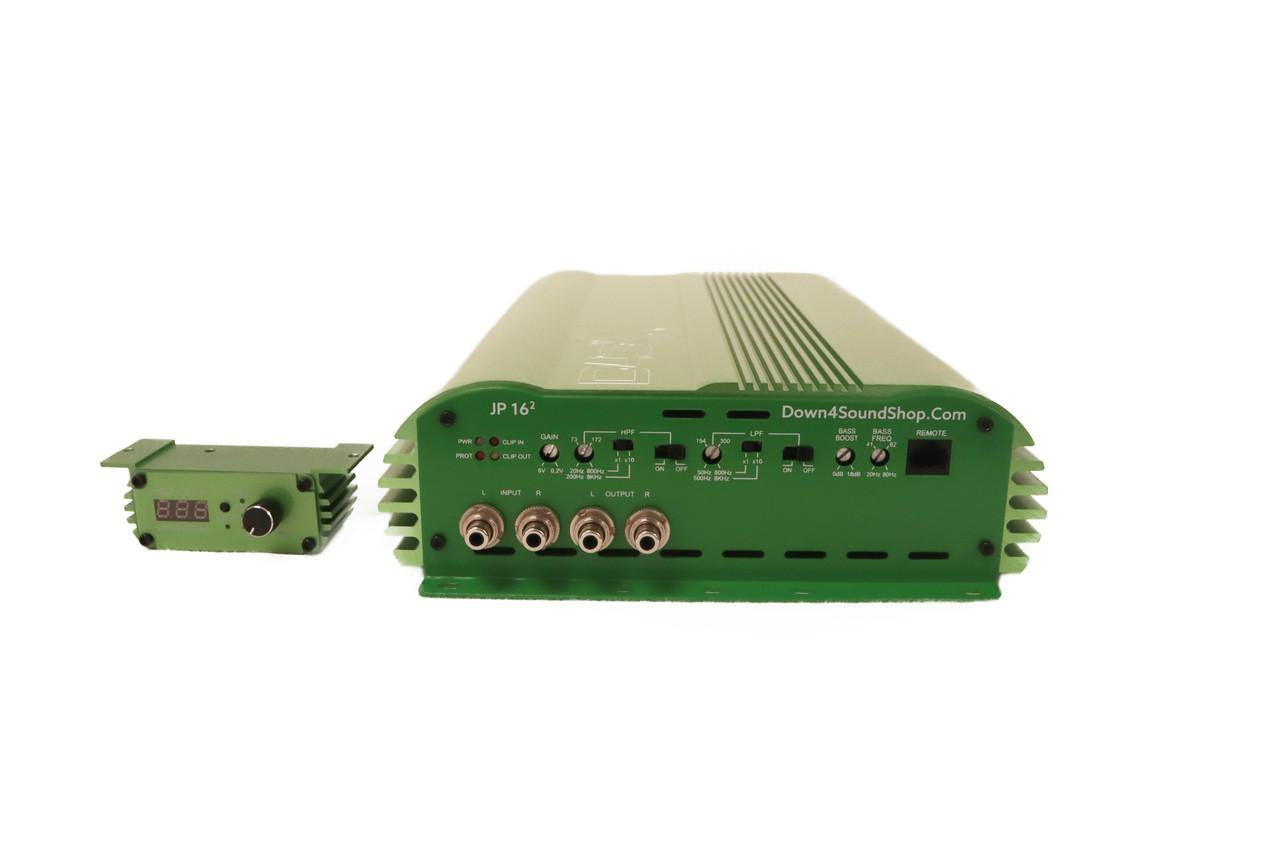

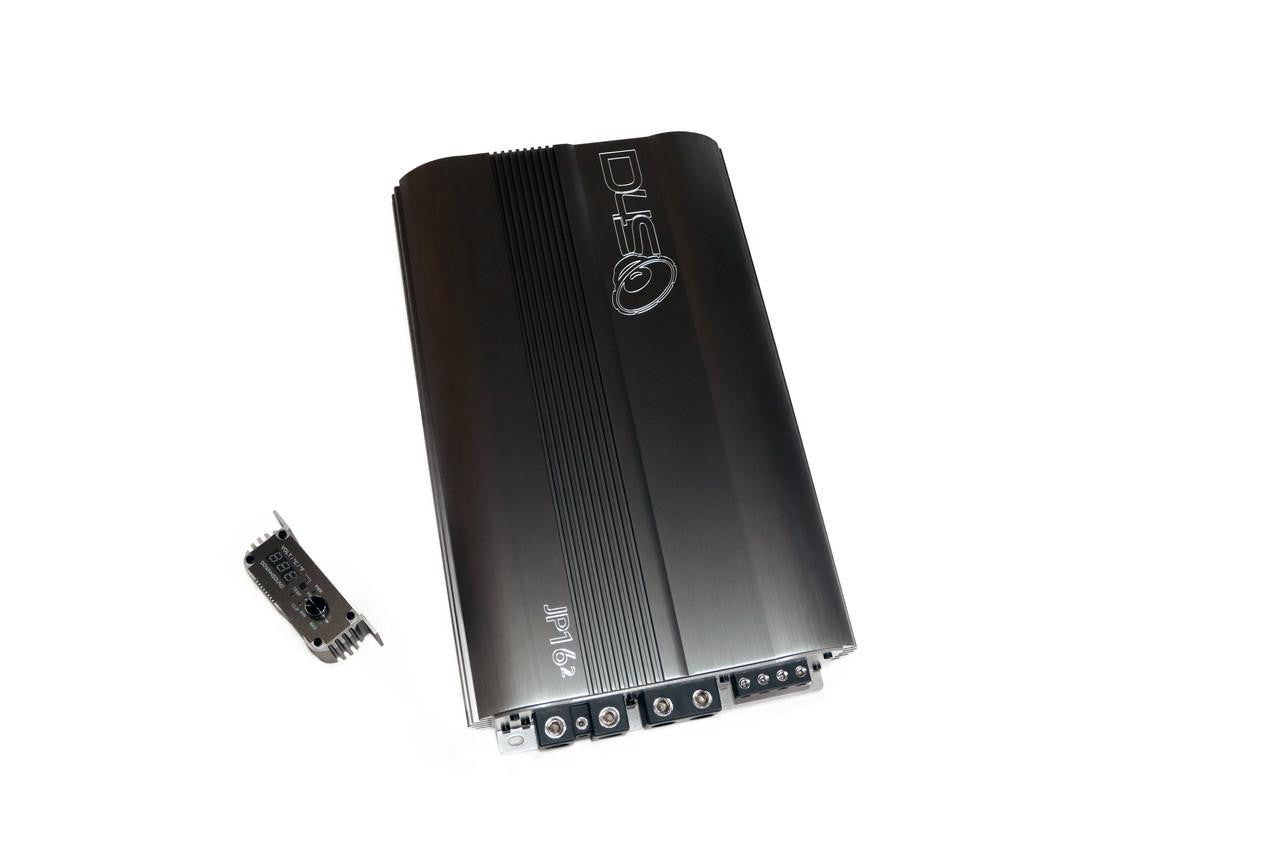

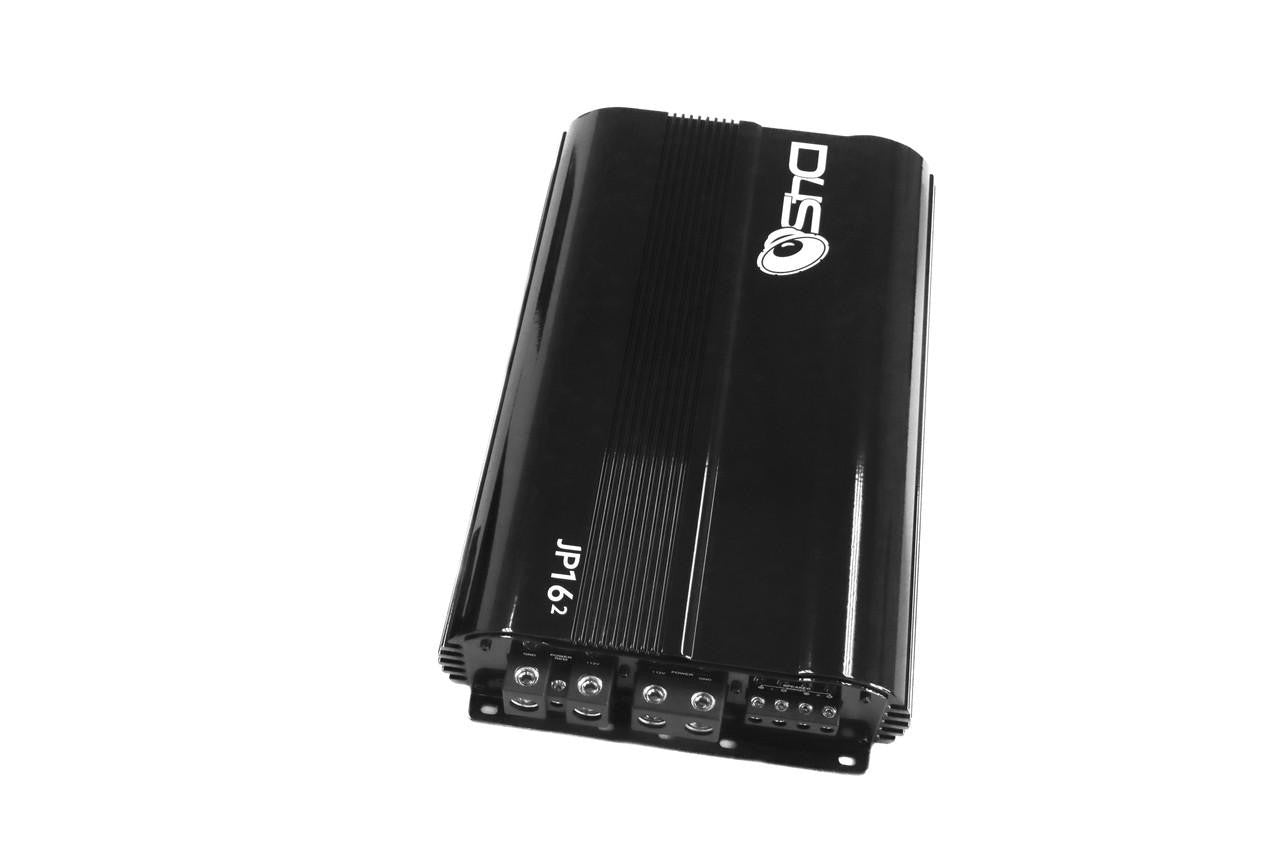

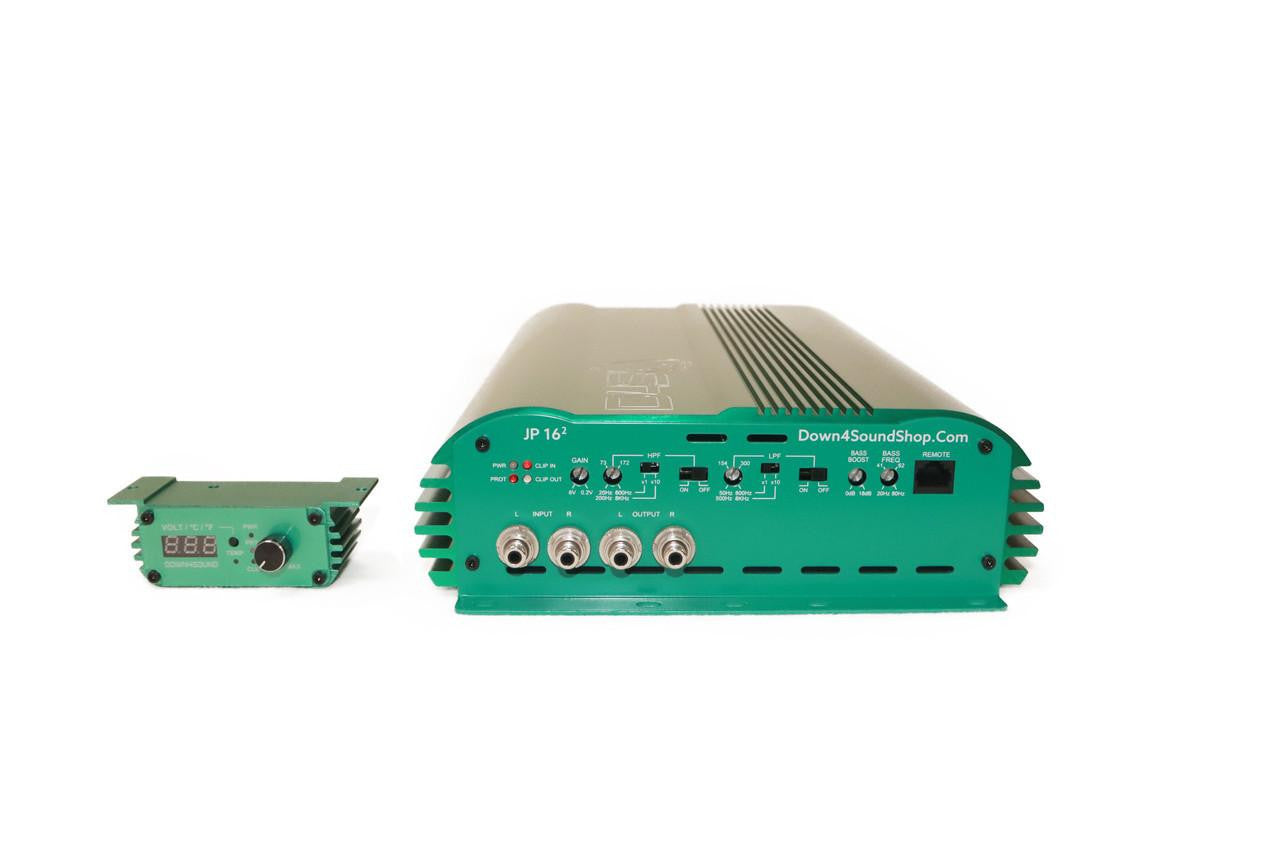

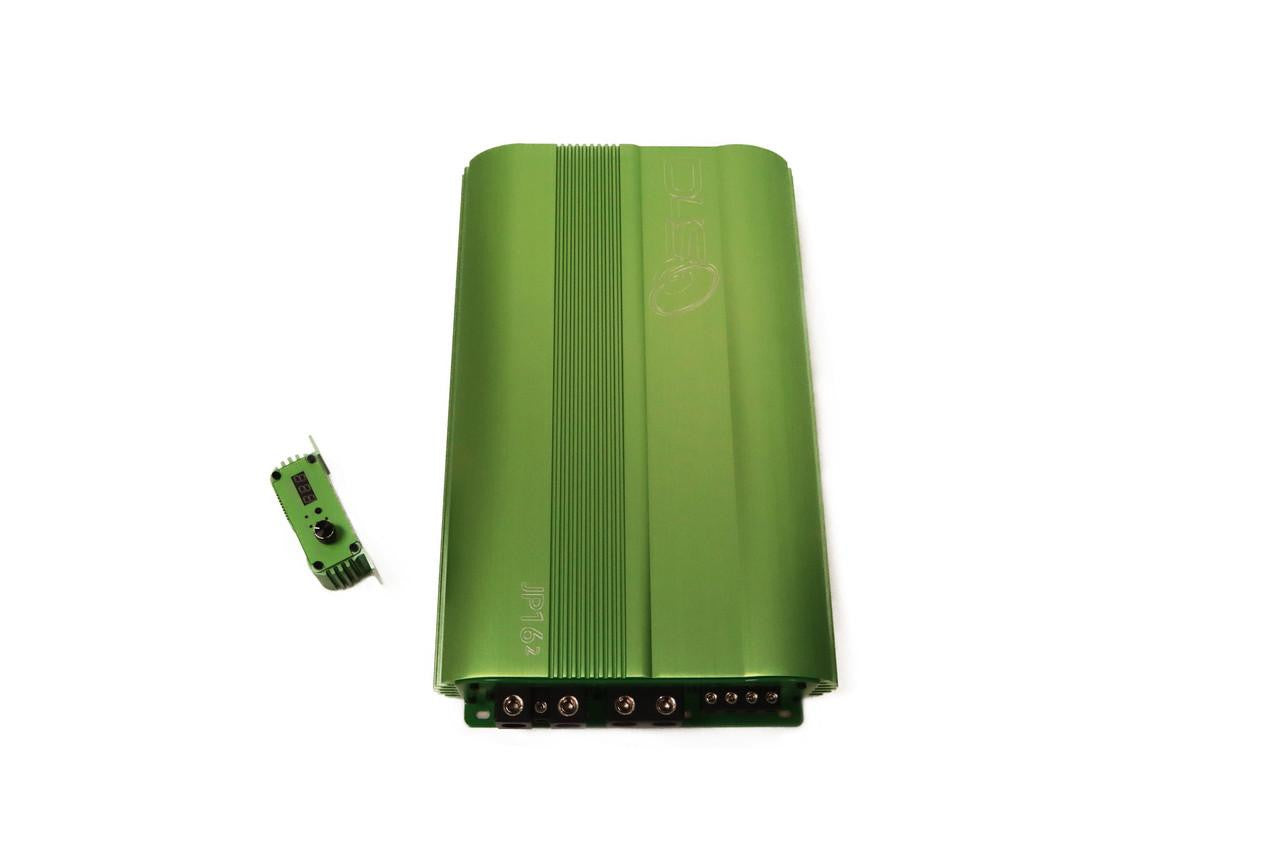

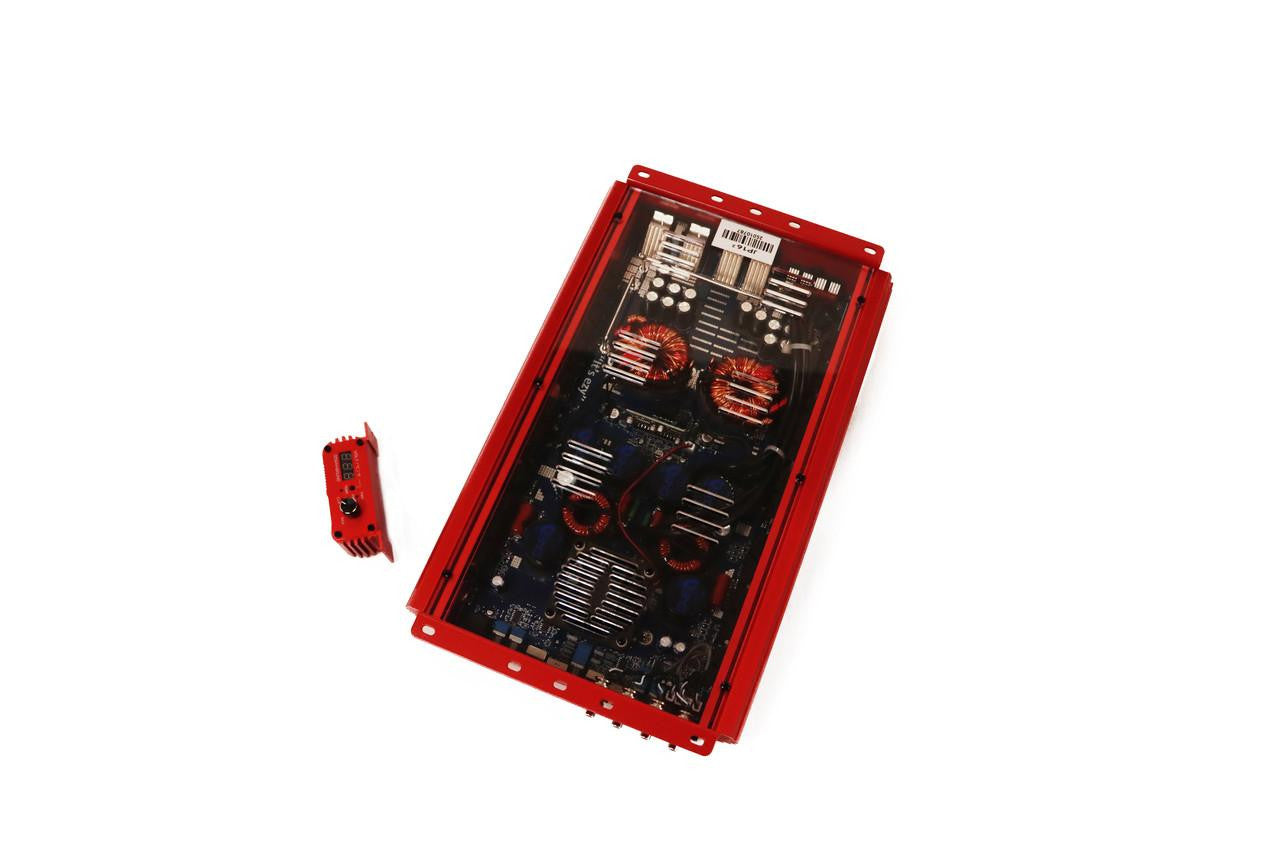

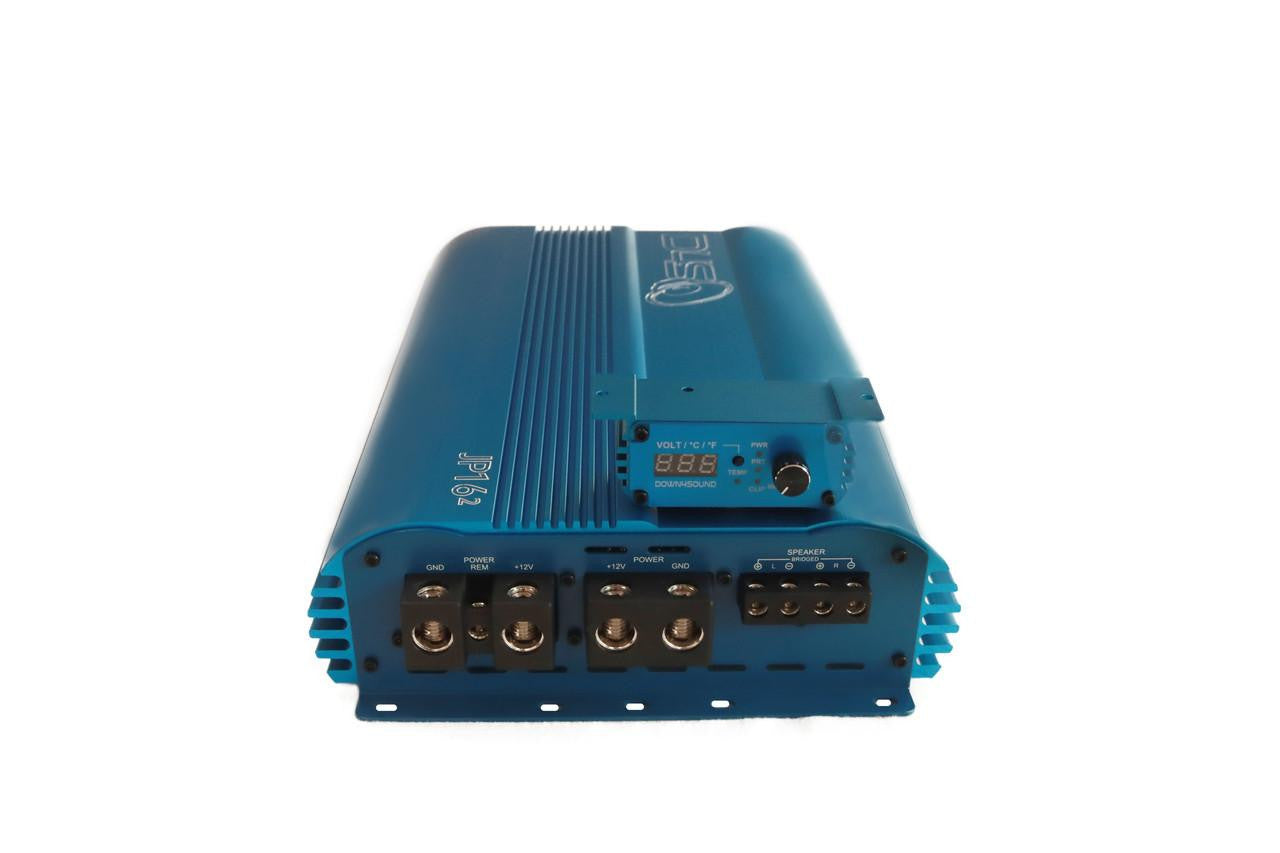

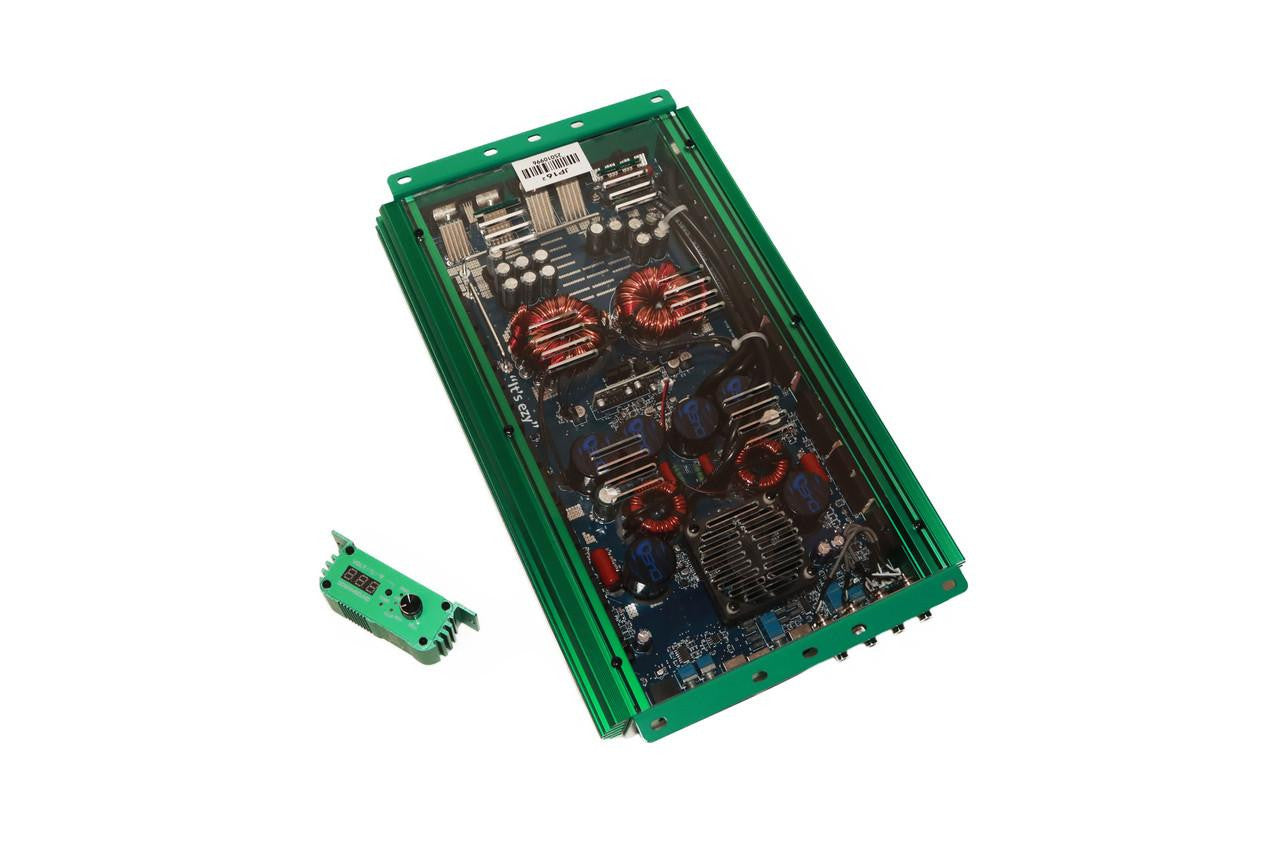

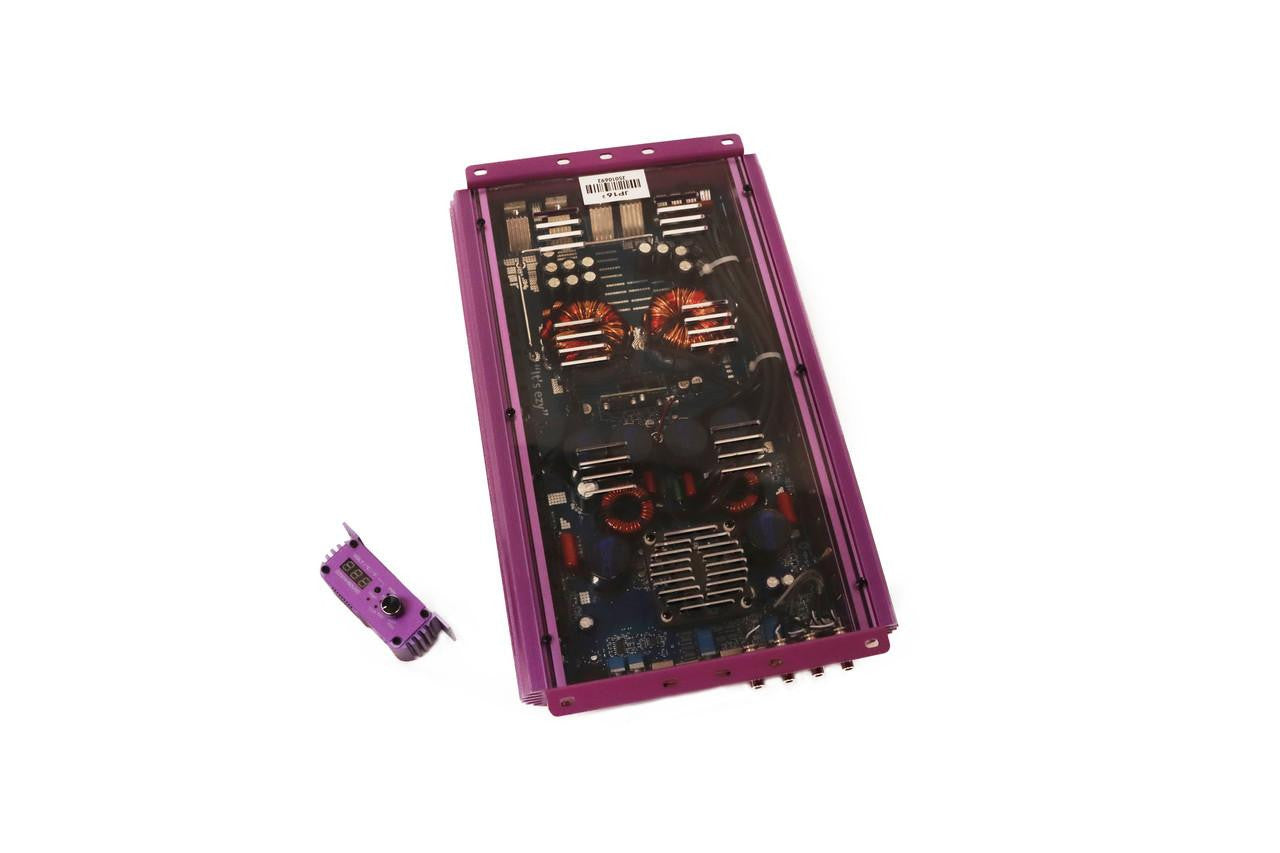

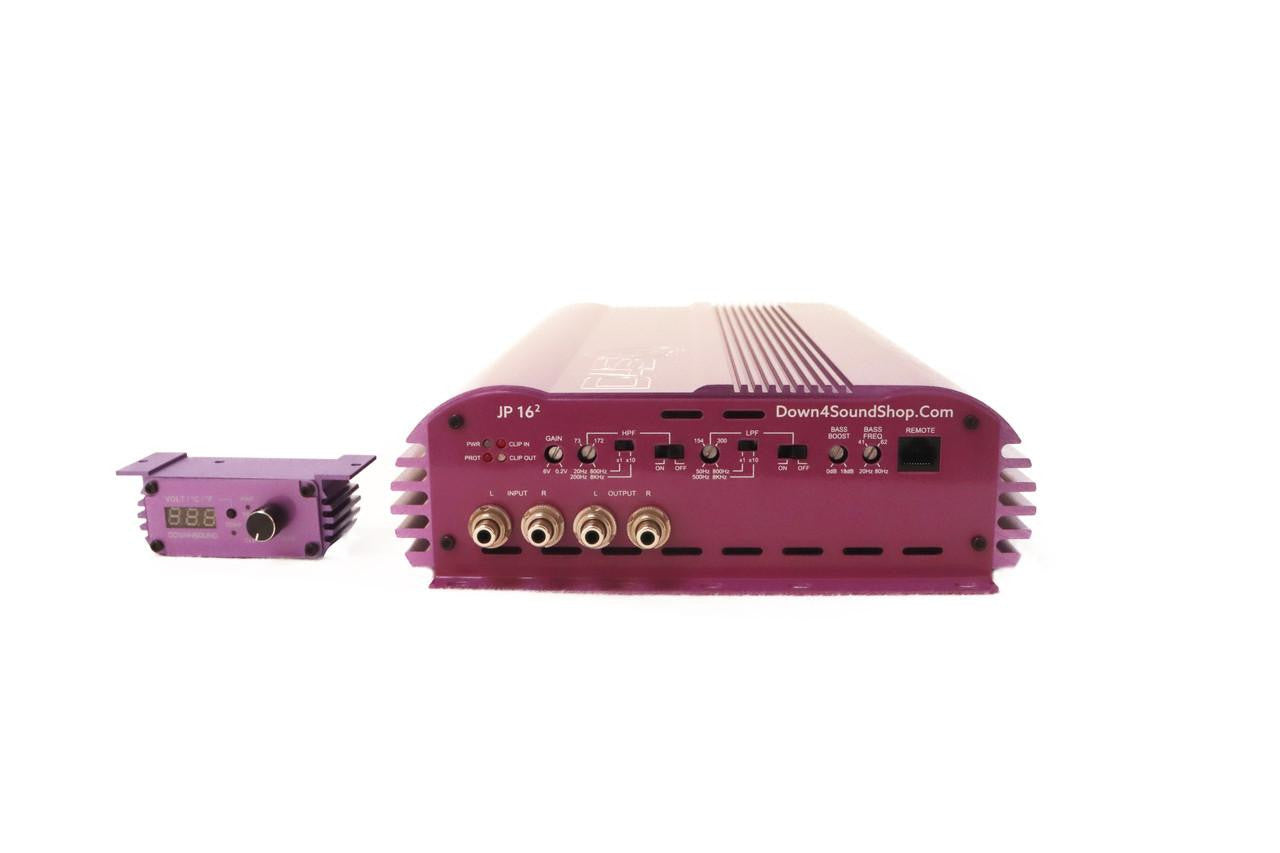

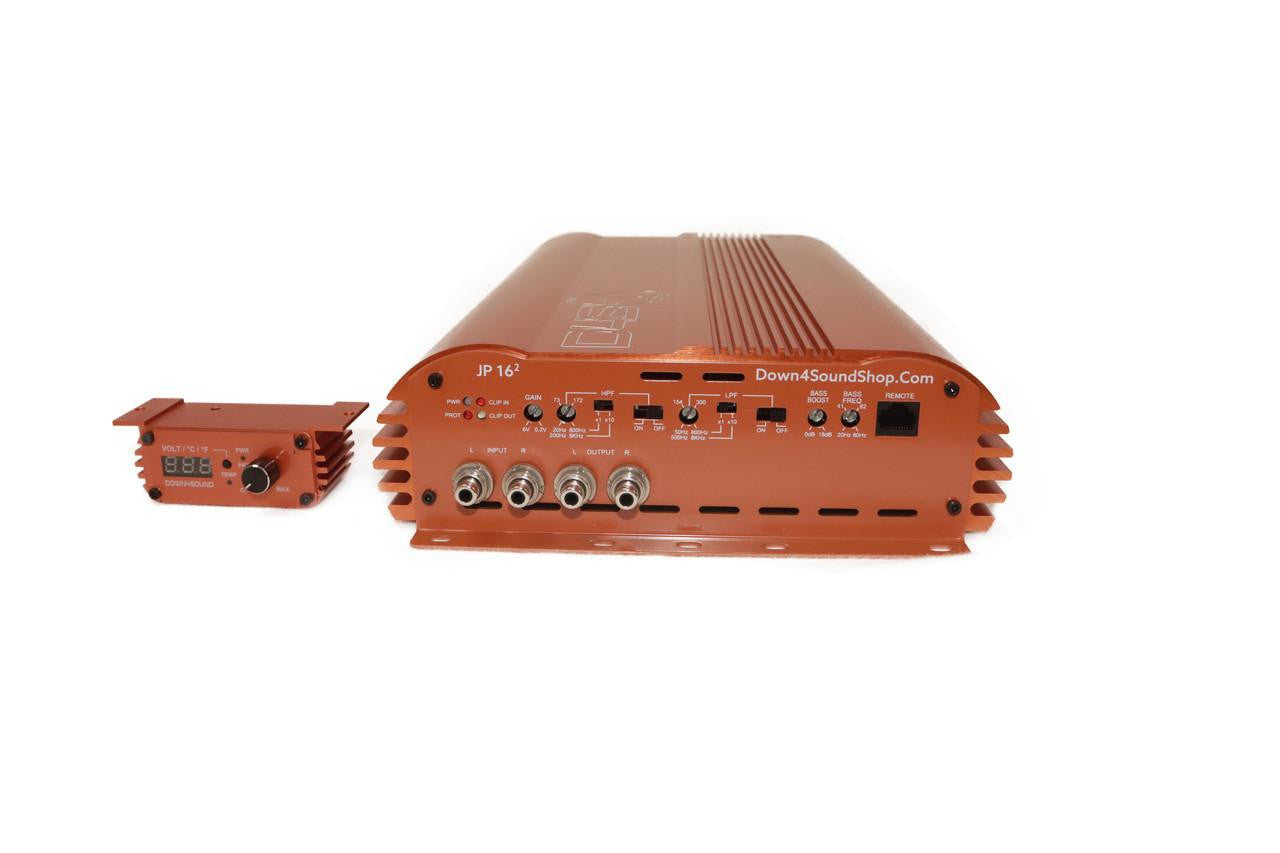

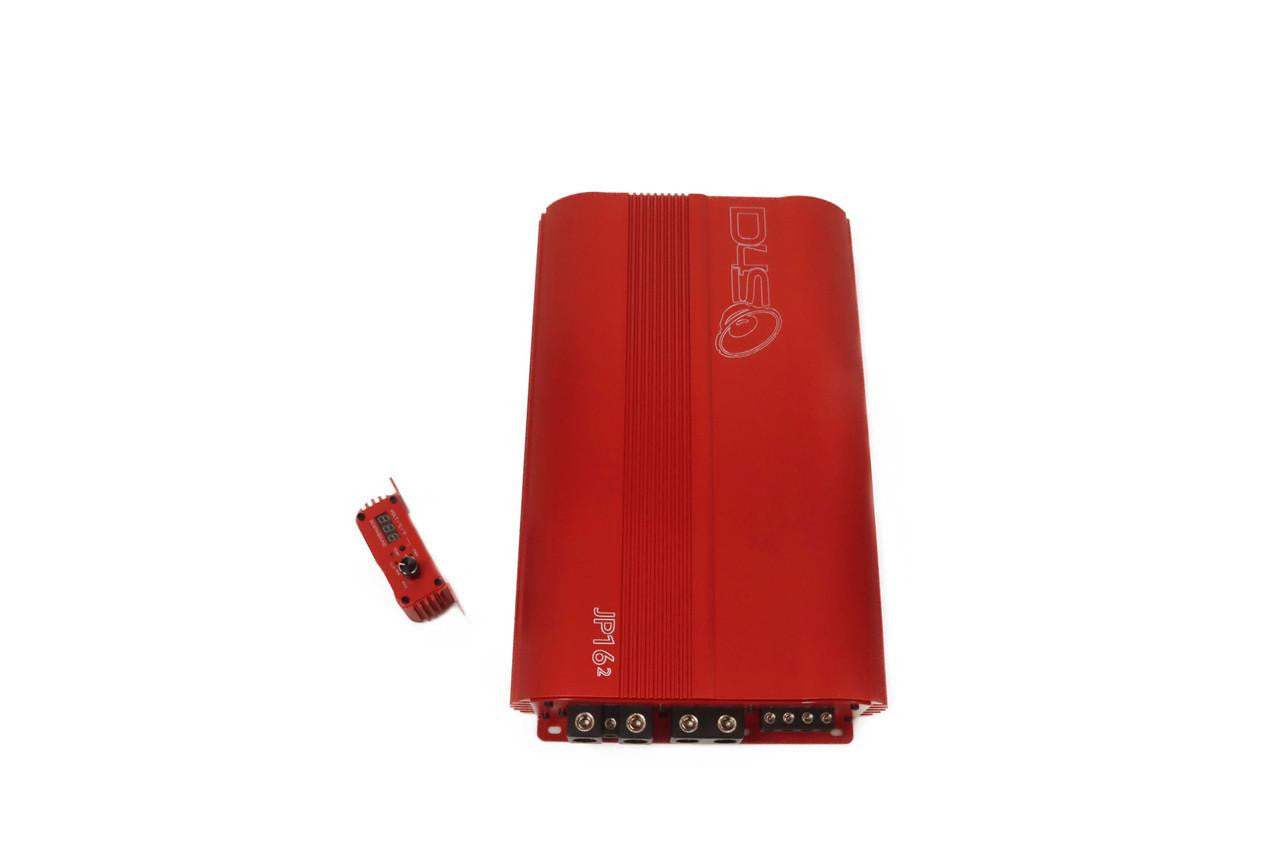

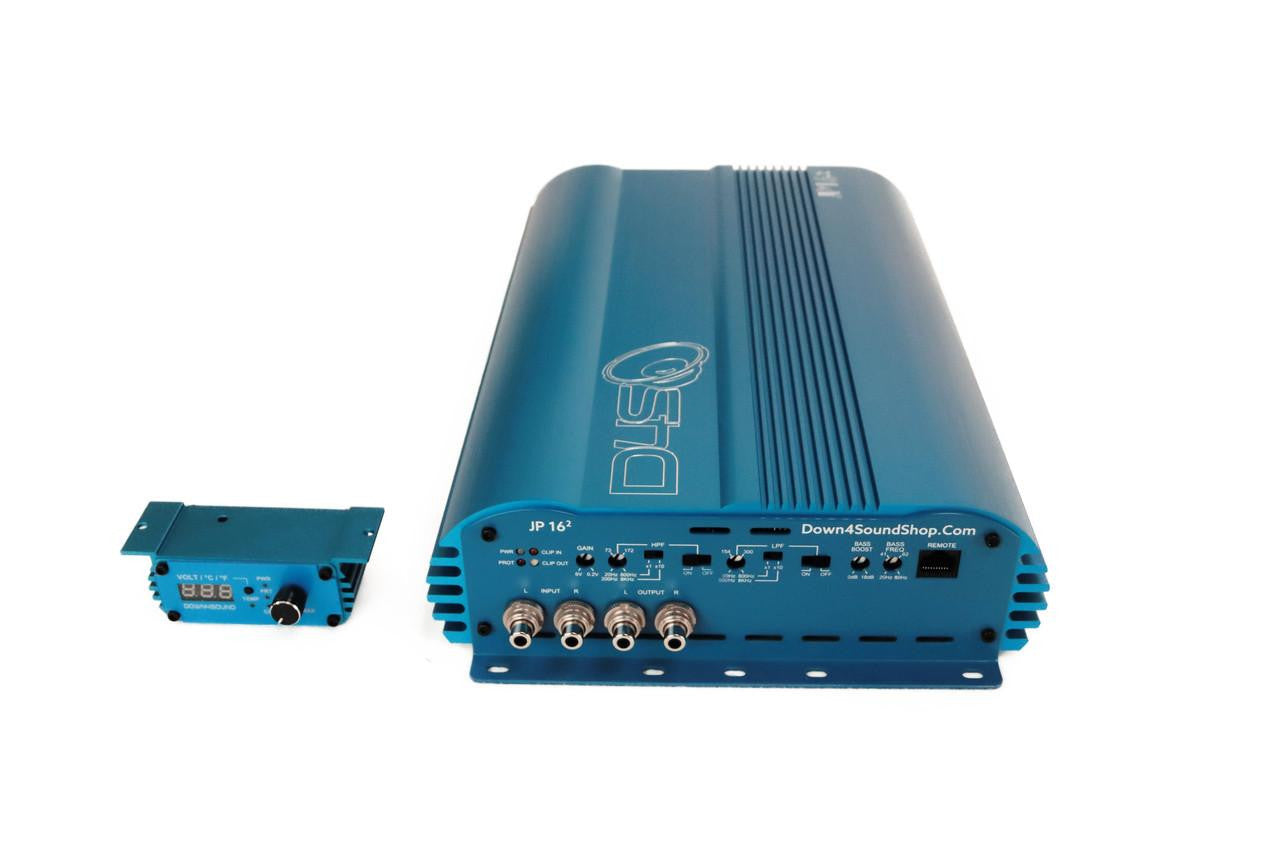

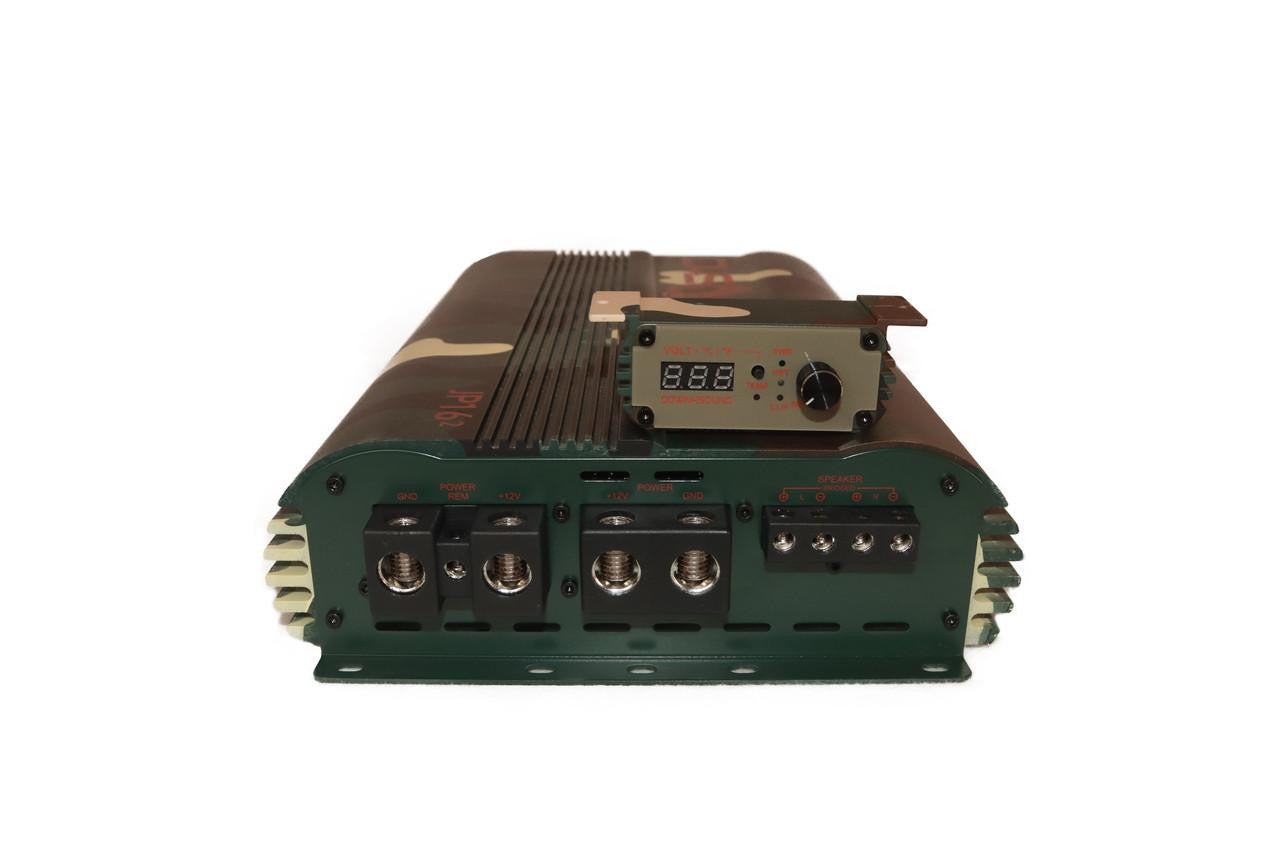

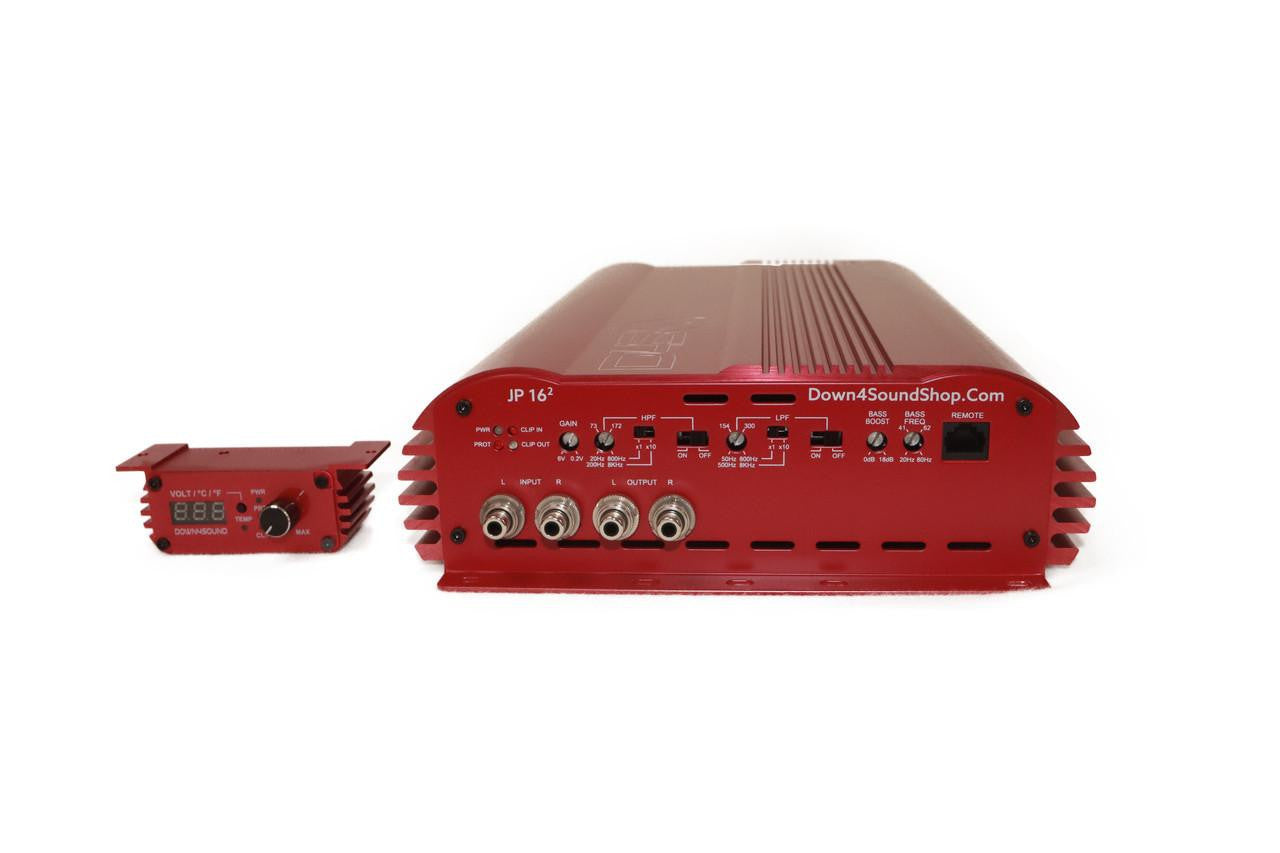

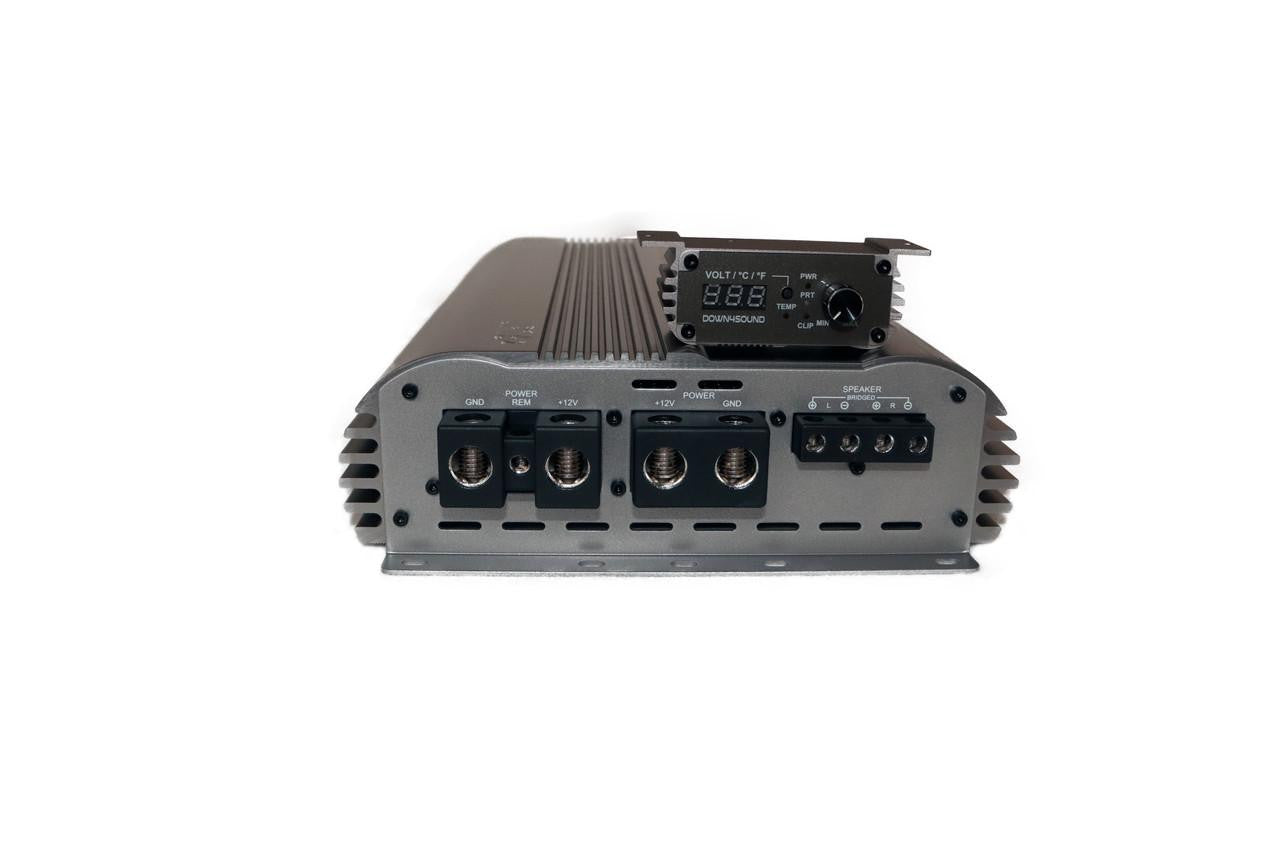

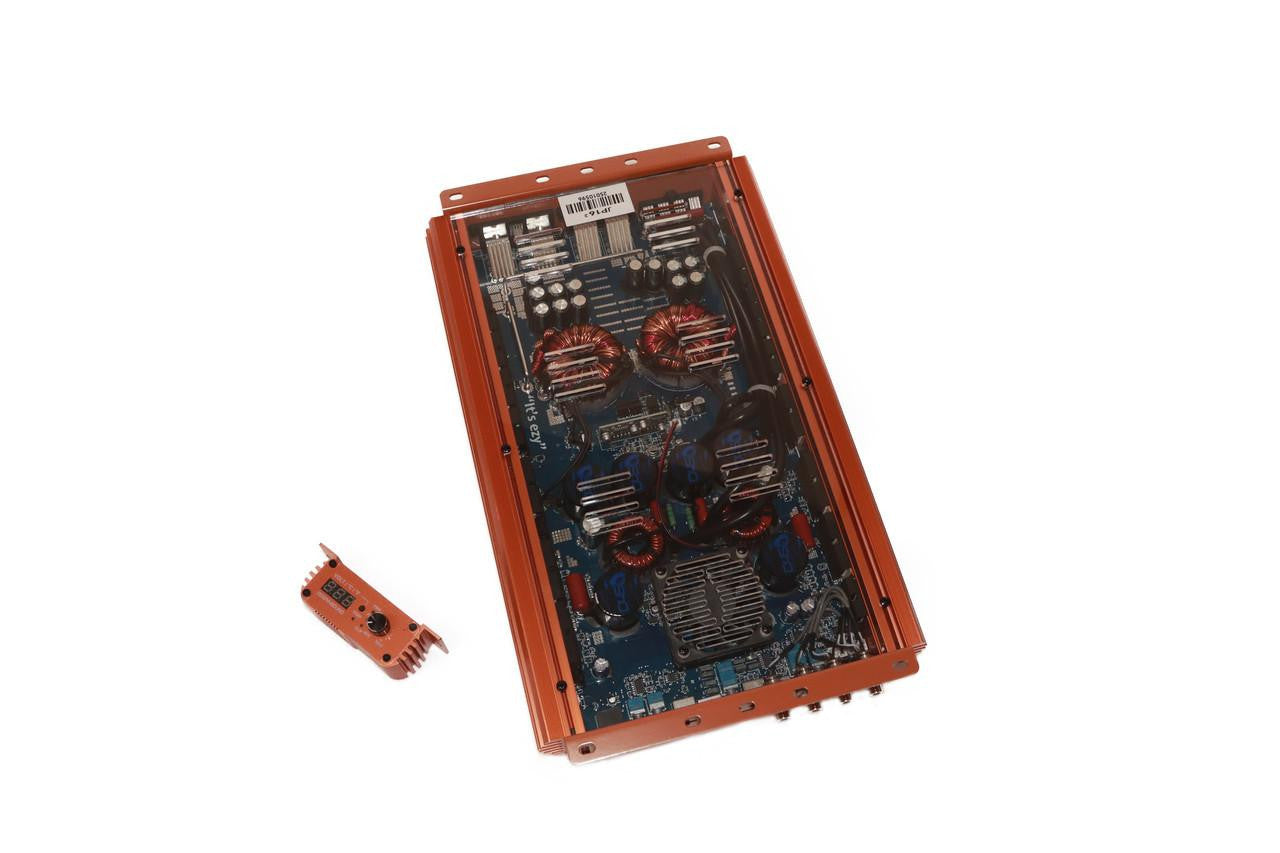

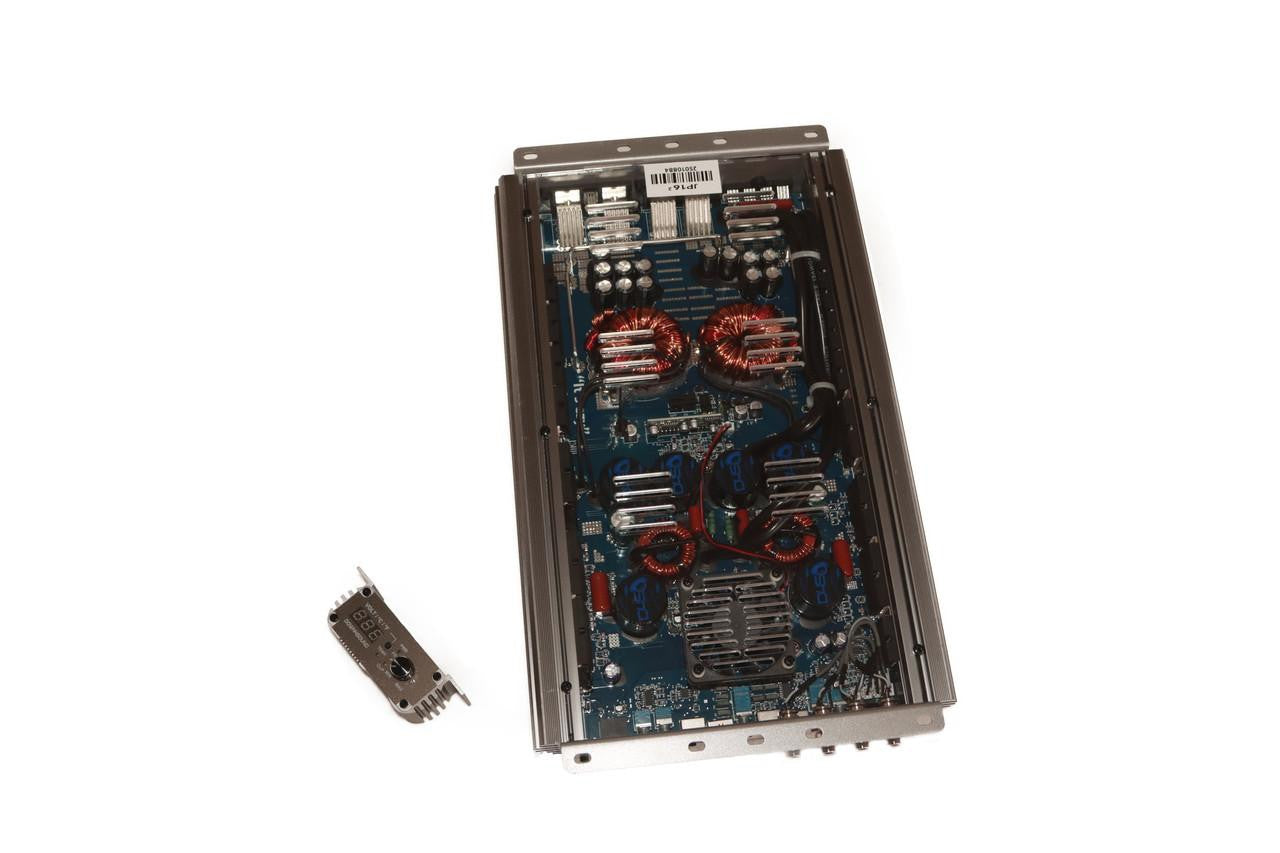

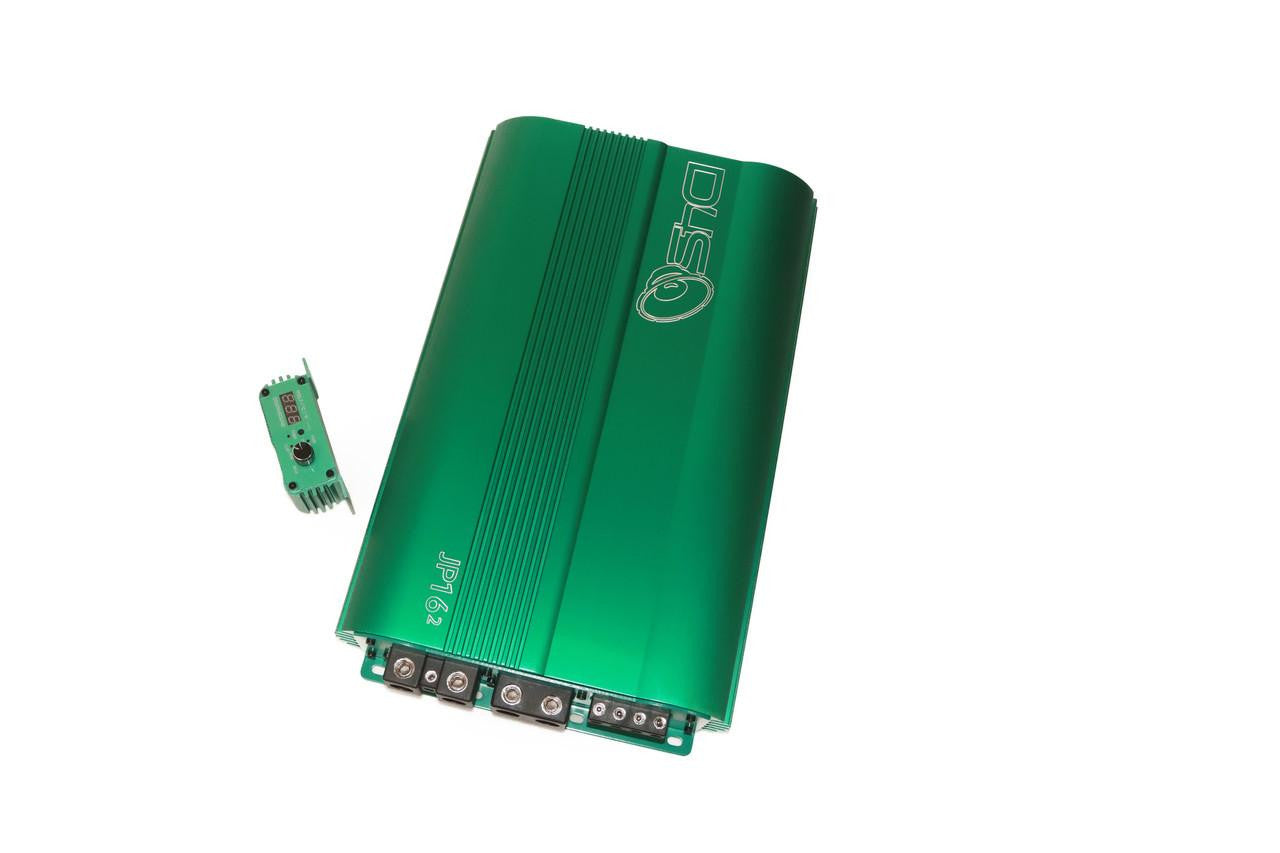

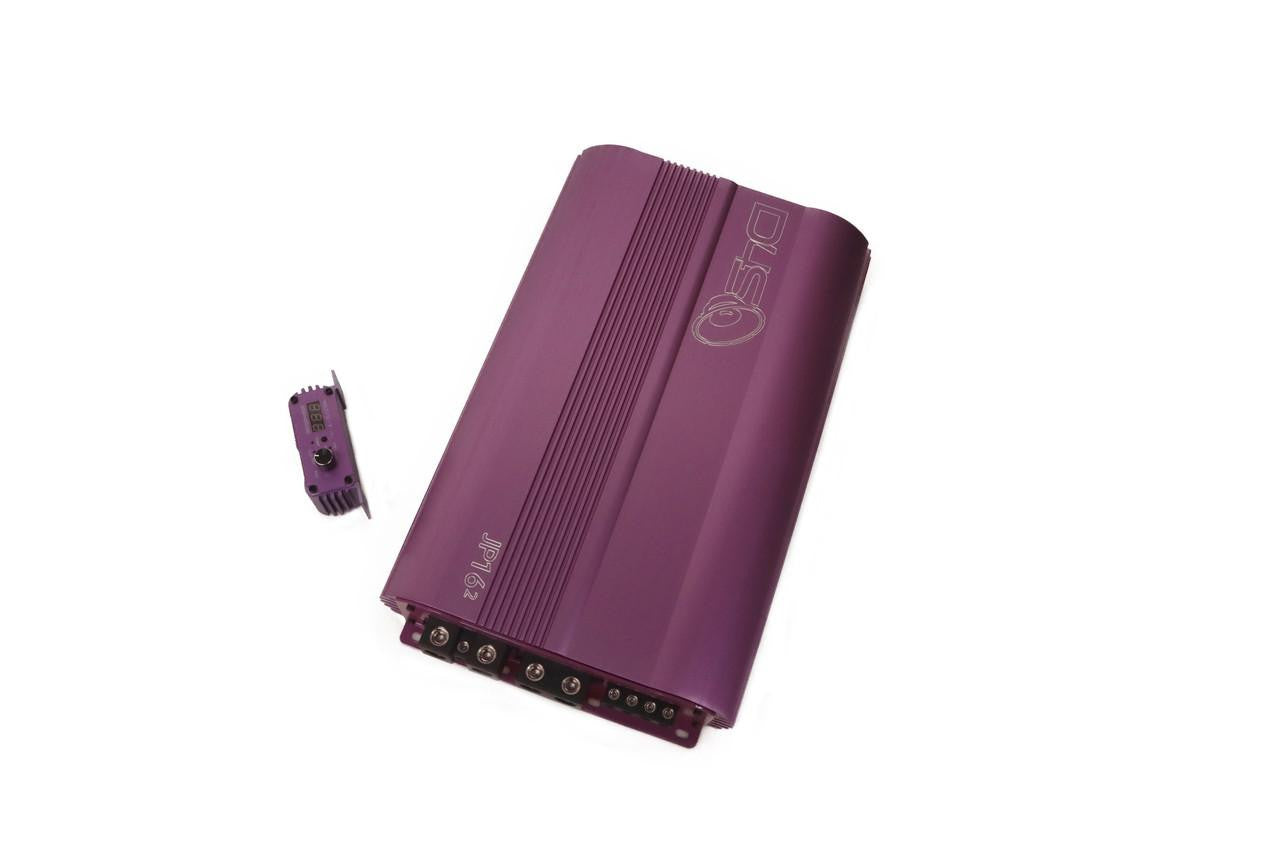

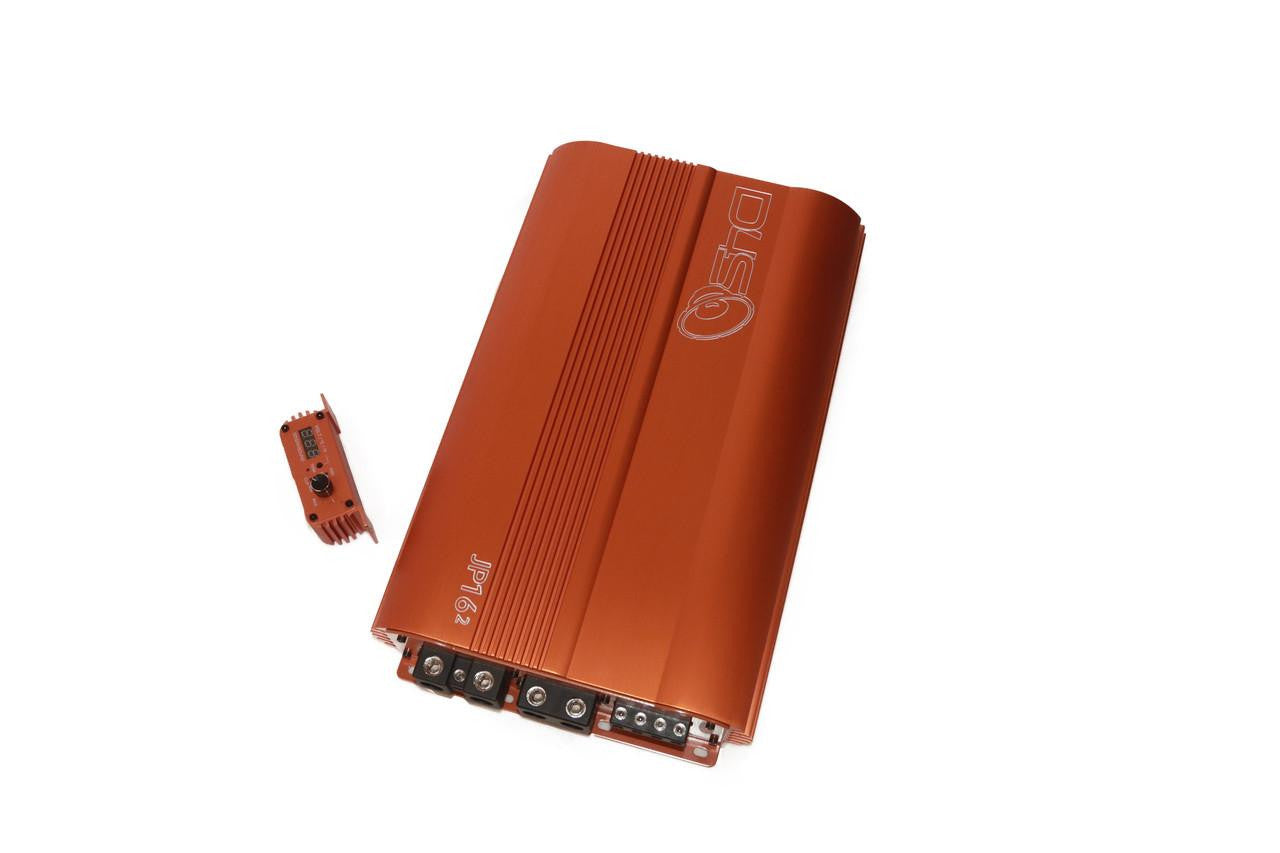

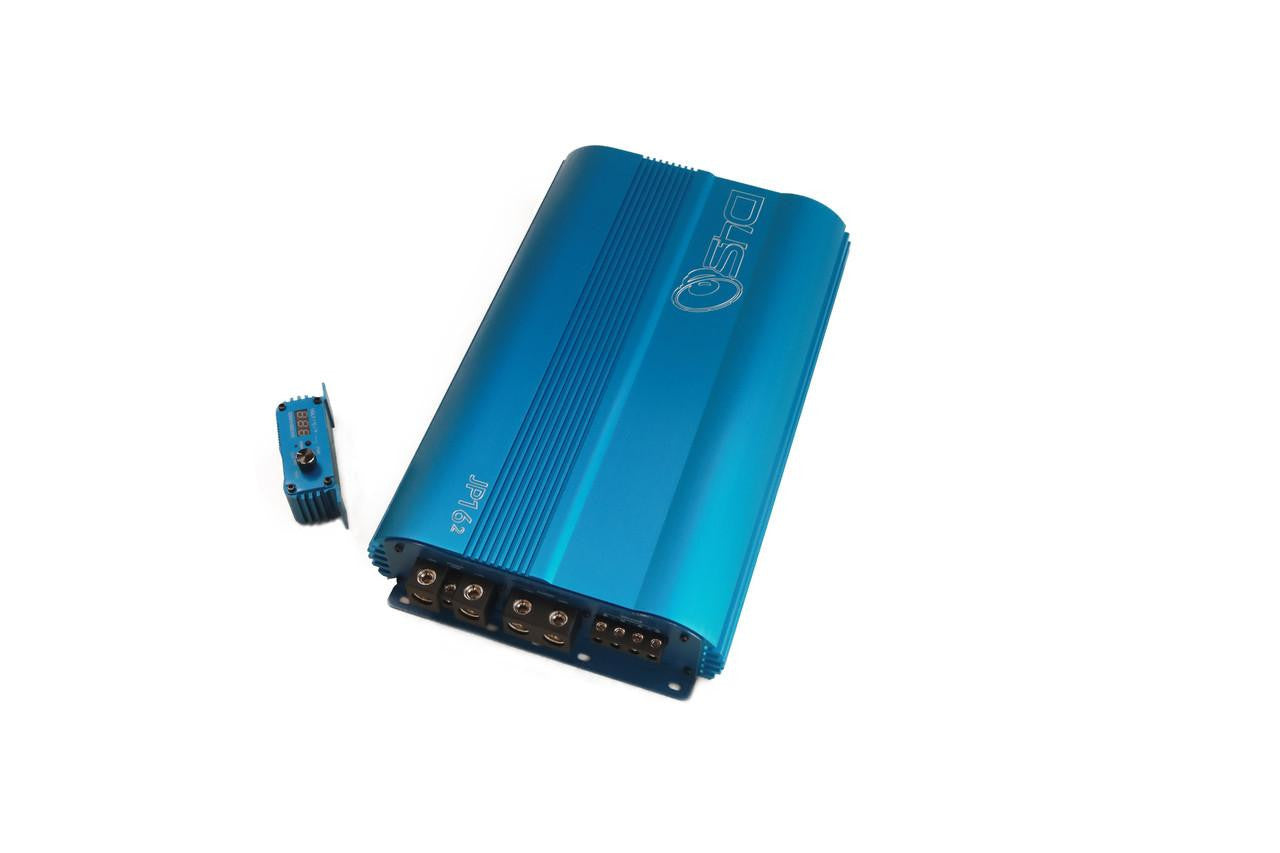

Down4Sound JP16.2 3200W RMS 2 Channel Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
Transform your car audio experience with the DOWN4SOUND JP16.2 amplifier. Designed for bassheads who demand powerful, clean sound, this amplifier delivers deep lows and crisp highs. Whether you're using 1-ohm, 2-ohm, or 4-ohm loads, the JP16.2 delivers unbeatable power and sound clarity with 1600W RMS of output.
Key Features
- Stable into 1 Ohm Mono Load
- Bandpass Capable
- 4-Way Protection Circuits: Thermal, high & low voltage, speaker short, and DC protection

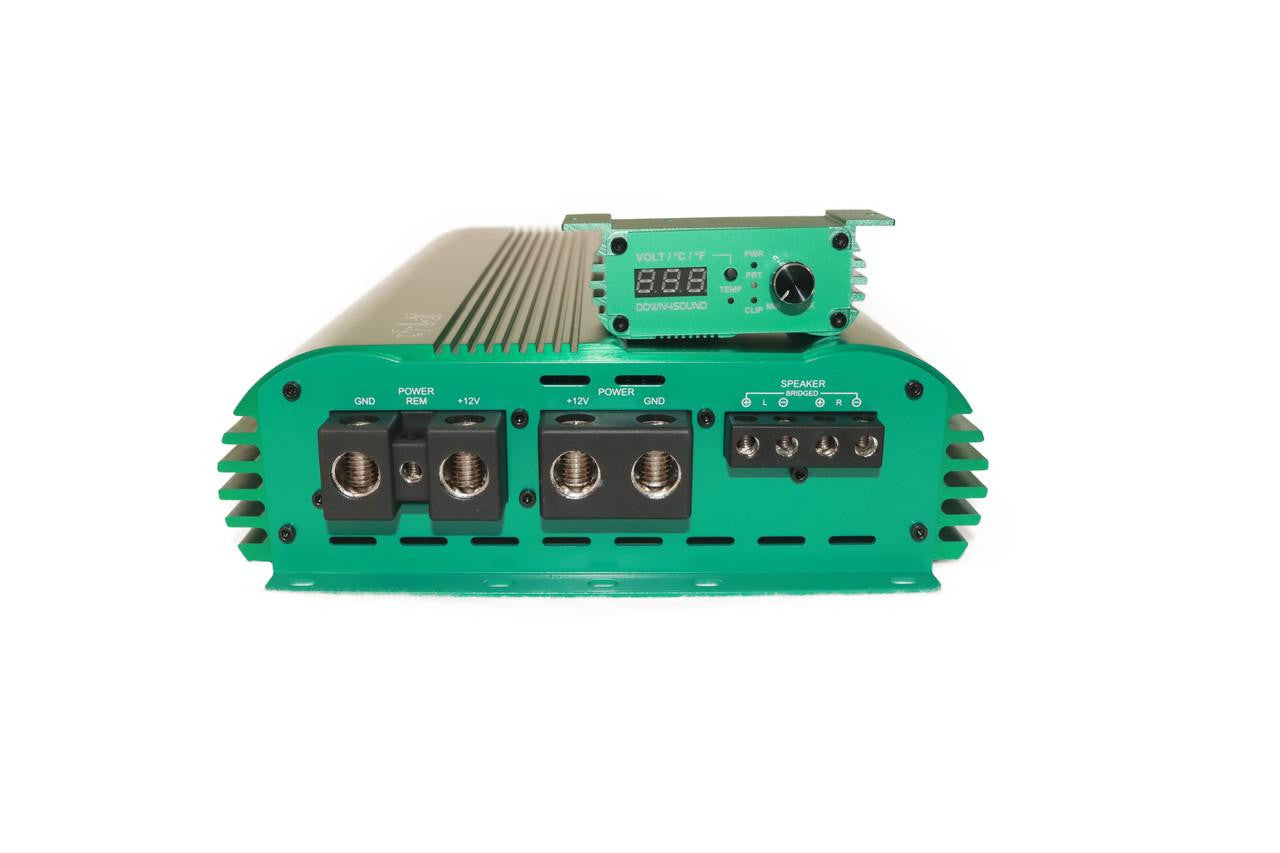

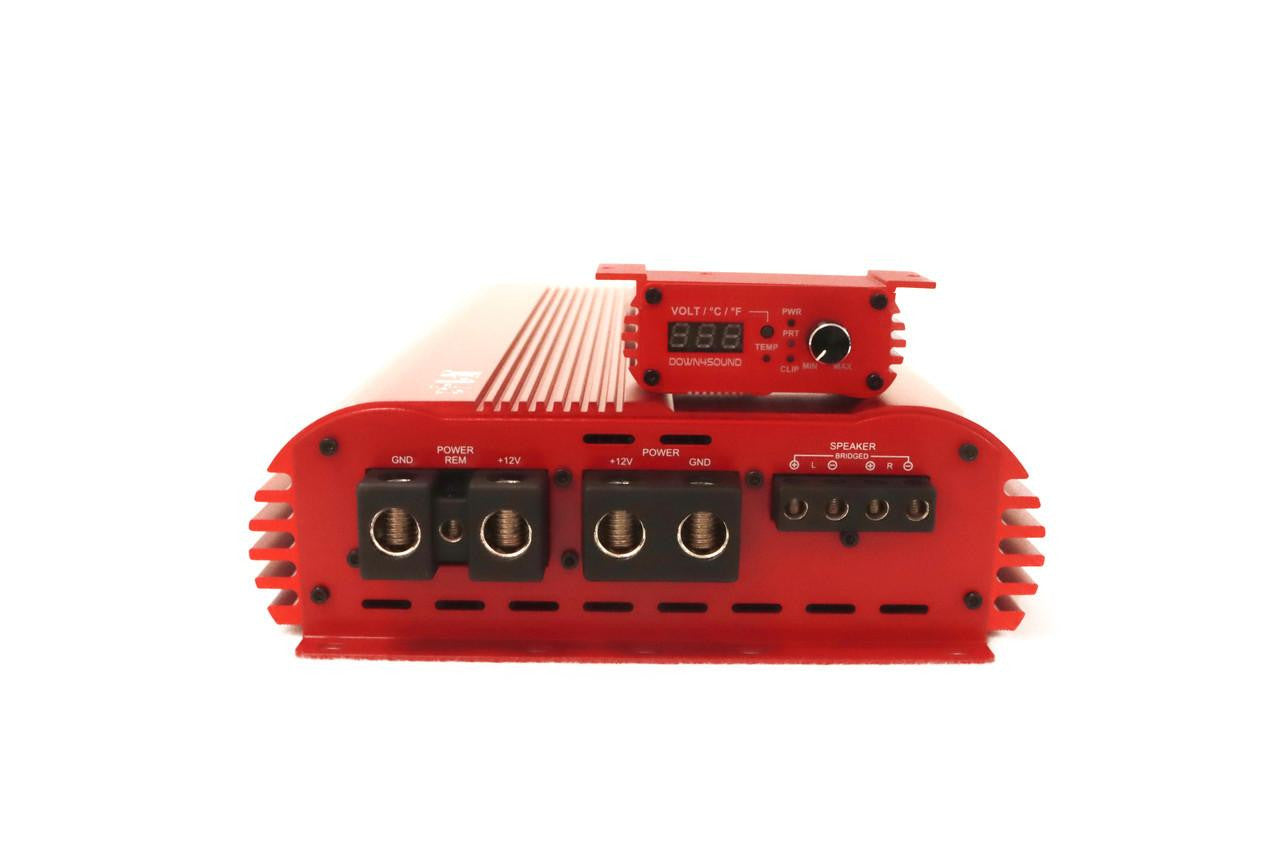

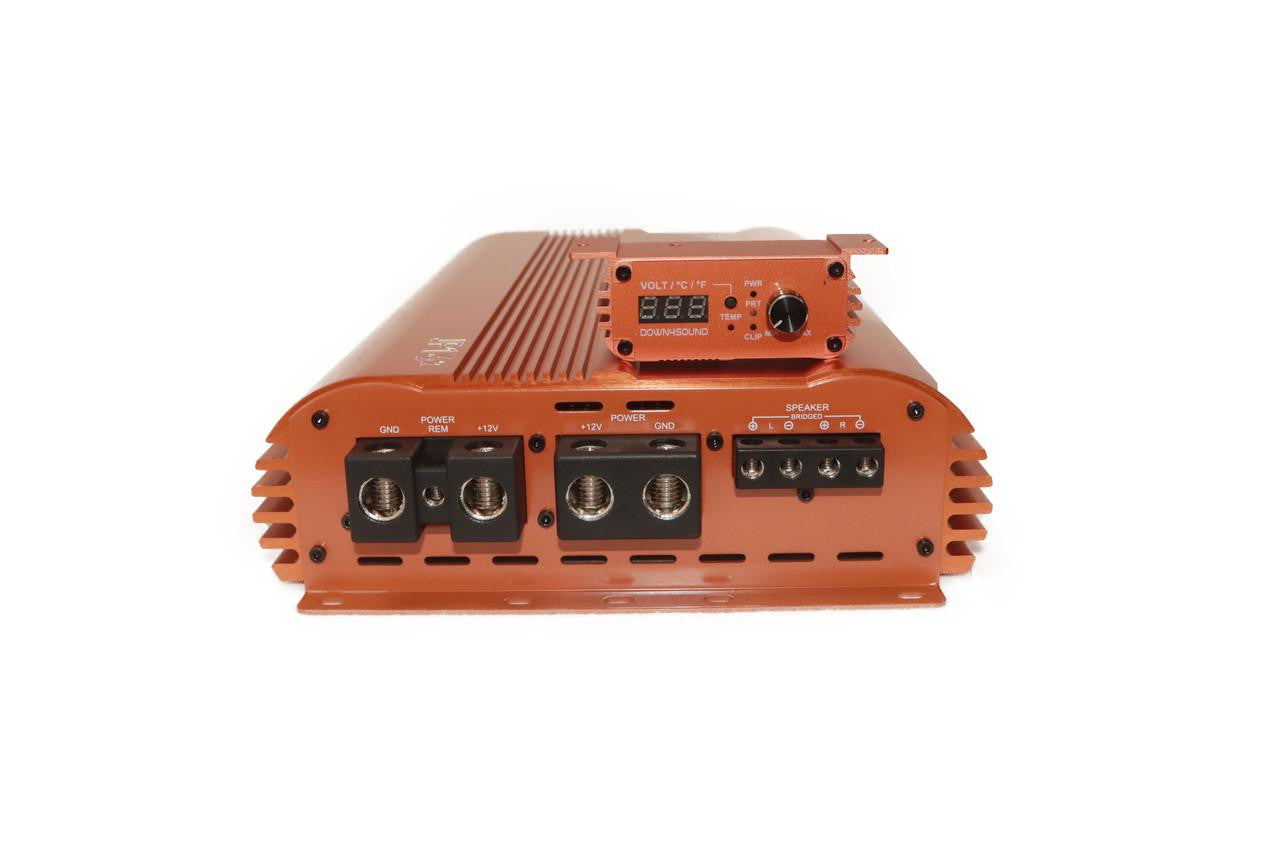

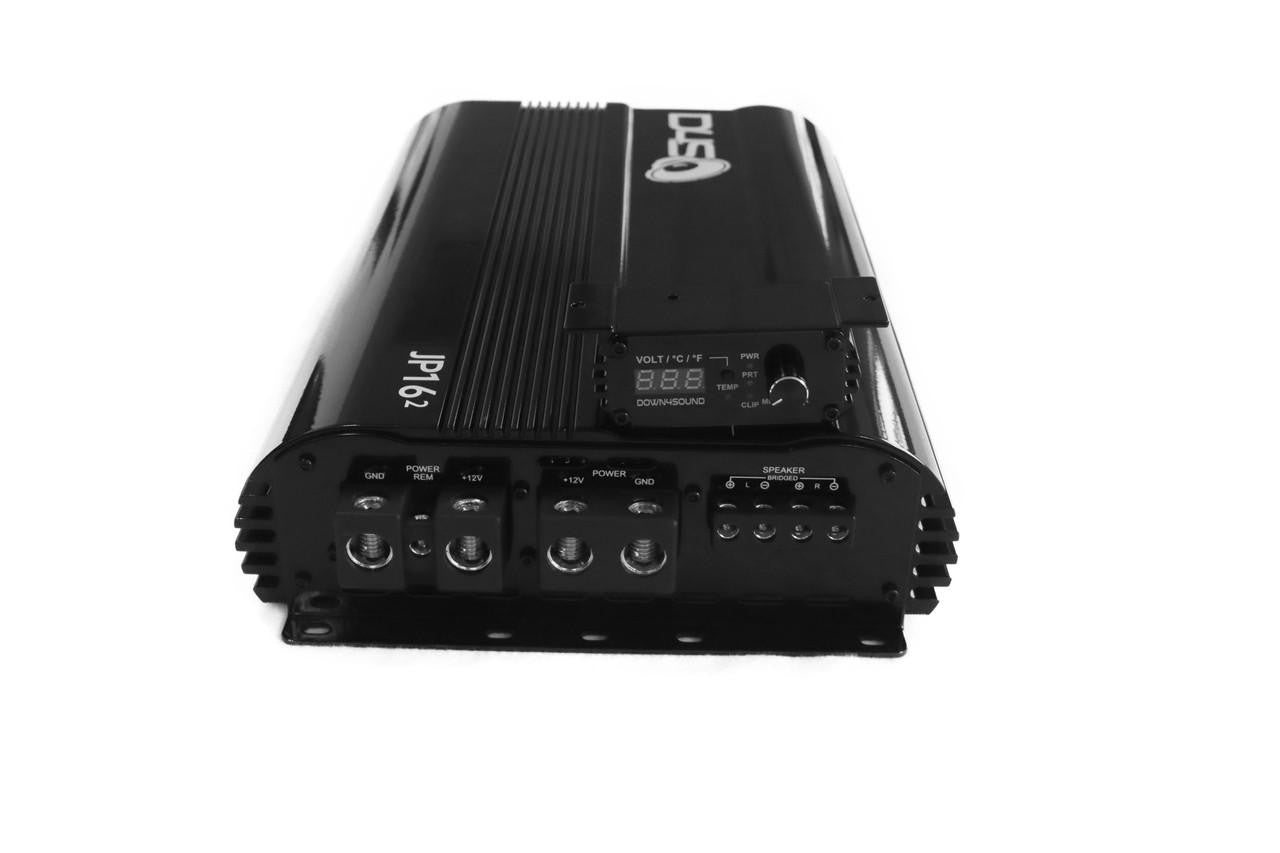

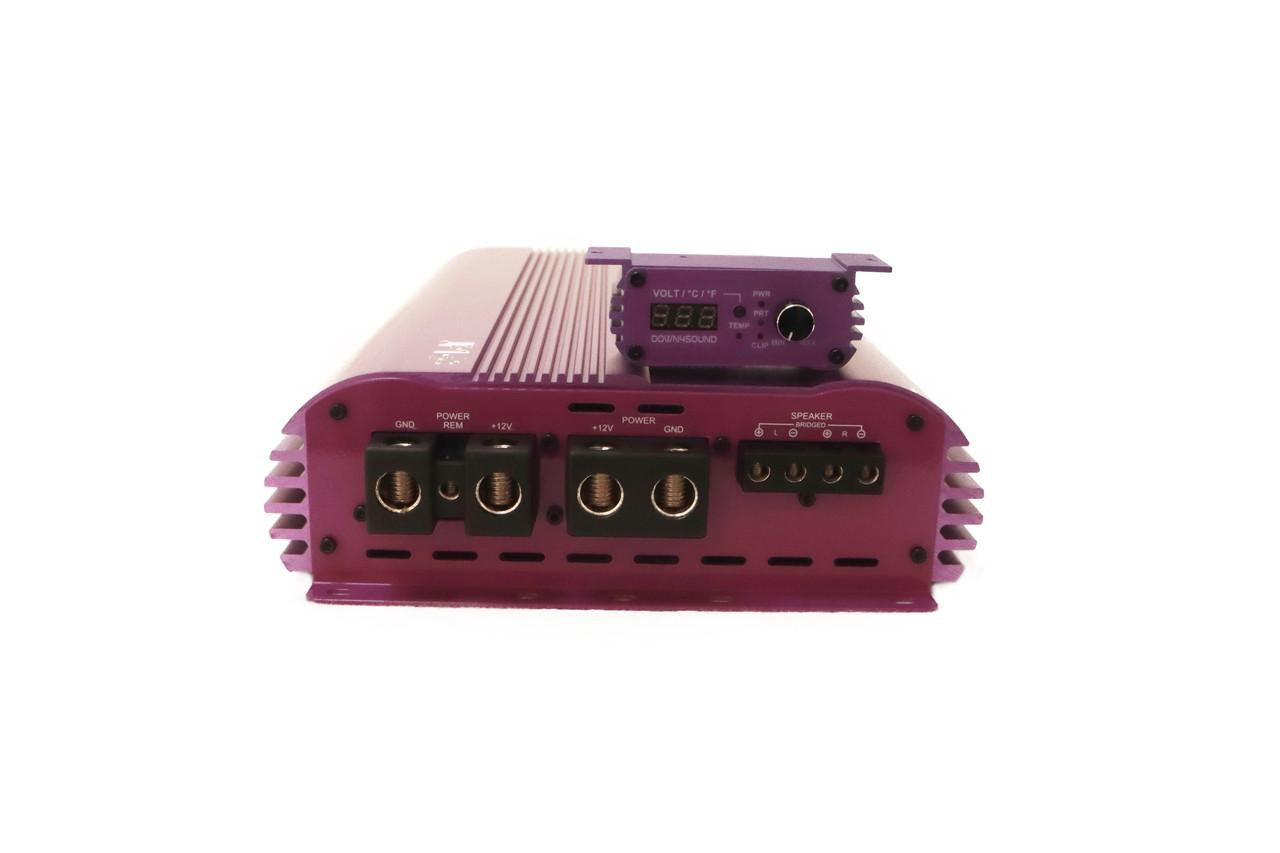

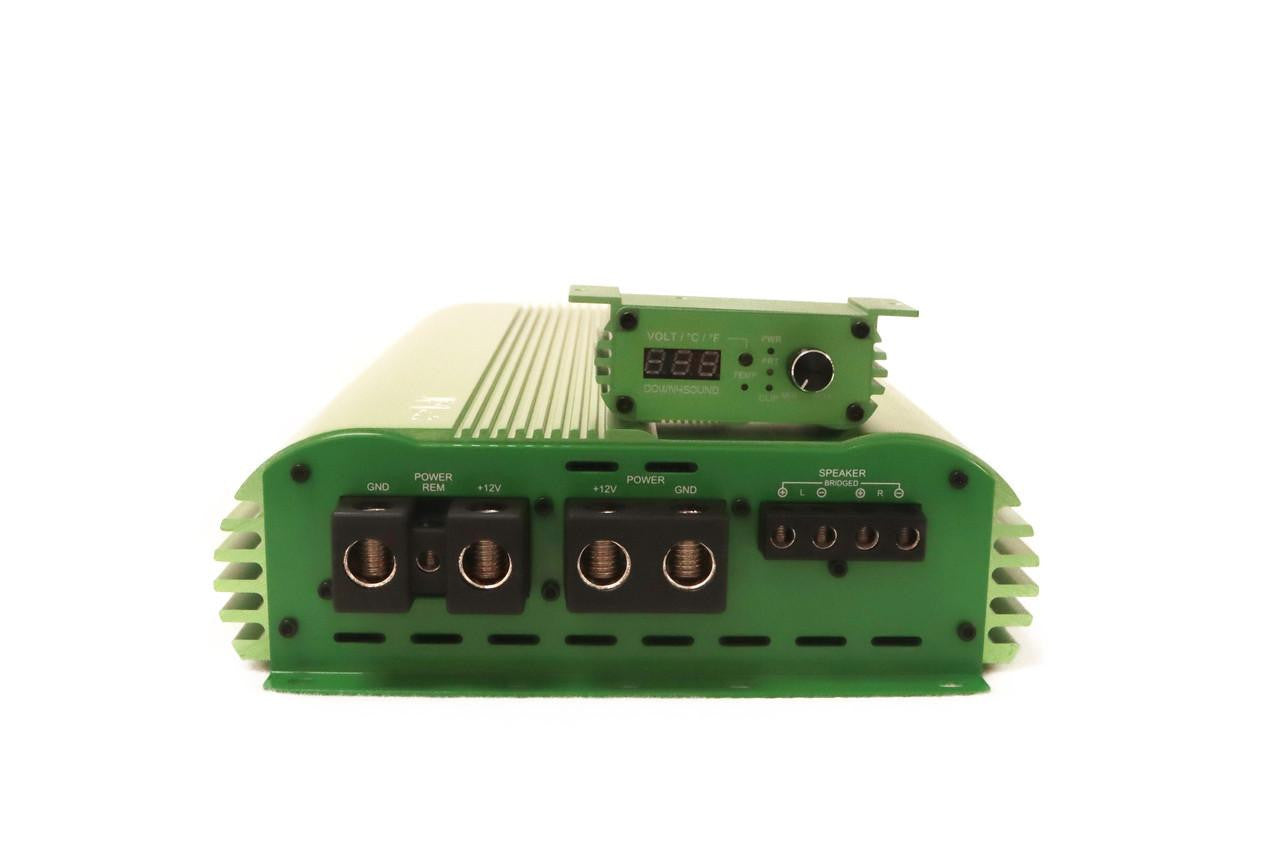

- 2 - 0 Gauge Power/Ground Terminals (4 Total)

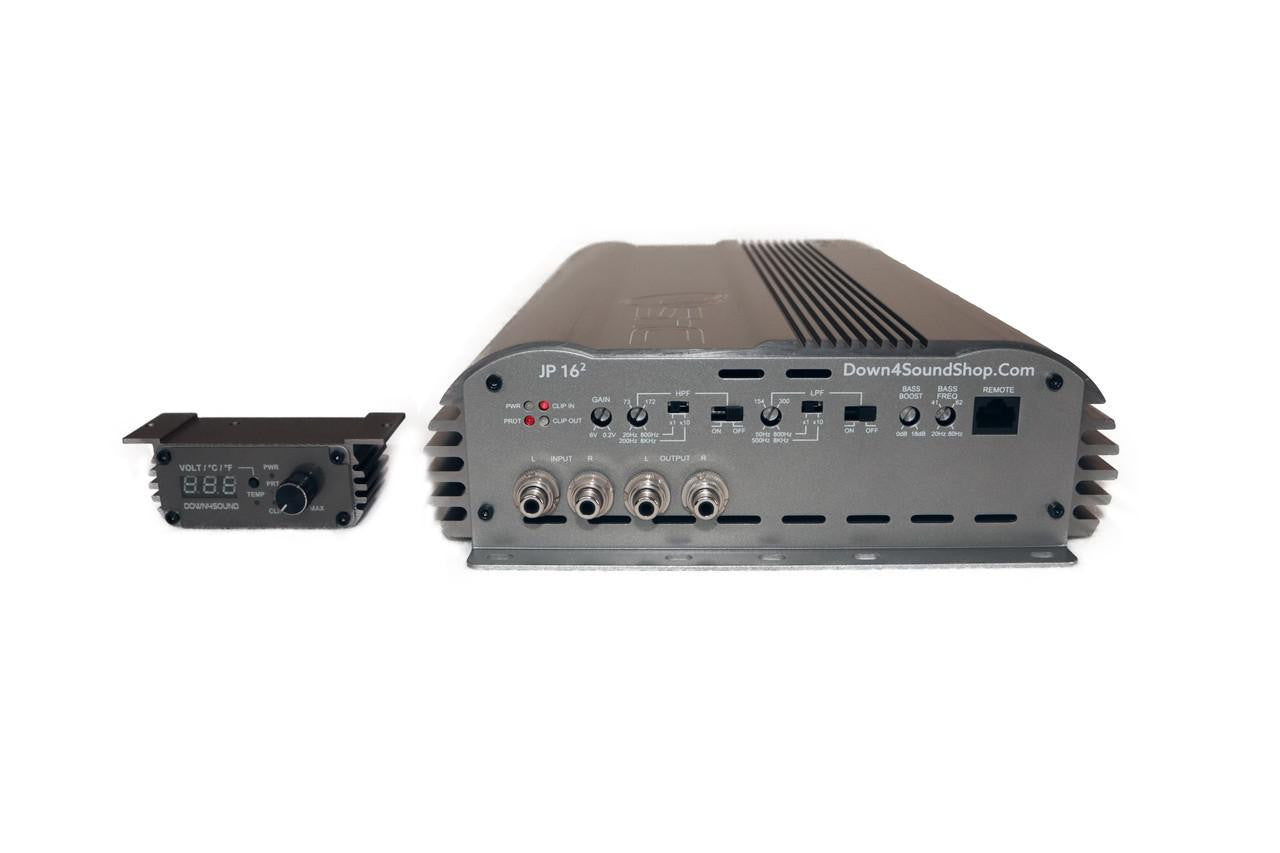

- Remote bass knob with voltage, temperature, and clipping indicators
Specifications
- 4 ohm RMS Power: 600W x 2ch
- 2 ohm RMS Power: 1200W x 2ch
- 1 ohm RMS Power: 1600W x 2ch
- 4 ohm RMS Bridged Power: 2500W x 1ch
- 2 ohm RMS Bridged Power: 3700W x 1ch
- Tested at 14.4V & 1% THD
- Frequency Response: 10Hz – 22.1KHz
- Signal to Noise Ratio: 80dB
- Damping Factor: 160
- Input Sensitivity: 6V – 0.2V
- High Pass Filter: 20Hz – 800Hz (Multiply x1, x10: 200Hz - 8kHz)
- Low Pass Filter: 50Hz – 800Hz (Multiply x1, x10: 500Hz - 8kHz)
- Bass Boost Frequency: 20Hz – 80Hz
- Working Voltage: 9V – 15.5V
- Dimensions: 360mm L x 238mm W x 69mm H (14.17 x 9.37 x 2.71 inches)
