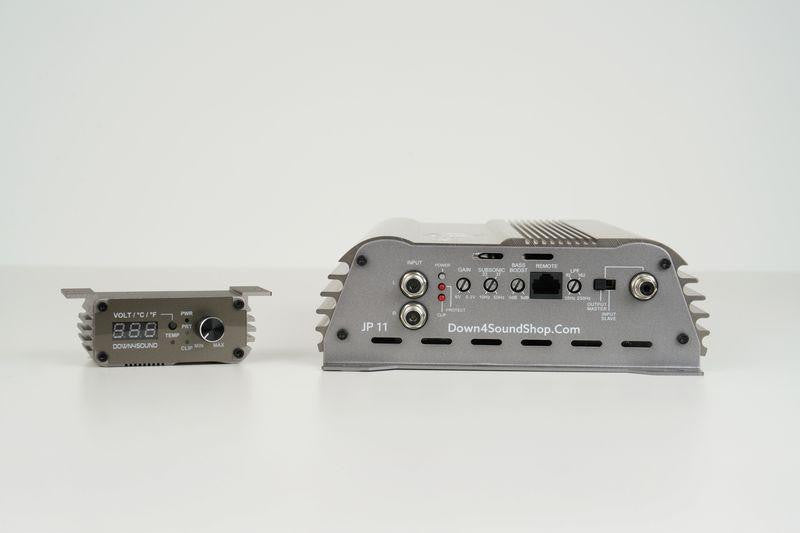

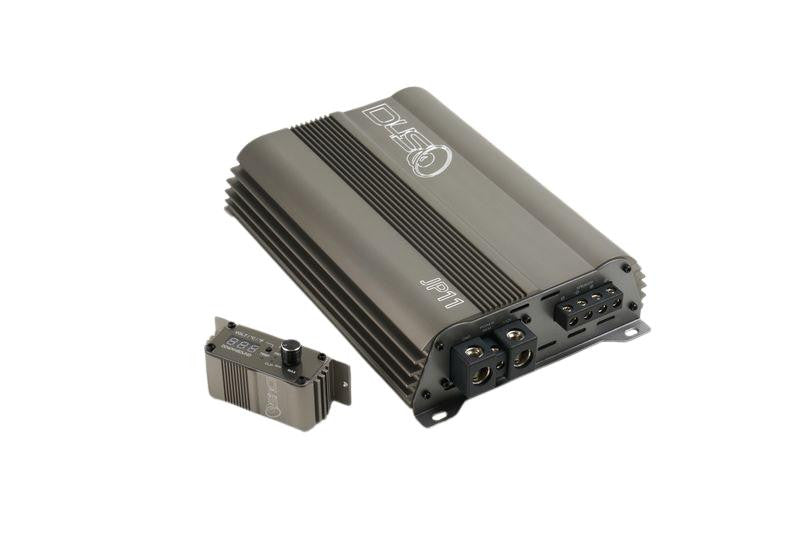

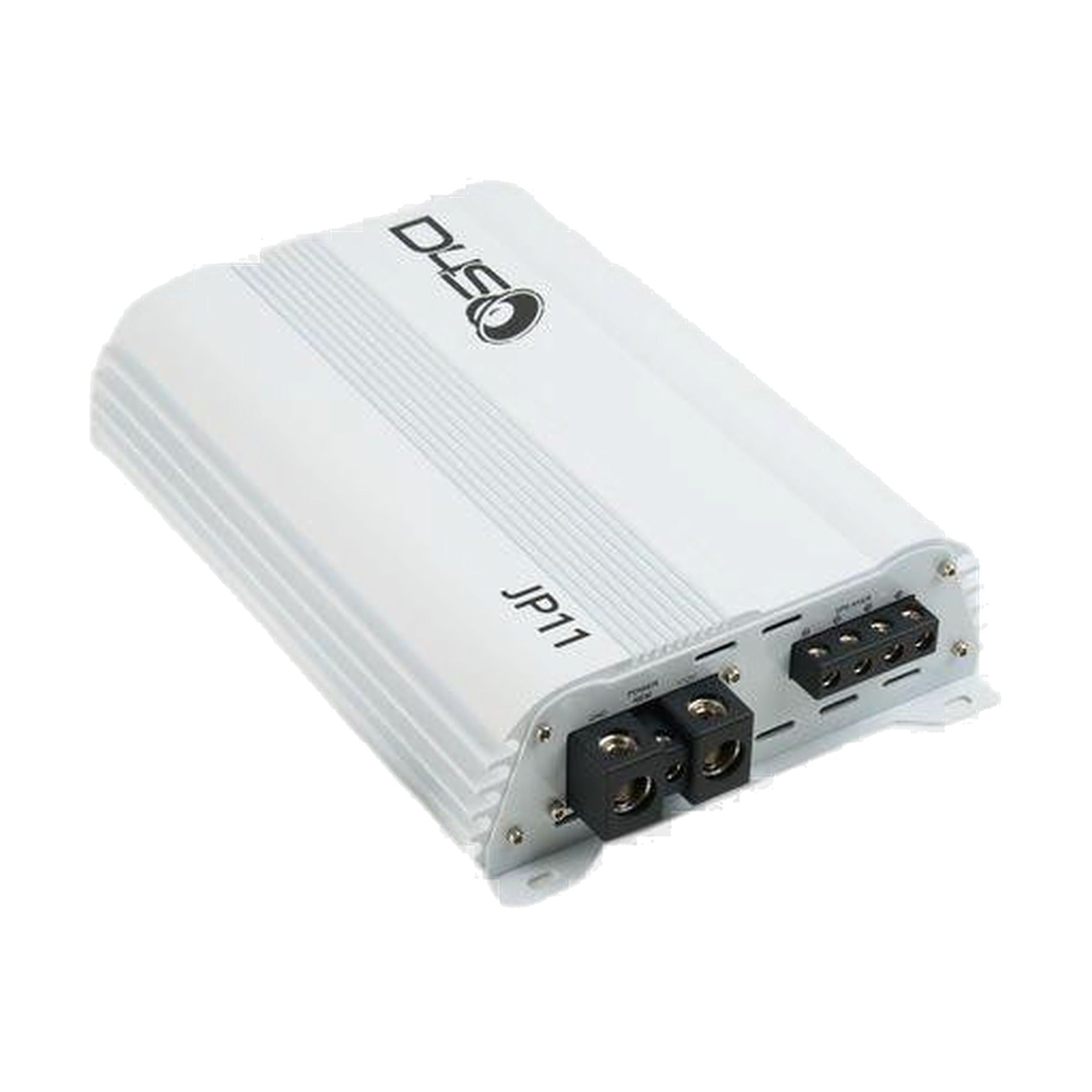

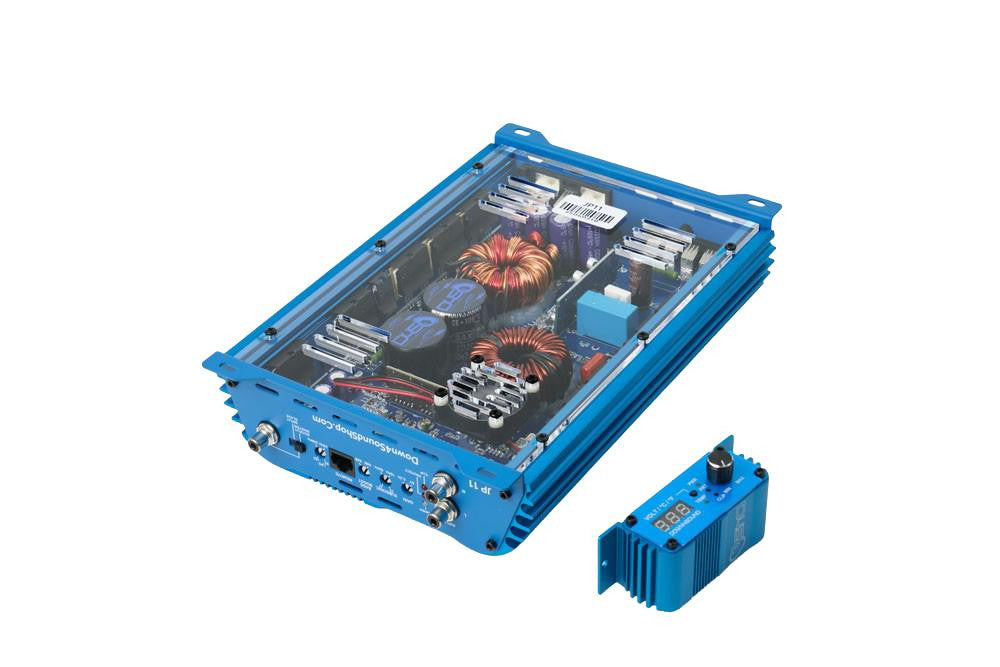

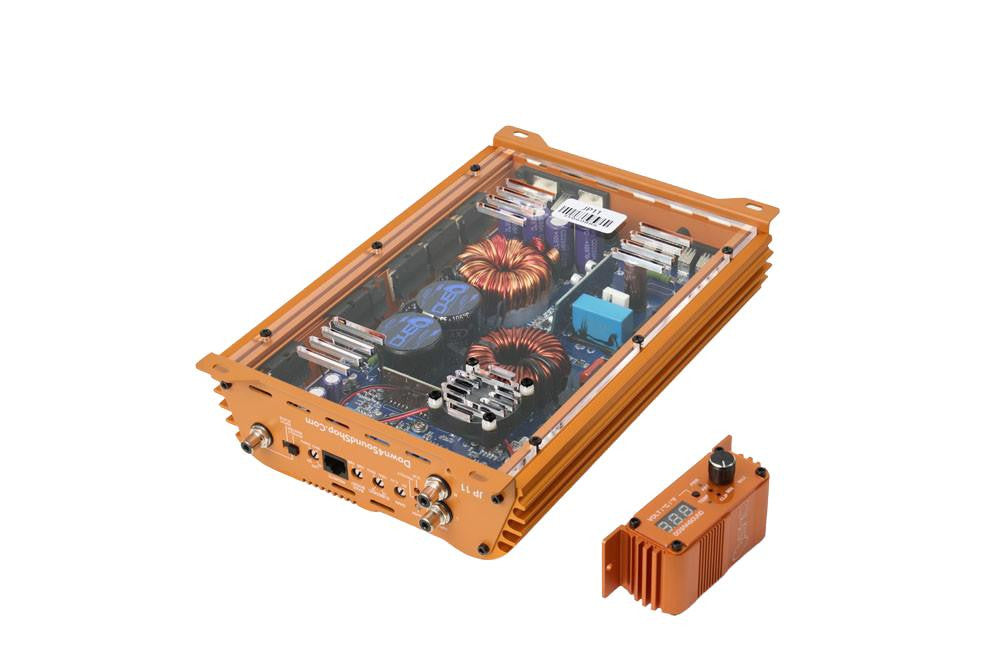

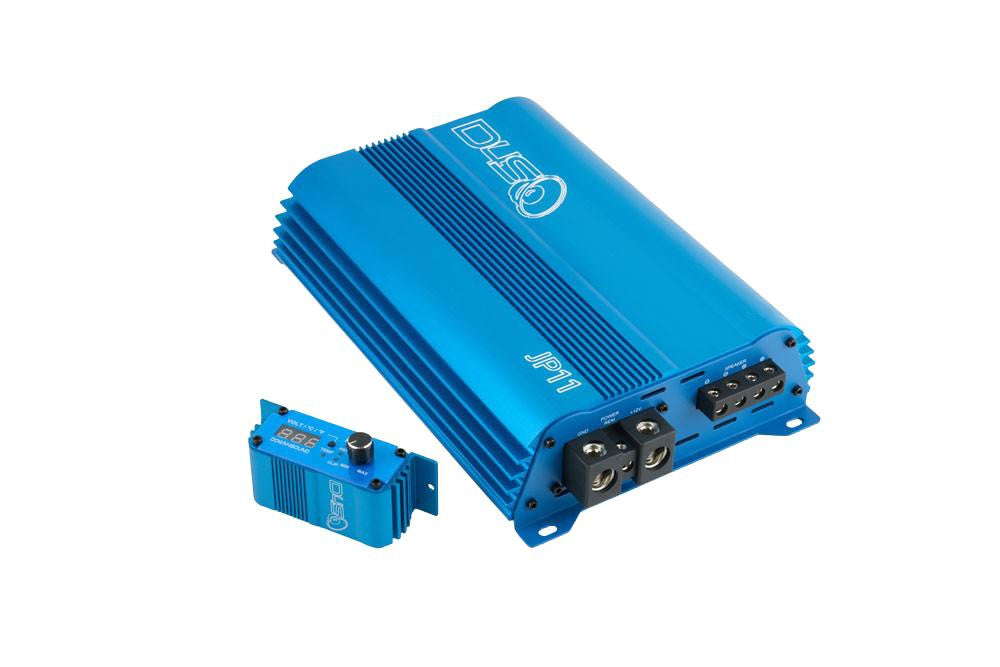

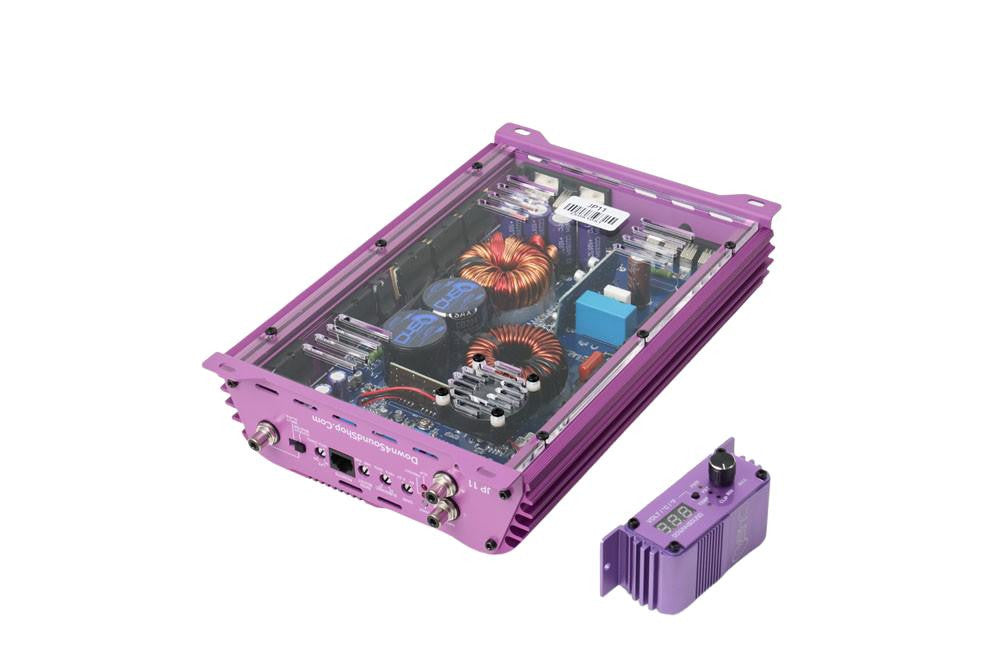

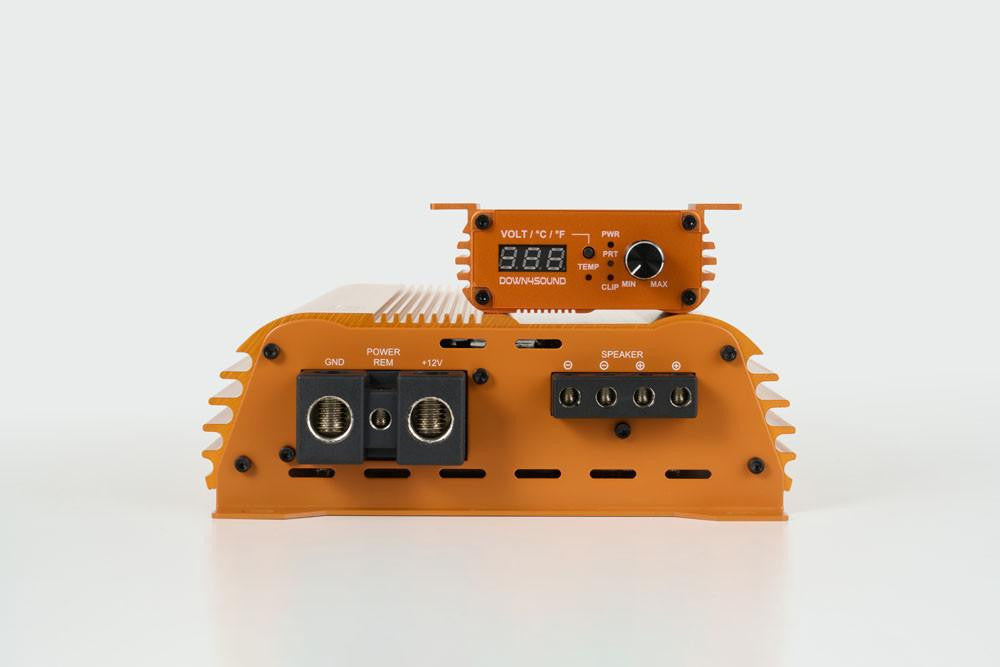

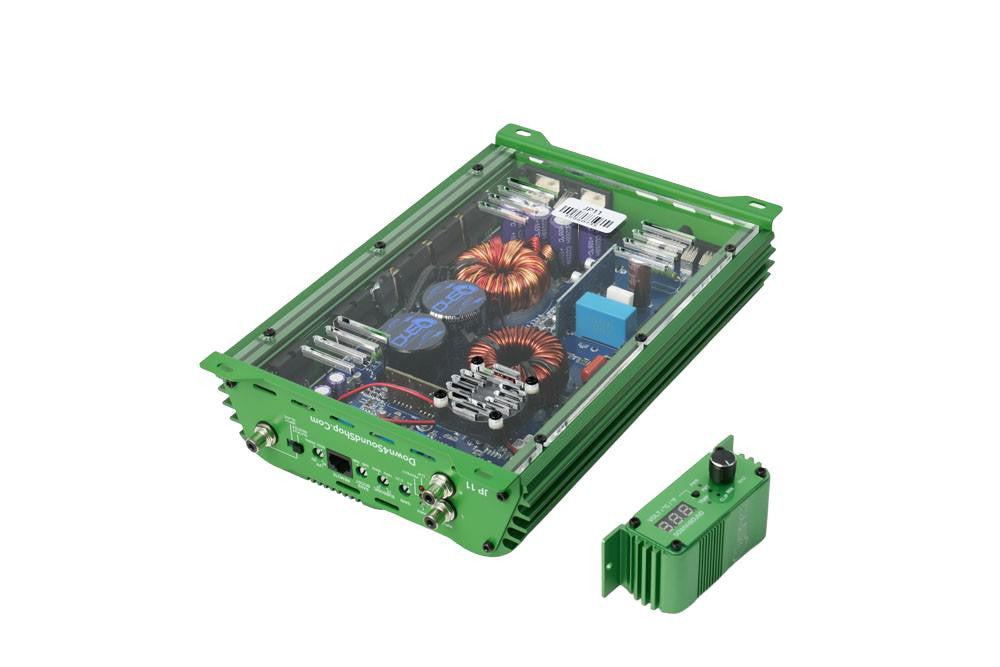

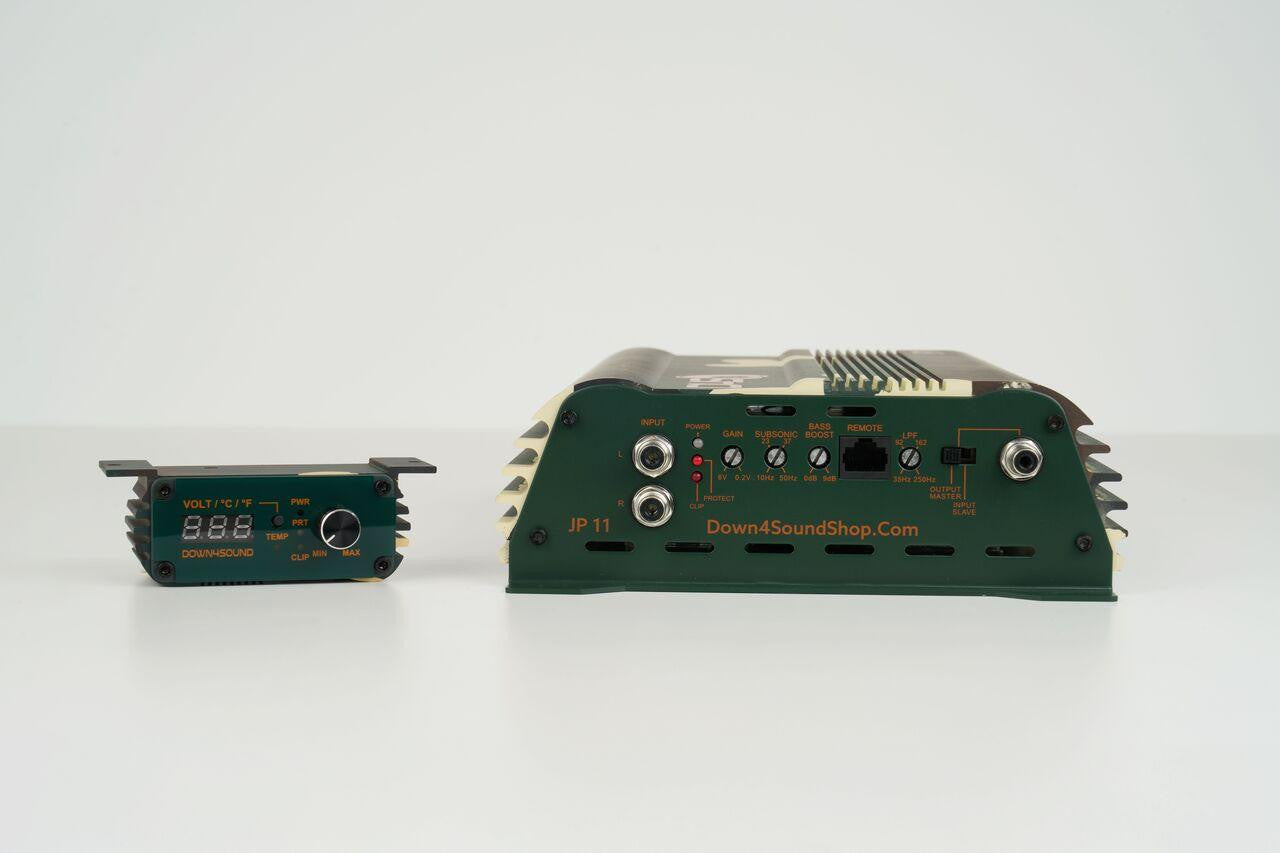

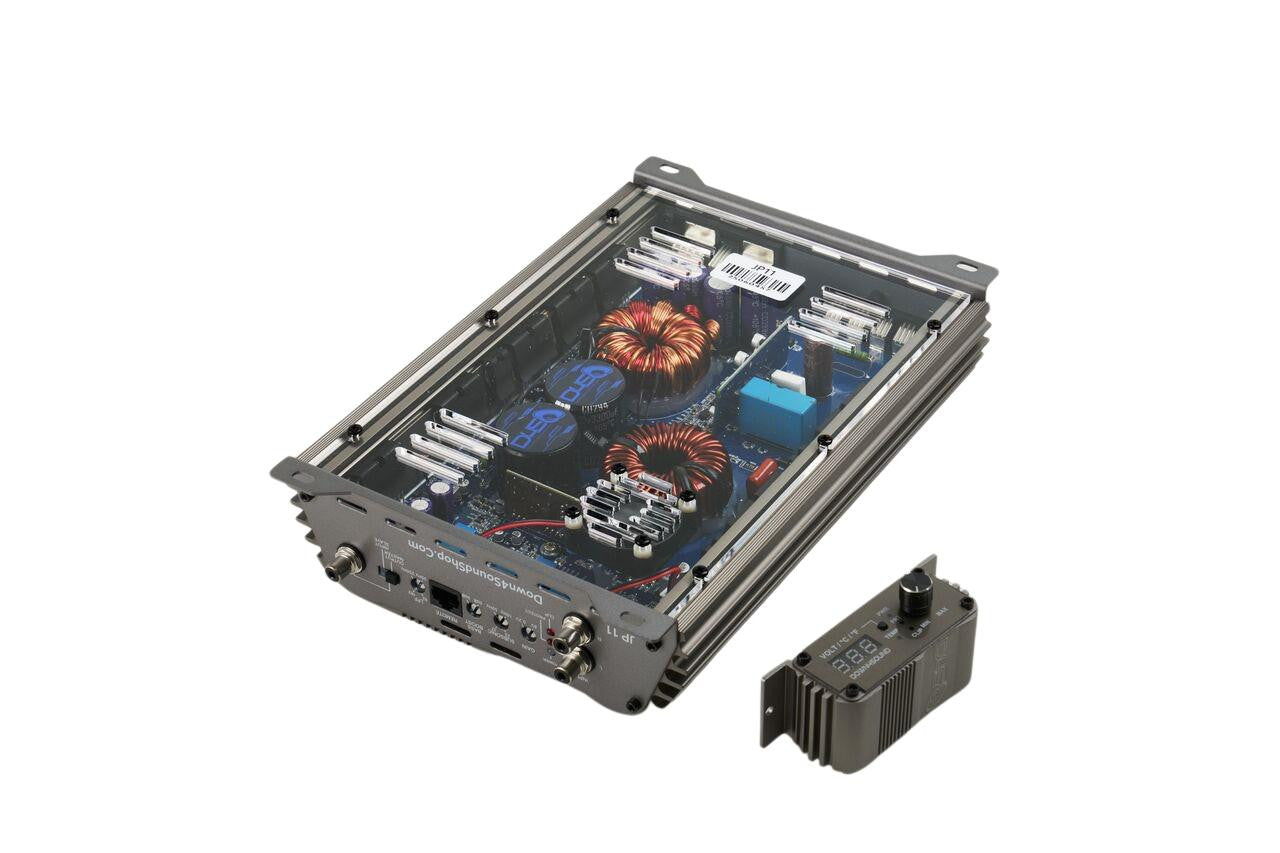

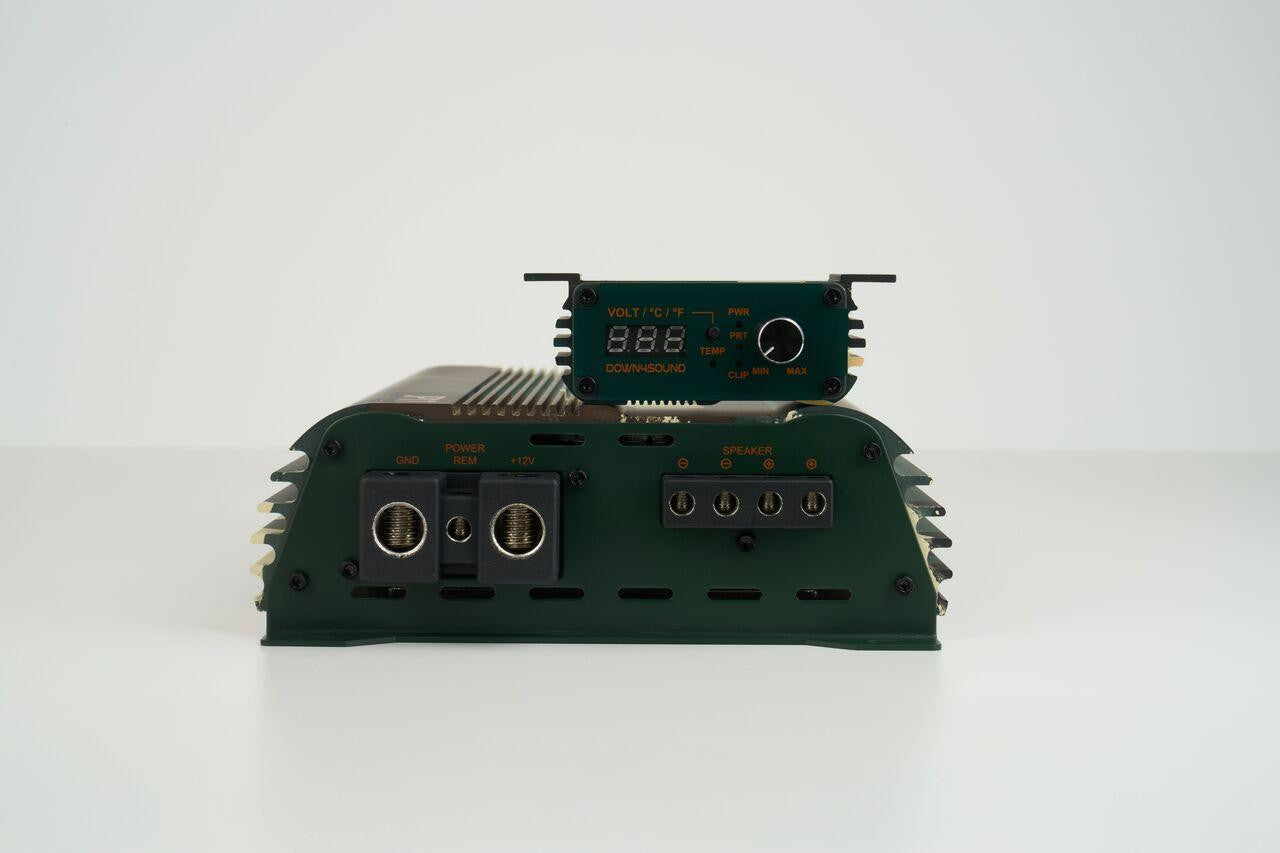

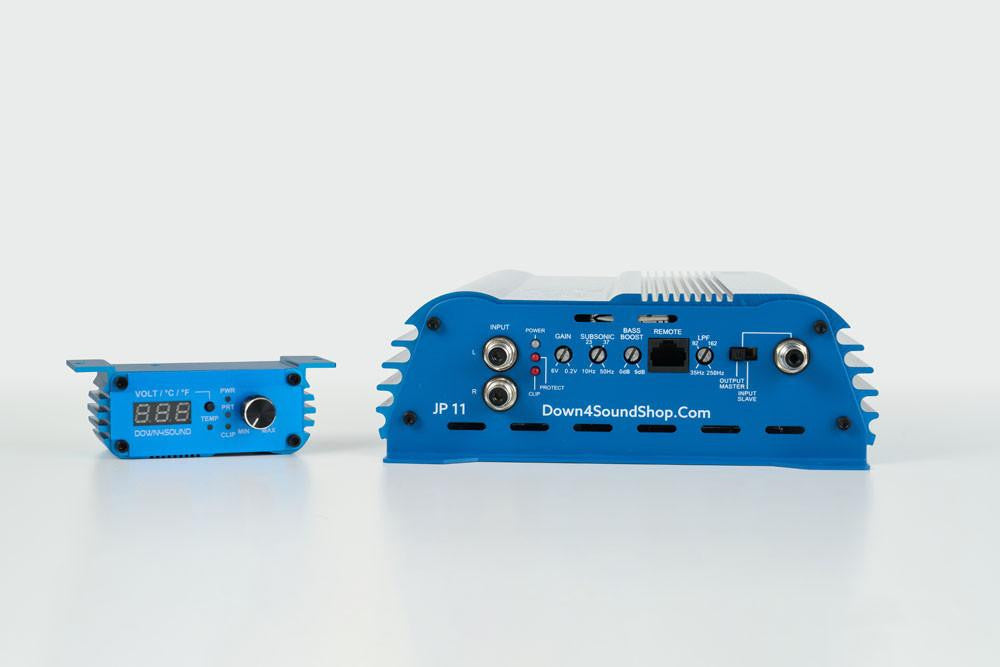

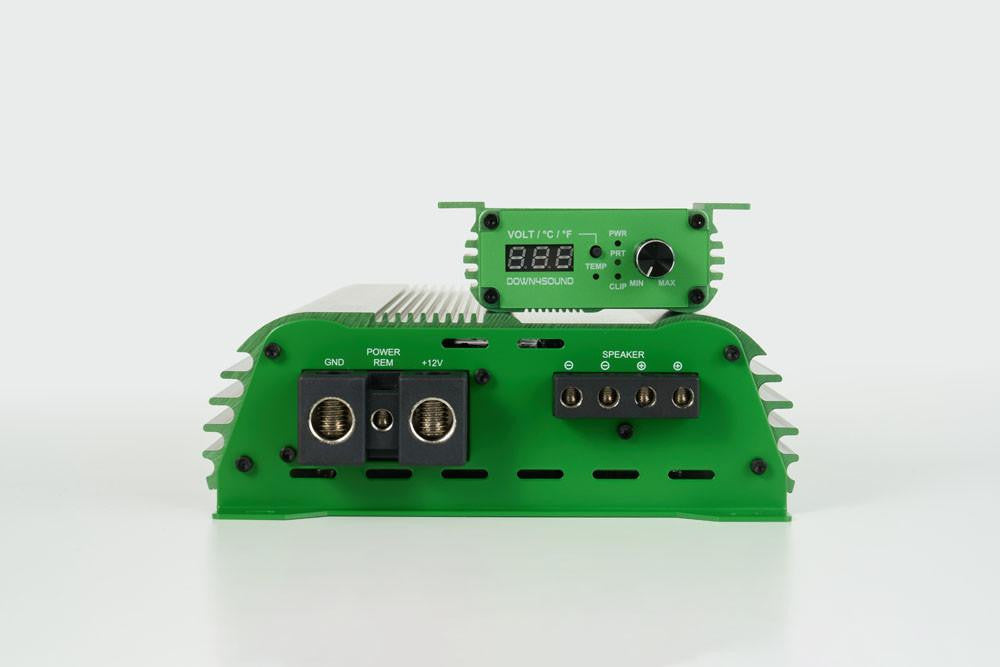

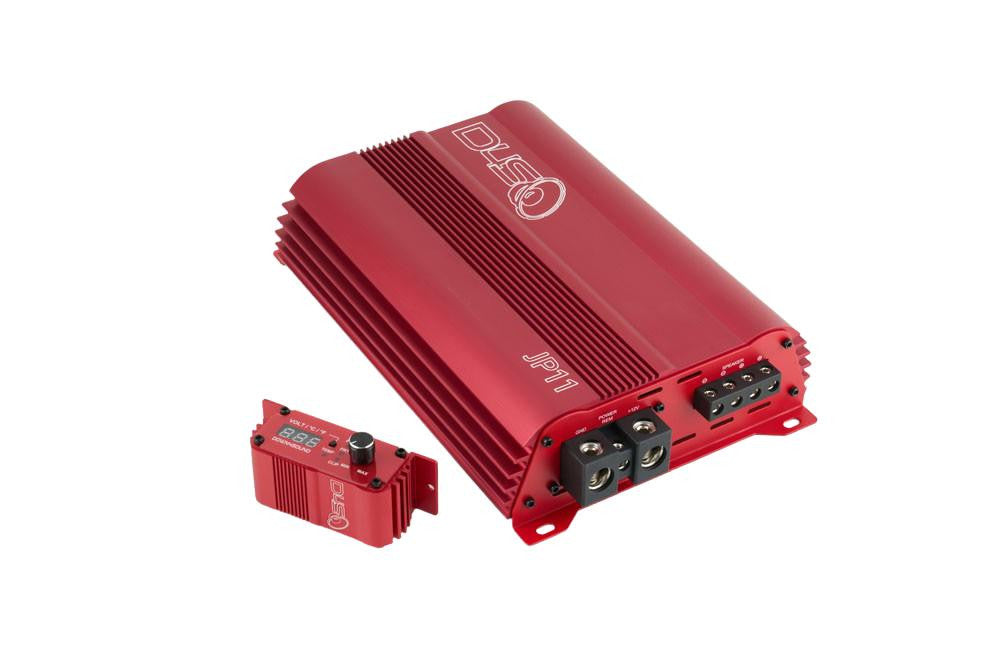

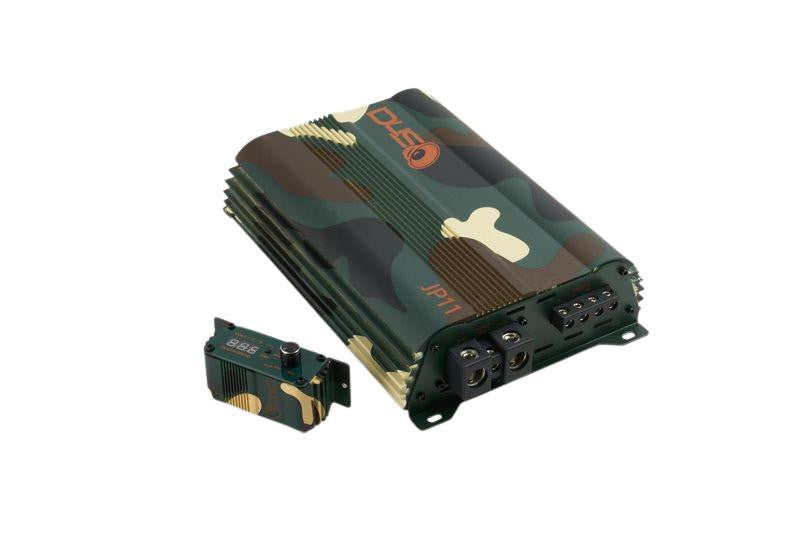

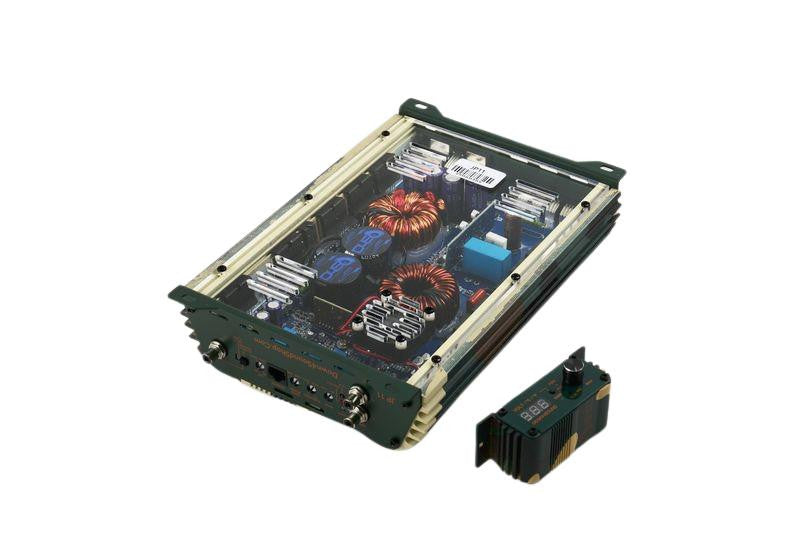

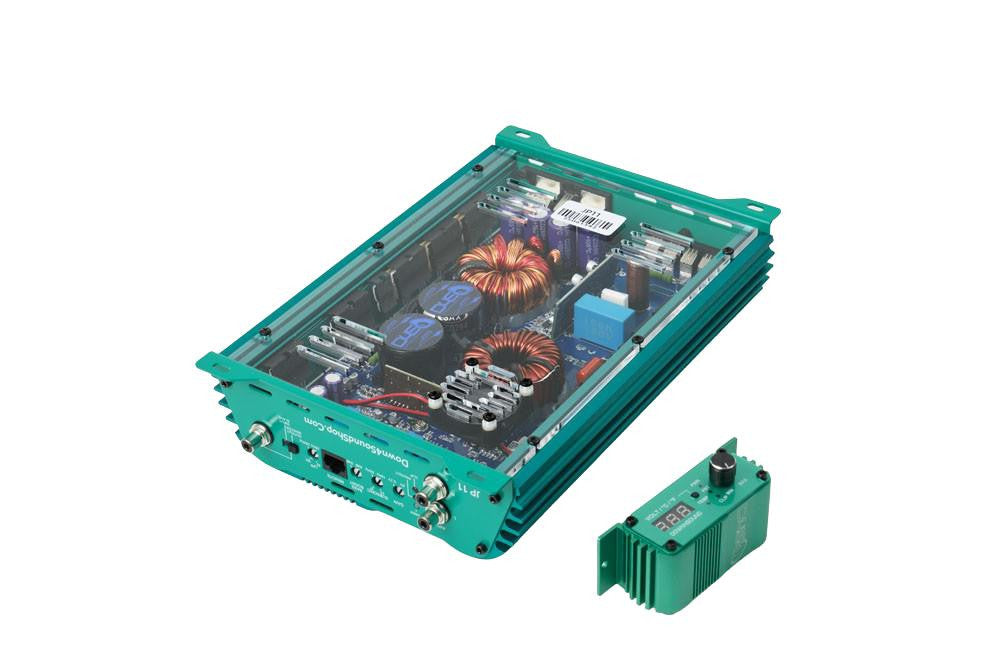

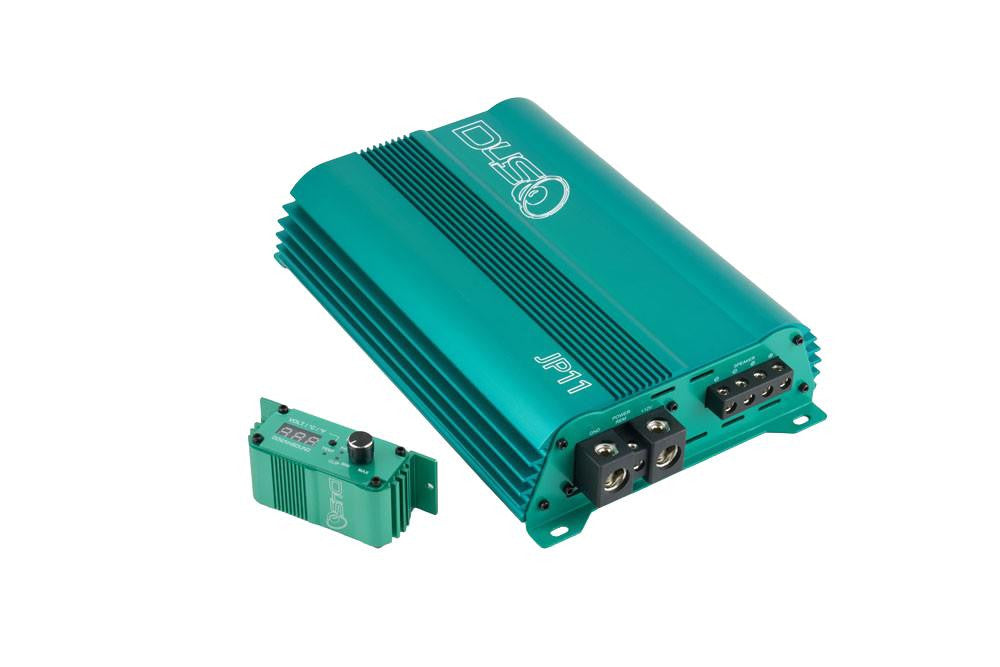

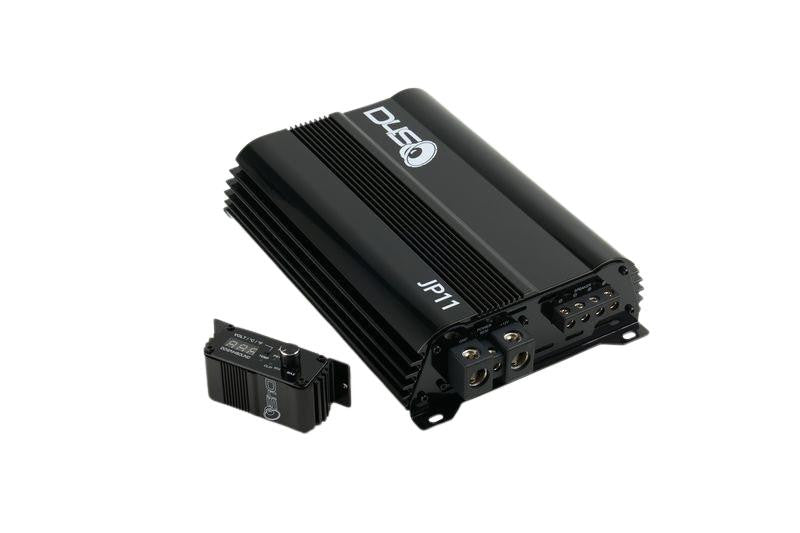

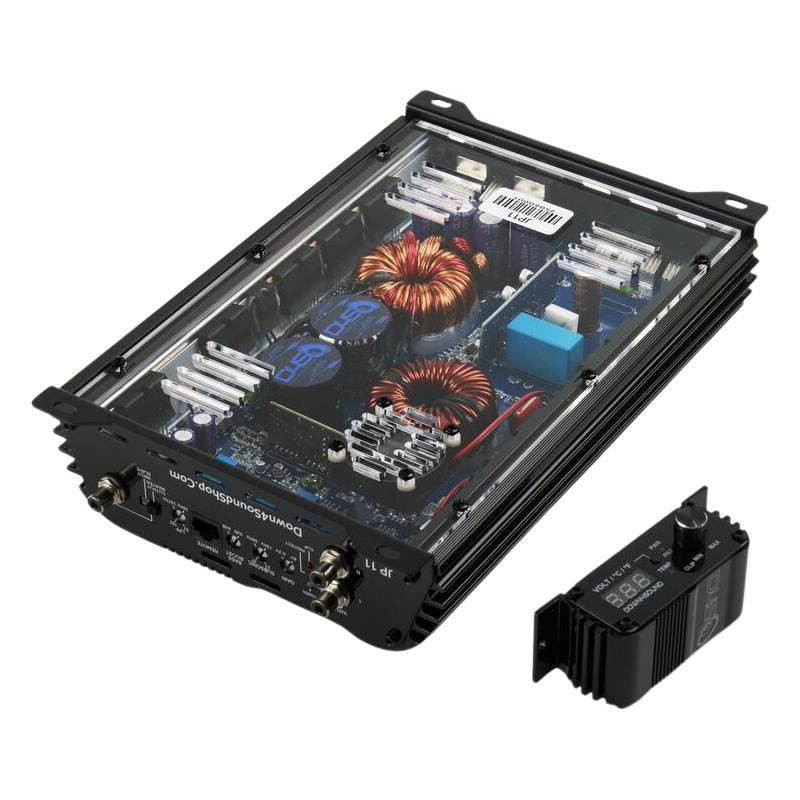

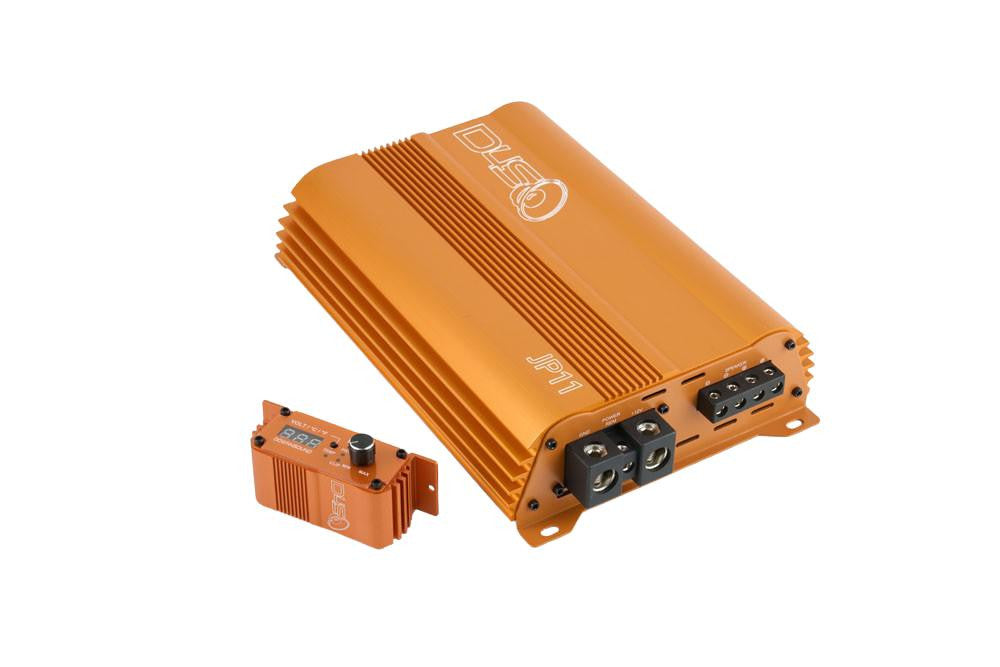

The JP11 from D4S is a compact, high-performance monoblock amplifier designed for daily drivers and entry-level demos. Built for reliability and clean output, it delivers serious power in a compact footprint, making it perfect for tight installations and clean builds.
Power Ratings (RMS)
- 580W x 1 @ 4 Ohm
- 800W x 1 @ 2 Ohm
- 1100W x 1 @ 1 Ohm (Tested at 14.4V, 1% THD)

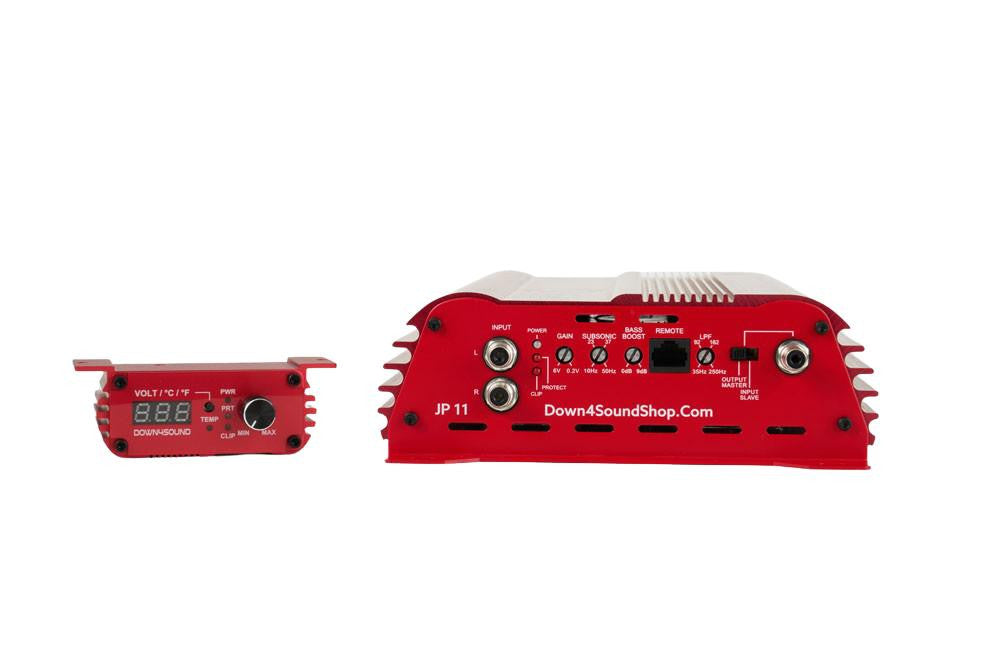

Performance Specs
- Frequency Response: 13Hz – 268Hz
- Signal-to-Noise Ratio: 95dB
- Damping Factor: 180
- Input Sensitivity: 6V – 0.2V
- Subsonic Filter: 10Hz – 50Hz
- Low Pass Filter: 35Hz – 250Hz
- Bass Boost: 0 – 9dB at 45Hz
- 41-click potentiometer controls for precision tuning
Features
- Strappable (Master/Slave configuration)

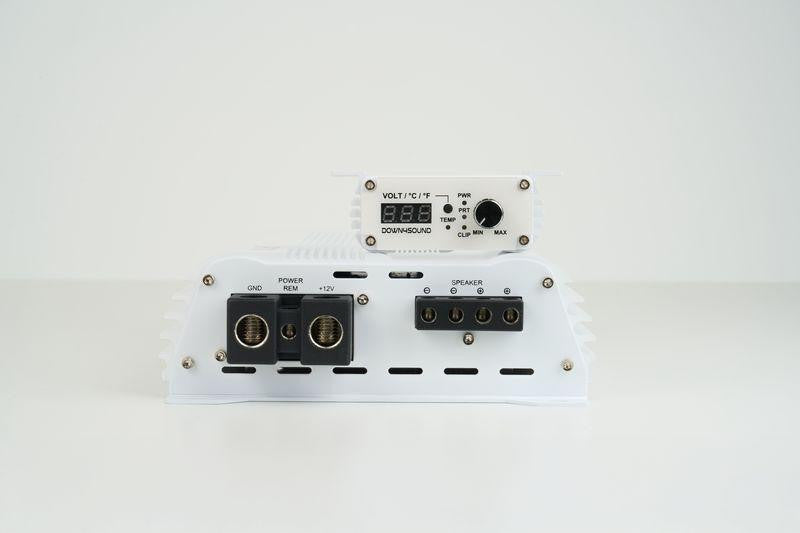

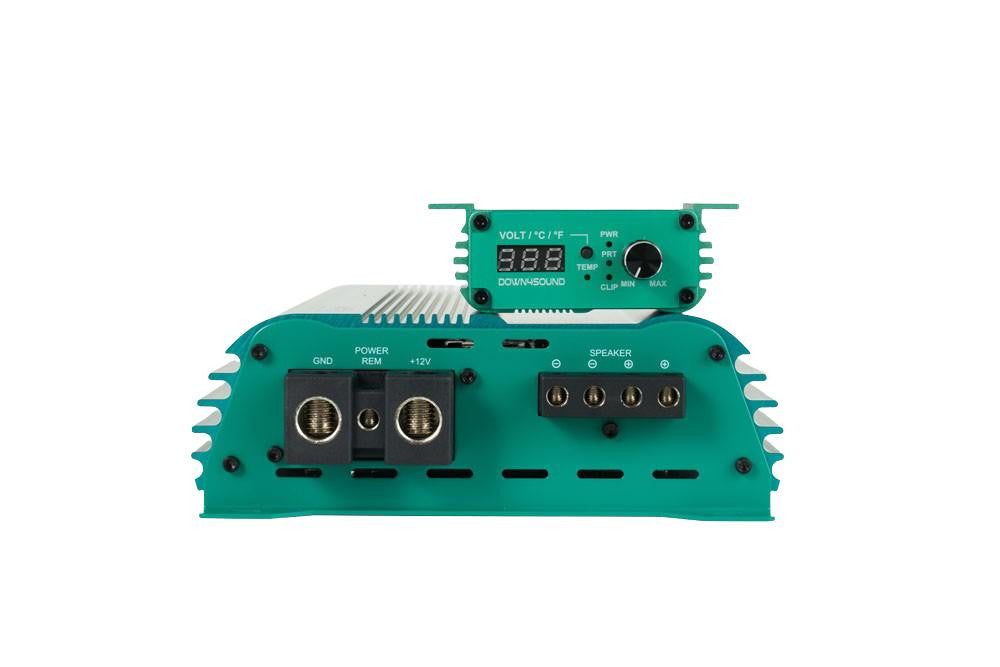

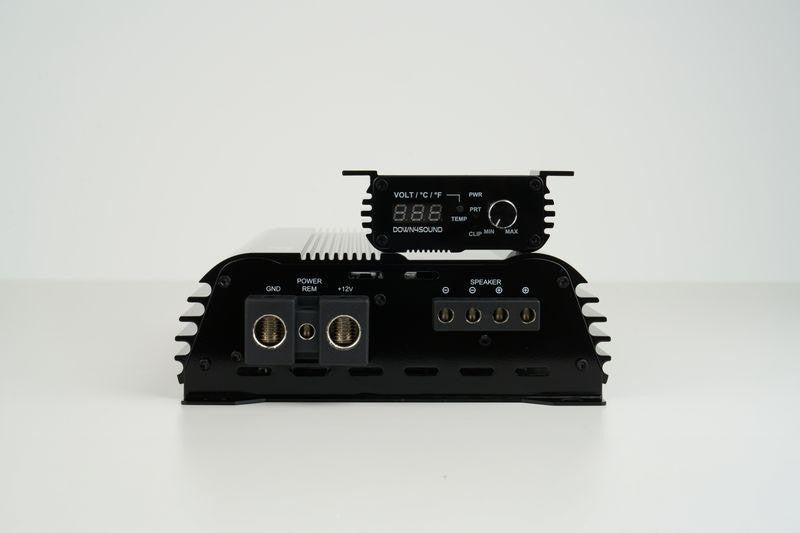

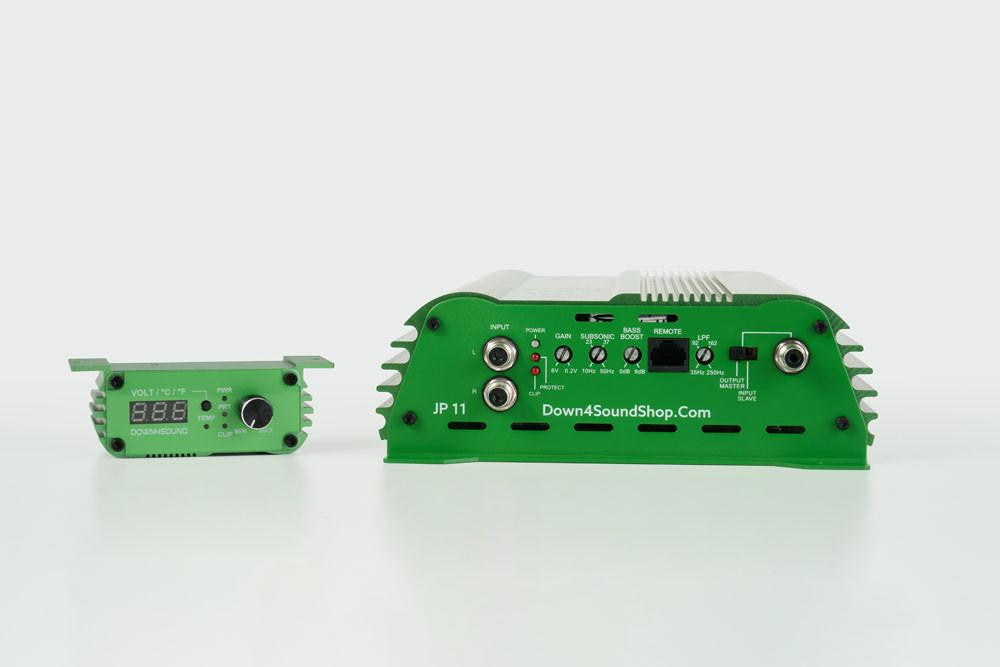

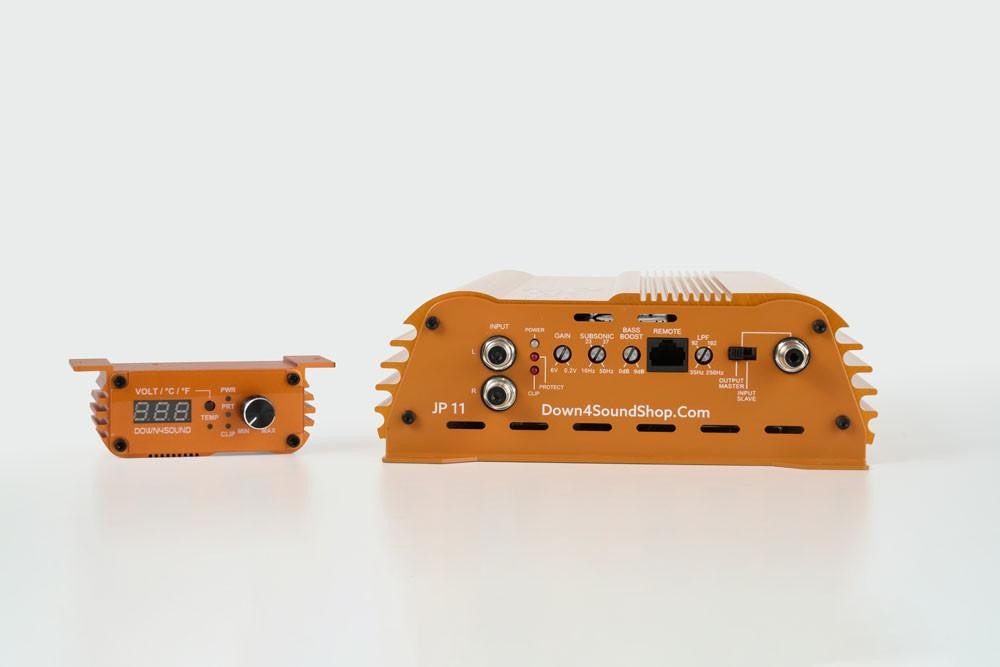

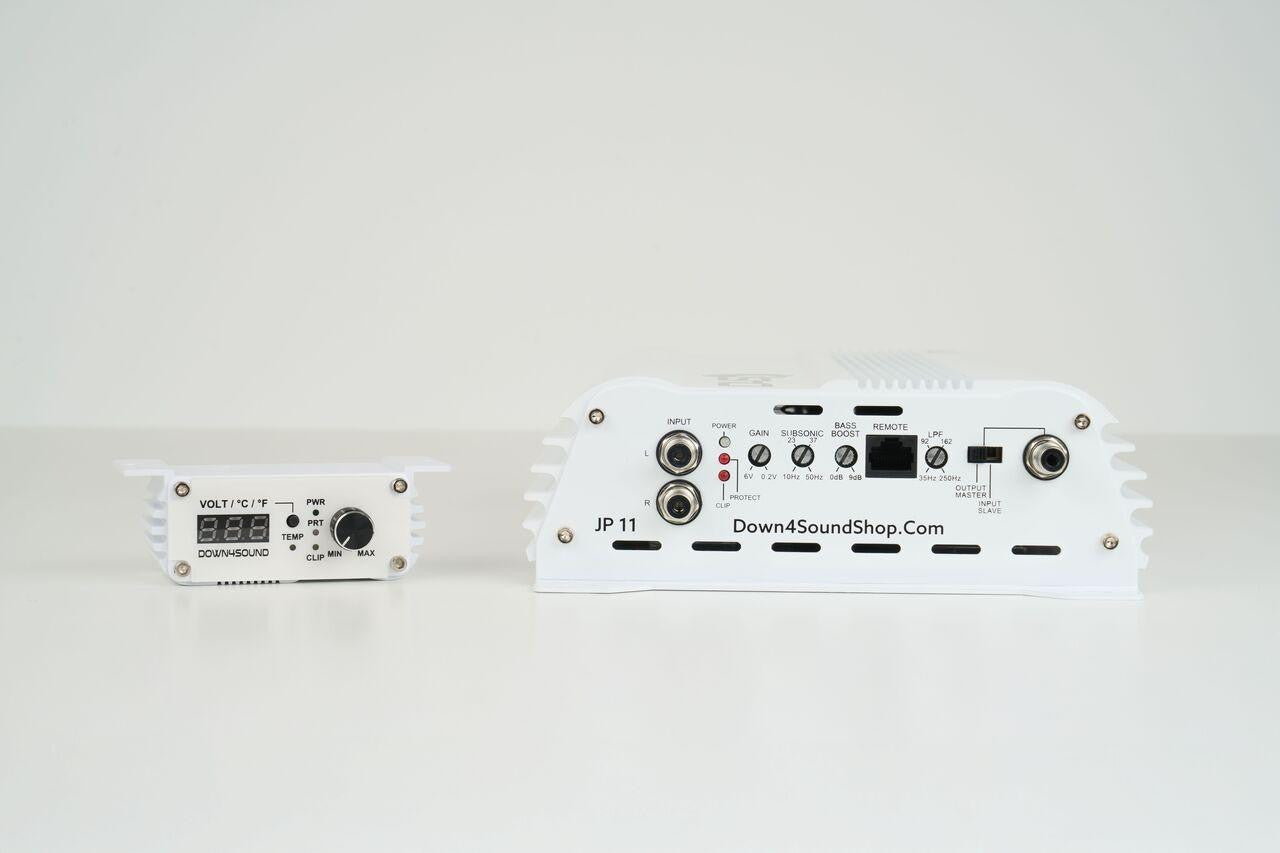

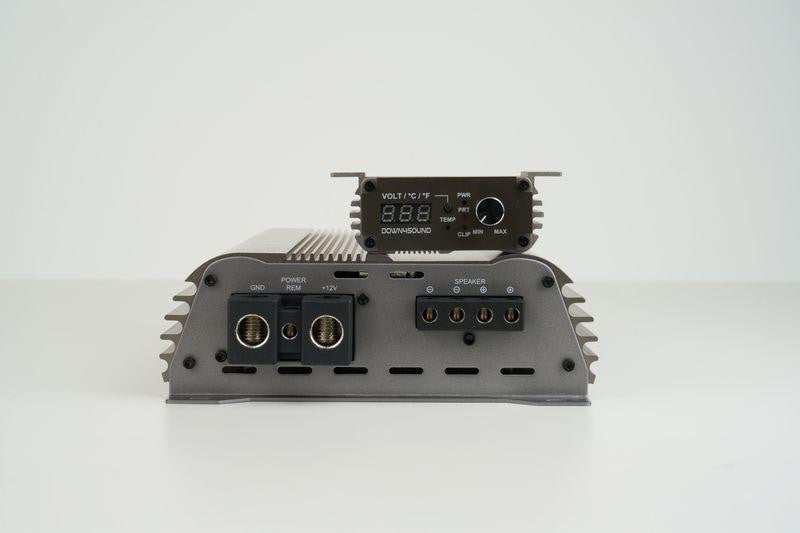

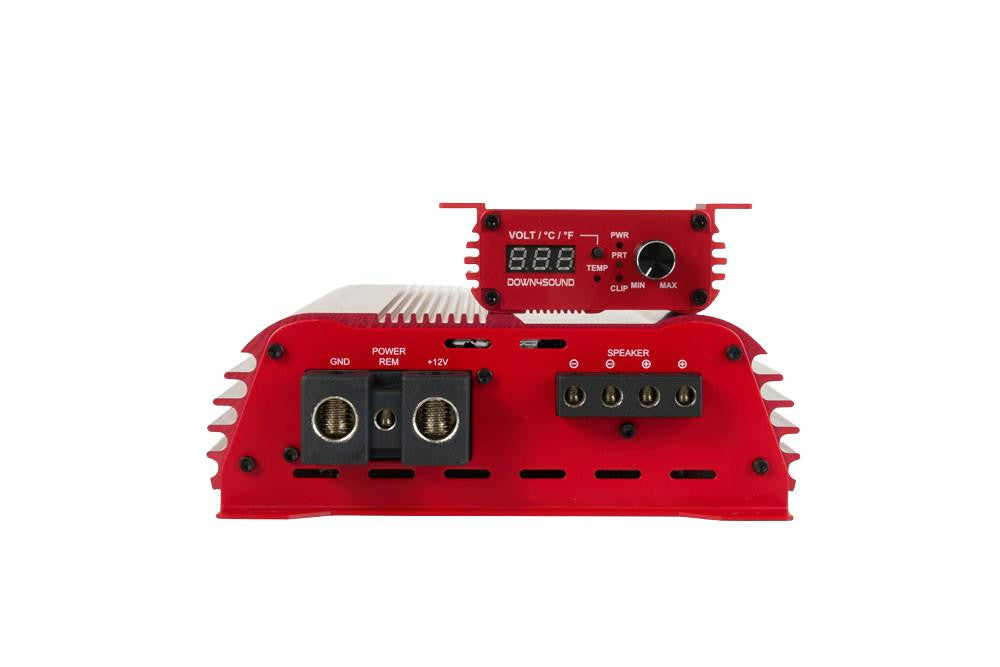

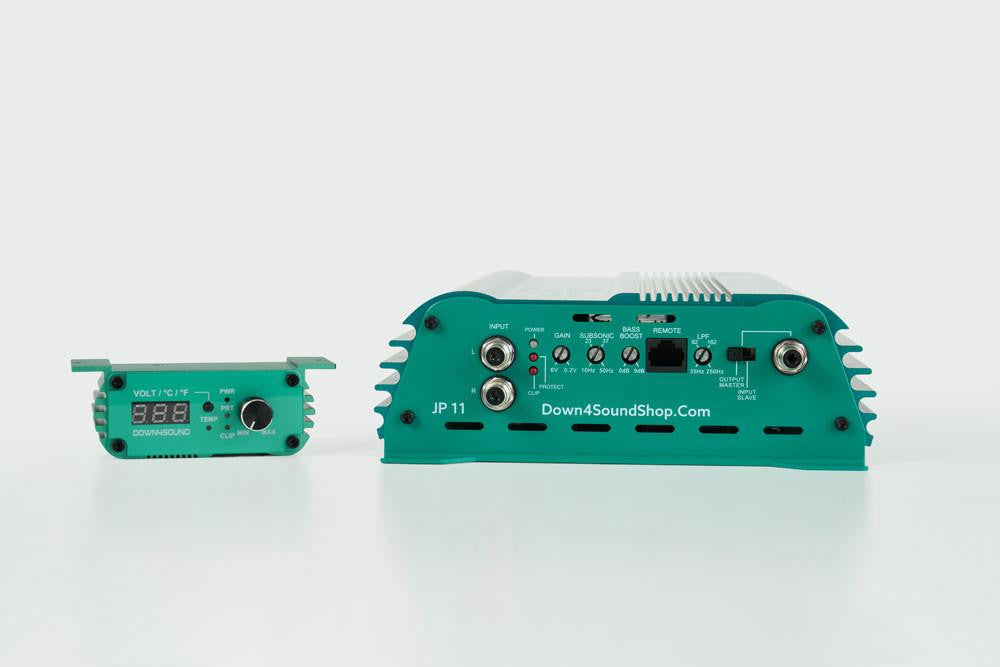

- Remote control included with voltage, temperature, clipping, and thermal display
- Working Voltage: 9V – 15.5V
- Dimensions (in): 9.84 x 7.48 x 2.24
- Dimensions (mm): 250 x 190 x 57
- Fuse Rating: 150a
Why Choose the JP11?
The JP11 delivers reliable power, precision tuning, and that signature Down4Sound look in a compact amp that fits almost anywhere. It’s ideal for budget-friendly builds that don’t compromise on sound or style.
