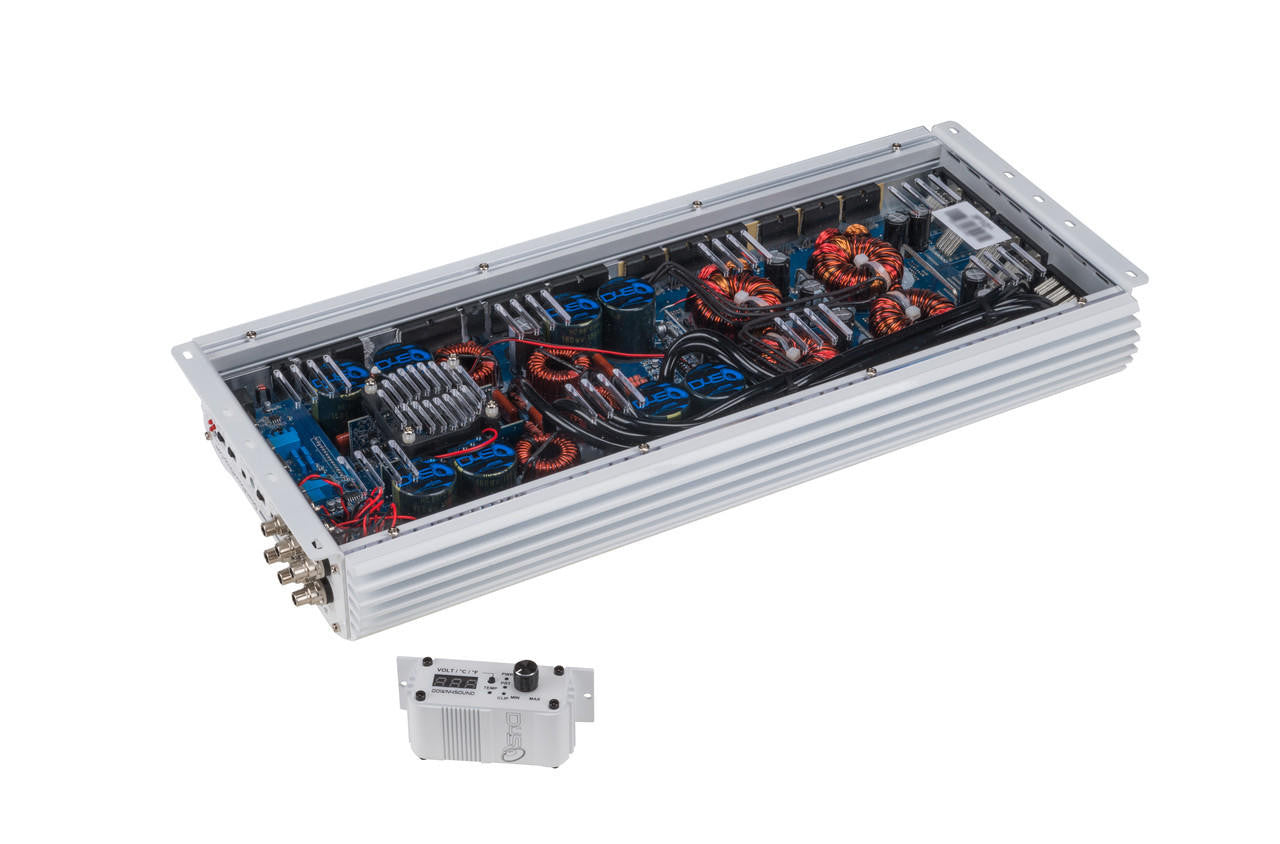

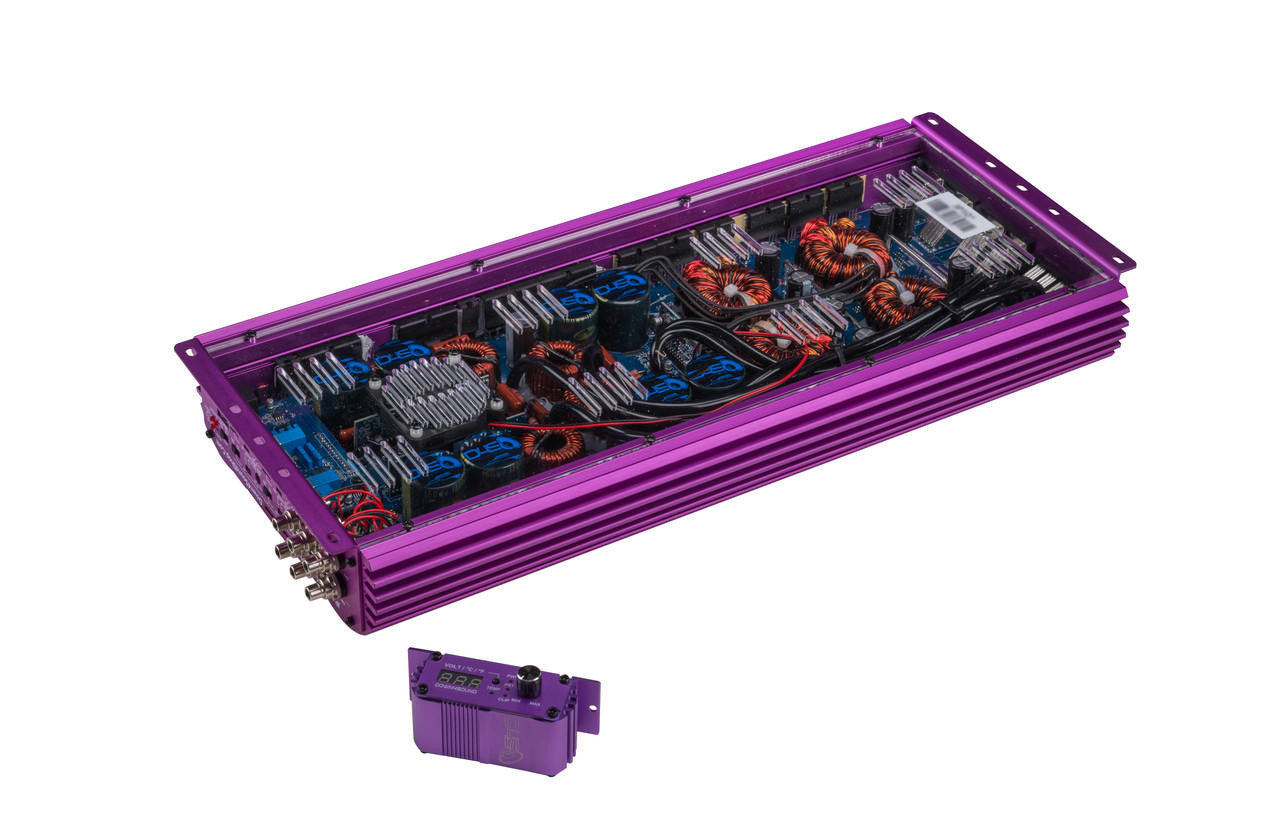

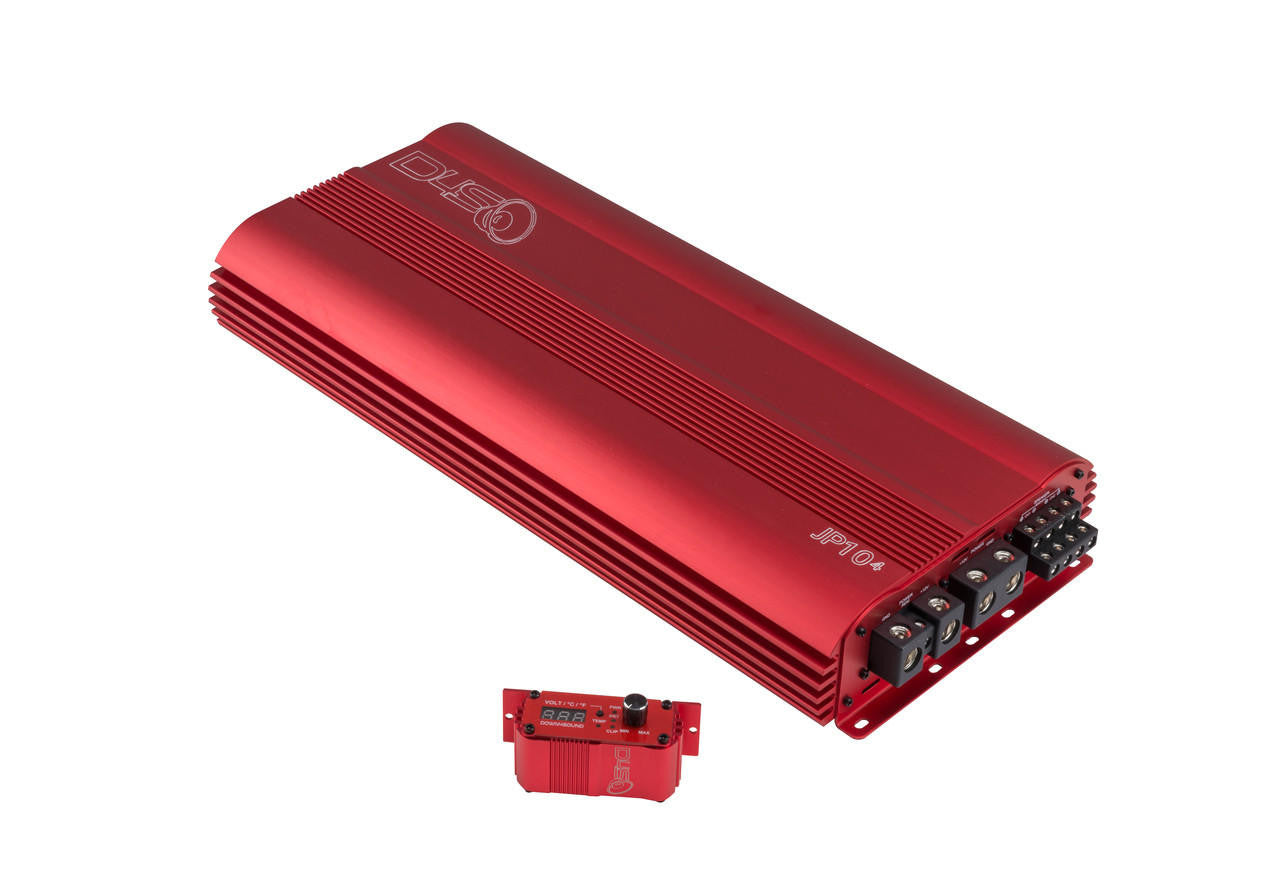

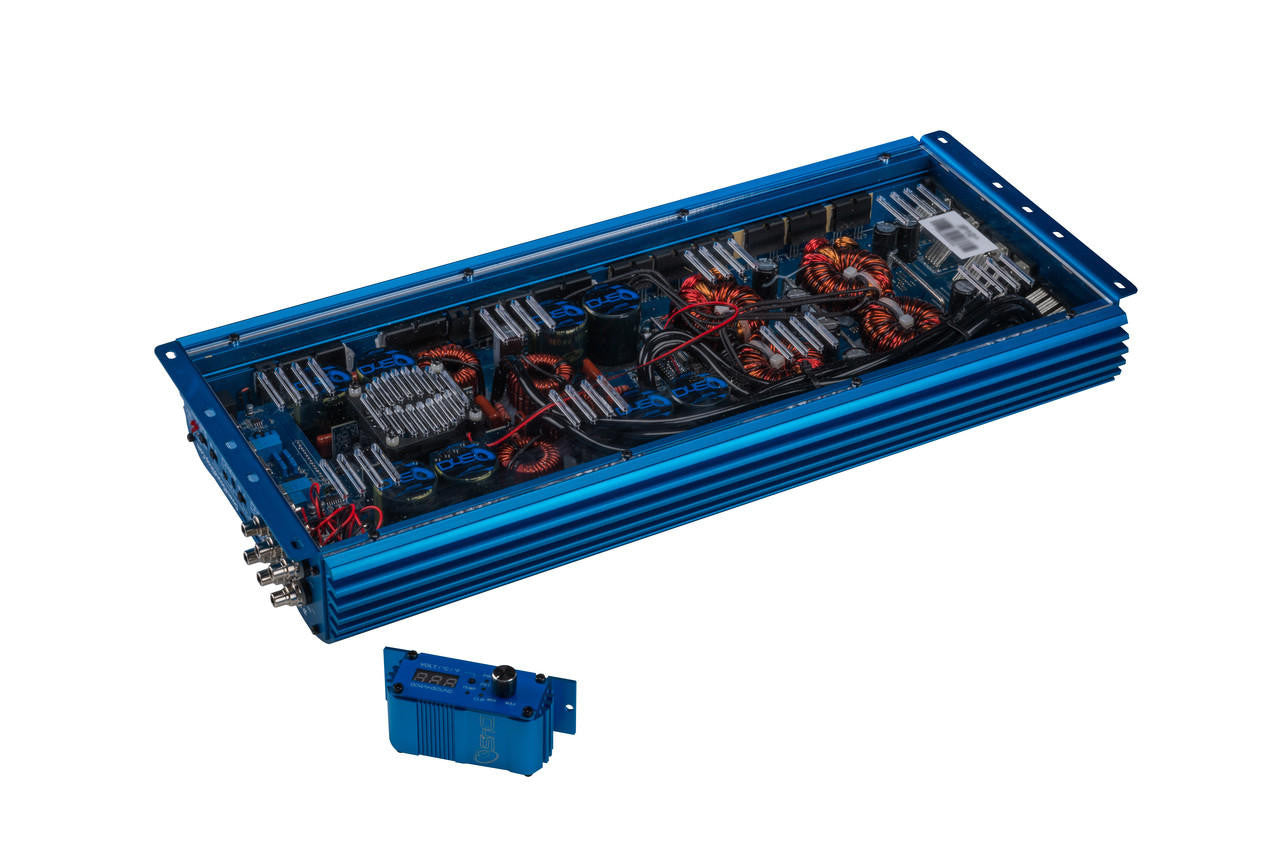

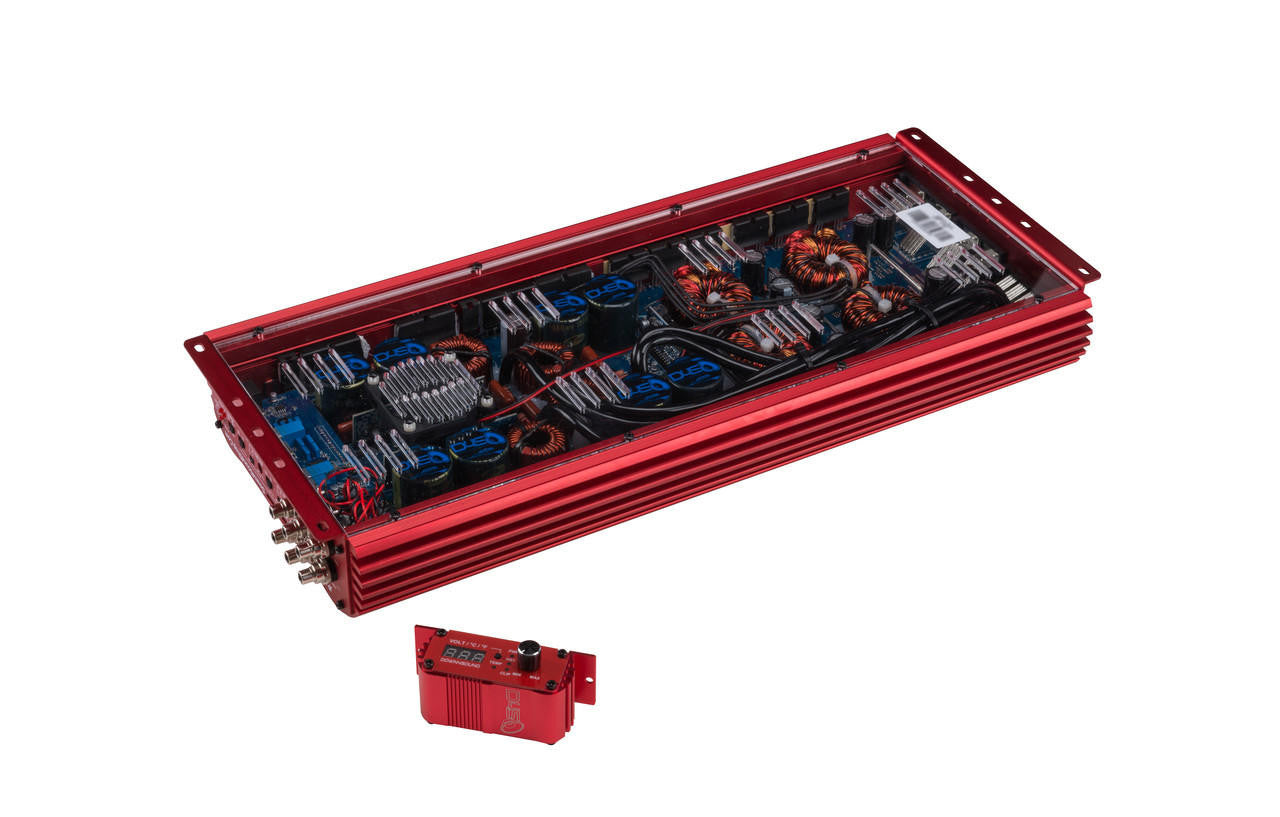

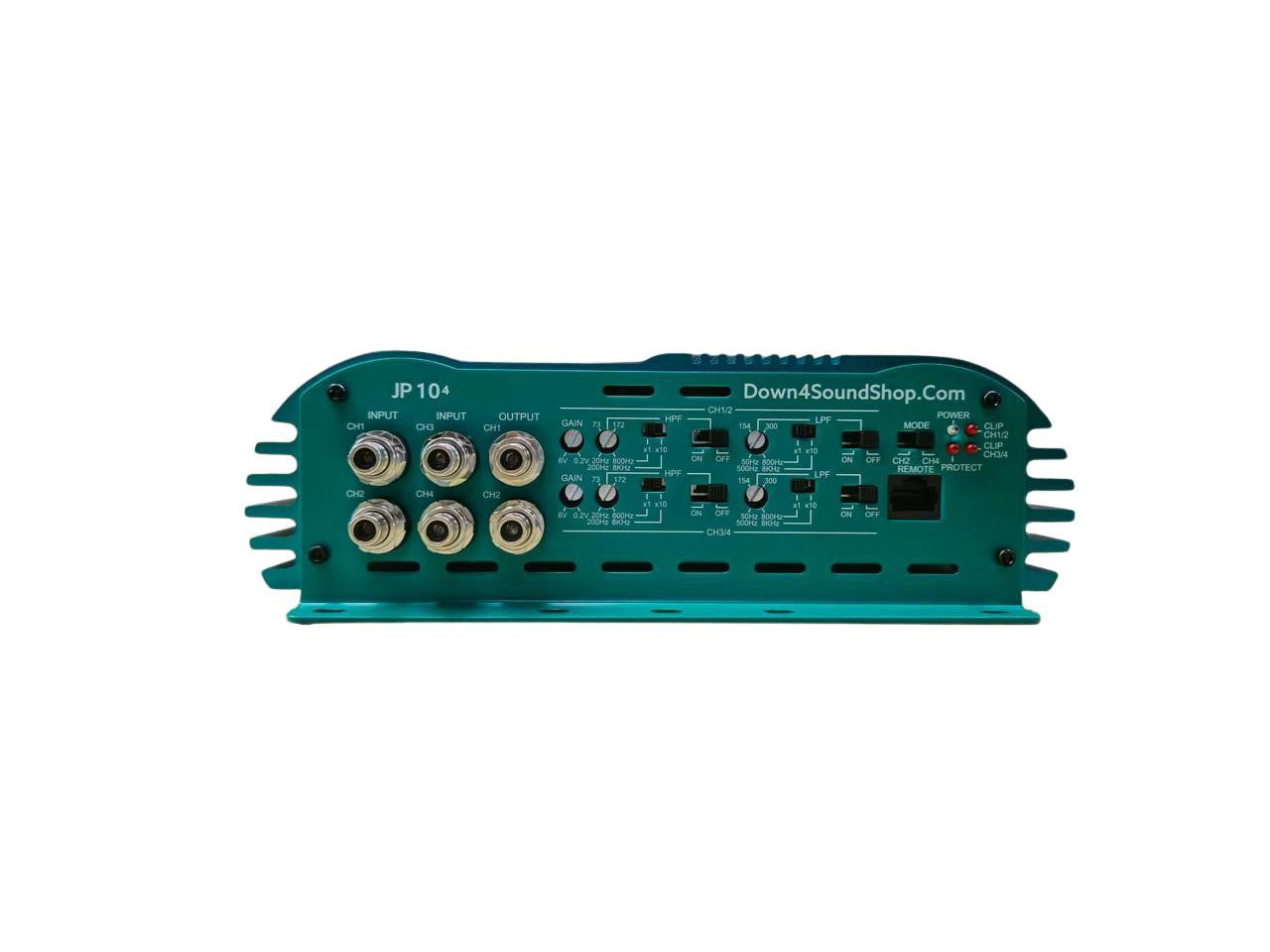

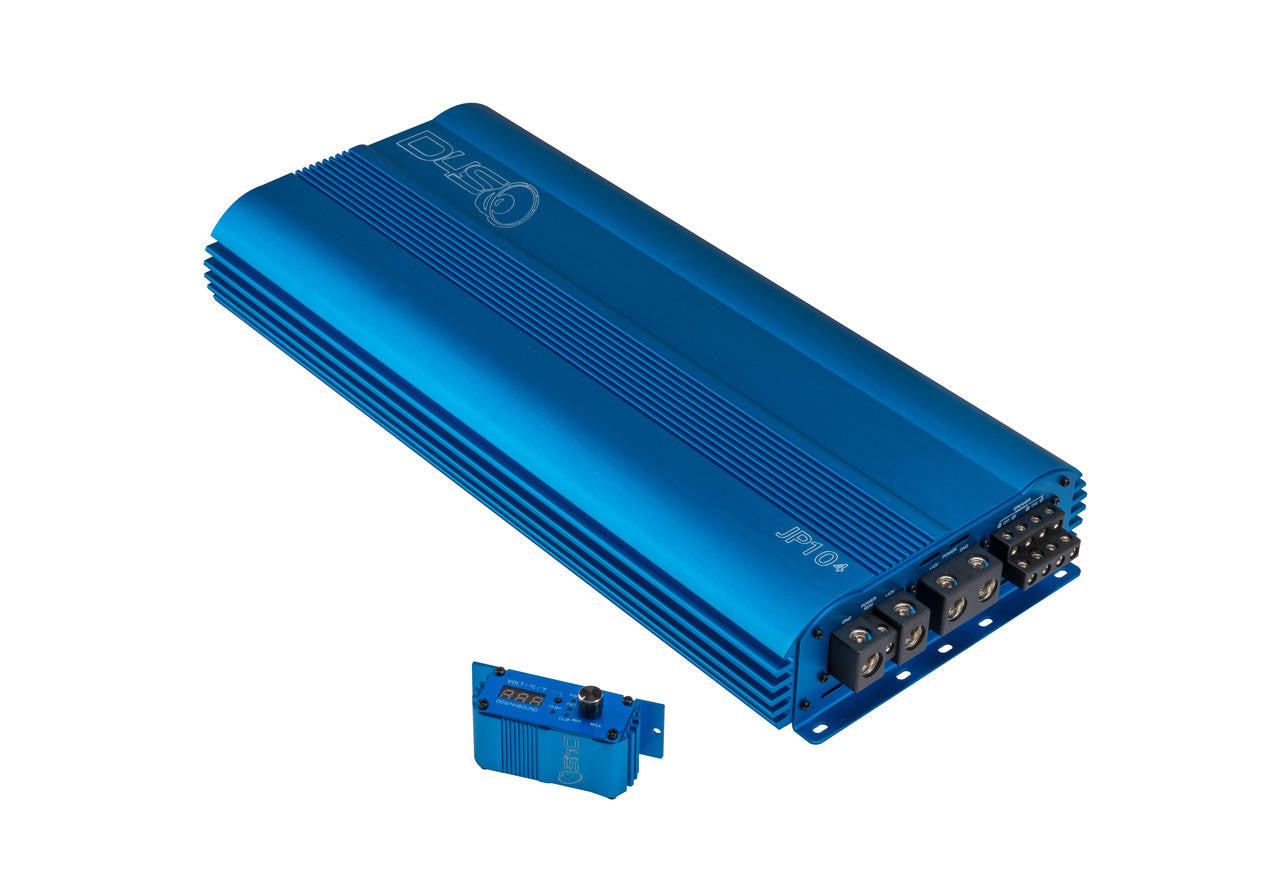

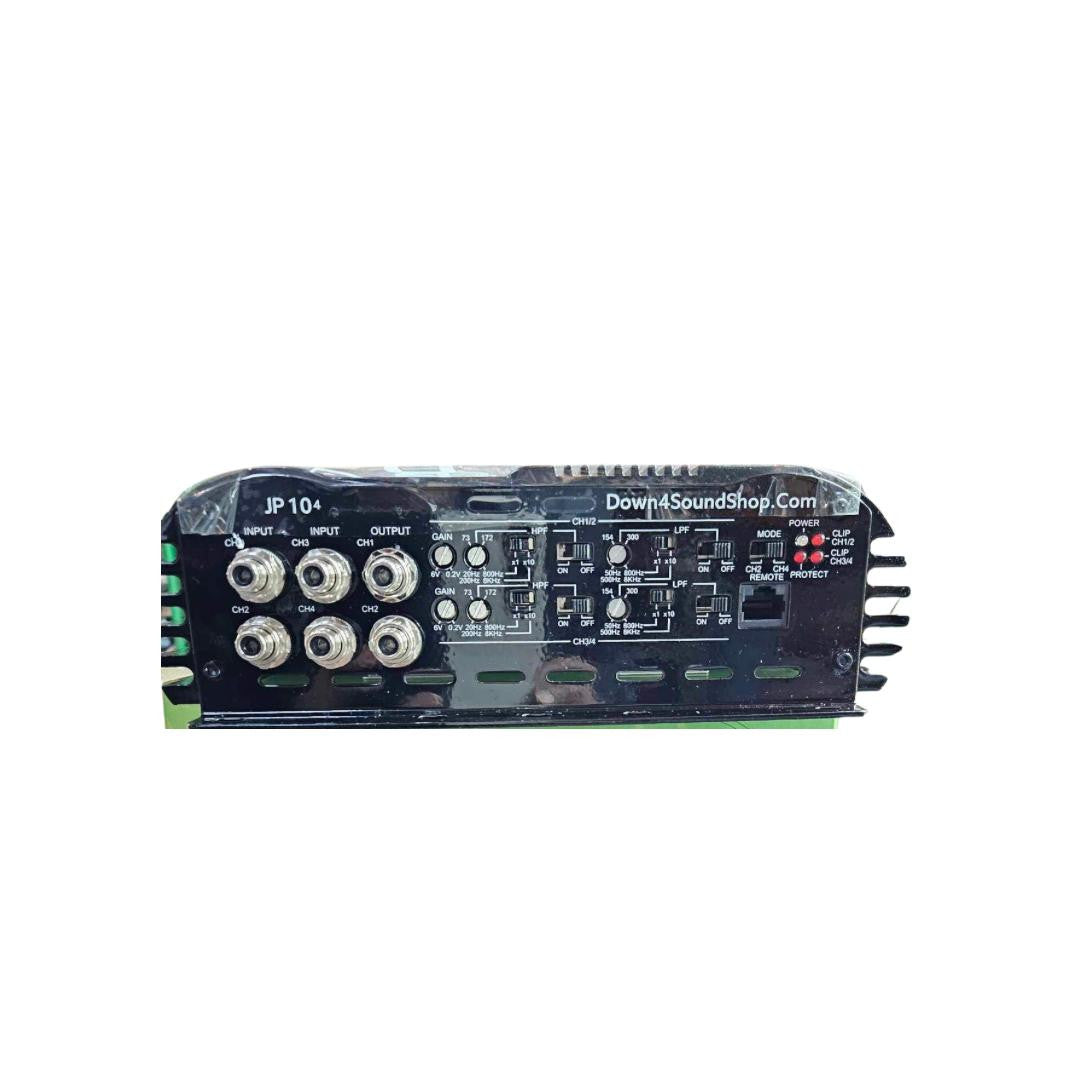

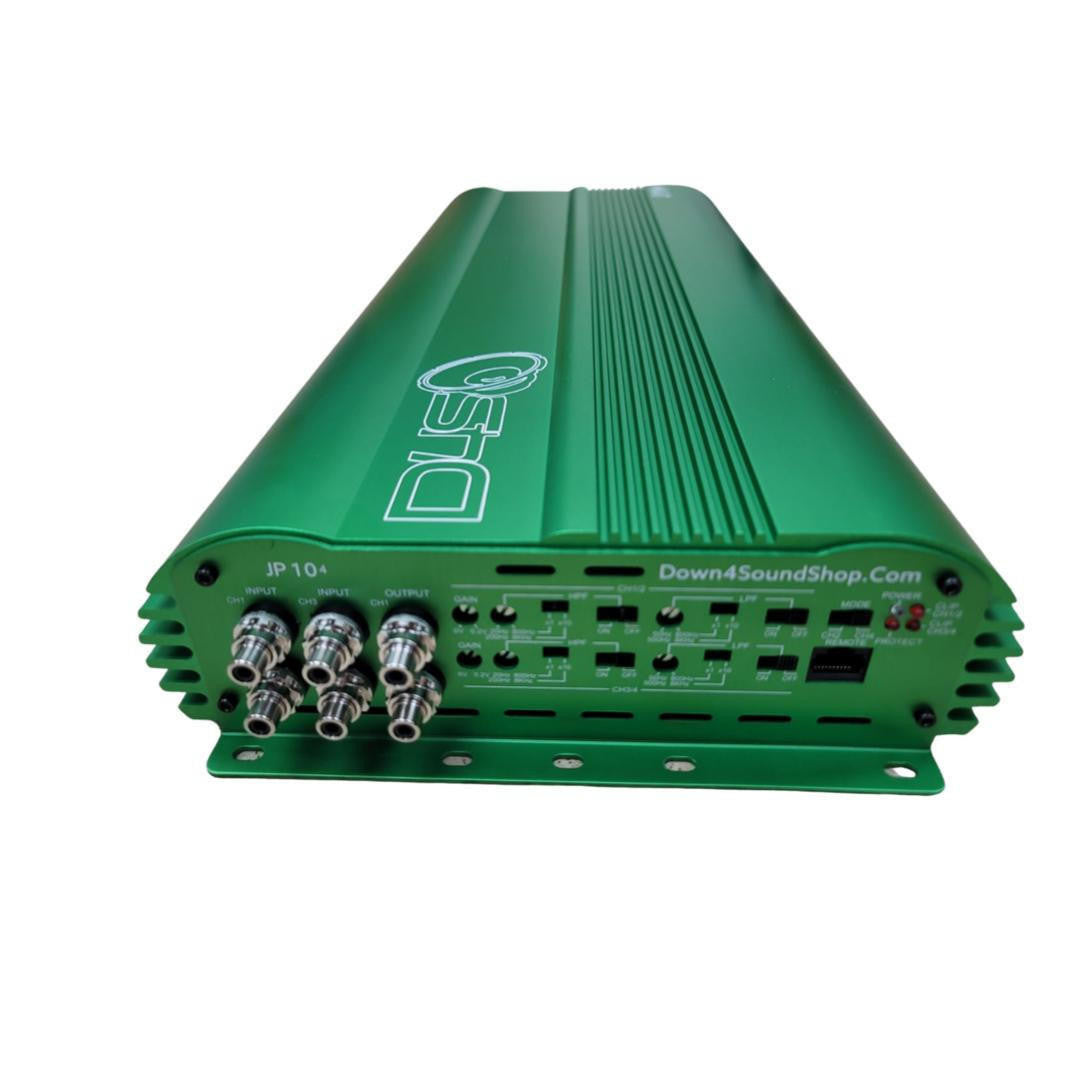

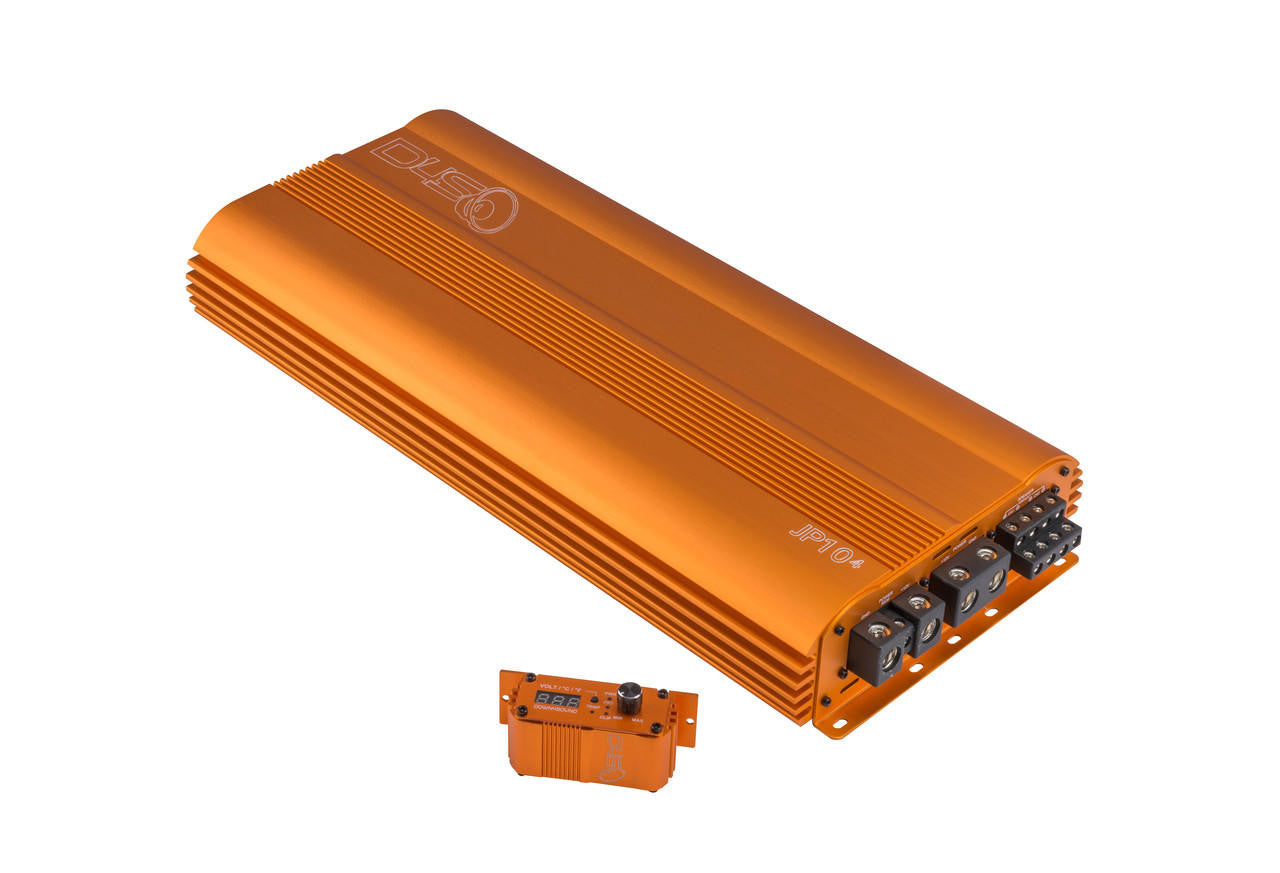

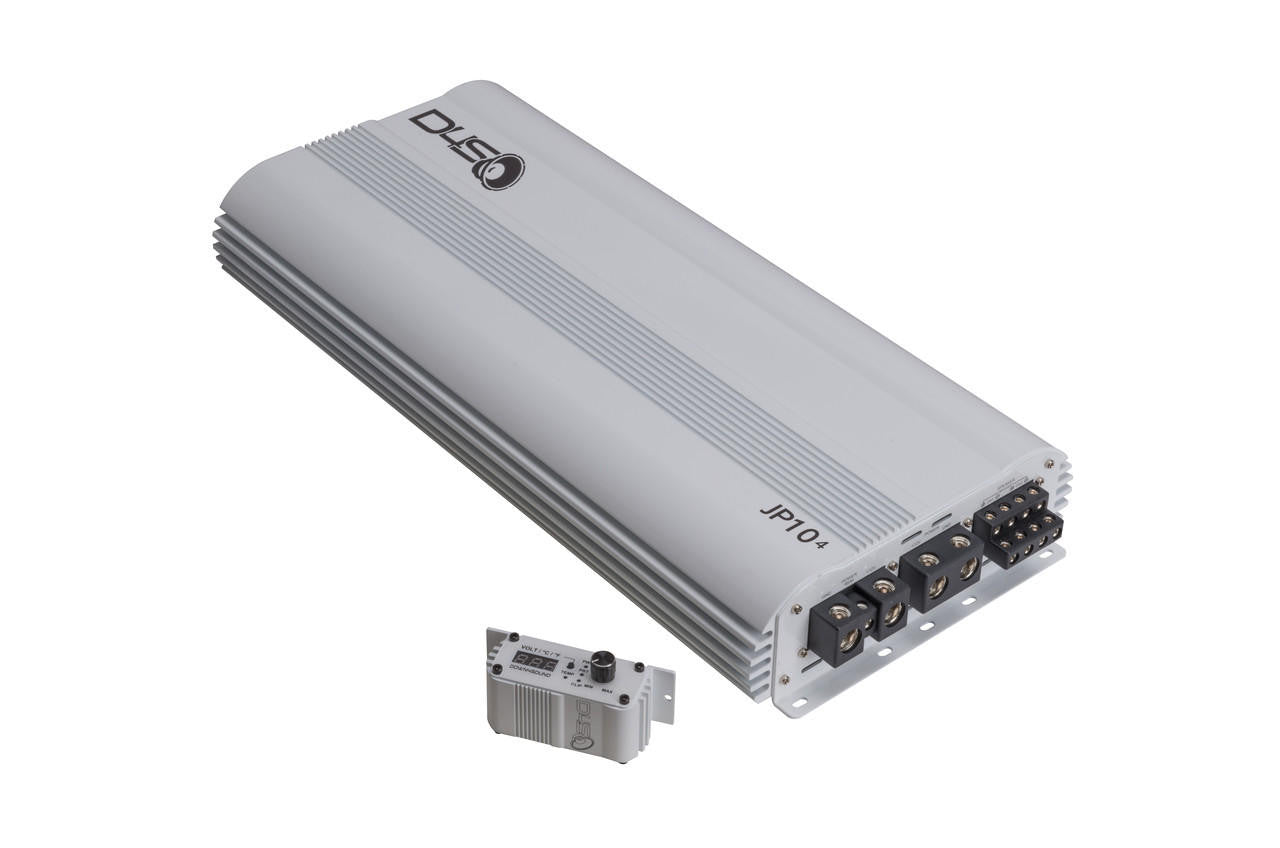

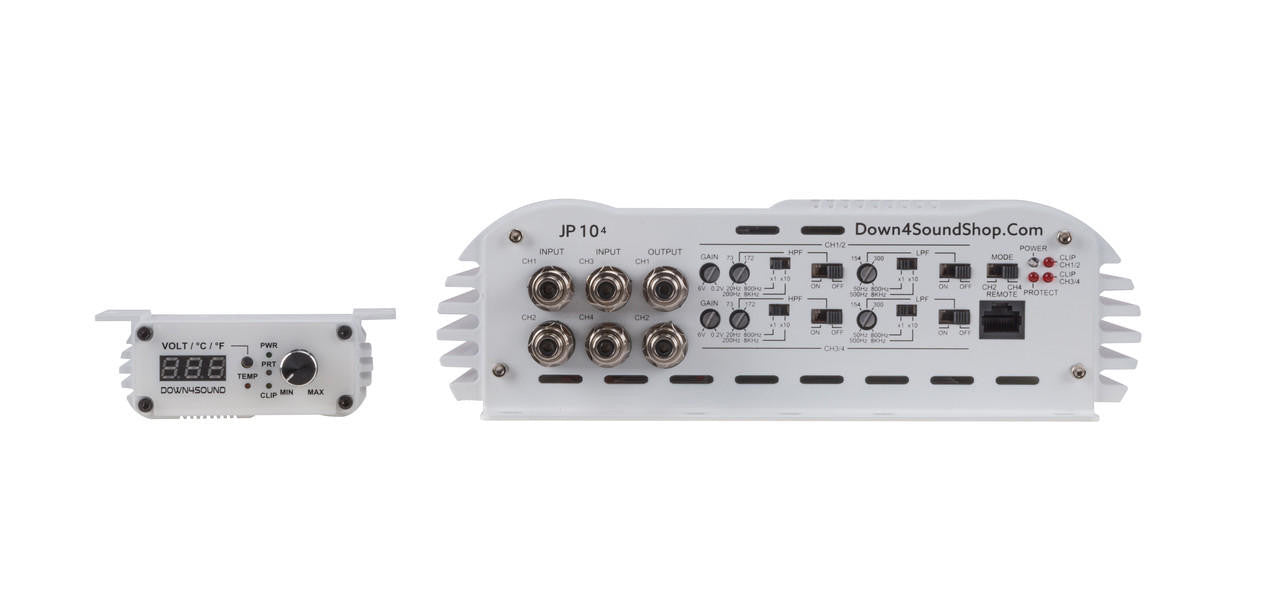

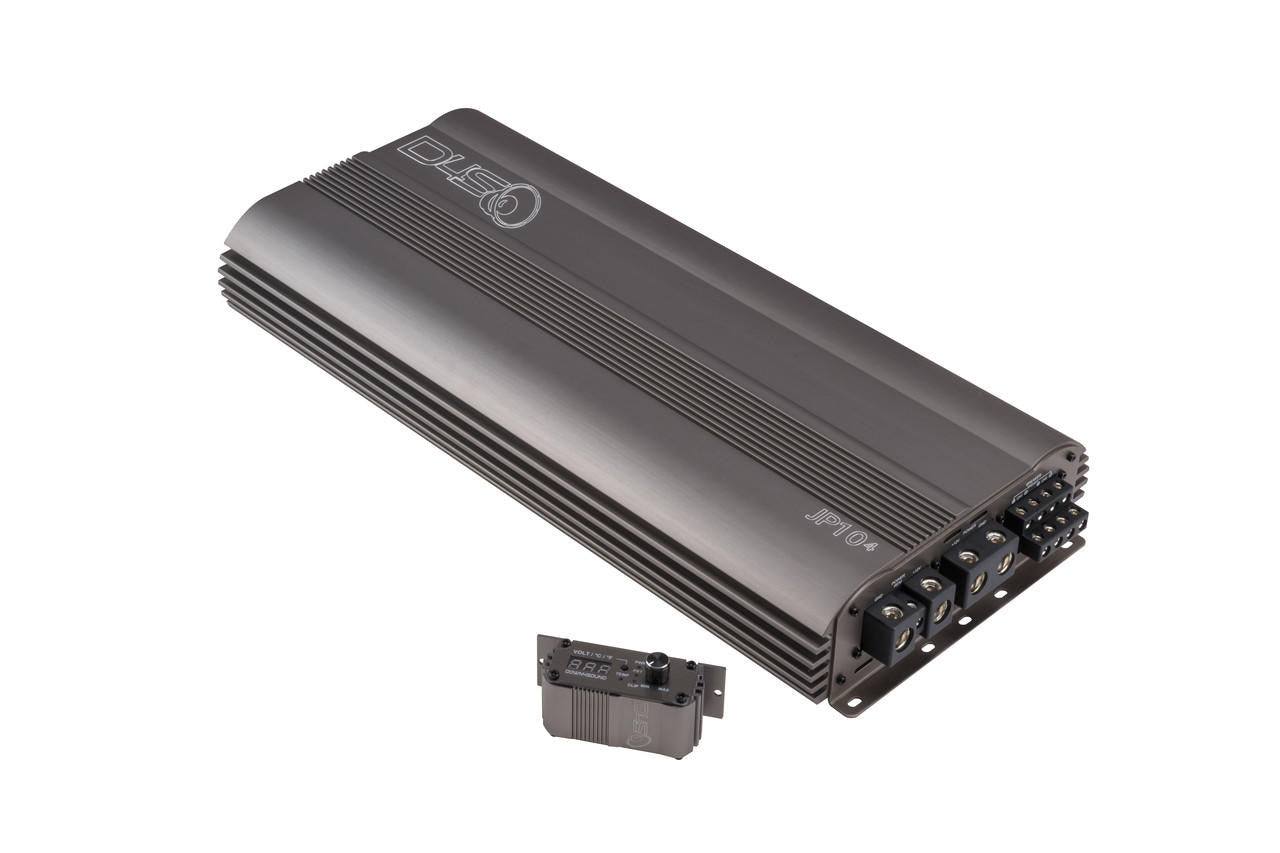

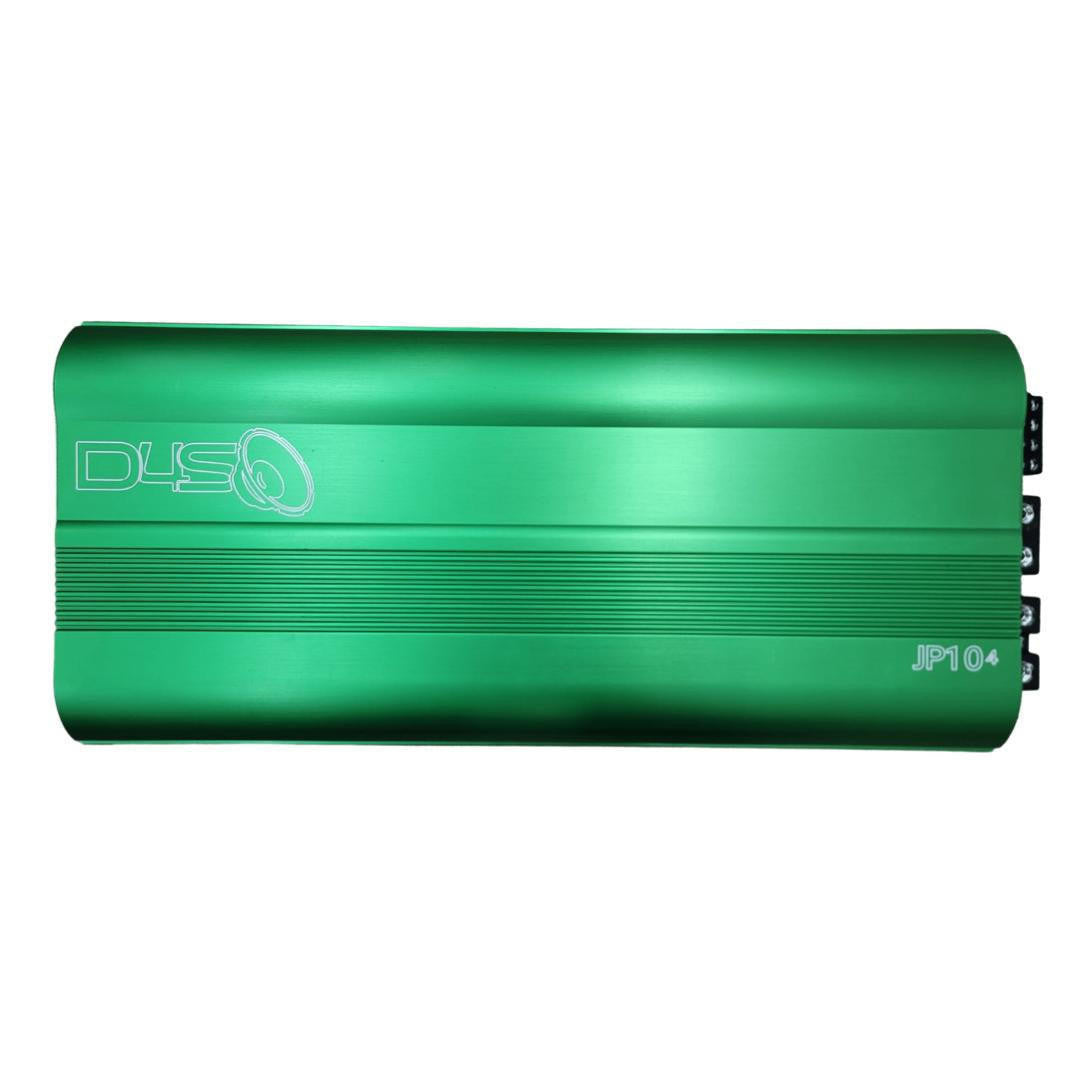

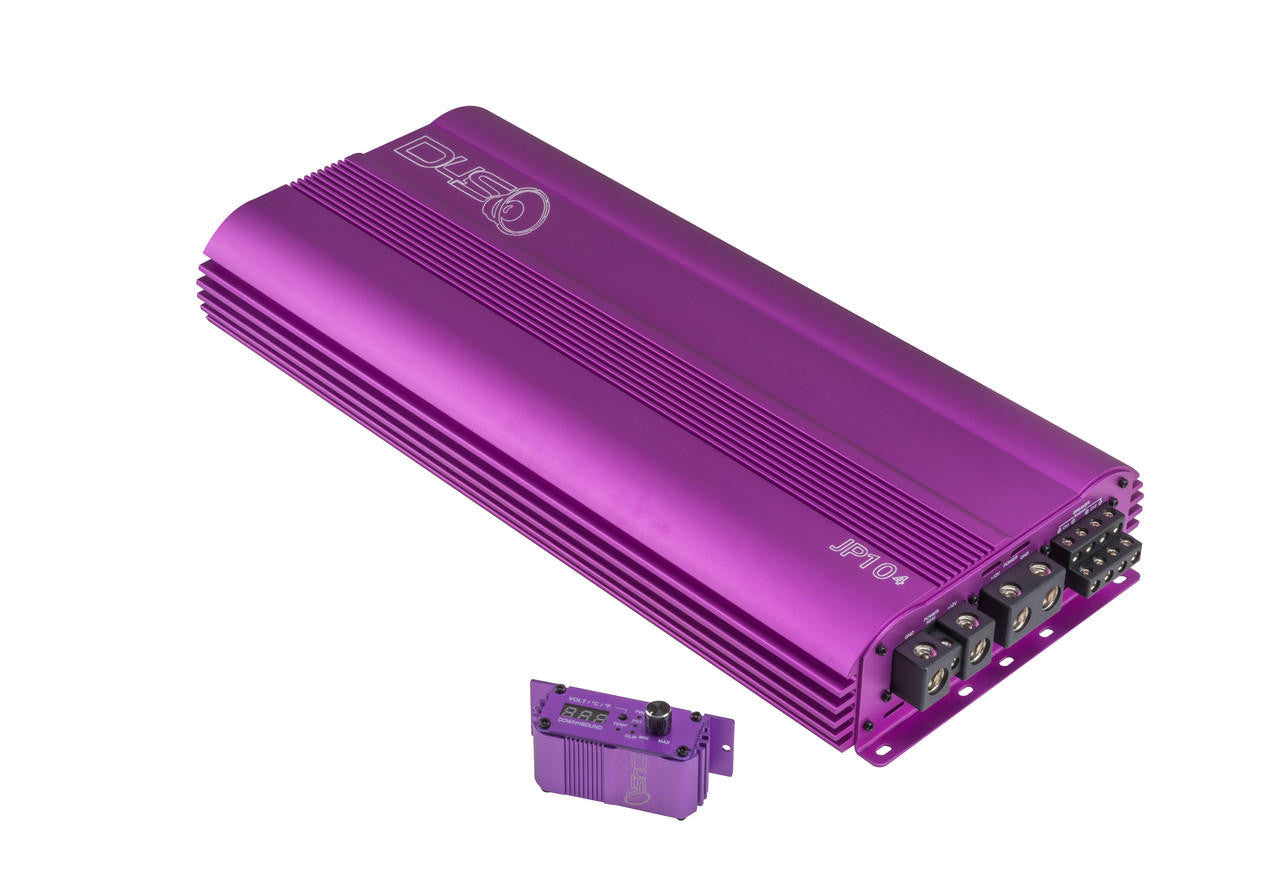

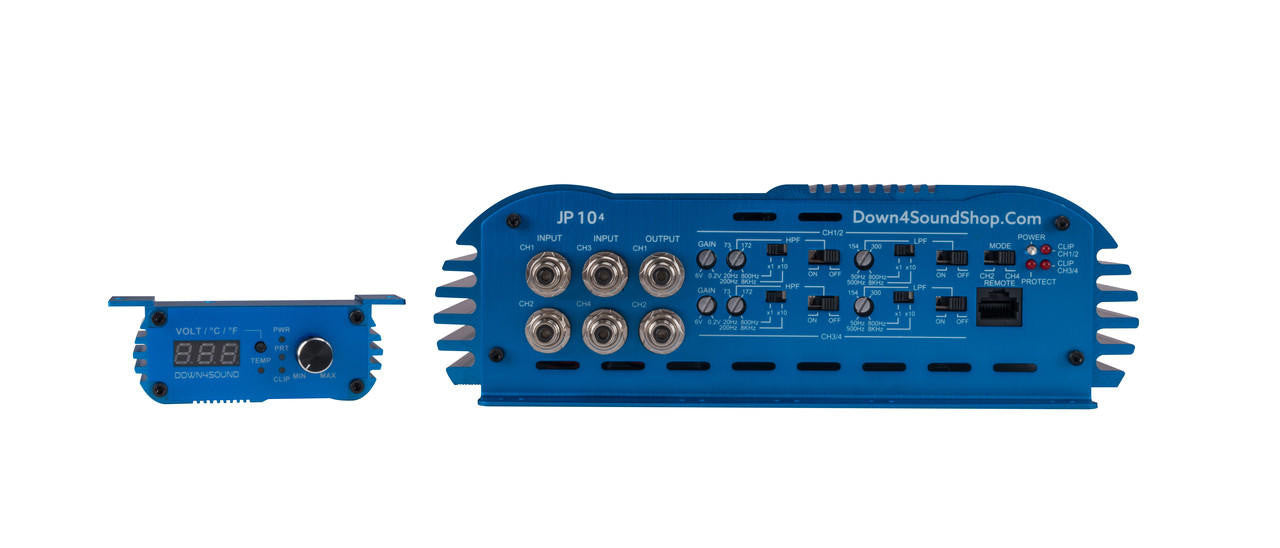

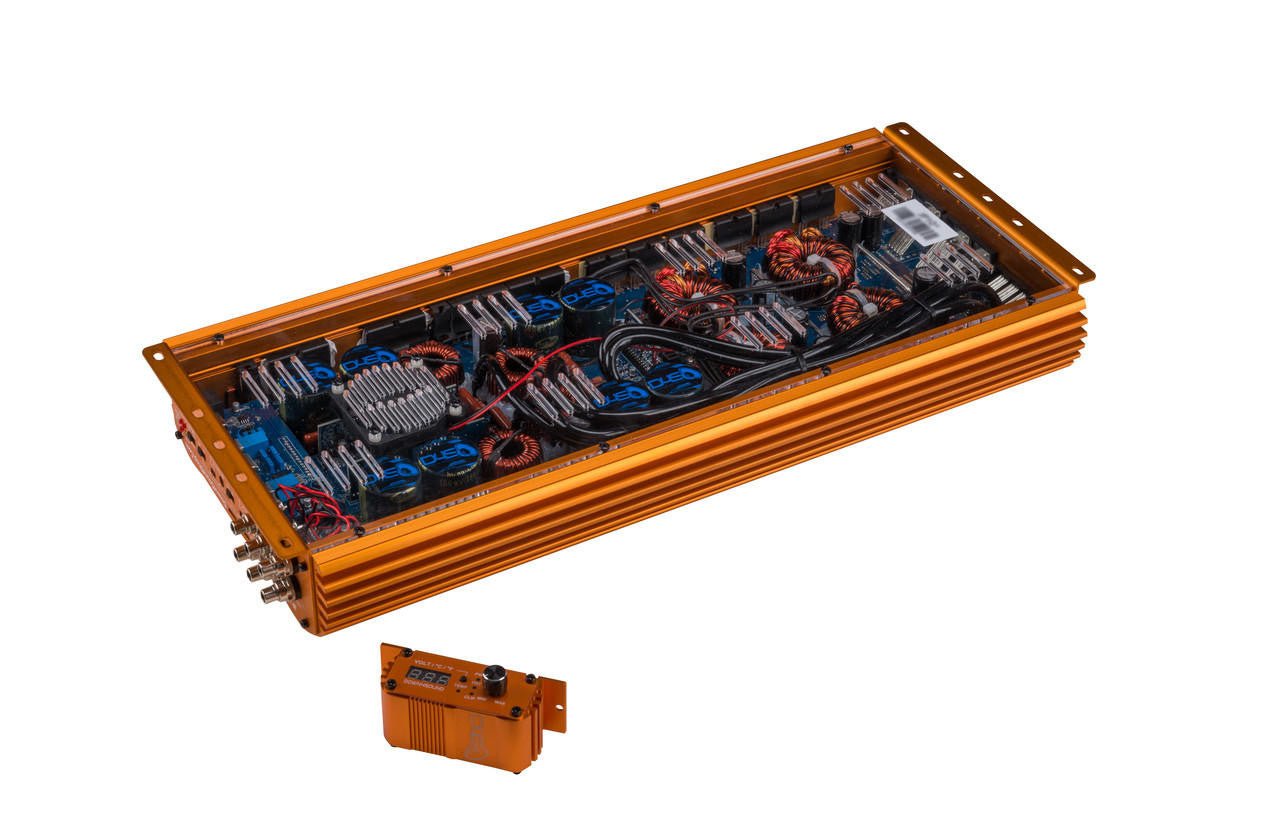

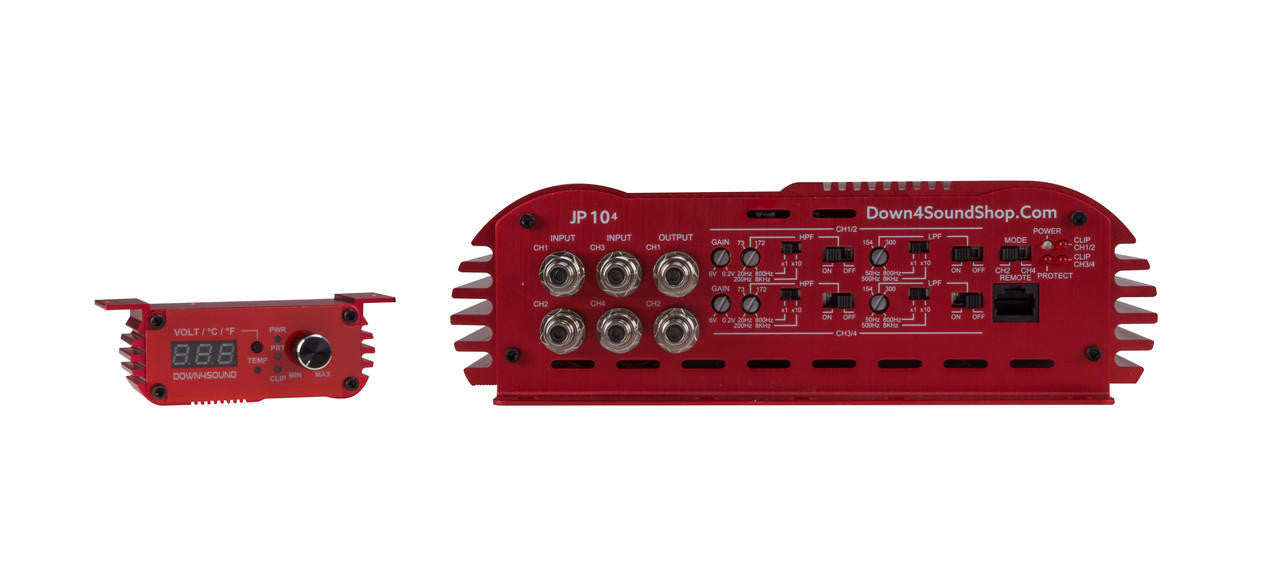

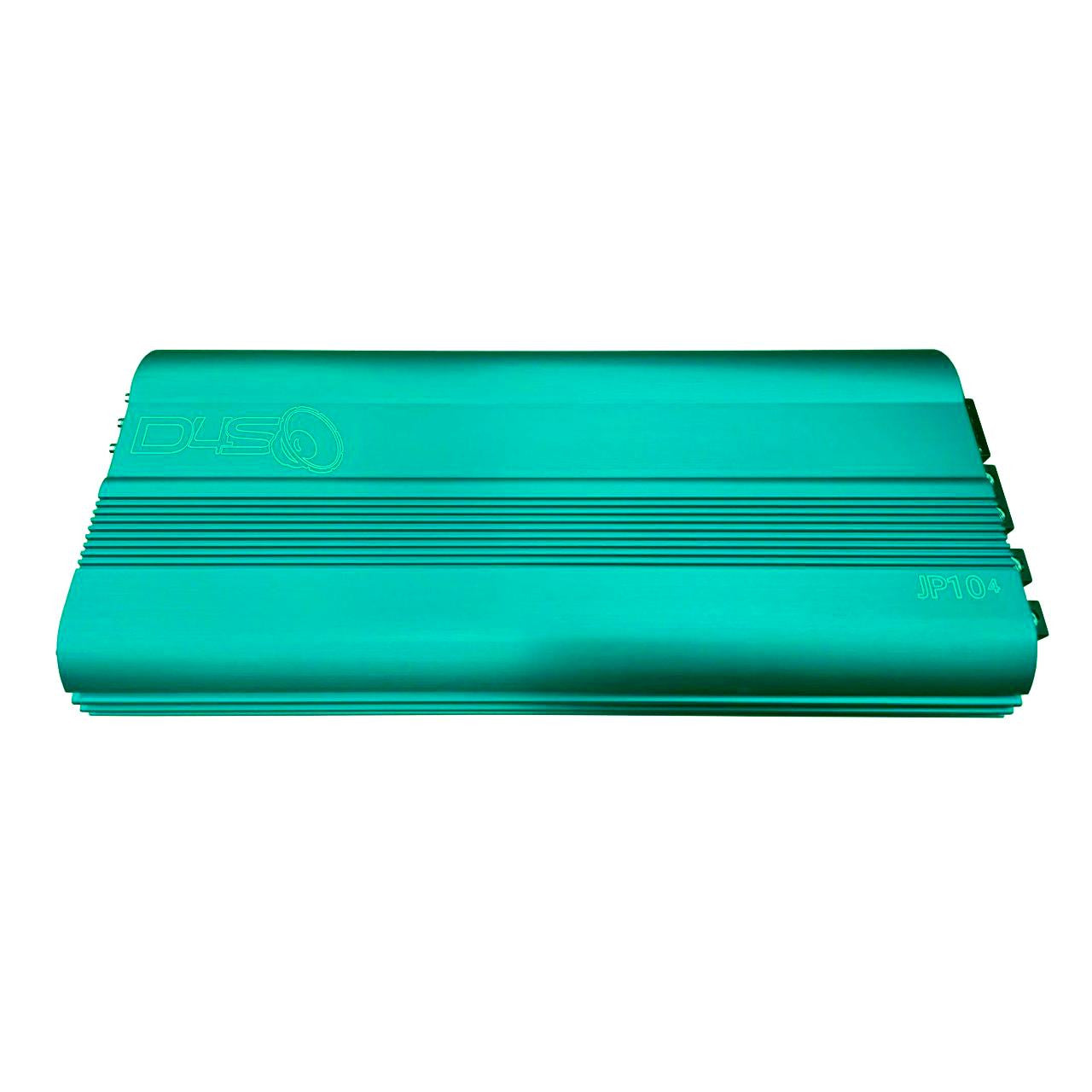

Down4Sound JP 10.4 6000W RMS 4 Channel Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
Experience unparalleled audio power with the Down4Sound JP 10.4. This 4 Channel Car Amplifier is a powerhouse of performance, delivering an impressive 6000W output. Tailored for audiophiles and car audio enthusiasts, the JP 10.4 is a fusion of high power and meticulous engineering, featuring a SNAZZY bass knob, bandpassable crossover, and true Tiffany RCA connections for pristine sound quality. It's more than just an amplifier; it's a revolution in car audio technology.
Key Features
- Powerful Output: Delivers 1000W per channel RMS at 4 OHM, establishing it as one of the most potent amplifiers available.

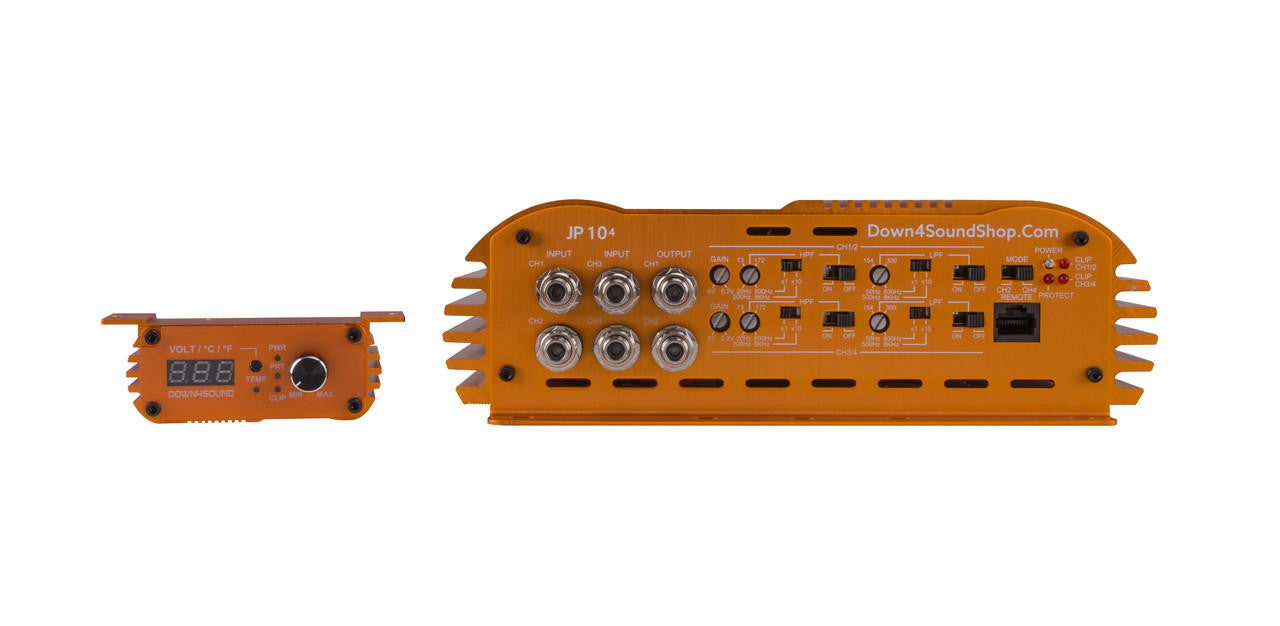

- Bass Control: Comes with a SNAZZY bass knob for precise bass level adjustments.
- High-Fidelity Connections: True Tiffany RCA connections ensure the highest quality of sound transmission.
Enhanced Connectivity

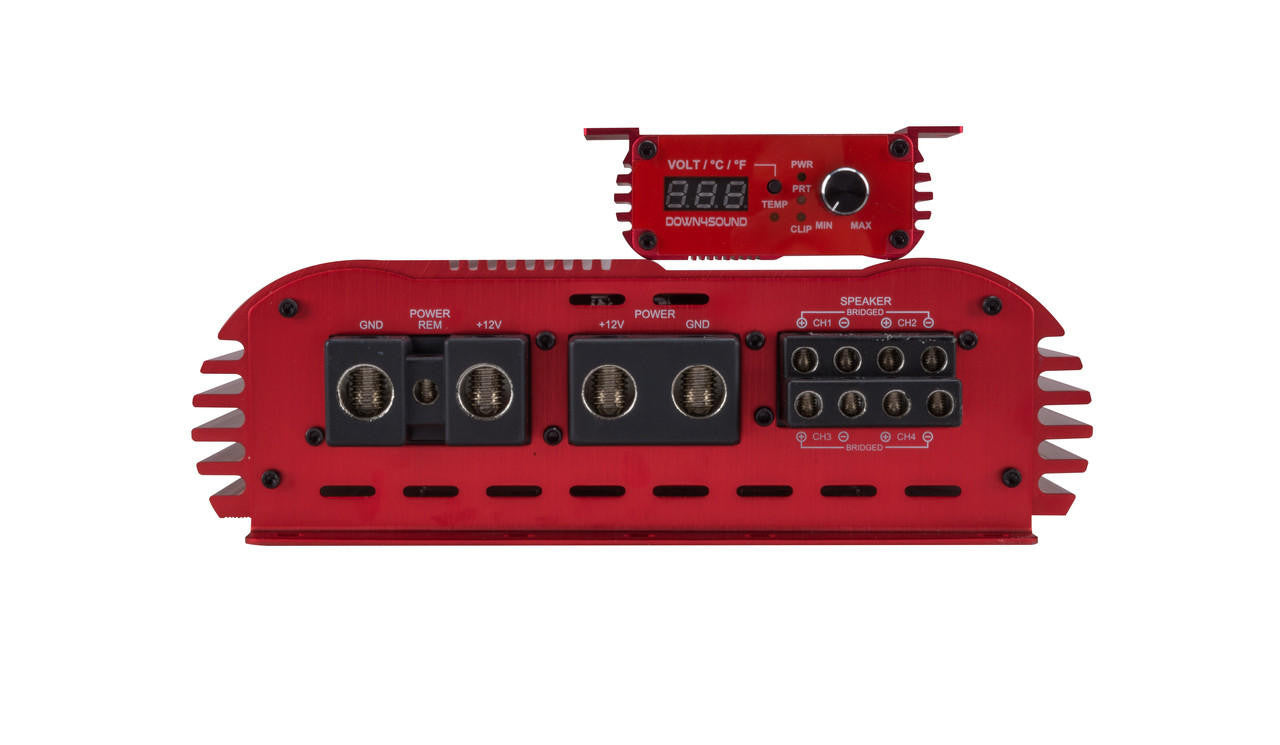

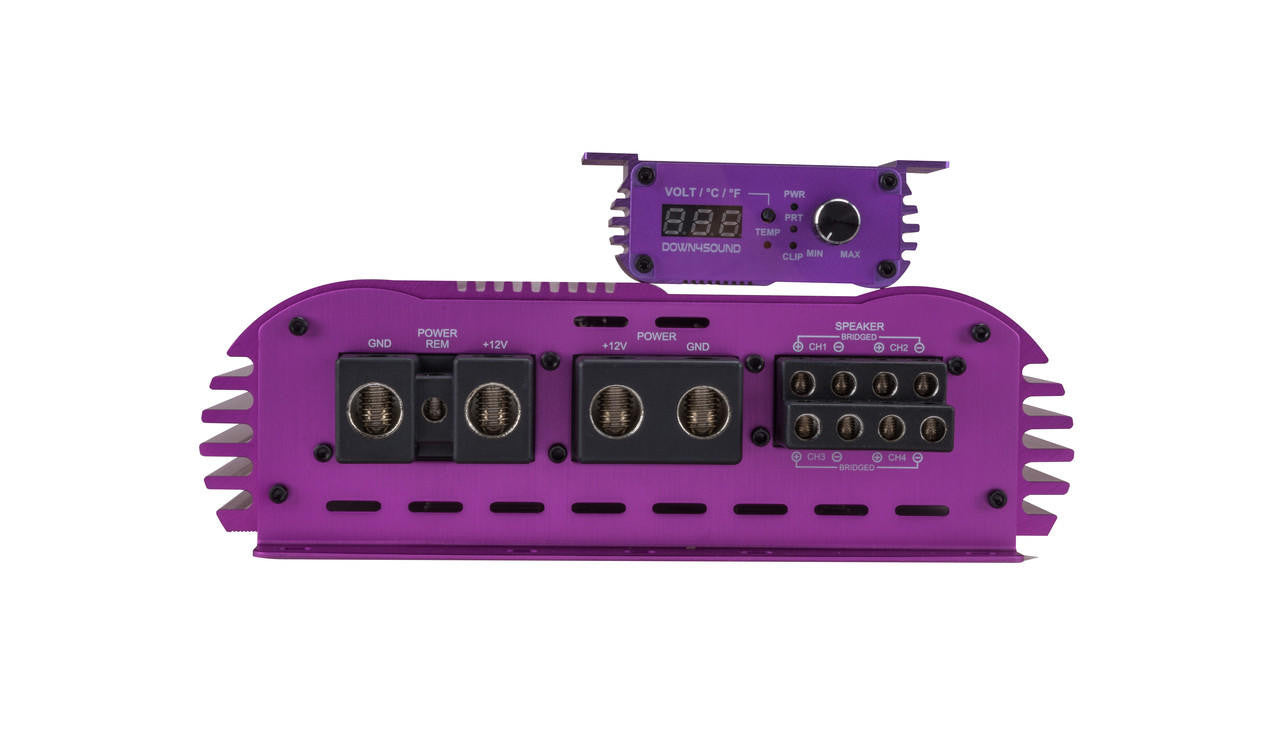

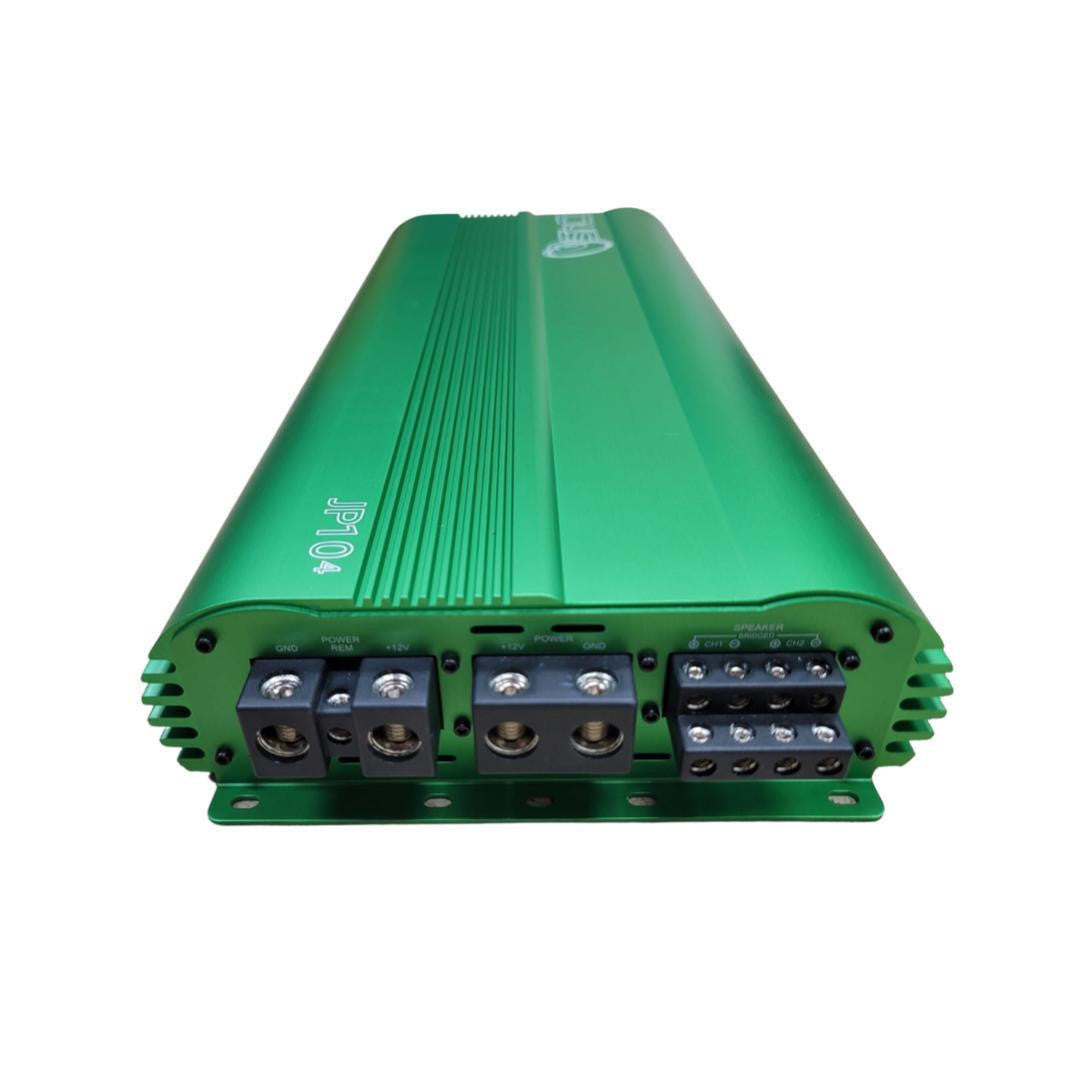

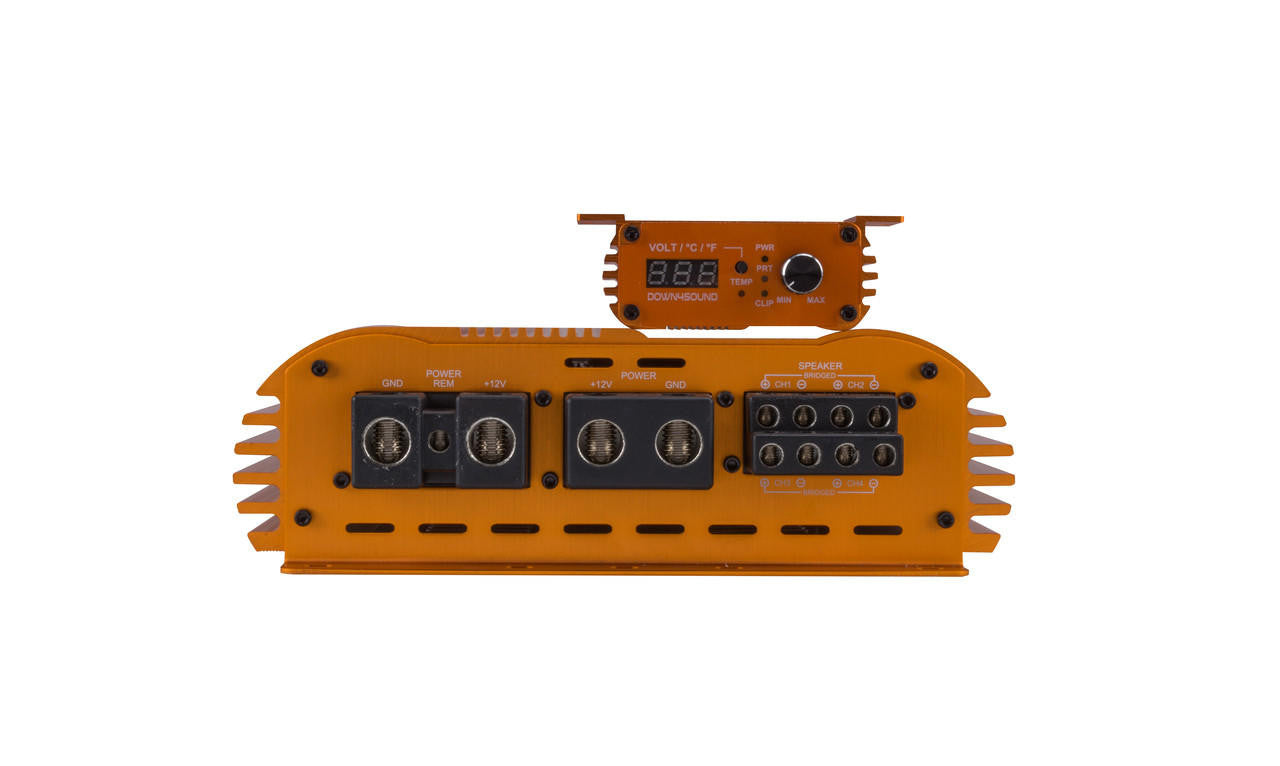

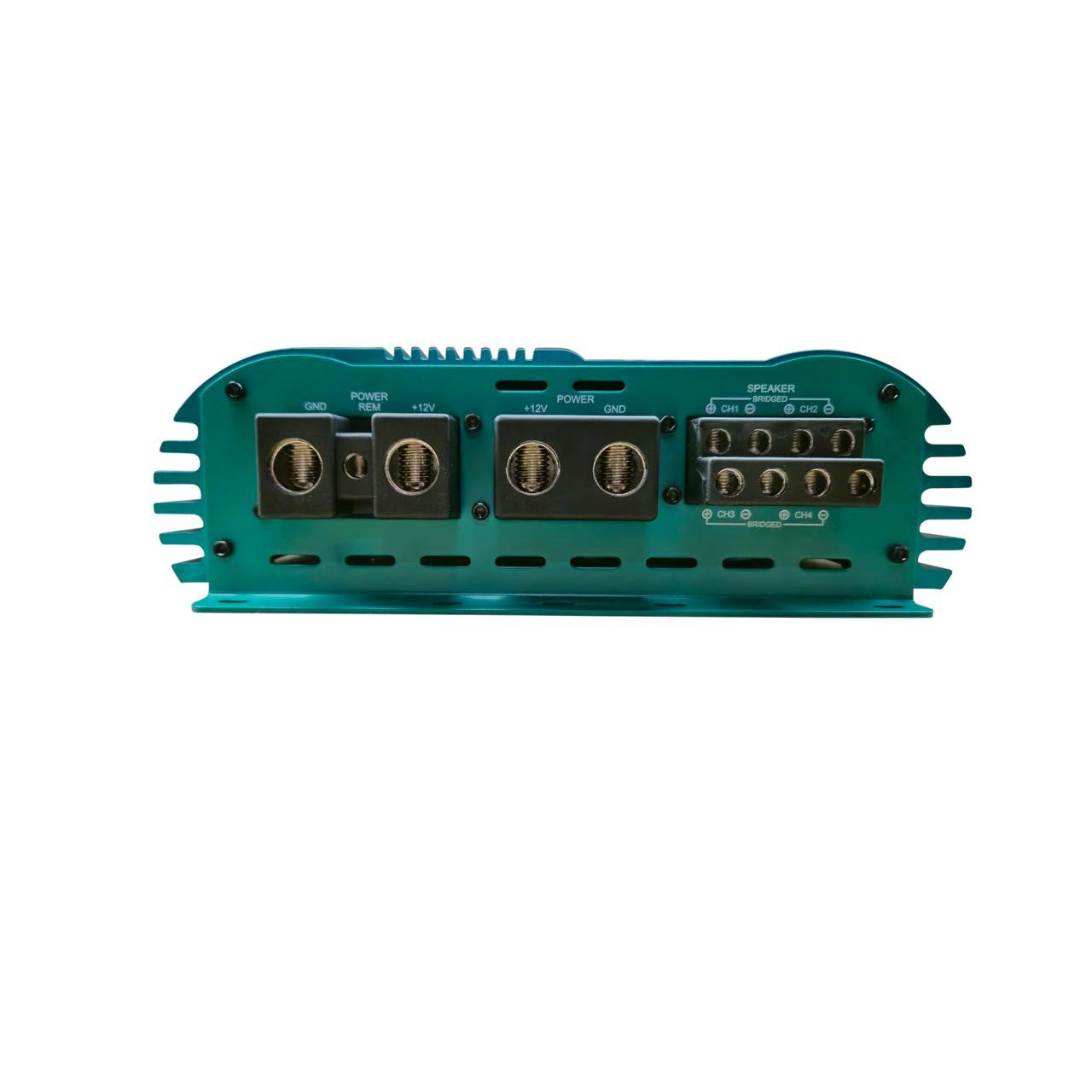

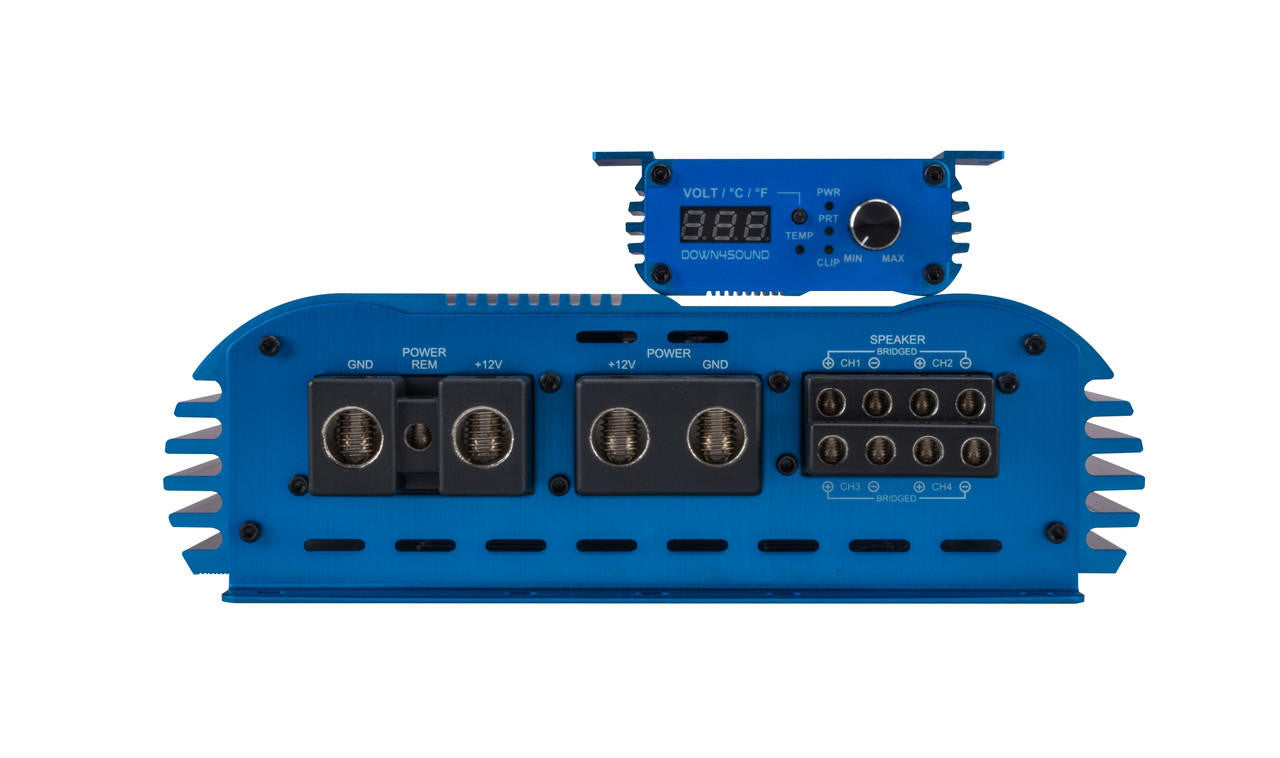

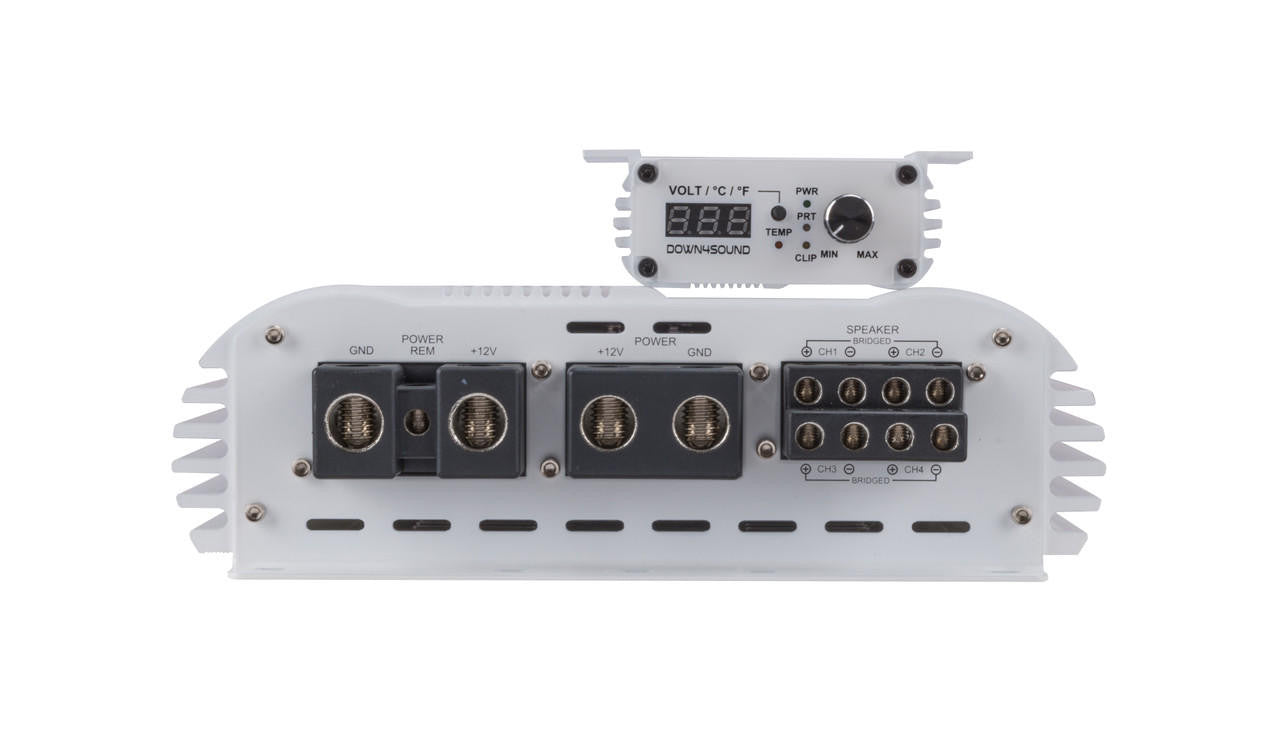

- Dual 0GA Power and Ground Inputs: For stable and efficient power delivery.
- Up to 4GA Speaker Outputs: Compatible with a wide range of speaker systems.
Technical Specifications
RMS Power Ratings
- 2ohm: 1300W x 4
- 4ohms: 1000W x 4
- 4ohms Bridged: 3300W
- Frequency Response: 10Hz - 21Khz

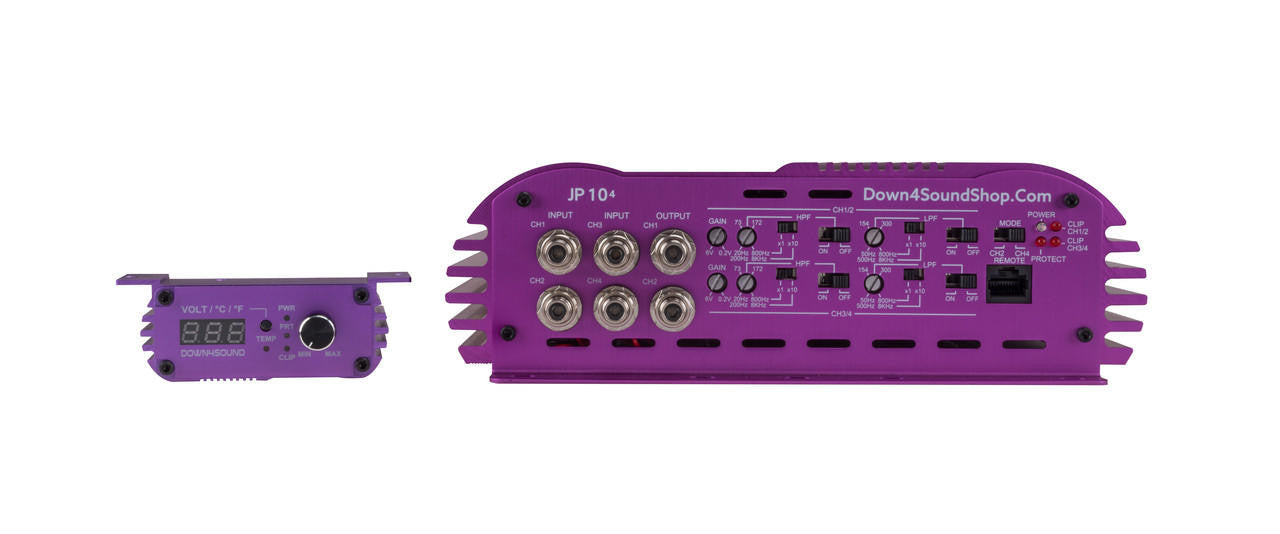

Filters
- High Pass: 20Hz - 800Hz (Multiply: x1, x10 ranging from 200Hz-8KHz)
- Low Pass: 50Hz - 800Hz (Multiply: x1, x10 ranging from 500Hz-8KHz)
- Input Sensitivity: 6V - 0.2V
- Signal to Noise Ratio: 90 Db
- T.H.D @ 4ohm: 0.1%
- Fuse Rating: 550A TOTAL
- Dimensions: 19.68" L X 9.37" W x 2.71" H
Additional Features
- Class D Technology: Ensures efficient and high-quality sound reproduction.

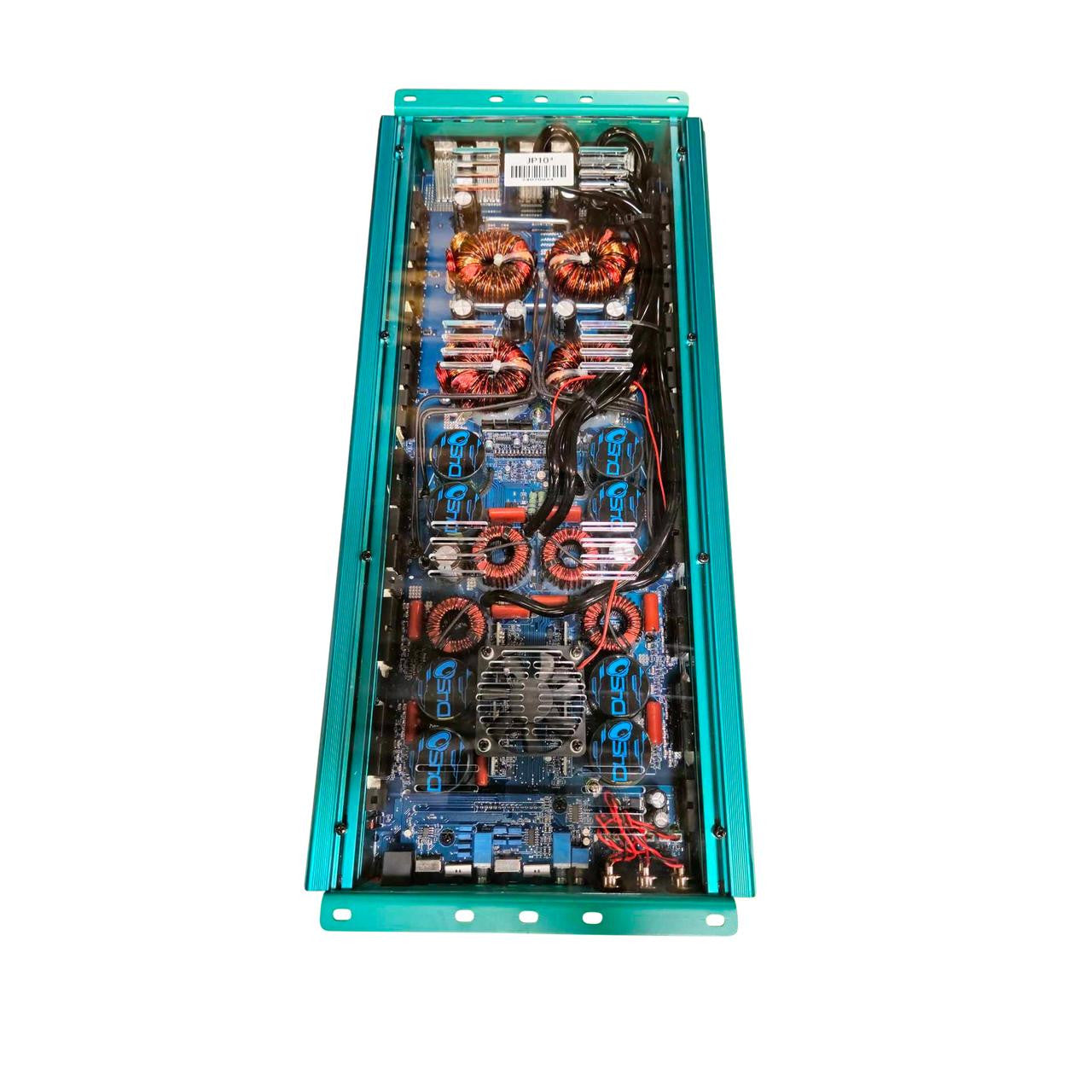

- Plexi Backplate: Provides both durability and a sleek look.
- Internal High-Speed Fan: Keeps the amplifier cool during high-performance usage.
- Origin: Made with pride in South Korea.
- Recommendation: For optimal performance with a stock radio, use a quality lineout converter or DSP.
Important: Electrical Upgrade Required for Warranty
To maximize the performance of this amplifier, an electrical upgrade is mandatory. Not upgrading your electrical system will void the warranty. The required upgrades include:
- The Big 3: Crucial for managing the increased power demands.
- Upgraded Alternator: To ensure a sufficient power supply.
- Reserve Battery(s): For consistent and reliable power delivery.
The Down4Sound JP 10.4 Amplifier is not just an amplifier; it's a testament to superior sound engineering. Designed for those who value their audio experience, it offers unmatched power and precision, all encased in a sleek finish.
