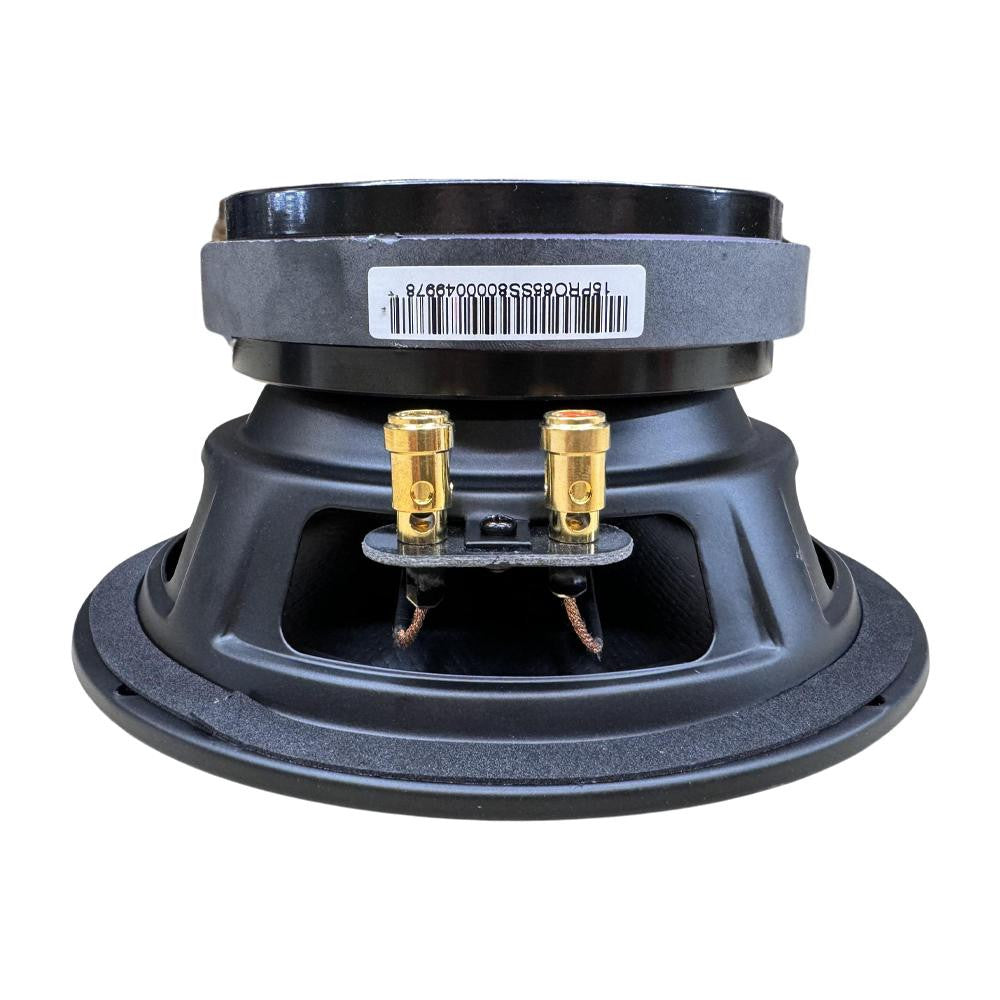

Down4Sound Hexicone Pro 6.5 SS4 All SZN - 6.5" Carbon Fiber Pro Audio Speaker 200W RMS 4 OHM
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
%0A3.62%20Ohms%0A%0A%0AFrequency-independent%20part%20of%20voice%20coil%20inductance%20(Le)%0A0.041%20mH%0A%0A%0APara-inductance%20of%20voice%20coil%20(L2)%0A0.386%20mH%0A%0A%0AEle...
){kind=link}

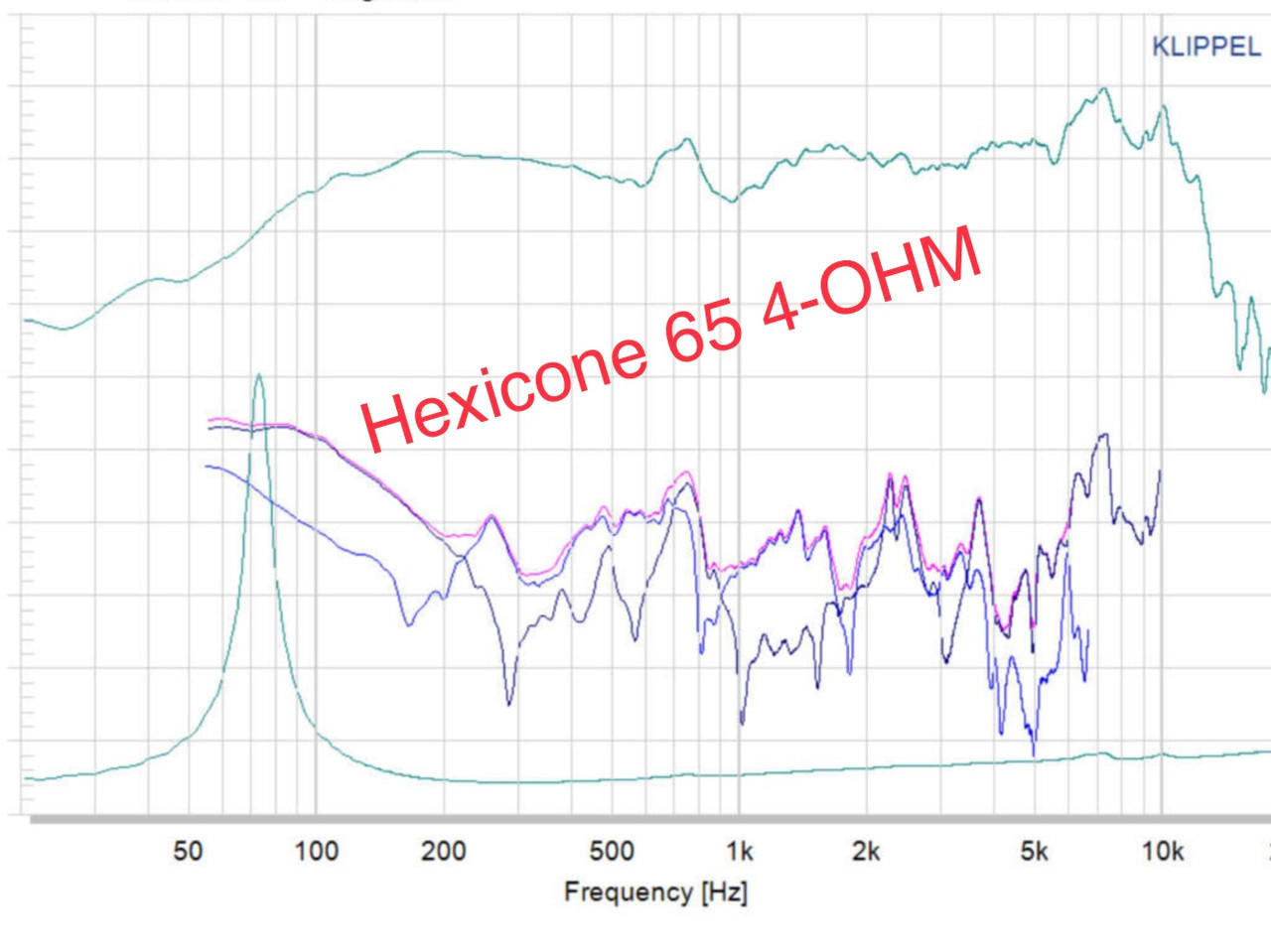

| Klippel Parameters | Value |
|---|---|
| DC Resistance of the voice coil (Re) | 3.62 Ohms |
| Frequency-independent part of voice coil inductance (Le) | 0.041 mH |
| Para-inductance of voice coil (L2) | 0.386 mH |
| Electrical resistance due to eddy current losses (R2) | 3.78 Ohms |
| Electrical capacitance representing moving mass (Cmes) | 321.24 μF |
| Electrical inductance representing driver compliance (Lces) | 15.88 mH |
| Resistance due to mechanical losses (Res) | 69.62 Ohms |
| Driver resonance frequency (fs) | 70.5 Hz |
| Mechanical mass of driver diaphragm assembly including air load and voice coil (Mms) | 14.559 g |
| Mechanical mass of voice coil and diaphragm without air load (Mmd or Sd) | 12.401 g |
| Mechanical resistance of total-driver losses (Rms) | 0.651 kg/s |
| Mechanical compliance of driver suspension (Cms) | 0.350 mm/N |
| Mechanical stiffness of driver suspension (Kms) | 2.85 N/mm |
| Force factor (Bl product) (Bl) | 6.732 N/A |
| Suspension creep factor (Lambda s) | 0.080 |
| Total Q-factor considering all losses (Qtp) | 0.491 |
| Mechanical Q-factor of driver in free air considering Rms only (Qms) | 9.901 |
| Electrical Q-factor of driver in free air considering Re only (Qes) | 0.516 |
| Total Q-factor considering Re and Rms only (Qts) | 0.610 |
