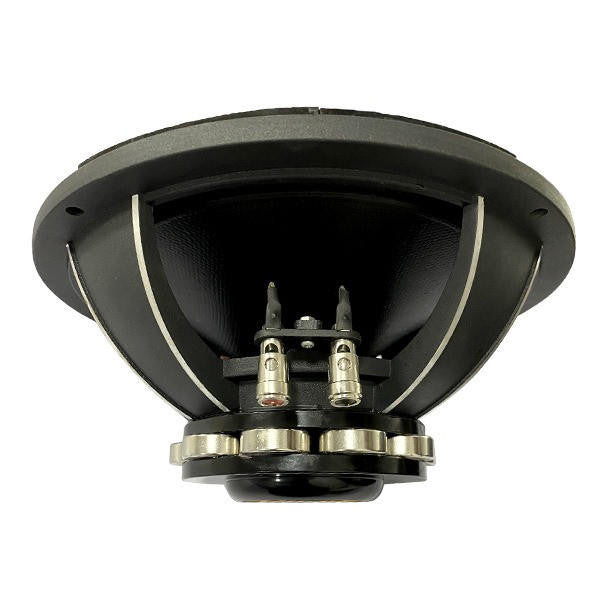

Down4Sound Hexicone NEO Hexipro 100 CS8 All SZN - 10" Carbon Fiber Pro Audio Speaker 400W RMS 8 OHM
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Key Features
- Neodymium Magnet Technology: Lightweight and efficient, the neodymium magnet delivers exceptional sound clarity and dynamic range, enhancing audio performance.
- All-Weather Resilience: Marine-grade construction protects against UV rays, salt, humidity, and harsh weather, making it perfect for outdoor and marine applications.
- Versatile Applications: Designed for use in cars, trucks, SUVs, motorcycles, boats, and off-road vehicles, providing consistent and immersive sound in any setting.
- High Sensitivity: With a sensitivity rating of 98 dB 1W/1M, it ensures loud and clear audio, even in noisy environments.
- Hexicone Carbon Fiber Design: Reinforces the speaker's structural integrity for durability and enhanced sound precision.
- Robust Power Handling: RMS power of 325 - 400W and 8 Ohm impedance ensure powerful and distortion-free sound.
Specifications
- RMS Power: 325 - 400W
- Impedance: 8 Ohm
- Magnet Type: Neodymium
- Sensitivity: 98 dB 1W/1M
- Frequency Range: 49 Hz - 9 kHz
- Cutout Diameter: 9.125 Inch
- Mounting Depth: 4.25 Inch
- Overall Diameter: 10.5 Inch
Additional Technical Parameters
- Re: 6.55 Ohm (Electrical voice coil resistance)
- Le: 0.152 mH (Frequency-independent voice coil inductance)
- L2: 0.800 mH (Para-inductance of voice coil)
- R2: 4.14 Ohm (Resistance due to eddy current losses)
- Cmes: 406.24 µF (Capacitance representing moving mass)
- Lces: 18.02 mH (Inductance representing driver compliance)
- Res: 30.74 Ohm (Mechanical loss resistance)
- fs: 58.8 Hz (Driver resonance frequency)
- Mms: 32.510 g (Mechanical mass of diaphragm assembly)
- Mmd (Sd): 25.016 g (Mass of voice coil and diaphragm without air load)
- Rms: 2.603 kg/s (Mechanical resistance of driver losses)
- Cms: 0.225 mm/N (Compliance of driver suspension)
- Kms: 4.44 N/mm (Stiffness of driver suspension)
- BL: 8.946 N/A (Force factor)
- Qtp: 0.813 (Total Q-factor considering all losses)
- Qms: 4.615 (Mechanical Q-factor)
- Qes: 0.984 (Electrical Q-factor)
- Qts: 0.811 (Total Q-factor with Re and Rms only)
Why Choose the Hexicone NEO HexiPRO 100 CS8 All SZN?
This speaker is designed for audiophiles who demand the best in sound performance and durability. Its innovative neodymium and carbon fiber design ensures crystal-clear audio with unmatched resilience. Whether upgrading your car audio system, equipping your boat, or tackling rugged terrain, this speaker delivers exceptional performance every time.
SOLD INDIVIDUALLY
