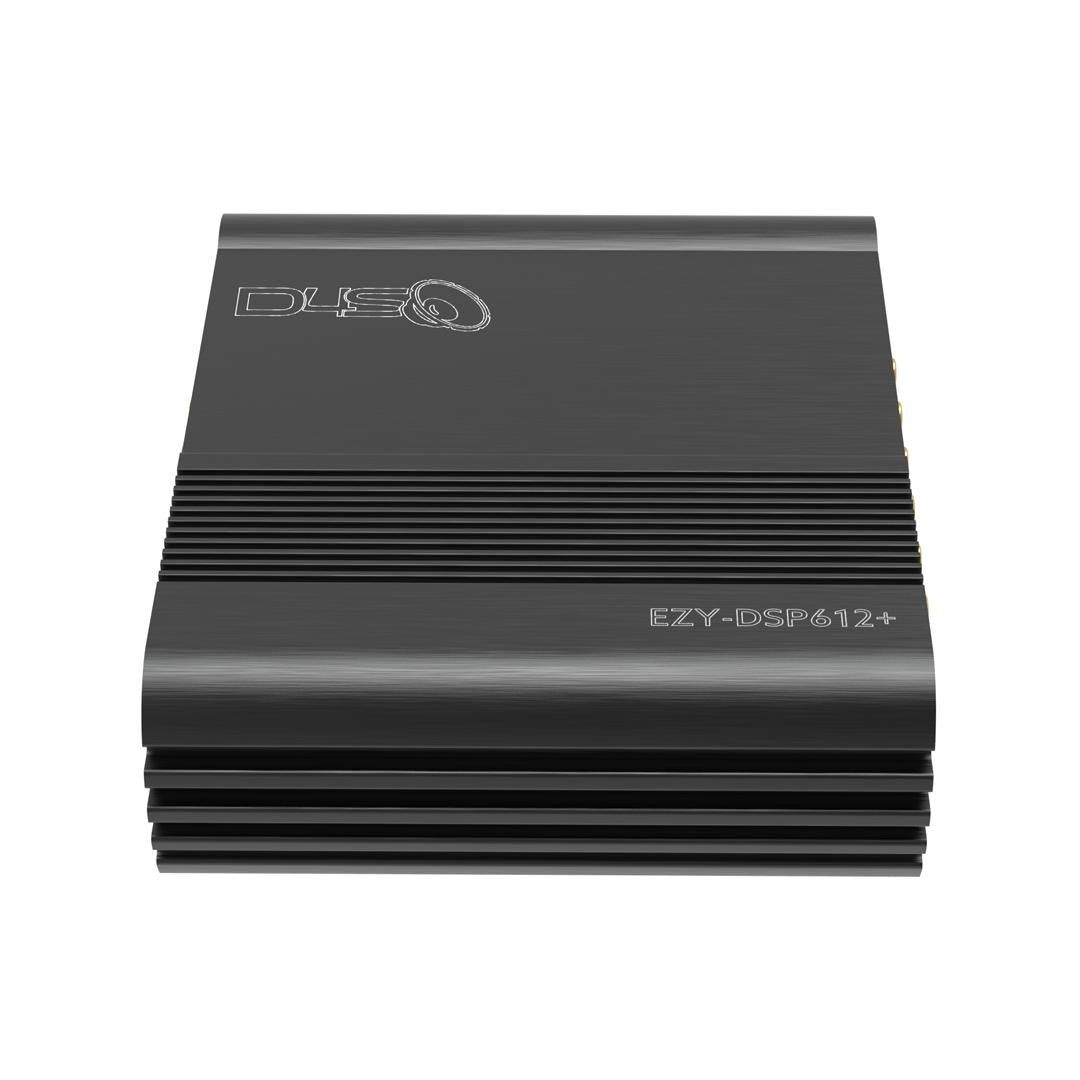

Down4Sound EZY DSP612+ - ALL-IN-ONE HI & Low Level Car Audio DSP 6-IN-12 OUT With APTX-HD Signal Processor
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Take Your Audio System to the Next Level
The EZY DSP612+ delivers advanced tuning, high-definition streaming, and seamless integration into any car audio system. Whether you’re upgrading a factory setup or building a custom system, this DSP provides the ultimate combination of control, flexibility, and precision.
Unmatched Flexibility, Standard in Every Unit
High-Level Inputs
- Designed for factory systems where replacing the radio isn’t an option.
- Effortlessly converts high-level signals into clean digital audio, upgrading your factory system with ease.
- Retain all OEM features while unlocking premium sound quality.
Low-Level RCA Inputs
- Ideal for custom setups with aftermarket radios.
- Delivers a direct, clean signal path to your amplifiers for maximum clarity and performance.
Bluetooth Streaming with APTX-HD
- Stream your music in TRUE high-definition directly from your phone or other Bluetooth devices.
- Built-in APTX-HD Bluetooth technology provides studio-quality wireless audio for a seamless listening experience.
- Forget traditional head units—your smartphone becomes the ultimate control hub for your audio system.
Key Features
Every feature is included as standard to provide maximum flexibility and value:
Inputs
- 6 RCA inputs (high-level or low-level) for seamless integration with any system.
Outputs
- 12 RCA outputs with 4.2Vrms output voltage for precise audio distribution to amplifiers.
Bluetooth Streaming
- Built-in Bluetooth 5.0 with APTX-HD for TRUE HD wireless streaming.
Connectivity Options
- Optical and coaxial inputs for flexible connection to modern audio sources.
Advanced Audio Processing
- 31-band EQ for precise frequency, Q-value, and gain control.
- High/low-pass filters with adjustable slopes for professional tuning.
- Phase adjustment (0° to 360°).
- Delay control up to 20ms (273 inches) for accurate speaker timing.
Custom Presets
- Save and instantly recall up to 6 audio profiles for different setups.
Noise Control
- Features a noise gate, limiter, and minimum source attenuation for crystal-clear audio.
eZy-Controller 1 is sold seperately
EZY DSP App Now Available
Take complete control of your sound system with the EZY DSP App, now available on:
- WINDOWS PC SOFTWARE - REQUIRES USB CONNECTION
Specifications
| Specification | Value |
|---|---|
| Dynamic Range | ≥100dB |
| Signal-to-Noise Ratio | ≥102dB |
| Total Harmonic Distortion | ≤0.05% |
| Frequency Response | 20Hz ~ 20kHz |
| Sampling Rate | 48kHz/24Bit |
| RCA Input Voltage (RMS) | 2.8Vrms |
| RCA Output Voltage (RMS) | 4.2Vrms |
| RCA Input Impedance | 10kΩ |
| RCA Output Impedance | 51Ω |
| Max Input/Output Signal | 12Vpp |
| Working Voltage | DC 9V ~ 16V |
| Operating Temperature | -30°C to 70°C (-22°F to 158°F) |
| Dimensions | 6 in x 5 in x 3 in |
| Weight | 2 lbs |
Why Choose the EZY DSP612+?
-
Ultimate Flexibility
High-level and low-level inputs make it compatible with both factory and aftermarket systems. -
True HD Bluetooth Audio
Stream directly from your phone with APTX-HD Bluetooth 5.0 for studio-level sound quality. -
Crystal-Clear Audio
Dynamic range of ≥100dB and distortion ≤0.05% ensures every detail of your music is heard. -
Comprehensive Tuning Options
Advanced features like a 31-band EQ, phase adjustment, and delay control let you fine-tune your system to perfecti
Order Yours Today!
Whether you’re upgrading a factory system, building a custom setup, or streaming directly from your phone, the EZY DSP612+ gives you unmatched control, flexibility, and sound quality. Experience the Down4Sound difference today!
